Multi-Objective Optimization Models to Design a Responsive Built Environment: A Synthetic Review

by
Mattia Manni
* and
Andrea Nicolini
Department of Engineering, University of Perugia, 06125 Perugia, Italy
*
Author to whom correspondence should be addressed.
Energies 2022, 15(2), 486; https://doi.org/10.3390/en15020486
Submission received: 22 November 2021 / Revised: 29 December 2021 / Accepted: 5 January 2022 / Published: 11 January 2022
(This article belongs to the Special Issue Life Cycle Thinking for a Sustainable Built Environment)
Browse Figures
Versions Notes

Abstract

:
A synthetic review of the application of multi-objective optimization models to the design of climate-responsive buildings and neighbourhoods is carried out. The review focused on the software utilized during both simulation and optimization stages, as well as on the objective functions and the design variables. The hereby work aims at identifying knowledge gaps and future trends in the research field of automation in the design of buildings. Around 140 scientific journal articles, published between 2014 and 2021, were selected from Scopus and Web of Science databases. A three-step selection process was applied to refine the search terms and to discard works investigating mechanical, structural, and seismic topics. Meta-analysis of the results highlighted that multi-objective optimization models are widely exploited for (i) enhancing building’s energy efficiency, (ii) improving thermal and (iii) visual comfort, minimizing (iv) life-cycle costs, and (v) emissions. Reviewed workflows demonstrated to be suitable for exploring different design alternatives for building envelope, systems layout, and occupancy patterns. Nonetheless, there are still some aspects that need to be further enhanced to fully enable their potential such as the ability to operate at multiple temporal and spatial scales and the possibility of exploring strategies based on sector coupling to improve a building’s energy efficiency.

1. Introduction

Construction of buildings and infrastructure is a significant contributor to global warming, due to the high involvement of machineries, land use change, and material consumption. More than six tenths of the global energy consumption and around four tenths of greenhouse gases (GHG) emissions can be attributed to the building sector [1]. Following this, several countries such as Japan, Norway, and Sweden have adopted zero-energy building (ZEB) goals and policies, whereas many others such as Morocco, Germany, and Italy have established thermal regulations for buildings that identify minimum energy performance levels for new constructions [2]. Within this framework, the building energy efficiency topic has aroused the interest of several researchers around the world. Strategies to improve the energy performance of buildings have been proposed which apply passive (i.e., building shape and orientation, envelope properties, natural ventilation) or active systems and technologies (i.e., heating, ventilation and air conditioning system, photovoltaic systems). However, building performance covers many targets in addition to energy efficiency such as indoor visual and thermal comfort, and environmental and economic sustainability. When improving building performance, these aspects can conflict with each other [3] and it is necessary to seek a balance among them. Exploring all the alternatives to find an efficient design is a time-consuming task; therefore, many authors developed simulation-based optimization workflows which couple building performance simulation (BPS) tools with optimization algorithms [4]. Since multiple variables and objectives occur in complex optimization problems such as the integrated building design, non-gradient-based algorithms such as genetic algorithms (GAs) are exploited to solve these discontinuous objective functions [5]. Such multi-objective optimization (MOO) models are mostly applied during the early stage of the design process when even the less accurate analysis (building components and materials properties are not defined in detail at this stage) can have a significant impact.
Building performance optimization (BPO) can be considered as a MOO problem and the solution consists of the trade-off between the different identified objectives. However, when it comes to mutually conflicting objectives, a set of non-dominated solutions results, which constitute the Pareto front. The Pareto front grouped the optimal Pareto solutions, and it is n-dimensional, where n is the number of objective functions evaluated. Evolutionary optimization algorithms such as multi-objective particle-swarm optimization (MOPSO), strength Pareto evolutionary algorithm (SPEA2), and non-sorting genetic algorithm (NSGA-II) are widely used to solve multi-objective problems. In particular, the NSGA-II turned out to be the most appreciated when it comes to BPO due to its efficient sorting of non-dominated solutions which ease the convergence, and also its capability of well distributing Pareto-optimal solutions along the Pareto front [6,7].
Despite the proven advantages of using GAs, the optimization process tends to be difficult when BPS requires a lot of time (a large building or too many objective functions are considered). To overcome this issue, metamodels were introduced to predict building performance, after being appositely trained, with a lower computational time [8]. Metamodels consist of, literally, a model of a model which permits studying correlations between inputs and outputs observed in a more complex model [9]. When applied to BPS, the artificial neural network (ANN) metamodels are trained on the basis of a representative sample of results from building performance analyses (outputs) for various sets of design variables (inputs). Then, ANN metamodels are generally coupled to GAs in order to conduct BPO.
The integrated building design has been widely investigated over the last decades. The introduction of metamodels enabled solving more complex MOO problems characterized by numerous objective functions or large building case studies, with a relatively low computational time [10,11]. Within this framework, the present work aims at reviewing the state of the art concerning MOO models applied to the integrated building design for identifying knowledge gaps and future trends in this research field. The review study focuses on (i) exploited optimization tools and the respective programming languages, (ii) objective functions and their combinations, (iii) explored design variables, and (iv) the capability of evaluating long-term impacts. Outcomes will provide a background for future research works dealing with BPO by contributing to the definition of the most effective MOO workflow to be followed.
The paper is arranged into four sections: an introductive section (Section 1), which provides the background about the topic of this synthetic review; the Method (Section 2), in which the methodology followed is outlined; the Results and discussion (Section 3) which is divided into three Sections about the general description of the selected journal articles (Section 3.1), reviewed MOO models (Section 3.2), and identified knowledge gaps and future trends (Section 3.3); the conclusive section (Section 4), where the main achievements are reported in brief.

2. Method

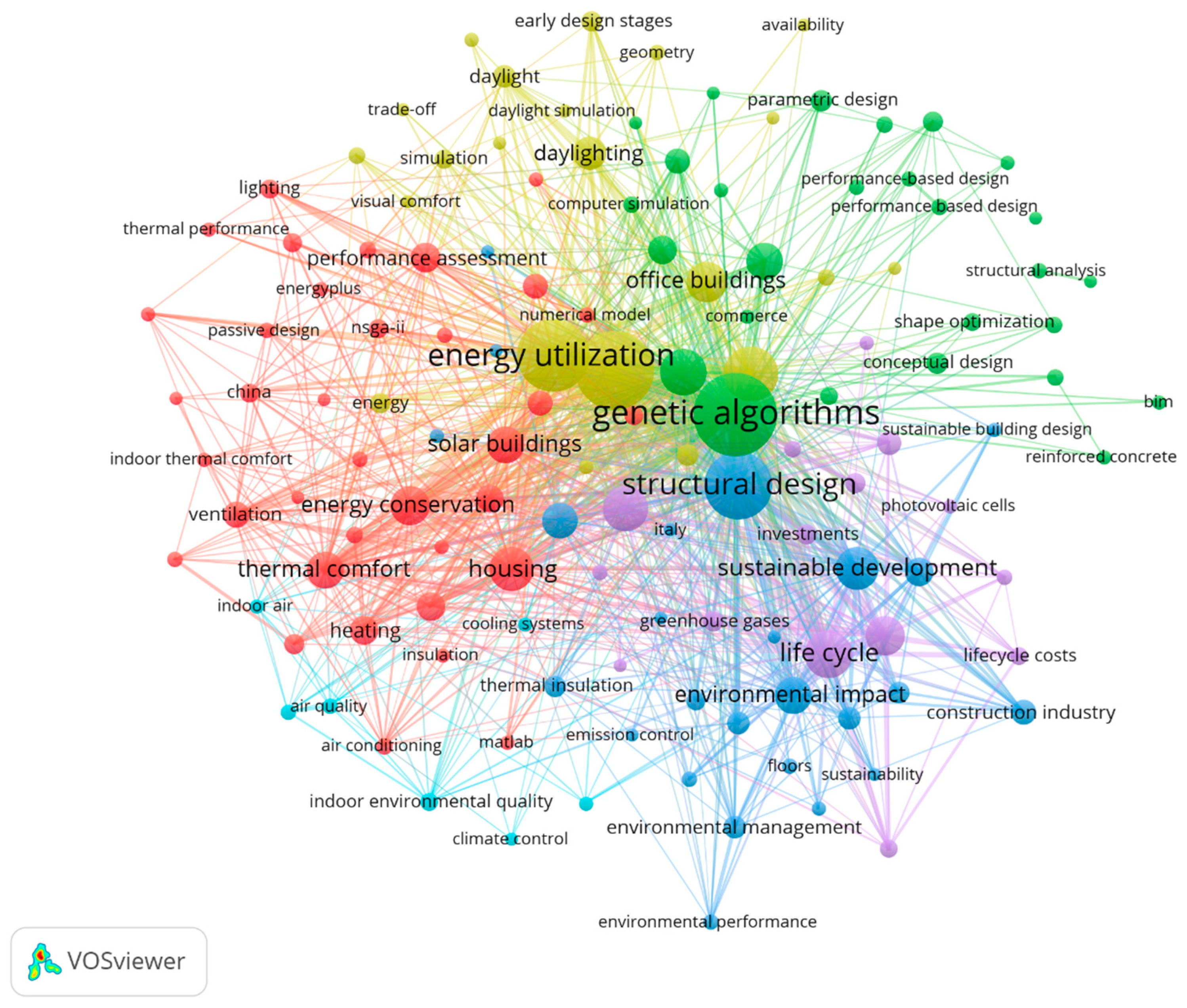

A synthetic review was conducted to investigate the applications of MOO models to integrated building design. Scientific journal articles that focused on the optimization of building and neighbourhoods’ performances (i.e., energy and environmental impact, thermal and visual comfort, solar accessibility) were reviewed. Two databases were considered as the sources to find these journal articles: Scopus and Web of Science (WoS). These were chosen as they return literature from highly reliable sources with wide geographic coverage. Identical search terms were used in both the databases, whereas the research to acquire relevant journal articles was conducted in three steps. Initially, the “building”, “multiobjective” and “optim*” terms were searched in titles, abstracts, and keywords from papers collected in the two databases (step one). The Boolean Operator “and” was used to connect the search fields in all databases to ensure consistency of searches. The chosen search terms were found in around 2690 and 4180 journal articles in Scopus and WoS, respectively. The order of the terms within a search field was found to not alter the returned literature: for example, “building multiobjective optimization” and “multiobjective optimization building” returned the same publications. However, this search was deemed ineffective as it returned a wide range of literature with topics not pertaining to the exploitation of MOO models in the integrated building design. To narrow the results, the terms “design” and “architectur*” were used together with “building”, “multiobjective”, and “optimiz*” to acquire a focused set of literature for reviewing (step two). Search terms were refined with the help of the VOS Visualizer tool with the aim of providing a view of how MOO models are used throughout the building design process with an emphasis on architectural applications. Indeed, this machine learning-based tool ranks the words in the titles, abstracts, and authors’ keywords of the collected scientific journal articles and then applies clustering models to classify the most used words in groups (Figure 1). The consequent density visualization provided a quick overview of the main areas in the bibliometric network highlighting the presence of journal articles about optimization of mechanical components of systems and plants (i.e., turbines, engines, compressors). To further narrow the results, the typology of the scientific journal articles to be included in the present review was defined as “article”, thus excluding conference proceedings, books, and other review studies (step three).
The term “multiobjective” was chosen to capture the optimization studies which handle more than one objective function in their approaches. The use of “building design” returned more specific literature when compared with the results from the “building” search term, thus the former was used for this study. The “optim*” search term was chosen to capture “optimization”, “optimized”, and “optimizing” in relevant articles. The review includes articles published and available online between 2014 and the end of 2021. The search returned 367 unique journal articles, which went through a further screening process. The abstracts of all downloaded papers were reviewed to assess whether the papers had a “structural and seismic”, “energy and comfort”, “environment and economy” or “other” focus. Papers classified as “structural and seismic” discussed the optimization of structural properties and seismic resistance of buildings; “energy and comfort” focused on minimizing energy demand while enhancing visual and thermal comfort; “environment and economy” focused on life-cycle analyses concerning building’s carbon intensity and costs; and “other” did not focus on the built environment or had a scope not relevant to the other categories such as systems and plant sizing. Following the screening process, 141 journal articles that were classified with “energy and comfort” and “environment and economy” focuses were reviewed in detail.

3. Results and Discussion

3.1. General Description of the Selected Journal Articles

A tabular review is reported in the Appendix A section (Table A1) in which the year of publication, the case study location, the investigated building typology, the objective functions, the temporal horizon of the impact assessment, the exploited simulation engine, the applied optimization method, and the optimization variables are reported for each reviewed journal article.

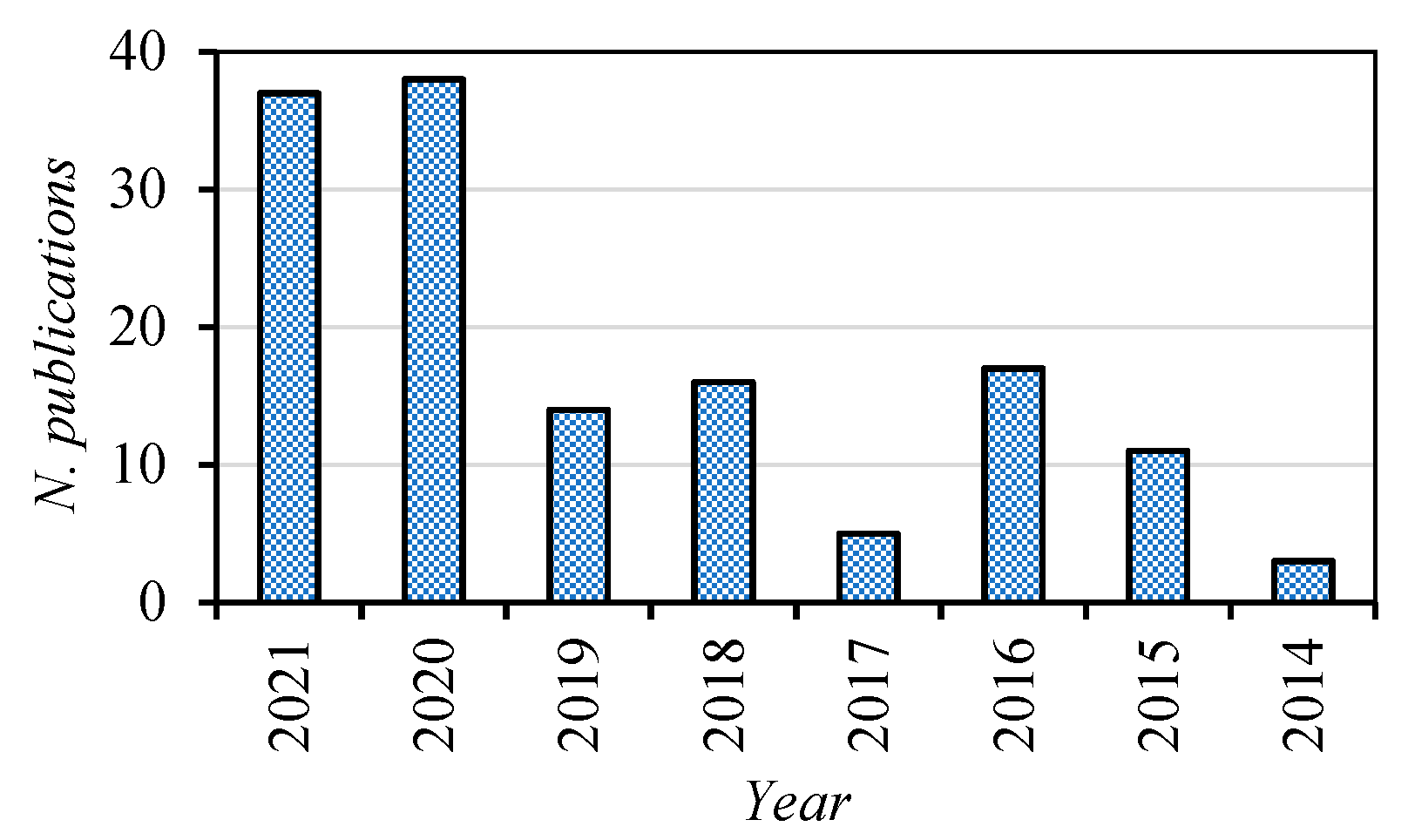

The temporal distribution of the reviewed research studies is reported in Figure 2. The number of published journal articles concerning the application of MOO model to integrated building design was increased by ten times over the last seven years, from 3 journal articles in 2014 to 37 journal articles in 2021.

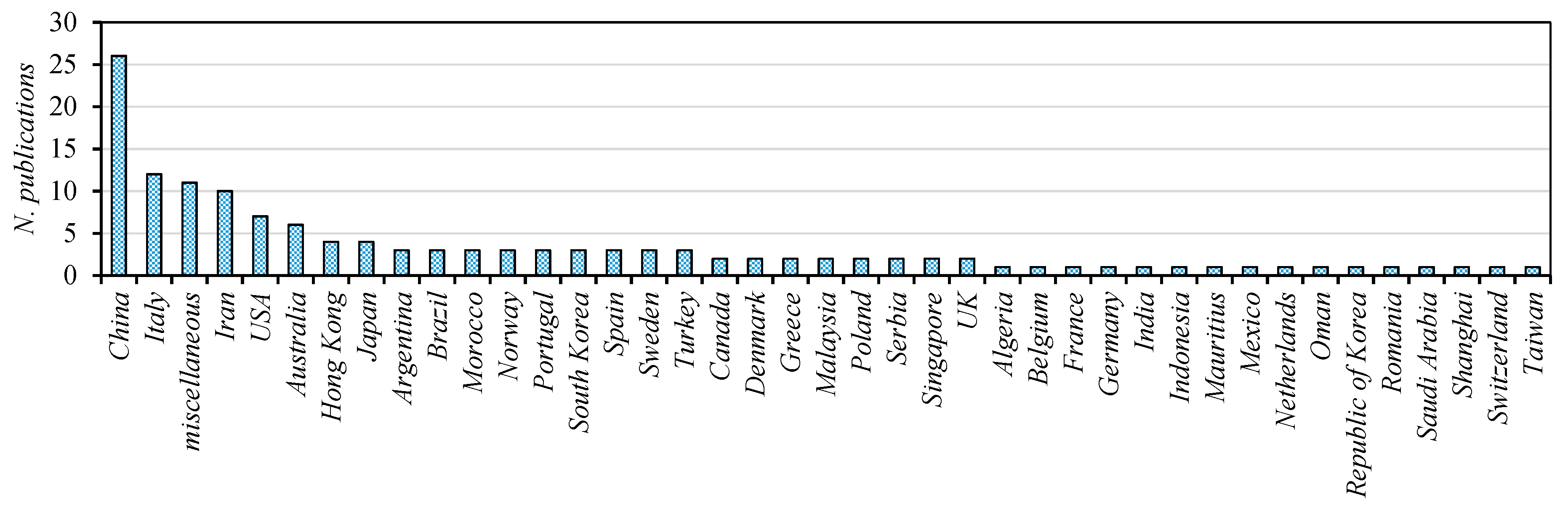

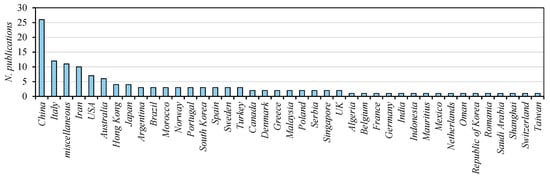

Most of the investigated case studies were located in China (26), Italy (12), and Iran (10) (Figure 3). Alongside these, up to 11 journal articles evaluated the effectiveness of the proposed MOO models at various latitudes through comparative analyses (“miscellaneous” category). Less than 10 publications were found for the other locations.

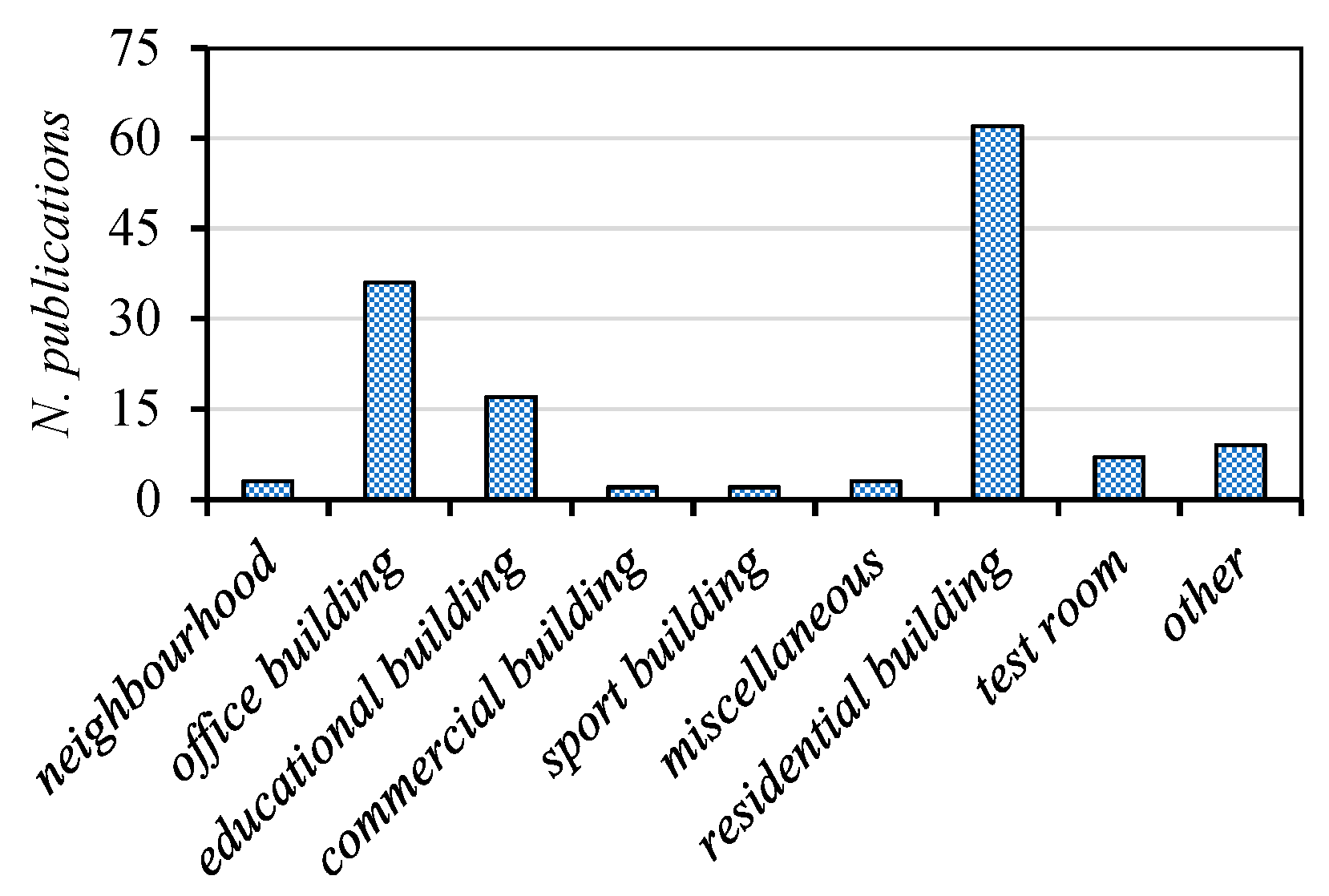

In the reviewed journal articles, the MOO models were exploited to BPO at various scales ranging from the neighborhood scale (3) to the test room scale (7) (Figure 4). However, such workflows were mainly applied to design highly effective configurations of residential (62), office (36), and educational buildings (17). Fewer studies focus on commercial (2), sport (2), and miscellaneous buildings (3), whereas up to nine publications dealt with other building typologies such as tourist centers and community spaces.
Implemented GAs were mostly used for solving optimization problems with two (92) and three objective functions (43). Only six publications proposed the simultaneous optimization of more than four variables. Enhancing building’s energy performance levels (EN category in Figure 5) was included among the research goals of more than one hundred studies (115), whereas guaranteeing adequate thermal and visual comfort conditions (THERM and DAYL categories in Figure 5) was searched by authors of 73 and 57 journal articles, respectively (Figure 5). Finally, up to 53 studies aimed at minimizing life-cycle costs and other economical parameters (LCC category in Figure 5), whereas only 25 studies evaluated life-cycle emissions (LCA category in Figure 5).

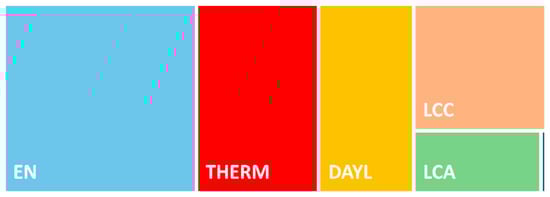

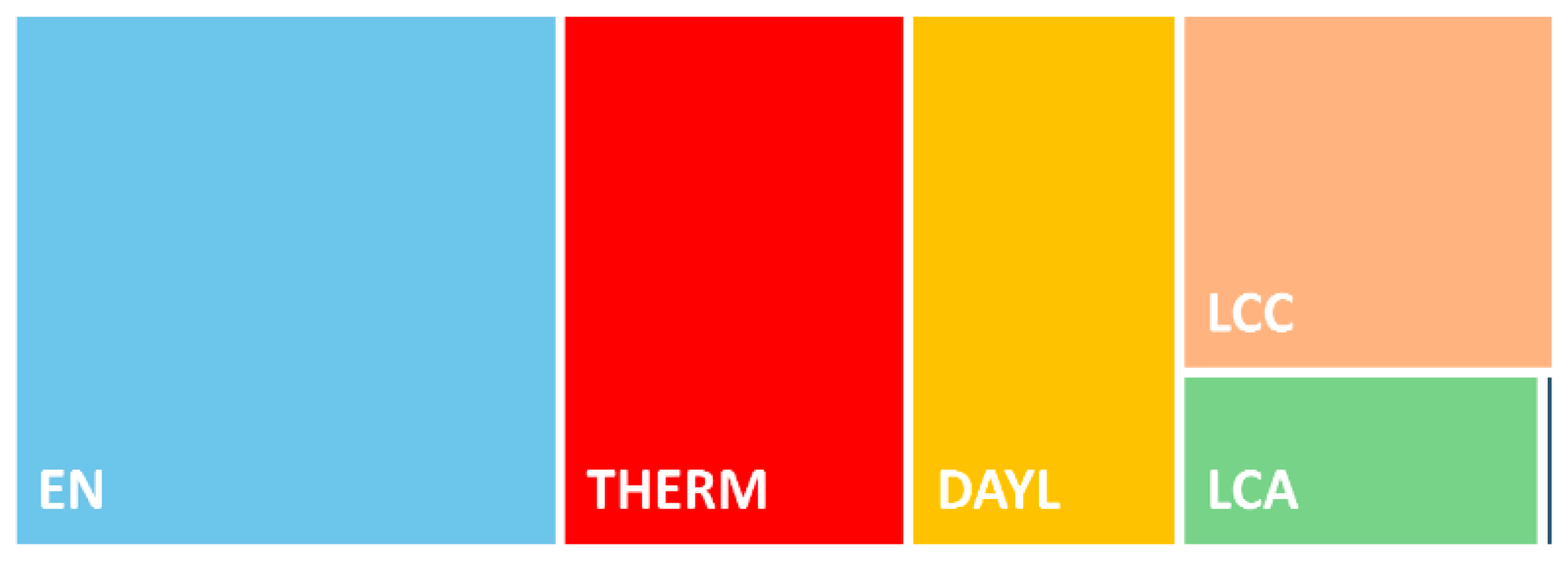

The analysis of the possible combinations of two objective functions (Table 1) highlighted that the minimization of energy consumption was carried out along with thermal comfort optimization in 60 studies, and with visual comfort optimization in 45 studies. Furthermore, energy-related objective functions were solved together with life-cycle cost minimization in 37 studies.

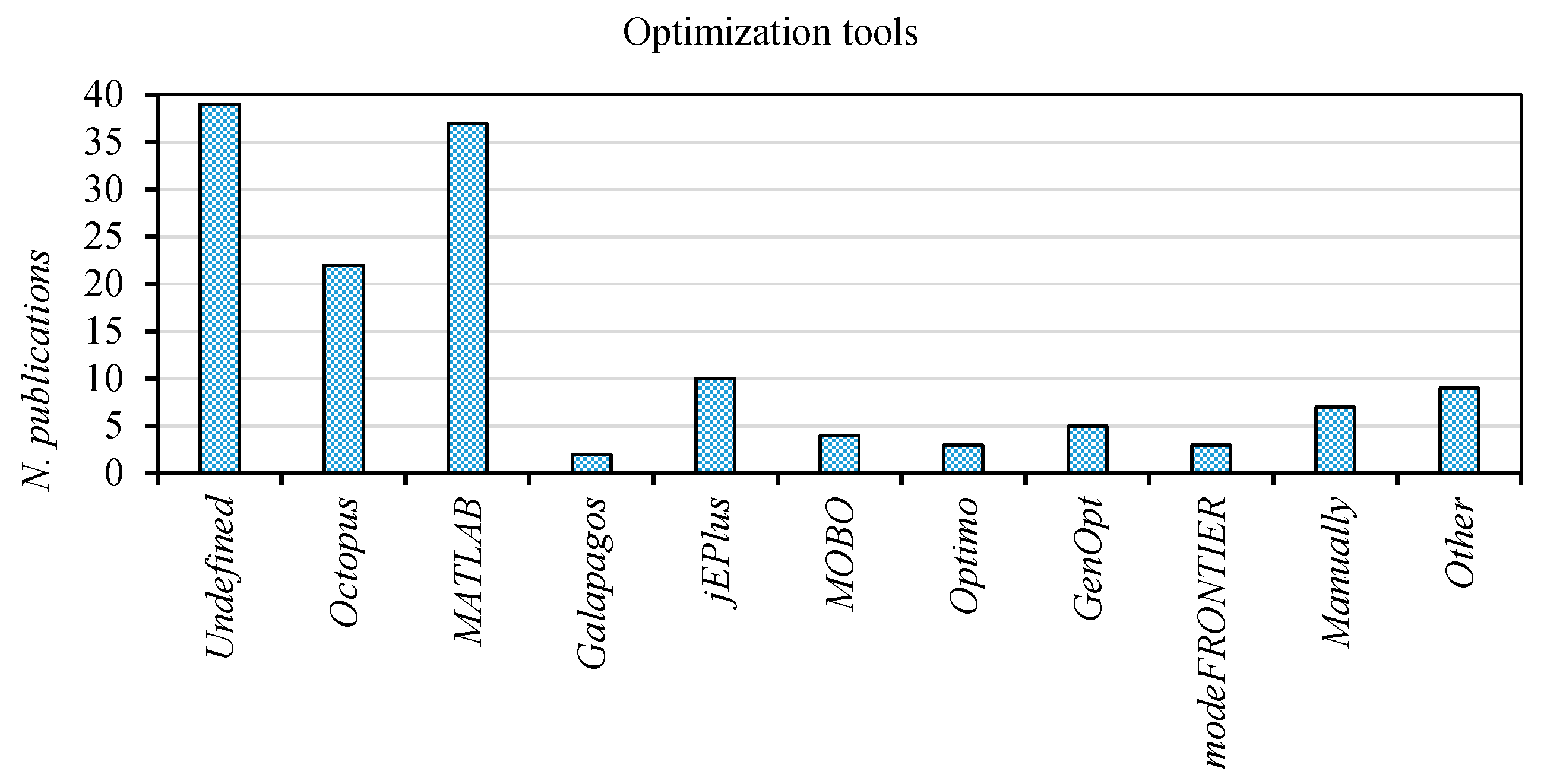

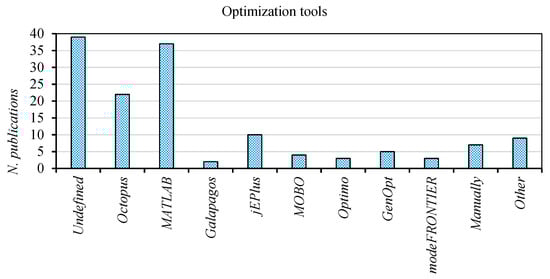

To solve the aforementioned objective functions, the main simulation engines which were found to be used in BPS are TRNSYS and EnergyPlus for thermal and energy analyses, and Radiance for daylight and solar radiation assessment. These were utilized through different tools such as DIVA, Ladybug and Honeybee for Grasshopper, DesignBuilder, and Autodesk REVIT. Moreover, life-cycle cost (LCC) analyses were conducted through numerical models implemented in Visual Basic for Applications (VBA) and MATLAB environment, whereas life-cycle assessment (LCA) was mainly performed by SimaPro software.

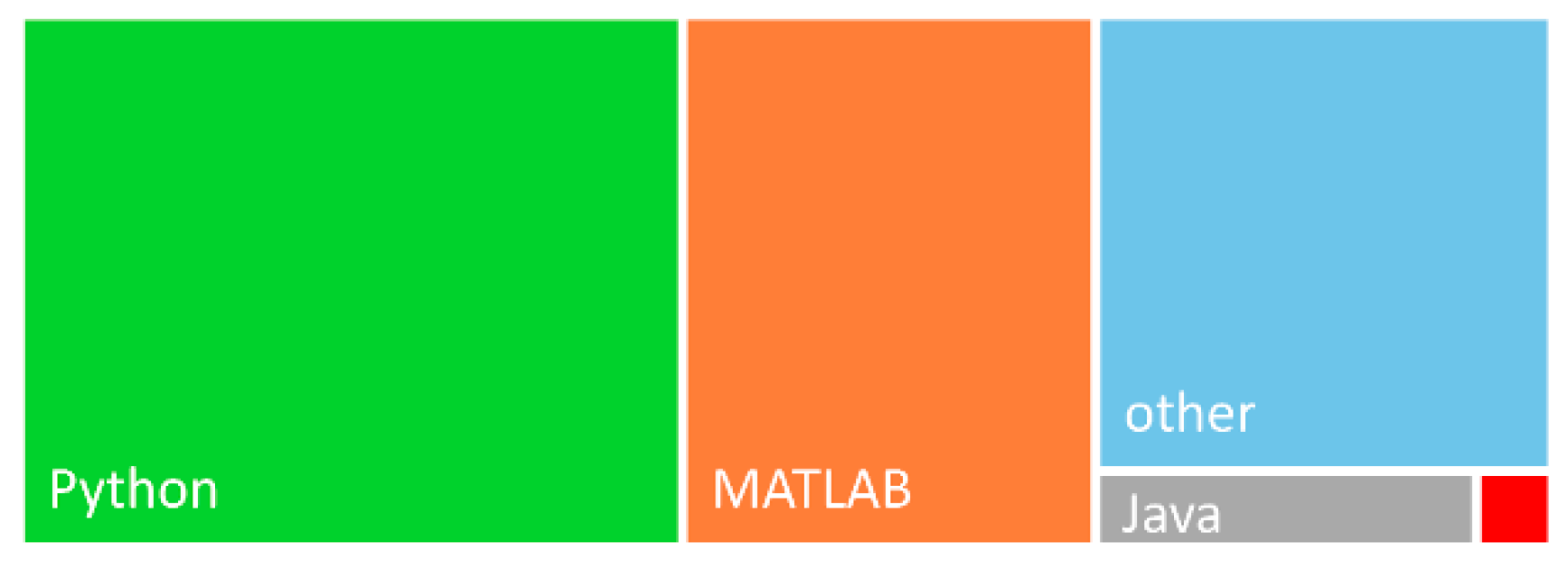

Python, MATLAB, and Java were the most utilized programming languages to develop optimization algorithms (Figure 6). Python-based tools such as Opossum, Galapagos, Colibrì, and Octopus were utilized within the Grasshopper environment. Similarly, jEPlus and Optimo (both programmed in Python) were coupled to EnergyPlus and Dynamo, respectively. MATLAB was exploited to perform optimization analyses together with TRNSYS, ANSYS, and EnergyPlus software, in 38 studies. Finally, GenOpt tool from Java was integrated with TRNSYS and EnergyPlus in 5 studies. Despite the programming language, the NSGA-II was the GA applied by almost all of the authors.
Almost the totality of the reviewed studies performed multi-objective optimization analyses over short-term temporal horizons. It is worth highlighting that the authors of three studies carried out BPS analyses throughout the building’s life cycle, thus taking into account both current and future climate scenarios.
When it comes to the optimization variables, the reviewed MOO models were capable of exploring different design solutions or strategies for the building’s orientation (40), window-to-wall ratio (WWR) (71), window typologies (84), building’s shape (21), insulation properties of the building envelope (86), infiltration rate (18), heating system layout (34), shading devices (40), exploitation of natural ventilation (20), exploitation of renewable energy sources (RESs) (19), lighting appliances (10), and occupancy pattern (8) (Table 2). Most of the studies optimized from one to five independent variables (125), whereas only 16 studies were handling more than five variables. In particular, geometrical and physical properties of the building envelope such as orientation, shape, the extension of the glazed surface, shading solutions, and thermal insulation level of both opaque and transparent components were optimized together. Among these, the window typology was generally optimized along with the insulation properties of the outer walls/rooftop (68) or the WWR (57), whereas the WWR was mostly optimized together with the envelope insulation (52).

3.2. Multi-Objective Optimization Workflows

3.2.1. Python-Based Workflows

Python programming language was found to be the most utilized in the reviewed journal articles. Python libraries such as Numpy and Pandas exist, which enable solving MOO problems [12]. Moreover, some Python-based optimization tools can be easily coupled to simulation engines such as Radiance and EnergyPlus. Numerous studies included Octopus [13,14,15] and other optimization tools from Grasshopper such as Galapagos [16,17] and Colibrì [3,18] into their workflows (Figure 7). Zhuang et al. [19] proposed a performance-integrated BIM framework for building life-cycle energy efficiency and carbon optimization (Table 3). Ladybug and Honeybee were coupled to Octopus to improve indoor environmental quality and reduce LCCs of an education building case study. Similar approaches were followed by Zani et al. [20] for designing an educational building in Italy, by Lobaccaro et al. [21] for achieving the zero-emission target in a residential building in Norway, and by Pilechiha et al. [22] for exploring highly energy effective configurations of an office building in Iran (Table 3). Through its plug-ins, Grasshopper allowed for investigating different aspects of buildings, thus enabling a high number of objective functions. For instance, the GA from Negendahl and Nielsen [23] was capable to handle up to four objective functions: building energy use, capital cost, daylight distribution, and thermal indoor environment.
Several research studies developed Python-based algorithms linking EnergyPlus and TRNSYS simulation tools with jEPlus and Multi-Objective Building Optimization (MOBO) plug-ins, respectively [24,25,26]. In particular, Pajek and Košir [26] aimed at outlining the implications of passive design measures on the energy use of single-family residential buildings under European representative climates. Results demonstrated that it is difficult to neutralise the projected climate change effects on buildings’ energy use, even when applying the best performing combination of passive design measures. In the findings of Abdou et al. [2], the MOBO tool was applied to the exploration of design alternatives for retrofitting of an existing residential building, with the overall goal of meeting the zero-energy balance. The workflow permitted us to achieve significant energy savings in different Moroccan regions.
Finally, the Optimo tool was utilized within the Dynamo environment to perform optimizations about energy demand, thermal and visual comfort, and solar accessibility [27,28,29]. Such workflows, which showed a lower number of variables if compared with the others, were mainly exploited to identify high effective configurations of a building’s envelope.

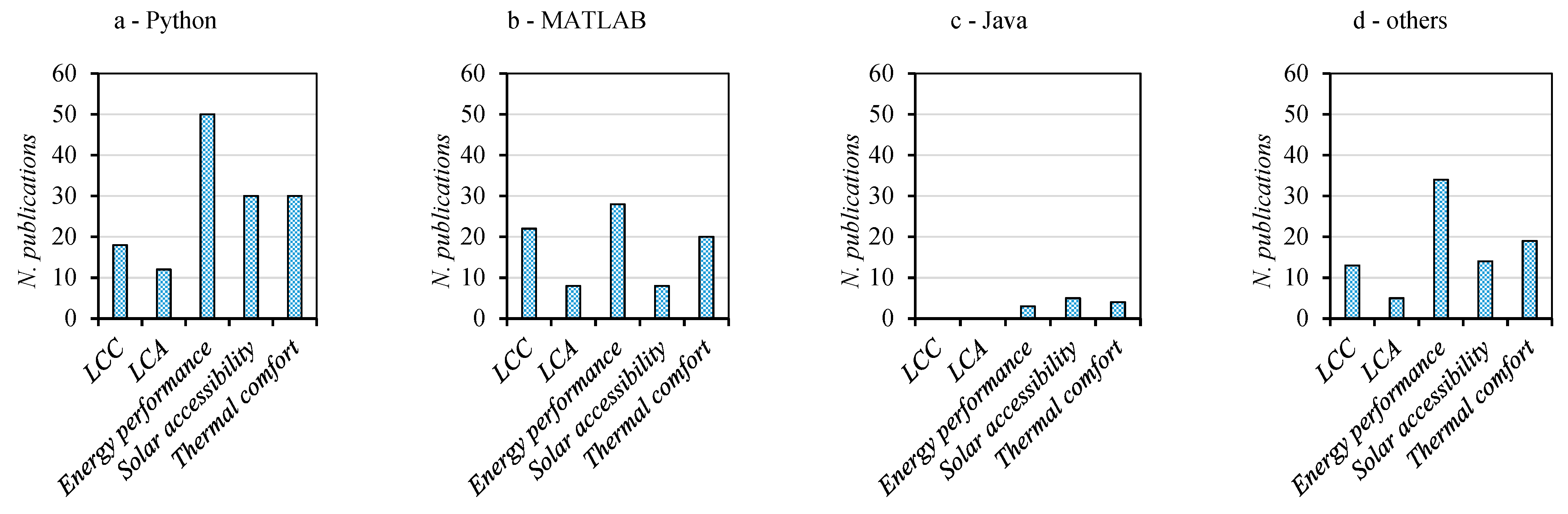

As reported in Figure 8a, up to 50 publications describe MOO models capable of optimizing the building energy performance, whereas only 18 and 12 publications minimize life-cycle costs and emissions, respectively. Alongside these, solar accessibility (30) and thermal comfort (30) were included among the objective functions of 60 publications.
Table
Table 3. Tabular review of journal articles about Python-based MOO workflows.
Table 3. Tabular review of journal articles about Python-based MOO workflows.
Ref.YearOptimized ParametersLong-Term EvaluationOptimization Tool (Optimization Method)Parameters
LCCLCAEnergy PerformanceSolar AccessibilityThermal ComfortOrientationWWRWindows TypologyBuilding DimensionsEnvelope PropertiesInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy PatternOther
[27]2015 xx NOptimo xx
[23]2015x xx NOctopus x
[24]2016xxx NjEPlus x
[20]2017 x NOctopus x
[17]2017x x NGalapagos x x x
[25]2018x x NMOBO tool xx x
[21]2018 x x NOctopusxx xx
[16]2020 x NGalapagos xx xx
[15]2020 xx NOctopus x
[29]2020 xx NOptimo xx
[28]2020 xx NOptimo x
[22]2020 xx NOctopus x x
[2]2021x x NMOBOxxx xx
[12]2021xxx NPython x x
[26]2021 x YjEPlus xxxx x
[18]2021 xx NColibrì, Octopus xx
[19]2021x x NOctopus x x
[3]2021 xx NColibrixxxxx x
[14]2021 xx NOctopus x
[13]2021 xx NOctopus xx x

3.2.2. MATLAB-Based Workflows

Around 40 research studies presented workflows based on MATLAB. These were using MATLAB’s functions such as gamultiobj to identify the Pareto front (Figure 7). EnergyPlus, TRNSYS, and DAYSIM were the most exploited simulation engines to perform energy and solar analysis as well as to evaluate thermal and visual comfort conditions [30,31,32]. Alongside these, SimaPro software was also integrated into the MOO model developed by Islam et al. [33] to minimize life-cycle emissions and costs.
In particular, Yong et al. [34] proposed a multi-objective particle swarm algorithm coupled to EnergyPlus to optimize the energy performance of residential buildings (Table 4). Similarly, Ghaderian and Veysi [35] developed an optimization procedure based on combining surrogate models linked to EnergyPlus engine with a GA. This was applied to the enhancement of the building’s energy consumption and its occupants’ thermal comfort, simultaneously. Pareto’s multi-objective approach is applied by Ascione et al. [36] to a neighbourhood case study with the aim of achieving the ZEB standard while ensuring cost-effectiveness.
The MOO models implemented in the MATLAB environment were demonstrated to be suitable for handling a higher number of objective functions. Indeed, three out of the six reviewed journal articles which describe optimization processes involving more than three objective functions were implemented in the MATLAB environment [37,38,39]. Such workflows enable minimizing investment costs and carbon footprint while enhancing thermal comfort level. Moreover, the approaches proposed by Ascione et al. [38] and Chang et al. [39] also improve energy efficiency, whereas the one presented by Karatas and El-Rayes [37] permitted them to efficiently exploit daylight (Table 4).
The MATLAB programming language was also utilized for conducting BPS. The numerical model implemented by Lin et al. [40] allowed of solving a cluster of thermodynamic equations about energy performance and thermal comfort, whereas the numerical model proposed by Ferreira et al. [41] focused on LCC and LCA analyses.
Finally, the three objective functions which were most investigated in MATLAB-based MOO workflows were the energy performance (28), the LCC (22), and the thermal comfort (20) (Figure 8b). In addition to these, only 16 publications evaluated life-cycle emissions (8) and solar accessibility (8) in combination with other objective functions.
Table
Table 4. Tabular review of journal articles about MATLAB-based MOO workflows.
Table 4. Tabular review of journal articles about MATLAB-based MOO workflows.
Ref.YearOptimized ParametersLong-Term EvaluationOptimization Tool (Optimization Method)Parameters
LCCLCAEnergy PerformanceSolar AccessibilityThermal ComfortOrientationWWRWindows TypologyBuilding DimensionsEnvelope PropertiesInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy PatternOther
[37]2015xx x NMATLAB xx x x xx
[33]2015xx NLINDO x x
[30]2016x x NMATLAB x x
[31]2017x x NMATLAB x x x
[38]2018xxx NMATLAB x x x
[36]2020x xx NMATLAB x x x
[34]2020 xx NMATLABxxx x x x
[39]2020xxx NMATLAB x x x
[41]2020x x NMATLAB x x
[32]2020 xx NMATLAB x
[35]2021 x NMATLAB xxx x
[40]2021xx NMATLAB xx x xx

3.2.3. Java-Based Workflows

The core of the reviewed Java-based MOO models was represented by the GenOpt tool from the Java GAs package (Figure 7). Such a tool was utilized in five research studies in combination with EnergyPlus, Radiance, and TRNSYS simulation engines [42,43,44]. Objective functions concern the building’s energy demand and solar accessibility, and also thermal comfort and daylight exploitation (Table 5). When it comes to the optimization variables, these workflows explored different envelope configurations by varying WWR, windows’ typology, thermal insulation of building envelope, and shading systems.
Carlucci et al. [7] implemented a procedure to support the design of a nearly zero-energy house in order to minimize thermal and visual discomfort. The non-dominated sorting genetic algorithm, implemented in the GenOpt optimization engine, was used to instruct the EnergyPlus simulation engine. Similarly, the approach proposed by Ameur et al. [43] aimed at optimizing building thermal and lighting energy performance by coupling EnergyPlus and GenOpt tools.
Figure 8c shows that Java-based MOO workflows were not applied to the optimization of life-cycle costs and emissions. On the contrary, solar accessibility, thermal comfort, and energy performance were investigated in 3, 4, and 5 publications.

3.2.4. Other Workflows

In this section, all the MOO models which were developed in an unspecified environment or in an environment different from Python, MATLAB, and Java are reported.
The building performance optimization procedures carried out by Si et al. [45] and Giouri et al. [46] were based on ModeFRONTIER software (Figure 7 and Table 6) and they aim to implement integrated decision-making strategies to design high performing buildings. However, Si et al. [45] also exploited a surrogate model developed by an ANN metamodel to reduce the computing time.
A multi-criteria analysis of monocrystalline PV panels mounted on typical south-facing shading devices of office buildings in the Mediterranean region was performed through Visual PROMETHEE software by Stamatakis et al. [47]. A series of objective functions which include PV panels’ energy production, buildings’ energy efficiency, and users’ visual comfort were taken into account in this research study (Table 6).
When it comes to new methodologies, a multi-objective performance analysis (MOPA) model for early design of cost-optimal zero-energy lightweight construction was developed by Amer et al. [48]. Similarly to other MOO models, the MOPA workflow follows three consecutive steps such as modelling setup, BPS, and outcomes evaluation and selection. Alongside this, a VBA-based tool was implemented by Bayoumi and Fink [49] which enables design exploration of building façades for enhancing energy saving and energy generation. Such a tool was also capable of investigating the correlation between thermal and visual comforts.
Several journal articles described optimization procedures that were performed manually [50,51,52,53,54,55] (Figure 7). These studies mostly propose workflows to select the best among different pre-determined design alternatives through a comparative process. Design alternatives were not generated through GAs but implemented manually, thus reducing the results’ reliability. Carriço de Lima Montenegro Duarte et al. [55] followed a similar approach when designing windows and shading devices in an educational building in Brazil with the aim of minimizing energy demand while improving visual and thermal comfort. Conversely, a multi-criteria methodology for optimization of residential buildings which is based on sensitive analysis was presented in Croitoru et al. [56]. This work described a parametric study regarding the impact on energy consumption with different factors and the weighing associated.
Finally, Figure 8d highlights that the energy performance was the most investigated objective function (34), followed by thermal comfort (19), solar accessibility (14), and life-cycle costs (13).
Table
Table 6. Tabular review of journal articles about MOO workflows developed in an unspecified environment or in an environment different from Python, MATLAB, and Java.
Table 6. Tabular review of journal articles about MOO workflows developed in an unspecified environment or in an environment different from Python, MATLAB, and Java.
Ref.YearOptimized ParametersLong-Term EvaluationOptimization Tool (Optimization Method)Parameters
LCCLCAEnergy PerformanceSolar AccessibilityThermal ComfortOrientationWWRWindows TypologyBuilding DimensionsEnvelope PropertiesInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy PatternOther
[49]2014 xx NMS Excel xx x
[50]2015 xx NManually x
[56]2016 x NManuallyx x x
[47]2016 xx NVisual PROMETHEE x x
[51]2016 xx NManually xx
[52]2016 xx NManuallyxx x
[45]2019 x NmodeFRONTIER x x x
[53]2020 x NManually x
[48]2020x x NMOPA x x x
[54]2020 xx NManuallyx x
[46]2020 x NmodeFRONTIER xx xxx x
[55]2021 xx NManually xx xx

3.3. Knowledge Gaps and Future Trends

The review process of journal articles concerning MOO models for integrated building design permitted us to identify the knowledge gaps which are described in the following paragraphs. Firstly, almost the totality of the journal articles avoided taking into account climate change effects in their MOO models. Statistical weather files, which are based on mean values of climate variables calculated over the past 15 years, or monitored data were used by leading to biased optimization outcomes. Such a bias was more evident when the whole building life cycle was considered. In fact, the building lifetime is generally considered to be as high as 60 years, and climate parameters such as the near-surface air temperature and the radiative forcing are expected to change within this time interval. Therefore, the effectiveness of optimized strategies and technologies for cooling might be reduced throughout the building’s lifetime. Several research studies such as the ones carried out by Allouhi [57] and Zou et al. [58] started filling such a knowledge gap by proposing temporal dynamic optimization procedures which integrate BPO with medium- and long-term impact assessment of climate change effects.
Secondly, the reviewed workflows were found to perform optimization at a single scale such as neighbourhood, building, and room scale without linking them. A multi-scale approach is necessary to consider inter-building effects and mutual influences between the indoor and the outdoor environment. For example, the application of a highly reflective coating on a building façade for passively cooling the indoor environment may also lead to an increase in the solar radiation impinging on near urban surfaces (i.e., buildings envelopes, street surface, pedestrian areas) by worsening the thermal stress of pedestrians. Therefore, it is necessary to establish MOO models operating at multiple spatial scales which enable solving objective functions concerning different environments (i.e., the room and the whole building, the building and the street environment, the building and the neighbourhood) at the same time.
Thirdly, coupling different building typologies such as office, commercial, and residential can be an effective strategy to further improve building energy management and it might represent a relevant future trend in the integrated building design research field [59]. Several journal articles have already investigated how occupancy-related variables such as occupancy pattern, indoor temperature set-point, and lighting conditions can impact energy, users’ comfort, emissions, and costs [16,30,37,60,61]. Following this, future works should consider combining different occupancy typologies to enhance buildings’ energy, economic, and environmental sustainability.
Finally, around 15% of the reviewed journal articles performed LCA analyses, but they mostly focused on the operational stage by avoiding investigating emissions embodied in construction materials [62,63]. The building energy consumption is generally converted into carbon emissions through the energy mix factor. It is worth highlighting that such a knowledge gap has been partially filled by Azari et al. [64] and by Lobaccaro et al. [21], but further investigations are needed to develop multi-criteria workflows including embodied emissions assessment.
Following this, the future trends in designing a responsive built environment will concern the implementation of a new generation of MOO models capable to operate at multiple spatial and temporal scales with increased attention towards the minimization of emissions embodied in construction materials. Such a holistic approach to building and neighbourhood optimization will necessarily take advantage of benefits related to the combination of different building typologies in order to further enhance the building’s energy efficiency. All these aspects can now be taken into account thanks to the recent implementation of metamodels which enable lower computational time for BPS.

4. Conclusions

A synthetic review of MOO models is carried out in order to design responsive buildings and neighbourhoods. The review focused on the utilized software during both simulation and optimization stages, as well as on the identified objective functions and design variables. Results highlighted that MOO models are widely exploited for defining a trade-off between building energy efficiency (i.e., minimization of energy demand for heating and cooling, maximization of energy production from RES) and thermal and visual comfort. In addition to that, some research studies demonstrated that such GAs are suitable for minimizing construction costs as well as operational emissions. The reviewed MOO models can only perform optimization at a single scale, mainly handling variables related to characteristics of a building or a test room. Among the optimized design variables, the commonest were the ones describing the building’s envelope, the glazed surfaces, and the shading devices. The possibility of exploring different shape solutions for the building case study was only implemented in a few works.
Automation for integrated building design has been improving significantly between 2014 and 2021 due to the implementation of numerous MOO models that rapidly substituted the previous single-objective optimization algorithms. Nonetheless, there are still some aspects that need to be further enhanced to fully enable the potential of optimization tools in the design of responsive building solutions, in particular, the capability of optimizing design variables and of solving objective functions at multiple scales by also taking into account climate change effects. This is expected to be the future trend about such a research topic together with the development of MOO models that can investigate sector coupling solutions to achieve higher energy efficiency levels.
When it comes to the limitations of the work, it is worth underlining that this review study focused more on the methodology than on the results of the reviewed publications. Therefore, a partial overview of the potentialities of MOO models is provided by neglecting their effectiveness in designing responsive buildings. Following this, future developments of this study must necessarily consider this aspect when reviewing MOO models.

Author Contributions

Conceptualization, M.M.; methodology, A.N. and M.M.; software, M.M.; formal analysis, M.M.; investigation, A.N and M.M.; resources, A.N.; data curation, M.M.; writing—original draft preparation, M.M.; writing—review and editing, A.N.; visualization, M.M.; supervision, A.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

GHGGreenhouse gases
ZEBZero-energy building
BPSBuilding performance simulation
GAGenetic algorithm
MOOMulti-objective optimization
BPOBuilding performance optimization
MOPSOMulti-objective particle-swarm optimization
SPEA2Strength Pareto evolutionary algorithm
NSGA-IINon-sorting genetic algorithm
ANNArtificial neural network
WoSWeb of Science
LCCLife-cycle cost
VBAVisual Basic for Applications
LCALife-cycle assessment
WWRWindow-to-wall ratio
RESRenewable energy source
MOBOMulti-objective building optimization
MOPAMulti-objective performance analysis

Appendix A

Table
Table A1. Tabular review of the selected journal articles.
Table A1. Tabular review of the selected journal articles.
Ref.YearLocationCase StudyOptimized ParametersLong-Term EvaluationSimulation EngineOptimization Tool (Optimization Method)Parameters
LCCLCAEnergy PerformanceSolar AccessibilityThermal ComfortOrientationWWRWindows TypologyBuilding DimensionsEnvelope PropertiesInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy PatternOther
[49]2014Saudi Arabiaoffice building xx NMS ExcelMS Excel xx x
[63]2014Germanyoffice buildingxxx NMS Exceln.d. x xxx
[65]2014Netherlandsoffice building xx NTRNSYS, Radiancen.d. xx x
[27]2015UKresidential building xx NAutodesk GBSOptimo xx
[50]2015Japanoffice building xx NRadiance, EnergyPlusManually x
[42]2015USAeducational building xx NRadiance, EnergyPlusGenOpt xx x x
[62]2015miscellaneousoffice building x NEnergyPlusPython xx x
[7]2015Italyresidential building x NEnergyPlusGenOpt x x xx
[23]2015Denmarkoffice buildingx xx NRadiance, Be10Octopus x
[37]2015USAresidential buildingxx x NEnergyPlusMATLAB xx x x xx
[66]2015miscellaneouscommercial buildingx x NEnergyPlusn.d.xxx x x x
[67]2015Hong Kongoffice buildingxx NTRNSYSMATLAB x
[68]2015Chinaresidential building x NEnergyPlusMATLABxxxxx
[33]2015Australiaresidential buildingxx NSimaProLINDO x x
[56]2016Romaniaresidential building x NDesignBuilderManuallyx x x
[47]2016Greeceoffice building xx Nn.d.Visual PROMETHEE x x
[51]2016Serbiaoffice building xx NRadiance, EnergyPlusManually xx
[69]2016Norwayresidential building x x NLadybug, HoneybeeOctopus x
[70]2016Argentinaresidential building x NEnergyPlusPythonxxx xx x
[6]2016miscellaneousresidential building x NDesignBuildern.d. xx x x
[24]2016Spainresidential buildingxxx NEnergyPlusjEPlus x
[71]2016Hong Kongresidential building x NEnergyPlusjEPlusxxx xx
[61]2016USAotherx NDesignBuilder, RSMeans, MySQLn.d. x x x xx
[72]2016Iranoffice building xx NEnergyPlusMATLABxx x
[64]2016USAoffice building xx NeQuest, AthenaIEn.d. xx x
[73]2016Chinaother x NLadybugOctopus x
[74]2016Irantest room x NEnergyPlusjEPlusxxx x x
[75]2016Portugalresidential building x NEnergyPlusn.d.x x x x
[30]2016Hong Kongoffice buildingx x NEnergyPlusMATLAB x x
[52]2016Indonesiaoffice building xx NRadianceManuallyxx x
[76]2016miscellaneousoffice building xx NRadiance, EnergyPlusOctopusxxxxx
[20]2017Italyeducational building x NLadybug, HoneybeeOctopus x
[31]2017Franceresidential buildingx x NTRNSYSMATLAB x x x
[77]2017Argentinaresidential building x NEnergyPlusPythonxxx xx xx
[17]2017Spainresidential buildingx x NDIVAGalapagos x x x
[78]2017miscellaneousresidential building xx NEnergyPlus, RjEPlusxxx xx
[38]2018Italyoffice buildingxxx NEnergyPlusMATLAB x x x
[79]2018Italyotherxxxx Nn.d.n.d. x
[25]2018miscellaneousresidential buildingx x NTRNSYSMOBO tool xx x
[21]2018Norwayresidential building x x NLadybug, HoneybeeOctopusxx xx
[80]2018Chinaresidential building x NEnergyPlusMATLABxxx xx xx
[44]2018Italyeducational building xx NTRNSYSGenOpt xx x x
[81]2018Polandresidential buildingx NEnergyPlusMATLABxxx xx
[82]2018Chinaresidential buildingx x NDesignBuildern.d.xx x xx
[83]2018Chinaresidential building x NEnergyPlusjEPlus xx xx x
[84]2018miscellaneousresidential buildingx x NTRNSYSMOBO tool xx x x
[85]2018Chinaother x NDesignBuilderMATLAB x x
[86]2018Chinaresidential buildingx x NDesignBuilderMATLAB x x x
[87]2018Iranresidential buildingx x NBCS19n.d. x x x
[88]2018Singaporeoffice building xx NpythonPythonx x x
[89]2018Chinasport building xx NLadybug, Honeybee, KarambamodeFRONTIER x x
[90]2018Japanoffice building x NStarCDn.d. xx x x
[60]2019Italyresidential buildingx NEnergyPlusMATLAB x
[91]2019Spaineducational buildingx x Nthermodynamic equationsn.d. x x
[92]2019Indiaother x NCFDn.d. x
[93]2019Canadaresidential buildingxx NTRNSYSPython xx x xxx
[94]2019Singaporeresidential buildingx xx NEnergyPlusjEPlusxxx x xxx x
[95]2019Norwaytest room xx NLadybug, HoneybeeOctopus x
[96]2019Mexicoresidential buildingx x NEnergyPlusPythonx x x xxx x
[97]2019Switzerlandoffice buildingxx NEnergyPlusOpossum x
[98]2019South Koreaeducational buildingx NEnergyPlusPython x x x
[99]2019Italyresidential buildingx x NEnergyPlusMATLABx x x x
[100]2019Italyoffice buildingx x NEnergyPlusMATLABxxx x xx
[45]2019Chinaother x NEnergyPlusmodeFRONTIER x x x
[101]2019Chinatest room xx NEnergyPlusn.d.xxx
[102]2019Swedenresidential building x NHoneybeeOctopusxx xx
[103]2020Chinaother x Nn.d.n.d. x
[53]2020Turkeyresidential building x NAutodesk CFD, eQUESTManually x
[104]2020n.d.other xx NData drivenn.d. x x x
[105]2020miscellaneousresidential building x x NLadybug, HoneybeeOctopusxx xx
[48]2020Belgiumotherx x NLadybug, HoneybeeMOPA x x x
[36]2020Italyneighborhoodx xx NEnergyPlusMATLAB x x x
[16]2020Iraneducational building x NLadybug, HoneybeeGalapagos xx xx
[57]2020Moroccocommercial buildingxx Yn.d.MATLAB x
[106]2020Polandresidential building x YEnergyPlusMATLAB x
[107]2020Denmarkoffice building x NEnergyPlusMOBO x
[34]2020Chinaresidential building xx NEnergyPlusMATLABxxx x x x
[39]2020Japanresidential buildingxxx NLadybug, HoneybeeMATLAB x x x
[15]2020USAoffice building xx NLadybug, HoneybeeOctopus x
[108]2020Omanresidential buildingx x NEnergyPlusMATLAB xx x x
[109]2020South Koreaoffice building x NEnergyPlusMATLAB x
[54]2020Swedenneighborhood xx NHoneybeeManuallyx x
[29]2020Australiaresidential building xx Nn.d.Optimo xx
[110]2020Portugalresidential building x NEnergyPlusn.d. x xx x
[111]2020Mauritiusresidential buildingxx NEnergyPlusjEPlusx x x
[112]2020Iranresidential buildingx x NEnergyPlusn.d. xx x
[28]2020Australiaresidential building xx NEnergyPlusOptimo x
[41]2020Portugalresidential buildingx x Nthermodynamic equationsMATLAB x x
[113]2020Italyresidential buildingxxx NEnergyPlusn.d.xxxxx x
[114]2020Hong Kongsport buildingx x NTRNSYS, MATLABn.d. x
[115]2020Turkeyresidential building xx NEnergyPlusGenOpt x
[116]2020Chinaresidential buildingxx NEnergyPlus, PythonPythonxxx xx
[117]2020Chinaeducational building xx NLadybug, HoneybeeOctopusxxxx
[118]2020USAresidential buildingx x NLadybug, HoneybeeOctopusx x x
[119]2020Chinaoffice building x NDesignBuilderjEPlusxxx x
[120]2020Republic of Koreaoffice building x NEnergyPlusMATLABxx
[121]2020miscellaneoustest room xx NLadybug, HoneybeeOctopus x
[43]2020Moroccoresidential building x NEnergyPlusGenOpt xx x xx
[122]2020Chinaoffice building xx NEnergyPlusPython xx x xx x
[32]2020Braziloffice building xx NDomus, DaysimMATLAB x
[22]2020Iranoffice building xx NLadybug, HoneybeeOctopus x x
[46]2020Greeceoffice building x NLadybug, HoneybeemodeFRONTIER xx xxx x
[123]2020Iranoffice building xx NEnergyPlusjEPlus x
[124]2020Argentinaresidential building x NEnergyPlusPythonxxx x x
[2]2021Moroccoresidential buildingx x NTRNSYSMOBOxxx xx
[12]2021Canadamiscellaneousxxx NSimaPro, HOT2000, HTAPPython x x
[125]2021Algeriaeducational building xx NLadybug, HoneybeeOctopusxxx x x
[55]2021Brazileducational building xx NInsight 360, DesignBuilderManually xx xx
[126]2021Chinaoffice building xx NDynamo, Radiance, Daysim, Green Building Studio, MATLAB (Self-Organizing Mapping)n.d. x x
[127] 2021UKoffice buildingxxx NData drivenn.d. x x x
[128]2021Chinatest room xx NLadybug, HoneybeeOctopus x
[58]2021Chinaeducational building xx YLadybug, HoneybeePythonxxxxx x
[129]2021Chinaresidential buildingx x NEnergyPlusMATLAB x x x
[130]2021Malaysiatest room xx NLadybug, HoneybeeOctopus x
[131]2021n.d.miscellaneous xNANSYSMATLAB x x
[132]2021Chinaeducational building x NDesignBuilderDesign-Expert xx x
[35]2021Iranoffice building x NEnergyPlusMATLAB xxx x
[26]2021miscellaneousresidential building x YEnergyPlusjEPlus xxxx x
[133]2021Italyneighbourhoodx x NEnergyPlusMATLAB x x x x
[134]2021Turkeyresidential buildingx x NEnergyPlusMATLABxxx x
[135]2021miscellaneouseducational building x NLadybug, ClimateStudio for RhinoDesign Space Exploration x x
[18]2021Iranoffice building xx NLadybug, Honeybee, EnergyPlus, OpenStudio, DaysimColibrì, Octopus xx
[136]2021USAoffice building xx NLadybug, Honeybeen.d. x
[137]2021Chinaresidential building x NQuVue, Eddy3dMATLAB x
[138]2021Serbiaresidential building x NDesignBuildern.d. xx x x
[139]2021Shanghairesidential buildingx NDesignBuildern.d. xx x xx x
[19]2021Chinaeducational buildingx x NLadybug, HoneybeeOctopus x x
[140]2021Australiatest room x NCFStracen.d. x
[141]2021Brazilresidential building x NEnergyPlusMATLAB x xx
[142]2021Italyeducational buildingx xx NLadybug, HoneybeeMATLABxxx x x
[143]2021Chinaeducational building x NDesignBuilderMATLAB xx x
[144]2021Iranresidential building xx NLadybug, Honeybee, RevitOctopus x x x
[145]2021Australiaresidential buildingx x NTRNSYSjEPlus xx x x
[146]2021Australiamiscellaneousx xx NRevit, InsightAMPL xx x x
[3]2021Chinaeducational building xx NLadybug, HoneybeeColibrixxxxx x
[147]2021South Korearesidential buildingxxx NTRNSYSMATLAB xx xx x
[148]2021Swedenresidential building xx NEnergyPlusPython x x
[8]2021Chinaeducational building x NEnergyPlus, EppyMATLAB x xxxx
[14]2021Malaysiaoffice building xx NLadybug, HoneybeeOctopus x
[40]2021Taiwanoffice buildingxx NNumerical modelMATLAB xx x xx
[13]2021Japanresidential building xx NLadybug, HoneybeeOctopus xx x

References

  1. International Energy Agency. The Critical Role of Buildings; International Energy Agency: Paris, France, 2019.
  2. Abdou, N.; EL Mghouchi, Y.; Hamdaoui, S.; EL Asri, N.; Mouqallid, M. Multi-objective optimization of passive energy efficiency measures for net-zero energy building in Morocco. Build. Environ. 2021, 204, 108141. [Google Scholar] [CrossRef]
  3. Zou, Y.; Zhan, Q.; Xiang, K. A comprehensive method for optimizing the design of a regular architectural space to improve building performance. Energy Rep. 2021, 7, 981–996. [Google Scholar] [CrossRef]
  4. Machairas, V.; Tsangrassoulis, A.; Axarli, K. Algorithms for optimization of building design: A review. Renew. Sustain. Energy Rev. 2014, 31, 101–112. [Google Scholar] [CrossRef]
  5. Nguyen, A.T.; Reiter, S.; Rigo, P. A review on simulation-based optimization methods applied to building performance analysis. Appl. Energy 2014, 113, 1043–1058. [Google Scholar] [CrossRef]
  6. Ascione, F.; De Masi, R.F.; de Rossi, F.; Ruggiero, S.; Vanoli, G.P. Optimization of building envelope design for nZEBs in Mediterranean climate: Performance analysis of residential case study. Appl. Energy 2016, 183, 938–957. [Google Scholar] [CrossRef]
  7. Carlucci, S.; Cattarin, G.; Causone, F.; Pagliano, L. Multi-objective optimization of a nearly zero-energy building based on thermal and visual discomfort minimization using a non-dominated sorting genetic algorithm (NSGA-II). Energy Build. 2015, 104, 378–394. [Google Scholar] [CrossRef] [Green Version]
  8. Yue, N.; Li, L.; Morandi, A.; Zhao, Y. A metamodel-based multi-objective optimization method to balance thermal comfort and energy efficiency in a campus gymnasium. Energy Build. 2021, 253, 111513. [Google Scholar] [CrossRef]
  9. Fang, K.-T.; Li, R.; Sudjianto, A. Design and Modeling for Computer Experiments; Chapman and Hall/CRC: New York, NY, USA, 2005; ISBN 0429143761. [Google Scholar]
  10. Asadi, E.; Da Silva, M.G.; Antunes, C.H.; Dias, L.; Glicksman, L. Multi-objective optimization for building retrofit: A model using genetic algorithm and artificial neural network and an application. Energy Build. 2014, 81, 444–456. [Google Scholar] [CrossRef]
  11. Magnier, L.; Haghighat, F. Multiobjective optimization of building design using TRNSYS simulations, genetic algorithm, and Artificial Neural Network. Build. Environ. 2010, 45, 739–746. [Google Scholar] [CrossRef]
  12. Zhang, H.; Hewage, K.; Prabatha, T.; Sadiq, R. Life cycle thinking-based energy retrofits evaluation framework for Canadian residences: A Pareto optimization approach. Build. Environ. 2021, 204, 108115. [Google Scholar] [CrossRef]
  13. Wang, J.; Mae, M.; Taniguchi, K.; Cheng, Y.; Yagi, S.; Saito, K. Multi-phase framework for optimization of thermal and daylight performance of residential buildings based on the combination of ventilation and window design. J. Asian Archit. Build. Eng. 2021, 20, 785–805. [Google Scholar] [CrossRef]
  14. Bahdad, A.A.S.; Fadzil, S.F.S.; Onubi, H.O.; BenLasod, S.A. Multi-dimensions optimization for optimum modifications of light-shelves parameters for daylighting and energy efficiency. Int. J. Environ. Sci. Technol. 2021. [Google Scholar] [CrossRef]
  15. Kim, H.; Clayton, M.J. A multi-objective optimization approach for climate-adaptive building envelope design using parametric behavior maps. Build. Environ. 2020, 185, 107292. [Google Scholar] [CrossRef]
  16. Ilbeigi, M.; Ghomeishi, M.; Dehghanbanadaki, A. Prediction and optimization of energy consumption in an office building using artificial neural network and a genetic algorithm. Sustain. Cities Soc. 2020, 61, 102325. [Google Scholar] [CrossRef]
  17. Camporeale, P.E.; Moyano, M.D.P.M.; Czajkowski, J.D. Multi-objective optimisation model: A housing block retrofit in Seville. Energy Build. 2017, 153, 476–484. [Google Scholar] [CrossRef] [Green Version]
  18. Talaei, M.; Mahdavinejad, M.; Azari, R.; Prieto, A.; Sangin, H. Multi-objective optimization of building-integrated microalgae photobioreactors for energy and daylighting performance. J. Build. Eng. 2021, 42, 102832. [Google Scholar] [CrossRef]
  19. Zhuang, D.; Zhang, X.; Lu, Y.; Wang, C.; Jin, X.; Zhou, X.; Shi, X. A performance data integrated BIM framework for building life-cycle energy efficiency and environmental optimization design. Autom. Constr. 2021, 127, 103712. [Google Scholar] [CrossRef]
  20. Zani, A.; Tagliabue, L.C.; Poli, T.; Ciribini, A.L.C.; De Angelis, E.; Manfren, M. Occupancy Profile Variation Analyzed through Generative Modelling to Control Building Energy Behavior. Procedia Eng. 2017, 180, 1495–1505. [Google Scholar] [CrossRef]
  21. Lobaccaro, G.; Wiberg, A.H.; Ceci, G.; Manni, M.; Lolli, N.; Berardi, U. Parametric design to minimize the embodied GHG emissions in a ZEB. Energy Build. 2018, 167, 106–123. [Google Scholar] [CrossRef] [Green Version]
  22. Pilechiha, P.; Mahdavinejad, M.; Pour Rahimian, F.; Carnemolla, P.; Seyedzadeh, S. Multi-objective optimisation framework for designing office windows: Quality of view, daylight and energy efficiency. Appl. Energy 2020, 261, 114356. [Google Scholar] [CrossRef]
  23. Negendahl, K.; Nielsen, T.R. Building energy optimization in the early design stages: A simplified method. Energy Build. 2015, 105, 88–99. [Google Scholar] [CrossRef]
  24. Carreras, J.; Pozo, C.; Boer, D.; Guillén-Gosálbez, G.; Caballero, J.A.; Ruiz-Femenia, R.; Jiménez, L. Systematic approach for the life cycle multi-objective optimization of buildings combining objective reduction and surrogate modeling. Energy Build. 2016, 130, 506–518. [Google Scholar] [CrossRef] [Green Version]
  25. Harkouss, F.; Fardoun, F.; Biwole, P.H. Passive design optimization of low energy buildings in different climates. Energy 2018, 165, 591–613. [Google Scholar] [CrossRef]
  26. Pajek, L.; Košir, M. Strategy for achieving long-term energy efficiency of European single-family buildings through passive climate adaptation. Appl. Energy 2021, 297, 117116. [Google Scholar] [CrossRef]
  27. Rahmani Asl, M.; Zarrinmehr, S.; Bergin, M.; Yan, W. BPOpt: A framework for BIM-based performance optimization. Energy Build. 2015, 108, 401–412. [Google Scholar] [CrossRef] [Green Version]
  28. Chen, Z.; Hammad, A.W.A.; Kamardeen, I.; Akbarnezhad, A. Optimising Embodied Energy and Thermal Performance of Thermal Insulation in Building Envelopes via an Automated Building Information Modelling (BIM) Tool. Buildings 2020, 10, 218. [Google Scholar] [CrossRef]
  29. Chen, Z.; Hammad, A.W.A.; Kamardeen, I.; Haddad, A. Optimising Window Design on Residential Building Facades by Considering Heat Transfer and Natural Lighting in Nontropical Regions of Australia. Buildings 2020, 10, 206. [Google Scholar] [CrossRef]
  30. Wu, M.H.; Ng, T.S.; Skitmore, M.R. Sustainable building envelope design by considering energy cost and occupant satisfaction. Energy Sustain. Dev. 2016, 31, 118–129. [Google Scholar] [CrossRef] [Green Version]
  31. Gilles, F.; Bernard, S.; Ioannis, A.; Simon, R. Decision-making based on network visualization applied to building life cycle optimization. Sustain. Cities Soc. 2017, 35, 565–573. [Google Scholar] [CrossRef] [Green Version]
  32. de Almeida Rocha, A.P.; Reynoso-Meza, G.; Oliveira, R.C.L.F.; Mendes, N. A pixel counting based method for designing shading devices in buildings considering energy efficiency, daylight use and fading protection. Appl. Energy 2020, 262, 114497. [Google Scholar] [CrossRef]
  33. Islam, H.; Jollands, M.; Setunge, S.; Bhuiyan, M.A. Optimization approach of balancing life cycle cost and environmental impacts on residential building design. Energy Build. 2015, 87, 282–292. [Google Scholar] [CrossRef]
  34. Yong, Z.; Li-juan, Y.; Qian, Z.; Xiao-yan, S. Multi-objective optimization of building energy performance using a particle swarm optimizer with less control parameters. J. Build. Eng. 2020, 32, 101505. [Google Scholar] [CrossRef]
  35. Ghaderian, M.; Veysi, F. Multi-objective optimization of energy efficiency and thermal comfort in an existing office building using NSGA-II with fitness approximation: A case study. J. Build. Eng. 2021, 41, 102440. [Google Scholar] [CrossRef]
  36. Ascione, F.; Bianco, N.; Mauro, G.M.; Napolitano, D.F.; Vanoli, G.P. Optimization of solar energy exploitation for a neighborhood towards nearly zero energy buildings. In Proceedings of the 2020 5th International Conference on Smart and Sustainable Technologies (SpliTech), Split, Croatia, 23–26 September 2020; pp. 1–7. [Google Scholar]
  37. Karatas, A.; El-Rayes, K. Optimizing tradeoffs among housing sustainability objectives. Autom. Constr. 2015, 53, 83–94. [Google Scholar] [CrossRef]
  38. Ascione, F.; Bianco, N.; Mauro, G.M.; Napolitano, D.F.; Vanoli, G.P. A Multi-Criteria Approach to Achieve Constrained Cost-Optimal Energy Retrofits of Buildings by Mitigating Climate Change and Urban Overheating. Climate 2018, 6, 37. [Google Scholar] [CrossRef] [Green Version]
  39. Chang, S.; Castro-Lacouture, D.; Yamagata, Y. Decision support for retrofitting building envelopes using multi-objective optimization under uncertainties. J. Build. Eng. 2020, 32, 101413. [Google Scholar] [CrossRef]
  40. Lin, Y.H.; Lin, M.D.; Tsai, K.T.; Deng, M.J.; Ishii, H. Multi-objective optimization design of green building envelopes and air conditioning systems for energy conservation and CO2 emission reduction. Sustain. Cities Soc. 2021, 64, 102555. [Google Scholar] [CrossRef]
  41. Ferreira, A.C.; Silva, A.; Teixeira, J.C.; Teixeira, S. Multi-Objective Optimization of Solar Thermal Systems Applied to Portuguese Dwellings. Energies 2020, 13, 6739. [Google Scholar] [CrossRef]
  42. Futrell, B.J.; Ozelkan, E.C.; Brentrup, D. Bi-objective optimization of building enclosure design for thermal and lighting performance. Build. Environ. 2015, 92, 591–602. [Google Scholar] [CrossRef]
  43. Ameur, M.; Kharbouch, Y.; Mimet, A. Optimization of passive design features for a naturally ventilated residential building according to the bioclimatic architecture concept and considering the northern Morocco climate. Build. Simul. 2020, 13, 677–689. [Google Scholar] [CrossRef]
  44. Ferrara, M.; Sirombo, E.; Fabrizio, E. Automated optimization for the integrated design process: The energy, thermal and visual comfort nexus. Energy Build. 2018, 168, 413–427. [Google Scholar] [CrossRef]
  45. Si, B.; Wang, J.; Yao, X.; Shi, X.; Jin, X.; Zhou, X. Multi-objective optimization design of a complex building based on an artificial neural network and performance evaluation of algorithms. Adv. Eng. Inform. 2019, 40, 93–109. [Google Scholar] [CrossRef]
  46. Giouri, E.D.; Tenpierik, M.; Turrin, M. Zero energy potential of a high-rise office building in a Mediterranean climate: Using multi-objective optimization to understand the impact of design decisions towards zero-energy high-rise buildings. Energy Build. 2020, 209, 109666. [Google Scholar] [CrossRef]
  47. Stamatakis, A.; Mandalaki, M.; Tsoutsos, T. Multi-criteria analysis for PV integrated in shading devices for Mediterranean region. Energy Build. 2016, 117, 128–137. [Google Scholar] [CrossRef]
  48. Amer, M.; Hamdy, M.; Wortmann, T.; Mustafa, A.; Attia, S. Methodology for design decision support of cost-optimal zero-energy lightweight construction. Energy Build. 2020, 223, 110170. [Google Scholar] [CrossRef]
  49. Bayoumi, M.; Fink, D. Maximizing the performance of an energy generating façade in terms of energy saving strategies. Renew. Energy 2014, 64, 294–305. [Google Scholar] [CrossRef]
  50. Hiyama, K.; Wen, L. Rapid response surface creation method to optimize window geometry using dynamic daylighting simulation and energy simulation. Energy Build. 2015, 107, 417–423. [Google Scholar] [CrossRef]
  51. Harmathy, N.; Magyar, Z.; Folić, R. Multi-criterion optimization of building envelope in the function of indoor illumination quality towards overall energy performance improvement. Energy 2016, 114, 302–317. [Google Scholar] [CrossRef]
  52. Mangkuto, R.A.; Rohmah, M.; Asri, A.D. Design optimisation for window size, orientation, and wall reflectance with regard to various daylight metrics and lighting energy demand: A case study of buildings in the tropics. Appl. Energy 2016, 164, 211–219. [Google Scholar] [CrossRef]
  53. Utkucu, D.; Sözer, H. An evaluation process for natural ventilation using a scenario-based multi-criteria and multi-interaction analysis. Energy Rep. 2020, 6, 644–661. [Google Scholar] [CrossRef]
  54. Mukkavaara, J.; Sandberg, M. Architectural Design Exploration Using Generative Design: Framework Development and Case Study of a Residential Block. Buildings 2020, 10, 201. [Google Scholar] [CrossRef]
  55. Carriço de Lima Montenegro Duarte, J.G.; Ramos Zemero, B.; Dias Barreto de Souza, A.C.; de Lima Tostes, M.E.; Holanda Bezerra, U. Building Information Modeling approach to optimize energy efficiency in educational buildings. J. Build. Eng. 2021, 43, 102587. [Google Scholar] [CrossRef]
  56. Croitoru, C.; Nastase, I.; Sandu, M.; Lungu, C. Multi-criteria Design and Impact on Energy Consumption of a Residential House—A Parametric Study. Energy Procedia 2016, 85, 141–148. [Google Scholar] [CrossRef]
  57. Allouhi, A. Solar PV integration in commercial buildings for self-consumption based on life-cycle economic/environmental multi-objective optimization. J. Clean. Prod. 2020, 270, 122375. [Google Scholar] [CrossRef]
  58. Zou, Y.; Lou, S.; Xia, D.; Lun, I.Y.F.; Yin, J. Multi-objective building design optimization considering the effects of long-term climate change. J. Build. Eng. 2021, 44, 102904. [Google Scholar] [CrossRef]
  59. Pavičević, M.; Mangipinto, A.; Nijs, W.; Lombardi, F.; Kavvadias, K.; Jiménez Navarro, J.P.; Colombo, E.; Quoilin, S. The potential of sector coupling in future European energy systems: Soft linking between the Dispa-SET and JRC-EU-TIMES models. Appl. Energy 2020, 267, 115100. [Google Scholar] [CrossRef]
  60. Ascione, F.; Bianco, N.; Mauro, G.M.; Napolitano, D.F.; Vanoli, G.P. Weather-data-based control of space heating operation via multi-objective optimization: Application to Italian residential buildings. Appl. Therm. Eng. 2019, 163, 114384. [Google Scholar] [CrossRef]
  61. Xu, W.; Chong, A.; Karaguzel, O.T.; Lam, K.P. Improving evolutionary algorithm performance for integer type multi-objective building system design optimization. Energy Build. 2016, 127, 714–729. [Google Scholar] [CrossRef]
  62. Méndez Echenagucia, T.; Capozzoli, A.; Cascone, Y.; Sassone, M. The early design stage of a building envelope: Multi-objective search through heating, cooling and lighting energy performance analysis. Appl. Energy 2015, 154, 577–591. [Google Scholar] [CrossRef]
  63. Shao, Y.; Geyer, P.; Lang, W. Integrating requirement analysis and multi-objective optimization for office building energy retrofit strategies. Energy Build. 2014, 82, 356–368. [Google Scholar] [CrossRef]
  64. Azari, R.; Garshasbi, S.; Amini, P.; Rashed-Ali, H.; Mohammadi, Y. Multi-objective optimization of building envelope design for life cycle environmental performance. Energy Build. 2016, 126, 524–534. [Google Scholar] [CrossRef]
  65. Kasinalis, C.; Loonen, R.C.G.M.; Cóstola, D.; Hensen, J.L.M. Framework for assessing the performance potential of seasonally adaptable facades using multi-objective optimization. Energy Build. 2014, 79, 106–113. [Google Scholar] [CrossRef] [Green Version]
  66. Brownlee, A.E.I.; Wright, J.A. Constrained, mixed-integer and multi-objective optimisation of building designs by NSGA-II with fitness approximation. Appl. Soft Comput. 2015, 33, 114–126. [Google Scholar] [CrossRef] [Green Version]
  67. Lu, Y.; Wang, S.; Zhao, Y.; Yan, C. Renewable energy system optimization of low/zero energy buildings using single-objective and multi-objective optimization methods. Energy Build. 2015, 89, 61–75. [Google Scholar] [CrossRef]
  68. Yu, W.; Li, B.; Jia, H.; Zhang, M.; Wang, D. Application of multi-objective genetic algorithm to optimize energy efficiency and thermal comfort in building design. Energy Build. 2015, 88, 135–143. [Google Scholar] [CrossRef]
  69. Lobaccaro, G.; Chatzichristos, S.; Leon, V.A. Solar Optimization of Housing Development. Energy Procedia 2016, 91, 868–875. [Google Scholar] [CrossRef] [Green Version]
  70. Bre, F.; Silva, A.S.; Ghisi, E.; Fachinotti, V.D. Residential building design optimisation using sensitivity analysis and genetic algorithm. Energy Build. 2016, 133, 853–866. [Google Scholar] [CrossRef]
  71. Chen, X.; Yang, H.; Sun, K. A holistic passive design approach to optimize indoor environmental quality of a typical residential building in Hong Kong. Energy 2016, 113, 267–281. [Google Scholar] [CrossRef]
  72. Delgarm, N.; Sajadi, B.; Delgarm, S.; Kowsary, F. A novel approach for the simulation-based optimization of the buildings energy consumption using NSGA-II: Case study in Iran. Energy Build. 2016, 127, 552–560. [Google Scholar] [CrossRef]
  73. Zhang, L.; Zhang, L.; Wang, Y. Shape optimization of free-form buildings based on solar radiation gain and space efficiency using a multi-objective genetic algorithm in the severe cold zones of China. Sol. Energy 2016, 132, 38–50. [Google Scholar] [CrossRef]
  74. Delgarm, N.; Sajadi, B.; Kowsary, F.; Delgarm, S. Multi-objective optimization of the building energy performance: A simulation-based approach by means of particle swarm optimization (PSO). Appl. Energy 2016, 170, 293–303. [Google Scholar] [CrossRef]
  75. Figueiredo, A.; Kämpf, J.; Vicente, R. Passive house optimization for Portugal: Overheating evaluation and energy performance. Energy Build. 2016, 118, 181–196. [Google Scholar] [CrossRef]
  76. Konis, K.; Gamas, A.; Kensek, K. Passive performance and building form: An optimization framework for early-stage design support. Sol. Energy 2016, 125, 161–179. [Google Scholar] [CrossRef]
  77. Bre, F.; Fachinotti, V.D. A computational multi-objective optimization method to improve energy efficiency and thermal comfort in dwellings. Energy Build. 2017, 154, 283–294. [Google Scholar] [CrossRef] [Green Version]
  78. Chen, X.; Yang, H. A multi-stage optimization of passively designed high-rise residential buildings in multiple building operation scenarios. Appl. Energy 2017, 206, 541–557. [Google Scholar] [CrossRef]
  79. Bonamente, E.; Brunelli, C.; Castellani, F.; Garinei, A.; Biondi, L.; Marconi, M.; Piccioni, E. A life-cycle approach for multi-objective optimisation in building design: Methodology and application to a case study. Civ. Eng. Environ. Syst. 2018, 35, 158–179. [Google Scholar] [CrossRef]
  80. Gou, S.; Nik, V.M.; Scartezzini, J.L.; Zhao, Q.; Li, Z. Passive design optimization of newly-built residential buildings in Shanghai for improving indoor thermal comfort while reducing building energy demand. Energy Build. 2018, 169, 484–506. [Google Scholar] [CrossRef]
  81. Grygierek, K.; Ferdyn-Grygierek, J. Multi-Objective Optimization of the Envelope of Building with Natural Ventilation. Energies 2018, 11, 1383. [Google Scholar] [CrossRef] [Green Version]
  82. Lin, Y.; Yang, W. Application of Multi-Objective Genetic Algorithm Based Simulation for Cost-Effective Building Energy Efficiency Design and Thermal Comfort Improvement. Front. Energy Res. 2018, 6, 25. [Google Scholar] [CrossRef] [Green Version]
  83. Chen, X.; Yang, H. Integrated energy performance optimization of a passively designed high-rise residential building in different climatic zones of China. Appl. Energy 2018, 215, 145–158. [Google Scholar] [CrossRef]
  84. Harkouss, F.; Fardoun, F.; Biwole, P.H. Multi-objective optimization methodology for net zero energy buildings. J. Build. Eng. 2018, 16, 57–71. [Google Scholar] [CrossRef]
  85. Lin, Y.; Zhou, S.; Yang, W.; Li, C.-Q. Design Optimization Considering Variable Thermal Mass, Insulation, Absorptance of Solar Radiation, and Glazing Ratio Using a Prediction Model and Genetic Algorithm. Sustainability 2018, 10, 336. [Google Scholar] [CrossRef] [Green Version]
  86. Wu, W.; Guo, J.; Li, J.; Hou, H.; Meng, Q.; Wang, W. A multi-objective optimization design method in zero energy building study: A case study concerning small mass buildings in cold district of China. Energy Build. 2018, 158, 1613–1624. [Google Scholar] [CrossRef]
  87. Shakouri, H.; Rahmani, M.; Hosseinzadeh, M.; Kazemi, A. Multi-objective optimization-simulation model to improve the buildings’ design specification in different climate zones of Iran. Sustain. Cities Soc. 2018, 40, 394–415. [Google Scholar] [CrossRef]
  88. Chen, K.W.; Janssen, P.; Schlueter, A. Multi-objective optimisation of building form, envelope and cooling system for improved building energy performance. Autom. Constr. 2018, 94, 449–457. [Google Scholar] [CrossRef]
  89. Yang, D.; Ren, S.; Turrin, M.; Sariyildiz, S.; Sun, Y. Multi-disciplinary and multi-objective optimization problem re-formulation in computational design exploration: A case of conceptual sports building design. Autom. Constr. 2018, 92, 242–269. [Google Scholar] [CrossRef]
  90. Lee, J. Multi-objective optimization case study with active and passive design in building engineering. Struct. Multidiscip. Optim. 2019, 59, 507–519. [Google Scholar] [CrossRef]
  91. Salandin, A.; Soler, D.; Bevivino, M. An Integer Linear Programming approach to minimize the cost of the refurbishment of a façade to improve the energy efficiency of a building. Math. Methods Appl. Sci. 2020, 43, 8067–8088. [Google Scholar] [CrossRef]
  92. Sarkar, A.; Bardhan, R. Optimal interior design for naturally ventilated low-income housing: A design-route for environmental quality and cooling energy saving. Adv. Build. Energy Res. 2020, 14, 494–526. [Google Scholar] [CrossRef]
  93. Gagnon, R.; Gosselin, L.; Armand Decker, S. Performance of a sequential versus holistic building design approach using multi-objective optimization. J. Build. Eng. 2019, 26, 100883. [Google Scholar] [CrossRef]
  94. Lan, L.; Wood, K.L.; Yuen, C. A holistic design approach for residential net-zero energy buildings: A case study in Singapore. Sustain. Cities Soc. 2019, 50, 101672. [Google Scholar] [CrossRef]
  95. Taveres-Cachat, E.; Lobaccaro, G.; Goia, F.; Chaudhary, G. A methodology to improve the performance of PV integrated shading devices using multi-objective optimization. Appl. Energy 2019, 247, 731–744. [Google Scholar] [CrossRef]
  96. García Kerdan, I.; Morillón Gálvez, D.; Sousa, G.; Suárez de la Fuente, S.; Silva, R.; Hawkes, A. Thermodynamic and thermal comfort optimisation of a coastal social house considering the influence of the thermal breeze. Build. Environ. 2019, 155, 224–246. [Google Scholar] [CrossRef]
  97. Waibel, C.; Evins, R.; Carmeliet, J. Co-simulation and optimization of building geometry and multi-energy systems: Interdependencies in energy supply, energy demand and solar potentials. Appl. Energy 2019, 242, 1661–1682. [Google Scholar] [CrossRef]
  98. Hong, T.; Kim, J.; Lee, M. A multi-objective optimization model for determining the building design and occupant behaviors based on energy, economic, and environmental performance. Energy 2019, 174, 823–834. [Google Scholar] [CrossRef]
  99. Ascione, F.; Bianco, N.; Maria Mauro, G.; Napolitano, D.F. Building envelope design: Multi-objective optimization to minimize energy consumption, global cost and thermal discomfort. Application to different Italian climatic zones. Energy 2019, 174, 359–374. [Google Scholar] [CrossRef]
  100. Ascione, F.; Bianco, N.; Mauro, G.M.; Vanoli, G.P. A new comprehensive framework for the multi-objective optimization of building energy design: Harlequin. Appl. Energy 2019, 241, 331–361. [Google Scholar] [CrossRef]
  101. Zhai, Y.; Wang, Y.; Huang, Y.; Meng, X. A multi-objective optimization methodology for window design considering energy consumption, thermal environment and visual performance. Renew. Energy 2019, 134, 1190–1199. [Google Scholar] [CrossRef]
  102. Shadram, F.; Mukkavaara, J. Exploring the effects of several energy efficiency measures on the embodied/operational energy trade-off: A case study of swedish residential buildings. Energy Build. 2019, 183, 283–296. [Google Scholar] [CrossRef]
  103. Si, Y.; Yu, J.; Wang, N.; Ding, X.; Yuan, L. Research on evaluation and optimization of sustainable indoor environment of public buildings in Xi’an in summer. Intell. Build. Int. 2020, 12, 271–283. [Google Scholar] [CrossRef]
  104. Wahid, F.; Fayaz, M.; Aljarbouh, A.; Mir, M.; Aamir, M. Imran Energy Consumption Optimization and User Comfort Maximization in Smart Buildings Using a Hybrid of the Firefly and Genetic Algorithms. Energies 2020, 13, 4363. [Google Scholar] [CrossRef]
  105. Manni, M.; Lobaccaro, G.; Lolli, N.; Bohne, R.A. Parametric design to maximize solar irradiation and minimize the embodied GHG emissions for a ZEB in nordic and mediterranean climate zones. Energies 2020, 13, 4981. [Google Scholar] [CrossRef]
  106. Grygierek, K.; Sarna, I. Impact of Passive Cooling on Thermal Comfort in a Single-Family Building for Current and Future Climate Conditions. Energies 2020, 13, 5332. [Google Scholar] [CrossRef]
  107. Guo, R.; Heiselberg, P.; Hu, Y.; Zhang, C.; Vasilevskis, S. Optimization of night ventilation performance in office buildings in a cold climate. Energy Build. 2020, 225, 110319. [Google Scholar] [CrossRef]
  108. Al-Saadi, S.N.; Al-Jabri, K.S. Optimization of envelope design for housing in hot climates using a genetic algorithm (GA) computational approach. J. Build. Eng. 2020, 32, 101712. [Google Scholar] [CrossRef]
  109. Seong, N.-C.; Kim, J.-H.; Choi, W. Adjustment of Multiple Variables for Optimal Control of Building Energy Performance via a Genetic Algorithm. Buildings 2020, 10, 195. [Google Scholar] [CrossRef]
  110. Figueiredo, A.; Vicente, R.; Oliveira, R.; Rodrigues, F.; Samagaio, A. Multiscale Modelling Approach Targeting Optimisation of PCM into Constructive Solutions for Overheating Mitigation in Buildings. Appl. Sci. 2020, 10, 8009. [Google Scholar] [CrossRef]
  111. Vishwamitra, O.; Nidhish, S. Multi-objective optimization of the energy performance of residential buildings in tropical climates. In Proceedings of the 2020 3rd International Conference on Emerging Trends in Electrical, Electronic and Communications Engineering (ELECOM), Balaclava, Mauritius, 25–27 November 2020; pp. 240–243. [Google Scholar]
  112. Bagheri-Esfeh, H.; Safikhani, H.; Motahar, S. Multi-objective optimization of cooling and heating loads in residential buildings integrated with phase change materials using the artificial neural network and genetic algorithm. J. Energy Storage 2020, 32, 101772. [Google Scholar] [CrossRef]
  113. Ciardiello, A.; Rosso, F.; Dell’Olmo, J.; Ciancio, V.; Ferrero, M.; Salata, F. Multi-objective approach to the optimization of shape and envelope in building energy design. Appl. Energy 2020, 280, 115984. [Google Scholar] [CrossRef]
  114. Li, Y.; Nord, N.; Zhang, N.; Zhou, C. An ANN-based optimization approach of building energy systems: Case study of swimming pool. J. Clean. Prod. 2020, 277, 124029. [Google Scholar] [CrossRef]
  115. Yılmaz, Y.; Yılmaz, B.Ç. A weighted multi-objective optimisation approach to improve based facade aperture sizes in terms of energy, thermal comfort and daylight usage. J. Build. Phys. 2020, 44, 435–460. [Google Scholar] [CrossRef]
  116. Wang, R.; Lu, S.; Feng, W.; Zhai, X.; Li, X. Sustainable framework for buildings in cold regions of China considering life cycle cost and environmental impact as well as thermal comfort. Energy Rep. 2020, 6, 3036–3050. [Google Scholar] [CrossRef]
  117. Bakmohammadi, P.; Noorzai, E. Optimization of the design of the primary school classrooms in terms of energy and daylight performance considering occupants’ thermal and visual comfort. Energy Rep. 2020, 6, 1590–1607. [Google Scholar] [CrossRef]
  118. Li, Z.; Genovese, P.V.; Zhao, Y. Study on Multi-Objective Optimization-Based Climate Responsive Design of Residential Building. Algorithms 2020, 13, 238. [Google Scholar] [CrossRef]
  119. Zhao, J.; Du, Y. Multi-objective optimization design for windows and shading configuration considering energy consumption and thermal comfort: A case study for office building in different climatic regions of China. Sol. Energy 2020, 206, 997–1017. [Google Scholar] [CrossRef]
  120. Yeom, S.; Kim, H.; Hong, T.; Lee, M. Determining the optimal window size of office buildings considering the workers’ task performance and the building’s energy consumption. Build. Environ. 2020, 177, 106872. [Google Scholar] [CrossRef]
  121. Settino, J.; Carpino, C.; Perrella, S.; Arcuri, N. Multi-Objective Analysis of a Fixed Solar Shading System in Different Climatic Areas. Energies 2020, 13, 3249. [Google Scholar] [CrossRef]
  122. Wang, R.; Lu, S.; Feng, W. Impact of adjustment strategies on building design process in different climates oriented by multiple performance. Appl. Energy 2020, 266, 114822. [Google Scholar] [CrossRef]
  123. Naderi, E.; Sajadi, B.; Behabadi, M.A.; Naderi, E. Multi-objective simulation-based optimization of controlled blind specifications to reduce energy consumption, and thermal and visual discomfort: Case studies in Iran. Build. Environ. 2020, 169, 106570. [Google Scholar] [CrossRef]
  124. Bre, F.; Roman, N.; Fachinotti, V.D. An efficient metamodel-based method to carry out multi-objective building performance optimizations. Energy Build. 2020, 206, 109576. [Google Scholar] [CrossRef]
  125. Lakhdari, K.; Sriti, L.; Painter, B. Parametric optimization of daylight, thermal and energy performance of middle school classrooms, case of hot and dry regions. Build. Environ. 2021, 204, 108173. [Google Scholar] [CrossRef]
  126. Dong, Y.; Sun, C.; Han, Y.; Liu, Q. Intelligent optimization: A novel framework to automatize multi-objective optimization of building daylighting and energy performances. J. Build. Eng. 2021, 43, 102804. [Google Scholar] [CrossRef]
  127. Luo, X.J.; Oyedele, L.O. A data-driven life-cycle optimisation approach for building retrofitting: A comprehensive assessment on economy, energy and environment. J. Build. Eng. 2021, 43, 102934. [Google Scholar] [CrossRef]
  128. Hong, X.; Shi, F.; Wang, S.; Yang, X.; Yang, Y. Multi-objective optimization of thermochromic glazing based on daylight and energy performance evaluation. Build. Simul. 2021, 14, 1685–1695. [Google Scholar] [CrossRef]
  129. Zhu, N.; Liu, X.; Dong, Q.; Rodriguez, D. Optimization of zero-energy building by multi-criteria optimization method: A case study. J. Build. Eng. 2021, 44, 102969. [Google Scholar] [CrossRef]
  130. Bahdad, A.A.S.; Fadzil, S.F.S.; Onubi, H.O.; BenLasod, S.A. Sensitivity analysis linked to multi-objective optimization for adjustments of light-shelves design parameters in response to visual comfort and thermal energy performance. J. Build. Eng. 2021, 44, 102996. [Google Scholar] [CrossRef]
  131. Paul, R.; Dalui, S. Shape Optimization to Reduce Wind Pressure on the Surfaces of a Rectangular Building with Horizontal Limbs. Period. Polytech. Civ. Eng. 2021, 65, 134–149. [Google Scholar] [CrossRef]
  132. Li, Q.; Zhang, L.; Zhang, L.; Wu, X. Optimizing energy efficiency and thermal comfort in building green retrofit. Energy 2021, 237, 121509. [Google Scholar] [CrossRef]
  133. Ascione, F.; Bianco, N.; Mauro, G.M.; Napolitano, D.F.; Vanoli, G.P. Comprehensive analysis to drive the energy retrofit of a neighborhood by optimizing the solar energy exploitation—An Italian case study. J. Clean. Prod. 2021, 314, 127998. [Google Scholar] [CrossRef]
  134. Acar, U.; Kaska, O.; Tokgoz, N. Multi-objective optimization of building envelope components at the preliminary design stage for residential buildings in Turkey. J. Build. Eng. 2021, 42, 102499. [Google Scholar] [CrossRef]
  135. Taylor, M.; Brown, N.C.; Rim, D. Optimizing thermal comfort and energy use for learning environments. Energy Build. 2021, 248, 111181. [Google Scholar] [CrossRef]
  136. Huang, L.; Fan, C.; Zhai, Z. A graphical multi-objective performance evaluation method with architect-friendly mode. Front. Archit. Res. 2021, 10, 420–431. [Google Scholar] [CrossRef]
  137. Wang, S.; Yi, Y.K.; Liu, N. Multi-objective optimization (MOO) for high-rise residential buildings’ layout centered on daylight, visual, and outdoor thermal metrics in China. Build. Environ. 2021, 205, 108263. [Google Scholar] [CrossRef]
  138. Vukadinović, A.; Radosavljević, J.; Đorđević, A.; Protić, M.; Petrović, N. Multi-objective optimization of energy performance for a detached residential building with a sunspace using the NSGA-II genetic algorithm. Sol. Energy 2021, 224, 1426–1444. [Google Scholar] [CrossRef]
  139. Lin, Y.; Zhong, S.; Yang, W.; Hao, X.; Li, C.Q. Multi-objective design optimization on building integrated photovoltaic with Trombe wall and phase change material based on life cycle cost and thermal comfort. Sustain. Energy Technol. Assess. 2021, 46, 101277. [Google Scholar] [CrossRef]
  140. Mashaly, I.A.; Garcia-Hansen, V.; Cholette, M.E.; Isoardi, G. A daylight-oriented multi-objective optimisation of complex fenestration systems. Build. Environ. 2021, 197, 107828. [Google Scholar] [CrossRef]
  141. Vettorazzi, E.; Figueiredo, A.; Rebelo, F.; Vicente, R.; Grala da Cunha, E. Optimization of the passive house concept for residential buildings in the South-Brazilian region. Energy Build. 2021, 240, 110871. [Google Scholar] [CrossRef]
  142. D’Agostino, D.; D’Agostino, P.; Minelli, F.; Minichiello, F. Proposal of a new automated workflow for the computational performance-driven design optimization of building energy need and construction cost. Energy Build. 2021, 239, 110857. [Google Scholar] [CrossRef]
  143. Chen, B.; Liu, Q.; Chen, H.; Wang, L.; Deng, T.; Zhang, L.; Wu, X. Multiobjective optimization of building energy consumption based on BIM-DB and LSSVM-NSGA-II. J. Clean. Prod. 2021, 294, 126153. [Google Scholar] [CrossRef]
  144. Abbasi, S.; Noorzai, E. The BIM-Based multi-optimization approach in order to determine the trade-off between embodied and operation energy focused on renewable energy use. J. Clean. Prod. 2021, 281, 125359. [Google Scholar] [CrossRef]
  145. Naji, S.; Aye, L.; Noguchi, M. Multi-objective optimisations of envelope components for a prefabricated house in six climate zones. Appl. Energy 2021, 282, 116012. [Google Scholar] [CrossRef]
  146. Hammad, A.W.A.; Figueiredo, K.; Rosa, A.C.; Vazquez, E.; Haddad, A. Enhancing the passive design of buildings: A mixed integer non-linear programming approach for the selection of building materials and construction building systems. Energy Rep. 2021, 7, 8162–8175. [Google Scholar] [CrossRef]
  147. Jung, Y.; Heo, Y.; Lee, H. Multi-objective optimization of the multi-story residential building with passive design strategy in South Korea. Build. Environ. 2021, 203, 108061. [Google Scholar] [CrossRef]
  148. Mukkavaara, J.; Shadram, F. An integrated optimization and sensitivity analysis approach to support the life cycle energy trade-off in building design. Energy Build. 2021, 253, 111529. [Google Scholar] [CrossRef]
Energies 15 00486 g001 550
Figure 1. Density visualization of words in the title, abstract, and authors’ keywords from the journal articles selected at the end of step two. The words included in the search (i.e., “multiobjective”, “design”) were excluded from the figure.
Figure 1. Density visualization of words in the title, abstract, and authors’ keywords from the journal articles selected at the end of step two. The words included in the search (i.e., “multiobjective”, “design”) were excluded from the figure.
Energies 15 00486 g001
Energies 15 00486 g002 550
Figure 2. Temporal distribution of the reviewed journal articles.
Figure 2. Temporal distribution of the reviewed journal articles.
Energies 15 00486 g002
Energies 15 00486 g003 550
Figure 3. Spatial distribution of the case studies investigated in the reviewed journal articles. Studies applying the MOO workflow to various latitudes are clustered in the “miscellaneous” category.
Figure 3. Spatial distribution of the case studies investigated in the reviewed journal articles. Studies applying the MOO workflow to various latitudes are clustered in the “miscellaneous” category.
Energies 15 00486 g003
Energies 15 00486 g004 550
Figure 4. Case study typologies assessed in the reviewed journal articles. The “other” category includes other building typologies such as public buildings and tourist centers.
Figure 4. Case study typologies assessed in the reviewed journal articles. The “other” category includes other building typologies such as public buildings and tourist centers.
Energies 15 00486 g004
Energies 15 00486 g005 550
Figure 5. Objective functions evaluated in the reviewed journal articles. A larger area corresponds to a higher number of works that optimized that function.
Figure 5. Objective functions evaluated in the reviewed journal articles. A larger area corresponds to a higher number of works that optimized that function.
Energies 15 00486 g005
Energies 15 00486 g006 550
Figure 6. Programming languages utilized to write the MOO algorithms in the reviewed journal articles. A larger area corresponds to a higher number of algorithms based on that programming language. The “other” category also includes those journal articles which did not declare the programming language.
Figure 6. Programming languages utilized to write the MOO algorithms in the reviewed journal articles. A larger area corresponds to a higher number of algorithms based on that programming language. The “other” category also includes those journal articles which did not declare the programming language.
Energies 15 00486 g006
Energies 15 00486 g007 550
Figure 7. Number of publications for each optimization engine exploited in the MOO models.
Figure 7. Number of publications for each optimization engine exploited in the MOO models.
Energies 15 00486 g007
Energies 15 00486 g008 550
Figure 8. Number of publications for each objective function. Results are presented according to the used programming language: (a) Python, (b) MATLAB, (c) Jave, and (d) others.
Figure 8. Number of publications for each objective function. Results are presented according to the used programming language: (a) Python, (b) MATLAB, (c) Jave, and (d) others.
Energies 15 00486 g008
Table
Table 1. The number of publications per each couple of objective functions. Color transparency is inversely proportional to the number of publications. The white color corresponds to zero, whereas the red color corresponds to the highest amount (60).
Table 1. The number of publications per each couple of objective functions. Color transparency is inversely proportional to the number of publications. The white color corresponds to zero, whereas the red color corresponds to the highest amount (60).
LCCLCAENDAYLWINDTHERM
5318379026LCC
25135010LCA
11545060EN
57024DAYL
10WIND
73THERM
Table
Table 2. The number of publications per each couple of optimization variables (i.e., there are 32 journal articles that optimize WWR and orientation at the same time). Color transparency is inversely proportional to the number of publications. The white color corresponds to zero, whereas the red color corresponds to the highest amount (68).
Table 2. The number of publications per each couple of optimization variables (i.e., there are 32 journal articles that optimize WWR and orientation at the same time). Color transparency is inversely proportional to the number of publications. The white color corresponds to zero, whereas the red color corresponds to the highest amount (68).
OrientationWWRWindows (Type)Building Dimension/ShapeEnvelope InsulationInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy Pattern
403230113388155231Orientation
7157135212132810353WWR
84768142030141074Windows (type)
2190031100Building dimension/shape
86182527111495Envelope insulation
18453122Infiltration rate
3487764Heating system
409230Shading device
20040Natural ventilation
1900RES
103Lighting appliances
8Occupancy pattern
Table
Table 5. Tabular review of journal articles about Java-based MOO workflows.
Table 5. Tabular review of journal articles about Java-based MOO workflows.
Ref.YearOptimized ParametersLong-Term EvaluationOptimization Tool (Optimization Method)Parameters
LCCLCAEnergy PerformanceSolar AccessibilityThermal ComfortOrientationWWRWindows TypologyBuilding DimensionsEnvelope PropertiesInfiltration RateHeating SystemShading DeviceNatural VentilationRESLighting AppliancesOccupancy PatternOther
[42]2015 xx NGenOpt xx x x
[7]2015 x NGenOpt x x xx
[44]2018 xx NGenOpt xx x x
[43]2020 x NGenOpt xx x xx
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Manni, M.; Nicolini, A. Multi-Objective Optimization Models to Design a Responsive Built Environment: A Synthetic Review. Energies 2022, 15, 486. https://doi.org/10.3390/en15020486

AMA Style

Manni M, Nicolini A. Multi-Objective Optimization Models to Design a Responsive Built Environment: A Synthetic Review. Energies. 2022; 15(2):486. https://doi.org/10.3390/en15020486

Chicago/Turabian Style

Manni, Mattia, and Andrea Nicolini. 2022. "Multi-Objective Optimization Models to Design a Responsive Built Environment: A Synthetic Review" Energies 15, no. 2: 486. https://doi.org/10.3390/en15020486

APA Style

Manni, M., & Nicolini, A. (2022). Multi-Objective Optimization Models to Design a Responsive Built Environment: A Synthetic Review. Energies, 15(2), 486. https://doi.org/10.3390/en15020486

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
