Review

Enhanced Heat Transfer Using Oil-Based Nanofluid Flow through Conduits: A Review

1
Yogananda School of AI, Computer and Data Sciences, Shoolini University, Solan 173229, India
2
Mechanical Engineering Department, University of Petroleum and Energy Studies, Dehradun 248007, India
3
CSIR-Central Building Research Institute, Roorkee 247667, India
4
Mechanical Engineering Department, Institute of Engineering and Technology, GLA University, Mathura 281406, India
5
Nanofluids Research Laboratory, Department of Mechanical and Aeronautical Engineering, University of Pretoria, Pretoria 0002, South Africa
6
Department of Medical Research, China Medical University Hospital, China Medical University, Taichung 404, Taiwan
*
Authors to whom correspondence should be addressed.
Energies 2022, 15(22), 8422; https://doi.org/10.3390/en15228422
Submission received: 29 September 2022 / Revised: 18 October 2022 / Accepted: 5 November 2022 / Published: 10 November 2022

Abstract

:
The application of nanofluids for enhancing the heat transfer rate is widely used in various heat exchanger applications. The selection of oil as the base to prepare nanofluids significantly enhances the thermal performance, due to its high heat carrying capacity as compared to conventional base fluid. A review is performed of various heat exchanger conduits having base fluid as nanoparticles with oil. It is reported that the heat transfer rate of a heat exchanger is significantly increased with the use of oil-based nanofluids. The rate of heat transfer depends on the type of nanoparticle, its concentration and diameter, the base fluid, as well as factors like the mixture of more than two nanoparticles (hybrid nanofluids) and stability. A review is also performed of the thermal performance of the different nanofluids analyzed by various investigators. The heat transfer system reviewed in this work includes triangular, square, and circular conduits, as well as rib surface conduits. The review of various applications viz. solar thermal systems, heat exchangers, refrigerators, and engines, is carried out where the inclusion of the oil base is used. It is reported that the amalgamation of the nanomaterial with the oil as base fluid is a prolific technique to enhance thermal performance. The performance of the reviewed research work is comparatively analyzed for different aspects viz. thermal oil, mineral oil, hybrid, and conventional nanoparticles, concentration of nanoparticles, etc. The novelty of the present work is the determination of the effective performing oil-based nanofluid in various applications, to figure out the selection of specific mineral oil, thermal oil, nanoparticle concentration, and hybrid nanofluids.

1. Introduction

The consumption of energy in an effective manner is a major challenge and can be achieved by using source energy more efficiently or by reducing the magnitude of the facility used. Developing a heat exchanger of high efficiency, which is lightweight, low in cost, and of a compact size leads to the investigation of heat transfer enhancement techniques [1]. The environmental considerations and energy cost encourage modification of the existing designs for enhanced performance in chemical engineering, air conditioning, electronic chip cooling, power systems, and aerospace applications. Heat transfer rate between the hot surface and fluid can be enhanced by various methodologies, such as increasing the heat transferring area that augments heat transfer coefficient (HTC). The incorporation of micrometer-sized metal powders to heat-transferring fluids enhances the thermal conductivity of fluids [2].
Industrial applications benefit from enhanced heat transfer fluids, and the nanofluids have the potential to bring down thermal resistances. The suspended nanoparticles have higher thermal conductivities as compared to the base fluids (water, ethylene glycol, etc.) and a higher rate of heat transfer is seen using the nanofluids, even at low volume concentrations. The addition of nanoparticles to a base fluid in a heat exchanger considerably enhances the rate of convective heat transfer [3]. The viscosity determines the flow capabilities and driving force, i.e., pumping power for the transport of the fluid.
The objective of the present work is to comparatively analyze the performance of the oil-based nanofluid reviewed to reach a conclusion defining the best suited oil-based nanofluid for a specific application. The review of various applications such as heat exchangers, solar thermal systems, refrigerators, and engines is performed using oil as a base fluid. The secondary objective is to compare the performance of literature reviewed for different thermal oil, mineral oil, hybrid and conventional nanoparticles, and the concentration of nanoparticles used in a specific application. This comparison will determine the best performing selected oil-based nanofluid for various applications.

2. Nanofluids: Preparation and Stabilization

Nanofluids are fluids made by suspending nanoparticles in base fluids. Nanoparticles are different from micro- or macro-sized materials. We should be concerned about the possible detrimental impact of nanoparticles on humans or the environment, since it is unknown if nanoparticles of certain materials and sizes might harm the environment and health [4]. As for their low heat transfer qualities, common heat transfer fluids such as water, ethylene glycol, and motor oil have limited heat exchange capabilities. Metals’ thermal conductivities are approximately three times greater than fluids. Therefore, it makes sense to mix the two to create a thermal performance medium that behaves like a fluid but has the thermal properties of a metal. A nanofluid is a two-phase combination with nanosized particles in the solid phase [5]. Many experiments have been conducted to improve heat transmission utilizing nanofluids. Nanoparticles suspended in a fluid improve perceived thermal conductivity while also changing viscosity and density [6].
Nanofluids modeling may be done in two ways: single and two phases. Researchers have considered nanofluids as normal pure fluids in a single step and employed standard mass, momentum, and energy equations. Researchers assumed slip velocities between nanoparticles and fluid molecules in the first phase [7,8].

Preparation of Nanofluids

The preparation of the nanofluid is a critical stage in determining the stability of the nanofluid. The chemical inertness and strength and durability of suspended nanoparticles are required to use nanofluids in practical uses. Even suspension, ensuring appropriate, durable suspension, no chemical reactions in the type of combination, the dispersion medium, thermal stability, chemical compatibility, and preparation processes are desired characteristics for manufacturing nanofluids. There seem to be two major approaches for preparing nanofluids: one-step and two-step, or dispersion processes [9].
One technique is conducted by producing nanofluids through evaporation of a nanoparticle source and deposition of evaporating into a base fluid. The base fluid, including oil or ethylene glycol, is put in a cylindrical drum with a thermal and exchanger-cooler device that can be adjusted. As the drum rotates, a thin liquid layer forms inside the drum. An insulated heater-boat-evaporator and heat exchanger cooler device.
A thin liquid layer forms on the interior surface of the drum as it circles. As an insulated heating element with a melting material located within its boat evaporator, the evaporated substance is warmed, evaporating a portion of the evaporation material and creating nanoparticles; the nanoparticles are absorbed by the liquid film to produce nanofluid [10].
The most common method is the two-step method. Powder nanoparticles manufactured or purchased are used in the dispersion process. The nanoparticles are dispersed into the base fluids using ultrasonic agitation, mechanical stirring, the addition of a dispersant or a pH-5.0 nanofluid. The clumps of nanoparticles are broken down by mechanical churning and ultrasonic stirring to prevent the re-aggregation of nanoparticles and produce stable nanofluids, add dispersion or modify pH. The two-step procedure typically begins with the creation of nanoparticles by a physical or chemical process (such as evaporation and inert-gas condensation processing) before breaking them up into a base fluid [10].

3. Governing Equation and Correlation Used to Calculate Thermo Physical Properties of Nanofluids

Nanofluids have a wide range of properties, but their key characteristics are their thermal conductivity, density, specific heat, and viscosity. These characteristics include the particle size, heat, chemical composition, and interfacial characteristics at the particulate interface, in addition to the volume fraction of particles and particle-fluid conductivity ratio [11].

3.1. Thermal Conductivity

The characteristic that has attracted the most interest from the research community is thermal conductivity. In terms of temperature change, thermal conductivity is defined as the amount of heat given per unit of time and per unit of surface area divided by watts per degree Kelvin. When suspending metal or non-metal, the heating rate is a crucial thermal characteristic for increasing the heat transfer of liquids. To create the regression equation, various data points on the thermal conductivity of metallic and metal oxide nanofluids, such as Al 2 O 3 ,   Fe 3 O 4 , TiO 2 ,   ZnO ,   ZrO 2 ,   and CuO are accessible via the literature [12].
Since the heat capacity of these fluids significantly impacts the temperature transfer between the heat transfer medium and the heat transfer surface, conventional heat transfer fluids like oil, water, and mixtures of ethylene glycol are poor heat transfer fluids. Therefore, various techniques have been used to increase the thermal conductivity of these fluids by suspending materials in liquids made up of nano/micro- or larger-sized particles [13]. The various thermal conductivity equations from numerous authors are included in Table 1.

3.2. Density

Mass per unit volume is the definition of density. It may be measured in kilograms per liter and grams per milliliter. For estimating the density of nanofluids, several researchers have developed various equations using various relationships. Table 2 lists a few of them.

3.3. Specific Heat Capacity

The quantity of heat a substance requires to cause temperature change is referred to as its specific heat capacity. The specific heat is increased because the surface atoms of the nanoparticles have a larger specific surface energy than the bulk material. Additional thermal storage mechanisms induced by interfacial interactions between nanoparticles and liquid molecules may contribute to the increase in particular heat [20]. The nanoparticle’s large specific interfacial area may absorb liquid molecules to its surface and create liquid layers, which reversely constrains the nanoparticle and converts its free boundary surface atoms to non-free inner atoms. This impact will increase the specific heat capacity of the nanofluid even more [18]. Many scientists have provided additional heat capacitance formulae, which are included in Table 3.

3.4. Viscosity

Viscosity is defined as friction among fluid particles. It may measure viscosity using a viscometer, which is a piece of equipment that regulates the amount of force required to move through a liquid. Another parameter that influences the Nusselt number and flow friction is viscosity [21]. Several authors have employed computational and experimental research using various formulae to estimate the viscosity of nanofluids. Table 4 shows a selection of them.
Their thermo-physical characteristics determine nanofluids’ heat transmission behavior. Conventional heat transfer fluids such as water, oil, propylene glycol, and others have naturally modest heat transfer rates, making them inappropriate for applications requiring high heat transfer rates [19]. Thermophysical properties and parameters such as the Reynolds number (Re), the Prendle number (Pr), volume concentration (φ) of nanoparticles affecting heat transfer (Nu), and flow friction (ff) of fluids. Ho et al. [22] proposed Nu relations for four distinct models based on two formulae for 0% ≤ φ ≤ 4%. The findings revealed that the uncertainties associated with the formulas used significantly influenced heat transfer characteristics.
Correlation formulations for Nu and ff offered by researchers such as Petukhov [23]; Gnielinski [24]; Dittus and Boelter [25]; Maïga and Bécaye [26]; Duangthongsuk and Wongwises [27]; Suresh et al. [28]; Sundar et al. [29]; and Madhesh et al. [30] are listed in Table 5.

4. Investigations of Heat Transfer Characteristics of Oil-Based Nanofluids for Varying Particle Concentration in Various Applications

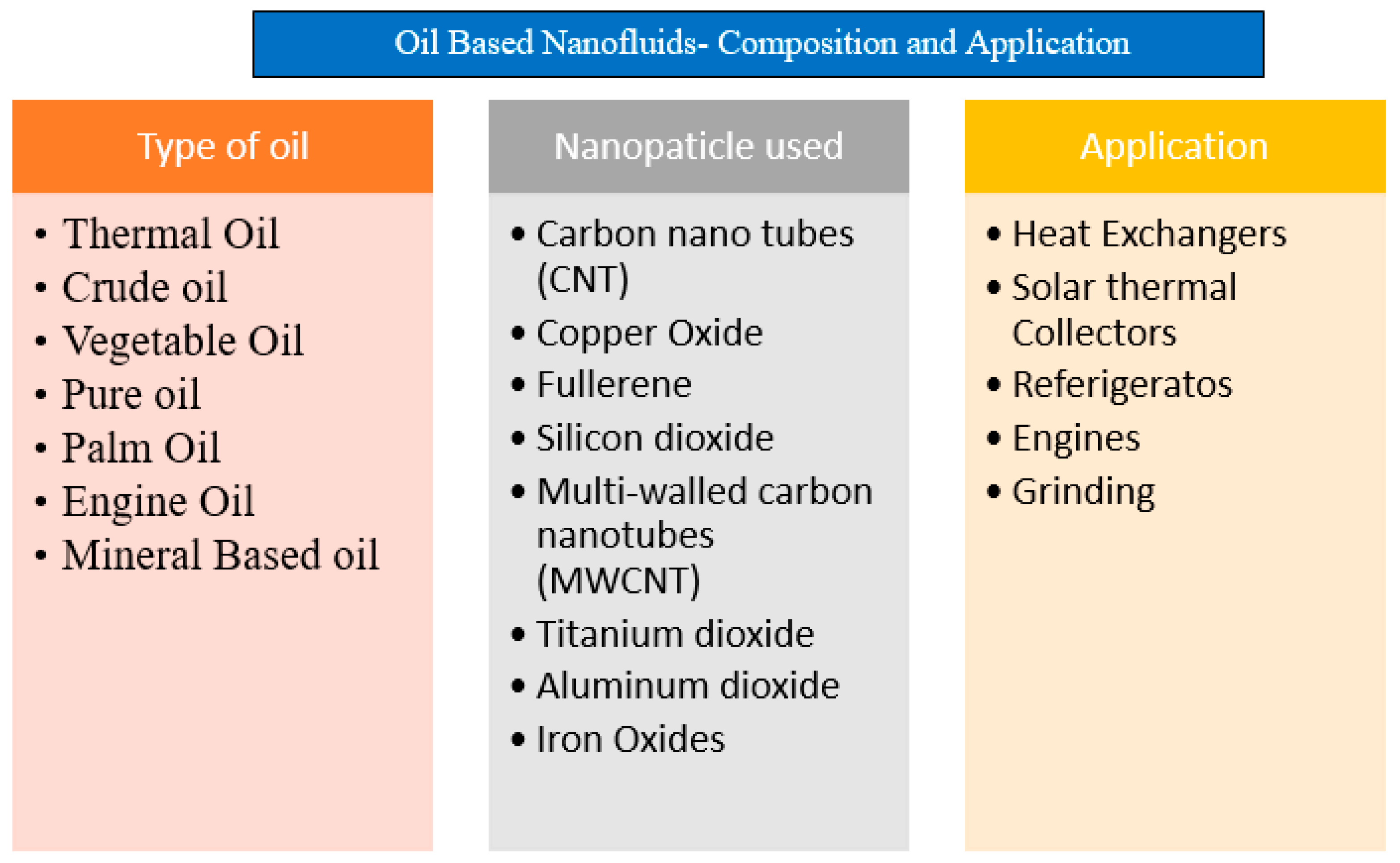

The utilization of the Oil-Based Nanofluids finds its application in various applications as shown in Figure 1. Various applications using the oil-based nanofluids delivers an effective and prolific results in their performance. Hwang et al. [31] reported augmentation in the thermal conductivity of nanofluids with an increase in the particle volume fraction (φ); except for nanofluids with water as base of low thermal conductivity. Hekmatipur et al. [32] and Javed et al. [33] synthesized a copper oxide nanofluid and found that the thermal properties increased as compared to the base fluid. The nanoparticles such as copper oxide, fullerene, silicon dioxide, and multi-walled carbon nanotubes ( MWCNT ) with base fluids (water, ethylene glycol, etc.) were studied by Hwang et al. [34], Vasheghani et al. [35], Yu et al. [36], Gholamipour et al. [37], and Farbod et al. [38]; the studies reported that increasing the value of φ enhances the thermal conductivity of nanofluids.

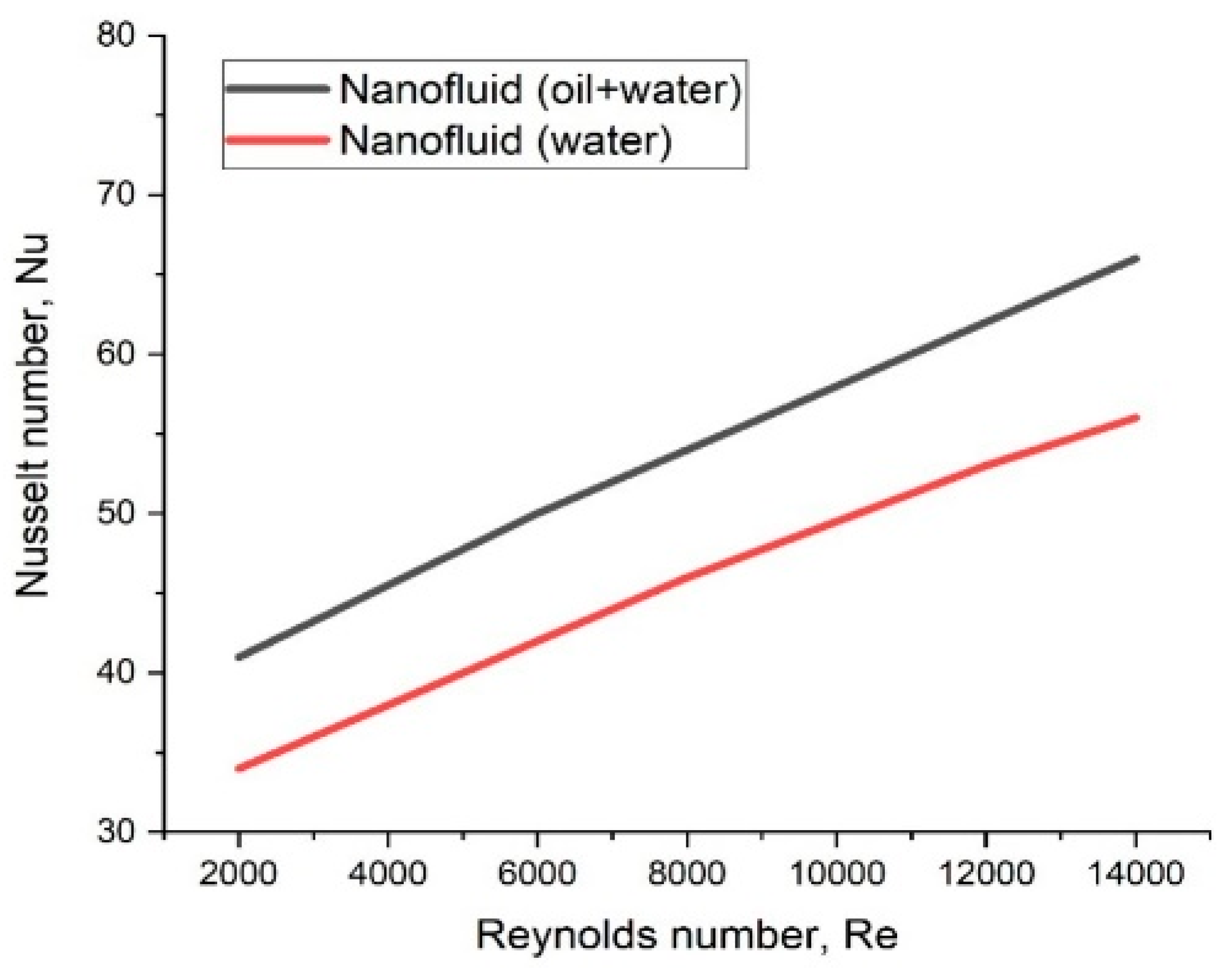

Xue ZQ [39] and Sauvad [40] found that HTC, using a TiO 2 - SiO 2 nanofluid, is boosted by elevating the temperature and concentration volume. The maximum augmentation in the heat transfer rate is reported to be 81%, as compared to the base fluid for a selected concentration volume and temperature of 3.0% and 70 °C, respectively.
Sundar et al. [41] and Rahimi et al. [42] analyzed nanofluids by dissolving synthesized nanoparticles of GO / Co 3 O 4 with water and ethylene glycol, and reported an increase in thermal conductivity of water-based nanofluids by 19.14% and an increase in ethylene glycol-based nanofluids by 11.85% at φ = 0.2%. Aberomand [43] conducted a study on oil-based nanofluids, including silver nanoparticles, and observed that thermal conductivity is temperature dependent in the range of 40 to 100 °C at various weight fractions from 0.12% to 0.72%. Salimi et al. [44] showed that, by increasing the Reynolds number (Re) from 300 to 900, the rate of heat transfer is enhanced by 9.5%. Sokhansefat et al. [45] numerically studied Al 2 O 3 nanoparticles in synthetic oil for enhancement in heat transfer rate. The numerical analysis revealed that the convective HTC is directly affected by the volumetric concentration of the nanoparticles. Carvalho and Fossum [37] reported an escalation in the thermal conductivity of nanofluids by increasing the weight percentage of the nanoparticles. The highest Nusselt number (Nu) ratios for a Re of about 800 were found to be 1.15, 1.31, and 38 for   A 1 2 O 3 /turbine oil (0.50%), TiO 2 /turbine oil (0.50%), and   CuO /turbine oil (0.50%), respectively.

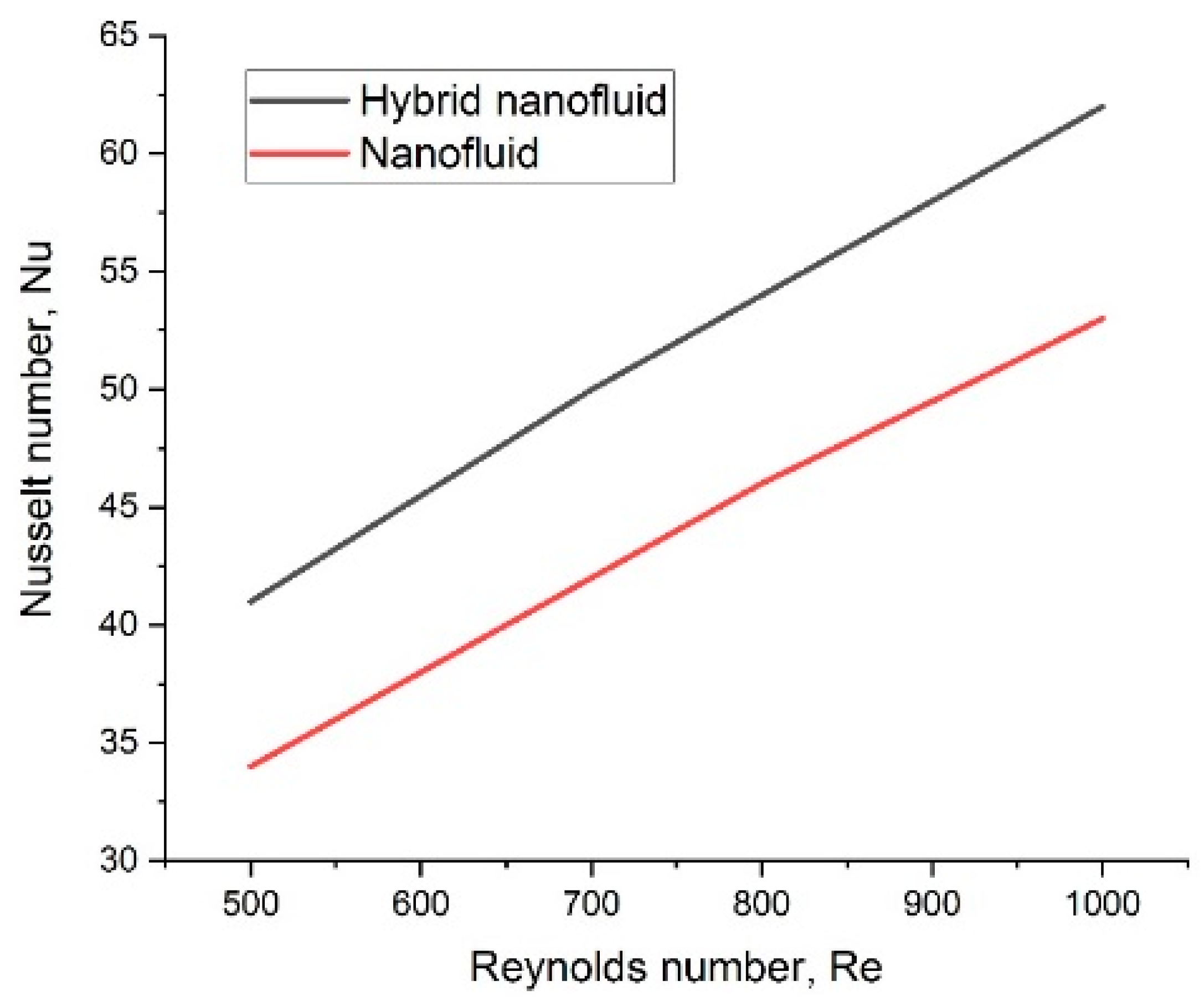

Sidik et al. [46,47] reported higher heat transfer rates using hybrid nanofluids as compared to commonly used heat transfer fluids, such as water, ethylene glycol, and oil. Kumar and Gaurav [48] and Hemmat et al. [49] found that nanoparticle suspension required lower specific energy for grinding as compared to sunflower oil. Amiri et al. [50], Aghaei et al. [51], and IIyas et al. [52,53] found that viscosity increased when the nanoparticle volume fraction was increased, and decreased when temperature was increased. The use of a nanofluid-based technique could save fuel in the oil industry and solve issues brought about by limited access to a diluent [54,55,56]. Table 6 represents the optimum parameters and major findings of oil-based nanofluids in previous investigations.

5. Application-Based Investigation of Oil-Based Nanofluids

The present section discusses the use of oil-based nanofluid in specific applications and the effect of using the discrete nanofluid as compared to the conventional one.

5.1. Investigation on Nhanced Oil Recovery Using Oil Based Nanofluids

Zheng et al. [59], Suleimanov et al. [78], Radnia et al. [79], Kuang et al. [80], and Emadi et al. [81] experimentally studied non-ferrous metal nanofluid in an aqueous solution of anionic surface-active agents and the addition of light, for enhanced oil recovery (EOR). It was revealed that the use of nanofluid reduces the surface tension on an oil boundary by 70% to 90% compared to the surface-active agent aqueous solution that results in a considerable EOR.
Hemmat et al. [82], Dai et al. [83], Liang et al. [84], and Chen et al. [85] concluded that surfactants could modify rock wettability and bring down the oil-water interfacial tension (IFT). Alnarabiji et al. [86] and Anssari et al. [87] reported that the efficiency of diluted nanofluids is enhanced by nanofluid concentration and immersion time. The results revealed new nanofluid potential to be used for improved EOR and efficient C O 2   geostorage. Zabala et al. [88] and Shahrabadi et al. [89] concluded that nanoparticles are promising agents and have more potential for EOR. The oil-based nanofluid also tripled in performance compared to conventional nanofluids. Hendraningrat and Torsæter [90], Zhao and Li [91], Youssif et al. [92], Bhunia [93], Valantina [94], and Gbadamosi et al. [95] investigated hydrophilic metal oxide particles with brine to determine the potential for EOR. They concluded that the presence of nanoparticles and dispersant reduced the IFT to yield significant EOR. Fontes et al. [96] and Khademolhosseini et al. [97] concluded that nanoparticles and bioproducts have an effect on each other. Because of a reduction in the IFT, an improvement of about 58% was obtained in mobility ratio and oil recovery.
Murshed et al. [98] analyzed the applicability of nanofluid and temperature effects on the surface tension, IFT, and viscosity for droplet-based microfluidics. A lower surface tension was reported with oil-based IFT as compared to base fluid. Mohammadi et al. [99] and Hussein et al. [100] analyzed nanoparticles in the solution and reported wetting alteration from oil-wet to strongly water-wet conditions, and also decreased the residual oil saturation and EOR by about 15%. Liu et al. [101] examined the mechanical properties of hybrid nanomaterials of nano-silica and graphene oxide of oil-well cement. The strength of cement for 1.5% nano-silica and 0.03% graphene oxide was increased by 43.2% and 42%, respectively, with 28 days of curing.

5.2. Investigation on Heat Exchanger Tube/Channel Using Oil-Based Nanofluids

Qi et al. [102] analyzed the TiO 2 -water nanofluid for heat transfer rate and flow characteristics using triangular and circular tubes in the heat exchanger, and found that the nanofluid in a triangular tube enhances heat transfer more than in a circular tube. Lee et al. [103] studied the CuO /base oil nanofluid to determine the thermohydraulic properties in a smooth tube by using different wire coil inserts. Results show a 45% increase in HTC and a 63% enhancement in friction losses at a maximum Re. Razi et al. [104] found that the HTC and friction losses are increased by the use of nanofluids, and that the use of flattened tubes instead of round tubes enhances the convective HTC.
Ariana et al. [105] inspected heat transfer using turbine oil-based nanofluids of CuO , TiO 2 , and Al 2 O 3 nanoparticles. The results obtained for performance indexes were greater than 1 and the presence of ribs considerably increased the Nu and friction factor. Heat transfer behavior also depends on the rib shape, and therefore, rib shapes have been compared. The maximum Nu was found for the rectangular rib [75].

5.3. Investigations on Medicine Using Oil-Based Nanofluids

Ragvan et al. [106] conducted precautionary studies of a garlic oil nano-emulsion for preventing and treating dyslipidaemia, and reported reduced toxicity and improved efficacy using garlic oil. Gao et al. [107] and Hazer and Kalayci [108] reported that clove oil is a reducing agent that stabilizes the formation of silver nanoparticles. The outer layer of the nanoparticles coated with clove oil produces better antibacterial silver nanoparticles. The perpetual dielectric nature of a ZnO nanofluid at a high temperature can be used in industries as a coolant and lubricant [109]. The use of eco-friendly oils (minimum quantity lubrication (MQL), nanoparticles with various harnesses, and vegetable oil) can be beneficial to solve environmental and human health issues raised by using conventional cutting fluids during machining processes [110,111,112].

5.4. Investigation on Solar Collectors Using Oil-Based Nanofluids

Adenutsi et al. [113] and Wang et al. [114,115] analyzed the performance of a gold/oil nanofluid used as the heat-transferring fluid in solar applications. The gold/oil nanofluid produced a 240% increase in photothermal conversion efficiency and was a better fluid in the absorption of indirect solar collectors.
Shen et al. [116] and Nimr and Dafaie [117] used mathematical modeling to verify that a nanofluid is an excellent solar radiation absorber. Khakrah et al. [118] investigated parabolic trough solar collectors ( P T C ) under the effect of various operational conditions for overall efficiency. They reported that, at the highest wind speed of 10 m/s, the thermal efficiency decreased by 7% compared to the still air, and 22% for heat transfer fluid ( HTF ) with a nanoparticle volume fraction of 5%. The relative exergy efficiency was increased by 19% through the addition of 5% nanoparticles. Gulzar et al. [119] observed that, instead of TiO 2   and Al 2 O 3 -Therminol-55 nanofluids, the use of a hybrid nanofluid-enhanced photothermal conversion. A maximum temperature of 125.8 °C of Therminol-55 was recorded, whereas temperatures of 158.6 °C, 152.9 °C, and 149.6 °C were observed for 0.5 wt% hybrid ( Al 2 O 3 - TiO 2 ), 0.5 wt% Al 2 O 3 -Therminol-55, and 0.1 wt% TiO 2 -Therminol-55 nanofluids, respectively. A hybrid nanofluid built on Therminol-55 was suited for high-temperature concentrating collectors, compared to the mono-nanofluid and base fluid. Wang et al. [120] studied the PTC system with an Al 2 O 3 /synthetic oil nanofluid with variable heat flux distributions. The use of the Al 2 O 3 /synthetic oil nanofluid had the potential to lower the solar absorber plate temperature and temperature gradient. The efficiency of the collectors of the PTC systems with Al 2 O 3 /synthetic oil nanofluid was significantly higher as compared to synthetic oil. Loni et al. [121] reported a 12.93% increase in thermal efficiency using Al 2 O 3 /thermal oil in a hemispherical cavity receiver as compared to a SiO 2 /thermal oil.

6. Oil-Based Review of Different Nanofluids Analyzed

6.1. I Examination on Crude Oil-Based Nanofluids

Hendraningrat et al. [122] observed experimentally promising results and EOR by injecting a nanoparticle suspension. The testing was conducted in water-wet Berea core plugs for various nanofluid concentrations. Crude oil and nanofluid with concentrations of 0.01, 0.05, and 0.1 wt % were synthesized using synthetic brine. It was reported that the IFT is reduced as nanofluid concentration rises. Zhang et al. [123] investigated high salinity reservoir crude oil and brine solution nanofluid to replace crude oil with Berea sandstone. Berea sandstone enhances the efficiency by 50%, whereas the brine alone delivers a value of 17%. Alomair et al. [124] studied the effects of nanofluids to recover crude oil compared to the use of water flooding. The Al 2 O 3 , SiO 2 , NiO , and TiO were added to saline water to form a nanofluid of different concentrations. The use of an AL2O3 nanofluid with a concentration of 0.05 wt % reduces the emulsion viscosity by 25%. The highest EOR was found for SiO 2 and Al 2 O 3 nanofluids at 0.05 wt % . Table 7 represents the comparison of a previous investigation on crude-oil-based nanofluid.

6.2. Examination of Vegetable Oil-Based Nanofluids

Li et al. [126] reported that the trapping depth of vegetable-insulating nanofluids with an oil base is influenced by the nanoparticle surfactant polarization. Su et al. [70], Padmini et al. [127], and Li et al. [128] evaluated cutting force and temperature using the nanofluid MQL with vegetable oil and ester oil as base fluids. At high cutting speed, the performance of graphite-LB2000 revealed a reduction in the cutting force and temperature, and was superior to the graphite-Pri Eco 6000 nanofluid. The turning of AISI 1040 steel using cutting fluids as vegetable-oil-based nano was examined by Rapeti et al. [129]. Improved machining was seen at a feed rate of 0.14 mm/rev and a cutting speed of 40 m/min using 0.5% coconut oil nano-molybdenum sulfide with 0.5% nanoparticle concentration.
Desari and Davoodi [57] investigated vegetable oils as a lubricant for its biodegradability and non-toxicity in the metal-forming process for reduction in friction losses and extreme pressure capabilities. A diverse concentration of nanofluids was formed by dispersing the CuO and SiO 2   nanoparticles of rapeseed and soybean oils with two metal-forming lubricants, and their lubrication performance was compared. Mechiri et al. [76] analyzed the vegetable oils and reported that the Brownian motion of the particles enhanced thermal conductivity. High viscosity leads to the lubrication property and reduces the energy input, as well as the generation of heat during grinding. Table 8 represents the comparison of the previous investigations on vegetable-oil-based nanofluids.

6.3. Study on Pure Oil-Based Nanofluids

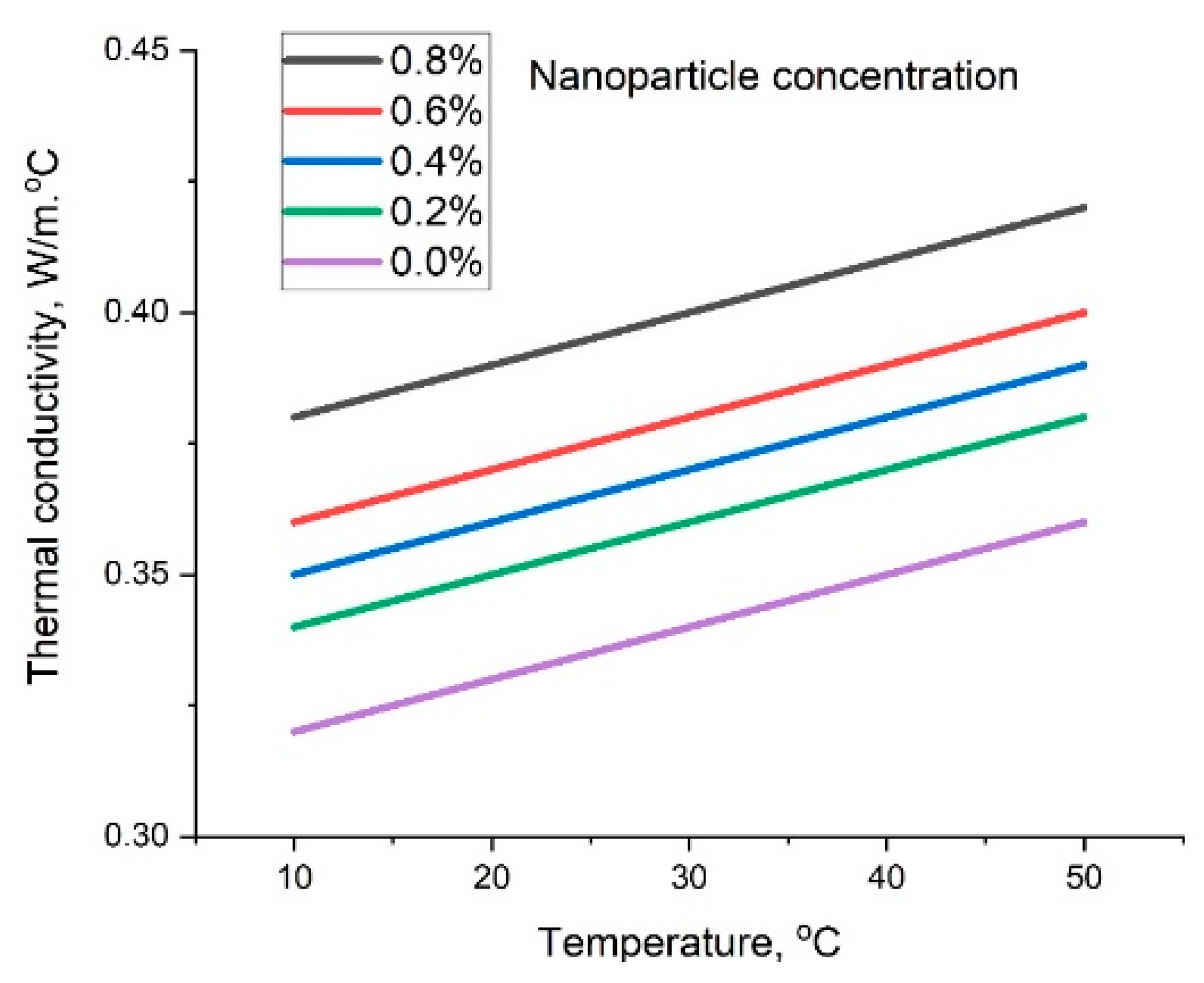

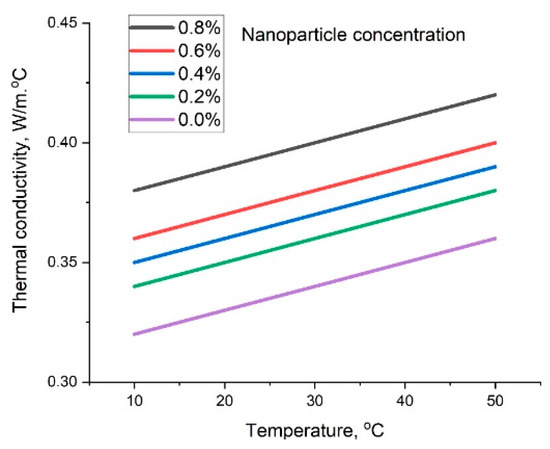

Arani et al. [68] experimentally investigated the HTC for various parameters (Re, nanofluid particle concentration, and tube diameter ratio). They revealed that the HTC and pressure increased by replacing pure oil with nanofluid. Razi et al. [61] and Jiang et al. [131] analyzed CuO -base oil nanofluids with particle weight fractions between 0.2 and 2%. They reported that the inclusion of nanoparticles in the base fluid increased the thermal conductivity of the nanofluid as the specific heat capacity decreased. An increase in HTC by 12.7% was observed for a specific nanoparticle concentration compared to pure oil. Table 9 represents the comparison of a previous investigation on pure oil-based nanofluids.

6.4. Exploration on Palm-Oil-Based Nanofluids

Li et al. [107] selected palm oil as the base oil of MQL cooling. Various nanofluids with volume fractions ranging from 0.5 to 4% were made by the nanoparticles of carbon nanotube (CNT) for MQL cooling grinding of a Ni-based alloy to determine the optimum heat transfer and lubrication performance. Li et al. [133] investigated palm oil as the MQL base oil. The MoS 2 , ZrO 2 , CNT, PCD, Al 2 O 3 ,   and SiO 2 nanoparticles were added to form nanofluids. The minimum grinding force ratio of 0.365 was achieved for   SiO 2 , followed by MoS2 nanofluid with a ratio of 0.367, while the PCD nanofluid showed the best ratio of grinding force of 0.40. Li et al. [126,134] studied palm oil and found an increase in thermal conductivity because of Brownian motion of nanoparticles and revealed that the higher viscosity of the nanofluid promotes the lubrication effect that leads to the lower energy input and less grinding heat. Table 10 represents the comparison of a previous investigation on palm-oil-based nanofluids.

6.5. Exploration on Engine-Oil-Based Nanofluids

Wang et al. [74] employed various nanoparticles in traditional engine oil for developing a novel nanofluid cooling medium, and analyzed the heat transfer rate of engine oil and nanofluids. Mohammad and Kandasamy [135] showed that engine-oil-based nanofluids have a significant impact on temperature distribution by augmenting the nanoparticle volume fraction. Derakhshan and Behabadi [45] and Rehman et al. [136] employed a 3 D flow of rotating water and engine-oil-based nanofluid for the analysis by varying the nanometer-sized single-walled carbon nanotubes (SWCNT) and MWCNT. The S W C N T delivers a higher skin friction and Nu because of their higher density and thermal conductivity.
Asadi et al. [77], Tao et al. [137], and Asadi et al. [138] examined the rate of heat transfer of an engine-oil-based nanofluid lubricating oil, with concentrations varying from 0.25 to 2%. They reported that the dynamic viscosity of the nano-lubricant increases as the solid concentration is increased. Finally, they concluded that nanofluids are advantageous for heat transfer applications used as a coolant fluid. Pryazhnikov et al. [139] analyzed the thermal conductivity coefficient of Al 2 O 3 ,   TiO 2 ,   SiO 2 , ZrO 2 , CuO , and diamond particles based on water, ethylene glycol, and engine oil.
They also found that the base liquid influences the thermal conductivity of the nanofluids. Ghazvini et al. [64] investigated the effects of utilizing nano-diamond particles with engine oil as the base fluid, and revealed higher heat transfer rates and pressure drops by adding nanoparticles. Isfahani et al. [72] and Mashhadi et al. [140] examined the behavior of engine oil using various types of hybrid nano-additives, and reported that the viscosity of the nanofluid goes up by increasing the nano-additives concentration.
Wang et al. [120], Dinesh et al. [141], He et al. [142], and Quercia et al. [143] stated that the use of a nanofluid made with engine oil as the base fluid boosted the lubrication properties. Sgroi et al. [144] reported that fuel consumption was reduced by 0.9% compared to traditional engine oil. Pourfattah and Asadi [145] analyzed the ZnO and MgO -engine oil nanofluid for thermophysical and heat transfer characteristics as coolants and lubricants in various engineering applications. They observed that the nanofluid with ZnO raises the dynamic viscosity, and in laminar flow regimes the heat transfer performance is good. Table 11 represents the comparison of a previous investigations on engine-oil-based nanofluids.

6.6. Investigations on Mineral-Oil-Based Nanofluids

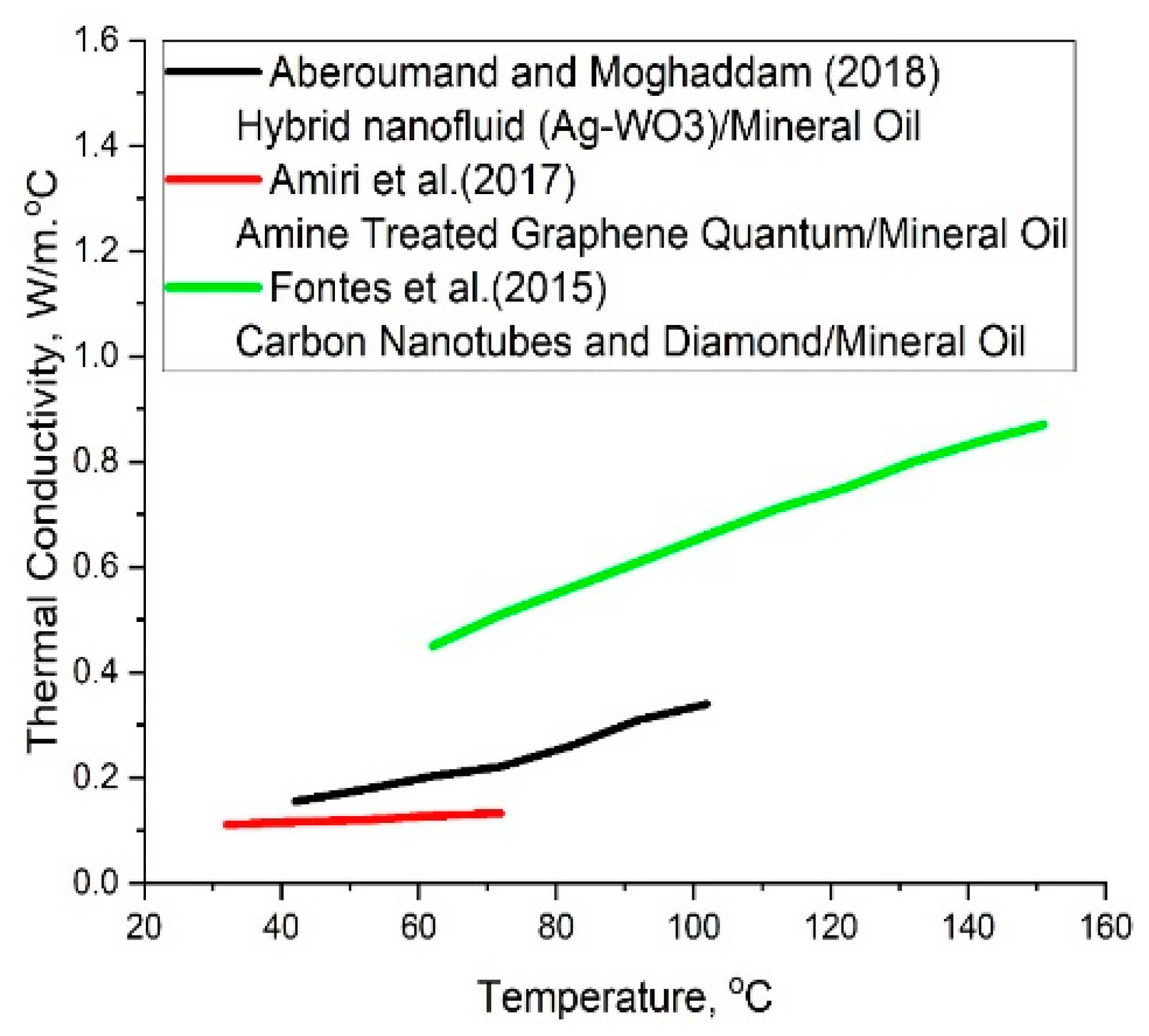

Sundar et al. [39] and Gara and Zou [146] experimentally investigated the tribological properties of Z n O nanofluids in paraffinic mineral oil and reported a reduction in friction, which enhanced the dispersibility and stability of the nanofluids. Ingole et al. [40] studied applications of the mineral-based nano-oils on two domestic refrigerator compressors. The performance of the two compressors was enhanced by 5.6 and 5.3%, respectively, compared to mineral oil. Fontes et al. [147] and Hameed et al. [148] investigated MWCNT -based nanofluids to determine the Nu for the same Grashof number (Gr), and reported that the nanofluids presented better convection characteristics. The maximum increase in the convection HTC was 23% for diamond nanofluids with a higher volumetric concentration. Lv et al. [149] concluded that thermal conductivity increased with nanoparticles. Table 12 represents the comparison of previous investigations on mineral-oil-based nanofluids.

6.7. Examination on Thermal-Oil-Based Nanofluids

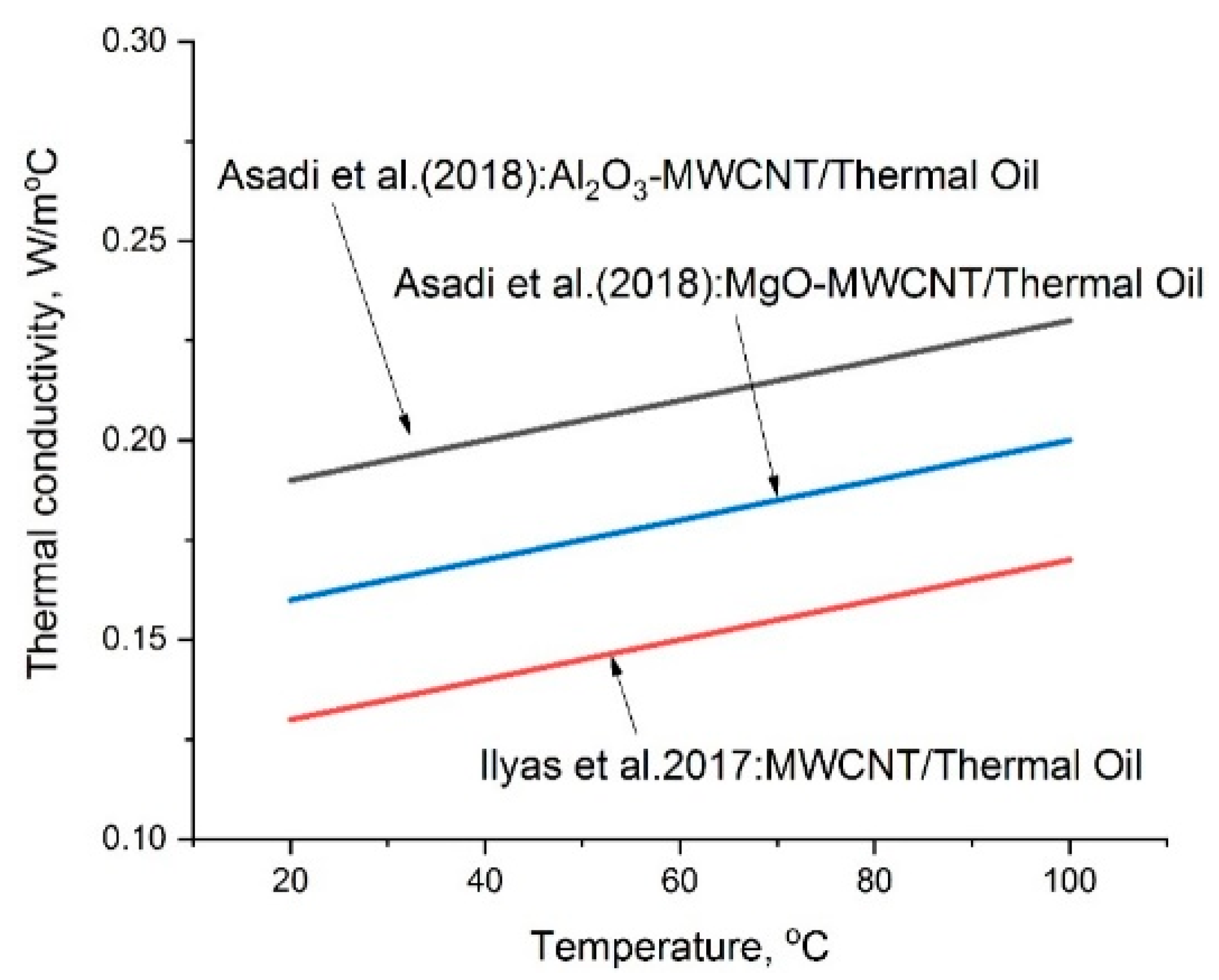

Asadi et al. [150] determined the rate of heat transfer for an Al 2 O 3 - MWCNT /thermal oil hybrid nanofluid to have concentrations in the range of 0.125 to 1.5%, and temperatures from 25 °C to 50 °C. They reported that the application of nanofluid is prolific in laminar and turbulent flow as compared to base fluid. Loni et al. [151,152,153] examined the nanofluids Cu /thermal oil, Al 2 O 3 /thermal oil,   SiO 2 /thermal oil, and TiO 2 /thermal oil. They saw that thermal efficiency was reduced when nanoparticle volume concentrations were increased, and the exergetic efficiency was enhanced by increasing nanofluid concentrations. The Cu /thermal oil nanofluid also delivered the highest exergy in the investigated nanofluid in a cylindrical cavity receiver.
Herper and Entel [154] studied four types of nanofluids for the thermal properties of Al 2 O 3 ,   Fe 3 O 4 ,   SiO 2 , and SiC nanoparticles in thermal oils. An augmentation in the thermal conductivity of oil by 8% was reported when 0.5 wt.% of aluminum nitride nanoparticles were dispersed, and cooling was enhanced by 20%. In the thermal-oil-based nanofluids with 0.08 % < φ < 0.39 % , the dielectric breakdown voltage was three times higher than that of pure thermal oil [103]. Beheshti et al. [67] experimentally determined the effect of oxidized MWCNT on the properties of thermal oil, and a decreased breakdown in voltage was reported as the concentration increased. Aberoumand et al. [73] examined the rate of heat transfer of an oil-based silver nanofluid with parameter temperatures ranging from 40 °C to 100 °C and mass fractions of 0.12 to 0.72%. The enhancement in viscosity depends on temperature, whereas the specific heat capacity decreases as the mass concentration of nanofluids increases. Sadegh et al. [73] and Mohammadi et al. [155] and found that the thermal conductivity of a thermal-oil-based nanofluid was enhanced with temperature, whereas the specific heat capacity reduced as the mass concentration increased. Qin et al. [58] synthesized stearic acid-modified CuS (SA-CuS) nanoparticles with a uniform diameter of 60 nm by a facile two-phase approach Table 13 represents the comparison of a previous investigation on thermal-oil-based nanofluids.

7. Comparative Study

A comparison of various nanoparticles was conducted based on Nu generated where the base fluid used was pure oil. Figure 2 shows the variation of Nu for different Re using various nanofluids. It was revealed that SiO2/oil nanofluid delivered the maximum Nu, followed by Al 2 O 3 / oil ,   ZnO / oil , CuO / oil , and pure oil, respectively.
The variation of Nu for different Re is presented in Figure 3, which reveals that the value of the Nu is higher for base fluids of oil + water, compared to plain water. The probable reason for the higher Nu is that oil + water has a high dynamic viscosity compared to water, which results in an augmentation in heat transfer capabilities. The comparative studies in the literature review also show that hybrid nanofluids deliver augmented heat transfer as compared to simple nanofluids, which are boosted by a rise in Re; as represented in Figure 4.
It is evident from the comparative study, as shown in Figure 3, that the oil-based nanofluids deliver added thermal conductivity as compared to the base fluid. The nano particles concentrations is also a major parameters that can affect the thermal conductivity of nanofuids, as shown in Figure 5. The literature review also revealed that the thermal conductivity of hybrid Ag WO 3 /mineral-oil-based nanofluids is higher than the amine-treated graphene mineral-oil-based and simple MWCNT/mineral-oil-based fluid, as shown in Figure 6. Figure 7 shows that the thermal conductivity of Al 2 O 3 MWCNT /thermal-oil-based nanofluids is higher than MgO MWCNT /thermal oil and simple MWCNT/thermal oil-based nanofluids. For all nanofluids, the thermal conductivity also increases with temperature because the Brownian motion of the particles is greater at elevated temperatures.

8. Research Gaps, Challenges, and Future Works

This review of oil-based nanofluids determined the benefits of switching the nanofluid base from water to oil. These prolific outcomes were analyzed in the fields of solar thermal systems, heat exchangers, lubrication in grinding, refrigeration, and engines. The results revealed the effective performance of oil-based nanofluids for different oils, nanoparticles, and concentrations used in specific processes. The review also identified gaps in the analyzed literature. Future work in these domains should focus on sustainability analysis concerning the use of oil as the base fluid in terms of cost analysis, emissions from oil when heated, and energy consumption in driving the high viscosity oil through the channel.

9. Conclusions

This study reviewed the literature addressing the use of nanofluid/oil and the major conclusions drawn from the survey are summarized as follows:
  • The use of nanoparticles suspended in oil leads to a remarkable reduction in the specific energy requirement during grinding operation.
  • Nanoparticles with Cu and Zn as the chief constituents have high and low densities, respectively, whereas hybrid nanoparticles with the same concentrations have average densities. Compared to nano-SiC, nano-diamond and nano-copper have better results in reducing the cutting forces.
  • The HTC of nanofluids is improved by volume concentration and temperature augmentation. The maximum convective heat transfer enhancement for SiO 2 is 81%, compared to the base fluid at a volume concentration and temperature of 3.0 and 70 °C, respectively.
  • The use of nanoparticles enhances thermal conductivity, anti-frictional properties, and cooling-lubrication characteristics of various oils. Similarly, the wettability of the oil is significantly enhanced with nano-suspension.
  • The thermal conductivity of water-based nanofluids is improved by 19.14% and the ethylene glycol-based nanofluid is improved by 11.85%. Likewise, the viscosity of water-based and ethylene-glycol-based nanofluids is enhanced by 1.70 and 1.42 times, respectively.
  • Silver/oil nanofluids are prolific in increasing the Nu in a thermal system. The thermal conductivity of nanofluids is directly proportional to the nanoparticle concentration. The stability of Al 2 O 3   and TiO 2 nanofluids depends on the concentration of the chemical agents added. The stability of the nanofluids increases up to φ = 0.1%; with a further increase in φ, the stability starts to decrease.
  • Adding nanoparticles with different volume fractions to the pure oil notably enhances the heat transfer and friction factor.
  • A higher thermal efficiency is seen using the Al 2 O 3 /thermal oil nanofluid compared to the SiO 2 /thermal oil nanofluid in a cylindrical cavity receiver. It is recommended that the cylindrical cavity receiver should be used with the Al 2 O 3 /thermal oil nanofluid to obtain a higher thermal efficiency.
  • More experimental data is still needed to fill in the gaps in the knowledge.

Author Contributions

Conceptualization, S.K., M.S. (Mridul Sharmaand), A.B., S.S. and A.K.; methodology, R.M., T.A. and S.S.; software, T.A., A.K., S.S. and N.K.G.; validation, S.K., M.S. (Mridul Sharmaand), A.B., S.S., T.A. and A.K.; formal analysis, M.S. (Mridul Sharmaand), T.A., A.K. and M.S. (Mohsen Sharifpur); investigation, R.M., S.S. and N.K.G.; resources, M.S. (Mohsen Sharifpur); data curation, S.K., M.S. (Mridul Sharmaand), A.B. and A.K; writing—original draft preparation, S.K., M.S. (Mridul Sharmaand), S.S., A.B. and A.K.; writing—review and editing, A.K., R.M., S.S. and T.A.; visualization, N.K.G.; supervision, M.S. (Mohsen Sharifpur); project administration, A.K. and R.M.; funding acquisition, A.K. and R.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Diameter of nanoparticles
GrGrashof number
Nusselt number
Reynolds number
Concentration of solid particles
Abbreviations
CNTCarbon nanotubes
EOREnhanced oil recovery
IFTInterfacial tension
HTFHeat transfer fluid
HTC.Heat transfer coefficient
MQLMinimum quantity lubrication
MWCNTMulti-walled carbon nanotubes
PTCParabolic trough solar collector
SWCNTSingle-walled carbon nanotubes
