Geochemical Modelling of the Fracturing Fluid Transport in Shale Reservoirs

Abstract

Field operations report that at least half of the fracturing fluid used in shale reservoirs is trapped. These trapped fluids can trigger various geochemical interactions. However, the impact of these interactions on well performance is still elusive. We modeled a hydraulic fracture stage where we simulated the initial conditions by injecting the fracturing fluid and shutting the well to allow the fluids to soak into the formation. Our results suggest a positive correlation between the dissolution and precipitation rates and the carbonate content of the rock. In addition, we observed that gas and load recovery are overestimated when geochemical interactions are overlooked. We also observed promising results for sea water as a good alternative fracturing fluid. Moreover, we observed better performance for cases with lower-saline connate water. The reactions of carbonates outweigh the reactions of clays in most cases. Sensitivity analysis suggests that the concentration of SO₄, K and Na ions in the fracturing fluid, and the illite and calcite mineral content, along with the reservoir temperature, are the key factors affecting well performance. In conclusion, geochemical interactions should be considered for properly modeling the fate of the fracturing fluids and their impact on well performance.

1. Introduction

The shale boom started by combining the multistage hydraulic fracture technique and horizontal drilling technology [1,2,3]. King [4] reported that the recovery of fracturing fluid in shale reservoirs ranges from 10 to 50% depending on the shale characteristics and operational parameters, as shown in Figure 1. Unfortunately, the trapping mechanisms of the fracturing fluids and their impact on well performance are still elusive [5,6,7,8]. In this study, we consider residual trapping, capillary suction, permeability jail and mineral trapping.

Given the heterogeneity of the shale systems, the fate of the fracturing fluid is a multi-faceted topic [9,10,11]. The salinity contrast between the fracturing fluid and the connate water would induce osmosis flow which will impact the load recovery and the well performance, on load recovery [12]. Considering the capillary suction and the osmosis flow, Fakcharoenphol et al. [13] optimized the shut-in time after the well completion to improve the well performance. In the same vein, Le, Hoang and Mahadevan [14] reported that the capillary suction significantly affects the fracturing fluid redistribution in tight rocks and the gas relative permeability in the invaded zone. On the other hand, Agrawal and Sharma [15] showed that the fracturing fluid might also get trapped in the fractures, affecting the load recovery and well performance. Additionally, Gdanski and Walters [16] studied the impact of fracture conductivity, matrix permeability and shut-in time on load recovery and well performance. They attributed the contradictory observations on best practices for shut-in times to the variation of the relative permeability quality between reservoirs. Furthermore, Mahadevan, Sharma and Yortsos [17] examined the potential of water evaporation as a cleaning mechanism for trapped fluids. However, limited research has focused on the impact of induced geochemical interactions on the fate of the fracturing fluid and the well performance.

The introduction of oxygenated, low-salinity and pH-neutral slick water to a reducing, reactive and heterogeneous system like shale would disturb the system equilibrium. The resulting interactions include geochemical reactions such as aqueous, ion exchange and rate-controlled reactions and physiochemical reactions such as clay swelling [18,19]. Akrad, Miskimins and Prasad [20] experimentally investigated the impact of these interactions on reservoir characteristics, where they reported conductivity and strength loss for various shale samples after exposure to slick water. It is notable that, while the conductivity loss directly affects well performance, formation softening endangers the prolonged production lifetime [21].

Figure 1. Load recovery (%) and fracturing treatment volume (MM Gallon) for the main shale-producing plays in the United States (Adapted from King [22]). Vertical lines with end caps represent the error bars.

Figure 1. Load recovery (%) and fracturing treatment volume (MM Gallon) for the main shale-producing plays in the United States (Adapted from King [22]). Vertical lines with end caps represent the error bars.

Shale has a heterogeneous composition consisting of three mineral groups, carbonates, clays and quartz. While carbonates and clay minerals are considered reactive minerals, quartz is considered non-reactive for a well’s lifetime. We also highlighted the differences between sea water, connate water and slick water in terms of salinity and pH, as shown in Figure 2. The incompatibility between injected water and formation brine stimulates scale deposition, which can severely curtail flow capacity and reservoir performance. In addition, the pH contrast stimulates more geochemical reactions to achieve the lost equilibrium. It is worth noting that sea water salinity has a salinity between slick water and formation brine and a relatively high pH value.

This paper studies the impact of geochemical interactions on the fate of the fracturing fluid and the well performance. We organized the rest of the paper as follows: the methodology section presents the model’s details and the geochemical interactions, the results section discusses the well performance and geochemical interactions in various scenarios, the sensitivity study highlights the key factors, and the conclusions section summarizes the main findings.

2. Methodology

Modeling the geochemical interactions accompanying the fracturing fluid is a computationally intensive task. Therefore, an efficient approach is desirable, which optimizes the computational cost and accuracy. We discuss ours in the following subsections.

2.1. Reservoir Modeling

Field observations suggest complex fracture networks in shale reservoirs which makes direct modeling more challenging. Martin [24] presented an analogy between the traditional fractures and shale fracture networks, as shown in Figure 3. While the traditional planar fractures are sufficient to stimulate conventional wells in sandstones and carbonates, the complex fracture networks are essential to enable economical hydrocarbon production from shale reservoirs. However, the explicit modeling of highly unstructured permeable fractures embedded in an ultra-tight matrix is computationally expensive and prone to numerical error. Fortunately, Cipolla et al. [25] proposed the DK-LS-LRG (dual permeability, logarithmically spaced, and locally refined grid) approach, which efficiently accounts for both the conductivity enhancement and the complexity of the fracture network. This approach models the stimulated reservoir volume (SRV) through a network of perpendicular primary and secondary fractures. Figure 4 presents a comparison between explicit hydraulic fracture (EHF) and SRV using DK-LS-LRG.

We simulated a hydraulic fracture stage using a CMG-GEM-GHG module.

Table 1. Input Parameters for Reservoir Simulation.

Model Parameters	Value
Model Dimensions	420 × 420 × 100 ft.
Reservoir Pressure	5000 psi
Matrix Porosity	7%
Natural Fracture Porosity	1%
Matrix Permeability	1.5 × 10−4 md
Fracture Conductivity	4.13 md-ft.
Reservoir Temperature	250 F
Natural Fracture Spacing	10 ft.
Shut-in time	1 month

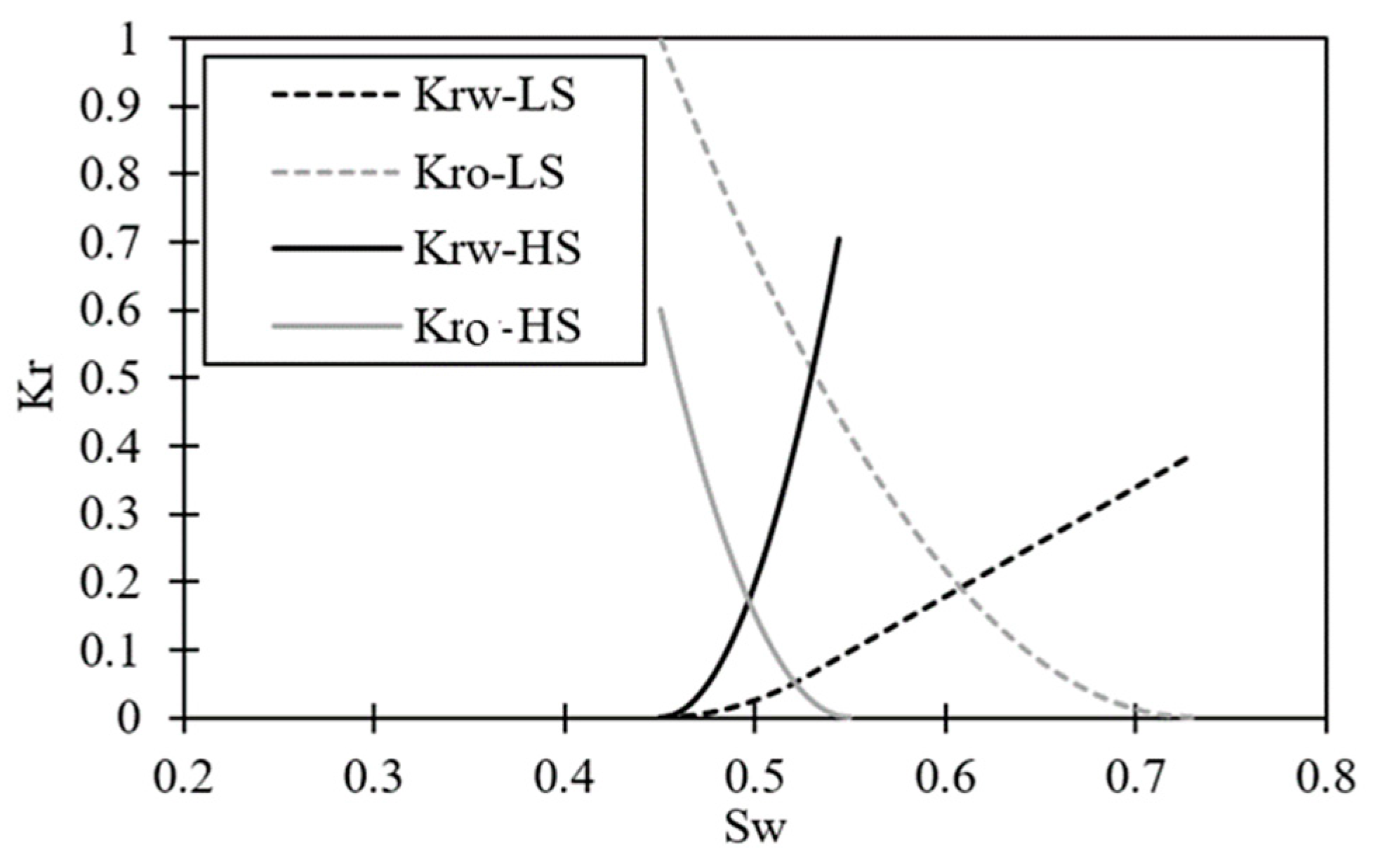

summarizes the reservoir characteristics. We adopted different relative permeability sets for low- and high-salinity waters, as shown in Figure 5. For more discussions on the main characteristics of low- and high-salinity relative permeability sets, we refer the reader to Webb, Lager and Black [26]. While the relative permeability set of the high-salinity water was adopted from literature on tight reservoirs, the relative permeability set of the low-salinity water was defaulted by CMG based on the cation exchange. The software interpolates relative permeability at each step depending on the estimated ion exchange and the corresponding change in water composition. The initial conditions are mimicked by injecting the fracturing fluid, shutting the well for one month to allow the fluids to soak in, and then starting the production. The implementation of a one-month shut-in period was recommended by Mehana and El-Monier [8] so that both hydrocarbon and slick water recovery are optimized.

2.2. Geochemical Interactions

Nghiem et al. [27] developed a fully coupled geochemical EOS compositional simulator. This simulator was initially developed to model CO₂ sequestration in subsurface systems. Various modifications, extensions and additions have been incorporated to properly enable the geochemical modeling. Fortunately, the simulator became capable of modeling the aqueous, rate-controlled and ion exchange reactions. Consequently, it has been used to mechanistically model the impact of low-salinity water flooding on the recovery factor. In this study, we extend the applications of this model to study the impact of the fracturing fluid on well performance.

We considered the ion exchange, aqueous and mineral geochemical interactions. All these interactions are reversible and are controlled by the activity of products and reactants, as shown in reaction (1). However, the geochemical modeling of incompatible waters in heterogeneous porous media entails various permutations to determine the path for the least energy system.

The kinetics of mineral reactions include the chemical equilibrium constant, activation energy and specific surface area. While the equilibrium constant depends on the activity of the products and reactants, the activation energy and specific surface area are mineral-specific characteristics. Table 2 and Table 3 summarize our database which is adopted from [27]. Both quartz and K-feldspar minerals are considered non-reactive minerals at reservoir conditions within the well’s lifetime [28].

The cation exchange capacity represents the total amount of exchangeable cations that can be adsorbed on a negatively charged surface. Consequently, both clay minerals and organic matter are expected to have a higher capacity compared to carbonates and quartz. While the charge of the clay minerals is controlled by the isomorphous substitution, the charge of the organic matter is pH-dependent. Therefore, the composition and pH of fracturing fluid highly affect the stability and the structure of surface-charged minerals.

Note that the exchange reactions could explain the impact of water salinity on the wettability alteration of the reservoir matrix. Given that the lower the water salinity is, the more water-wet the matrix becomes, the impact of water salinity on the end points and curvature of the relative permeability could be estimated. Therefore, the interpolations between the low- and high-salinity relative permeability sets are tied to the cation exchange reactions.

Slick water is water with low concentrations of either friction reducer or linear gel [29]. We adopted the detailed chemical analysis of slick water from King [22]. On the other hand, the salinity and ion concentrations of the connate water are formation-specific properties. The chemical analysis of Haynesville shale connate water and another typical connate water are presented in Table 4. We also included sea water composition to evaluate it as a fracturing fluid alternative.

Table 2. Geochemical Modelling Database [30].

Mineral	Area (m2/m3)	Activation Energy (J/mol)	Log Keq (mol/(m2s)) at 25 °C
Kaolinite	17,600	62,760	−13.18
Illite	26,400	58,620	−14
Calcite	88	41,870	−8.79
Dolomite	88	41,870	−9.22
Quartz	7128	87,500	−13.9
K-Feldspar	176	67,830	−12

Table 2. Geochemical Modelling Database [30].

Mineral	Area (m2/m3)	Activation Energy (J/mol)	Log Keq (mol/(m2s)) at 25 °C
Kaolinite	17,600	62,760	−13.18
Illite	26,400	58,620	−14
Calcite	88	41,870	−8.79
Dolomite	88	41,870	−9.22
Quartz	7128	87,500	−13.9
K-Feldspar	176	67,830	−12

Table 3. Ion Exchange Reactions and Constants [31].

Exchange Reactions	Exchange Constant (100 °C)
Ca2+ + 2NaX ⟷ 2Na+ + CaX2	11.31
Mg2+ + 2NaX ⟷ Na+ + MgX2	7.25
H+ + NaX ⟷ Na+ + HX	10

Table 3. Ion Exchange Reactions and Constants [31].

Exchange Reactions	Exchange Constant (100 °C)
Ca2+ + 2NaX ⟷ 2Na+ + CaX2	11.31
Mg2+ + 2NaX ⟷ Na+ + MgX2	7.25
H+ + NaX ⟷ Na+ + HX	10

Table 4. Chemical Analysis of Slick, Connate and Sea Water (ppm) [32].

Ions	Slick Water	Connate Water	Sea Water	Haynesville
HCO3−	49	354	12	-
Ca++	29	19,040	650	26,040
SO4−−	5	350	2290	-
Mg++	3	2439	1110	1460
Na+	80	59,491	10,352	18,400
Cl−	30	102,060	18,379	71,102
K+	984	-	600	310
CO3−−	640	-	-	-
Ba+2	1	-	-	-
Fe+2	1	-	-	-
B+3	120	-	-	-
Si−4	2	-	-	-
Total	1944	183,734	33,393	117,312

Table 4. Chemical Analysis of Slick, Connate and Sea Water (ppm) [32].

Ions	Slick Water	Connate Water	Sea Water	Haynesville
HCO3−	49	354	12	-
Ca++	29	19,040	650	26,040
SO4−−	5	350	2290	-
Mg++	3	2439	1110	1460
Na+	80	59,491	10,352	18,400
Cl−	30	102,060	18,379	71,102
K+	984	-	600	310
CO3−−	640	-	-	-
Ba+2	1	-	-	-
Fe+2	1	-	-	-
B+3	120	-	-	-
Si−4	2	-	-	-
Total	1944	183,734	33,393	117,312

2.3. Sensitivity Analysis

We performed a sensitivity analysis for the impact of water composition, mineral content and reservoir temperature (13 parameters) on well performance using CMOST (CMG module). We used the design of experiment (DOE), fractional factorial design approach to generate sensitivity scenarios to efficiently explore the uncertainty space [33]. The factorial design reduces the number of simulations needed by allowing several factors to change simultaneously. In addition, it quantifies the effect of each parameter and the interactions between the factors as well. We used a two-level design where a high and a low value are assigned for every parameter. A full fractional factorial design would require 2¹³ (8192 runs). However, a fractional factorial design only required 128 runs. Afterward, we used the analysis of variance (ANOVA) to estimate the parameter impact on the output. ANOVA estimates the total variations as the sum of the squares of the deviation from the mean output. Then, the impact of each parameter is the percentage of the variation of this parameter from the total variations. For more details and discussion on fractional factorial design and ANOVA, we refer the readers to Schepdael, Carlier and Geris [33]. We also used the response surface methodology (RSM) correlates the input parameters with the responses (output) using a proxy model where the original reservoir simulation model is replaced with proxy model of linear or quadratic form.

3. Results

In this section, we first present the impact of geochemical interactions on mineral dissolution and precipitation and on well performance. Then, we report the effects of connate water composition and rock mineralogy on well productivity. After that, we highlight the sensitivity analysis results.

3.1. Mineral Dissolution and Precipitation

The disturbance of the geochemical equilibrium, by introducing slick or sea water, stimulates the geochemical reactions to regain the lost equilibrium. The relative availability of the reactants and the products determines the direction of the reversible geochemical reactions. However, in heterogeneous systems such as porous media, where the chemical equilibrium is the outcome of the various mineral, aqueous and ion exchange reactions, the path to the lowest energy state determines the direction of the reactions. Subsequently, this entails various permutations and arrangements to determine the path to the equilibrium state.

Surprisingly, the load and gas recovery resulting from the implementation of sea water as a fracturing fluid surpasses those from slick water. The detailed dissolution and precipitations reactions are presented in Figure 6. It is evident that a higher reaction rate is reported in the case of sea water injection. While dolomite precipitation and calcite dissolution are observed for slick water, the reverse is reported for the case of sea water. This behavior could be attributed to the availability of the “Ca⁺⁺” and “Mg⁺⁺” cations in the sea water compared to the slick water. It is worth noting that negligible reactions are observed for the clay minerals in both cases. The reaction kinetics and thermodynamic characteristics of carbonates explain the higher mineral reactivity detected for carbonates compared to clay minerals [28].

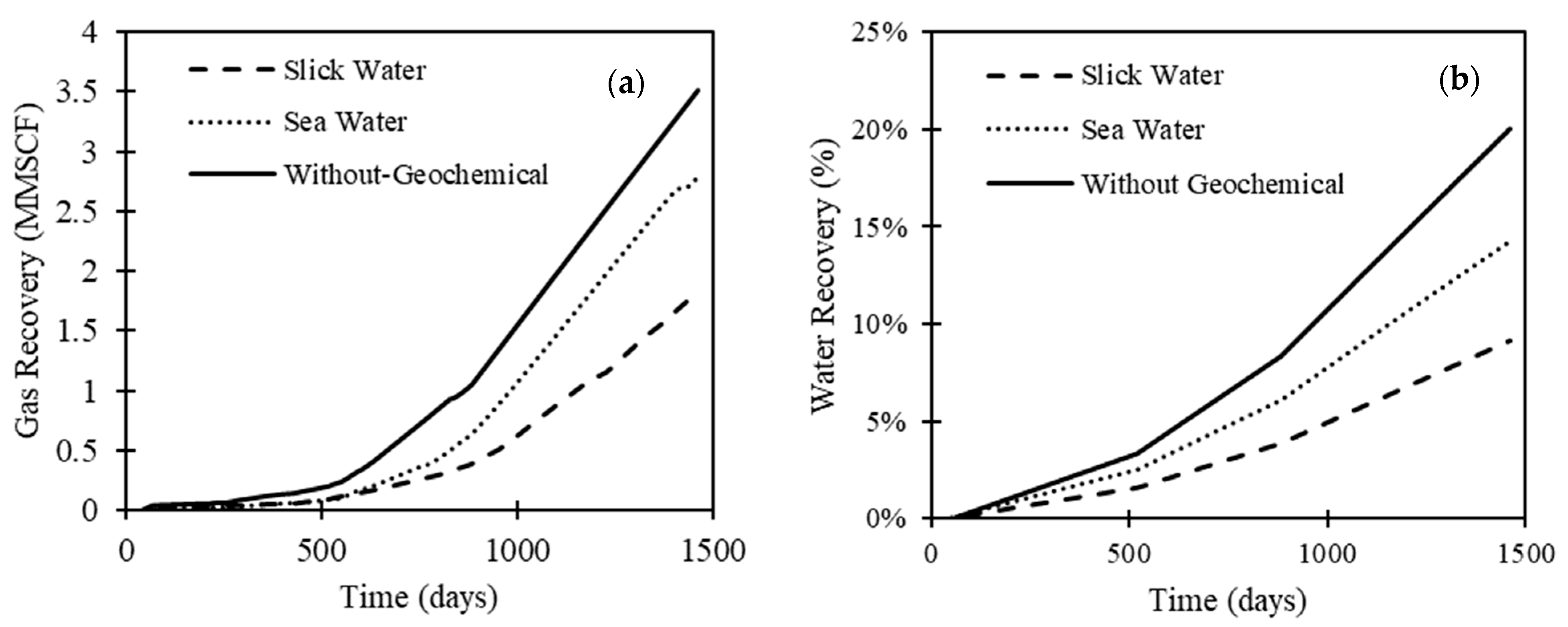

Load and gas recovery results for these cases are shown in Figure 7. The poor load and gas recoveries for slick water might be attributed to its relatively limited mobility compared to sea water. On the other hand, ignoring geochemical coupling results in an overestimation of both gas and load recovery.

3.2. The Impact of Connate Water Composition

Connate water salinity and composition is a formation-specific attribute where various equilibrium reactions between the rock and water change the connate water to a highly saline and dense fluid. Therefore, the longer the water resides or migrates in porous media, the more saline it gets. The salinity of the connate water associated with hydrocarbon accumulation ranges from 20 to more than 300 g/L [34].

According to the simulation results presented in Figure 8a, a dramatic change is observed for the slick water case using the connate water composition of Haynesville compared to the base case discussed in the previous section. While the dolomite dissolution is diminished, the kaolinite dissolution and illite precipitation become more tangible. Additionally, higher cumulative gas recovery is observed for Haynesville, as reported in Figure 9a, for both slick and sea water cases. While the load recovery for the slick water case does not exhibit any dependence on the connate water salinity, as shown in Figure 9b, more recovery is observed for the Haynesville case when sea water is used.

The mineral reactions reported in Figure 8b show similar results to what has been observed for the base case. It is worthwhile mentioning that the relatively lower-saline connate water of Haynesville has stimulated more clay minerals reactions. While the clay content change is in the order of tens in the base case, it is in the order of hundreds in the Haynesville case. In addition, a slight increase is reported in both the calcite dissolution and dolomite precipitation. Contrary to slick water, we observed sudden changes in the mineral content after 200 days of production and around 1250 days. These changes are correlated with the changes in the water production presented in Figure 9. We attribute these changes to the water fluxes coming from the natural fractures and formation matrix as the production progresses. These new water fluxes would disturb the achieved equilibrium in the fracture network and might induce new geochemical interactions.

The salinity contrast between the injected water and connate water is a key factor controlling the geochemical interactions and their impact on well performance. Lower salinity contrast leads to enhanced well performance, as can be seen in the case of Haynesville, which has low-saline connate water compared to the base case. This relatively low-saline connate water would result in a better hydrocarbon mobility, as shown in Figure 5. Consequently, better gas recovery is observed for the Haynesville cases compared to the base cases. In addition, better performance was reported for sea water compared to slick water.

3.3. The Impact of Carbonate Mineral Type

The simulation results suggest that carbonate reactions are more pronounced than clay reactions. Therefore, we discuss the impact of carbonate mineral types on the geochemical reactions and well performance. The main carbonate minerals are calcite (CaCO₃) and dolomite (CaMg(CO₃)₂). While the previous scenarios contained equal mineral content of calcite and dolomite at 15% each, this section involves two cases: one with calcite as the sole carbonate mineral and one with dolomite.

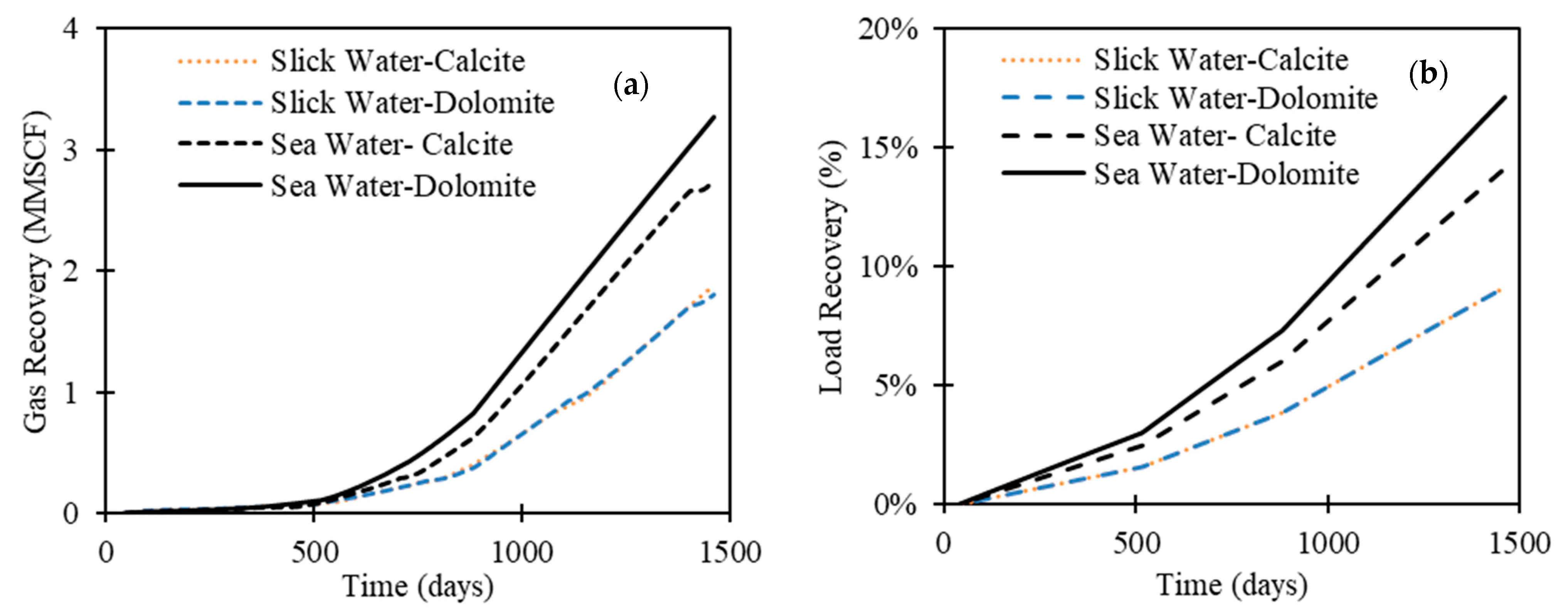

Figure 10 presents the simulation results for the dolomite case. It is evident that the geochemical reactions are depressed when sea water is injected, and subsequently, better gas and load recovery are reported for this scenario in Figure 11 compared to both the calcite case as well as the base case. On the other hand, similar results to the base case are reported for slick water injection when it comes to mineral reactions, as highlighted in Figure 10a.

When dolomite is taken out of the picture, calcite exhibits more reactivity with sea water than slick water, as shown in Figure 12. In the case of slick water, there was no impact on load and gas recovery, as shown in Figure 11. In the case of sea water, the lower reactivity, observed in the dolomite case, results in higher gas and load recovery as shown in Figure 11. In both cases, sea water exhibits better performance compared to slick water. Clearly, slick water is activating the dolomite reactivity, probably due to the absence of Mg⁺² ions in the aqueous. On the other hand, sea water activates the dissolution of calcite, where tangible precipitation is observed, leading to lower recovery.

Sensitivity Analysis Results

Shale reservoirs and formations fluids are complex and heterogeneous [35,36,37,38,39]. Therefore, we conducted a sensitivity analysis to identify the key parameters controlling the load and gas recovery. This section presents the sensitivity results of both sea and slick water as fracturing fluid.

The input parameters selected include mineral content, fracturing fluid composition and reservoir characteristics.

Table 5. The upper and lower limits for the sensitivity analysis input parameters.

Parameter	Slick Water			Sea Water
	Base	Lower	Upper	Base	Lower	Upper
Ca+2 (Mole/L)	0.000724	0.000543	0.000904	0.000299	0.000225	0.000374
Cl− (Mole/L)	0.000846	0.000635	0.001058	0.5184	0.3888	0.648
H+ (Mole/L)	9.9216 × 10−7	7.44 × 10−7	1.24 × 10−6	9.92 × 10−11	7.44 × 10−11	1.24 × 10−10
HCO−3 (Mole/L)	0.01638	0.01229	0.0205	0.01065	0.007989	0.01332
K+ (Mole/L)	0.02517	0.01888	0.03146	0.04566	0.03425	0.05708
Mg+2 (Mole/L)	0.000123	9.26 × 10−5	0.000154	0.4567	0.3377	0.5629
Na+ (Mole/L)	0.00348	0.002609	0.004349	0.02384	0.01788	0.0298
${\mathrm{SO}}_4^{-2}$ (Mole/L)	5.21 × 10−5	3.90 × 10−5	6.51 × 10−5	0.011534	1.15 × 10−2	1.92 × 10−2
T (F)	250	187.5	312.5	250	187.5	312.5
Calcite	0.15	0.1125	0.1875	0.15	0.1125	0.1875
Dolomite	0.15	0.1125	0.1875	0.15	0.1125	0.1875
Illite	0.15	0.1125	0.1875	0.15	0.1125	0.1875
Kaolinite	0.15	0.1125	0.1875	0.15	0.1125	0.1875

summarizes the upper and lower limit of the input parameters. The total number of simulations is reduced from 213 to 72 by using the DOE and the factorial design options in CMOST. According to the results, a proxy model was generated to emulate the actual reservoir simulation model. In addition, a tornado plot is generated to represent the relative importance of the various factors (the positive effect means a positive correlation between the input parameters and the objective output and vice versa).

According to the sensitivity results for slick water, gas recovery depends mainly on the concentration of K⁺ and ${\mathrm{SO}}_4^{-2}$ and illite content, as shown in Figure 13. Equally importantly, load recovery is positively correlated with reservoir temperature and K⁺ concentration and negatively correlated with ${\mathrm{SO}}_4^{-2}$ concentration and illite content. On the other hand, the sea water results suggest a positive correlation between both gas and load recovery and the concentration of ${\mathrm{SO}}_4^{-2}$ and Na⁺, as shown in Figure 14. In addition, the reservoir temperature enhances the water recovery and lessens the gas recovery in the case of sea water injection.

4. Conclusions

We have investigated the impact of the geochemical interactions on the fate of the fracturing fluid and well performance in shale reservoirs. In addition, we have explored the feasibility of sea water as an alternative fracturing fluid and have provided a sensitivity analysis of the critical factors controlling well performance. The findings support the following conclusions:

• Neglecting geochemical coupling results in an overestimation of both load and gas recovery. We observed that geochemical interactions could reduce gas recovery and load recovery by more than 50%.
• Sea water, as a fracturing fluid, consistently results in higher load and gas recovery compared to slick water (almost double). In fact, the salinity contrast between the injected fluid and the formation brine correlates negatively with well performance. We observed that sea water promotes calcite dissolution, while slick water promotes dolomite dissolution.
• In most cases studied, clay mineral interactions are minimal compared to carbonate mineral interactions. The highest amount of clay interactions are observed in the case of slick water injection into the lower-salinity connate water case of Haynesville.
• Sensitivity analysis suggests that the concentration of ${\mathrm{SO}}_4^{-2}$, K⁺ and Na⁺ ions in the fracturing fluid and illite and calcite mineral content of the rock, along with the reservoir temperature, are the main key factors affecting well performance.

The fate of the fracturing fluids is a puzzling phenomenon. However, geochemical interactions could be responsible for some trapping (more than 50% reduction in the load recovery when considering the geochemical interactions). While computationally intense, geochemical and reactive modeling is sometimes essential for adequately describing the complexity of subsurface phenomena. Coupling reactive modeling and machine learning could alleviate the computational intensity and enable the modeling of more complex systems such as CO₂ mineralization.
