Determination of Curie Point Depth Distribution and Heat Flow Regime Characteristics in Eratosthenes Seamount, Eastern Mediterranean Sea

Abstract

The Curie point depth (CPD) has been established to enhance the determination of magnetic sources average bottom depth. In this study, the CPD and heat flow regime of the Eratosthenes Seamount in the Eastern Mediterranean were investigated in order to understand the relationship between them. When CPD and heat flow values are determined together, we can understand the types and processes of geothermal resources formation. CPD and heat flow were obtained by applying the spectral analysis method to magnetic data, which was obtained from the Earth Magnetic Anomaly Grid (EMAG2). The result shows that CPD is approximately 22 km across the Seamount and is approximately 9 km in the northern part of the Eratosthenes Seamount near Cyprus. The heat flow regime manifested from CPD is about 95 mW/m² in the investigated region, where the average thermal conductivity value (k) is considered to be 2.5 W/m °C. The heat flow regime is characterized by an increase in the northward part of the Eratosthenes Seamount and decreases towards the south.

1. Introduction

The Eratosthenes Seamount is considered one of the most prominent subsurface structures on the Mediterranean seafloor [1]. For several decades, the Seamount has been a subject of interest for many researchers due to its significance in providing information about the oceanography, tectonics as well as geothermal resources of the eastern Mediterranean. It has been established for years that information about Curie point depth (CPD) guides the interpretation and determination of the average bottom depth of magnetic bodies, their sources, and thermal structures [2,3,4,5,6,7,8,9,10,11,12,13,14]. Generally, methods utilized for the detection of CPD can be summarized into two main types: geothermal techniques and magnetic techniques. Geothermal techniques rely on the use of geothermal information, such as vertical geothermal ascent and heat flow, based on the conduction and production of the heat of the rocks in the crust [15]. However, there is a constant need to check for errors associated with direct measurement of geothermal factors because of the difficulty of conducting at large depths. Alternatively, magnetic techniques, as exposed by Bhattacharyya [16,17,18], assume that magnetic minerals lose their magnetic properties above Curie temperature values of about 580 °C. Hence, based on this hypothesis, any method that can be used for the estimation of the magnetic bodies’ bottom depths in the crust can be extended to detecting CPD. In this investigation, depending on the spectral assessment of magnetic data, the Eratosthenes Seamount was examined in order to assess and approximate the CPD values and heat flow regime. The aim behind this was to understand the relationship between the two data pieces in the eastern Mediterranean region. When heat flow values and CPD values are assessed with each other, the processes that form geothermal resources can be inferred based on the presence of an unusually hot and thin lithosphere as well as a constant melting degree of the crust, which all play vital roles in forming earth resources [19].

2. Geological and Tectonic Setting

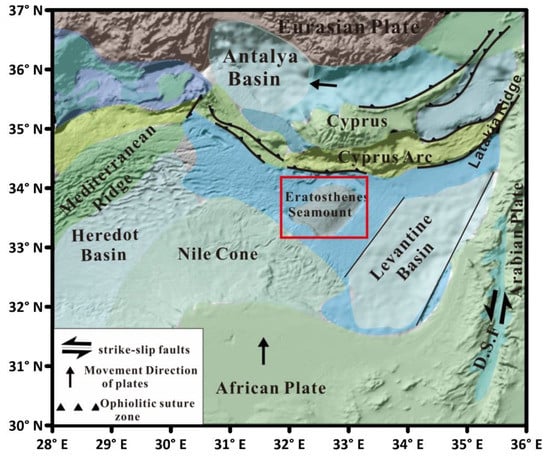

The Eratosthenes Seamount is situated north of the Nile Cone and south of Cyprus and is characterized by a single huge crest nearly 790 m beneath the sea level [20]. As one of the most noticeable bathymetric characteristics in the Mediterranean, the Eratosthenes Seamount is an excellent instance of the start of a collision of a subduction zone with the continental crust, which is joined to the Cyprus continental crust shown in Figure 1. The tectonic evolution of the Eratosthenes Seamount is related to the North African continental margin from the early Mesozoic, according to geophysical and geological studies [21]. The seamount was in a shallow-marine sedimentary setting in the Early Cretaceous, then deactivated to bathyal depths in the Late Cretaceous. Then, in the mid Pliocene–Pleistocene time, the Eratosthenes Seamount was pushed underneath Cyprus due to the collision of the Eurasian Plate and the African Plate [21]. At the time of the Cenozoic, Eratosthenes was moved closer to the Cyprus section of the dynamic edge, and subduction of the oceanic crust (between the African and Eurasian plates) changed to impact [22]. Major structural elements of the Eastern Mediterranean are shown by seismic refraction information [23]. The upper part of the seamount contains deep and shallow water carbonates that belong to the early time of the Cretaceous with tectonic uplift (roughly 1 km). It appears to be the same as the carbonate depositions on the Levant land margin in the east. The neotectonic evolution of the structural features is related to the uplift and emplacement of Troodos Ophiolite in Cyprus [24].

3. Materials and Methods

Methodology

Many techniques have been introduced and enhanced for determining the bottom depth of the magnetic sources, such as in Spector and Grant [26], who were the first to apply spectrum power method. Then, Okubo [27] and Tanaka [28] proposed the centroid method, which was later modified by Bansal [29] and Nwankwo [30]. However, the spectral method has been established to be one of the most suitable for determining the CPD by checking the spectrum properties of the magnetic anomalies [31,32,33]. It is the method of choice for this study. It is recommended to be used on a large region because of the difficulty in determining the minor variations of CPD in a small area [33]. This method has been applied in many different regions over the world; Maden [3] used it on the Erciyes Stratovolcano (Central Turkey), Fshar et al. 2016 [34] employed it on the Sabalan Area in NW Iran, and Njeudjang et al. 2020 [12] used it over Adamawa volcanic region (Northern Cameroon). The radial average power spectrum has given good results in detecting the geothermal resources, especially hot springs [35].

The spectral method takes into consideration the estimated values of the bottom depth (Z_b), centroid depth (Z₀), and top depth (Z_t) of magnetic sources by using the Fourier power spectrum logarithm [36].

Blakely [36] described the power spectral density total field anomaly (Φ_ΔT), and it was expanded by Saibi et al. [7] as:

$${\mathsf{\Phi }}_{\Delta T}\left(k_x,k_y\right)={\mathsf{\Phi }}_M\left(k_x,k_y\right)\times F\left(k_x,k_y\right),$$

(1)

$$F\left(k_x,k_y\right)=4{\pi }^2{C}_m^2{\left|{\mathsf{\Theta }}_m\right|}^2{\left|{\mathsf{\Theta }}_f\right|}^2{e}^{-2\left|k\right|Z_t}{\left(1-e^{-\left|k\right|\left(Z_b-Z_t\right)}\right)}^2,$$

(2)

where M (x,y) is magnetization, the term Φ_M represents the magnetization power–density spectrum; the term C_m represents a proportionality constant; the term Θ_m and the term Θ_f represent factors for geomagnetic field and magnetization directions; the term Z_t and the term Z_b represent magnetic sources top depth and bottom depth, respectively. From Equation (2), we can postulate that all expressions are radially symmetric, excluding Θ_m and Θ_f, which are not radially symmetric; however, their radial average is constant, as is the magnetization M for arbitrary sources. We therefore assume that Φ_M (k_x,k_y) is taken as constant. The radial average of Φ_ΔT is:

$${\mathsf{\Phi }}_{\Delta T}\left(\left|k\right|\right)=A{e}^{-2\left|k\right|Z_t}{\left(1-e^{-}{}^{\left|k\right|\left(Z_b-Z_t\right)}\right)}^2,$$

(3)

where A is a constant and k is the wavenumber. When we have wavelengths less than twice the thickness of the layer, Equation (3) changes to the following formula by applying logarithm:

$$\ln \left[{\mathsf{\Phi }}_{\Delta T}\left(\left|k\right|\right)\right]=\ln [A]-2Z_t\left|k\right|+2\ln [1-e^{-}{}^{\left|k\right|(Z_b-Z_t)}],$$

(4)

The exponential term approaches zero for medium and high values of (k), and the logarithm also similarly does. Consequently, Equation (4) changes to be represented by a line and its slope equal to 2Z_t:

$$\ln \left[{\mathsf{\Phi }}_{\Delta T}\left(\left|k\right|\right)\right]=\ln [A]-2Z_t[k],$$

(5)

Then Equation (5) will be changed to a new formula with division by 2 as:

$$\ln \left[{\mathsf{\Phi }}_{\Delta T}{\left(\left|k\right|\right)}^{1/2}\right]=B-Z_t\left|k\right|$$

(6)

where the term B is a constant.

Here, by using Equation (6) we calculate the spectral power of the magnetic data in the study area, the radial average, and d, the slope of long wavelengths, in order to obtain Z_t.

We can rewrite Equation (3) as:

$${\left[{\mathsf{\Phi }}_{\Delta T}\left(\left|k\right|\right)\right]}^{1/2}=A{e}^{-\left|k\right|Z_0}\left(e^{-\left|k\right|\left(Z_t-Z_0\right)}-e^{-\left|k\right|\left(Z_b-Z_0\right)}\right),$$

(7)

where Z₀ = (Z_b − Z_t) is the centroid depth.

We simplified Equation (7) by replacing the final exponential terms with the initial terms in the Taylor series for n~0 as:

$${\left[{\mathsf{\Phi }}_{\Delta T}\left(\left|k\right|\right)\right]}^{1/2}\sim A{e}^{-\left|k\right|Z_0}\left|k\right|\left(Z_b-Z_t\right),$$

(8)

(Z_b − Z_t) is defined as the magnetic source thickness. Equation (8) could be rewritten by applying logarithm as:

$$\ln \left\{\left[{\mathsf{\Phi }}_{\Delta T}{\left(\left|k\right|\right)}^{1/2}\right]/\left|k\right|\right\}\approx \mathrm{lnD}-\left|k\right|Z_0,$$

(9)

where the term D is a constant and [Φ_ΔT (|k|^1/2)/|k|] is the spectrum of scaled amplitude. Thus, the estimated values of the top depth (Z_t) and centroid depth (Z₀) of magnetic sources would need two spectral plottings utilizing Equations (6) and (9), respectively. Cross plotting wavenumber k with power spectrum ln [Φ_ΔT (|k|)^1/2] and plotting a straight line will give us magnetic source depth. The values corresponding to the high wavenumber will give us the top of the source and vice-versa and directly compute the magnetic source bottom depth [27,28]. Thus, a Curie point depth estimation of Z_b is computed from Equation (10):

$$Z_b=2Z_0-Z_t,$$

(10)

The heat flow is calculated by using Fourier’s law [37] as expressed in Equation (9). We create a new map to demonstrate heat flow, where estimated values of dz were used, and Curie temperature (dT) is 580 °C in the igneous rocks. According to many authors, most crystalline rocks consist of magnetite minerals having a Curie temperature of around 580 °C [10,27,28,38,39]. The $\frac{dT}{dz}$ value represents the geothermal ascent from the earth’s surface to the top depth of magnetic sources and relates to the heat flow in the following equation [27]. The average thermal conductivity value (k) is assumed as 2.5 W/m °C [14,38,39,40].

$$q=-k\left(\frac{dT}{dz}\right),$$

(11)

where the heat-flux is represented by the term q and the coefficient of thermal conductivity is represented by the term k; the negative sign means that the heat flow follows the lower temperature direction.

The mean value of the crust earth is 2–2.5 W/m °C [41,42,43], and we assume this value in our study here as it has been used before [14]. The thermal conductivity is affected by pressure and temperature where the heat conductivity decreases with temperature increment [43,44,45], but the relationship between them is not fixed.

According to Eucken’s experimental law [46], the thermal conductivity of a crystalline insulator is directly proportional to its absolute temperature [47]:

$$\frac{1}{k}=const.T,$$

(12)

Litovsky and Shapiro [48] simplified the mentioned formula above as follows:

$$k_0={(C+DT)}^{-1},$$

(13)

where C and D are constants that vary with materials. For the determination of the thermal conductivity in the upper-crust, Čermak and Rybach [49] follow this formula:

$$k_0=\frac{k}{1+cT},$$

(14)

where k is the thermal conductivity at 0 °C under the shallow surface pressure and C is the material constant, the values of which are in the range of 0–0.003 °C⁻¹.

The inversion here is to convert the magnetic anomaly to obtain Curie point depths, including the magnetic sources bottom depth, centroid depth, and top depth.

Following the data preparations, the RTP data was exposed to a low-pass filter while using cut-off wave numbers at 0.11 rad/km. That depends on the basis of the wavelength of the spectral data [36].

4. Results

Magnetic data covering the investigated area was taken from the global Earth Magnetic Anomaly Grid (EMAG2) with 2 arc min resolution, a height of 4 km over the geoid [50]. The data was converted from geographic coordinates to Universal Transverse Mercator (UTM) projection coordinates with a spacing of 5 km. Figure 2 shows the magnetic anomaly map of the Eratosthenes Seamount, while Figure 3 represents the reduction of the magnetic data to the pole (RTP) in order to eliminate the deflection resulting from the magnetic field of the Earth [36].

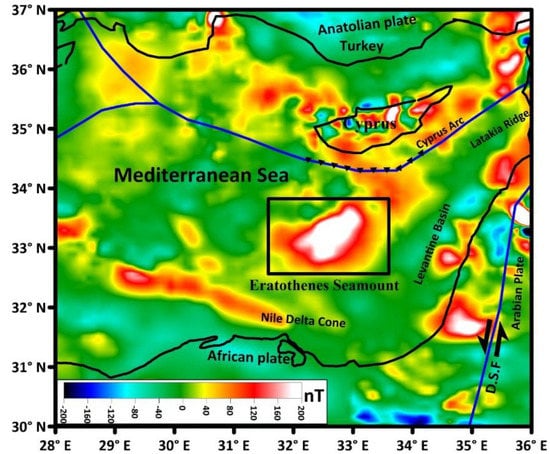

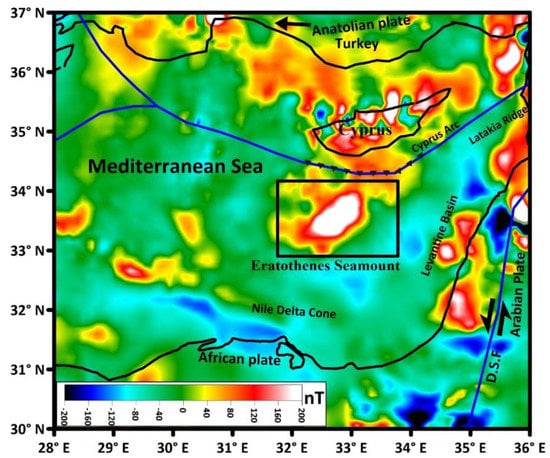

The Magnetic map of the study area displayed in Figure 2 was processed to obtain the RTP map in Figure 3, which shows that magnetic anomalies are centered on the causative bodies. RTP anomalies range between −200 nT and 200 nT, where the highest magnetic values were noticed in the Eratosthenes Seamount and some parts of Cyprus, while the lowest ones were observed in the Nile delta cone and northern part of the Red Sea.

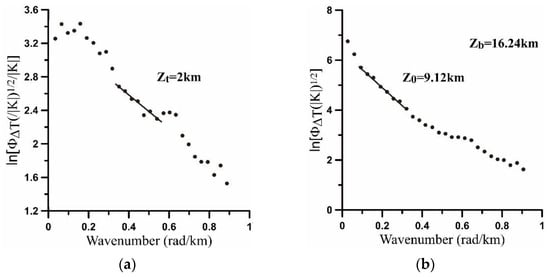

By using the power spectrum method of the magnetic anomalies of the study area to determine Z_t and Z₀, first we obtained the centroid depth (Z₀) of the magnetic source, then calculated the top depth of the magnetic source (Z_t) from the slope of the longest wavelength (Figure 4a,b). Z₀ and Z_t were determined as 9.12 and 2 km, respectively. Applying formula (10) yielded a CPD value of 16.24 km.

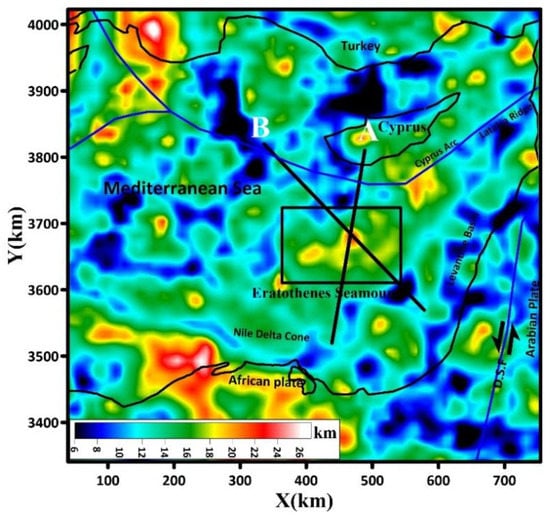

Figure 5 illustrates the CPD map in the Eratosthenes Seamount, where it increases to the south, having a value of around 23 km. CPD has comparatively decreased to 18 km in the north of the Eratosthenes Seamount under Cyprus, and it is also reduced to the east beneath the Levantine basin. From Equation (11), we have computed the heat flow using magnetite’s Curie temperature value T = 580 °C and the average thermal conductivity value (k) 2.5 W/m °C. We obtained a heat flow value between 75 and 100 mW/m². The minimum geothermal anomaly has been described as less than 75 mW/m², located at the borders of the Eratosthenes Seamount, and the highest heat flow values are about 100 mW/m², beneath the center of the Eratosthenes Seamount. Heat flow values are more than 100 mW/m² at Cyprus and more than 200 mW/m² beneath the Levant basin in the east of our study area presented in Figure 6.

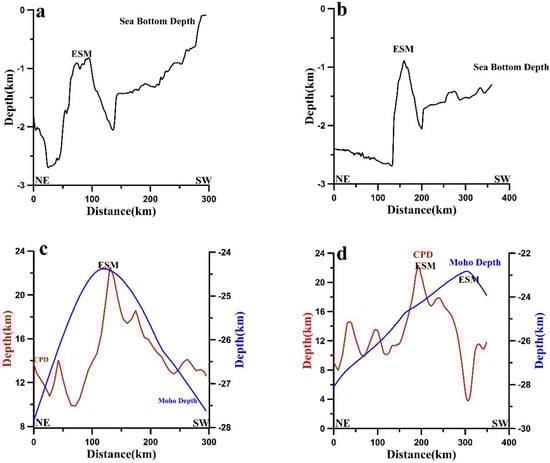

From the map in Figure 5, two cross-sections were taken along the NE-SW axis, shown in Figure 7a,b, along NW-SE directions. The Curie depth value was estimated to be about 23 km along the A profile under the Eratosthenes Seamount in the south. It begins at 23 km from the North; then it decreases as it approaches the collisional zone between two Eurasian-African plates. There is a slight variation in CPD between the two profiles where the B Profile Curie depth value begins at approximately 9 km in NW direction, then increases towards SE, where it approaches 14 km in the collisional zone and then increases gradually to reach a peak of 23 km in the Eratosthenes Seamount at the cross point of two profiles A & B. Referring to Figure 7, the Moho depth value decreases from northeast to southwest, approaching a value of 22 km under the Eratosthenes Seamount; the sea bottom beneath the Eratosthenes Seamount is about 1000 m, as shown in (Figure 7a,b).

Such a division of the Eratosthenes Seamount is mainly controlled by its geothermal regime, which plays a significant role in the evolution of the Eastern Mediterranean tectonics including the Troodos ophiolite uplift of Cyprus. This critical role implies an important early collisional phase in the process of plate suturing and mountain building. The high heat flow in this area is ascribed to the higher geothermal potential, so this region is considered a good source for producing geothermal energy, as the shallow Curie depths are frequently associated with active geothermal regions. The tectonic uplift of the Eratosthenes Seamount and the isotherm depression caused by upper-mantle upwelling could be the main geological factors related to such high heat flow factors to generate the heat flow [20,51]. These relatively high values of heat flow are clearly evidenced in Figure 6.

In this study, combining the Curie point depth, obtained by applying the spectrum method of magnetic data, with the calculated heat flow values reveals an inverse relationship between the two, as illustrated in Figure 5 and Figure 6.

5. Discussion

In this study, we computed the CPD depths and heat flow values by applying the power spectrum of EMAG2 data. Our results have shown the negative correlated relation between CPD and heat values, which highlights the presence of major relatively shallow heat sources in the area. This phenomenon in the Eratosthenes Seamount, along with intense faulting and subsidence as a consequence of an early collision of the Eurasian and African plates between the Pliocene and Pleistocene, resulted in the uplifting of southern Cyprus. On the other hand, friction from the collision zone, as well as plutonic intrusions, may be the main controlling factors of such relatively elevated values of heat flow. The upper-mantle upwelling heats the lithosphere underneath the Eratosthenes Seamount and causes the melting that replaces the cold materials in the lithosphere of the Mediterranean Sea. In other words, the mantle convection plays a big role in forming all geological features in the region [52,53]. However, that was caused by an elevated mantle lithosphere beneath the Eratosthenes Seamount as dense block in the lithosphere, which leads to a compressional push-up mechanism for this seamount. The Eratosthenes Seamount is considered a bulky sub-rectangular northward continental part separated from the African plate [54,55], which was raised as a feature in the Eastern Mediterranean Sea beside the Levant basin and Cyprus. It was uplifted as a result of the collision of the Eratosthenes Seamount with Cyprus in the northern direction during the early Miocene [53]. Robertson [53] suggested that the main reason for the Eratosthenes Seamount uplift is associated with the effects of regional tectonic upwarping, which is related to the northern subduction origination of the remnant of Neotethys oceanic crust in the Mediterranean Sea. In the late Pliocene to early Pleistocene the crust thickened over the subduction of the African Plate below the Eurasia.

It, therefore, becomes more evident how the high heat flow values and shallow CPD values have a strong correlation with geothermal and volcanic area crustal thinning. The higher values could be caused by crustal thinning as established by Tanaka [30] and Pamukçu et al. 2014 [19]. The crustal thinning is less than 23 km beneath the Eratosthenes Seamount, as it has a complex structure that varies between the thick upper crust and thin lower crust [56]. During the subduction mechanism between the African–Eurasian Plates, the African plate experiences frictional melting. Then the upper mantle rises toward the lower crust, forming diapirs. As a result, there is a noticeable increase in the heat flow values and a decrease in CPD values in the areas near the mantle diapirs.

The presence of this subduction zone is well established from evidence interpreted from seismic refraction data [52]. As indicated by this confirmation, there is a similarity in the composition of the crust underneath both Cyprus and the Eratosthenes Seamount. Moreover, it can be concluded that structural emplacement of the Troodos ophiolite onto the Eratosthenes Seamount indicates an uncommon case of present-day obduction, in which oceanic crust is thrust above a continental crust [53]. The heat flow map displayed in Figure 6 clarifies the geothermic nature of the study area and gives us a hint that the shallow CPD temperature relies on the morphology and tectonic regime in the Mediterranean Sea.

The magnetized body causing the Eratosthenes magnetic anomaly beneath the seamount is related to magnetite-rich basic volcanics, like those of the Troodos ophiolite, which might be mafic or ultramafic, at a depth of 2–4 km underneath the seafloor [20,22,57,58]. Ben-Avraham et al. 1976 [20] mentioned that the polarized block which causes the Eratosthenes magnetic anomaly may have been pivoted counterclockwise since its formation. Using seismic refraction constraints, it is proposed that the Eratosthenes magnetic anomaly is produced by a typical magnetized high-susceptibility block (2 × 10^–3 kg/m³ SI units) with a density of 2750 kg/m³ [22,54]. The magnetic properties of the body caused the Eratosthenes magnetic anomaly, demonstrating that the source material has a high magnetization and presumably basic or ultrabasic material [20]. The magnetic source of the Eratosthenes Seamount is mostly curved in shape, and the magnetic anomaly is mainly seen over seamount related to collision tectonic activity.

Curie depth differs between the two cross-sections; the first one is in the south around 450–650 km Easting and 3650–3750 km Northing. The Eratosthenes Seamount has a CPD that reaches 22 km in the center, which has been previously determined by Özsöz [13]. Toward the northern parts between 450–650 km, the CPD value is around 18 km beneath southern Cyprus, as shown in Figure 2. Comparing the Curie values in our study area with its borders, the Curie depth varies in the south and southeast beneath Cyprus where Curie depth is different between the south and north of Cyprus from 12 km to 28 km [59]. The CPD value increases following the Moho depth direction. It is considered that the crust could be passive if there is a match between the Moho depth and Curie point depth, while any mismatch that occurs could be an indication of active tectonic regime [59]. Consequently, several properties play an essential role in the change of CPD in both instances. Cross-correlation of Moho depth and CPD depths are shown in Figure 7c,d. We noticed here that the Curie depth is higher than the Moho depth in some parts of the region, which gives an interpretation that the Curie temperature is higher than the temperature in the magnetized lithospheric mantle because of a serpentinization process [60,61].

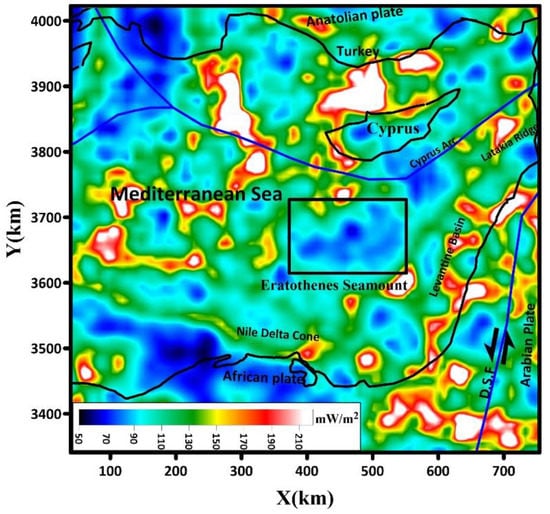

Thus, the heat flow values are generally higher in the northern parts of the Eratosthenes Seamount and decrease in the southern parts, as shown in Figure 6. Furthermore, the heat flow has the high value of nearly 80 mW/m² in the north of the Eratosthenes Seamount under Cyprus and the surrounding areas, whereas it approaches around 100 mW/m² under the Eratosthenes Seamount. In addition, this approach has been previously achieved by Özsöz [13]. In correlation with other areas beneath southern Cyprus, the heat flow values are in the range of 50–70 mW/m², using thermal conductivity equal to 2.5 W/m °C [59]. It is conceivable to argue that lower magnetic values on the RTP map might be related to the thinner magnetic crust where lower CPD or high heat flow values are found.

6. Conclusions

The Eratosthenes Seamount is one of the most geologically interesting and important sites in the eastern Mediterranean with the potential for substantial geothermal resources. This examination uses the power spectrum method on Reduction to the Pole (RTP) magnetic data to evaluate the values of the heat flow regime and Curie depth. Also, we inverted the magnetic anomaly after reducing it to the pole in order to obtain the magnetic resources bottom depth. The centroid depth and top depth of geothermal resources were computed too. The heat flow map was also demonstrated here by applying the Turcotte and Schubert [50] equation to show the relationship between the heat flow and the Curie depth.

Our results show high values of heat flow and shallow values of Curie point depth which seem to be correlated with thinning of the crust in volcanic regions and geothermal activity.

CPD values were found to be approximately 23 km under the Eratosthenes Seamount, while in Cyprus they have been established to be around 18 km. This indicates that the heat flow has higher values of about 100 mW/m², in the northern part of the Eratosthenes Seamount, where the thinnest crust is located. However, lower values reach 80 mW/m² in the southern parts. The CPD and Moho depths are connected with an inverse relationship; as the CPD increases, the Moho depth decreases from NE-SW. If the depth to the bottom of the magnetic layer is higher than the Moho depth, it means that the Curie temperature is higher than the temperature in the magnetized mantle. This is congruent with Wasilewski and Thomas [62], who theorized that the minimum magnetic boundary is associated with the rock composition vertical change, indicating that the Moho depth is considered as the lower magnetic boundary.
