Article

Minor Actinides Transmutation and 233U Breeding in a Closed Th-U Cycle Based on Molten Chloride Salt Fast Reactor

1
Shanghai Institute of Applied Physics, Chinese Academy of Sciences, Shanghai 201800, China
2
CAS Innovative Academies in TMSR Energy System, Chinese Academy of Sciences, Shanghai 201800, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Energies 2022, 15(24), 9472; https://doi.org/10.3390/en15249472
Submission received: 11 October 2022 / Revised: 23 November 2022 / Accepted: 23 November 2022 / Published: 14 December 2022
(This article belongs to the Special Issue Storage and Disposal Options for Nuclear Waste II)

Abstract

:
Long-lived minor actinides (MAs) are one of the primary contributors to the long-term radiological hazards of nuclear waste, and the buildup of MAs is hampering the development of nuclear power. The transmutation of MAs in reactors is regarded as a potential way to replace direct disposal to reduce the impact of MA on the environment and improve the utilization of fuel. Due to its superior features, such as outstanding neutron economy, no fuel assembly fabrication, high neutron flux, and especially online refueling and reprocessing, the molten chloride salt fast reactor (MCFR) is regarded as one of the potential reactors for MA incineration. In this work, MA transmutation capability and 233U breeding performance for an optimized MCFR have been evaluated in different scenarios. The results show that the MA transmutation capability and 233U breeding performance with online transuranic elements (TRU) and 232Th feeding scenario are improved significantly compared with the case in online 233U and 232Th feeding, when the initial MA loading is 5 mol%, the total mass of MA transmutation and MA incineration is 7160 kg and 1759 kg during the whole 100 years operation under online TRU and 232Th feeding scenario, and the corresponding average annual net production of 233U is 450 kg, however, the MA transmutation amount, MA incineration amount and average annual net production of 233U for online 233U and 232Th feeding scenario is 5298 kg, 1315 kg, and 249 kg, respectively. In addition, the research also shows that the increase in initial loading of MA has no obvious effect on the improvement of the 233U breeding performance but can improve the transmutation efficiency of MA under online TRU and 232Th feeding scenarios. Furthermore, if 233U is continuously extracted online from the core during the operation, the 233U breeding performance will be significantly improved, but it will deteriorate the safety performance, such as the fuel temperature coefficient of reactivity (TCR) and the effective delayed neutron fraction (EDNF), more importantly, it will also put forward higher requirements for the immature online reprocessing technology.

1. Introduction

With the rapid development of nuclear energy, the inventory of long-lived high-level wastes (MAs and LLFPs) produced by the reactors will increase correspondingly, thus, how to deal with the accumulated MAs and LLFPs has become a more and more serious problem. The partition and transmutation (P and T) method is regarded as an effective way for managing MAs and LLFPs. Partition is to separate MA and LLFPs from highly radioactive waste liquid based on existing reprocessing technology. Transmutation means transforming them into short-lived, stable, or valuable nuclides through reactor transmutation [1]. Since the partition involves a complicated chemical process that is beyond the scope of this work, this work mainly focuses on transmutation. Transmutation of MA in reactors cannot only reduce heat generation and radiotoxicity of the high-level, long-lived waste but also generate more power with the energy released from the transmutation of Mas. This is of great significance to alleviate the challenges encountered in the development of nuclear energy. Therefore, it is of great significance to research the effectiveness of MAs transmutation in different types of reactors.
Various research has been carried out to explore the transmutation of MAs in different types of reactors, including both thermal and fast reactors. For example, in PWR [2], boiling water reactor (BWR) [3], lead-cooled fast reactor (LFR) [4], and sodium-cooled fast reactor (SFR) [5], new approaches for MA transmutation, are under research. Among them, MA transmutation in PWR was studied most extensively due to its mature operation technology, and various useful conclusions were proposed [6]. Although the cross-sections of the long-lived MAs in the fast neutron region are lower than those in the thermal neutron region, the fast reactor has a higher neutron flux, and a larger fission-to-capture cross-section ratio [7], which are beneficial to MA transmutation. Thus, the fast reactor is recognized as an alternative and promising system for the transmutation of MA. However, there are also many technical challenges for the transmutation of MA in fast reactors. For example, in liquid-metal fast reactors, such as LFR, the highly corrosive environment caused by using liquid-metal coolant presents a severe challenge [8]. For gas-cooled fast reactors, the material lifespan will be shortened due to the high temperature [9]. For subcritical fast reactors, such as the accelerator driven subcritical system (ADS), the spallation target design, the requirement of reliable accelerator technology, and the high produced MA content’s effect on the safety coefficients result in a non-negligible technical challenge [10].
The molten salt reactor (MSR), as the only liquid fuel reactor selected for the next-generation reactors in the generation IV international forum (GEN-IV), has many remarkable merits, for example, inherent safety, excellent neutron economy, no fuel assembly fabrication, and especially online reprocessing and refueling, which make the closed fuel cycle possible [11]. Considering its features above, especially the online reprocessing and refueling that will greatly improve the transmutation efficiency, MSR is suitable for MA transmutation. Due to the merits of MSR in MA transmutation, a series of studies on MA transmutation in MSR have been carried out. For instance, O. Ashraf et al. compared the MA transmutation capability in the thermal MSR and fast MSR [12], it shows that fast MSR has a higher transmutation ratio (TR). Yu et al. researched the MA transmutation capability in SMSFR for different MA loadings [13], it found that when MA = 18.17 mol%, the TR can achieve to approximately 95% on iso-breeding. In addition, The MOlten Salt Actinide Recycler and Transmuter proposed by the Kurchatov Institute of Russia aims to effectively transmute transuranium (TRU) [14]. Although, the Molten Salt Fast Reactor (MSFR) aims at breeding 233U in a closed Th-U cycle, some research about the transmutation of TRU elements has also been carried out in the MSFR [15]. Since the requirements for online reprocessing in molten salt fast reactors are lower than those in molten salt thermal reactors, it reduces the challenge brought by the immature online reprocessing technology, and the larger fission-capture cross-section ratio for MA in the fast spectrum can make the transmutation more efficient [16,17]. Therefore, MA transmutation in a molten salt fast reactor is very attractive and valuable for research.
For the molten salt fast reactors, it can use fluoride salt or chloride salt as carrier salt, the former is called molten fluoride salt fast reactor (MFFR), and the latter is called molten chloride salt fast reactor (MCFR). Compared with MFFR (LiCl is usually used as carrier salt), MCFR usually has a harder neutron spectrum due to the slighter slowing down of neutrons [18], which is helpful for improving the breeding performance and MA transmutation capability. In addition, due to the harder neutron spectrum in a MCFR, the effect of neutron absorption of fission products (FPs) on the neutron performance is significantly smaller, and the reprocessing cycle can be prolonged to lower the difficulty of reprocessing. Furthermore, the solubility of HM (heavy metal nuclides) in MCFR is much higher, thus, more HM can be loaded in MCFR during the operation, which is beneficial to further improve breeding and MA transmutation performance [19]. Thus, MCFR has great potential for transmuting MA and breeding fissile nuclides and is worth studying.
Research on MCFR can date back to the 1950s, Oak Ridge National Laboratory (ORNL) mainly studied the breeding performance of MCFR in a closed U-Pu cycle, and the breeding ratio (BR) can be achieved at 1.09 when using NaCl + MgCl2 + PuCl3 + UCl3 as fissile fuel salts and UO2 + Na as a solid blanket [18]. Then, Atomic Energy Authority in the UK carried out a series of research on MCFR in 1960s, NaCl + 238UCl3 + PuCl3 was applied as the driving fuel salt and NaCl + 238UCl3 was employed as the breeding fuel salt and found that the BR can obtain a significant improvement [20]. Later, in Britain, Moltex Energy proposed a pool-type fast reactor [21], in which the fuel tube is loaded with chloride fuel, it has an enormous economic advantage and inherent safety. At the same time, Merk team of the University of Liverpool in the UK also carried out some important research on the key performance of MCFR [22]. In addition, France proposed REBUS design, it is designed to be operated in the power of 3700 MWth [23], it combines a positive breeding gain and a strong negative temperature coefficient of reactivity (TCR), and based on the closed U-Pu cycle, many simulations have been carried out to prove its excellent thermo-hydraulics and neutrons performance. Terrapower also announced its research and development plan for the MCFR at the ORNL’s 50th Anniversary Conference. In August 2019, the MCFR project achieved an important breakthrough, with its completed carrier salt loop (non-nuclear device) successfully operating continuously for more than 1000 h [24]. It can be found that almost all the above studies about MCFR were focused on breeding performance and were based on the U-Pu cycle. However, MCFR also has great advantages and potential in MA transmutation, which is worth studying. Furthermore, compared with the closed U-Pu cycle, the closed Th-U cycle has unique advantages. The lower mass number of Th fosters a lower trans uranium (TRU), which leads to a fuel inventory with lower radiotoxicity and less MA production, it is helpful to reduce the difficulty of fuel waste treatment and improve the transmutation efficiency of MA [25]. In addition, Th-U cycle is known to improve the safety parameters [26]. Thus, in this work, MA transmutation and 233U breeding capability will be evaluated in different cycle scenarios based on the optimized MCFR in closed Th-U cycle.

2. General Description of MCFR and Analysis Methodology

2.1. Description of the Optimized MCFR and Online Reprocessing

In our previous work, a series of basic research on MCFR was carried out [27,28,29], including the effect of enrichment with 37Cl, the reprocessing method suitable for MCFR, the carrier salt selection, as well as the evaluation of different designs, then, referred to the configuration of REBUS-3700 [23]. The preconcept design scheme of MCFR was finished, and the basic cross and vertical sections of MCFR are shown in Figure 1. The whole reactor is mainly composed of two parts, namely the active zone and the fertile zone. In the active zone, the fuel salt flows from the bottom to the top, then, it flows out of the core through pipes to exchange heat with heat exchangers, and finally returns to the core from the bottom. The blanket surrounds the active core (blue area in Figure 1) for breeding 233U, and the two main zones are separated by a Ti-based alloy. In addition, for fertile fuel savings, graphite reflector (yellow area in Figure 1) is applied beside the blanket. Near the graphite reflector, B4C (green area) is employed for absorbing the leaking neutrons. In order to reduce the influence of neutron irradiation, a Ti-based alloy acts as the structural material surrounding the whole core. The total power of the optimized MCFR is 2500 MWth, and the composition of carrier salt is 55 mol% NaCl and 45 mol% (233U + 232Th)Cl4-MACl3.
Furthermore, to improve the neutronics performance of MCFR in the equilibrium state (EQL), the multi-objective optimization of MCFR was carried out using a script that couples the molten salt reactor equilibrium-state analysis code (MESA) with a novel intelligent optimization algorithm [29], and the final optimized design parameters are listed in Table 1.
Compared with other types of reactors, the most important characteristic of MSR is that it can be continuously refueled and reprocessed online without shutting down, which also allows it to operate in a closed fuel cycle. For online reprocessing, two special reprocessing systems are employed for both the fuel salt and fertile salt: a helium-bubble reprocessing system is applied for removing non-soluble gases and metal FPs, and pyrochemical reprocessing system is used for removing soluble FPs and extracting heavy nuclides on-line [30]. The nuclides involved in reprocessing systems are listed in Table 2, and the detailed reprocessing flowchart that has been discussed in our previous work is shown in Figure 2 [31].
In general, in pyrochemical reprocessing, U, Np, and Pa is extracted by fluorination reaction from the reactor core, and the blanket, 233Pa is stored in a stockpile to let it decay into 233U first. Then, actinide nuclides like Np, Am, and Pu are recovered using reductive extraction technology, and the carrier salts are recovered by the reduced pressure distillation method to remove FPs.

2.2. Simulation Tool

Unlike the traditional reactors, the continuous on-line refueling and removal of FPs in MSR make the depletion calculation more difficult. To simulate the depletion of MSR with continuous online refueling and reprocessing, an in-house program called TMCBurnup was developed in our previous work [32]. It couples the cross-section processing and multigroup neutron transport calculation module (TRITON) and a novel depletion code MOlten salt reactor specific DEpletion Code (MODEC) [33,34]. The flowchart of TMCBurnup is shown in Figure 3. First, the parameters of core and blanket are initialized by the user. Then, the neutron transportation and depletion calculations are performed by the TRITON module and MODEC, respectively. Next, fissile nuclides and 232Th need to be refueled into the core, the total mass and the ratio of fueled 232Th and fissile nuclides are determined by ensuring the total heavy metal inventory is constant and keeping the reactor critical. The calculation is performed iteratively until the pre-set burn up period is reached.
To demonstrate the accuracy of TMCBurnup in the depletion calculations of a molten salt fast reactor, the depletion calculations using TMCBurnup based on MSFR were performed with different startup fuel and compared with the reference [15], the evolution of heavy nuclides calculated by TMCBurnup and the reference are shown in Figure 4, and it can be noticed that the evolution of heavy nuclides calculated by TMCBurnup is in good agreement with the reference regardless of which fuel is used to start the reactor, which proves the suitable for TMCBurnup in depletion calculation of molten salt fast reactor. Thus, TMCBurnup is applied for the depletion calculation of MCFR.

3. Results and Discussion

The primary objective of this research is to evaluate and compare the MA transmutation performance as well as the 233U breeding capability of the optimized MCFR under different scenarios, the five different scenarios are listed in Table 3. Scenario 1 is researched by considering on-line 233U and/or Th feeding, 233Pa is extracted from both the core and blanket, and 233U is only extracted from blanket. In order to investigate the effect of on-line TRU feeding, we proposed scenario 2, in which TRU and/or 232Th is injected on-line into the core to keep critical and ensure the total inventory of heavy nuclides constant during the whole operation. In addition, 233Pa is extracted on-line from both the core and blanket, and 233U is extracted from blanket. Considering the complexity of separating MA from TRU and the drastic oscillation of reactivity caused by continuous online MA feeding, a five-year-cooled TRUs from LWR instead of MA is fed into the core online together with 232Th [35], the total mass and the ratio of fueled TRU and 232Th is determined by ensuring the total heavy metal inventory constant and keeping the reactor critical. Based on scenario 2, the effect caused by initial MA loading was researched, scenario 3 and scenario 2 have the same cycle schemes except for the initial MA loading is different. In our previous studies, it was found that when the initial loading of MA exceeds 7 mol% in the optimized MCFR, even if only Th is fed during the operation, the corresponding keff will exceed 1.1 for up to several decades due to the delayed reaction released by the accumulated Pu, which will make reactivity control difficult and will affect neutron economy. Therefore, the maximum initial loading of MA is limited to 7 mol% here.
In order to study the influence of online extraction of the 233U from core on MA transmutation capability, 233U breeding performance, and safety performance, scenario 4 was introduced. It has the same MA loading as scenario 3, but scenario 4 extracts 233U from both the core and blanket. In addition, in order to verify the impact of the initial loading of MA more clearly, scenario 5 was designed, the initial loading of MA is 0 mol%, and other operating conditions are the same as those of scenario 2 and scenario 3.
A 238-group ENDF-B/VII.0 cross-section library was applied in the calculation. In addition, there were 10,000 neutrons per keff cycle and a total of 285 cycles were run for a calculation. In order to keep safety and neutron economy of MCFR, the keff is between 1.000 and 1.005 during the whole operation by continuous online feeding and reprocessing.

3.1. Evolution of Neutron Spectrum

In this subsection, neutron spectrum at the initial of different scenarios is investigated first, and the results are shown in Figure 5a, since the initial fuel composition of scenario 2, scenario 3 and scenario 4 is the same, only the neutron spectrum of scenario 1, scenario 2 and scenario 5 are shown. It can be found that the corresponding neutron spectrum of the three scenarios is roughly the same, the neutron spectrum of scenario 1 and scenario 2 is a little harder due to the MA loading at the initial.
In order to give a quantitative description for neutron spectrum, the energy of the average lethargy-causing fission (EALF) is introduced [36], which is defined as follows:
E A L F = exp { ln E ϕ ( E ) f ( E ) d E ϕ ( E ) f ( E ) d E }
where ϕ(E) and ∑f(E) refer to the energy-dependent neutron-flux and macroscopic fission cross-sections, respectively.
The evolution of EALF and keff are shown in Figure 5b, and we can find that the keff of those five scenarios are all within our preset range (1.000–1.005). Furthermore, when the loading of MA increases, its corresponding EALF value also increases at the initial stage, which is due to the fact that the fission cross-section of MA in the high-energy region increases rapidly with the increase in neutron energy, leading to a harder neutron spectrum. With the deepening of burnup, due to the accumulation of FPs and the transmutation of MA, the EALF of scenario 1–4 gradually decreases. As for scenario 5, the EALF first decreases due to the accumulation of FPs, and then it gradually increases to EQL due to the increase in MA content in the core, and this effect is more obvious than the accumulation of FPs. Since the same feeding and refueling modes are used in scenario 2, scenario 3, and scenario 5, the composition of these scenarios is the same in EQL, thus, the corresponding EALF in EQL is the same. Due to the continuous extraction of 233U from the core and the continuous feeding of TRU, the content of Pu and MA in scenario 4 is the highest, however, the continuous feeding of 233U online results in the main fissile nuclides of scenario 1 is 233U. Therefore, scenario 4 and scenario 1 correspond to the highest and lowest EALF values, respectively.

3.2. Evolution of Heavy Nuclides Inventories and Mass Flow

The evolution of primary heavy nuclides under different scenarios was investigated, and the calculation results are shown in Figure 6a–c. For a clear comparison, only the evolutions of heavy nuclides in the core for scenario 1 and scenario 2 are shown, the masses of the main heavy nuclides at the initial stage and in EQL are listed in Table 4. It can be found that, for scenario 1, the mass of MA decreases monotonically due to the fission and capture reactions. The mass of Pu increases rapidly at the beginning to reach its maximum value at 12 years due to the competition between the generation from MA and the fission reaction of Pu itself, and then declines due to their fission consumption. Furthermore, the mass of 238Pu is the largest of the Pu isotopes, which can be 992 kg at 10 years. The evolution tendency of Pa is almost the same as that of Th, the mass of them increases gradually until EQL is reached, but the amount of 233Pa is much smaller than Th since it is the direct neutron capture production of the 232Th. Different from the evolution of other nuclides, the mass of U declines during the first 10 years due to the fission depletions and then increases to the EQL due to the delayed reactivity of Pu and the capture reaction of 232Th.
As for scenario 2, the mass of MA decreases rapidly during the first 39 years and then tends to be constant due to the online feeding of TRU. On the contrary, the mass of Pu increases during the first 23 years and then is almost constant during the last 77 years. Along with the evolution of Pu, the required mass of 233U to maintain criticality decreases at first and then becomes constant due to the delayed reactivity results caused by the accumulated Pu. Since TRU contains a large amount of 239Pu, its fission reaction capacity is greater than that of 233U and MA, with the feeding of TRU, the content of fissile nuclides needed to maintain criticality decreases, the total mass of heavy nuclides is kept constant during operation to ensure the stability of fuel, thus, the mass of Th inventories increases in the first years and then tends to be gradual. In addition, since TRU is continuously fed online in scenario 2, the content of MA and TRU in the core is greater than that in scenario 1 in EQL, so less content of 233U is needed to maintain the criticality.
In addition, as can be seen from Table 4, since the extraction of 233U from the core occurs in scenario 4, the content of Pu and MA in EQL corresponding to scenario 4 is the most, while the content of U is the least. Furthermore, although the initial MA loading in scenario 2, scenario 3, and scenario 5 is different, the final contents of heavy nuclides tend to be the same due to the same online feeding and online extraction method.

3.3. 233U Breeding Performance

The 233U’s breeding performance may be significantly different under different feeding and cycling scenarios. Therefore, the 233U’s breeding capability under the above five scenarios is evaluated here. Generally, the breeding ratio (BR), net 233U yield, and doubling time (DT) are used as the main indicators to evaluate the breeding capability. The BR indicates the ratio of the generation to the consumption of fissile nuclides, which can be expressed in Equation (2):
B R = R c ( U 234 + T 232 h + P 240 u + U 238 P 233 a ) R a ( U 235 + P 241 u + U 233 + P 239 u )
where Rc and Ra stand for the neutron capture rate and absorption rate, respectively. Since the focus of this work is to study the breeding capability of 233U, the definition of regeneration ratio (RR), which is expressed in Equation (3), is introduced. It refers to the relationship between the generation rate and the disappearance rate of 233U directly.
R R = R c ( T 232 h P 233 a ) R a ( U 233 )
The net production of 233U is expressed as the difference between the bred and consumption of 233U. The actual net production of 233U can be defined as:
M = M i n U 233 ( t ) + M e x P 233 a ( t ) + M e x U 233 ( t ) M r e U 233 M B o l U 233
where ex and re stand for extracting and refueling, respectively, in refers to the remaining nuclides in the core and blanket, and Bol indicates initial loading at the beginning of the lifetime.
When the net production of 233U is the same as the initial loading of 233U, it means that the net produced 233U can be used as new fuel to start another MCFR, and the corresponding time is called DT.
The evolution of RR and the net production of 233U are shown in Figure 7. It can be noticed that online feeding of TRU is beneficial to the improvement of the RR and net yield of 233U. Compared with scenario 1, the average annual net production of 233U in scenario 2 is 200 kg higher, mainly because the online feeding of TRU reduced the fission consumption of 233U. As can be seen from Table 4, the mass of 233U fed online in scenario 1 is as high as 17,872 kg during the whole operation, and the continuous feeding of 233U also reduced the conversion utilization of 232Th to a certain extent. In addition, the net production of 233U corresponding to scenario 2, scenario 3, and scenario 5 is almost the same during the 100-year operation, indicating that the initial loading of MA has a limited impact on the net production of 233U with online feeding of TRU when the burnup is deep enough. Furthermore, for scenario 4, the continuous online feeding of TRU and extraction of 233U results in a decrease in the consumption of 233U in the core and, consequently, an increase in the net production of 233U. The DT corresponding to scenario 4 is approximately 9.7 years; it is almost 17 years for scenario 2, scenario 3, and scenario 5. Due to the slightly poor breeding performance of scenario 1, its corresponding DT is approximately 20.3 years.
In order to research the evolution law of RR, the fission fraction of each fission nuclide and the (n, γ) reaction rate of 232Th and 233Pa is shown in Figure 8. It can be noticed that the (n, γ) reaction rate of 233Pa is much lower than 232Th, and in the initial stage, the increasing (n, γ) reaction rate of 232Th caused by the softening of neutron spectrum leads to the increase in the corresponding RR under different scenarios. In scenario 1, with the deepening of burnup, the fission fraction of MA decreases, and the fission fraction of 233U increases, which results in a gradual decline of RR. However, in scenario 2 (scenario 3, scenario 5), due to the delayed reactive release of accumulated Pu, the fission fraction related to 233U decreases, so the corresponding RR gradually increases to EQL. As for scenario 4, due to the continuous online feeding of TRU and the extraction of 233U from the core, the fission fraction of 233U decreases, resulting in a rapid increase in RR in the first 10 years. Then, the fission fraction of 233U increases with burn-up, and the corresponding RR gradually decreases to EQL. The continuous extraction of 233U from the reactor core has an obvious effect on the RR. In the whole 100-year operation, the RR of scenario 4 reaches 5.7 at its highest, and in the EQL, the corresponding RR is approximately 5.25, which is much higher than in other scenarios.
Furthermore, the plot in Figure 9 shows the separate contributions to the 233U production for scenario 3 and scenario 4. It can be seen that the net production of 233U mainly comes from the blanket for scenario 3, while the 233U produced from the core and the blanket is comparable in scenario 4. In scenario 3 and scenario 4, the production of 233U from the blanket is almost the same, while much more 233U is produced from the core in scenario 4, resulting in a significantly larger net 233U production. As seen from Table 3, it can be found that in scenario 4, the 233U produced from the core up to 54,659 kg during the whole operation is approximately 50,000 kg more than scenario 3, and its corresponding feeding amount of TRU is also almost 50,000 kg more than that of scenario 3, which leads to a significant increase in the 233U net production. However, the online reprocessing technology is not yet mature. It is undoubtedly more difficult to continuously extract 233U from the core online.

3.4. MA Transmutation Capability

In this subsection, the transmutation performance of MA in the different scenarios is analyzed. In general, the transmutation of MA is evaluated by the transmutation mass (TM) and transmutation ratio (TR) of MA, TM stands for the difference between the sum of the initial loading and feeding of MA and the remaining MA after burnup, TR stands for the ratio of MA disappeared to the sum of MA loading and feeding. The TM and TR is defined as Equations (5) and (6).
T M ( t ) = M ( B ) + M f e e d ( t ) M ( t )
T R ( t ) = 1 M ( t ) M ( B ) + M f e e d ( t )
where M(t) refers to the MA inventory at operating time t, M(B) and Mfeed(t) stand for the total mass of the initial loading MA and the total mass of MA fed on-line at time t.
In general, MA transmutation can be achieved with neutron capture and neutron fission. However, MA can only be completely converted into short-lived nuclides by fission reactions to effectively eliminate its long-lived radioactive hazards [25]. Thus, some views even suggest that the fission reaction is the only effective way for MA transmutation. In order to truly reflect the relationship between the fission MA and the total loading of MA, the incineration mass (IM) and incineration ratio (IR) of MA must be defined in Equations (7) and (8).
I M ( t ) = i ( M i ( B ) + M i f e e d ( t ) M i ( t ) ) × R f ( i ) ( t ) R a ( i ) ( t )
I R ( t ) = 1 i ( M i ( B ) + M i f e e d ( t ) M i ( t ) ) × R f ( i ) ( t ) R a ( i ) ( t ) i M i ( B ) + M i f e e d ( t )
where Rf(i)(t) and Ra(i)(t) refer to the neutron fission rate and the neutron absorption rate for nuclide i at operating time t.
The evolution of TM, IM, TR, and IR is shown in Figure 10a,b, more details about MA transmutation and incineration performance after 100 years of depletion are listed in Table 4 above. It can be found that TM and IM increase gradually with the depletion, while IM and TM increase rapidly in the first few years and then gradually slow down with the depletion for scenarios 1–4, however, for scenario 5, the increase rate of TM and IM does not change much with the burnup because there is no MA loading at the initial stage. Therefore, from scenario 1 to scenario 4, TR and IR gradually increase at first and then almost remain unchanged, while in scenario 5, TR and IR gradually increase with burnup. From scenario 1 to scenario 4, although scenario 1 has the smallest TM and IM, its IR and TR are the largest results because no TRU is fed online, which leads to more efficient MA transmutation. The TR and IR are the smallest for scenario 4 due to the TRU fed in scenario 4 (approximately 74,000 kg). The IR for scenario 1 and scenario 4 is 24.79% and 21.56%, and the corresponding TR is 98.38% and 88.76%, respectively. For scenario 5, the corresponding TM, IM, TR, and IR are all smaller than other scenarios; since there is no MA loaded in the beginning, it can be predicted that if the burn-up time is extended, the value of TM and TR in scenario 5 will exceed that of scenario 1 and be almost equal to scenario 2 and scenario 3.
Then, the transmutation performance of separate nuclides in different scenarios was researched. The plot in Figure 11a,b show the evolution of TR and IR related to Np, Am, and Cm for scenario 1 and scenario 2. We can notice that except for 245Cm, the TR and IR of other MAs increase monotonically to EQL. Since 245Cm is at the bottom end of the depletion chains of actinides, its generation from other actinides is greater than its consumption in the early stage, thus, the TR and IR of 245Cm are negative during the first 40 years for scenario 1, then, as the burn-up deepens, the consumption of 245Cm increases, 245Cm begins to be truly transmuted and eventually achieve positive IR and TR. For scenario 2, the TR and IR of 245Cm are negative during the first 52 years and eventually reach approximately 0.29 after 100 years of depletion. Furthermore, although the TR of 244Cm and 245Cm is smaller than that of Np and Am, their corresponding IR is the highest due to the high fission-capture ratio.

3.5. Radiotoxicity and Safety Performance

In this subsection, radiotoxicity as well as two important parameters, the temperature coefficient of reactivity (TCR) and the effective delayed neutron fraction (ENDF), are researched for different scenarios.
The evolution of radiotoxicity for the five scenarios above is shown in Figure 12. It can be noticed that due to the continuous online feeding of TRU and extraction of 233U, the content of Pu and MA in the core of scenario 4 is the highest, and the radiotoxicity is the lowest in scenario 1 due to the lowest Pu and MA content. In addition, scenario 2, scenario 3, and scenario 5 are almost the same in terms of radiotoxicity because of the same feeding and nuclide extraction method during the whole operation. The high radiotoxicity of scenario 4 during operation will present a greater challenge for immature online reprocessing and spent fuel disposal.
TCR, as one of the most important safety parameters, must be negative enough during the whole operation to ensure the safety of the reactor [37]. For the MCFR, the TCR is mainly affected by the changes in fuel salt because there is no moderator in MCFR and the temperature change in the core structure is small and slow, thus, the effect of structure expansion can be ignored [38,39]. Therefore, the TCR in MCFR is defined as follows:
d K d T t o t a l = ( d K d T ) f u e l   d e n s i t y + ( d K d T ) f u e l   d o p p l e r
where K and T refer to the keff and the temperature, respectively. The evolution of TCR for 5 scenarios is shown in Figure 13. It can be noticed that due to the large fuel salt expansion feedback coefficient of the MCFR, the TCR is negative enough for all scenarios. Furthermore, the constant value of the TCR for scenario 5 is the largest at BOL since no MA is loaded in the core at the beginning. Due to the same online reprocessing and extraction methods, the TCR is nearly the same for scenario 2, scenario 3, and scenario 5 in EQL, while the TCR for scenario 1 is the largest due to the lowest MA and Pu contents and the highest 232Th content in EQL.
Due to the same expansion coefficient and density of fuel salt for different scenarios, the fuel density effect is nearly the same for five scenarios, thus, the Doppler effect is predominant for the evolution rule of TCR. MA has a flatter fission cross-section and a steeper capture cross-section than 233U; from Figure 3, it can be noticed that the increasing MA hardens the neutron spectrum, having a smaller negative effect on MA fission than on 233U fission. Additionally, the steeper capture cross-section for MA suggests a higher decrement of captures with the hardening of the neutron spectrum. Both effects result in an absolute value decrease in TCR with the increasing MA loading. Furthermore, the absolute value of TCR decreases with the deepening of burnup, which is mainly due to the accumulation of FPs during the operation. The FPs have a decreased cross-section with neutron spectra hardening, which leads to increased reactivity, and positively affects the TCR. The MA transmutation can increase the absolute value of the TRC during operation, but this effect is not as obvious as that caused by FP accumulation in all scenarios. Thus, the TCR increases gradually for all scenarios until the primary nuclides in the core are in EQL.
In addition, the ENDF (βeff) is another safety parameter that plays an important role in reactor operation control, too small or too severe a fluctuation of βeff during operation is detrimental to safety. It can be expressed as follows:
β eff = i v d ( i ) ¯ R f ( i ) i ( v d ( i ) ¯ + v p ( i ) ¯ ) R f ( i )
where vd(i) and vp(i) refer to the average delayed neutrons and the prompt neutrons per fission, and Rf(i) indicates the fission rate of nuclide i.
The evolution of total βeff is shown in Figure 14, it can be found that the higher the initial loading of MA, the smaller the initial value of βeff. In addition, the value of βeff declines monotonically to a minimum value first and then rebounds except for scenario 4. To explore the source of the changes in βeff, the βeff for the main single nuclides (βI) and the actual contribution of single nuclides to βeff (βs) are introduced and defined in Equations (11) and (12), respectively.
β I ( i ) = v d ( i ) ¯ ( v d ( i ) ¯ + v p ( i ) ¯ )
β s ( i ) = v d ( i ) ¯ R f ( i ) i ( v d ( i ) ¯ + v p ( i ) ¯ ) R f ( i )
Although βI is slightly different under different neutron spectrums, calculation results show the difference between βI in different scenarios and burn-up depths is less than 2 pcm. The βI of 233U, 237Np, 241Am, 243Am, 239Pu, 241Pu, and 235U are calculated to be 291 pcm, 398 pcm, 136 pcm, 239 pcm, 218 pcm, 542 pcm, and 668 pcm, respectively. Since the value of βI for 233U is larger than that of MA mixture, the larger the initial loading of MA, the smaller its initial βeff.
The βs of different scenarios with different depletion times are shown in Table 5. Since the evolution of βeff is almost the same for scenario 2, scenario 3, and scenario 5, thus, only three different scenarios are shown in. For scenario 4, due to the continuous online feeding of TRU and extraction of 233U, 239Pu rapidly becomes the major fission nuclide instead of 233U (see Figure 8a); however, since the βI of 239Pu is smaller than that of 233U, the βs decreases rapidly during the first 20 years, and almost tends to be stable during the remaining 80 years. As for scenario 1, the effect resulting from the MA transmutation (especially 237Np) leads to a decrease in the total βeff. Then, with the incineration of MA, the content of 233U gradually increases, and the positive effect of increasing 233U content on βeff is greater than the negative effect caused by MA transmutation. In addition, the accumulated 235U during the operation also improves the total βeff due to its large value of βI. Thus, the total βeff increases gradually over the last 90 years. The evolution of the total βeff for scenario 5 is almost the same as that of scenario 1, but the final βeff of scenario 5 is 14 pcm smaller than scenario 1 due to its higher MA and 239Pu content in the EQL.
The initial value, maximum value, minimum value, and other information of βeff under different scenarios are listed in Table 6. It can be noticed that the fluctuation of βeff for scenario 1 is the most severe, and the βeff for scenario 4 is the smallest in EQL, it is 45 pcm smaller than scenario 1 and 31 pcm smaller than scenario 2. The difference will be even larger when the flow of molten salt is taken into account, the fuel salt flow will cause the flow of delayed neutron precursor and lead to the reduction in βeff, which will weaken the reactivity control of the core.

4. Conclusions

In order to alleviate the problem of long-lived, high-level waste disposal faced by the development of nuclear energy, the MAs transmutation in different scenarios has been evaluated based on an optimized MCFR. The neutron spectrum, 233U breeding capability, MA transmutation performance, radiotoxicity, and the safety of MCFR are analyzed and compared for different scenarios. In general, the MCFR has obviously better MA transmutation performance due to superior merits. In addition, the results of this work also provide a reference for the Th-U fuel cycle strategy of the MCFR.
Compared with online feeding of 233U/232Th, online feeding of TRU/232Th can significantly improve 233U breeding performance and MA transmutation capability, when the initial loading of MA is 5 mol%, the latter scenario will increase the net production of 233U by 20,178 kg and the transmutation of MA by 1894 kg during the whole 100-year operation. In addition, the DT with online feeding of TRU/232Th is approximately 17.3 years, which is 3.3 years less than online feeding of 233U/232Th.
Furthermore, the calculation results of feeding TRU/232Th online and only extracting 233Pa from the core and blanket show that the initial loading of MA has almost no effect on the breeding performance of 233U and safety parameters, increasing the initial loading of MA is beneficial to improve the MA transmutation performance. Compared with the initial loading MA = 0 mol% scenario, the mass of transmuted and incinerated MA for the initial loading MA = 7 mol% during the whole operation increased by 6890 kg and 1711 kg, respectively, and the corresponding TR and IR increased by approximately 15% and 4.4%, respectively.
In addition, the extraction of 233U from the core with online feeding of TRU will greatly improve 233U breeding and MA transmutation performance, which is mainly due to the significant increase in the net production of 233U from the core. However, extracting 233U from the core will deteriorate the safety performance and significantly increase the radiotoxicity level during the operation. For example, the βeff for this scenario is 268 pcm. If the motion of fuel salt is considered, there will be approximately a 50% loss for the βeff when the volume fractions of the core and out-core are the same, which will further weaken the reactivity control of the core. Most importantly, the continuous online extraction of 233U from the core will pose a greater challenge to immature reprocessing technologies.
In the closed Th-U cycle of MCFR, it is recommended to load an appropriate amount of MA at the initial and feed TRU/232Th online to improve the 233U breeding capability and MA transmutation performance. In addition, when the online reprocessing technology is mature, it can be considered to extract 233U from the core online under the premise of ensuring safety to further improve the capability of breeding and transmuting more MA.

Author Contributions

Conceptualization, L.H.; methodology, L.H.; software, S.X.; validation, L.H.; formal analysis, L.H.; investigation, L.H. and L.C.; resources, L.H.; data curation, L.H.; writing—original draft preparation, L.H.; writing—review and editing, L.H., Y.Z. and S.X.; visualization, L.H.; supervision, Y.Z.; project administration, Y.Z.; funding acquisition, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [Chinese TMSR Strategic Pioneer Science and Technology Project] grant number [XDA02010000] and [Frontier Science Key Program of Chinese Academy of Sciences] grant number [QYZDY-SSW-JSC016].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. OECD/NAE/NSC. Overview of Physics Aspects of Different Transmutation Concepts; Nuclear Energy Agency: Paris, France, 1994; p. 118. [Google Scholar]
  2. Liu, B.; Wang, K.; Tu, J.; Liu, F.; Huang, L.; Hu, W. Transmutation of minor actinides in the pressurized water reactors. Ann. Nucl. Energy 2013, 64, 86–92. [Google Scholar] [CrossRef]
  3. Martinez, E.; Alonso, G.; Ramirez, R.; Castillo, R. Comparison of BWR fuel assembly options for minor actinide recycling. Ann. Nucl. Energy 2019, 132, 288–298. [Google Scholar] [CrossRef]
  4. Liu, B.; Han, J.; Liu, F.; Sheng, J.; Li, Z. Minor actinide transmutation in the lead-cooled fast reactor. Prog. Nucl. Energy 2019, 119, 103148. [Google Scholar] [CrossRef]
  5. Fukuda, T.; Yamaji, A. Conceptual design of Super FR for MA transmutation with axially heterogeneous core. Nucl. Eng. Des. 2020, 363, 110619. [Google Scholar] [CrossRef]
  6. Liu, F.; Zhang, W.; Liu, B.; Lyu, X.; Wang, J.; Niu, F.; Yan, P. Fuel depletion characteristics of MA transmutation in PWR. Nucl. Mater. Energy. Fuel. 2022, 30, 101119. [Google Scholar] [CrossRef]
  7. Salvatores, M.; Slessarev, I.; Uematsu, M. A global physics approach to transmutation of radioactive nuclei. Nucl. Sci. Eng. 1994, 116, 1. [Google Scholar] [CrossRef]
  8. Ahn, S.J.; Ha, K.S.; Chang, W.P.; Kang, S.H.; Lee, K.L.; Choi, C.H.; Lee, S.W.; Yoo, J.; Jeong, J.H.; Jeong, T.Y. Evaluation of a sodium–water reaction event caused by steam generator tubes break in the prototype generation iv sodium-cooled fast reactor. Nucl. Eng. Technol. 2016, 48, 952–964. [Google Scholar] [CrossRef] [Green Version]
  9. Pope, M.; Lee, J.I.; Hejzlar, P.; Driscoll, M.J. Thermal hydraulic challenges of gas cooled fast reactors with passive safety features. Nucl. Eng. Des. 2009, 239, 840–854. [Google Scholar] [CrossRef]
  10. Wang, M. Neutronics Design and Study on Subcritical Spent Fuel Burner. Ph.D. Thesis, University of Chinese Academy of Sciences, Beijing, China, 2012. [Google Scholar]
  11. U.S. DOE. A technology roadmap for generation IV nuclear energy systems. In Nuclear Energy Research Advisory Committee and the Generation IV International Forum; USDOE Office of Nuclear Energy, Science and Technology (NE): Washington, DC, USA, 2002. [Google Scholar] [CrossRef]
  12. Ashraf, O.; Tikhomirov, G. Thermal-and fast-spectrum molten salt reactors for minor actinides transmutation. Ann. Nucl. Energy 2020, 148, 107751. [Google Scholar] [CrossRef]
  13. Yu, C.; Li, X.; Cai, X.; Zou, C.; Ma, Y.; Han, J.; Chen, J. Analysis of minor actinides transmutation for a molten salt fast reactor. Ann. Nucl. Energy 2015, 85, 597. [Google Scholar] [CrossRef]
  14. Ignatiev, V.; Feynberg, O.; Gnidoi, I.; Merzlyakov, A.; Smirnov, V.; Surenkov, A.; Tretiakov, I.; Zakirov, R. Progress in development of Li, Be, Na/F molten salt actinide recycler & transmutation concept. In Proceedings of the ICAPP, Kyoto, Japan, 24–28 April 2017; p. 7548. [Google Scholar]
  15. Heuer, D.; Merle-Lucotte, E.; Allibert, M.; Brovchenko, M.; Ghetta, V.; Rubiolo, P. Towards the Thorium Fuel Cycle with Molten Salt Fast Reactors. Ann. Nucl. Energy 2014, 64, 421. [Google Scholar] [CrossRef]
  16. Křepel, J.; Hombourger, B.; Fiorina, C.; Mikityuk, K.; Rohde, U.; Kliem, S.; Pautz, A. Fuel cycle advantages and dynamics features of liquid fueled MSR. Ann. Nucl. Energy 2014, 64, 380–397. [Google Scholar] [CrossRef]
  17. Rosenthal, M.W.; Kasten, P.R.; Briggs, R.B. Molten-salt reactors–history, status, and potential. Nucl. Appl. Technol. 1970, 8, 107–117. [Google Scholar] [CrossRef]
  18. Bulmer, J.J.; Gift, E.H.; Holl, R.J.; Jacobs, A.M.; Jaye, S.; Koffman, E.; McVean, R.L.; Oehl, R.G.; A Rossi, R. Reactor Design and Feasibility Study: Fused Salt Fast Breeder; Oak Ridge School of Reactor Technology: Oak Ridge, TN, USA, 1956. [Google Scholar] [CrossRef]
  19. He, L.-Y.; Xia, S.-P.; Chen, J.-G.; Liu, G.-M.; Zou, Y. Th-U Breeding Performances in an Optimized Molten Chloride Salt Fast Reactor. Nucl. Sci. Eng 2021, 195, 185–202. [Google Scholar] [CrossRef]
  20. Smith, J.; Simmons, W.E. An Assessment of a 2500 MWe Molten Chloride Salt Fast Reactor; United Kingdom Energy Authority Reactor Group: Winfrith, UK, 1974. [Google Scholar]
  21. Scott, I.; Abram, T.; Negri, O. Stable Salt Reactor Design Concept. In Proceedings of the International Thorium Energy Conference Gateway to Thorium Energy, Geneva, Switzerland, 27–31 October 2013.
  22. Merk, B.; Detkina, A.; Atkinson, S.; Litskevich, D.; Cartland-Glover, G. Evaluation of the Breeding Performance of a NaCl-UCl-Based Reactor System. Energies 2019, 12, 3853. [Google Scholar] [CrossRef] [Green Version]
  23. Mourogov, A.; Bokov, P. Potentialities of the fast spectrum molten salt reactor concept: REBUS-3700. Energy Convers. Manag. 2006, 47, 2761–2771. [Google Scholar] [CrossRef]
  24. TerraPower’s Molten Chloride Fast Reactor Technology: Nuclear for a Changing Energy Sector. 2022. Available online: https://www.terrapower.com/wp-content/uploads/2022/06/TP_2022_MCFR_Technology.pdf (accessed on 11 October 2022).
  25. Yu, C.; Li, X.; Cai, X.; Zou, C.; Ma, Y.; Wu, J.; Han, J.; Chen, J. Minor actinide incineration and Th-U breeding in a small FLiNaK Molten Salt Fast Reactor. Ann. Nucl. Energy 2017, 99, 335–344. [Google Scholar] [CrossRef]
  26. Koshi, M.; Yamamoto, T.; Yoshioka, R. Self-Sustaining Core Design for 200 MWe Molten-Salt Reactor with Thorium-Uranium Fuel: Fuji-u3-(0). In Proceedings of the International Workshop on Thorium Utilization for Sustainable Development of Nuclear Energy (TU2007), Beijing, China, 4–6 December 2007. [Google Scholar]
  27. He, L.-Y.; Li, G.-C.; Xia, S.-P.; Chen, J.-G.; Zou, Y.; Liu, G.-M. Effect of 37Cl Enrichment on Neutrons in a Molten Chloride Salt Fast Reactor. Nucl. Sci. Tech. 2020, 31, 27. [Google Scholar] [CrossRef]
  28. He, L.Y.; Xia, S.-P.; Zhou, X.-M.; Chen, J.-G.; Liu, G.-M.; Zou, Y.; Yan, R. Th-U Cycle Performance Analysis Based on Molten Chloride Salt Fast Reactor and Molten Fluoride Salt Fast Reactor. Nucl. Sci. Tech. 2020, 31, 83. [Google Scholar] [CrossRef]
  29. He, L.Y. Optimal Design and Th-U Cycle Performance Investigation of Molten Chlorine Salt Fast Reactor. Ph.D. Thesis, University of Chinese Academy of Science, Beijing, China, 2020. [Google Scholar]
  30. Ahmad, A.; McClamrock, E.B.; Glaser, A. Neutronics calculations for denatured molten salt reactors: Assessing resource requirements and proliferation-risk attributes. Ann. Nucl. Energy 2015, 75, 261. [Google Scholar] [CrossRef]
  31. Cui, D.; Li, X.; Xia, S.; Zhao, X.; Yu, C.; Chen, J.; Cai, X. Possible Scenarios for the Transition to Thorium Fuel Cycle in Molten Salt Reactor by Using Enriched Uranium. Prog. Nucl. Energy 2017, 104, 75. [Google Scholar] [CrossRef]
  32. Xia, S.P. Research on the High-precision Burnup Calculation Methods and Thorium-Uranium Fuel Breeding for the Liquid-Fueled Molten Salt Reactors. Ph.D. Thesis, University of Chinese Academy of Sciences, Beijing, China, 2019. [Google Scholar]
  33. ORNL/TM-2005/39; Scale: A Modular Code System for Performing Standardized Computer Analyses for Licensing Evaluations. Version 6.1; National Laboratory: Oak Ridge, TN, USA, 2009.
  34. Xia, X.; Chen, J.; Guo, W.; Cui, D.; Han, J.; Wu, J.; Cai, X. Development of a Molten Salt Reactor Specific Depletion Code MODEC. Ann. Nucl. Energy 2019, 124, 88. [Google Scholar] [CrossRef]
  35. Merle-Lucotte, E.; Heuer, D.; le Brun, C.; Mathieu, L.; Brissot, R.; Liatard, E.; Méplan, O.; Nuttin, A. Fast thorium molten salt reactors started with plutonium. In Proceedings of the ICAPP, Chamonix, France, 2–6 October 2006. [Google Scholar]
  36. Vapirev, E.; Dimitrov, V.; Jordanov, T.; Christoskov, I. Conversion of High Enriched Uranium in Thorium-232-based Oxide Fuel for Light and Heavy Water Reactors: MOX-T Fuel. Nucl. Eng. Des. 1996, 167, 105. [Google Scholar] [CrossRef]
  37. Zou, C.; Cai, X.; Jiang, D.; Yu, C.; Li, X.; Ma, Y.; Han, J.; Chen, J. Optimization of temperature coefficient and breeding ratio for a graphite-moderated molten salt reactor. Nucl. Eng. Des. 2015, 281, 114–120. [Google Scholar] [CrossRef]
  38. Li, G.; Zou, Y.; Yu, C.; Sun, J.; Chen, J.; Xu, H. Model Optimization and Analysis of Th-U Breeding Based on MSFR. Nucl. Techniques 2017, 40, 020603. (In Chinese) [Google Scholar] [CrossRef]
  39. Fiorina, C.; Aufiero, M.; Cammi, A.; Franceschini, F.; Křepel, J.; Luzzi, L.; Mikityuk, K.; Ricotti, M.E. Investigation of the MSFR Core Physics and Fuel Cycle Characteristics. Prog. Nucl. Energy 2013, 68, 153. [Google Scholar] [CrossRef]

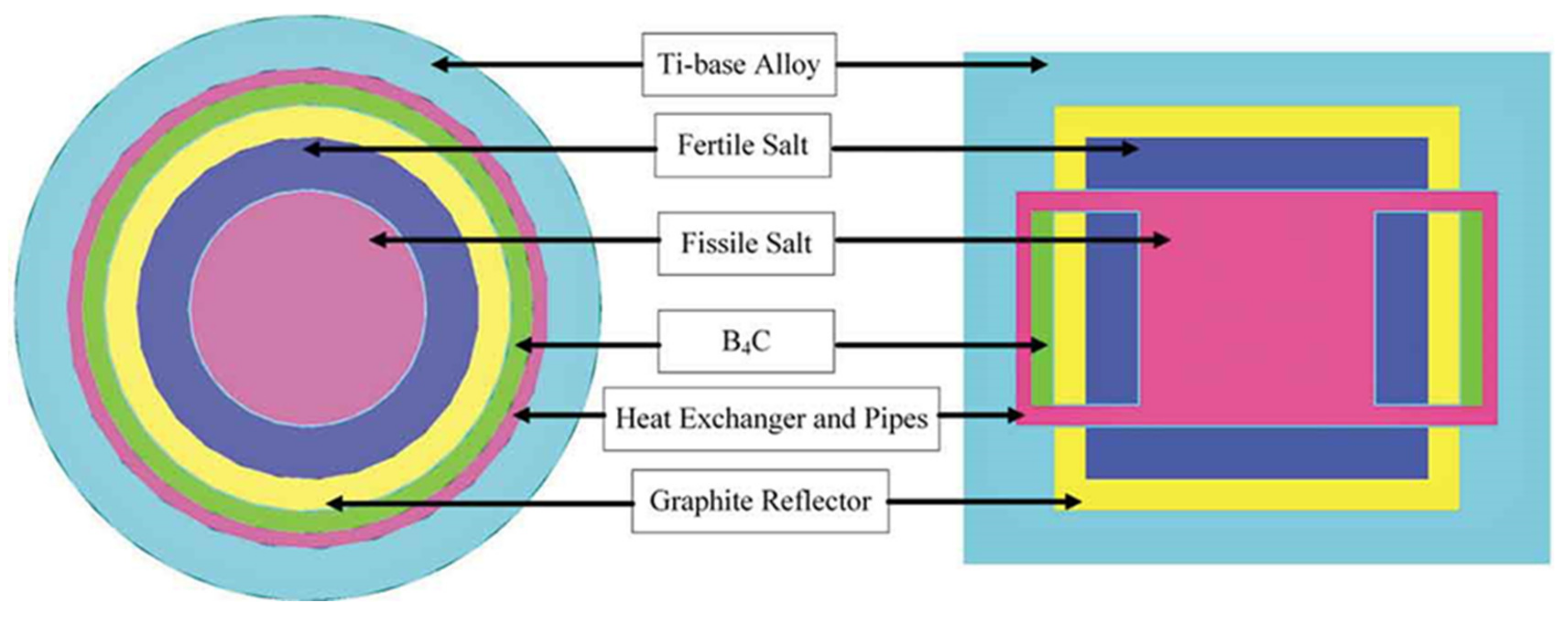

Figure 1. The cross and vertical section of MCFR.
Figure 1. The cross and vertical section of MCFR.
Energies 15 09472 g001

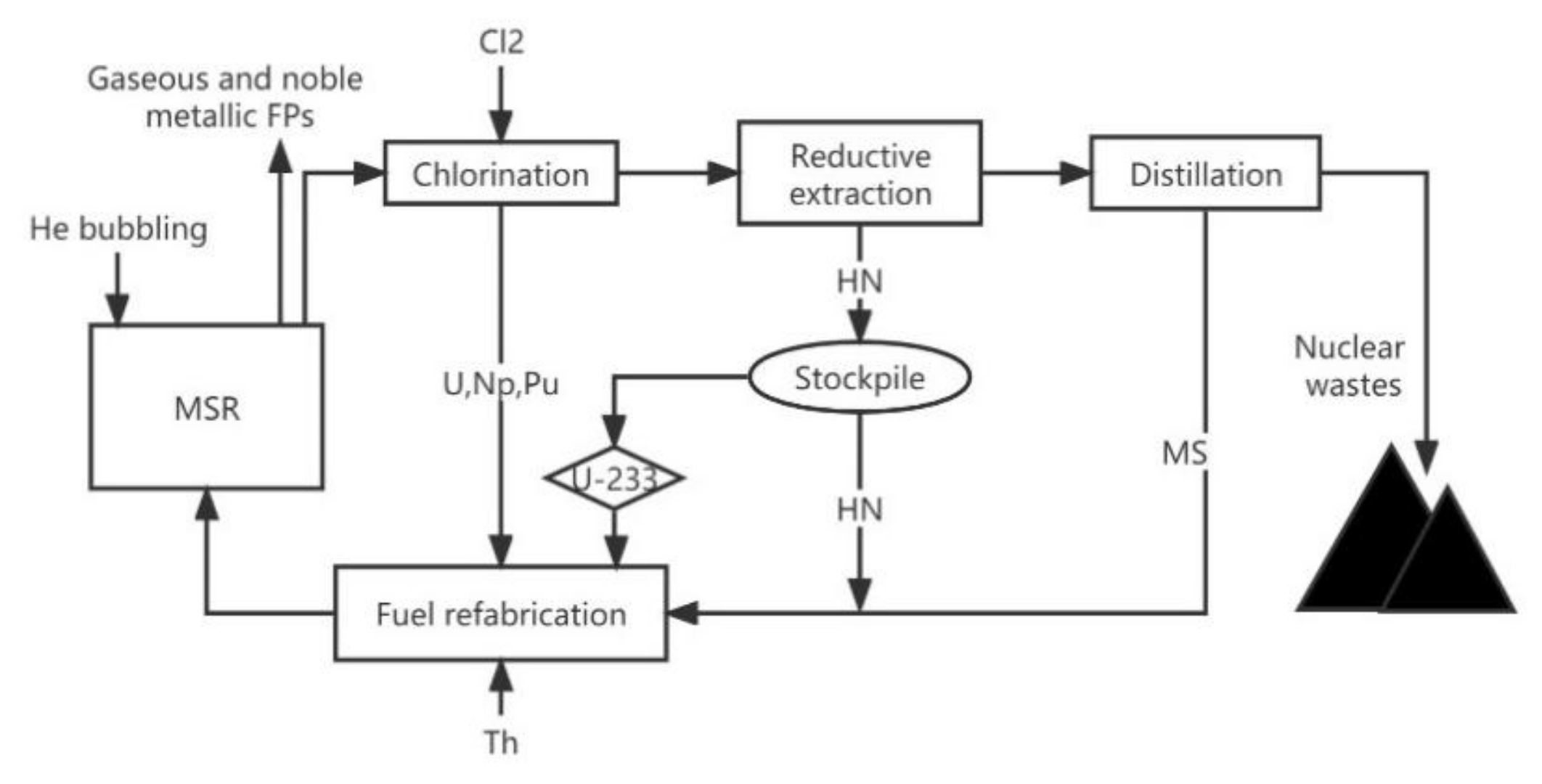

Figure 2. The reprocessing diagram of MSR.
Figure 2. The reprocessing diagram of MSR.
Energies 15 09472 g002

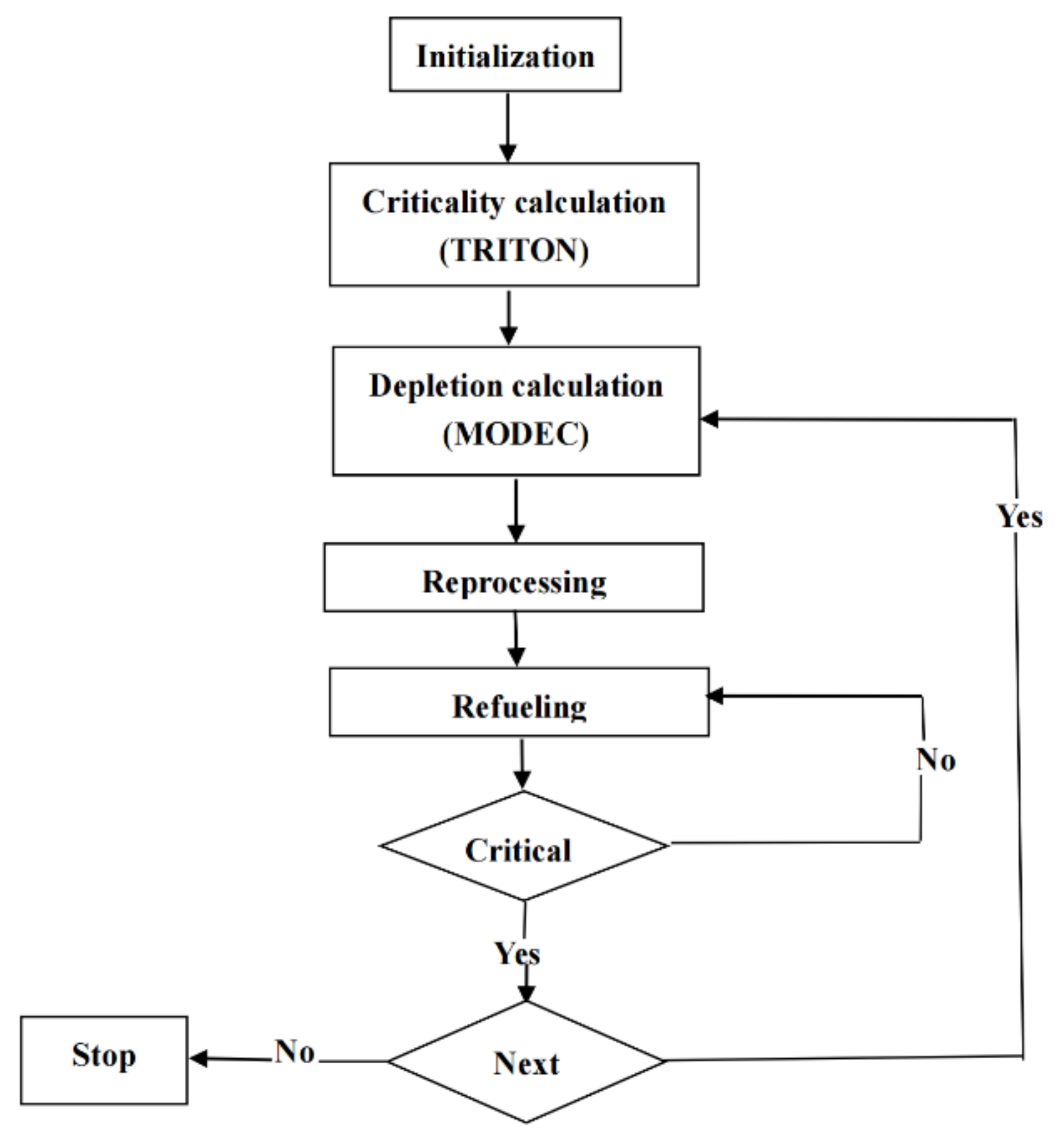

Figure 3. Flowchart of TMCBurnup.
Figure 3. Flowchart of TMCBurnup.
Energies 15 09472 g003

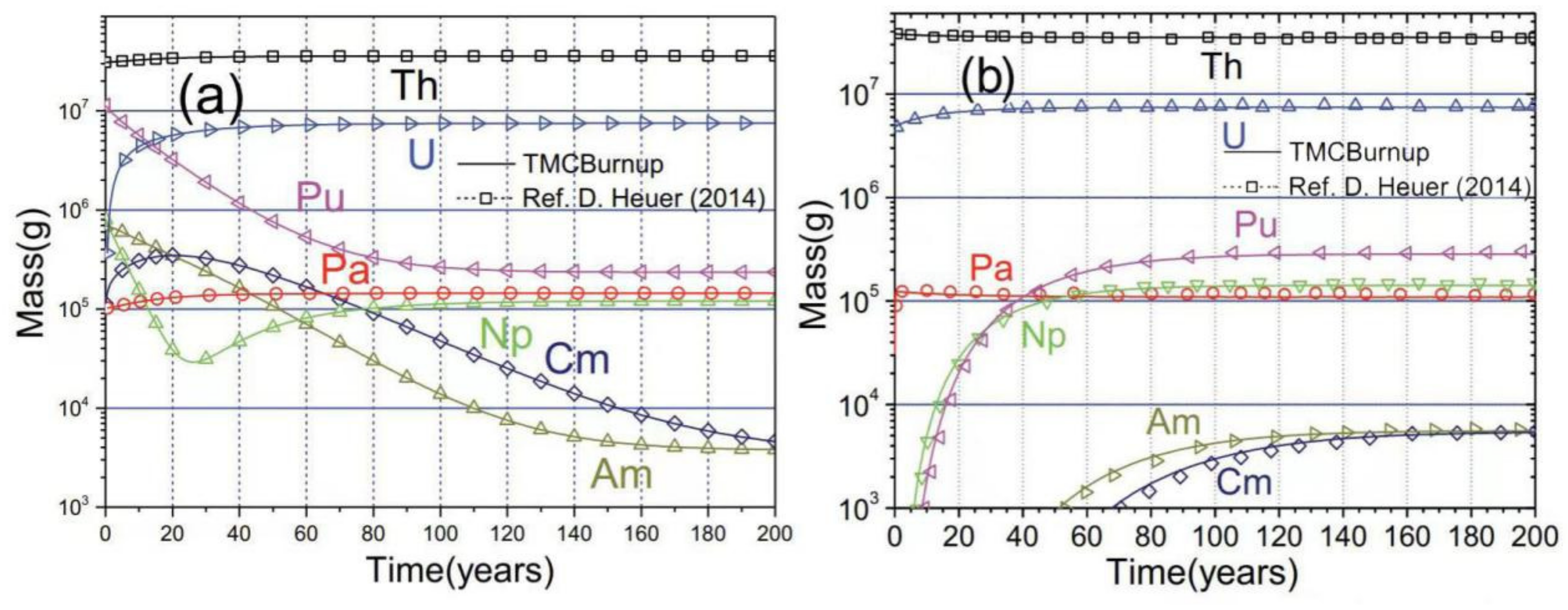

Figure 4. Evolution of heavy nuclides for MSFR started with TRU (a) and 233U (b).
Figure 4. Evolution of heavy nuclides for MSFR started with TRU (a) and 233U (b).
Energies 15 09472 g004

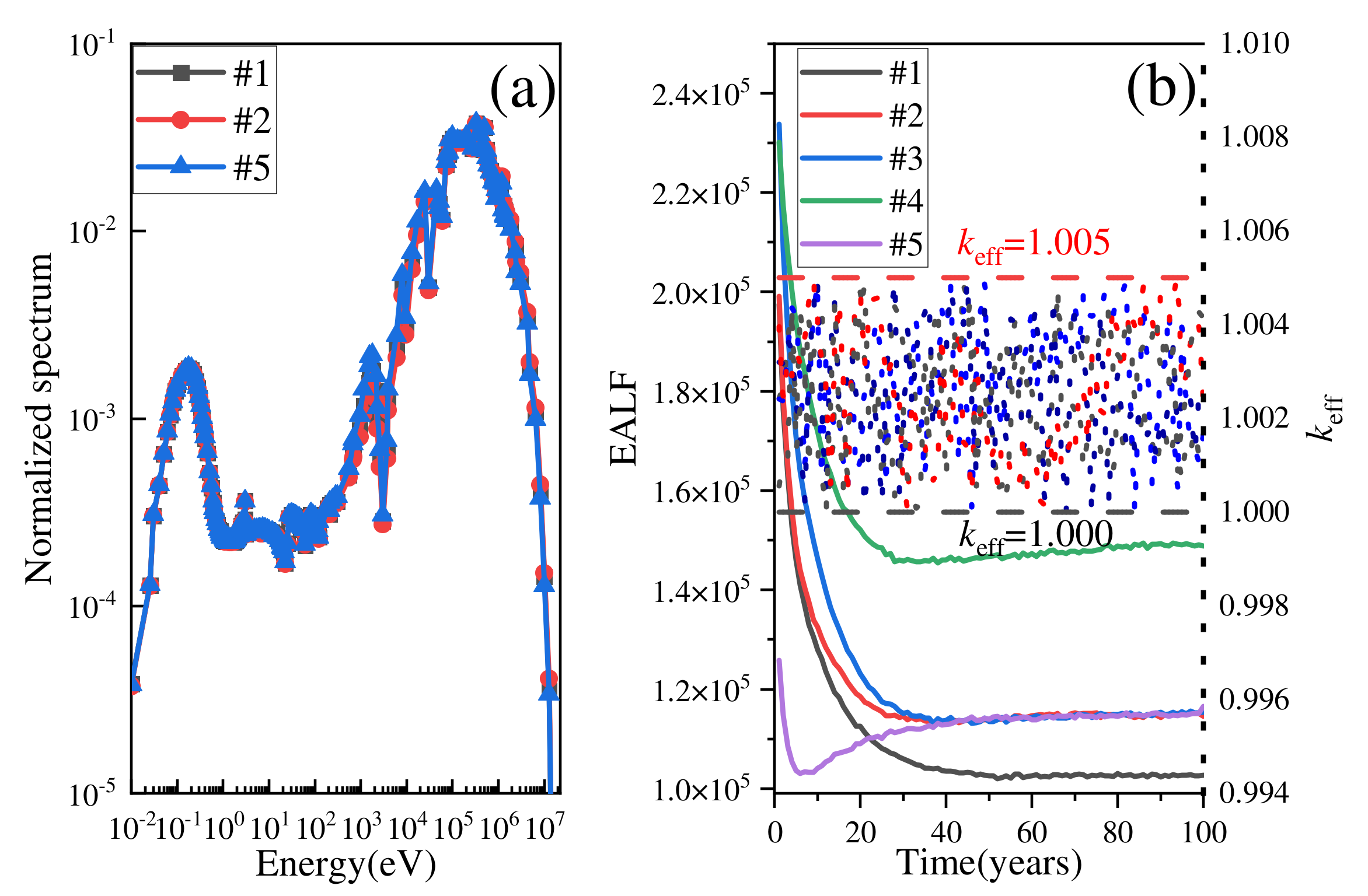

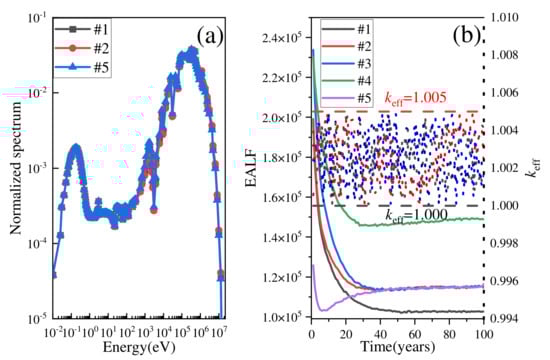

Figure 5. Normalized spectrum (a) and evolution of EALF and keff (b).
Figure 5. Normalized spectrum (a) and evolution of EALF and keff (b).
Energies 15 09472 g005

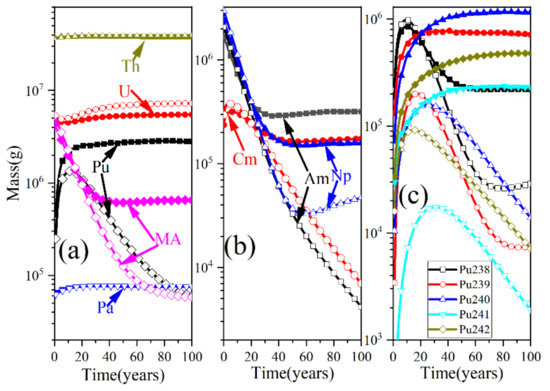

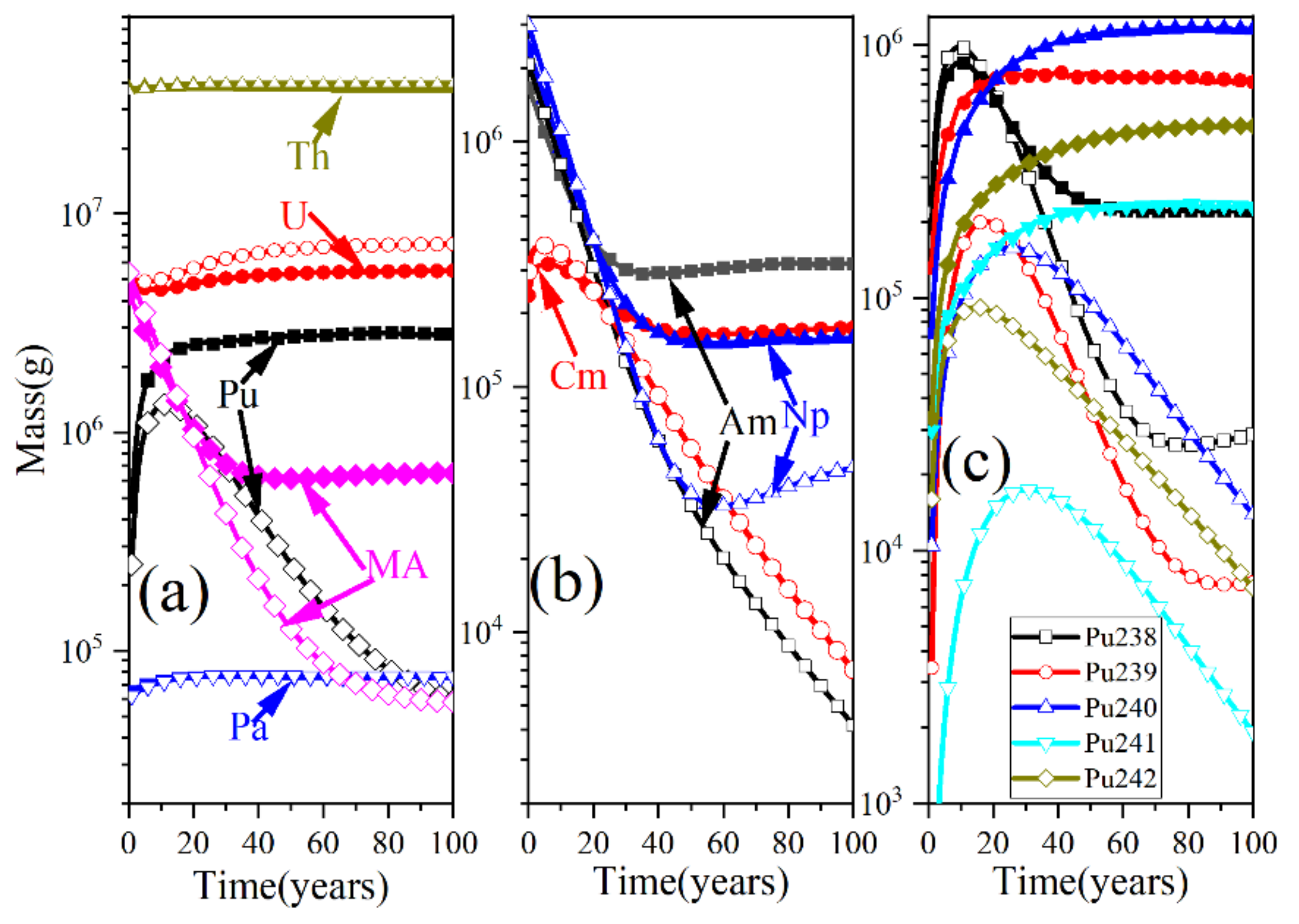

Figure 6. Evolution of the main heavy nuclides (a), MA (b), and Pu (c) for scenario 1 (empty dot lines) and scenario 2 (solid dot lines).
Figure 6. Evolution of the main heavy nuclides (a), MA (b), and Pu (c) for scenario 1 (empty dot lines) and scenario 2 (solid dot lines).
Energies 15 09472 g006

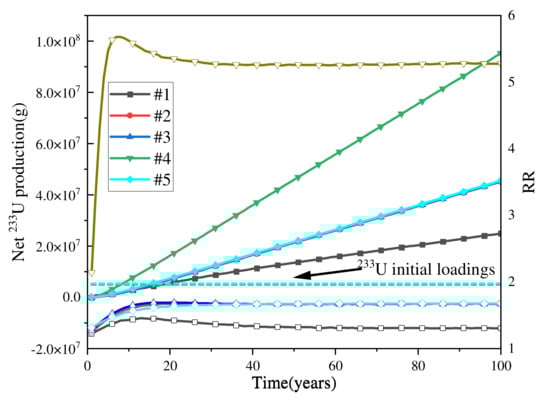

Figure 7. Evolution of net production of 233U (solid dot lines) and RR (empty dot lines).
Figure 7. Evolution of net production of 233U (solid dot lines) and RR (empty dot lines).
Energies 15 09472 g007

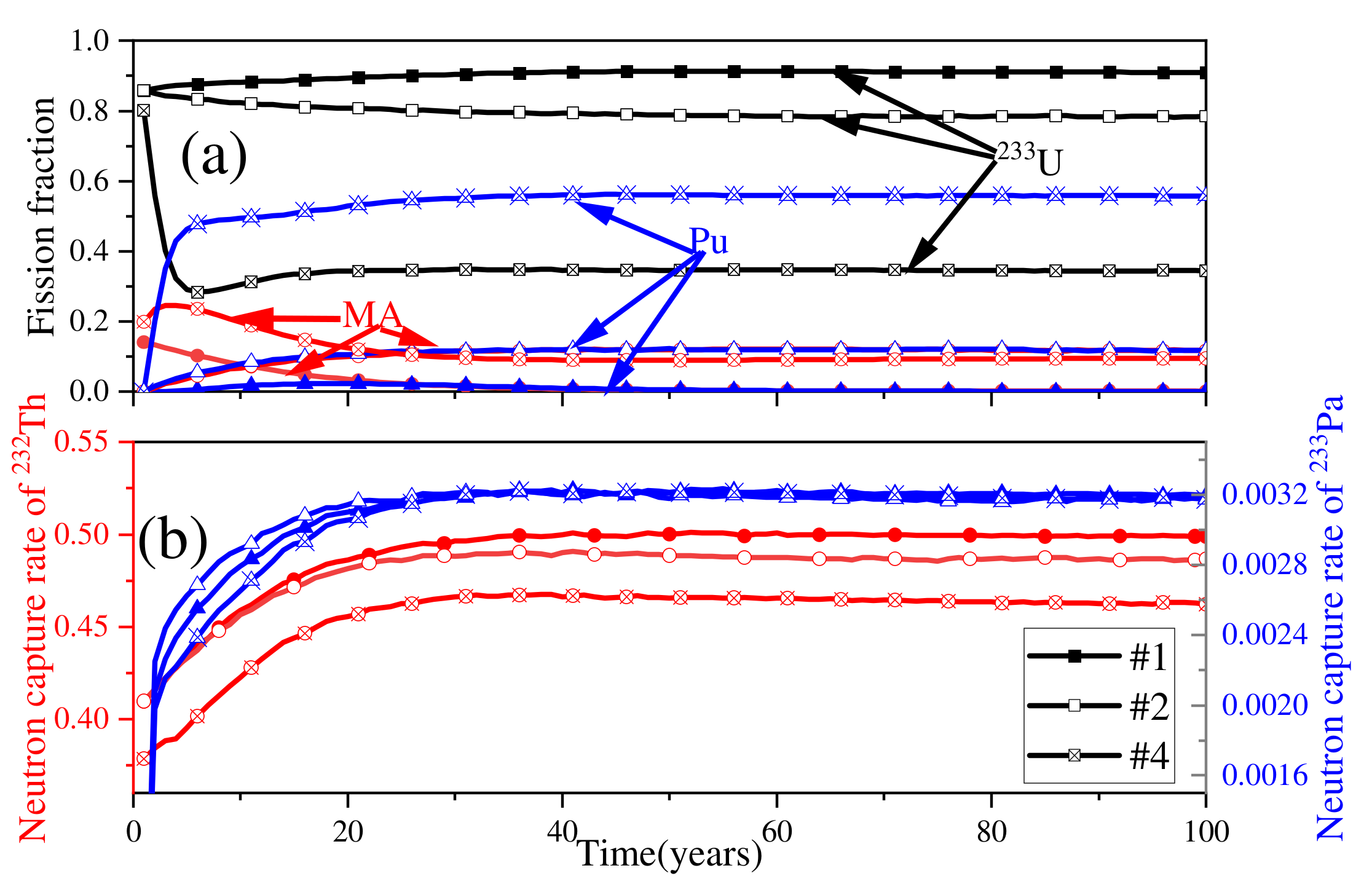

Figure 8. Evolution of fission fraction (a) and neutron capture rate of nuclides (b).
Figure 8. Evolution of fission fraction (a) and neutron capture rate of nuclides (b).
Energies 15 09472 g008

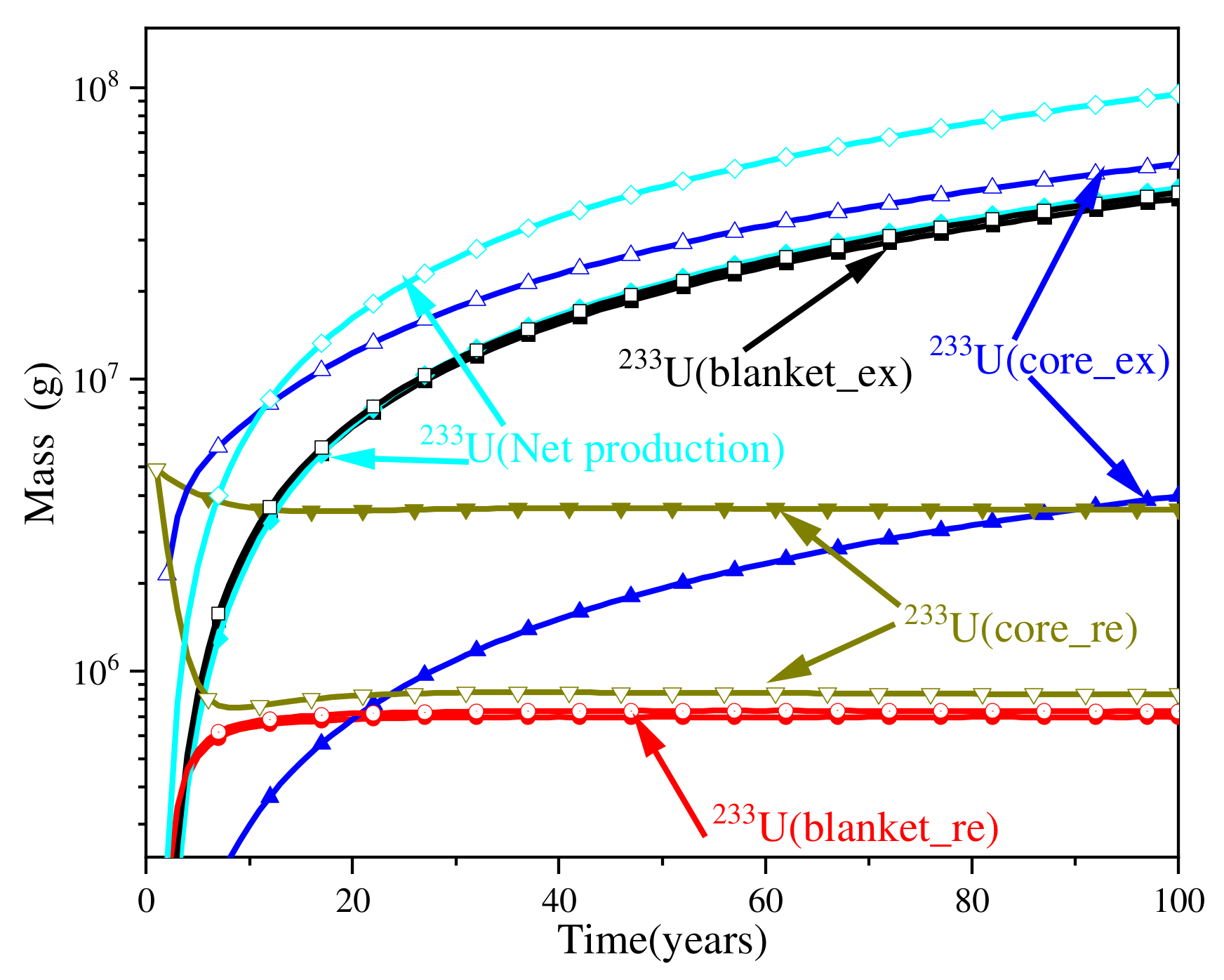

Figure 9. Separate contributions to 233U production for scenario 3 (solid dot lines) and scenario 4 (empty dot lines).
Figure 9. Separate contributions to 233U production for scenario 3 (solid dot lines) and scenario 4 (empty dot lines).
Energies 15 09472 g009

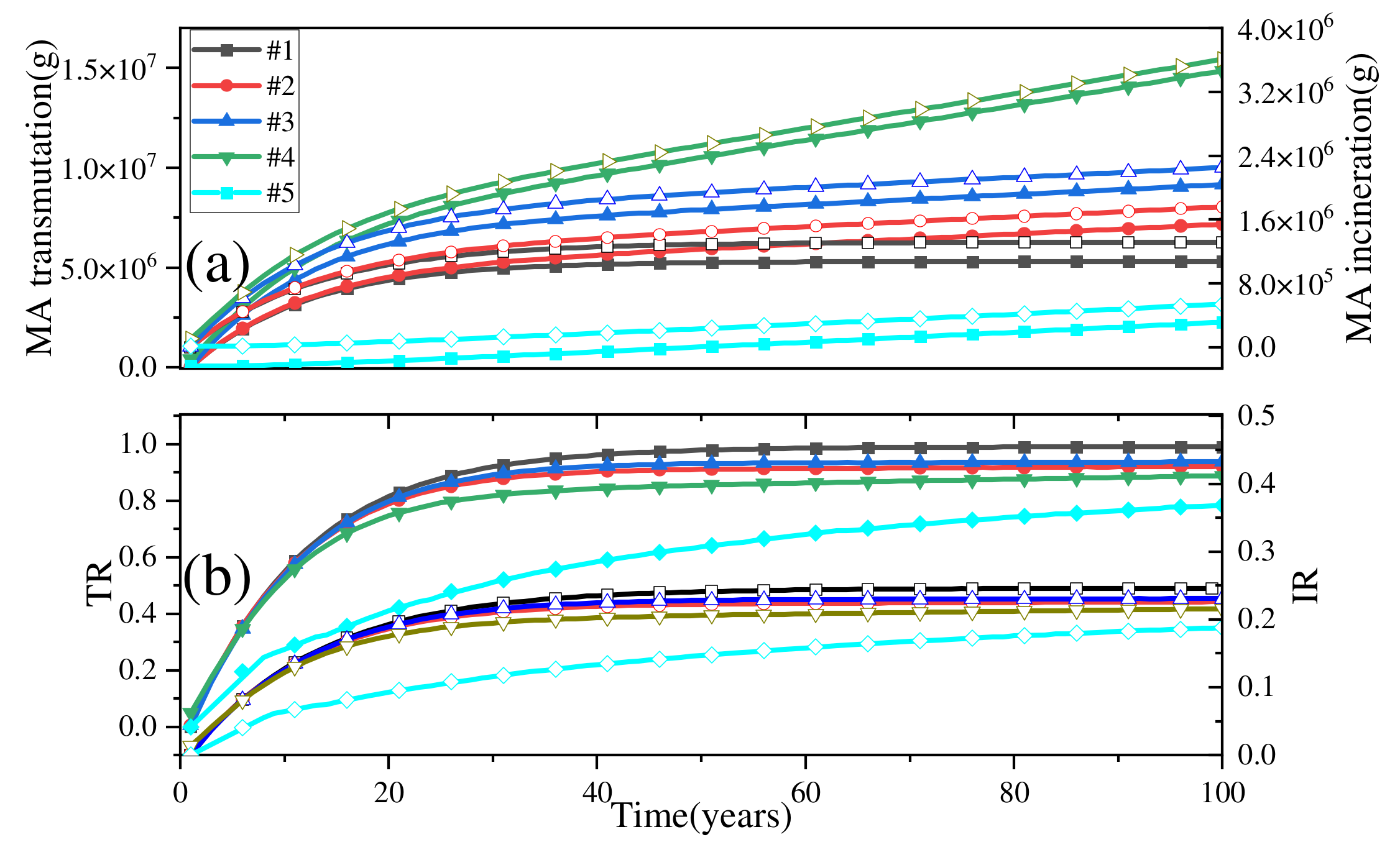

Figure 10. Evolution of MA transmutation (solid dot lines), incineration (empty dot lines) (a), TR (solid dot lines), and IR (empty dot lines) (b).
Figure 10. Evolution of MA transmutation (solid dot lines), incineration (empty dot lines) (a), TR (solid dot lines), and IR (empty dot lines) (b).
Energies 15 09472 g010

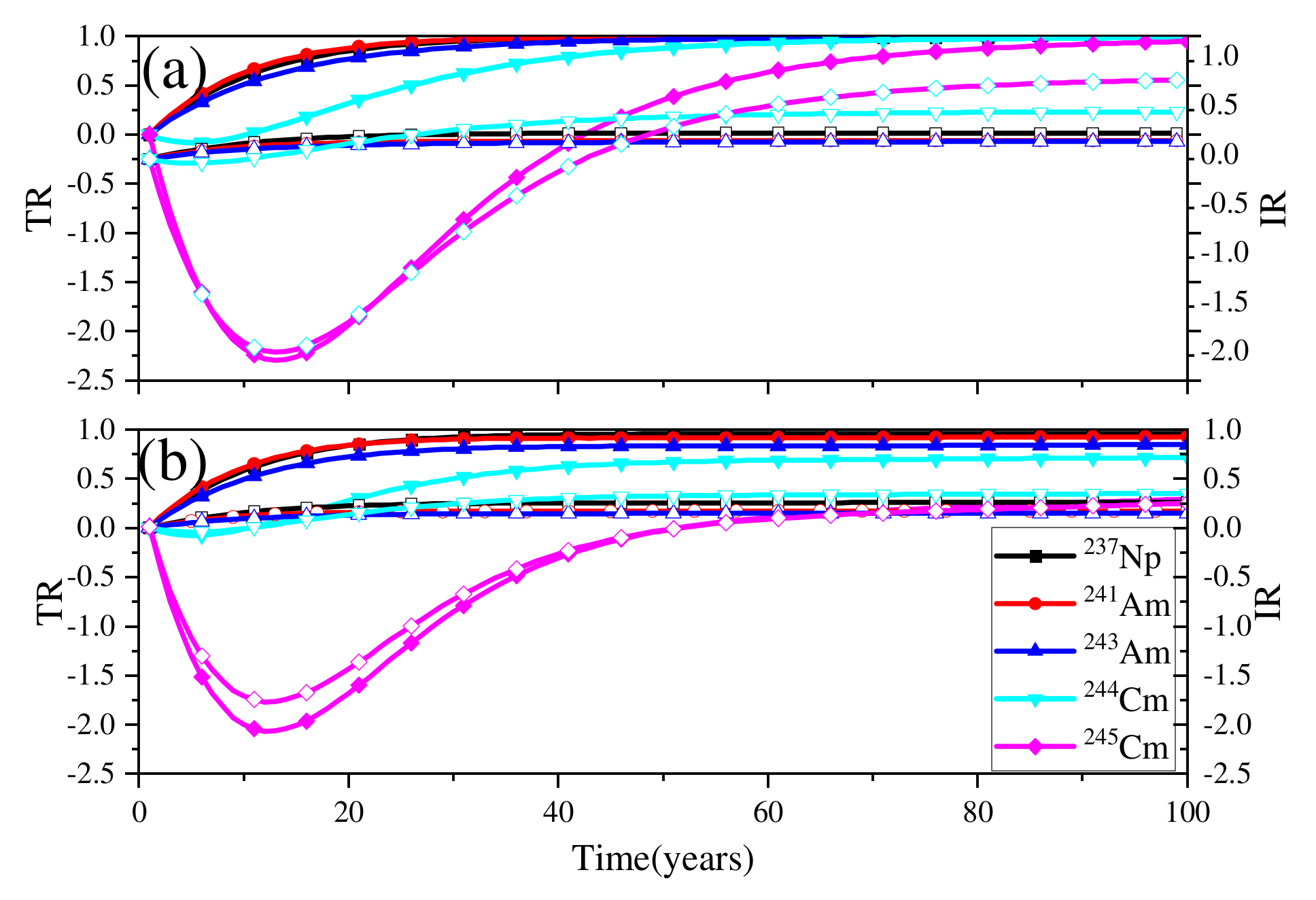

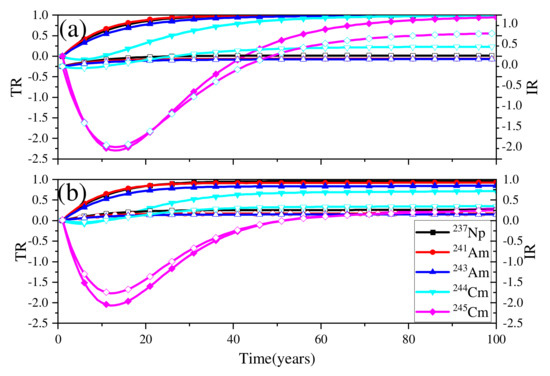

Figure 11. Evolution of TR (solid dot lines) and IR (empty dot lines) for scenario 1 (a) and scenario 2 (b).
Figure 11. Evolution of TR (solid dot lines) and IR (empty dot lines) for scenario 1 (a) and scenario 2 (b).
Energies 15 09472 g011

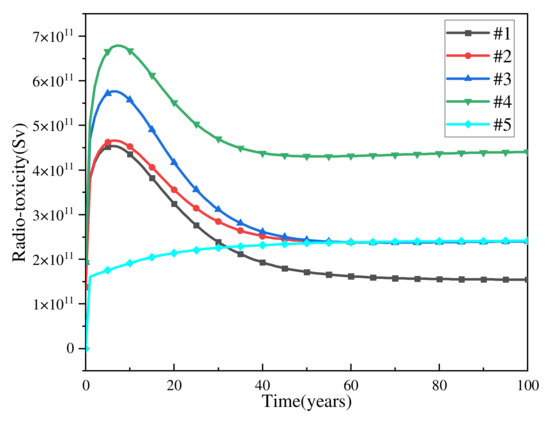

Figure 12. Evolution of radiotoxicity.
Figure 12. Evolution of radiotoxicity.
Energies 15 09472 g012

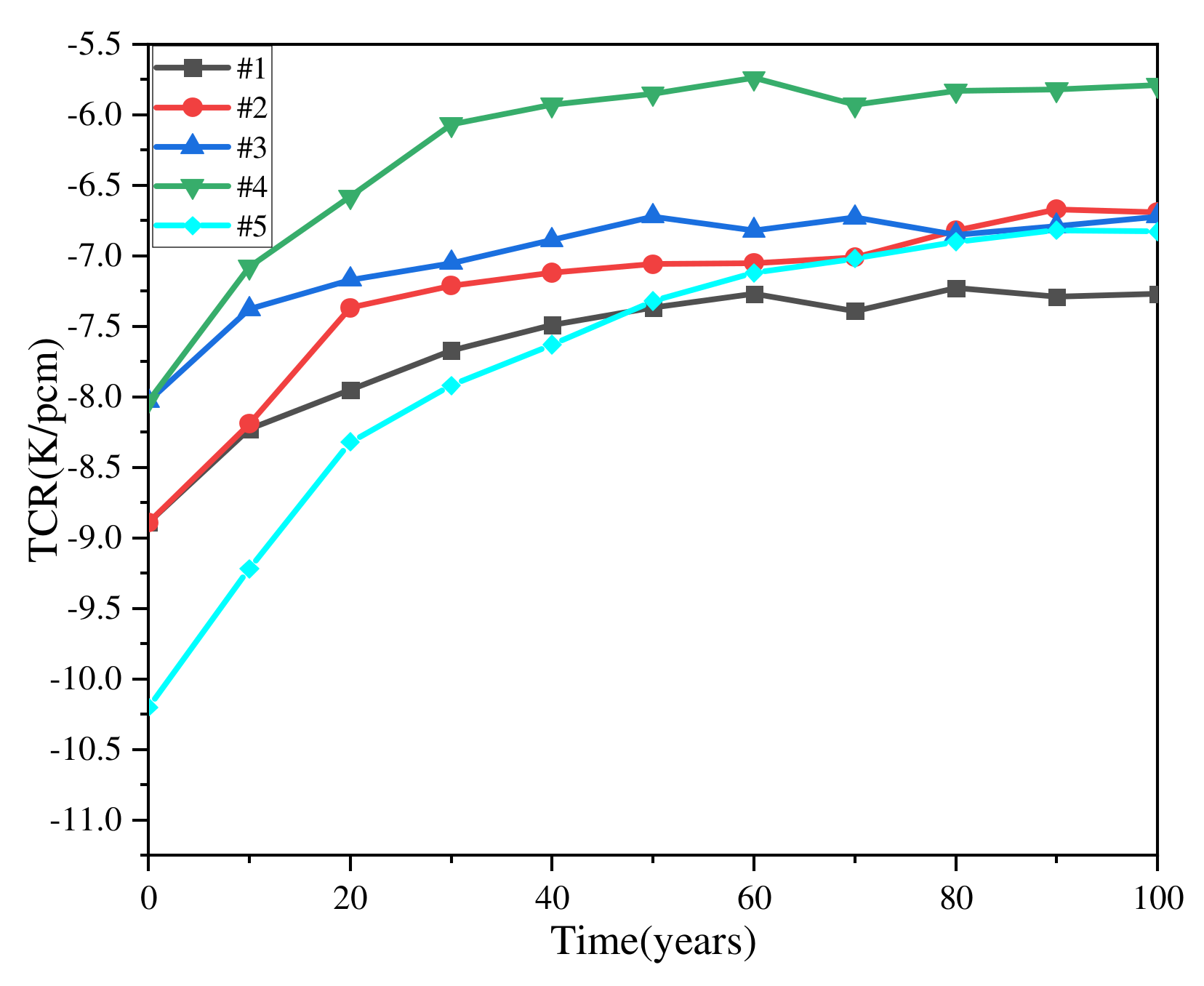

Figure 13. Evolution of TCR for different scenarios.
Figure 13. Evolution of TCR for different scenarios.
Energies 15 09472 g013

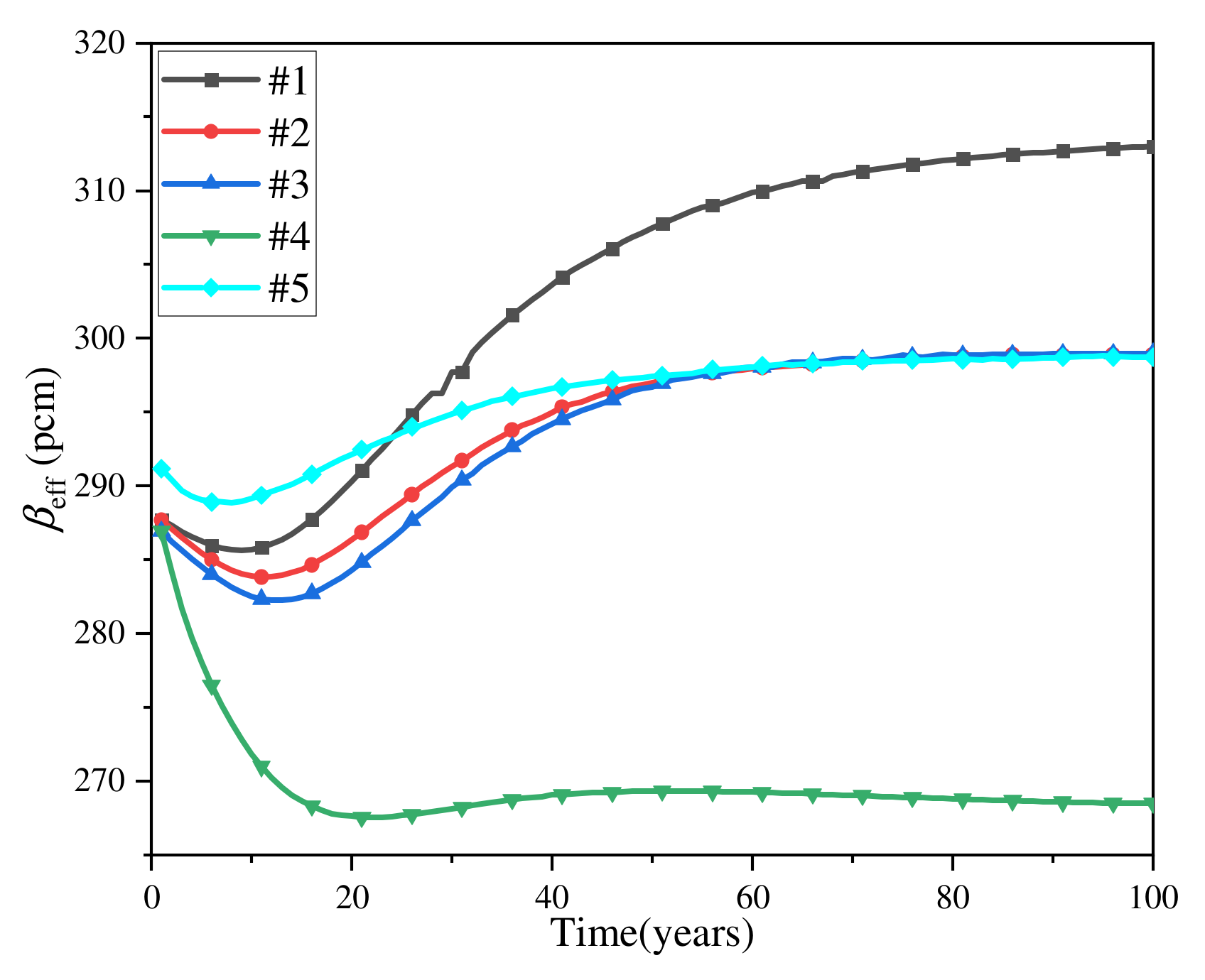

Figure 14. Evolution of βeff during the operation.
Figure 14. Evolution of βeff during the operation.
Energies 15 09472 g014
Table 1. Parameters of the optimized MCFR.
Table 1. Parameters of the optimized MCFR.
ParametersMCFR
Thermal power density (MWth/m3)100
Composition of fuel salt (mol%)NaCl:(HM) Clx = 55:45
Enrichment of 37Cl (%)97
Temperature of fuel salt (K)923
Density of molten salt (g·cm3)3.60
Density of alloy (g·cm3)8.86
Density of B4C (g·cm3)2.52
Volume (m3)25
Thickness of graphite (cm)40
Thickness of B4C (cm)35
Thickness of blanket (cm)60
Thermal expansion (K−1)−3.00 × 10−4
Table 2. Reprocessing system of MSR.
Table 2. Reprocessing system of MSR.
Reprocessing SystemNuclides
Chemical reprocessingZn, Ga, Ge, As, Se, Br, Rb, Sr, Y, Zr, Cd, In, Sn, I, Cs, Ba, La, Ce, Pr, Nd, Pm, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb
Gaseous bubblingH, He, N, O, Ne, Ar, Kr, Nb, Mo, Tc, Ru, Rh, Pd, Ag, Sb, Te, Xe, Rn
Table 3. MA incineration scenarios.
Table 3. MA incineration scenarios.
Scenario12345
Fuel compositionNaCl-MACl3-ThCl4-UCl4NaCl-MACl3-ThCl4-UCl4NaCl-MACl3-ThCl4-UCl4NaCl-MACl3-ThCl4-UCl4NaCl-ThCl4-UCl4
Mole ratio55%-5%-35.0%-5.0%55%-5%-35.0%-5.0%55%-7%-33.3%-4.7%55%-7%-33.3%-4.7%55%-5.2%-39.8%
Nuclides feeding
in core
232Th-233U232Th-TRU232Th-TRU232Th-TRU232Th-TRU
Nuclides extraction
from core
233Pa233Pa233Pa233Pa-233U233Pa
Table 4. Mass flow and MA incineration performances for different scenarios.
Table 4. Mass flow and MA incineration performances for different scenarios.
Scenario12345
MA loading (kg)53085308749474940
MA feeding (kg)02420226592372869
MA residue at EQL (kg)836126101880620
MA transmutation mass (kg)52227116914514,8512255
MA incineration mass (kg)1316175922513608540
MA transmutation ratio98.38%92.08%93.74%88.76%78.45%
MA incineration ratio24.79%22.61%23.07%21.56%18.78%
Pu residue at EQL (kg)592787279990762818
Pu feeding (kg)016,94415,85564,50620,081
233U loading (kg)52205220492649265323
233U feeding (kg)17,8720000
233U produced from core (kg)10324015398554,6594112
233U produced from blanket (kg)41,31241,88141,71143,66742,351
233U residue in core (kg)4834357535838343562
233U residue in blanket (kg)685697697728699
233U net production (kg)24,90145,07945,17695,19045,528
232Th loading (kg)137,054137,054135,276135,276142,148
232Th feeding (kg)124,328122,924124,012122,966119,437
232Th residue at EQL (kg)139,412137,863137,919134,842137,706
232Th consumption (kg)121,970123,733121,369123,400123,879
232Th conversion ratio20.42%36.42%37.23%37.14%36.75%
Table 5. The βs of main nuclides for different scenarios with different depletion time (unit: years, pcm).
Table 5. The βs of main nuclides for different scenarios with different depletion time (unit: years, pcm).
ScenarioTime233U237Np241Am243Am239Pu241Pu235U
101341102017000
10174651112505
502663012131
1002714000037
401071302420000
102893182066340
504226112089680
1004224112386690
50291000000
1021293335206
501881148352524
1001871249312527
Table 6. The βeff for different scenarios.
Table 6. The βeff for different scenarios.
Scenariosβeff (pcm)
BOLMinimumMaximumFluctuation EQL
128828531328313
228828429915299
328728329916299
428726828719268
529128929910299
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

He, L.; Chen, L.; Xia, S.; Zou, Y. Minor Actinides Transmutation and 233U Breeding in a Closed Th-U Cycle Based on Molten Chloride Salt Fast Reactor. Energies 2022, 15, 9472. https://doi.org/10.3390/en15249472

AMA Style

He L, Chen L, Xia S, Zou Y. Minor Actinides Transmutation and 233U Breeding in a Closed Th-U Cycle Based on Molten Chloride Salt Fast Reactor. Energies. 2022; 15(24):9472. https://doi.org/10.3390/en15249472

Chicago/Turabian Style

He, Liaoyuan, Liang Chen, Shaopeng Xia, and Yang Zou. 2022. "Minor Actinides Transmutation and 233U Breeding in a Closed Th-U Cycle Based on Molten Chloride Salt Fast Reactor" Energies 15, no. 24: 9472. https://doi.org/10.3390/en15249472

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
