Article

A New Graphitic Nitride and Reduced Graphene Oxide-Based Sulfur Cathode for High-Capacity Lithium-Sulfur Cells

by
Artur M. Suzanowicz
1,
Youngjin Lee
1,
Hao Lin
2,
Otavio J. J. Marques
2,
Carlo U. Segre
2 and
Braja K. Mandal
1,*
1
Department of Chemistry, Illinois Institute of Technology, Chicago, IL 60616, USA
2
Department of Physics & CSRRI, Illinois Institute of Technology, Chicago, IL 60616, USA
*
Author to whom correspondence should be addressed.
Energies 2022, 15(3), 702; https://doi.org/10.3390/en15030702
Submission received: 22 November 2021 / Revised: 16 December 2021 / Accepted: 5 January 2022 / Published: 19 January 2022
(This article belongs to the Special Issue Battery Energy Materials: Theory Development and Applications)
Browse Figures
Versions Notes

Abstract

:
Lithium-sulfur (Li-S) batteries can provide at least three times higher energy density than lithium-ion (Li-Ion) batteries. However, Li-S batteries suffer from a phenomenon called the polysulfide shuttle (PSS) that prevents the commercialization of these batteries. The PSS has several undesirable effects, such as depletion of active materials from the cathode, deleterious reactions between the lithium anode and electrolyte soluble lithium polysulfides, resulting in unfavorable coulombic efficiency, and poor cycle life of the battery. In this study, a new sulfur cathode composed of graphitic nitride as the polysulfide absorbing material and reduced graphene oxide as the conductive carbon host has been synthesized to rectify the problems associated with the PSS effect. This composite cathode design effectively retains lithium polysulfide intermediates within the cathode structure. The S@RGO/GN cathode displayed excellent capacity retention compared to similar RGO-based sulfur cathodes published by other groups by delivering an initial specific capacity of 1415 mA h g−1 at 0.2 C. In addition, the long-term cycling stability was outstanding (capacity decay at the rate of only 0.2% per cycle after 150 cycles).

1. Introduction

The high theoretical specific capacity of Li-S technology vs. Li-ion (1675 mA h g−1 vs. 350 mA h g−1) and superior energy density (2600 W h kg−1 vs. 300 W h kg−1) make Li-S technology more desirable over Li-ion technology [1,2]. Furthermore, sulfur is a plentiful resource; it is inexpensive and environmentally friendly. Thus, the commercialization of Li-S technology would significantly reduce the cost of electric vehicles and portable electronic devices [1,2]. Nevertheless, to make this technology commercially viable, the cathode material requires optimization in several areas, such as conductivity, containment of soluble lithium polysulfide intermediates (viz., Li2S8, Li2S6, and Li2S4), and accommodation of sizeable volumetric expansion during discharge (reduction). Additionally, sulfur’s low conductivity and the discharge products Li2S2 and Li2S prevent full utilization of these active materials. In ether-based electrolytes, the soluble intermediates (higher-order lithium polysulfides) diffuse from the cathode and irreversibly “shuttle” to the anode. Furthermore, sulfur undergoes a density change from 2.03 g cm−3 to 1.66 g cm−3 when it reacts with Li+ during discharge resulting in an ~80% volumetric change. This repeated expansion during discharge and contraction during charge destroys the cathode structure and the organization of active materials, leading to poor Coulombic efficiency and rapid capacity fading [3,4,5].
In the past two decades, extensive research has been conducted to address the insulating nature of sulfur by incorporating it in porous carbons [6,7,8,9,10,11] and carbon nanotubes [12,13,14,15]. Designs with reduced graphene oxide (RGO) and graphene [16,17,18,19,20,21,22,23,24] have also been explored extensively. While the carbon-based cathode structures provide good electrical conductivity and room for volume expansion, the complete retention of lithium polysulfides (LiPSs) in the cathode structure is difficult because of the lack of poor interactions (carbon is nonpolar while LiPSs are polar). Thus, continuous capacity fading is unavoidable when the cathode structure is made of only carbon [25,26]. Several researchers expanded the composition of the host by including polar materials, such as N and P doped carbon [27,28,29]. These materials, along with metal-organic frameworks (MOFs) [30,31], and TiO2 [32,33,34,35,36], have been proven effective in anchoring LiPSs. Other materials, such as graphitic carbon nitride (GN, g-C3N4) [37,38,39] and MnO2 [40,41,42], also offer LiPSs’ containment abilities.
Polymer-based sulfur cathodes have also been under extensive investigation to solve the insulation and shuttle issues [40,41,42]. For example, when made composite with sulfur, a conducting polymer, such as polypyrrole displayed superior initial discharge capacity (1280 mAh g−1) and good polysulfide retention properties [43]. Conducting polymers offers several features, viz., enhanced electrical conductivity of the cathode, low-temperature synthesis, strong bonding with the polysulfide intermediates through the radical, cationic species present in the conducting polymer backbone. Organo-sulfur polymer-based cathodes, first developed by the free-radical copolymerization of sulfur and divinylic monomers [44], have also been extensively studied. These materials displayed a discharge capacity of 823 mAh g−1 after 100 cycles. Subsequently, several other organo-sulfur polymer cathodes involving alkene/alkyne [45,46], thiols [47,48], and nitriles-derived composites [49,50] were developed. Several mechanisms have been suggested to describe the structural evolution of organo-sulfur polymers. It is concluded that the polysulfide moieties bonded to the organic matrix are the main discharge products.
With the aid of density functional theory, Cui and co-workers demonstrated that carbon hosts containing a small proportion of sulfur, nitrogen, or oxygen remarkably improve the bonding between the host and the LiPSs [51]. Thus, a specifically designed conductive carbon host containing a polysulfide absorbing material may provide a sulfur cathode with fast electrode kinetics and superior capacity retention. Since a cathode is typically composed of 70 wt. % sulfur, the common commercially available carbon blacks, such as Super-P and Ketjen black, are not effective as the carbon host since the resulting carbon-sulfur composites are not adequately conductive, which leads to sluggish electrode kinetics.
In this study, our group has designed a new composite sulfur cathode material to trap LiPSs using reduced graphene oxide (RGO) as the conductive carbon host and graphitic nitride (GN) as the polysulfide absorbing material (PAM) [52]. It is noteworthy to mention that RGO is also known to anchor polysulfides via the residual functional groups present on the RGO surface [53]. Furthermore, this cathode design is scalable, unlike most nanocomposite synthetic designs involving RGO that are not feasible to commercialize because they fail either to apply to large-scale production or to succeed in preserving the produced nanomaterials with the desired properties [54]. In most reported nanomaterial synthetic schemes, the use of a vast amount of solvent is of particular concern in both the purification and size control of nanoparticles. Current methods for purification of nanoparticle samples involve washing or extraction to remove impurities. This process typically requires liters of solvent per gram of nanoparticles and yet does not remove all the impurities [55]. Nanomaterials may also negatively impact human health and/or the environment, which are not yet fully understood. Additionally, the quantum mechanics that regulate interactions with other molecules may also make their toxicological behavior difficult to envisage [54].
Our scalable composite cathode design named S@RGO/GN is composed of graphitic nitride as the polysulfide absorbing material and RGO as the conductive carbon host. GN possesses a layered graphite-like structure with a high nitrogen content [56,57], resulting in high polarity and affinity to adsorb LiPSs [58,59]. RGO exhibits properties close to graphene with an electrical conductivity of 103.3 S cm−1 (vs. ~0.5 S cm−1 for Super P) [52]. Therefore, we anticipate the cathode structure to display adequate electrical conductivity after sulfur infiltration and thereby ensue as a good polysulfide reservoir by combining the properties of RGO and GN.

2. Experimental

2.1. Materials

Edge-functionalized graphene-oxide (EFGO) was obtained from Garmor Tech, Orlando, FL. Urea, hydroiodic acid, ethanol, and sulfur were all purchased from Alfa Aesar. All reagents were used as received.

2.2. Preparation of RGO/GN Composite

RGO/GN was prepared by freeze-drying, followed by carbonization, HI acid treatment, and vacuum annealing. In a typical experiment, 10 g of EFGO was combined with 10 g of urea and sonicated/vortexed in 30 mL of water for 2 h. The mixture was then frozen overnight and freeze-dried the next day for 48 h. Following freeze-drying, the sample was carbonized under an Ar atmosphere at 550 °C for 4 h with a heating rate of 4.4 °C min−1. Workup consisted of a wash in water followed by 15 min of air drying. The product was then mixed with 5 mL of HI in a round-bottom flask for 2 h at 80 °C. The reduced product was filtered and washed with water followed by ethanol and dried at 80 °C in an oven overnight. The dry product was then vacuum annealed at 200 °C for 6 h.

2.3. Preparation of S@RGO/GN Cathode

The S@RGO/GN composite was prepared by the popular melt-diffusion technique. Elemental sulfur was mixed by grinding with RGO/GN in a weight ratio of 7:3. The mixture was then transferred into a Teflon-lined autoclave, heated at 155 °C for 12 h, and naturally cooled to room temperature.

2.4. Materials Characterization

The morphology of our cathode materials was imaged with a scanning electron microscope (SEM), Phenom Pro-X. A copper tape was used as the substrate and was covered with a small amount of each sample. Spot analysis at an accelerating voltage of 15 kV in secondary electron mode was used. S@RGO/GN samples were characterized using a Powder-XRD (Bruker D2 Phaser) instrument in Bragg–Brentano geometry utilizing Ni-filtered Cu Kα radiation. A LynxEye linear position-sensitive detector was used at a range of 10° to 80° 2θ degrees. The XRD pattern of S@RGO/GN powder was evaluated with the Rietveld refinement method by using the General Structure Analysis System II (GSAS-II) program [60].

2.5. Electrochemical Measurements

A viscous slurry was cast as the cathode film, which consisted of 80 wt. % active material, 10 wt. % Super P carbon and 10 wt. % of polyvinylidene fluoride (PVDF) in N-methyl pyrrolidone (NMP). The mixture was vortexed overnight. The cathode composite film was cast on an Al foil, which served as the current collector. The coated foil was dried overnight at 60 °C. After drying, the cathodes were cut to 9/16” (1.43 cm) discs. The active material (sulfur) weight in the composite film ranged from 0.95 to 1.5 mg cm−2. CR2032-type coin cells were used to evaluate the electrochemical performance along with Li metal as the anode. The separator was a Celgard porous membrane. The electrolyte consisted of 25 μL of 1 M lithium bis (trifluoromethanesulfonyl)imide (LiTFSI) in 1,2-dimethoxyethane (DME) and 1,3-dioxolane (DOL) (v/v = 1:1) solution with 2 wt. % LiNO3 as an additive. The cells were assembled in less than 1 ppm O2 by utilizing a glove box under argon gas. Cyclic voltammetry (CV) was performed using a scan rate of 0.0001 V/s. Electrochemical impedance spectroscopy (EIS) was performed in the range of 100,000 Hz to 0.01 Hz.

3. Results and Discussion

Figure 1 depicts the schematics of the synthetic strategy for the S@RGO/GN composite cathode material. The methodology involved mixing, freeze-drying, calcination, and reduction using HI to make the porous RGO/GN host (may be referred to as Void@RGO/GN), which was converted to the desired cathode by sulfur infiltration. We used commercially available inexpensive EFGO as the precursor to RGO because of its high solubility in water. This will enable the incorporation of GN sheets between RGO sheets. Urea and melamine are commonly used as precursors for producing GN [61,62,63,64]. We have chosen urea due to its high solubility in water compared to melamine. Moreover, urea is believed to promote the exfoliation of graphene oxide (GO) sheets through hydrogen bonding between the polar groups present in the central area of the graphene sheet and urea. Based on our previous study involving GN [65], we tried to limit the loading of GN between 10 and 15 wt. %, a condition to achieve both good conductivity and superior polysulfide absorbing characteristics of the composite cathode. GO is traditionally reduced to RGO either thermally (900 °C) or chemically. We had to choose the chemical method because the thermal method would destroy the GN structure. Hence, EFGO was chemically reduced to RGO using HI, followed by thermal annealing [66,67,68].
To monitor the morphology of the intermediate products, scanning electron microscope (SEM) images were collected after each step (Figure 2). Sulfur loading into RGO/GN did not alter the morphology or shape of the cathode. Based on the difference of contrast between different spots, one can conclude that sulfur was infiltrated uniformly. Since the infiltration of sulfur was carried out in the molten/vapor phase, sulfur penetrated the structure through the pores, increasing the diameter of the RGO/GN particles and partially covering the surface. The Void@RGO/GN material showed disordered heterogeneous agglomerates of porous architecture (Figure 2a). The S@RGO/GN SEM images gave evidence of sulfur infiltration as the shade of the agglomerates had significantly increased in brightness, indicating the presence of sulfur (Figure 2b).
Table 1 contains the results of energy-dispersive X-ray spectroscopy (EDS) analysis for both Void@RGO/GN and S@RGO/GN samples. Five different spots were selected and scanned for quantitative analysis. The measured data were averaged. The sulfur-loaded sample (S@RGO/GN) contained about 2 wt. % (+/− 1%) of elemental nitrogen and 65 wt. % (+/− 1%) of sulfur.
X-ray diffraction (XRD) patterns and parameters collected from S@RGO/GN samples are shown in Figure 3 and Table 2, respectively. The prominent peaks in S@RGO/GN are matched with the sublimed sulfur peaks (ICDD PDF card number 00-008-0247) with orthorhombic crystal structure and Fddd space group. The lattice parameters [a = 10.4941(6) b = 12.9086(7) c = 24.5432(12)] and the refined particle size of 65.7(1) nm were obtained using GSAS-II [60]. The prominent peaks of graphitic nitride were difficult to detect, and this was due to the low percentage of GN present in the sample compared to the dominant sulfur phase. However, the inset in Figure 3 shows that carbon is present when the experimental data is only fitted with sulfur, and it is most apparent in the blue difference trace at the bottom of the plot.
The electrochemical performance was evaluated by fabricating CR-2032 coin cells. The cells were comprised of S@RGO/GN (cathode)-electrolyte/separator-metallic lithium (anode). Figure 4a shows a cyclic voltammogram curve of the S@RGO/GN cathode. The CV was scanned in the potential range of 1.5–3.0 V at a scan rate of 0.1 mV s−1. A typical CV curve for Li-S cells will show two reduction and oxidation peaks. Reduction takes place when high order and low order polysulfides are formed, i.e., (Li2Sn, 4 ≤ n ≤ 8) and (Li2S2/Li2S), respectively. Oxidation occurs when Li2S2/Li2S is converted to high order polysulfides and, ultimately, back to sulfur [69]. In our case, during discharge, only one cathodic peak (bottom) appeared at 1.9–2.3 V. The peak corresponds to the reduction of elemental sulfur to the higher-order soluble LiPSs (Li2Sn, 4 ≤ n ≤ 8) and to the insoluble lower-order LiPSs (viz. Li2S2 and Li2S). Similarly, only one anodic peak (top) at 2.3–2.6 V was observed during the charging process. This peak represents the formation of both higher-order polysulfides (viz. Li2S8) and then elemental sulfur through the oxidation of lower-order LiPSs [65,70,71]. Electrochemical impedance spectroscopy was utilized to assess the diffusion rate of Li+ and the electronic conductivity of the cathode material (Figure 4b). The EIS plot was fitted with an equivalent circuit (Figure 4b), where CPE is the constant phase element, R0 represents the electrolyte ohmic resistance displayed by the semicircle in the high-frequency region, Rct corresponds to the charge transfer resistance as well as the diameter of the semicircle, and W0 denotes the Warburg impedance. It is displayed by the inclined line (dotted) in the low-frequency region [69,70,71,72].
Figure 5a displays the coulombic efficiency of the S@RGO/GN cathode at the rate of 0.2 C for 150 cycles, along with the cycling stability. The very high initial discharge capacity of 1415 mA h g−1 indicates that the cathode preparation consisted of well-dispersed sulfur in the RGO/GN host structure. After 150 cycles, the discharge capacity was decreased to 951 mA h g−1, correlating to 67.2% capacity retention. At the same time, however, the coulombic efficiency ratio of the discharge capacity after the full charge and the charging capacity of the same cycle was highly favorable and close to a ratio of 1.
After the first cycle, the discharge capacity was reduced to 1360 mA h g−1, as noticed in the second cycle. The capacity loss continued until the 20th cycle (1121 mA h g−1), after which the cell became stabilized and the capacity fading rate was significantly smaller. We presume that a sound solid-electrolyte interphase (SEI) did not fully form at the initial cycling stage, giving rise to fast capacity fading. Numerous Li-S battery studies have displayed comparable performance [70,73]. Additionally, agglomeration and sulfur excess may have led to incomplete activation in the redox reaction of several sulfur particles [71]. It is important to note that the capacity retention of our cell between 50 and 150 cycles was very high (~94%). Under 50 cycles, there was a loss of active material caused by the polysulfide shuttle due to excess sulfur located on the outer surface of the cathode composite. Still, after 50 cycles, the impact of the polysulfide shuttle became markedly diminished.
The rate performance of the S@RGO/GN cathode was determined by cycling coin cells through a gradual increase of current densities (0.2 C, 0.5 C, 1 C, 2 C, and 3 C) followed by switching back to the initial current density of 0.2 C (1 C = 1675 mA g−1). Each cell was tested for 5 cycles at the designated current density to record the corresponding specific discharging capacity after each cycle (Figure 5b). The S@RGO/GN cathode delivered a very high initial specific capacity of 1437 mA h g−1 at 0.2 C, which is ~84% of its theoretical capacity. This capacity is nearly the same as the cell in Figure 5a, thus demonstrating cell-to-cell consistency. After the first 5 cycles, the cells became stabilized to a great extent. However, specific capacities gradually decreased with the increase of current density due to slow redox reaction kinetics (probably due to poor Li+ diffusion through sulfur and/or lack of a superior electron conduction pathway). The specific capacity of the S@RGO/GN cathode was recorded at 1437, 1128, 964, 823, and 725 mA h g−1 at 0.2 C, 0.5 C, 1 C, 2 C, and 3 C, respectively. When the current density returned to 0.2 C, the S@RGO/GN cathode delivered a specific capacity of 1122 mA h g−1, which was almost the same value as for the value after the 30th cycle in Figure 5a, showing resistance to degradation from fast cycling. This has exemplified the robustness of the S@RGO/GN cathode after exercising at various rates.
Table 3 represents the electrochemical performance data of S@RGO/GN cathode during long-term cycling (Figure 5a) compared to other nanocomposite materials that utilized GN as the polysulfide absorbing material. Based on the data depicted in Table 3, our cathode material displayed superior capacity and long-term stability compared to several other studies. This enhanced stability is attributed to the excellent electrical conductivity of RGO and the polysulfide absorption properties of GN.

4. Conclusions

In this study, we have developed a new scalable sulfur cathode structure denoted as S@RGO/GN by infiltrating elemental sulfur into a specifically designed RGO/GN matrix. The cathode structure displayed excellent electrochemical cycling properties (951 mA h g−1 after 150 cycles at 0.2 C). This superior cycling performance, especially after and beyond 100 cycles, is believed to occur from GN’s effective polysulfide anchoring ability and the high electrical conductivity of RGO, which facilitates fast redox reactions. Further improvement of this RGO/GN structure is underway to enhance PSS retention in the cathode by adding a different polysulfide adsorbing material, such as TiC.

Author Contributions

A.M.S.: conceptualization, methodology, writing—original draft; Y.L.: software, data curation; H.L.: cell fabrication and testing; O.J.J.M.: cell fabrication and testing. C.U.S.: supervision, data interpretation, writing—review & editing; B.K.M.: conceptualization, methodology, supervision, writing—review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the Wanger Institute for Sustainable Energy Research (WISER# 6-1-19) Foundation for the partial financial support of this research work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bruce, P.G.; Freunberger, S.A.; Hardwick, L.J.; Tarascon, J.-M. Li–O2 and Li–S batteries with high energy storage. Nat. Mater. 2011, 11, 19–29. [Google Scholar] [CrossRef]
  2. Manthiram, A.; Fu, Y.; Chung, S.-H.; Zu, C.; Su, Y.-S. Rechargeable lithium-sulfur batteries. Chem. Rev. 2014, 114, 11751–11787. [Google Scholar] [CrossRef]
  3. Yang, Y.; Zheng, G.; Cui, Y. Nanostructured sulfur cathodes. Chem. Soc. Rev. 2013, 42, 3018–3032. [Google Scholar] [CrossRef] [PubMed]
  4. Pang, Q.; Liang, X.; Kwok, C.Y.; Nazar, L.F. Advances in lithium-sulfur batteries based on multifunctional cathodes and elec-trolytes. Nat. Energy 2016, 1, 16132. [Google Scholar] [CrossRef]
  5. Wang, H.; Zhang, W.; Xu, J.; Guo, Z. Advances in Polar Materials for Lithium–Sulfur Batteries. Adv. Funct. Mater. 2018, 28, 1707520. [Google Scholar] [CrossRef] [Green Version]
  6. Liang, C.; Dudney, N.J.; Howe, J.Y. Hierarchically Structured Sulfur/Carbon Nanocomposite Material for High-Energy Lithium Battery. Chem. Mater. 2009, 21, 4724–4730. [Google Scholar] [CrossRef]
  7. Schuster, J.; He, G.; Mandlmeier, B.; Yim, T.; Lee, K.T.; Bein, T.; Nazar, L.F. Spherical Ordered Mesoporous Carbon Nanoparticles with High Porosity for Lithium-Sulfur Batteries. Angew. Chem. Int. Ed. 2012, 51, 3591–3595. [Google Scholar] [CrossRef]
  8. Chen, S.; Sun, B.; Xie, X.; Mondal, A.K.; Huang, X.; Wang, G. Multi-chambered micro/mesoporous carbon nanocubes as new polysulfides reservoirs for lithium-sulfur batteries with long cycle life. Nano Energy 2015, 16, 268–280. [Google Scholar] [CrossRef]
  9. Li, G.; Sun, J.; Hou, W.; Jiang, S.; Huang, Y.; Geng, J. Three-dimensional porous carbon composites containing high sulfur na-noparticle content for high-performance lithium-sulfur batteries. Nat. Commun. 2016, 7, 10601. [Google Scholar] [CrossRef]
  10. Zheng, Z.; Guo, H.; Pei, F.; Zhang, X.; Chen, X.; Fang, X.; Wang, T.; Zheng, N. High Sulfur Loading in Hierarchical Porous Carbon Rods Constructed by Vertically Oriented Porous Graphene-Like Nanosheets for Li-S Batteries. Adv. Funct. Mater. 2016, 26, 8952–8959. [Google Scholar] [CrossRef]
  11. Wu, R.; Chen, S.; Deng, J.; Huang, X.; Song, Y.; Gan, R.; Wan, X.; Wei, Z. Hierarchically porous nitrogen-doped carbon as cathode for lithium–sulfur batteries. J. Energy Chem. 2018, 27, 1661–1667. [Google Scholar] [CrossRef] [Green Version]
  12. Yuan, L.; Yuan, H.; Qiu, X.; Chen, L.; Zhu, W. Improvement of cycle property of sulfur-coated multi-walled carbon nanotubes composite cathode for lithium/sulfur batteries. J. Power Sources 2009, 189, 1141–1146. [Google Scholar] [CrossRef]
  13. Dörfler, S.; Hagen, M.; Althues, H.; Tübke, J.; Kaskel, S.; Hoffmann, M.J. High capacity vertical aligned carbon nanotube/sulfur composite cathodes for lithium–sulfur batteries. Chem. Commun. 2012, 48, 4097–4099. [Google Scholar] [CrossRef] [Green Version]
  14. Sun, L.; Wang, D.; Luo, Y.; Wang, K.; Kong, W.; Wu, Y.; Zhang, L.; Jiang, K.; Li, Q.; Zhang, Y.; et al. Sulfur Embedded in a Mesoporous Carbon Nanotube Network as a Binder-Free Electrode for High-Performance Lithium–Sulfur Batteries. ACS Nano 2015, 10, 1300–1308. [Google Scholar] [CrossRef]
  15. Yuan, Z.; Peng, H.-J.; Huang, J.-Q.; Liu, X.-Y.; Wang, D.-W.; Cheng, X.-B.; Zhang, Q. Electrodes: Hierarchical free-standing car-bon-nanotube paper electrodes with ultrahigh sulfur-loading for lithium-sulfur batteries. Adv. Funct. Mater. 2014, 24, 6244. [Google Scholar] [CrossRef]
  16. Ji, L.; Rao, M.; Zheng, H.; Zhang, L.; Li, Y.; Duan, W.; Guo, J.; Cairns, E.J.; Zhang, Y. Graphene Oxide as a Sulfur Immobilizer in High Performance Lithium/Sulfur Cells. J. Am. Chem. Soc. 2011, 133, 18522–18525. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, J.-Z.; Lu, L.; Choucair, M.; Stride, J.A.; Xu, X.; Liu, H.-K. Sulfur-graphene composite for rechargeable lithium batteries. J. Power Sources 2011, 196, 7030–7034. [Google Scholar] [CrossRef]
  18. Yuan, S.; Guo, Z.; Wang, L.; Hu, S.; Wang, Y.; Xia, Y. Leaf-Like Graphene-Oxide-Wrapped Sulfur for High-Performance Lithium-Sulfur Battery. Adv. Sci. 2015, 2, 1500071. [Google Scholar] [CrossRef]
  19. Hu, G.; Xu, C.; Sun, Z.; Wang, S.; Cheng, H.-M.; Li, F.; Ren, W. 3D graphene foam–reduced-graphene-oxide hybrid nested hier-archical networks for high-performance Li–S batteries. Adv. Mater. 2016, 28, 1603–1609. [Google Scholar] [CrossRef]
  20. Chen, L.; Rago, N.L.D.; Bloom, I.D.; Shaw, L.L. New insights into the electrode mechanism of lithium sulfur batteries via air-free post-test analysis. Chem. Commun. 2016, 52, 9913–9916. [Google Scholar] [CrossRef]
  21. Chabu, J.M.; Zeng, K.; Jin, G.; Zhang, M.; Li, Y.; Liu, Y.-N. Simple approach for the preparation of nitrogen and sulfur codoped carbon dots/reduced graphene oxide as host for high-rate lithium sulfur batteries. Mater. Chem. Phys. 2019, 229, 226–231. [Google Scholar] [CrossRef]
  22. Shi, J.-L.; Tang, C.; Huang, J.-Q.; Zhu, W.; Zhang, Q. Effective exposure of nitrogen heteroatoms in 3D porous graphene framework for oxygen reduction reaction and lithium–sulfur batteries. J. Energy Chem. 2018, 27, 167–175. [Google Scholar] [CrossRef] [Green Version]
  23. Yuan, H.; Peng, H.-J.; Li, B.-Q.; Xie, J.; Kong, L.; Zhao, M.; Chen, X.; Huang, J.-Q.; Zhang, Q. Conductive and Catalytic Triple-Phase Interfaces Enabling Uniform Nucleation in High-Rate Lithium-Sulfur Batteries. Adv. Energy Mater. 2018, 9, 1802768. [Google Scholar] [CrossRef]
  24. Li, Z.; Wu, H.B.; Lou, X.W. Rational designs and engineering of hollow micro-/nanostructures as sulfur hosts for advanced lithium-sulfur batteries. Energy Environ. Sci. 2016, 9, 3061–3070. [Google Scholar] [CrossRef] [Green Version]
  25. Hart, C.J.; Cuisinier, M.; Liang, X.; Kundu, D.; Garsuch, A.; Nazar, L.F. Rational design of sulphur host materials for Li–S batteries: Correlating lithium polysulphide adsorptivity and self-discharge capacity loss. Chem. Commun. 2014, 51, 2308–2311. [Google Scholar] [CrossRef]
  26. Pang, Q.; Tang, J.; Huang, H.; Liang, X.; Hart, C.; Tam, K.C.; Nazar, L.F. A Nitrogen and Sulfur Dual-Doped Carbon Derived from Polyrhodanine@Cellulose for Advanced Lithium-Sulfur Batteries. Adv. Mater. 2015, 27, 6021–6028. [Google Scholar] [CrossRef]
  27. Chen, M.; Jiang, S.; Huang, C.; Wang, X.; Cai, S.; Xiang, K.; Zhang, Y.; Xue, J. Honeycomb-like Nitrogen and Sulfur Dual-Doped Hierarchical Porous Biomass-Derived Carbon for Lithium-Sulfur Batteries. ChemSusChem 2017, 10, 1803–1812. [Google Scholar] [CrossRef]
  28. Chen, L.; Liu, Y.; Ashuri, M.; Liu, C.; Shaw, L.L. Li2S encapsulated by nitrogen-doped carbon for lithium sulfur batteries. J. Mater. Chem. A 2014, 2, 18026–18032. [Google Scholar] [CrossRef]
  29. Zheng, J.; Tian, J.; Wu, D.; Gu, M.; Xu, W.; Wang, C.; Gao, F.; Engelhard, M.H.; Zhang, J.-G.; Liu, J.; et al. Lewis acid-base inter-actions between polysulfides and metal-organic framework in lithium-sulfur batteries. Nano Lett. 2014, 14, 2345–2352. [Google Scholar] [CrossRef]
  30. Xu, J.; Zhang, W.; Chen, Y.; Fan, H.; Su, D.; Wang, G. MOF-derived porous N–Co3O4@N–C nanododecahedra wrapped with reduced graphene oxide as a high capacity cathode for lithium–sulfur batteries. J. Mater. Chem. A 2018, 6, 2797–2807. [Google Scholar] [CrossRef]
  31. Seh, Z.W.; Li, W.; Cha, J.J.; Zheng, G.; Yang, Y.; McDowell, M.T.; Hsu, P.-C.; Cui, Y. Sulphur–TiO2 yolk-shell nanoarchitecture with internal void space for long-cycle lithium–sulphur batteries. Nat. Commun. 2013, 4, 1331. [Google Scholar] [CrossRef] [Green Version]
  32. Li, Z.; Guan, B.Y.; Zhang, J.; Lou, X.W.D. A Compact Nanoconfined Sulfur Cathode for High-Performance Lithium-Sulfur Batteries. Joule 2017, 1, 576–587. [Google Scholar] [CrossRef] [Green Version]
  33. Li, Z.; Zhang, J.; Guan, B.; Wang, D.; Liu, L.-M.; Lou, X.W. A sulfur host based on titanium monoxide@carbon hollow spheres for advanced lithium–sulfur batteries. Nat. Commun. 2016, 7, 13065. [Google Scholar] [CrossRef] [Green Version]
  34. Yao, W.; Chu, C.; Zheng, W.; Zhan, L.; Wang, Y. “Pea-pod-like” nitrogen-doped hollow porous carbon cathode hosts decorated with polar titanium dioxide nanocrystals as efficient polysulfide reservoirs for advanced lithium–sulfur batteries. J. Mater. Chem. A 2018, 6, 18191–18205. [Google Scholar] [CrossRef]
  35. Hwang, J.-Y.; Kim, H.M.; Lee, S.-K.; Lee, J.-H.; Abouimrane, A.; Khaleel, M.A.; Belharouak, I.; Manthiram, A.; Sun, Y.-K. High-energy, high-rate, lithium–sulfur batteries: Synergetic effect of hollow TiO2-webbed carbon nanotubes and a dual functional car-bon-paper interlayer. Adv. Energy Mater. 2016, 6, 1501480. [Google Scholar] [CrossRef]
  36. Pang, Q.; Nazar, L.F. Long-Life and high-areal-capacity Li–S batteries enabled by a light-weight polar host with intrinsic pol-ysulfide adsorption. ACS Nano 2016, 10, 4111–4118. [Google Scholar] [CrossRef]
  37. Liu, J.; Li, W.; Duan, L.; Li, X.; Ji, L.; Geng, Z.; Huang, K.; Lu, L.; Zhou, L.; Liu, Z.; et al. A Graphene-like Oxygenated Carbon Nitride Material for Improved Cycle-Life Lithium/Sulfur Batteries. Nano Lett. 2015, 15, 5137–5142. [Google Scholar] [CrossRef] [PubMed]
  38. Pang, Q.; Liang, X.; Kwok, C.Y.; Kulisch, J.; Nazar, L.F. A Comprehensive Approach toward Stable Lithium–Sulfur Batteries with High Volumetric Energy Density. Adv. Energy Mater. 2016, 7, 1601630. [Google Scholar] [CrossRef]
  39. Liang, X.; Hart, C.J.; Pang, Q.; Garsuch, A.; Weiss, T.; Nazar, L.F. A highly efficient polysulfide mediator for lithium–sulfur batteries. Nat. Commun. 2015, 6, 5682. [Google Scholar] [CrossRef] [Green Version]
  40. Liang, X.; Nazar, L.F. In situ reactive assembly of scalable core-shell sulfur–MnO2 composite cathodes. ACS Nano 2016, 10, 4192–4198. [Google Scholar] [CrossRef] [PubMed]
  41. Ni, L.; Zhao, G.; Yang, G.; Niu, G.; Chen, M.; Diao, G. Dual-core–shell-structured S@C@MnO2 nanocomposite for highly stable lithium-sulfur batteries. ACS Appl. Mater. Interfaces 2017, 9, 34793–34803. [Google Scholar] [CrossRef]
  42. Wang, J.; Chen, J.; Konstantinov, K.; Zhao, L.; Ng, S.; Wang, G.; Guo, Z.; Liu, H.K. Sulphur-polypyrrole composite positive electrode materials for rechargeable lithium batteries. Electrochim. Acta 2006, 51, 4634–4638. [Google Scholar] [CrossRef]
  43. Li, X.; Yuan, L.; Liu, D.; Li, Z.; Chen, J.; Yuan, K.; Xiang, J.; Huang, Y. High sulfur-containing organosulfur polymer composite cathode embedded by monoclinic S for lithium sulfur bat-teries. Energy Storage Mater. 2020, 26, 570–576. [Google Scholar] [CrossRef]
  44. Wang, C.; Yi, Y.; Li, H.; Wu, P.; Li, M.; Jiang, W.; Chen, Z.; Li, H.; Zhu, W.; Dai, S. Rapid gas-assisted exfoliation promises V2O5 nanosheets for high performance lithium-sulfur batteries. Nano Energy 2019, 67, 104253. [Google Scholar] [CrossRef]
  45. Sun, Z.; Xiao, M.; Wang, S.; Han, D.; Song, S.; Chen, G.; Meng, Y. Sulfur-rich polymeric materials with semi-interpenetrating network structure as a novel lithium–sulfur cathode. J. Mater. Chem. A 2014, 2, 9280–9286. [Google Scholar] [CrossRef]
  46. Kim, H.; Lee, J.; Ahn, H.; Kim, O.; Park, M.J. Synthesis of three-dimensionally interconnected sulfur-rich polymers for cathode materials of high-rate lithium–sulfur batteries. Nat. Commun. 2015, 6, 7278. [Google Scholar] [CrossRef] [Green Version]
  47. Je, S.H.; Hwang, T.H.; Talapaneni, S.N.; Buyukcakir, O.; Kim, H.J.; Yu, J.-S.; Woo, S.-G.; Jang, M.C.; Son, B.K.; Coskun, A.; et al. Rational Sulfur Cathode Design for Lithium–Sulfur Batteries: Sulfur-Embedded Benzoxazine Polymers. ACS Energy Lett. 2016, 1, 566–572. [Google Scholar] [CrossRef]
  48. Talapaneni, S.N.; Hwang, T.H.; Je, S.H.; Buyukcakir, O.; Choi, J.W.; Coskun, A. Elemental-Sulfur-Mediated Facile Synthesis of a Covalent Triazine Framework for High-Performance Lithium-Sulfur Batteries. Angew. Chem. Int. Ed. 2016, 55, 3106–3111. [Google Scholar] [CrossRef]
  49. Je, S.H.; Kim, H.J.; Kim, J.; Choi, J.W.; Coskun, A. Perfluoroaryl-Elemental Sulfur SNAr Chemistry in Covalent Triazine Frameworks with High Sulfur Contents for Lithium–Sulfur Batteries. Adv. Funct. Mater. 2017, 27, 1703947. [Google Scholar] [CrossRef]
  50. Seh, Z.W.; Zhang, Q.; Li, W.; Zheng, G.; Yao, H.; Cui, Y. Stable cycling of lithium sulfide cathodes through strong affinity with a bifunctional binder. Chem. Sci. 2013, 4, 3673–3677. [Google Scholar] [CrossRef]
  51. Mohan, V.B.; Brown, R.; Jayaraman, K.; Bhattacharyya, D. Characterization of reduced graphene oxide: Effects of reduction variables on electrical conductivity. Mater. Sci. Eng. B Solid-State Mater. Adv. Technol. 2015, 193, 49–60. [Google Scholar] [CrossRef]
  52. Chen, H.; Wang, C.; Dong, W.; Lu, W.; Du, Z.; Chen, L. Monodispersed Sulfur Nanoparticles for Lithium–Sulfur Batteries with Theoretical Performance. Nano Lett. 2014, 15, 798–802. [Google Scholar] [CrossRef] [PubMed]
  53. Charitidis, C.A.; Georgiou, P.; Koklioti, M.A.; Trompeta, A.-F.; Markakis, V. Manufacturing nanomaterials: From research to industry. Manuf. Rev. 2014, 1, 11. [Google Scholar] [CrossRef] [Green Version]
  54. Dahl, J.A.; Maddux, B.; Hutchison, J.E. Toward Greener Nanosynthesis. Chem. Rev. 2007, 107, 2228–2269. [Google Scholar] [CrossRef] [Green Version]
  55. Yao, S.; Xue, S.; Peng, S.; Jing, M.; Qian, X.; Shen, X.; Li, T.; Wang, Y. Synthesis of graphitic carbon nitride at different ther-mal-pyrolysis temperature of urea and its application in lithium-sulfur batteries. J. Mater. Sci. Mater. Electron. 2018, 29, 17921–17930. [Google Scholar] [CrossRef]
  56. Jia, Z.; Zhang, H.; Yu, Y.; Chen, Y.; Yan, J.; Li, X.; Zhang, H. Trithiocyanuric acid-derived g–C3N4 for anchoring the polysulfide in Li–S batteries application. J. Energy Chem. 2020, 43, 71–77. [Google Scholar] [CrossRef] [Green Version]
  57. Wang, M.; Liang, Q.; Han, J.; Tao, Y.; Liu, D.; Zhang, C.; Lv, W.; Yang, Q.-H. Catalyzing polysulfide conversion by g-C3N4 in a graphene network for long-life lithium-sulfur batteries. Nano Res. 2018, 11, 3480–3489. [Google Scholar] [CrossRef]
  58. Li, C.; Gao, K.; Zhang, Z. Graphitic carbon nitride as polysulfide anchor and barrier for improved lithium–sulfur batteries. Nanotechnology 2018, 29, 465401. [Google Scholar] [CrossRef]
  59. Toby, B.; von Dreele, R. GSAS-II: The genesis of a modern open-source all-purpose crystallography software package. J. Appl. Crystallogr. 2013, 46, 544–549. [Google Scholar] [CrossRef]
  60. Liu, J.; Zhang, T.; Wang, Z.; Dawson, G.; Chen, W. Simple pyrolysis of urea into graphitic carbon nitride with recyclable adsorption and photocatalytic activity. J. Mater. Chem. 2011, 21, 14398–14401. [Google Scholar] [CrossRef]
  61. Zhang, Y.; Liu, J.; Wu, G.; Chen, W. Porous graphitic carbon nitride synthesized via direct polymerization of urea for efficient sunlight-driven photocatalytic hydrogen production. Nanoscale 2012, 4, 5300–5303. [Google Scholar] [CrossRef] [PubMed]
  62. Shcherban, N.D.; Mäki-Arvela, P.; Aho, A.; Sergiienko, S.A.; Yaremov, P.S.; Eränen, K.; Murzin, D.Y. Melamine-derived graphitic carbon nitride as a new effective metal-free catalyst for Knoevenagel condensation of benzaldehyde with ethylcyanoacetate. Catal. Sci. Technol. 2018, 8, 2928–2937. [Google Scholar] [CrossRef]
  63. Li, X.; Zhang, J.; Shen, L.; Ma, Y.; Lei, W.; Cui, Q.; Zou, G. Preparation and characterization of graphitic carbon nitride through pyrolysis of melamine. Appl. Phys. A 2008, 94, 387–392. [Google Scholar] [CrossRef]
  64. Dunya, H.; Yue, Z.; Ashuri, M.; Mei, X.; Lin, Y.; Kucuk, K.; Aryal, S.; Segre, C.U.; Mandal, B.K. A new graphitic carbon nitride-coated dual Core–Shell sulfur cathode for highly stable lithium–sulfur cells. Mater. Chem. Phys. 2020, 246, 122842. [Google Scholar] [CrossRef]
  65. Ahmed, N.S.; Azizi, O.; El-Boher, A.; Gahl, J.; Bok, S. Facile Synthesis and Characterization of Reduced Graphene Oxide Produced with Green and Conventional Reductants. ECS J. Solid State Sci. Technol. 2018, 7, M173–M179. [Google Scholar] [CrossRef]
  66. Moon, I.K.; Lee, J.; Ruoff, R.S.; Lee, H. Reduced graphene oxide by chemical graphitization. Nat. Commun. 2010, 1, 73. [Google Scholar] [CrossRef] [Green Version]
  67. Shruthi, G.; Baishali, G.; Radhakrishna, V.; Verma, P. Reducing graphene oxide using hydroiodic acid fumes and low temperature annealing for enhanced electrical conductivity. Graphene Technol. 2020, 5, 19–25. [Google Scholar] [CrossRef]
  68. Yin, F.; Ren, J.; Zhang, Y.; Tan, T.; Chen, Z. A PPy/ZnO functional interlayer to enhance electrochemical performance of lithium/sulfur batteries. Nanoscale Res. Lett. 2018, 13, 307. [Google Scholar] [CrossRef] [PubMed]
  69. Wang, X.; Li, G.; Li, J.; Zhang, Y.; Wook, A.; Yu, A.; Chen, Z. Structural and chemical synergistic encapsulation of polysulfides enables ultralong-life lithium–sulfur batteries. Energy Environ. Sci. 2016, 9, 2533–2538. [Google Scholar] [CrossRef]
  70. Medenbach, L.; Escher, I.; Köwitsch, N.; Armbrüster, M.; Zedler, L.; Dietzek, B.; Adelhelm, P. Sulfur Spillover on Carbon Materials and Possible Impacts on Metal-Sulfur Batteries. Angew. Chem. Int. Ed. 2018, 57, 13666–13670. [Google Scholar] [CrossRef] [PubMed]
  71. Li, Q.; Liu, J.; Bai, A.; Li, P.; Li, J.; Zhang, X.; Yu, M.; Wang, J.; Sun, H. Preparation of a Nitrogen-Doped Reduced Graphene Oxide-Modified Graphite Felt Electrode for VO2+/VO2+ Re-action by Freeze-Drying and Pyrolysis Method. J. Chem. 2019, 2019, 8958946. [Google Scholar] [CrossRef] [Green Version]
  72. Chen, L.; Liu, Y.; Zhang, F.; Liu, C.; Shaw, L.L. PVP-assisted synthesis of uniform carbon-coated Li2S/C.B. for high-performance lithium-sulfur batteries. ACS Appl. Mater. Interfaces 2015, 7, 25748–25756. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, S.; Yang, Z.; Zhang, H.; Tan, H.; Yu, J.; Wu, J. Mesoporous β-MnO2/sulfur composite as cathode material for Li–S batteries. Electrochim. Acta 2013, 106, 307–311. [Google Scholar] [CrossRef]
Energies 15 00702 g001 550
Figure 1. Schematic diagram of the synthesis of S@RGO/GN cathode.
Figure 1. Schematic diagram of the synthesis of S@RGO/GN cathode.
Energies 15 00702 g001
Energies 15 00702 g002 550

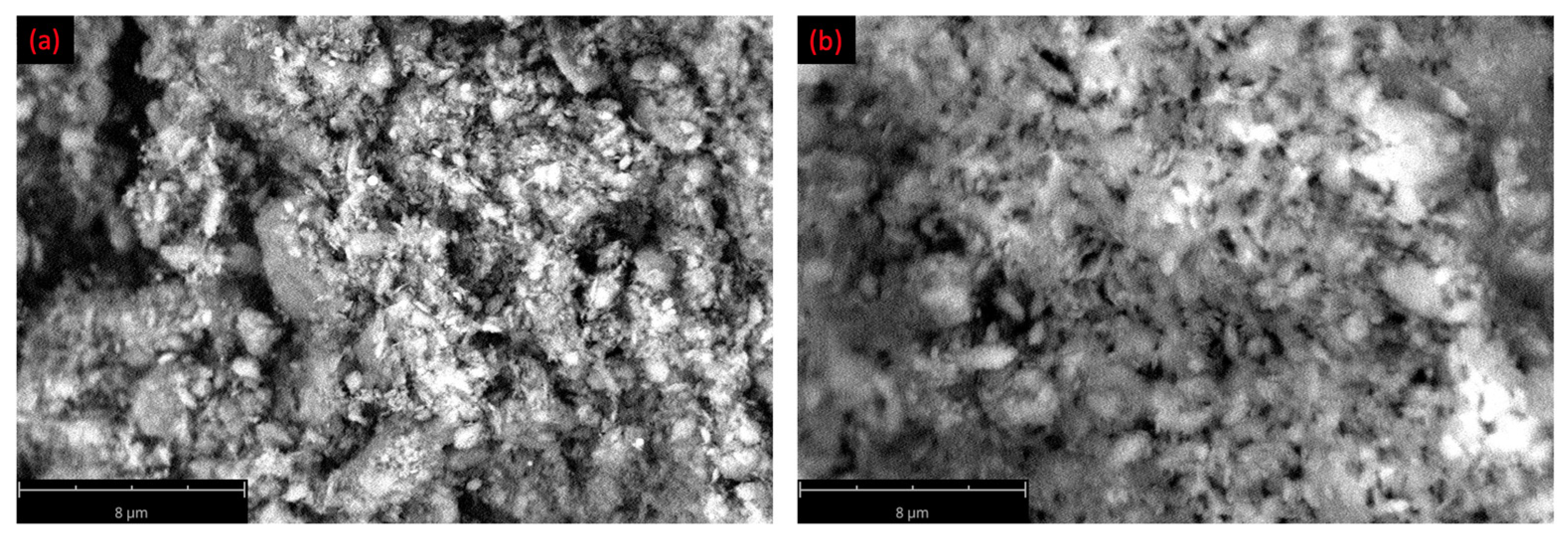

Figure 2. Scanning electron microscope images of (a) Void@RGO/GN and (b) S@RGO/GN.
Figure 2. Scanning electron microscope images of (a) Void@RGO/GN and (b) S@RGO/GN.
Energies 15 00702 g002
Energies 15 00702 g003 550

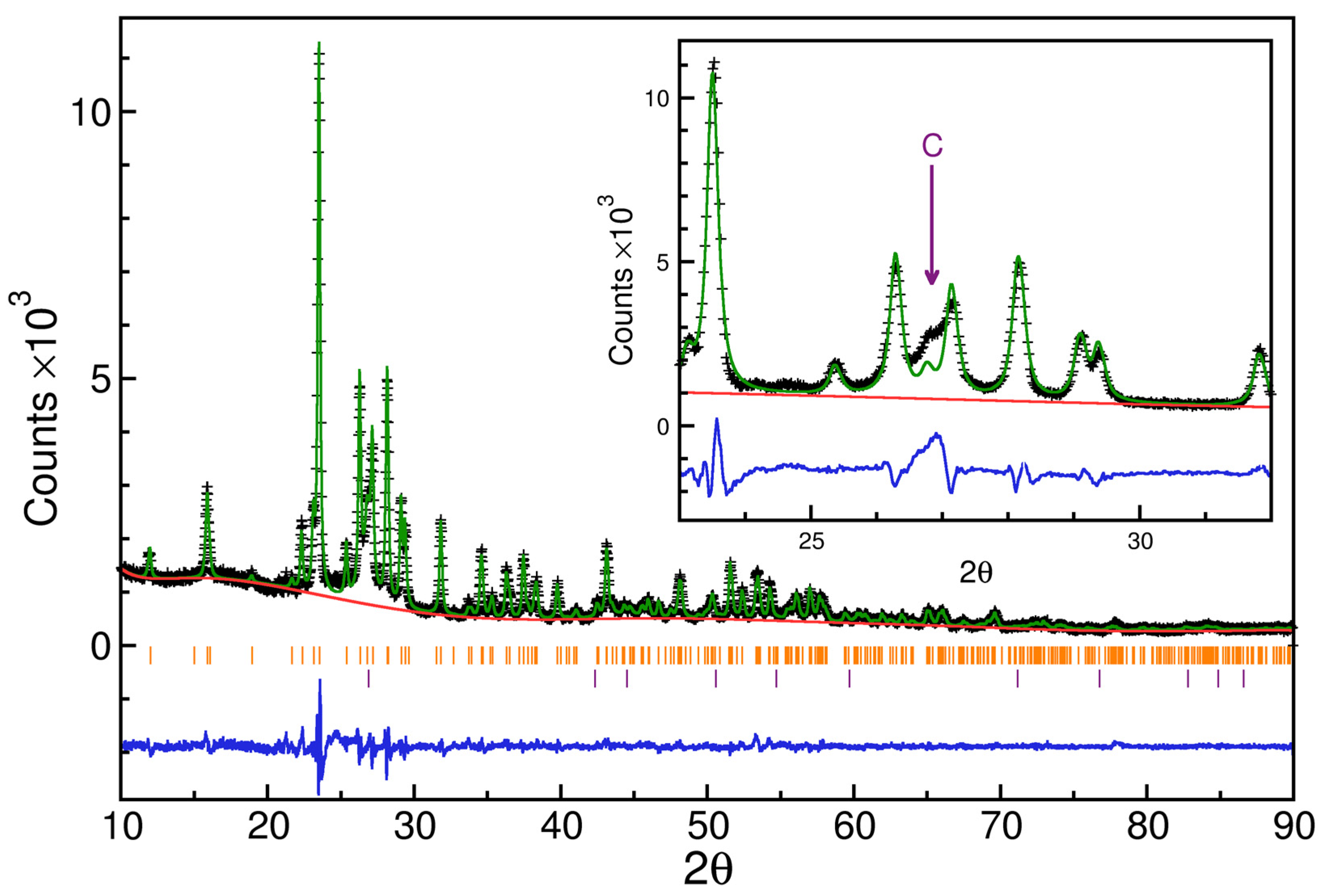

Figure 3. X-ray diffraction pattern for S@RGO/GN showing experimental data (black), Rietveld fit (green), background (red), and difference (blue). Tick marks indicate diffraction peak positions for alpha-sulfur (orange) and graphite (magenta). The inset shows the position of the principal carbon peak when graphite is omitted from the fit.
Figure 3. X-ray diffraction pattern for S@RGO/GN showing experimental data (black), Rietveld fit (green), background (red), and difference (blue). Tick marks indicate diffraction peak positions for alpha-sulfur (orange) and graphite (magenta). The inset shows the position of the principal carbon peak when graphite is omitted from the fit.
Energies 15 00702 g003
Energies 15 00702 g004 550

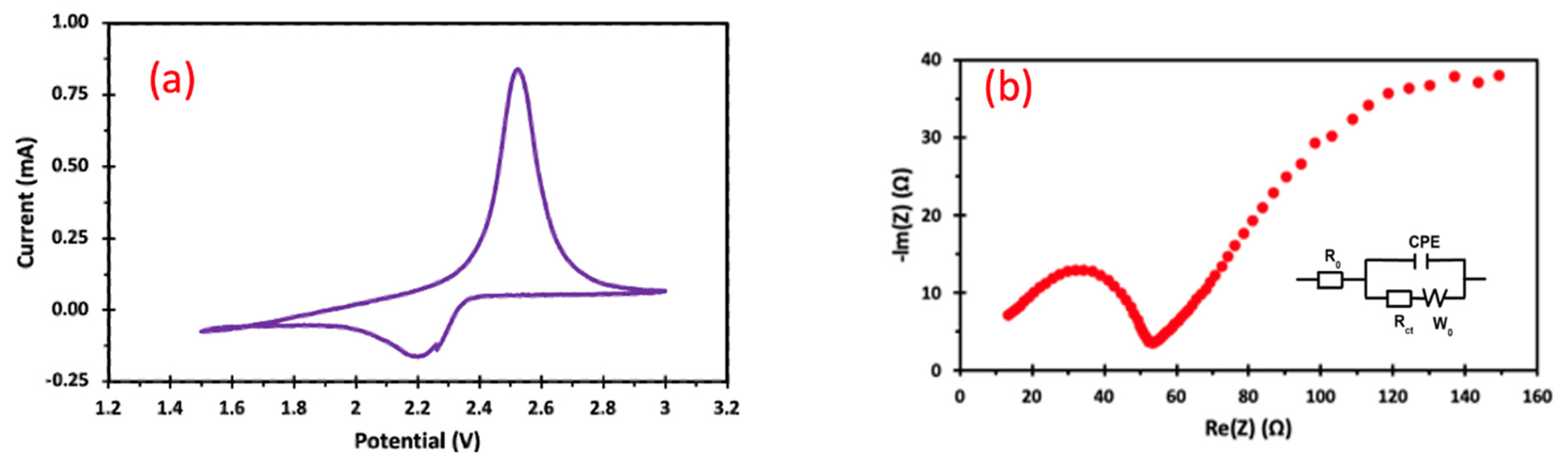

Figure 4. (a) Cyclic voltammogram curve of the S@RGO/GN composite electrode between 1.5 and 3 V at a scan rate of 0.1 mV s−1, (b) Electrochemical impedance spectroscopy plot of S@RGO/GN with an equivalent circuit.
Figure 4. (a) Cyclic voltammogram curve of the S@RGO/GN composite electrode between 1.5 and 3 V at a scan rate of 0.1 mV s−1, (b) Electrochemical impedance spectroscopy plot of S@RGO/GN with an equivalent circuit.
Energies 15 00702 g004
Energies 15 00702 g005 550

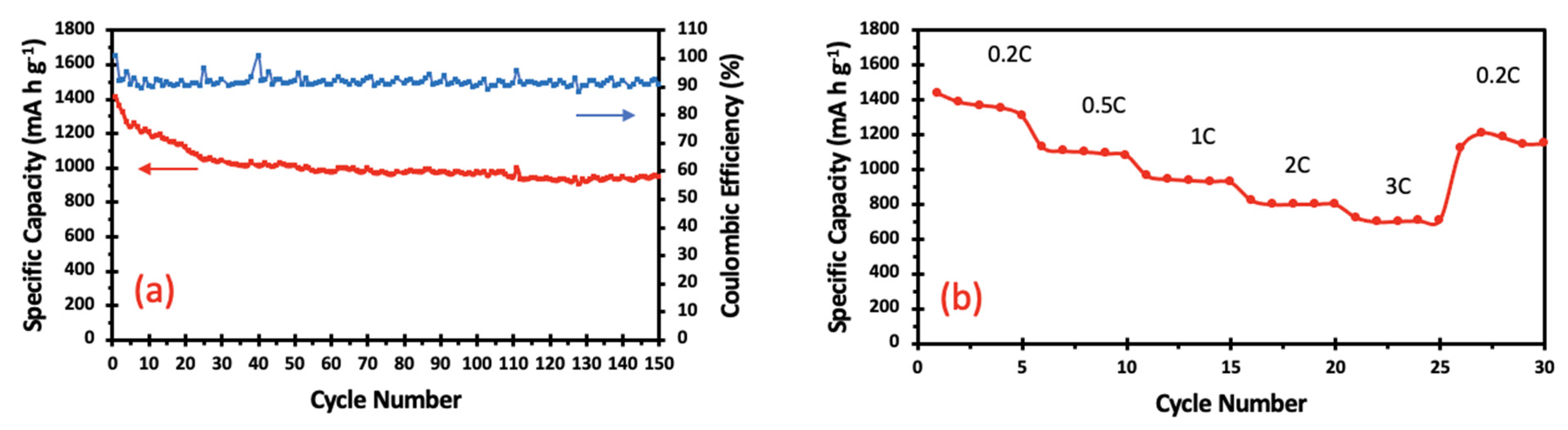

Figure 5. (a) Long-term capacity retention of the cathode at 0.2C, (b) variable rate performance of S@RGO/GN cathode.
Figure 5. (a) Long-term capacity retention of the cathode at 0.2C, (b) variable rate performance of S@RGO/GN cathode.
Energies 15 00702 g005
Table
Table 1. Energy-dispersive X-ray results of Void@RGO/GN and S@RGO/GN.
Table 1. Energy-dispersive X-ray results of Void@RGO/GN and S@RGO/GN.
SampleAtomic NumberElementAtomic Concentration +/− 1%Weight Concentration +/− 1%
Void@RGO/GN6C5752
7N2526
8O1822
S@RGO/GN16S4665
8O2820
6C2212
7N42
Table
Table 2. X-ray diffraction parameters for S@RGO/GN.
Table 2. X-ray diffraction parameters for S@RGO/GN.
AtomxyzB
S10.8572(5)0.9536(3)−0.0499(2)0.06
S20.7852(5)0.0318(4)0.0751(2)0.06
S30.7090(6)0.9821(3)0.0050(2)0.06
S40.7848(4)0.9072(4)0.1298(2)0.06
StructureSpace groupWeight fraction %R-factor %
Alpha-sulfur (8)Fddd713.6
GraphiteP63/mm292.4
Refinement weighted R-factor 6.3
Table
Table 3. Comparison between the performance of S@RGO/GN and other cathode nanocomposites that utilized g-C3N4 in their structure [56,57,58,59,65].
Table 3. Comparison between the performance of S@RGO/GN and other cathode nanocomposites that utilized g-C3N4 in their structure [56,57,58,59,65].
CathodeRateInitial Capacity (mA h g−1)Reversible Capacity
(mA h g−1)		Cycle NumberReference
Sulfur/CN-5500.39 mA cm−21262605500[56]
S/g-C3N40.2 C1200806100[57]
0.5 C1092601500
2 C875580300
S/CNG-10100 mA g−11075505600[58]
hrGO/S-GCM0.1 C1158575100[59]
S@HCS@g-C3N40.2 C1420885100[65]
1 C953719500
S@RGO/GN0.2 C1415951150This study
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Suzanowicz, A.M.; Lee, Y.; Lin, H.; Marques, O.J.J.; Segre, C.U.; Mandal, B.K. A New Graphitic Nitride and Reduced Graphene Oxide-Based Sulfur Cathode for High-Capacity Lithium-Sulfur Cells. Energies 2022, 15, 702. https://doi.org/10.3390/en15030702

AMA Style

Suzanowicz AM, Lee Y, Lin H, Marques OJJ, Segre CU, Mandal BK. A New Graphitic Nitride and Reduced Graphene Oxide-Based Sulfur Cathode for High-Capacity Lithium-Sulfur Cells. Energies. 2022; 15(3):702. https://doi.org/10.3390/en15030702

Chicago/Turabian Style

Suzanowicz, Artur M., Youngjin Lee, Hao Lin, Otavio J. J. Marques, Carlo U. Segre, and Braja K. Mandal. 2022. "A New Graphitic Nitride and Reduced Graphene Oxide-Based Sulfur Cathode for High-Capacity Lithium-Sulfur Cells" Energies 15, no. 3: 702. https://doi.org/10.3390/en15030702

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
