A Methodological Proposal for Implementing Demand-Shifting Strategies in the Wholesale Electricity Market

Abstract

The energy transition has shown that fossil generation can be complemented with renewable energy and other resources capable of providing flexibility to the energy system’s operation, in compliance with the wholesale electricity market’s rules. This paper proposes a market-based methodology for introducing flexible demand in the energy dispatch, optimizing the scheduling of electricity system operation in the short-term, and considers the challenge of implementing an incentive scheme for participants in demand-response programs. The scheme includes the criteria of the elasticity of substitution and a renewable energy quota. This methodology is focused on a strategic demand shift to minimize the cost of supply; increase the dispatch of renewable energy; control CO₂ emissions; and satisfy the generation, demand, and transmission operating constraints. These conditions encourage the development of a simulation tool that allows a sensitivity analysis to aid decision-making by operators and agents. The proposed methodology optimizes the operational cost of generation supply and specific performance indicators to determine the percentages of demand shift, the amount of CO₂ emissions, the ratio of unserved power, the demand benefits obtained from an incentive scheme, and the natural market behavior.

1. Introduction

This paper proposes an alternative methodology for evaluating the economic and environmental effects of applying an incentive-based demand-response program (DRP) based on load-shifting strategies. The fundamental criteria that allow the demand flexibility of resources are determined by employing demand segmentation and the constant elasticity of substitution (CES). This methodology considers the declared availability profiles for variable renewable energy production, maximizing its contribution. Additionally, the supply costs are minimized, in accordance with the constraints determining the generation, grid, and demand conditions. Limits are established for unserved energy and the displacement of fossil generation, and the reduction in CO₂ emissions is also evaluated.

Considering that demand can provide operational flexibility, demand response (DR) has been defined as the ability to modify the profile of electricity consumption based on changes in price signals or incentives applied in the electricity market in order to induce the rational use of electricity and to mitigate vulnerable scenarios that threaten the reliability of the electricity supply in the system [1,2]. The benefits of DR involve additional revenue and energy efficiency for the provider and the increased reliability and optimization of the electricity infrastructure for all market players. The fundamental functions of DR include demand-increase and -decrease activities utilizing load control and other integrated resources, such as onsite generation and storage [3], allowing the injection of surpluses into the grid. There are two strategies used in power system operation to meet demand projections. One of these seeks a solution to the generation dispatch problem, and the other focuses on the flexibility and availability of resources on the demand side [4]. In the second case, utility providers and large consumers implement efficiency and load-management programs, since flexible demand is seen as a way to mitigate the challenges of increasingly volatile renewable energy sources (RESs), as it can ensure the security of supply [5,6]. The fundamental goal of DR is to control the demand and move it along the time axis according to the generation availability [7,8].

In [9], a DR program for Singapore’s wholesale electricity market was investigated. The study included the constraints and modeling of an incentive payment mechanism. The scheme proposed in [9] restricted the flexibility in response to price signals, limiting the maximization of the DR benefits, in contrast to what is proposed in this paper. The authors of [10] present a mathematical model of the application of DR at the individual-household, aggregate-household, network, and market levels. Their approach left open the discussion of possible barriers related to market structure and policies; these are addressed in the proposal of this paper, which points out an opportunity to mitigate deviations in dispatch operation programs.

According to [11], DR can be adapted to offer the following products and services to the power system:

• Firm capacity during peak hours.
• Delivery of energy from electricity generators to consumers under minimum cost conditions.
• Ancillary services to support grid stability.
• A temporary reinforcement of congested elements in transmission networks (TNs) and distribution networks (DNs).

As a management activity, DR categorization addresses the resources required for its implementation, which are subject to dispatch and discretionary conditions, as is illustrated in Figure 1.

Energy resources that are not classified as own-generation activities are often considered unconventional energy sources, allowing various services in electricity markets to be structured based on operational flexibility [12]. DR and energy storage (ES) are nongeneration techniques developed to complement the integration of high levels of variable renewable energy [13], allowing safe and efficient operation [14]. Nowadays, technologies and markets experience significant changes when implementing DR programs, due to the future development needs of multienergy systems, where electricity, natural gas, and other forms of energy participate in a new concept called integrated DR or energy hubs [15]. The process of energy transition experienced in the Wholesale Electricity Market (WEM) is becoming more common today, since the greater dissemination of renewables and DR programs has created awareness of the effect that electricity demand has on the environment and economy among those who are willing to change their load profile to improve the performance of the system, minimizing the operating cost and maximizing the reliability.

The objective of this analysis is to put into context new possibilities for optimizing the operation of energy systems and the electricity market based on DR programs and other resources that have only been studied separately or have been poorly combined, such as the technique of segmenting demand profiles by type of user, the reference values of the elasticity of substitution with extensive implementation of Non-Conventional Renewable Energy (NCRE), and the probabilistic indices for assessing the security of a supply. The main contributions of this paper are the following:

• A methodology for evaluating the optimal operating cost of a generation supply in the short-term, emphasizing the proliferation of variable renewable energy and the integration of flexible demand that incentivizes users to shift their load profile according to the constant elasticity of substitution determined by the market operator.
• The definition of the specifications for building a simulation tool to mitigate deviations in the scheduling of an electric system’s operation, avoiding cost overruns due to forced generation dispatch.
• The identification of performance indicators by optimizing energy prices and quantities in the market, based on criteria associated with demand-response programs and the constant elasticity of substitution (CES) function.

This paper is structured as follows: Section 2 presents the structure and planning criteria of the wholesale electricity market, including demand-response programs; Section 3 describes flexible demand-side resources, with an emphasis on strategies for modifying electric load profiles and DR program specifications; Section 4 presents the applicability of indicators for assessing DR programs; Section 5 explains the methodologies used to model the demand-response and sustainability dimensions; Section 6 discusses the expected results of the proposed methodology; and finally Section 7 provides conclusions related to the contributions, limitations, and future directions of the study.

2. Wholesale Electricity Market: Structure and Planning Criteria Using Demand Response

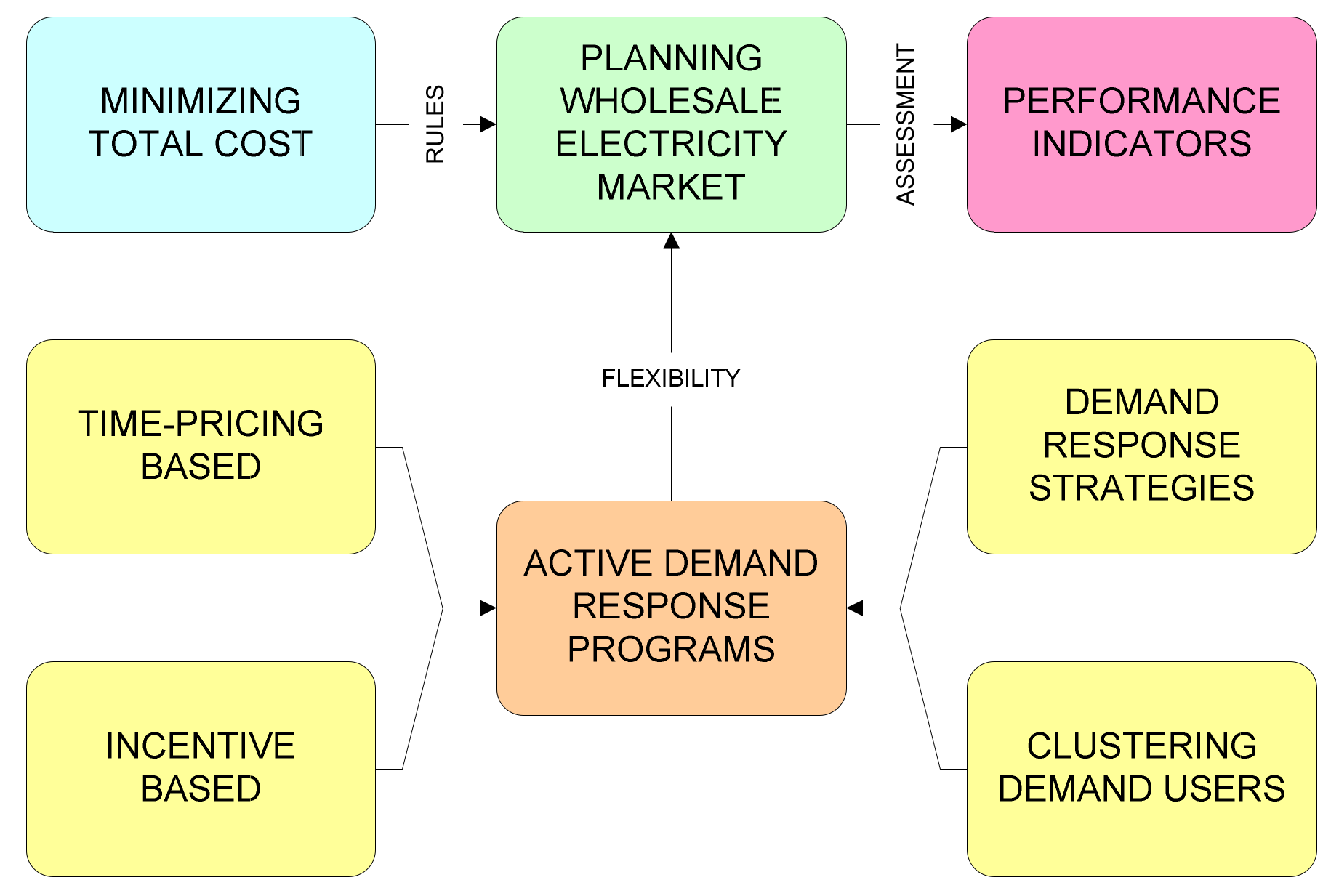

The conceptual map shown in Figure 2 illustrates how to incorporate flexibility in the operation of a power system, considering the effect of an active DR in the WEM. DR programs require the adjustment of the system’s operating plan to ensure a minimum cost, subject to market rules. This section is focused on explaining the links between DR programs and the planning criteria that control the minimum cost of the operation.

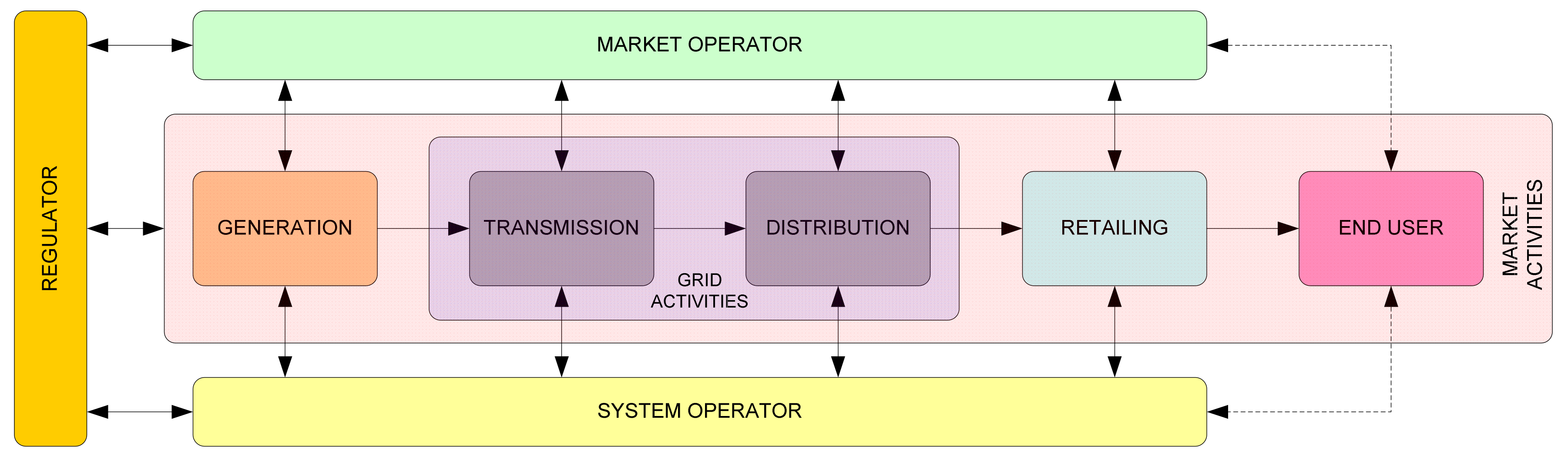

A unidirectional sequence of activities supports the traditional electricity business model. In this scheme, the generators sell their energy on the WEM, electricity is transported and distributed under the control of a system operator, and retailing companies buy in bulk and sell to end-users. The adequacy of the system and the provision of ancillary services that support the reliability, efficiency, and quality of the services (such as frequency and reactive energy regulation) are mainly ensured by generators and some large consumers. The regulator establishes rules and monitors compliance, while the market operator values the purchases and sales of electricity, ancillary services, and other complementary regulatory mechanisms implemented.

According to [16], “Traditionally, electricity supply was a vertically integrated industry in which the same company conducted all four major activities (generation, transmission, distribution and retailing)”. The restructuring of the electric power industry has been established in several countries since the 1990s, shifting from a vertically integrated monopoly into a competitive market. In Figure 3, the relations between these activities and institutions are shown.

DR planning in WEMs was promoted in the United States following the California energy crisis in 2004, and system operators in Europe started to implement it in 2005 [6]. In [17], it was concluded that the influence of DR on a WEM is more effective in a market that integrates CO₂ costs and subsidies with nonpolluting technologies in the long term. Therefore, without proper DR planning, the effect of DR on the energy system/market may not represent a substantial improvement [18].

Integrating energy resources, ES technologies, and DR have allowed emerging networks to implement flexibility criteria [19]. In [20], the storage and service-control criteria are used to assess the demand flexibility in the residential and commercial sectors.

In [21], the authors explain in physical terms the options that exist to support flexibility mechanisms in power systems and ensure the balance of generation and demand in real time. On the supply side, they make reference to ramp-capacity resources in conventional power plants, flexible generation, the diversification of the generation mix, etc. On the demand side, the variety of options includes DR and energy-efficiency programs. The demands can be managed with storage; EVs; and residential, commercial, and industrial user loads. In the case of networks, flexibility options would allow reconfigurations, meshed topologies, and the incorporation of technologies that allow for smart grid use.

The effect of applying flexibility mechanisms on the market may be permanent or temporary. The first case pertains to the establishment of policies that prescribe fixed or mandatory resources or programs (e.g., energy efficiency), and the second case is more oriented towards short-term mechanisms that can safely minimize a power system’s operational costs (e.g., DR programs).

There are multiple challenges to integrating variable renewable energy with market economics and system operation. However, we can consider as a case study Ireland’s power system, in which trials have concluded that renewable and flexible technologies, including wind energy, photovoltaic solar energy, demand-side management, and battery storage, are admissible together with conventional generation [22].

With the deployment of flexible resources in the market, it is necessary to create new mechanisms and business models to improve the performance of reserves and flexible ramps. In this context, the authors of [23] describe a contracting methodology designed to respond optimally to aggregate demand. In structural terms, new roles within the WEM have had to be defined, as observed in the markets that include the figure of the aggregator (Figure 4). To illustrate this case of the adaptation of the traditional operation of an electrical system’s activities, the aggregator is responsible for managing distributed energy resources (DER) as a new market participant.

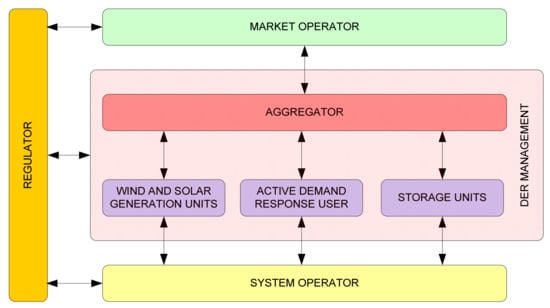

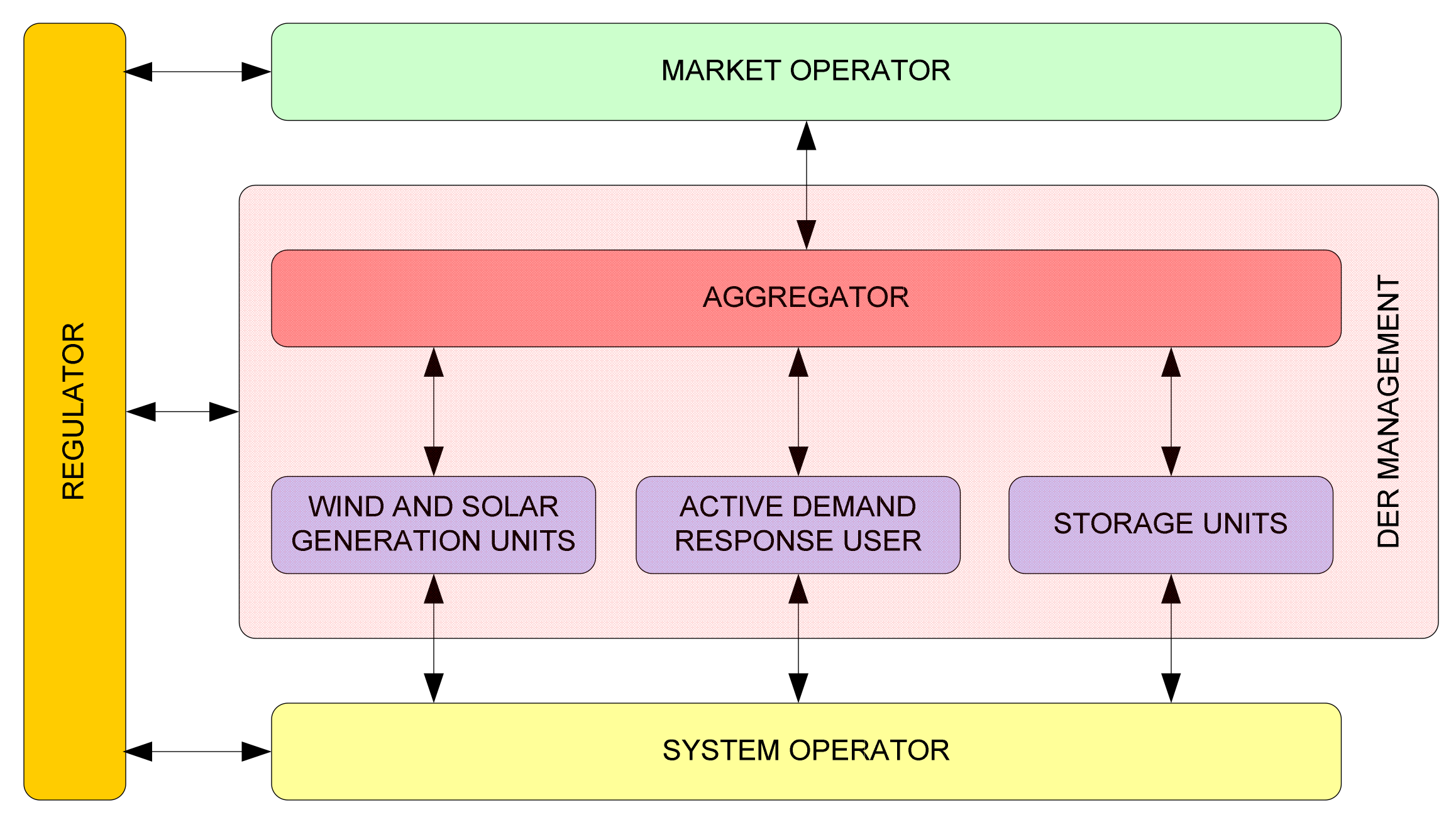

Aggregators are mediators that offer DR services to market participants, system and market operators, and end-users [24,25]. The activity of the aggregator allows small groupings of consumers, producers, and prosumers to participate in the electricity market as a single entity, improving the operational flexibility of the system by managing and commercializing demand and generation resources. Figure 4 illustrates the role of aggregators, showing their value, their coordination with distribution system operators (DSO), and how they can reduce market costs [26,27,28,29]. The proposed methodology is focused only on WEM activities and does not consider the internal coordination that the aggregator must carry out with end-users

We conducted a literature review focusing on investigations associated with the model in Figure 4. The authors of [30] indicate that residential customers can implement DR through household appliances such as refrigerators; freezers; washing machines; dryers; and HVAC (heating, ventilation, and air conditioning) systems. In [31], the authors present a business model that includes the figure of the aggregator as a price taker in energy markets and reserve services through the charging and discharging of EVs. The participation of the aggregator in the European energy balance markets is examined in [32]. Different contract-modeling strategies for the aggregator in the market, such as load cuts, load shifting, distributed generation, and ES, are presented in [33].

In situations of congestion and failure to provide ancillary services, or when it does not have the availability of energy required, the aggregator may incur additional penalties and costs for transferring energy from one point to another [34,35]. It should be noted that congestion problems in DNs can influence TNs, causing congestion and the formation of zonal prices. In [27], the economic fundamentals of the aggregator are assessed; the paper evaluates technological and regulatory scenarios, characterizing the added value from a transitory and opportunistic perspective.

The evolution of competitive electricity markets and the advancements in communication technology and control engineering have created the conditions for the development of smart grids, motivating a reformation of the conventional DSM theoretical framework [36]. The main DSM concepts are associated with energy efficiency and DR. Several works have shown that DR contributes to system stability, service quality, the security of supply, and better market operation performance. Some authors use the terminology of Demand Side Integration (DSI) to refer to the modern concept of DSM [4]. As DR is associated with DSI, we also considered integrated resource planning, reliability, security, and electricity prices.

3. The Demand as a Flexible Resource

3.1. Strategies to Modify Load Profiles

The management of electricity load profiles is based on several strategies for adjusting demand curves based on conditioning mechanisms, such as peak clipping, valley filling, load shifting, strategic load increase, strategic conservation, and flexible load [37,38]. Another strategy for modifying load profiles and their impact on marginal prices and the cost of supply is controlling onsite generation, as verified in the study conducted by the authors of [39]. The broad objectives of the six ways of altering load shapes from the demand side are illustrated in Figure 5.

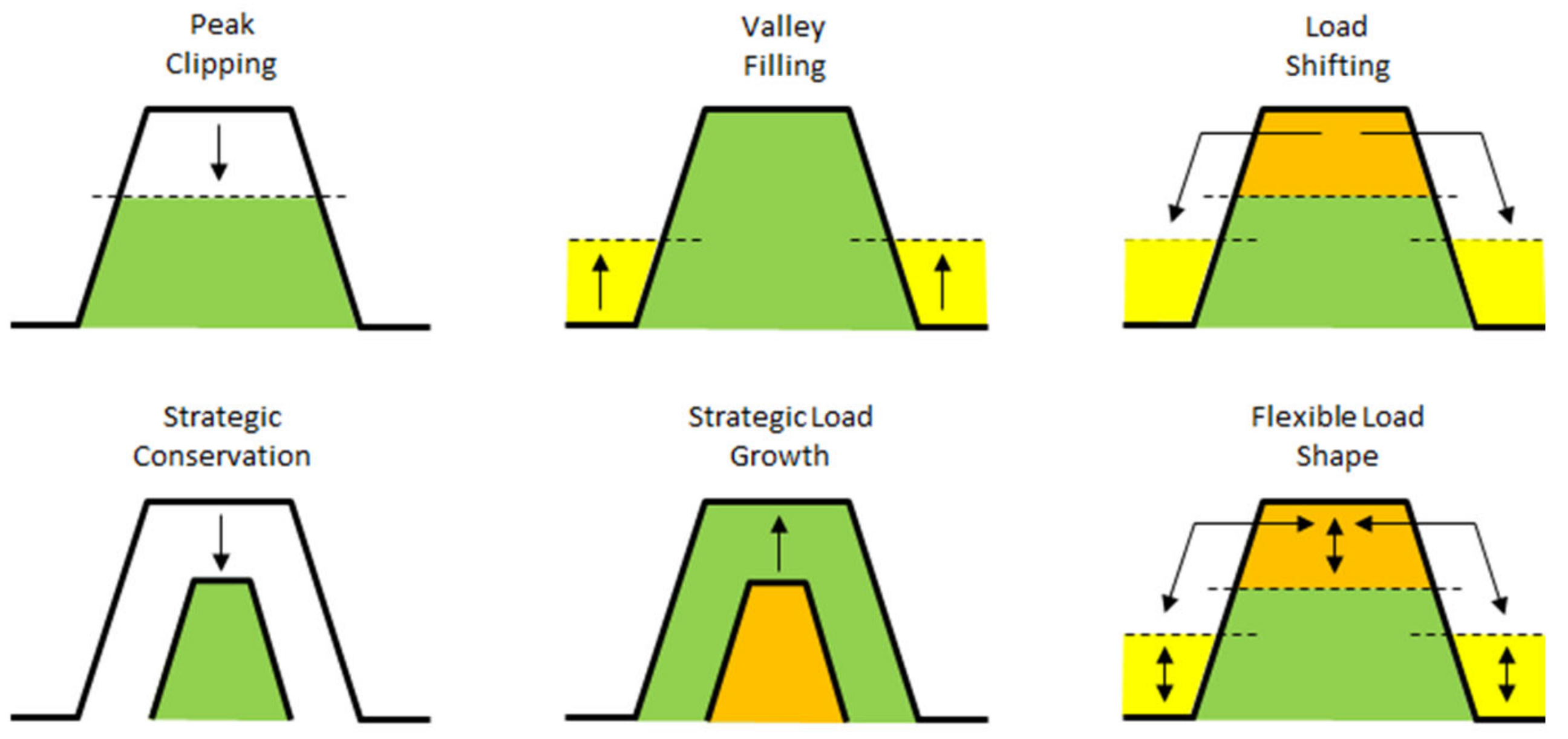

According to the authors of [4], the mechanisms of peak clipping, valley filling, load shifting, and strategic load growth are associated with dynamic demand-side management terminology (DDSM) and the mechanisms of strategic conservation and flexible load shape with static demand-side management (SDSM). Users adopt different energy-consumption patterns in the dynamic scheme, although the electrical system parameters remain unchanged. In the case of the static scheme, users adopt fixed consumption patterns as long as the electrical system parameters do not show substantial variations [40]. The application of these strategies requires adaptations in the grid to incorporate automatisms capable of triggering cuts, increases, reductions, and displacements of demand, motivating the conformation of the intelligent grid [40]. A brief description of each strategy is shown below:

3.1.1. Peak Clipping

This mechanism reduces loads by opening circuits during peak demand periods, delaying new investment requirements in generation technology due to a net reduction in demand. Usually, its implementation is carried out through the direct load control (DLC) of actuation devices that require automatic communication systems or actions provided directly by the consumer [37].

3.1.2. Valley Filling

This strategy involves building up loads at off-peak times, typically encouraged by cheap off-peak tariffs. The energy resources used for filling valleys are varied and include the planning and programming of domestic, industrial, and commercial loads, such as household appliances, battery-based storage systems, heating and cooling equipment, and EVs [37]. As electricity prices are lower in off-peak periods, the strategy takes advantage of the opportunity to increase consumption and consumer profits. Additionally, it improves the load factor of the system, compensating for the losses generated by consumption at the peak and shoulder periods of the daily load curve [41].

3.1.3. Load Shifting

The load-shifting strategy provides flexibility for utility companies, allowing schedule changes by moving partial loads from peak to off-peak hours, depending on low electricity prices. Unlike energy-efficiency programs that seek a general reduction in demand, load-shifting mechanisms take advantage of the price difference. Programs based on time-of-use pricing (TOU) and real-time pricing are ideal for this type of strategy [42].

3.1.4. Strategic Load Growth

An increase in consumption represents the possibility of guaranteeing supply with other sources of energy [43]. With the restructuring of the electricity industry, strategic load growth has not been favored in the face of minimizing the cost of supplying markets, limiting its use in regions that are able to take advantage of integrating renewable energy on the demand side [44].

3.1.5. Strategic Conservation

Strategic conservation applies load-reduction methods to the facilities of the electricity service user through optimization mechanisms [45]. Usually, utility providers do not use this type of strategy in their demand-management programs because a reduction in electricity sales caused by this action does not always represent a reduction in the maximum demand for the system.

3.1.6. Flexible Load

The flexible load shape is equivalent to combining peak clipping, valley filling, and load shifting. This modification of the daily load curve is more complicated for the system operator in terms of planning and operation. However, it responds with more elasticity depending on the end-user’s needs [46]. An advantage of this practice is the value added to the system’s reliability by identifying a flexible demand, especially during peak periods [47]. Reducing demand through this scheme allows grid operators to interrupt loads, with consequent changes in the reliability and quality of the service [43]. The technological equipment applied with this technique can be autonomous or manually activated, employing controllable energy-management systems [37].

3.2. Demand-Response Programs

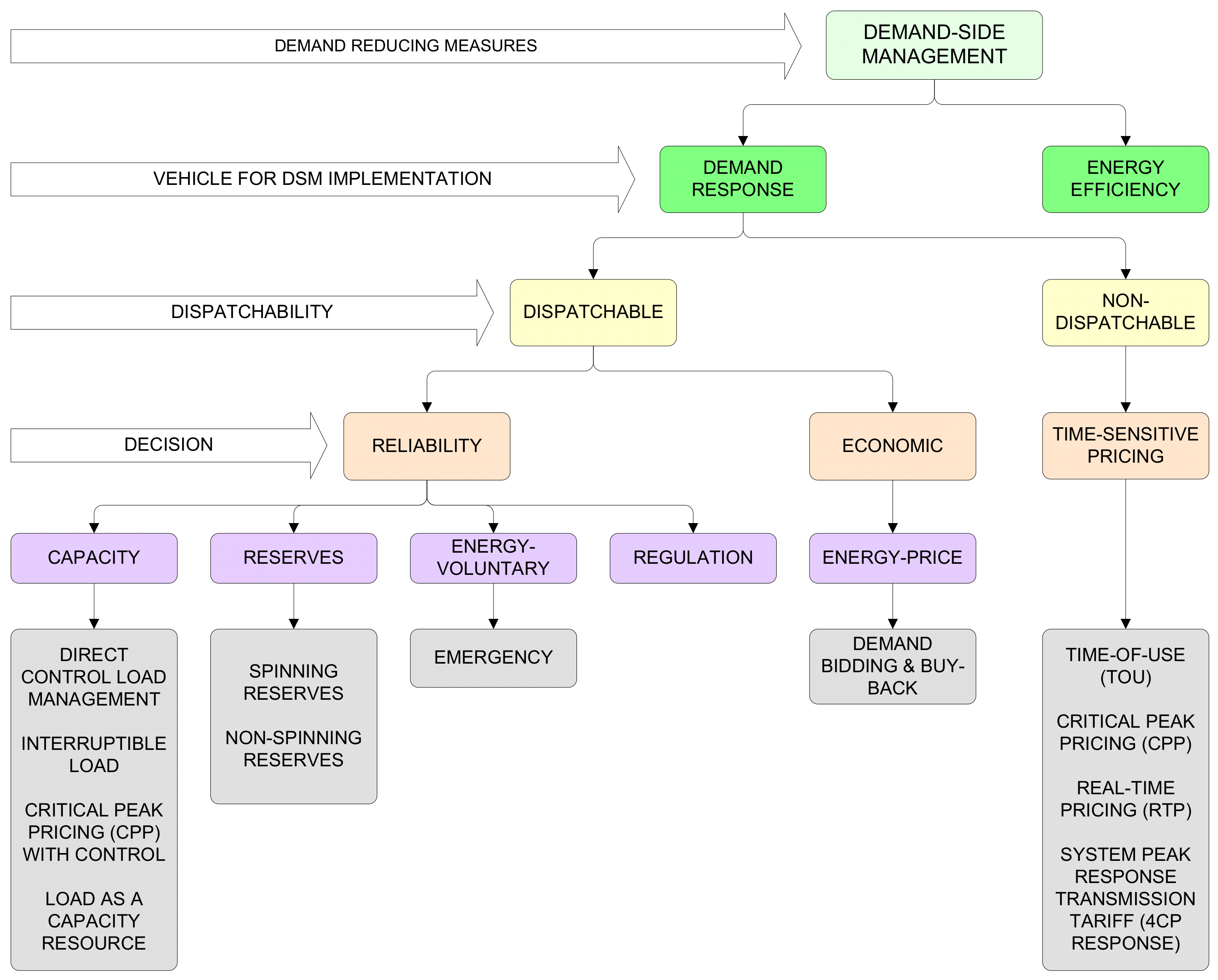

The design of DR programs is oriented towards one of two main groups, called price-based programs and incentive-based programs. In price-based programs, electricity customers modify their electricity-consumption pattern in response to the WEM price. In the case of incentive-based programs, a mechanism is structured to provide an economic stimulus based on the participants’ performance.

3.2.1. Price-Based DR (Time-Sensitive Pricing)

Time-of-use (TOU) pricing, critical peak pricing (CPP), real-time pricing (RTP), and peak-time rebate (PTR) are rate schemes employed by price-based programs that provide economic signals to influence the reduction in energy consumption during peak periods due to the high prices that electricity reaches [48]. Price-responsive programs operate on passive demand, based on voluntary actions by electricity consumers. Brief details for each case are shown below.

Time-of-Use (TOU) Pricing

In this program, the expected changes in the electricity consumption profile are conditioned by the prices set for each time block. Regularly, usage rates vary over several periods within a day. A typical scheme defines the daily peak, shoulder, and valley prices according to the pattern of the daily load curve [1]. Time-of-use tariffs for the consumption of electricity motivate users to change their habits to take advantage of lower prices, reducing peak demand for electricity at critical times [49].

In the case of Malaysia, most consumers prefer static TOU rates applied in price-based DR programs due to the transition processes they must face with retailers when formalizing plan changes [18]. A case study based on price responsiveness has been modeled on residential electricity demand, combining a TOU policy with a block pricing policy, verifying that this can help reduce the annual consumption of electricity below 1%. This effect is not desirable compared to the TOU scheme with a 1.4–3.0% reduction. As noted in the study, the combination of TOU with a block pricing policy performs worse in reducing electricity consumption, probably because the users do not know which price they should respond to and are confused about the nonlinear nature of block pricing [50].

The authors of [51] presented a simulation model of buildings in Ireland that allowed them to calculate the effectiveness of DR programs based on rules and machine-learning algorithms (predictive algorithms), applying different TOU rates. The results indicated that it is possible to obtain reductions in end-use electricity expenditure, utility generation costs, and carbon emissions, with proportions close to 20% in the rule-based algorithm and 40% in the predictive algorithm.

Critical Peak Pricing (CPP)

Critical peak pricing is a dynamic way of applying prices via a TOU scheme when shortage conditions are detected in the electrical system. In this case, users have to pay higher prices if there is no generation or if events disconnect grid elements [52]. As indicated above, CPP is a variant of the TOU scheme that expresses the volatility of peak prices in the electricity market.

Real-Time Pricing (RTP)

RTP expresses the prices that result in the WEM at hourly intervals or other lengths of time established by the regulations, exposing the user to the variability that represents the real costs of supplying to utility providers and other consumers [11]. The study in [53] proposes a novel methodology that combines real-time pricing with real-time incentives.

Peak Time Rebate (PTR)

According to the authors of [54], PTR programs recognize users with monetary discounts that respond to a reduction in electricity consumption during peak hours, because the highest costs are reached in this block of hours. Consumers who do not display this flexibility pay the standard tariff. For this reason, PTR programs typically see much higher participation rates than many other DR programs. In addition, PTR programs have high customer satisfaction ratings, and on the utility side, PTR programs do not require any changes in rate design. PTR programs can benefit both customers and utility providers, resulting in a win-win outcome if PTR rebate levels are set correctly.

3.2.2. Incentive-Based DR

In literature reports, incentive-based programs are classified into classical and market-based programs. In the first group, participants receive credit or a discount during the billing process for reducing their consumption. In the second group, participating users receive a reward proportional to the change in their electricity consumption during the peak hour block [55]. The purpose of incentive-based programs is to flatten the daily load curve by taking advantage of market price variations. The demand reduction contracts are signed and activated when the market exhibits high prices or the system operator understands that reliability is compromised [7].

The reliability of an electrical system can be evaluated over time through the dimensions of security, firmness, adequacy, and strategic planning. DR programs contribute to the reliability of capacity, frequency-regulation reserves, and energy from the perspective of the service and the incentives involved. Additionally, flexibility and contingency could be categorized as special reserve markets for frequency regulation. In the case of a flexibility service, an additional load is required following significant unforecasted wind or solar ramps, and a contingency service responds rapidly to a loss in supply energy [56]. A description of service attribute areas is given in [11]. Below is a brief review:

Capacity

This service offers a displacement of traditional generation, motivating the controlled dispatch of load through DR programs. The required balance between generation and demand is preserved since an increased load in a bus of the system is offset by the decreased load committed in the DR program in another bus, without dispatching additional megawatts of generation. The participation of DR in capacity markets can combat the increase in capacity prices, mitigating the challenge of integrating high levels of renewables [57], strengthening supply security, and reducing residual loads in the peak period [58]. There are several metrics for measuring this resource. Among them are cited the loss of load probability (LOLP), the loss of load expectation (LOLE), and the expected unserved energy (EUE).

Frequency-Regulation Reserve

The effect of DR reserves is the same as synchronized spinning reserves, since they can be activated automatically in a very short time, during the first seconds or minutes after a failure. A frequency-regulation reserve provides the response required to balance generation and demand after a contingency event for a transmission failure or the loss of a generation unit [59]. In the case of non-spinning and non-synchronized operating reserves, the actuation time can also be adjusted to use DR reserves according to the necessities of the system’s stability [60].

Emergency

From the operational planning perspective, the generation needs can be complemented with the energy balance of DR programs, facilitating the optimization of the process, especially in emergency situations or shortages due to the lack of the reliability of generation units [61]. A pilot study of this scheme is evaluated in [62].

4. Performance Indicators of Demand-Response Programs in Wholesale Electricity Markets

It is necessary to identify indicators to assess the performance of electricity markets; deciding which are directly related to the market being analyzed will favor the quality of the process assessment and the proposed decisions. Some authors present the following calculations as key performance indicators to respond to and evaluate market behavior: wholesale generation costs, acquisition costs of reserved generation capacity, environmental impact measured by the costs associated with CO₂ emissions minus the costs avoided by the reduction of SO₂ and NO_X emissions, reduction of peak prices, lost renewable energy, valuation of unserved energy, percentage of renewable generation, and imported net energy [63].

Several works describe the energy market based on performance indicators. In [64,65], the generation costs are associated with CO₂ emissions, the use of primary energy, the load factor of the generators, and the number of hours for which it is possible to disconnect the thermal generators to meet the demand for energy with renewables. In these cases, demand management is expected to influence the efficient operation of electricity generation and the increase in the implementation of RESs to meet the energy demand.

The future poses the challenges of generating electricity with low carbon emissions and providing greater access to energy. For this reason, it is necessary to include objectives related to social and environmental concerns in energy system design [66].

The use of storage systems helps increase the participation of renewable energies in the coverage of demand and the use of available intermittent resources [67]. From the perspective of demand, the influence of the availability of renewable energy in distributed storage systems will guide decision-making in managing the electricity market [68].

Other authors have shown that integrating different energy sources is essential for energy management through intelligent systems [69] and increasing the implementation of renewables, thus reducing the instability of the quality parameters of the electricity supply. In this sense, it is necessary to identify indicators that allow the valuation of market scenarios.

• Key Performance Indicators related to DR

In energy-use management, DR has become a valuable mechanism that impacts costs, the environment, and the well-being of society; however, there are challenges to exploiting its potential, considering the technological and contextual diversity of its application by users and utility providers. The following Key Performance Indicators (KPIs) are used by the authors of [70] to assess the applicability of DR programs: Percentage of variations in electricity load during the peak hour block, percentage of variations in electricity load during the off-peak hour block, percentage ratio of unserved energy from baseline consumption, percentage of consumer participation, and percentage of consumer response.

In [71], the energy intensity of the industrial sector was related to the flexibility of load per inhabitant and was used as a successful indicator of DR implementation. The study verified that the number of energy-intensive industries is directly related to the potential for the deployment of DR. According to the authors of [18], in Malaysia, the intensity of electricity consumption increased favorably by 8.5% according to the gross domestic product due to the appropriate planning of the energy balance.

For the use of public funds, specifically in subsidies, a model can be used where the DR’s deployment level is established as a parameter [72]. This task involves the analysis of the electricity consumption and the required tariff structure to determine the will and the payment capacity of the population.

The authors of [73] classified KPIs according to social, economic, technical, environmental, and legal concerns from the stakeholder perspective. In the group of technical KPIs related to DR in the WEM, they proposed: Percentage implementation of renewables to meet thermal generation needs, percentage of energy resources distributed in the generation mix, reduction percentage of peak plants based on the ratio of renewable energy to total energy, and average interruption frequency and average interruption duration.

• The elasticity of the demand

The elasticity of demand measures the sensitivity or responsiveness experienced by the quantity demanded when there is a percentage change in its price. Based on this simple definition, the elastic behavior of consumer demand indicates that minor variations in prices produce significant variations in the quantity demanded.

In WEMs, the participation of active demand directly affects prices and generation dispatch. This participation can be understood as a DR when it presents an elastic condition, especially in periods of high prices. The work carried out by the authors of [74] simulates the impact of demand price elasticity in programs based on real-time pricing (RTP) and peak-time rebate (PTR). Other works that have modeled demand price elasticity in the market can also be consulted [75,76,77,78,79,80]. Equation (1) represents the price elasticity of demand (ε) and is explained in [81].

$$\epsilon =\frac{\Delta \%D}{\Delta \%P}=\frac{\frac{\Delta D}{D}}{\frac{\Delta P}{P}}=\frac{\frac{\left(D_1-D_0\right)}{D_0}}{\frac{\left(P_1-P_0\right)}{P_0}}=\frac{\left(D_1-D_0\right)}{\left(P_1-P_0\right)}\times \frac{P_0}{D_0}$$

(1)

where ε = the price elasticity of demand; D₁ = the quantity of demand 1; D₀ = the quantity of demand 0; P₁ = the price of demand 1; and P₀ = the price of demand 0.

In [82], the behavior of price elasticity is compared across a time horizon, showing a more significant price in the long term. Consequently, electricity users are more sensitive to price and policy changes in the long term, while in the short term, price policy may have a moderate impact, according to the investigations into residential customers.

• Constant elasticity of substitution

The elasticity of substitution indicates the level of sensitivity that the relationship between two production or utility function factors displays when the marginal rate of its products or profits varies. It measures the curvature of an isoquant, or a curve of indifference, and the possibility of substituting factors or goods.

In [83], the substitution elasticity constant was used to develop a DR program application model derived from a time-based tariff. Unlike DR models based on price elasticity, the proposed model evaluated a continuous decision-making process, allowing greater flexibility. Another model of elasticity of substitution, which considers the DR during peak and valley periods, is explained in [84], based on an incentive scheme that allows profit maximization for an electricity retailer.

Usually, models use the price elasticity of demand, assuming that the consumer behavior at a particular point of the demand curve is like any other. They linearize the demand curve with a present value of the price elasticity, motivating assumptions that produce discontinuities in the decision-making process [83]. The appropriate treatment is to overcome the elasticity of substitution instead of the price elasticity of demand. The substitution elasticity function for two products (X₁, X₂) is presented in Equation (2):

$$U\left(X_1,X_2\right)=\gamma ⬝{\left(\alpha ⬝X_1^{-\rho }+\left(1-\alpha \right)⬝X_2^{-\rho }\right)}^{-\frac{\vartheta }{\rho }}$$

(2)

where γ = the efficiency parameter; α = the intensity factor of good X₁; (1 − α) = the intensity factor of good X₂; ϑ = the degree of scale; and ρ = the substitution parameter.

The utility function corresponding to the constant elasticity of substitution (CES) is prevalent in applications that include multiproduct scenarios in microeconomics [83].

The application of this function in the electricity market assumes that the energy supply is different for each period, motivating different prices in the consumer profile. In this case, the coefficient of elasticity of substitution can be determined from the expression ${\left(1-\rho \right)}^{-1}$. The elasticity substitution constant is usually applied to evaluate integrated general equilibrium models [85].

The authors of [85] indicate that the flexibility of substituting demand in quantity and time can define the evaluation criteria for DR programs. Therefore, the elasticity of substitution parameter is essential to determine the benefits of DR programs and to define whether they are implemented according to the objective function of reducing the costs of the electricity supply, considering the ability of users to reschedule their consumption routines for different periods if given an incentive of reduced prices or other income.

5. Methodologies Used to Model Demand-Response and Sustainability Dimensions

Some authors have considered models for integrating decision variables to manage an adequate DR due to the flexibility conditions that it represents in the context of the planning and operation of the system and the electricity market. Technical, economic, social, and environmental parameters are considered for decision-making assistance, even if they are dispersed, due to the complexity of the electricity sector. Optimization tools are used to respond to these requirements, such as EFOM, OREM, GAMS, HOMER, EnergyPLAN, ED, OseMOSYS, PLEXOS, MESSAGE, MARKAL, TIMES, LEAP, and MATLAB [86,87,88,89,90,91,92].

• Methodologies used to model DR

In the literature, models for decision-making combine different technical aspects and scenarios with RESs to evaluate DR programs in WEMs, microgrids, or DNs.

According to the authors of [93], the models that consider the integration of renewables and the implementation of flexible resources, such as storage and DR, can be classified into three general categories: optimization, partial or total equilibrium, and alternative models. In the first case, continuous, integer, and stochastic programming techniques are applied. In the second case, optimizations include functions that evaluate cost minimization. In the last category, models of probabilistic order, life-cycle evaluation, econometrics, and the modern theory of portfolio management are incorporated. In recent years, the perspective of Stackelberg has been analyzed as a case of game theory and used to model problems in the context of the smart grid [94]. This classification of related works has been reviewed and summarized in Table 1, where DR is demand response, RESs are renewable energy sources, WEM is wholesale electricity market, DN is distribution network, MG is microgrid, EV is electric vehicle, and ES is energy storage.

Table 1. Characterization of methodologies for modeling demand response.

Case	Model	Software Tools	Objective	Criteria	Contribution	Limitation	Reference
DR + RES	Energy-planning model	TIMES	Minimizing cost through long-term planning	Maintaining a given level of reliability	Increasing the implementation of intermittent renewable energies reduces the reliability of the supply, meaning the DR resource can be considered to guarantee the required balance between generation and electrical load.	For this long-term planning approach, it is suggested that the reliability assessment should concentrate on the sufficiency aspects related to the capacity and investment in renewable sources. The variability experienced by renewable sources and its impact on the balance between generation and demand can be more rigorously evaluated in a short-term scope.	[95]
DR + MG + EV + ES	Load-scheduling model	ANYLOGIC	Minimizing cost through residential microgrid devices	Flexibility aggregator	The flexible resources with the most potential to provide the renewable generation portfolio of an aggregator are concentrated in residential demand, with the participation of EVs, batteries, and heaters.	It is pertinent to incorporate scenarios that can simulate air-conditioning equipment, considering that it is an important consumption component in the cost of electricity for residential users in some countries.	[96]
DR + WEM	A two-stage stochastic model incorporating game theory	GAMS/CPLEX	Minimizing total operational cost using Security-Constrained Unit Commitment	Oligopolistic environment	Results reveal that DR programs affect oligopoly activities in the market in the presence of renewable energy resources.	Operational flexibility is of greater importance as the implementation of variable renewables increases. Therefore, the study can be complemented by incorporating flexible resources, such as battery storage.	[97]
DR + EV + ES	A two-stage stochastic model	GAMS/CPLEX	Maximizing total expected profits of domestic energy	Smart-home modeled like a price taker	The TOU pricing scheme benefits the market due to its contribution to reducing operating costs and increasing the smart-home user’s profitability	The domestic load scheduling that minimizes energy consumption, considering the comfort preferences of the participating users, may imply an extra cost for the operation of the wholesale electricity market because higher levels of the reserve may be required for the provision of the regulation service frequency under conditions of demand uncertainties.	[68]
DR + Carbon Scenarios	Long-term model	OSeMOSYS	Minimizing cost of operation and total installed capacity	Planning operation	The assessment of DR implementation could be verified by reducing the cost of operation and total installed capacity significantly when the renewable capacity and generation increase.	The application of this study should be extended to the case of electrical systems in island countries, where it is not possible to take advantage of the interconnections of electrical systems in neighboring countries; a comparison should be made with the peninsular-base case of Portugal.	[6]
DR + ES + RES	Energy-hub model	GAMS/CPLEX	Minimizing total cost of energy	Divide complex problem of energy-hub model into smaller subproblems	The methodology of dividing the complex problem of the energy-hub model allows the transformation from nonlinear to linear without the loss of relevant information.	The prioritization criteria should be defined according to the energy source that participates in the demand-response programs; the stochastic weighting of the objectives related to increases in benefits and user comfort and the reduction of operating costs in the markets should also be defined.	[98]
DR + RES + ES + MG	Multiple-year planning model	GAMS/CPLEX	Maximizing social benefits	Integration of RESs and ES.	Implementing DR with renewable energy resources and storage in remote communities can improve social welfare.	Although some of the users in these remote communities can assume a change in their consumption pattern to reduce fuel costs, the inclusion of an incentive scheme can be explored to motivate greater participation.	[99]
DR + ES + RES + MG	Enhanced rural electrification model	HOMER	Minimizing the levelized cost of energy, the net present cost, and the carbon dioxide (CO2) emissions	Sizing of an integrated renewable energy system	Combining DR with a level of participation of renewable energies reduces the levelized cost of energy.	The determination of the levelized cost of energy in this study does not consider the inconveniences of the commercial management of electricity services in rural communities that are being electrified. This variable can be incorporated into the model, considering that these users must assume a new commitment and, therefore, a new habit.	[100]
DR + RES + WEM	Optimal-dispatch model	MATLAB	Minimizing the costs of operation, incentive, and expected unsupplied energy	Reliability	The design of a dynamic incentive mechanism and a new expected-energy formulation could determine the conditions that must be sustained to carry out the electrical system’s economical and reliable operation.	The security concept considered for the short term should be defined to clarify the reliability dimension of the model.	[101]
DR + WEM	DR model based on incentive	MATLAB	Maximizing retailer benefits	Utility and elasticity of customers	The sensitivities of the criteria of utility and the elasticity of the customers allow innovation in determining the optimal incentive price for each period in the electricity load curve.	This model explores retailer maximization derived from an incentive-based demand-response program. The model does not necessarily represent the total net benefit of all market agents, motivating the need to determine if its application minimizes the operational cost of supply.	[84]
DR + ES + RES	DR model based on interruptible load	Program based on genetic algorithm	Maximizing consumer benefits	Maximum demand index	The application of the interruptible-load model contributes to the reduction of invoicing and customer demand.	The results obtained from the load-interruption program do not mean that there would be a reduction in the maximum coincident demand of the system, which motivates the evaluation of this condition.	[102]
DR + RES + DN	DN model based on Nash equilibrium	TIMES OSeMOSYS ETEM-SG	Minimizing grid operator cost	DER and reactive power compensation	The implementation levels of renewable energies favor the inclusion of DR in distributed energy markets.	The results should be compared with other modeling tools, indicating the conditions required to be chosen.	[103]

Table 1. Characterization of methodologies for modeling demand response.

Case	Model	Software Tools	Objective	Criteria	Contribution	Limitation	Reference
DR + RES	Energy-planning model	TIMES	Minimizing cost through long-term planning	Maintaining a given level of reliability	Increasing the implementation of intermittent renewable energies reduces the reliability of the supply, meaning the DR resource can be considered to guarantee the required balance between generation and electrical load.	For this long-term planning approach, it is suggested that the reliability assessment should concentrate on the sufficiency aspects related to the capacity and investment in renewable sources. The variability experienced by renewable sources and its impact on the balance between generation and demand can be more rigorously evaluated in a short-term scope.	[95]
DR + MG + EV + ES	Load-scheduling model	ANYLOGIC	Minimizing cost through residential microgrid devices	Flexibility aggregator	The flexible resources with the most potential to provide the renewable generation portfolio of an aggregator are concentrated in residential demand, with the participation of EVs, batteries, and heaters.	It is pertinent to incorporate scenarios that can simulate air-conditioning equipment, considering that it is an important consumption component in the cost of electricity for residential users in some countries.	[96]
DR + WEM	A two-stage stochastic model incorporating game theory	GAMS/CPLEX	Minimizing total operational cost using Security-Constrained Unit Commitment	Oligopolistic environment	Results reveal that DR programs affect oligopoly activities in the market in the presence of renewable energy resources.	Operational flexibility is of greater importance as the implementation of variable renewables increases. Therefore, the study can be complemented by incorporating flexible resources, such as battery storage.	[97]
DR + EV + ES	A two-stage stochastic model	GAMS/CPLEX	Maximizing total expected profits of domestic energy	Smart-home modeled like a price taker	The TOU pricing scheme benefits the market due to its contribution to reducing operating costs and increasing the smart-home user’s profitability	The domestic load scheduling that minimizes energy consumption, considering the comfort preferences of the participating users, may imply an extra cost for the operation of the wholesale electricity market because higher levels of the reserve may be required for the provision of the regulation service frequency under conditions of demand uncertainties.	[68]
DR + Carbon Scenarios	Long-term model	OSeMOSYS	Minimizing cost of operation and total installed capacity	Planning operation	The assessment of DR implementation could be verified by reducing the cost of operation and total installed capacity significantly when the renewable capacity and generation increase.	The application of this study should be extended to the case of electrical systems in island countries, where it is not possible to take advantage of the interconnections of electrical systems in neighboring countries; a comparison should be made with the peninsular-base case of Portugal.	[6]
DR + ES + RES	Energy-hub model	GAMS/CPLEX	Minimizing total cost of energy	Divide complex problem of energy-hub model into smaller subproblems	The methodology of dividing the complex problem of the energy-hub model allows the transformation from nonlinear to linear without the loss of relevant information.	The prioritization criteria should be defined according to the energy source that participates in the demand-response programs; the stochastic weighting of the objectives related to increases in benefits and user comfort and the reduction of operating costs in the markets should also be defined.	[98]
DR + RES + ES + MG	Multiple-year planning model	GAMS/CPLEX	Maximizing social benefits	Integration of RESs and ES.	Implementing DR with renewable energy resources and storage in remote communities can improve social welfare.	Although some of the users in these remote communities can assume a change in their consumption pattern to reduce fuel costs, the inclusion of an incentive scheme can be explored to motivate greater participation.	[99]
DR + ES + RES + MG	Enhanced rural electrification model	HOMER	Minimizing the levelized cost of energy, the net present cost, and the carbon dioxide (CO2) emissions	Sizing of an integrated renewable energy system	Combining DR with a level of participation of renewable energies reduces the levelized cost of energy.	The determination of the levelized cost of energy in this study does not consider the inconveniences of the commercial management of electricity services in rural communities that are being electrified. This variable can be incorporated into the model, considering that these users must assume a new commitment and, therefore, a new habit.	[100]
DR + RES + WEM	Optimal-dispatch model	MATLAB	Minimizing the costs of operation, incentive, and expected unsupplied energy	Reliability	The design of a dynamic incentive mechanism and a new expected-energy formulation could determine the conditions that must be sustained to carry out the electrical system’s economical and reliable operation.	The security concept considered for the short term should be defined to clarify the reliability dimension of the model.	[101]
DR + WEM	DR model based on incentive	MATLAB	Maximizing retailer benefits	Utility and elasticity of customers	The sensitivities of the criteria of utility and the elasticity of the customers allow innovation in determining the optimal incentive price for each period in the electricity load curve.	This model explores retailer maximization derived from an incentive-based demand-response program. The model does not necessarily represent the total net benefit of all market agents, motivating the need to determine if its application minimizes the operational cost of supply.	[84]
DR + ES + RES	DR model based on interruptible load	Program based on genetic algorithm	Maximizing consumer benefits	Maximum demand index	The application of the interruptible-load model contributes to the reduction of invoicing and customer demand.	The results obtained from the load-interruption program do not mean that there would be a reduction in the maximum coincident demand of the system, which motivates the evaluation of this condition.	[102]
DR + RES + DN	DN model based on Nash equilibrium	TIMES OSeMOSYS ETEM-SG	Minimizing grid operator cost	DER and reactive power compensation	The implementation levels of renewable energies favor the inclusion of DR in distributed energy markets.	The results should be compared with other modeling tools, indicating the conditions required to be chosen.	[103]

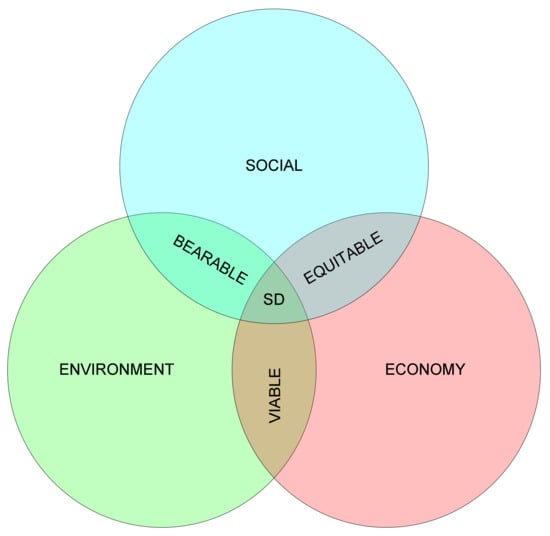

• Sustainability dimensions in DR models

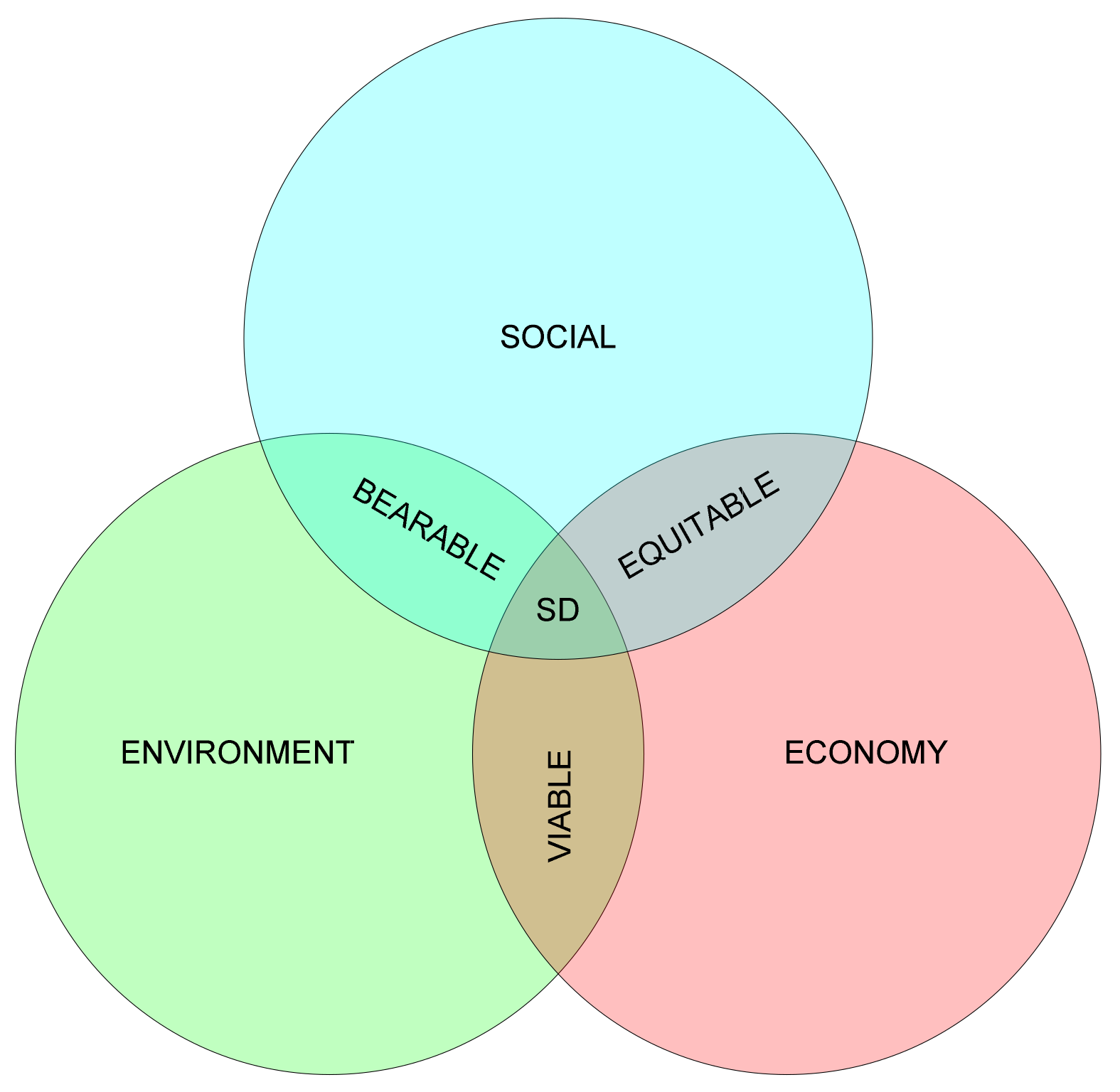

Energy modeling is a multidimensional concept that is challenging to explain from a single methodological perspective. One of the most frequently used classifications in the literature, dedicated to disaggregating the different dimensions applicable in development models, such as those that incorporate renewable energy and flexible resources in electrical systems, is related to the concept of sustainable development (SD). This conception rests on three fundamental pillars (social, economic, and environmental). It has been a ubiquitous concept since 1987, when it was proposed by the United Nations as a process leading to “development that meets the needs of the present without compromising the ability of future generations to meet their own need” [104,105]. The conditions required to maintain the balance between the three components of SD are not easy to achieve, since the goals of each pillar must respect the interests of the remaining pillars [106]. Figure 6 summarizes the taxonomy of SD in a Venn–Euler diagram.

The analysis of energy demand is a vital part of planning studies for meeting the energy needs of a nation and determining their impact on society, the economy, and the environment [107,108]. Table 2 contextualizes the research related to the evaluation of DR and its integration in the planning and operation of electrical systems.

Table 2. Sustainability categories used for assessing demand response.

Energy Activity Combined with DR	Sustainability Category		From the Objective Function Perspective	Reference Model
	Included	Excluded
Microgrid + distributed ES devices	Economic	Environmental, Social	Minimizing total cost of energy.	[109]
Wind energy + pump storage	Economic	Environmental, Social	Maximizing net profit considering risk-averse day-ahead bidding.	[110]
Energy hub	Economic	Environmental, Social	Minimizing total cost of energy.	[98]
Microgrid + storage + renewable energy resources	Economic, Social	Environmental	Maximizing the social benefits of the customers.	[99]
Energy flexibility of buildings	Environmental, Economic	Social	Price modulation to reduce CO2 emissions and cost savings.	[111]
Microgrid + distributed energy generation	Environmental, Economic	Social	Minimizing total cost of energy.	[112]
Microgrid + storage	Environmental, Economic	Social	Minimizing levelized cost of energy, net present cost, and carbon dioxide (CO2) emissions.	[100,113]
Smart grid	Environmental, Economic, social	-	The implementation of the aggregator figure results to reduce CO2, with social and economic benefits for the customers.	[114]

Table 2. Sustainability categories used for assessing demand response.

Energy Activity Combined with DR	Sustainability Category		From the Objective Function Perspective	Reference Model
	Included	Excluded
Microgrid + distributed ES devices	Economic	Environmental, Social	Minimizing total cost of energy.	[109]
Wind energy + pump storage	Economic	Environmental, Social	Maximizing net profit considering risk-averse day-ahead bidding.	[110]
Energy hub	Economic	Environmental, Social	Minimizing total cost of energy.	[98]
Microgrid + storage + renewable energy resources	Economic, Social	Environmental	Maximizing the social benefits of the customers.	[99]
Energy flexibility of buildings	Environmental, Economic	Social	Price modulation to reduce CO2 emissions and cost savings.	[111]
Microgrid + distributed energy generation	Environmental, Economic	Social	Minimizing total cost of energy.	[112]
Microgrid + storage	Environmental, Economic	Social	Minimizing levelized cost of energy, net present cost, and carbon dioxide (CO2) emissions.	[100,113]
Smart grid	Environmental, Economic, social	-	The implementation of the aggregator figure results to reduce CO2, with social and economic benefits for the customers.	[114]

Several methodologies for the economic assessment of DR programs differ primarily by the perspective used to analyze the cost–benefit ratio.

• Based on the utility test

This perspective is often referred to as the Program Administrator Cost (PAC) or Utility Cost Test (UCT). This methodology measures the impact on the income company. The benefits included are the avoided transmission costs, including operation and maintenance (OM) costs. These costs have a more significant impact in the case of energy efficiency programs, where there is a net reduction in energy that the company sells to a customer. The energy-saving cost is a helpful metric for program administrators and regulators [115].

• Based on the participant cost test

This method compares bill savings against incremental costs of the efficient equipment [116]. The benefits include incentives received by the customer and reductions in energy bills. This test is a good indicator of how acceptable a DR program would be for customers and therefore helps determine the likelihood of acceptance by clients.

• Based on the total resource cost test

This test measures the benefit–cost ratio from a broader perspective and includes all the costs and benefits of a DR program. Benefits include the avoided costs of transmission, distribution, power generation capacity, and losses. Additionally, it considers OM costs, administrative costs, opportunity costs to reduce losses in networks, and investment resources required in DR programs [115].

• Based on the total societal cost

This test only measures if the total cost is reduced by applying DR programs and, therefore, if the programs are beneficial to society. The other tests measure how the company, participants, and customers distribute the costs and benefits. This methodology compares the costs and benefits for utility providers, customers, and society [117].

6. Model Scheme Proposed Based on the Literature Review

The state of the art covered in this research on DR transcends the descriptive level when verifying new possibilities in the WEM. The low number of publications addressing operational flexibility is notable and is partly due to the traditional activities and roles of the different agents that participate in the WEM. With this epistemological support, a methodology is constructed to model DR programs in the market, which considers the concepts of segmentation, the elasticity of substitution, and DR programs, combined with high implementation levels of variable renewable energies. Therefore, several resources are associated with the same operating model.

The complexity of a model grows with the number of variables and restrictions that must be considered to optimize an objective function. The proposed model shows a weekly operation program for an electrical power system that includes a generation mix with the significant participation of variable renewable energy, TNs, and end-users who are willing to receive an incentive for managing the demand with flexibility criteria.

The proposed methodology is based on the following elements: the prospecting of variable renewable energy; the segmentation of consumption profiles according to the elasticity of substitution; a program of DR based on incentives; and the determination of the cost of supply, considering economic, social, and environmental criteria. The novelty of this modeling method focuses on the combination of variable renewable energy prospects and the application of segmentation techniques for consumer user profiles, based on the levels of flexibility adjusted using CES applied to DR programs, which encourage the load-shifting strategy.

In the literature, some criteria have been used to validate the hypothesis that an increase in the level of the participation of variable renewable energies in the WEM produces a reduction in energy prices, especially in the short term. However, the premise of reducing prices by increasing renewable generation may be conditioned by flexibility incentives [118]. In [119], several studies are analyzed that evaluate the impact of variable renewable energies in the wholesale generation markets of the United States, highlighting the trend that an average reduction of -$0.37/MWh occurs with a 1% increase in the implementation of variable renewable energies. These price variation conditions are subject to the specifications of the markets and the electrical systems, such as the generation mix, the ancillary services offered, the safety criteria required in the operation, and the regulatory policies established to minimize the generation dispatch cost and to maximize the net social benefit of the agents in the WEM.

In [76], the authors propose a price-based DR model for residential customers who can change their consumption profile, maximizing profits. Although the model proposal responds to an incentive-based design, it is complemented by the strategy of shifting load between hourly blocks, from peak to valley and from shoulder to valley periods, through a process of iterations.

Additionally, this methodology considers a novel segmentation of demand, supported by statistical criteria and a constant return to scale, ensuring that the budget destined for the payment of energy consumption costs is not affected by increases in the price components of the hourly blocks. The effect of increasing the returns to scale of the CES function is shown in [120], demonstrating consistency with the average and marginal profits under conditions approaching the limits of the production factors.

Most of the mechanisms analyzed based on the CES function correspond to long-term programs due to the essence of the macroeconomic problems of production and profits, as deduced in [121,122,123,124,125,126]. This has led to a gap in the research exploring the behavior of the WEM in short-term applications, which is addresses in our methodology.

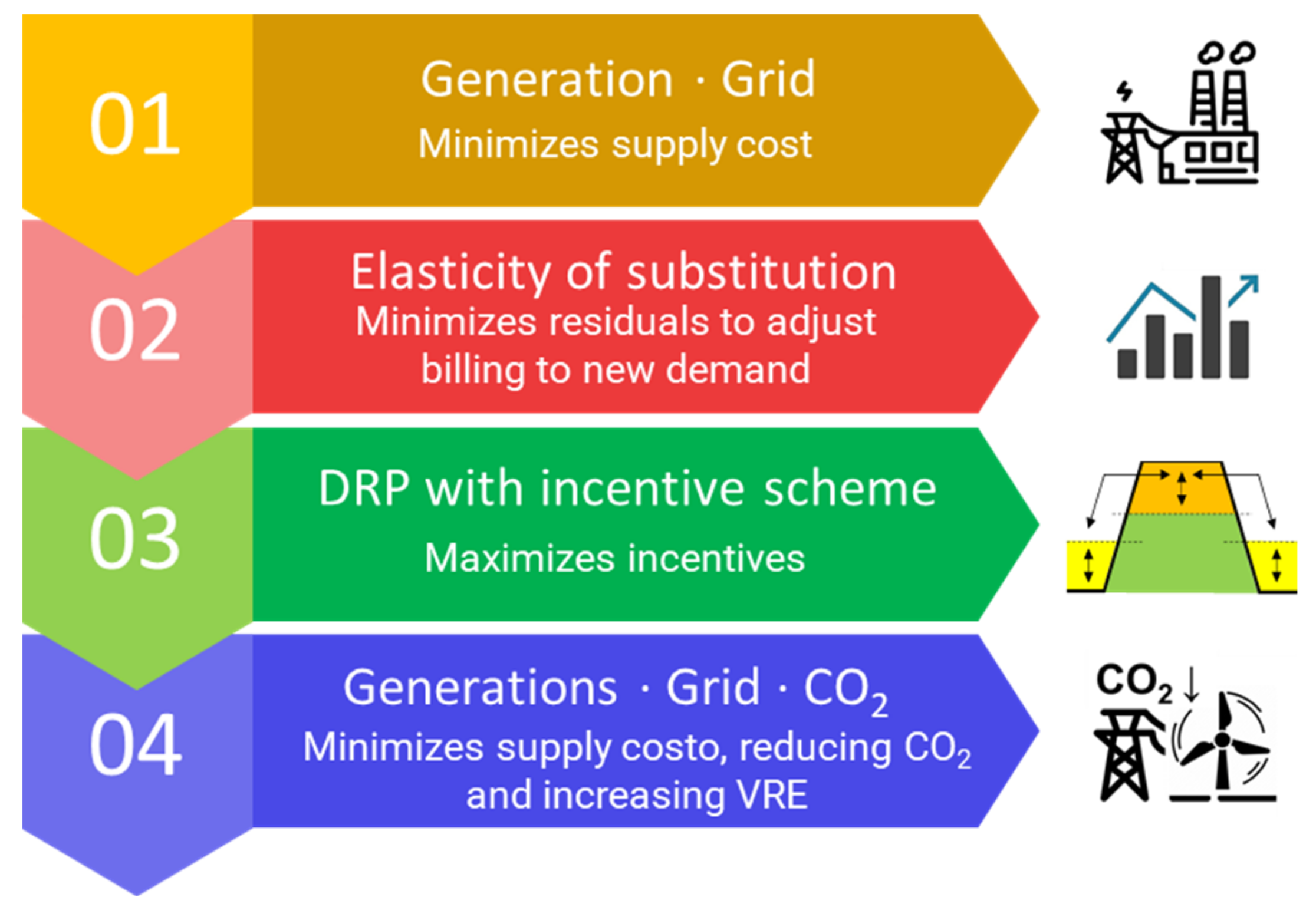

As shown in Figure 7, this methodology is supported in a multiobjective iterative process, in which the cost of supplying a base scenario is minimized without the participation of DR programs. The load-shifting error based on coefficients that represent the elasticity of substitution between periods and the cost of applying for an active and flexible DR program with an increasing level of renewable energy in the WEM motivate the determination of the cost of supply in these new conditions and their comparison with the results of the baseline scenario.

The dimensioning of the model was expressed through a modular separation of the entire process, simplifying the optimization problem. This work scheme facilitates the analysis of results and the identification or anticipation of possible difficulties.

The proposed methodology operates in a sequential form, based on a generation model for performing an economic operation dispatch and guaranteeing the minimization of the supply cost. The demand parameters used will be managed in a base scenario that includes all demand. In an adjusted final case, part four of the sequential model, the cost of CO₂ emissions and the segmentation of the flexible load profiles, defined by the elasticity of substitution model, are considered to apply the strategy of shifting demand from the peak periods of the daily load curve to the valley and shoulder periods. In this case, demand in the WEM is concentrated in large/industrial consumers and the figure of the retailing agent.

Usually, large/industrial consumers have the advantage of negotiating prices under unregulated conditions in the WEM. The participation of residential and commercial users is more complicated, considering that they cannot establish significant modifications in the records. The aggregators verify the consumption profiles, offering DR programs based on participation options that guarantee market incentives. Therefore, it is justified that utility providers and end-users study the different consumer segments based on characteristics that allow the management of previously identified user clusters.

The structure of the model takes into account concepts such as economic dispatch, as developed by [90]; the treatment of renewable generation and demand response according to [83,127,128,129]; the coefficient of elasticity of substitution (CES) outlined by [130]; and CO₂ emission control described by [131], associated with the methodology of the Intergovernmental Panel on Climate Change (IPCC), used to quantify CO₂ emissions at three levels of detail. The main modeling specifications for the proposed methodology are shown in

Table 3. Main modeling specifications.

Stage	Concept Description	Module 0	Module 1	Module 2	Module 3
Input	Data	Start-up cost, shutdown cost, variable production cost, the value of lost load, water value, demand, spinning reserve, technical characteristics of generation, and network	Hourly demand and demand grouped by blocks, participants in DRP, parameters in CES function, marginal costs	Hourly demand and demand grouped by blocks, technical characteristics of demand, scenarios of demand probabilities	Includes data from modules 0 and 2, parameters for CO2 emission control
Process	Decision variables	Energy generation, demand pumping, unserved energy	Residuals from the CES function	Energy demand adjusted by DRP, the incentive for participants in DRP	Energy generation, demand pumping, unserved energy, emissions of CO2
	Objective function	Minimizing operation cost	Minimizing residuals from the approximate CES function	Maximizing incentive scheme	Minimizing operating cost, including emissions of CO2
	Model type	MIP	NLP	NLP	MIP
Output	Main results	Operating cost, power and reserve outputs of each generator, marginal costs	New demand blocks	New hourly demand, the incentive for participants in DRP	Operating cost, power and reserve outputs of each generator, marginal costs, CO2 emissions, profit, and KPIs to evaluate DRP

. The details of the restrictions are not contemplated in this work; however, they should be considered during the development of the optimization program to delimit ranges, ramps, reserves, and other aspects of the operation that respond to the topological particularities of the network, the generation plants, the demand, and the market rules.

Table 4. Summary of energy management proposals based on CES function.

Reference	Main Objective	Highlighted Concepts for Comparative Purposes
		CES Function	Load-Shifting Profile	Energy Technology Change	Variable Renewable Energy	CO2 Emissions
[132]	Determine investment in renewables and storage to expand the electric power system.	x			x
[133]	Analyze the response of consumers with different incomes, according to changes in carbon allowance prices, in the long and short term.	x				x
[134]	Develop a methodology to determine the technological change from capital, labor, and energy.	x		x
[135]	Manage industrial loads from a demand-response program based on real-time pricing, considering adaptability and adjustability criteria.	x	x
[136]	Describe the main aspects of the econometric specification of the CES function for capital, labor, and energy inputs.	x		x

summarizes some works that model energy management based on the elasticity of substitution constant, taken as a parameter for developing the methodology proposed in this research. The following criteria have been identified for comparative purposes: load-change profile, energy technology change, variable renewable energy, and CO₂ emissions.

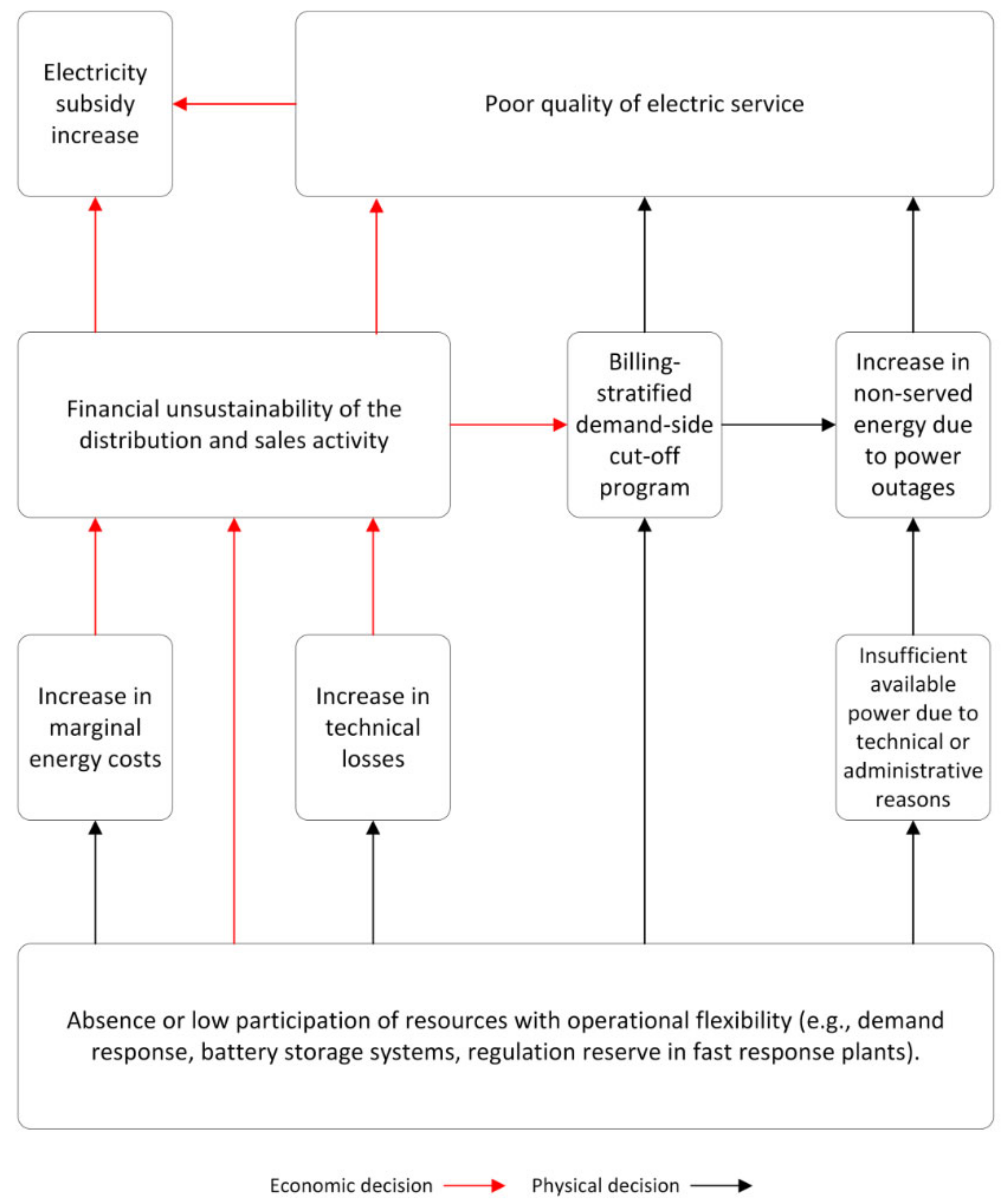

The main contribution of the proposed methodology is focused on assessing the performance of DR programs from the perspective of the WEM. The causes of operational inflexibility in generation dispatch are highlighted due to possible increases in marginal energy costs, grid congestion, and insufficient power at peak hours. These issues are characterized by unserved energy scenarios, poor electricity service quality, and the need to intervene through subsidies, as described in Figure 8. It is necessary to have specialized tools to evaluate these cases, as indicated in the structure of this proposal, in order to facilitate decision-making in the activities, institutions, and government agencies related to the electricity sector.

According to [137], the future of renewables cannot exclude DR, considering their contribution to reducing investments in on-peak generation technology and battery storage. The expected results of this research can provide the baseline information to open a discussion on regulatory, economic, social, and environmental issues in terms of:

• Control deviations in the operation of electrical systems.
• The characterization of DR programs according to the elasticity of substitution of participating flexible consumer segments.
• Model validation based on the planning and operational methodology proposed.

7. Conclusions

This work provides an overview of the conceptual literature used to plan, model, and evaluate DR programs in the WEM. This paper explains different strategies for changing load profiles. Additionally, it describes the DR programs and the methodologies used to implement these resources in electricity supply operations.

In its main section, this paper presents a methodology for optimizing energy dispatch that considers a demand-shifting strategy supported by an incentive scheme based on demand-segmentation characteristics, utility functions in the elasticity of substitution coefficients, and extensive use of non-conventional renewable energy.

Therefore, this proposed market mechanism, supported by demand-response programs, can be evaluated as providing viable alternatives to improve the quality of service and mitigate subsidy programs. This paper presents an approach to integrating demand-response programs based on load shifting and increasing variable renewable energy implementation in the wholesale electricity market. The main contributions of the methodology based on the literature review can be summarized as follows:

• Strategic demand shifts are proposed, focused on taking advantage of the availability of renewable resources and the budgetary restrictions established based on the elasticity of substitution. The methodology takes into account the context of the scheduled operation of the electric system, the need to consider safety criteria, and the limitations of the generation and transmission network.
• The methodology facilitates the construction of a simulation tool to evaluate scenarios that minimize operating costs, guaranteeing the incentives of flexible demand and mitigating possible deviations in the scheduling of the operation of the electricity system, avoiding cost overruns caused by the forced operation of generation plants.
• The performance indicators are used to define a method of sensitivity analysis to aid the decision-making process by determining the percentages of demand-shift on the load curve, the rate of unserved power, the incentives of consumers participating in demand-response programs, the natural behavior of prices in the market, and the reduction of CO₂ emissions.

Finally, it is important to highlight that the proposed methodology is not a tool to minimize costs or reduce CO₂ emissions for all cases. The optimization problem’s solution depends on the electrical system’s generation mix and the technologies used to compensate for the fluctuations.

The future development of this research will contemplate the forecasting of variable renewables, flexible demand segmentation, and the definition of a mechanism to recognize the firm capacity contribution of variable renewable technologies and their remuneration, providing greater availability when complemented by demand-response programs during generation shortage hours in the daily load curve.
