1. Introduction
Despite the dynamic development of materials science, steel remains the most important construction material, which is evidenced by its constantly growing global production [
1]. The widespread use of steel as a construction material is due to its diverse mechanical properties, ranging from moderate 200–300 MPa yield strength with excellent ductility to yield stress of over 1400 MPa and fracture toughness of up to 100 MPa [
2].
The main challenge for steel producers is to provide top-quality products obtained at the lowest possible costs. Heat treatment operations are the processes that essentially determine the quality of products supplied by the steel industry. Any shortcomings and errors in the heat treatment have a negative impact on further stages of the production, as well as the utility properties of the finished products. Therefore, the heat treatment processes need to be optimised, which is performed with the use of computers by means of model calculations [
3,
4,
5,
6,
7]. One of the conditions for the uniqueness of such models is the thermophysical properties of the heated elements. In the case of solid elements, the basic thermal property of the treated charge is the thermal conductivity of steel
ks [
8,
9]. However, in many situations, the treated charge has a porous structure [
10,
11]. Such charges are two-phase granular media with a solid metal skeleton and voids filled with gas. The type of this gas depends on the atmosphere of the furnace in which the heat treatment is carried out. Generally, we can distinguish three types of porous charge: bundles, coils and a piece charge. Bundles are used to treat various long products. This kind of charge can have an external or mixed porosity due to the geometry of individual elements. The bundles with an external porosity relate to various types of bars (round, square or flat ones), whereas the charge, which is characterised by a mixed porosity, is made up of hollow components, such as pipes or rectangular sections [
12,
13]. The second group is coils, which are formed by heated sheets, tapes, wires or blanks [
14,
15]. Additionally, the third group, also called a piece charge, represents small products such as bolts, nuts, pins, pivots and many others, which are heated at the same time in large quantities in baskets or special containers [
16,

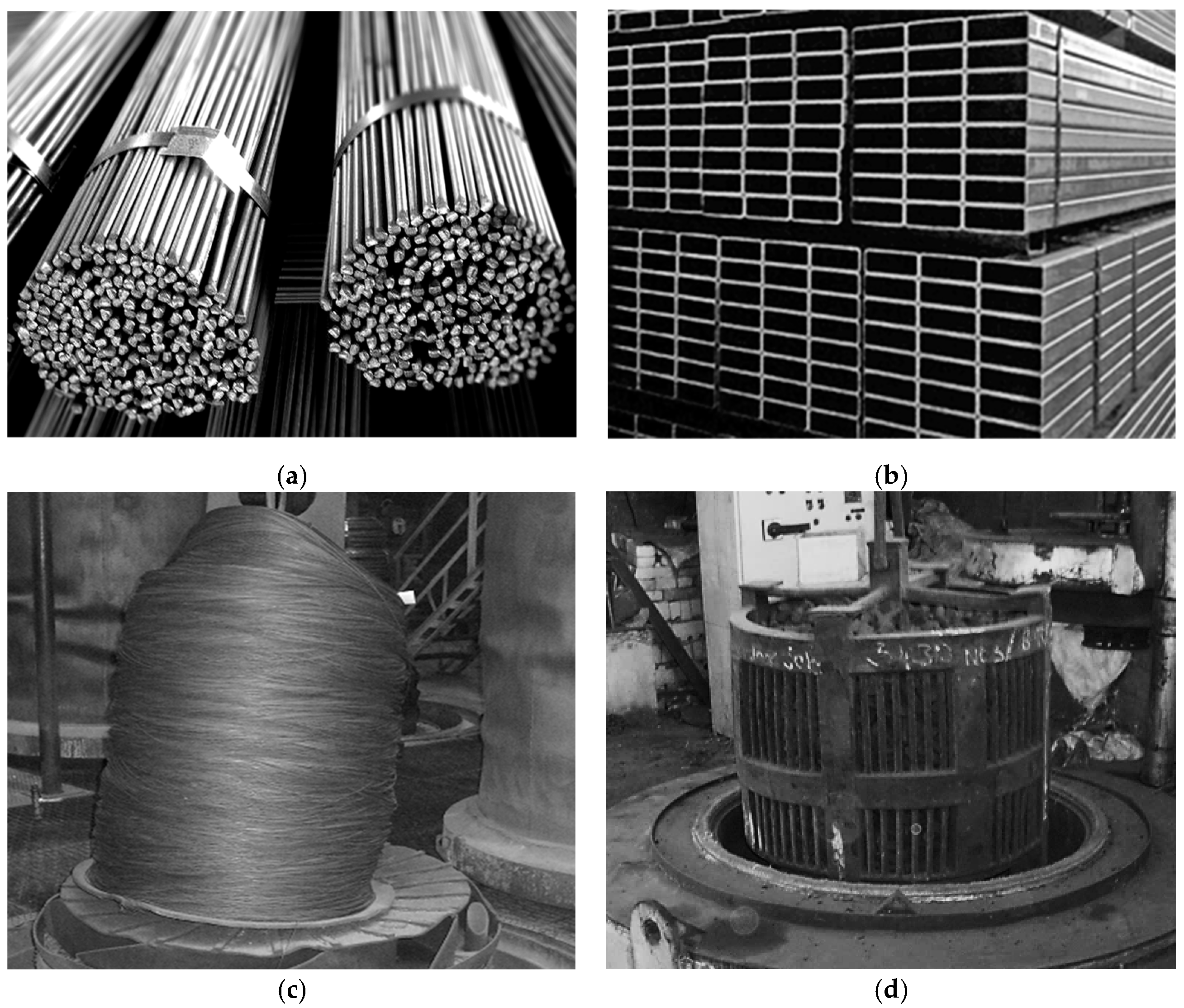

17]. Some examples of porous charges are presented in
Figure 1.
The basic qualities of a porous charge are: a granular structure resulting from the non-continuity of the solid phase and the presence of voids filled with gas. These features make the heating of a porous charge completely different from that of solid elements. In solid elements, heat transfer takes place by means of simple conduction, while in porous charges, it is determined by complex conduction phenomena in individual phases, contact conduction, thermal radiation and gas convection [
18,
19]. Therefore, the basic thermal property of a porous charge is an effective thermal conductivity
kef. This parameter is widely used in the analysis of porous and nonhomogeneous media [
20,
21,
22], and in contrast to the thermal conductivity of homogenous substances, it is not a material characteristic [
23,
24]. The value of the
kef coefficient of some granular media is a function of complex heat transfer mechanisms connected with their structure, chemical composition, and above all, with the temperature.
It is possible to determine the effective thermal conductivity by two methods: by means of experimental measurements and model calculations [
25]. This paper presents a review of investigation methods used for determining the effective thermal conductivity of a steel porous charge. In the beginning, it discusses experimental investigations, the results of which provide quantitative information. After that, it deals with experimental methods which analyse the heat transfer in a porous charge from the qualitative point of view. The results of such investigations provide information which is necessary for mathematical modelling of effective thermal conductivity. The further part of the paper discusses the problem of model calculations of the effective thermal conductivity of a porous charge.
3. The Investigation of a Porous Charge by Means of Schlieren Imaging
Techniques related to optical visualisation are considered to be basic experimental methodologies used in examinations in the field of fluid mechanics and heat exchange. These methods utilise the effect of changes in the density of the examined medium on the refractive index, which makes them useful in examinations of transparent and non-luminous mediums [
40,
41]. This is a great advantage of the methods since they do not require adding special markers to the fluid to make visual observation possible. Furthermore, they also allow the researcher to examine many characteristics of the flow field available for visual perception, offering an insight into the physics of the phenomenon.
We can distinguish three basic methods of optical visualisation: shadow method, Schlieren (streak) imaging and interference method [
42]. A very important role is played by the Schlieren method, which makes the gradient field image for refractive index visible and easy to be interpreted. The method is more sensitive than the shadow method and easier for qualitative visualisation compared to the interference method. In physical terms, the Schlieren method is based on the angular deviation of light rays that go through the area of the transparent fluid that has an inhomogeneous refractive index
n. Gradients of the coefficient
n are caused by the inhomogeneity of temperature, density and concentration of various components. Convection examinations use the effect of inhomogeneity of density of the fluid caused by the varied temperature field on light distribution [
42]. The devices that use this phenomenon for visualisation of the inhomogeneity of the medium are called Schlieren apparatuses. Changes in light intensity are proportional to the first derivative of fluid density [
43]:
where: Δ
I/I—relative light intensity after passing through the optical system of the Schlieren apparatus;
ρ—density of the medium;
x—direction of the normal to the surface with a similar material density.
The use of the Schlieren imaging for examinations of a porous charge was presented for the samples made of rectangular sections. Since this type of charge is characterised by porosity which may even reach 90%, one of the mechanisms of the heat transfer that affects its heating is the natural convection of air inside individual sections. Therefore, an optical visualisation of this phenomenon is very useful for its analysis. The Schlieren apparatus used for the examinations is composed of two parts which have special optical parts (lenses and mirrors). One of these parts generates a parallel light beam that interacts with the medium examined. Next, the light reaches the second part, equipped with optical devices that allow for obtaining the image of the phenomenon studied, which is displayed on the screen. A very important component of the apparatus is “an optical knife”. The light that reproduces the image of the phenomenon is focused on the edge of the optical knife. Moving the knife edge allows for regulation of the contrast and brightness of the image which is displayed on the screen. A more detailed description of this apparatus was presented in [
18].

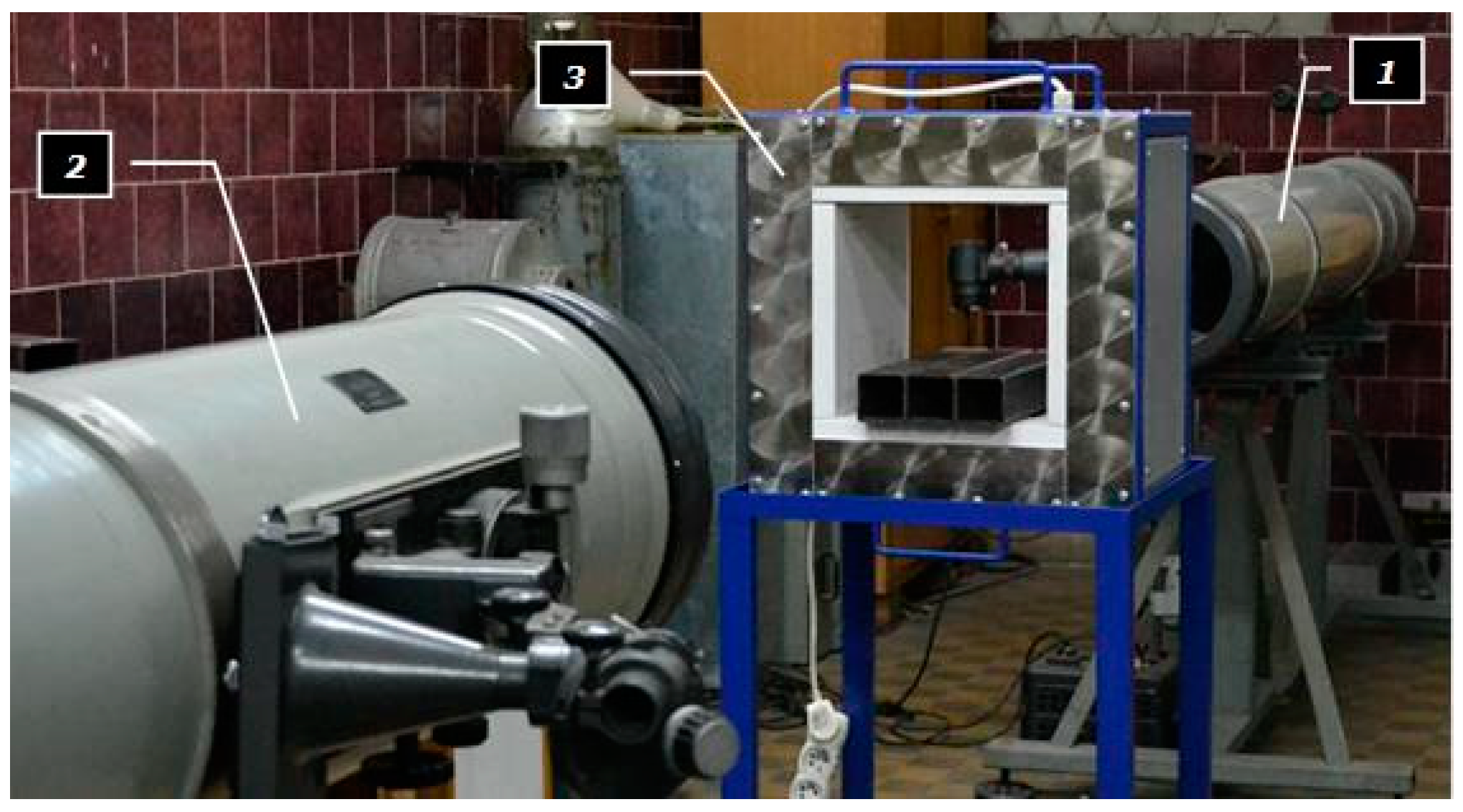

The second component of this test stand is an electrical furnace located in the research space of the Schlieren apparatus. The construction of the furnace allows for one-dimensional heating of the samples while, at the same time, ensuring the unlimited passing of light through them. The general view of the stand is presented in
Figure 10.

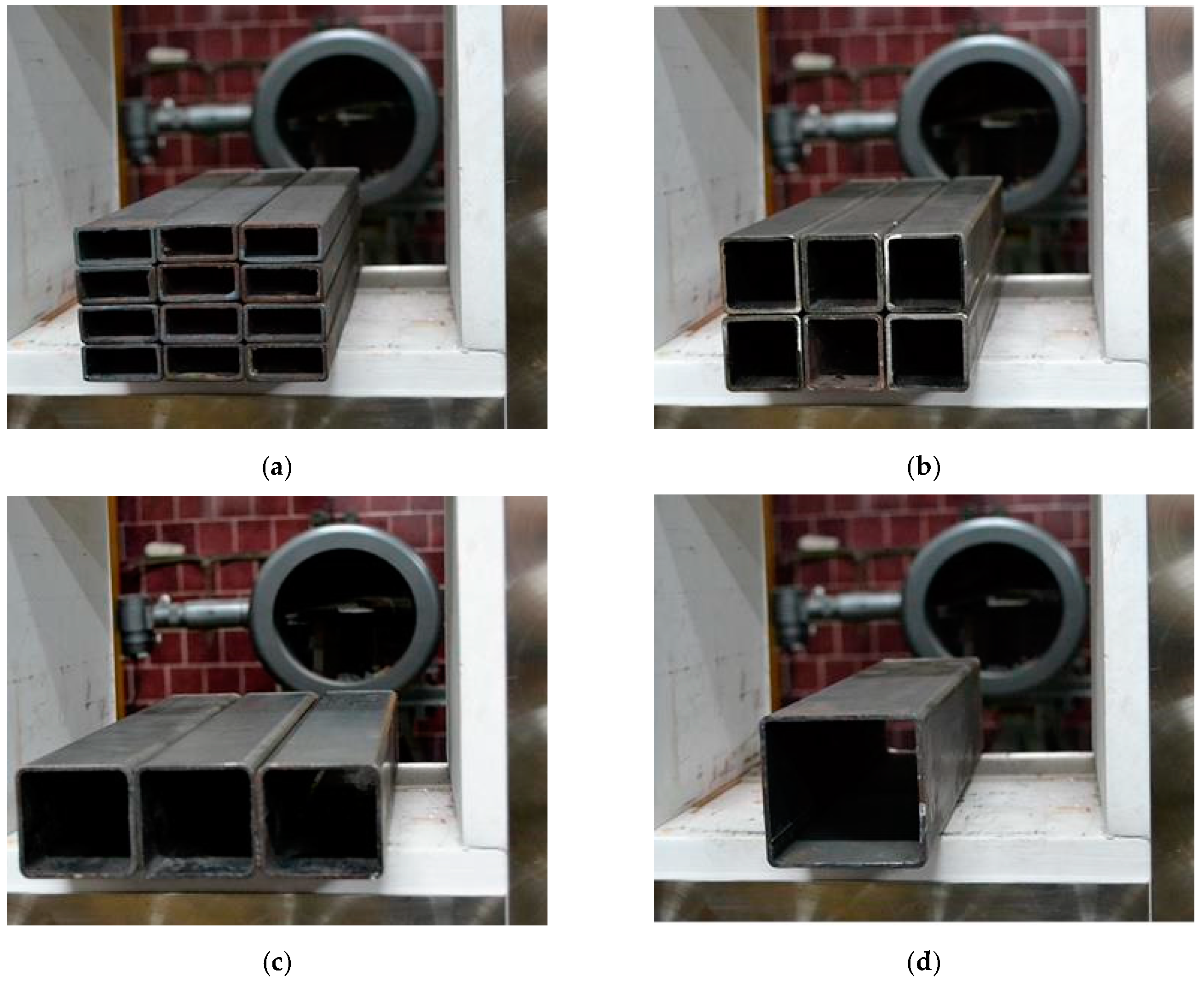

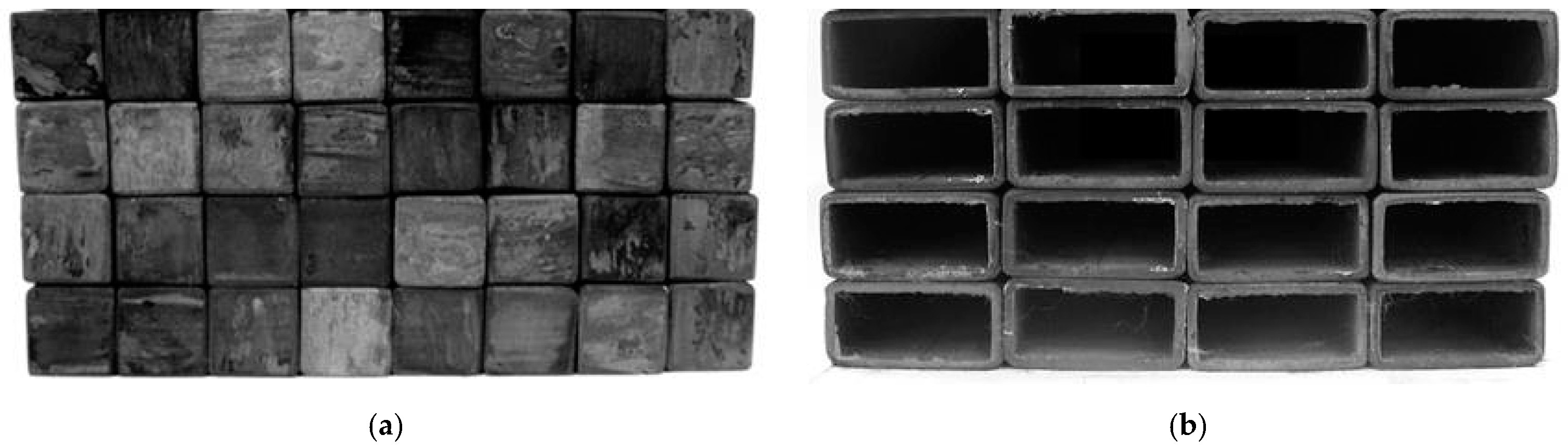

The results of the examinations performed for four samples made of various types of steel sections (
Figure 11) are presented below. The sections were located in the furnace chamber directly over the resistant heating plate, parallel to the optical axis of the Schlieren apparatus. This allowed for the light to pass through the internal spaces of the sections. After starting the heater, the heat transfer in the samples was oriented vertically upwards. One of the mechanisms of the heat exchange was natural convection of air inside the sections. The main part of the examinations was an observation of the air movements during the heating. The images recorded for individual samples are presented in
Figure 12,
Figure 13,
Figure 14 and
Figure 15.

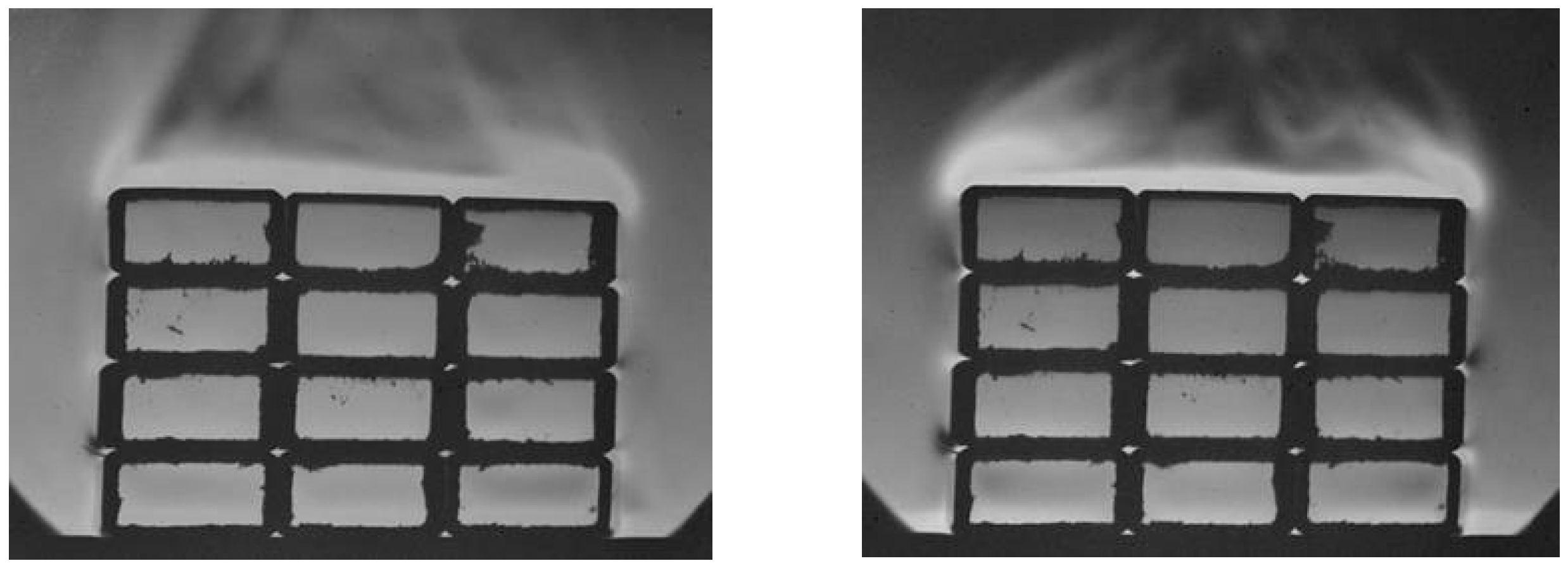

Figure 12 illustrates the images obtained during the heating of the sample made of 20 × 40 mm sections. In this case, no air movements can be observed inside the sections. Contrary to the air outside the sample (which is substantially disturbed), the image is entirely homogeneous. A lack of air movement inside the sections results from their insignificant dimensions since it is entirely suppressed by boundary layers.

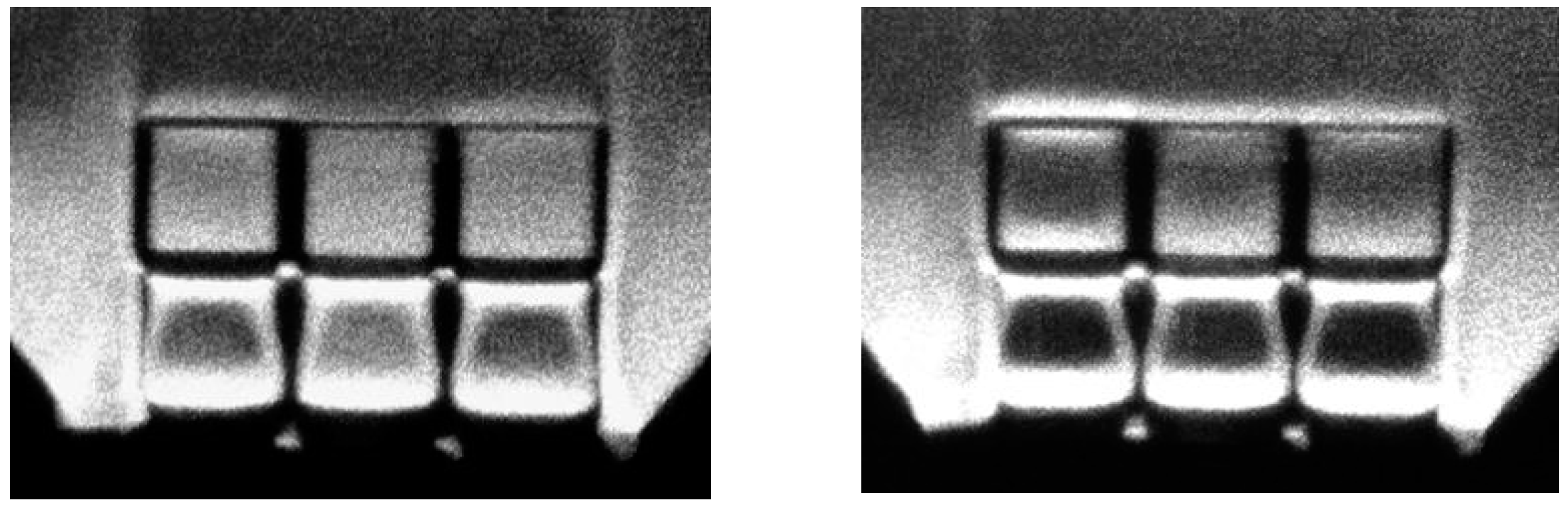

Figure 13 illustrates the images recorded for the 40 × 40 mm sections. Boundary layers are formed especially along the vertical walls, with their thickness increasing with time. However, apart from these layers, air remains still in the “nucleus”. Therefore, natural convection inside these sections also does not occur.

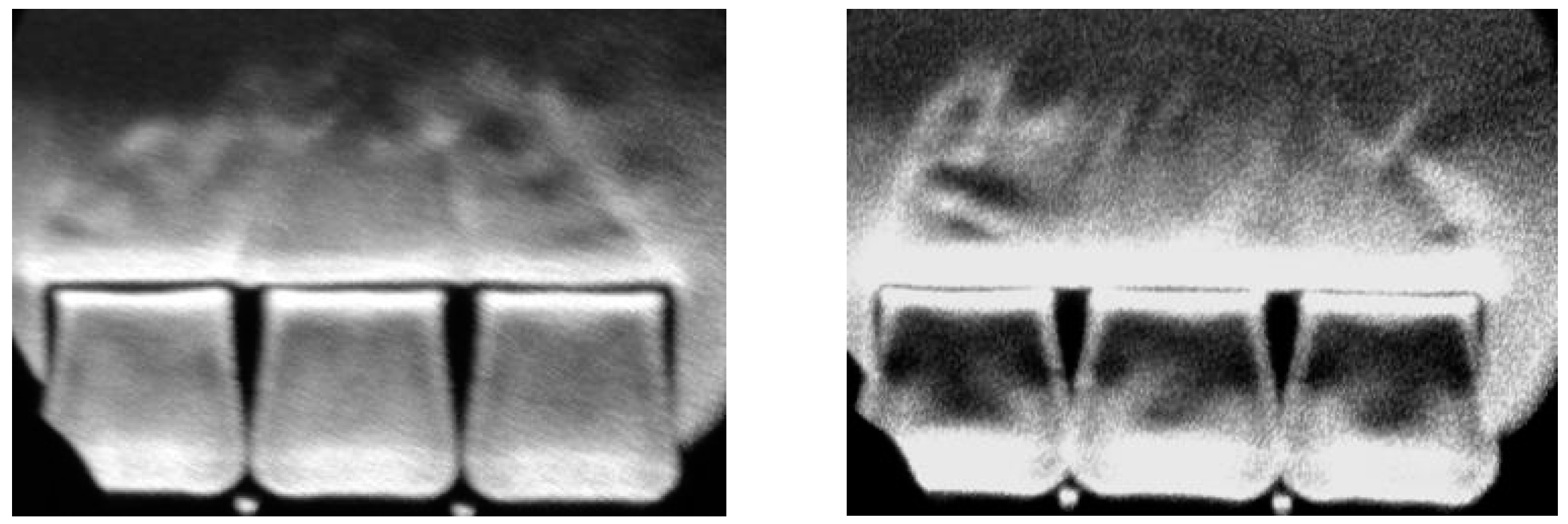

A different pattern was observed during the heating of the 60 × 60 mm sections, with images presented in
Figure 14. Due to the greater dimensions of these elements, the air flow was observed after the formation of the boundary layers in the areas outside these layers. In this case, boundary layers are at a distance that prevents them from suppression of the convection movements. As shown in

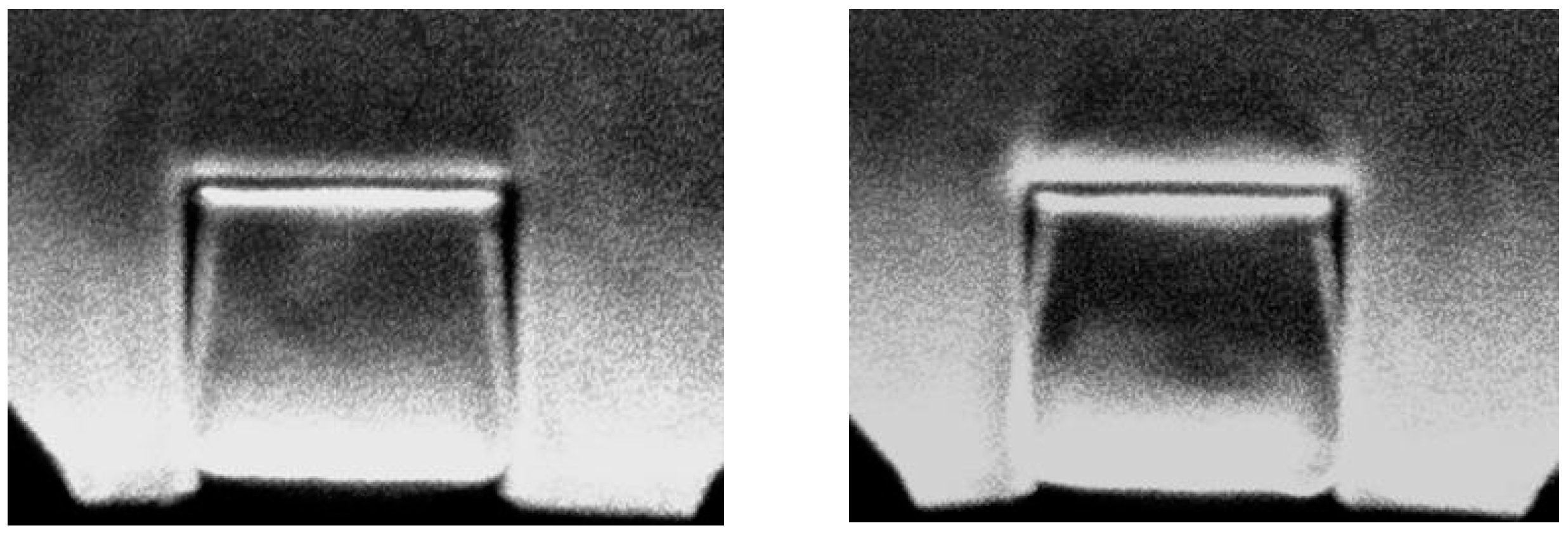

Figure 15, the same effect was observed for the heating of the 80 × 80 mm sections.
The study demonstrated that the intensity of natural convection inside rectangular sections mainly depends on the dimensions of these elements. Although the results of these analyses are very useful, they are only of a qualitative character. However, after supporting these findings with further research based on the dimensional analysis and the theory of similarity, it is possible to describe the natural convection in quantitative terms. For this purpose, the Rayleigh and Nusselt numbers are used [
44,
45].
4. The Investigation of a Porous Charge by Means of Thermography
Experimental examinations of the heat transfer in the porous charge with the use of thermography provide both qualitative and quantitative insight into this process. Qualitative information concerns the contribution of individual mechanisms of the heat transfer (conduction, contact conduction, free convection and radiation) that occur in the area of the charge. The real effect of these mechanisms is the temperature field, which is formed within the charge. Thus, based on the information about the temperature field in the charge determined from measurements, it is possible to determine the intensity and contribution of particular mechanisms of the heat transfer. Furthermore, quantitative information is connected with opportunities to determine the effective thermal conductivity
kef. This approach consists of calculating the
kef coefficient based on the information about temporal changes in the temperature field using the analysis of inverse heat conduction problems [
46].

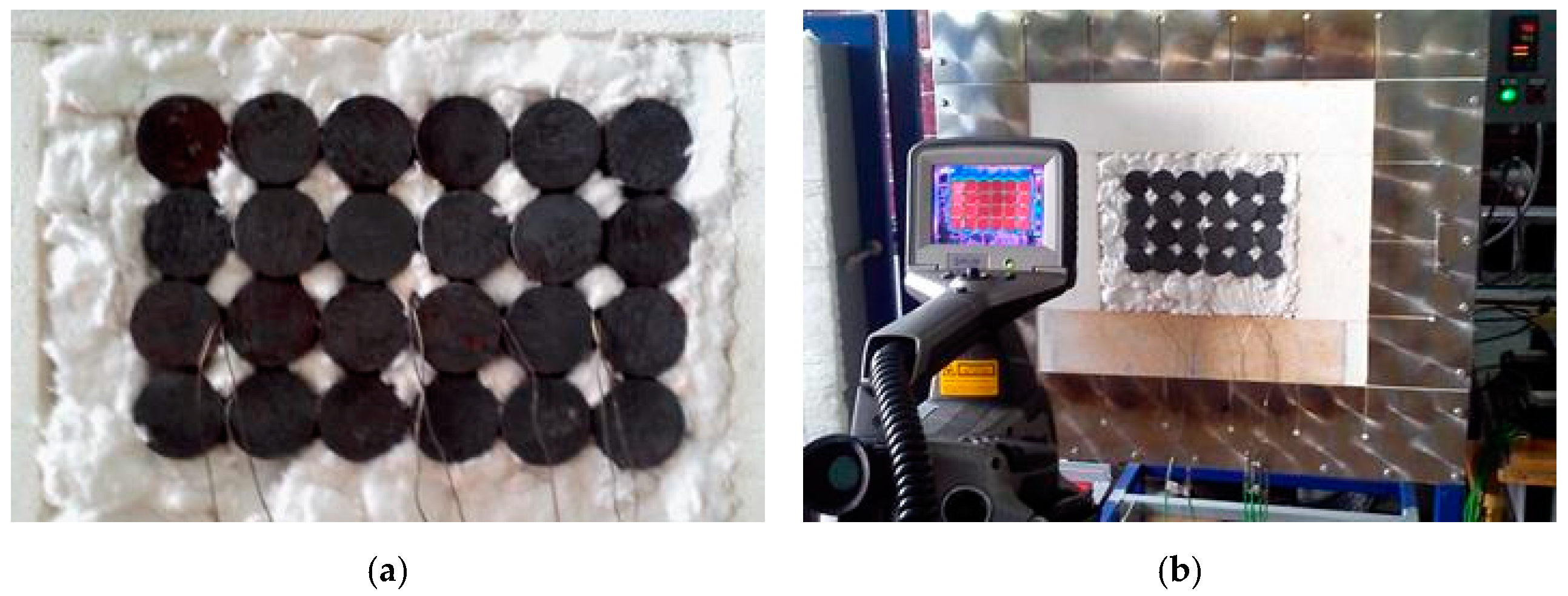

One example of using thermography to examine the porous charge is measuring the bed of 40 mm round bars, which was heated in the electrical chamber furnace. The charge was placed so that its face coincided with the plane of the furnace door. Thus, when the furnace was closed, the surface of the charge was in contact with the insulation of the internal surface of the furnace door. Therefore, heating this surface through convection was limited. In order to eliminate the radiation from the furnace interior that would disturb the measurements, any empty spaces were filled with the ceramic fabric. The view of this charge is presented in
Figure 16a. After starting the furnace, thermograms were recorded at five-minute intervals, as presented in

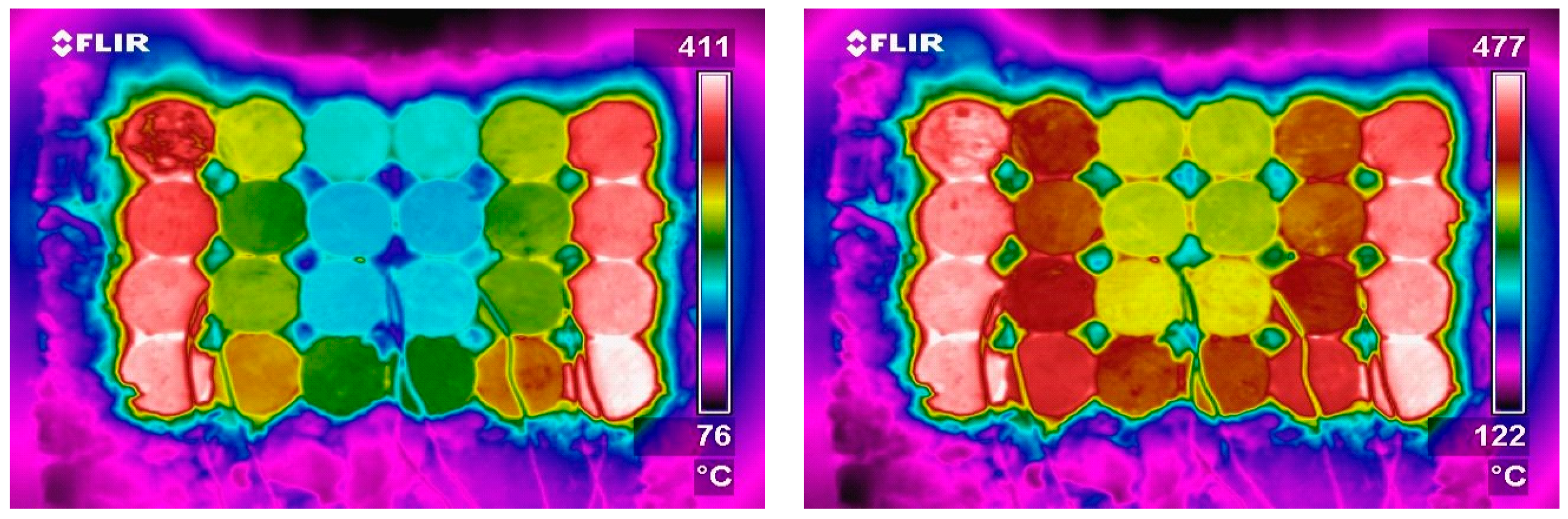

Figure 16b. The measurements were performed with the furnace door open, whereas after recording the thermogram, the door was closed. The heating time was 180 min. The temperature of the charge surface at the end of the process was over 500 °C. Two chosen thermograms recorded during these examinations are presented in
Figure 17.

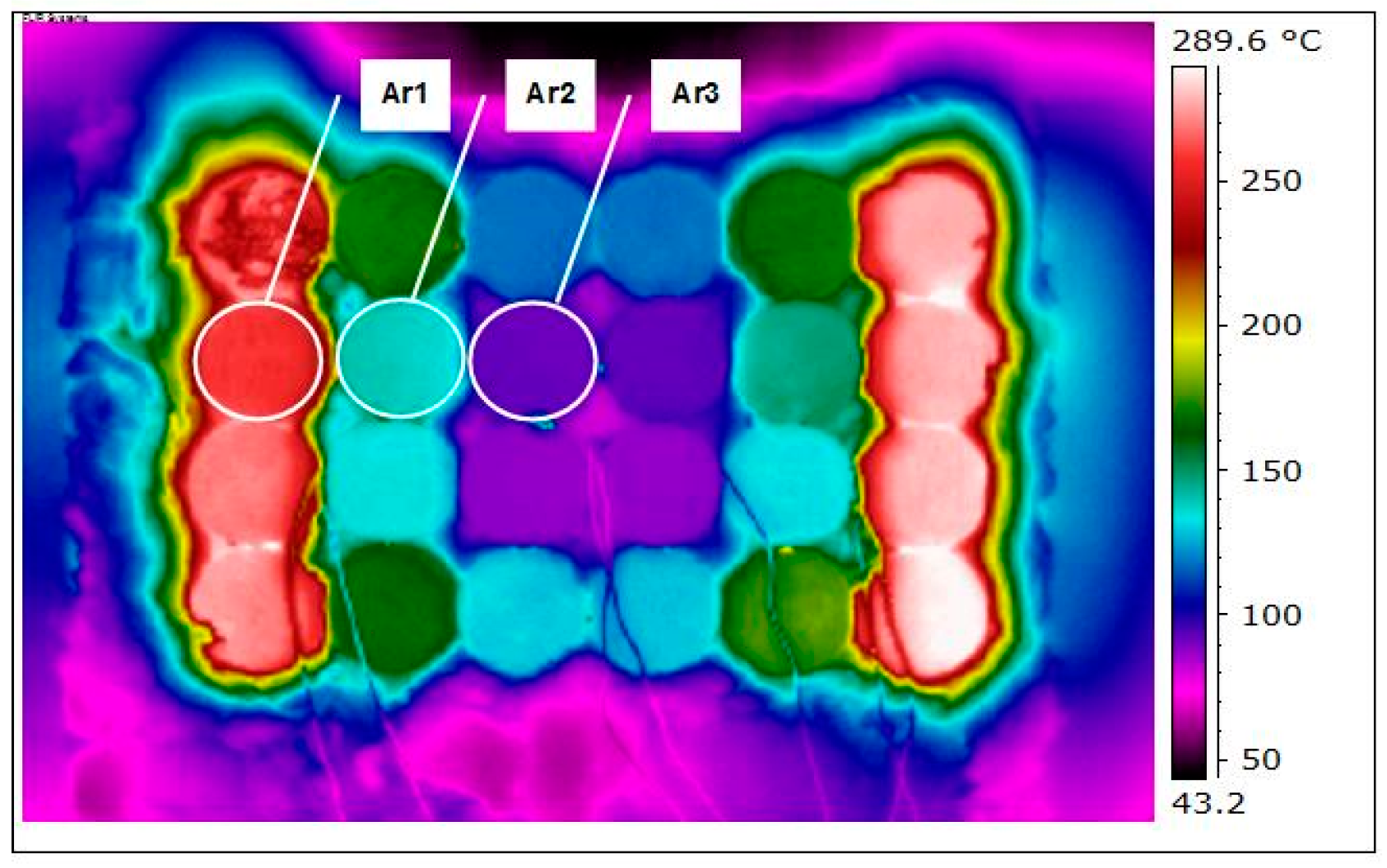

The obtained thermograms were then analysed in detail. The analysis consisted of separating three areas (denoted as Ar1, Ar2 and Ar3) which were coincident with the surfaces of three bars from the third layer of the bed. An example of the thermogram with these areas is presented in
Figure 18. Next, minimum temperature
tmin, maximum temperature
tmax, average temperature
tav and the difference Δ
t =
tmax −
tmin were determined.
As demonstrated, the thermographic method allows for a precise determination of the changes in the temperature field over the whole surface of the charge. In practice, there is no other technique of temperature measurement that offers such opportunities. The data obtained through the analysis provide important insights into the analysed process. The bases for such analyses are the diagrams that present changes in the parameters determined versus time. Two such charts are presented in
Figure 19.

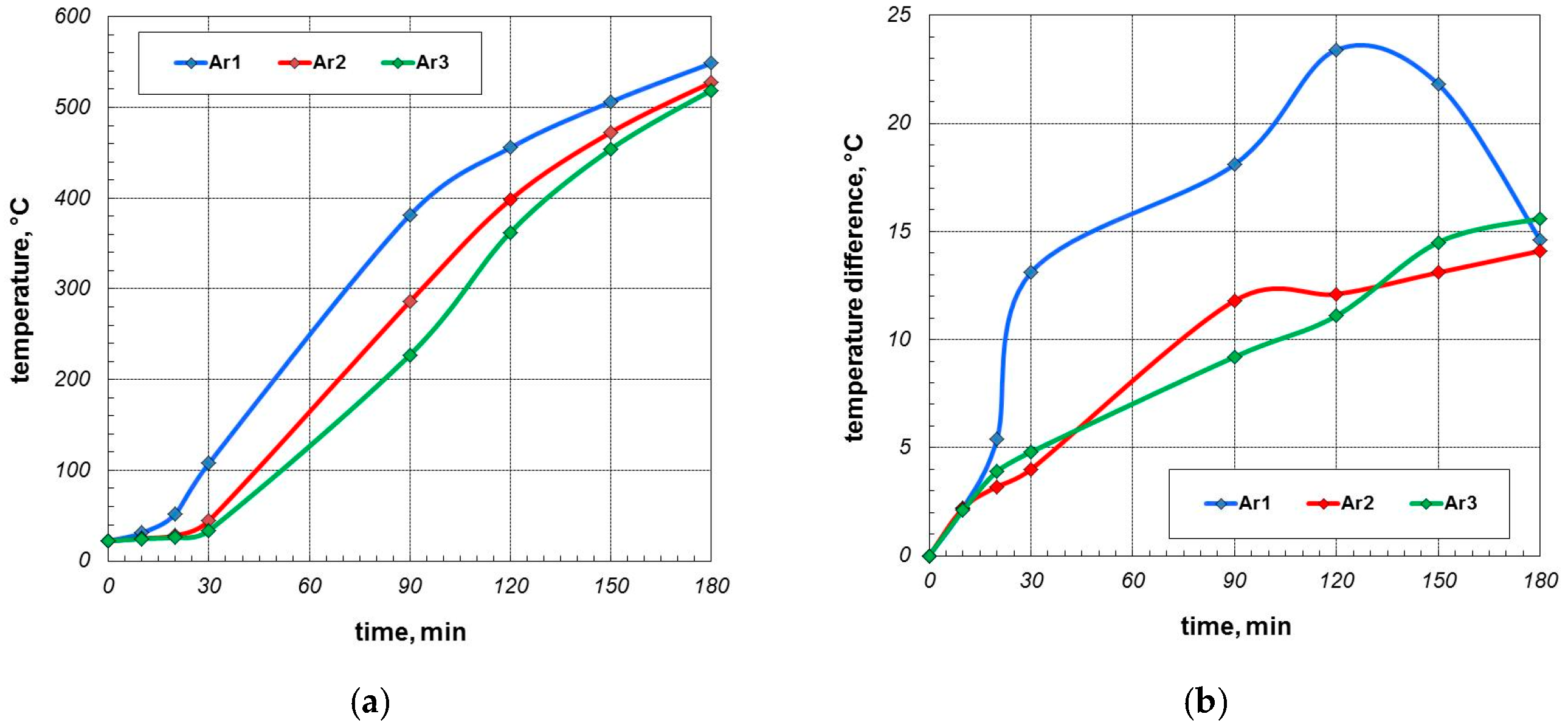

Figure 19a shows changes in
tav, whereas
Figure 19b illustrates changes in temperatures variation Δ
t. These data allow determining the intensity of individual processes of the heat exchange (heat radiation, natural convection or contact conduction) that occur in the area of the charge. It is possible to achieve it by introducing the notion of thermal resistance for each type of heat transfer [
47].
The second example of using thermography for examinations of heating the porous charge are measurements performed for the flat bed of 20 mm square bars. The fragment of the sample of such a bed is presented in

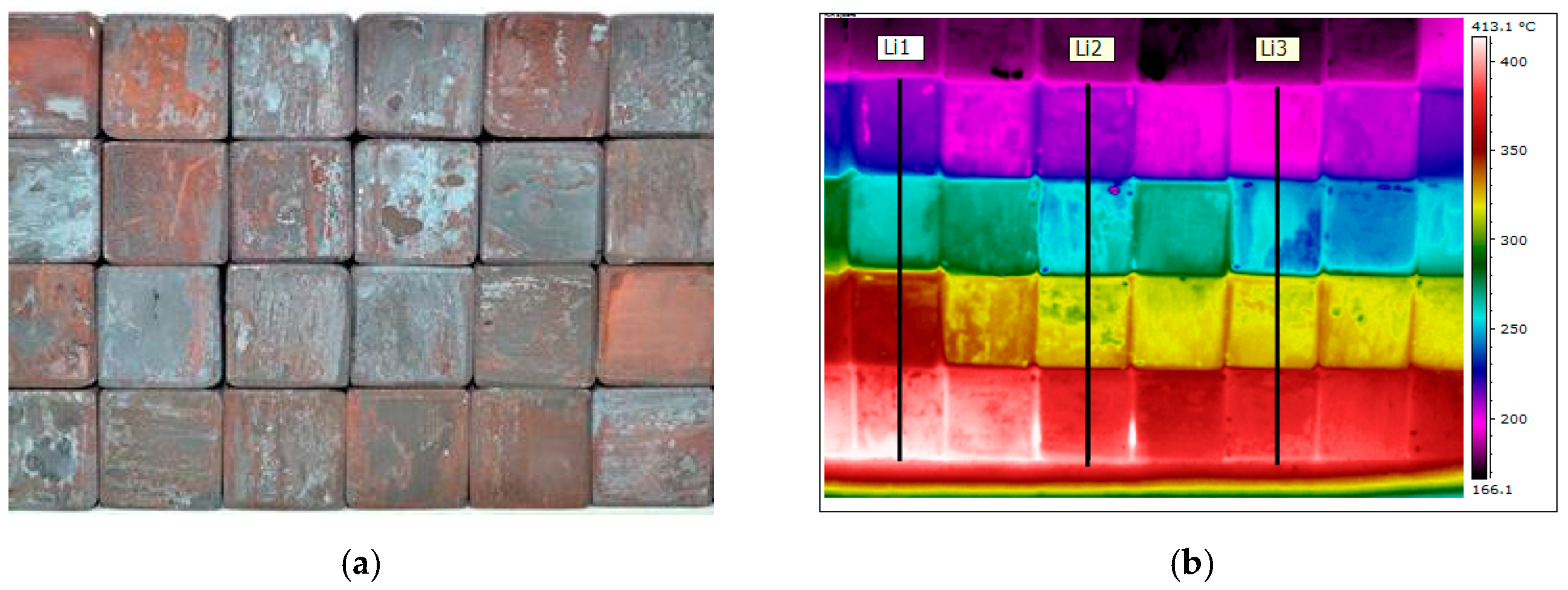

Figure 20a. The bed was heated in the furnace, which ensured one-dimensional heat flow. During this process, a thermogram for the frontal surface was recorded from time to time. One of the thermograms is presented in
Figure 20b. This thermogram contains three vertical lines Li1–Li3. Next, using the specialised software, changes in the temperature along these lines were evaluated, as illustrated in

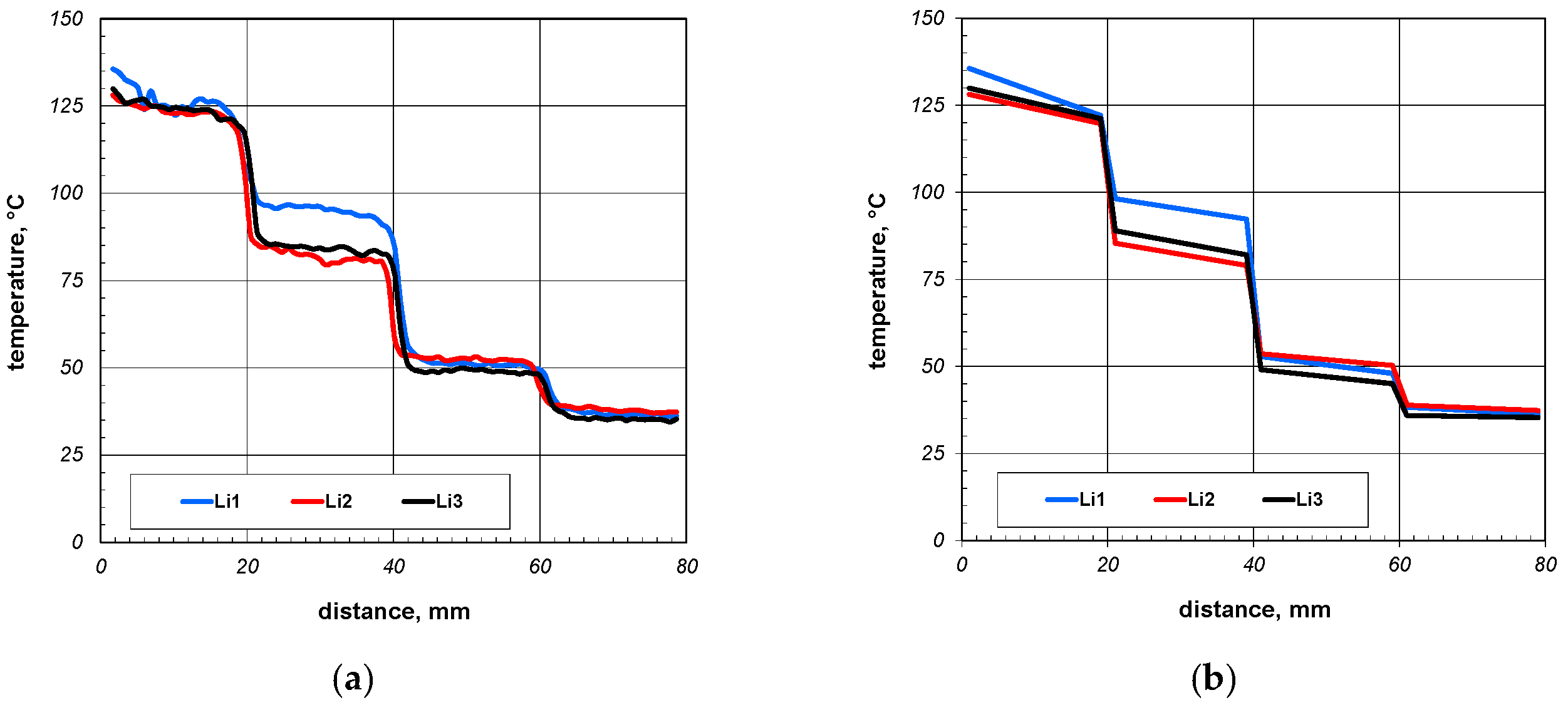

Figure 21a. The shape of individual lines in the chart is very irregular. Obviously, the temperature of a steel bar, which is a very good heat conductor, cannot be reflected by such a pattern. This effect is likely to result from differences in the emissivity of the bars caused by the oxide layer present on their surfaces. In order to make further analysis easier, the results from Diagram 21a were smoothed, obtaining consequently the patterns shown in
Figure 21b. The temperature declines are very easy to be quantitatively interpreted.
As the results in
Figure 20b show, the temperature decline in the area of the bed was determined based on the height of four layers. Therefore, temperature changes presented in Diagram 13b concern the declines that occur alternately in the area of layers of bars and in joints. As can be observed, greater declines concern joints. This seems obvious since joints are locations of the highest heat flow resistance, with its measure provided by the temperature decline.
If the thermogram is recorded under conditions of steady heat transfer, it can be used for the evaluation of several thermal parameters. The resistance for heat conduction occurring in the area of bars
Rbr can be expressed by means of the relationship that results from the Fourier equation (Equation (6)). Furthermore, if the thermal conductivity of bars
kbr is known, Equation (6) can be used to determine the heat flux (Equation (7)). If the value of the heat flux is known, the thermal resistance in the bars joints
Rj can be determined (Equation (8)):
where: Δ
t—difference in temperature in the bar cross-section;
q—heat flux in the sample;
lbr—dimensions of bars in the direction of heat flow;
kbr—thermal conductivity of bars; Δ
tj—temperature drop in the area of the joint.
The investigations according to the presented methodology for a bed of square 20 mm bars were described in [
48]. It was established that
Rj resistance for the tested sample changed from 0.00149 to 0.00280 (m
2⋅K)/W. An increase in temperature of the sample decreased the value of
Rj, which is determined by the phenomenon of the heat radiation.
The resistances
Rbr and
Rj can be used to determine the value of the effective thermal conductivity
kef of the charge. This is achieved through the analysis of series and parallel connections of heat resistances for a specifically separated small part of the medium analysed, which is called a unit cell. This methodology is widely used in the theory of porous media for the determination of effective thermal conductivity [
49,
50,
51].
5. Modelling of Effective Thermal Conductivity of a Porous Charge
The literature presents numerous analytical models of the effective thermal conductivity dedicated to solid body-gas [
23,
24,
25]. They can be divided into two general groups: simple models and complex models [
52]. Simple models predict the value of the
kef coefficient only as a function of the primary parameters, i.e., thermal conductivities of the solid phase
ks and gas phase
kg and the porosity of the medium
φ, whereas complex models include additional parameters, also called secondary parameters. This group of parameters includes: contact resistance, thermal radiation as well as the mean size of grains or voids. The usefulness of the chosen models of effective thermal conductivity for determining the thermal properties of a porous charge was analysed in [
53]. The paper analyses nine simple models (Series, Parallel, Maxwell–Eucken, EMT, Horai, Beck, Assad, Woodside and Bruggeman models) and two complex models (Kunii–Smith and Zehner–Bauer–Schlünder models). It was stated that simple models do not provide correct results, which are several times greater or smaller than the experimental
kef values. Complex models proved to be much more useful. However, obtaining the correct
kef values with the use thereof requires a careful fit of the parameters, which expresses the intensity of thermal contact conduction. However, obtaining a correct fit requires measurement data, which is a major disadvantage of these models. This leads to a general conclusion that the crucial problem in modelling the effective thermal conductivity of a steel porous charge with the use of complex models is the proper description of the thermal contact conduction.
Apart from the above-mentioned models, which have a general application, the literature provides also models dedicated to a steel porous charge [
54]. Given equations concern the three types of a charge with a layered (Equation (9)), fibrous (Equation (10)) and granular structure (Equation (11)) with the following forms:
where:
ks,
kg—thermal conductivities of steel and gas, respectively;
δ—thickness of the metal layer;
Tm—absolute mean temperature of the charge.
Using Equations (9)–(13), the computations of the
kef coefficient were made for the temperatures of 25–700 °C. The analysis dealt with four porosities (0.1, 0.21, 0.35 and 0.5), two values of metal layer thickness (10 and 40 mm), for which the thermal conductivities for steel
kst and gas
kg change according to the following equations [
47]:
The values of the
kef coefficient presented in

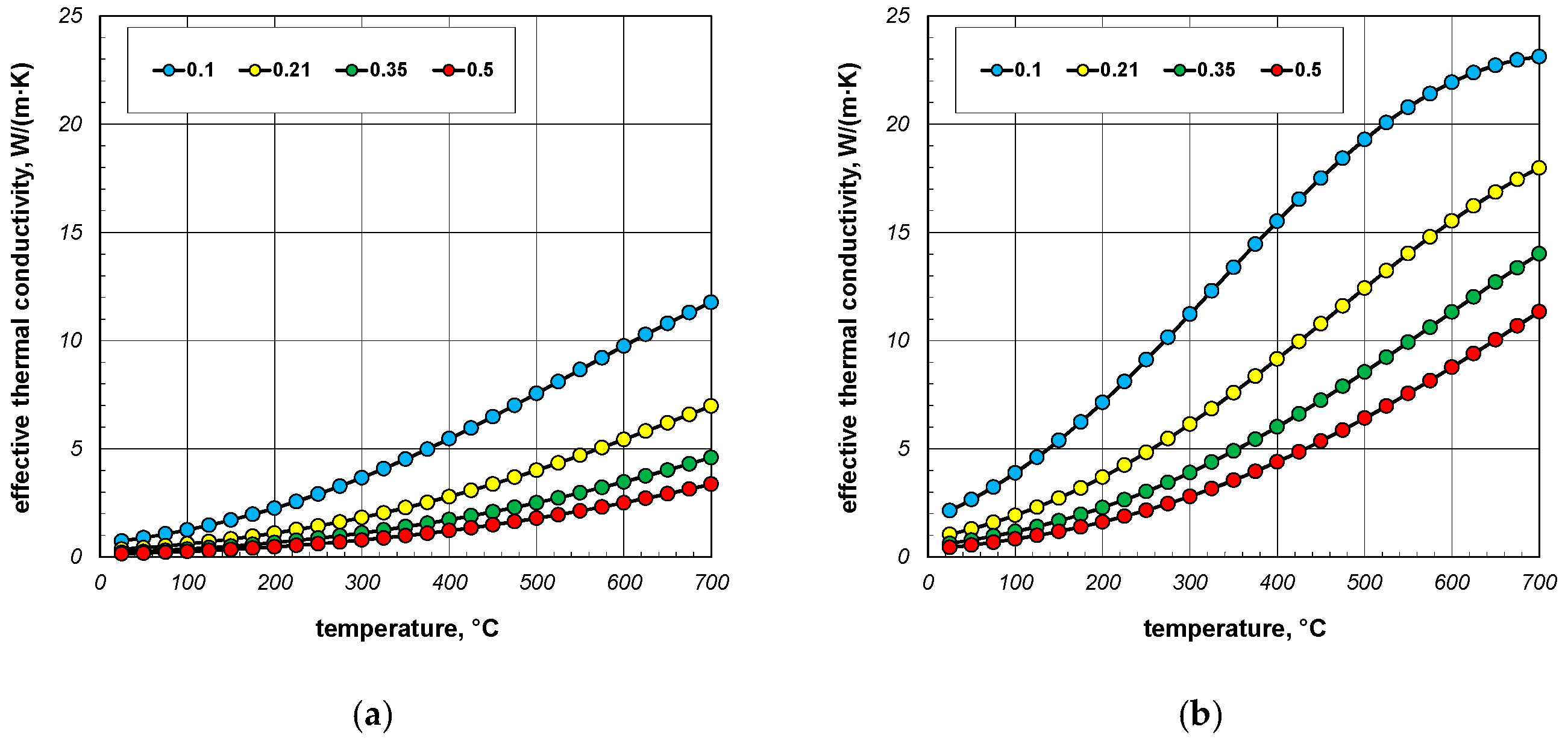

Figure 22 concern the charge with the layered structure.
Figure 22a presents the results for the layers of metal with the thickness of 10 mm, whereas
Figure 22b for the thickness of 40 mm. The effective thermal conductivity calculated for this model increases with temperature and decreases with the charge porosity. In the case of a 10 mm layer,
kef ranges from 0.15 to 11.8 W/(m·K), and in the case of a 40 mm layer, the range is 0.44–23.1 W/(m·K).
The model values of

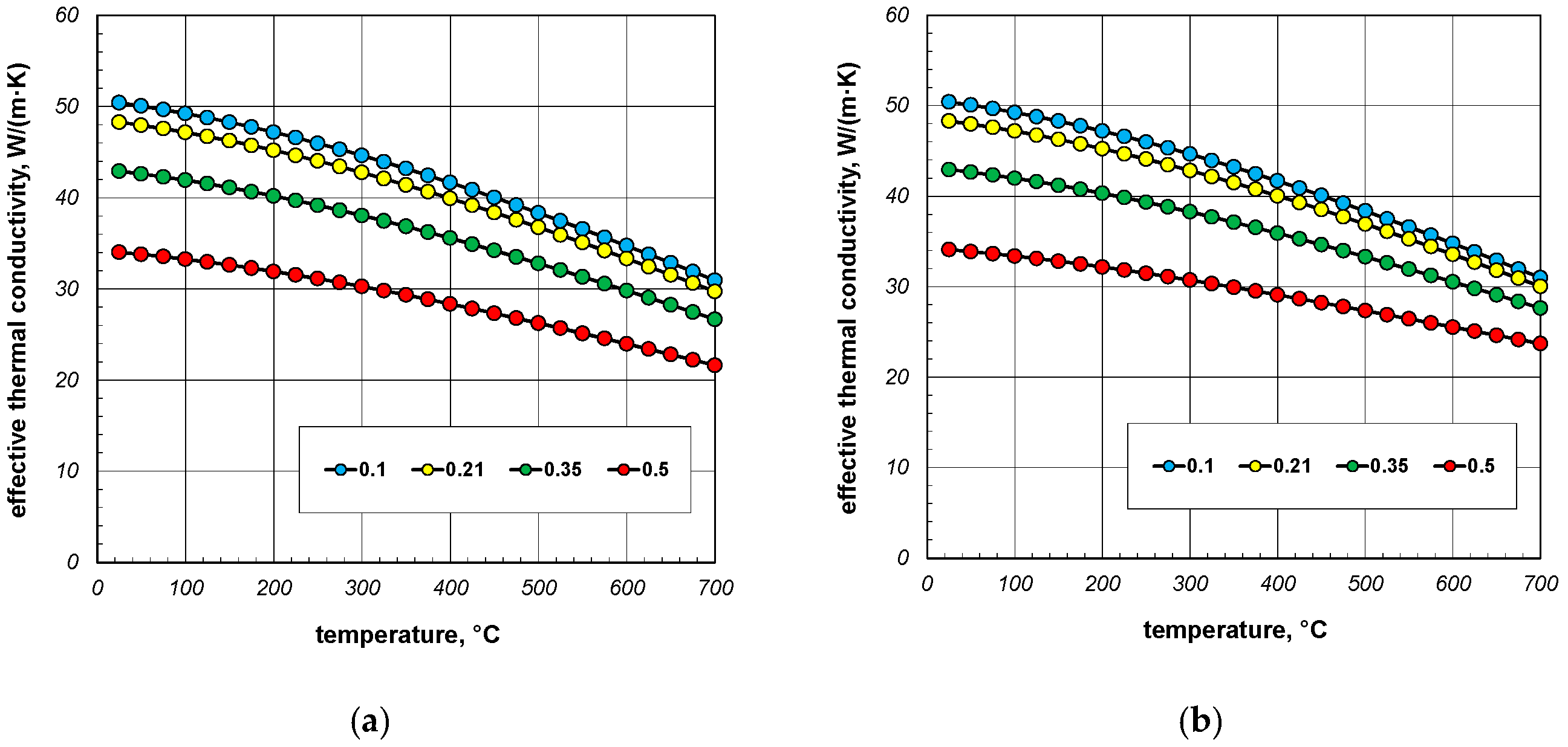

kef obtained for the charge with a fibrous structure are presented in
Figure 23. In this case, the effective conductivity decreases with temperature and insignificantly depends on the
δ parameter (results in

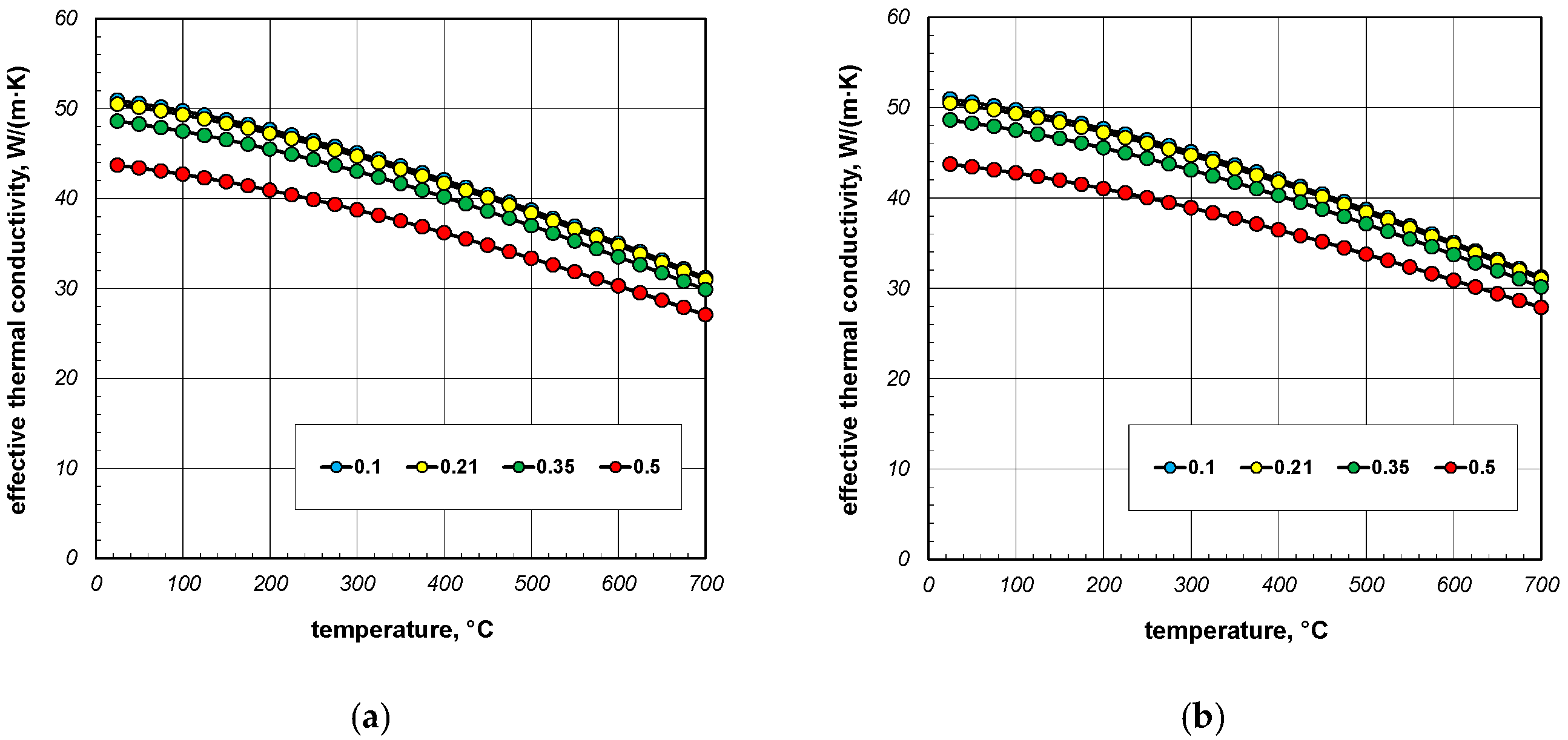

Figure 23a,b are nearly identical). The effective thermal conductivity, in this case depending on temperature and porosity, ranges from 21.6 to 50.4 W/(m·K). Very similar results were obtained for the granular structure model, presented in
Figure 24. This model, compared to the previous one, gives very similar results; however, it is only slightly less sensitive to changes in porosity. The effective thermal conductivity obtained in this case ranges from 27.1 to 50.9 W/(m·K).
The values of the kef coefficient obtained from the three analysed models are not consistent with the presented earlier experimental results. The models concerning a fibrous and granular charge do not even yield values correct from a qualitative point of view. The kef coefficient obtained from these models decreases with temperature, whereas it should actually increase. This tendency was observed only for the model of the layered charge. However, it is not very accurate in quantitative terms. As demonstrated by the measurements for the charges analysed (with the porosity of 0.1–0.88), the effective thermal conductivity ranges from 1.05 to 6.9 W/(m·K), whereas for the model (with the porosity of 0.1–0.5), this range is from 0.15 to 23.1 W/(m·K). Therefore, this model also seems to be useless from the practical point of view.
The presented results of model calculations of the
kef coefficient lead to a conclusion that the literature models are not suitable for determining the thermal properties of a porous charge. In order to do that, it is necessary to apply individually developed models, which take into account the characteristics of the heat transfer which occurs in the analysed medium. A very convenient approach in this situation is the thermal resistance concept or the electrical analogy. This method can be used to solve steady heat transfer problems that involve the analysis of combined series-parallel arrangements. The starting point for such an analysis is a geometrical model of the analysed medium in the form of a so-called elementary cell. Such a cell is made up of a repeatable fragment of the considered charge. Then, the total thermal resistance
Rtot for such a cell is obtained. Finally, the effective thermal conductivity is calculated based on the equation for the conduction resistance of the plane wall [
38]:
where
L is the dimension of the cell in the heat flow direction.
A model describing the total thermal resistance for a complex heat transfer in the package of steel rectangular sections which uses the electrical analogy was described in the article [
55]. When determining the thermal resistance
Rtot, this model takes into consideration the following types of heat transfer: conduction in section walls, conduction and natural convection within gas, heat radiation between the walls of a section, as well as contact conduction between the adjacent sections. The total thermal resistance of the system considered in this case is considered as a serial connection of two resistances: heat resistance of sections
Rst and thermal contact resistance
Rct that occurs between the adjacent layers of the package:
Determining the resistance
Rst requires taking into consideration all the mechanisms of the heat flow that take place in the area of the sections. The heat in this element is transferred by: conduction in steel walls, conduction and free convection within gas inside the sections and thermal radiation between the inner surfaces of a section. Each of the individual heat transfer mechanisms is assigned a corresponding thermal resistance. For this reason, when calculating the value of
Rst, it is necessary to take into consideration the following: conduction resistances in steel
Rs, conduction resistance in gas
Rgs and radiation resistance
Rrd. This solution assumes a one-dimensional heat transfer characterised by a heat flux
q. In this situation, a complex multidimensional heat transfer is regarded as one-dimensional. Due to such a simplification, the two following assumptions are used: (i) any plane wall normal to the direction of the heat flow is isothermal; (ii) any plane parallel to the direction of the heat flow is adiabatic [
38]. This approach leads to two different resistance networks, which also means two different values for the total thermal resistance
Rst-a and
Rst-b.

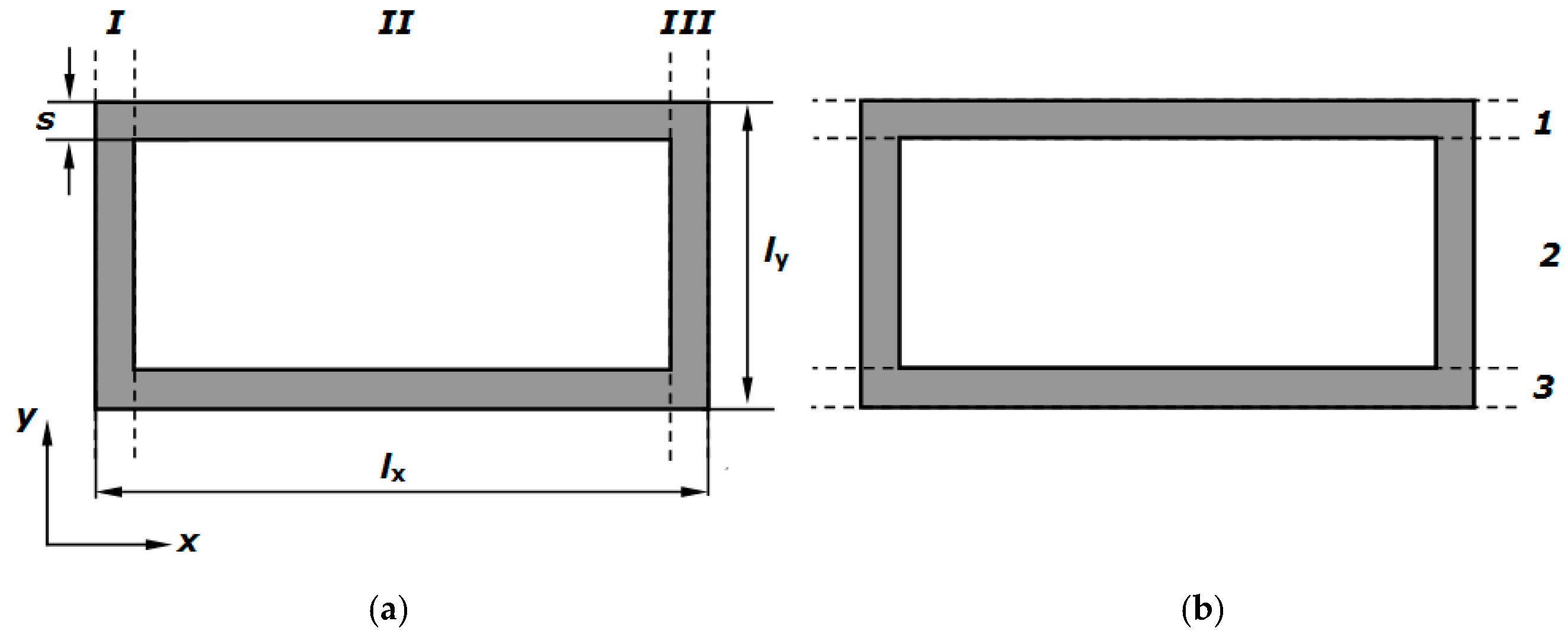

The resistance
Rst-a relates to the division of the section into three vertical zones
I-III parallel to the direction of heat flow (
Figure 25a). The resistance
Rst-b relates to the division of the section into three horizontal layers 1–3 (

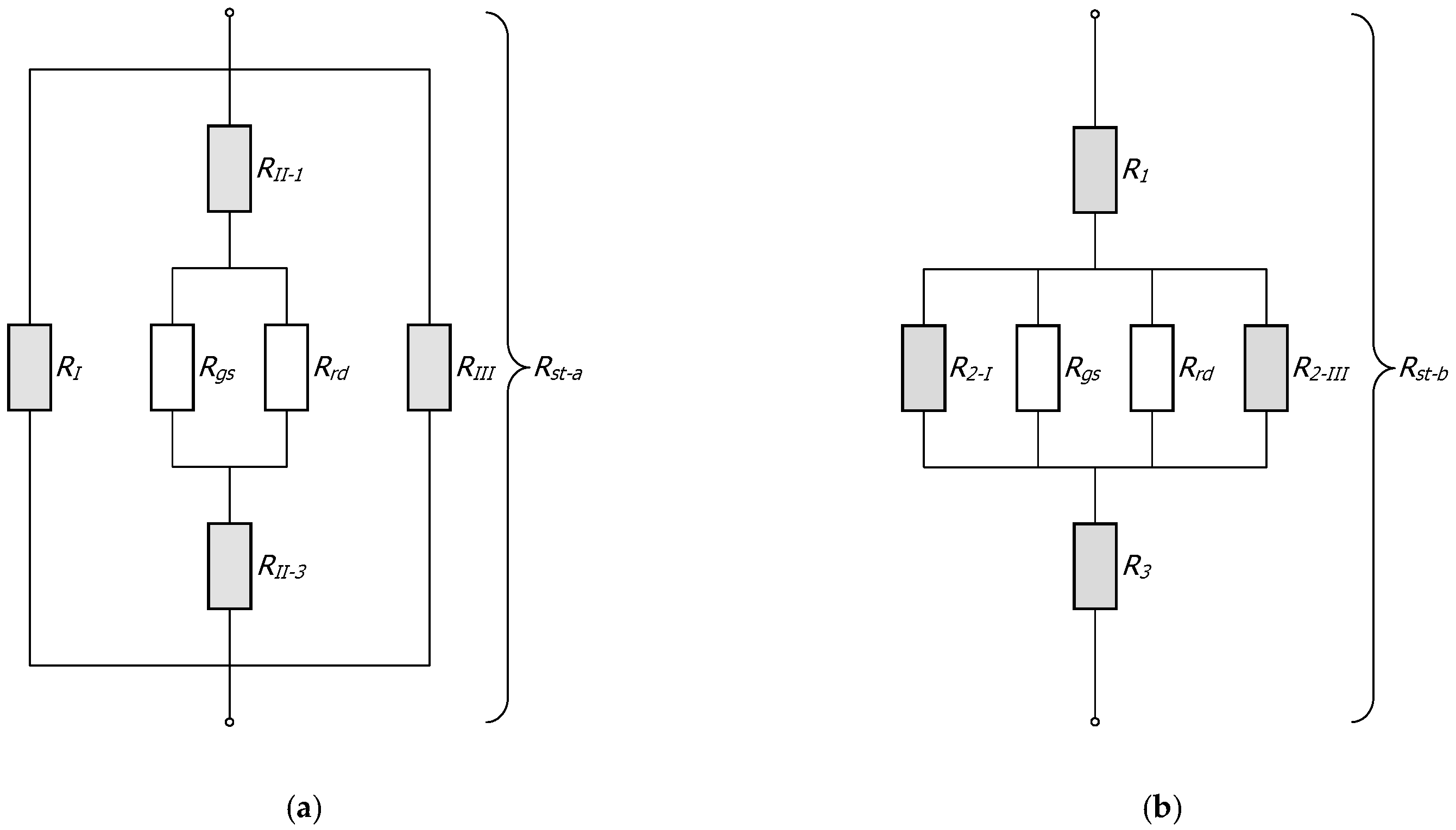

Figure 25b). The thermal resistance networks for both divisions of the section are shown in
Figure 24. On this basis, it is possible to write down:
As each division of a section takes into account different assumptions about the temperature field, the value of
Rst-a is slightly bigger than the value of
Rst-b. For this reason, the final value of
Rst is calculated as follows [
56]:
The resistances occurring in Equations (18) and (19), which apply to conduction in section walls, are marked grey in
Figure 26. The resistance
Rgs applies to the heat transfer in the gas. This phenomenon is connected with simultaneous conduction and natural convection. Both mechanisms of the heat transfer can be treated jointly as an intensified heat conduction expressed quantitatively by the equivalent gas thermal conductivity
keg [
38,
45]:
where:
kg—thermal conductivity of gas;
Nu—Nusselt number. The methodology of determining the
Nu number for natural convection within a steel section was described in [
45]. Depending on the section size and gas temperature, the value of
Nu varies within the range from 1.2 to 7.1.
Radiation resistance
Rrd is obtained on the basis of the analysis of thermal radiation exchange in the system which consists of four flat surfaces that close a space. The methodology for the determination of
Rrd resistance for this system was described in [
57].
The thermal contact resistance
Rct from Equation (17), with respect to temperature
t, can be approximated by the polynomial [
55]:
Based on the experimental investigations, it has been established that due to shape errors of the sections, the value of
Rct resistance can fit within certain limits. The minimum and maximum values of the resistance
Rct are described by the following equations:
Using Equations (23) and (24) for the considered section package, two limiting values of the effective thermal conductivity kef can be received. The kef coefficient of a given section package should remain between these values. Such an approach is possible because this coefficient is not a material property but expresses only the ability of a given charge to transfer heat. In the case of the analysed charge, this feature greatly depends on the contact conditions in adjacent sections’ layers, which may vary for different section types.

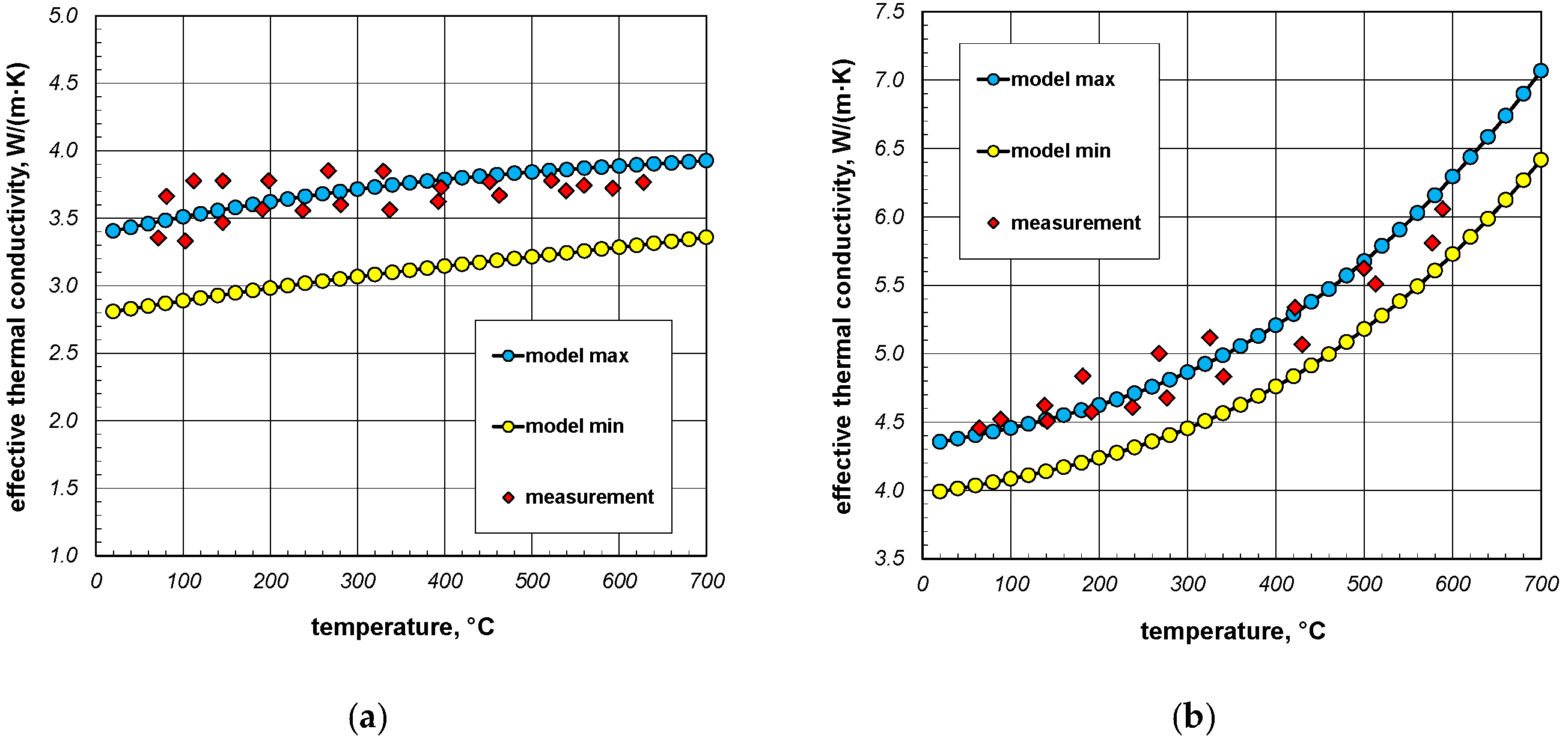

The results of calculations of the
kef coefficient according to the presented methodology obtained for the two different packages of profiles are presented in
Figure 27.
Figure 27a shows the results obtained for a package of 20 × 40 mm sections with a wall thickness of 2.5 mm. The results in this case refer to a situation when a heat flow occurred along a shorter wall of the section. The above-mentioned diagram additionally shows the results of experimental measurements of the
kef coefficient of this charge. As can be seen, the maximum values of
kef obtained for the minimum value of the
Rct resistance (Equation (23)) are between the experimental values. A similar situation was observed, in the case, of a bundle of 60 × 60 mm sections, for which the results of model calculations and measurement of the
kef coefficient are presented in
Figure 27b. In this case, the wall thickness was adopted as 3 mm.
In order to assess the quality of the results obtained with the use of the presented model, it was necessary to calculate the percentage discrepancies between the measurement and model values of the
kef coefficient. This parameter was defined with the use of the following relationship:
Table 2 shows the minimum, mean and maximum values of
dkef obtained for the analysed section packages. The obtained values of
dkef show that the differences between the model and experimental results for both packages fit within the range of measurement uncertainty of the
kef coefficient. Therefore, it can be stated that the proposed model of effective thermal conductivity provides results that are very close to the values obtained during measurements. What is important, this model also correctly predicts the changes of the
kef coefficient in the temperature function. This example proves that the method of analysis of the complex heat transfer in a porous charge based on electrical analogy is an effective computational tool.
