Polar Voltage Space Vectors of the Six-Phase Two-Level VSI

Abstract

The paper recommends polar voltage space vectors of the six-phase and two-level inverter as a useful mathematical tool for vector control of the inverter. The inverter model is described using three mathematical tools: analytic expressions, voltage state, and space vectors. The analytic formulas allow for the determination of elementary physical inverter quantities: current and voltage. The state voltage vectors make it easy to define phase voltage distribution in every possible state of the inverter and voltage space vectors are the most important tool used for inverters’ control. The space vectors are defined using the standard voltage space vector transformation, while the state vectors are denoted by binary numbers and determine all voltage states of the inverter. The proposed notation system and vectors’ marking seem to be extremely useful in specifying the inverter states. This system certifies a deep correlation between the space and state vectors as they are described using the same digits. The properties of the system were confirmed during the simulation tests. Some examples of the inverter vector control based on polar voltage space vectors prove that the proposed solution is a useful mathematical tool and may be in fact suitable in designing inverter control algorithms. The simulation experiment described in this paper shows that the assumed control strategy allows for a significant reduction in the amount of switching compared to PWM. At the same time, the adopted vector strategy allows for the obtaining of a very favorable value of the current THD coefficient while maintaining the RMS values of the currents.

1. Introduction

The increasing range of novel requirements and expectations in electric energy conversion has a great influence on the dependence of electric machines and converters, as well as the performance and level of power. Due to this continuous process and technology of innovative elements, there has been an expansion of new solutions in power electronics, drive control systems, and particularly in electric machines. Although conventional three-phase machines, such as squirrel-cage motors, are still widely used in variable-speed AC drives, they have numerous drawbacks and limits. Among them, one can distinguish their relatively poor operation reliability, as the lack of power even in only one-phase makes their further operation impossible. Moreover, there are high pulsations of the electromagnetic torque during the frequency control and DC link ripple in AC–AC indirect converters [1].

The need to address these issues has caused researchers to take a deep interest in multi-phase machines in recent years [2,3,4,5,6,7,8,9,10]. Not only are they characterized by potentially higher efficiency, improved fault tolerance ability, reduced torque ripple, and lower per phase power handling requirements, but they have also improved the system reliability because of their redundant structure. Another property is their ability to continue the operation under the faulted phase(s) conditions without any problems. In addition, dividing the system power into more than three phases results in diminishing the rating of semiconductor devices of the power electronics converter, which is an important feature. Generally, it is evident that a good way to improve and develop electric drives lies in a higher number of machine phases.

The implementation of these kind of machines in industry has been ensured by the comparable evolution of multi-pulse and multi-phase power electronics converters. Their varied topologies, as well as control strategies, are the subjects of many research papers, for example [11,12,13,14,15,16,17,18]. Multi-phase inverters provide higher voltage capability with voltage-limited devices, lower harmonic distortion, reduced switching losses, limited DC link ripple, higher reliability, and increased efficiency in comparison with the standard two-level inverters. The multi-phase inverter input current contains ripples though, which can be reduced by increasing the number of phases, which is noticed significantly when the number of phases is bigger than five but not more than nine [12]. A wide variety of innovative proposals for converter topologies can be found in the literature, for instance: hybrid novel multi-level and multi-phase inverters [11], a six leg buck-boost interleaved converter [13], or the bidirectional non-isolated multi-input DC–DC converter [14]. An alternative lies in direct conversion of electric energy. Two-channel conversion seems to be an interesting suggestion [18]. There are also proposals based on cascaded structures of multi-level converters [19,20] and multi-pulse rectifiers [21] used to supply multi-level inverters.

The numerous merits of multi-phase machines and multi-phase power electronic converters complement each other and therefore combining them together leads to better overall performance of any AC drive systems. Efficiency and functionality of the existing three-phase systems can be improved by replacing them with multi-phase ones. This results also in saving energy in the system, which is a real advantage regarding the fact that energy consuming is a matter of great concern in today’s world. Another point is that making use of multi-phase AC drive systems is crucial in applications where fault tolerance is critical, as for instance in aerospace systems. Apart from that, they are widely used in traction systems due to the need for redundancy, which cannot be achieved using three-phase systems due to space constraints [6]. Other important domains such as electric ship propulsions and electro-mobility are also the subject of multi-phase variable-speed drive applications [3,22,23,24,25,26]. Especially, electro-mobility has become another and really important area of power electronics’ development and currently a number of two as well as multi-level inverters are used in both AC and DC drives in mobile transport and traction. The great technology progress in batteries and supercapacitors allows for the belief in the possibility of overcoming existing limitations. This fact also implies using multi-level inverters in place of the main energy converters in vehicle drives. What is more, the ongoing trend of electrifying transportation has been making these systems more and more popular, which can be observed also in other fields of transport industry. The multi-phase evolution did not ignore the renewable energy domain. The multi-phase systems of wind energy generation are distinguished by good characteristics. What is more, there are applications in which simplified direct matrix converters are utilized to perform electrical energy.

The accumulative phase number means a new impact on research related to the circuits of the inverter as well as control algorithms. The more phases, the more semiconductor devices used in the inverter’s structure, which makes it more complex. As far as the applicable vectors are concerned, their quantity increases in power scale in relation to the phase number. The number of such vectors is equal to 64 for a six-phase two-level converter, which requires more evolved control methods in comparison to the common algorithms utilized in three-phase converters. This issue constitutes a reason for seeking appropriate mathematical tools and considering new models of the converter. Those should be profitable for the purpose of facilitating the development of control algorithms whose implementation is easy and ensures a fast performance of an inverter as well as its high operation efficiency. In the literature of the subject, there is a great differentiation of suggestions regarding converter models, their description, and control methods [26,27,28,29,30,31,32,33,34,35,36]. A lot of works concern different PWM-based modulation techniques used in multi-phase VSI [31,32] and even more contributions destined for the vector control method [28,29,30,33,34,35,36].

The paper concerns the effectiveness of polar voltage space vectors used to control six-phase two-level inverters. Simulation research results prove the utility of such a mathematical tool. The paper also includes analytic expressions that allow for describing the inverter model and calculating phase and phase-to-phase voltage and current waveforms. The mathematical apparatus delivers a universal and simplified vectors’ notation system and makes it easy to identify and define the converter states. The paper presents the development and significant extension of the vector control method based on the state and space vector relationship [36]. The acquired results allow for the conclusion that the main idea of the proposed system can be expanded and adopted to n-phase and n-level inverters in an easy way.

2. State and Space Vectors of a Six-Phase Two-Level Voltage Source Inverter

2.1. Model of Six-Phase Two-Level Inverter

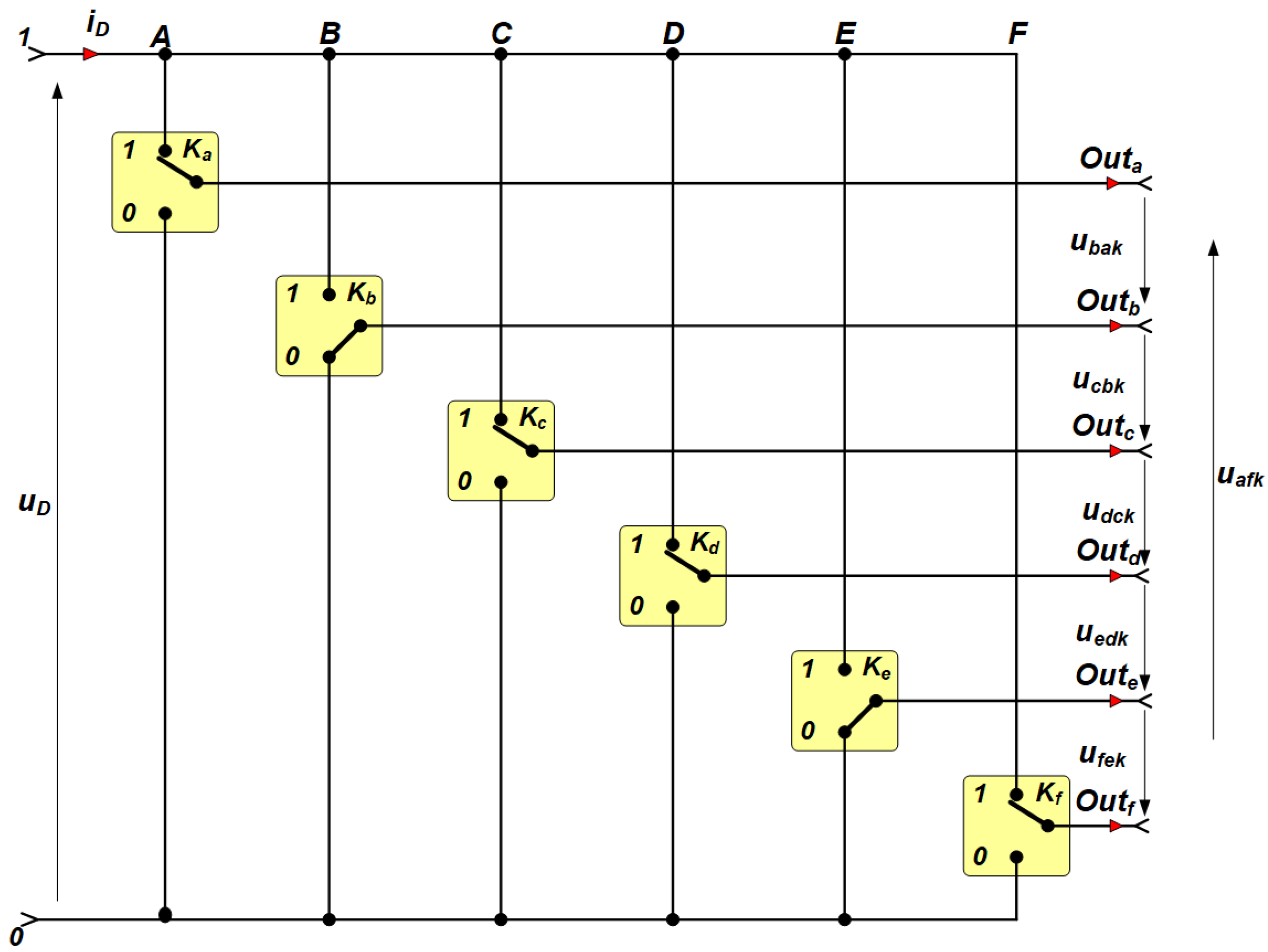

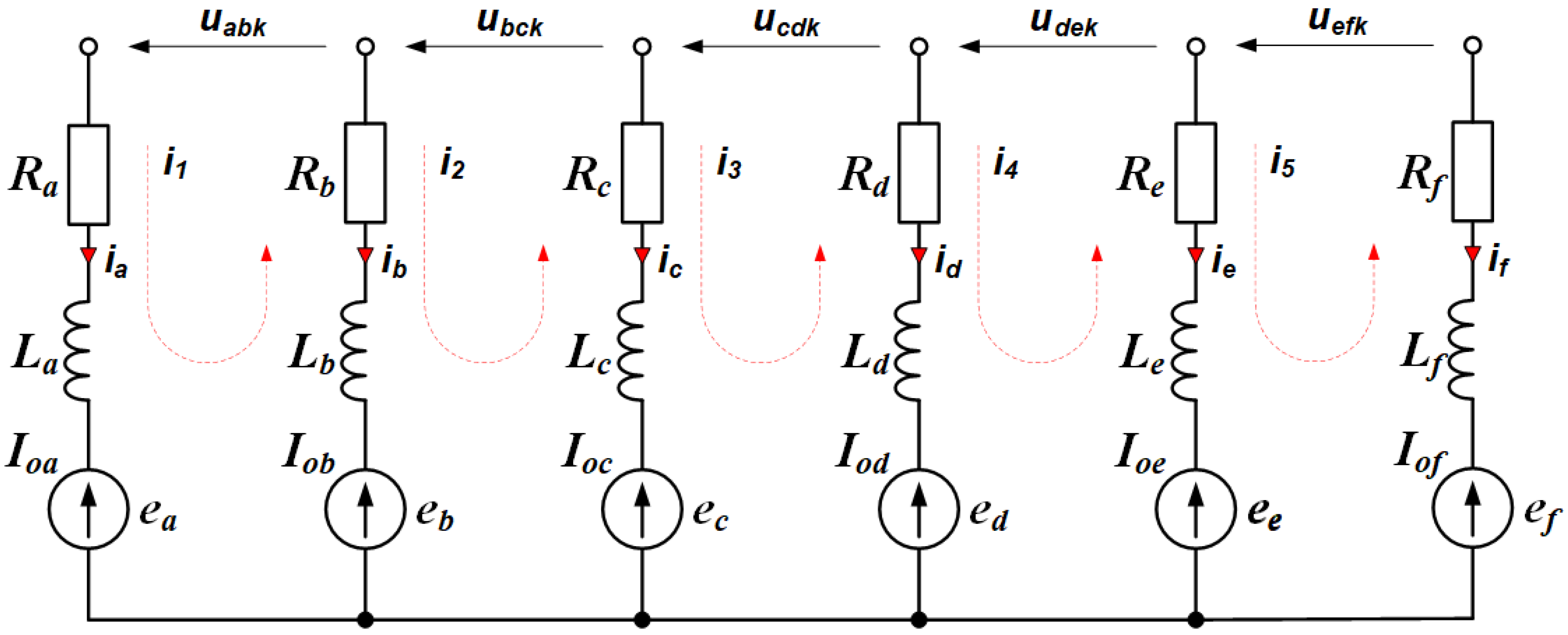

Figure 1 depicts a simplified diagram of the six-phase two-level converter. The proposed model consists of six two-state switches denoted as Ka, Kb, Kc, Kd, Ke, Kf that are connected to the U_D voltage source and associated with the corresponding phases. The voltage source’s positive pole is denoted as 1, whereas the negative is 0. Each switch has the ability to connect one source’s pole to the output of a particular phase, and hence the switching states are denoted by the 0 or 1 digit. The state of an inverter can be therefore expressed by the set of six digits including the switches’ states, which are denoted as a, b, c, d, e, f = 0, 1. That set can be represented by 64 variations, for instance 000000, 000001, …111111. A common method that is very useful is the assumption that such sets of digits form binary numbers, and hence a particular inverter’s state is determined by one binary number consisting of six digits. The most important issue is the precise consistency between the digits’ order and phases’ order. There is a possibility to express all 64 states of the inverter by decimals 0, 1₁₀, …64₁₀ with the usage of the conversion of the binary numbers to the decimal (base-10) system. In this way, the 16₁₀ (010000)₂ state signifies that phases a, c, d, e are connected to the voltage source’s negative pole, whilst phase b to the positive. Such a method, with the exclusion of decimal numbers, can be utilized in the other notation systems.

The base-2 and base-10 number systems have been applied to describe two-level inverter states from the very beginning of the power electronics development. However, the principle of a precisely controlled “number–phase” relationship was not always maintained. The above discussion is cited here because the description concept presented can be applied to other converters. A way to describe multi-phase (n-phase) or even multi-level (n-level) converters may arise with further development of this concept.

In order to provide the reader with a cohesive and precise description of obtained experimental results, this section is divided into subsections. They include the interpretation of achieved results, as well as the drawn conclusions.

2.2. State Vectors of the Six-Phase Two-Level Inverter

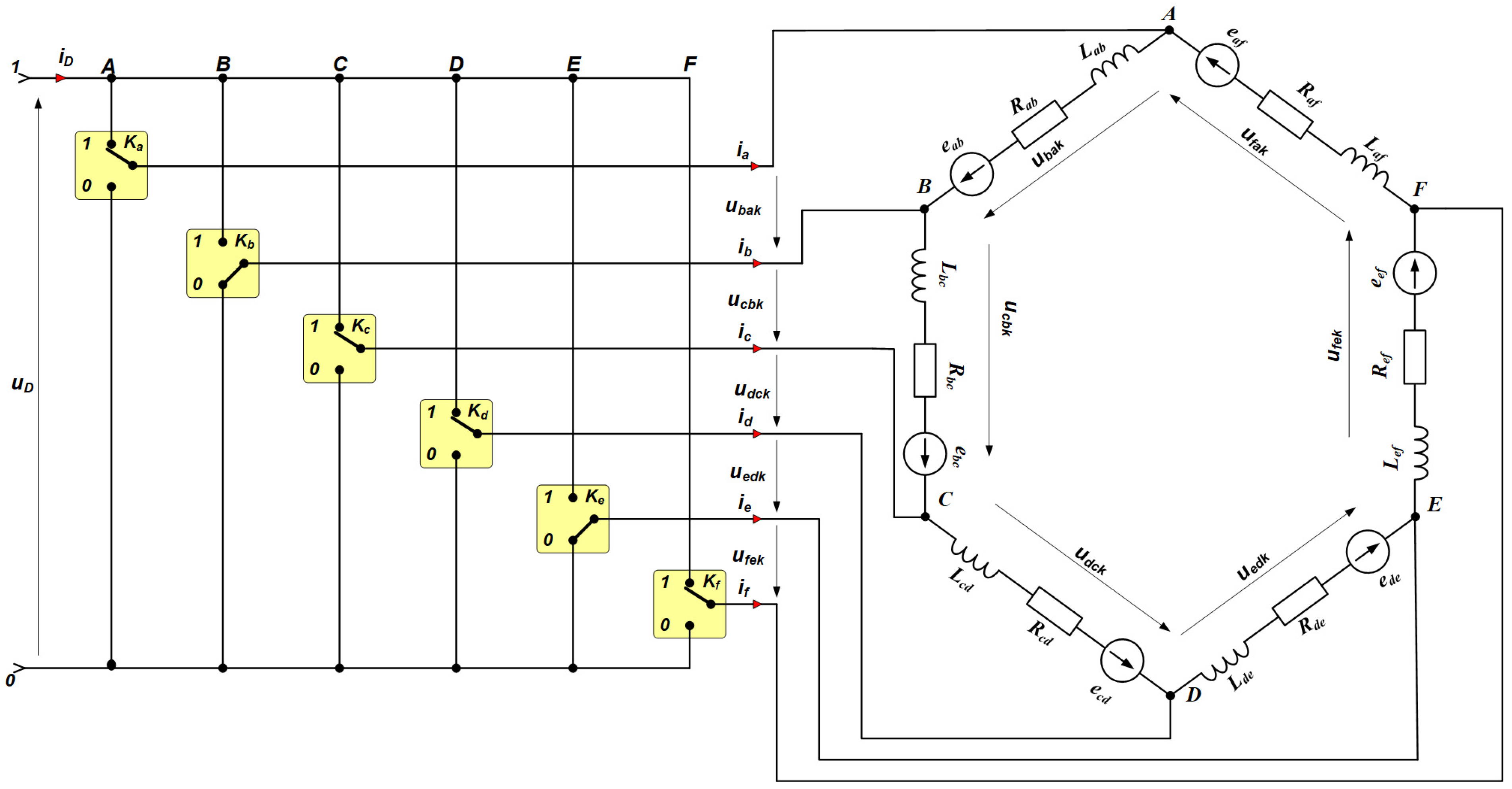

According to the model in Figure 1, the six-phase two-level voltage source inverter (VSI) has 64 diverse switching states, denoted by decimal index k = 0, 1, …, 63, respectively. Particular k-states determine the six phase-to-phase voltages that appear at the output of the inverter. The six-phase VSI state vector is defined as a matrix row composed of six elements:

$$V_k=\left[U_{abk}{U}_{bck}{U}_{cdk}{U}_{dek}{U}_{efk}{U}_{fak}\right]k=0,1,2,\dots ,63$$

(1)

Assuming $U_{abk}+U_{bck}+U_{cdk}+U_{dek}+U_{efk}+U_{fak}=0$, the state vector V_k s determined by a set of five U_xy phase-to-phase voltages under the condition that x and y denote the neighboring phases: x ≠ y and x, y = a, b, c, d, e, f.

The phase-to-phase voltage is formed by a difference between the particular phase outputs’ potentials. The switch K_a,b,c,d,e,f attaches the related phase output to one pole of the voltage source U_d. The state of the K_a,b,c,d,e,f is determined by the selected vector V_k.

The decimal vector index k can be reconverted to the binary number system and written as a binary number:

$$k={\left(a_k,b_k,c_k,d_k,e_k,f_k\right)}_2$$

(2)

where $a_k,b_k,c_k,d_k,e_k,f_k=0,1$ and k = 0, 1, 2, …, 63.

The phase output potentials related to the negative pole of the voltage source U_d are defined using the relevant binary symbol. Thus, the phase output polar voltages are

$$\left[\begin{array}{c}{u}_{a{0}_k}=a_k{U}_D\\ u_{b{0}_k}=b_k{U}_D\\ u_{c{0}_k}=c_k{U}_D\\ u_{d{0}_k}=d_k{U}_D\\ u_{e{0}_k}=e_k{U}_D\\ u_{f{0}_k}=f_k{U}_D\end{array}\right]$$

(3)

It allows for the definition of a six-phase two-level VSI state vector using the binary symbols of the decimal index k. The transpose of the matrixV_k llows for the presentation in one column of all six phase-to-phase voltages:

$$V_k=\left[\begin{array}{c}{u}_{a{b}_k}\\ u_{b{c}_k}\\ u_{c{d}_k}\\ u_{d{e}_k}\\ u_{e{f}_k}\\ u_{f{a}_k}\end{array}\right]=\left[\begin{array}{c}{u}_{a{0}_k}-u_{b{0}_k}\\ u_{b{0}_k}-u_{c{0}_k}\\ u_{c{0}_k}-u_{d{0}_k}\\ u_{d{0}_k}-u_{e{0}_k}\\ u_{e{0}_k}-u_{f{0}_k}\\ u_{f{0}_k}-u_{a{0}_k}\end{array}\right]=U_D\left[\begin{array}{c}{\left(a_k-b_k\right)}_2\\ {\left(b_k-c_k\right)}_2\\ {\left(c_k-d_k\right)}_2\\ {\left(d_k-e_k\right)}_2\\ {\left(e_k-f_k\right)}_2\\ {\left(f_k-a_k\right)}_2\end{array}\right]$$

(4)

The symbols $a_k,b_k,c_k,d_k,e_k,f_k$ may be equal only to 0 or 1, so any phase-to-phase voltage may assume one of these voltages: 0, +U_d, −U_d.

The inverter state vector V_k operates on physical quantities. Therefore, in order to calculate the load currents, there is no need to use a mathematical transform. A diagram of the six-phase two-level inverter with a load connected in a hexagon is shown in Figure 2. It assumes the symmetry of the load as well as the equality between each phase-to-phase load and two-terminal networks: <resistor R—inductance L—counter RMF>—connected in series. The inverter state is determined by the vector V_k, which means that the six corresponding phase-to-phase voltages are connected to the load. Figure 3 depicts the operation point in which phases a, c, d, f are connected to the pole 1 (+U_D), whereas remaining phases are connected to the pole 0 (−U_D). Therefore, the state vector is determined as V_45(101101).

The adequate phase-to-phase voltages are given in (4). For any vector V_k switched on at a time equal to t = t_n, the inverter model can be transformed to an equivalent circuit described by the set of six equations. Each equation can be expressed by

$$u_{xyk}=R_{xy}\cdot i_{xy}\left(t\right)+L_{xy}\frac{d{i}_{xy}\left(t\right)}{dt}+E_{xy}\left(t\right),$$

(5)

where x and y denote the adjacent phases: x ≠ y and x, y = a, b, c, d, e, f. The voltage u_xyk is defined based on (4) as

$$u_{xyk}=\left[u_{x0k}-u_{y0k}\right]=U_D\left[x_k-y_k\right]$$

(6)

Assuming that the EMF_xy counter is constant in a time interval $t\mathbf{<}{t}_n,t_{n+1}\mathbf{>}$ and equal to E_xy respectively, it is possible to solve the equations and write expressions describing load currents (7). The symbol τ denotes the time constant of one load leg and I_0xy—the current value in the time instant t_n. The expressions (7) are valid in the definite time interval between the successive switching of the inverter states V_k(n) and V_k(n+1). The time interval is assumed to be exceptionally short in comparison with the time constant of the load circuit and the expected period of the counter electromotive force (EMF).

$$i_{xyk}=\left[u_{xyk}-E_{xy}\right]\frac{1-e^{-\frac{t}{\tau }}}{R}+I_{0xy}{e}^{-\frac{t}{\tau }}k=0,1,2,\dots ,63$$

(7)

where the time constant of the two-terminal network is $\tau =\frac{L_{xy}}{R_{xy}}$.

The expressions (6) and (7) define the dependence between phase-to-phase voltage and load current using the appropriate symbols of the vector index k binary expansion.

2.3. Star Connected Load of the Six-Phase Two-Level Inverter

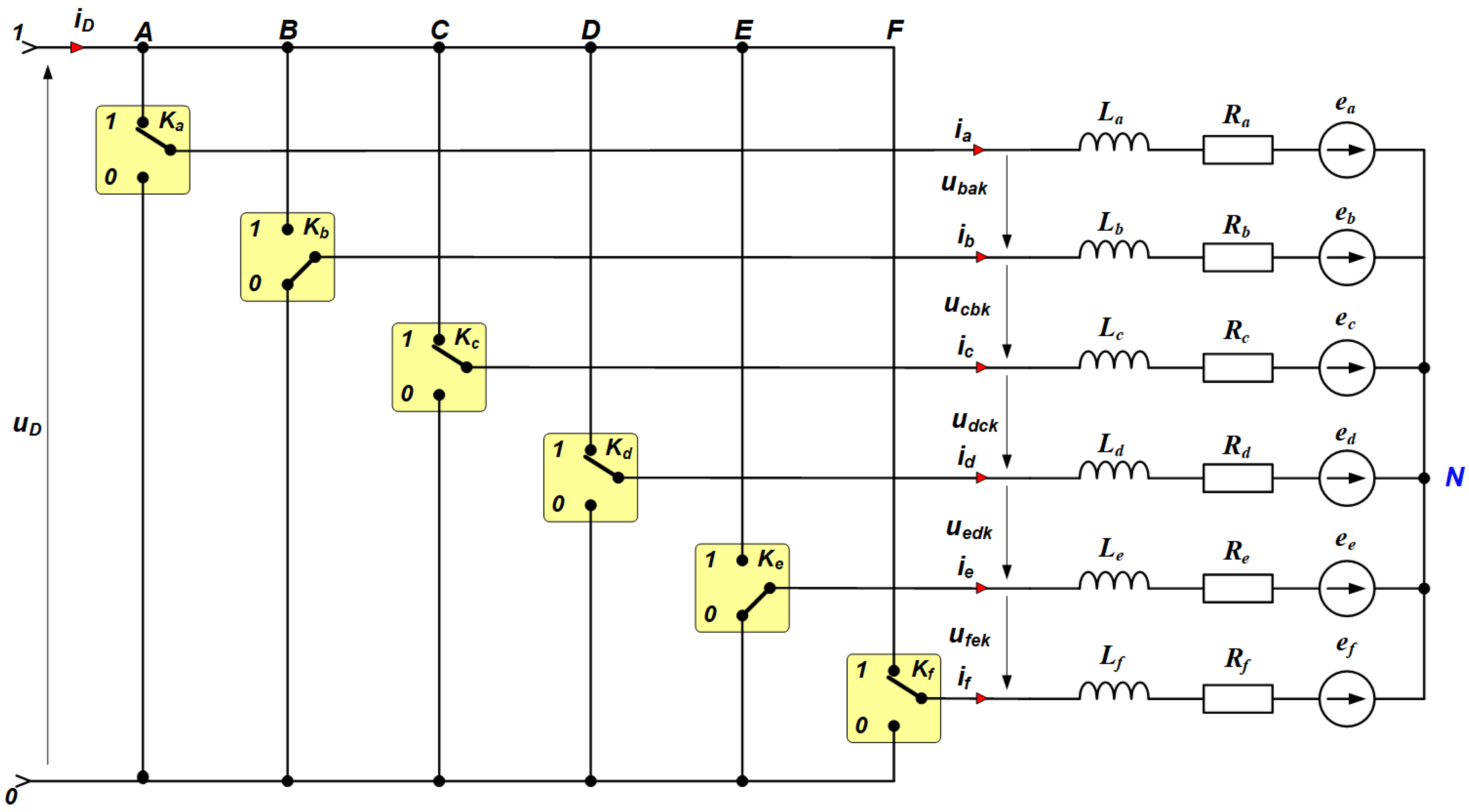

The six-phase two-level inverter model with a star connected load is presented in Figure 3.

For any selected vector V_k in the time instant t = t_n, the load-inverter model can be reduced to the equivalent five-closed-loop circuits shown in Figure 4.

Considering the time point t = t_n when the state vector V_k is switched on, as well as assuming it is acting in a very short time interval $t\mathbf{<}{t}_n,t_{n+1}\mathbf{>}$, the following assumptions can be made:

$$u_{xyk}=U_{xyk},e_x=E_x$$

(8)

where x and y denote the adjacent phases: $x\ne y,x,y=a_k,b_k,c_k,d_k,e_k,f_k$.

The phase-to-phase voltages are constant, and the phase counter EMFs are as well. In the considered system, the following dependences are obligatory:

$$\begin{gathered} e_a+e_b+e_c+e_d+e_e+e_f=0 \\ {i}_a+i_b+i_c+i_d+i_e+i_f=0 \\ {I}_{0a}+I_{0b}+I_{0c}+I_{0d}+I_{0e}+I_{0f}=0 \end{gathered}$$

(9)

Assuming the phase load is fully symmetrical, the circuit’s mathematical model is described by the system of five equations:

$$\left\{\begin{array}{c}{U}_{abk}\left(t\right)=R·i_1\left(t\right)+L\frac{d{i}_1\left(t\right)}{dt}+E_a-E_b+L\frac{d\left[i_1\left(t\right)-i_2\left(t\right)\right]}{dt}+R\left[i_1\left(t\right)-i_2\left(t\right)\right]\\ U_{bck}\left(t\right)=R\left[i_2\left(t\right)-i_1\left(t\right)\right]+L\frac{d\left[i_2\left(t\right)-i_1\left(t\right)\right]}{dt}+E_b-E_c+L\frac{d\left[i_2\left(t\right)-i_3\left(t\right)\right]}{dt}+R\left[i_2\left(t\right)-i_3\left(t\right)\right]\\ U_{cdk}\left(t\right)=R\left[i_3\left(t\right)-i_2\left(t\right)\right]+L\frac{d\left[i_3\left(t\right)-i_2\left(t\right)\right]}{dt}+E_c-E_d+L\frac{d\left[i_3\left(t\right)-i_4\left(t\right)\right]}{dt}+R\left[i_3\left(t\right)-i_4\left(t\right)\right]\\ U_{dek}\left(t\right)=R\left[i_4\left(t\right)-i_3\left(t\right)\right]+L\frac{d\left[i_4\left(t\right)-i_3\left(t\right)\right]}{dt}+E_d-E_e+L\frac{d\left[i_4\left(t\right)-i_5\left(t\right)\right]}{dt}+R\left[i_4\left(t\right)-i_5\left(t\right)\right]\\ U_{efk}\left(t\right)=R\left[i_5\left(t\right)-i_4\left(t\right)\right]+L\frac{d\left[i_5\left(t\right)-i_4\left(t\right)\right]}{dt}+E_e-E_f+L\frac{d{i}_5\left(t\right)}{dt}+R·i_5\left(t\right)\end{array}\right\}$$

(10)

The phase and loop currents relations are the following:

$$i_{ak}\left(t\right)=i_1\left(t\right),i_{bk}\left(t\right)=i_2\left(t\right)-i_1\left(t\right),i_{ck}\left(t\right)=i_3\left(t\right)-i_2\left(t\right)$$

(11)

$$i_{dk}\left(t\right)=i_4\left(t\right)-i_3\left(t\right),i_{ek}\left(t\right)=i_5\left(t\right)-i_4\left(t\right),i_{fk}\left(t\right)=-i_5\left(t\right)$$

(12)

The relations between phase and phase-to-phase voltages remain, as follows (13):

$$\begin{gathered} U_a=\frac{5}{6}{U}_{ab}+\frac{2}{3}{U}_{bc}+\frac{1}{2}{U}_{cd}+\frac{1}{3}{U}_{de}+\frac{1}{6}{U}_{ef} \\ {U}_b=-\frac{1}{6}{U}_{ab}+\frac{2}{3}{U}_{bc}+\frac{1}{2}{U}_{cd}+\frac{1}{3}{U}_{de}+\frac{1}{6}{U}_{ef} \\ {U}_c=-\frac{1}{6}{U}_{ab}-\frac{1}{3}{U}_{bc}+\frac{1}{2}{U}_{cd}+\frac{1}{3}{U}_{de}+\frac{1}{6}{U}_{ef} \\ {U}_d=-\frac{1}{6}{U}_{ab}-\frac{1}{3}{U}_{bc}-\frac{1}{2}{U}_{cd}+\frac{1}{3}{U}_{de}+\frac{1}{6}{U}_{ef} \\ {U}_e=-\frac{1}{6}{U}_{ab}-\frac{1}{3}{U}_{bc}-\frac{1}{2}{U}_{cd}-\frac{2}{3}{U}_{de}+\frac{1}{6}{U}_{ef} \\ {U}_f=-\frac{1}{6}{U}_{ab}-\frac{1}{3}{U}_{bc}-\frac{1}{2}{U}_{cd}-\frac{2}{3}{U}_{de}-\frac{5}{6}{U}_{ef} \end{gathered}$$

(13)

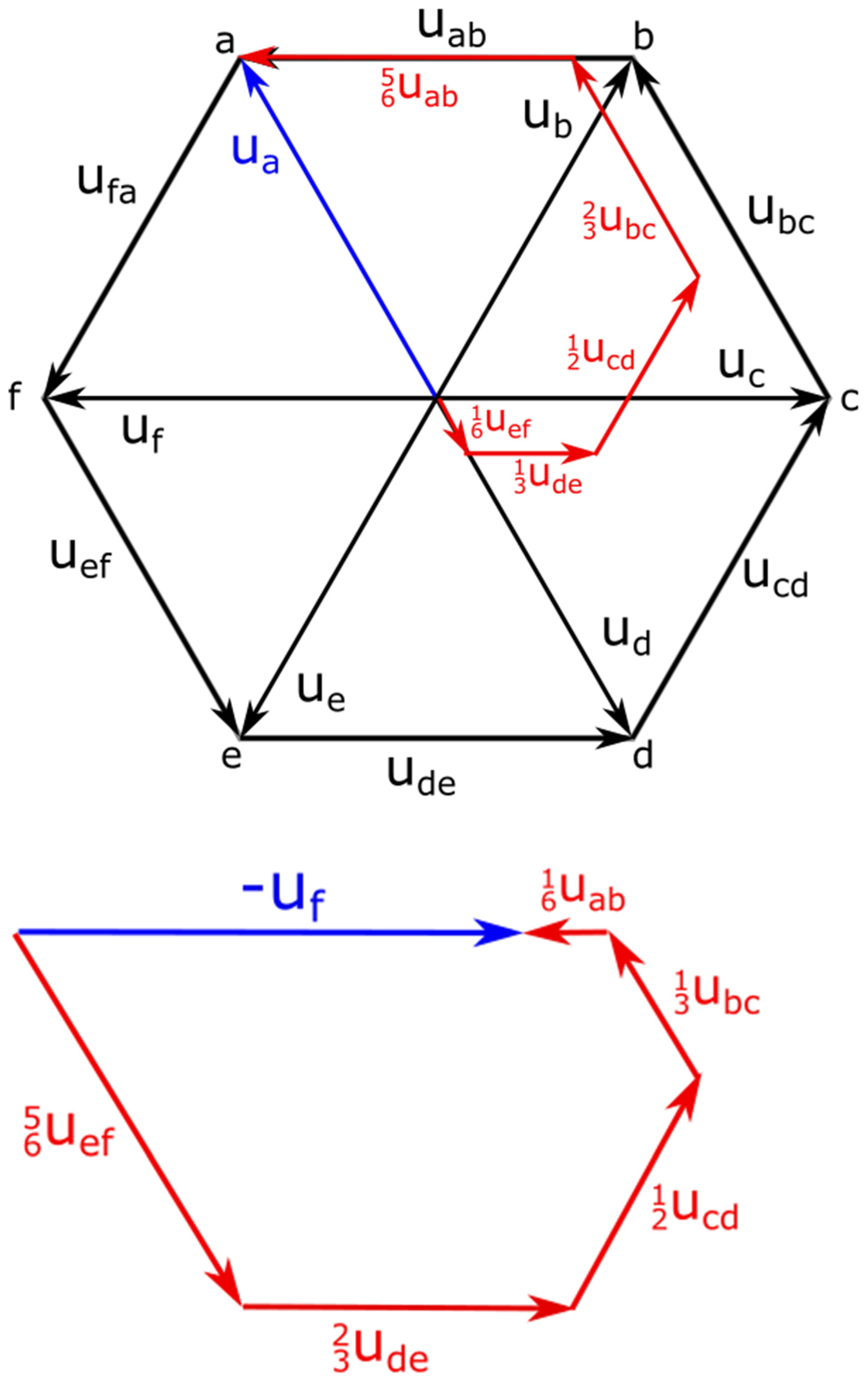

Two examples of this relation are presented below in Figure 5. They demonstrate the phase voltage vectors U_a, U_f as a sum of all phase-to-phase voltage vectors.

The phase voltages U_xk depend on selected vectors V_k. Knowledge of these voltages is indispensable if the system of equations is to be solved. In order to receive the final solution of the system (10), the Laplace transform has been used as the most convenient mathematical tool. Using this instrument, it was possible to solve the system and find the analytical expressions describing the phase voltage and current. The Laplace transform of successive phase currents is given as

$$I_{xk}\left(s\right)=\frac{U_{xk}-E_x}{L\left(s+\frac{1}{\tau }\right)}+\frac{I_{0x}}{s+\frac{1}{\tau }}$$

(14)

while the inverse Laplace transform leads to the analytical expressions of phase currents. They are expressed by

$$i_{xk}\left(t\right)=\frac{U_{xk}-E_x}{R}\left(1-e^{-\frac{t}{\tau }}\right)+I_{0x}{e}^{-\frac{t}{\tau }}$$

(15)

where the index x denotes the successive phases x = a, b, c, d, e, f, and $E_x=E_{max}\sin \left(\omega t_n+{\phi }_x\right)$ E_max and φ_x are EMF parameters at the time instant t = t_n.

The phase voltage U_xk depends on the selected vector and does not depend on the counter EMF.

In the considered wye load circuit, the phase voltage can be evaluated by the binary symbols of the decimal vector index k—$a_k,b_k,c_k,d_k,e_k,f_k$ as in the way presented in [35]. The phase voltages $u_{ak},u_{bk},u_{ck},u_{dk},u_{ek},u_{fk}$ of the two-level six-phase VSI are:

$$\left[\begin{array}{c}{u}_{a_k}\\ u_{b_k}\\ u_{c_k}\\ u_{d_k}\\ u_{e_k}\\ u_{f_k}\end{array}\right]=\frac{U_D}{6}\left[\begin{array}{c}5a_k-b_k-c_k-d_k-e_k-f_k\\ 5b_k-a_k-c_k-d_k-e_k-f_k\\ 5c_k-a_k-b_k-d_k-e_k-f_k\\ 5d_k-a_k-b_k-c_k-e_k-f_k\\ 5e_k-a_k-b_k-c_k-d_k-f_k\\ 5f_k-a_k-b_k-c_k-d_k-e_k\end{array}\right]$$

(16)

The considered six-phase VSI has 64 state vectors determining all possible voltage states of the inverter. Each vector represents its own phase connection to the supply voltage U_D. A few examples of potential circuits are presented in Figure 5.

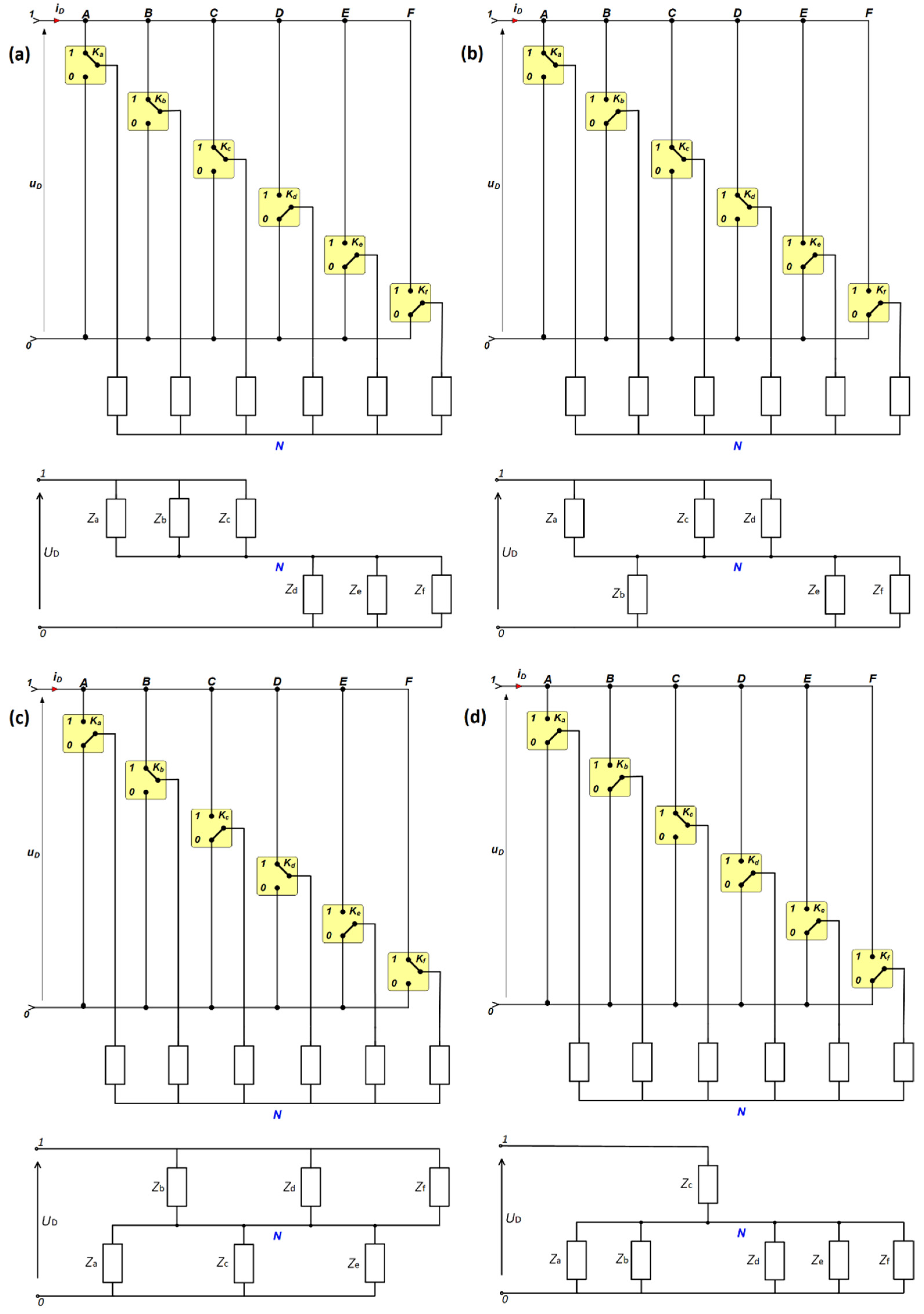

Figure 6 presents selected load configurations. The arrangement presented in 6a conforms to the vector V_56(111000), which means that three phases (a, b, c) are connected to the pole 1 of the voltage source (+U_D), while the remaining phases are connected to the pole 0. Assuming all phase impedances Z equal the supply voltage, U_D is divided into two values, 0.5U_D and −0.5U_D, referenced to the neutral point N. This result determines the phase voltages u_a56, u_b56, u_c56 equal to +0.5U_D and u_d56, u_e56, u_f56 equal to −0.5U_D, respectively. The other few proposed load configurations are presented in Figure 6b–d. They present three diversified states: V_44(101100), V_21(010101), V_8(001000), respectively. For the two first vectors, the U_D division is the same as in case 6a, but different phases have positive or negative phase voltages, while the case 6d presents the situation when only one phase c is connected to the pole 1 (+U_D). Thus, the result in the phase c voltage equals +0.8U_D while the remaining phases, connected to the pole 0, are supplied by voltage −0.2U_D. Among 64 vectors, there are six thinkable combinations of load configuration when only one phase is connected to the pole 1 (+U_D) and the next six when the one phase is connected to the pole 0 ($-U_D$) because mathematically $\left(\begin{array}{c}6\\ 1\end{array}\right)=\left(\begin{array}{c}6\\ 5\end{array}\right)=6$. All the remaining combinations $\left(\begin{array}{c}6\\ 2\end{array}\right)=\left(\begin{array}{c}6\\ 4\end{array}\right)=15,\left(\begin{array}{c}6\\ 3\end{array}\right)=20,\left(\begin{array}{c}6\\ 6\end{array}\right)=\left(\begin{array}{c}6\\ 0\end{array}\right)=1$ are implicated in the consequent 52 states. The last two states demonstrate the situation when all phase-to-phase voltages u_{xy(0 or 63)} are equal to zero, so they do not influence the phase currents. They are usually called “zero vectors”.

2.4. Polar Voltage Space Vectors of the Six-Phase Two-Level Voltage Source Inverter

The polar voltage space vector of the two-level six-phase VSI is determined analogically to the way presented in the previous sections. The definition was established as

$${\stackrel{-}{V}}_k=\frac{5}{6}\left(u_{a0k}+q{u}_{b0k}+q^2{u}_{c0k}+q^3{u}_{d0k}+q^4{u}_{e0k}+q^5{u}_{f0k}\right)$$

(17)

where $q=e^{j2\pi /6}=\cos 60°+jsin60°=\frac{1}{2}+j\frac{\sqrt{3}}{2}$.

$${\stackrel{-}{V}}_k=\frac{5}{6}{U}_D\left(a_k+b_k{e}^{j\frac{\pi }{3}}+c_k{e}^{j\frac{2\pi }{3}}+d_k{e}^{j\pi }+e_k{e}^{j\frac{4\pi }{3}}+e_k{e}^{j\frac{5\pi }{3}}\right)$$

(18)

Equation (18) expresses the space vector which is defined in symbols of the index k binary expansion. The index k is a decimal number discriminating the state vector $k={\left(a_k{b}_k{c}_k{d}_k{e}_k{f}_k\right)}_2$, where $\left\{a_k,b_k,c_k,d_k,e_k,f_k\right\}=\left\{0,1\right\}$.

Applying Euler’s formula and introducing interdependences among the angles, as well as symbols $a_k,b_k,c_k,d_k,e_k,f_k$, the space vector is given as follows:

$${\stackrel{-}{V}}_k=\frac{5}{6}{U}_D\left[\begin{array}{c}{a}_k-d_k+\frac{1}{2}\left(b_k-c_k-e_k+f_k\right)\\ +j\frac{\sqrt{3}}{2}\left(b_k+c_k-e_k-f_k\right)\end{array}\right]$$

(19)

After the transformation, the space vector is a complex number which may be represented by the modulus M_k and the argument φ_k. However, in the case of the six-phase inverter, the situation is more demanding in comparison with three-phase inverters due to a greater number of variables. The expression allowing calculation of the space vector modulus is the following:

$$M_k=K\sqrt{{\gamma }_0+{\gamma }_1+{\gamma }_2+{\gamma }_3+{\gamma }_4+{\gamma }_5}$$

(20)

where K is a constant of proportionality and a coefficient which depends on U_D. The coefficients ${\gamma }_0,{\gamma }_1,{\gamma }_2,{\gamma }_3,{\gamma }_4,{\gamma }_5$ are as follows:

$$\begin{gathered} {\gamma }_0=a_k^2+b_k^2+c_k^2+d_k^2+e_k^2+f_k^2 \\ {\gamma }_1=a_k\left(b_k-c_k-2d_k-e_k+f_k\right) \\ {\gamma }_2=b_k\left(c_k-d_k-2e_k-f_k\right) \\ {\gamma }_3=c_k\left(d_k-e_k-2f_k\right) \\ {\gamma }_4=d_k\left(e_k-f_k\right) \\ {\gamma }_5=e_k{f}_k \end{gathered}$$

(21)

If the constant K equals $\frac{5}{6}{U}_D$, then, according to (20), the modulus M_k may reach four diverse values: $0,\frac{5}{6}{U}_D,\frac{5}{3}{U}_D,\frac{5}{6}\sqrt{3}{U}_D$. The value of the constant K may differ depending on the assumed canon.

The vectorial angle φ_k is determined using trigonometrical functions. In some cases, it might be necessary to use both functions, arctg and arcsin, due to diverse periodicity of sine and tangent. Then, the angle of the vector is determined if ${\varphi }_k\left(arcsin\right)={\varphi }_k\left(arctg\right)$. Formula (22) allows for the calculation of the ${\varphi }_k$ value:

$${\varphi }_k=\mathit{arcsin}\frac{\sqrt{3}\left(b_k+c_k-e_k-f_k\right)}{2M_k},{\varphi }_k=arctg\frac{\sqrt{3}\left(b_k+c_k-e_k-f_k\right)}{2\left(a_k-d_k\right)+b_k-c_k-e_k+f_k}$$

(22)

The denominator of the expressions (22) cannot equal zero. Thus, the results of ${\varphi }_k$ are indeterminate for $a_k=b_k=c_k=d_k=e_k=0$ or $a_k=b_k=c_k=d_k=e_k=1$. The corresponding two vectors V_0(000000) and V_63(111111) are habitually named zero vectors because they do not have any impact on the phase currents. The parameters moduli M_k and shift angles φ_k of all 62 active vectors are collected in

Table 1. The vectors’ parameters of the two-level six-phase inverter.

Vk	a	b	c	d	e	f	Mk	φk	Vk	a	b	c	d	e	f	Mk	φk
V0	0	0	0	0	0	0	0	*	V32	1	0	0	0	0	0	1	0
V1	0	0	0	0	0	1	1	300	V33	1	0	0	0	0	1	$\sqrt{3}$	330
V2	0	0	0	0	1	0	1	240	V34	1	0	0	0	1	0	1	300
V3	0	0	0	0	1	1	$\sqrt{3}$	270	V35	1	0	0	0	1	1	2	300
V4	0	0	0	1	0	0	1	180	V36	1	0	0	1	0	0	0	*
V5	0	0	0	1	0	1	1	240	V37	1	0	0	1	0	1	1	300
V6	0	0	0	1	1	0	$\sqrt{3}$	210	V38	1	0	0	1	1	0	1	240
V7	0	0	0	1	1	1	2	240	V39	1	0	0	1	1	1	$\sqrt{3}$	270
V8	0	0	1	0	0	0	1	120	V40	1	0	1	0	0	0	1	60
V9	0	0	1	0	0	1	0	*	V41	1	0	1	0	0	1	1	0
V10	0	0	1	0	1	0	1	180	V42	1	0	1	0	1	0	0	*
V11	0	0	1	0	1	1	1	240	V43	1	0	1	0	1	1	1	300
V12	0	0	1	1	0	0	$\sqrt{3}$	150	V44	1	0	1	1	0	0	1	120
V13	0	0	1	1	0	1	1	180	V45	1	0	1	1	0	1	0	*
V14	0	0	1	1	1	0	2	180	V46	1	0	1	1	1	0	1	180
V15	0	0	1	1	1	1	$\sqrt{3}$	210	V47	1	0	1	1	1	1	1	240
V16	0	1	0	0	0	0	1	60	V48	1	1	0	0	0	0	$\sqrt{3}$	30
V17	0	1	0	0	0	1	1	0	V49	1	1	0	0	0	1	2	0
V18	0	1	0	0	1	0	0	*	V50	1	1	0	0	1	0	1	0
V19	0	1	0	0	1	1	1	300	V51	1	1	0	0	1	1	$\sqrt{3}$	330
V20	0	1	0	1	0	0	1	120	V52	1	1	0	1	0	0	1	60
V21	0	1	0	1	0	1	0	*	V53	1	1	0	1	0	1	1	0
V22	0	1	0	1	1	0	1	180	V54	1	1	0	1	1	0	0	*
V23	0	1	0	1	1	1	1	240	V55	1	1	0	1	1	1	1	300
V24	0	1	1	0	0	0	$\sqrt{3}$	90	V56	1	1	1	0	0	0	2	60
V25	0	1	1	0	0	1	1	60	V57	1	1	1	0	0	1	$\sqrt{3}$	30
V26	0	1	1	0	1	0	1	120	V58	1	1	1	0	1	0	1	60
V27	0	1	1	0	1	1	0	*	V59	1	1	1	0	1	1	1	0
V28	0	1	1	1	0	0	2	120	V60	1	1	1	1	0	0	$\sqrt{3}$	90
V29	0	1	1	1	0	1	1	120	V61	1	1	1	1	0	1	1	60
V30	0	1	1	1	1	0	$\sqrt{3}$	150	V62	1	1	1	1	1	0	1	120
V31	0	1	1	1	1	1	1	180	V63	1	1	1	1	1	1	0	*

* The sign denotes the vector angle is indeterminate.

. The constant K of the vectors used in the consideration was assumed $K=\frac{5}{6}{U}_D$.

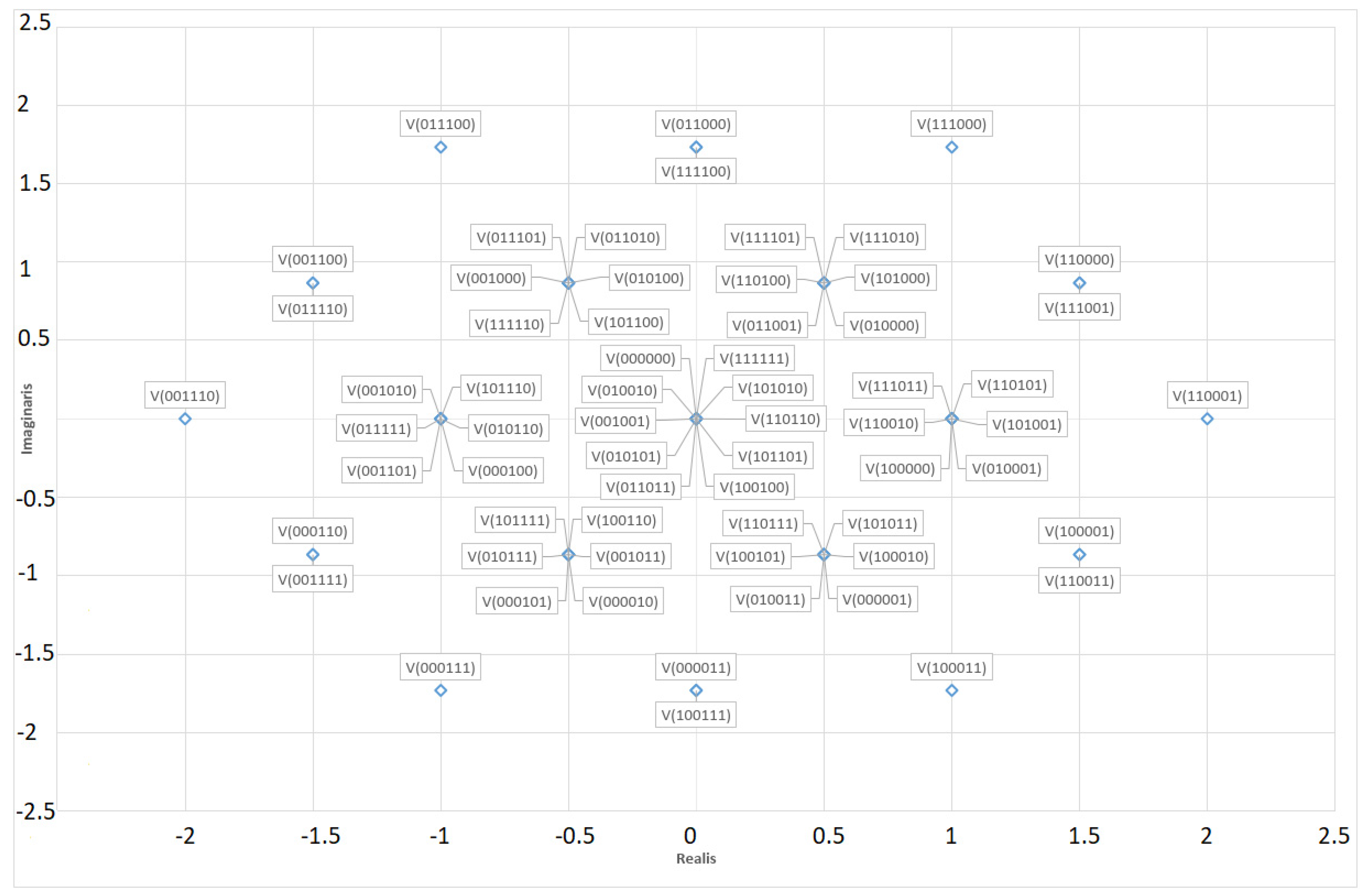

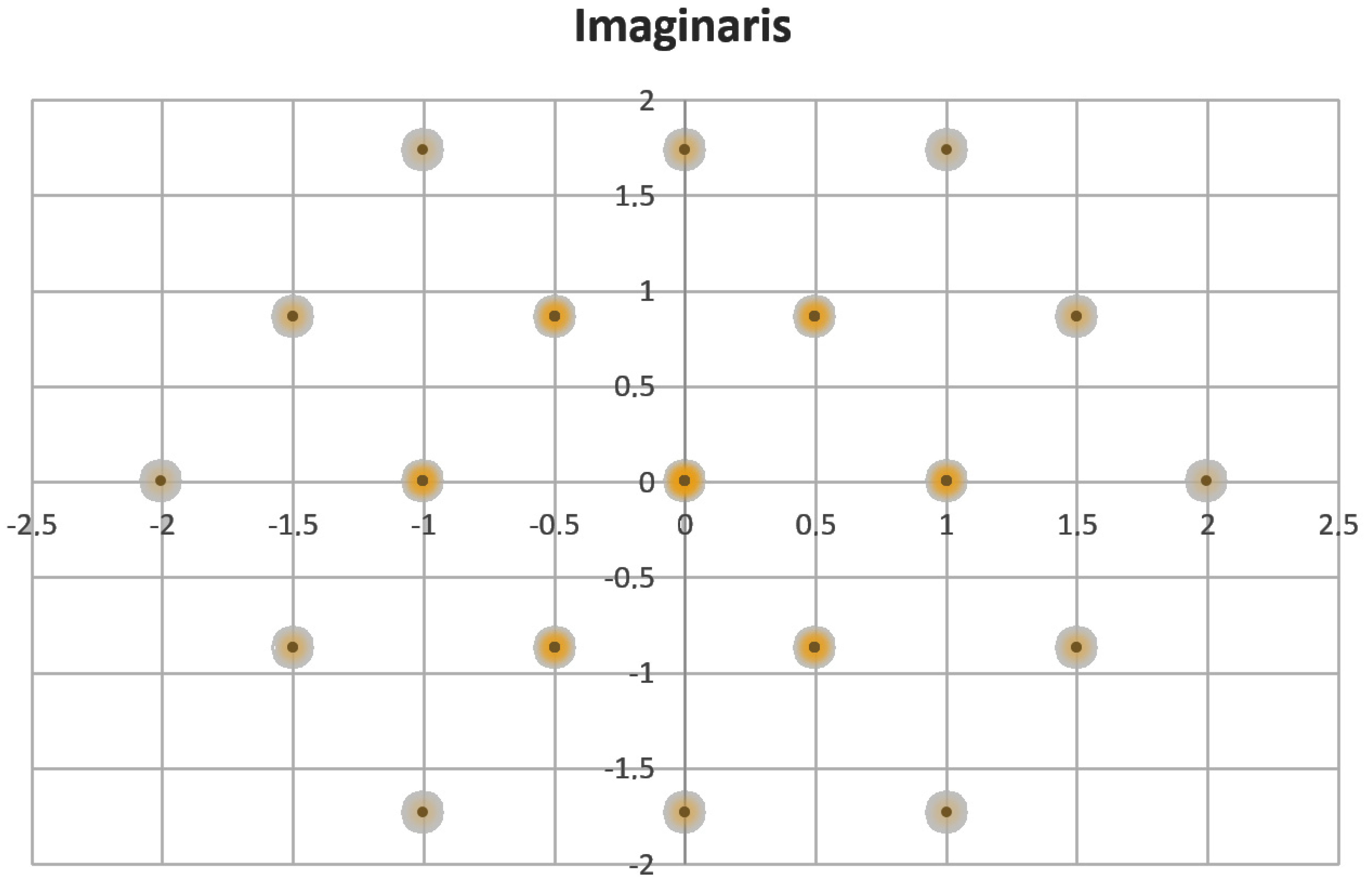

Figure 7 and Figure 8 present the polar voltage space vectors of the six-phase inverter. They are presented on the complex plane (α − jβ) where α denotes the real axis and β—the imaginary one. The diagram presents their position. Each marked point denotes at least one sense of a vector. The smallest points denote one vector, while the bigger ones—two, six, and ten. The next further down diagram indicates the binary expansions of all the numbers defining the relevant vectors. According to the assumption $K=\frac{5}{6}{U}_D$, the vector moduli reach only four values: $0,1,\sqrt{3},2$.

Apart from two zero vectors in the middle of 62 vectors, there are four groups of active vectors: six vectors with moduli 2, twelve with moduli $\sqrt{3}$, thirty-six with 1, and also eight active vectors which formally have zero-dimensional moduli and indeterminate angles. Among these eight vectors, two of them, V₂₁ as well as V₄₂, can be considered as representing two three-phase voltage systems (

Table 2. The two vectors representing the three-phase voltage system.

Vk	a	b	c	d	e	f
V21	0	1	0	1	0	1
V42	1	0	1	0	1	0

). The first one could be determined by three voltages: V_b, V_d, V_f and the other, by voltages: V_a, V_c, V_e.

Another possibility to reach two three-phase voltage systems is accessible using the next six active vectors which formally have zero-dimensional moduli, that is: V₉, V₁₈, V₂₇, V₃₆, V₄₅, V₅₄. These ones present the symmetry a_k, b_k, c_k = d_k, e_k, f_k in the binary expansion of the vector number. The vectors are collected below in different sequences. The sequences a_k, b_k, c_k and d_k, e_k, f_k are suitable to control the three-phase system. Thus, following the order indicated in Table 2, it is possible to control two twin three-phase AC drives. Formally, the vectors’ angle φ_k is indeterminate, but in

Table 3. The active vectors guaranteeing the symmetry a_k, b_k, c_k = d_k, e_k, f_k.

	Three-Phase AC Drive			Three-Phase AC Drive
Vk	a	b	c	d	e	f	φk
V36	1	0	0	1	0	0	0
V54	1	1	0	1	1	0	60°
V18	0	1	0	0	1	0	120°
V27	0	1	1	0	1	1	180°
V9	0	0	1	0	0	1	240°
V45	1	0	1	1	0	1	300°

the angle φ_k was assumed in theory for application in standard α-β transform and used routinely in three-phase systems to control AC drives.

The control process of twin AC drives consists of switching of the successive vectors starting from vector V₃₆. The sequence of vectors is evident according to the angle φ_k. The pairs of vectors ${\mathit{V}}_{36}-{\mathit{V}}_{54},{\mathit{V}}_{54}-{\mathit{V}}_{18},{\mathit{V}}_{18}-{\mathit{V}}_{27},{\mathit{V}}_{27}-{\mathit{V}}_9,{\mathit{V}}_9-{\mathit{V}}_{45},{\mathit{V}}_{45}-{\mathit{V}}_{36}$ relate to the consecutive sectors of the stationary coordinate system on the complex plane α-jβ.

3. Simulation Experiment

The described methodology of using polar voltage space vectors intended to control six-phase VSIs was tested during simulation tests. The tests included two scenarios. In the first scenario, the computed PWM modulation vectors at RL load were performed, while in the other scenario, the applied load simulated an induction motor. For illustration purposes, in the course of the simulation tests, the applied control method consisted of simple concatenation of the consecutive vectors. Each next vector activated switching in only one phase of the inverter.

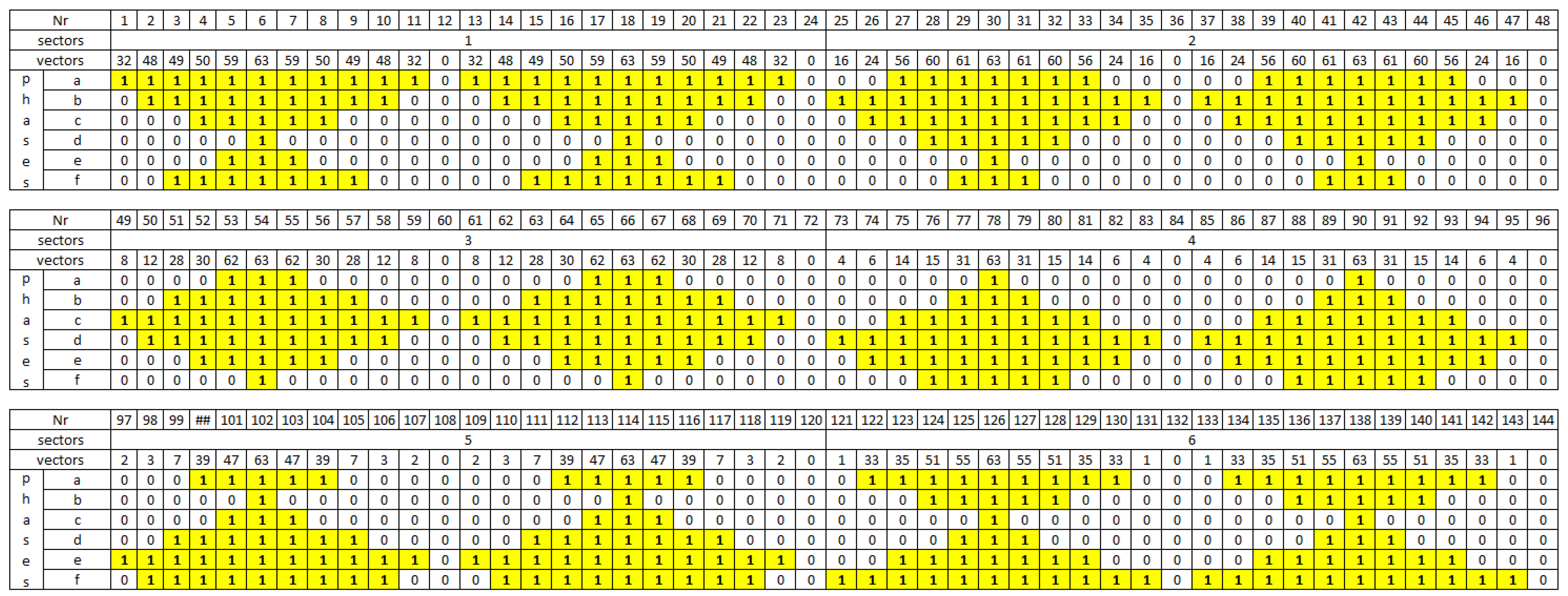

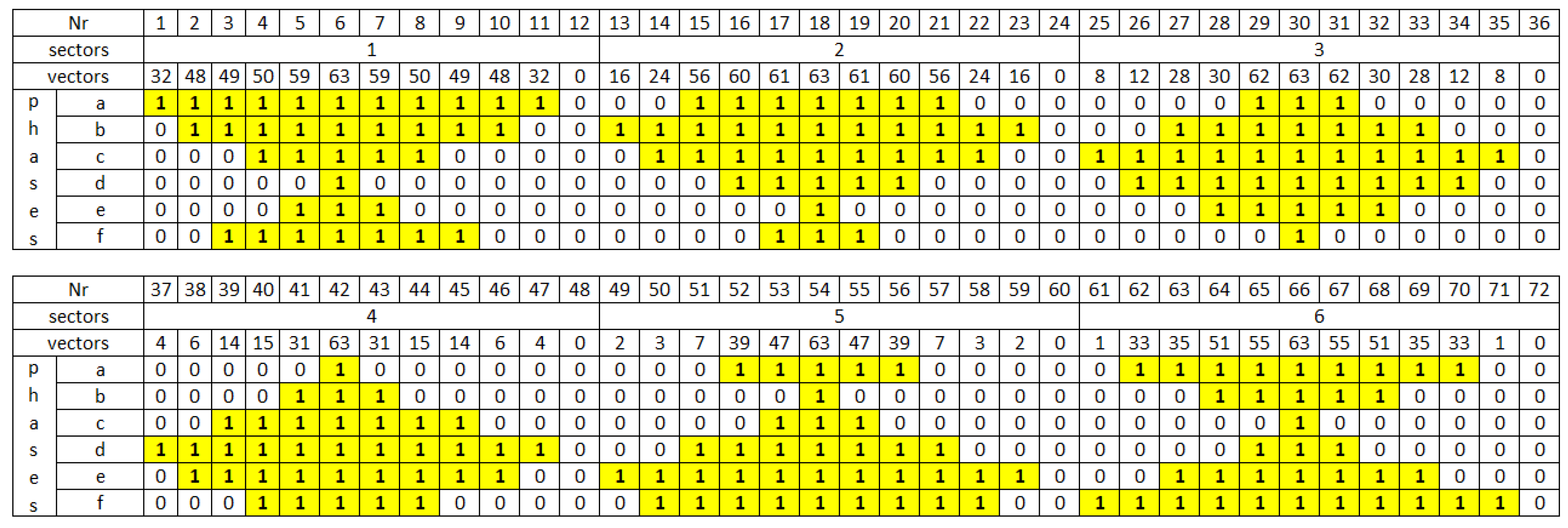

Figure 8 shows the vector map for the first control strategy in a graphical form, while Figure 9 presents the modified sequence of the calculated vectors, which consisted of repeating the sequence in each sector. This treatment produced interesting results. It should also be noted that the graphical representations of the vectors in each sector shown in Figure 8 and Figure 9 were achieved by mirroring. The vectors’ sequences shown in Figure 9 and Figure 10 were selected according to the above mentioned rule of one switching in one phase.

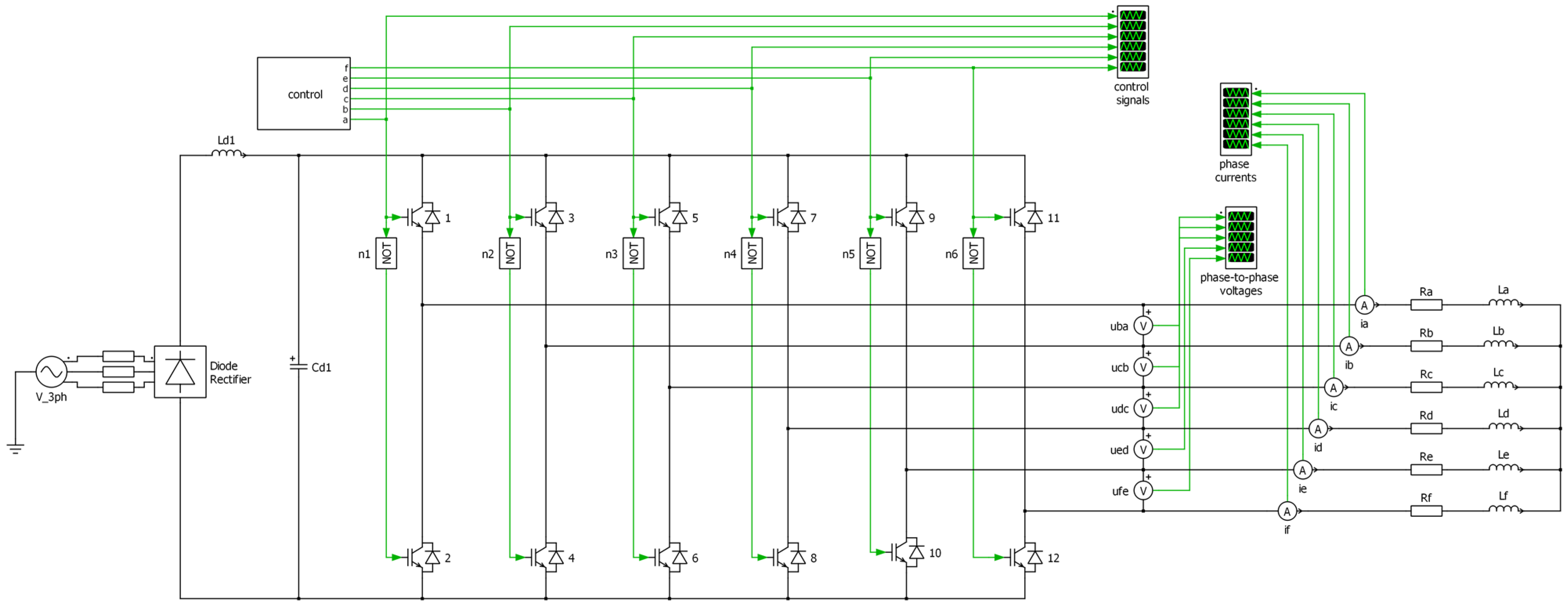

Figure 11 shows the diagram of the simulation model, in which the control tests were carried out. The PWM method and two control strategies presented in Figure 9 and Figure 10 were compared.

Figure 12 shows the waveforms of the control signals corresponding to the individual control systems. The figures show the signals for phases a and b.

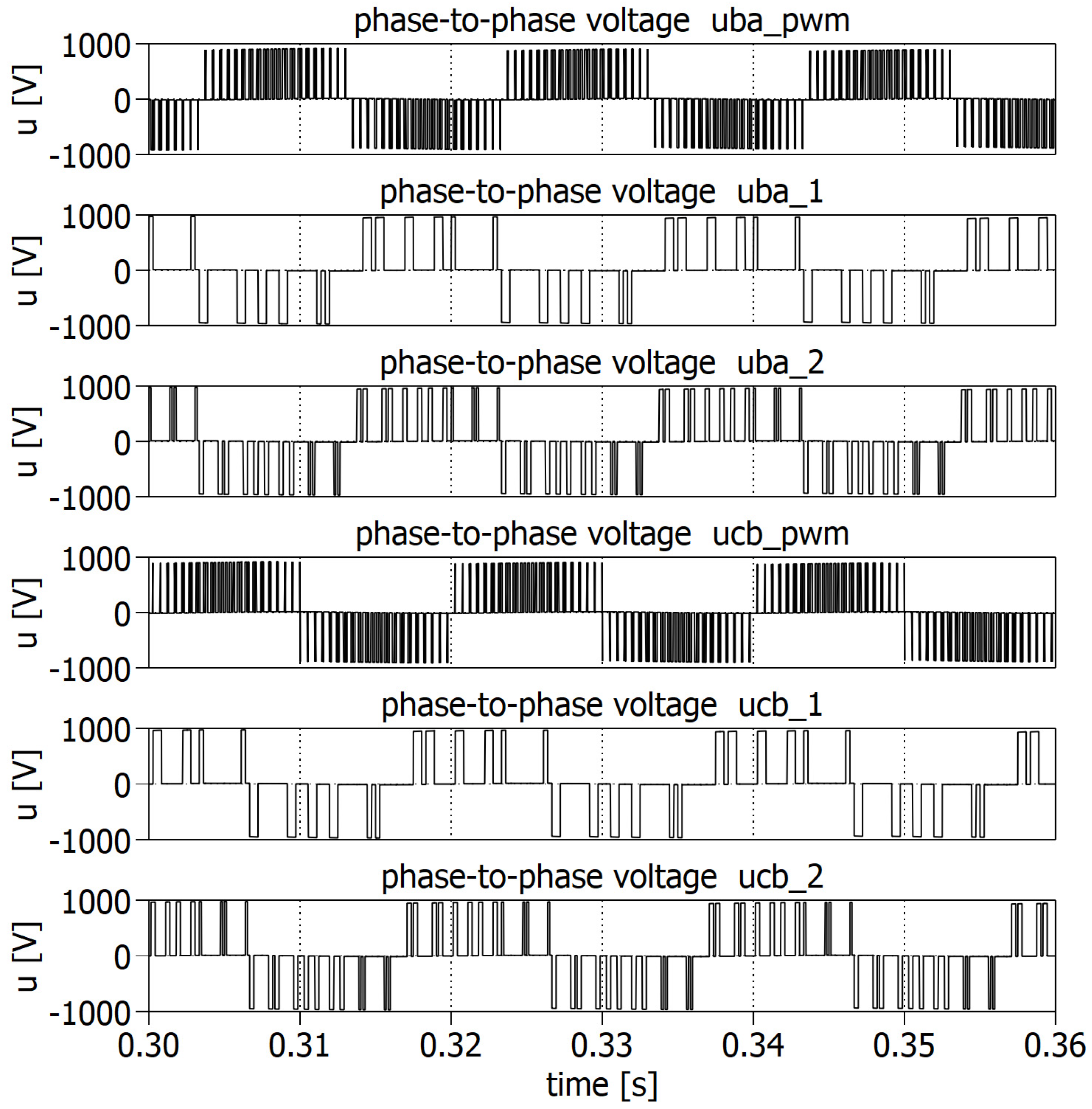

Figure 13 shows the phase-to-phase voltage waveforms: U_ba and U_cb.

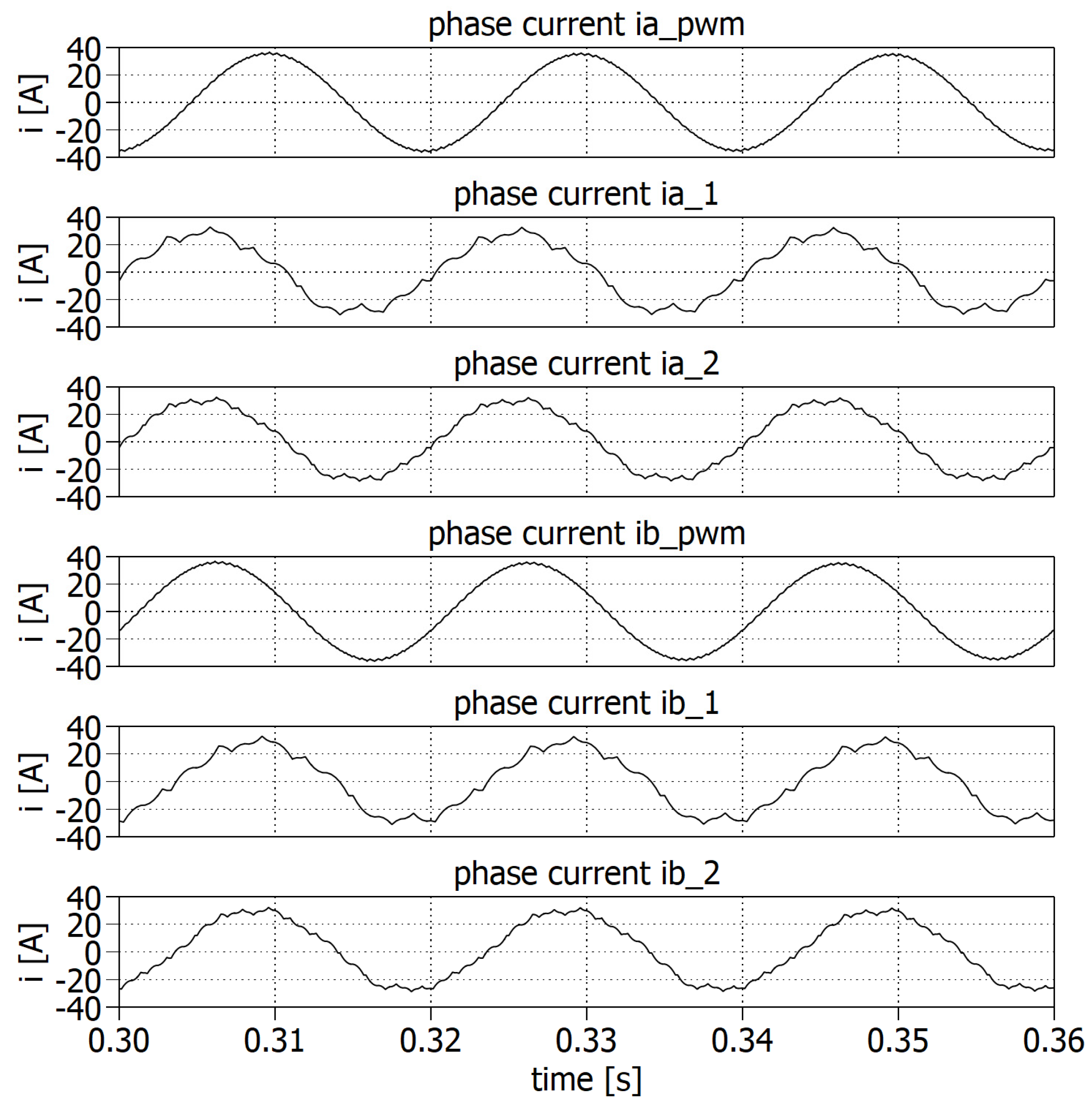

Figure 14 shows the phase currents i_a and i_b obtained for different control strategies.

Table 3 presents a summary of the most important parameters obtained during the simulation tests. The PWM method was compared with the vector control strategy. The mark 1 denotes a single sequence of vectors and the mark 2—a sequence of vectors repeated in every sector. The load parameter RL was assumed as R = 2 Ω and L = 40 mH, which means the time constant was τ = 20 ms.

Table 4. The vectors’ parameters of the six-phase VSI inverter.

Load	R = 2 Ω, L = 40 mH
Control Strategy:	F	40	45	50	55	60
PWM	RMS	23.9	24.3	24.0	23.5	22.8
	THDI	1.4	1.3	1.3	1.4	1.5
1	RMS	23.8	23.0	21.9	20.9	19.8
	THDI	9.6	9.7	9.6	9.6	9.5
2	RMS	24.1	23.2	22.2	21.0	19.9
	THDI	5.5	5.5	5.4	5.4	5.4

presents the RMS and THD current values for different frequencies in the range 40–60 Hz.

The control strategy number 1 has been chosen so that the switching of the keys in a given clock takes place only once. The control strategy 2 is a double repetition in a cycle of the control strategy 1. Using such a simple control method, very good results have been obtained for the content of higher harmonics, which can be seen from the THD values. At the same time, the adopted control also allows for maintaining a high rms value of the currents. Subsequent repetition of the adopted vector sequence would lead to results comparable to PWM control. However, the main advantage of the control method described in the experiment over PWM is that it requires a much smaller amount of switching.

In the referenced works [36,37], the described control algorithm was used for inverters with an odd number of phases. Three-phase [37] and five-phase [36] inverters were considered. On the other hand,

Table 5. The vectors’ parameters of the five-phase VSI inverter.

Load	R = 2 Ω, L = 40 mH
Control Strategy:	F	40	45	50	55	60
PWM	RMS	27.7	26.7	25.5	24.3	23.1
	THDI	2.1	2.3	2.6	2.8	3.1
1	RMS	28.8	26.7	23.3	21.4	20.7
	THDI	11.5	11.5	11.6	11.7	11.8
2	RMS	29.2	26.6	24.3	23.1	21.9
	THDI	7.4	7.4	7.5	7.5	7.4

shows the results of simulation tests for a five-phase inverter, which are to be used to compare both cases. These tests were carried out for the same scenario, i.e., the control of PWM modulation and vector control for single and double repetitions of vector sequences were compared.

Summarizing the results presented in Table 5, it can be concluded that they are generally similar. In the case of a five-phase inverter, a higher RMS value can be observed, but its performance has deteriorated due to an increase in the current THD value. One can risk a statement that an increase in the number of inverter phases reduces the THD value. This can be explained by the fact that with a greater number of phases, their interaction affects the reduction of higher harmonics.

4. Conclusions

The aim of the paper was to prove that state and polar voltage space vectors are a useful mathematical tool in the analysis and control of a six-phase inverter. Typically, the inverter model can be described with the use of three mathematical tools: analytic expressions, the voltage state, and space vectors. The analytic formulas determine the inverter phase current and voltage, whereas the state voltage vectors define phase voltage distribution in all the states of the inverter. Furthermore, polar voltage space vectors are a very valuable and well recognized instrument in inverters’ control. They constitute a simple and basic tool that can be applied in the space vector method, which is the most widespread contemporary control method in AC drives. The whole control process is restricted to the simplest concatenation of successive vectors. This way of control permits to limit to a minimum the number of switching and zero vectors used, as well as avoiding problems resulting in parity of phases. This control method seems to be especially suitable for inverters working in the range of relatively higher frequencies 40–60 Hz, e.g., inverters interfacing a six-phase smart grid and a solar power plant.

The described simulation examples of the inverter vector control based on the polar voltage space vectors proved that the proposed solution might be indeed suitable in designing inverter control algorithms. The presented space vector method assures a significantly lower number of inverter switching in comparison with the PWM. It also results in higher efficiency of the inverter.

Both the notation and computational method described in this paper have been used in previous works related to multi-phase inverters. However, only the inverters with an odd number of phases, i.e., three and five, have been considered there [36,37]. This paper presents the synthesis and analysis for an inverter with an even number of phases. Although it seemed there should be no problematic issues at first, an even number of phases greatly complicated the whole computational process since the choice of vectors in such a case was further limited by the symmetry of phases, which was not present in the case of an odd number of phases. This is also a justification for why various methods have been used for six-phase inverters to avoid phase symmetry. Among them, there are shifting the initial phase by 30 degrees or analyzing the six-phase inverter as two three-phase inverters. Another encountered problem was that even though it was possible to find vector sequences that were optimal in terms of the amount of switching, they were not implementable in the inverter due to the asymmetry of the voltage and current waveforms that were generated by the inverter. Based on the analysis in this paper as well as previous papers on multiphase inverters, it is easier to obtain vector sequences that meet control expectations for inverters with an odd number of phases than for inverters with an even number of phases.

The simulation experiment described in this paper shows that the assumed vector strategy allows for the obtaining of a favorable value of current THD with the simultaneous preservation of the currents’ rms values in comparison to PWM modulation. The experiment also presents that repetition of the proposed vector sequence influences the further reduction of the harmonic content and increase in the rms value of the currents.
