Performance Study of Origami Crash Tubes Based on Energy Dissipation History
Abstract
:1. Introduction

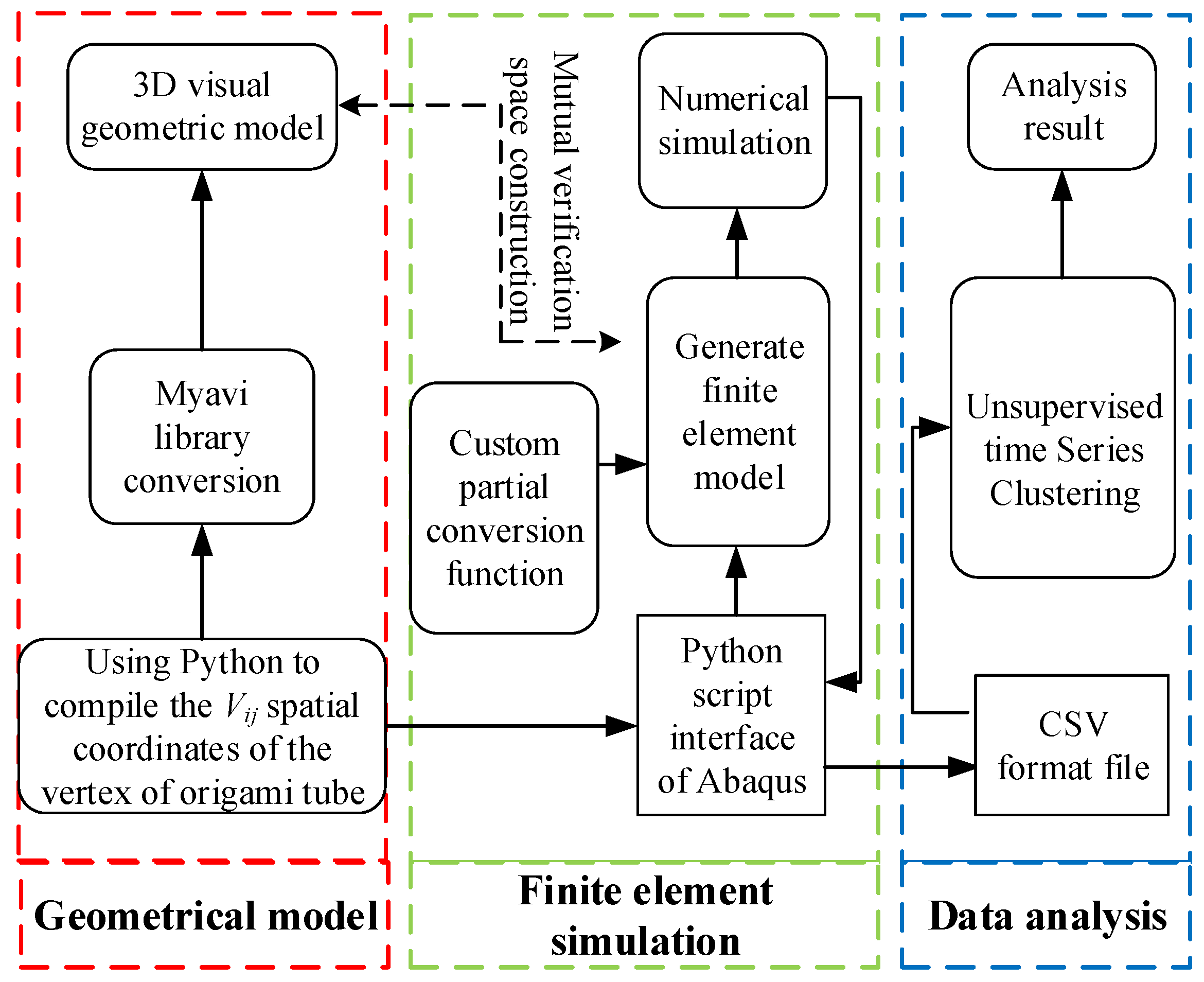

2. Numerical Simulation

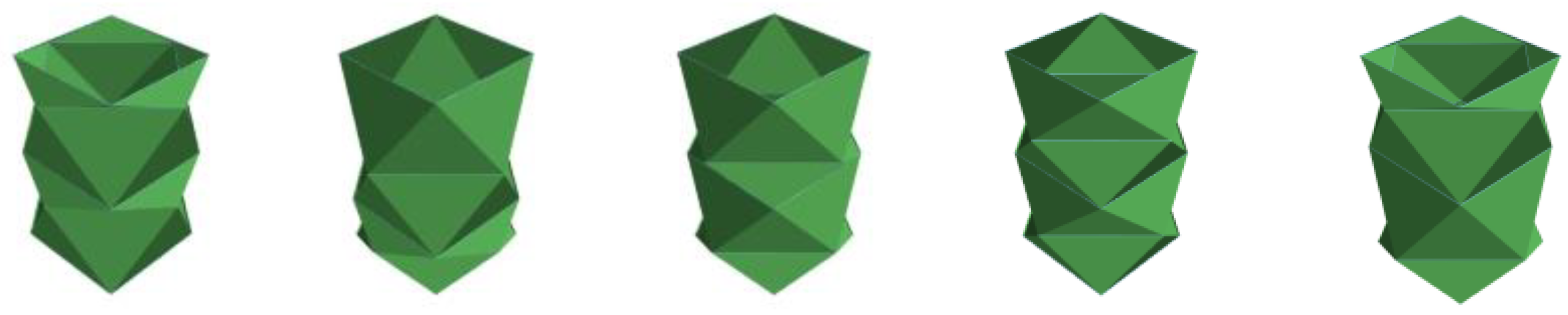

2.1. 3D Geometry Model

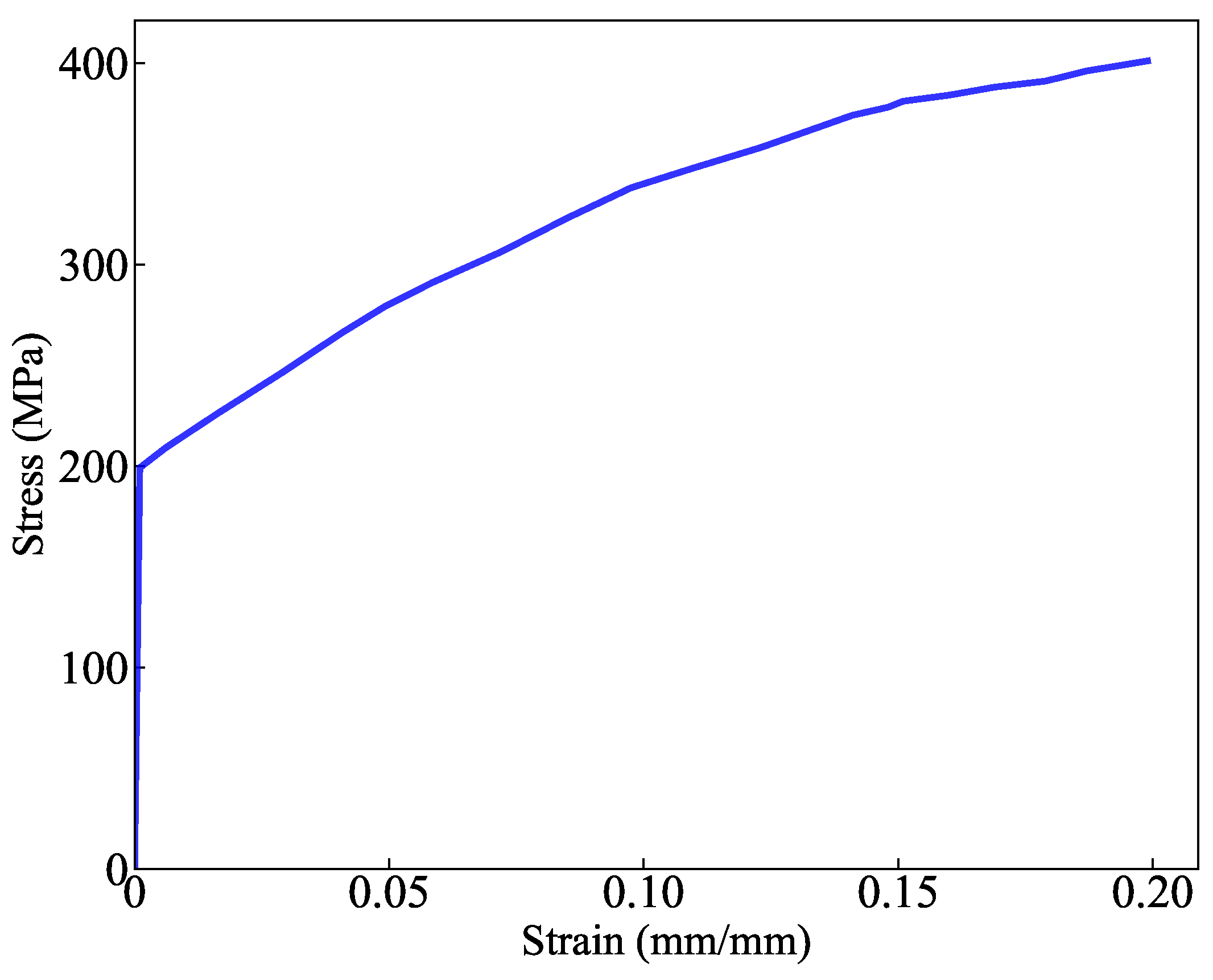

2.2. Finite Element Simulation
Algorithm 1: Compute 3D spatial coordinates of the vertex |
1: Input: total length ; list of the heights for each floor ; number of layers ; 2: number of prefolded points in each layer ;list of edge lengths for each layer . 3: Output: 4: Initialize an empty array with size 5: for each layer do 6: Calculate the coordinate values of , and , 7: 8: end for |
Algorithm 2 Data reconfiguration ( represents the transpose of row m for the array, the same as below. Permutation () is a method to exchange the order of alignment, for example: array .) |
1: Input: the spatial coordinates array of ; number of layers ; 2: number of prefolded points in each layer . 2: Output: the array 3: Initialize an empty array with size 4: for -1 do 5: Initialize an empty array with size 6: 7: 8: end for |

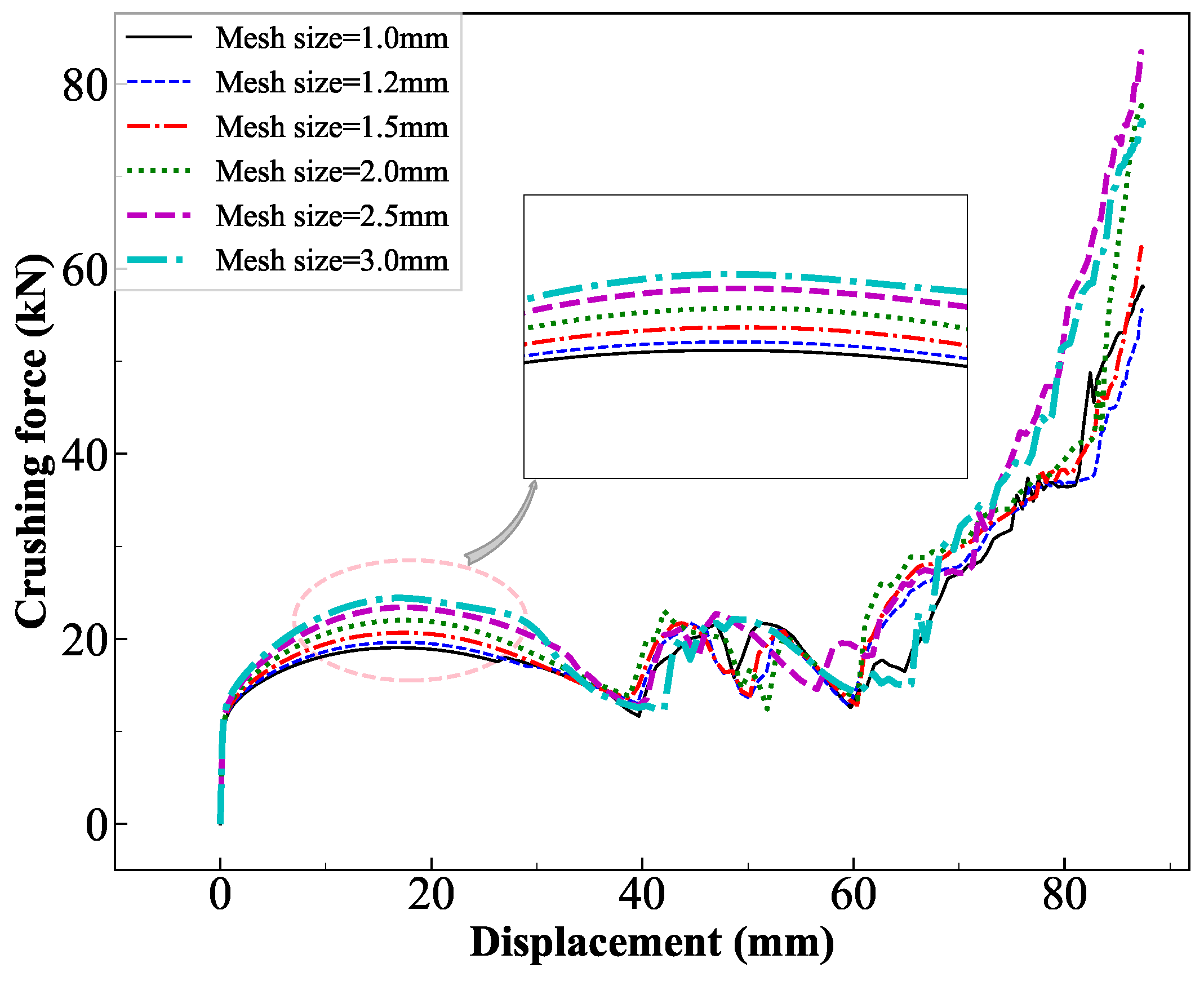

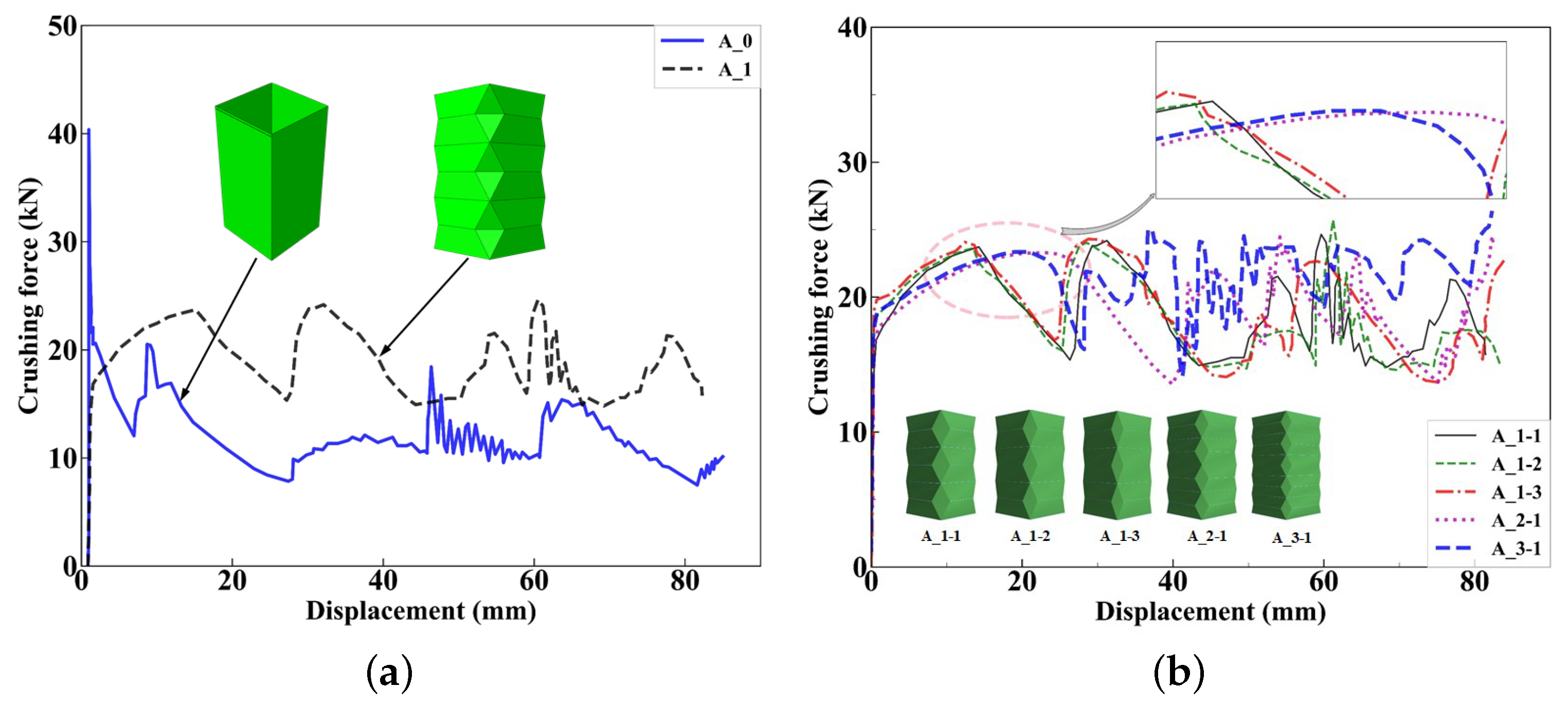

2.3. Numerical Simulation Verification and Energy Absorption Evaluation
3. Crushing Force–Displacement History Curve Clustering
3.1. Clustering Method
3.1.1. Similarity Measurement between Different Curves
3.1.2. Unsupervised Learning-Clustering Method
Algorithm 3 Based on K-Means time series clustering ( is the weight of each datum within the same cluster.) |
1: Input: All time series data and number of clusters k 2: Output: The k clusters of data after clustering 3: Randomly initialize clustering centers , by using k-means++ [63] algorithm 4: repeat 5: for do 6: Calculate the distance between each data and each clustering center according to Equation 12 7: and assign the data to the cluster whose distance is closest to the clustering center. 8: for do 10: recalculate the clustering center of data . Then update clustering center. 11: untill The clustering center does not change |
3.1.3. Number of Clusters Setting
3.2. Data and Operating Environment
4. Results and Analysis

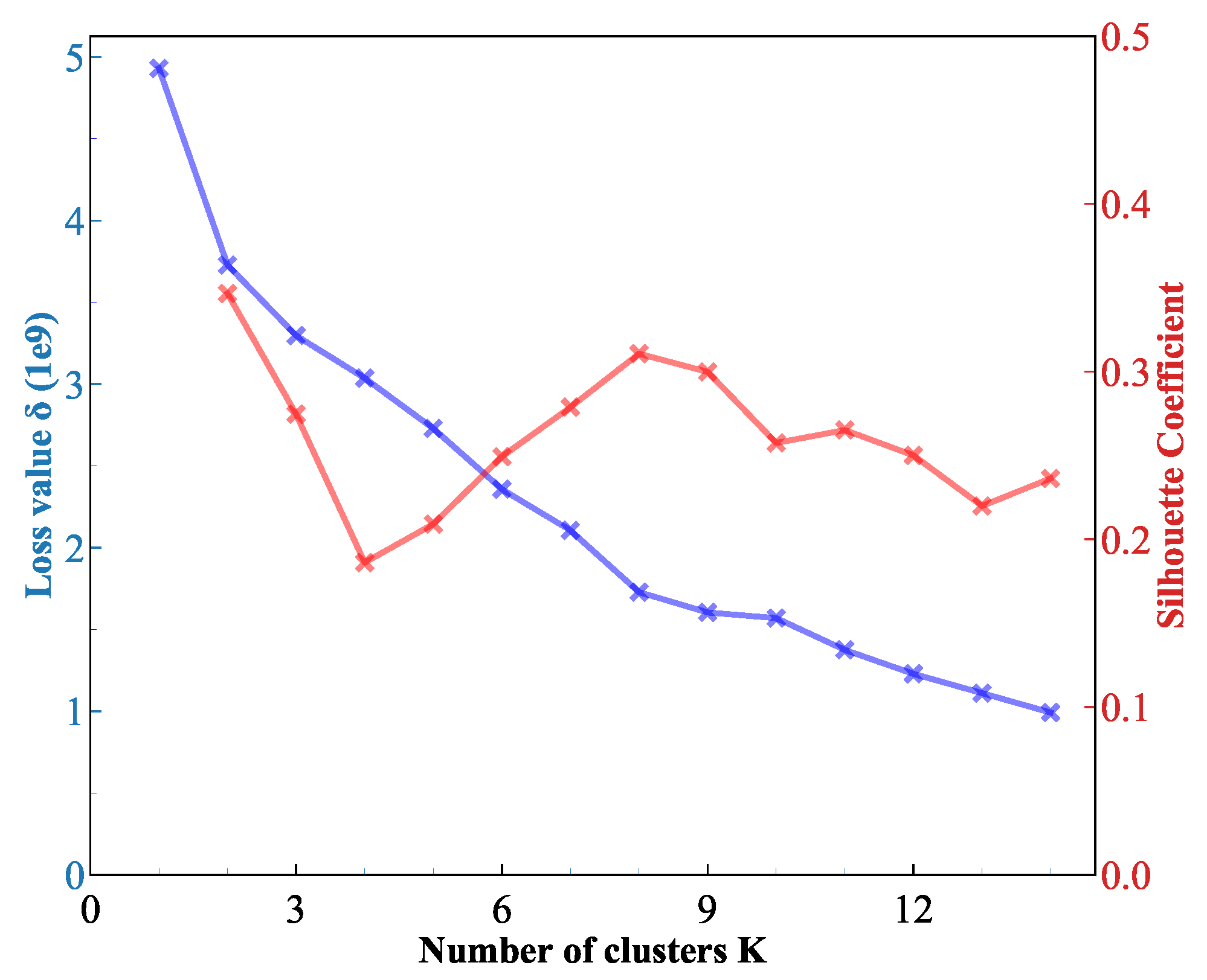

4.1. Number of Clusters Analysis

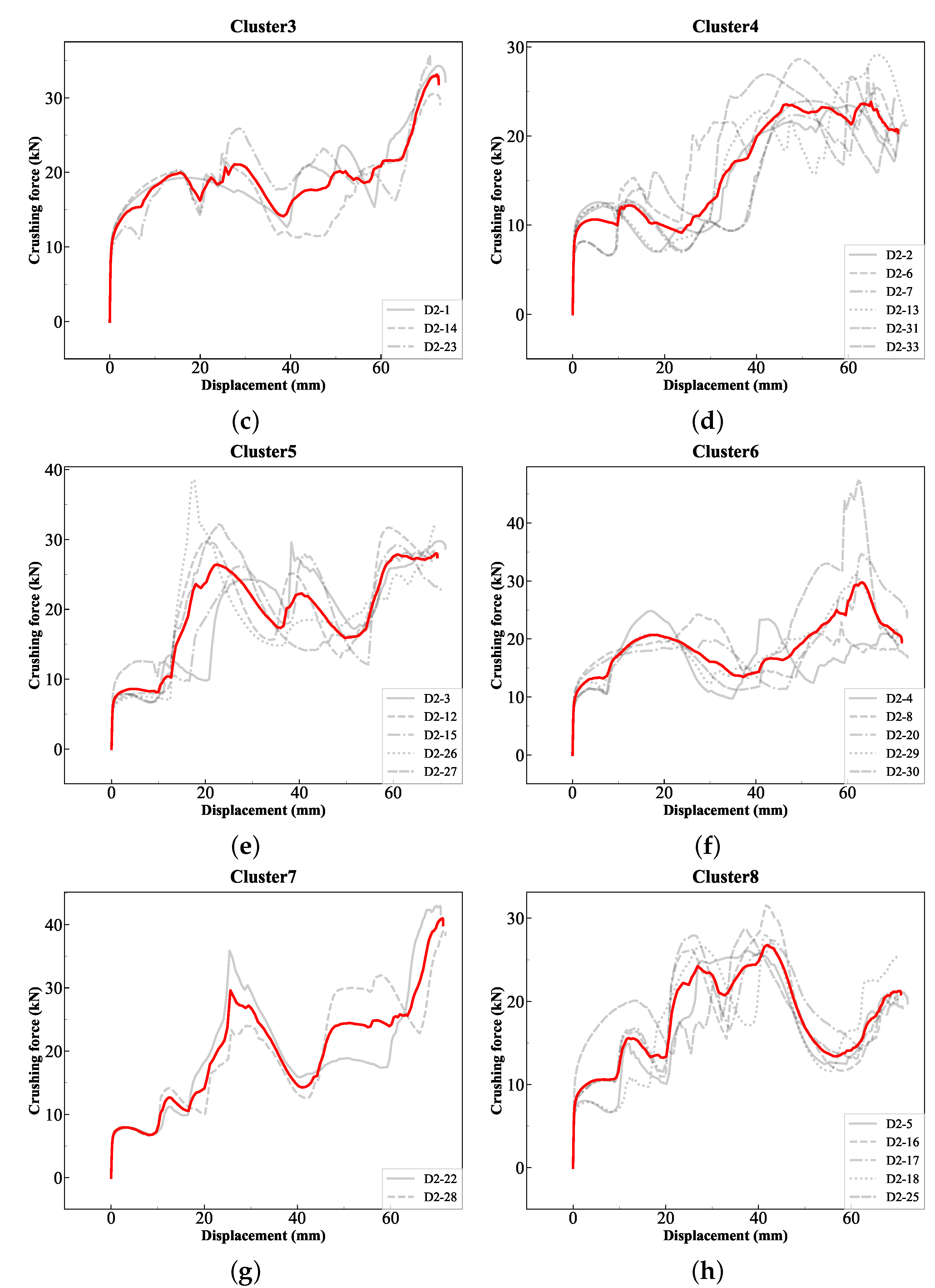

4.2. Energy Absorption Performance Analysis of Each Cluster after Clustering

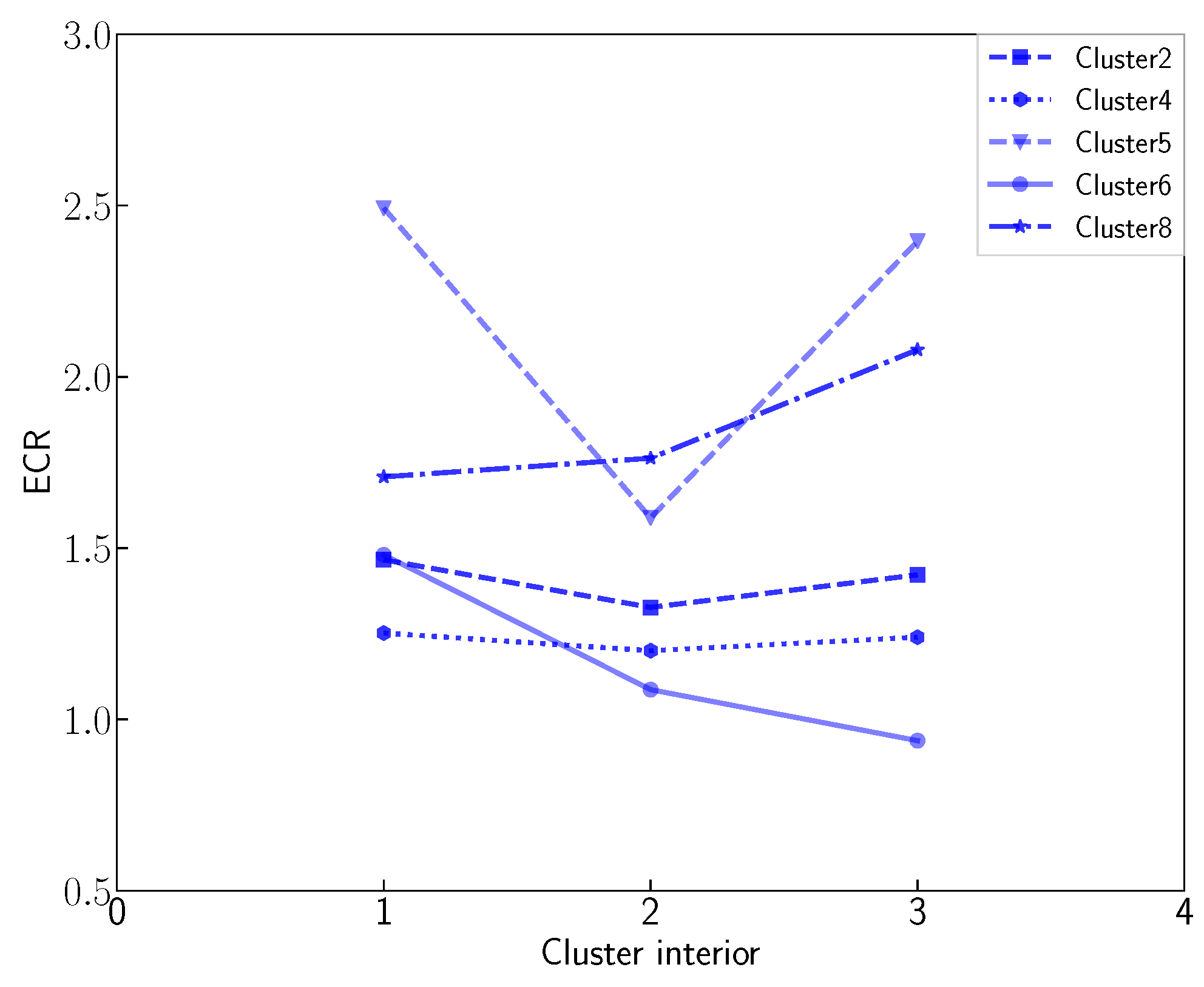

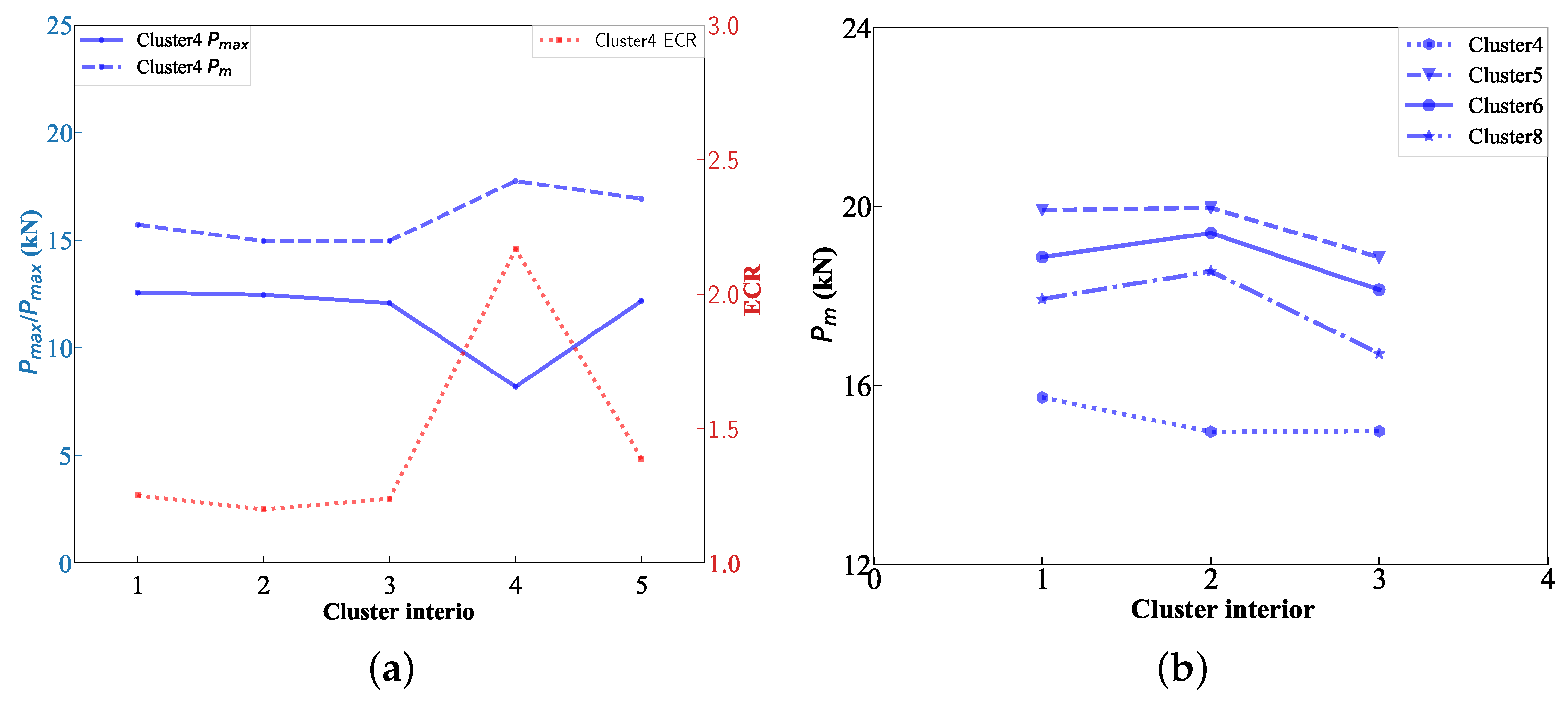

4.3. Verification in Terms of Clustering Quality

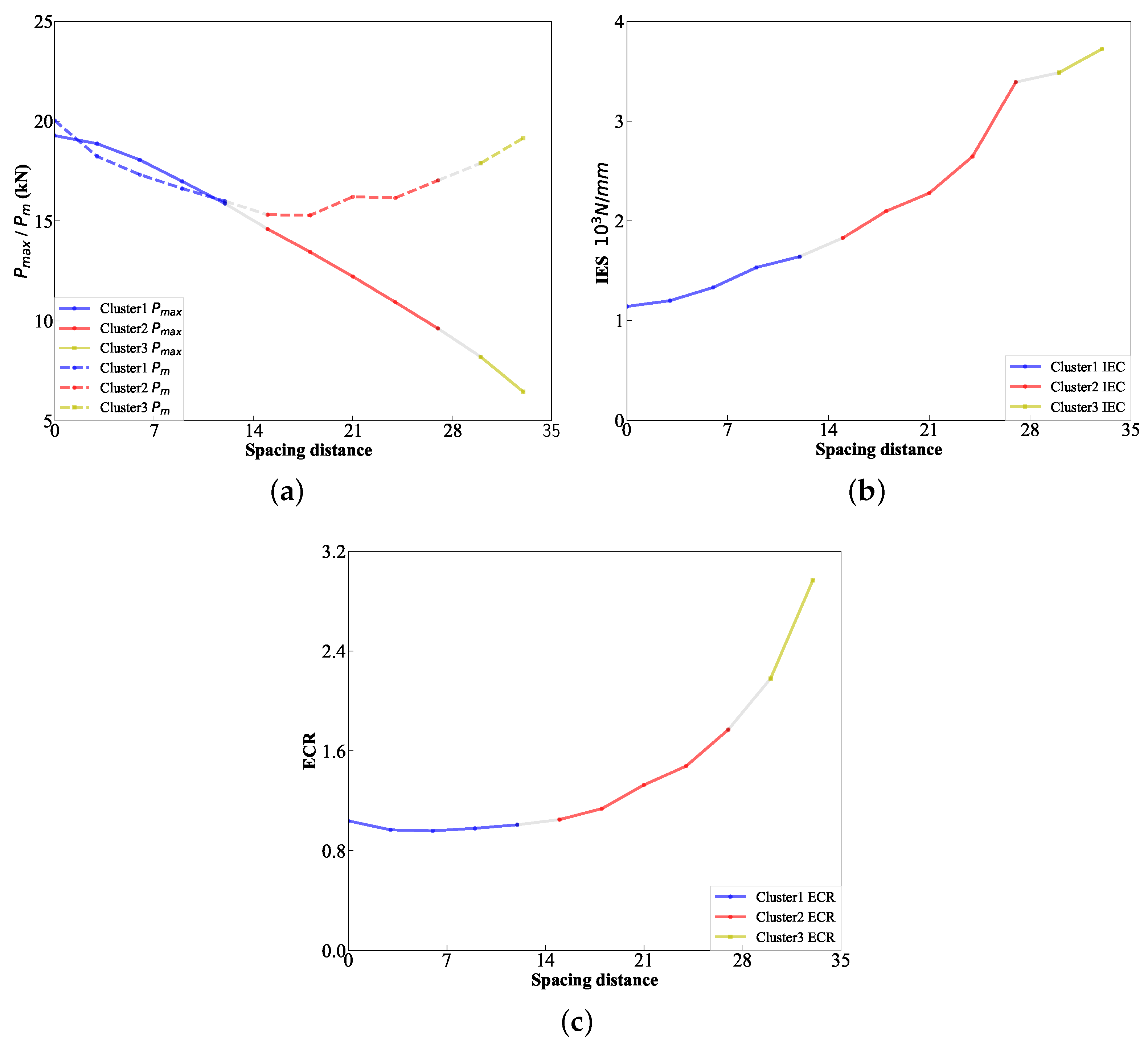

4.4. Crushing Process Analysis of Each Cluster after Clustering
5. Conclusions and Future Work
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Wang, W.; Sun, X.; Wei, X. Integration of the forming effects into vehicle front rail crash simulation. Int. J. Crashworthiness 2016, 21, 9–21. [Google Scholar] [CrossRef]
- Abramowicz, W.; Jones, N. Dynamic axial crushing of square tubes. Int. J. Impact Eng. 1984, 2, 179–208. [Google Scholar] [CrossRef]
- Tyrell, D.; Jacobsen, K.; Martinez, E.; Perlman, A.B. Train-to-train impact test of crash energy management passenger rail equipment: Structural results. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition, Chicago, IL, USA, 5–10 November 2006; Volume 47780, pp. 35–44. [Google Scholar]
- Lu, Z.; Li, B.; Yang, C.; Zhao, H.; Xu, P.; Yao, S.; Peng, Y.; Zhang, D. Numerical and experimental study on the design strategy of a new collapse zone structure for railway vehicles. Int. J. Crashworthiness 2017, 22, 488–502. [Google Scholar] [CrossRef]
- Yan, J.; Yao, S.; Xu, P.; Peng, Y.; Shao, H.; Zhao, S. Theoretical prediction and numerical studies of expanding circular tubes as energy absorbers. Int. J. Mech. Sci. 2016, 105, 206–214. [Google Scholar] [CrossRef]
- Airoldi, A.; Janszen, G. A design solution for a crashworthy landing gear with a new triggering mechanism for the plastic collapse of metallic tubes. Aerosp. Sci. Technol. 2005, 9, 445–455. [Google Scholar] [CrossRef]
- Hosseinipour, S.; Daneshi, G. Experimental studies on thin-walled grooved tubes under axial compression. Exp. Mech. 2004, 44, 101–108. [Google Scholar] [CrossRef]
- Zhou, C.; Ming, S.; Xia, C.; Wang, B.; Bi, X.; Hao, P.; Ren, M. The energy absorption of rectangular and slotted windowed tubes under axial crushing. Int. J. Mech. Sci. 2018, 141, 89–100. [Google Scholar] [CrossRef]
- Abdewi, E.F.; Sulaiman, S.; Hamouda, A.; Mahdi, E. Quasi-static axial and lateral crushing of radial corrugated composite tubes. Thin-Walled Struct. 2008, 46, 320–332. [Google Scholar] [CrossRef]
- Song, J.; Chen, Y.; Lu, G. Light-weight thin-walled structures with patterned windows under axial crushing. Int. J. Mech. Sci. 2013, 66, 239–248. [Google Scholar] [CrossRef]
- Song, J.; Chen, Y.; Lu, G. Axial crushing of thin-walled structures with origami patterns. Thin-Walled Struct. 2012, 54, 65–71. [Google Scholar] [CrossRef]
- Cai, J.; Deng, X.; Feng, J.; Zhou, Y. Geometric design and mechanical behavior of a deployable cylinder with Miura origami. Smart Mater. Struct. 2015, 24, 125031. [Google Scholar] [CrossRef]
- Miura, K.; Tachi, T. Synthesis of rigid-foldable cylindrical polyhedra. Symmetry Art Sci. 2010, 61, 204–213. [Google Scholar]
- Xiang, X.; Lu, G.; You, Z. Energy absorption of origami inspired structures and materials. Thin-Walled Struct. 2020, 157, 107130. [Google Scholar] [CrossRef]
- Lee, T.U.; Yang, X.; Ma, J.; Chen, Y.; Gattas, J.M. Elastic buckling shape control of thin-walled cylinder using pre-embedded curved-crease origami patterns. Int. J. Mech. Sci. 2019, 151, 322–330. [Google Scholar] [CrossRef]
- Li, Y.; You, Z. Open-section origami beams for energy absorption. Int. J. Mech. Sci. 2019, 157, 741–757. [Google Scholar] [CrossRef]
- Ma, J.; You, Z. Energy absorption of thin-walled square tubes with a prefolded origami pattern—Part I: Geometry and numerical simulation. J. Appl. Mech. 2014, 81, 011003. [Google Scholar] [CrossRef] [Green Version]
- Zhang, X.; Cheng, G.; You, Z.; Zhang, H. Energy absorption of axially compressed thin-walled square tubes with patterns. Thin-Walled Struct. 2007, 45, 737–746. [Google Scholar] [CrossRef]
- Zhou, C.; Wang, B.; Ma, J.; You, Z. Dynamic axial crushing of origami crash boxes. Int. J. Mech. Sci. 2016, 118, 1–12. [Google Scholar] [CrossRef]
- Yang, K.; Xu, S.; Shen, J.; Zhou, S.; Xie, Y.M. Energy absorption of thin-walled tubes with pre-folded origami patterns: Numerical simulation and experimental verification. Thin-Walled Struct. 2016, 103, 33–44. [Google Scholar] [CrossRef]
- Wang, B.; Zhou, C. The imperfection-sensitivity of origami crash boxes. Int. J. Mech. Sci. 2017, 121, 58–66. [Google Scholar] [CrossRef]
- Zhou, C.; Zhou, Y.; Wang, B. Crashworthiness design for trapezoid origami crash boxes. Thin-Walled Struct. 2017, 117, 257–267. [Google Scholar] [CrossRef]
- Yuan, L.; Shi, H.; Ma, J.; You, Z. Quasi-static impact of origami crash boxes with various profiles. Thin-Walled Struct. 2019, 141, 435–446. [Google Scholar] [CrossRef]
- Wang, S.; Peng, Y.; Wang, T.; Chen, X.; Hou, L.; Zhang, H. The origami inspired optimization design to improve the crashworthiness of a multi-cell thin-walled structure for high speed train. Int. J. Mech. Sci. 2019, 159, 345–358. [Google Scholar] [CrossRef]
- Acar, E.; Altin, M.; Güler, M.A. Evaluation of various multi-cell design concepts for crashworthiness design of thin-walled aluminum tubes. Thin-Walled Struct. 2019, 142, 227–235. [Google Scholar] [CrossRef]
- Altin, M.; Acar, E.; Güler, M.A. Crashworthiness optimization of hierarchical hexagonal honeycombs under out-of-plane impact. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2021, 235, 963–974. [Google Scholar] [CrossRef]
- San Ha, N.; Lu, G. Thin-walled corrugated structures: A review of crashworthiness designs and energy absorption characteristics. Thin-Walled Struct. 2020, 157, 106995. [Google Scholar]
- Yu, T.X.; Xiang, Y.F.; Wang, M.; Yang, L.M. Key performance indicators of tubes used as energy absorbers. In Key Engineering Materials; Trans Tech Publications: Bach, Switzerland, 2014; Volume 626, pp. 155–161. [Google Scholar]
- Wang, H.; Zhao, D.; Jin, Y.; Wang, M.; You, Z.; Yu, G. Study of collapsed deformation and energy absorption of polymeric origami-based tubes with viscoelasticity. Thin-Walled Struct. 2019, 144, 106246. [Google Scholar] [CrossRef]
- Ma, J.; Dai, H.; Shi, M.; Yuan, L.; Chen, Y.; You, Z. Quasi-static axial crushing of hexagonal origami crash boxes as energy absorption devices. Mech. Sci. 2019, 10, 133–143. [Google Scholar] [CrossRef] [Green Version]
- LeCun, Y.; Bengio, Y.; Hinton, G. Deep learning. Nature 2015, 521, 436–444. [Google Scholar] [CrossRef] [PubMed]
- Takiyama, H.; Ozawa, T.; Ishihara, S.; Fujishiro, M.; Shichijo, S.; Nomura, S.; Miura, M.; Tada, T. Automatic anatomical classification of esophagogastroduodenoscopy images using deep convolutional neural networks. Sci. Rep. 2018, 8, 7497. [Google Scholar] [CrossRef] [PubMed]
- Goldberg, Y. Neural network methods for natural language processing. Synth. Lect. Hum. Lang. Technol. 2017, 10, 1–309. [Google Scholar] [CrossRef]
- Nabian, M.A.; Meidani, H. Deep learning for accelerated seismic reliability analysis of transportation networks. Comput.-Aided Civ. Infrastruct. Eng. 2018, 33, 443–458. [Google Scholar] [CrossRef] [Green Version]
- Lin, Y.Z.; Nie, Z.H.; Ma, H.W. Structural damage detection with automatic feature-extraction through deep learning. Comput.-Aided Civ. Infrastruct. Eng. 2017, 32, 1025–1046. [Google Scholar] [CrossRef]
- Zhang, Y.; Miyamori, Y.; Mikami, S.; Saito, T. Vibration-based structural state identification by a 1-dimensional convolutional neural network. Comput.-Aided Civ. Infrastruct. Eng. 2019, 34, 822–839. [Google Scholar] [CrossRef]
- Lei, X.; Liu, C.; Du, Z.; Zhang, W.; Guo, X. Machine learning-driven real-time topology optimization under moving morphable component-based framework. J. Appl. Mech. 2019, 86, 011004. [Google Scholar] [CrossRef]
- Rafiei, M.H.; Adeli, H. A novel machine learning model for estimation of sale prices of real estate units. J. Constr. Eng. Manag. 2016, 142, 04015066. [Google Scholar] [CrossRef]
- Rafiei, M.H.; Adeli, H. A novel machine learning-based algorithm to detect damage in high-rise building structures. Struct. Des. Tall Spec. Build. 2017, 26, e1400. [Google Scholar] [CrossRef]
- Rafiei, M.H.; Adeli, H. A novel unsupervised deep learning model for global and local health condition assessment of structures. Eng. Struct. 2018, 156, 598–607. [Google Scholar] [CrossRef]
- Yu, Y.; Wu, D.; Wang, Q.; Chen, X.; Gao, W. Machine learning aided durability and safety analyses on cementitious composites and structures. Int. J. Mech. Sci. 2019, 160, 165–181. [Google Scholar] [CrossRef]
- Yılmaz, İ.; Arslan, E.; Kızıltaş, E.Ç.; Cavdar, K. Development of a prediction method of Rayleigh damping coefficients for free layer damping coatings through machine learning algorithms. Int. J. Mech. Sci. 2020, 166, 105237. [Google Scholar] [CrossRef]
- Kunwar, A.; Hektor, J.; Nomoto, S.; Coutinho, Y.A.; Moelans, N. Combining multi-phase field simulation with neural network analysis to unravel thermomigration accelerated growth behavior of Cu6Sn5 IMC at cold side Cu–Sn interface. Int. J. Mech. Sci. 2020, 184, 105843. [Google Scholar] [CrossRef]
- Wang, H.; Zhao, D.; Jin, Y.; Wang, M.; You, Z. Unified parametric modeling of origami-based tube. Thin-Walled Struct. 2018, 133, 226–234. [Google Scholar] [CrossRef]
- ABAQUS. ABAQUS Analysis User’s Guide, Documentation Version 6.14; Dassault Systems Simulia Corp: Providence, RI, USA, 2014. [Google Scholar]
- Ye, H.; Ma, J.; Zhou, X.; Wang, H.; You, Z. Energy absorption behaviors of pre-folded composite tubes with the full-diamond origami patterns. Compos. Struct. 2019, 221, 110904. [Google Scholar] [CrossRef]
- Ramachandran, P.; Varoquaux, G. Mayavi: 3D visualization of scientific data. Comput. Sci. Eng. 2011, 13, 40–51. [Google Scholar] [CrossRef] [Green Version]
- Lv, Y.; Zhang, Y.; Gong, N.; Li, Z.X.; Lu, G.; Xiang, X. On the out-of-plane compression of a Miura-ori patterned sheet. Int. J. Mech. Sci. 2019, 161, 105022. [Google Scholar] [CrossRef]
- Xiang, X.; You, Z.; Lu, G. Rectangular sandwich plates with Miura-ori folded core under quasi-static loadings. Compos. Struct. 2018, 195, 359–374. [Google Scholar] [CrossRef]
- Xiang, X.; Lu, G.; Ruan, D.; You, Z.; Zolghadr, M. Large deformation of an arc-Miura structure under quasi-static load. Compos. Struct. 2017, 182, 209–222. [Google Scholar] [CrossRef]
- Zhang, X.; Su, H.; Yu, T. Energy absorption of an axially crushed square tube with a buckling initiator. Int. J. Impact Eng. 2009, 36, 402–417. [Google Scholar] [CrossRef]
- Xiang, X.; Qiang, W.; Hou, B.; Tran, P.; Lu, G. Quasi-static and dynamic mechanical properties of Miura-ori metamaterials. Thin-Walled Struct. 2020, 157, 106993. [Google Scholar] [CrossRef]
- Ma, J.; You, Z. Energy absorption of thin-walled beams with a pre-folded origami pattern. Thin-Walled Struct. 2013, 73, 198–206. [Google Scholar] [CrossRef]
- Jain, A.K. Data clustering: 50 years beyond K-means. Pattern Recognit. Lett. 2010, 31, 651–666. [Google Scholar] [CrossRef]
- Sakoe, H.; Chiba, S. Dynamic programming algorithm optimization for spoken word recognition. IEEE Trans. Acoust. Speech Signal Process. 1978, 26, 43–49. [Google Scholar] [CrossRef] [Green Version]
- Cuturi, M. Fast global alignment kernels. In Proceedings of the Proceedings of the 28th International Conference on Machine Learning (ICML-11), Bellevue, WA, USA, 2 July 2011; pp. 929–936. [Google Scholar]
- Cuturi, M.; Blondel, M. Soft-DTW: A differentiable loss function for time-series. arXiv 2017, arXiv:1703.01541. [Google Scholar]
- MacQueen, J. Some methods for classification and analysis of multivariate observations. In Proceedings of the Fifth Berkeley Symposium on Mathematical Statistics and Probability; Elsevier: Oakland, CA, USA, 1967; Volume 1, pp. 281–297. [Google Scholar]
- Lloyd, S.P. Least squares quantization in PCM. IEEE Trans. Inf. Theory 1982, 28, 129–137. [Google Scholar] [CrossRef] [Green Version]
- Wu, X.; Kumar, V.; Quinlan, J.R.; Ghosh, J.; Yang, Q.; Motoda, H.; Mclachlan, G.J.; Ng, A.; Bing, L.; Yu, P.S. Top 10 algorithms in data mining. Knowl. Inf. Syst. 2008, 14, 1–37. [Google Scholar] [CrossRef] [Green Version]
- Byrd, R.H.; Lu, P.; Nocedal, J.; Zhu, C. A limited memory algorithm for bound constrained optimization. SIAM J. Sci. Comput. 1995, 16, 1190–1208. [Google Scholar] [CrossRef]
- Zhu, C.; Byrd, R.H.; Lu, P.; Nocedal, J. Algorithm 778: L-BFGS-B: Fortran subroutines for large-scale bound-constrained optimization. ACM Trans. Math. Softw. (TOMS) 1997, 23, 550–560. [Google Scholar] [CrossRef]
- Arthur, D.; Vassilvitskii, S. k-Means++: The Advantages of Careful Seeding; Technical Report; Society for Industrial and Applied Mathematics, 3600 University City Science Center: Philadelphia, PA, USA, 2006. [Google Scholar]
- Raschka, S.; Mirjalili, V. Python Machine Learning; Packt Publishing Ltd.: Birmingham, UK, 2017. [Google Scholar]
- Rousseeuw, P.J. Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. J. Comput. Appl. Math. 1987, 20, 53–65. [Google Scholar] [CrossRef] [Green Version]
- Tavenard, R.; Faouzi, J.; Vandewiele, G.; Divo, F.; Androz, G.; Holtz, C.; Payne, M.; Yurchak, R.; Rußwurm, M.; Kolar, K.; et al. Tslearn, a machine learning toolkit for time series data. J. Mach. Learn. Res. 2020, 21, 1–6. [Google Scholar]
- Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. SciPy 1.0: Fundamental algorithms for scientific computing in Python. Nat. Methods 2020, 17, 261–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Liu, K.; Novelino, L.S.; Gardoni, P.; Paulino, G.H. Big influence of small random imperfections in origami-based metamaterials. Proc. R. Soc. A 2020, 476, 20200236. [Google Scholar] [CrossRef]
- Li, Z.; Yang, Q.; Fang, R.; Chen, W.; Hao, H. Origami metamaterial with two-stage programmable compressive strength under quasi-static loading. Int. J. Mech. Sci. 2021, 189, 105987. [Google Scholar] [CrossRef]
- Yuan, L.; Dai, H.; Song, J.; Ma, J.; Chen, Y. The behavior of a functionally graded origami structure subjected to quasi-static compression. Mater. Des. 2020, 189, 108494. [Google Scholar] [CrossRef]
Model | Cluster | Collapse | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Reduction | Increase | Mode | ||||||||
D2-1 | 30 | 30 | 30 | 30 | 19.3 | - | 20.0 | - | 3 | D |
D2-2 | 40 | 20 | 40 | 20 | 12.6 | 34.8% | 15.7 | −21.5% | 4 | M |
D2-3 | 45 | 30 | 15 | 30 | 7.9 | 59.0% | 19.3 | −3.6% | 5 | M |
D2-4 | 30 | 45 | 30 | 15 | 11.5 | 40.3% | 16.8 | −16.0% | 6 | M |
D2-5 | 30 | 45 | 15 | 30 | 8.0 | 58.3% | 16.7 | −16.6% | 8 | M |
D2-6 | 45 | 15 | 40 | 20 | 8.2 | 57.6% | 18.8 | −6.2% | 4 | M |
D2-7 | 40 | 20 | 45 | 15 | 12.5 | 35.3% | 15.0 | −25.3% | 4 | M |
D2-8 | 30 | 40 | 30 | 20 | 19.3 | −0.3% | 18.1 | −9.5% | 6 | M |
D2-9 | 40 | 30 | 20 | 30 | 12.0 | 37.9% | 17.6 | −12.3% | 2 | M |
D2-10 | 20 | 45 | 40 | 15 | 12.5 | 34.9% | 21.0 | 4.7% | 1 | M |
D2-11 | 45 | 20 | 15 | 40 | 7.7 | 60.0% | 19.8 | −1.0% | 1 | M |
D2-12 | 45 | 45 | 15 | 15 | 8.0 | 58.6% | 19.9 | −0.6% | 5 | M |
D2-13 | 40 | 20 | 30 | 30 | 12.2 | 36.8% | 16.9 | −15.5% | 4 | M |
D2-14 | 30 | 30 | 40 | 20 | 20.2 | −4.8% | 18.2 | −9.3% | 3 | M |
D2-15 | 45 | 40 | 15 | 20 | 7.9 | 59.2% | 18.9 | −5.8% | 5 | M |
D2-16 | 45 | 40 | 20 | 15 | 10.5 | 45.5% | 17.9 | −10.5% | 8 | M |
D2-17 | 40 | 45 | 20 | 15 | 10.5 | 45.4% | 18.6 | −7.4% | 8 | M |
D2-18 | 40 | 45 | 15 | 20 | 7.9 | 59.1% | 17.4 | −13.3% | 8 | M |
D2-19 | 40 | 15 | 45 | 20 | 8.2 | 57.6% | 18.4 | −7.9% | 2 | M |
D2-20 | 40 | 30 | 30 | 20 | 17.9 | 7.4% | 19.4 | −3.1% | 6 | M |
D2-21 | 40 | 40 | 20 | 20 | 12.0 | 37.9% | 17.0 | −15.1% | 2 | M |
D2-22 | 40 | 20 | 15 | 45 | 7.8 | 59.4% | 19.9 | −0.6% | 7 | M |
D2-23 | 20 | 40 | 45 | 15 | 12.8 | 33.6% | 19.7 | −1.8% | 3 | M |
D2-24 | 40 | 20 | 20 | 40 | 10.9 | 43.3% | 19.1 | −4.7% | 2 | M |
D2-25 | 20 | 40 | 40 | 20 | 20.1 | −4.3% | 18.5 | −7.6% | 8 | M |
D2-26 | 45 | 15 | 15 | 45 | 7.5 | 60.9% | 18.9 | −5.4% | 5 | M |
D2-27 | 15 | 45 | 45 | 15 | 12.6 | 34.8% | 20.0 | −0.3% | 5 | M |
D2-28 | 45 | 15 | 30 | 30 | 8.0 | 58.4% | 19.9 | −0.7% | 7 | M |
D2-29 | 30 | 30 | 45 | 15 | 12.7 | 33.9% | 18.9 | −5.8% | 6 | M |
D2-30 | 45 | 30 | 30 | 15 | 11.4 | 40.7% | 20.7 | 3.5% | 6 | M |
D2-31 | 45 | 15 | 45 | 15 | 8.2 | 57.5% | 17.8 | −11.4% | 4 | M |
D2-32 | 30 | 20 | 40 | 30 | 12.3 | 36.1% | 16.3 | −18.4% | 2 | M |
D2-33 | 45 | 20 | 40 | 15 | 12.1 | 37.3% | 15.0 | −25.2% | 4 | M |
Model | IES | ECR | |||
---|---|---|---|---|---|
(a) Cluster 1 | |||||
D2-10 | 12.5 | 21.0 | 2699.57 | 1.67 | 9.39e8 |
D2-11 | 7.7 | 19.8 | 3177.53 | 2.57 | 9.39e8 |
(b) Cluster 2 | |||||
D2-9 | 12.0 | 17.6 | 1955.91 | 1.47 | 7.83e8 |
D2-32 | 12.3 | 16.3 | 2259.96 | 1.33 | 1.64e9 |
D2-21 | 12.0 | 17.0 | 1600.84 | 1.42 | 1.72e9 |
D2-19 | 8.2 | 18.4 | 3108.94 | 2.26 | 1.73e9 |
D2-24 | 10.9 | 19.1 | 1323.27 | 1.75 | 2.31e9 |
(c) Cluster 3 | |||||
D2-1 | 19.3 | 20.0 | 1140.67 | 1.04 | 8.79e8 |
D2-14 | 20.2 | 18.2 | 1301.61 | 0.90 | 1.05e9 |
D2-23 | 12.8 | 19.7 | 3365.79 | 1.54 | 1.29e9 |
(d) Cluster 4 | |||||
D2-2 | 12.6 | 15.7 | 2200.32 | 1.25 | 6.63e8 |
D2-7 | 12.5 | 15.0 | 1478.99 | 1.20 | 1.15e9 |
D2-33 | 12.1 | 15.0 | 1741.56 | 1.24 | 1.60e9 |
D2-31 | 8.2 | 17.8 | 3480.01 | 2.17 | 1.66e9 |
D2-13 | 12.2 | 16.9 | 2108.07 | 1.39 | 1.77e9 |
D2-6 | 8.2 | 18.8 | 3368.71 | 2.30 | 1.85e9 |
(e) Cluster 5 | |||||
D2-12 | 8.0 | 19.9 | 1324.74 | 2.49 | 8.69e8 |
D2-27 | 12.6 | 20.0 | 2089.04 | 1.59 | 1.56e9 |
D2-15 | 7.9 | 18.9 | 2382.30 | 2.40 | 2.00e9 |
D2-3 | 7.9 | 19.3 | 2962.28 | 2.44 | 2.38e9 |
D2-26 | 7.5 | 18.9 | 1325.05 | 2.51 | 2.63e9 |
(f) Cluster 6 | |||||
D2-29 | 12.7 | 18.9 | 3532.30 | 1.48 | 2.63e8 |
D2-20 | 17.9 | 19.4 | 1281.86 | 1.09 | 2.04e9 |
D2-8 | 19.3 | 18.1 | 1124.70 | 0.94 | 3.16e9 |
D2-4 | 11.5 | 16.8 | 3188.97 | 1.46 | 3.67e9 |
D2-30 | 11.4 | 20.7 | 2956.80 | 1.81 | 5.13e9 |
(g) Cluster 7 | |||||
D2-28 | 8.0 | 19.9 | 3011.79 | 2.48 | 2.04e9 |
D2-22 | 7.8 | 19.9 | 2975.39 | 2.54 | 2.04e9 |
(h) Cluster 8 | |||||
D2-16 | 10.5 | 17.9 | 1513.66 | 1.71 | 7.00e8 |
D2-17 | 10.5 | 18.6 | 1441.57 | 1.76 | 8.27e8 |
D2-5 | 8.0 | 16.7 | 3545.03 | 2.08 | 8.83e8 |
D2-18 | 7.9 | 17.4 | 2556.22 | 2.21 | 2.08e9 |
D2-25 | 20.1 | 18.5 | 1517.19 | 0.92 | 2.57e9 |
Model | D | IES | ECR | Cluster | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Reduction | Increase | |||||||||||
D2-1 | 30 | 30 | 30 | 30 | 0 | 19.3 | - | 20 | 1140.67 | 1.04 | - | |
D2-34 | 31.5 | 28.5 | 31.5 | 28.5 | 3 | 18.87 | 2.2% | 18.24 | −8.8% | 1199.12 | 0.97 | 1 |
D2-35 | 33 | 27 | 33 | 27 | 6 | 18.07 | 6.4% | 17.33 | −13.4% | 1331.44 | 0.96 | 1 |
D2-36 | 34.5 | 25.5 | 34.5 | 25.5 | 9 | 16.98 | 12.0% | 16.63 | −16.9% | 1532.17 | 0.98 | 1 |
D2-37 | 36 | 24 | 36 | 24 | 12 | 15.88 | 17.7% | 16.00 | −20.0% | 1640.95 | 1.01 | 1 |
D2-38 | 37.5 | 22.5 | 37.5 | 22.5 | 15 | 14.60 | 24.3% | 15.32 | −23.4% | 1828.22 | 1.05 | 2 |
D2-39 | 39 | 21 | 39 | 21 | 18 | 13.45 | 30.3% | 15.29 | −23.6% | 2095.99 | 1.14 | 2 |
D2-40 | 40.5 | 19.5 | 40.5 | 19.5 | 21 | 12.22 | 36.7% | 16.22 | −18.9% | 2277.38 | 1.33 | 2 |
D2-41 | 42 | 18 | 42 | 18 | 24 | 10.93 | 43.3% | 16.16 | −19.2% | 2644.38 | 1.48 | 2 |
D2-42 | 43.5 | 16.5 | 43.5 | 16.5 | 27 | 9.62 | 50.1% | 17.04 | −14.8% | 3390.00 | 1.77 | 2 |
D2-43 | 45 | 15 | 45 | 15 | 30 | 8.21 | 57.5% | 17.89 | −10.5% | 3485.15 | 2.18 | 3 |
D2-44 | 46.5 | 13.5 | 46.5 | 13.5 | 33 | 6.46 | 66.6% | 19.15 | −4.2% | 3723.75 | 2.97 | 3 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Zhang, P.; Sun, Z.; Wang, H.; Xiang, X. Performance Study of Origami Crash Tubes Based on Energy Dissipation History. Energies 2022, 15, 3109. https://doi.org/10.3390/en15093109
Zhang P, Sun Z, Wang H, Xiang X. Performance Study of Origami Crash Tubes Based on Energy Dissipation History. Energies. 2022; 15(9):3109. https://doi.org/10.3390/en15093109
Chicago/Turabian StyleZhang, Peng, Zuoyu Sun, Hui Wang, and Xinmei Xiang. 2022. "Performance Study of Origami Crash Tubes Based on Energy Dissipation History" Energies 15, no. 9: 3109. https://doi.org/10.3390/en15093109
