Induction Generator with Direct Control and a Limited Number of Measurements on the Side of the Converter Connected to the Power Grid

Abstract

The article presents an induction generator connected to the power grid using the AC/DC/AC converter and LCL coupling filter. Three-level inverters were used in the converter, both from the generator side and the power grid side. The algorithm realizing Pulse Width Modulation (PWM) in inverters has been simplified to the maximum. Control of the induction generator was based on the Direct Field-Oriented Control (DFOC) method. At the same time, voltage control has been used for this solution. The MPPT algorithm has been extended to include the variable pitch range of wind turbine blades. The active voltage balancing circuit has been used in the inverter DC voltage circuit. In the control system of the grid converter with an LCL filter, the number of measurements was limited to the measurement of power grid currents and voltages. Synchronization of control from the power grid side is ensured by the use of a PLL loop with the system of preliminary suppression of undesired harmonics.

1. Introduction

In times of energy crisis, various renewable energy sources are an extremely welcome alternative to conventional energy sources. In particular, small wind, hydroelectric, biomass, and biogas power plants are becoming increasingly popular in distributed generation systems [1,2]. They are often based on squirrel cage induction machines [3,4]. It is a cheaper solution than synchronous generators with electromagnetic excitation or permanent magnets, which are preferred mainly in the high-power range [5]. In addition, the induction machine, which keeps improving all the time [6], is also more straightforward, easier to operate, and more reliable. This is particularly important in the case of more demanding operating conditions or less qualified operators, such as on agricultural/animal farms [7,8].

An interesting case of using a squirrel cage induction machine as a generator is the Self-Excited Induction Generator (SEIG) system. Although the principle of the SEIG has been known for several decades [9,10], research in this area continues all the time [11,12,13,14]. The SEIG, first of all, it does not require an external power supply to excite the magnetic field and operates independently. Therefore, given its low price and high reliability, it is an attractive alternative generation system for use in stand-alone/island (off-grid) power systems. Furthermore, the sometimes-occurring need to enable the switching of an induction machine from off-grid to on-grid mode can be implemented either through algorithmic [15] or hardware solutions using power electronic converters, depending on the configuration of the target power system.

In the simplest case, an induction machine operating as an on-grid generator can be connected directly to the grid [4,16]. The connection does not require synchronization with the grid (this is an important issue), and the start-up of the generator is like that of an induction motor. However, producing and delivering electricity to the grid is possible in this case only above a certain wind speed. Furthermore, it is not possible to electrically control the active power. In addition, when the machine is directly connected to the power grid, there is a demand for reactive power. This, of course, degrades the quality of electricity near the generator installation. Therefore, to improve the quality of electric power, there is a need to compensate for reactive power. For this purpose, battery capacitors are commonly used and possibly thyristor static compensators [4,17,18]. However, these approaches cannot satisfy the required power quality standards associated with connecting new power sources to the grid [19,20].

Currently, various novel electronic systems are used to prevent the negative impact of on-grid energy sources on the power grid [21,22,23,24,25]. In particular, AC/DC and DC/AC converters eliminate problems associated with injecting reactive and distorted currents into the grid. Near-sinusoidal currents with very low harmonic distortion are achieved by adequately controlling transistors and using small T-type Inductive–Capacitive–Inductive (LCL) coupling filters. The use of transistor power converters on the generator and grid sides has simultaneously enabled full conversion of generated power [4,26,27,28]. It also allowed the control of the active power given to the power grid. At the same time, an essential feature of systems with AC/DC/AC converters has become the possibility of their autonomous operation for dedicated consumers. This can occur in the event of a power outage from the grid or after self-excitation of the generator without grid involvement [27]. However, autonomous operation, widely considered in a great many publications, including [4,9,10,11,12,13,14,15,16,17,18], is not the subject of this article and will not be discussed.

An additional functionality of using converters is also the ability to control the reactive power. This solution also extends the wind speed range for which the power plant is able to transmit energy to the grid. The scope extension applies to lower and higher wind speeds at which currently existing systems have to be disconnected. Additionally, because the system has full conversion of electrical energy, it was possible to implement the tracking of the maximum power generated by the generator in a wide range of wind speed.

There are many methods to track the maximum power [4,29,30,31,32,33,34]. However, the most common are three basic MPPT algorithms. The first of these is an algorithm based on the known dependence of the wind turbine power in function of the angular speed P_G(ω_m) [27]. The second one is based on the optimal speed ratio of the λ_opt turbine, but it requires the measurement of wind speed [30,31,32,33]. The third one is the incremental algorithm, which, without knowing the turbine parameters, continuously searches for operating conditions with maximum power for a given wind speed [34].

In the literature on the subject, including the work cited above, the research results on induction generators are primarily presented in relation to single problems. However, in the present study, the main goal is to cover the application problems of the squirrel cage induction machine as a generator cooperating with the power grid in a multifaceted manner, particularly in application to small-scale wind power plants.

In the proposed solution, three-level inverters were used, allowing the connection of both machines and local medium-voltage grids of the lower range. A simple control algorithm was developed for these inverters which does not require arrays or trigonometric functions. The algorithm is also easily adaptable for a larger number of voltage levels. These features greatly simplify the hardware implementation of the controller. In parallel, using Cascaded Delayed Signal Cancelation (CDSC) in combination with PLL resulted in better filtering of the fundamental harmonic of the line voltage required for synchronization and prediction in the control system.

To achieve high-quality sinusoidal current generated to the grid, a lossless LCL filter (without damping resistors) is used at the output of the inverter. In these cases, additional feedback from the measured state variables of the filter is typically implemented. This requires additional sensors. The authors estimated voltage across capacitors and output current as an alternative to measurements. This reduced the number of required measurements and indirectly improved reliability as well.

In addition to the previously indicated improvements, the current solution for high wind speeds implemented a limitation of generated power by changing the angle of the wind turbine blades while the maximal power is maintained. In addition, the control system on the generator side uses forward feedback, making it possible to mitigate and accelerate transient processes in the event of rapid changes in wind speed. However, the active autonomous voltage balancing system on the capacitors used in the DC circuit not only improved the operation of three-level inverters, but also allows simple connection to the TN grid system.

2. Model of Wind Turbine

The induction generators in wind power plants are driven by wind turbines with different rotation axis arrangements. The case modeled in this article refers to the turbine with a horizontal axis of rotation. For this turbine, the mechanical power is given by (1).

$$P_m=0.5\rho A{V}_w^3{C}_p\left(\lambda ,\beta \right)=0.5\rho \pi R_b^2{V}_w^3{C}_p\left(\lambda ,\beta \right)$$

(1)

where: C_p(λ,β) is the wind turbine power coefficient, V_w is the wind speed, and ρ is the air density (assumed ρ = 1.225 kg/m³).

The power coefficient C_p(λ,β) in (1) is given by the empirical relation (2) [30].

$$\begin{gathered} C_p\left(\lambda ,\beta \right)=0.5176\left(116{\lambda }_i-0.4\beta -5\right)e^{-21{\lambda }_i}+0.0068\lambda \\ \mathrm{where}: {\lambda }_i=\frac{1}{\lambda +0.08\beta }-\frac{0.035}{1+{\beta }^3} \lambda =\frac{{\omega }_T{R}_b}{V_w} \end{gathered}$$

(2)

where: λ is the turbine blade tip speed ratio, β is the turbine blade setting angle, ω_T is the angular speed of the turbine, and R_b is the turbine rotor radius.

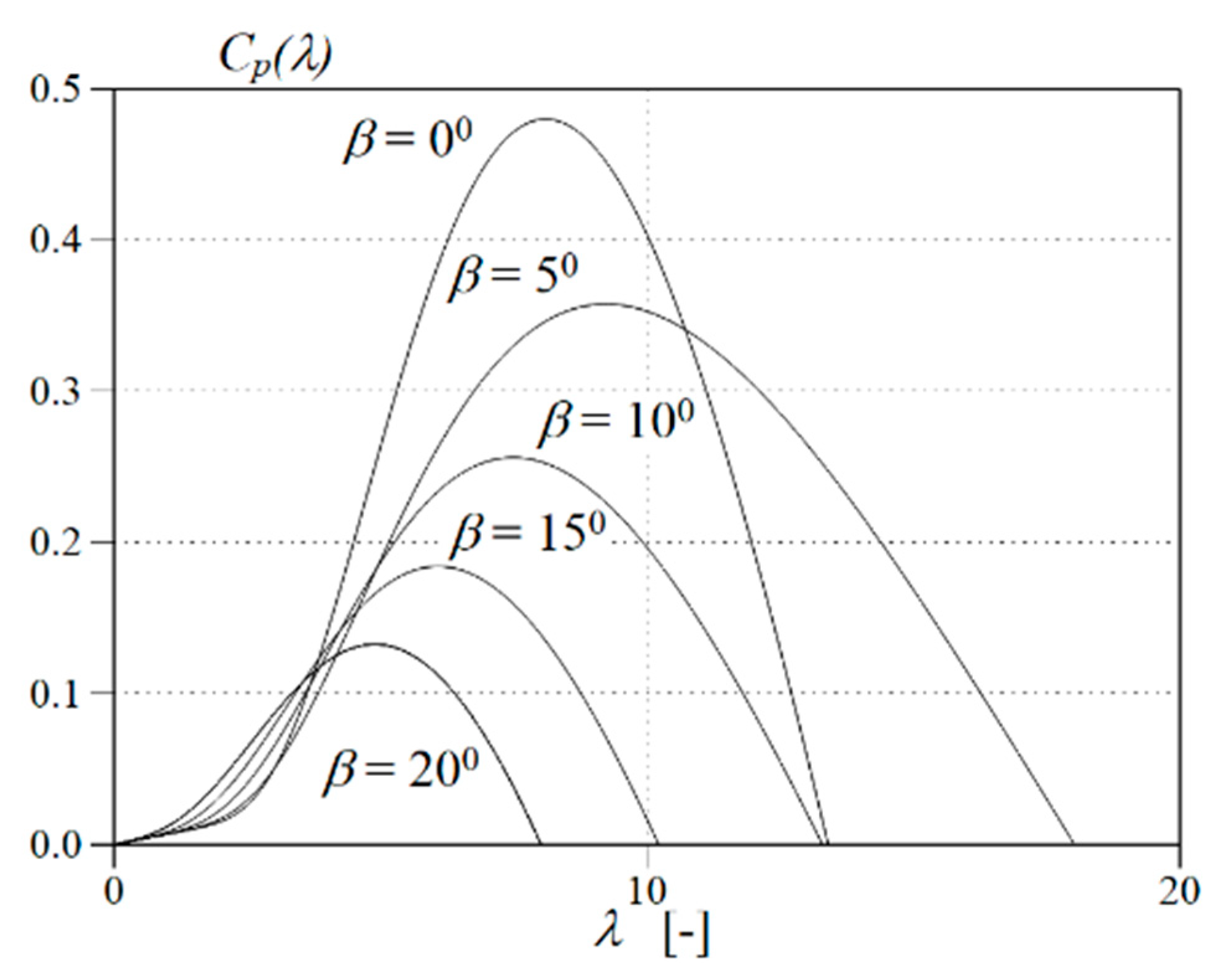

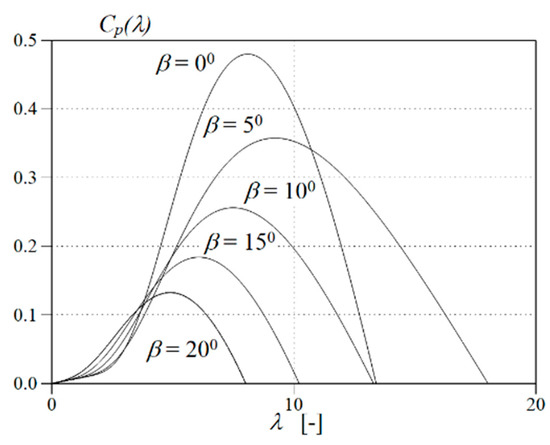

In the simulation system, the wind turbine model described above was used to drive an induction generator. For the purposes of simulation tests, the dimensions of turbine blades R_b = 3 m and gearbox G = 5 were arbitrarily adopted (small wind power plant). The maximal power factor for the adopted model (2) was C_p(λ,β) = 0,48 for λ = 8.1. The determined values refer to the zero setting angle of the turbine blades β = 0. Figure 1 shows the turbine power coefficient C_p(λ,β) for five different turbine blade pitch settings.

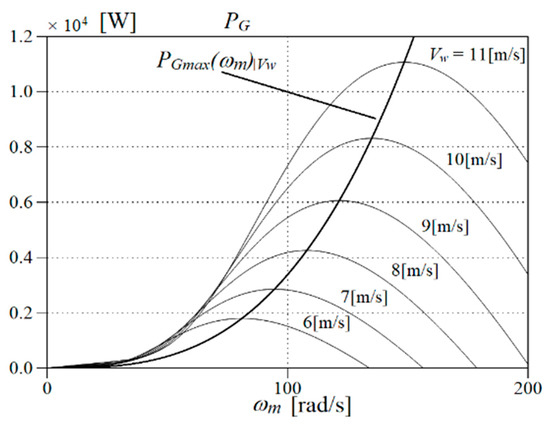

However, Figure 2 shows the power of the turbine described above as a function of the angular velocity of the induction generator for different wind speeds with zero blade angle adjustment. The diagram of maximum power is shown on the background of these characteristics. This waveform is described in Equation (3).

$$P_{\max }=c_{\beta }K{\left({\omega }_G/G\right)}^3$$

(3a)

$$c_{\beta }={\left(\frac{{\lambda }_{opt0}}{{\lambda }_{opt\beta }}\right)}^3\frac{C_p\left({\lambda }_{opt\beta },\beta \right)}{C_p\left({\lambda }_{opt0},0^0\right)} \mathrm{where} K=0.4223$$

(3b)

Equation (3a) for c_β = 1 describes the generator’s maximum power P_Gmax for zero adjustment of the blade angle, β = 0. When the value of power generated exceeds the power rating of the generator P_N, the setting of the angle of the blades changes. To ensure the operation of the generator with the maximum power coefficient C_p(λ,β) under the new conditions, the coefficient c_β is also changed in accordance with the relation (3b).

Equation (3a) is the basis for the implementation of the maximum power point tracking method. The tracking method based on the above equation will be used in the further part of the article in simulations of the wind farm system with an induction generator.

3. Multilevel Inverters Connecting the Generator to the Power Grid

At present, AC/DC/AC converters are commonly used in systems with full energy conversion [26,27]. Until recently, they were implemented on the basis of two-level inverters. However, multilevel inverters are increasingly being used [35,36]. An increased number of levels allowed them for better shaping of output currents at the same average number of joins of elements.

In the connection system of the induction generator to the power grid, three-level inverters were used from both the generator and the power grid side [33]. The types of inverters which were taken into consideration included: Neutral Point Clamped (NPC) inverter, and Neutral Point Piloted (NPP) inverter. Although the NPC inverters contain more elements, they have been accepted for further simulation studies. In the DC circuit, active balancing of voltage unbalance [37] was applied.

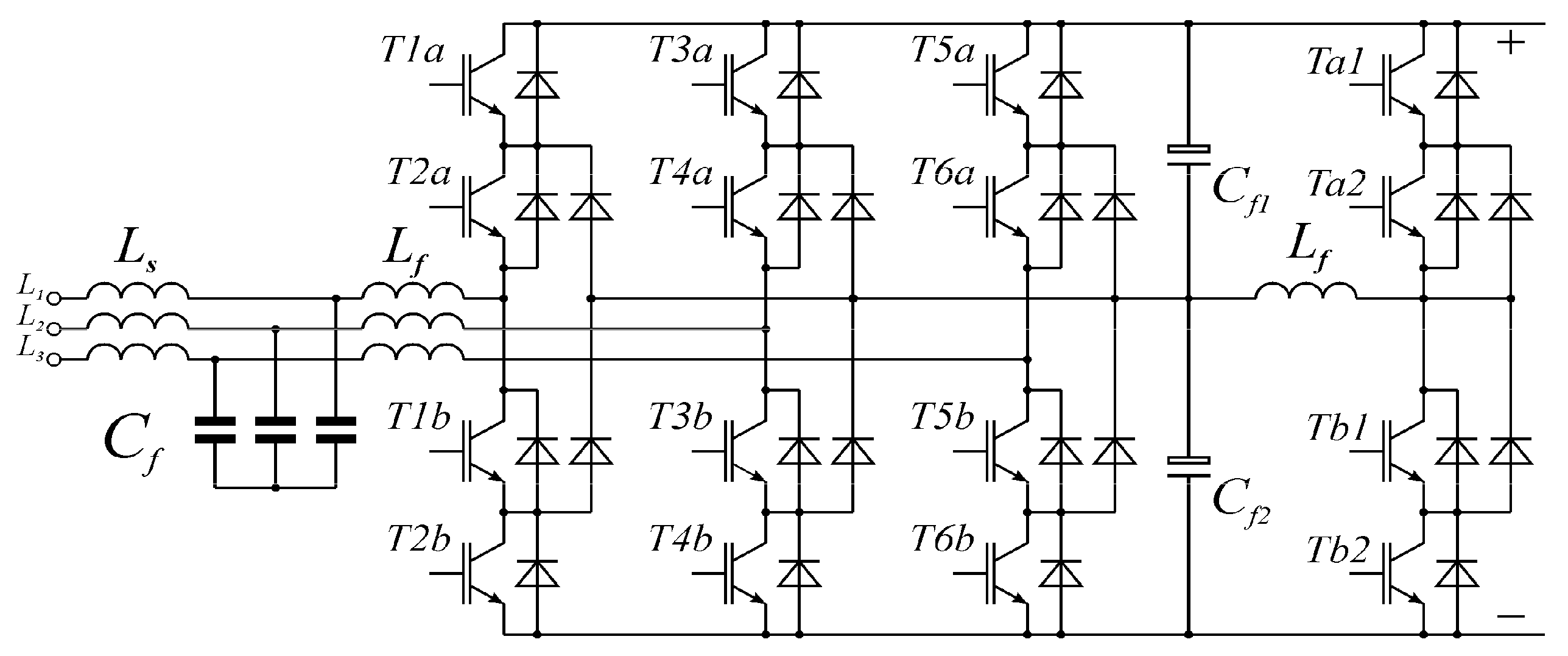

The scheme of a three-level inverter used in simulations on the generator and power grid side, with the active voltage balancing system, is shown in Figure 3.

4. SPWM Modulator of Multilevel Inverter

A simple algorithm based on Sinusoidal Pulse Width Modulation (SPWM) has been used to generate control signals for a multilevel inverter. It is implemented independently for each phase.

At the initial stage, the set signals of phase voltages are modified by adding to them a waveform (4) that allows increasing the output voltage of the inverter.

$$\{\begin{array}{l}{u}_{kom}=\frac{\max \left(u_{aref},u_{bref},u_{cref}\right)+\min \left(u_{aref},u_{bref},u_{cref}\right)}{2}\\ \begin{array}{ccc}{u}_{xref}=u_{xref}-u_{kom}& & x=a,b,c\end{array}\end{array}$$

(4)

The obtained modified signals are compressed to a range of ±2 using the U_DC intermediate circuit voltage (5).

$$\begin{array}{ccc}{u}_x=2\frac{u_{xref}}{U_{DC}}& & x=a,b,c\end{array}$$

(5)

In the next processing step, the signals were shifted by adding a constant component to them with a value of 2. As a result of this operation, unipolar signals in the range of values from 0 to 4 (6) were obtained.

$$\begin{array}{ccc}{u}_{px}=u_x+2& & x=a,b,c\end{array}$$

(6)

Signals processed this way are analyzed in two ranges, in the range of values 0–2 and 2–4. In each of these intervals, the SPWM is implemented independently. In the range of values from 2–4, signals are generated for the upper transistors of each inverter branch T1a, T3a, T5a and in the range of values from 0–2 for the lower transistors T2a, T4a, T6a. The other inverter transistors are controlled by complementary signals T1b, T3b, T5b and T2a, T4a, T6a according to Figure 3.

The durations of the control signals for a single switching cycle of the transistors are calculated twice in advance of the half cycle after the prediction has been applied to the set signals. They are performed at the beginning and in the middle of the switching cycle. The control signals obtained in this way may be asymmetrical with respect to the center of the switching cycle. The implementation of the control described above, however, halves the delay in the system response to changes in the set point and load in relation to the single calculation of the signal duration only at the beginning of the switching cycle.

Simple mathematical relations, without trigonometric functions, significantly reduced the calculation time. In the initial phase, the implementation of the algorithm was limited to determining the range of the offset value of the set signal. The calculation procedure is started only after the preparation phase. In the case when the value of the set point signal is in the second range, the initial offset value should be subtracted before making the calculation. This operation is not required when the signal value is in the first range (7).

$$\begin{array}{ccc}{u}_{rx}=\{\begin{array}{cc}{u}_{px}-2& 2<u_{px}<4\\ u_{px}& 0<u_{px}<2\end{array}& & x=a,b,c\end{array}$$

(7)

Eventually, the calculation of the delay times of the switching signals of the transistors, in relation to the beginning and the middle of the switching cycle, are performed based on dependencies (8).

$$\begin{array}{ccc}{T}_a=\left(1-0.5u_{rx}\right)T_p& & x=a,b,c\end{array}$$

(8)

where: T_p is half of the interval T_PWM, and u_rx is the reduced value of the set voltage.

The switching delay time determined on the basis of the above dependence applies only to one transistor from the complementary pair in the phase. At that time, the transistor from the second complementary pair can be switched on for the time equal to half of the connection cycle (second interval) or off for the time equal to half of the connection cycle (first interval) (9). It depends on the actual value of the set signal.

$$\left[\begin{array}{c}{T}_{xi}\\ T_{x(i+1)}\end{array}\right]=\{\begin{array}{c}\left(1-0.5u_{rx}\right)T_p\\ 0\\ T_p\\ \left(1-0.5u_{rx}\right)T_p\end{array}\begin{array}{c}\\ \end{array}\begin{array}{c}2<u_{px}<4\\ \\ 0<u_{px}<2\end{array}$$

(9)

where: [x,i]∈<a,1;b,3;c,5>.

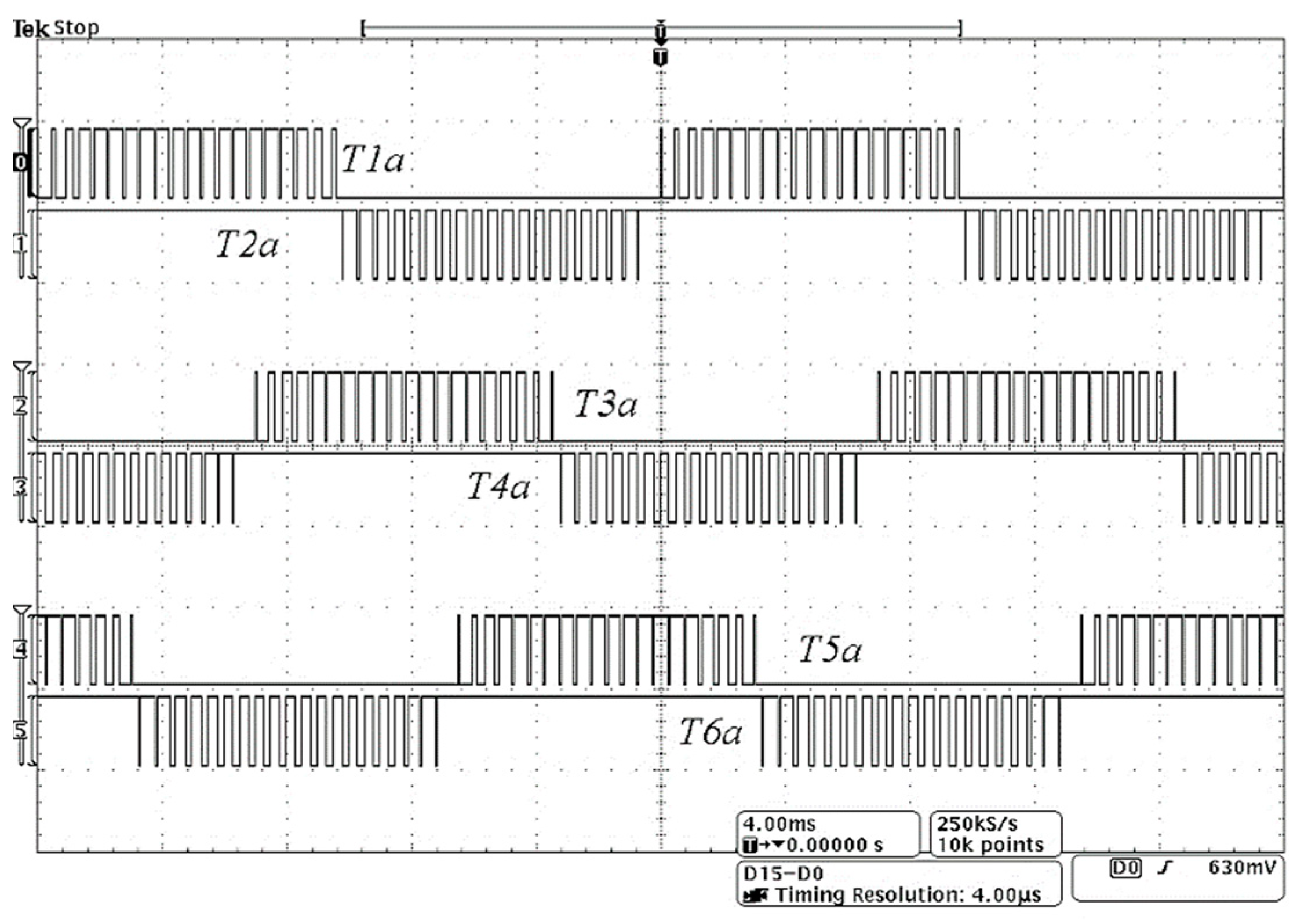

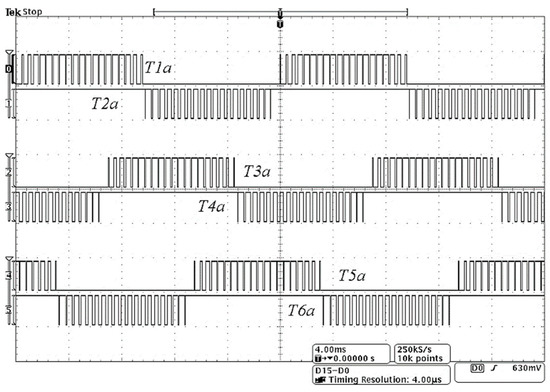

Figure 4 shows the waveforms of transistor control signals realized using the presented algorithm. They present the determined operating state of the three-level inverter.

The above algorithm can be easily adapted for controlling the operation of inverters with a larger number of levels.

5. Field-Oriented Generator Control with Direct Orientation of the Vector (DFOC)

In the power plant system, the generator is a squirrel cage induction machine with the rated data in Appendix A.

Direct coupling of such a generator with the power grid is possible, but only in a very narrow range of angular velocities. In order to extend the speed range for which the generator will be able to supply energy to the power grid, a solution with full conversion based on the AC/DC/AC system was used. It forced the necessity of also using the converter on the generator side. In order to unify control systems and create the possibility of using medium-voltage generators in the future, three-level inverters were used.

The generator-side inverter control algorithm was based on field-oriented control with indirect field vector orientation with voltage control. It is relatively simple and allows setting the electromagnetic moment of the generator load. This is the starting point for the implementation of the MPPT algorithm. The cage induction motor model in the synchronous system of the rotor flux is described by the voltage–current vector Equation (10). After separation into the real and imaginary part, it allows determination of the rotor flux ψ_r, the slip pulsation ω_r, and the electromagnetic torque m_e (11).

$$\begin{array}{ccc}{T}_r\frac{d{\overrightarrow{\psi }}_r}{dt}+\left(1+j{T}_r{\omega }_r\right){\overrightarrow{\psi }}_r=L_m{\overrightarrow{i}}_f& & T_r=\frac{L_r}{R_r}\end{array}$$

(10)

$$\{\begin{array}{ll}{\omega }_r=R_r\frac{L_m}{L_r}\frac{i_{fq}}{\left|{\psi }_r\right|}& {\gamma }_{\psi r}={\displaystyle \underset{0}{\overset{t}{\int }}\left(p_b{\omega }_m+{\omega }_r\right)dt}\\ T_r\frac{d{\psi }_r}{dt}+{\psi }_r=L_m{i}_{fd}& m_e=\frac{3}{2}{p}_b\frac{L_m}{L_r}\left|{\psi }_r\right|i_{fq}\end{array}$$

(11)

where: R_r rotor resistance, L_r rotor inductance, L_m main inductance, p_b number of pole pairs, ψ_r rotor flux, ω_r slip pulsation, ω_m mechanical angular velocity, m_e torque.

Equation (11) describes the induction machine in a synchronous system. It also makes it possible to calculate the set component values i_fd*, i_fq* of the inverter output current. These current components were calculated for the assumed value ψ_r* of the rotor flux and the set value m_e^* of the electromagnetic torque. To enable wider use of the machine as the generator, the rotor flux was assumed equal to the rated flux. On the other hand, the set moment was calculated in the MPPT system, based on the current angular speed ω_m of the generator shaft. As a result of this procedure, relations (12) were obtained. They allowed determination of the inverter control in a further calculation step.

$$\{\begin{array}{l}\begin{array}{cc}{\omega }_r[k]=R_r\frac{L_m}{L_r}\frac{i_{fq}[k]}{\left|{\psi }_r[k]\right|}& {\omega }_{s\psi r}[k+1]=p_b{\omega }_m[k]+{\omega }_r[k]\end{array}\\ {\gamma }_{\psi r}[k+1]={\gamma }_{\psi r}[k]+T_s{\omega }_{s\psi r}[k]\\ m_e[k]=\frac{3}{2}{p}_b\frac{L_m}{L_r}{\psi }_r[k]i_{fq}[k]\\ {\psi }_r[k+1]={\psi }_r[k]+T_s/T_r(L_m{i}_{fd}[k]-{\psi }_r[k])\end{array}$$

(12)

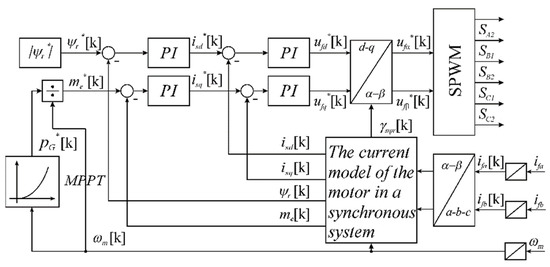

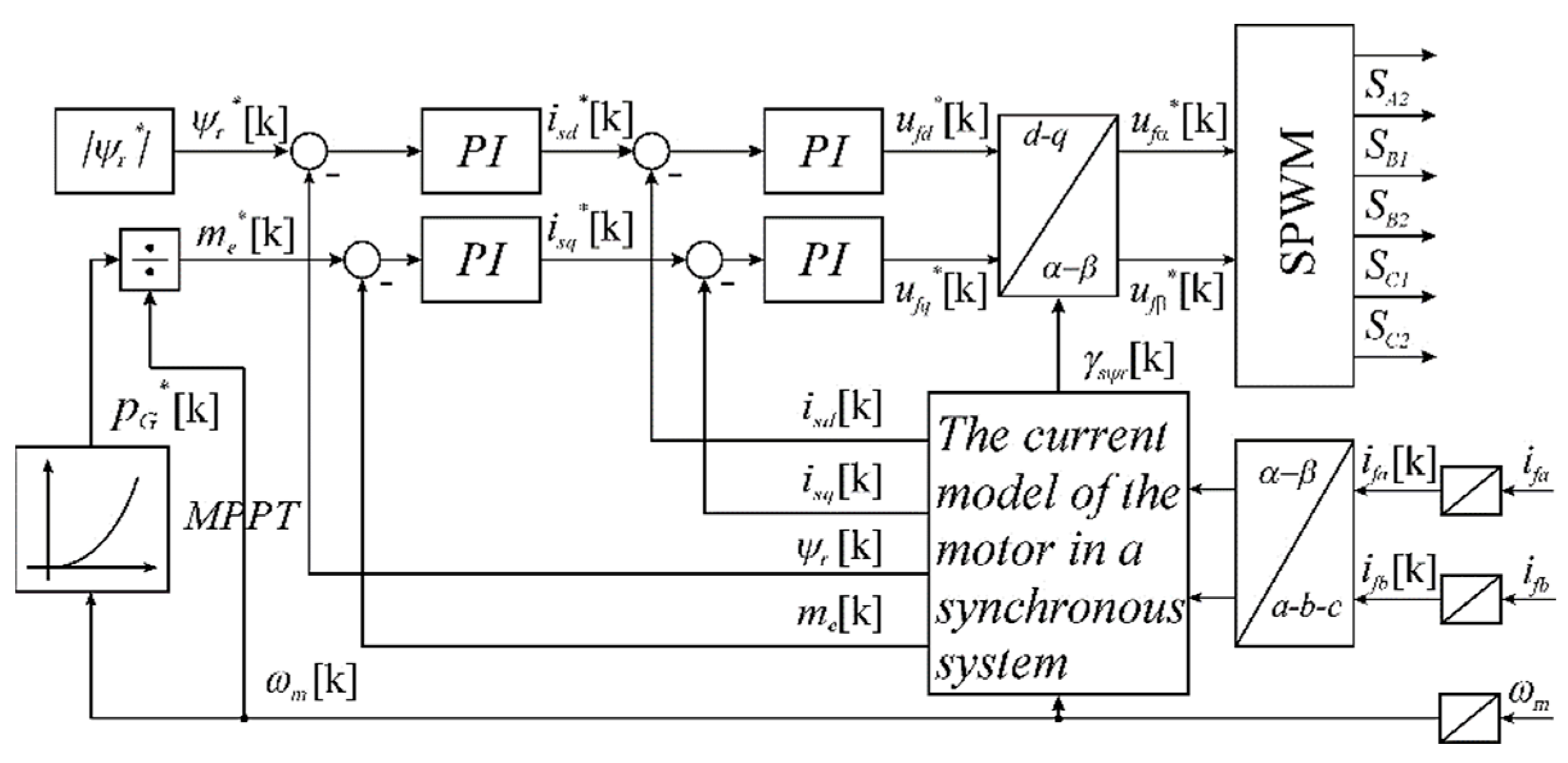

Figure 5 shows the inverter control algorithm from the generator side using the method based on dependence (12).

$$\{\begin{array}{l}{i}_{fd}{}^{\ast }\left[k\right]=K_{P\_{\psi }_r}\left[\left({\psi }_r{}^{\ast }\left[k\right]-{\psi }_r\left[k\right]\right)\right]\\ \begin{array}{cccccc}& & & & & +K_{I\_{\psi }_r}{\displaystyle \sum _{m=0}^k\left[\left({\psi }_r{}^{\ast }\left[m\right]-{\psi }_r\left[m\right]\right)\right]}\end{array}\\ i_{fq}{}^{\ast }\left[k\right]=K_{P\_me}\left[\left(m_e{}^{\ast }\left[k\right]-m_e\left[k\right]\right)\right]\\ \begin{array}{cccccc}& & & & & +K_{I\_me}{\displaystyle \sum _{m=0}^k\left[\left(m_e{}^{\ast }\left[k\right]-m_e\left[k\right]\right)\right]}\end{array}\end{array}$$

(13)

In the presented block diagram, the generator is controlled in a coordinate system that rotates synchronously with the rotor flux vector ψ_r. Here, on the basis of the set values of the rotor flux ψ_r* and the motor torque m_e*, the set currents i_fd* and i_fq* in the d–q axes are determined by means of PI type controllers in Equation (13). Next, on the basis of the set values of currents i_fd* and i_fq*, the set values of the output voltages u_fd* and u_fq* of the converter are also determined by means of PI type regulators in Equation (14).

$$\{\begin{array}{l}{u}_{fd}{}^{\ast }\left[k\right]=K_{P\_i_{fd}}\left[\left(i_{fd}{}^{\ast }\left[k\right]-i_{fd}\left[k\right]\right)\right]\\ \begin{array}{cccccc}& & & & & +K_{I\_i_{fd}}{\displaystyle \sum _{m=0}^k\left[\left(i_{fd}{}^{\ast }\left[m\right]-i_{fd}\left[m\right]\right)\right]}\end{array}\\ u_{fq}{}^{\ast }\left[k\right]=K_{P\_i_{fq}}\left[\left(i_{fq}{}^{\ast }\left[k\right]-i_{fq}\left[k\right]\right)\right]\\ \begin{array}{cccccc}& & & & & +K_{I\_i_{fq}}{\displaystyle \sum _{m=0}^k\left[\left(i_{fq}{}^{\ast }\left[k\right]-i_{fq}\left[k\right]\right)\right]}\end{array}\end{array}$$

(14)

6. Predictive Control of the Power Grid Converter

The AC/DC/AC system’s output converter works with the power grid directly. Its basic task is to supply energy generated by the generator to the grid. Thanks to the extended control algorithm, it can also act as a reactive power compensator.

In general, the grid voltage can be strongly distorted and contain higher harmonics with significant amplitudes. In the simulation tests, two harmonics were taken into account: 5 h with a value of 5% of the fundamental value of the harmonic and phase of 30° and 7 h with a value of 3% of the fundamental value of the harmonic and phase of −20°. The condition of proper cooperation with the power grid is a good synchronization of the control system with the basic voltage harmonic. This goal was achieved using the PLL algorithm. However, when the network voltage is distorted, good synchronization is not sufficient to obtain the nearly sinusoidal voltage waveform with small content of higher harmonics. In order to perform the above task, the LCL filter was used in the inverter coupling system with the power grid, and the prediction in the control algorithm was applied [28,38,39,40,41,42,43,44]. The use of the filter in conjunction with the prediction has improved the shape of the grid current by reducing the content of higher harmonics below 1%.

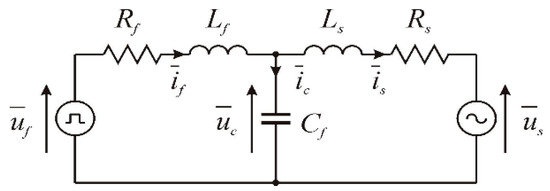

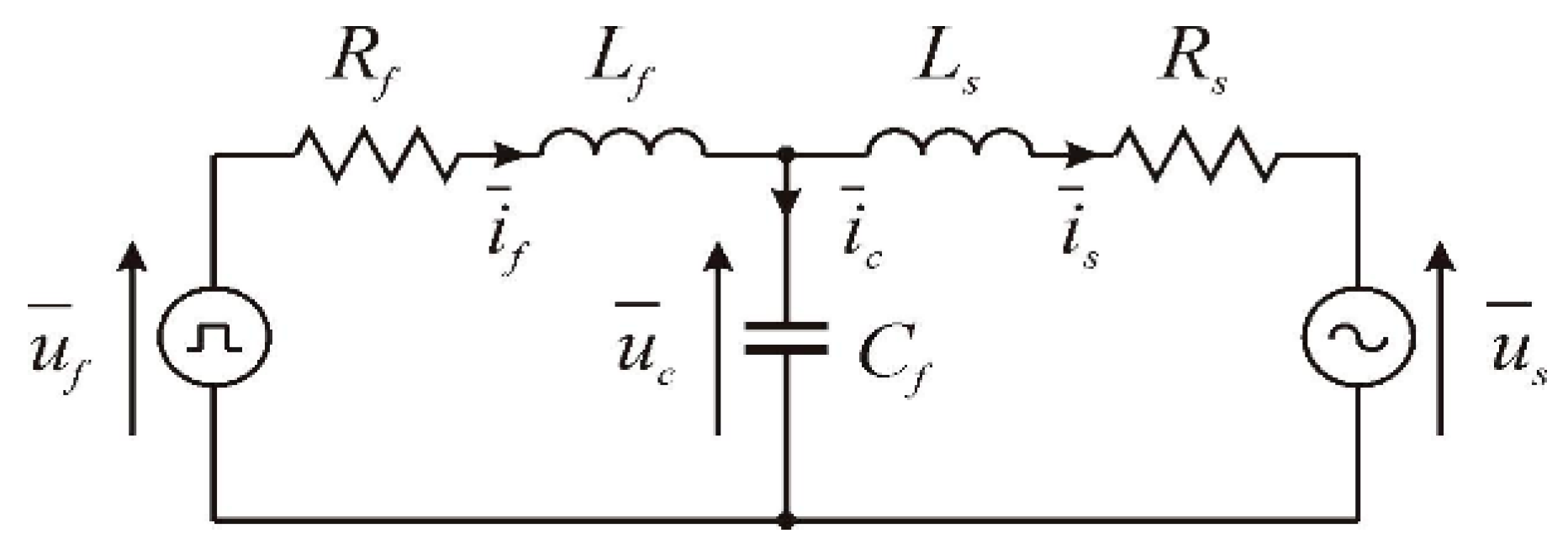

The equivalent filter scheme is shown in Figure 6. It has a high damping factor of 60 dB/dec for frequencies above the resonant frequency. By appropriate selection of the resonant frequency, the modulation signal can be very effectively suppressed. However, it is a third-order filter and oscillations may occur in the output current, which must also be effectively suppressed.

Equation (15a–c) describe the LCL filter in a continuous form.

$$\begin{array}{l}\{\begin{array}{l}\begin{array}{cccc}a)& L_s\frac{d{\overrightarrow{i}}_s}{dt}+{\stackrel{\rightharpoonup }{i}}_s{R}_s={\overrightarrow{u}}_c-{\overrightarrow{u}}_s& & \end{array}\\ \begin{array}{cccc}\mathrm{b})& L_f\frac{d{\overrightarrow{i}}_f}{dt}+{\overrightarrow{i}}_f{R}_f={\overrightarrow{u}}_f-{\overrightarrow{u}}_c& & \end{array}\\ \begin{array}{cc}c)& C_f\frac{d{\overrightarrow{u}}_c}{dt}={\overrightarrow{i}}_f-{\overrightarrow{i}}_f\end{array}\end{array}\\ \end{array}$$

(15)

When switching to a discrete form, a description based on averaged momentary values of the grid voltage, inverter, and capacitor was used. Finally, the predictive control algorithm with the model was described using four-vector Equation (16).

$$\begin{array}{l}\{\begin{array}{l}{\overrightarrow{u}}_f[k+1|k+2]={\overrightarrow{u}}_c[k+1|k+2]\\ \begin{array}{ccccccc}& & & & & & +\left({\overrightarrow{i}}_f[k+2]-A_f*{\overrightarrow{i}}_f[k+1]\right)/B_f\end{array}\\ {\overrightarrow{i}}_f[k+2]={\overrightarrow{i}}_s[k+2]+({\overrightarrow{u}}_c[k+2|k+3]\\ \begin{array}{cccccccc}& & & & & & & -A_f*{\overrightarrow{u}}_c[k+1|k+2])/B_f\end{array}\\ {\overrightarrow{u}}_c[k+2|k+3]={\overrightarrow{u}}_s[k+2|k+3]\\ \begin{array}{ccccccc}& & & & & & +\left({\overrightarrow{i}}_s[k+3]-A_s*{\overrightarrow{i}}_s[k+2]\right)/B_s\end{array}\\ {\overrightarrow{u}}_c[k+1|k+2]=A_c*{\overrightarrow{u}}_c[k|k+1]\\ \begin{array}{cccccccc}& & & & & & & +B_c*\left({\overrightarrow{i}}_f[k+1]-{\overrightarrow{i}}_s[k+1]\right)\end{array}\end{array}\\ \end{array}$$

(16)

where: x[k+1|k+2] is average value of the quantity in the time interval k+1 to k+2, x[k+1] is value of the quantity at time k+1.

For a third-order filter, the prediction of two advance steps is required. In order to implement the control in the above equations, the grid current values were replaced with their set values: ${\overrightarrow{i}}_s[k+2]={\overrightarrow{i}}_s^{*}[k+2]$ and ${\overrightarrow{i}}_s[k+3]={\overrightarrow{i}}_s^{*}[k+3]$. The remaining values were determined based on Equation (17).

$$\begin{array}{l}\{\begin{array}{l}{\overrightarrow{u}}_c[k-1|k]={\overrightarrow{u}}_s[k-1]+\left({\overrightarrow{i}}_s[k]-A_s*{\overrightarrow{i}}_s[k-1]\right)/B_s\\ {\overrightarrow{u}}_c[k|k+1]=A_c*{\overrightarrow{u}}_c[k-1|k]+B_c*\left({\overrightarrow{i}}_f[k]-{\overrightarrow{i}}_s[k]\right)\\ {\overrightarrow{i}}_s[k+1]=A_s*{\overrightarrow{i}}_s[k]+B_s*\left({\overrightarrow{u}}_c[k|k+1]-{\overrightarrow{u}}_s[k|k+1]\right)\\ {\overrightarrow{i}}_f[k+1]=A_f*{\overrightarrow{i}}_f[k]+B_f*\left({\overrightarrow{u}}_f[k|k+1]-{\overrightarrow{u}}_c[k|k+1]\right)\end{array}\\ \end{array}$$

(17)

In the grid converter control system, the voltages on the capacitors and the converter output currents are not measured. However, these values are calculated. The average voltages ${\overrightarrow{u}}_c[k-1|k]$ on the capacitors for the previous sampling period are estimated on the basis of the average values of the power grid voltage and the grid current in the previous sampling period. Then, based on the prediction, its values for the present moment are determined. In contrast, the converter output currents are calculated based on the prediction in the previous sampling period. The coefficients occurring in Equation (17) were determined based on the equations of the filter state and, assuming the constancy of the element parameters, they can be calculated based on the dependence (18).

$$\{\begin{array}{l}\begin{array}{ccc}{A}_s=1-\exp (-T_s/T_e)& & B_s=\left(1-A_s\right)/R_s\end{array}\\ \begin{array}{ccc}{A}_f=1-\exp (-T_s/T_f)& & B_f=\left(1-A_f\right)/R_f\end{array}\\ \begin{array}{ccc}{A}_c=1-\exp (-T_s/T_c)& & B_c=\left(1-A_c\right)*R_c\end{array}\\ \begin{array}{ccccc}{T}_e=L_s/R_s& & T_f=L_f/R_f& & T_c=C_f{R}_c\end{array}\end{array}$$

(18)

In Equations (16) and (17), the average grid voltage was used for the intervals [k|k+1], [k+1|k+2], and [k+2|k+3] and the currents from the moment of measurement [k]. The averaging refers to half of the switching cycle of transistors. The coefficients in the equations include such parameters of the coupling system as the filter inductances L_s and L_f, filter resistances R_s and R_f, as well as capacitance C_f and resistance R_c = ESR.

The voltage values of the power grid at the time [k+1], [k+2], and [k+3] were determined by summing (21) rotated vectors, basic (19) and higher harmonics (20), and grid voltage. On the other hand, the size of the rotation angle of the vector components depends on their pulsation ω_Pll1h, ω_mh, and sampling time T_s.

$$\begin{array}{l}{\overrightarrow{u}}_{sPll1h}[k+n]={\overrightarrow{u}}_{sPll1h}[k]\left(\cos \left(nd{\gamma }_{Pll1h}\right)+j\sin \left(nd{\gamma }_{Pll1h}\right)\right)\\ \mathrm{where}:\begin{array}{c}\end{array}d{\gamma }_{Pll1h}=2PI{f}_{Pll1h}{T}_s\begin{array}{c}\end{array}n=1{,}_{}2{,}_{}3\end{array}$$

(19)

$$\begin{array}{l}{\overrightarrow{u}}_{smh}[k+n]={\overrightarrow{u}}_{smh}[k]\left(\cos \left(nd{\gamma }_{mh}\right)+j\sin \left(nd{\gamma }_{mh}\right)\right)\\ \mathrm{where}:\begin{array}{c}\end{array}d{\gamma }_{mh}=2PI{f}_{mh}{T}_s\begin{array}{c}\end{array}m=5{,}_{}7,\dots \begin{array}{c}\end{array}n=1{,}_{}2{,}_{}3\end{array}$$

(20)

$$\begin{array}{l}{\overrightarrow{u}}_s[k+n]={\overrightarrow{u}}_{sPll1h}[k+n]+{\displaystyle \sum _m{\overrightarrow{u}}_{smh}[k+n]}\\ \mathrm{where}:\begin{array}{c}\end{array}n=1{,}_{}2{,}_{}3\begin{array}{c}\end{array}m=5{,}_{}7,\dots \end{array}$$

(21)

The components of the current i_sαβ and i_fαβ for time [k+1] (17) are determined based on prediction with the model of coupling circuit, Figure 6.

The set value of the current was determined based on the definition of instantaneous powers for the first harmonic, given by Hirofumi Akagi (22) [45,46].

$$\begin{array}{l}\{\begin{array}{l}{p}^{*}\left[k\right]=u_{s\alpha Pll1h}\left[k\right]i_{s\alpha }^{*}\left[k\right]+u_{s\beta Pll1h}\left[k\right]i_{s\beta }^{*}\left[k\right]\\ q^{*}\left[k\right]=u_{s\beta Pll1h}\left[k\right]i_{s\alpha }^{*}\left[k\right]-u_{s\alpha Pll1h}\left[k\right]i_{s\beta }^{*}\left[k\right]\end{array}\\ \end{array}$$

(22)

It refers to the actual time [k]. However, in relations (16), values of currents are also required for times [k+2] and [k+3]. Assuming that the power grid current should have the sinusoidal waveform, the required quantities can be easily obtained. For this purpose, the rotation of the reference current vector is carried out twice and three times, determined for the instant [k] based on the dependence (22), by the angle determined from the fundamental harmonic voltage of the power grid frequency f_Pll1h of network voltage and the sampling interval T_s (23).

$$\begin{array}{l}{\overrightarrow{i}}_s^{*}[k+n]={\overrightarrow{i}}_s^{*}[k]\left(\cos (n*d{\gamma }_{Pll1h})+j\sin (n*d{\gamma }_{Pll1h})\right)\\ \begin{array}{ccc}\mathrm{where}:\begin{array}{c}\end{array}d{\gamma }_{Pll1h}=2PI{f}_{Pll1h}{T}_s& & n=2{,}_{}3\end{array}\end{array}$$

(23)

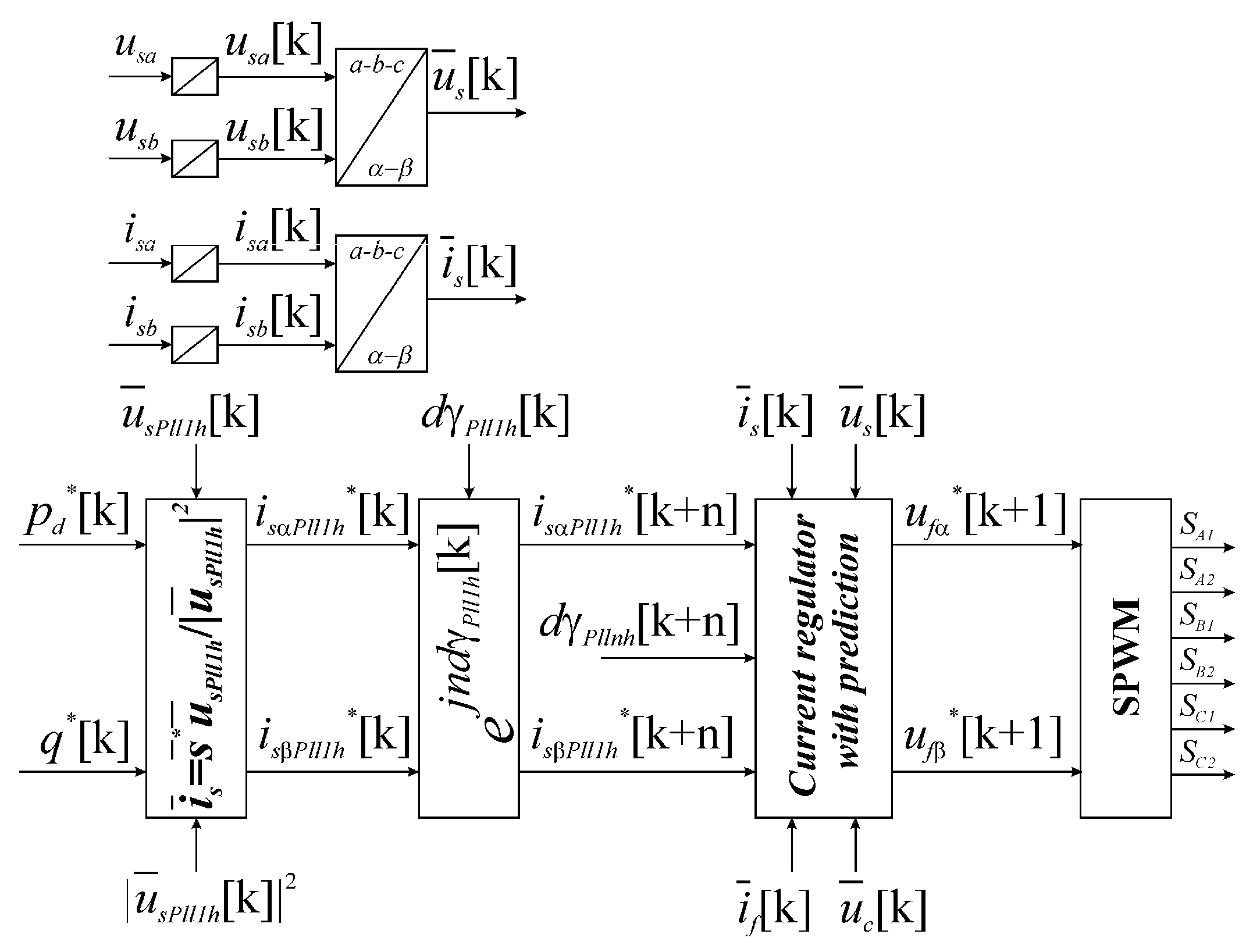

Figure 7 shows a block diagram of the grid converter control algorithm based on the presented dependencies.

7. Synchronization of Control to the Voltage of the Power Grid

As mentioned earlier, the control of the converter, which is connected to the power grid, requires precise synchronization with the voltage waveform. In the presented system, this process takes place in two stages. In the first stage, thirty-two positive-order and thirty-two negative-order higher harmonics are attenuated using a cascaded system CDSC(v_αβ)_{2,4,8,16,32,64} [47,48,49,50,51,52]. A valuable feature of this system is that it does not introduce, or introduces a negligibly small value of, phase shift of the input waveform first harmonic.

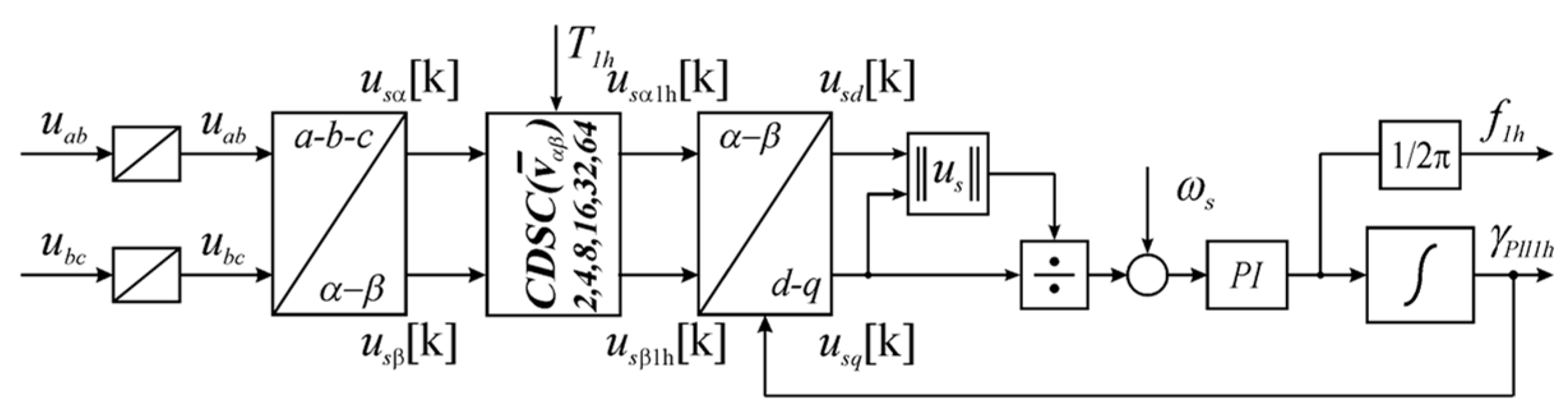

The second stage is proper synchronization with the fundamental harmonic of the power grid voltage. Figure 8 shows the implemented synchronization system.

8. Wind Power Plant System

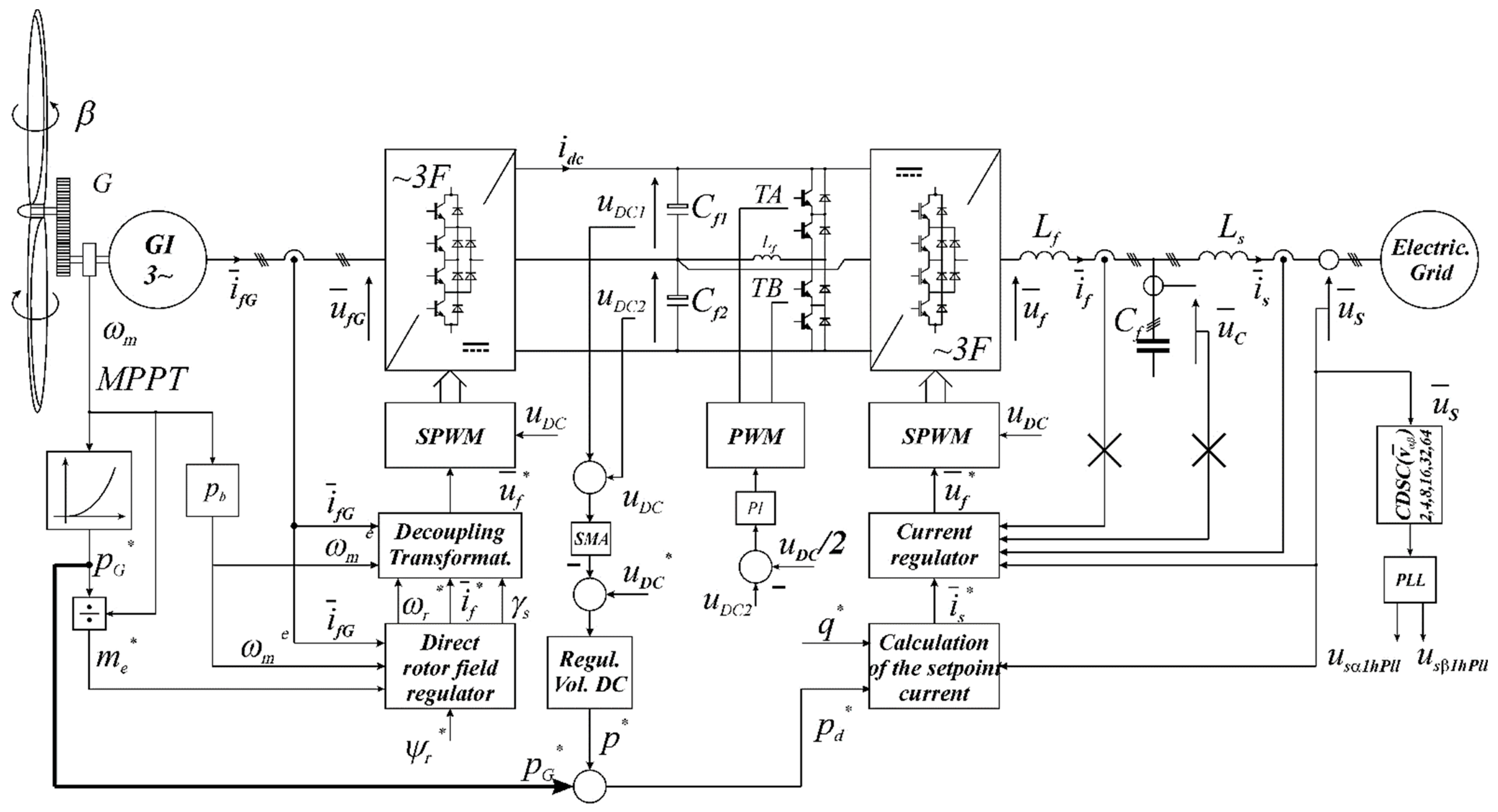

Figure 9 shows a complete block diagram of a wind power plant connected to the power grid by three-level inverters. The connection between the power plant and the power grid is constituted by an LCL filter with the parameters given in Appendix B. In the DC circuit, there is a voltage balancing system on capacitors C_f1 and C_f2. Between the control systems, generator, and power grid inverter, feed-forward power feedback has been used. It speeds up the transient processes in the converter system at wind changes.

9. Laboratory Tests of a Wind Power Plant

The tests of the system were carried out by simulation using the software package PLECS version 4.4.3, and the limited physical experiment. From this package, only library elements of the main circuit were used for modeling. These elements include: model of induction motor, transistors, inductances, and capacitances, as well as current, voltage, and speed measurement systems. The control algorithm was written in the C programming language. After compiling, in the form of a dynamic library *.dll, it was attached to the main program modeling system. The control algorithm is called from the main program every 50 μs (20 kHz) similarly as in the real system as part of the interrupt service. However, the frequency of switching of transistor keys is halved and in the tested system it is 10 kHz.

The procedure presented above was dictated by the fact that in the case of experimental implementation, the tested algorithm can be easily transferred to a microprocessor controller with minor modifications to adapt it to the hardware equipment. The laboratory research process carried out in this way will reproduce the working conditions of the real system fairly reliably.

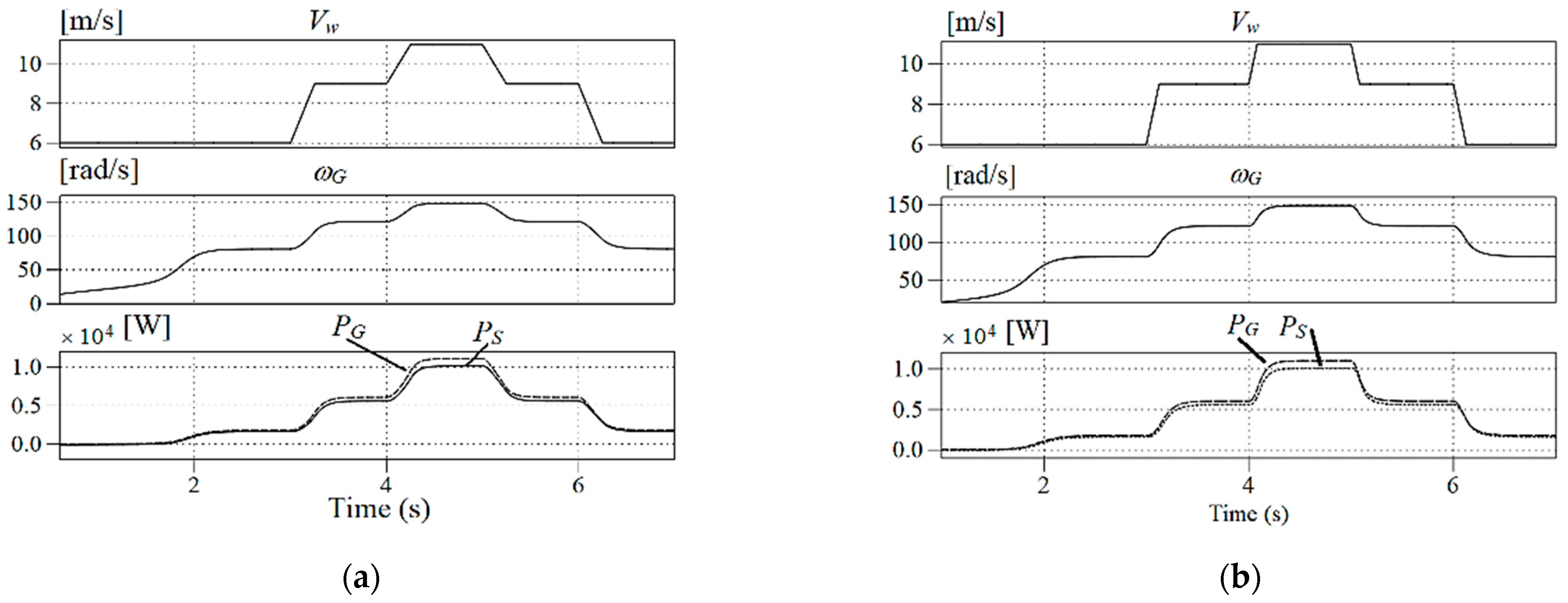

During the simulation tests, the wind was modeled changing in the cycle from 6 m/s to 9 m/s and further to 11 m/s and from 11 m/s to 9 m/s, finishing at 6 m/s with phases of constant speed value. The operation of the system for the above test scenario is given in Figure 10, which shows the assumed changes in wind speed V_w and the corresponding changes in angular speed ω_G and power P_G of the generator, as well as in power P_S supplied to the power grid.

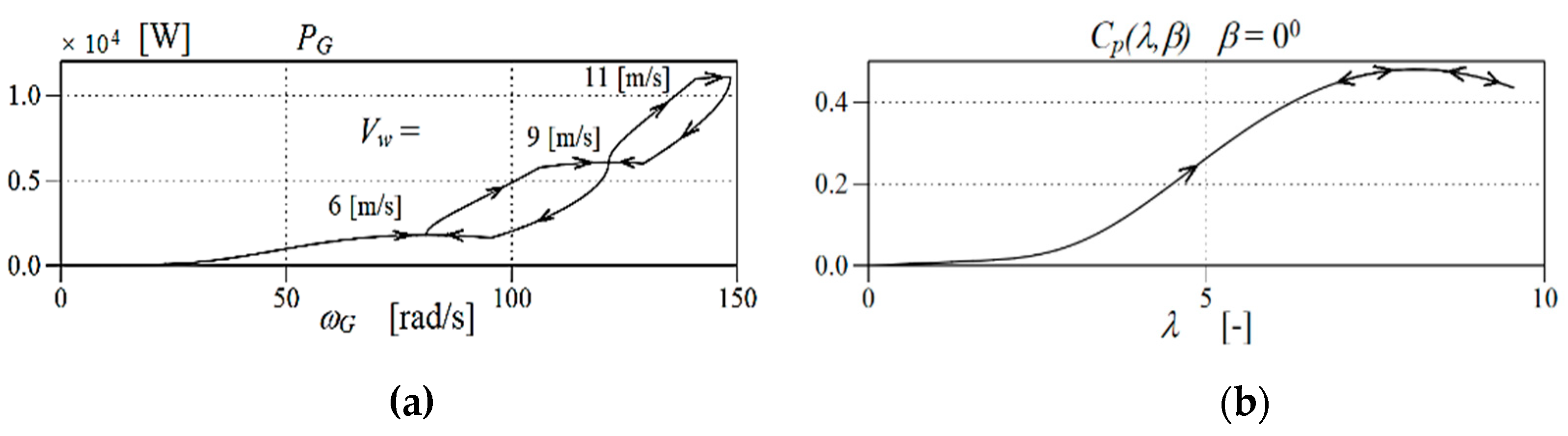

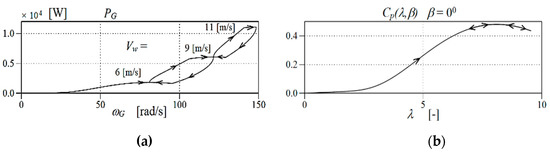

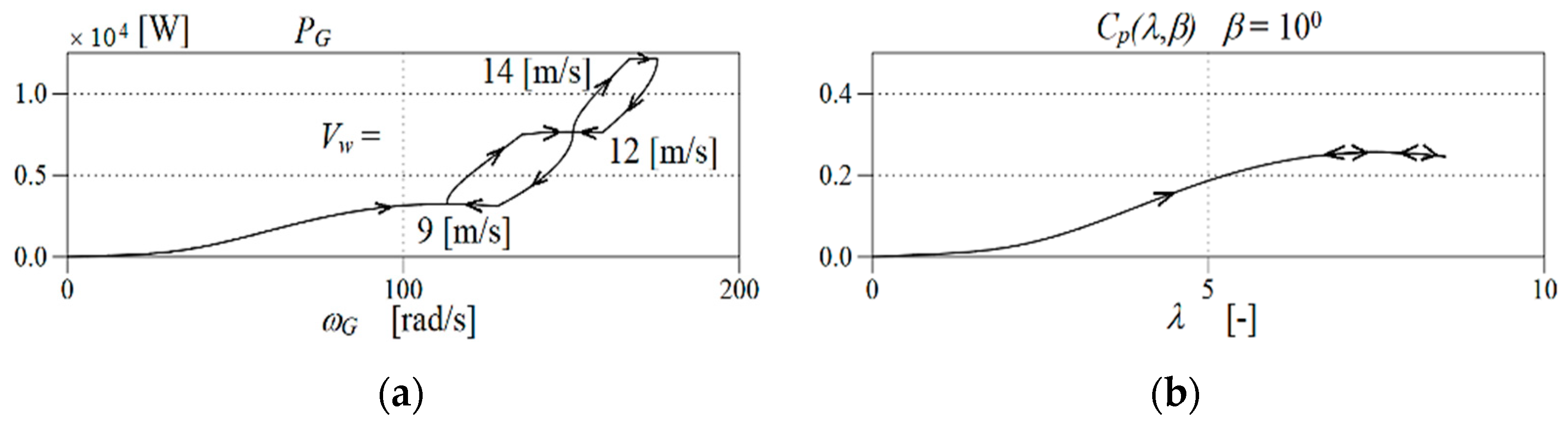

Figure 11a shows the waveforms of generator power P_G as a function of its angular speed ω_G, while Figure 11b presents the waveform of wind turbine power coefficient C_p(λ,β). These two waveforms were obtained for different wind speeds at a constant turbine blade pitch β = 0°. Power values at which changes start, after changes in wind speed, allow conclusions on the good implementation of the maximum power point tracking in steady states.

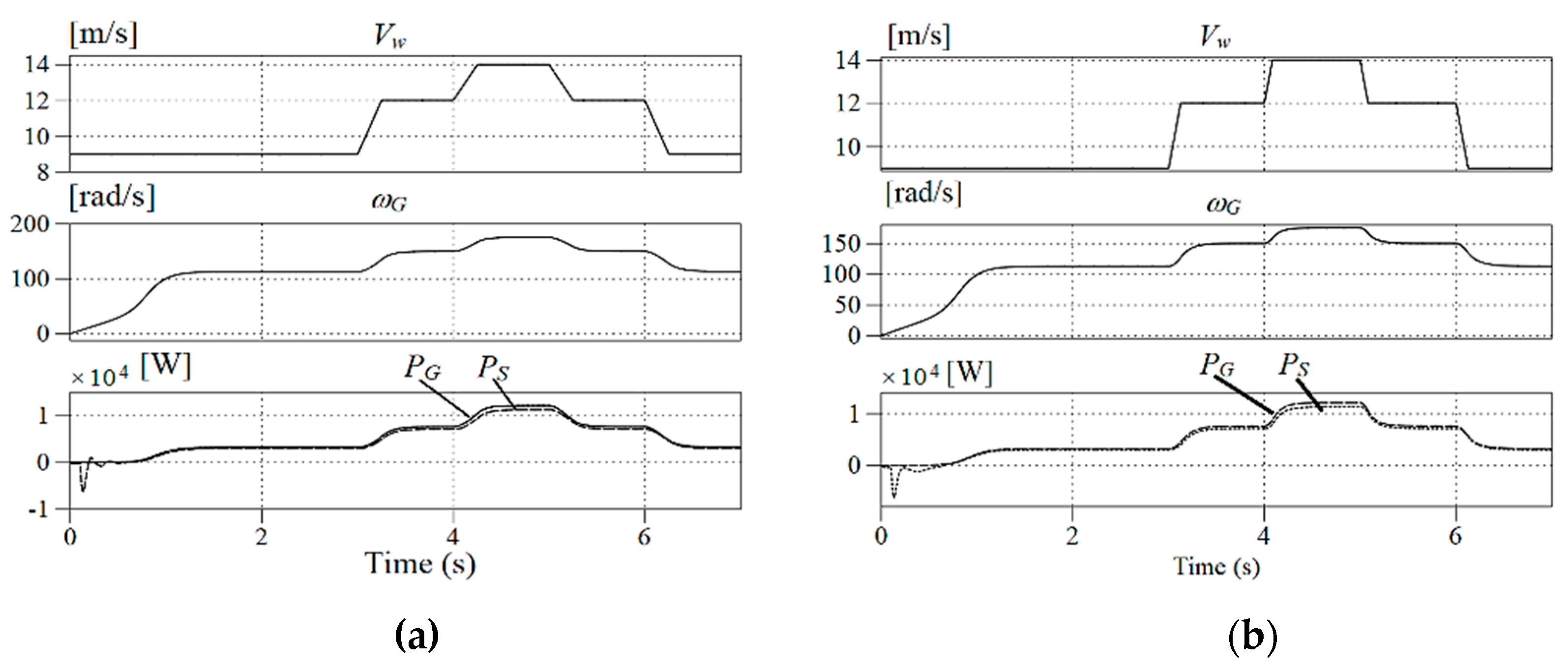

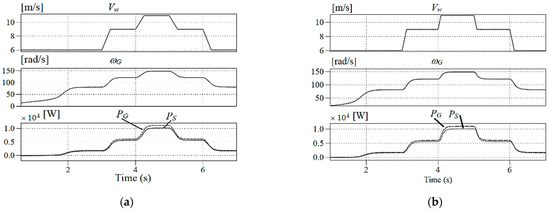

Figure 12 and Figure 13 show changes in wind speed V_w, angular speed ω_G, and power of generator P_G as well as of power P_S supplied to the power grid. The presented waveforms refer to the case of a wind speed increase from 9 m/s through 12 m/s up to 14 m/s, and a decrease within the same range. When the wind speed exceeded 11 m/s, the generated power was higher than the rated power of the generator. In order to limit the power, the angle of the wind turbine blades’ setting was changed from β = 0° to β = 10° to reduce the generated power. Despite this change, the wind power plant continues to work with the tracking of the maximum power point by correcting the coefficient c_β in accordance with Equation (3b). On the basis of the waveform, Figure 10 shows the efficiency of the system, which, for a predetermined wind velocity V_w = 11 m/s and an angle β = 0°, was η ≅ 91.2%.

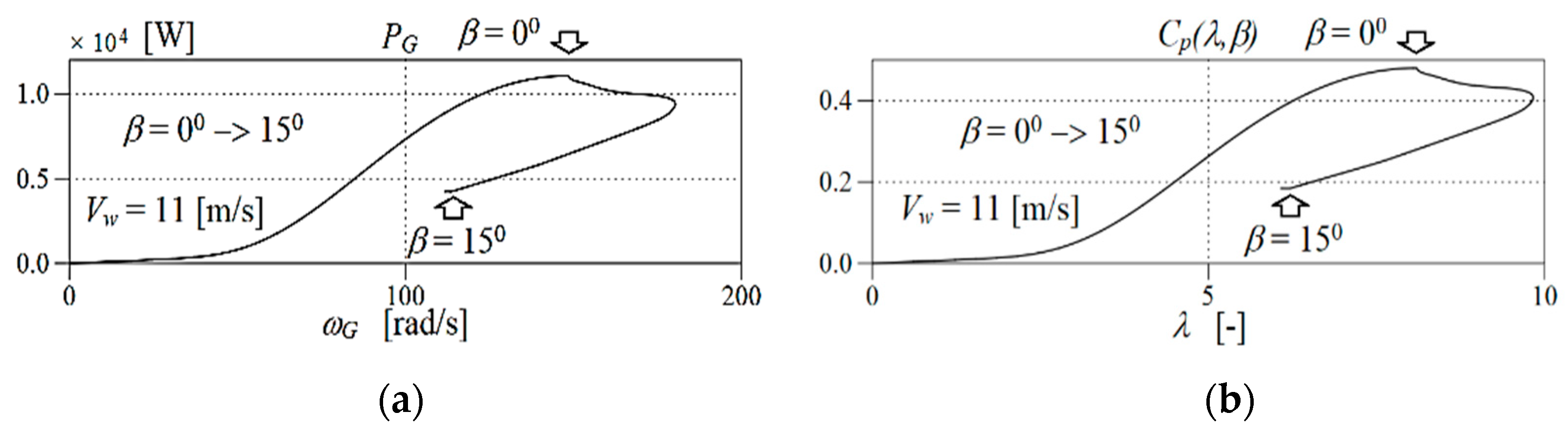

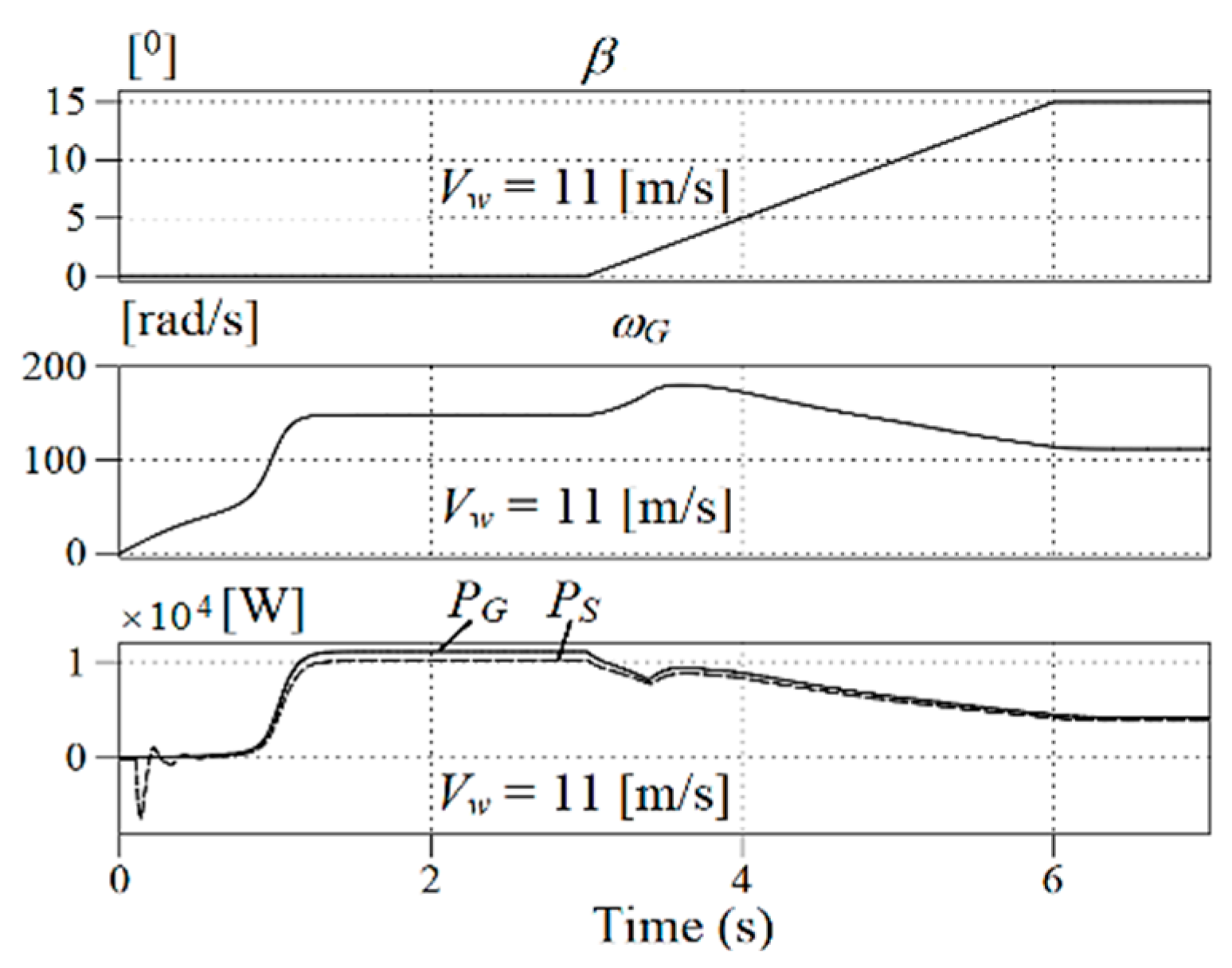

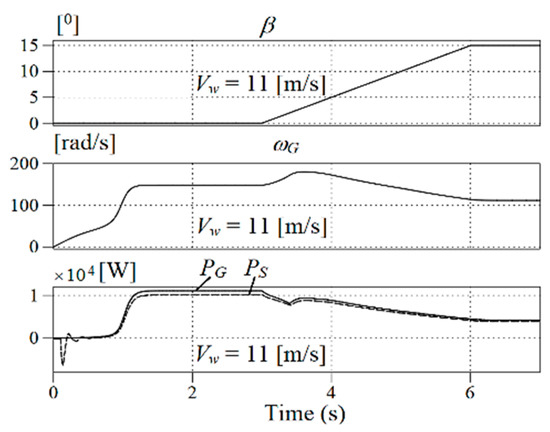

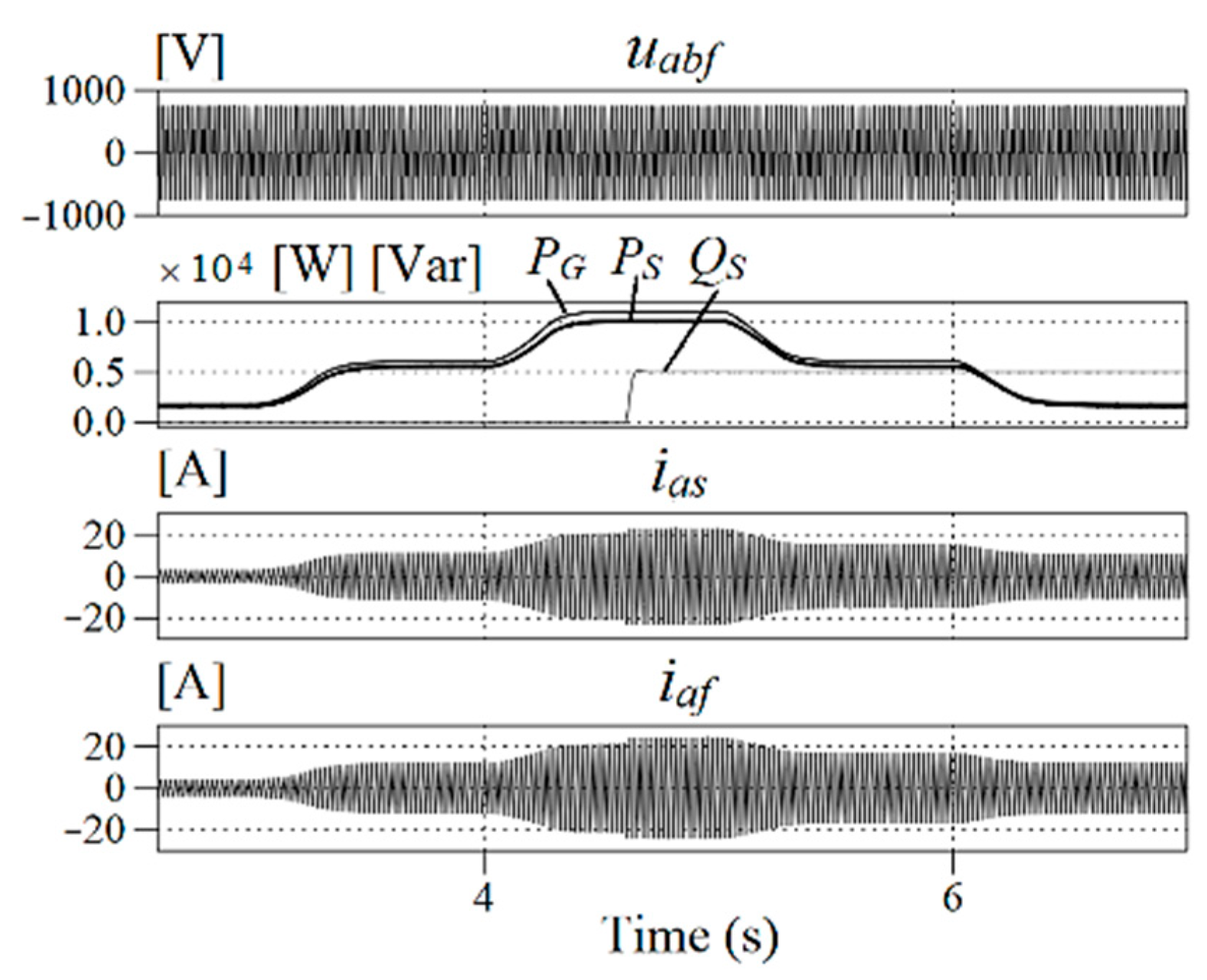

Figure 14 and Figure 15 show the transient processes occurring in a wind power plant during a linear change in the turbine blade angle setting in the range from β = 0° to β = 15°, at constant wind speed. In the initial phase of changes in β, a slight increase in generator angular speed ω_G is observed, but then it decreases to the final steady-state level below the initial speed. As a result, the power factor C_p (λ,β) decreases (Figure 15b) from the optimal value for the set wind speed V_w = 11 m/s and angle β = 0° to the optimal value for the angle β = 15°. Therefore, the power P_G generated and P_S supplied to the power grid are also decreasing (Figure 14 and Figure 15a).

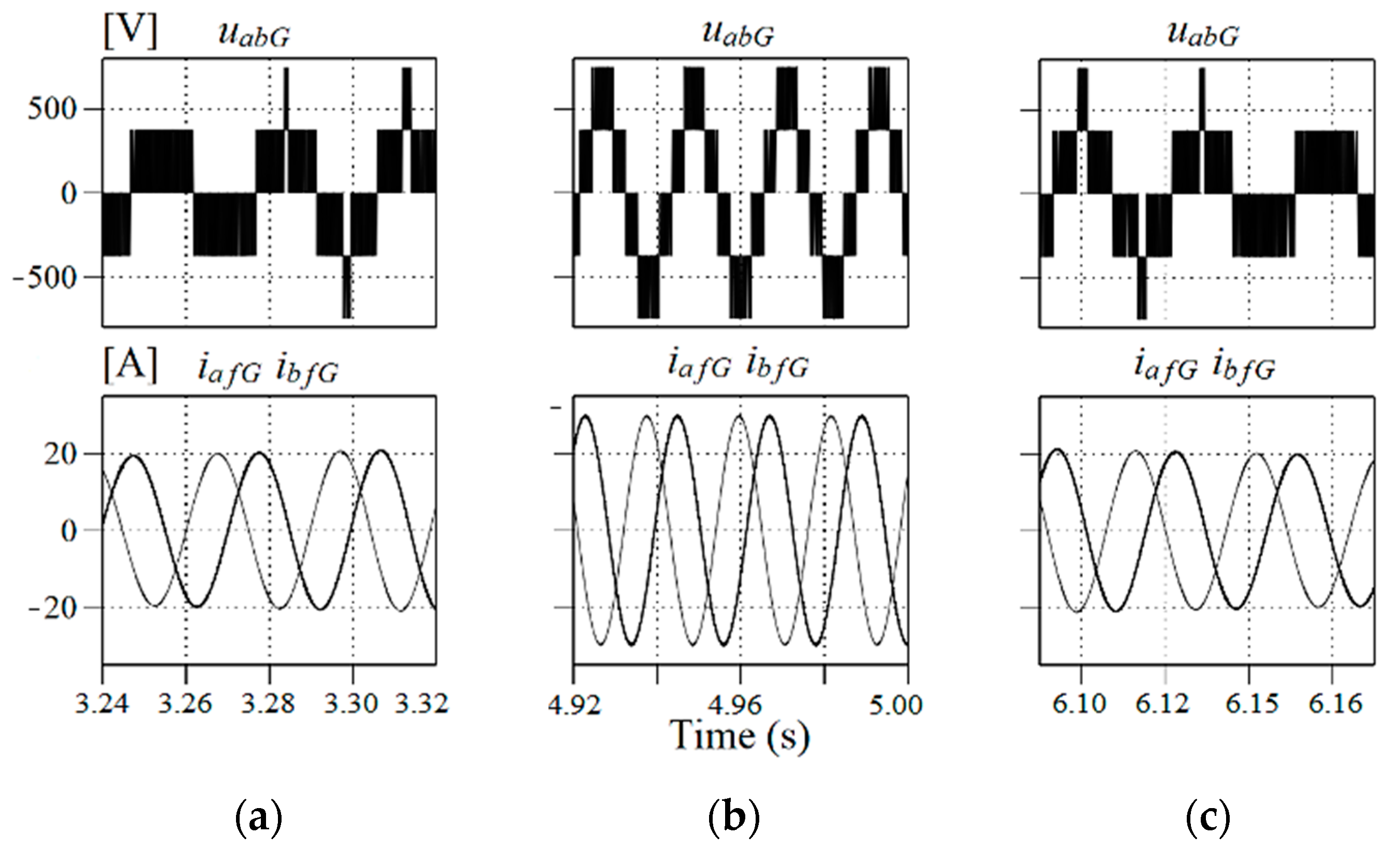

Figure 16 shows voltage u_abG and current i_aG waveforms on the generator inverter side. The waveforms on the left refer to the change in wind speed in the range from 6 to 9 m/s, while on the right side the wind speed varies from 9 to 6 m/s. The center waveforms show the steady state of the generator at wind speed of 11 m/s. Despite the wide range of wind speed variations, the converter work is correct. The converter passes without disturbance to the three-level mode when the wind speed increases and vice versa to the two-level mode while reducing the wind speed. The obtained waveforms indicate the correct operation of the system in various conditions.

The proposed simplified algorithm of the three-level inverter modulator works correctly. This is confirmed by the simulation results obtained. Switching processes of transistors are ordered and there is no uncontrolled switching in them as evidenced by voltage waveforms.

In all of the above cases, the generator current is close to sinusoidal with a low content of higher harmonics (Figure 16). Higher harmonics generate pulsating torque and increase the loss of the induction generator so they lack a positive effect on the system.

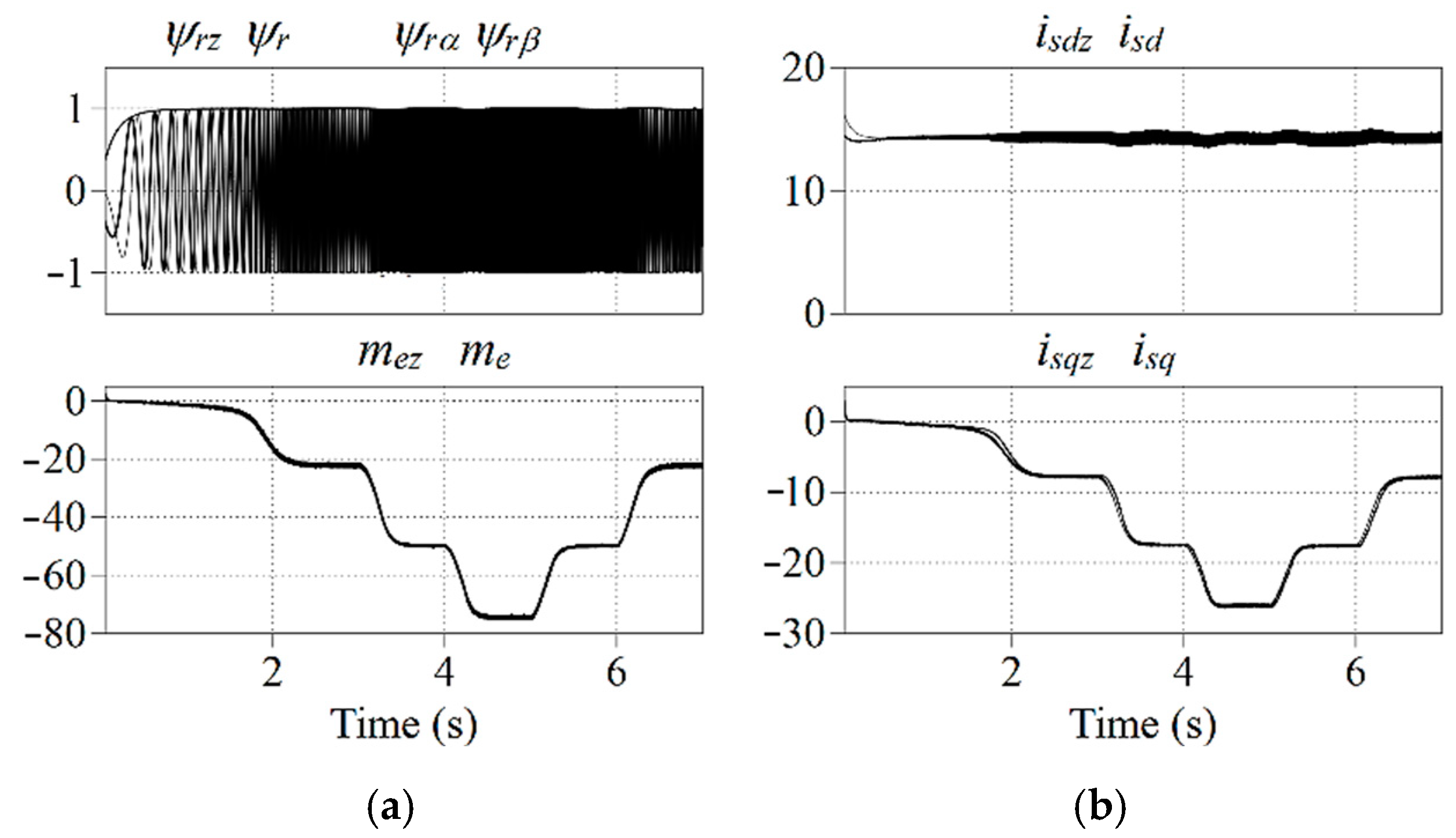

Figure 17a shows the setpoints and measured quantities in the direct control system for the rotor flux and electromagnetic torque of an induction generator. Figure 17b, on the other hand, shows the corresponding setpoints and measured values of the stator current components in a coordinate system rotating synchronously with the rotor flux.

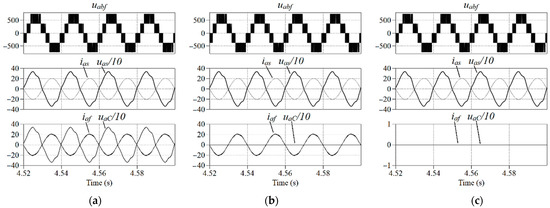

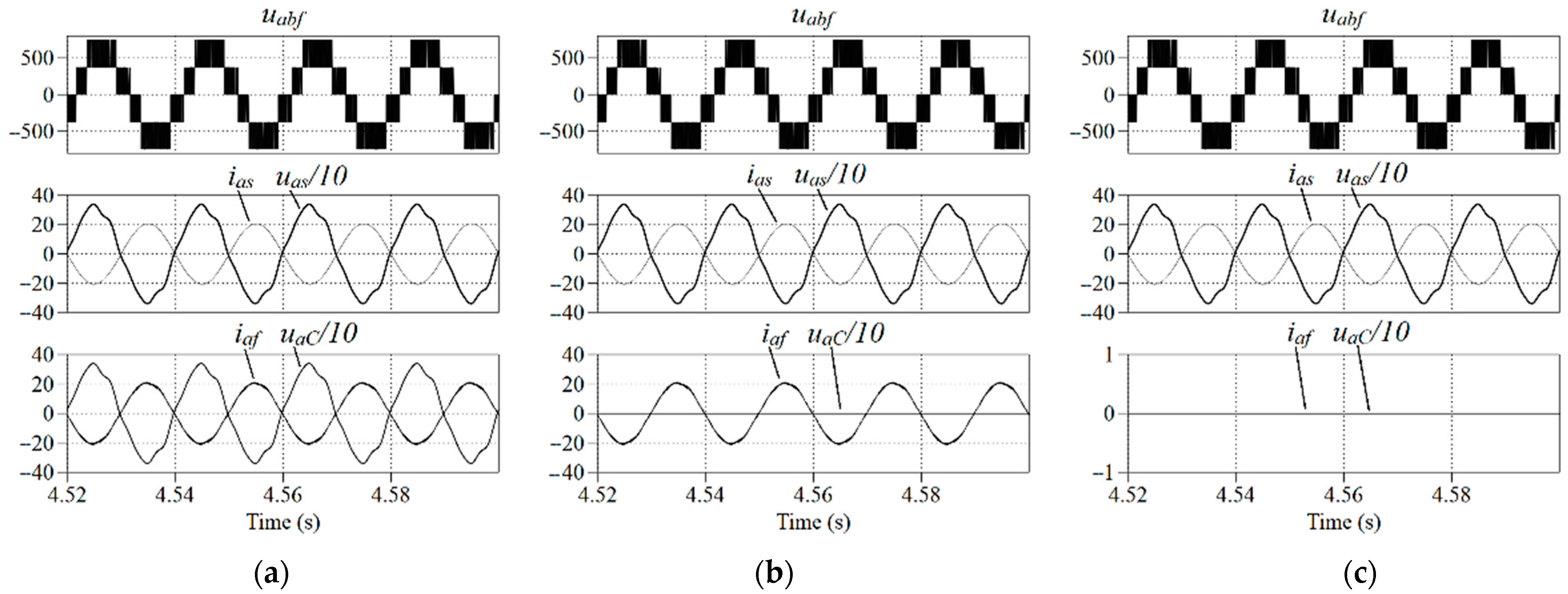

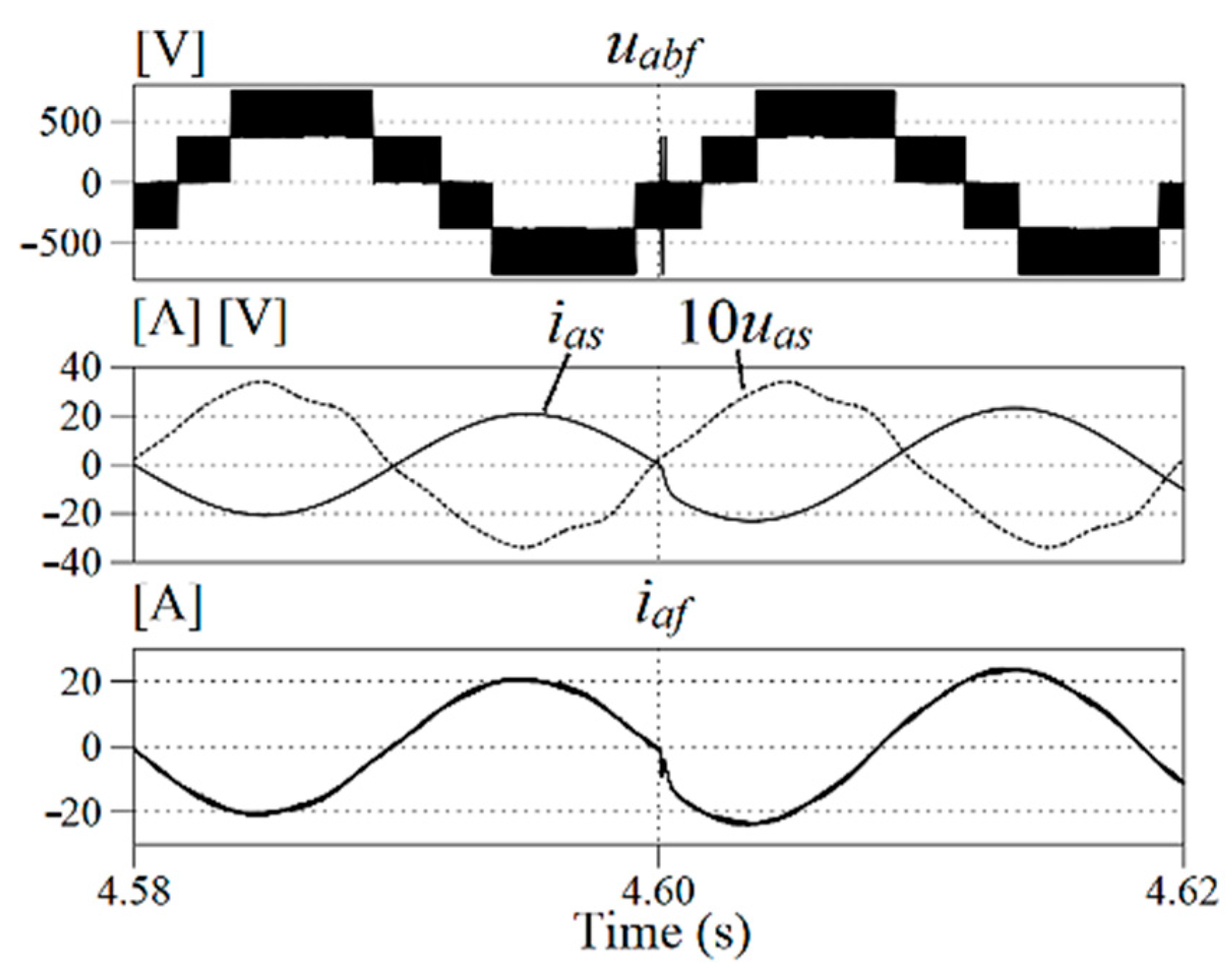

Figure 18 shows the voltage waveforms u_abf of the converter connecting the system to the power grid, the power of the induction generator P_G, power supplied to the power grid P_S, and reactive power Q_S. In the lower part of the figure the waveforms of the power grid current i_as and the output current of the inverter i_af are shown. The waveforms were obtained during the sequence of wind speed changes from 6 m/s by 9 m/s to 11 m/s and in the opposite direction of changes ending with the wind speed of 6 m/s.

In the waveforms, an increase in the current can be observed at the moment of setting reactive power. Figure 19 shows in detail the steady state of the power plant operation at a wind speed of 11 m/s with a load determined from the operation of the MPPT system. To fully illustrate the system’s capabilities at time t = 4.6 s, the reactive power of Q_S = 5 kVar was applied to the grid converter control system (Figure 18). This caused temporary additional switching of the inverter transistors. They are clearly visible in the output waveform of the u_abf inverter (Figure 19). They cause immediate displacement of the i_as current grid phase (Figure 19). However, a fast change in the output current phase does not lead to oscillations. Thanks to the use of advanced control, it was possible to avoid unfavorable oscillation phenomena in the output current of the multilevel inverter.

Despite the strong distortion of the power grid voltage, which includes 5 h with a value of 5% and 7 h with a value of 3% of the fundamental value of the harmonic, the current waveform i_as is close to sinusoidal with the content of higher harmonics below 1% (

Table 1. The content of higher harmonics.

Type of System	Ps [kW]	fG [Hz]	Content of Higher Harmonics
			THD_IG%	THD_US%	THD_If%	THD_IS%
With all measurements	5.5	37.39	0.83	5.83	5.26	0.18
	10.0	45.40	0.61	5.76	2.68	0.05
Without measurement uc	5.5	37.41	0.83	5.83	5.29	0.18
	10.0	45.40	0.61	5.83	2.68	0.05
Without measurement uc, if	5.5	37.39	0.83	5.83	-	0.695
	10.0	45.40	0.61	5.83	-	0.37

). The content of higher harmonics of the power grid current has not changed much with the changes in load and type of control (where: f_G—generator voltage frequency).

In the presented waveforms, the correct operation of the proposed simplified modulators can be also observed in the case of a converter connected to the power grid (Figure 19). Lack of asymmetry of the output voltages of the three-level inverter proves the proper operation of the balancing voltage in the DC voltage circuit. Figure 20 shows the voltage and current waveforms after connecting the system to the power grid. In spite of the strongly deformed voltage waveform, the obtained current is close to sinusoidal.

Based on the simulation tests performed, the correct operation of the small wind power plant system was observed. The power plant’s control algorithm efficiently tracks the point of maximum power, both in the case of changes in wind speed and changes in the angle of setting the wind turbine blades.

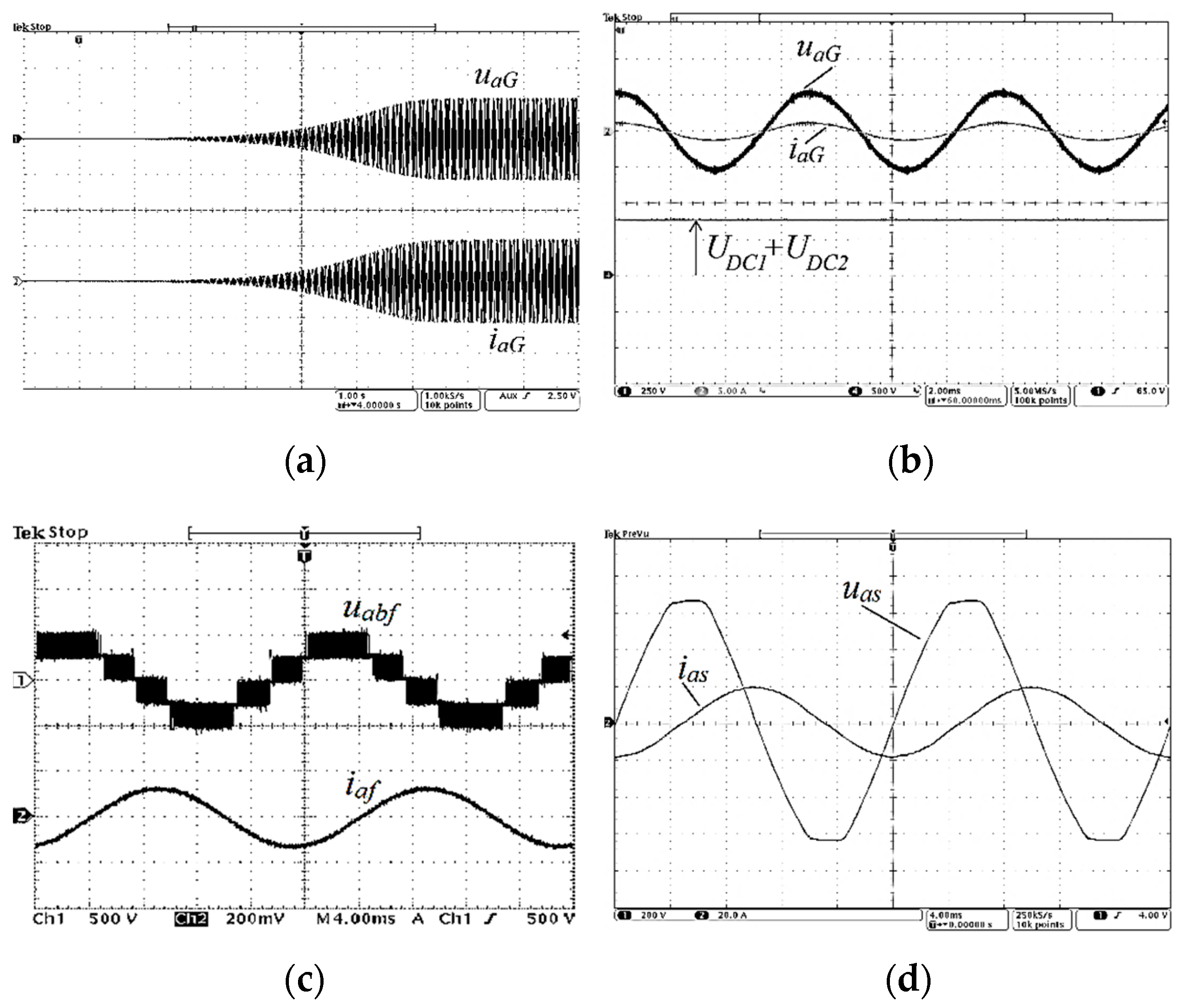

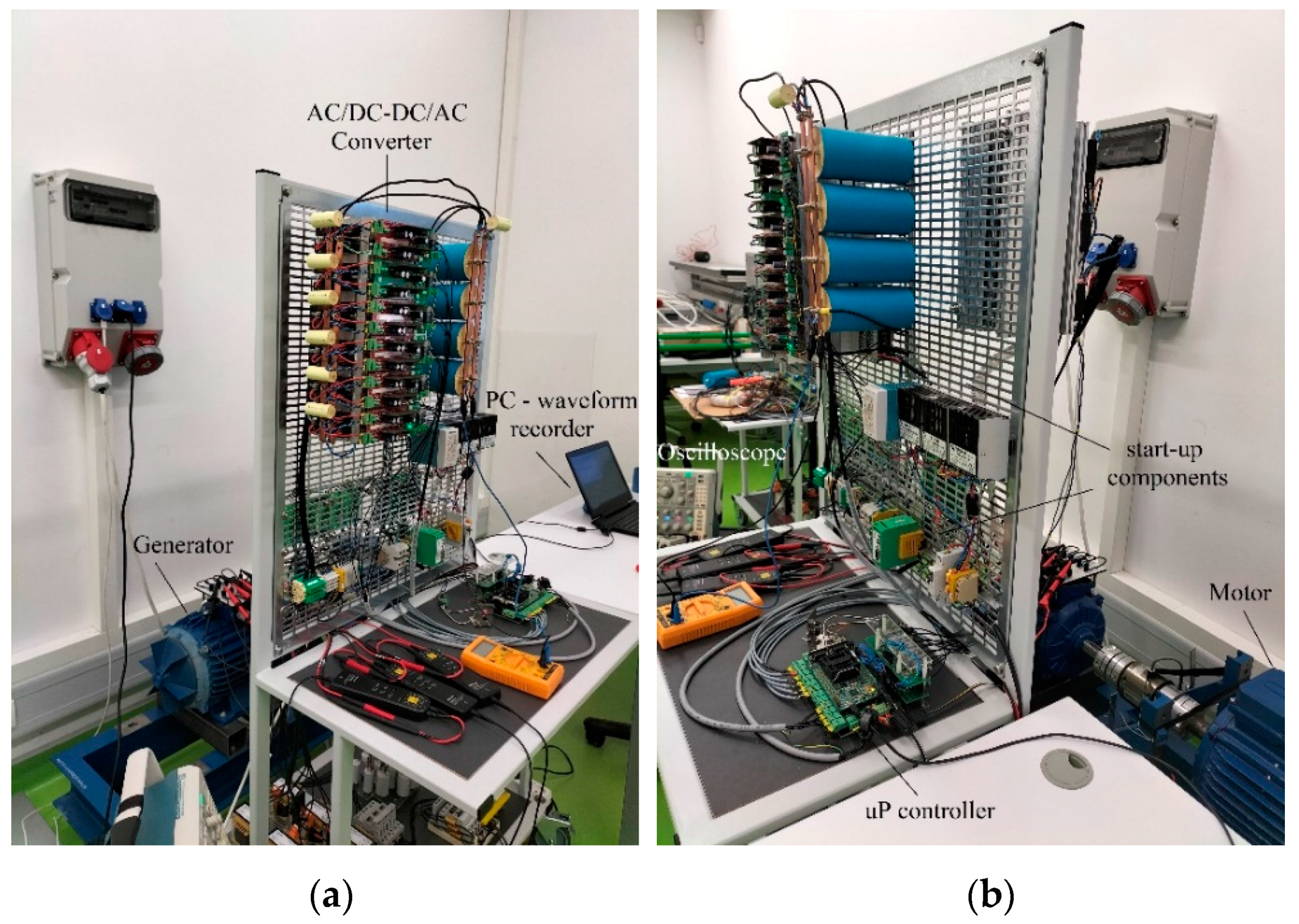

Figure 21 shows an example of experimental results from testing an induction generator on the test stand shown in Figure 22. In particular, Figure 21a documents the sinusoidal waveform of the line current despite the high distortion of the grid voltage. These results confirm the efficiency of a simplified three-level inverter modulator without the use of arrays and trigonometric functions, as well as the immunity to voltage distortion in the real power supply network.

10. Conclusions

The article presents a complete control algorithm for the AC/DC/AC converter connecting the induction generator with the power grid. The algorithm for controlling the DC/AC converter from the power grid does not use measurements of output currents or voltages on the LCL filter capacitors. These values are estimated on the basis of measurements of power grid currents, voltages, and filter parameters.

The application of the converter with the proposed control algorithm provided near-sinusoidal currents of the power grid. Thanks to the LCL filter coupling the system with the power grid and the predictive control, the content of higher harmonics in the output current below ~1% was obtained, despite the assumption of high voltage distortion (Figure 19 and Figure 20) and limiting the number of measurements of the input quantities. Correct operation of the system was also achieved with the proposed modulator for the multilevel inverter. The system also performs the function of a reactive power compensator thanks to the possibility of controlling the phase of the current in relation to the grid voltage.

However, to control the AC/DC converter from the induction generator side, the algorithm of direct rotor flux and torque control was used. The current distortion on the generator side is slightly higher (Figure 21a) and this is due to the lack of an additional coupling filter (Figure 9). This lack is partially compensated by the relatively high inductance of the induction motor. The low content of higher harmonics of the current does not significantly affect the pulsation of the generator’s load torque and increasing losses.

Original simple algorithms of modulators do not require trigonometric functions or arrays for calculations. This reduced the time needed to calculate the switching times of inverter transistors. The use of full processing of the produced energy extends the use of an induction generator to a range of lower wind speeds.

The article proposes a modification of the maximum power point tracking method. It concerns the range of higher wind speeds, in which a change in the angle of the wind turbine blades’ setting is required. The modification was implemented by introducing the correction factor c_β to the dependence (3). This enabled the use of an induction generator with a maximum power factor C_p for wind speeds varying within wide limits.

In the studies, the presented system was characterized by high efficiency, which for different loads and operating systems is shown in

Table 2. Total efficiency of generator systems.

	With all Measurements	Without Measurement uc	Without Measurement uc, if
Ps [kW]	ƞ %	ƞ %	ƞ %
1.6	91.02	91.02	91.07
5.5	92.74	92.74	92.67
10.0	91.77	91.77	91.75

.

The promising results of the system test encourage further work. The high complexity of the control algorithm presented in the article requires the use of a microprocessor controller with high computing power. Therefore, all the required computational procedures were also written in the “C” programming language with a minimal number of instructions. This guarantees relatively short control times in the real system.

The proposed system was characterized by fewer measurements than are required in typical systems. By using estimation and prediction, the number of measurement channels was reduced by four. At the same time, the system did not show oscillations or a significant increase in the content of higher harmonics in the power grid current. The efficiency of the system also did not noticeably deteriorate. At the same time, the reduced number of measurements increases reliability and reduces implementation costs. The applied control method does not require additional damping resistances in the LCL coupling circuit. At the stage of practical implementation of the control, the requirements for the selection of a microprocessor controller are also fully acceptable.

The squirrel cage induction machine (SEIG) used in the presented generation system is an efficient, less expensive, and fully functional alternative to PMSG in application to small-scale residential power plants. Currently, implementation work is underway to start production of the developed solution with a capacity of 10-50kW for widespread use in rural households.
