Synthesis of Hexagonal Nanophases in the La₂O₃–MO₃ (M = Mo, W) Systems

Abstract

We report a study of nanophases in the La₂O₃–MO₃ (M = Mo, W) systems, which are known to contain a variety of good oxygen-ion and proton conductors. Mechanically activated La₂O₃ + MO₃ (M = Mo, W) mixtures and the final ceramics have been characterized by differential scanning calorimetry (DSC) and X-ray diffraction (XRD) with Rietveld refinement. The microstructure of the materials has been examined by scanning electron microscopy (SEM), and their conductivity in dry and wet air has been determined using impedance spectroscopy. In both systems, the formation of hexagonal La₁₅M_8.5O₄₈ (phase II, 5H polytype) (M = Mo, W) nanophases is observed for the composition 1:1, with exothermic peaks in the DSC curve in the range ~480–520 °C for La₁₅Mo_8.5O₄₈ and ~685–760 °C for La₁₅W_8.5O₄₈, respectively. The crystallite size of the nanocrystalline tungstates is ~40 nm, and that of the nanocrystalline molybdates is ~50 nm. At higher temperatures (~630–690 and ~1000 °C), we observe irreversible reconstructive phase transitions of hexagonal La₁₅Mo_8.5O₄₈ to tetragonal γ-La₂MoO₆ and of hexagonal La₁₅W_8.5O₄₈ to orthorhombic β-La₂WO₆. We compare the temperature dependences of conductivity for nanoparticulate and microcrystalline hexagonal phases and high-temperature phases differing in density. Above 600 °C, oxygen ion conduction prevails in the coarse-grained La₁₈W₁₀O₅₇ (phase I, 6H polytype) ceramic. Low-density La₁₅W_8.5O₄₈ and La₁₅Mo_8.5O₄₈ (phase II, 5H polytype) nanoceramics exhibit predominantly electron conduction with an activation energy of 1.36 and 1.35 eV, respectively, in dry air.

1. Introduction

At present, the Ln₂MO₆ (Ln = La-Lu, M = W, Mo) tungstates and molybdates have the greatest potential as host materials for inorganic phosphors, capable of being used as key components of white emitting diodes [1,2,3,4,5,6,7,8]. The synthesis of red-emitting phosphors having near- and middle-UV absorption lines holds significant importance [4,5,9]. This is because when exposed to UV radiation, most materials lose performance and degrade [9].

Urbanovich et al. [10] reported the magnetic properties of the RE₂WO₆ (RE = Nd, Sm, Eu, Gd, Dy, and Ho) tungstates. They found some of them, specifically those with RE = Nd, Gd, Dy, and Ho, exhibit paramagnetic behavior. The molybdates and tungstates of this family include mixed and oxygen ion conductors [11,12,13].

In recent years, the La₂O₃–WO₃ system has attracted increased attention because it was shown to contain fluorite-like La_6−xWO_12−δ (x = 0.3–0.7) proton conductors [14,15,16] with sufficiently high conductivity to be used as proton-conducting SOFC electrolytes and proton-conducting membranes for hydrogen production [17,18,19]. Along with the La_6−xWO_12−δ (x = 0.3–0.7) proton conductors, the La₂WO₆ compound [20,21,22] and other compounds of this system—La₁₈W₁₀O₅₇ [23], La₆W₂O₁₅ [24], and La₁₀W₂O₂₁ [25]—attracted researchers’ attention at the same time. A number of studies were concerned with the structure and ionic conductivity of these compounds [24,25,26,27,28,29,30]. γ-La₆W₂O₁₅ [24] and β-La₂WO₆ [27,28] were shown to have proton conductivity, but it was two orders of magnitude lower than that of La_6−xWO_12−δ (x = 0.3–0.7).

At the same time, the lanthanum tungstate La₂WO₆ differs in structural properties from the other RE tungstates having this stoichiometry in that, in the case of a small La₂O₃ deficiency, there is a rather narrow range of hexagonal solid solutions (9La₂O₃:10WO₃) near La₂WO₆ (La₂O₃:WO₃). It is worth noting that there has been discussion for many years as to what compounds exist in the La₂O₃–WO₃ system near the composition La₂WO₆ [23,31,32,33,34,35,36,37]. The reason for this is that most compounds in this system have a very narrow or no homogeneity range. Another factor that impedes understanding of this system is that preparing phase-pure ceramics in the tungstate systems requires multiple prolonged anneals and intermediate grindings. Thus, the formation of the RE tungstates in conventional solid-state synthesis is kinetically hindered [38]. It is of interest to note that high-temperature solution growth with a stoichiometric nutrient (La₂WO₆ (La₂O₃:WO₃ = 1:1)) [23,35] yielded hexagonal La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) single crystals with reduced lanthanum oxide content.

The phenomenon of polytypism is a characteristic feature of these single crystals, according to [23,39]. The La₁₈W₁₀O₅₇ single crystals contain two polytypes, 6H (phase I) and 5H (phase II), coexisting in one crystal. The disorder is more pronounced in phase II, which in turn contains slightly more W and O per atom of La. The refined chemical compositions are La₁₈W₁₀O₅₇ for phase I (6H polytype (P ͞6c2, no. 190)) and La₁₅W_8.5O₄₈ for phase II (5H polytype (P321 no. 150)) [39]. Like single crystals with the same structure, ceramics based on the hexagonal phase La₁₈W₁₀O₅₇ (polytype 6H (phase I)) had only oxygen ion conductivity [22,26,28].

The reversible phase transition of La₂WO₆ at 1400 °C [35,36] was confirmed in [20,21,22]. The structures of the low-temperature phase β-La₂WO₆ (orthorhombic symmetry, sp. gr. P2₁2₁2₁, no. 19) and the high-temperature phase α-La₂WO₆ (orthorhombic symmetry, sp. gr. Pm2₁n, no. 31) were completely solved by neutron diffraction [20,21]. The α-phase could only be obtained for conductivity measurements by quenching ceramics at 1600 °C, but subsequent heating caused it to transform into the low-temperature phase [21].

The molybdate system La₂O₃–MoO₃ is distinctive in that there are many fluorite-like phases in its La₂O₃-rich part and many scheelite phases in its MoO₃-rich part. Note that the structure and properties of some of them are still unexplored [40]. The available structural data for La₂MoO₆ are contradictory in many respects [41,42,43,44]. Based on the latest crystallographic data reported by Xue et al. [45], who studied the polymorphism of this molybdate by neutron diffraction, it can be concluded that, like La₂WO₆, La₂MoO₆ exists in two polymorphs: low-temperature phase γ-La₂MoO₆ (tetragonal structure) and high-temperature phase α-La₂MoO₆ (monoclinic scheelite structure). Note that lanthanum-rich fluorite-like La_6−xMoO_12−δ solid solutions were reported to have considerable proton conductivity [46,47,48,49]. To the best of our knowledge, there is no evidence for the existence of a molybdate analog of hexagonal La₁₈W₁₀O₅₇ (sp. gr. P ͞6c2, no. 190) or related solid solutions in the La₂O₃–MoO₃ system.

The comparison of Raman spectroscopy data for ceramics with the nominal composition La₁₈W₁₀O₅₇ with Raman spectra of a single crystal also having a hexagonal structure and orthorhombic β-La₂WO₆ ceramic (low-temperature phase) [28], reveals interesting findings. It demonstrates that the spectrum of the hexagonal crystal is more similar to the spectrum of the β-La₂WO₆ ceramic than to the Raman spectrum of the ceramics with the nominal composition La₁₈W₁₀O₅₇. This leads us to assume that the β-La₂WO₆ ceramic may contain nanodomains of the hexagonal phase La₁₈W₁₀O₅₇. It is important to note that, in a previous study [28], ceramics were prepared using mechanical pre-activation of a La₂O₃ + WO₃ mixture.

Previously, mechanochemical synthesis of the R₁₀Mo₂O₂₁ (R = La, Y, Er) molybdates was shown to occur at room temperature [46]. In this process, the crucial factor was structural matching between the starting RE oxide and the synthesized RE molybdate. Thus, given that trigonal La₂O₃ (P3m1, no. 164) and the hexagonal phase La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) (P ͞6c2, no. 190) are structurally similar, mechanical activation of (1) La₂O₃ + WO₃ and (2) 9La₂O₃ + 10WO₃ oxide mixtures would be expected to result in the formation of hexagonal phases at low and even room temperatures. The oxide mixtures (3) La₂O₃ + MoO₃ and (4) 9La₂O₃ + 10MoO₃ are also subjected to mechanical activation in order to obtain hexagonal molybdates. In this way, it will be possible to compare the conductivity of nanoceramics with that of coarse-grained ceramics.

2. Materials and Methods

The La₂MO₆ (M = Mo, W) materials were prepared using the mechanical activation of starting oxides followed by high-temperature heat treatment of green compacts. The following starting chemicals were used in the synthesis of the lanthanum tungstates and molybdates: La₂O₃ (99.99% TU 48-4-523-90, Berdsk, Russia), WO₃ (99.9% MRTU 6-09-533-66, Kirovgrad, Russia), and MoO₃ (99.9%, Changsha, China). After preheating the starting La₂O₃ oxides at 1000 °C for 2 h, they were mixed with the MoO₃ or WO₃ and co-milled in the high-energy Aronov ball mill [50,51] for 1 h. Oxide mixtures with slightly lower lanthanum oxide content, 9La₂O₃ + 10WO₃, were prepared similarly. The mechanically activated mixtures of the oxides were uniaxially pressed at 400–680 MPa and sintered in the range of 600–1540 °C for various lengths of time.

Thermal analysis was performed using the NETZSCH STA 449C system (50–1000 °C or 1200 °C, a heating rate of 10 °C/min, Al₂O₃ plate) in the air for mechanically activated oxide mixtures La₂O₃ + MO₃ and 9La₂O₃ + 10MO₃ (M = Mo, W). We performed DSC/TG scans from 50 to 1000 or 1200 °C in an oxygen atmosphere in heating–cooling mode.

X-ray diffraction spectra were obtained at room temperature using the following instruments: (1) the Rigaku Smartlab SE X-ray diffractometer and (2) the DRON-3M automated diffractometer. The SmartLab Studio II software was used for Rietveld refinement and crystallite size determination. The recording modes were as follows: (1) Cu Kα radiation, λ = 1.5418 Å, Bragg-reflection geometry, 40 kV, 50 mA; 2θ range was 10° to 130°, scan step 0.005°, scan rate 3°/min) in continuous mode and (2) Cu Kα radiation, λ = 1. 5418 Å, Bragg-reflection geometry, 35 kV, 28 mA; 2θ range from 10° to 75° (scan step of 0.1°, τ = 3 s), respectively. High-temperature annealed La₁₈W₁₀O₅₇ powder (1400 °C, 4 h) was used as a reference to determine the instrumental line broadening. Scanning electron microscopy (SEM) (JEOL JSM-6390LA, Tokyo, Japan) was used to investigate the microstructure of the powder and ceramic samples. Platinum ink (ChemPur C3605, Karlsruhe, Germany) was applied to the opposite sides of the ceramic tablets. Further annealing was carried out at 650–800 °C for 30 min. A P-5X potentiostat/galvanostat combined with a frequency response analyzer module (Electrochemical Instruments, Ltd., Saint Petersburg, Russia) was used for dry and wet air electrical conductivity measurements. Details of the conductivity measurements are given in [16,46].

3. Results and Discussion

3.1. Particle Size and Morphology of Starting Oxide Powders and Mechanically Activated Powders

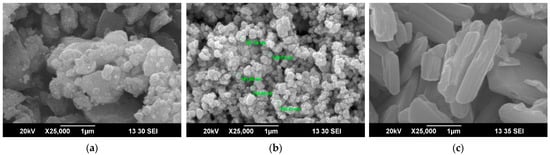

Figure 1 illustrates the particle size and morphology of the starting oxides: (a) La₂O₃, (b) WO₃, and (c) MoO₃. La₂O₃ is characterized by a wide range of particle sizes and the formation of large aggregates in the form of irregular polyhedrons whose dimensions can exceed 3 μm. The smallest particles are 50–100 nm and nearly spherical. WO₃ consists of homogeneous spheres with an average size of ~150 nm. MoO₃ particles in the form of thin plates (thickness~500 nm and length~2 μm) are the most crystallized among the three starting oxides.

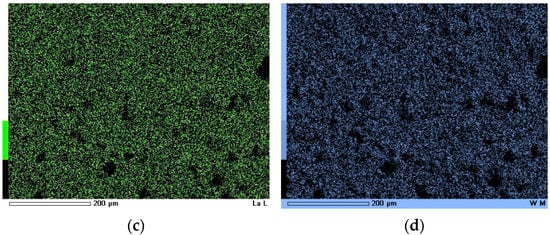

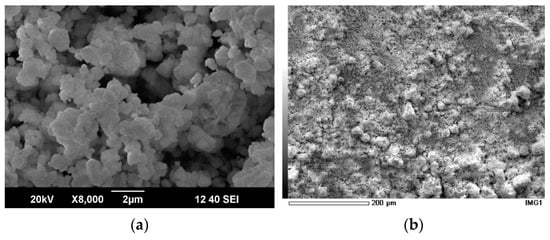

Figure 2 shows the morphology and cation distribution in the La₂O₃ + WO₃ powder mixture after mechanical activation (m/a). Figure 2a shows the powder particle size of the La₂O₃ + WO₃ oxide mixture after ball milling. The powder particles have an average size of ~0.5–2 µm. The shape of the particles is almost spherical. Figure 2c,d illustrates the cation distribution in the mechanically activated powder La₂O₃ + WO₃ (magnification 200 µm). One can see a uniform distribution of La and W cations in the final m/a powder.

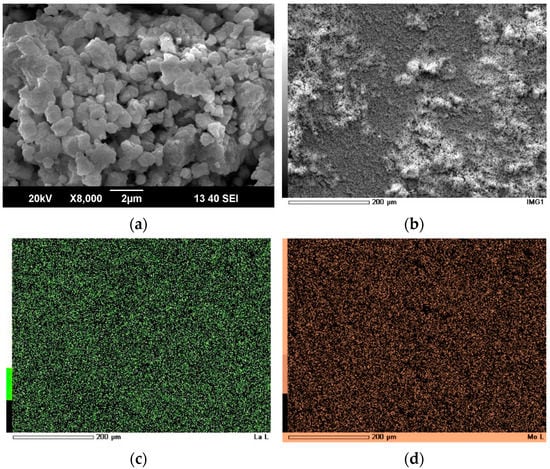

The morphology and cation distribution of the La₂O₃ + MoO₃ powder mixture after mechanical activation are shown in Figure 3. Figure 3a shows that the powder particles have an average size of ~0.5–1.5 µm after milling. The particle shape is also close to spherical. Figure 3b–d illustrates the cation distribution in the mechanically activated powder (magnification 200 µm). A uniform distribution of La and Mo cations can be seen in the final m/a powder.

3.2. Synthesis of the Hexagonal Phase La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) from a Mechanically Activated La₂O₃ + WO₃ Mixture

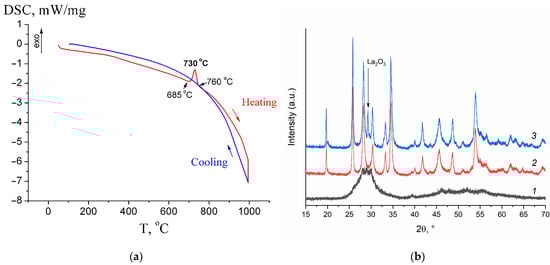

Figure 4a presents the results for a mechanically activated La₂O₃ + WO₃ mixture during heating in a DSC cell to 1000 °C and subsequent cooling. The DSC curve shows a single exotherm in the 685–760 °C range with a peak temperature of ~730 °C (Figure 4a). To identify its origin, the same powder was heated twice: (1) to 685 °C and (2) to 760 °C. The XRD results for the two samples are presented in Figure 4b, scans 1 and 2, respectively.

The powder was X-ray amorphous after firing in the DSC cell at 685 °C. However, its XRD pattern showed some lines attesting to an onset of crystallization (Figure 4b, scan 1). After firing at 760 °C, we observed broad lines of the hexagonal phase La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) (Figure 4b, scan 2). Table S1 and Figure S1 present the X-ray structure analysis (Rietveld refinement) results for this sample. These demonstrate that the major phase at 760 °C is well described by the La₁₈W₁₀O₅₇ (phase I, 6H polytype, sp. gr. P ͞6c2, no. 190) structure model. Table S1 presents structure analysis results obtained for this sample using Rietveld refinement in a two-phase (La₁₈W₁₀O₅₇ + La₂O₃) model, which turned out slightly poorer. Next, a mechanically activated starting oxide mixture was subjected to prolonged (96 h) firing at 600 °C. Figure 4b (scan 3) presents the XRD results for this sample. Under these conditions, we obtained a two-phase mixture of La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) and La₂O₃. The crystallization temperature determined using a DSC cell is known to be overestimated because of the high heating rate of the powder. In contrast, long annealing times lead to the crystallization of compounds at a lower temperature [52]. In our case, this occurs at 600 °C, and we observe the presence of a second crystalline phase: La₂O₃. Therefore, we conclude that the rate of room-temperature mechanochemical synthesis in the case of the lanthanum tungstate is lower than in the case of the La₁₀Mo₂O₂₁ molybdate [46] and that a considerable fraction of the lanthanum oxide does not react with WO₃.

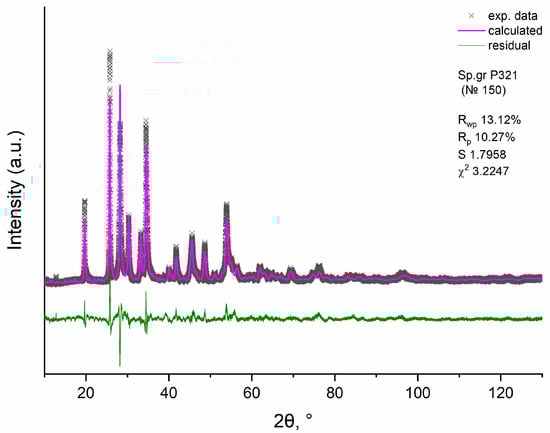

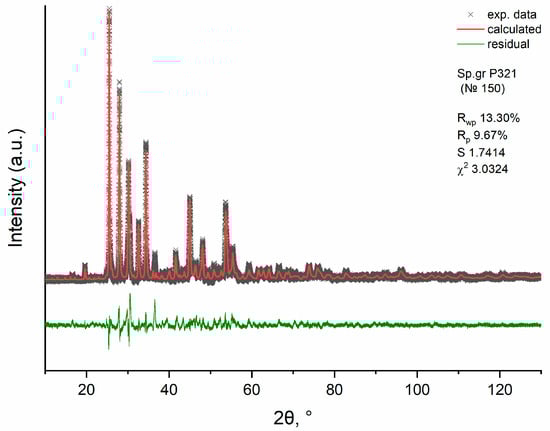

Considering that the low-temperature annealed phase is nanoscale and probably disordered, we carried out an additional study over a wider range of angles from 10–130°. We refined the structure using a more disordered hexagonal phase La₁₅W_8.5O₄₈ model (phase II, 5H polytype (P321 no. 150)) [39]. The result of Rietveld’s refinement is shown in Figure 5. The model La₁₅W_8.5O₄₈ (phase II, 5H polytype) describes the nanosized hexagonal phase better than the model La₁₈W₁₀O₅₇ (phase I, 6H polytype) (Table S2). It is important to note that due to the broadening of the diffraction lines caused by the nanoscale of the samples, the differences in the diffraction profiles of both these polytypes are minimal.

Therefore, the exothermic peak in the DSC curve (Figure 4a) is due to the crystallization of the hexagonal phase La₁₅W_8.5O₄₈ from an X-ray amorphous state. The crystallization process is irreversible, as can be seen from the thermal analysis data in Figure 4a.

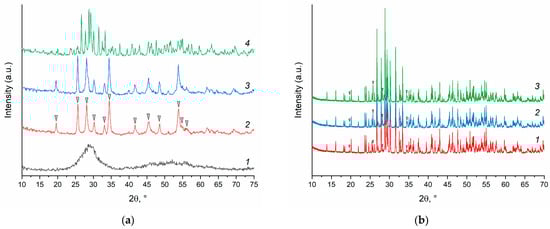

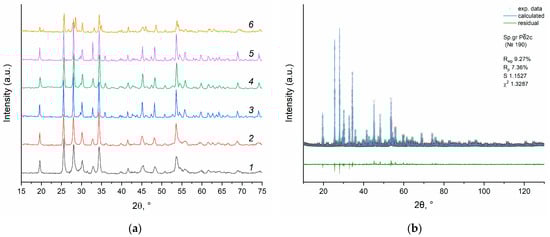

Figure 6a,b shows powder XRD patterns of disk-shaped compacts produced by pressing a mechanically activated starting La₂O₃ + WO₃ mixture and firing at various temperatures. It can be seen that the hexagonal phase exists in the range 800–900 °C, whereas at 1000 °C and higher temperatures, up to 1540 °C, the major phase is orthorhombic β-La₂WO₆. However, results of a more detailed study indicated that in the range 1000–1540 °C, the ceramic contained trace levels of the hexagonal phase (9La₂O₃:10WO₃), ranging from 4 to 9%, depending on firing conditions. At 1620 °C, the ceramic melted.

No signs of the high-temperature phase α-La₂WO₆ were detected, which is unsurprising because the transition at ~1400 °C is reversible [21]. To summarize the above, we used mechanical activation to synthesize lanthanum tungstate with the nominal composition La₂WO₆ (La₂O₃:WO₃) from an oxide mixture. We obtained a hexagonal La₁₅W_8.5O₄₈ nanophase at low temperatures. In contrast, in the range of 1000–1540 °C at higher temperatures, the orthorhombic phase β-La₂WO₆ was found to coexist with trace levels of the hexagonal phase (9La₂O₃:10WO₃). It should be emphasized that the hexagonal-to-orthorhombic phase transition did not show up in the DSC curve of a La₂O₃ + WO₃ mixture (Figure 4a) but was detected during isothermal holding (Figure 6a). It is reasonable to assume that it is a second-order transition.

3.3. Synthesis of the Hexagonal Phase La₁₈W₁₀O₅₇ from a Mechanically Activated 9La₂O₃ + 10WO₃ Mixture

Figure 7a,b presents XRD results for the ceramics prepared by firing a mechanically activated oxide mixture (9La₂O₃ + 10WO₃) in the range of 800–1620 °C. It is seen (Figure 7a, scans 1–5) that the hexagonal phase exists in the range of 800–1400 °C. X-ray structure analysis (with Rietveld refinement) of the ceramic prepared by firing at 1400 °C for 4 h and then ground into powder (Figure 7b) showed that the material was single-phase and consisted of the hexagonal phase La₁₈W₁₀O₅₇ (polytype 6H, phase I, sp. gr. P ͞6c2, no. 190; Table S2). After annealing at low temperatures of 800 °C and 900 °C, the X-ray peaks of the hexagonal phases are significantly broadened (Figure 7a, scans 1 and 2), and we cannot unequivocally identify the polytype to which they belong. Assuming that the 5H polytype is more disordered, it is probably realized in this case. Thus, the hexagonal phase La₁₈W₁₀O₅₇ (9La₂O₃:10WO₃) has a narrow homogeneity range. At the initial nominal composition of La₂WO₆ (La₂O₃ + WO₃), after firing in the range of 1000–1400 °C, this phase was detected by XRD in a two-phase region: β-La₂WO₆ (major phase) and La₁₈W₁₀O₅₇ (impurity phase) (Figure 6b). High-temperature firing at 1620 °C led to the formation of an additional phase due to the partial melting of the ceramic (Figure 7a, scan 6).

The La₁₅W_8.5O₄₈ (phase II polytype 5H; Table S2) nanoceramic was prepared by firing a La₂O₃ + WO₃ mixture at 800 °C for 6 h. The mixture was then ground into powder and studied in a DSC cell during heating and cooling in a broader temperature range, up to 1200 °C (Figure S2a). Under the same conditions, we studied the coarse-grained La₁₈W₁₀O₅₇ (phase I polytype 6H; Table S2) ceramic prepared by firing a 9La₂O₃ + 10WO₃ mixture at 1400 °C for 4 h and then ground into powder (Figure S2b). In both cases, an exotherm in the range of ~800–1040 °C was detected. It is most likely that this effect is inherent to the hexagonal phase with two polytypes itself [39]. XRD characterization showed that after heating to 1200 °C and cooling in a DSC cell, the hexagonal nanophase produced by firing a La₂O₃ + WO₃ mixture at 800 °C for 6 h consisted of two phases: β-La₂WO₆ (82.5%) and hexagonal La₁₈W₁₀O₅₇ (17.5%). XRD characterization of the coarse crystalline hexagonal La₁₈W₁₀O₅₇ phase after heating to 1200 °C and cooling in a DSC cell showed a 100% hexagonal phase.

3.4. Synthesis of a Hexagonal Phase in the La₂O₃–MoO₃ System from a Mechanically Activated Oxide Mixture

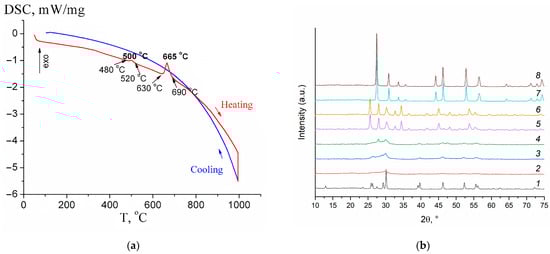

A mechanically activated La₂O₃ + MoO₃ mixture was also studied during heating to 1000 °C in a DSC cell and cooling. Its DSC curve showed two exotherms: (1) in the range of 480–520 °C, with a peak temperature of ~500 °C, and (2) an appreciably larger peak in the range of 630–690 °C, with a peak temperature of 665 °C (Figure 8a). Both events were irreversible and were not detected during cooling. With allowance for the DSC data, we performed a series of 4 h isothermal heat treatments of disk-shaped compacts at temperatures below and above these peaks: 400, 500, 600, 700, 800, and 900 °C.

Figure 8b presents XRD data for the ceramics obtained at these temperatures and ground into powder. The La₂MoO₆ sample prepared by firing at 600 °C for 4 h also consisted of a hexagonal phase, detected for the first time in the La₂O₃–MoO₃ system. Rietveld refinement with molybdenum instead of tungsten yielded a structure similar to the hexagonal structure of La₁₅W_8.5O₄₈ (Figure 9, Table S2). However, note that the line at 2θ~36.5° is inconsistent with this structure.

Next, a mechanically activated starting oxide mixture was subjected to prolonged (48 h) firing at 600 °C to ascertain whether La₂O₃ impurities were present at this temperature. After prolonged (100 h) holding, a small peak of γ-La₂MoO₆ emerged at 600 °C as well (3.7 wt.%), but no traces of La₂O₃ were detected. Clearly, the mechanochemical synthesis of La molybdate at room temperature was easier than that of La tungstate. Moreover, due to diffusion hindrances, the solid-state synthesis of tungstates is known to take longer than the synthesis of molybdates [38].

It should be emphasized that if the hexagonal lanthanum molybdate La₁₅Mo_8.5O₄₈ (phase II, polytype 5H (P321 no. 150)) was detected, the ceramic was annealed at a temperature (500–700 °C) below the melting point of molybdenum oxide, which is 795 °C for pure MoO₃. After 800 °C firing, tetragonal γ-La₂MoO₆ was the major phase. A certain amount of this phase (10.3 wt.%, with the strongest line present) was detected even after 700 °C firing (Figure 8b, scan 6). We believe that the lower temperature exothermic peak in the DSC curve, in the range of 480–520 °C, is due to the crystallization of the hexagonal phase La₁₅Mo_8.5O₄₈ (phase II, polytype 5H) from an X-ray amorphous state. Additionally, the higher temperature exothermic peak is due to the transition of the hexagonal nanophase to the tetragonal γ-La₂MoO₆ phase. Clearly, this is a first-order reconstructive transition (Figure 8a).

3.5. Evaluation of the Crystallite Size in Hexagonal Lanthanum Tungstate and Lanthanum Molybdate and Microstructure of the Nanoceramics

From the width of the 116 lines of La₁₅W_8.5O₄₈ (2θ~25.7°), we can formally estimate the crystallite size L of the hexagonal nanophases using the Scherrer formula.

Such an estimate was made for hexagonal La₁₅W_8.5O₄₈ obtained at 800 and 900 °C (Figure 6a, scans 2 and 3) and hexagonal La₁₅Mo_8.5O₄₈ synthesized at 600 and 700 °C (Figure 8b, scans 5 and 6). The crystallite size of the lanthanum tungstate was determined to be 37.6 and 42 nm after firing at 800 and 900 °C, respectively. The lanthanum molybdate was 47.6 and 49.8 nm after firing at 600 and 700 °C, respectively. Thus, the crystallite size of the lanthanum molybdate was slightly larger, even though it was synthesized at lower temperatures than the tungstate.

This result confirms that, during room-temperature mechanochemical synthesis, La₂O₃ is more reactive with molybdenum oxide than tungsten oxide. The solid-state reaction between the starting oxides occurs more readily in the case of the RE molybdates, which can be synthesized even via room-temperature mechanochemical processing [46]. Accordingly, La₁₅Mo_8.5O₄₈ subsequently crystallizes more readily than La₁₅W_8.5O₄₈. The mechanochemical synthesis of La₁₅W_8.5O₄₈ does not reach completion at room temperature, and the mixture contains unreacted La₂O₃. This unreacted La₂O₃ eventually crystallizes during prolonged 600 °C firing (Figure 4b, scan 3).

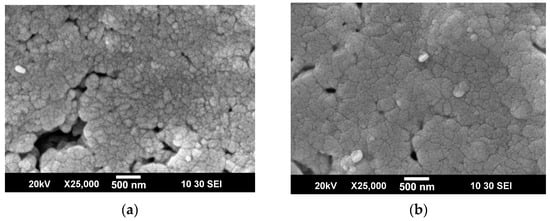

The SEM data in Figure 10a,b demonstrate that the hexagonal La₁₅Mo_8.5O₄₈ and La₁₅W_8.5O₄₈ ceramics are nanograined. It is worth noting that, unlike the La₁₅Mo_8.5O₄₈ ceramic, the La₁₅W_8.5O₄₈ nanoceramic exhibits nanograin aggregation. This is possibly due to the higher synthesis temperature of lanthanum tungstate. The result of applying the anisotropic model to calculate crystallite size was unsuccessful.

3.6. Ionic Conductivity of the Hexagonal La₁₅M_8.5O₄₈ (M = Mo, W) Nanophases, Coarse-Grained La₁₈W₁₀O₅₇ Ceramic, and High-Temperature Phases (Orthorhombic β-La₂WO₆ and Tetragonal γ-La₂MoO₆)

In comparing the total conductivity of the low-density hexagonal La₁₅W_8.5O₄₈ nanoceramic prepared by firing at 800 °C for 6 h (relative density of 60.0%) (Table S3) and that of the previously studied [28] coarse-grained La₁₈W₁₀O₅₇ ceramic (Figure S3) prepared by firing at 1400 °C for 4 h (relative density of 92%) (Figure 11, plots 1 and 2), it is worth noting that these materials have different Arrhenius plots (obtained by impedance spectroscopy).

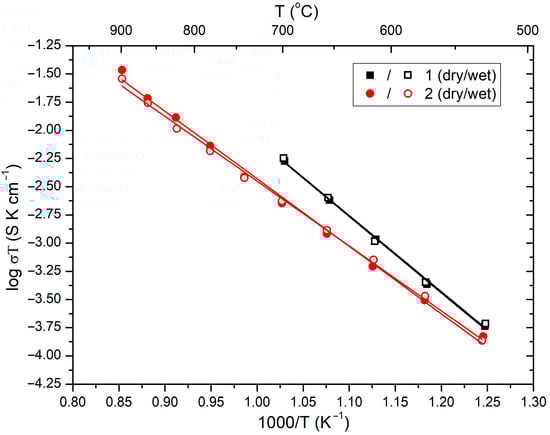

The activation energy for oxygen ion conduction between 400 and 600 °C in dry air is 1.36 and 1.19 eV in the nanoceramics (La₁₅W_8.5O₄₈) and coarse-grained ceramics (La₁₈W₁₀O₅₇), respectively (

Table 1. Apparent activation energy (E_a) of total conductivity temperature dependences of LaWO materials in dry and wet air.

No.	Composition, Tsynthesis	Atmosphere	Ea (±0.01), eV
			400–600 °C	600–900 °C
1	La15W8.5O48–800 °C	Dry air	1.36
		Wet air	1.35
2	La18W10O57–1400 °C	Dry air	1.19	0.96
		Wet air	1.25	0.98
3	β-La2WO6–1000 °C	Dry air	1.13
		Wet air	1.03
4	β-La2WO6–1400 °C	Dry air	1.16
		Wet air	1.05
5	La2W1+xO6+3x (x~0.22) single crystal	Dry air	-	0.89
		Wet air	-	0.83

). Above 600 °C, the activation energy of the nanoceramics changes insignificantly, whereas that of the coarse-grained ceramics decreases to E_a = 0.96 eV (Table 1). It seems likely that, in the loose La₁₅W_8.5O₄₈ nanoceramic, electronic conduction prevails in the air. This is supported by the lack of electrode dispersion in its impedance spectrum (Figure S4a), which contrasts with the spectrum of the coarse-grained La₁₈W₁₀O₅₇ ceramic (Figure S4b).

As to the nature of charge transport in the LaWO compounds studied, we found that the size affected the conductivity type. In the case of ceramics consisting of micron-sized grains, under oxidizing conditions, where W is in its highest oxidation state, 6+, ionic (oxygen ion) conductivity prevails. At the same time, some compositions may have proton transport at a certain ambient humidity, depending on their structure type. This is supported by the shape of the impedance response (e.g., in Figure 4b), which is characterized by dispersion at high frequencies, where effects related to bulk ionic transport show up, and low-frequency dispersion (the electrode component of the impedance), typical of gas-phase exchange processes with charge transport across the electrode/electrolyte interface. Nanoceramics have a different impedance response and a different dominant contribution to conductivity, which determines their type. The impedance data for the nanoceramics (Figure S4a,c) lead us to assume that there is an electronic component of conductivity, which shows up as the absence of low-frequency electrode impedance dispersion. We then observe an impedance response characteristic of bulk and grain-boundary processes. Thus, it is reasonable to assume that mixed electronic–ionic conduction prevails in nanoceramics.

As to the possible mechanism of the mixed electronic–ionic conduction in this compound, note that it occurs predominantly under reducing conditions, which reduce W to the oxidation state 5+ (W⁶⁺ + e’ → W⁵⁺). Electronic carriers may result from partial oxygen loss under reducing conditions, according to the scheme:

$$0\iff V_O^{••}+1/2O_2+2e^{\prime }$$

(1)

The resulting electrons can participate in electron transport processes, localizing at W. It seems likely that, in nanoceramics, local changes in the charge state of W on the grain surface are possible, which can result in mixed electronic–ionic conduction. Obviously, La₁₅W_8.5O₄₈ nanophase is a mixed electron–ionic conductor, but electronic conduction prevails in the air. Plot 5 in Figure 11 is the Arrhenius plot of conductivity for a previously studied hexagonal La₂W_1+xO_6+3x (x~0.22) single crystal [28].

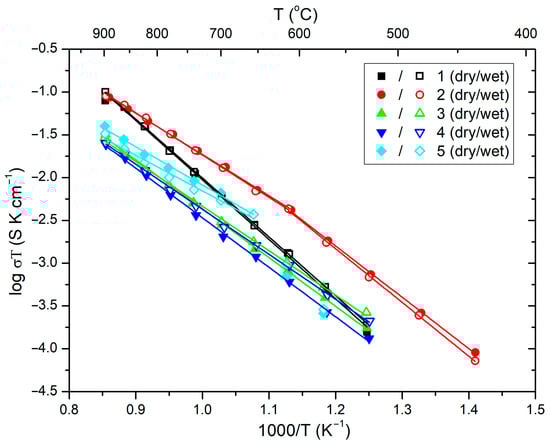

It is seen (Figure 11, plots 2, 5) that above 600 °C, the coarse-grained ceramic and hexagonal single crystal differ little in E_a, 0.96 and 0.89 eV, respectively (Table 1). This suggests an oxygen vacancy conduction mechanism. As the grain size decreases to a nanoscale, surface electron conduction prevails, and the activation energy rises considerably (Table 1; Figure 11, plot 1). Note that below 600 °C, the conductivity of the hexagonal La₂W_1+xO_6+3x (x~0.22) single crystal drops sharply, which is accompanied by an increase in activation energy to 2.17 eV. The origin of this effect is not yet fully clear.

A comparison of the proton conductivity of the high-temperature, orthorhombic β-La₂WO₆ ceramics differing in relative density (69.6 and 81.4%) (Figure 11, plots 3, 4) shows that in wet air, they have essentially the same proton conductivity. This is ~1 × 10⁻⁶ S/cm at 600 °C, independent of the density of the ceramics. This finding supports the conclusion drawn by Fleig [53] in a theoretical study concerned with modeling the impedance of highly porous materials. They found that the porosity of ceramics has little effect on the temperature dependence of their bulk conductivity derived from impedance spectroscopy data. The activation energies for conduction in dry air (E_a = 1.13 и 1.16 eV) and wet air (E_a = 1.03 и 1.05 eV) differ little and are independent of the density of the material (Table 1, samples 3, 4). Figure 12 shows Arrhenius plots of total conductivity in dry and wet air for two types of low-density ceramics. The first is hexagonal La₁₅Mo_8.5O₄₈ nanoceramic (relative density of 64.8%) produced by firing a mechanically activated La₂O₃ + MoO₃ mixture at 600 °C for 4 h. The second is the low-density tetragonal γ-La₂MoO₆ ceramic (relative density of 69.6%) produced by firing a mechanically activated La₂O₃ + MoO₃ mixture at 900 °C for 4 h. The impedance spectrum of the hexagonal La₁₅Mo_8.5O₄₈ nanoceramic is shown in Figure S4c. Like in the case of the hexagonal La₁₅W_8.5O₄₈ tungstate ceramics, there is no dispersion on the interface with the electrode, which suggests that electronic conduction prevails. In dry air, the activation energy for conduction (

Table 2. Apparent activation energy (E_a) of total conductivity temperature dependences of LaMoO materials in dry and wet air.

No.	Composition, Tsynthesis	Atmosphere	Ea (±0.01), eV
			500–700 °C	500–900 °C
1	La15Mo8.5O48–600 °C	Dry air	1.35	–
		Wet air	1.34	–
2	γ-La2MoO6–900 °C	Dry air	–	1.14
		Wet air	–	1.09

) in the La₁₅Mo_8.5O₄₈ molybdate nanoceramics (1.35 eV) corresponds to that in the La₁₅W_8.5O₄₈ tungstate nanoceramics (1.36 eV). Neither hexagonal La₁₅Mo_8.5O₄₈ nor tetragonal γ-La₂MoO₆ has proton conductivity.

4. Conclusions

A hexagonal La₁₅W_8.5O₄₈ (phase II, polytype 5H (P321 no. 150)) nanophase has been synthesized for the first time via the firing of a mechanically activated La₂O₃ + WO₃ mixture at 800 and 900 °C for 6 h. The structure was identified by X-ray structure analysis with Rietveld refinement. At high temperatures (1000–1540 °C), a two-phase region has been found where the orthorhombic phase β-La₂WO₆ prevails and hexagonal La₁₈W₁₀O₅₇ is an impurity phase. DSC data for a mechanically activated La₂O₃ + WO₃ mixture demonstrate an exothermic peak due to the crystallization of the hexagonal phase La₁₅W_8.5O₄₈ from the X-ray amorphous state.

The mechanochemical synthesis of La molybdate is a considerably faster process than that of lanthanum tungstate. This is similar to what was previously reported for La₁₀Mo₂O₂₁ [46]. Short (4 h) isothermal heat treatments allowed us to obtain a hexagonal La₁₅Mo_8.5O₄₈ nanophase in the range of 500–700 °C. The DSC data for the mechanically activated La₂O₃ + MoO₃ starting mixture demonstrate two irreversible exothermic events: (1) crystallization of hexagonal La₁₅Mo_8.5O₄₈ (480–520 °C) and (2) irreversible first-order phase transition to the tetragonal phase γ-La₂MoO₆. The estimated crystallite size of hexagonal La₁₅Mo_8.5O₄₈ reaches ~50 nm (at 700 °C), and that of hexagonal La₁₅W_8.5O₄₈ is ~40 nm (at 900 °C). Both high-temperature phases (β-La₂WO₆ and γ- La₂MoO₆) were better crystallized.

Oxygen ion conductivity measurements for the dense, coarse-grained hexagonal La₁₈W₁₀O₅₇ (sp. gr. P ͞6c2, no. 190) ceramics have shown that oxygen ion conduction dominates only in the coarse-grained ceramics. By reducing the density and grain size of the material, electron conduction becomes dominant. In the low-density hexagonal La₁₅Mo_8.5O₄₈ nanoceramic (relative density of 64.8%) produced by firing a mechanically activated La₂O₃ + MoO₃ mixture at 600 °C for 4 h, electron conduction with an activation energy E_a = 1.35 eV prevailed in dry air. This behavior is similar to what was observed in the high-temperature tetragonal phase γ-La₂MoO₆ (E_a = 1.14 eV), as supported by the lack of electrode dispersion in its impedance spectrum.

Porous proton-conducting orthorhombic β-La₂WO₆ ceramics differing in relative density (67.1 and 81.4%) have been shown to have almost the same proton conductivity: ~1 × 10⁻⁶ S/cm at 600 °C. The proton conductivity appears to be independent of the density of the ceramics. No proton conduction has been detected in tetragonal γ-La₂MoO₆ ceramics.
