Investigation of High-Efficiency and Stable Carbon-Perovskite/Silicon and Carbon-Perovskite/CIGS-GeTe Tandem Solar Cells

by
Ahmed Saeed
1,
Mostafa M. Salah
1,*,
Abdelhalim Zekry
2,
Mohamed Mousa
1,
Ahmed Shaker
2,
Mohamed Abouelatta
2,
Fathy Z. Amer
3,
Roaa I. Mubarak
3 and
Dalia S. Louis
2
1
Electrical Engineering Department, Future University in Egypt, Cairo 11835, Egypt
2
Faculty of Engineering, Ain Shams University, Cairo 11535, Egypt
3
Electronics & Communication Engineering Department, Faculty of Engineering, Helwan University, Cairo 11795, Egypt
*
Author to whom correspondence should be addressed.
Energies 2023, 16(4), 1676; https://doi.org/10.3390/en16041676
Submission received: 4 January 2023 / Revised: 29 January 2023 / Accepted: 1 February 2023 / Published: 8 February 2023
(This article belongs to the Section A2: Solar Energy and Photovoltaic Systems)
Browse Figures
Versions Notes

Abstract

:
The primary purpose of recent research on solar cells is to achieve a higher power conversion efficiency with stable characteristics. To push the developments of photovoltaic (PV) technology, tandem solar cells are being intensively researched, as they have higher power conversion efficiency (PCE) than single-junction cells. Perovskite solar cells (PSCs) are recently used as a top cell of tandem solar cells thanks to their tunable energy gap, high short circuit current, and low cost of fabrication. One of the main challenges in PSCs cells is the stability issue. Carbon perovskite solar cells (CPSCs) without a hole transport material (HTM) presented a promising solution for PSCs’ stability. The two-terminal monolithic tandem solar cells demonstrate the commercial tandem cells market. Consequently, all the proposed tandem solar cells in this paper are equivalent to two-terminal monolithic tandem devices. In this work, two two-terminal tandem solar cells are proposed and investigated using the SCAPS-1D device simulator. Carbon perovskite solar cell (CPSC) without hole transport material (HTM) is used as the top cell with a new proposed gradient doping in the perovskite layer. This proposal has led to a substantial enhancement of the stability issue known to be present in carbon perovskite cells. Moreover, a higher PCE, exceeding 22%, has been attained for the proposed CPSC. Two bottom cells are examined, Si and CIGS-GeTe solar cells. The suggested CPSC/Si and CPSC/CIGS-GeTe tandem solar cells have the advantage of having just two junctions, which reduces the complexity and cost of solar cells. The performance parameters are found to be improved. In specific, the PCEs of the two proposed cells are 19.89% and 24.69%, respectively.

1. Introduction

Recently, significant growth in energy demand, which strongly required changing conventional energy resources to green resources, has been reported. This transition is restricted by several important factors among which is the increase in gadget dependability [1]. PV technology appears to be a potential solution that produces clean energy [2]. Nowadays, the PV market is led by silicon-based technology where silicon-based cells have PCEs that exceed 25% [2]. Thin film PVs, like dye-sensitized, CIGS, and PSCs, have low-cost fabrication processes and contain various semiconductor materials, which can be deposited on different substrates.
PSCs have simple fabrication techniques and great performance, allowing them to be widely investigated and used [3] Moreover, they have a tunable energy gap, high short circuit current (Jsc), long diffusion lengths, and low recombination rates. Consequently, these cells can be considered good candidates for conventional solar cells. Recently, PSCs with PCEs up to 25% have been reported [4]. Because of these characteristics, PSCs are excellent candidates for traditional solar cells. The perovskite substance has the composition ABX3. A is organic ammonium, such as MA, and B is a metal cation, (e.g., Pb2+). X is a halide anion (e.g., I, Br, Cl). In the crystal structure, the A ion is surrounded by eight three-dimensional structures of corner-sharing octahedral BX6 units [5]. This structure is the composition of calcium titanium oxide (CaTiO3), which was found in 1839 [6]. The first photocurrent of barium titanium oxide (BaTiO3) was observed in 1956 [7]. From 2009 to 2016, PSCs manufactured from hybrid-halide materials of methylammonium lead-halides (CH3NH3PbX3 = MAPbX3) by various designs, showed enhanced PCEs around 25% [8]. The development of PSC in recent years has produced simulation results of up to more than 30% [9].
The traditional structure of the PSCs is the electron transport material (ETM)/perovskite/HTM [10]. However, one of the critical problems is that conventional organic HTMs are often expensive and unstable [11], which is one of the addressed problems in this paper. Additionally, noble metal electrodes are likewise quite pricey [12]. It was noticed that PSCs without HTMs might also work well since the unique conductivity feature of the perovskite material allows it to function not only as absorbers but also as HTMs [13]. CPSCs without HTM show great potential for resolving the concerns mentioned above [14]. Carbon materials are abundant on the earth, low-cost, and stable [15]. The first CPSCs were published in 2013 and had a record PCE of ≈6.6% [16]. In 2014, a CPSC was reported with long-term stability and the highest PCE of 12.8% until 2016 [17]. In 2016, by using a solvent engineering technique to monitor thermodynamics and conversion kinetics, a pure perovskite was fabricated. The carbon/perovskite interface was enhanced by preparing low defects absorber, and the PCE exceeded 14% [18]. In 2018, all introduced CPSCs had a PCE that exceeded 15% [19]. Although significant improvements in CPSCs over the last few years were encountered, the maximum recorded PCE of CPSCs was around 16% [20,21].
On the other hand, given that CIGS solar cells have a small share of the PV market, it was appealing to examine this potential material for usage with other absorbers to offer a competitive advantage over other alternatives. Also, GeTe is another interesting material since its energy gap is 0.8 eV, and its absorption coefficient exceeds 2.7 × 104 cm−1. It is expected that this promising material will be employed as an absorber for solar cells due to its encouraging optoelectronic properties. In this paper, besides Si, CIGS and GeTe are utilized as double absorbers back-cell of the simulated tandem solar cells.
The PCEs of single-junction cells are remarkably restricted since the absorbed photons are only those having energies equal to or larger than the energy gap of the employed absorbers [22]. It has been reported theoretically that the PCEmax. of single-junction solar cells is 33.7% for absorbers with an energy gap of 1.34 eV [23]. The limitation of this PCE can be surpassed by multi-junction (tandem) solar cells. Using different absorbers in an infinite number of sub-cells to construct a tandem solar cell, has shown theoretically an increased PCE to 68.2% [24]. In this case, the cell with the highest absorber energy gap is used as the front cell, and the one with the lowest energy gap is the bottom cell [25]. The most widely used tandem solar cell is the monolithic two-terminal type since it has the lowest fabrication cost, as it uses the minimum number of transparent conducting oxide (TCO). The main problem of this kind of tandem is the current matching of all the sub-cells. In this paper, an optimization algorithm is employed to determine the thickness of the absorber of the top cell.
Based on the previous discussion, CPSC is proposed as a top cell of the suggested two-terminal tandem solar cells to provide a technique to alleviate the instability issue in conventional PSCs. Although PSC/Si tandem solar cells may be a good choice due to the availability of materials used, the high cost of fabrication can restrict the commercial spread of these cells. Consequently, CPSC/CIGS-GeTe tandem solar cell is also proposed to offer higher PCE with low-cost fabrication.
The rest of this article is structured as follows; the structure and materials of the suggested solar cells are described in Section 2. In Section 3, the results of the CPSC/Si and CPSC/CIGS-GeTe tandem solar cells are discussed; and lastly, the conclusion is presented in Section 4.

2. Materials and Methods

SCAPS-1D is a useful program to design and study various types of SCs, which has been widely verified vs experimental solar cells [26]. It can simulate solar cells with up to seven layers. Most materials parameters can be assigned such as thickness, energy gap, affinity, permittivity, mobility, and concentration of doping and other physical or geometrical parameters [27,28,29].
The numerical solution in SCAPS-1D solves the basic physical differential equations in a steady state. The main equations are the continuity equations and Poisson’s equation, which are solved self-consistently until convergence occurs. Firstly, the cell geometry is inserted. Then, the materials parameters are defined [30]. Poisson’s equation and continuity equations are discretized into different mesh points. Discretization is executed by implying the finite difference method (FEM), and the current densities are modeled using the Scharfetter–Gummel process [31]. In the assigned mesh points, ψ, n, and p are iteratively computed by the Gummel method [32]. Physical models such as G, U, µn, and µp are enhanced after each iteration. Finally, we can obtain J-V, C-V, C-F, QE, AC, G, U, and energy diagrams [33].
In this work, two distinct two-terminal tandem solar cells are suggested. CPSC is considered the top cell of the suggested tandem solar cells while Si cell and CIGS-GeTe double absorber cell are used as the bottom cells to provide a comparative study between the two types and to draw some recommendations about the most suitable path. Figure 1a,b) illustrates the two proposed structures of the tandem solar cells, namely Si and CIGS-GeTe bottom cells, respectively. The CPSC structure is composed of fluorine-doped tin oxide (FTO) (4.6 eV) as the TCO, Zinc Selenide (ZnSe) as ETM, two perovskite layers with gradient doping as a concurrent absorber and HTM, and Carbon (5 eV) as back contact. The bottom cells consist of ZnO and CdS as n-type windows, while Si and CIGS-GeTe are used as p-type absorber materials. The front cell is illuminated by AM1.5G irradiance, while the incident spectrum to the rear cell is filtered AM1.5G after the front cell absorption. Filtered AM1.5G is given by Equation (1) [34], while the absorption coefficient (α) is given by Equation (2) [35].
S λ = S o λ . ∏ x = 1 n e − α x d x
α E = A α h ν − E g
Table 1 presents the parameters employed in the mentioned equations as well as their definitions. All simulations are performed by the SCAPS-1D device simulator [36] which is widely used in simulating single-junction and tandem solar cells. A variety of photoactive absorbers have been implemented employing this software package. In addition, numerous studies have been performed and validated against practical work [9,25,30,37].

2.1. The Top Cell

The CPSC structure is investigated and simulated using SCAPS-1D. The resulting simulations have been validated and compared to published practical work [18]. The structure of this work is FTO, titanium dioxide (TiO2) as ETM, MAPbI3, and Carbon as a back contact, respectively [18]. The main material parameters are recorded in Table 2 which are extracted from the appropriate literature. Figure 2 compares the experimental and simulation of the current-voltage (JV) and external quantum efficiency (EQE) curves. The key metrics of the simulation are in decent agreement with those experimentally reported. The performance factors of the experimental and calibrated CPSCs are presented in Table 3.
Though significant improvements in CPSCs over the last few years were encountered, the maximum recorded PCE of CPSCs is still around 16% [21]. As can be deduced from the previous results, the performance is lower than the performance of PSCs with HTM. Splitting the absorber layer into two layers with different doping can generate an additional electric field that enhances the carriers’ extraction. This approach has been applied to CZTS and silicon solar cells [54,55] and has been simulated for CPSC [56]. In this work, NA of 1 × 1017 cm−3 is used for the low-doped perovskite film and 1 × 1019 cm−3 for the high-doped perovskite film, as displayed in Figure 1. The thickness of the ZnSe layer is 30 nm, and an ND of 1 × 1019 cm−3. Here we employ ZnSe as a proposed ETM instead of the traditional ETMs since it has higher mobility and a narrower band gap. Implementing these modifications has led to a short circuit current density (Jsc) of 24.59 mA/cm2, an open-circuit voltage (Voc) of 1.19 V, FF of 76.08%, and PCE of 22.22%, as deduced from Figure 3a.

2.2. The Bottom Cells

The Si cell architecture is illustrated in Figure 1a. The simulated JV curve of the Si cell is illustrated in Figure 3b, with AM1.5G incident spectrum at 300 K temperature and the other simulation settings are the same as in the previous simulations. The simulation shows PCE = 16.35 % with FF = 79.06%, Voc = 0.496 V and Jsc = 41.65 mA/cm2. The output cell results are in good agreement with the state-of-the-art thin film Silicon-based solar cells [57].
A potential method to enhance the tandem solar cell efficiency can be accomplished by improving Voc via increasing the doping level. Germanium Telluride (GeTe) can be heavily doped to increase the Voc. However, this technique limits the current because increasing the doping results in deteriorating the minority lifetime, which consequently decreases the diffusion length. This can be explained based on Equations (3) to (7) [58,59,60,61]. In the mentioned equations, G is the generation rate, while L p and L n are the hole and electron diffusion lengths, respectively. The diffusion constant and the lifetime of the photoexcited carriers are denoted by D and τ, respectively.
J S s c = q G L n + L P
L n = D τ n
L p = D τ p
τ n ≈ 1 C n N A 2
τ p ≈ 1 C p N D 2
As can be inferred from the simple mathematical equations, high doping is responsible for a huge reduction in the current density and accordingly the PCE. A proposed solution is to reduce the GeTe layer thickness and add a Copper indium gallium selenide (CIGS) layer with a smaller thickness just above the GeTe thin film. This technique facilitates an increase in current flow and the bottom cell voltage as it serves as a series connection. The drawback of this structure is that the obtained cell current density is limited to the lowest current produced by the utilized absorbers.
Even though the small energy gap of GeTe declines VOC, GeTe material can be more highly doped than CIGS, where the optimum doping concentration of the GeTe is in the order of 1020 [62]. So, an improvement will result as qVOC depends on the energy variance of the acceptor material LUMO ( E L U M O A ) and the donor material HOMO ( E H O M O D ) which increases by doping. The Voc can be written as in Equation (8) [63],
q V O C = E L U M O A − E H O M O D − Δ E l o s s = E D A − Δ E l o s s
where E D A is the donor-acceptor effective energy gap. The energy loss that may occur when carriers are transferred to electrodes is denoted by Δ E l o s s . This energy may be caused by many sources like Coulombic interactions and bimolecular recombination [64]. Equation (8) can be also written as (9),
q V O C = E D A − k B T l n   N C N V + 2 k B T l n   n p
where n     and     p are the electron and hole density, respectively, T is the absolute temperature and kB is the Boltzmann constant. N V   and   N C   are effective densities of states for the HOMO and LUMO of the donors and acceptors’ materials. As can be deduced from Equation (9), the voltage loss can be reduced by raising the doping density of the GeTe film. This ultimately increases the VOC of the CIGS-GeTe sub-cell, because of increasing acceptor doping [63].
Now, the primary performance factors of the presented CIGS-GeTe sub-cell with various CIGS thicknesses ranging up to 1500 nm by a step of 500 nm are demonstrated in Figure 4. The simulation results indicate that the maximum PCE occurs when the thickness of CIGS is 500 nm. Additionally, at these thicknesses, an appropriate JSC is achieved. The CIGS-GeTe cell VOC is higher than both CIGS and GeTe sub-cells. This can be explained as GeTe has a narrow energy gap, making it more absorbent at longer wavelengths. As illustrated in Figure 5a, the simulated JV curve of a CIGS-GeTe cell with an incident spectrum of AM1.5G has a VOC of 0.784 V, a JSC of 42.27 mA/cm2, a PCE of 27.5 %, and an FF of 82.96%. Figure 5b illustrates the EQE of the suggested cell, signifying the good absorption in longer wavelengths up to about 1150 µm.

3. Results and Discussion

3.1. CPSC/Si Tandem Solar Cell

The CPSC/Si tandem solar cell was analyzed when the top cell photoactive layer thickness is varied by using the optimization algorithm explained in [22] as revealed in Figure 6a. The cell output factors of the tandem at 250 nm are PCE of 19.89%, FF of 85.1%, VOC of 1.66 V, and JSC of 14.08 mA/cm2, as the JV curve is shown in Figure 6b. The EQEs of the top, bottom, and tandem are given in Figure 7a. Figure 7b illustrates the absorbed spectrum of AM1.5G by the CPSC/Si tandem solar cell. The cut-off wavelength of this tandem solar cell is about 1120 nm according to the energy gap of the silicon.

3.2. CPSC/CIGS-GeTe Tandem Solar Cell

Figure 8a shows the PCE variation of the CPSC/CIGS-GeTe tandem solar cell with the front cell absorber film thickness. The results reveal that at 255 nm top cell absorber thickness, the tandem solar cell can achieve the highest PCE of 24.69 %. In Figure 8b, the JV curves of the top, bottom, and tandem are presented. VOC of the tandem solar cell is 1.92 V, JSC is 14.74 mA/cm2, and FF is 87.24%. Figure 9a shows the QE of the front, rear, and tandem solar cells. Figure 9b illustrates the absorbed spectrum of AM1.5G by the CPSC/CIGS-GeTe tandem solar cell. The cut-off wavelength of this cell is about 1558 nm, according to the energy gap of the GeTe. As a result, the enhancement of the tandem solar cell is achieved.

3.3. Temperature Impact on the Performance of CPSC Tandem Solar Cells

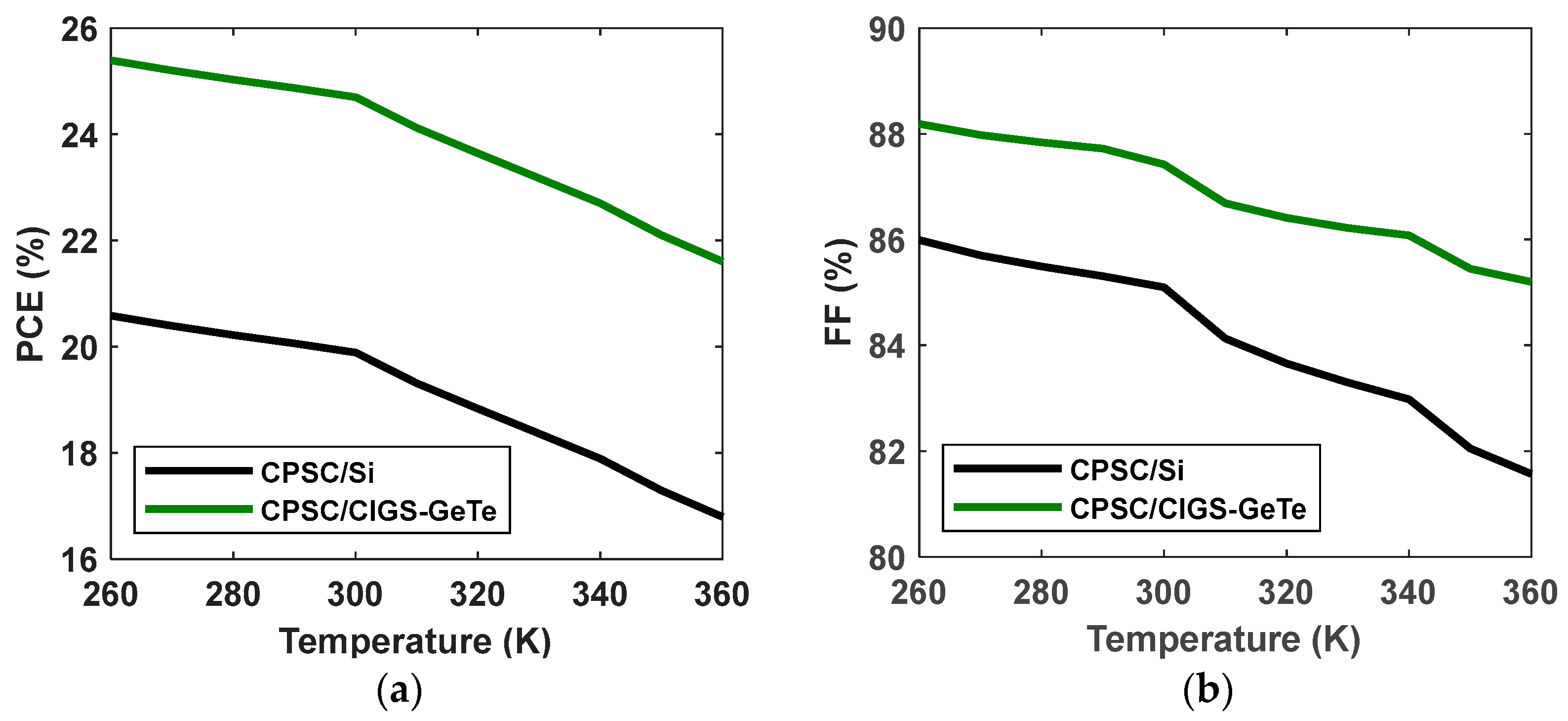

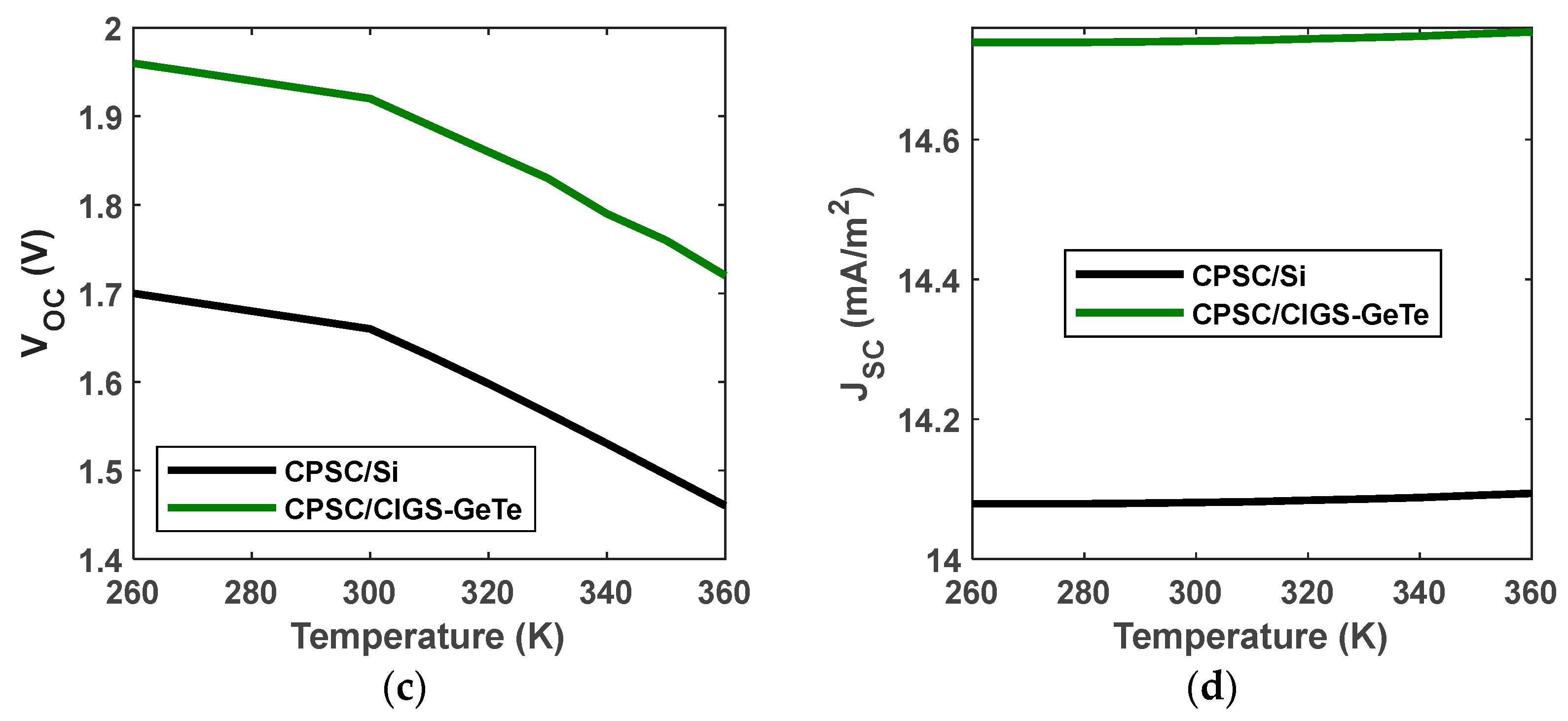

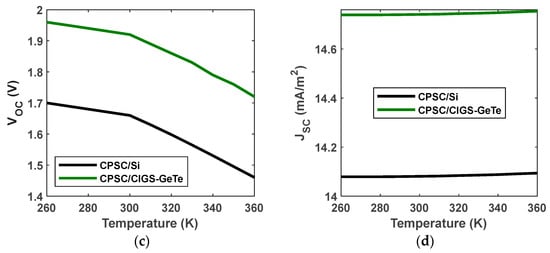

The carbon perovskite-based tandem solar cells show good stability and immunity to temperature change. Figure 10 illustrates the performance parameters of CPSC-based tandem solar cells under the variation of temperature. The PCE of tandem solar cells using CPSC as the top cell changes by less than 4% when the temperature is changed from 260 K to 360 K. It has been proven that the short circuit current density increases a bit when the temperature increases [65,66]. Testing the performance of the tandem solar cell with temperature variations shows the stability of the current density. In contrast, the variations of PCE and FF can be explained because of the voltage variation, which can be explained based on Equation (9).

3.4. Comparison with the Recent Published Results

The PCE of some recent tandem solar cells during the past several years is described in this section. In this context, Table 4 compares the results of this study and other published results. In addition to the good stability behavior of the proposed tandem solar cells, they show comparative PCEs with state-of-the-art solar cells. It should be pointed out here that the utilized Si bottom cell, in our work, is a thin-film-based cell. On the other hand, the used bottom cell reported in [67] is Si wafer-based tandem in which the Si thickness is 280 µm. A thin film bottom cell is remarkably required for producing flexible solar cells under perovskite top cells.

4. Conclusions

Multi-junction solar cells have proven to be a better alternative than single-junction solar cells as it guarantees a higher PCE than single-junction cells. The ability of multi-junction solar cells to absorb a wide spectrum leads to better PCE which is improved as the number of junctions increases. However, increasing the number of junctions raises the cell’s complexity and expense. CPSCs without HTL and with carbon as a back electrode stacked directly to the perovskite layer are introduced to enhance the stability of the top sub-cell. The simulation of CPSC started with the validation of the proposed cell with a practical published CPSC with a record PCE of 14.38%. CPSC with ZnSe as ETL shows the best performance when compared with other ETMs, including the traditional one, TiO2. The main material parameters of the proposed ZnSe/CPSC are optimized to enhance performance. Splitting the absorber layer with an optimized doping gradient technique enhances the performance of the CPSC with a PCE of 22.22%. This work uses two-junction solar cells, which results in a higher PCE. This is accomplished first by increasing the bottom cell open circuit voltage based on using two different absorber layers and then by proposing a solution to one of the primary concerns with two-terminal tandem solar cells; the sub-cell with the lowest current (usually the rear cell) pushes the tandem solar cell to work at its current density. Using copper indium gallium selenide-germanium telluride as absorbers in the back cell allows the front cell and the tandem solar cell to work at a greater current density, resulting in an improvement of the overall tandem solar cell performance. The proposed two-terminal CPSC/Si and CPSC/CIGS-GeTe tandem solar cells have PCEs of 19.89%, and 24.69%, respectively. All the suggested cells have the benefit of just having two junctions, which reduces the complexity and cost of solar cells. The simulation results can provide design recommendations for possible tandem applications that are based on high-stability PSCs.

Author Contributions

Conceptualization, A.S. (Ahmed Shaker), M.M., M.M.S., M.A., R.I.M., D.S.L. and A.S. (Ahmed Saeed); methodology, A.S. (Ahmed Shaker), M.M., M.M.S., M.A., R.I.M., D.S.L. and A.S. (Ahmed Saeed); validation and formal analysis, M.M., M.M.S., M.A., A.S. (Ahmed Shaker), R.I.M., D.S.L. and A.S. (Ahmed Saeed); visualization, M.M. and M.M.S.; investigation, all authors; writing—original draft preparation, A.S. (Ahmed Shaker), M.M., M.M.S., M.A., R.I.M. and A.S. (Ahmed Saeed); writing—review and editing, all authors; supervision, A.S. (Ahmed Shaker), F.Z.A., A.Z., M.A., R.I.M. and D.S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing does not apply to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zekry, A. A road map for transformation from conventional to photovoltaic energy generation and its challenges. J. King Saud Univ. Eng. Sci. 2020, 32, 407–410. [Google Scholar] [CrossRef]
  2. Zekry, A.; Shaker, A.; Salem, M. Solar Cells and Arrays: Principles, Analysis, and Design. Adv. Renew. Energ. Power Technol. 2018, 1, 3–56. [Google Scholar] [CrossRef]
  3. Gao, P.; Grätzel, M.; Grätzel, G.; Nazeeruddin, M.K. Organohalide lead perovskites for photovoltaic applications. Energy Environ. Sci. 2014, 7, 2448–2463. [Google Scholar] [CrossRef]
  4. Li, X.; Yang, J.; Jiang, Q.; Chu, W.; Zhang, D.; Zhou, Z.; Xin, J. Synergistic Effect to High-Performance Perovskite Solar Cells with Reduced Hysteresis and Improved Stability by the Introduction of Na-Treated TiO2 and Spraying-Deposited CuI as Transport Layers. ACS Appl. Mater. Interfaces 2017, 9, 41354–41362. [Google Scholar] [CrossRef] [PubMed]
  5. Green, M.A.; Ho-Baillie, A.; Snaith, H.J. The emergence of perovskite solar cells. Nat. Photonics 2014, 8, 506–514. [Google Scholar] [CrossRef]
  6. Lee, Y.H.; Luo, J.; Son, M.-K.; Gao, P.; Cho, K.T.; Seo, J.; Zakeeruddin, S.M.; Grätzel, M.; Nazeeruddin, M.K. Enhanced Charge Collection with Passivation Layers in Perovskite Solar Cells. Adv. Mater. 2016, 28, 3966–3972. [Google Scholar] [CrossRef]
  7. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef]
  8. Yang, W.S.; Park, B.-W.; Jung, E.H.; Jeon, N.J.; Kim, Y.C.; Lee, D.U.; Shin, S.S.; Seo, J.; Kim, E.K.; Noh, J.H.; et al. Iodide management in formamidinium-lead-halide-based perovskite layers for efficient solar cells. Science 2017, 356, 1376–1379. [Google Scholar] [CrossRef]
  9. Salah, M.M.; Abouelatta, M.; Shaker, A.; Hassan, K.M.; Saeed, A. A comprehensive simulation study of hybrid halide perovskite solar cell with copper oxide as HTM. Semicond. Sci. Technol. 2019, 34, 115009. [Google Scholar] [CrossRef]
  10. Mousa, M.; Salah, M.M.; Zekry, A.; Abouelatta, M.; Shaker, A.; Amer, F.Z.; Mubarak, R.I.; Saeed, A. Simulation of High open-circuit voltage Perovskite/CIGS-GeTe tandem cell. In Proceedings of the 2022 IEEE 49th Photovoltaics Specialists Conference (PVSC), Philadelphia, PA, USA, 5–10 June 2022; pp. 1230–1234. [Google Scholar] [CrossRef]
  11. Xing, G.; Mathews, N.; Sun, S.; Lim, S.S.; Lam, Y.M.; Grätzel, M.; Mhaisalkar, S.; Sum, T.C. Long-range balanced electron-and hole-transport lengths in organic-inorganic CH3NH3PbI3. Science 2013, 342, 344–347. [Google Scholar] [CrossRef]
  12. Laban, W.A.; Etgar, L. Depleted hole conductor-free lead halide iodide heterojunction solar cells. Energy Environ. Sci. 2013, 6, 3249–3253. [Google Scholar] [CrossRef]
  13. Etgar, L. Semiconductor Nanocrystals as Light Harvesters in Solar Cells. Materials 2013, 6, 445–459. [Google Scholar] [CrossRef] [PubMed]
  14. Kuang, C.; Tang, G.; Jiu, T.; Yang, H.; Liu, H.; Li, B.; Luo, W.; Li, X.; Zhang, W.; Lu, F.; et al. Highly Efficient Electron Transport Obtained by Doping PCBM with Graphdiyne in Planar-Heterojunction Perovskite Solar Cells. Nano Lett. 2015, 15, 2756–2762. [Google Scholar] [CrossRef]
  15. Xiao, J.; Shi, J.; Liu, H.; Xu, Y.; Lv, S.; Luo, Y.; Li, D.; Meng, Q.; Li, Y. Efficient CH3NH3PbI3 Perovskite Solar Cells Based on Graphdiyne (GD)-Modified P3HT Hole-Transporting Material. Adv. Energy Mater. 2015, 5, 1401943. [Google Scholar] [CrossRef]
  16. Ku, Z.; Rong, Y.; Xu, M.; Liu, T.; Han, H. Full Printable Processed Mesoscopic CH3NH3PbI3/TiO2 Heterojunction Solar Cells with Carbon Counter Electrode. Sci. Rep. 2013, 3, 3132. [Google Scholar] [CrossRef]
  17. Mei, A.; Li, X.; Liu, L.; Ku, Z.; Liu, T.; Rong, Y.; Xu, M.; Hu, M.; Chen, J.; Yang, Y.; et al. A hole-conductor-free, fully printable mesoscopic perovskite solar cell with high stability. Science 2014, 345, 295–298. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, H.; Wei, Z.; He, H.; Zheng, X.; Wong, K.S.; Yang, S. Solvent Engineering Boosts the Efficiency of Paintable Carbon-Based Perovskite Solar Cells to Beyond 14%. Adv. Energy Mater. 2016, 6, 1502087. [Google Scholar] [CrossRef]
  19. Meng, X.; Zhou, J.; Hou, J.; Tao, X.; Cheung, S.H.; So, S.K.; Yang, S. Versatility of Carbon Enables All Carbon Based Perovskite Solar Cells to Achieve High Efficiency and High Stability. Adv. Mater. 2018, 30, 1706975. [Google Scholar] [CrossRef]
  20. Xiao, Y.; Wang, C.; Kondamareddy, K.K.; Liu, P.; Qi, F.; Zhang, H.; Guo, S.; Zhao, X.-Z. Enhancing the performance of hole-conductor free carbon-based perovskite solar cells through rutile-phase passivation of anatase TiO2 scaffold. J. Power Sources 2019, 422, 138–144. [Google Scholar] [CrossRef]
  21. Chen, R.; Feng, Y.; Zhang, C.; Wang, M.; Jing, L.; Ma, C.; Bian, J.; Shi, Y. Carbon-based HTL-free modular perovskite solar cells with improved contact at perovskite/carbon interfaces. J. Mater. Chem. C. Mater. 2020, 8, 9262–9270. [Google Scholar] [CrossRef]
  22. Mousa, M.; Amer, F.Z.; Mubarak, R.I.; Saeed, A. Simulation of Optimized High-Current Tandem Solar-Cells with Efficiency Beyond 41%. IEEE Access 2021, 9, 49724–49737. [Google Scholar] [CrossRef]
  23. Shockley, W.; Queisser, H.J. Detailed Balance Limit of Efficiency of p-n Junction Solar Cells. J. Appl. Phys. 2004, 32, 510. [Google Scholar] [CrossRef]
  24. De Vos, A. Detailed balance limit of the efficiency of tandem solar cells. J. Phys. D. Appl. Phys. 1980, 13, 839. [Google Scholar] [CrossRef]
  25. Salah, M.M.; Zekry, A.; Shaker, A.; Abouelatta, M.; Mousa, M.; Saeed, A. Investigation of Electron Transport Material-Free Perovskite/CIGS Tandem Solar Cell. Energies 2022, 15, 6326. [Google Scholar] [CrossRef]
  26. Abdelaziz, W.; Zekry, A.; Shaker, A.; Abouelatta, M. Numerical study of organic graded bulk heterojunction solar cell using SCAPS simulation. Sol. Energy 2020, 211, 375–382. [Google Scholar] [CrossRef]
  27. Burgelman, M.; Decock, K.; Khelifi, S.; Abass, A. Advanced electrical simulation of thin film solar cells. Thin Solid Film. 2013, 535, 296–301. [Google Scholar] [CrossRef]
  28. Haddout, A.; Raidou, A.; Fahoume, M. Influence of the layer parameters on the performance of the CdTe solar cells. Optoelectron. Lett. 2018, 14, 98–103. [Google Scholar] [CrossRef]
  29. Ishikawa, R.; Watanabe, S.; Yamazaki, S.; Oya, T.; Tsuboi, N. Perovskite/graphene solar cells without a hole-transport layer. ACS Appl. Energy Mater. 2019, 2, 171–175. [Google Scholar] [CrossRef]
  30. Basyoni, M.S.S.; Salah, M.M.; Mousa, M.; Shaker, A.; Zekry, A.; Abouelatta, M.; Alshammari, M.T.; Al-Dhlan, K.A.; Gontrand, C. On the Investigation of Interface Defects of Solar Cells: Lead-Based vs Lead-Free Perovskite. IEEE Access 2021, 9, 130221–130232. [Google Scholar] [CrossRef]
  31. Scharfetter, D.L.; Gummel, H.K. Large-Signal Analysis of a Silicon Read Diode Oscillator. IEEE Trans. Electron Devices 1969, 16, 64–77. [Google Scholar] [CrossRef]
  32. Gummel, H.K. A Self-Consistent Iterative Scheme for One-Dimensional Steady State Transistor Calculations. IEEE Trans. Electron Devices 1964, 11, 455–465. [Google Scholar] [CrossRef]
  33. Boumaour, M.; Sali, S.; Kermadi, S.; Zougar, L.; Bahfir, A.; Chaieb, Z. High efficiency silicon solar cells with back ZnTe layer hosting IPV effect: A numerical case study. J. Taibah Univ. Sci. 2019, 13, 696–703. [Google Scholar] [CrossRef]
  34. Kim, K.; Gwak, J.; Ahn, S.K.; Eo, Y.-J.; Park, J.H.; Cho, J.-S.; Kang, M.G.; Song, H.-E.; Yun, J.H. Simulations of chalcopyrite/c-Si tandem cells using SCAPS-1D. Sol. Energy 2017, 145, 52–58. [Google Scholar] [CrossRef]
  35. Mandadapu, U.; Vedanayakam, S.V.; Thyagarajan, K. Simulation and Analysis of Lead based Perovskite Solar Cell using SCAPS-1D. Indian J. Sci. Technol. 2017, 10, 1–8. [Google Scholar] [CrossRef]
  36. Burgelman, M.; Decock, K.; Niemegeers, A.; Verschraegen, J.; Degrave, S. SCAPS Manual; University of Gent: Gent, Belgium, 2021. [Google Scholar]
  37. Salah, M.M.; Hassan, K.M.; Abouelatta, M.; Shaker, A. A comparative study of different ETMs in perovskite solar cell with inorganic copper iodide as HTM. Optik 2019, 178, 958–963. [Google Scholar] [CrossRef]
  38. Noman, M.A.A.; Abden, M.J.; Islam, M.A. Germanium Telluride Absorber Layer, A proposal for Low Illumination Photovoltaic Application Using AMPS 1D. In Proceedings of the International Conference on Computer, Communication, Chemical, Material and Electronic Engineering, IC4ME2 2018, Rajshahi, Bangladesh, 8–9 February 2018. [Google Scholar] [CrossRef]
  39. Gloeckler, M. Device Physics of Cu(In,Ga)Se2 Thin-Film Solar Cells…” 2015. Available online: https://www.yumpu.com/en/document/view/50809695/device-physics-of-cuingase2-thin-film-solar-cells (accessed on 18 September 2022).
  40. Asaduzzaman, M.; Hasan, M.; Bahar, A.N. An investigation into the effects of band gap and doping concentration on Cu(In,Ga)Se2 solar cell efficiency. Springerplus 2016, 5, 1–8. [Google Scholar] [CrossRef]
  41. Xu, J.; Fang, M.; Chen, J.; Zhang, B.; Yao, J.; Dai, S. ZnO-Assisted Growth of CH3NH3PbI3- xClx Film and Efficient Planar Perovskite Solar Cells with a TiO2/ZnO/C60 Electron Transport Trilayer. ACS Appl. Mater. Interfaces 2018, 10, 20578–20590. [Google Scholar] [CrossRef]
  42. Chae, J.; Dong, Q.; Huang, J.; Centrone, A. Chloride Incorporation Process in CH3NH3PbI3-xClx Perovskites via Nanoscale Bandgap Maps. Nano Lett. 2015, 15, 8114–8121. [Google Scholar] [CrossRef]
  43. Abdelaziz, S.; Zekry, A.; Shaker, A.; Abouelatta, M. Investigating the performance of formamidinium tin-based perovskite solar cell by SCAPS device simulation. Opt. Mater. 2020, 101, 109738. [Google Scholar] [CrossRef]
  44. Samiee, M.; Konduri, S.; Ganapathy, B.; Kottokkaran, R.; Abbas, H.A.; Kitahara, A.; Joshi, P.; Zhang, L.; Noack, M.; Dalal, V. Defect density and dielectric constant in perovskite solar cells. Appl. Phys. Lett. 2014, 105, 153502. [Google Scholar] [CrossRef]
  45. Chandramohan, R.; Sanjeeviraja, C.; Mahalingam, T. Preparation of zinc selenide thin films by electrodeposition technique for solar cell applications. Phys. Status Solidi A Appl Res. 1997, 163, R11–R12. [Google Scholar]
  46. Naval, V.; Smith, C.; Ryzhikov, V.; Naydenov, S.; Alves, F.; Karunasiri, G. Zinc Selenide-Based Schottky Barrier Detectors for Ultraviolet-A and Ultraviolet-B Detection. Adv. Optoelectron. 2010, 2010, 1–5. [Google Scholar] [CrossRef]
  47. Mousa, M.; Salah, M.M.; Amer, F.Z.; Saeed, A.; Mubarak, R.I. High Efficiency Tandem Perovskite/CIGS Solar Cell. In Proceedings of the 2020 2nd International Conference on Smart Power and Internet Energy Systems, SPIES 2020, Bangkok, Thailand, 15–18 September 2020; pp. 224–227. [Google Scholar] [CrossRef]
  48. Du, H.-J.; Wang, W.-C.; Gu, Y.-F. Simulation design of P–I–N-type all-perovskite solar cells with high efficiency. Chin. Phys. B 2017, 26, 028803. [Google Scholar] [CrossRef]
  49. Karimi, E.; Ghorashi, S.M.B. Investigation of the influence of different hole-transporting materials on the performance of perovskite solar cells. Optik 2017, 130, 650–658. [Google Scholar] [CrossRef]
  50. Adachi, S.; Taguchi, T. Optical properties of ZnSe. Phys. Rev. B 1991, 43, 9569. [Google Scholar] [CrossRef]
  51. Bansal, S.; Aryal, P. Evaluation of new materials for electron and hole transport layers in perovskite-based solar cells through SCAPS-1D simulations. In Proceedings of the Conference Record of the IEEE Photovoltaic Specialists Conference, Portland, OR, USA, 5–10 June 2016; Volume 2016, pp. 747–750. [Google Scholar] [CrossRef]
  52. Madelung, O. Semiconductors: Data Handbook; Springer: Berlin/Heidelberg, Germany, 2004. [Google Scholar] [CrossRef]
  53. Hossain, M.I.; Alharbi, F.H.; Tabet, N. Copper oxide as inorganic hole transport material for lead halide perovskite based solar cells. Sol. Energy 2015, 120, 370–380. [Google Scholar] [CrossRef]
  54. Tajima, S.; Itoh, T.; Hazama, H.; Ohishi, K.; Asahi, R. Improvement of the open-circuit voltage of Cu2ZnSnS4 solar cells using a two-layer structure. Appl. Phys. Express 2015, 8, 082302. [Google Scholar] [CrossRef]
  55. Hao, L.; Zhang, M.; Ni, M.; Shen, X.; Feng, X. Simulation of a Silicon Heterojunction Solar Cell with a Gradient Doping Emitter Layer. J. Electron. Mater. 2019, 48, 4688–4696. [Google Scholar] [CrossRef]
  56. Lin, L.; Li, P.; Jiang, L.; Kang, Z.; Yan, Q.; Xiong, H.; Lien, S.; Zhang, P.; Qiu, Y. Boosting efficiency up to 25% for HTL-free carbon-based perovskite solar cells by gradient doping using SCAPS simulation. Sol. Energy 2021, 215, 328–334. [Google Scholar] [CrossRef]
  57. Hwang, I.; Jeong, Y.; Shiratori, Y.; Park, J.; Miyajima, S.; Yoon, I.; Seo, K. Effective Photon Management of Non-Surface-Textured Flexible Thin Crystalline Silicon Solar Cells. Cell. Rep. Phys. Sci. 2020, 1, 100242. [Google Scholar] [CrossRef]
  58. Frohna, K.; Stranks, S.D. Hybrid Perovskites for Device Applications. In Handbook of Organic Materials for Electronic and Photonic Devices; Woodhead Publishing: Sawston, UK, 2019; pp. 211–256. [Google Scholar] [CrossRef]
  59. Dziewior, J.; Schmid, W. Auger coefficients for highly doped and highly excited silicon. Appl. Phys. Lett. 2008, 31, 346. [Google Scholar] [CrossRef]
  60. Del Alamo, J.A.; Swanson, R.M. The Physics and Modeling of Heavily Doped Emitters. IEEE Trans. Electron. Devices 1984, 31, 1878–1888. [Google Scholar] [CrossRef]
  61. Fossum, J.G.; Mertens, R.P.; Lee, D.S.; Nijs, J.F. Carrier recombination and lifetime in highly doped silicon. Solid State Electron. 1983, 26, 569–576. [Google Scholar] [CrossRef]
  62. Li, J.; Chen, Z.; Zhang, X.; Sun, Y.; Yang, J.; Pei, Y. Electronic origin of the high thermoelectric performance of GeTe among the p-type group IV monotellurides. NPG Asia Mater. 2017, 9, e353. [Google Scholar] [CrossRef]
  63. Yeboah, D.; Singh, J. Study of the Contributions of Donor and Acceptor Photoexcitations to Open Circuit Voltage in Bulk Heterojunction Organic Solar Cells. Electronics 2017, 6, 75. [Google Scholar] [CrossRef] [Green Version]
  64. Bisquert, J. The Physics of Solar Cells: Organic-Inorganic Halide Perovskite Photovoltaics. 2018. Available online: https://books.google.com/books/about/The_Physics_of_Solar_Cells.html?id=qXFQDwAAQBAJ (accessed on 12 December 2022).
  65. Singh, P.; Ravindra, N.M. Temperature dependence of solar cell performance—An analysis. Sol. Energy Mater. Sol. Cells 2012, 101, 36–45. [Google Scholar] [CrossRef]
  66. Wysocki, J.J.; Rappaport, P. Effect of Temperature on Photovoltaic Solar Energy Conversion. J. Appl. Phys. 2004, 31, 571. [Google Scholar] [CrossRef]
  67. Sahli, F.; Kamino, B.A.; Werner, J.; Bräuninger, M.; Paviet-Salomon, B.; Barraud, L.; Monnard, R.; Seif, J.P.; Tomasi, A.; Jeangros, Q.; et al. Improved Optics in Monolithic Perovskite/Silicon Tandem Solar Cells with a Nanocrystalline Silicon Recombination Junction. Adv. Energy Mater. 2018, 8, 1701609. [Google Scholar] [CrossRef]
  68. Werner, J.; Weng, C.H.; Walter, A.; Fesquet, L.; Seif, J.P.; De Wolf, S.; Niesen, B.; Ballif, C. Efficient Monolithic Perovskite/Silicon Tandem Solar Cell with Cell Area >1 cm2. J. Phys. Chem. Lett. 2016, 7, 161–166. [Google Scholar] [CrossRef]
  69. Gharibzadeh, S.; Hossain, I.M.; Fassl, P.; Nejand, B.A.; Abzieher, T.; Schultes, M.; Ahlswede, E.; Jackson, P.; Powalla, M.; Schäfer, S.; et al. 2D/3D Heterostructure for Semitransparent Perovskite Solar Cells with Engineered Bandgap Enables Efficiencies Exceeding 25% in Four-Terminal Tandems with Silicon and CIGS. Adv. Funct. Mater. 2020, 30, 1909919. [Google Scholar] [CrossRef]
  70. Hutchins, M. HZB Hits 23.26% Efficiency with CIGS-Perovskite Tandem Cell. 2019. Available online: https://www.pv-magazine.com/2019/09/11/hzb-hits-23-26-efficiency-with-cigs-perovskite-tandem-cell/ (accessed on 19 January 2023).
  71. Bush, K.A.; Manzoor, S.; Frohna, K.; Yu, Z.J.; Raiford, J.A.; Palmstrom, A.F.; Wang, H.-P.; Prasanna, R.; Bent, S.F.; Holman, Z.C.; et al. Minimizing Current and Voltage Losses to Reach 25% Efficient Monolithic Two-Terminal Perovskite-Silicon Tandem Solar Cells. ACS Energy Lett. 2018, 3, 2173–2180. [Google Scholar] [CrossRef]
Energies 16 01676 g001 550

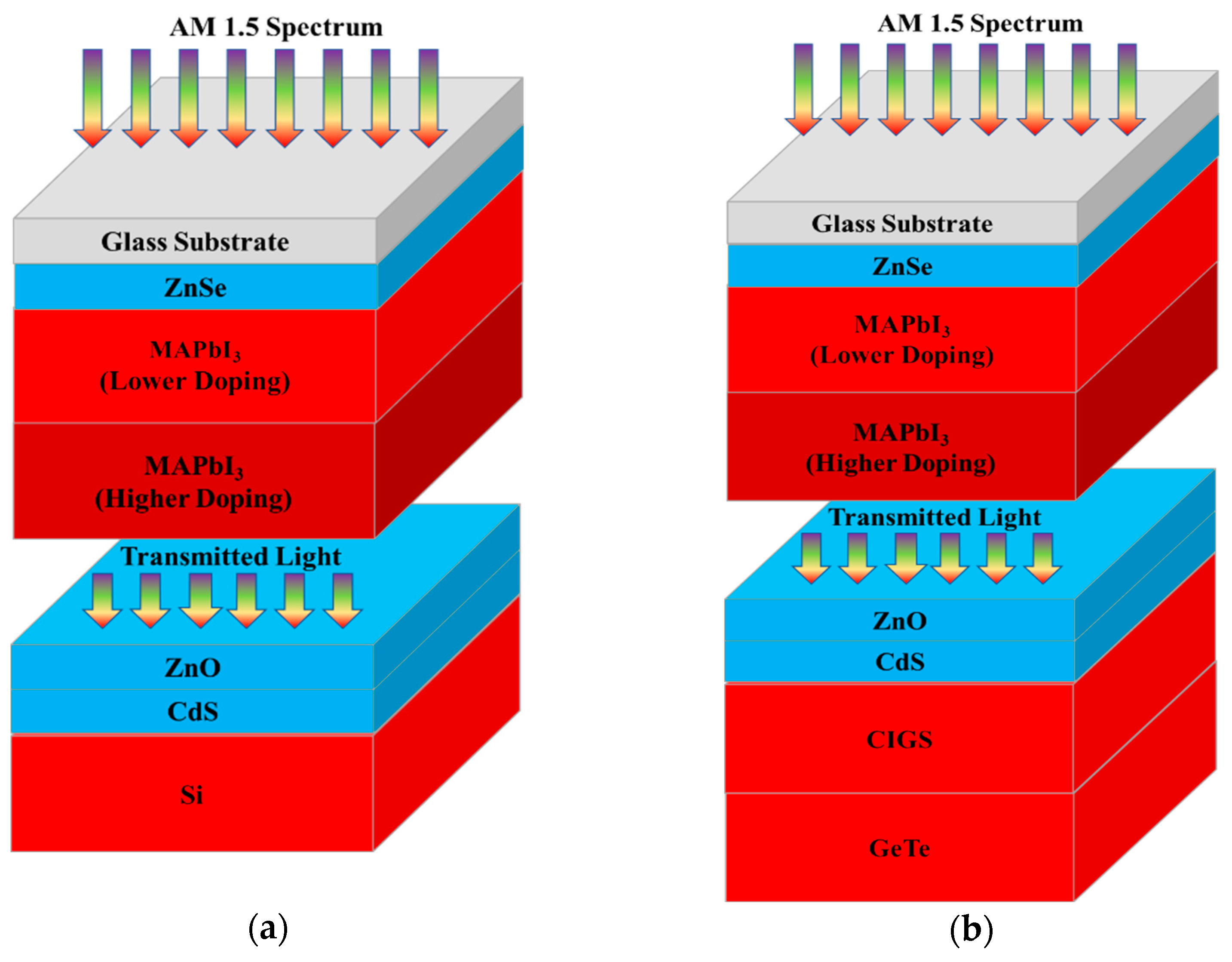

Figure 1. Illustration of structures of the proposed tandem solar cells (a) CPSC/Si, and (b) CPSC/CIGS-GeTe.
Figure 1. Illustration of structures of the proposed tandem solar cells (a) CPSC/Si, and (b) CPSC/CIGS-GeTe.
Energies 16 01676 g001
Energies 16 01676 g002 550

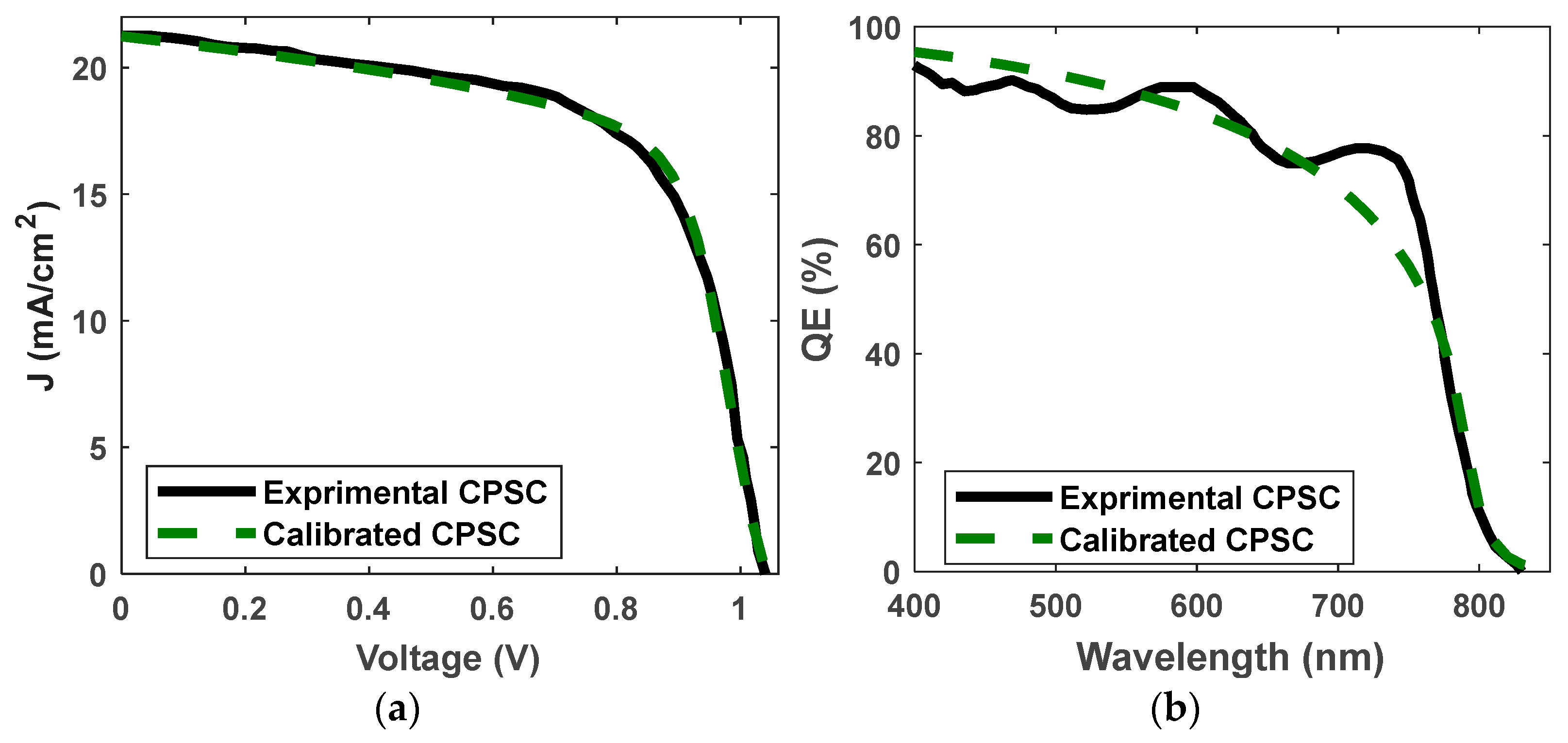

Figure 2. Validation of the simulated CPSC performance (a) JV curves and (b) EQE curves [18].
Figure 2. Validation of the simulated CPSC performance (a) JV curves and (b) EQE curves [18].
Energies 16 01676 g002
Energies 16 01676 g003 550

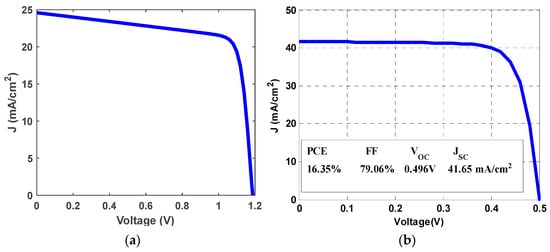

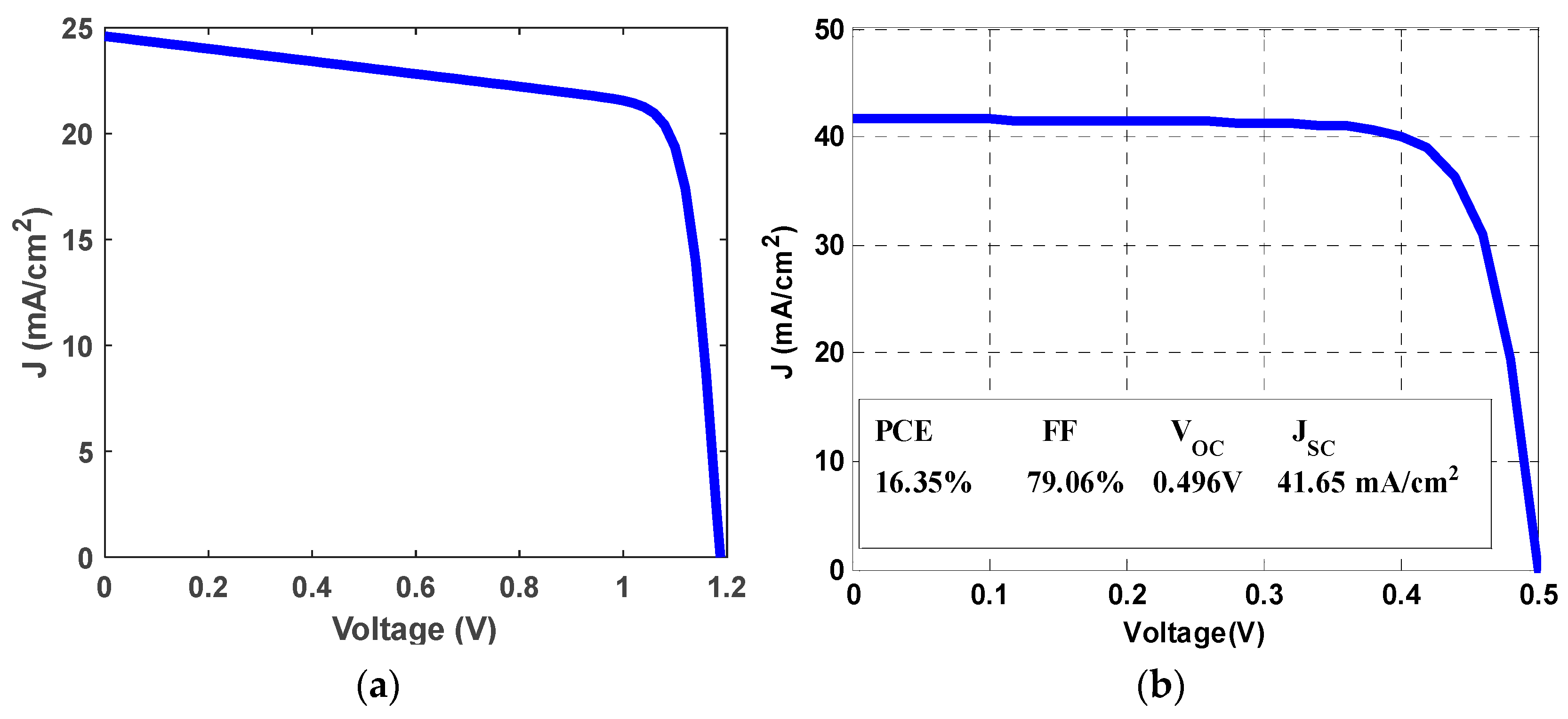

Figure 3. JV curves of (a) the modified CPSC, and (b) the Si solar cell and its outputs.
Figure 3. JV curves of (a) the modified CPSC, and (b) the Si solar cell and its outputs.
Energies 16 01676 g003
Energies 16 01676 g004 550

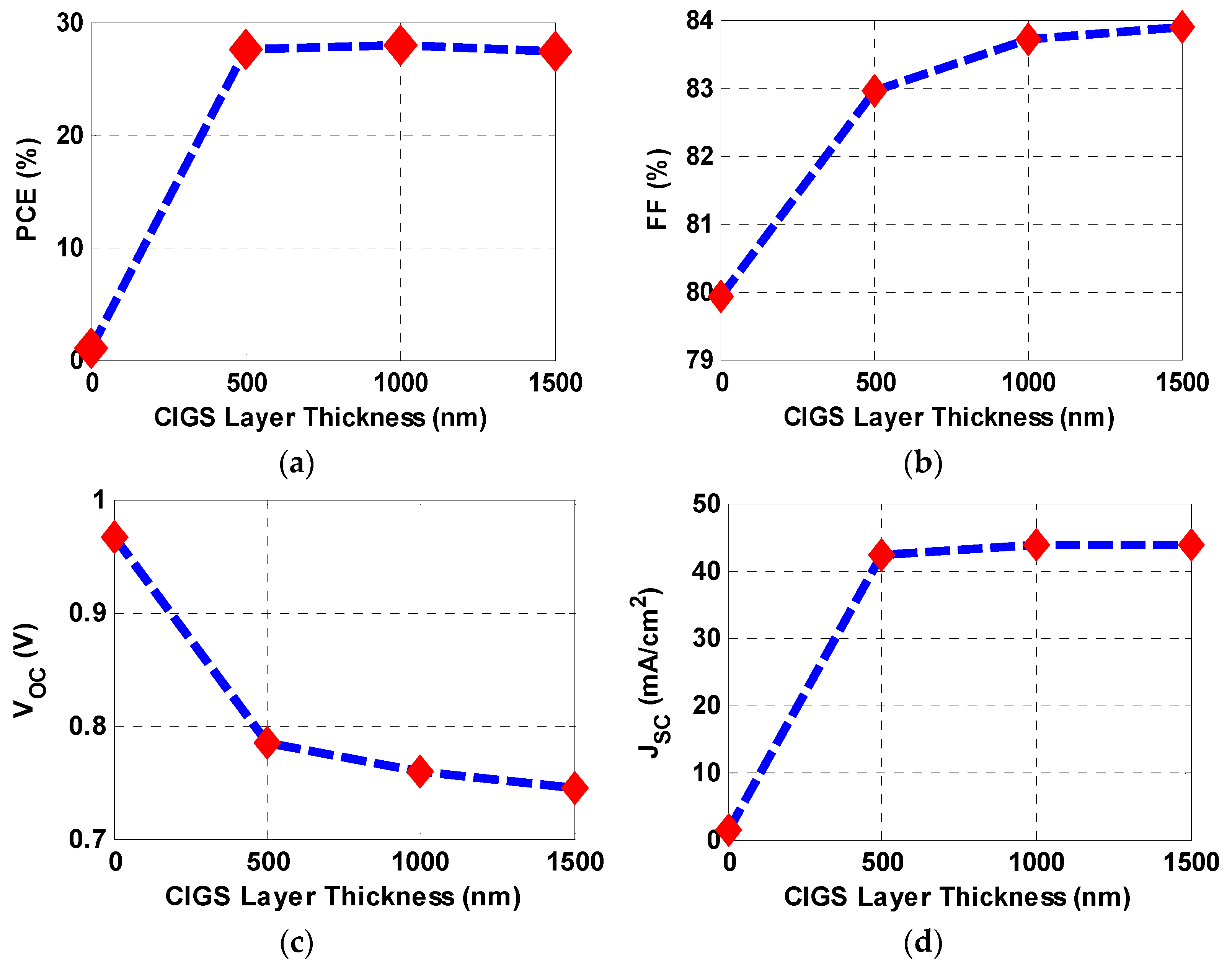

Figure 4. Effect of CIGS film thickness for the CIGS-GeTe absorber: (a) PCE, (b) FF, (c) VOC, and (d) JSC.
Figure 4. Effect of CIGS film thickness for the CIGS-GeTe absorber: (a) PCE, (b) FF, (c) VOC, and (d) JSC.
Energies 16 01676 g004
Energies 16 01676 g005 550

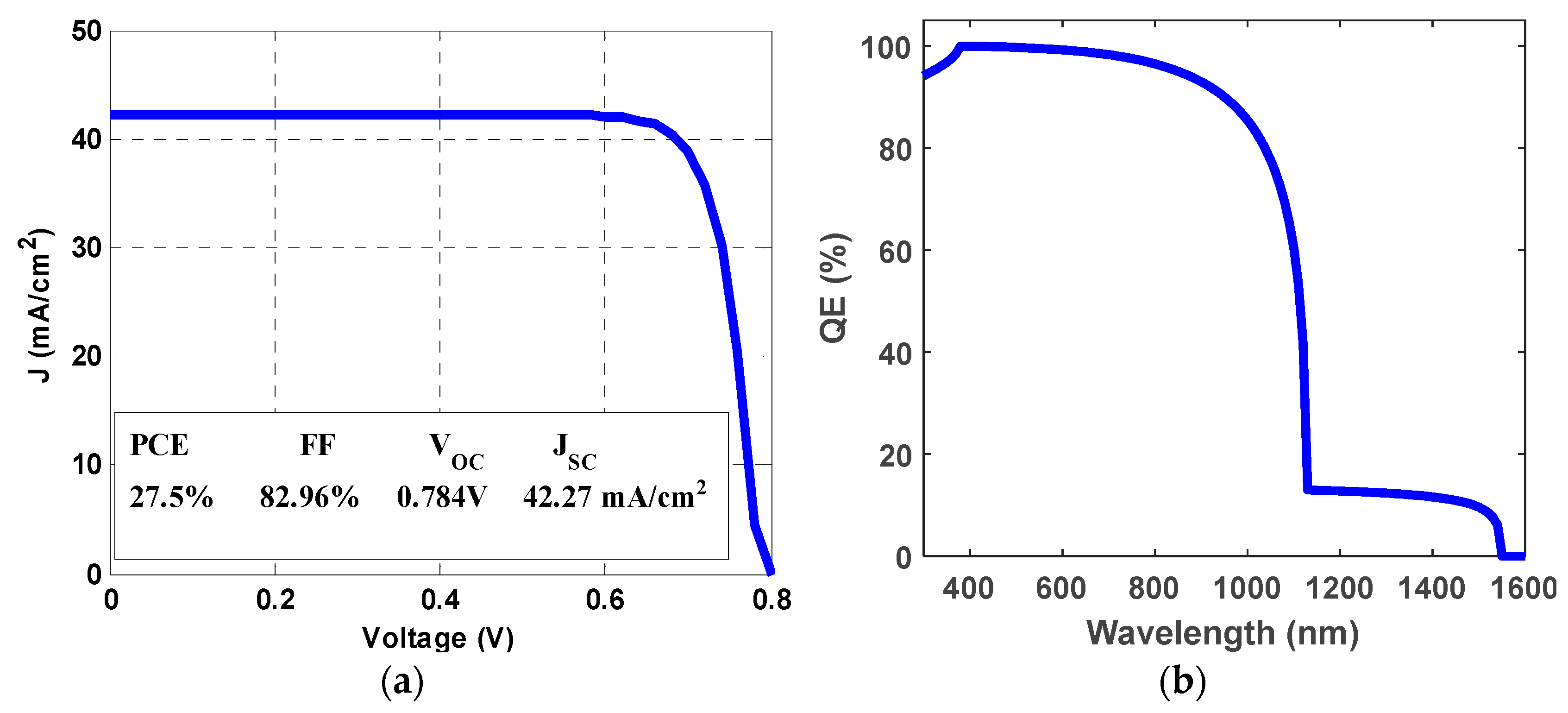

Figure 5. (a) CIGS-GeTe solar cell outputs and its JV curve and (b) EQE curve.
Figure 5. (a) CIGS-GeTe solar cell outputs and its JV curve and (b) EQE curve.
Energies 16 01676 g005
Energies 16 01676 g006 550

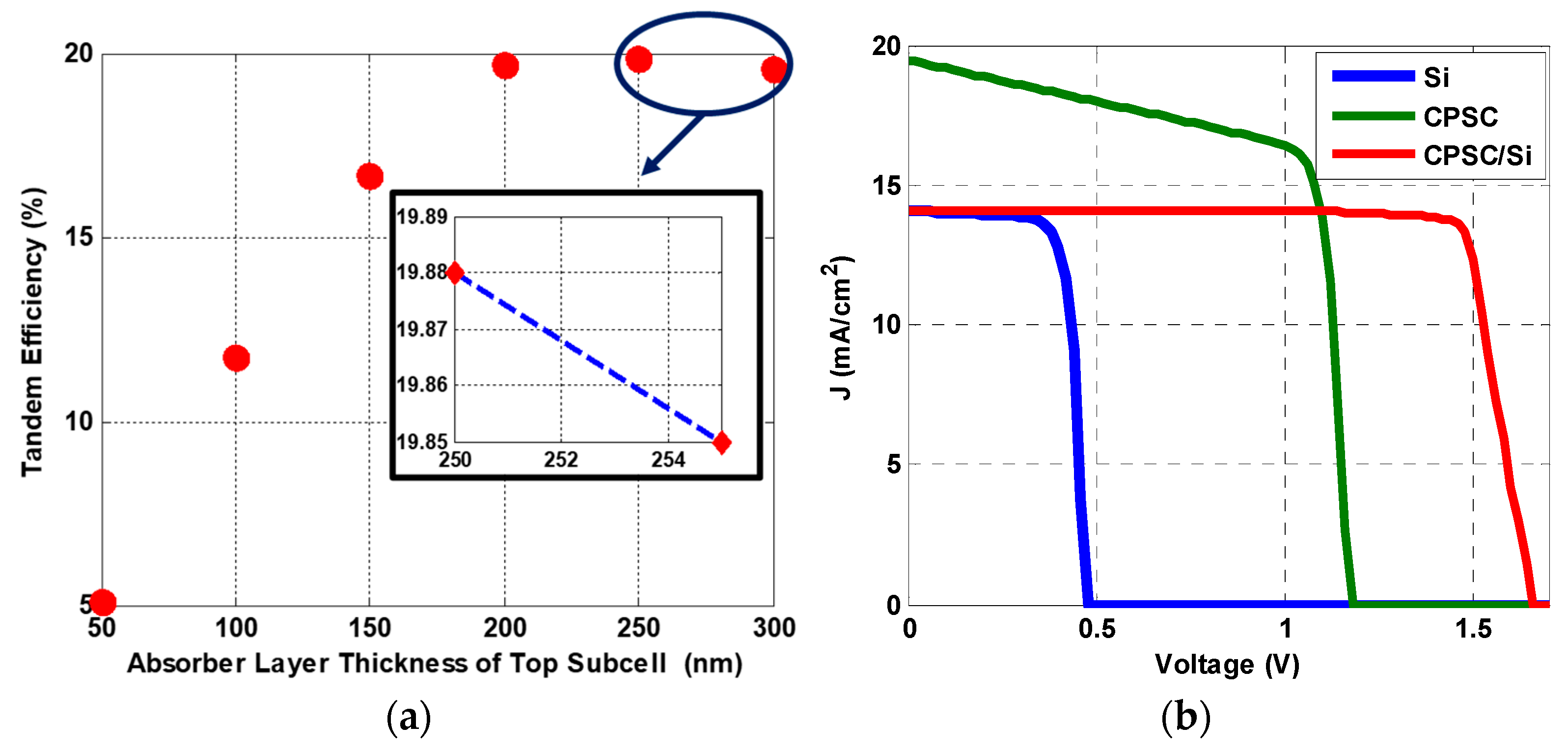

Figure 6. (a) PCE of CPSC/Si tandem solar cell with top cell absorber layer’s thickness, and (b) JV characteristics of CPSC/Si sub-cells along with the tandem solar cell.
Figure 6. (a) PCE of CPSC/Si tandem solar cell with top cell absorber layer’s thickness, and (b) JV characteristics of CPSC/Si sub-cells along with the tandem solar cell.
Energies 16 01676 g006
Energies 16 01676 g007 550

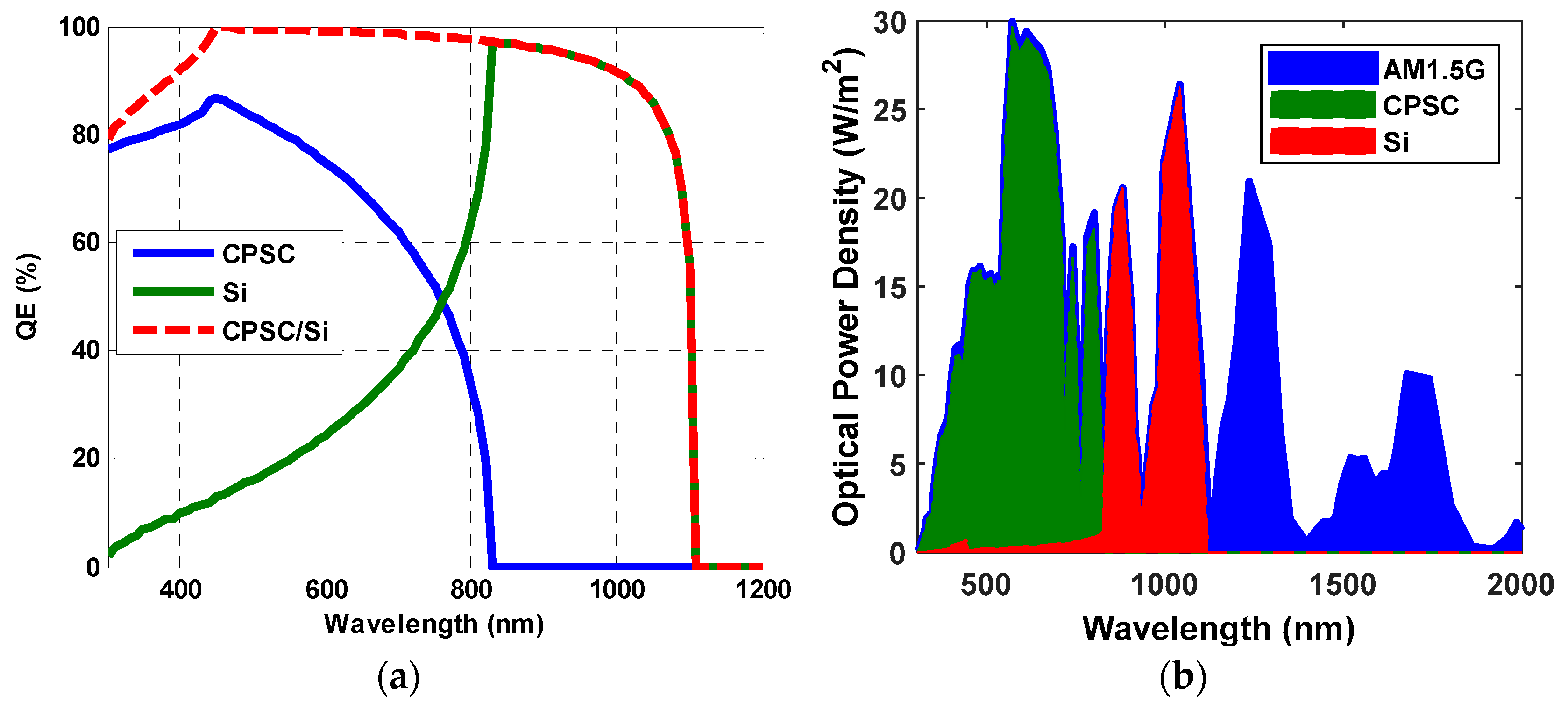

Figure 7. (a) EQE curves of CPSC/Si sub-cells and tandem solar cell, and (b) the absorbed spectrum of AM1.5G by the CPSC/Si tandem solar cell.
Figure 7. (a) EQE curves of CPSC/Si sub-cells and tandem solar cell, and (b) the absorbed spectrum of AM1.5G by the CPSC/Si tandem solar cell.
Energies 16 01676 g007
Energies 16 01676 g008 550

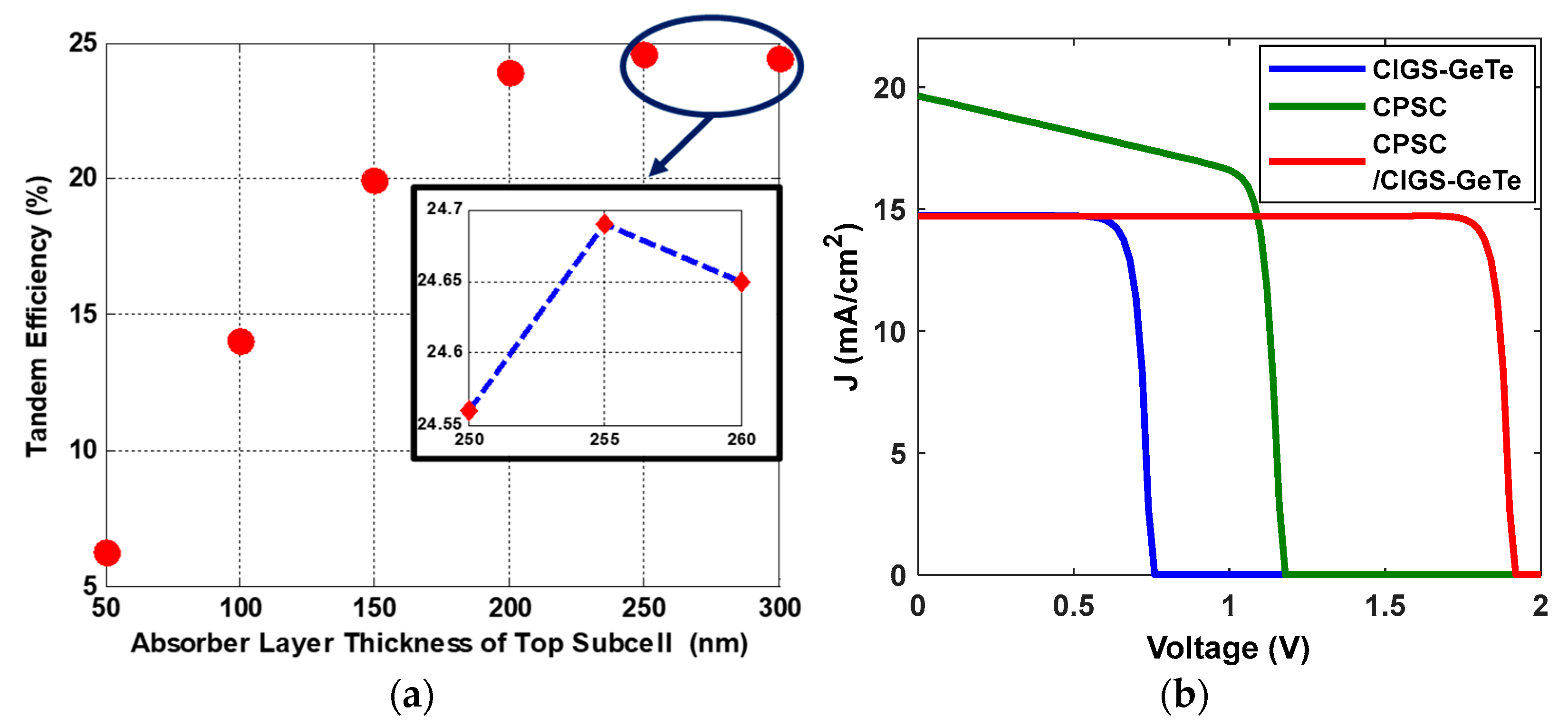

Figure 8. (a) PCE of CPSC/CIGS-GeTe tandem solar cell with the thickness of the top cell’s absorber, and (b) JV curves of CPSC/CIGS-GeTe sub-cells besides the tandem solar cell.
Figure 8. (a) PCE of CPSC/CIGS-GeTe tandem solar cell with the thickness of the top cell’s absorber, and (b) JV curves of CPSC/CIGS-GeTe sub-cells besides the tandem solar cell.
Energies 16 01676 g008
Energies 16 01676 g009 550

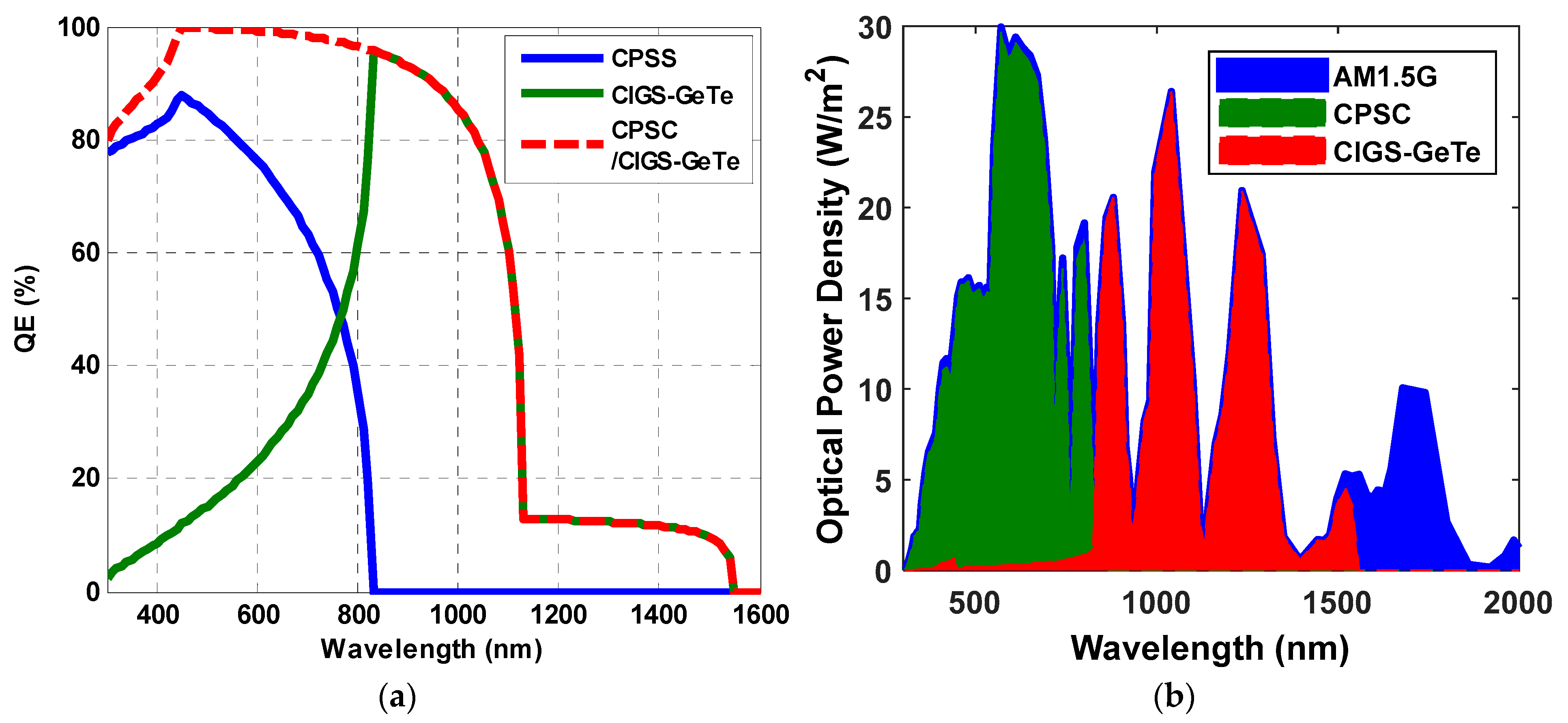

Figure 9. (a) EQE curves of CPSC/CIGS-GeTe sub-cells and tandem solar cell, and (b) the absorbed spectrum of AM1.5G by the CPSC/CIGS-GeTe tandem solar cell.
Figure 9. (a) EQE curves of CPSC/CIGS-GeTe sub-cells and tandem solar cell, and (b) the absorbed spectrum of AM1.5G by the CPSC/CIGS-GeTe tandem solar cell.
Energies 16 01676 g009
Energies 16 01676 g010a 550Energies 16 01676 g010b 550
Figure 10. Performance parameters of CPSC-based tandem solar cells under the variation of temperature: (a) PCE, (b) FF, (c) VOC, and (d) JSC.
Figure 10. Performance parameters of CPSC-based tandem solar cells under the variation of temperature: (a) PCE, (b) FF, (c) VOC, and (d) JSC.
Energies 16 01676 g010aEnergies 16 01676 g010b
Table
Table 1. Key incident and transmitted spectrum parameters.
Table 1. Key incident and transmitted spectrum parameters.
SymbolDefinitionUnit
S λ The power density of the spectrum transferred from the front sub-cell to the rear sub-cellW/m2
S o λ The incident irradiance is AM 1.5G
xLayer number
nThe overall number of layers in a sub-cell
αThe absorption coefficient of the materialcm−1
dThe layer thicknesscm
AαA pre-factor of 105cm−1.eV−1/2
h Planck’s constanteV.sec
ν FrequencyHz
E g   The energy gap of the materialeV
Table
Table 2. Material parameters of the proposed tandem solar cells.
Table 2. Material parameters of the proposed tandem solar cells.
ParametersSiCIGSGeTe [38]MAPbI3TiO2CdSZnSeZnO [39]
Thickness (nm)20002000–30002000Variable400400400400
Eg (eV)1.121.04–1.67 [40]0.81.5–1.63 [41,42]3.2 [43]2.4 [44]2.81 [45]3.3
χ (eV)4.054.54.83.9 [35]4.1 [18]4.18 [44]4.09 [46]4
ɛr11.913.6 [47]366.5 [48]9 [49]10 [44]8.6 [50]9
Nc (cm−3)2.8 × 10192.2 × 101810162.2 × 1018 [37,48,51]
Nv (cm−3)2.65 × 10191.8 × 101910171.8 × 1019 [48]1.8 × 1019 [37]1.8 × 1019 [51]
vth,n, vth,p (cm/s)1 × 107 [4]
µe (cm2 V−1s−1)14501001002 [48]100 [44]400 [52]100
µp (cm2 V- s−1)50025202 [48]1 [53]25 [44]110 [52]25
NA (cm−3)2 × 10161016–10190
ND (cm−3)01 × 1018
Nt (cm−3)10142 × 1015
Table
Table 3. Performance comparison of the experimental and calibrated CPSCs [18].
Table 3. Performance comparison of the experimental and calibrated CPSCs [18].
Voc (V)Jsc (mA/cm2)FF (%)PCE (%)
Experimental results1.04021.2765.0014.38
Simulation1.04121.2365.0114.38
Table
Table 4. A comparison of the proposed tandem solar cells with the recently published data.
Table 4. A comparison of the proposed tandem solar cells with the recently published data.
PCE (%)The Material of Top/Bottom Sub CellsRef.-Year
19.89CPSC/SiThis work
21.40PSC/SHJ[68]
22.50PSC/Si[67]
22.70PSC/SHJ[69]
23.26PSC/CIGS[70]
23.60PSC/SHJ[71]
23.60PSC/SHJ[71]
24.69CPSC/CIGS-GeTeThis work
25.00Four-terminals PSC/CIGS[69]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Saeed, A.; Salah, M.M.; Zekry, A.; Mousa, M.; Shaker, A.; Abouelatta, M.; Amer, F.Z.; Mubarak, R.I.; Louis, D.S. Investigation of High-Efficiency and Stable Carbon-Perovskite/Silicon and Carbon-Perovskite/CIGS-GeTe Tandem Solar Cells. Energies 2023, 16, 1676. https://doi.org/10.3390/en16041676

AMA Style

Saeed A, Salah MM, Zekry A, Mousa M, Shaker A, Abouelatta M, Amer FZ, Mubarak RI, Louis DS. Investigation of High-Efficiency and Stable Carbon-Perovskite/Silicon and Carbon-Perovskite/CIGS-GeTe Tandem Solar Cells. Energies. 2023; 16(4):1676. https://doi.org/10.3390/en16041676

Chicago/Turabian Style

Saeed, Ahmed, Mostafa M. Salah, Abdelhalim Zekry, Mohamed Mousa, Ahmed Shaker, Mohamed Abouelatta, Fathy Z. Amer, Roaa I. Mubarak, and Dalia S. Louis. 2023. "Investigation of High-Efficiency and Stable Carbon-Perovskite/Silicon and Carbon-Perovskite/CIGS-GeTe Tandem Solar Cells" Energies 16, no. 4: 1676. https://doi.org/10.3390/en16041676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
