A Comprehensive Review of Power Converters for E-Mobility

Abstract

The penetration of electric vehicles is becoming more and more widespread and recently electric buses and trains are fetching the attention of researchers and developers. In this review, we examine the charging systems applied to the fast charging of electric vehicles and buses as well as the charging strategies, mainly applied to electric buses. We also briefly delve into power topologies for a more electrified railway system where we discuss their different supply systems as well as their motor drive systems. Problems and charge challenges for electric buses and trains are discussed too.

1. Introduction

Carbon-containing fossil fuels like crude oil 29%, coal 27%, and natural gas account for 80% of the world’s resources in 2021 [1,2,3]. The rapid depletion of fossil fuel resources causes an excess of Greenhouse Gases (GHG) in the atmosphere, particularly carbon dioxide released by the combustion of fossil fuels. Globally, the transportation industry accounts for around 17% of anthropogenic GHG emissions [4].

Climate challenges are not only attributed to global warming, but also to other harmful effects, such as air pollution, acid rain, ozone layer degradation, habitat loss, and hazardous material contamination, all of which pose a direct danger to ecological environments and human health. Globally, there is an increasing awareness of the need to limit GHG pollution in the atmosphere. The most environmentally conscious solution is to use renewable energy sources such as solar, wind, hydroelectric power, biomass, biofuels, geothermal, and blue energy.

Transitioning to an electrified transport system with reduced emissions from renewable energy-powered sources is in line with the EU’s Horizon 2030 climate and energy framework of moving toward a climate-neutral economy [5], and in the last few years, the number of electric cars and buses around the world has greatly increased.

There are still several financial, organizational, and technological barriers that must be overcome before electric vehicles can be widely adopted. One of the main financial impediments is the high initial capital cost of Electric Vehicles (EV), which is mostly associated with high battery costs. However, it has been reported that cost parity with diesel vehicles will be achieved by 2030 at the latest because battery prices will have significantly decreased by that time. Finding a location to install the charging infrastructure from an organizational standpoint is still a major dilemma [6]. Technically, there is a lack of appropriate charging infrastructure/stations which are capable of quickly charging these vehicles/buses within a very short time [7]. Then, it is required that territorial plans are adopted to build up power stations capable of charging different types of electric vehicles. Generally, it is important to place them along the main routes at proper distances and strategic locations [8]. To assess the number and the places where the charging stations have to be built, some methods have been developed. An interesting example is the methodology proposed by Acri et al., specifically applied for the electrical mobility in airport areas [9].

Furthermore, the establishment of these charging stations to supply power to the battery impose a lot of burden on the power grid, as these stations typically require high amounts of power from the AC grid within a very short time. Consequently, some operating parameters of the grid are negatively impacted, especially voltage stability, reliability, power losses, and harmonics [10]. In the literature, numerous works exist that study and propose different solutions to the negative impacts of integrating electric vehicles into the AC grid, some of which are to incorporate energy storage systems as well as to use chargers as a source of Reactive Power Compensation (RPC) [11]. In [10], the authors studied the impact of charging stations on the reliability of the distribution grid. A similar study was carried out in [12], where the authors examined the power quality impact of charging stations on the MV distribution network. Using bidirectional power electronic converters, where the Vehicle Delivers Power to the Grid (V2G), can also improve grid stability, reliability, and power losses [13]. The V2G concept is based on the notion that when the load demand is high, excess energy stored in EVs can be sent back into the grid, while when the demand in the grid is low, the excess energy can be stored in the EVs’ batteries to avoid wastage [14]. Thus, EV owners can buy electricity from the grid at a low price and sell it back to the grid at a higher price, resulting in some benefits for the EV owner.

EV battery chargers can either be on-board or off-board, as shown in Figure 1. On-board chargers are installed in the EV alongside storage batteries; however, their power output is limited due to weight, space, and cost limits. Off-board EV chargers have no size or weight restrictions because they are installed in bus stations and depots, garages, parking areas, and even on-route where the available space is typically larger [15].

Battery chargers can be classified into three different levels depending on the charging time, power level, and supply voltage. Level-I chargers are slow chargers, while level-II chargers are semi-fast chargers, and both work on a single-phase grid supply. They are mostly used for on-board charging systems. On the other hand, level-III chargers are intended for fast charging purposes of EVs, and a three-phase supply is needed for this category. Level-III chargers are off-board chargers [17].

Table 1. Main features of EV battery chargers [17,18].

Feature	Level 1	Level 2	Level 3
Grid voltage	120 VAC (US) 240 VAC (EU)	240 VAC (US) 400 VAC (EU)	208–600 VAC or VDC
Power range [kW]	≤3.7	3.7–22	>50
Approximate charging time	11–36 h	1–6 h	0.2–1 h
Charger topology	On-board	On-board	Off-board
Grid supply type	1-phase	1- or 3-phase	3-phase
Charging type	Slow charge	Semi-fast charge	Fast charge
Battery capacity [kWh]	15–50	15–50	15–50
Typical use	Charging at home or office	Charging at private or public outlets	Commercial, just like a filling station

shows the different features of these chargers classified according to their power levels.

It is required that the design of the power electronic topologies for these off-board chargers be able to have low harmonic distortion, high power factor, and galvanic isolation with the grid. Furthermore, there is a need to control the DC output voltage of these chargers so that the charging power can be easily monitored and controlled, and as such, the battery life can be prolonged [19].

The rest of this paper is organized as follows: Section 2 gives an outline of the different charging strategies of electric buses (overnight charging, in-motion charging, and opportunity charging). We also explore the different methods which are widely adopted in the charging of these buses: pantograph charging, plug-in or conductive charging, as well as ground-based or inductive charging. In Section 3, we present the different front-end and back-end power converter topologies that are used in the fast conductive charging of electric vehicles/buses. In Section 4, we present Partial Power Processing Converters (PPP) or Reduced Power Converters (RPC), which is a concept relatively new to electric transportation systems. Section 5 looks at the electrified railway systems with specific attention to their power supply systems and motor drive systems. Finally, we conclude with the work in Section 6.

2. Charging Strategies and Methods for Electric Buses

Three main strategies are commonly used to charge e-buses: overnight or depot-only charging, in-motion or online charging, and opportunity or flash charging [11,20]. Buses using overnight-only charging possess huge batteries with high capacity (typically 200–500 kWh) which permits them to be used throughout the whole day without needing a recharge. These buses generally operate on shorter and less overcrowded routes (less than 100 km) [21]. The buses are charged using slow DC chargers with a plug-in cable interface (typically 50–150 kW). Online charging, on the other hand, allows buses to charge while moving. Opportunity charging describes a scenario whereby buses are not only charged at the depot but also when the bus stops at a bus stop (terminal stops and on-route intermediate stops), this process occurring throughout the day. The on-route chargers (Opportunity and Online chargers) allow buses to complete their routes with less battery capacity (typically 50–90 kWh), thus providing a more efficient system [22]; however, these chargers tend to be more expensive than depot chargers due to their high-power requirements (typically 150–450 kW) [7].

In terms of charging methods, there are four main options available, as seen in Figure 2: plug-in charging, pantograph charging, induction (or wireless) charging, and battery swapping [23,24,25]. Plug-in and pantograph charging are both referred to as conductive charging as conductors are used to transfer energy from the charging infrastructure to the e-bus. In plug-in charging, a connector or cable extending from the charging infrastructure is manually plugged into the bus to commence the charging operation. Inductive charging employs an electromagnetic field between a transmitting coil on the road surface and a receiving coil positioned at the bottom of the e-bus [26,27]. Pantograph charging, on the other hand, uses overhead connectors to automatically charge the bus.

They comprise four main types: downward (infrastructure-mounted or top-down or inverted) pantograph, upward (roof-mounted or bottom-up) pantograph, side insertion (horizontal) pantograph, and underbody pantograph, as shown in Figure 3 [28,29]. The upward pantograph is the easiest to implement technically, and the charging process is controlled/initiated by the driver; hence, there is no need for a Wi-Fi connection for communication. Its behavior is similar to a conventional Combined Charging System (CCS) plug. Communication is performed using the IEC 61851 and ISO 15118 protocol [30]. The downward pantograph, however, requires a Wi-Fi connection for communication between the pantograph and the bus, and this is performed using the OppCharge standard. The advantage of this pantograph variant is that the height of the bus is reduced, which enables it to pass under low-clearance bridges, and the weight of the system is reduced, which is especially helpful if the system is at its maximum weight limit. The functioning of the horizontal pantograph is like an inverted pantograph as the moving part is on the charging infrastructure side. Communication can be performed using either the ISO 15118 standard based solely on a pure conductive system without Wi-Fi or the OppCharge standard that uses Wi-Fi. The underbody pantograph is either set on the bus and connected to the infrastructure like a roof-mounted pantograph or placed on the ground and moved upward onto the bus like an inverted pantograph.

Battery swapping entails physically replacing a depleted battery pack with a charged battery. When compared to the previously mentioned conductive or wireless methods, the swapping process is extremely fast, typically taking only a few minutes using automatic robotic arms. Furthermore, the batteries at swapping stations could be used as grid support units, supplying power to the grid during peak periods and charging during off-peak periods [31]. Currently, there are some obstacles to implementing battery swapping, such as a very high initial setup cost and the requirement for massive storage space due to the need to store both discharged and fully charged batteries [32].

The choice of the best charging technique depends largely on the strategy you want to apply. Depot-only strategies require the least additional equipment. Additionally, the depot-only are the simplest solutions, and they are mainly plug-in. Instead, for opportunity charging, pantographs are most common. Induction charging is more expensive and more difficult to develop and apply than the other two alternatives.

3. Architectures and Converters Topologies for Fast Charging of Electric Vehicles and Electric Buses

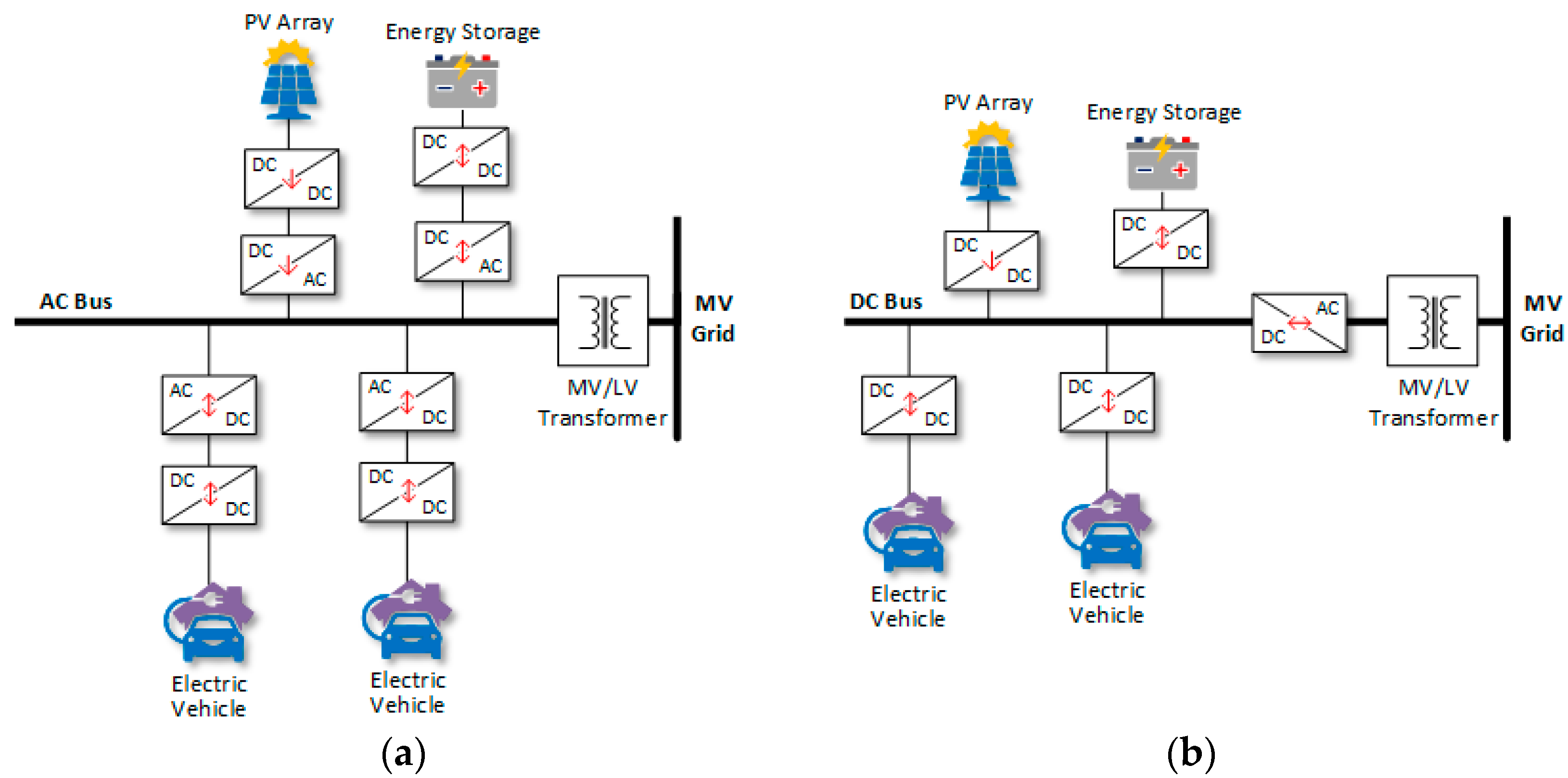

In general, two main types of DC fast-charging architectures can be identified [33]: AC-bus architecture and DC-bus architecture, shown respectively in Figure 4a,b. As seen in Figure 4a, the AC-bus system uses a low-frequency step-down transformer to interface the distribution network with the three-phase AC bus. Each charging station requires a separate AC–DC rectifier; meanwhile, to interface RESs and ESSs to the AC bus requires additional DC–AC inverters. This approach, therefore, significantly increases the number of power electronic conversion stages linking the various elements together, which leads to increased system complexity, cost, and power losses, thereby reducing the overall efficiency [13]. The merits of using the AC-bus approach include the availability and maturity of the rectifier and inverter technology, availability of AC switchgear and protective devices, as well as well-established protocols/standards for AC power distribution systems.

The DC-bus system uses a low-frequency transformer for galvanic isolation and to step down the distribution system voltage. The resulting low voltage is fed to a central frontend AC–DC rectifier to create a common DC-bus voltage. As the number of power electronic conversion stages is reduced, this approach provides a more efficient way of interfacing DC energy storage systems and renewable energy sources. The main problem with this approach is the lack of DC protection schemes and standards [34].

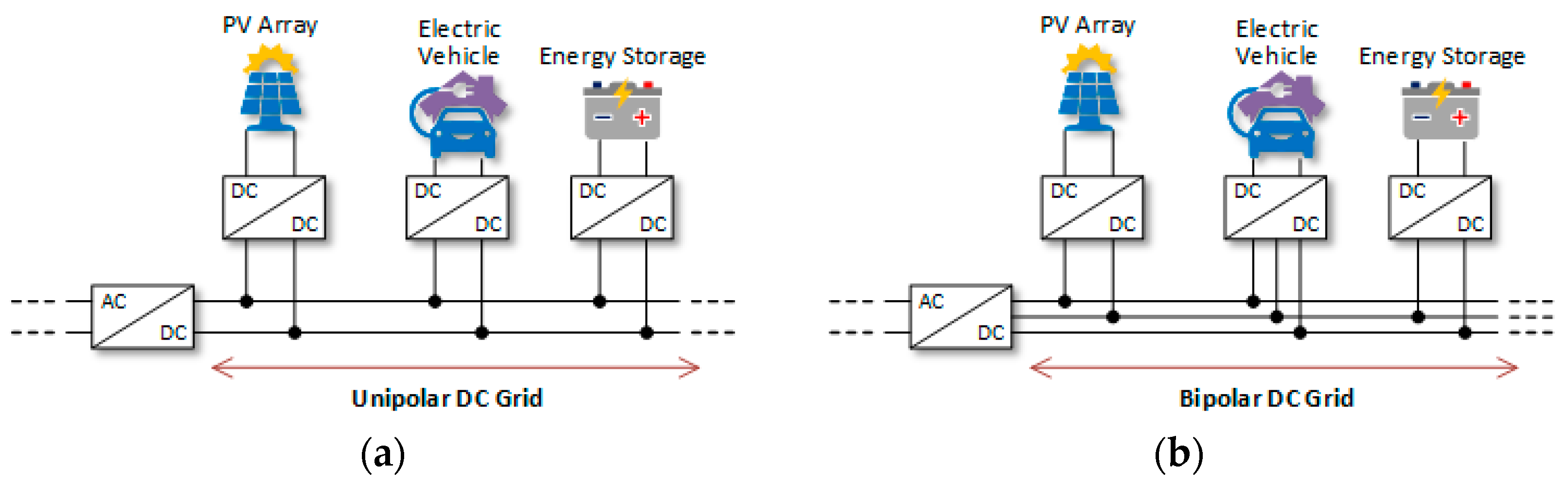

There are two types of DC-bus systems, as illustrated in Figure 5: unipolar DC-bus and bipolar DC-bus. The unipolar DC-bus system employs a two-wire configuration, resulting in a single DC voltage level, and is typically used with two-level voltage source converters such as the Vienna converter, whereas the bipolar DC-bus system employs a three-wire configuration, resulting in two DC voltage levels, and is compatible with three-level voltage source converters such as the Neutral Point Clamped (NPC) converter. Even though the bipolar system has more design and control complexity than the unipolar system and requires voltage balancing algorithms, it is more flexible, resilient, and fault tolerant [35].

Several AC–DC and DC–DC converter topologies for fast charging of electric vehicles and buses have been proposed in the literature. To design the fast-charging station, we must choose the AC–DC and DC–DC converter that produces the best results in terms of system requirements from a menu of options. The following subsections describe the various grid-connected AC–DC converters and DC–DC converters that are commonly used for battery charging.

3.1. Front-End AC–DC Converters

These converters connect the three-phase AC grid to the DC bus. They must meet certain performance targets, such as high-power factor, sinusoidal input current (low harmonic distortion), regulated output DC voltage, EMI compliance, low complexity and cost, and continued operation if one phase fails [17,36]. The topologies depicted in Figure 6 appear to be promising for meeting the aforementioned requirements while operating at high power densities.

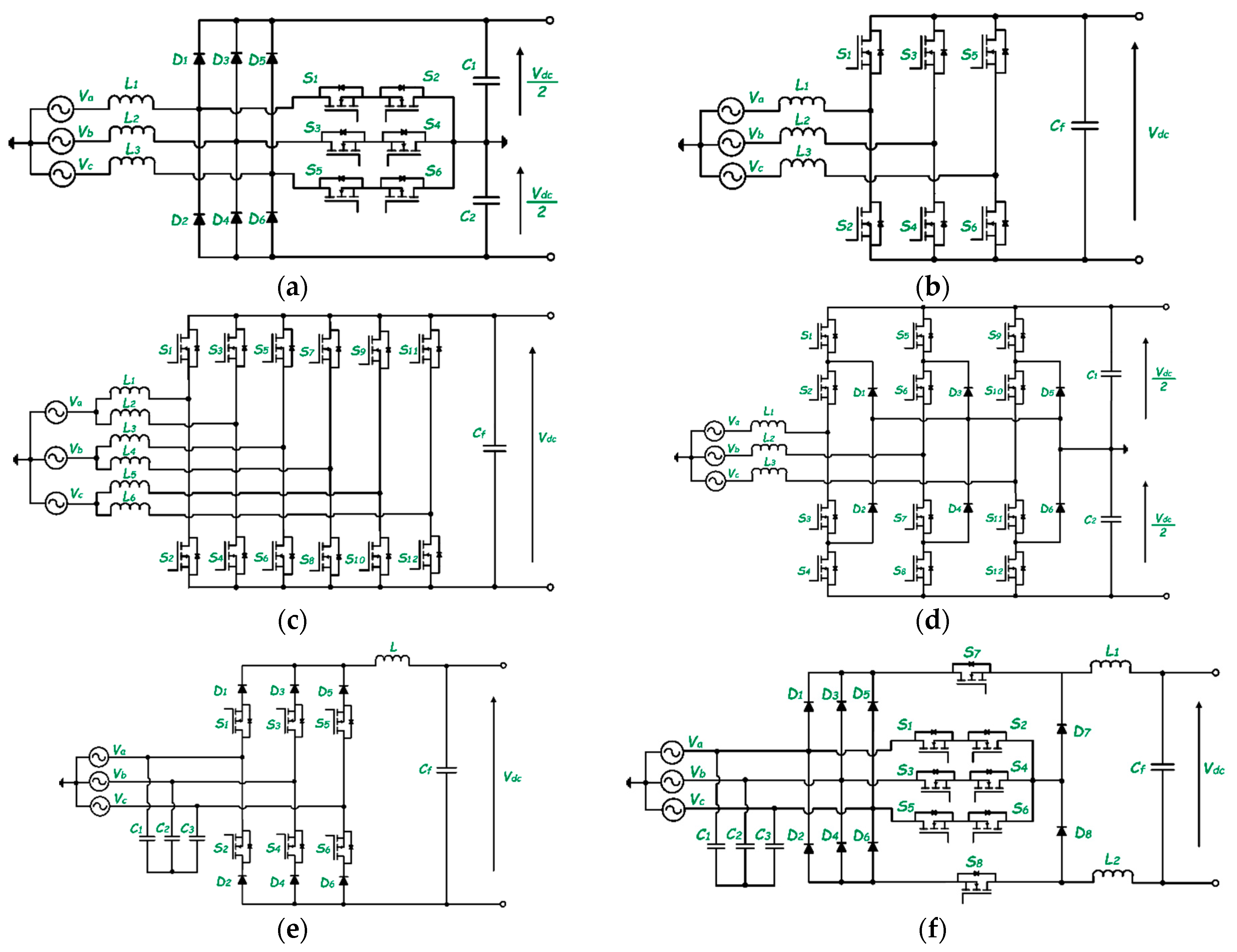

The topology shown in Figure 6a is the Vienna rectifier. It can only produce unidirectional power flows because of the presence of three-phase bridge diodes, making this topology unsuitable for V2G applications [37]. It has bidirectional switches arranged in a star pattern, with the neutral point connected to the center of two capacitors. As a result, it operates as a three-level boost converter, resulting in a smaller AC inductor. This converter has a controlled output voltage, low EMI, and reduced voltage stress on power switches as they are stressed with half the output voltage. It does, however, have a high control complexity, necessitates DC-link capacitor voltage balancing algorithms, and has limited reactive power control, limiting the power factor range [38,39].

To provide bidirectional power flow capability, the two-level voltage source six-switch boost rectifier depicted in Figure 6b can be used. This converter is the most widely used topology for grid interfacing because it has simple control, low THD, a wide range of power factor control at the AC side, and controllable DC-side voltage [39]. However, it has some demerits, such as a limited switching frequency, a large input inductor, high voltage stress of the semiconductor switches due to subjection to the full-scale DC-link voltage, and reduced reliability due to the possibility of a bridge leg shoot-through, which results in DC-bus short-circuiting [36]. Many control strategies, such as sinusoidal PWM, Space Vector Modulation (SVM), Sliding Mode Control (SMC), hysteresis current control, and One Cycle Control (OCC), have been proposed in the literature, all with the goal of reducing the size of the input filter and the stress on the power switches [19]. As shown in the figure, the maximum current through each semiconductor is equal to the maximum current in each phase of the AC grid. One possibility for lowering the maximum current through each power switch is to interleave the converters, as shown in Figure 6c, which depicts a bidirectional interleaved converter formed by connecting two of the converters of Figure 6b in parallel. This topology reduces the maximum current passing through each power switch due to the splitting of phase currents into two paths, but at the expense of more hardware components [37]. Furthermore, by interleaving both converters, harmonic cancellation in the input current waveform, as well as reduced DC side voltage oscillations, are possible [40]. The size of the input boost inductance is significantly reduced due to the interleaved converter’s frequency doubling characteristics. Circulating currents between the two paralleled rectifiers are a major concern in this topology because additional conduction pathways appear when these converters are connected to the same DC-bus and common sources [41].

It is possible to use a multilevel converter topology to further reduce voltage stress on semiconductor voltage switches. The NPC converter shown in Figure 6d, which represents a three-level converter, is the most used multilevel configuration. This converter allows bidirectional power flow and generates a controllable DC voltage with a magnitude greater than the peak input voltage. It also enables the use of lower voltage semiconductor devices while operating at a lower switching frequency [42]. Other characteristics of this converter include its very low THD in input line current, small passive filtering requirements, and explicit creation of a bipolar DC-bus, which has been investigated by [43] to implement a charging station, allowing DC–DC converters to connect to half of the DC-bus voltage [34]. The requirement for capacitor voltage balancing algorithms [44,45] is one of the most difficult challenges associated with the use of this converter. If the voltage drops across the capacitors are left unbalanced, it may result in poor output voltage quality, affecting control performance or even causing semiconductor devices to fail [46].

The six-switch current-source buck converter shown in Figure 6e is another common PFC rectifier used in charging stations. This converter can only produce unidirectional power flow if the output DC voltage polarity is fixed. However, if the polarity of the output DC voltage could be inverted or reversed, bidirectional power flow is a distinct possibility [34]. Furthermore, unlike the Vienna rectifier, this converter lacks a center point, so no capacitor voltage balancing is required. Moreover, because of its buck nature, it can exhibit low semiconductor voltage stress while also providing short-circuit protection [36]. However, it has relatively high conduction losses since there are more series-connected devices, and it presents pulsating input currents, requires EMI filtering, and offers limited power factor range control at the AC, which results in a reduced output voltage control range [47].

Figure 6f depicts a Swiss rectifier proposed by [48] and later by [49] as a possible candidate for level-III battery charging of electric vehicles and buses. It uses two buck converters to control the output voltage to be less than the peak input voltage, eliminating the need for AC filter inductors [50]. It uses the third harmonic current injection principle to achieve a purely sinusoidal input current. Other characteristics of this converter include low current stress on the power transistors, which leads to high efficiency, low control complexity, and short circuit current limiting capability [36,51]. Additionally, it has more active power switches than the six-switch buck converter. Aside from that, the capacitor filters on the AC side result in significant reactive power consumption. This converter can only produce unidirectional power flow; however, various researchers have worked on modifications to this converter to produce bidirectional power flow [52,53,54,55].

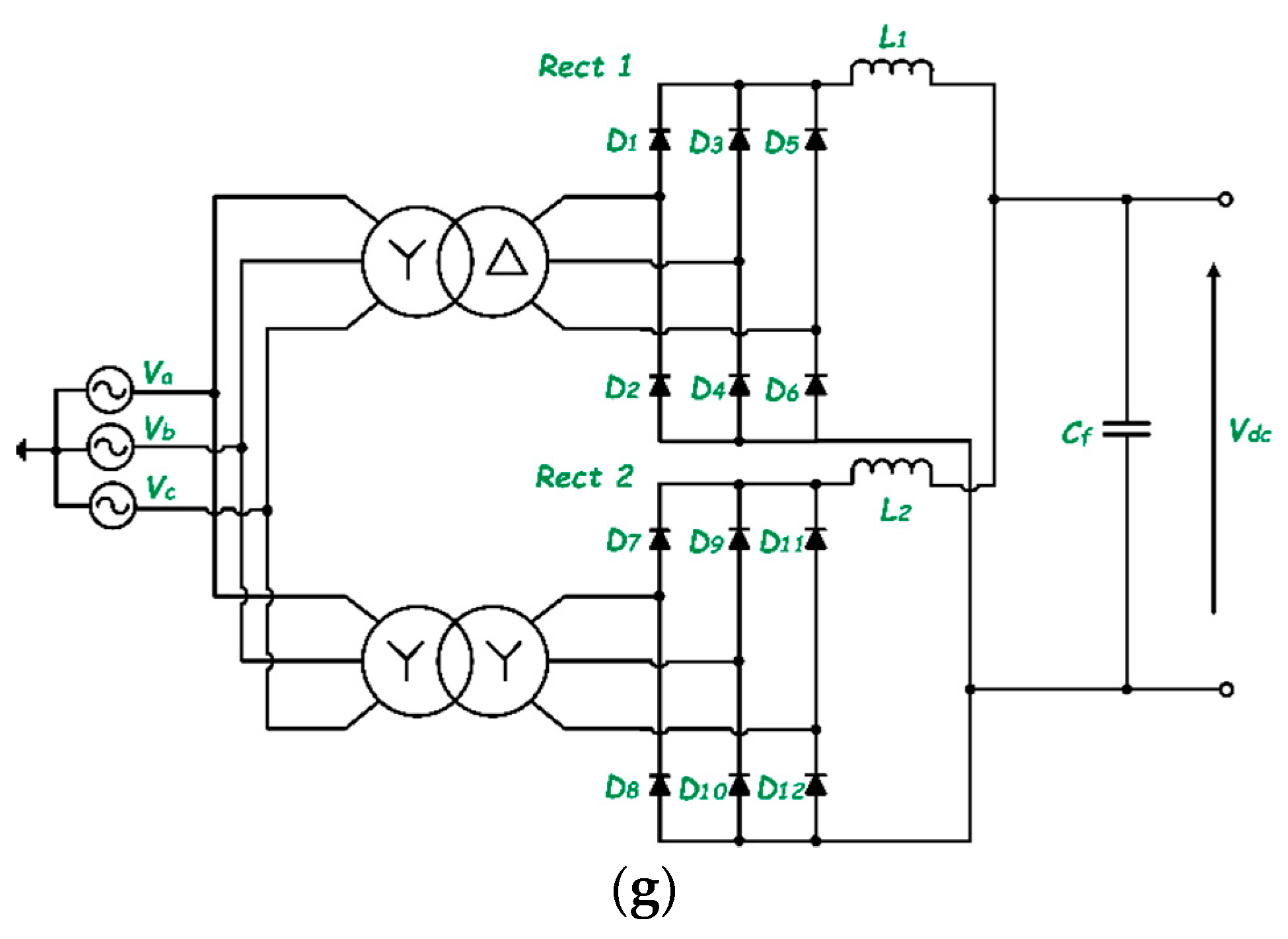

The 12-pulse thyristor bridge rectifier shown in Figure 6g is another grid-facing converter that can produce a regulated DC voltage. It employs a multi-winding transformer with Y–Y and Y–Δ connections and proper turn ratios to realize two three-phase voltage sources with the same amplitude at a 30-degree phase shift. By connecting two six-pulse thyristor bridge rectifiers, a total of 12 pulses per cycle are produced at the output [50]. This significantly reduces the current harmonics and makes the input current more sinusoidal. The disadvantage of this approach is that it necessitates the use of a multi-winding transformer, which is bulky and heavy, and only produces unidirectional power flow. Furthermore, because the traditional 12-pulse rectifier does not meet the IEEE 519 standard of producing THD of less than 5%, additional passive or active filters must be connected at the input, which are typically heavy and bulky and may reduce the circuit’s power factor [56]. Many studies have been published in the literature aimed at lowering the input current THD to less than 5% by modifying the conventional 12-pulse rectifier of Figure 6g [57,58,59,60]. The outputs of the two six-pulse rectifiers could be connected in series or parallel, with the parallel connection being preferred for high-current applications because it has a lower thyristor forward voltage drop despite some current sharing issues [56]. Of all the AC–DC converters described so far, this is the least used converter for EV charging.

3.2. Back-End DC–DC Converters

The main objective of the DC–DC converter is to regulate the output voltage from the front-end AC–DC converter to a level that is sufficient to charge the EV battery in the desired mode (constant current, or constant voltage). It also provides an interface for the connection of Renewable Energy Sources (RES) and Energy Storage Devices (ESD). DC–DC converters could be split into two main groups: isolated and non-isolated. The isolated DC–DC converters shown in Figure 7 contain a high-frequency transformer and are required to provide galvanic isolation between the grid and the battery or ESS. On the other hand, the non-isolated DC–DC converters shown in Figure 8 need to be interfaced with a bulky low-frequency transformer at the grid side to provide protection.

3.2.1. Isolated DC–DC Converters

The most popular topology used for high power and high frequency applications is the Phase-Shift Full-Bridge (PSFB) converter shown in Figure 7a. This converter has a simple control system; low current stress on the power switches, as it receives a Zero Voltage Switching (ZVS) using the leakage inductance of the transformer in addition to the parasitic capacitance of the power switches; and a wide range of output voltages [61]. However, the converter has some demerits, such as unidirectional operation, duty cycle losses in active switches, hard-to-achieve ZVS at light load (limited ZVS range), high conduction losses in output diodes, circulating current losses, and high voltage ringing on the secondary side rectifier diodes [62], which could be reduced using passive or active snubber circuits, but this reduces the system efficiency [34].

To provide bidirectional conduction capability, the Dual Active Bridge (DAB) schematic seen in Figure 7b could be used, formed by replacing the diodes in the previous circuitry with MOSFETs. Just like the previous topology, this converter also provides a wide output voltage range and has soft-switching capability. Compared to the converter in Figure 7a, this topology has lower voltage stress on the switches, provides higher power densities, and has better efficiency [36]. Despite the advantages, it also possesses some setbacks, such as the presence of reactive current, large input, and output ripple due to switching, hence the need for large input and output filter [63] and hard switching at light load [64].

The performance of the DAB could be improved by interleaving it, as shown in Figure 7c. This allows a reduction in the operating power of each DAB [37], reduces the voltage and current ripple in the input and output capacitors, and reduces input and output filtering requirements, all these at the cost of more hardware and an increase in control complexity.

Another unidirectional converter proposed by the authors of [65] that could be used for battery charging is the isolated interleaved DC–DC converter with a voltage doubler shown in Figure 7d. When operating in Discontinuous Conduction Mode (DCM) and Boundary Conduction Mode (BCM), this converter has no reverse recovery losses in the secondary rectifier diodes and no high voltage ringing, which is usually caused by resonance between the diode parasitic capacitance and the transformer leakage inductance. Interleaving the converters reduces ripple current and voltage stress on the output filter capacitors [66]. Interleaving also has the advantage of distributing thermal losses uniformly among the cells while sharing equal power. Furthermore, the input ripple is four times the switching frequency [67], the number of secondary diodes can be considerably reduced with the output voltage doubler rectifier, and the diode voltage rating is equal to the maximum output voltage. The disadvantage of this converter is that its operation in Continuous Conduction Mode (CCM) results in the lowest RMS currents. Additionally, while ZVS can be achieved for all switches, high di/dt results in large reverse recovery losses in the secondary side rectifier diodes and high voltage ringing. Moreover, CCM operation necessitates the use of a large resonant inductor, which raises the transformer turns ratio, increasing the stress on the primary side switches [68].

Another popular category of DC–DC converters for use in fast charging is the LLC resonant converter which is of two main types: full-bridge LLC converter shown in Figure 7e and half-bridge LLC converter shown in Figure 7f. The full-wave rectification process at the secondary side could be performed using either a full bridge rectifier, as shown in Figure 7e, or a center-tapped transformer, as shown in Figure 7f. In general, the choice between full-bridge and half-bridge on the primary side is determined by the power level, with full-bridge architecture being preferred for high power applications and half-bridge configuration being preferred otherwise, whereas the choice between center tap and full-bridge on the secondary side is determined by the current and voltage levels, with center tap being preferred for low voltage and high current applications and full-bridge being used otherwise [69]. In these converters, all the semiconductors are soft switching, i.e., ZVS takes place at turn-on for the primary MOSFETs and ZCS at both turn-on and turn-off for the diode rectifiers in the secondary [70]. In comparison to other resonant converters, these topologies have high efficiency at high input voltage; their primary switches can operate at ZVS over a wide range of loads, there are no reverse recovery losses on secondary diodes, and there is low voltage stress on the rectifying diodes. The main issue with these converters is that they require a wide range of switching frequencies to be applied to control the output voltage [71,72]. The wide range of switching frequencies creates complications in the design of circuit filters, transformer magnetics, and gate driver circuits, brings about poor EMI performance, and causes a loss of soft switching at some frequency of operation, resulting in low efficiency of power conversion [73,74,75,76]. The converters shown provide only unidirectional power flow, and thus cannot be used for V2G applications. Bidirectional power flow is possible if the diodes are replaced with MOSFETs in a synchronous rectification process.

Although the LLC resonant converter can be configured to provide bidirectional power flow, this causes several issues. The magnetizing inductance of the transformer is clamped by the output voltage during reverse power flow conditions, excluding it from the resonance process. In this case, the LLC resonance circuit operates similarly to an LC series resonance circuit with a maximum voltage gain of one. As a result, ZCS is impeded at the rectifier side, lowering converter efficiency dramatically [77,78]. To address this issue, the full-bridge CLLC symmetric resonant circuit shown in Figure 7g is frequently used in bidirectional power flow applications. During reverse power flows, this converter can simultaneously achieve ZVS on the supply side and ZCS on the rectifier side, reducing switching energy losses and increasing overall circuit efficiency. Furthermore, the range of bidirectional DC gains is expanded, resulting in greater voltage regulation flexibility [79]. The performance of the CLLC resonant circuit can be improved by either interleaving the converter, as performed in [80], which increases the volume and cost of the design, or by adding the magnetizing inductance of the transformer to form a CLLLC resonant circuit [81,82,83], as shown in Figure 7h. However, this increases the converter’s design complexity.

3.2.2. Non-Isolated DC–DC Converters

This part of the paper focuses on the performance analysis and characteristics of the most used non-isolated DC–DC converters that could be employed for charging electric vehicles and integrating energy storage systems to the DC-link.

For battery charging, a traditional single-phase buck converter could be used to step down the DC-link voltage to a voltage that is acceptable by the battery. However, for this design, either a large inductor is used to reduce the inductor current ripple to small values, which increases the cost and size of the converter, or the switching frequency is increased to improve the dynamic performance of the converter, but this increases the switching losses [61,84]. A solution to this is to interleave two or more of the converters to form a multi-phase interleaved buck converter [85,86,87,88].

Figure 8a shows an example of a two-phase interleaved buck converter. Interleaving the converter brings about current splitting, which results in current ripple cancelation, better thermal performance, possible reduction in conduction losses, higher efficiency, and higher power density [66]. Additionally, the size and ratings of the inductor and filters decrease as the fundamental frequency of each inductor is multiplied by the number of phases. In this converter, the drive signals of the active switches must be phase-shifted by 360°/N, where N is the number of phases [89]. Similar interleaving configurations are possible with boost and buck–boost converters.

Figure 8b depicts a three-level NPC bidirectional converter that operates in buck mode for G2V and boost mode for V2G. This converter is used in high input voltage, high power, and high switching frequency applications because the stress on the switches is only half of the DC bus voltage, allowing lower voltage rating switches to be used, as opposed to two-level converters, which are rated for the full-scale DC-link voltage [90,91,92]. As a result, the converter’s effective switching frequency is doubled [93]. Furthermore, the filter inductor can be significantly reduced, resulting in a fast dynamic response [94]. Moreover, this converter is compatible with any charging station having a bipolar DC-bus [95], and the authors of [96] have taken advantage of this property. This converter, however, has some drawbacks, including its unsuitability for interleaving due to the formation of circulating currents [97], its voltage conversion ratio being the same as that of a two-level buck/boost converter, and its input and output terminals not being commonly grounded, which increases ElectroMagnetic Interference (EMI) [93].

To address the problems associated with voltage gain and the lack of a common ground found in the previous converter, [94] proposed the three-level flying capacitor bidirectional converter shown in Figure 8c. This converter has a high voltage conversion ratio with improved efficiency; low inductor core and copper losses; low input current ripple, resulting in a smaller input filter; and low voltage stress on power switches [98]. The disadvantage of this converter is that the voltage of the flying capacitors in each stage must be balanced to their nominal value, increasing the circuit control complexity [99]. If the flying capacitor voltage remains unbalanced, the voltage stress on the switches increases, potentially resulting in power loss [100]. Many capacitor voltage balancing techniques have been mentioned in the literature, with active and passive voltage balancing (RLC filter) being the most notable [101,102,103].

The cascaded buck–boost converter shown in Figure 8d is another non-isolated bidirectional DC–DC converter proposed by [104] that is commonly used in charging stations and energy storage systems. This is a four-quadrant converter, so it can operate in buck and boost modes in both directions [105,106]. The switches have lower electrical and thermal stresses than traditional buck–boost converters and can achieve ZVS without the use of an additional or auxiliary soft switching circuit by employing appropriate modulation strategies [107]. It does, however, have complex control strategies and suffers from some turn-on losses due to the reverse recovery problem of transistor body diodes when the conventional PWM strategy is used while operating in CCM, which reduces efficiency [108]. Hard switching reduces efficiency even further when operating under light load conditions [109].

The split-pi bidirectional converter topology of Figure 8e is a relatively new topology among other DC–DC converters, having been patented by Timothy Richard Crocker in 2002 [110]. This converter is widely used in electric mobility, battery management, energy storage, and interfacing renewable energy systems. It is made up of two interconnected DC–DC converters that share a common DC-link and have two independent DC interfaces that are used to generate an output voltage that can be higher, equal, or lower than the input voltage, making it a four-quadrant converter [111]. This converter has a wide range of operational modes and employs small-sized passive components. Furthermore, only one bridge switch is switched at a time, reducing voltage stress on the switches [112]. Moreover, because of its topological configuration, it has lower switching losses, distortions, and ripples on output current, resulting in efficiencies of over 97% [113,114]. One issue with this converter is that during operation, the voltage gain of one of the stages is set to unity, causing the other converter stage to act as a second-order filter in the forward path, potentially introducing phase delays and complicating the system’s feedback control [115]. Paralleling this converter, as shown in Figure 8f, reduces current ripples in the input and output currents even further [116].

Another popular converter is the bidirectional Cuk converter shown in Figure 8g, which is derived from the conventional unidirectional Cuk converter by replacing the main diode with a MOSFET. This converter is essentially a boost converter followed by a buck converter; thus, it can step up or step down input voltage like a traditional buck–boost converter [117]. In contrast to other topologies that use inductors to store energy, the transfer capacitor (C_t) is used as the energy storage component. When compared to the cascaded buck–boost and traditional buck–boost converters, this converter is a better choice for interfacing energy storage systems and charging EV batteries because it produces fewer current ripples at the input and output [118]. If the inductors L1 and L2 are coupled, the input and output current ripples can be further reduced [106]. This converter has some drawbacks, such as reverse voltage polarity at the output, the need for large-sized inductors, and high voltage stress (V_in + V_o) on the transfer capacitor [117,119].

To overcome the drawbacks of the bidirectional Cuk converter discussed above, the SEPIC/zeta converter shown in Figure 8h, which is simply a rearrangement of the Cuk converter, can be used. It can operate as a buck or boost converter in both directions and generates an output voltage with the same polarity as the input [120]. For positive power flows, the converter acts as a SEPIC converter, and for negative power flows, it acts as a zeta converter [106]. The voltage stress on the transfer capacitor in this case is simply V_in. This converter supports a wider range of input voltages than the Cuk converter and has lower current and voltage ripples, which can be further reduced if the inductors are coupled [121]. With the addition of auxiliary circuits, soft switching can be achieved in this converter [122]. The converse of the SEPIC/zeta converter is the Zeta/SEPIC converter, which has also been used for battery charging and energy storage systems [123,124].

Different control methods are mentioned in the literature to control the converter power, and thus currents and voltages, which are used to effectively manage the battery charging of these e-mobility systems. Model Predictive Control (MPC) is used in [125] for current control, fault detection, and State of Charge (SoC) balancing of all split battery storage at the same rate. Aside from MPC control, the traditional Proportional–Integral (PI) control strategy is frequently used, as in [126,127]. In [126], the authors implement a three-phase off-board charger and use PI controllers to perform decoupled dq grid current control and DC-link voltage control, as well as independent battery current control with PI and the integration of duty ratio feedforward control to achieve rapid dynamic control. Refs. [128,129] have also implemented more advanced control techniques such as Sliding Mode Control (SMC). The authors of [128] use SMC in aircraft battery charging to overcome the stability issues encountered by traditional PI controllers when used for multi-objective controls, whereas the authors of [129] use SMC in LLC converters to improve dynamic response and robustness at the expense of increased complexity in the design and parameter tuning process. In [130], second-order Linear Active Disturbance Rejection Control (LADRC) is used for LLC resonant converter to improve dynamic performance and suppress the influence of internal and external disturbances on output battery voltage.

4. DC–DC Converters Based on Partial Processing of Power

So far, all the DC–DC converters discussed in the previous section are meant to process the complete power which comes in from the source, as shown in Figure 9a. If somehow only a fraction of the source power can go through these converters as shown in Figure 9b, while the rest of the power is directly sent to the load, then the conduction, switching, and magnetic losses will be reduced, and the global efficiency of the converter will be increased [131,132]. This is the idea behind the concept of power converters based on partial processing of power, otherwise known as Reduced Dissipation Converters (RDCs). Aside from the increase in system efficiency, this configuration has other merits like a reduction in converter ratings as a result of reduced voltage stress, small-sized converters can be used, as well as a reduction in the overall cost of the system [133]. This concept is relatively new and has been applied in a variety of applications including distributed PV systems [134], electric vehicle fast-charging stations [135,136,137], fuel cell-powered hybrid electric vehicles [138], and current control in battery energy storage systems [139]. The downside of this type of architecture is that the galvanic isolation between the source and load is bridged since power has to directly flow from the source to the load and is therefore actively being researched.

Partial processing converter (PPC) architectures mainly comprise two types: those that require isolated DC–DC converters, as shown in Figure 10, and those that do not require isolated DC–DC converters, as shown in Figure 11 [140,141,142,143].

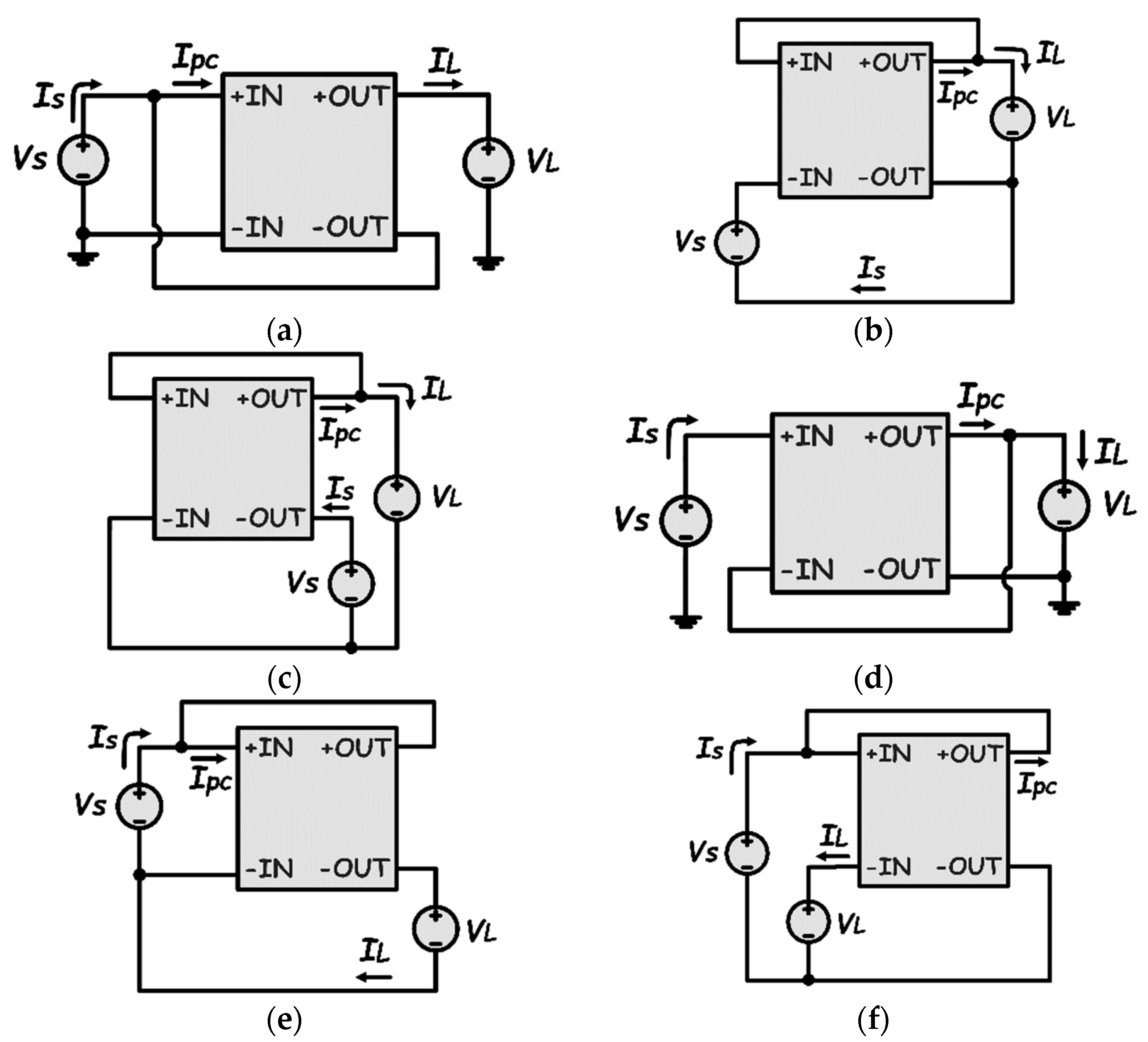

For these converters, the parameter that defines the amount of power processed by them is known as the active power ratio (K_pr) and is defined as:

$$K_{pr}=\frac{P_{pc}}{P_s}$$

(1)

where P_pc and P_s are, respectively, the power processed by the converter and the source power. The converter works in PPC mode only if the partial power ratio K_pr < 1. As an example, we can compute the K_pr of the architecture in Figure 10a. The first thing is to apply Kirchhoff’s voltage and current laws to the architecture, as defined in Equations (2) and (3), and then compute the system efficiency as in (4):

$$V_L=V_S+V_{out}$$

(2)

$$I_S=I_{PC}+I_L$$

(3)

$${\eta }_{sys}=\frac{V_L*I_L}{V_S*I_S}$$

(4)

From (1), we receive

$$K_{pr}=\frac{P_{pc}}{P_s}=\frac{V_{out}*I_L}{V_S*I_S}$$

(5)

By inserting Equations (2)–(4) into (5), we can receive K_pr as a function of the converter static voltage gain ($G_V=V_L/V_S$) as given in (6).

$$K_{pr}={\eta }_{sys}\left(1-\frac{1}{G_V}\right)$$

(6)

By using a similar technique, the K_pr of other architectures in Figure 10 can be derived, shown in

Table 2. K_pr for different PPC configurations of Figure 10.

PPC Configuration	Kpr
IPOS step-up	${\eta }_{sys}\left(1-\frac{1}{G_V}\right)$
ISOP-I step-up	${\eta }_{sys}-G_V$
ISOP-II step-up	$G_V-{\eta }_{sys}$
ISOP step-down	${\eta }_{sys}-G_V$
IPOS-I step-down	${\eta }_{sys}\left(1-\frac{1}{G_V}\right)$
IPOS-II step-down	${\eta }_{sys}\left(\frac{1}{G_V}-1\right)$

.

In [144], the PPC shown in Figure 12b, which is based on an isolated DAB, was implemented for the fast charging of electric vehicles. This converter is based on the configuration of Figure 10d. Some of the results obtained are shown in Figure 13.

Figure 13a shows that the DAB-FPP processes 100% of the source power at all times during the charging process, whereas the DAB-PPP processes approximately 40% of the input power, which decreases as the battery state of charge increases. As a result, for SoCs greater than 5%, the DAB-PPP has a higher system efficiency, as shown in Figure 13b.

The use of PPC technologies for electro-mobility systems is quite promising, and future charging stations are expected to use this concept. However, proper isolation mechanisms must be researched before this system can be commercialized.

5. Power Converters for Electrified Railway Systems

Today, the demand for a reliable and safe high-speed electrified railway for mass public transportation is rising globally [145]. Compared to other modes of transportation, these electric railway systems are the most efficient and produce the least CO₂ [146]. The safety, flexibility, and reliability of these railway systems have been further improved by recent developments in power electronic converters. Currently, traction motor controls, reactive power compensation, voltage compensation, auxiliary power supplies, regenerative braking, and main catenary power supply systems are just a few of the applications for power electronic converters in the railway industry [147]. However, we will only discuss the use of power electronics in railway power supply systems and traction drives.

5.1. Power Supply Systems

For railway systems with an AC traction power supply system, the catenary voltage is usually single-phase, with RMS values of 15 kV at 16.7 Hz or 25 kV at 50/60 Hz being the most common. Additionally, depending on the country, a catenary voltage of 27.5 kV is also common. The single-phase catenary voltage is generally obtained from the three-phase distribution grid using transformers.

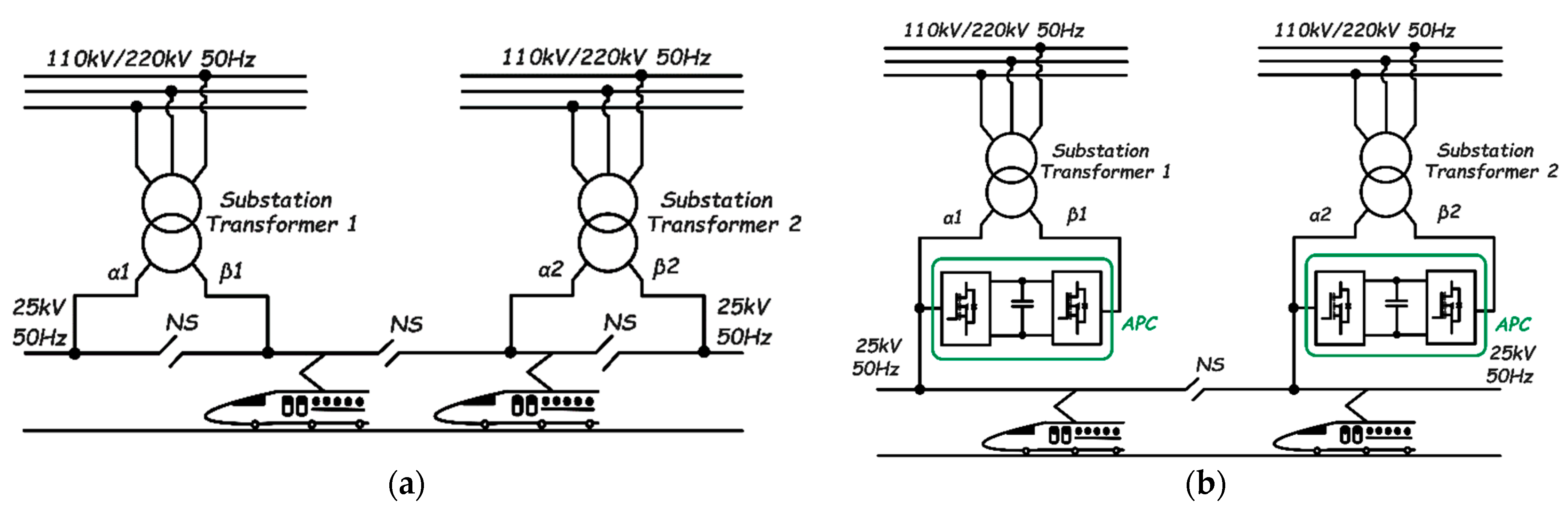

Figure 14a depicts the traditional power supply system. A transformer in the traction substation converts three-phase grid voltage to two-phase voltage. Scott and V/V transformer topologies are the most common in this type of application, though Leblanc transformers can also be found in some publications [148]. However, due to differences in the phase, amplitude, and frequency of the voltage between the adjacent arms α1 and β1 (α2 and β2), Neutral Sections (NS) emerge in one SubStation (SS) and between the adjacent substations (catenaries fed by different power substations). The presence of neutral sections causes power quality issues, such as power unbalance, the need for reactive power compensation, and low-order harmonics, which affect the power factor [149]. Furthermore, the neutral section causes a disturbance between the locomotive and the network, as well as a loss of locomotive speed. Additionally, NS makes new concepts like renewable energy or regenerative braking difficult to integrate [146].

To address the shortcomings of the traditional power supply system, compensator-based power electronic technologies for improving power quality in railway traction power systems have been proposed [150]. Figure 14b illustrates a co-phase traction power supply system using Active Power Compensation (APC). APCs can balance active power between the traction transformer’s two secondary windings, compensate for reactive power, and filter harmonics. Although the NS at the substation’s exit is eliminated in the co-phase system, the one between adjacent SS remains, making it difficult to connect all catenaries from different substations. This NS results from the inability to control the voltage frequency, phase, and amplitude of adjacent transformers [151]. Therefore, the number of NSs is half that of the traditional topology.

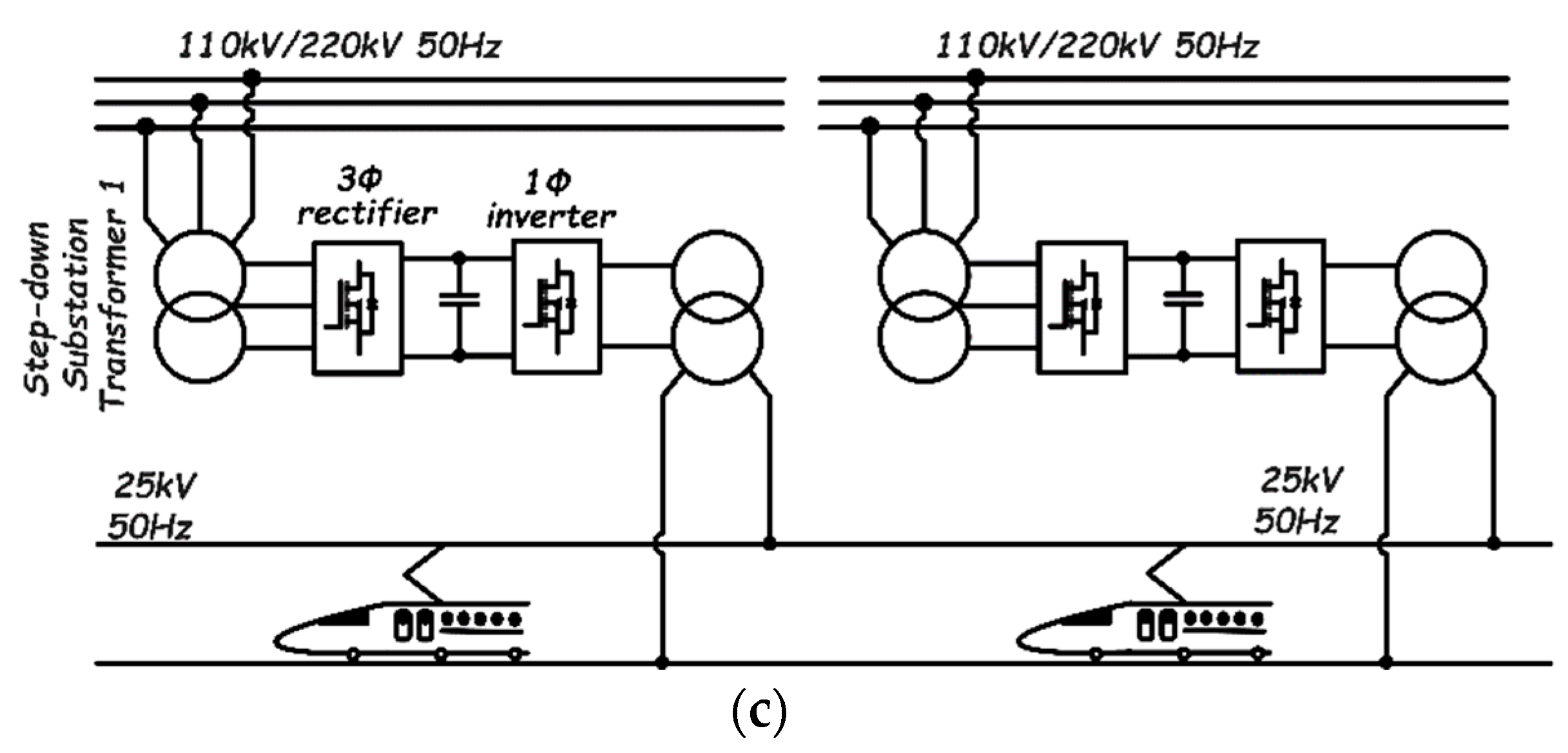

An advanced co-phase power supply system based on a three-phase to single-phase power electronic converter has been proposed in [152] to link all catenaries from different substations, removing all NS. As shown in Figure 14c, the traction substation has a step-down transformer and a step-up transformer on the input and on the output sides, respectively. As seen, the three-phase converter rectifies AC power from the grid into a DC-link capacitor, and the one-phase converter reverses DC power to single-phase AC power, which is then fed to the catenary. In this way, the system transfers active power from the isolated three-phase grid to a one-phase traction line and generates an output voltage with a controlled frequency, phase, and amplitude. Based on an appropriate control strategy of the single-phase converter, the amplitude and phase of the output voltage of each substation can be guaranteed to be the same [153]. Thus, the feeder line between different substations can be connected directly.

In the literature, several converter topologies have been used to implement the three-phase to single-phase power conversion, including the traditional two-level three-phase voltage source converter [151], three-level neutral point clamped [154,155,156,157], and the Modular Multilevel Converter (MMC) [158,159,160,161]. Among all the converter options available, the MMC is the most used due to its low output voltage harmonics, low switching losses, ease of expansion and capacity enhancement, no need for filters and large DC link capacitors, fault-tolerant ability, and low EMI [162]. The MMC is also known for its high voltage blocking capacity and reduced stress on the switching devices making up the different sub-modules.

5.2. Traction Drives

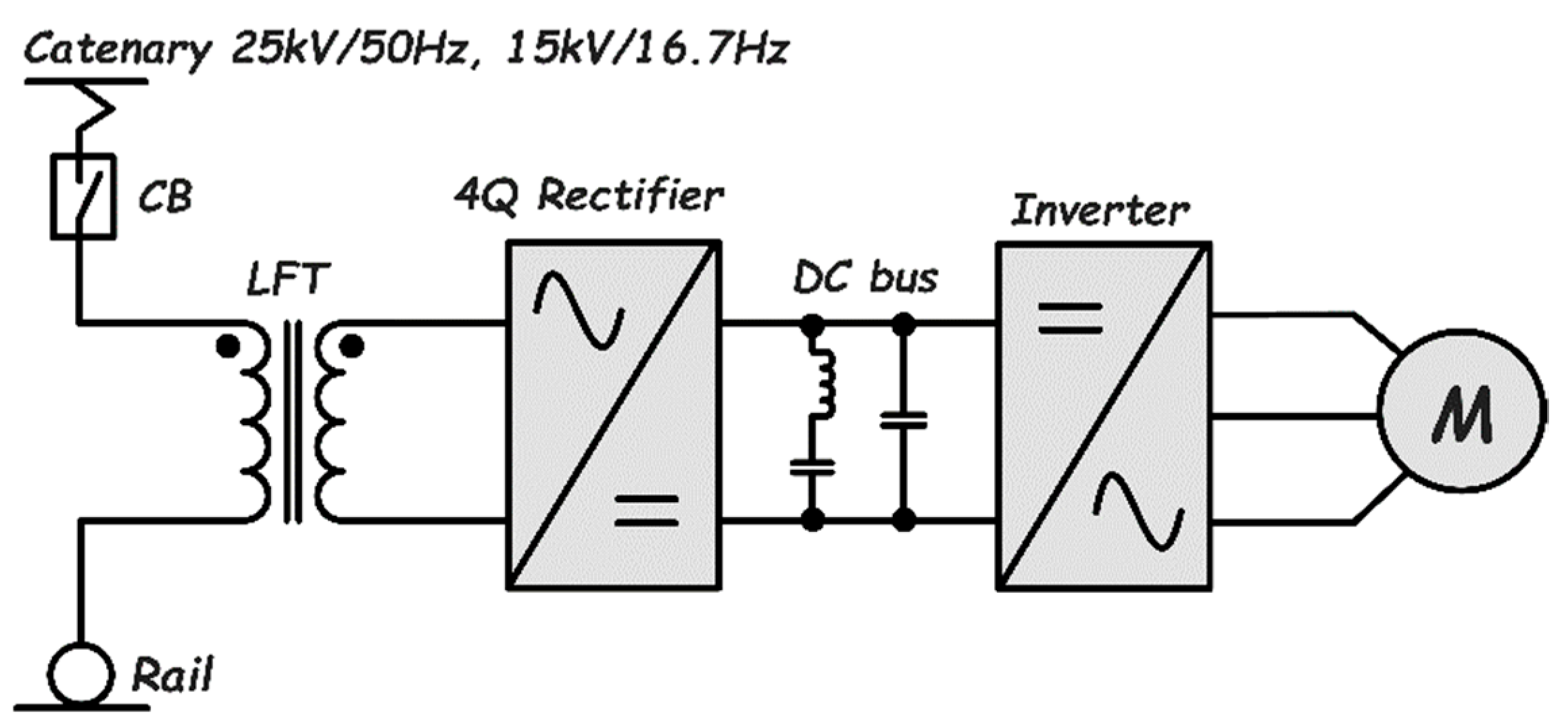

Figure 15 depicts a conventional schematic of a traction drive for railway vehicles [163]. It is made up of a Line Frequency Transformer (LFT) whose primary winding is directly connected to the AC catenary voltage, which typically operates at 15 kV/16.7 Hz or 25 kV/50 Hz. The secondary winding supplies a stepped-down AC voltage (600 V to 2 kV RMS) to a rectifier, which generates the DC voltage required for the three-phase traction motor drive. Although this configuration is simple and reliable, it has some drawbacks, such as the LFT’s heavy and bulky nature, inability to control power factor, limited power density (0.25–0.35 kVA/kg), and relatively low efficiency (around 94% for 25 kV/50 Hz traction systems and 89–92% for 15 kV/16.7 Hz traction systems) [164].

As an alternative to the LFT, power electronic transformers (PET), also known as Solid-State Transformers (SST), have been proposed and widely used to increase the power density (0.5–0.75 kVA/kg) and efficiency of railway vehicles. These transformers operate at very high switching frequencies, allowing them to be much smaller and lighter than their LFT counterpart [165]. They also offer fault isolation, reactive power compensation, voltage regulation, power flow control, voltage sag compensation, bi-directional power flow, fault current limiting, and harmonic blocking [166]. Despite the benefits of SST-based electric railway drive systems, they are more expensive and difficult to control than LFT-based ones.

Due to converter unit voltage rating limitations, several converter stages must be cascaded to meet the voltage and power requirements of the SST-based motor drives. These converters can be cascaded in two or three stages, as illustrated in Figure 16 and Figure 17, respectively.

The two-stage cascaded PET topology has been successfully utilized by the authors of [167,168,169]. Ref. [167] proposes a single-phase AC/AC MMC topology with submodule voltage balancing schemes. Section VII-A discussed the advantages of the MMC topology over other topologies. In [168], the AC_lf/AC_mf conversion is accomplished via cycloconverters (matrix converters). The authors use transformer leakage and magnetizing inductance to achieve natural cycloconverter commutation and soft switching of a single-phase inverter, respectively. They also claim that such a configuration provides lower losses and good EMC behavior due to the switches’ low dv/dt and di/dt values. Finally, ref. [169] proposes a current source PET-based traction system comprised of front-end and output full-bridge converters, as well as a high-frequency fly-back inductor (transformer) that provides galvanic isolation and voltage adaptation. However, complicated voltage balancing of the input side series-connected capacitors, which work only in steady-state, is required.

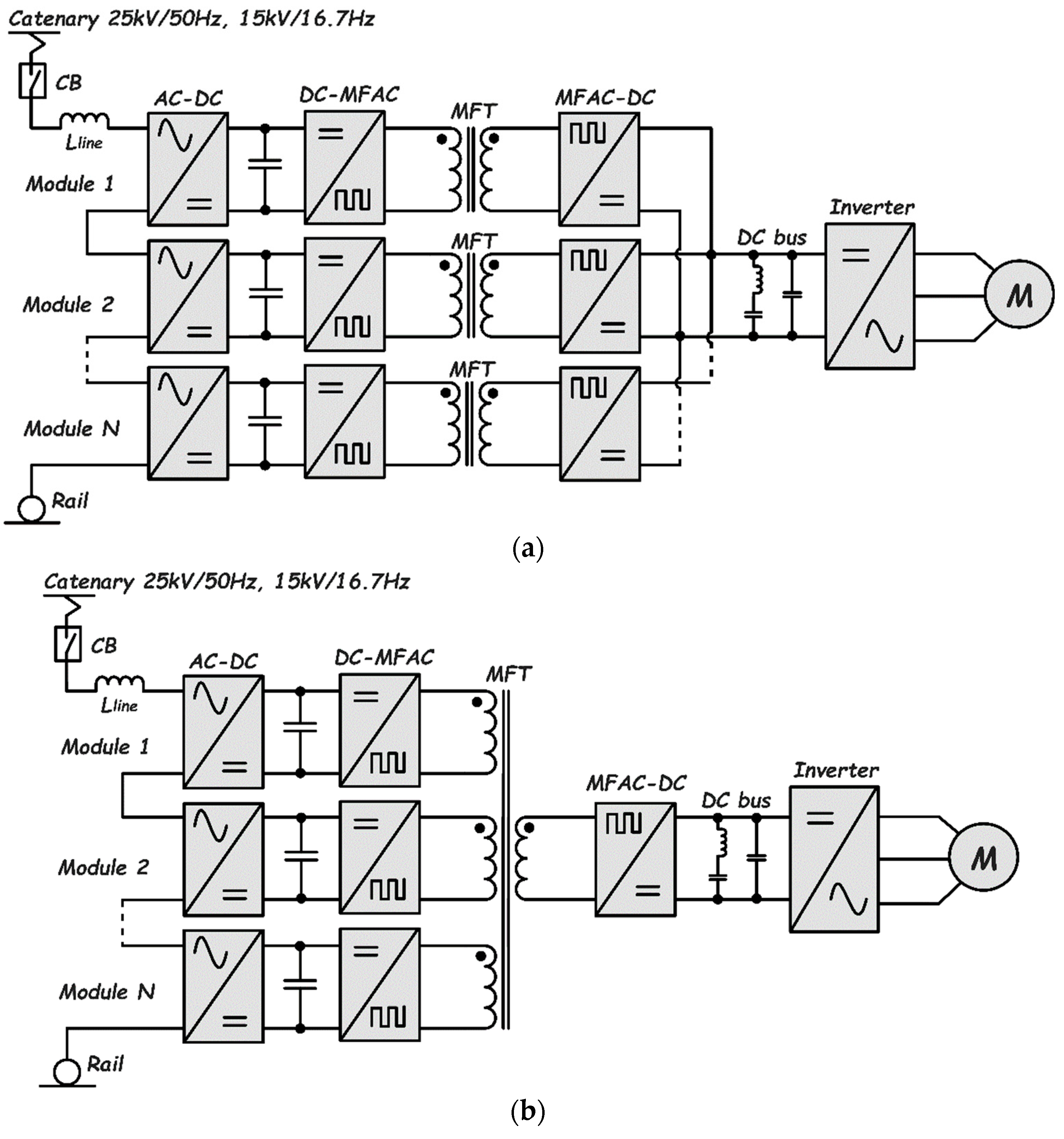

As with the two-stage cascaded PET configuration, several works based on the three-stage PET topology have been reported, as demonstrated by Zhao et al. [170] and Shu et al. [171]. The first stage in [170] employs a two-level voltage source rectifier, which is followed by a half-bridge LLC resonant converter that enables soft switching and high switching frequencies. Furthermore, the PET’s full and half-bridge circuits enable bidirectional power flow, allowing for regenerative braking on railway vehicles. The system was stacked in nine levels and demonstrated a 96% efficiency while producing a maximum power of 900 kW that could be increased to 1.8 MW during short periods of acceleration and braking. [171] proposes and validates a three-level diode-clamped PET-based traction drive system composed of a single-phase cascaded three-level H-bridge AC–DC rectifier and a half-bridge three-level DC–DC converter. When the input and output voltages are 100 V and 70 V, respectively, the system produces 100 W without any layer-stacking, which would have to be considered in practical situations. The main disadvantage of this topology is that unbalanced capacitor voltages are quite common, necessitating capacitor voltage balancing. Furthermore, the switches have unequal thermal stress distribution, which increases losses.

6. Conclusions

Even though electric buses equipped with batteries have many features better than their diesel counterparts, there are some problems that public transportation companies need to solve for their mass deployment. The absence of adequate charging infrastructure, especially in small towns, and the short driving range are only two of the issues that are limiting the large-scale deployment of these vehicles to some extent. Then, among the challenges to be faced in the near future for the development of battery-powered electric buses, there is certainly the development of an adequate infrastructure for charging them. A key challenge is the integration in the electric distribution system of sustainable sources as photovoltaic plants. Recently, many researchers are focusing on this issue [172].

Beyond the logistic issues, there are those related to the power electronics needed for charging the batteries of e-buses and electric trains. Advances in the development of Wide Band Gap (WBG) semiconductor devices for power electronics have made this target a real possibility with many high-energy efficient electric transport systems now available commercially. Despite the importance of power electronic systems in achieving an electrified transportation system, their integration into the AC power grid causes a lot of power quality issues like voltage and power instabilities, that, even if studied for many years, still need to be addressed.

Throughout this work, we have painstakingly reviewed all the major aspects of modern-day power electronic converters that are commonly used in the fast charging of electric cars and buses, as well as the various converter topologies commonly used in railway systems. Much research is currently being conducted to develop new vehicle fast-charging infrastructures that can meet the power demands of various car owners in a matter of minutes. Power supply to electric trains, which still have a lot of power quality issues and grid disturbances, is equally important and under serious research. All these are feasible because of recent advancements in wideband gap technologies, which have allowed converters to significantly improve in power density, efficiency, cost, size, and reliability (lifetime).

It is hoped that this work will serve as a starting point for electrical and electronic engineers in the energy and automotive industries or related fields to make design-related decisions such as the best connection scheme if hybridized, and the choice of power converter topology for battery charging systems.
