Improvement of Municipal Solid Waste Syngas Premixed Flame with Cellular Structure on a Flat Burner
Abstract
:1. Introduction
- The cellular flame characteristics and flame stability of MSW syngas;
- The composition of the improved MSW syngas to show that is closer to the flame characteristics of natural gas;
- The cellular flame characteristics and flame stability of the improved MSW syngas.
2. Methodology
2.1. Equivalence Ratio
2.2. Adiabatic Flame Temperature ()
2.3. Cell Size of Cellular Flames

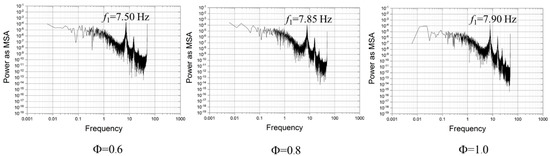

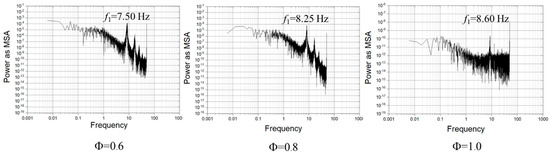

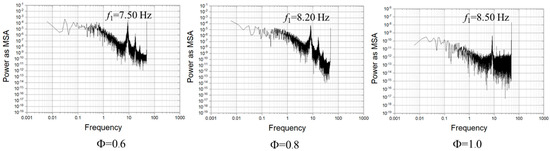

2.4. Power Spectral Density

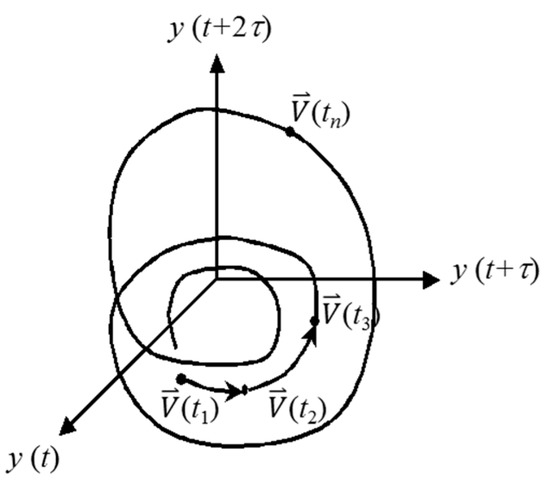

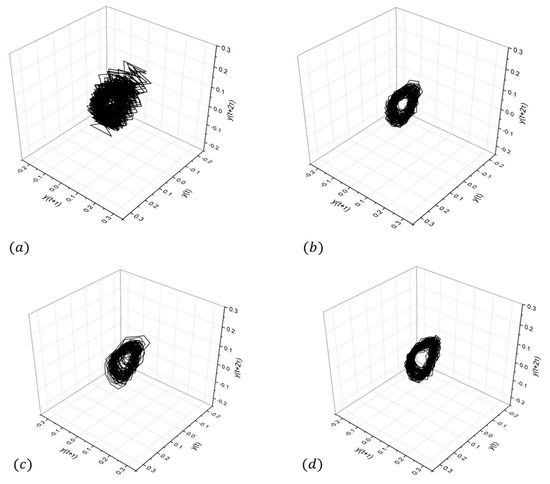

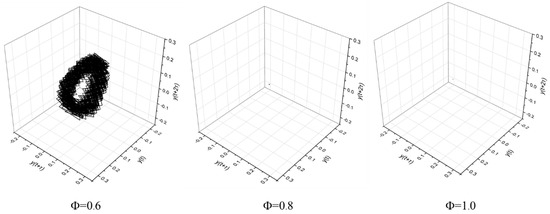

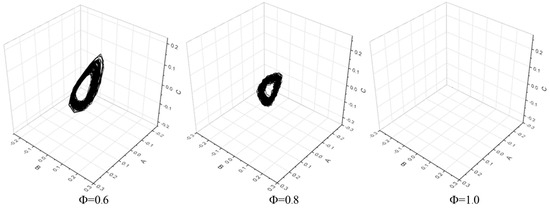

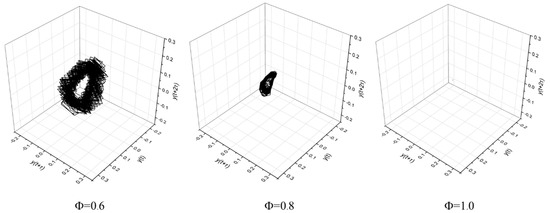

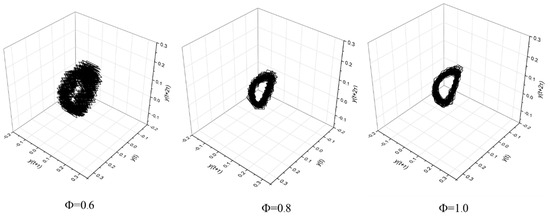

2.5. Reconstructed Attractor
2.6. Municipal Solid Waste (MSW) Syngas
2.7. Natural Gas Composition
3. Experimental Setup

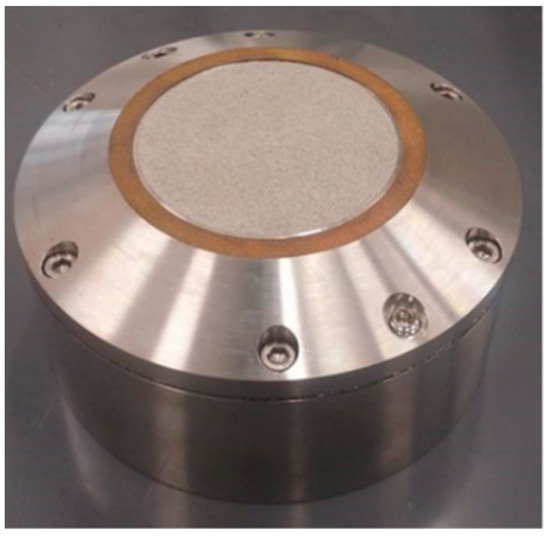

3.1. McKenna Flat Burner

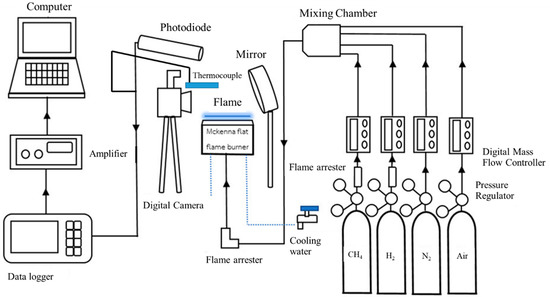

3.2. Experimental Apparatus
4. Results and Discussion
4.1. Combustion Characteristics of Simulated MSW Syngas
4.2. Effect of CH4 on Cellular Flames
4.3. Effect of H2 on Cellular Flames

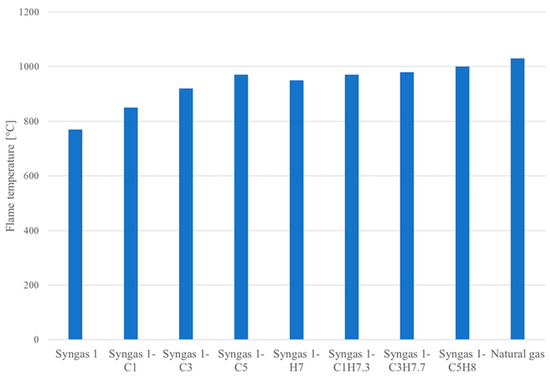

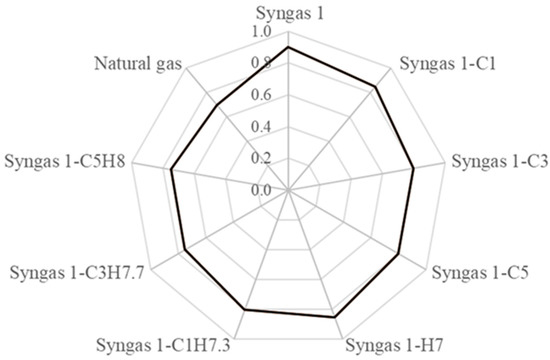

4.4. Improvement of Syngas 1 with the Addition of CH4 and H2
5. Conclusions
- Not every simulated MSW syngas was ignitable. Syngas 4 and Syngas 5 could not be ignited, whereas Syngas 1, Syngas 2, and Syngas 3 were ignitable, but further improvements to their flame stabilities are required.
- Among the ignitable syngas samples, Syngas 1, with a composition of 16.2% CH4, 13.5% H2, 69.1% N2, and 0.6% O2 (by vol.), was the most suitable for further flame stability improvements. This was due to its relatively high concentrations of CH4 and H2 compared to Syngas 2 and Syngas 3.
- The equivalence ratio was an important parameter that controlled flame stability via the cell size of the flame. The cell size was inversely proportional to the equivalence ratio. The cell size was greater when the equivalence ratio was lower, and the flame blew off if Φ was less than a critical value.
- CH4 and H2 can be considered effective additives for improved flame stability. The addition of CH4 and H2 to Syngas 1 effectively improved its flame characteristics to a degree comparable to NG. The improved Syngas 1 yielded an increase of 24.6% of the heating value and comparable flame characteristics to those of an NG flame. This study shows that MSW syngas has great potential to replace NG in power generation.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Wastes-Non-Hazardous Waste-Municipal Solid Waste, Municipal Solid Waste. 2022. Available online: https://archive.epa.gov/epawaste/nonhaz/municipal/web/html/ (accessed on 20 January 2022).
- Fernandes, R.S.; Shetty, N.S.; Thimmappa, B.H.S. A review of the current situation of municipal solid waste management in India and its potential for anaerobic digestion. Int. J. Environ. Pollut. 2022, 69, 130–150. [Google Scholar] [CrossRef]
- PCD (Pollution Control Department). Municipal Solid Waste Report in Thailand 2017. 2017. Available online: http://www.pcd.go.th/Info_serv/File/WasteSociety60.pdf (accessed on 20 January 2022).
- Ministry of Energy. Alternative Energy Development Plan 2014–2036. In Proceedings of the Thai-German Technology Conference, Biogas, Thailand, 3–6 June 2015. [Google Scholar]
- Ministry of Energy, Thailand. Thailand Alternative Energy Situation 2021. Available online: https://www.dede.go.th/download/state_65/Thailand%20Alternative%20Energy%20Situation%202021_compressed.pdf (accessed on 20 January 2022).
- Patcharavongsiri, M.; Tondee, T.; Teekasap, S. Process of changing municipal solid waste into RDF using rotary bio-drying. J. Renew. Energy Smart Grid Technol. 2019, 14, 49–60. [Google Scholar]
- Global Syngas Technology Council. Waste to Energy Gasification. 2022. Available online: https://globalsyngas.org/syngas-technology/syngas-production/waste-to-energy-gasification (accessed on 31 January 2022).
- Ryokusan. 2010. Available online: https://www.ryokusanasia.com (accessed on 31 January 2022).
- Hinsui, T.; Arjharn, W.; Liplap, P. Plasma-assisted gasification of waste rejected waste from an MBT plant for syngas production. Suranaree J. Sci. Technol. 2014, 22, 183–196. [Google Scholar]
- Laohalidanond, K.; Kerdsuwan, S.; Burra, K.R.G.; Li, J.; Gupta, A.K. Syngas Generation from Landfills Derived Torrified Refuse Using a Downdraft Gasifier. J. Energy Resour. Technol. 2021, 143, 052102-1–052102-8. [Google Scholar] [CrossRef]
- Hu, Y.; Pang, K.; Cai, L.; Liu, Z. A multi-stage co-gasification system of biomass solid waste (MSW) for high quality syngas production. Energy 2021, 221, 119639. [Google Scholar] [CrossRef]
- Zheng, X.; Ying, Z.; Wang, B.; Chen, C. Hydrogen, and syngas production from municipal solid waste (MSW) gasification via reusing CO2. Appl. Therm. Eng. 2018, 144, 242–247. [Google Scholar] [CrossRef]
- Use of Natural Gas. Energy Information Administration (EIA). 2021. Available online: https://www.eia.gov/energyexplained/natural-gas/use-of-natural-gas.php (accessed on 31 January 2022).
- Gvozdenac, D.; Menke, C.; Vallikul, P.; Petrovic, J.; Gvodenac, B. Assessment of potential for natural gas-based cogeneration in Thailand. Energy 2009, 34, 465–475. [Google Scholar] [CrossRef]
- Kaewpradap, A.; Jugjai, S. Experimental study of flame stability enhancement on lean premixed combustion of a synthetic natural gas in Thailand. Energy 2019, 188, 116029. [Google Scholar] [CrossRef]
- Wright, I.G.; Gibbon, T.B. Recent developments in gas turbine materials and technology and their implications for syngas firing. Energy 2007, 32, 3160–3621. [Google Scholar] [CrossRef]
- Sivashinsky, G. Instabilities, pattern formation, and turbulence in flames. Annu. Rev. Fluid Mech. 1983, 15, 179–199. [Google Scholar] [CrossRef] [Green Version]
- Sivashinsky, G. Diffusive-thermal theory of cellular flames. Combust. Sci. Technol. 1977, 15, 137–145. [Google Scholar] [CrossRef]
- Kaewpradap, A.; Kadowaki, S. Instability Influenced by CO2, and Equivalence Ratio in Oxyhydrogen Flames on Flat Burner. Combust. Sci. Technol. 2017, 189, 438–452. [Google Scholar] [CrossRef]
- Konnov, A.A. Model of Cellular Instability of Flames of Ternary Mixtures. Combust. Explos. Shock. Waves 2005, 41, 496–503. [Google Scholar] [CrossRef]
- Kaewpradap, A.; Noppharatana, A.; Jugjai, S. Cellular Premixed Flames of Synthetic Biogas Composition Effects on Flat Burner. Engineering 2017, 21, 415–425. [Google Scholar] [CrossRef] [Green Version]
- Kadowaki, S.; Ohkura, N. Time series analysis on the emission of light from methane-air lean premixed flames: Diagnostics of the flame instability. Trans. Jpn. Soc. Aeronaut. Space Sci. 2008, 51, 133–138. [Google Scholar] [CrossRef] [Green Version]
- Stephen, R. Turns, An Introduction to Combustion Concepts and Applications, 3rd ed.; McGraw Hill: New York, NY, USA, 2012; pp. 33–35. [Google Scholar]
- Takens, F. Detecting strange attractors in turbulence. In Dynamical Systems and Turbulence, Lecture Notes in Mathematics; Rand, D.A., Young, L.-S., Eds.; Springer: Berlin, Germany, 1981; Volume 898, pp. 366–381. [Google Scholar]
- Straight-Chain and Branched Alkanes-Chemistry LibreTexts, NICE CXone Expert. Available online: https://status.libretexts.org (accessed on 31 January 2022).
Syngas | Represented MSW Syngas | Compositions of Simulated Syngas [%Vol.] | LHV [MJ/Nm3] | |||
---|---|---|---|---|---|---|
CH4 | H2 | N2 | O2 | |||
1 | WR10 | 16.2 | 13.5 | 69.1 | 0.6 | 7.14 |
2 | WR25 | 13.4 | 14.3 | 71.6 | 0.7 | 6.30 |
3 | WR40 | 7.2 | 15.2 | 76.7 | 0.9 | 4.20 |
4 | RDF5 | 7.9 | 5.0 | 86.5 | 0.6 | 3.34 |
5 | RDF5WC30 | 10.1 | 7.1 | 82.2 | 0.6 | 4.35 |
Syngas | Composition of Addition [%Vol.] | Compositions of Simulated Syngas [%Vol.] | LHV [MJ/Nm3] | ||||
---|---|---|---|---|---|---|---|
CH4 | H2 | CH4 | H2 | N2 | O2 | ||
1 | - | - | 16.2 | 13.5 | 69.1 | 0.6 | 7.14 |
1-C1 | 1.0 | - | 17.6 | 13.4 | 68.4 | 0.6 | 7.70 |
1-C3 | 3.0 | - | 19.2 | 13.1 | 67.1 | 0.6 | 8.23 |
1-C5 | 5.0 | - | 20.8 | 12.8 | 65.8 | 0.6 | 8.77 |
1-H7 | - | 7.0 | 15.7 | 19.1 | 64.6 | 0.6 | 7.63 |
1-C1H7.3 | 1.0 | 7.3 | 16.4 | 19.2 | 63.8 | 0.6 | 7.90 |
1-C3H7.7 | 3.0 | 7.7 | 17.9 | 19.2 | 62.4 | 0.5 | 8.43 |
1-C5H8 | 5.0 | 8.0 | 19.3 | 19.0 | 61.2 | 0.5 | 8.90 |
Syngas | d (mm) |
---|---|
Natural gas [15] | 19.8 |
1 | 7.5 |
1-H7 | 7.3 |
1-C1H7.3 | 6.8 |
1-C3H7.7 | 7.0 |
1-C5H8 | 6.4 |
