Aromatic Clusters and Hydrogen Storage

Abstract

Concurrence of aromaticity and hydrogen trapping potential of some atomic clusters has drawn the attention of scientific community, although in a few cases it has been reported that the partial charges on the constituent atoms of the clusters are probably responsible for H₂ trapping via frail van der Waals type of interactions. In this article, an effort is made to review the studies which address the conjunction of aromaticity and hydrogen storage potential of different atomic clusters and the contribution of our research group to this particular topic.

1. Introduction

Continuous increment of machinery for our day-to-day survival as well as the modernization and increment in the number of industries and automobile sector has surged the demand of energy-stock unexpectedly. To bout these huge energy needs, the balance of our environment has been hampered in many ways, including unusual weather, climate change, global warming, etc. [1,2,3,4,5]. A few years back, it was reported that human civilization depends mostly on fossil fuels since most of the needed energy is produced by their combustion; in contrast, such fuels are the primary producer of carbon dioxide and thereby greenhouse gasses [6,7]. Therefore, we need energy resources which would not destroy our environment and fulfil the requirement. Although there are many alternatives to fossil fuels, hydrogen energy is the best option due to its avalanche abundance and pollution-free combustion. Nevertheless, physical storage of H₂ is very expensive (needs cryogenic ailment) abreast accident causing [8] and the density of H₂ is ~9 × 10⁻⁵ g/cm³ at standard ambient temperature and pressure (SATP) [9]. Due to these reasons, many research works worldwide on hydrogen storage technologies as well as on the systems are underway to progress in the finding of potential hydrogen storage material and solve the energy issue. There are many types of hydrogen storage material, but broadly, we can classify them into physical hydrogen storage material and chemical hydrogen storage material. Those materials which involve the trapping of hydrogen via covalent bond formation are termed chemical hydrogen storage materials. Such trapping of hydrogen ensues in the range of 47.8–95.6 kcal/mol [10]. However, such storage of hydrogen possesses a great disadvantage in the liberation as well as further uptake pathways [11]. The physical hydrogen storage can be classified into two types: first is the direct storage of pure H₂, but in this case, the necessity of cryogenic ailment and possible hazard restricts the scope; second is the trapping of H₂ through weak non-covalent interactions (van der Waals dispersion forces mainly). Such contact occurs by ≤2.4 kcal/mol [12,13].

Hubner et al. reported the variation of interaction of H₂ with the electron-deficient and electron-rich aromatic system. They considered a series of aromatic systems for their study, including monosubstituted benzene (C₆H₅X, where X = CN, CH₃, NH₂, OH, F, and H), naphthalene and azulene (C₁₀H₈), anthracene (C₁₄H₁₀), coronene (C₂₄H₁₂), terephthalic acid (p-C₆H₄(COOH)₂), and dilithium terephthalate (p-C₆H₄(COOLi)₂). They concluded that the binding of molecular H₂ occurs feasibly with electron-rich aromatic systems, and, on the other hand, more favourable interaction is noted with larger aromatic systems in comparison to benzene ring [14]. In another report, it was disclosed that the aromaticity of different organic molecular systems directs their binding with alkali metals. Alkali metal-doped organic aromatic systems revealed potential hydrogen binding ability [15]. A few anionic, carbon-based aromatic molecular systems were studied by Bodrenko and co-workers, who reported the stabilization of such systems by alkali and alkaline earth metal cations. Moreover, they disclosed that the nature of the cation monitors the weak bonding interaction between the organometallic compound and molecular hydrogen [16]. So far, in our research group, we have studied many atomic and molecular, neutral as well as ionic clusters in the search of potential hydrogen trapping/encaging systems. These include metal organic framework, neutral and ionic metallic as well as non-metallic clusters, clathrate hydrates, cyanogen cages, etc. Here, in this review, we discuss only those systems which exhibit some sort of aromaticity [13,17,18,19,20,21]. In the following section, theoretical background is discussed briefly.

2. Theoretical Background

Chattaraj and co-workers have been using different density functional theory methodologies to disclose many novel properties of various atomic and molecular systems over the last four decades. Here, we aimed to confer a few of the methodologies which were employed to investigate the clusters that exhibit aromaticity and show potential hydrogen trapping ability concurrently. It is known to almost every scientist that the DFT and conceptual density functional theory (CDFT) can predict the general properties of atoms, molecules, and materials [22,23,24,25,26]. The descriptors derived from DFT to assess the general properties of various atomic, molecular systems and many chemical processes are termed descriptors based on CDFT. Out of these descriptors, the electronegativity ($\chi$), hardness ($\eta$), and electrophilicity ($\omega$) help to unveil the global characteristics of a chemical system. On the other hand, to study the reactivity or inertness of a certain atomic center in a molecule the Fukui functions ($f_k$) was developed [27,28,29,30,31,32,33,34,35,36]. We can write the $\chi$ of a system containing N number of electrons as

$$\chi =-{\left(\frac{\partial E}{\partial N}\right)}_{v\left(r\right)}.$$

(1)

The chemical potential ($\mu$) can be written as

$$\mu ={\left(\frac{\partial E}{\partial N}\right)}_{v\left(r\right)},$$

(2)

hardness ($\eta$) as

$$\eta ={\left(\frac{{\partial }^{2}E}{\partial N^2}\right)}_{v\left(r\right)}.$$

(3)

The equation to calculate electrophilicity ($\omega$) is

$$\omega =\frac{{\mu }^2}{2\eta }=\frac{{\chi }^2}{2\eta }.$$

(4)

In the above equations, the external potential is $v\left(r\right)$ [26,27,28,29,30,31,32,33,34,36].

One can express the electronegativity and hardness via finite difference method:

χ = (I + A)/2,

(5)

η = (I − A).

(6)

In the above two equations, I marks the ionization potential and A indicates the electron affinity of a molecular moiety, which can be determined employing the Koopmans’ theorem [37], $I\approx -E_{HOMO}$ and $A\approx -E_{LUMO}$.

$$\chi =-\frac{1}{2}\left(E_{HOMO}+E_{LUMO}\right),$$

(7)

$$\eta =-\left(E_{HOMO}-E_{LUMO}\right).$$

(8)

Here, $E_{HOMO}$ and $E_{LUMO}$ mark the energies of the highest occupied molecular orbitals and the lowest unoccupied molecular orbitals.

In the following way, we can calculate the ionization potential and electron affinity of a system via the computation of N and N ± 1 electronic systems’ energy by the ∆SCF technique:

I ≈ E(N − 1) − E(N),

(9)

A ≈ E(N) − E(N + 1).

(10)

In the above two equations, E(N − 1) is the single point energy of the optimized system containing (N − 1) electrons, whereas the E(N) and E(N + 1) denote the same parameter of the optimized system but of N and (N + 1) electrons, respectively.

Due to the addition or removal of an electron to/from a molecular system (at a constant external potential), a change in electron density occurs, and the same can be determined in terms of the Fukui function [36].

$$f\left(\stackrel{-}{r}\right)={\left[\frac{\partial \rho \left(\stackrel{-}{r}\right)}{\partial N}\right]}_{v\left(\stackrel{-}{r}\right)}.$$

(11)

One can determine the Fukui function $f\left(\stackrel{-}{r}\right)$ [38] from the computation of population of electron.

$$f_k^{+}=p_k\left(N+1\right)-p_k\left(N\right),\mathrm{for}\mathrm{the}\mathrm{nucleophilic}\mathrm{attack},$$

(12a)

$$f_k^{-}=p_k\left(N\right)-p_k\left(N-1\right),\mathrm{for}\mathrm{the}\mathrm{electrophilic}\mathrm{attack},$$

(12b)

$$f_k^0=\frac{[p_k\left(N+1\right)-p_k\left(N-1\right)]}{2},\mathrm{for}\mathrm{the}\mathrm{radical}\mathrm{attack},$$

(12c)

Calculation of local philicity (${\omega }_k^{\propto }$) can help in estimating the selectivity of a particular atomic location. For the kth atomic site, the ${\omega }_k^{\propto }$ is

$${\omega }_k^{\propto }=\omega ·f_k^{\propto }.$$

(13)

To characterize the nucleophilic attack, the magnitude of $\propto$ would be +, whereas for electrophilic and radical attacks, the values are − and 0, respectively.

The following is the statement of maximum hardness principle (MHP) [39,40,41]: “There seems to be a rule of nature that molecules arrange themselves so as to be as hard as possible”. and the following is the statement of minimum electrophilicity principle (MEP) [42,43,44,45]: “Electrophilicity will be a minimum (maximum) when both chemical potential and hardness are maxima (minima)”. It was concluded that the stability of a molecular system and extremal values of electrophilicity ($\omega$) are correlated. During chemical reactions, molecular vibrations and rotations, many intermediate and transition state species emerge and the evaluation of $\omega$ reveals electrophilicity extremum [42,43,44,45] at certain points in these processes which obey the following condition:

$$\frac{\partial \mu }{\partial \lambda }=\frac{\mu }{2\eta }\left[\frac{\partial \eta }{\partial \lambda }\right].$$

(14)

In this equation, $\lambda$ indicates reaction coordinate for chemical changes as well as all possible symmetric and asymmetric movements of the component atoms of considered molecular system/s. So far, many research groups have reported the corroboration of MEP and MHP. For the assessment of stability of various molecular systems, such electronic structure principles are utilized worldwide.

When the relative stabilities of cyclohexene, 1.3-cyclohexadiene, hypothetical 1,3,5-cyclohexatriene, and benzene were studied thermodynamically, it became clear that the benzene is much more stable in comparison to the analogous diene and cyclohexene. Such unusual stability can be explained only by the unique property of planar, conjugated, (4n + 2)π electrons containing monocyclic molecular structures, i.e., by aromaticity. Aromaticity has a long history of research of approximately two centuries. The first scratch in this long history was made by Faraday in the year 1825, when he isolated benzene from illuminating gasses. Faraday developed the idea of electron delocalization in benzene molecule [46]. Later, a significant contribution was made by Kekule in the year 1865 with the dazzling concept of alternating single and double bonds in the benzene molecule [47,48,49,50]. Over the last few decades, numerous remarkably stable aromatic systems have been modelled and synthesized worldwide. The following are criteria of a molecule to be aromatic: possession of $(4n+2)$ numbers of conjugated π electrons ($\mathrm{w}\mathrm{h}\mathrm{e}\mathrm{r}\mathrm{e}n=0,1,2,3$, etc.), and cyclic and planar structure. It is worthy to mention here that the $(4n+2)\pi$ electron count was first proposed by Hückel, as one of the mandatory criteria of aromaticity. There are different types of theoretical approaches to ascertain the electron delocalization and aromaticity of a molecular system. Out of the many, Giambiagi et al. first proposed the three-center bond index, and the same was independently proposed by Sannigrahi and Kar [51,52]. Matito and co-workers discussed other electron sharing indexes such as electron sharing index (ESI) of Fluton, Mayer’s bond orders, and delocalization indexes (DI) [53,54,55,56,57,58,59,59,60,61]. The following aromaticity indices were used so far by various research group worldwide to ascertain electron delocalization: para-delocalization index (PDI), aromatic fluctuation index (FLU), MO multicentre bond index (MCI), six-center bond index by Ponec et al. The research group of Ponec et al. further developed the idea of quantitative characterization of homo-aromaticity, nonhomo-aromaticity, and antihomo-aromaticity by the use of MCI [62,63,64,65,66,67,68,69,70]. Chattaraj et al. studied all metal aromatic and antiaromatic systems and disclosed the efficiency of multicenter indices in the study of bonding, aromaticity, and reactivity. Moreover, they used MHP and minimum polarizability principle (MPP) to ascertain the relative stability of aromatic and antiaromatic molecular systems [71,72]. There are many methodologies to study the aromaticity, but mostly a few are used, harmonic oscillator model of aromaticity (HOMA) [73,74,75], nucleus independent chemical shift (NICS) [76], and electron localization function (ELF), etc. In our research group, we mostly used NICS, and particularly for the systems discussed here only NICS was used.

Schleyer et al. first proposed the concept of NICS (in ppm) in the assessment of aromaticity [76]. NICS is computed using a magnetic shielding tensor for a dummy magnetic dipole assumed at the centre of an under-study system. When NICS is computed at the centre of a molecular system, the same is indicated by NICS(0); and when the NICS measurement is conducted at 1 Å above the centre of the ring, it is indicated as NICS(1).

When the magnitude of NICS is negative, the system is aromatic, and when it is positive, the system is antiaromatic. Interestingly, few cage type molecules also reveal (−)Ve NICS values computed at the centre. Such systems, if they possess 2(n  +  1)² valence electrons, exhibit spherical aromaticity [77]. Various organic as well as inorganic cage-like symmetric molecular systems containing π-network validate this rule. Besides this, it is also noted that there are many cage-like molecular systems where one of the faces is open; we may call such a type of system an open-cage system. Stability and reactivity of such a type of open-cage system can be explained by the “Open-Shell Spherical Aromaticity”. Sola et al. introduced this concept for open-cage type systems possessing (2N² + 2N + 1) numbers of π-electrons [78].

3. Computational Details

The initial coordinates of the guess structures were obtained from the molecular modelling software GaussView 3.0 and GaussView 5.0.8 [79]. Moreover, different molecular orbitals and other output results were obtained and further exploited using this software only. The systems which are identical with the work reported earlier were reoptimized at a new theoretical level using the old geometries, and further computations were performed. Optimizations of different modelled geometries and computations for thermochemistry as well as the magnetic shielding tensors were performed by Gaussian 03 and mostly by Gaussian 09 [80,81]. Various initial guess structures were optimized at different level of theories: B3LYP, M052X, DFT-D-B3LYP, M06, MP2, in combination with the basis sets 6-31G(d), 6-31G(d,p), 6-311+G(d,p), 6-311+G(d), cc-PVDZ as per the chosen molecular system to obtain the stationary points. The obtained stationary point coordinates were further taken to compute the harmonic vibrational frequencies at the used level of theory (optimization) to check the nature of the stationary points. Real values of the harmonic vibrational frequencies confirmed that the optimized systems are at the minima. Few molecular systems were assembled to generate periodic systems and the Vienna ab initio Simulation Package (VASP) [82,83,84,85] was used for the computation. Such periodic systems were modelled using XCrySDen graphical software [86]. As per the component elements of the periodic system, a kinetic energy cut-off of 550 eV was used (PAW potential) [87,88]. To compute the exchange–correlation energy density functional $E_{xc}\left[\rho \right],$ the Generalized Gradient Approximation (GGA) of Perdew–Burke–Ernzerhof was used [89]. A $1\times 1\times 6$ Monkhorst–Pack set of k-points [90] were used for the computations. For a few particular molecular systems, to envisage the effect of electric field on the hydrogen trapping, electric field was applied along the x direction of the modelled system [91,92]. The following equation was used to calculate the change in energy due to the application of the electric field:

$$∆E^F=-\left[E_{H_2@system}^F-E_{H_2@system}\right].$$

(15)

In this equation, the term $E_{H_2@system}^F$ marks the computed total energy of the H₂ trapped molecular motif in the electric field applied condition, whereas the term $E_{H_2@system}$ specifies computed energy without the electric field.

4. Atomic Clusters

Mg and Ca Clusters

McNelles and Naumkin studied hydrogen molecule encapsulated (dopped) Mg_n clusters (n = 8 to 10) and reported the weak stability of such systems. In the next-to-next year, Chattaraj and co-workers reported further studies on similar systems and their Ca analogues [17]. In this study, they included investigation on the hydrogen molecule trapping ability of such magnesium and calcium clusters with the focus on hydrogen storage and aromaticity. Local minima forms of the modelled molecular hydrogen encaged Mg_n and Ca_n clathrate (n = 8–10) are collected in Figure 1. They noticed the interesting fact that the Mg_n and Ca_n clusters are unstable, whereas their H₂ encapsulated forms are stable. This clarifies that the encapsulation of molecular hydrogen brought stability in them. However, in few cases, the H-H bond of the hydrogen molecule breaks and encaging occurs in the atomic form (Figure 1). Measurement of NICS(0) and NICS(1) at the top and bottom rings (Mg₄ and Ca₄) of the Mg_n and Ca_n forms revealed diatropic ring current. Mulliken population analysis charges on the hydrogen encaged metal centres disclosed positive values with the exception of a few sites of H₂Mg₉, H₂Mg₁₀ and H₂Ca₁₀, where negative charges were noted. On the other hand, partial positive charges on the metal centres of Mg_n, Ca_n (n = 8–10) were noted at both the upper and lower frames. From this positive partial charge, one may conclude their susceptibility to nucleophilic attack. Interested readers are directed to see Reference [17] for the calculated local reactivity descriptors.

5. Ionic Clusters

5.1. N₄Li₂ and N₆Ca₂ Clusters

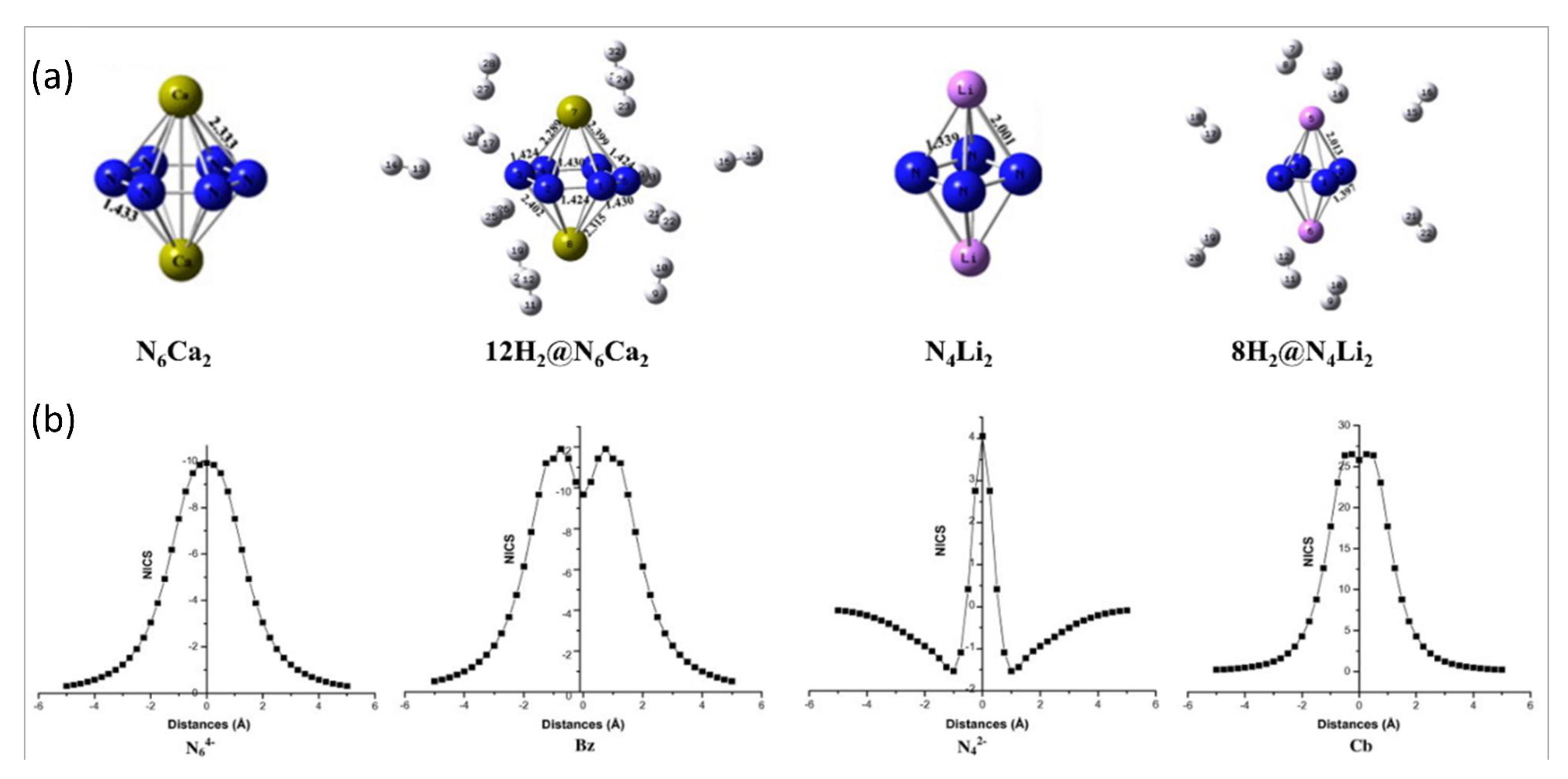

The moiety N₆ had the attention of the scientific community not only for possible use as high energy density material, but also for the structural pattern [93,94,95,96,97]. In 2011, Chattaraj and co-workers reported the aromaticity of N₆⁴⁻ and N₄²⁻ planar cyclic rings. Moreover, they studied these anionic systems with suitable co-ion in the search of a good hydrogen storage material and modelled the N₄Li₂ and N₆Ca₂ clusters [18]. A detailed investigation was conducted on the aromaticity of these systems. NICS(0) calculations revealed that both the anionic systems, N₆⁴⁻ and N₄²⁻, possess aromatic criteria to compare with benzene and cyclobutadiene, respectively. They performed a NICS scan plot for N₆⁴⁻, N₄²⁻, benzene, and cyclobutadiene, and detected similar patterns for N₆⁴⁻ and benzene. On the other hand, a different nature of plots was obtained for N₄²⁻ and cyclobutadiene rings. There are ten π-electrons in the N₆⁴⁻ cyclic planar system, which were noted to be aromatic. In contrast, surprisingly, the N₄²⁻ monocyclic system revealed simultaneous appearance of π-aromaticity as well as σ-antiaromaticity, which was then called conflicting aromaticity. They concluded such σ-antiaromaticity due to the obtained positive value of NICS(0) whereas the π-aromaticity was projected from the (−)Ve magnitude of NICS(1). It is possible that the cation–π interaction between Ca²⁺ ions and N₆⁴⁻ rings as well as between Li⁺ ions and N₄²⁻ rings stabilized the N₆Ca₂ and N₄Li₂ systems, respectively. Such composite systems can interact with up to twelve hydrogen molecules. Local minima forms of hydrogen molecule-bound N₆Ca₂ and N₄Li₂ clusters are collected in Figure 2a. The researchers noted that due to the interaction of Ca²⁺ with the N₆⁴⁻ ion, the aromaticity of the latter increases. On the other hand, the N₄²⁻ monocyclic anion continues to show conflicting aromaticity even after the ionic contact with two Li⁺. It was mentioned that the binding of hydrogen molecules occurred due to the partial positive charges on the metal center. They noted favorable adsorption energy (ΔE_ads) for the interaction of hydrogen molecules. The following are adsorption energy data: 1.2 kcal/mol for the interaction with eight hydrogen molecules, with 4 H₂ on each Li centers for N₄Li₂, and 1.3 kcal/mol for the interaction with six hydrogen molecules where each Ca binds 6 H₂ in N₆Ca₂.

5.2. Li₃⁺ and Na₃⁺ Ions

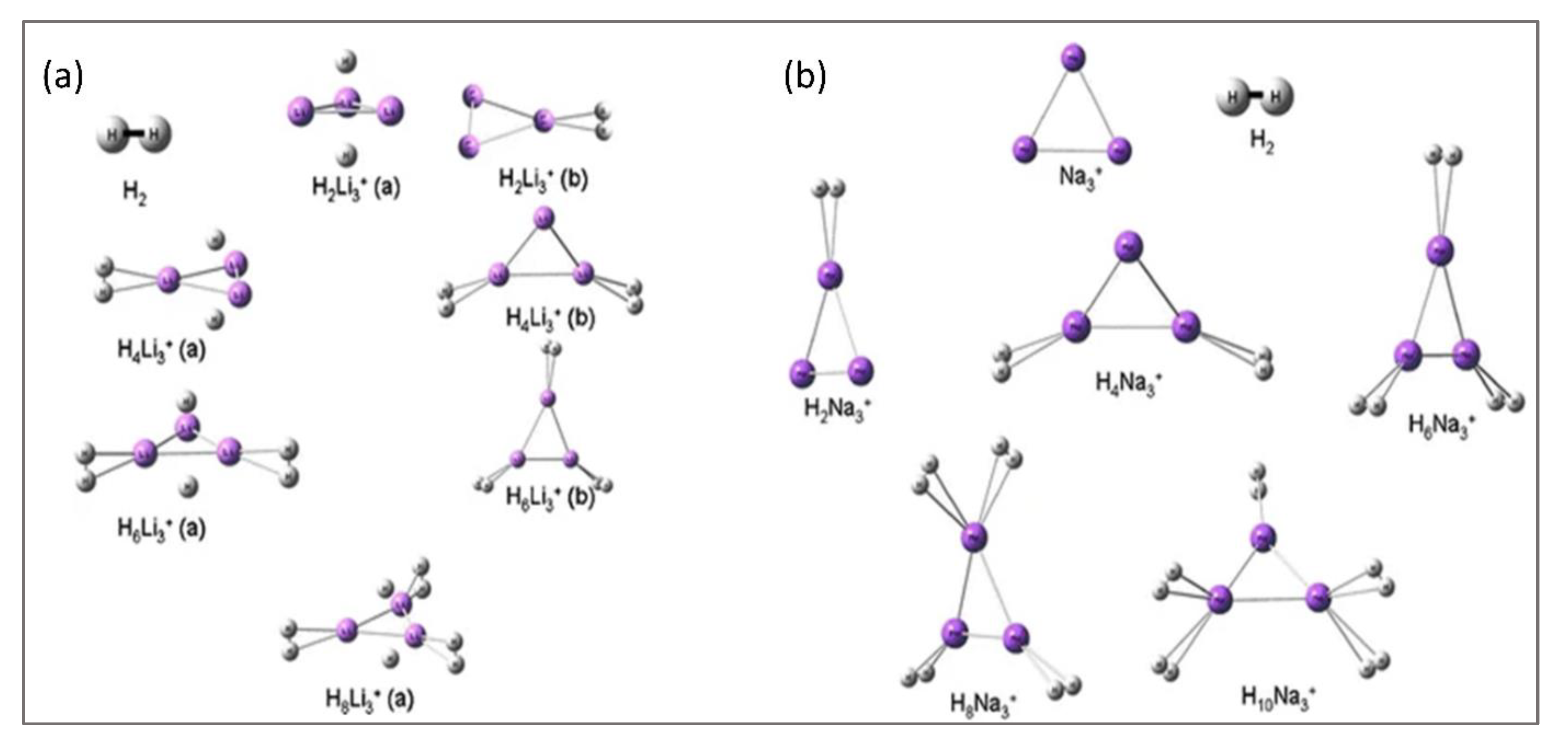

In many molecular systems, aromaticity plays an important role for their stability and reactivity. Keeping in mind the role aromaticity can play, many molecular systems were modelled and designed. In the same line of thought, Chattaraj and co-workers studied the Li₃⁺ and Na₃⁺ ionic moieties and their interactions with molecular hydrogen/s [17]. The local minima forms obtained for the hydrogen molecule-bound equivalents of Li₃⁺ and Na₃⁺ systems are provided in Figure 3. Out of the many trial positions of interaction with H₂ molecules, for the Li₃⁺ cluster, trapping at the vertices became mostly feasible. The trigonal plane of the Li₃⁺ cluster can also interact with hydrogen. However, for Na₃⁺, interaction with molecular hydrogen occurs via the vertices of the formed triangle. In the trapping of hydrogen by the ionic clusters, an interesting point was noted. When the interaction between metal ion cluster and hydrogen takes place via the vertices, the hydrogen remains in its molecular form; on the other hand, when the ionic moieties interact via the centre of the triangular ring, atomic hydrogen binding occurs.

For the atomic hydrogen-bound form, the interaction energy is 32.2 kcal/mol (H₂Li₃⁺ cluster). Binding energy values fall in the range of 3.6–3.7 for more than one H₂-bound cluster. When the interaction of the Li₃⁺ cluster occurs with molecular H₂, the E_b values remain in the range of 2.2–2.5 kcal/mol. Nevertheless, for the Na₃⁺ ion, the binding energies are quite low, 0.2–0.7 kcal/mol. Computed results of NICS(0) [= (−)Ve] indicate that the alkali metal cluster cations and their H₂ trapped analogues are aromatic. It was noted that the NICS(0) values of Li₃⁺ and H₂Li₃⁺ moieties are −8.75 ppm and −14.57 ppm, respectively. The total number of hydrogen molecules adsorbed by the Li₃⁺ moiety is eight via the vertices and molecular plane. Via only vertices, six H₂ molecules can be trapped by the same ion. The other cluster ion, Na₃⁺, traps a maximum of ten hydrogen molecules via the vertices of the formed triangular ring. As the number of interacting hydrogen molecules increases, the electrophilicity value decreases. Such trend of electrophilicity denotes increment in the stability of H₂-bound ionic forms with cluster size.

5.3. M₅Li₇⁺ (M = C, Si, Ge) Clusters

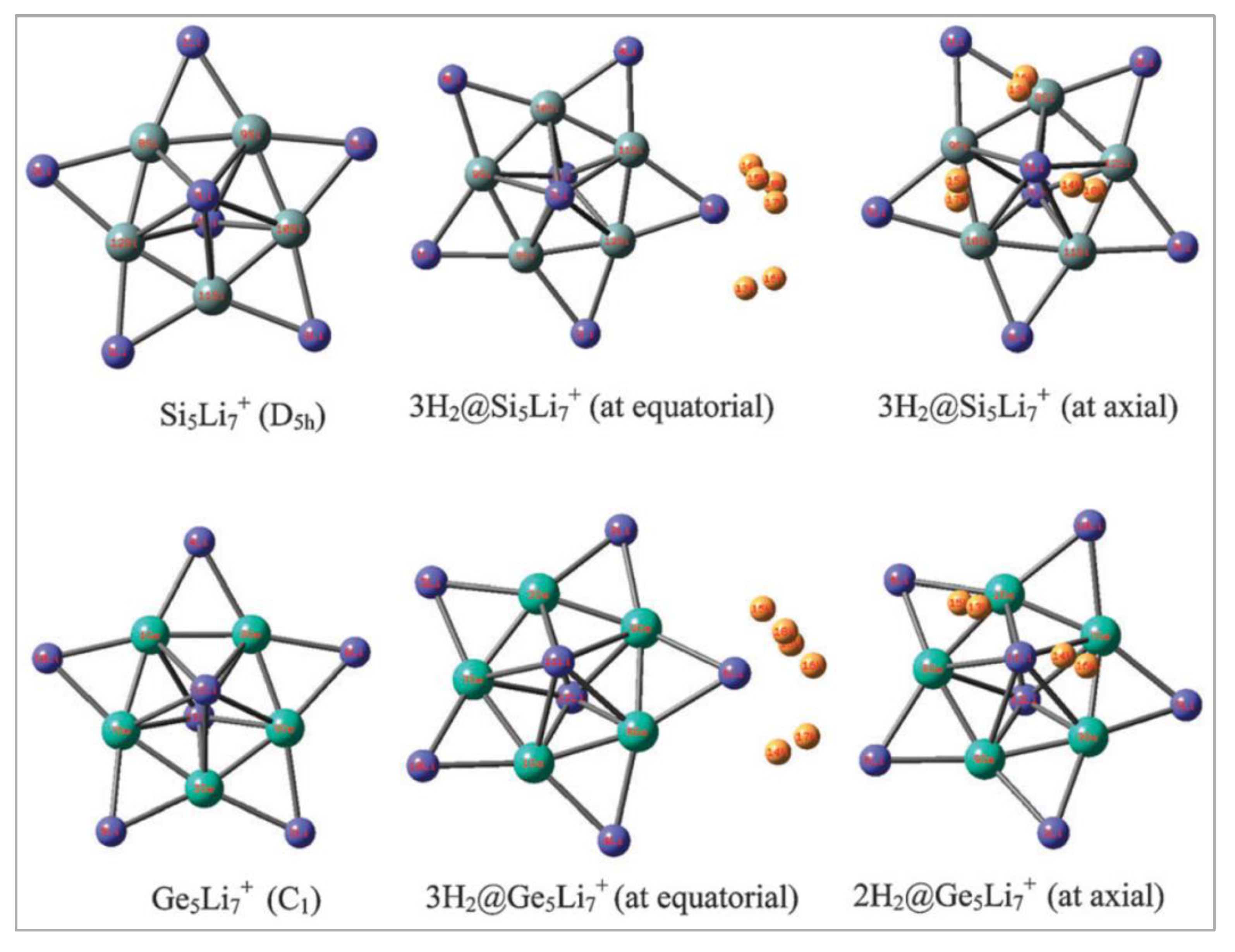

Li-doped star-like clusters obtained the interest of the scientific community due to their stability and aromaticity. Merino et al., Heitjans et al., and Ghosh et al. studied such Li-doped star-like systems [98,99,100,101]. By now, it is known to all that the Li center with a sufficient partial positive charge can trap H₂ molecules. With this idea, Chattaraj and co-workers had chosen star-like C₅Li₇⁺ and Si₅Li₇⁺ ions for detailed investigation. Moreover, they also studied the system Ge₅Li₇⁺ as it is the higher congener of the taken system [19]. Both the carbon- and the Si-containing systems’ global minima forms were determined by that time [19]. The simplicity of these structures and their symmetric skeleton (D_5h) beside the π-aromaticity were mentioned. In aromaticity, it would be good for the reader to know that the system C₅Li₇⁺ is σ-nonaromatic and that Si₅Li₇⁺ shows σ-aromaticity. Chattaraj et al. successfully modelled the carbon- and silicon-containing D_5h structures, but the Ge analogue was determined to be near D_5h. Pauling scale electronegativities of Li, C, Si and Ge are 0.98, 2.55, 1.90, and 2.01, respectively. Due to such differences in electronegativity values, the bonding between C and Li, Si and Li, as well as between Ge and Li is obviously polar in nature. Computation of natural population analysis (NPA) charges revealed that in the C₅Li₇⁺ ion, the equatorial Li comprised +0.78e and the axial Li comprised +0.71e charges. Similar positive charges were noted on the Li centres of Si₅Li₇⁺ and Ge₅Li₇⁺ moieties. It was determined that each of the Li atoms in C₅Li₇⁺ can interact and bind three H₂ molecules where the binding energy was noted to be −2.8 kcal/mol per H₂. So, altogether, the carbon-centered ion can hold up to 21 H₂ molecules (Figure 4).

Assessment of hardness and electrophilicity values revealed that as the number of hydrogen molecules increases at the D_5h symmetric ions, their stability increases. Such trends of hardness and electrophilicity values validate the MHP and MEP, respectively. It was noted that the Si-centered ion can also trap up to 21 H₂ molecules where each of the Li interacts with three H₂. Energy of such interaction was determined to be −2.2 kcal/mol per H₂ for the axial Li and −3.3 kcal/mol per H₂ for the equatorial Li. On the other hand, for the Ge-centered ion, axial Li can trap up to two H₂ molecules (interaction energy = −2.5 kcal/mol per H₂) and the equatorial Li can hold three hydrogen molecules (interaction energy = −3.4 kcal/mol per H₂). Moreover, the lengthening of hydrogen–hydrogen bond in the H₂ molecule was noted due to the interaction with the Li centres and simultaneous decrease in the partial charge of the Li centre, and, accordingly, electron density transfer from the σ-bond of molecular hydrogen to the respective Li centres was mentioned. Si₅Li₇⁺, Ge₅Li₇⁺ and their hydrogen molecule-trapped analogues are provided in Figure 5. When electrophilicities were plotted for the Si- and Ge-centered moieties, it was noted that the obtained trends are in line with the C₅Li₇⁺ systems. However, the plot of hardness reflected a different trend, and to justify that, one can utilize scaled hardness per atom or per electron. Calculation of gravimetric hydrogen storage capacity was done and noted 18.3 and 9.3 wt% for the Si₅Li₇⁺ and Ge₅Li₇⁺ systems, respectively. Moreover, application of electric field (0.001 to 0.005 au) in the direction of the trapped H₂ increases the binding energy of adsorption for all the studied systems.

6. Cage-like Clusters

6.1. B₁₂N₁₂ Cage

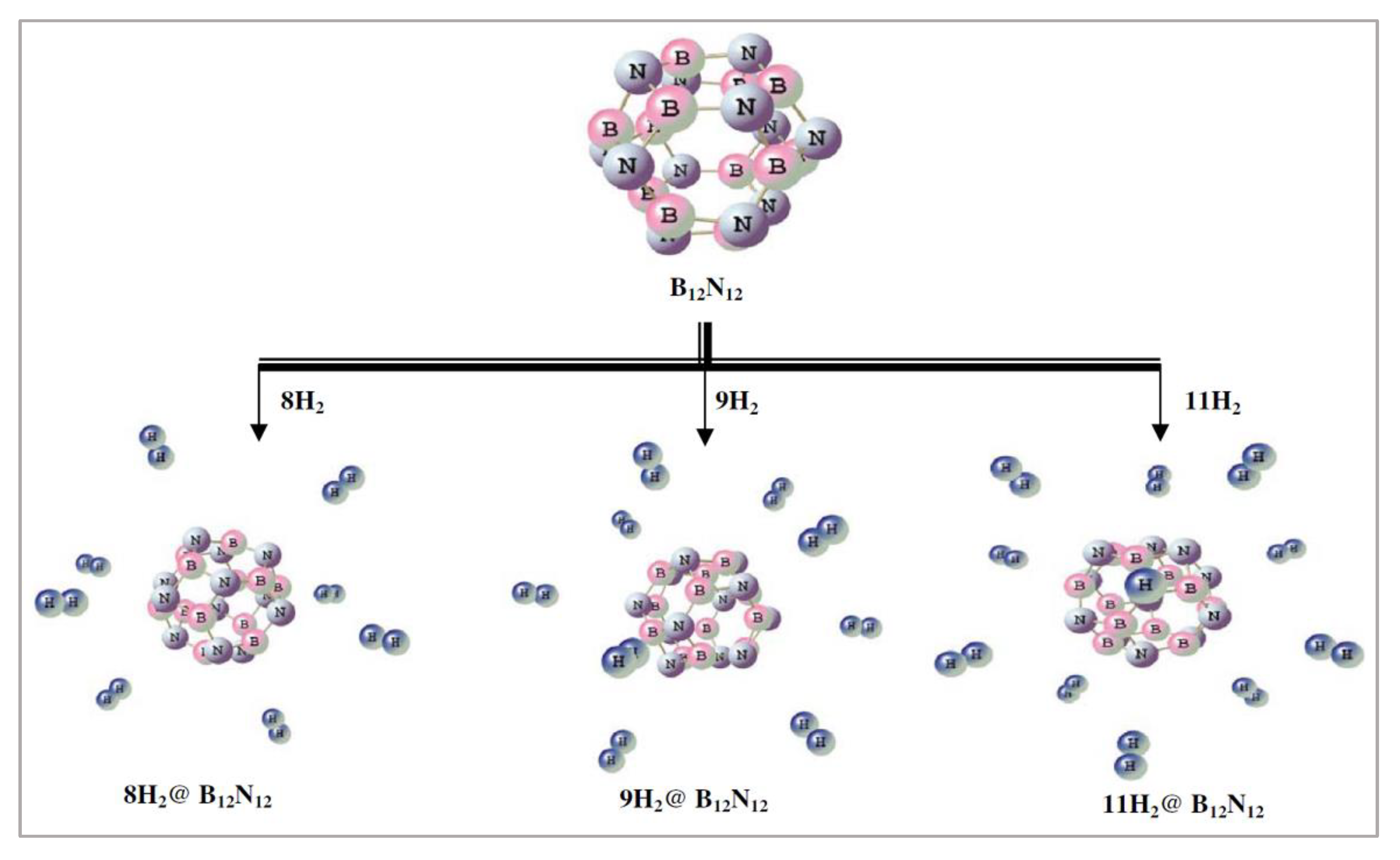

Inspired by the idea of endohedral and exohedral interaction of H₂/H with BN buckyball [102,103,104], Giri et al. modelled the B₁₂N₁₂ moiety and studied the stability, aromaticity, and hydrogen trapping potential [20]. In the endohedral encapsulation of H₂ by BN buckyball, the former remains in its molecular form. However, in the case of exohedral encapsulation, the H-H bond ruptures and atomic hydrogen adsorption occurs via each of the B and N centres [103]. In studying B₁₂N₁₂ moiety, Giri et al. explored the various global reactivity descriptors; moreover, the electronic structure principles (MHP, MEP) were also employed and were determined to be significant to gain further insight. B3LYP/6-311+G(d) level of theory was used to perform the geometry optimizations. Optimized geometries were further studied using MP2 level of theory and the same basis set. It was noted that H₂ interacts with the B₁₂N₁₂ moiety exohedrally. As N is more electronegative than B, the nitrogen centres possess partial negative charges in the B₁₂N₁₂ cage. It is likely that these partial charges facilitate the interaction with hydrogen. It was reported that the BN cage can hold 12 hydrogen molecules exohedrally (Figure 6).

It was stated that nH₂@B₁₂N₁₂ forms are more stable in comparison to the B₁₂N₁₂ cage. Capture of hydrogen molecules by the B₁₂N₁₂ moiety is favourable because of the negative interaction energy per H₂ molecule. In addition, the measurement of aromaticity of the H₂-bound BN moiety helps to understand the fate of the host as a hydrogen storage material. For all the nH₂@B₁₂N₁₂ systems, electronegativity, hardness, and electrophilicity were computed and it was determined that the values of electronegativity decrease with the increasing value of n (number of H₂ molecules). The calculated hardness data indicate increment in the magnitude with the increasing values of n, whereas a decreasing trend in the electrophilicity values was noted. NICS was calculated at the centre of B₁₂N₁₂ and nH₂@B₁₂N₁₂ clusters. Aromaticity of the modelled moieties was known by the negative NICS values. It was mentioned that the three, six, and nine hydrogen molecule adsorbed B₁₂N₁₂ systems are less stable in comparison to their neighbouring analogues, as noted from the gain in energy values. The gain in energy values were calculated to compare the stabilities of the successive hydrogen-loaded systems. The reported NICS(0) profile indicates higher stability of four, eight, and ten hydrogen molecule adsorbed systems, beyond the steady trend. This unusual higher stability was not justified, neither from the gain in energies, nor from the global reactivity descriptors.

Interaction of one H₂ molecule with the BN system was explored from the study of intrinsic reaction coordinate profile (Figure 7). The well-connected reactant, transition state, and product further support the fact that H₂ interacts with the N centre of the BN cage. From the pictures of frontier molecular orbitals (FMOs), delocalization of electrons in the nH₂@B₁₂N₁₂ systems was noted.

6.2. C₁₂N₁₂ Cage

Chattaraj and co-workers investigated polycyanogen clathrate systems, particularly the C₁₂N₁₂ form and its two other isomers in the search of hydrogen storage molecular frameworks [21]. Such systems are called high energy density materials (HEDM). Three possible isomers of C₁₂N₁₂ were mentioned. These isomers are designated as C₁₂N₁₂-A, C₁₂N₁₂-B, and C₁₂N₁₂-C. The three -A, -B, and -C isomers bear the point group D_6d, C₃, and C_2v, respectively (Figure 8). In the remaining portion of this topic, these three forms are marked as A, B, and C, respectively.

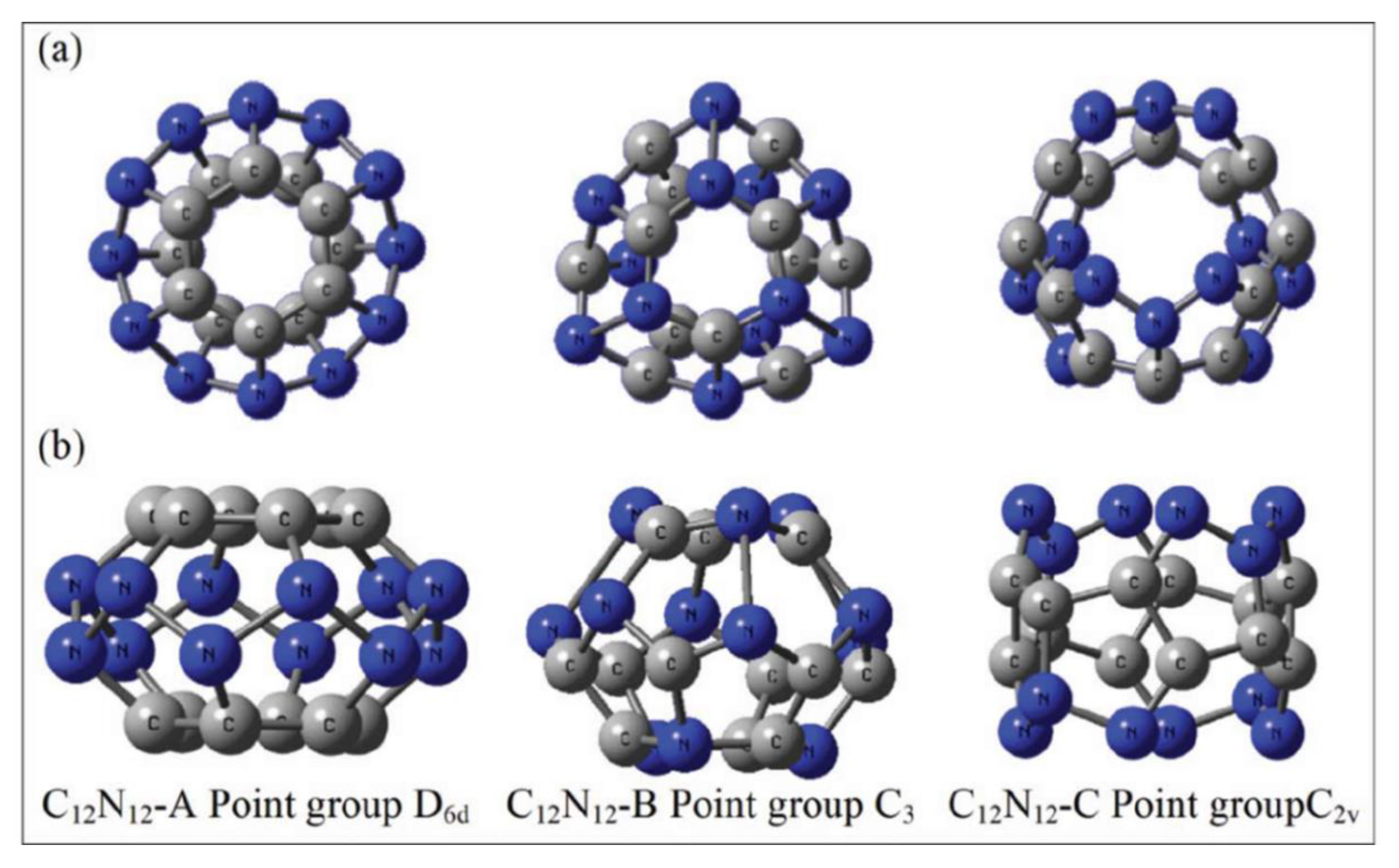

The three isomers have completely different types of morphologies. Isomer A bears two numbers of planar six-membered C₆ fragments, each at the end of a cask-like shape. The walls of such casks are formed by five numbers of C₂N₃ moieties. Constitution of the B form is different; there are two numbers of chairs such as C₃N₃ hexagonal segments, three numbers of C₂N₃ parts, and three numbers of C₃N₂ fragments. The last form, C, is like an open-cage system composed of eight numbers of five membered C₃N₂ parts. Among these isomers, the C form is the most stable. C is lower in energy by 55.41 kcal/mol compared to the B form. Further, the B form is more stable in comparison to the A isomer by 66.11 kcal/mol. Aromaticity of these three cyanogen forms was revealed by the NICS(0) of −2.601 (A), −5.876 (B), and −4.639 ppm (C). However, it is worthy to mention here that the forms A and B do not obey the rule of spherical aromaticity {2(N + 1)²π rule} [77]. On the other hand, the open-cage isomer C comprises 24 numbers of π electrons and it is clear that the same does not conform to the (2N² + 2N + 1)π electron rule of open-shell spherical aromaticity [78]. It was noted that all of these forms can interact with more than one molecular H₂ exohedrally. However, it is important to mention that a suitable site of trapping molecular hydrogen was obtained via rigorous search. It was reported that out of several possibilities, among the three justifiable sites (1. atop nitrogen atom, 2. atop carbon atom, and 3. atop the midpoint of carbon–nitrogen bond), only those atop the N atom local minima forms of hydrogen-bound analogues were obtained. The binding energy of trapping molecular hydrogen was calculated from the computed energies of different systems ($E_{system}$) using the following equation (n indicates the number of H₂):

$$∆E=-\raisebox{1ex}{$\left(E_{n{H}_2@C_{12}{N}_{12}}-E_{C_{12}{N}_{12}}-n{E}_{H_2}\right)$}\!\left/ \!\raisebox{-1ex}{$n$}\right..$$

(16)

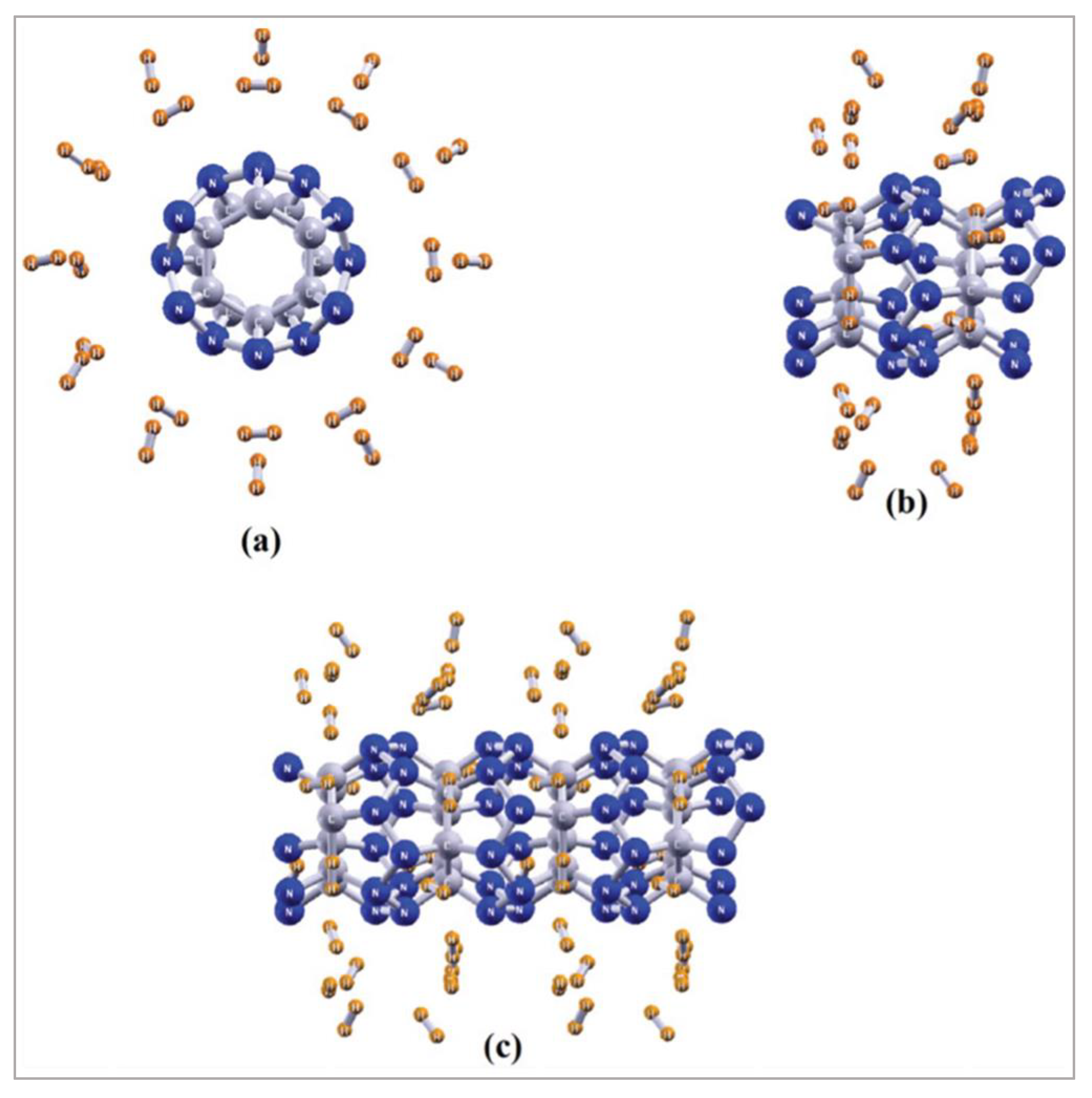

Among all the possible H₂-bound forms, it was noted that only the 11 and 12 hydrogen molecule-bound C isomer analogues were not local minima. The feasible region of hydrogen trapping (by the A isomer) was reported from the computed values of free energy at different temperatures and pressures. As the number of trapped hydrogens is same for all the isomers, the gravimetric H₂ storage was determined to be 7.2 wt%. The calculated values of hardness mark a nonlinear steady increment for the cases of different numbers of H₂-trapped A and C. However, the variation of hardness values for the nH₂-loaded B was noted to be random, albeit a correlation was noted between the hardness and binding energy values for the same isomer. Calculated NICS(0) values at the centre of clathrate as well as in their H₂-trapped forms show aromaticity. One interesting fact was mentioned: the variations of NICS(0) numbers, binding energy, and hardness for the hydrogen molecule-trapped A forms are in line with each other. Moreover, it was mentioned that application of electric field of 5 × 10⁻³ a.u. on the molecular hydrogen-bound A form enhances the energy of binding by 0.46 kcal per mol per hydrogen molecule. Desorption process becomes facilitated by the removal of applied electric field. From the most symmetric form, A, C₁₂N₂₄ nanotube was modelled. The skeleton of the C₁₂N₂₄ system comprises a zigzag N₁₂ section which is enclosed by two C₆ hexagons (Figure 9). Such systems were modelled by the PBE method. The bond lengths {1.538 (C–C), 1.475 (C–N), and 1.475 (N–N) Å} in the modelled system showed that the type of hybridization could be sp³. In this nanotube unit, the minimum energy position of H₂ molecule trapping was also computed, and the most suitable location was determined to be that where the hydrogen molecule interacts with two nitrogen atoms. For the adsorption of 12 and 24 hydrogen molecules, the energy of interaction was computed to be 1.73 and 1.44 kcal/mol per H₂, respectively, per unit cell. Calculation of gravimetric H₂ storage capacity for such type of binding was noted to be 4.76 and 9.10 wt%, respectively.

7. Conclusions

Density functional theory and conceptual density functional theory revealed that the alkaline earth metal clathrates, Mg_n and Ca_n (n = 8–10), may serve the purpose of hydrogen storage. NICS(0,1) of the hydrogen molecule-bound Mg_n and Ca_n cages disclosed the aromatic character of such systems. In the ionic clusters, N₄²⁻, N₆²⁻, Li₃⁺, Na₃⁺, and M₅Li₇⁺ (M = C, Si, Ge) show aromaticity. The N₆⁴⁻ ring is aromatic with 10π-electrons. However, the N₄²⁻ ring depicts conflicting aromaticity. Increment in aromaticity occurs for the complexation of N₆⁴⁻ ion by Ca²⁺. In contrast, the N₄²⁻ unit continues to portray conflicting aromaticity even after binding with two Li⁺ ions. Li₃⁺ and Na₃⁺ ions show negative NICS(0) value. The D_5h symmetric C₅Li₇⁺ and Si₅Li₇⁺ star-like ions are aromatic in nature. In brief, the carbon-centered star-like ion is π-aromatic and σ-nonaromatic, whereas the Si-centered analogue is π-aromatic as well as σ-aromatic. Hydrogen-trapping potential of all these ions is revealed. Calculated gravimetric hydrogen storage capacity of C₅Li₇⁺, Si₅Li₇⁺, and Ge₅Li₇⁺ ions are 28.0, 18.3, and 9.3 wt%, respectively. In most of the reported ionic systems with the trapping of H₂ molecules, the change in aromaticity, hardness, electrophilicity, and interaction energy indicates favourable binding. Good gravimetric storage capacity of hydrogen is also revealed in a few cases. Among the studied neutral cage-like systems, both the B₁₂N₁₂ and C₁₂N₁₂ show aromaticity. Each of these cages can trap up to twelve hydrogen molecules. Among the three possible isomers of C₁₂N₁₂, the most symmetric one (D_6d) can store H₂ with 7.2 wt%. Moreover, the cluster-assembled material C₁₂N₂₄ can trap hydrogen with 9.1 wt% capacity. For the systems Li₃⁺ and Na₃⁺ and their hydrogen-bound analogues, the local reactivity descriptors reflect reactivity.
