Article

Selecting Rooftop Solar Photovoltaic Modules by Measuring Their Attractiveness by a Categorical-Based Evaluation Technique (MACBETH): The Case of Lithuania

by
Andrius Tamošiūnas
Department of Management, Faculty of Business Management, Vilnius Gediminas Technical University, LT-10223 Vilnius, Lithuania
Energies 2023, 16(7), 2999; https://doi.org/10.3390/en16072999
Submission received: 7 February 2023 / Revised: 13 March 2023 / Accepted: 22 March 2023 / Published: 24 March 2023
(This article belongs to the Section A: Sustainable Energy)

Abstract

:
The paper examines the challenges related to solar photovoltaic (PV) development with a pivotal focus on the impacts of the dynamics of the relevant markets and technological advancements in the solar industry. In this regard, household investments into rooftop solar PV modules as one of the available incentives are investigated based on a conducted experiment in Lithuania for selecting rooftop solar PV systems for the prosumer by measuring the attractiveness of solar PV modules by a categorical-based evaluation technique (MACBETH). While a variety of multiple-criteria decision-making (MCDM) methods used by scholars have their specifics in terms of application and the divergence of results, the findings of the conducted experiment reveal MACBETH’s utility when based upon qualitative judgments about the differences in the attractiveness of offers, quantifying their relative value and accordingly ranking the latter. The findings also confirm MACBETH’s potential to be used not only to solve operational and tactical tasks but also for strategic objectives of private and public organizations aiming at competitive and sustainable development in short- and long-term contexts.

1. Introduction

In the context of the Taxonomy Regulation [1], the Fit 55 package [2] subject to the Green Deal [3], and the recent REPowerEU Plan [4], power generation technologies are subject to scrutiny. The sense of use and development perspectives (as to the short and long run) of fossil-fuel- (coal, natural gas, and oil; FF) based technologies is subject to tightening requirements [1,2,3,4] for curbing emissions, rising commodity prices [5], and the need (moreover, its urgency) to ensure sustainable power generation and supply for security and sustainability of economy [5]. Furthermore, a shortage of stocks or a lack of respective natural resources makes the use of FF-based solutions costly because of the recent dynamics of commodity prices [4,5]. Switching to more polluting but less expensive alternatives such as shale oil and coal is, in the light of the Green Deal [3] and the Paris Agreement [6], a temporary trade-off. For instance, Lithuania, Poland, and Estonia switched provisionally to coal and shale oil for heating (for the winter of 2022, at least) as an exception provided to European Union (EU) members of the European Commission (EC) due to the implications of the war in Ukraine. In this regard, to maintain the competitive performance of an organization or economy (or its sector in question), the possession of power generation capacity must be mandatory. In addition, if there are no traditional fossil energy resources to extract and use, the needed power generation capacity must be built based on renewable energy sources (RES), namely as follows: solar, wind, geothermal, ocean energy, hydropower, bioenergy, and nuclear power. Although nuclear power is not renewable, it is low-carbon and recyclable, and thus it is counted as an RES for this paper. Indeed, RES-based power generation is promoted and supported [1,2,3], yet the speed and the scale of the transition to the latter have appeared to be deficient when the power supply is reduced or cut instantly or shortly (e.g., due to implications of the war in Ukraine), whereas alternative power generation capacity is inadequate or not available.
Given the context, nevertheless, both FF- and RES-based solutions have their drawbacks. The required combination of the latter for secure and sustainable power generation needs to be rationally matched. Grouping RES measures or combining RES with conventional FF solutions is a complex task and thus inevitably involves multiple-criteria decision-making (MCDM). Due to the variety of FF- and RES-based solutions as well as MCDM methods, the author narrows the object of research to the challenges of the selection of rooftop solar photovoltaic (PV) modules by the self-consumer—the household (as the target of the research in this paper) striving to meet its electricity consumption demand. The latter is also called by scholars [7] a prosumer—a consumer generating electricity on their own, and storing and selling part of it. This emphasis is also reasoned by the observation that no substantial scientific research over the past decade was found subject to the challenges of selecting rooftop solar PV modules. In addition, selection is burdened by a vast number of manufacturers, producing a variety of modules specific in terms of scale and scope of application characteristics [8,9,10]. In addition, no research was found regarding the application of MCDM methods for selecting the latter. Furthermore, solar power can be used for electricity, heating, cooling, and fueling; due to the scale and scope of these, each could be a subject for separate research. Subsequently, the author focuses namely on selecting rooftop solar PV modules by measuring attractiveness by a categorical-based evaluation technique (MACBETH) [11,12]. The author’s choice of MACBETH is grounded in the fact that scientific research on MACBETH, as a method for the selection of rooftop solar PV modules as well as of other FF- and RES-based technologies, is, at best, limited and fragmentary; although examining at least 700 works of scholars across Elsevier journals, the author could not identify any. Moreover, MACBETH is based on qualitative judgments [11,12,13,14,15,16] only, and therefore this feature makes the latter a reasonable option, especially when decisions are subject to prompt finding, collecting, and processing relevant data which are naturally fuzzy [17]. Indeed, in this regard, a variety of MCDM methods are available [16,18]. For instance, the following MCDM methods were observed as consistently used by scholars concerning the solar PV theme:
(i)
AHP/ANP (analytic hierarchy/network process) [19,20,21,22,23,24];
(ii)
TOPSIS (technique for order of preference by similarity to ideal solution) [25,26,27,28];
(iii)
COPRAS (complex proportional assessment) [29,30];
(iv)
VIKOR (a multicriteria optimization and compromise solution (from Serbian: VIseKriterijumska Optimizacija I Kompromisno Resenje (VIKOR))) [26,31];
(v)
MULTIMOORA (multi-objective optimization by ratio analysis) [30,32,33,34,35,36];
(vi)
DEA (data envelopment analysis) [37,38,39,40,41];
(vii)
SAW (Simple Additive Weighting) [29,30,42];
(viii)
PROMETHEE (Preference Ranking Organization Method for Enrichment Evaluation) [42,43];
(ix)
SMART (Simple Multi-Attribute Rating Technique) [27,29,30,44,45];
(x)
ELECTRE (MCDM method for elimination and choice translating reality (from French: ÉLimination Et Choix Traduisant la Réalité)) [27,29,43].
Moreover, these methods are seen to be used in combination in numerous cases, e.g., [16,28,31,35,46,47,48], where the specifics of each MCDM method may stipulate divergent or constrained solutions for the comparable task. Consequently, to choose the appropriate one (or their mix), a household needs to be duly qualified as well as acquainted with the peculiarities and drawbacks of applying every method. In this context, the author of this article attempts to apply the MACBETH method to support households deciding to rationally select rooftop solar PV modules using the primary data received from a conducted experiment in Lithuania. The paper aims to contribute to reaching the intended results (the desired level of effectiveness) with justified efforts (the desired level of efficiency) for the prosumer.
The article is composed as follows. The second part explores the literature on the range of solar PV modules available to the target group of the largest global producers as well as their market dynamics over the last decade. The third presents findings on the application of MCDM methods concerning solar power generation, and the selection of rooftop solar PV modules. As a result of the advantages and drawbacks observed by the application of MCDM methods, Part 4 introduces a methodology based on MACBETH for the selection of rooftop solar PV modules and subsequently analyses the results of the MACBETH application. Consequently, Part 5 discusses the outcomes of MACBETH use, aiming at improving the efficiency and effectiveness of the selection process for the target group. The final part provides conclusions and future research outlines.

2. Literature Review on Critical Aspects of Solar PV Development

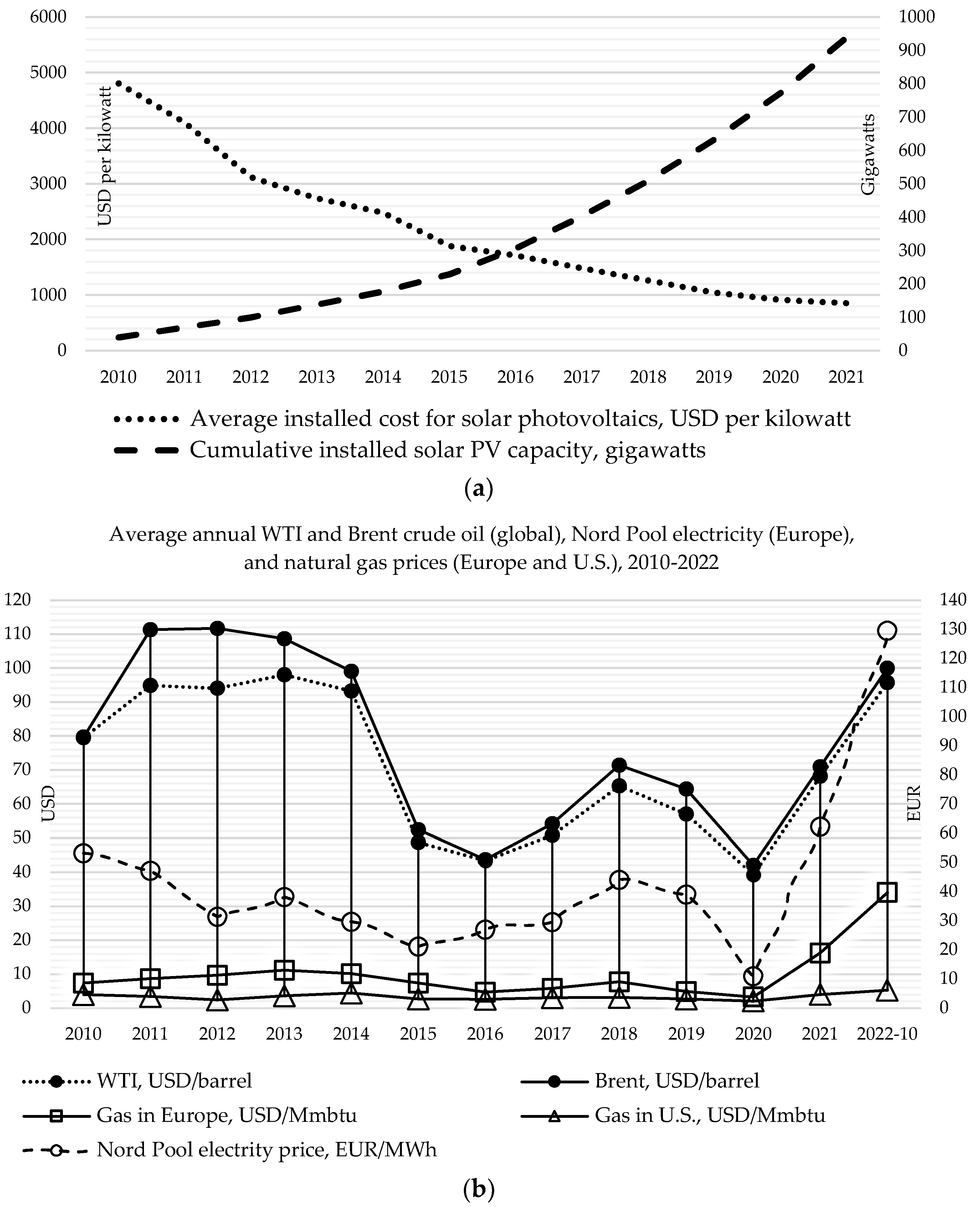

The global market for solar PV modules has shown exponential growth since 2006. While growing from a cumulative 1.3 Gigawatts of solar PV capacity installed in 2000 to 6.6 Gigawatts in 2006, the installed cumulative capacity of solar PV worldwide grew to 940 Gigawatts in 2021 [49]. Maturation and advancements of technologies (as a result of a learning curve) have led to a decline in the cost of electricity produced by solar modules by 88% since 2010, making solar energy generation even less expensive than the equivalent of generated power of gas- or coal-based solutions, according to International Renewable Energy Agency (IRENA) data [50]. If EUR 1 is invested into solar PV modules, it generates a fourfold amount of power in comparison to the amount of electricity generated in 2010. Due to improving profitability, solar power generation capacity reached almost 10%, by the end of 2021, of the total power generation capacity worldwide [51]. Concerning the European Union (EU), annually generated solar power increased from more than 66 Gigawatts per annum in 2012 to more than 157 Gigawatts per annum in 2021 [52]. The observed growth of the capacity installations since 2006 and then its acceleration, especially since 2010, is not only affected by stricter regulations for curbing emissions of greenhouse gases [1,2,3]. The launch of the EU Emissions Trading System (EU ETS) in 2005 and subsequently established EU ETS-like schemes worldwide (25 operating systems could be counted as of the start of 2022 [53]) has also contributed to solar power generation market growth. Furthermore, the application of monetary and fiscal stimulatory measures of up to 30% of the solar-capacity-equivalent investment amount (i.e., tax reductions, financial subsidies, and partial reimbursements of interest rates) [50,54,55] is another set of enhancing factors. Hereby, the EUR 660 million “NextGenerationEU” facility [56] launched in June 2021 for subsidies exclusively for households’ solar PV installations in the EU is unparalleled and is also contributing considerably to the rise in solar PV generation capacity [50,55]. In addition, another contingency to be considered vital to solar PV capacity development in the EU and worldwide is the growing power demand. This impacts electricity prices due to unsustainable power supply [4] and hence also the dynamics of commodity prices [5,10], particularly since the autumn of 2021 (Figure 1).
In this context, more than 350 producers of monocrystalline rooftop solar PV modules (as the one of most efficient solutions still nowadays) [57] can also be found worldwide. Each of these offers a wide spectrum of modules to choose from as per the specifics of the needs of the households (while each manufacturer also has a range of offerings for utilities and commercial use). If, for the purpose of this article, we focus on the 10 leading manufacturers in terms of actual shipments of rooftop solar PV modules [9,10] from 2019 to 2021, one will note at least one type of solar PV technology per manufacturer in use to produce at least two types of solar PV module per type of technology with at least four variants per type of solar PV module (Table 1).
Furthermore, the power generation efficiency rate of solar PV modules sold worldwide nowadays varies by the type of technology used to manufacture the module, from 15% for polycrystalline to 23% for n-type interdigitated back-contact monocrystalline silicon cells [53]. In addition, recently laboratory-tested all-perovskite tandem solar cells with 27.5% [58] and even 32.3% [59] power generation efficiency rates may be the next benchmarks to prove as commercially viable solutions in terms of added value for both the customer and the manufacturer. In this regard, the household will need to explore at least three variants per type of solar PV module of at least one type of manufacturing technology (as per Table 1) in seeking the effectiveness of power generation. For a comprehensive analysis, households may in principle compare even nine variants of eight different types of solar PV modules per each of the specific technologies. Subsequently, to obtain the efficient sustainable performance of solar PV modules, the household will also need to choose a solar PV inverter to convert the direct current generated by solar PV modules into alternating current. In this respect, the range of the latter to choose from is also vast. For instance, as per the estimated 10 largest manufacturers by shipment of solar PV inverters worldwide [57], there can be counted four types of solar PV inverter with up to 10 variants per each type in terms of power equivalent to match the wattage to be generated by solar PV modules.
In addition to the preceding insights into the solar PV market landscape, the regulations over metering schemes for generated power must also be considered. Their necessity, for instance, is addressed by the EU Clean Energy Package [56], but with no unified specific rules. In addition, the relevance of the availability of grid capacity is addressed so as not to hinder the evolution of prosumers. In this regard, scholars identify four types of metering regimes applied in the EU since 2013 by 19 member states [56]. Consequently, regulatory divergence can be a contingency factor for households willing to become prosumers, whereas if the net metering scheme can be seen as stimulating solar capacity installations, the net billing regime can cause the opposite effect. Hereby to be noticed, e.g., over the last decade as for the data on commodities [5,10], the equivalent electricity generated during the daytime and (or) summertime, ceteris paribus, was considerably cheaper (except for prices in 2022, due to the impact of Russian aggression on Ukraine) than that generated during nighttime and (or) wintertime. In this respect, the net billing scheme is less advantageous than net metering due to greater exposure to fluctuations in commodity prices. For example, in Poland, under the net metering scheme launched in 2016, Polish solar capacity installed by households has grown exponentially from 100 Megawatts in 2017 to 3715 Megawatts in 2021 [51]. However, since the switch to the net billing regime in 2022, solar PV capacity installations by households have been slowing down in Poland due to the anticipated risk of reduction in profitability of investments into rooftop solar photovoltaic (PV) modules for the purpose of self-consumption [60,61].
Bearing in mind the context above, when selecting solar photovoltaic (PV) modules, the household must consider the risk of changes in the regulatory framework as the evolution of relevant markets within the investment payback period planned. In this regard, the author will address the methods to reasonably select solar photovoltaic (PV) modules in the subsequent part.

3. Review of MCDM Methods Regarding Selecting Solar PV Modules for Prosumers

Exploring scientific sources subject to the solar PV theme, numerous applications of various MCDM methods are observed in use by scholars. For instance, Dahooie et al. (2022) mentioned 28 studies of scholars applying different MCDM methods. In 12 of these, AHP was used as a sole technique, while in the other 7 research cases, AHP was applied in concert with TOPSIS, VIKOR, ELECTRE, and DEA. The use of DEA, ELECTRE, and VIKOR in this regard was observed in two and three cases, respectively, and the use of other MCDM methods was rare in the rest of the works. Ayough et al. (2022) noted 12 cases related to solar PV topics, of which 5 are also subject to AHP along with TOPSIS, VIKOR, or (and) DEA. As the next example, Deveci et al. (2021) pointed out 55 studies concerning the solar PV theme, of which 28 articles are subject to the application of AHP, including 7 cases of its combination with TOPSIS and VIKOR, while other cases were characterized using geographic information system (GIS) and other programming solutions. Concluding per the latter cases, the dominance of AHP applications accompanied by TOPSIS, VIKOR, ELECTRE, DEA, and GIS is seen. In this respect, nevertheless, the author also finds that most of the works in question focus on the selection of the locations of solar PV farms and (or) power plants—no studies were found explicitly about the selection of solar PV modules.
For the robustness of the latter findings, the author also delved into 700 works in Elsevier journals concerning the solutions for the selection of solar PV modules. As a result, in principle, most of the same MCDM methods were used (Table 2) as per the studies mentioned above. While the application of AHP (together with other methods) is also noticed in most cases, the author, however, finds only three articles (Table 2) where scholars investigate the challenges of selection of solar PV modules using, respectively, AHP, TOPSIS, and the combination of the Characteristic Objects Method (COMET) and TOPSIS.
Based on the above-mentioned sources, MCDM methods are mainly used for weighting criteria, ranking alternatives, and giving different outcomes while coping with similar or even identical tasks. In this regard, distinct characteristics and application specifics of the methods imply that each may have its advantages and drawbacks. For instance, AHP is rather technically simple in its application. As to its weakness, weighting criterion may influence the final score, whereas weighting is subject to the preference of the decision-maker, and hence the results may vary. Furthermore, irregularities are possible in ranking and judging variables because of pairwise comparison. Moreover, adding or removing an alternative may cause rank-reversal problems [22,24,43]. Regarding TOPSIS, concerns can be related to the lack of a Euclidean Distance focus toward the correlation of the attributes. Furthermore, TOPSIS does not consider the importance of the distances from both positive and negative ideal solutions [26,27,28]. In this respect, VIKOR also needs prerequisites for weighting and checking judgment consistency as well as dealing with qualitative values [26,31].
Compared to TOPSIS and VIKOR, COPRAS can be considered more exposed to data variation and divergent in terms of ranks [29,30]. Regarding DEA, concerns can be subject to the fuzziness of the data and their availability before the use of the method, and hence its application results will depend on the sufficiency and reliability of data [39,40].
In this respect, MULTIMOORA is more robust with no need for normalization if not processing negative data [32,35]. In comparison to the latter, SAW also needs positive and maximizing inputs for values of criteria, but the results of the application may not necessarily reflect the real business circumstances [29,30,42]. Concerning PROMETHEE, this can be seen as simple to use [42,43]. However, it does not include solutions either for weighting or assigning values, meaning that complementary techniques will have to be involved accordingly.
In terms of the number of iterations and outranking, PROMETHEE has similarities to ELECTRE. Nevertheless, the latter can be seen as not clear in terms of process and its outcomes; also, outranking may impact the parameters of the alternatives in addition to the results being difficult to validate [27,43]. In this regard, the SMART method is also considered procedurally complicated but relatively easy to use, as long as enough data are available to the decision-makers [29,30,32].
In addition to the findings above, the author found no works (as per the explored Elsevier articles) involving the use of MACBETH for the selection of solar PV modules for households or other market players, investigating neither site selection challenges for solar objects nor other solar PV themes. Nonetheless, at least 192 scientific articles can be found in the Scopus database [13], although with no drawbacks explicitly observed concerning the MACBETH application. While a variety of MCDM methods reviewed have shortcomings as stated above, MACBETH relies on a humble question–answer procedure constructing numerical scales of intervals, tolerating differences of attractiveness between elements of a certain set to be cardinally measured [11,12,13,14,15,16]. The latter also uses linear programming, and thus there is no need for additional solutions to define the weighting coefficients for criteria. As a result, the consistency of judgments is also checked under the method application procedure. Considering the above-mentioned context, MACBETH can be a reasonable choice of MCDM method for selecting rooftop solar PV modules for prosumers. Consequently, the methodology to solve this task using MACBETH shall be detailed in the next part.

4. Methodology and Its Application

The uniqueness of MACBETH in principle, while considering the findings of the previous part, is subject to the characteristic of the method which allows justifying the decision of a choice not only for the organization but also for an individual (let it be the prosumer in this article) based upon qualitative judgments about the differences of values of options, especially when there is a vast number of the latter (i.e., Table 3).
To aid in carrying out the task of selecting rooftop solar PV solutions for households, the following experiment was conducted in Lithuania. In practice, following the procedure of application of MACBETH [11,12] to form a finite set O = {o1, o2, …, on} of n offers (where O = n 2 ), the author, formally acting as a household, contacted 24 Lithuanian solar energy association members, marketing themselves as contractors of rooftop solar PV systems for households, with the request to provide offers for delivery and installation of a rooftop solar PV system of 10 kW electricity generation capacity in the location of 54.299110, 25.377370 (Lat/Lon). As a result, the 22 proposals received (92% of all contractors inquired) are accordingly specified in terms of 11 criteria in Table 3 using the data provided in the offers in a random sequence (they are not yet based on any ranking in terms of the criteria at this stage). Concerning the set of selected criteria, first, this is supported by El-Bayeh et al. [25], Wang et al. [41], Deveci et al. [63], and also the findings of Solangi et al. [64]. Hereby, the author notes that the spectrum of criteria chosen has a pivotal focus on justifying the decision in terms of economic utility for the prosumer.
Furthermore, the 11 criteria the author employs for the finite set of offers (Table 3) are consistent with the observed regularity of an average number of criteria used by the scholars (e.g., see references in Table 2). In addition, to support the latter statement, using data from the work of Dahooie et al. [34] and Deveci et al. [65], the author investigated 45 scientific works referred thereto and concludes that 11.68 is the average number of criteria used by the scholars. Secondly, the concept of Blue Ocean [65] is also considered, where criteria are aimed at lowering costs while focusing on the most beneficial solution for the prosumer. Thirdly, the criteria chosen are also coherent with the fundamentals of the utility theory as well as the cost–benefit analysis concept. In this respect, the criteria given in Table 3 are also the reflection of data that contractors provided in their offers while aiming to reveal their advantage in utility for the household. Consequently, while the specifications of manufacturers of solar PV modules that the received offers are based on set performance efficiency levels, the timeline and the quality of installation works are nonetheless crucial. In this respect, the criterion “Time until solar PV system is installed and operational (days)” is to be noted. The declared lengthy waiting periods (from 60 days to even 210 days; Table 3) by contractors before the solar PV modules are installed on the rooftop of the household are due to the labor shortage the contractors are facing caused by unprecedented demand among households for rooftop solar PV systems. The latter is in principle triggered by the number of calls for financial aid (an amount of 322 EUR/kW of installed electricity generation capacity) for solar PV module installations for households from the government of Lithuania during the last two years in the context of the “NextGenerationEU” facility [56]. Subsequently, the specifics of weather conditions of the region Lithuania belongs to must be considered.
During the winter in Lithuania, the generation of electricity by rooftop solar PV systems is in essence insignificant. For instance, for the location of 54.299110,25.377370 (Lat/Lon), subject to the experiment in question, the EC Photovoltaic Geographical Information System (PVGIS) [66] indicates energy output (of 10 kW electricity generation capacity) between 131 kWh in December and 395 kWh in February (with the roof oriented to the south, with no shadows and a slope of 21° degrees, and also assuming the estimated system to have an average loss of 14% (due to, e.g., snow, dust, and system degradation over its warranty period)). Hence it is critical to have a solar PV system installed and operational as soon as possible between March and October (when average amounts of generation of electricity vary from 731 kWh in March to an estimated peak of 1350 kWh in June and then 511 kWh in October (with an estimated 194 kWh for November, according to data from PVGIS) to get prosumers’ investments paid back as soon as possible. Moreover, as in the example of Poland and other findings in Part 2 of this paper, the metering scheme for generated power determined by the government is also vital for the length of payback period.
Next in the application of MACBETH, the individual household, H, focusing on finite set O (Table 3) pairwise compares offers o1, o2, …, o22 using semantic judgments concerning the difference of attractiveness between the latter. As the result of the comparison, H may decide that offer oi is more attractive than offer oj (i.e., oiPoj) if associating the offers in question in terms of values v(oi) and v(oj), so H concludes that v(oi) > v(oj). Furthermore, if v(oi) = v(oj), H may decide that offer oi is as attractive as offer oj (i.e., oi I oj). Hereby, pairwise comparison is carried out using the scale of semantic categories (Table 4) predetermined [11,12] subject to differences in the attractiveness of values of offers in terms of the criterion in question (moreover, the same principle can also be used to rank criteria). Accordingly, H judges verbally the difference in attractiveness between each pair of offers (oi, oj) ∈ O by choosing one of the semantic categories of Table 4.
For instance, H may state that offer oi is more attractive than oj and the difference in attractiveness is strong, meaning that (oi, oj) ∈ SC4. As the result of such pairwise comparison, all the pairs of offers (oi, oj) will belong accordingly to the same SC of semantic differences in attractiveness, whereas differences in values v(oi) − v(oj) will be subject to the same interval. Subsequently, the asymmetric subsets of the positive real numbers to subset classes of ordered pairs (oi, oj) (i.e., oiPoj) are related, whereas two adjacent intervals correspond to two following categories of differences of attractiveness [11,12], namely as follows:
oiPkoj: sk < v(oi) − v(oj) < sk+1
where P(k)—the value preference; sk and sk+1—the thresholds of value function (v). Hereby, H needs to make sure their judgments are consistent, namely [12,16]:
oi, ojO: v(oi) > v(oj) ⇔ oiPoj
k, k* ∈ {1,2,3,4,5,6}, ∀ oi, oj, op, oqO with (oi, oj) ∈ SCk and
(op, oq) ∈ SCk*: kk* + 1 ⇒ v(oi) − v(oj) ≥ v(op) − v(oq)
If offer oi is strictly more attractive than offer oj (i.e., oiPoj), then v(oi) > v(oj). Respectively, when offer oi is as attractive as offer oj (i.e., oiIoj), then v(oi) = v(oj), meaning (oi, oj) ∈ SC0. As the result of having preferences of values consistent, linear programming is used to minimize v(n) and for the scale of attractiveness [67], as follows:
Minv(n), S.T.: ∀ oi, ojO: oiPojv(oi) ≥ v(oj) + 1; ∀ oi, ojO: oiIojv(oi) = v(oj); ∀ (oi, oj), (op, oq) ∈ O
If the difference in attractiveness between offers oi and oj is greater than that between offers op and oq, then: v(oi) − v(oj) ≥ v(op) − v(oq) + 1 + δ(oi, oj, op, oq); v(oi) = 0, where on belongs to the set O so as to ∀ oi, oj, op, oq, … ∈ O: on(PI) oi, oj, op, oq, …, and oi belongs to the set O so as to ∀ oi, oj, op, oq, … ∈ O: oi, oj, op, oq, …(PI) oi; δ(oi, oj, op, oq) is the minimal number of categories of difference in attractiveness between offers oi and oj and the difference in attractiveness between op and oq. As a result, n is the most attractive offer of set O (i.e., on (PI) oi, oj, op, oq, …), and oi- is the least attractive offer in the set O (i.e., oi, oj, op, oq, …(PI) oi).
In this context, H proceeds with ranking the criteria (Table 3). Assuming the latter to be equally important, H pairwise compares the criteria and makes their value judgments using the semantic scale presented above (Table 4). This procedure was technically facilitated by M-MACBETH software [12]. The obtained results of pairwise comparisons of offers o1, o2, …, o22 per criterion c1, c2, c3, …, cn (Table 3) are summarized in Appendix A. Consequently, the latter can serve as the basis for the prosumer to decide on the most attractive offer as well as the ones which could be subject to additional negotiations with the contractors and reconsideration of pairwise judgments if the offers in question were improved.
In this regard, the versatility of the MACBETH method allows correspondingly to set up the management process from selecting, negotiating, and consequently deciding on the potentially most effective and efficient offer and proceeding with commencing installation works. For instance, judging the merits of compensation for non-produced electricity (c10), the advantages of offer o13 (Appendix A, Table A1a,b) could be between several cents and several hundred euros assuming that the rooftop solar PV system is not operational from several days to several months (in the case of a conservative scenario) due to defects in the solar PV system components or installation works. Whereas the latter are subject to contractors’ responsibility, the warranties for the product (c3), inverter (c5), installation construction (c7), and installation works (c8) are to be enforced. Consequently, having in mind a cost difference of more than EUR 2000 between the best offers, namely o13 and o3 (Figure 2a), the formal advantage of offer o13 in terms of criterion c10 could be considered as marketing-related rather than significantly tangible added value generating for the prosumer.
Furthermore, the utility of one maintenance inspection (c11) in a five year-period as per offer o13 (Table 3; Appendix A, Table A1a,b) can be questioned as well, whereas according to practical observations (as well as individual interviews with the providers of such services), inspections are advised to take place once in three years, ceteris paribus. Otherwise, the prosumer should call for an inspection if it is visually obvious that the solar PV modules are dirty to the extent that the overall system does not function (electricity is not generated). The regularity of such cases would indicate that the territory in question is at risk of pollution, and hence the respective state environment protection authorities are to be contacted. As the result, the prosumer may need to have inspections once per year (or as soon as needed due to the fact of physical dirtiness of modules). The cost of such inspections may vary up to a few hundred euros (as in the case of Lithuania), assuming the distance is up to 50 km from the service provider to the place of a prosumer.
Regarding the latter aspects, the formal advantage of offer o13 in terms of criterion c11 could be, as in the case of c10, considered as not resulting in any significantly tangible added value to the prosumer.
Having in mind the above context, the attractiveness of the offers could be reviewed disregarding criteria c11 and c10 (even though offer o13 has a formal advantage over the other offers in question). As the result of such a second scenario (when nine criteria are used) of the pairwise comparison of the offers, it can be concluded that offer o3 is the most attractive and substantially outpaces other offers (Figure 2b; Appendix A, Table A2a,b).
In this respect, the cost difference if comparing the outperforming offer o3 with its closest rivals (Figure 2b) is also critical to note, due to the risk of a change of metering regulation. The latter is adjusted annually by the National Energy Regulatory Council, an independent national regulatory authority in charge of regulating the activities of entities in the field of energy and conducting the supervision of the state energy sector in Lithuania. Hence, the greater the cost difference, the shorter the payback period of the investments will be, even when the net metering regime is changed to net billing (as in the case of Poland, as mentioned in Part 2). Moreover, in this regard, there is an insignificant difference (Table 3; Appendix A, Table A1a,b and Table A2a,b) among the offers in terms of product efficiency level (c1) and performance efficiency level warranty (c4); the more costly offers will have lower economic benefit in the case of net billing as well as in the case of increasing inter-bank interest rates if the borrowed funds are used for the investments in question.
If we assume, following the insights from both scenarios examined, the third scenario where the household is not cost-sensitive and is focused on gaining most of the economic value, resulting, in principle, due to technological advantages stated by the contractors, offer o21 is to be considered as most attractive (Table 5; Appendix A, Table A3a,b). In this scenario, the household is expected to be resilient to the impacts of the possible changes related to fiscal and (or) monetary regulatory measures.
Based upon the comparison of the results of the three scenarios investigated (Table 5), it can be stated that the household should consider offer o3 aiming at most economic benefit, while the choice of offer o21 should be considered as not resilient to the possible negative impacts related to fiscal or (and) monetary regulatory measures as well as price fluctuations of energy-related commodities.
Consequently, regarding all scenarios, the period until the solar PV system is installed and operational (since the date the contract is signed) is vital for achieving the estimated economic benefit, particularly in countries such as Lithuania, as per the case investigated, where the generation of electricity of solar energy between November and February is insignificant compared to generation estimations during the summer period.

5. Discussion

The findings of the application of MACBETH in the experiment conducted (Part 4) lead to the following considerations. Firstly, the results of the application of the method in question reveal the rationality of its use when households manage projects subject to the selection, delivery, and installation of rooftop solar PV systems. The application procedure allows the household to make judgments and reconsider (if needed) the criteria, as well as data updated by the contractors as the result of the actions of clarifying and negotiating the offers. In this respect, the MACBETH application results also reveal the possibility to apply the method in question for measuring and assessing the competitiveness of the market players based on the comparison of offers. For instance, following the concept of Blue Ocean [65], the results of the conducted experiment allow one to draw canvas of value curves (Figure 3) of, as in the example, the three most attractive offers per each scenario (Appendix A, Table A1a, Table A2a and Table A3a).

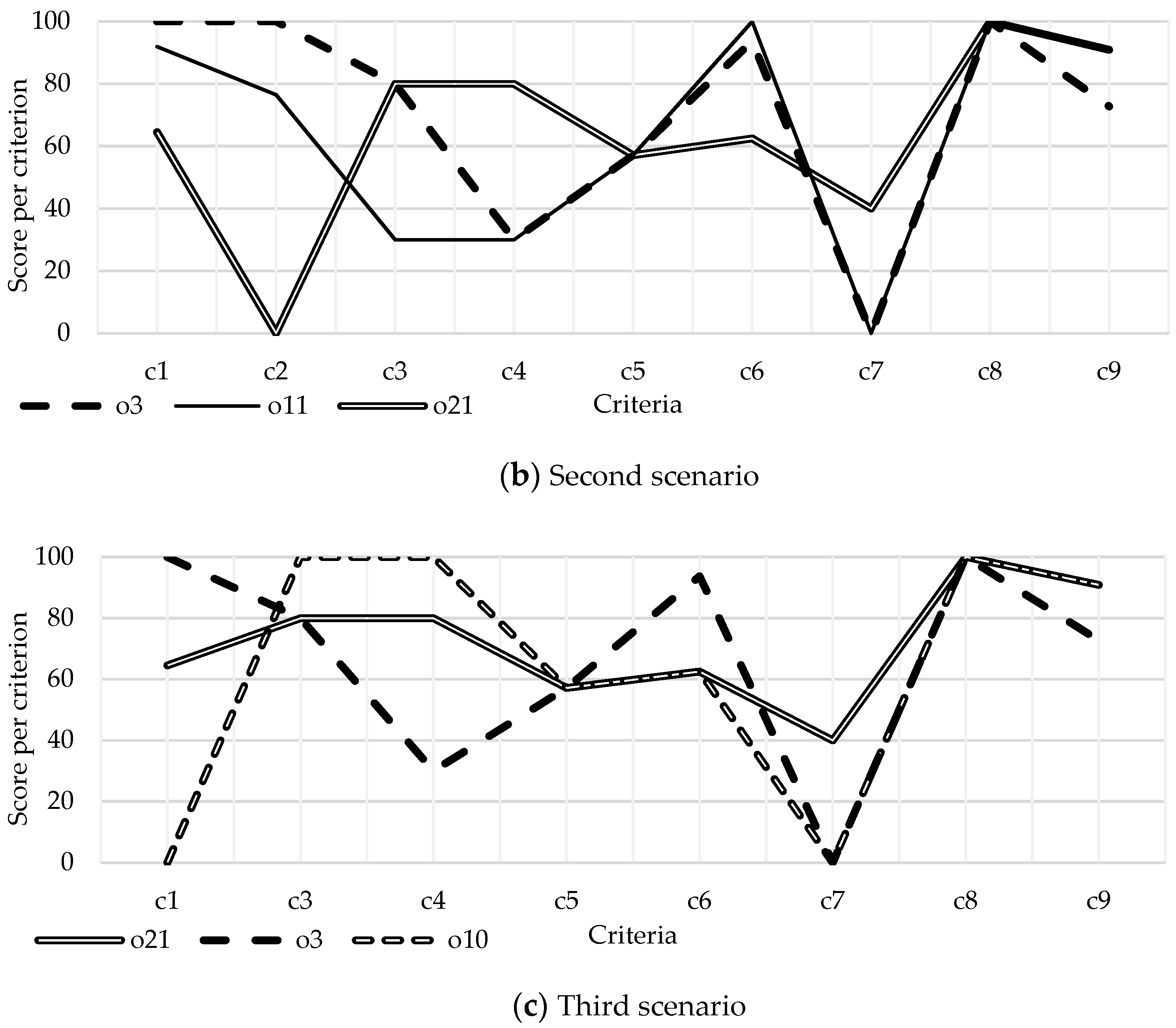

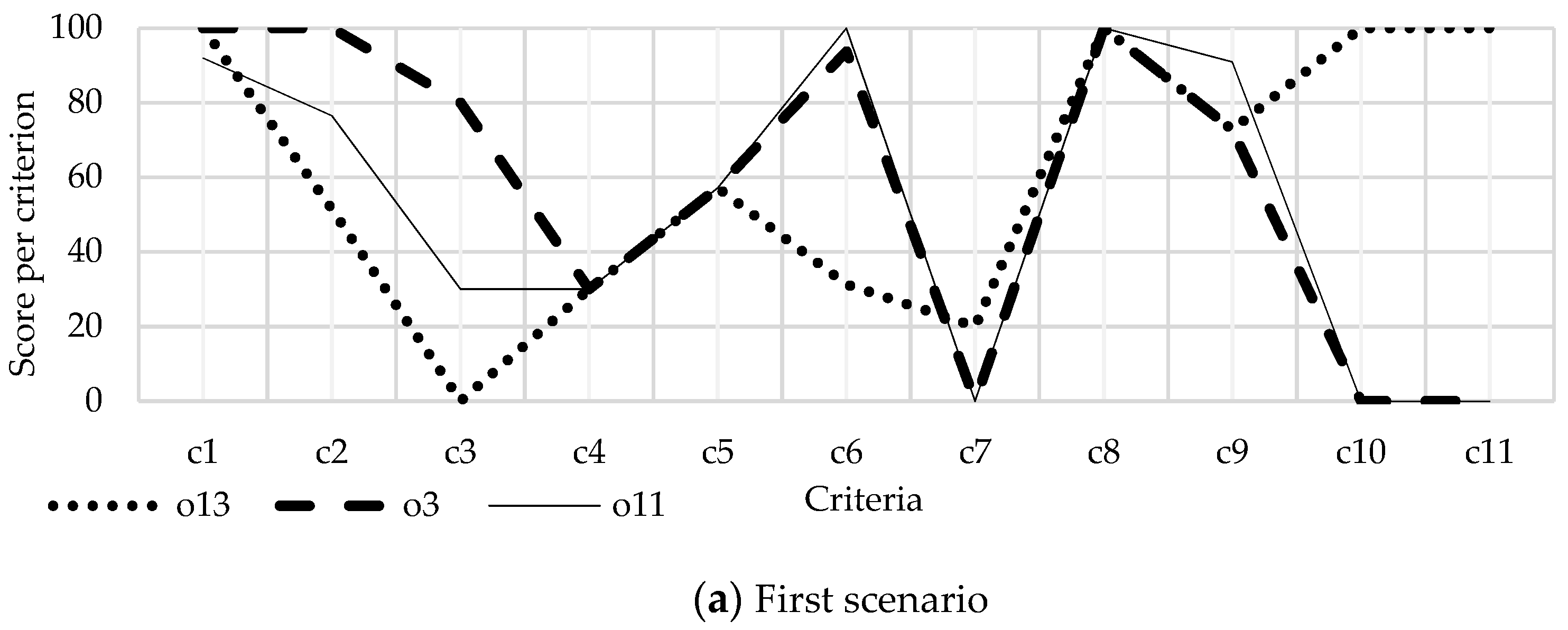

The canvas of value curves (Figure 3) in principle represent the competitiveness of the strategy of the organization per type of services in question. Value differences per criterion correspondingly indicate the extent of competitiveness. Consequently, judgments made applying MACBETH can be used to define the sources of divergence and to consider how sustainable the latter is, letting the organization concerned outperform the other market players not only in the short run but also in the long run. The resulting findings may allow the organization to timely determine the actual and possible future status of competitiveness of its strategy. In this regard, the household (besides judging the most attractive offer) as well as other market players in private and public sectors seeking to implement the investments in question, may also shape their holistic view on the sustainability of the respective economic sector.
Following the context, the adaptability and simplicity of the application of MACBETH (including its potential to be used with other analytic techniques) can also be subject to consideration by state regulatory authorities. Striving to accelerate the transition of the economic sectors towards RES-based and other more sustainable solutions for energy generation, MACBETH can facilitate the public procurement processes as well as the distribution of subsidies for private and public organizations including the state and municipal authorities seeking to become prosumers.

6. Conclusions

The ongoing transformation of economies towards RES-based power generation solutions contributes to sustaining the rising need for electricity consumption and tackling the challenges of climate change. However, the transition must be accelerated to ensure sustainable economic growth, notably under critical geo-strategic developments of the markets. In this respect, stimulating household investments into rooftop solar photovoltaic modules as one of the incentives of the RES spectrum also plays a significant role due to the abundance and low cost of solar energy, and its direct conversion to electricity. While a variety of MCDM methods are used by scholars to investigate and solve tasks related to developing solar plants on different scales, only a few examples were found subject to the selection of rooftop solar photovoltaic modules for households. Furthermore, the specifics of the application of MCDM methods and also their potential to rely upon not only quantitative but also qualitative data may require profound efforts while bringing different results. Consequently, the findings of the conducted experiment in selecting rooftop solar PV solutions for households in Lithuania by measuring attractiveness by a categorical-based evaluation technique (MACBETH) reveal its utility, especially in processing the data, which can be qualitative, quantitative, or a combination of both. Based upon qualitative judgments about the differences in attractiveness, 22 offers were compared and assessed quantifying the relative value of the offers and accordingly ranking the latter. The revealed versatility of the method in question allows consistently selecting, negotiating, and accordingly deciding on the potentially most effective and efficient one. The findings also confirm MACBETH’s potential to be applied not only to solving operational and (or) tactical tasks but also to the strategic objectives of private and public organizations aiming at the competitive and sustainable development in the short and long run. In this context, future research could be subject to combining FF- and RES-based solutions for specifics of different economy sectors by applying the MACBETH approach for reasoning decisions considering the constantly changing business landscape, regulatory systems, and geo-strategic shifts.

Funding

This research received no external funding.

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. The Pairwise Comparison Scores and Rankings

Table A1. (a) First scenario—the scores of pairwise comparisons of offers. (b) First scenario—rankings of offers per criterion.
Table A1. (a) First scenario—the scores of pairwise comparisons of offers. (b) First scenario—rankings of offers per criterion.
(a)
OptionsOverallc1c2c3c4c5c6c7c8c9c10c11
o152.2891.9464.7103010093.76010072.7300
o246.7291.9430.88303057.1431.257010072.7300
o357.6100100803057.1493.75010072.7300
o448.896.77756030100750010000
o530.593.2333.8240057.1475010027.2700
o635.2345.1652.9403057.1475010027.2700
o745.9191.9429.41303057.1493.75010072.7300
o843.281.6197.06303057.1487.5010072.7300
o94291.9477.94303057.14750100000
o1048.08018.3810010057.1462.5010090.9100
o1152.4191.9476.47303057.14100010090.9100
o1232.8651.615003057.140010072.7300
o1360.2410051.4703057.1431.252010072.73100100
o1438.4870.9732.35804010010000000
o1545.4645.1635.29805057.1462.570100000
o1646.1151.6166.18805057.1475010027.2700
o1741.9745.1654.41805057.14750100000
o1845.1510061.7603057.1475010072.7300
o1941.3458.0698.5304028.5775010054.5500
o2038.0670.9767.65030050100100000
o2152.2864.520808057.1462.54010090.9100
o2231.851.6163.2430300750100000
[all upper]100100100100100100100100100100100100
[all lower]000000000000
Weights: 0.09090.09090.09090.09090.09090.09090.09090.09090.09090.09090.0909
(b)
c1c2c3c4c5c6c7c8c9c10c11
Upper—21%o3Best—30 yearso10Best—12 yearsBest—60 dayso20Best—10 yearso4Yes (>=60%)Yes (1/5 years)
o3Best—€8062o10Best—89.2%o1o11Best—25 yearso1Best—1 dayo13o13
o13o19o3o21o4o14o2o2o10o1o1
o18o8o14o15o14o1o15o3o11o2o2
o4o9o15o16o2o3o21o5o21o3o3
o1o11o16o17o3o7o13o6o2o4o4
o2o4o17o14o5o8o1o7o1o5o5
o7o20o21o19o6o4o3o8o3o6o6
o9o16o4o1o7o5o4o9o7o7o7
o11o1o5o2o8o6o5o10o8o8o8
o20o22o2o3o9o9o6o11o12o9o9
o14o18o7o4o10o16o7o12o13o10o10
o21o17o8o6o11o17o8o13o18o11o11
o19o6o9o7o12o18o9o15o19o12o12
o12o13o11o8o13o19o10o16o5o14o14
o22o12o22o9o15o22o11o17o6o15o15
o16o15o1o11o16o10o12o18o16o16o16
o6o5o6o12o17o15o14o19o9o17o17
o15o14o12o13o18o21o16o20o14o18o18
o17o2o13o18o21o20o17o21o15o19o19
o5o7o18o20o19o2o18o22o17o20o20
o8o10o19o22o20o13o19o4o20o21o21
Lower—19.7%o21o20o5o22o12o22o14o22o22o22
o10Worst—€12,140Worst—12 yearsWorst—83.3%Worst—5 yearsWorst—210 daysWorst—10 yearsWorst—5 yearsWorst—14 daysNoNo
Table A2. (a) Second scenario—the scores of pairwise comparisons of offers. (b) Second scenario—rankings of offers per criterion.
Table A2. (a) Second scenario—the scores of pairwise comparisons of offers. (b) Second scenario—rankings of offers per criterion.
(a)
OptionsOverallc1c2c3c4c5c6c7c8c9
o161.4691.9464.7103010093.75010072.73
o257.191.9430.88303057.1431.257010072.73
o370.4100100803057.1493.75010072.73
o459.6496.777560301007500100
o537.383.2333.8240057.1475010027.27
o643.0645.1652.9403057.1475010027.27
o756.1191.9429.41303057.1493.75010072.73
o852.891.6197.06303057.1487.5010072.73
o951.3491.9477.94303057.147501000
o1058.77018.3810010057.1462.5010090.91
o1164.0591.9476.47303057.14100010090.91
o1240.1651.615003057.140010072.73
o1351.410051.4703057.1431.252010072.73
o1447.0470.9732.358040100100000
o1555.5745.1635.29805057.1462.5701000
o1656.3651.6166.18805057.1475010027.27
o1751.345.1654.41805057.147501000
o1855.1810061.7603057.1475010072.73
o1950.5258.0698.5304028.5775010054.55
o2046.5170.9767.650300501001000
o2163.964.520808057.1462.54010090.91
o2238.8751.6163.24303007501000
[all upper]100100100100100100100100100100
[all lower]0000000000
Weights 0.11110.11110.11110.11110.11110.11110.11110.11110.1111
(b)
c1c2c3c4c5c6c7c8c9
Upper—21%o3Best—30 yearso10Best—12 yearsBest—60 dayso20Best—10 yearso4
o3Best—€8062o10Best—89.2%o1o11Best—25 yearso1Best—1 day
o13o19o3o21o4o14o2o2o10
o18o8o14o15o14o1o15o3o11
o4o9o15o16o2o3o21o5o21
o1o11o16o17o3o7o13o6o2
o2o4o17o14o5o8o1o7o1
o7o20o21o19o6o4o3o8o3
o9o16o4o1o7o5o4o9o7
o11o1o5o2o8o6o5o10o8
o20o22o2o3o9o9o6o11o12
o14o18o7o4o10o16o7o12o13
o21o17o8o6o11o17o8o13o18
o19o6o9o7o12o18o9o15o19
o12o13o11o8o13o19o10o16o5
o22o12o22o9o15o22o11o17o6
o16o15o1o11o16o10o12o18o16
o6o5o6o12o17o15o14o19o9
o15o14o12o13o18o21o16o20o14
o17o2o13o18o21o20o17o21o15
o5o7o18o20o19o2o18o22o17
o8o10o19o22o20o13o19o4o20
Lower—19.7%o21o20o5o22o12o22o14o22
o10Worst—€12140Worst—12 yearsWorst—83.3%Worst—5 yearsWorst—210 daysWorst—10 yearsWorst—5 yearsWorst—14 days
Table A3. (a) Third scenario—the scores of pair-wise comparisons of offers. (b) Third scenario—rankings of offers per criterion.
Table A3. (a) Third scenario—the scores of pair-wise comparisons of offers. (b) Third scenario—rankings of offers per criterion.
(a)
OptionsOverallc1c3c4c5c6c7c8c9
o161.0591.9403010093.75010072.73
o260.3891.94303057.1431.257010072.73
o366.7100803057.1493.75010072.73
o457.7296.7760301007500100
o537.833.2340057.1475010027.27
o641.8245.1603057.1475010027.27
o759.4591.94303057.1493.75010072.73
o847.371.61303057.1487.5010072.73
o948.0191.94303057.147501000
o1063.82010010057.1462.5010090.91
o1162.591.94303057.14100010090.91
o1238.9451.6103057.10010072.73
o1351.3910003057.1431.252010072.73
o1448.8770.978040100100000
o1558.145.16805057.1462.5701000
o1655.1351.61805057.1475010027.27
o1750.9145.16805057.147501000
o1854.3610003057.1475010072.73
o1944.5258.0604028.5775010054.55
o2043.8770.970300501001000
o2171.8864.52808057.1462.54010090.91
o2235.8351.61303007501000
[all upper]100100100100100100100100100
[all lower]000000000
Weights 0.1250.1250.1250.1250.1250.1250.1250.125
(b)
c1c3c4c5c6c7c8c9
Upper—21%Best—30 yearso10Best—12 yearsBest—60 dayso20Best—10 yearso4
o3o10Best—89.2%o1o11Best—25 yearso1Best—1 day
o13o3o21o4o14o2o2o10
o18o14o15o14o1o15o3o11
o4o15o16o2o3o21o5o21
o1o16o17o3o7o13o6o2
o2o17o14o5o8o1o7o1
o7o21o19o6o4o3o8o3
o9o4o1o7o5o4o9o7
o11o5o2o8o6o5o10o8
o20o2o3o9o9o6o11o12
o14o7o4o10o16o7o12o13
o21o8o6o11o17o8o13o18
o19o9o7o12o18o9o15o19
o12o11o8o13o19o10o16o5
o22o22o9o15o22o11o17o6
o16o1o11o16o10o12o18o16
o6o6o12o17o15o14o19o9
o15o12o13o18o21o16o20o14
o17o13o18o21o20o17o21o15
o5o18o20o19o2o18o22o17
o8o19o22o20o13o19o4o20
Lower—19.7%o20o5o22o12o22o14o22
o10Worst—12 yearsWorst—83.3%Worst—5 yearsWorst—210 daysWorst—10 yearsWorst—5 yearsWorst—14 days

References

  1. The European Parliament (EP) and the Council of the European Union (EU). Regulation (EU) 2020/852 of the European Parliament and of the Council on the Establishment of a Framework to Facilitate Sustainable Investment, and Amending Regulation (EU) 2019/2088; The European Parliament and the Council of the European Union: Brussels, Belgium, 2020. [Google Scholar]
  2. EU Council. Fit for 55; Press Release: Brussels, Belgium, 2022. [Google Scholar]
  3. European Commission (EC). Communication from the Commission to the European Parliament, the European Council, the European Economic and Social Committee, and the Committee of the Regions. The European Green Deal; European Commission: Brussels, Belgium, 2019. [Google Scholar]
  4. EC. Communisation from the Commission to the European Parliament, the European Council, the Council, the European Economic and Social Committee and the Committee of the Regions. REPowerEU Plan; EC: Brussels, Belgium, 2022. [Google Scholar]
  5. World Bank (WB). Commodity Market Outlook. October 2022; WB: Washington, DC, USA, 2022; 50p. [Google Scholar]
  6. The United Nations Framework Convention on Climate Change (UNFCC). Paris Agreement; UNFCC: Bonn, Germany, 2016; 27p. [Google Scholar]
  7. Iliopoulos, T.G.; Fermeglia, M.; Vanheusden, B. The EU’s 2030 Climate and Energy Policy Framework: How net metering slips through its net. RECIEL 2020, 29, 245–256. [Google Scholar] [CrossRef]
  8. Callejoa, L.H.; Gallardo-Saavedraa, S.; Alonso-Gómez, V. A review of photovoltaic systems: Design, operation and maintenance. Sol. Energy 2019, 188, 426–440. [Google Scholar] [CrossRef]
  9. IMARC Group. Solar Panel Market: Global Industry Trends, Share, Size, Growth, Opportunity and Forecast 2022–2027; IMARC: Southbank, Australia, 2022; 132p. [Google Scholar]
  10. GlobalData. Rooftop Solar Photovoltaic (PV) Market Size, Share and Trends Analysis by Technology, Installed Capacity, Generation, Drivers, Constraints, Key Players and Forecast, 2021–2030; GlobalData: London, UK, 2021; 220p. [Google Scholar]
  11. Bana e Costa, C.; De Corte, J.; Vansnick, J. MACBETH. Int. J. Inf. Technol. Decis. Mak. 2012, 11, 359–387. [Google Scholar] [CrossRef]
  12. Bana e Costa, C.; De Corte, J.; Vansnick, J. On the Mathematical Foundations of MACBETH. Multiple Criteria Decision Analysis: State of the Art Surveys; Greco, S., Ehrgott, M., Figueira, J., Eds.; Springer: New York, NY, USA, 2016; pp. 421–463. [Google Scholar] [CrossRef] [Green Version]
  13. Ferreira, F.A.F.; Santos, S.P. Two decades on the MACBETH approach: A bibliometric analysis. Ann. Oper. Res. 2018, 296, 901–925. [Google Scholar] [CrossRef]
  14. Gokasar, I.; Pamucar, D.; Deveci, M.; Ding., W. A novel rough numbers based extended MACBETH method for the prioritization of the connected autonomous vehicles in real-time traffic management. Expert Syst. Appl. 2023, 211, 118445. [Google Scholar] [CrossRef]
  15. Sanchez-Lopez, R.; Bana e Costa, C.A.; De Baets, B. The MACBETH approach for multi-criteria evaluation of development projects on cross-cutting issues. Ann. Oper. Res. 2011, 199, 393–408. [Google Scholar] [CrossRef]
  16. Ferreira, F.; Santos, S. Comparing trade-off adjustments in credit risk analysis of mortgage loans using AHP, Delphi and MACBETH. Int. J. Strateg. Prop. Manag. 2016, 20, 44–63. [Google Scholar] [CrossRef]
  17. Tzeng, G.-H.; Huang, J.-J. Fuzzy Multiple Objective Decision Making; CRS Press: New York, NY, USA; Taylor & Francis Group: New York, NY, USA, 2014; 299p. [Google Scholar]
  18. Zavadskas, E.; Turskis, Z.; Kildienė, S. State of art surveys of overviews on MCDM/MADM methods. Technol. Econ. Dev. Econ. 2014, 20, 165–179. [Google Scholar] [CrossRef] [Green Version]
  19. Günen, M.A. A comprehensive framework based on GIS-AHP for the installation of solar PV farms in Kahramanmaraş, Turkey. Renew. Energy 2021, 178, 212–225. [Google Scholar] [CrossRef]
  20. Idris, A.M.S.; Dhewanto, W.; Anggoro, Y. State-of-the-art: Multi criteria decision making variables on solar PV business potential. Energy Rep. 2022, 8, 613–624. [Google Scholar] [CrossRef]
  21. Addo, M.-A. Optimal techno-economic potential and site evaluation for solar PV and CSP systems in Ghana. A geospatial AHP multi-criteria approach. Renew. Energy Focus 2022, 41, 216–229. [Google Scholar] [CrossRef]
  22. Garni, H.A.A.; Awasthi, A. Solar PV power plant site selection using a GIS-AHP based approach with application in Saudi Arabia. Appl. Energy 2017, 206, 1225–1240. [Google Scholar] [CrossRef]
  23. Sun, L.; Jiang, Y.; Guo, Q.; Ji, L.; Xie, Y.; Qiao, Q.; Huang, G.; Xiao, K. A GIS-based multi-criteria decision making method for the potential assessment and suitable sites selection of PV and CSP plants. Resour. Conserv. Recycl. 2021, 168, 105306. [Google Scholar] [CrossRef]
  24. Balo, F.; Şağbanşua, L. The Selection of the Best Solar Panel for the Photovoltaic System Design by Using AHP. Energy Procedia 2016, 100, 50–53. [Google Scholar] [CrossRef] [Green Version]
  25. El-Bayeh, C.Z.; Alzaareer, K.; Brahmi, B.; Zellagui, M.; Eicker, U. An original multi-criteria decision-making algorithm for solar panels selection in buildings. Energy 2021, 217, 119396. [Google Scholar] [CrossRef]
  26. Ranganath, N.; Debasis, S.; Preet, P.; Smit, P. Application of fuzzy TOPSIS method for risk evaluation in development and implementation of solar park in India. Int. J. Constr. Manag. 2020, 22, 2764–2774. [Google Scholar] [CrossRef]
  27. Velasquez, M.; Hester, P.T. An analysis of multi-criteria decision making methods. Inter. J. Oper. Res. 2013, 10, 56–66. [Google Scholar]
  28. Noorollahi, Y.; Senani, A.G.; Fadaei, A.; Simaee, M.; Moltames, R. A framework for GIS-based site selection and technical potential evaluation of PV solar farm using Fuzzy-Boolean logic and AHP multi-criteria decision-making approach. Renew. Energy 2022, 186, 89–104. [Google Scholar] [CrossRef]
  29. Podvezko, V. Comparative analysis of MCDA methods SAW and COPRAS. Eng. Econ. 2011, 22, 134–146. [Google Scholar] [CrossRef] [Green Version]
  30. Podviezko, A.; Podvezko, V. Absolute and relative evaluation of socio-economic objects based on multiple criteria decision making methods. Eng. Econ. 2014, 25, 522–529. [Google Scholar] [CrossRef] [Green Version]
  31. Li, C.; Xu, C.; Li, X. A multi-criteria decision-making framework for site selection of distributed PV power stations along high-speed railway. J. Clean. Prod. 2020, 277, 124086. [Google Scholar] [CrossRef]
  32. Mukisa, N.; Zamora, R.; Lie, T.T.; Wu, X.; Chen, G. Multi criteria analysis ranking of solar photovoltaic modules manufacturing countries by an importing country: A case of Uganda. Sol. Energy 2021, 223, 326–345. [Google Scholar] [CrossRef]
  33. Sánchez-Lozano, J.M.; García-Cascales, M.S.; Lamata, M.T. Comparative TOPSIS-ELECTRE TRI methods for optimal sites for photovoltaic solar farms. Case study in Spain. J. Clean. Prod. 2016, 127, 387–398. [Google Scholar] [CrossRef]
  34. Dahooie, H.J.; Kashan, H.A.; Naeini, S.Z.; Vanaki, A.; Zavadskas, E.; Turskis, Z. A Hybrid Multi-Criteria-Decision-Making Aggregation Method and Geographic Information System for Selecting Optimal Solar Power Plants in Iran. Energies 2022, 15, 2801. [Google Scholar] [CrossRef]
  35. Seker, S.; Kahraman, C. Socio-economic evaluation model for sustainable solar PV panels using a novel integrated MCDM methodology: A case in Turkey. Soc. -Econ. Plan. Sci. 2021, 77, 100998. [Google Scholar] [CrossRef]
  36. Narayanamoorthy, S.; Parthasarathy, T.N.; Pragathi, S.; Shanmugam, P.; Baleanu, D.; Ahmadian, A.; Kang, D. The novel augmented Fermatean MCDM perspectives for identifying the optimal renewable energy power plant location. Sustain. Energy Technol. Assess. 2022, 53, 102488. [Google Scholar] [CrossRef]
  37. Cook, W.D.; Tone, K.; Zhu, J. Data envelopment analysis: Prior to choosing a model. Omega 2014, 44, 1–4. [Google Scholar] [CrossRef]
  38. Olesen, O.B.; Petersen, N.C. Stochastic Data Envelopment Analysis—A review. Eur. J. Oper. Res. 2016, 251, 2–21. [Google Scholar] [CrossRef]
  39. Dsilva Winfred Rufuss, D.; Raj Kumar, V.; Suganthi, L.; Iniyan, S.; Davies, P.A. Techno-economic analysis of solar stills using integrated fuzzy analytical hierarchy process and data envelopment analysis. Sol. Energy 2018, 159, 820–833. [Google Scholar] [CrossRef] [Green Version]
  40. Sueyoshi, T.; Goto, M. Comparison among three groups of solar thermal power stations by data envelopment analysis. Energies 2019, 12, 2454. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, C.-N.; Dang, T.-T.; Nguyen, N.-A.-I.; Wang, J.-W. A combined Data Envelopment Analysis (DEA) and Grey Based Multiple Criteria Decision Making (G-MCDM) for solar PV power plants site selection: A case study in Vietnam. Energy Rep. 2022, 8, 1124–1142. [Google Scholar] [CrossRef]
  42. Thebault, M.; Desthieux, G.; Castello, R.; Berrah, L. Large-scale evaluation of the suitability of buildings for photovoltaic integration: Case study in Greater Geneva. Appl. Energy 2022, 316, 119127. [Google Scholar] [CrossRef]
  43. Rediske, G.; Siluk, J.C.M.; Michels, L.; Rigo, P.D.; Rosa, C.B.; Cugler, G. Multi-criteria decision-making model for assessment of large photovoltaic farms in Brazil. Energy 2020, 197, 117167. [Google Scholar] [CrossRef]
  44. Fitriani, N.; Suzanti, I.O.; Jauhari, A.; Khozaimi, A. Application Monitoring and Evaluation using SMART (Simple Multi attribute Rating Technique) Method. J. Phys. Conf. Ser. 2020, 1569, 022090. [Google Scholar] [CrossRef]
  45. Ayough, A.; Boshruei, S.; Khorshidvand, B. A new interactive method based on multi-criteria preference degree functions for solar power plant site selection. Renew. Energy 2022, 195, 1165–1173. [Google Scholar] [CrossRef]
  46. Shah, B.; Lakhani, H.; Abhishek, K.; Kumari, S. Application of Fuzzy Linguistic Modeling Aggregated with VIKOR for Optimal Selection of Solar Power Plant Site: An Empirical Study. Renew. Energy Clim. Chang. 2020, 161, 119–127. [Google Scholar] [CrossRef]
  47. Kozlov, V.; Sałabun, W. Challenges in reliable solar panel selection using MCDA methods. Procedia Comput. Sci. 2021, 192, 4913–4923. [Google Scholar] [CrossRef]
  48. Fard, M.B.; Moradian, P.; Emarati, M.; Ebadi, M.; Chofreh, A.G.; Lemeŝ, J.J. Ground-mounted photovoltaic power station site selection and economic analysis based on a hybrid fuzzy best-worst method and geographic information system: A case study Guilan province. Renew. Sustain. Energy Rev. 2022, 169, 112923. [Google Scholar] [CrossRef]
  49. SolarPower Europe. Global Market Outlook for Solar Power 2022–2026; SolarPower Europe: Brussels, Belgium, 2022; 116p. [Google Scholar]
  50. International Renewable Energy Agency (IRENA). Renewable Power Generation Costs in 2021; International Renewable Energy Agency: Abu Dhabi, United Arab Emirates, 2022; 204p. [Google Scholar]
  51. International Energy Agency (IEA). World Energy Investment 2021; International Energy Agency: Paris, France, 2021; 62p. [Google Scholar]
  52. Eurobserv’ER. Photovoltaic Barometer April 2022; EUROBSERV’ER: Paris, France, 2022; 6p. [Google Scholar]
  53. ICAP. Emissions Trading Worldwide: Status Report 2022; International Carbon Action Partnership: Berlin, Germany, 2022; 240p. [Google Scholar]
  54. Abrell, J.; Kosch, M.; Rausch, S. Carbon abatement with renewables: Evaluating wind and solar subsidies in Germany and Spain. J. Public Econ. 2019, 169, 172–202. [Google Scholar] [CrossRef]
  55. Fraunhofer Institute for Solar Energy Systems ISE. Photovoltaics Report; ISE: Freiburg, Germany, 2022; 53p. [Google Scholar]
  56. EC. The EU’s 2021-2027 Long-Term Budget and NextGenerationEU: Facts and Figures; EC: Brussels, Belgium, 2021; 75p. [Google Scholar]
  57. Wood Mackenzie. The 2022 Global PV Inverter and MLPE Landscape: Prices, Forecasts, Market Share, Trends and Vendors Profiles. Market Report; Wood Mackenzie: Edinburgh, UK, 2022; 177p. [Google Scholar]
  58. Chen, H.; Maxwell, A.; Li, C.; Teale, S.; Chen, B.; Zhu, T.; Ugur, E.; Harrison, G.; Grater, L.; Wang, J.; et al. Regulating surface potential maximizes voltage in all-perovskite tandems. Nature 2022, 613, 676–681. [Google Scholar] [CrossRef]
  59. Shankar, G.; Kumar, P.; Pradhan, B. All-perovskite two-terminal tandem solar cell with 32.3% efficiency by numerical simulation. Mater. Today Sustain. 2022, 20, 100241. [Google Scholar] [CrossRef]
  60. Dzikuć, M.; Piwowar, A.; Dzikuć, M. The importance and potential of photovoltaics in the context of low-carbon development in Poland. Energy Storage Sav. 2022, 1, 162–165. [Google Scholar] [CrossRef]
  61. Trela, M.; Dubel, A. Net-Metering vs. Net-Billing from the Investors Perspective—Impacts of Changes in RES Financing in Poland on the Profitability of a Joint Photovoltaic Panels and Heat Pump System. Energies 2022, 15, 227. [Google Scholar] [CrossRef]
  62. Yunna, W.; Buyuan, Z.; Chenghao, W.; Ting, Z.; Fangtong, L. Optimal site selection for parabolic trough concentrating solar power plant using extended PROMETHEE method: A case in China. Renew. Energy 2019, 143, 1910–1927. [Google Scholar] [CrossRef]
  63. Deveci, M.; Cali, U.; Pamucar, D. Evaluation of criteria for site selection of solar photovoltaic (PV) projects using fuzzy logarithmic additive estimation of weight coefficients. Energy Rep. 2021, 7, 8805–8824. [Google Scholar] [CrossRef]
  64. Solangi, Y.A.; Shah, S.A.A.; Zameer, H.; Ikram, M.; Saracoglu, B.O. Assessing the solar PV power project site selection in Pakistan: Based on AHP-fuzzy VIKOR approach. Environ. Sci. Pollut. Res. 2019, 26, 30286–30302. [Google Scholar] [CrossRef]
  65. Kim, W.C.; Mauborgne, R. Blue Ocean Shift: Beyond Competing, Proven Steps to Inspire Confidence and Seize New Growth; Hachette Books: New York, NY, USA, 2017; 243p. [Google Scholar]
  66. EC. Photovoltaic Geographical Information System (PVGIS). 2017. Available online: https://re.jrc.ec.europa.eu/pvg_tools/en/ (accessed on 1 February 2023).
  67. Junior, H. Multicriteria approach to data envelopment analysis. Pesqui. Oper. 2008, 28, 231–242. [Google Scholar] [CrossRef]
Figure 1. (a) Cumulative installed solar PV capacity and average installed cost for solar photovoltaics, worldwide, for the 2010–2021 period (source: author, based on [49,50]); (b) average annual WTI and Brent crude oil (global), Nord Pool electricity (Europe), and natural gas prices (Europe and U.S.), for the 2010–2022 period (source: author, based on [5,10]).
Figure 1. (a) Cumulative installed solar PV capacity and average installed cost for solar photovoltaics, worldwide, for the 2010–2021 period (source: author, based on [49,50]); (b) average annual WTI and Brent crude oil (global), Nord Pool electricity (Europe), and natural gas prices (Europe and U.S.), for the 2010–2022 period (source: author, based on [5,10]).
Energies 16 02999 g001
Figure 2. The position of offers in terms of cost and an overall score of attractiveness.
Figure 2. The position of offers in terms of cost and an overall score of attractiveness.
Energies 16 02999 g002
Figure 3. The canvas of value curves of the three most attractive offers per each of the scenarios.
Figure 3. The canvas of value curves of the three most attractive offers per each of the scenarios.
Energies 16 02999 g003aEnergies 16 02999 g003b
Table 1. The 10 leading manufacturers (in actual shipments in 2019–2021) worldwide.
Table 1. The 10 leading manufacturers (in actual shipments in 2019–2021) worldwide.
No.Manufacturer of Solar PV Modules, Country of HeadquartersNo. of Types of
Solar PV Technology
No. of Types of Solar PV Module per Type of TechnologyNo. of Variants of Solar
PV Module per Type
1Canadian Solar, Inc., Canada3At least 1; max 5At least 5; max 7
2Hanwha Group, Plc., S. Korea2At least1; max 2At least 6; max 8
3First Solar, Inc., United States12At least 6; max 8
4Ja Solar Technology Co., Ltd., China12At least 5; max 6
5Jinko Solar Holding Co., Ltd., China3At least 4; max 65
6Trina Solar Co., Ltd., China25At least 8; max 9
7Chint Solar Co., Ltd., China2At least 2; max 44
8LONGi Green Energy Technology Co., Ltd., China253
9Risen Energy Co., Ltd., China2At least 3; max 8At least 5; max 6
10Shunfeng International Clean Energy Ltd., China335
Source: Author; the findings are based on the analysis offerings of entities in the table; entities listed in alphabetical order; the first 6 are also among 10 leading manufacturers worldwide in terms of actual shipments since 2012 [8,9,10].
Table 2. Summary of the search on the solar PV module selection using MCDM methods.
Table 2. Summary of the search on the solar PV module selection using MCDM methods.
Ref.CountryCase StudyMethod
[19]TurkeySolar farm location selectionAHP
[20]IndonesiaSolar PV business evaluationAHP
[21]GhanaSite evaluation of solar PVAHP, geographic information system (GIS)
[22]Saudi ArabiaSolar PV plant site selectionAHP
[23]ChinaSolar PV plant site selectionAHP, GIS
[24]Not specifiedSolar PV module selectionAHP
[25]Not specifiedSolar PV module selectionTOPSIS
[26]IndiaSolar park risk evaluationTOPSIS
[32]UgandaRanking solar PV module manufacturing countriesVIKOR
[33]SpainSite selection for solar farmELECTRE, TOPSIS
[35]TurkeyPM manufacturer evaluationAHP, MULTIMOORA, Interval Valued Pythagorean Fuzzy (IVPF)
[41]VietnamSolar energy versus fossil fuelDEA, AHP, and TOPSIS
[62]ChinaSolar power plant site selectionPROMETHEE
[45]Not specifiedSolar power plant site selectionPROMETHEE and Interactive Simple Additive Weighting (ISAW)
[43]BrazilAssessment of solar farmsAHP, TOPSIS
[42]SwitzerlandEvaluation of buildings for photovoltaic integrationELECTRE
[46]IndiaSelection of solar power plant siteFuzzy Linguistic Modeling Aggregated with VIKOR
[28]IranSolar PV plant site selectionFuzzy-Boolean logic and AHP
[47]Not specifiedSolar PV module selectionThe Characteristic Objects Method (COMET) and TOPSIS
[31]ChinaSolar PV plant site selectionThe fuzzy grey relational projection (FGRP)
[48]IranSolar PV power station site selectionThe combined fuzzy best-worst method (FBWM), GIS
Table 3. Summary of offers received from contractors of a rooftop solar PV system with a 10 kW electricity generation capacity.
Table 3. Summary of offers received from contractors of a rooftop solar PV system with a 10 kW electricity generation capacity.
The Criterion (ci)Product Efficiency Stated by the
Contractor (%)
Cost (€/10 kW)Product Warranty (Years)Product Performance Efficiency Warranty after 25 YearsInverter Warranty (Years)Time until Solar PV System
Installed and Operational (Days)
Installation Construction Warranty (Years)Warranty of Installation Works (Years)Waiting Time for Emergency Repairs Services Execution (Days)Compensation for Non-Produced
Electricity (€/%/Day of Non-Generation/Average): Yes/No
Maintenance Inspection (Free of Charge): Yes/No
Offer no. (oi: Module
and Inverter Names)
c1c2c3c4c5c6c7c8c9c10c11
Offer 1 (o1) (Risen RSM40-8-400M, Foxess T10-G3, 10 kW)20.89869.671284.8127010105NoNo
o2 (Trina Solar TSM-400DE09.08 (Vertex S); Sofar Solar 11KTLX-G3)20.810,793.201584.81015020105NoNo
o3 (Canadian Solar CS6R-410MS; Sofar Solar 11KTLX-G3)218062.162584.8107010105NoNo
o4 (Solet410MHS-54; SOFAR 8,8KTLX-G3-3PH)20.979540.082084.812901051NoNo
o5 (ZnShine410W; Sungrow)20.2510,7501683.331090101010NoNo
o6 (Risen RSM144-7-450M; Sofar Solar 11KTLX-G3)20.410,115.601284.81090101010NoNo
o7 (Trina Vertex S 400W DE09.08; Huawei-Sun 2000-10 kW KTL M1)20.810,8001584.8107010105NoNo
o8 (Risen RSM40-8-400M; Solis S5-GR3P10K0)20.39015.981584.8107710105NoNo
o9 (Trinasolar TSM-DE09.08 400W; Foxess T10-G3, 10 kW)20.894001584.81090101014NoNo
o10 (Solitek 365W; Huawei Sun 2000-10KTL-M1)19.711,634.253089.21012010103NoNo
o11 (Risen RSM40-8-400M; Solplanet ASW10K-LT-G2)20.894471584.8106010103NoNo
o12 (Canadian Solar CS3L-MS 380W; Huawei Sun 2000-10KTL-M1)20.510,222.961284.81021010105NoNo
o13 (Canadian Solar CS6R-410MS; Huawei Sun 2000-10KTL-M1)2110,127.541284.81015012105Yes (60%, a 10-year warranty)Yes (1/5 years)
o14 (Hyundai HiE-S405Wp; Foxess T10-G3, 10 kW)20.710,786.522584.9126010514NoNo
o15 (Hyundai HiE-S400VI; Huawei Sun 2000-8KTL-M1-1)20.410,600258510120201014NoNo
o16 (Hyundai HiE-S480VI; Growatt MOD 9000-TL3-X)20.59821.4325851090101010NoNo
o17 (Hyundai HiE-S400VI; Sungrow)20.410,060.9725851090101014NoNo
o18 (JASOLAR 410W; Huawei Sun 2000-8KTL-M1-1)219959.351284.8109010105NoNo
o19 (Jinko Tiger Pro JKM445M-60HL-4V BF445W; FRONIUS Symo 10.0-3-M WLAN/LAN)20.628954.251284.979010107NoNo
o20 (Autarco S1.MHJ405; Autarco S2.LQ12000S-MII)20.79765.751284.85140251014NoNo
o21 (Sunpower 6BLK 405W; Huawei Sun 2000-10KTL-M1)20.612,140.942587.21012015103NoNo
o22 (Trina Solar Vertex S TSM-DE09.08 395 Wp; Delta RPI M10A)20.59925.061584.8590101014NoNo
Table 4. Semantic scale [11,12].
Table 4. Semantic scale [11,12].
Semantic Category (SC) of AttractivenessCategory
Indicator (SCk)
ScaleVariant of Judgment Comparing Offers o1, o2, …, o22 per Criterion c1, c2, c3, …, cn (Table 3)
No (N)SC00Indifference of judgments pairwise comparing offers o1, o2, …, o22 (i.e., o12 I o13) per criterion ci
Very weak (VW)SC11Very weakly attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Weak (W)SC22Weakly attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Moderate (M)SC33Moderately attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Strong (S)SC44Strongly attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Very strong (VS)SC55Very strongly attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Extreme (E)SC66Extremely attractive oi over oj (i.e., oi P oj) pairwise comparing offers per criterion ci
Table 5. The comparison of scenarios’ final ranks and overall scores.
Table 5. The comparison of scenarios’ final ranks and overall scores.
First ScenarioSecond ScenarioThird Scenario
RankOptionOverall ScoreRankOptionOverall ScoreRankOptionOverall Score
1o1360.241o370.401o2171.88
2o357.602o1164.052o366.70
3o1152.413o2163.903o1063.82
4o2152.284o161.464o1162.50
5o150.285o459.645o161.05
6o448.806o1058.776o260.38
7o1048.087o257.107o759.45
8o246.728o1656.368o1558.10
9o1646.119o756.119o457.72
10o745.9110o1555.5710o1655.13
11o1545.4611o1855.1811o1854.36
12o1845.1512o852.8912o1351.39
13o843.2813o1351.4013o1750.91
14o942.0014o951.3414o1448.87
15o1741.9715o1751.3015o948.01
16o1941.3416o1950.5216o847.37
17o1438.4817o1447.0417o1944.52
18o2038.0618o2046.5118o2043.87
19o635.2319o643.0619o641.82
20o1232.8620o1240.1620o1238.94
21o2231.8021o2238.8721o537.83
22o530.5922o537.3822o2235.83
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tamošiūnas, A. Selecting Rooftop Solar Photovoltaic Modules by Measuring Their Attractiveness by a Categorical-Based Evaluation Technique (MACBETH): The Case of Lithuania. Energies 2023, 16, 2999. https://doi.org/10.3390/en16072999

AMA Style

Tamošiūnas A. Selecting Rooftop Solar Photovoltaic Modules by Measuring Their Attractiveness by a Categorical-Based Evaluation Technique (MACBETH): The Case of Lithuania. Energies. 2023; 16(7):2999. https://doi.org/10.3390/en16072999

Chicago/Turabian Style

Tamošiūnas, Andrius. 2023. "Selecting Rooftop Solar Photovoltaic Modules by Measuring Their Attractiveness by a Categorical-Based Evaluation Technique (MACBETH): The Case of Lithuania" Energies 16, no. 7: 2999. https://doi.org/10.3390/en16072999

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
