Techno-Economic Assessment of High-Safety and Cost-Effective Syngas Produced by O2-Enriched Air Gasification with 40–70% O2 Purity
Abstract
:1. Introduction

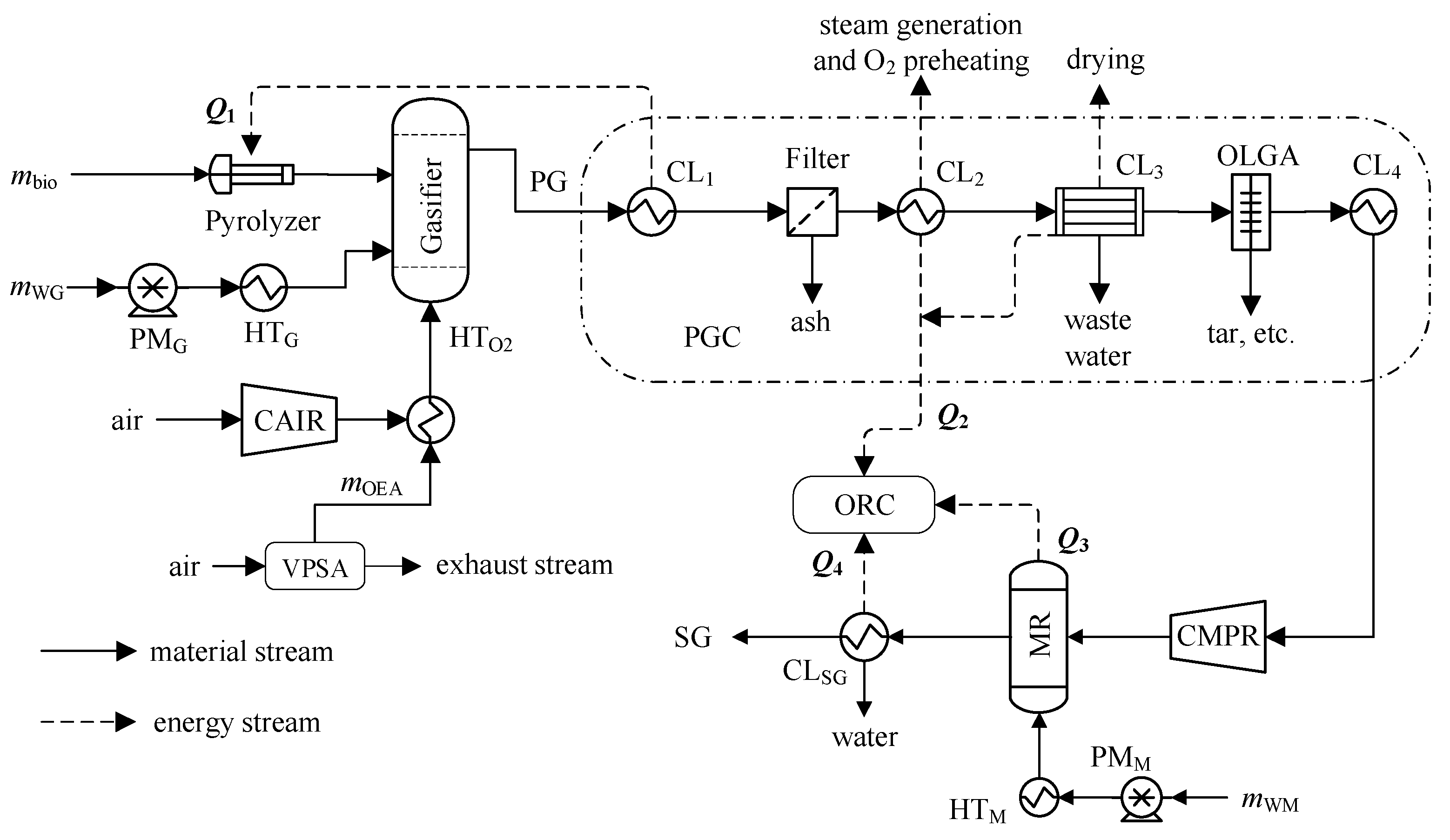

2. Process Configuration
- (1)
- O2-enriched air gasification (OAG)
- (2)
- Vacuum Pressure Swing Adsorption (VPSA)
- (3)
- Producer Gas Cleaning (PGC)
- (4)
- Methanation Synthesis
3. Assessment Methodology
3.1. Requirements on Syngas
3.2. Exergy Analysis
3.3. Economic Assessment
3.4. Sensitivity Analysis
4. Results and Discussion
4.1. Technical Performances

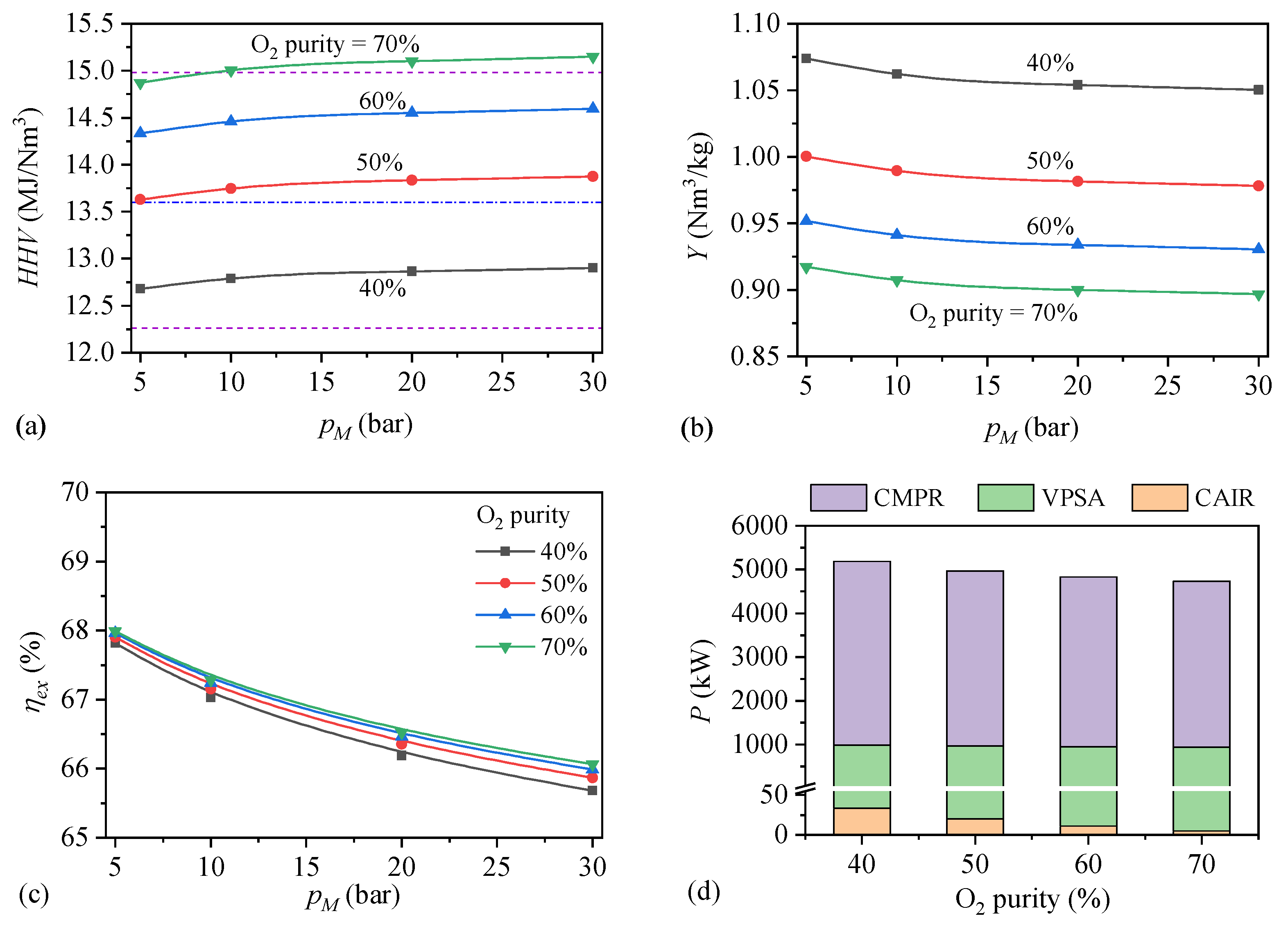

- (1)
- Effects of O2 purity and methanation pressure
- (2)

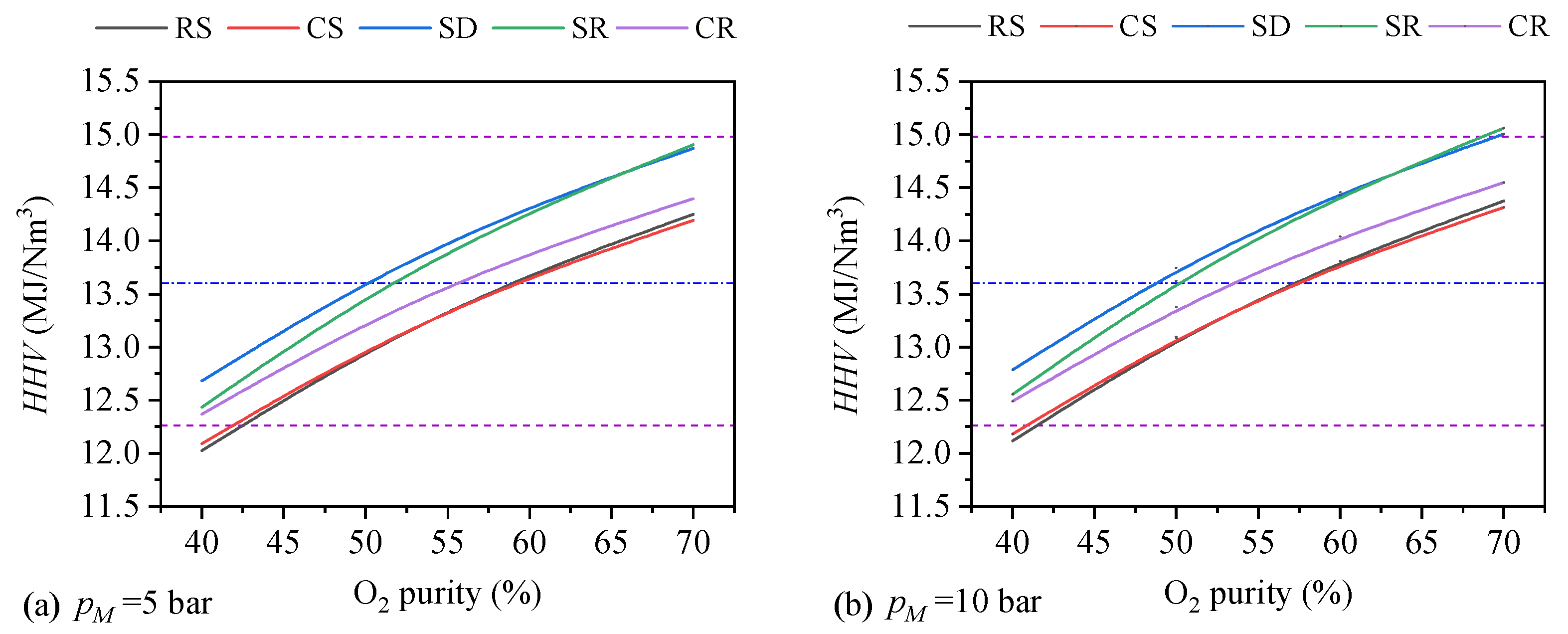

- Syngas properties of different feedstock
4.2. Economic Performances
- (1)

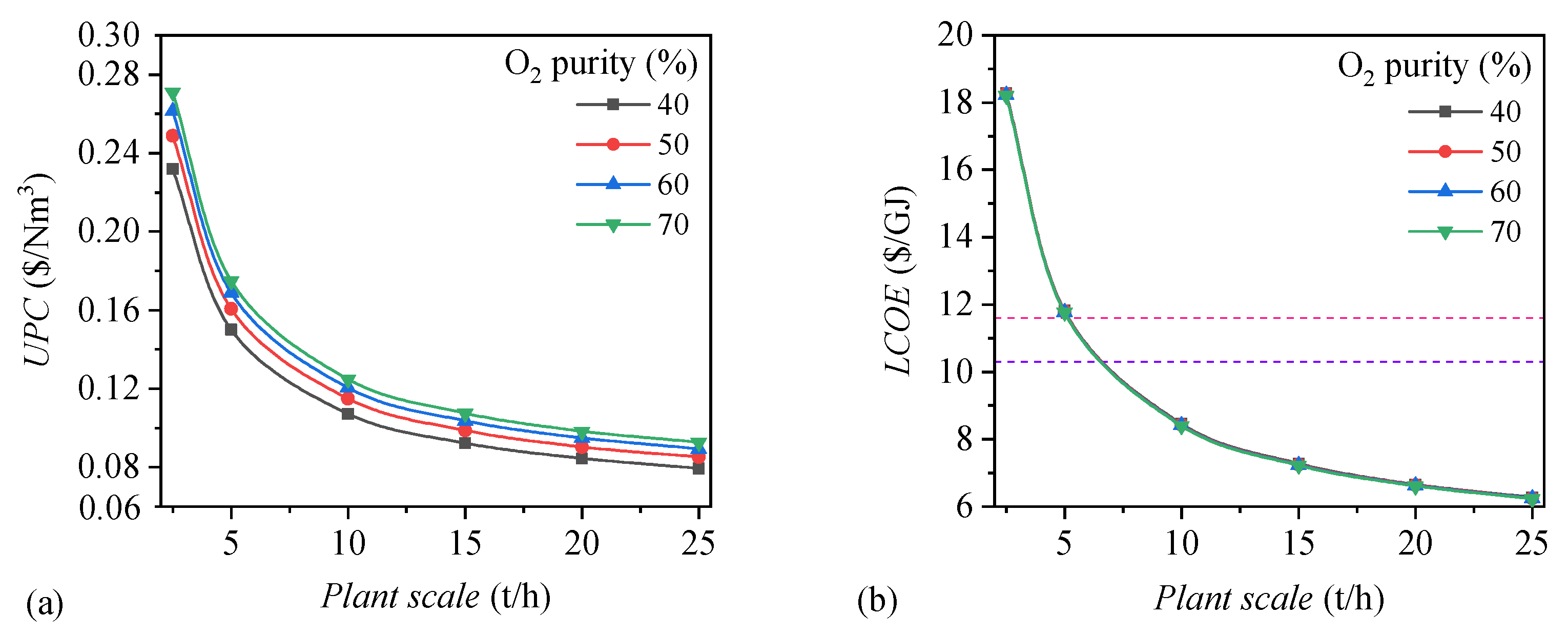

- Feedstock Cost
- (2)
- Plant Scale
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
