Understanding the Competition Mechanism between Na₂O and CaO for the Formation of the Initial Layer of Zhundong Coal Ash

Abstract

The contents of alkali and alkaline earth metals are higher in Zhundong coal, and there are serious problems of slagging and fouling during the combustion process. Therefore, it is of great significance to reveal the mechanism of slagging and fouling in the boiler of Zhundong coal. In this paper, first-principle calculations based on density functional theory are used to study the competition mechanism of alkaline metal oxides during the combustion process in Zhundong coal by establishing the Na₂O(110)/CaO(100)-SiO₂(100) double-layer interface model. The results show that the bond lengths of the surface of Na₂O(110) and CaO(100) with SiO₂(100) after adsorption were generally lengthened and the value of bond population became smaller, which formed a stable binding energy during the reaction. The electron loss of Na is 0.05 e, the electron loss of Ca is 0.03 e, and the electron loss of Na₂O is greater than that of CaO. The charge transfer on the surface of Na₂O with SiO₂ is obviously higher than that of CaO and the orbital hybridization on the surface of CaO with SiO₂ is weaker than that on the surfaces of Na₂O with SiO₂. Na₂O is easier to react with SiO₂ than CaO. The adsorption energies on the surface of Na₂O and CaO with SiO₂ are −5.56 eV and −0.72 eV, respectively. The adsorption energy of Na₂O is higher than that of CaO, indicating that Na₂O is more prone to adsorption reactions and formation of Na-containing minerals and other minerals, resulting in more serious slagging. In addition, the XRD analyses at different temperatures showed that Na-containing compounds appeared before Ca-containing ones, and the reaction activity of Na₂O is stronger than that of CaO in the reaction process. The experimental results have good agreement with the calculation results. This provides strong evidence to reveal the slagging and fouling of Zhundong coal.

1. Introduction

As a large country of coal resources, it is a great significance to make clean, efficient and rational use of the existing coal resources in China, which has abundant coal reserves, which are good for power, and low mining costs [1,2]. However, Zhundong coal has a special quality, with a high content of alkali and alkaline earth metals in the ash. The Na, Ca, and K salts are precipitated during the combustion process and easily react with other minerals in the coal ash, which further melts the compounds. The molten inorganic compounds condense on the lower temperature pipe wall to form a low-temperature eutectic, which makes melting and slagging in the high-temperature zone easy. Further, it results in slagging/fouling of the boiler and reduces its operation efficiency [3,4,5].

As an important indicator to measure whether the boiler can operate normally, the melting characteristics are related to the composition of coal ash [6]. Researchers have shown that Na reacts with SiO₂ during combustion to form a thin layer of silicate. Silicate further reacts with sodium to form portil, which condenses on the pipe wall at low temperatures to form a low-temperature eutectic [7,8,9,10,11]. Some researchers have studied the deposits on the heating surface of the boiler and found that sulfates containing Na and Ca deposited on the heating surface are a prominent cause of slagging and fouling problems in Zhundong coal [12,13]. Previous studies have shown that wollastonite and sodium silicate generated by the reaction of Na₂O and CaO with SiO₂ were the main factors causing the slagging of Zhundong coal. However, the study on slagging characteristics is limited to the macroscopic viewing analysis of slag samples. Therefore, it is crucial to explore the influence of its micro-formation mechanism on the slagging and fouling of Zhundong coal. By calculating the electronic structure and adsorption energy of minerals, slagging, a trend caused by the reaction of Na₂O and CaO with SiO_2, is predicted, which provides data support for the discussion of slagging characteristics.

In recent years, with the development of quantum chemistry theory, the first-principle calculation has been widely used to determine the structure and ground state properties of materials [14,15]. It explains the reaction activity of minerals at the molecular level and provides a theoretical basis for analyzing the reaction mechanism of substances during the phase transition process [16]. One way to study the relationship between a minerals’ structure and property based on quantum chemistry theory is to model the actual problem, and selection of model is key to solving the problem. The bilayer model can calculate the situation of individual molecules that are adsorbed on the surface and the interaction of molecules between layers, and it can explain the properties of minerals from the electronic structure and surface reaction. The researchers of [17] applied quantum chemistry theory to reveal the macroscopic phenomenon of substances from the perspective of the microscopic characteristics of the molecular structure, which provided a theoretical basis for analyzing the physical and chemical properties in the reaction process. Researchers have studied the heterogeneous adsorption of HCN on the CaO(100) surfaces by using the first-principle calculation, indicating that HCN was more easily adsorbed on the Ca vacancy surface of the defective CaO(100) surface and the adsorption capacity was decreased with increasing temperature. Lu [18] studied the action mechanism of Cd on the SiO₂(001) surface from the microscopic point of view and found that the O site is the active site on the SiO₂(001) surface. The adsorption mode of CdO on the SiO₂(001) surface was chemical adsorption, which made the reaction with the SiO₂(001) surface easier. The results have provided theoretical support for the removal of Cd pollutants. Lin [19] used the density functional theory (DFT) to study the adsorption reaction of CO on different crystal surfaces of Fe₂O₃ in the chemical ring combustion process. The results showed that a CO adsorption reaction could occur on both (001) and (100) crystal surfaces of Fe₂O₃ and that the addition of Fe₂O₃ could promote the adsorption of CO.

The above research is the application of quantum chemistry theory to the adsorption and surface properties of a single molecule on the crystal surface. Compared with the single-molecule model, crystal-surface models with periodic boundary conditions are better to describe the solid surface. However, there are few studies on the molecular interactions between layers on crystal surfaces. Han [20] et al. studied the interaction of surface modified colloidal silica with polyvinyl alcohol by molecular simulation, which showed that the interaction of modified silica with polyvinyl alcohol molecules was significantly enhanced. By using quantum chemistry theory, Yang [21] studied the interaction between the NaCl surface and Fe₂O₃, Al₂O₃, and NiO surface in high-alkali coal and found that the adsorption energy was positively correlated with the slagging condition in the boiler. The greater the adsorption energy, the more serious the slagging.

In order to more accurately describe the real situation, the adsorption models of oxides are established in this paper. Density functional theory plays a key role in the calculation of micro parameters such as adsorption energy, charge transfer, and the bond length of gases and solids on the coal surface. The adsorption capacity of different substances on the coal surface is obtained by calculation. The theory provides an important theoretical basis for the study of spontaneous coal combustion, gasification, and the combustion process. Through the analysis of adsorption characteristics, we can deeply understand the interaction mechanism between substances, that is, a higher adsorption capacity means a stronger intermolecular interaction.

In this paper, the competition mechanism of alkaline metal oxides during the reaction between compounds in Zhundong coal is studied by means of simulations and experiments. Na₂O(110)-SiO₂(100) and CaO(100)-SiO₂(100) models were established and the adsorptions were calculated using DFT. Orbital density and Mulliken population analysis were used to reveal the competitive relationship between Na₂O and CaO, which reacted with SiO₂ on the surface and predicted the trend of slagging caused by the reaction of Na₂O and CaO with SiO₂. In addition, the competition between Na₂O and CaO in the mixture was studied by XRD results of the complex under different temperature conditions. Combined with the simulation results, it is shown that the formation of Na-containing minerals and other compounds in the high-temperature zone is more serious, which provides an effective way to solve the slagging and fouling problem of Zhundong coal.

2. Simulation Calculation and Experimental Research

2.1. Selection of Crystal Cells

The initial layer of coal ash slag mainly consists of volatile substances such as Na₂O and CaO reacting with SiO₂ to generate wollastonite and sodium silicate. Therefore, Na₂O, CaO, and SiO₂ are selected as the research object to analyze the reaction mechanism of alkali metals reacting with high-melting point mineral SiO₂ in the coal ash. Na₂O, CaO, and SiO₂ belong to the cubic crystal system, Na₂O and CaO are part of the Fm3m space group, and SiO₂ is part of the Fd3m space group. The cell parameters are shown in

Table 1. Lattice constants of Na₂O, CaO, and SiO₂.

Name	Space Groups	Lattice Constants
		a/Å	b/Å	c/Å
Na2O	Fm3m	5.568	5.568	5.568
CaO	Fm3m	4.817	4.817	4.817
SiO2	Fd3m	7.120	7.120	7.120

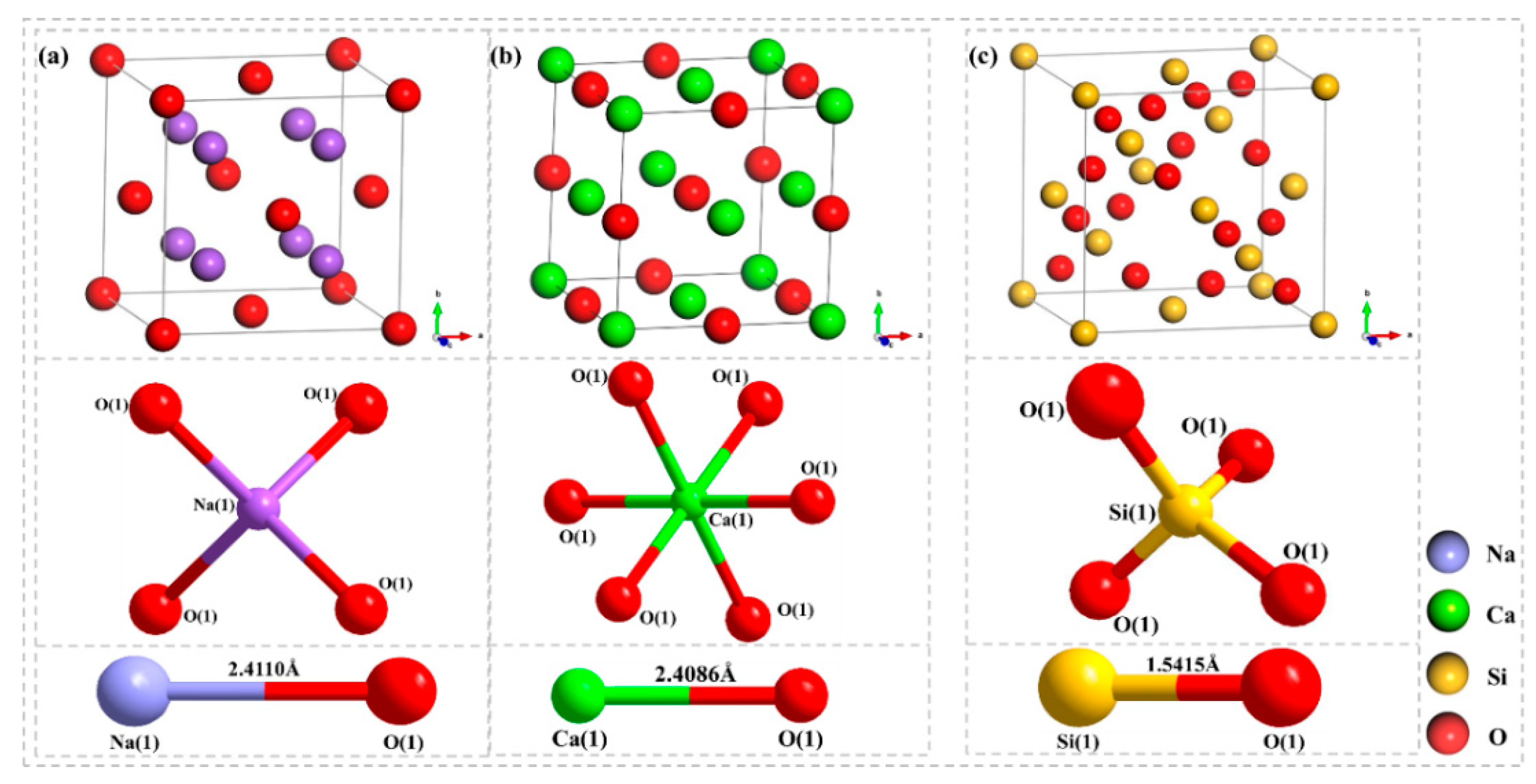

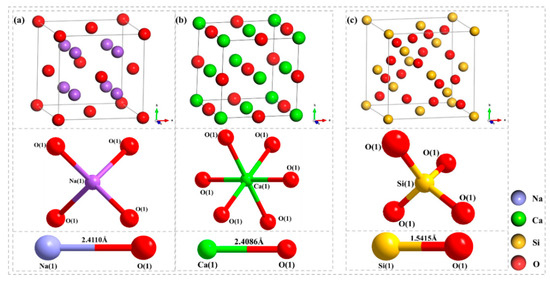

, and Figure 1 shows the initial crystal cell structure of three compounds.

2.2. Selection of Stable Crystal Planes

One method to study the adsorption between two compounds is generally conducted through the interaction forces between surfaces. Therefore, an optimized 3D structural model was sectioned using Build in the toolbar of the Materials Studio software before crystal modeling. It is calculated that Na₂O(110), CaO(100), and SiO₂(100) crystal faces are relatively stable and easy for interface modeling, so the optimized crystal cell structure is faceted and the thickness of the three faceted cuts is 5 layers. Clean Na₂O(110), CaO(100), and SiO₂(100) surfaces were constructed on this basis, respectively.

2.3. Establishment of a Double-Layer Model

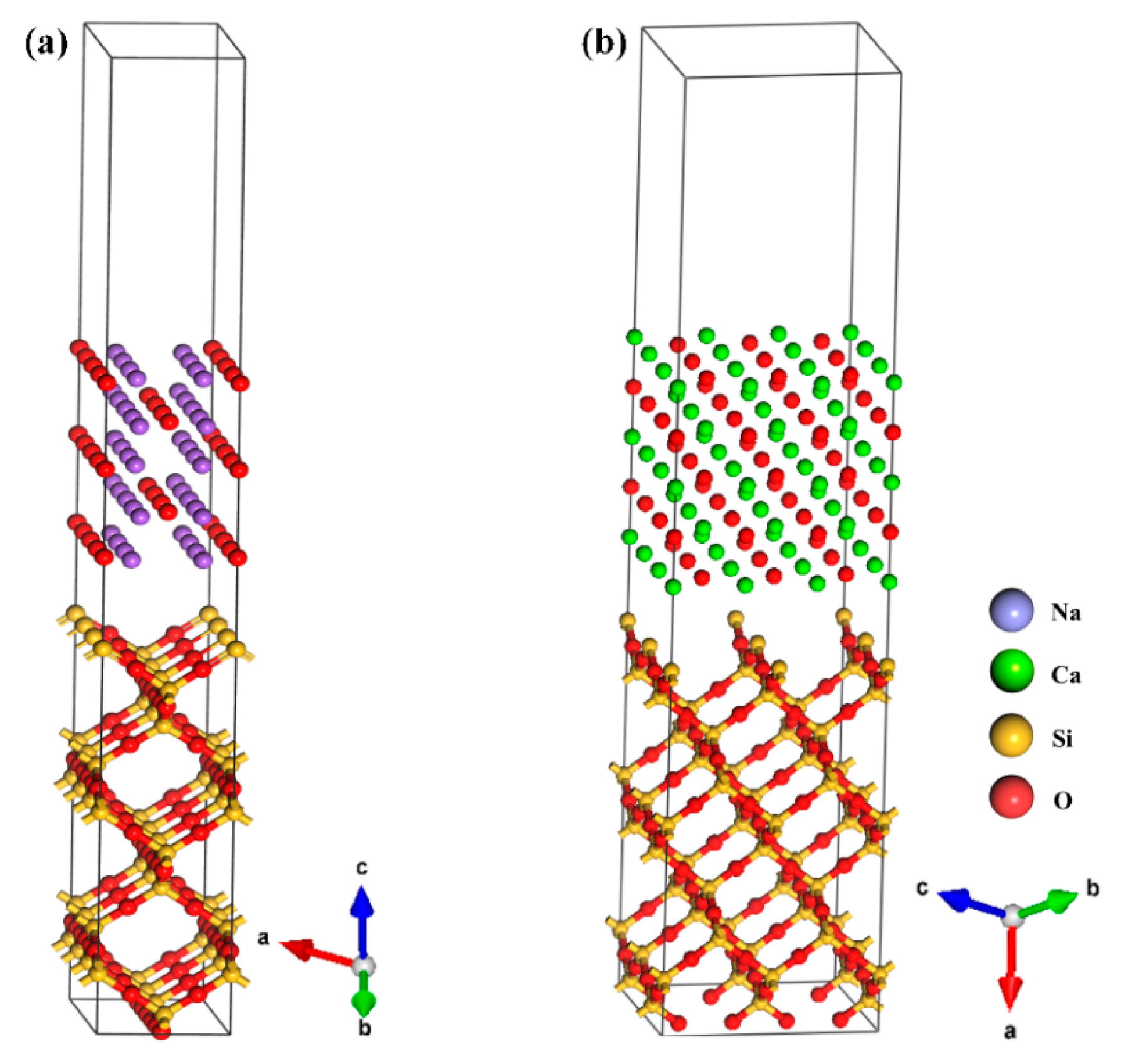

The Na₂O(110) and CaO(100) crystal planes were modeled with SiO₂(100) crystals by using the Build Layer tool, and the constructed model is shown in Figure 2. The top two layers of the crystal cell play a major role in surface adsorption and the deep solid molecules have little effect on it. The optimization was carried out using the bottom three layers of atoms fixed for the relaxation of the surface and the vacuum layer thickness was set at 15 Å to ensure that the bottom liner atoms were not affected by other nearby atoms in the calculation.

Table 2. Geometric parameters of the interface models.

Name	a/Å	b/Å
Na2O(110)-SiO2(100)	5.4224	8.5581
CaO(100)-SiO2(100)	4.3322	5.4189

shows the geometrical parameters after the establishment of the adsorption model. Compared with Table 1, the lattice parameters changed after the establishment of the interface model. During the modeling process, it was necessary to match the adaptability of the upper and lower models by establishing the supercell structure. To facilitate data acquisition, approximate numerical values were used for both the upper and lower layers of materials, which were within the error tolerance.

2.4. Calculation Methods

Na₂O, CaO, and SiO₂ crystal cells were cut and interface modeling was carried out using the Build menu in the Materials Studio software. The ultra-soft pseudopotential plane wave method based on first principles was adopted to replace the ionic potential with the pseudopotential, and the electron wave function was expanded with the plane wave basis set [22]. The BFGS algorithm was used for quantum calculations in the structure optimization, [23] and the GGA-PBE algorithm in the generalized gradient approximation was used to describe the electron exchange correlation [24,25]. The CASTEP module was used for structural optimization and energy calculations. In order to ensure calculation accuracy, the cut-off energy was set to 300 eV for the optimization, and the convergence standard for geometric configuration optimization was as follows: the total energy accuracy was set to an atomic energy of 1.0 × 10⁻⁵ eV and each atom experienced a force within the crystal less than 0.03 eV/Å with a maximum displacement of 0.01 Å to make it as close as possible to the real structure under the geometric optimization. For the calculation, the periodic boundary conditions were chosen for the crystallographic protocells of three types of crystal cells, the spin polarization was neglected, and the pseudopotentials were processed using Ultrasoft. The Monkhost–Pack method was used for sampling the Brillouin zone for the k-points, taking the values of 4 × 4 × 1 and 2 × 2 × 1. Convergence of the structure was achieved by varying the number of iterations.

2.5. Experimental Verification of Simulation

The reagents Na₂O, CaO, and SiO₂ were purchased from Aladdin and used as reagents without any treatment.

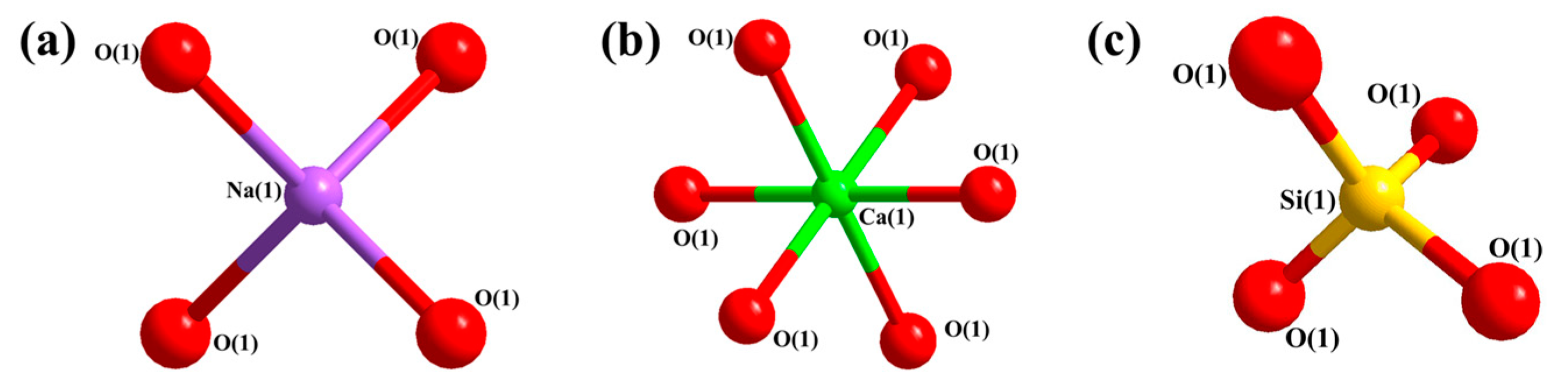

To verify the accuracy of the simulation results, Na₂O, CaO, and SiO₂ with the same molar fraction as the simulated Na₂O-CaO-SiO₂ system were selected as the raw materials for the experiment. The three oxides were weighed and fully ground in a molar ratio of 1:1:1 to prepare synthetic coal ash. The mixture was placed in a corundum crucible and put into a muffle furnace for calcination. The experimental combustion temperature range was between 400 and 750 °C and a sample was taken at 50 °C intervals. The combustion time was set to 2 h. After calcination, the samples were measured to analyze the reaction of Na and Ca in the mixture, and three parallel experiments were conducted on each group of sample. Their chemical structures are shown in Figure 3.

3. Results and Discussion

3.1. Selection of Crystal Planes

When cutting the surface of a block, the surface energy (SE) is the energy required to break chemical bonds, which directly determines the stability of the crystal surface. The stability of the crystal surface directly reflects the bonding and properties of surface atoms and is related to the bonding characteristics of atoms in the crystal cell. We calculated the surface energy of different crystal planes of SiO₂, Na₂O, and CaO cells to determine the relatively stable crystal planes.

Table 3. Structural parameters of SiO₂, Na₂O, and CaO after optimization of different crystal faces.

Unit Cell	Crystal Face	a/Å	b/Å	c/Å	α	β	γ	Vacuum Layer Thickness/Å
SiO2	(001)	5.2883	5.4991	38.4782	90	90	90	15
	100	5.3005	5.5416	40.1540	90	90	90	15
	110	7.4630	5.2771	26.8735	90	90	90	15
Na2O	100	3.9871	3.9871	27.6870	90	90	90	15
	110	5.7398	3.8099	26.0571	90	90	90	15
CaO	100	6.7492	6.7492	24.7179	90	90	90	15
	110	4.6202	3.5715	21.5845	90	90	90	15

shows the optimized structural parameters of different crystal planes. The calculation formula of surface energy is as shown in Equation (1): [26,27]

$$SE=(E_{surface}-N\times \left(\frac{E_{bulk}}{n}\right))/(2\times A)$$

(1)

In Equation (1), SE is the surface energy, E_surface is the energy of the surface model, E_bulk is the energy of the system cell, N is the number of atoms contained in the surface, n is the number of individual atoms in the bulk, A is the surface area of the surface, and a, b and γ are the lattice constants of the crystal cell. The calculation formula is as follows: [28]

$$A=a\times b\times \mathit{sin}\gamma$$

(2)

The most commonly used crystal planes of SiO₂, Na₂O, and CaO are selected for calculation [29,30]. The calculation results of surface energy for SiO₂, Na₂O, and CaO with different crystal planes are shown in

Table 4. Calculation process and results of surface energy of SiO₂, Na₂O, and CaO.

Unit Cell	Crystal Face	Esurface (eV)	A (Å2)	N	Ebulk	n	SE (eV/Å2)
SiO2	001	−10,404.41	29.08	30	−8434.11	24	2.38
	100	−10,403.60	29.37	30	−8434.11	24	2.36
	110	−10,402.00	38.38	30	−8434.11	24	2.49
Na2O	100	−15,290.27	15.90	15	−12,234.92	12	0.10
	110	−15,292.20	21.87	15	−12,234.92	12	0.03
CaO	100	−28,954.63	45.55	40	−5791.64	8	0.03
	110	−7236.76	16.50	10	−5791.64	8	0.08

, from which the surface energy of different crystal planes of the same cell is different. In the SiO₂ cell, the (001) surface energy is 2.38 eV/Ų, the (110) surface energy is 2.49 eV/Ų, and the (100) surface energy is 2.36 eV/Ų; the relationship between the surface energy is E₍₁₀₀₎ < E₍₀₀₁₎ < E₍₁₁₀₎. The (100) surface energy of Na₂O is 0.10 eV/Ų, and the (110) surface energy is 0.03 eV/Ų; the relationship between the surface energy is E₍₁₁₀₎ < E_(100). The (100) surface energy of CaO is 0.03 eV/Ų, and the (110) surface energy is 0.08 eV/Ų; the relationship between the surface energy is E₍₁₀₀₎ < E₍₁₁₀₎. The lower the surface energy of the cell, the more stable the cell structure is, so subsequent calculations are performed on SiO₂(100), Na₂O(110), and CaO(100) surfaces.

3.2. Study of the Reaction Competition between Na₂O and CaO in the Combustion Process of Zhundong Coal

3.2.1. Reactive Activity Calculation

Based on the stable structure planes obtained after the geometric optimization of the interface model, the relevant calculations of its reactivity were analyzed. The adsorption model is shown in Figure 2, the upper layer of the model is Na₂O(110) and CaO(100) crystal planes, and the lower layer is SiO₂(100) crystal planes. The calculated number of partial atomic charges is shown in

Table 5. Partial atomic charge numbers of the interface models.

Model	Atom	Charge
		Before Adsorption	After Adsorption
Na2O-SiO2 Interface model	O1	−1.17	−1.15
	O8	−1.21	−1.20
	O13	−1.21	−1.20
	O18	−1.17	−1.15
	Si1	1.22	1.16
	Si3	2.38	2.35
	Si8	2.36	2.35
	Na3	0.12	0.15
	Na13	0.14	0.15
CaO-SiO2 Interface model	O1	−1.19	−1.18
	O8	−1.19	−1.18
	O36	−1.24	−1.23
	O60	−1.19	−1.18
	O69	−1.24	−1.23
	Si1	1.23	1.19
	Si2	1.25	1.19
	Si15	2.46	2.45
	Si30	2.48	2.47
	Ca1	1.12	1.13
	Ca15	1.11	1.12
	Ca23	1.12	1.13

.

The static charge of some atoms was calculated from Na₂O(110)-SiO₂(100) and CaO(100)-SiO₂(100) models. Comparing the static charge of atoms, it is concluded that Na, Ca, and Si atoms are positively charged, while O atoms are negatively charged. Due to adsorption resulting in the transfer of electrons from the metal surface by adsorbed O atoms to make them negatively charged, and the fact that the metal surface is positively charged, the charge population changes. This phenomenon indicates that adsorption occurs between Na₂O, CaO, and SiO₂.

3.2.2. Mulliken Population and Bond Lengths

According to the electronic layer arrangement rule of elements in the periodic table, the valence electrons are set in a 1s²2s²2p⁶3s¹ configuration for Na, 1s²2s²2p⁶3s²3p⁶4s² for Ca, 1s²2s²2p⁴ for O, and 1s²2s²2p⁶3s²3p² for Si. The reaction is mainly related to the outer electrons, so the outer orbitals of atoms are analyzed and studied through the charge population and the density of orbital states.

Table 6. Changes in Mulliken populations and bond lengths both before and after adsorptions in interface models.

Models	Bond	Population/e		Bond Length/(Å)
		Before	After	Before	After
Na2O(110)-SiO2(100)	Na3-O3	0.10	0.10	2.3415	2.3591
	Na8-O9	0.07	0.07	2.3413	2.3640
	Si2-O6	0.51	0.50	1.6218	1.6262
	Si4-O8	0.52	0.51	1.6293	1.6298
	Si6-O13	0.52	0.51	1.6283	1.6298
CaO(100)-SiO2(100)	Ca9-O7	0.15	0.15	2.4168	2.4592
	Ca8-O3	0.15	0.15	2.4168	2.4497
	Si4-O26	0.51	0.50	1.5810	1.5810
	Si9-O21	0.51	0.50	1.5826	1.5826

shows the change data of Mulliken bond populations and bond lengths both before and after the adsorptions of the interface model. It can be seen from the table that after adsorption, the bond population and bond length of Na-O and Ca-O remain unchanged. Compared with before adsorption, the Mulliken bond population of Si-O decreases, the number of Si2-O6 bonds decreases from 0.51 to 0.50 e, and the number of Si4-O8 and Si6-O13 bonds decreases from 0.52 to 0.51 e after the adsorption reaction between Na₂O and SiO₂. After the adsorption reaction between CaO and SiO₂, the number of Si-O bonds decreases from 0.51 to 0.50 e, indicating that the O in Na₂O and CaO was not involved in the reaction during the adsorption reaction and that Na and Ca reacted with SiO₂. The Si-O bond length of the two models is generally elongated and the structure is unstable, which makes them prone to adsorption reactions.

3.2.3. Orbital Density of States

Combined with the Mulliken population analysis, the orbital state densities on the surfaces of Na₂O(110), CaO(100) and SiO₂(100) were well analyzed in terms of the orbital hybridization of atoms on the cell surface. These results can explain the interaction between atoms and further reveal the adsorption characteristics of the interface model.

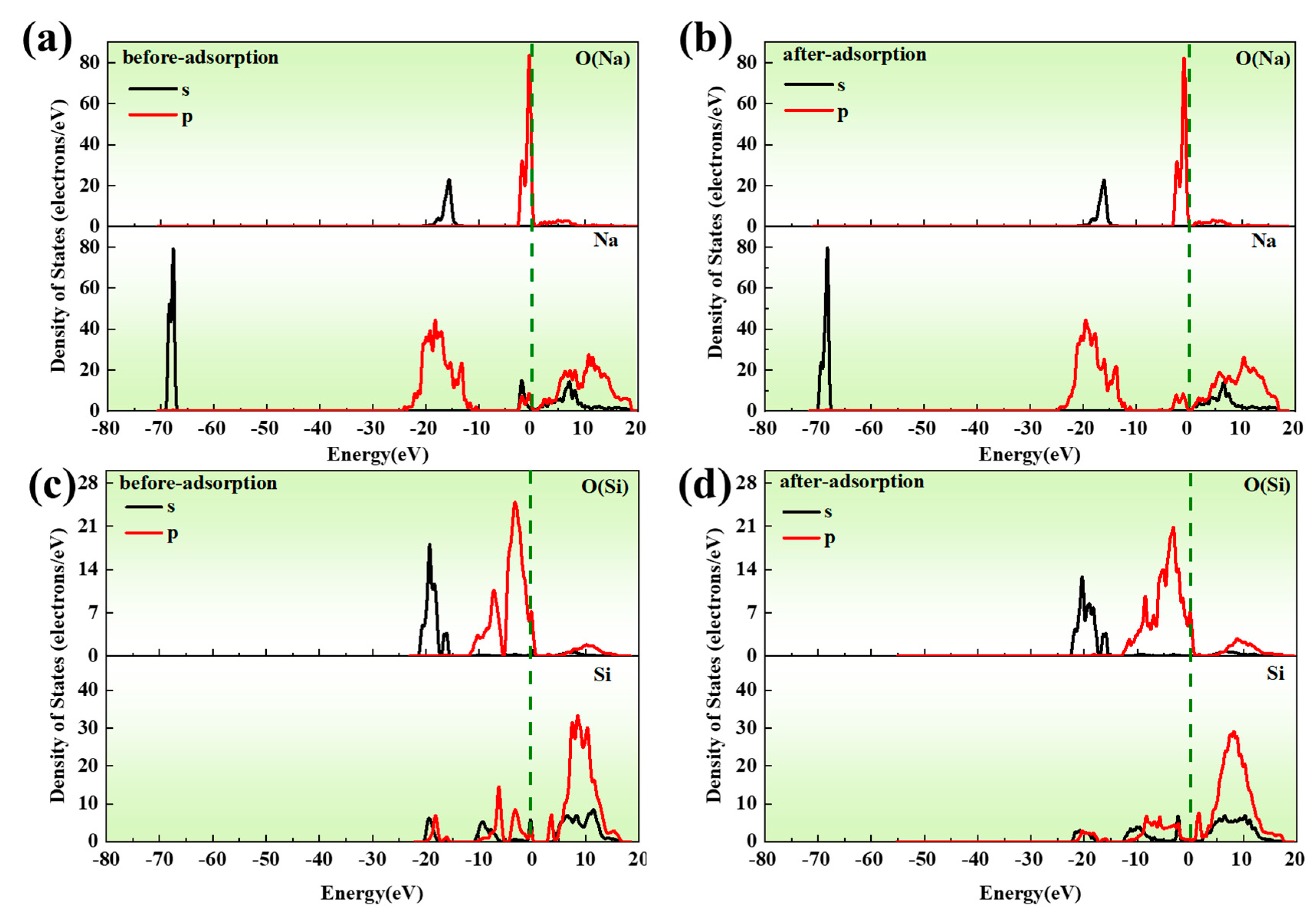

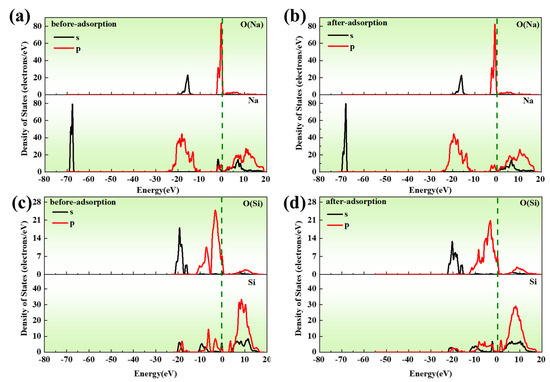

The Partial Density of States (PDOSs) before and after adsorption on the surfaces of Na₂O(110) and SiO₂(100) are shown in Figure 4. Compared with Figure 4a,b, it is found that the peak of O orbital energy level on Na₂O(110)’s surface was almost unchanged after adsorption; the peak values of the 3s orbitals of Na decreased between −70 and −67 eV, the peak value of the 3s orbital disappeared near the Fermi level, and the peak value of the 2p orbital decreased slightly at the high energy level, indicating that Na atoms lose charge after adsorption. Figure 4c,d show the PDOS diagram of SiO₂ before and after adsorption. It can be seen from the figure that the peak of 2p orbital high energy state of O(SiO₂) decreases after adsorption, and the peak values of 2p orbital increase between −10 and −5 eV. The peak values of the 2s orbital are become widen at the low energy level, with the localization weakened. The peaks of the 3s and 3p orbitals low energy states of Si are reduced, and there is a significant shift to high energy states after adsorption. In addition, combined with Mulliken population, it is shown that Na exhibits charge exchange with Si and O and Na exhibits orbital hybridization with Si and O between −10~0 eV, which results in significant coupling to the substrate atoms.

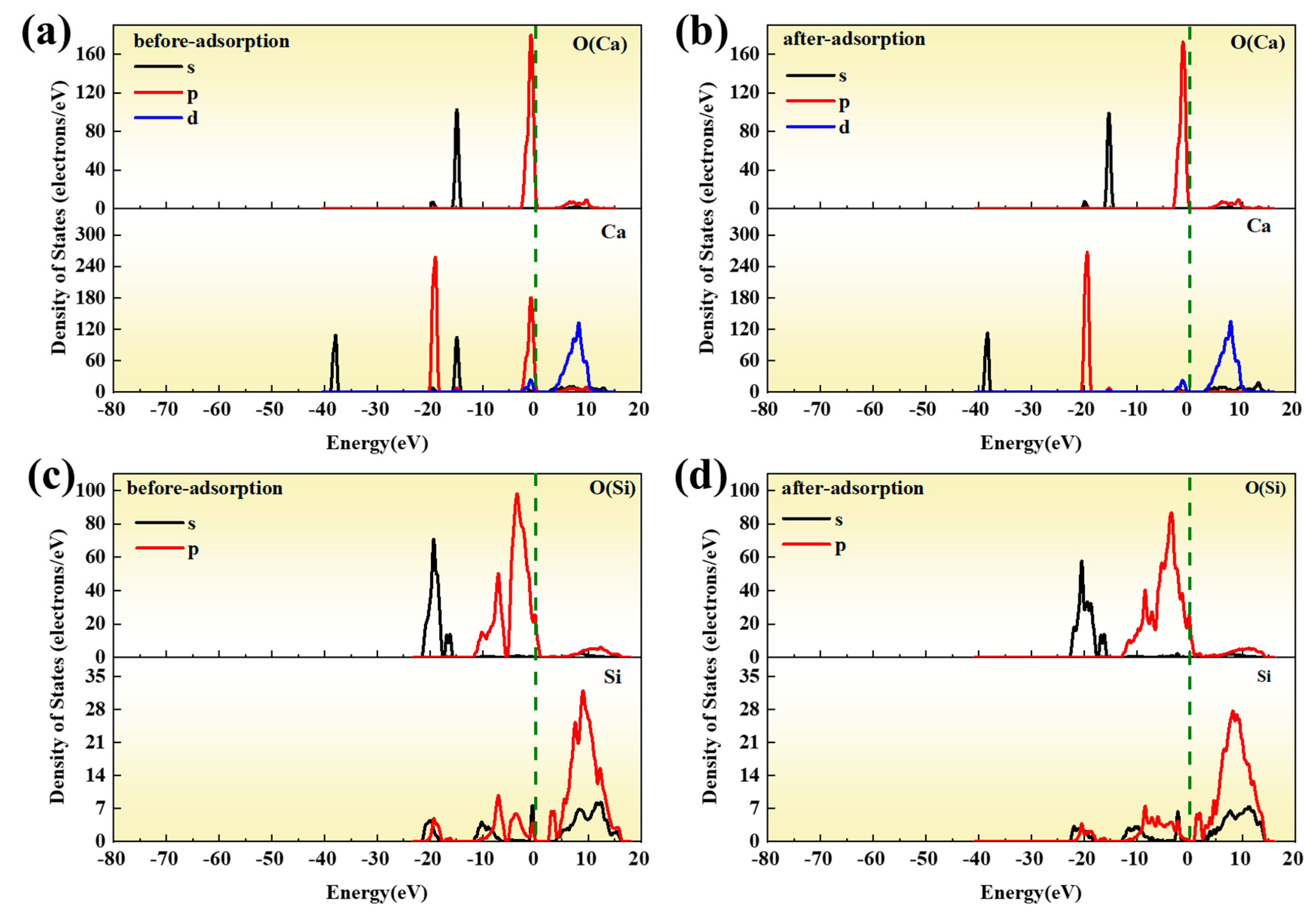

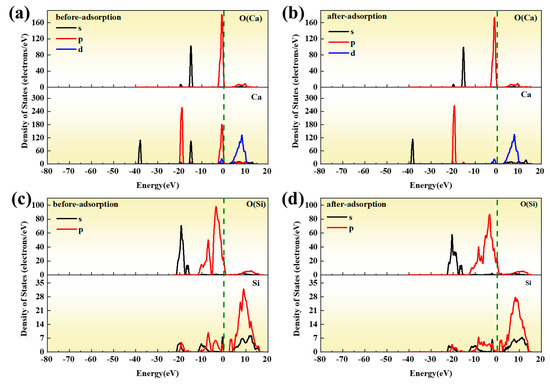

Figure 5 shows the PDOS diagram on the surface of CaO(100) and SiO₂(100) both before and after adsorption; comparing Figure 5a,b, it can be seen that after adsorption, the peaks of high energy states of 4s and 3p orbits of Ca decrease, while the peaks of low energy states of 4s orbits increase. The peaks of O orbitals on the surface of CaO(100) are almost unchanged. Figure 5c,d show that the peak value of the 2p orbital with low energy state of O(SiO₂) is reduced after adsorption, the 2s orbitals broaden in the states at the low energy level, and the localization is weakened. The peaks of the 3s and 3p orbitals of Si increase at the high energy level of −10~0 eV, and there is a significant shift to the left of the Fermi energy level after adsorption. Combined with the Mulliken population, Ca undergoes charge exchange with Si and O. The 4s and 3p orbitals of Ca lose electrons and transfer to the SiO₂ substrate, while the substrate Si returns part of the charge to the 3p orbitals of Ca. At 10−15 eV, the 4s orbitals of Ca are coupled with Si and O to varying degrees.

3.2.4. Adsorption Energy

As one of the important reactions occurring between solid–solid surfaces, adsorption mainly includes the adsorption of reactants to the solid surface, diffusion of intermediates on the surface (where the breaking of old bonds and the formation of new bonds occurs), and the desorption reaction of products from the surface [31,32]. Determination of the electronic and geometrical determinants of the adsorption energy on the material surface is the core goal of surface science. The calculation process of adsorption energy is that when the system energy converges, it indicates that the system reaches the equilibrium state, and the adsorption energy is calculated. Firstly, the model of structural stability is restored to the molecules fixed in the lower layer, and then E_t, E_s1, and E_s2 are calculated respectively. The calculation formula of the adsorption energy is as shown in Equation (3): [33]

$$E_i=E_t-(E_{s1}+E_{s2})$$

(3)

where E_t is defined as the total energy of the system after adsorption; E_s1 is defined as the surface energy after removal of Na₂O(110) and CaO(100); and E_s2 is defined as the energy to remove the SiO₂(100) surface. The adsorption energy is positive, which means that the adsorption is an exothermic reaction, and the higher value indicates that the interaction is stronger, the adsorption process is more likely to occur, and the adsorption structure is more stable [34]. The calculated data are shown in

Table 7. Adsorption energy on the surface of the interface models.

Models	Et/eV	Es1/eV	Es2/eV	Ei/eV
Na2O(110)-SiO2(100)	−87,067.29	−31,207.71	−55,854.03	−5.56
CaO(100)-SiO2(100)	−104,194.42	−64,863.76	−39,347.85	−0.72

.

Through simulation calculations, the adsorption energy of the Na₂O(110) and SiO₂(100) surface is −5.56 eV and that of the CaO(100) and SiO₂(100) surface is −0.72 eV. The adsorption energy of the Na₂O(110) surface is larger than that of the surface of CaO(100), which indicates that the adsorption model generated by the reaction between Na₂O(110) and SiO₂(100) is relatively stable. In addition, the adsorption energy is positively correlated with the amount of coal ash slagging, so the effect of Na₂O and SiO₂ on the slagging of Zhundong coal is stronger than that of CaO.

3.3. Experimental Verification of Basic Metals in Model Compounds

According to the calculation results of the Na₂O(110)-SiO₂(100) and CaO(100)-SiO₂(100) models, it is concluded that the effect of Na₂O on the slagging of Zhundong coal is stronger than that of CaO during the alkaline metal oxides’ reaction with high melting point minerals. In this experiment, the model compounds were calcined in the experimental combustion temperature range of 400–750 °C, and samples were taken at 50 °C intervals. The competitive relationship of alkaline metals in the mixture was studied by X-ray diffraction, and the results are shown in Figure 6.

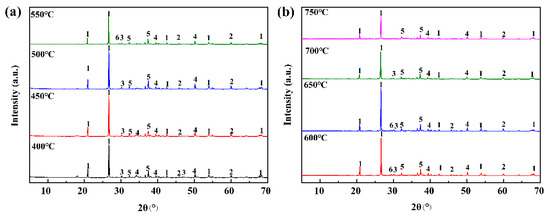

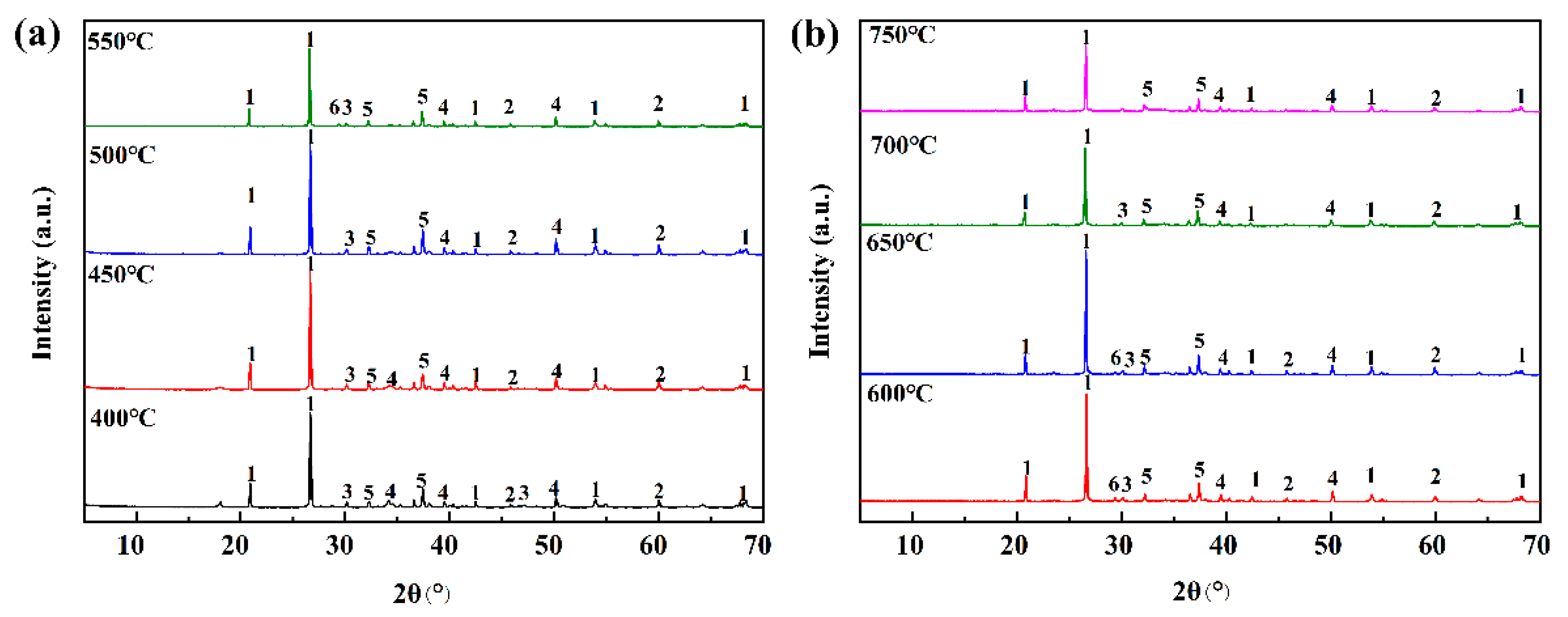

It can be seen from the figure that both Na₂O and CaO participate in the reaction within the mixture’s temperature increase. The peak of Ca₆Si₄O₁₄ gradually diminishes at 700 °C, while the peak of CaSiO₃ gradually disappears when reaching 750 °C. At 2θ of 30°, CaSiO₃ belongs to the (120) crystal plane (PDF Card no.29-0372). However, the peaks of CaO and Na₂Si₂O₅ persist throughout, indicating that CaO does not partake in the reaction at 750 °C. Na₂Si₂O₅ is always present at 2θ of 60° (PDF Card no.19-1236). And it is a (421) crystalline surface. The reactivity of Na₂O progressively emerges with higher temperatures during the reaction process. The reaction of the formation process is as follows:

$$\mathrm{N}{\mathrm{a}}_2\mathrm{O}+2\mathrm{S}\mathrm{i}{\mathrm{O}}_2\to \mathrm{N}{\mathrm{a}}_2\mathrm{S}{\mathrm{i}}_2{\mathrm{O}}_5\hspace{1em}(\mathrm{Sodium} \mathrm{silicate})$$

(4)

$$\mathrm{C}\mathrm{a}\mathrm{O}+\mathrm{S}\mathrm{i}{\mathrm{O}}_2\to \mathrm{C}\mathrm{a}\mathrm{S}\mathrm{i}{\mathrm{O}}_3\hspace{1em}\left(\mathrm{Wollastonite}\right)$$

(5)

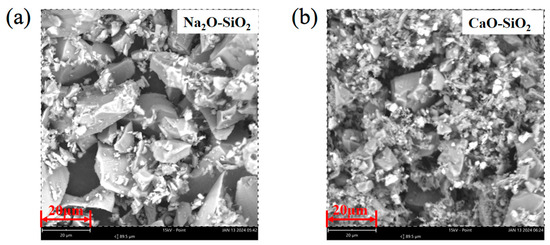

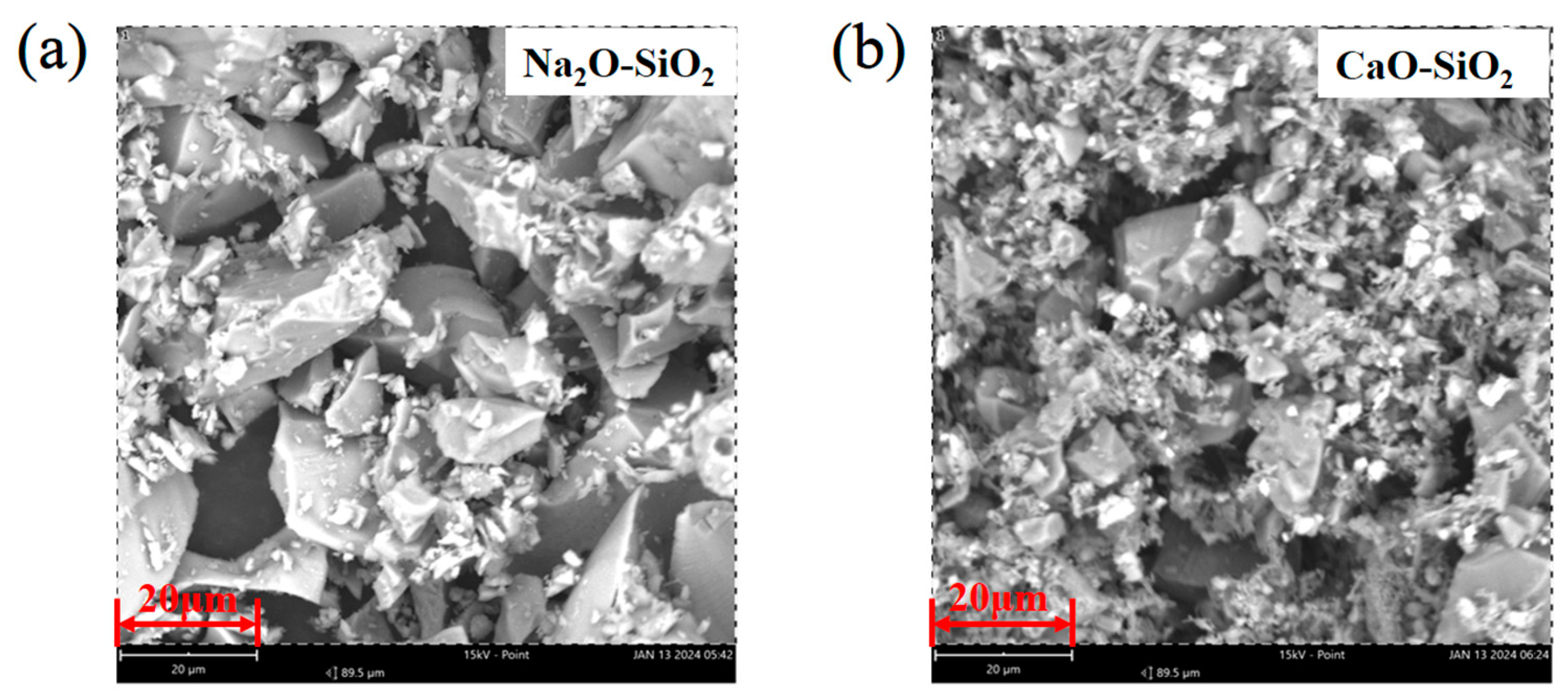

Figure 7 shows the SEM images of Na₂Si₂O₅ and CaSiO₃ models. It can be seen from the figure that the mineral morphology generated after the reaction of Na₂O, CaO, and SiO₂ is blocky. The previous thermodynamic calculation results also show that the Gibbs free energy change (ΔG) for the generation of sodium containing minerals in coal ash is smaller at 1000 °C and occurs more easily at high temperatures. The ΔG (−442.0 KJ/mol) of the reaction of Na₂Si₂O₅ and Na₂Ca₂Si₃O₉ generated by the reaction of Na₂O with SiO₂ is significantly lower than that of wollastonite (−88.57 KJ/mol). The results demonstrate that the formation of wollastonite with high melting point is effectively inhibited by Na₂O present in coal ash, ref. [35], indicating its preferred reaction with SiO₂ before CaO. The results are in agreement with the simulation results.

3.4. Reaction Mechanism of Alkaline Metal Oxides in Zhundong Coal Ash

Theoretical and experimental studies have shown that compared with other coals, Zhundong coal has a higher content of alkali/alkaline earth metals, and the phase transition temperature of alkali metals is relatively lower during combustion. Gasification occurs at a certain temperature, and gaseous alkali/alkaline earth metals condense on the surface of the heat exchanger, trapping solid particles in the gas, resulting in slagging and contamination problems [36,37]. The slag sample formed at the high temperature will form stratification phenomena. The initial layer has the highest content of CaSiO₃ and Na₂Si₂O₅, mainly due to the reaction of volatile substances such as Na₂O and CaO with SiO₂ to form wollastonite and sodium silicate, which forms a very viscous initial layer [2,38]. The reaction equation for the formation process is shown in Section 3.3.

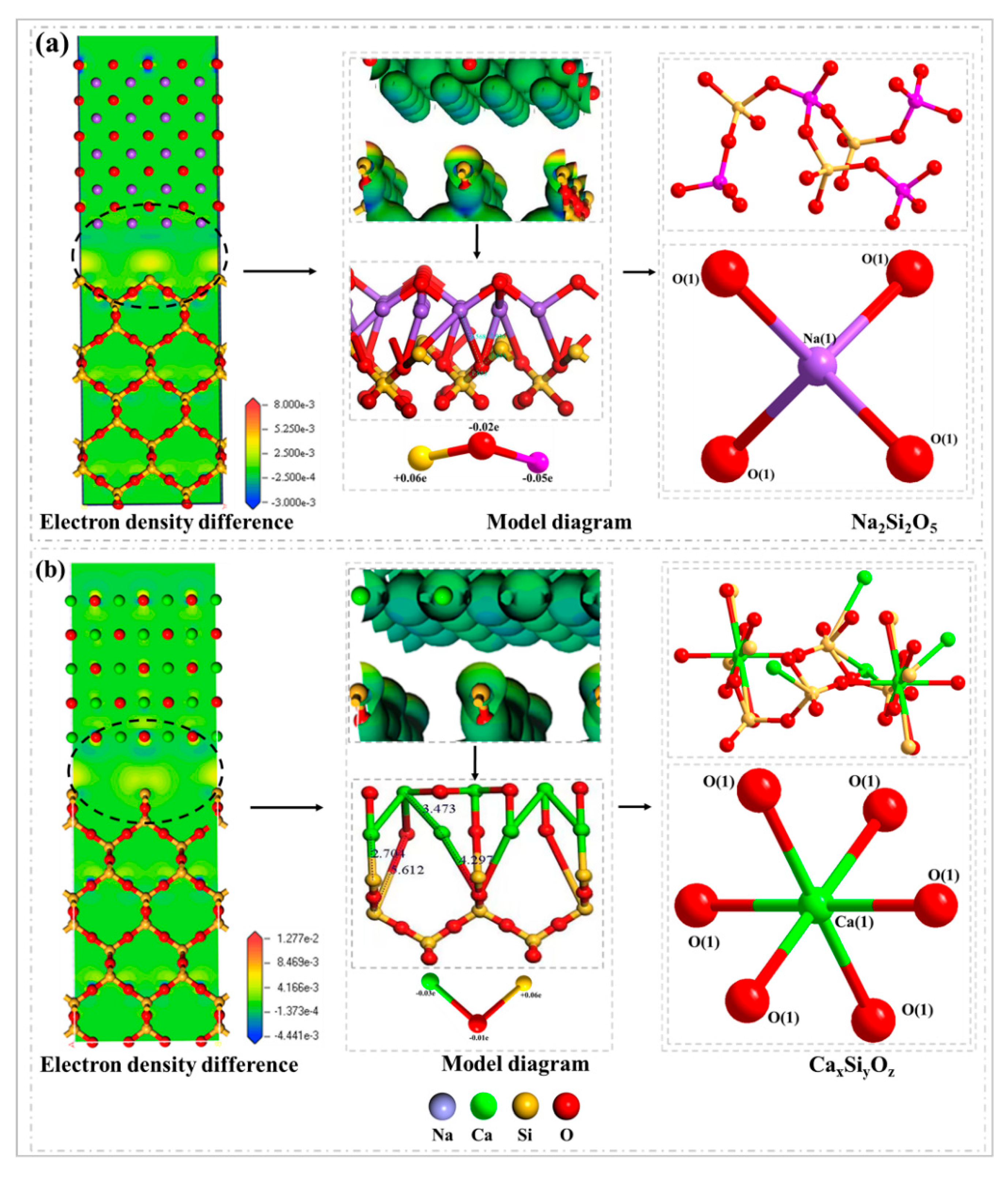

The reaction mechanism diagram of alkali metal with high melting point mineral SiO₂ in Zhundong coal ash is shown in Figure 8. Figure 8a is the reaction of the Na₂O and SiO₂ surface reaction, and the given and loss of electrons between Na, Si, and O atoms are shown through the differential charge density. The cross-sectional diagram shows that Na and O atoms lose electrons and Si atoms accept electrons (blue indicates that atoms lose electrons and red indicates that atoms accept electrons). When Na₂O reacts with SiO₂ in reverse, the bond population and bond lengths of Na and O are basically unchanged; the population of the Si-O bond decreases and the bond lengths are generally lengthened (Table 6), indicating that the covalence of the Si-O bond is weak during the reverse adsorption reaction. Also, it is prone to fracture and react with Na₂O to produce sodium-containing minerals such as Na₂Si₂O₅.

The reaction between the CaO and SiO₂ surface is shown in Figure 8b. During the reaction between CaO and SiO₂, electron exchange occurs between Ca, Si, and O atoms. The bond population and bond length of Ca-O remain basically unchanged after the adsorption reaction; the Si-O bond populations are reduced and the bond lengths are generally elongated (Table 6). The results show that the Si-O bond has strong ionic properties and is prone to fracture during the adsorption reaction. Calcium minerals such as CaSiO₃ are formed by the reaction between CaO and SiO₂. According to the conclusion of the above adsorption energy, Na₂O reacts with SiO₂ to form sodium-containing minerals and other compounds, and the slagging performed at the high temperature is more serious. Na₂O has a greater effect on slagging during the combustion of Zhundong coal. Sodium silicate further reacts with other minerals to form low-temperature eutectic, which aggravates the slagging and fouling phenomenon of Zhundong coal.

4. Conclusions

DFT was used to study the adsorption between Na₂O, CaO, and SiO₂ surfaces. Firstly, the surface energy of different crystal surfaces of cells was calculated, and the most stable crystal surface was determined. Then, the bonding characteristics of Na₂O, CaO, and SiO₂ surfaces were studied, and the reaction difficulty of alkaline metals was analyzed, which provides a theoretical basis for preventing slagging of Zhundong coal. In addition, the accuracy of the simulation results was verified by experiments. The main conclusions are as follows:

(1)

Comparing the partial charge numbers of each atom in the two models, it is found that the O atom is negatively charged, while the Na, Ca, and Si atoms are positively charged. The charge numbers change after adsorption. The electron loss of Na is 0.05 e, and the electron loss of Ca is 0.03 e, indicating adsorption on the surfaces of both models. The electron loss of Na₂O is greater than that of CaO, and it is prone to react with SiO₂ to form silicates containing Na.

(2)

After adsorption, the adsorption energy of Na₂O is −5.56 eV and that of CaO is −0.72 eV. The value of Na₂O is greater than CaO, and Na₂O is more likely to undergo an adsorption reaction and preferentially form silicate. Based on Mulliken population analysis, the charge transfer between Na₂O(110) and SiO₂(100) crystal planes is higher than that of CaO (100) during interface model adsorption. The orbital hybridization between CaO(100) and SiO₂(100) crystal planes is weaker than that of Na₂O(110). The adsorption effect on the surface of Na₂O and SiO₂ is stronger, making it easier to form slag containing Na minerals and other substances in the high-temperature zone. This also explains that the slag fouling situation of Zhundong coal is more significant than that of CaO.

(3)

XRD results at different temperatures show that the compounds containing Na appear earlier than those containing Ca, and the reactivity of Na₂O is stronger than that of CaO. This conclusion is consistent with the simulation results.
