Monitoring Energy and Power Quality of the Loads in a Microgrid Laboratory Using Smart Meters

by
Viktor Isanbaev
1,
Raúl Baños
1,
Fernando Martínez
1,
Alfredo Alcayde
1 and
Consolación Gil
2,*
1
Department of Engineering, University of Almería, 04120 Almería, Spain
2
Department of Informatics, University of Almería, 04120 Almería, Spain
*
Author to whom correspondence should be addressed.
Energies 2024, 17(5), 1251; https://doi.org/10.3390/en17051251
Submission received: 31 January 2024 / Revised: 11 February 2024 / Accepted: 13 February 2024 / Published: 6 March 2024
(This article belongs to the Special Issue Intelligent Decentralized Energy Management in Microgrids II)
Browse Figures
Versions Notes

Abstract

:
Microgrids are local energy production and distribution networks that can operate independently when disconnected from the main power grid thanks to the integration of power generation systems, energy storage units and intelligent control systems. However, despite their advantages, the optimal energy management of real microgrids remains a subject that requires further investigation. Specifically, an effective management of microgrids requires managing a large number of electrical variables related to the power generated by the microgrid’s power supplies, the power consumed by the loads and the aspects of power quality. This study analyzes how we can monitor different variables, such as the active power, reactive power, power factor, total harmonic distortion and frequency in the loads of a microgrid, using high-precision power meters. Our empirical study, conducted using a functional microgrid comprising a hybrid wind–solar power system and several household appliances, demonstrates the feasibility of using low-cost and high-performance power meters with IoT functionality to collect valuable power quality and energy consumption data that can be used to control the microgrid operation.

1. Introduction

The traditional electrical grid cannot cope with the new challenges of the world in terms of reliable, efficient and clean energy [1]. In fact, the exponential expansion of distributed generation systems in some areas evidences the tendency toward the decentralization of electric networks. These transformations are driven by digital and green transition policies [2], which require a faster adoption of technology. Considering that energy saving and the reduction in the use of natural resources have direct impacts on life and humanity, the smart grids [3] emerge as a new paradigm that promotes greater efficiency, enhanced security, and increased reliability. This is achieved through real-time monitoring of electricity usage and the implementation of control strategies aimed at reducing energy waste and improving system efficiency. Smart grids likewise work with the joining of sustainable power sources and electric vehicles, contributing to a more sustainable future by reducing greenhouse gas emissions [4].
Smart cities, smart homes and microgrids are completely interconnected ideas. A smart city [5] incorporates technological solutions from a wealth of urban data in order to improve residents’ personal satisfaction and urban management. An effective approach for smart cities to achieve this goal is the implementation of microgrids [6]. Microgrids are self-contained energy systems capable of operating independently from the main power grid. They can use overflow energy created inside the microgrid and feed it into the main grid during periods of low energy consumption within the microgrid. Moreover, smart homes are important components of smart cities, as they employ modern technology and automation to improve energy consumption and waste.
The management and control of microgrids require monitoring the status of various components of the system. A pivotal part is upgrading energy effectiveness by providing detailed, real-time information on electricity consumption [7,8,9,10]. These advanced devices not only provide accurate measurements of electricity consumption, but also enable the implementation of algorithms for the optimal operation of the microgrid [10]. For instance, non-intrusive load monitoring (NILM) techniques are commonly employed to identify the energy consumption patterns of specific appliances and to detect the operational state (on/off) of devices by analyzing the overall power consumption [11,12]. These data enable households to receive personalized advice on improving their electrical consumption management [13]. Therefore, the use of smart metering infrastructure in combination with efficient management systems contributes to creating a more sustainable and efficient urban environment, while making it possible to incorporate important data for strategic energy planning and urban development decision-making [6].
This paper outlines the process of monitoring energy and power quality data in a microgrid using advanced smart meters with IoT capabilities. The proposed framework is validated through a real case study. Section 2 gives an overview of recent trends about smart cities and microgrids, with particular focus on measuring electrical variables in microgrids using smart meters. Section 3 describes how the proposed framework is able to monitor a set of home appliances (loads) when they are switched on/off to obtain energy consumption and power quality measures in a microgrid. Section 4 presents the outcomes acquired in the experimental study, while Section 5 outlines the main conclusions and suggests future research directions.

2. Related Work

A microgrid [14] can be characterized as a limited-scale electrical network that can work freely or in relation to the higher-power lattice, utilizing nearby age sources (for example, environmentally friendly power frameworks) and energy stockpiling frameworks. One of the vital advantages of microgrids in smart cities is their energy dependability and versatility. By producing and disseminating power at the neighborhood level, usually using renewable energy sources, microgrids can continue to provide electric capacity during framework blackouts. Moreover, microgrids can likewise assist with decreasing energy costs by improving energy utilization and diminishing power demand on the grid. This may result in financial savings for utilities as well as consumers, as well as reducing the energy consumed during peak demand on the electric grid. Of course, the energy generated in the microgrid and not consumed by the loads can be stored in the storage systems or, alternatively, sent to the grid.
The integration of microgrids in smart cities is driven by the need for reliable and smart energy, electricity networks and the transformation of urban infrastructure. Smart cities [15,16] have evolved towards more sophisticated ecosystems [17]. The widespread use of renewable energy sources and the progressive implementation of energy storage systems are just a few examples. Additionally, the creation of intelligent transportation systems further exemplifies this trend. Another key element for the development of smart cities is determined by the continuous deployment of smart homes [18]. These are homes equipped with electronic devices and appliances that can communicate with each other and with the control system, allowing customers to better control their energy consumption and expenses [19]. Smart homes in microgrids also enable homeowners to generate their own power using renewable energy sources and utilize it to operate home appliances.
Efficient energy management in microgrids has become a highly relevant topic for researchers worldwide. For example, some studies have proposed heuristic optimization algorithms to optimize the schedule of home appliances [20]. In different cases, the point is to give an essential structure to adjust the organic market variance for RES-based microgrids in a detached region [21] to such an extent that the foundation expected to carry out the proposed technique is connected with building a checking station furnished with a large number of PCs and sensors expected to apply NILM calculations. The improvements, advantages, and lacking features of smart grid communication methods have also been analyzed in the literature [22]. Some authors have demonstrated that unsupervised methods can achieve the same range of uncertainty as supervised NILM algorithms while saving money on the acquisition of labeled data [13]. In [23], a hierarchical design is introduced that requires no prior information or general models of individual loads. Furthermore, AI strategies have additionally been applied to examine the adaptability of power utilization in private structures [24]. In addition, the cyber and physical structures of the hardware and software in a smart grid determine the security requirements [25] and are important in guaranteeing secure measurement, communication and control [26].
To deal with the information in microgrids, smart meters and energy management systems are used. Smart meters are often used to measure energy consumption and the power quality variables of various loads, including household devices [9]. The relevant features of a smart meter are the sampling frequency and the electrical measurements it is capable of calculating [27]. Many investigations have proposed different smart metering infrastructures to be used in microgrids [28]. For instance, some authors have proposed multi-objective energy management systems with smart energy meters that allow for the storage of data on energy generation and battery loads as well as information about the appliances, in order to investigate the end-user’s energy use habits [29].

3. Monitoring Electrical Variables Using Smart Meters

3.1. Framework Description

The framework proposed here for monitoring and examining energy data at the loads of a microgrid is divided into several steps:
  • Number and type of smart meters: The first step is to determine the type and number of smart meters to be installed in the microgrid. One option is to employ an intrusive load monitoring (ILM) approach [30], which involves the use of low-end power meter gadgets that straightforwardly measure every gadget’s energy utilization. Smart plugs communicate with the smart meter to transmit real-time energy consumption data.
    However, deploying many smart meters can be prohibitively expensive due to the potentially large number of loads in the microgrid [31]. As an alternative, NILM techniques [32,33] often involve using a single meter to measure power generation and another meter to measure overall demand across multiple appliances. The proposed framework enables the application of NILM methods [34] for different purposes. For example, the data obtained can be used for load disaggregation, i.e., separating the energy usage of specific appliances from the total household energy usage [35]. Therefore, it is essential to consider high-precision, low-cost smart meters for this purpose. In our study, the openZmeter is used [7,36], which is capable of measuring important variables, including, but not limited to current, voltage, power (active, reactive and apparent), power factor, energy consumption, harmonics up to the 50th order, total harmonic distortion, frequency, etc.
  • Installation of the smart meters: Considering that our aim is to conduct measurements on the loads within the microgrid, an openZmeter device is utilized for monitoring these loads. For instance, Figure 1 illustrates how the openZmeter captures energy data from home appliances at a single point, which is then transmitted to a computer that will process the data received. With this, homeowners can access and view energy consumption data at any time and receive alerts if any of the parameters are out of normal range through a web page or mobile application linked to the smart meter. Furthermore, the openZmeter can also be employed to monitor the power generated by renewable energy sources.
  • Data processing: The data collected by the smart meter can then be processed and displayed using visualization tools to provide real-time and historical energy consumption and power quality statistics [37]. Such visual data simplify complex information into intuitive visuals, aiding homeowners in understanding energy usage patterns, spotting peak demand periods, and identifying wasteful areas. Such visual insights assist homeowners in optimizing energy usage within small-scale microgrids by adjusting device settings, turning off devices when not in use or replacing outdated appliances with newer, more energy-efficient models. Managing control within large microgrids typically requires the implementation of advanced procedures, including artificial intelligence methods [38].

3.2. Differences with Other Studies

Recent studies have analyzed the use of metering infrastructures to monitor electrical variables in microgrids. However, many of these studies are limited in their findings compared to our framework. This is either due to the measuring of a smaller number of electrical variables, primarily focusing on power quality data, using devices with limited accuracy, or having a less versatile interaction system between the device and users.
On the one hand, empirical studies often analyze a limited number of variables. For example, the authors of [39] present a method to optimize consumption to improve power quality and security levels in electrical systems while considering economic costs. However, only information regarding active power (W) and cost (monetary units) is provided. Similarly, the authors of [40] modeled a smart metering system in a microgrid, but the empirical study focused on analyzing the energy that flows between loads and renewable energy systems. Other investigations have proposed using a smart meter with voltage, transformer and microcontroller units equipped with embedded communication modules to measure current, voltage, power factor, harmonics and frequency [41]. In [23], a method is presented to infer load signatures of different home appliances based on active and reactive power measurements, but no information is provided about the specifications of these meters. Furthermore, other researchers have analyzed demand response in microgrids by coordinating data measured by smart meters and distributed superconducting magnetic energy storage units [39], but the empirical results are focused on the study of active power flows.
On the other hand, most of the devices used have limited measurement and communication capabilities compared to the openZmeter. For instance, the digital power meter used in [42] provides voltage values in the range of [50 V–350 V] (while the openZmeter can safely measure up to 1000 V), and current values in the range of [10 mA–15 A] (whereas the maximum current measured by the openZmeter is 50 A) [7]. Additionally, the smart meter described in [42] allows for communication via USB I/O and 100 Mbps Ethernet interfaces. In [28], a metering infrastructure is presented that enables the measurement of voltage, current and frequency, using wired and wireless communication interfaces (such as Wi-Fi, IEEE 802.15.4 and LoRa) to transfer the measurements to a central unit. The access to the graphical interface of the openZmeter allows direct access to the measurements via the web, regardless of the end-user’s location.

4. Results

The experimental study was carried out in the laboratory microgrid of the University of Almería (Spain) (latitude: 36°49′45″ N, longitude: 2°24′28″ W). Almería is one of the locations in Europe with long hours of daylight (more than 3000 h annually) [43]. Figure 2 shows the main elements of the microgrid. Firstly, Figure 2a shows the generation system that consists of two solar tracker systems with 3600 watts capacity each. Three wind turbines (model Wind 13+, manufactured by the Spanish brand Bornay) can also be connected to the microgrid. The energy generated and not consumed is stored in batteries for later use (see Figure 2b). The arrangement of loads in the microgrid incorporates several home appliances like fridges, refrigerators, ovens, electronic devices, etc. (see Figure 2c,d). These devices harness energy from renewable sources or batteries, in addition to the building’s own electrical connection.
Although the aim of this paper is to monitor the loads (home appliances), the openZmeter device is capable of gathering real-time data on other parts of the microgrid. For example, Figure 3 shows the energy generated by the photovoltaic system within one week, where it can be observed that solar intensity varies periodically, as indicated by the recurring patterns.
Focusing on load analysis, most published articles tend to focus on measuring active power, although various authors have proposed the analysis of reactive power as part of future work [28], which is a critical variable in real systems [44]. In fact, some recent surveys have highlighted the importance of maintaining a balance between active and reactive power to ensure power quality in microgrids [45].
The electrical power that is converted into useful work (light, motion or heat) is called active or real power and is measured in watts (W). Reactive power (volt-ampere reactive, VAR) is the power consumed by motors and transformers to create and maintain magnetic fields, but performing no useful work. Therefore, it is also important to reduce the reactive power, since it allows us to improve the power factor and, therefore, to reduce the energy losses and improve efficiency. Figure 4 shows the active and reactive power measured by the openZmeter during the experiment. It is evident that both variables experience a significant increase when certain home appliances are switched on. Figure 5 shows a breakdown of the active and reactive power consumed by different household appliances, where each data point represents a measurement taken every 200 ms. As depicted, heating element loads (such as the oven and water heater) appear to be nearly purely resistive and therefore only absorb a small amount of VARs, whereas other appliances (like the vacuum cleaner and kitchen hood) absorb substantial amounts of reactive power.
Furthermore, the openZmeter is capable of capturing power quality data, as per the EN50160 power quality standard, which is of significant importance in the microgrid context. For instance, Figure 6 illustrates the frequency variation within the microgrid relative to the standard 50 Hz frequency (commonly observed in Spain and many other electricity systems worldwide). It is evident that the frequency remains close to—but slightly below—the reference value for most of the experiment duration.
The openZmeter is capable of collecting data on other power quality variables, such as total harmonic distortion (THD), in terms of current and voltage. THD numerically represents the harmonic distortion present in a signal, and its presence can lead to issues such as increased current, excessive heat, and other inconveniences that could cause damage to equipment and systems. Figure 7a displays the THD of the voltage during the experiment, where it can be observed that the values are below 2.5%. Meanwhile, Figure 7b illustrates that the THD of the current is sometimes higher than 50%.
Table 1 shows the minimum, maximum, mean and standard deviation of different electrical variables measured by openZmeter during the experiment. As it can be observed, active power varies according to the home appliances connected in each instance, with an average of 1911.88 watts. Reactive power varies from negative values (caused by capacitive loads) to high positive values (inductive loads). It is shown that the average power factor is close to 1 due to the presence of several purely resistive loads, but in some periods, it decreases significantly due to the activation of reactive loads (inductive or capacitive). In reference to the frequency, the mean value is 49.99 Hz, which is very close to the reference value (50.00 Hz). Finally, THD(v) values are lower than THD(i), as is usual in most electrical installations.

5. Conclusions

An efficient management of microgrids requires collecting and analyzing data on energy consumption and power quality. Smart meters are key instruments for gathering real-time data on energy usage, generation and power quality attributes. These measurements aid in optimizing energy distribution and ensuring the seamless operation of smart city infrastructure. This paper outlines the process of monitoring energy data in microgrids using a smart meter with IoT functionalities capable of measuring voltage, current, power (active, reactive, apparent), power factor, harmonics in voltage and current up to 50th order, THD in voltage and current, or frequency, among other parameters. An empirical study has been performed in a real microgrid that incorporates a combination of wind and solar power generation, a battery storage system and various home appliances.
The findings illustrate that the smart meter is capable of collecting, processing and displaying data from various components of the microgrid. Specifically, smart meters offer valuable insights into both power generation and energy consumption within the microgrid. Homeowners and microgrid operators can utilize this information to gauge energy production against demand, devise strategies to reduce energy consumption and costs, and thereby mitigate carbon emissions. Additionally, smart meters provide real-time measurements of power quality parameters, offering insights into the electrical supply’s quality. These data serve to identify and rectify any power quality issues that could potentially damage appliances, result in energy wastage and ensure the microgrid’s reliability and resilience. In summary, the utilization of low-cost high-precision smart meters in microgrids presents a cost-effective and accurate solution for energy consumption and power quality monitoring, complemented by versatile connectivity features.
As part of our future work, we plan to expand our measurements beyond the loads to include other components of the microgrid, such as batteries. Additionally, we will examine the ways to manage high-dimensional data using machine learning and prediction techniques [46,47], including soft computing and other advanced techniques [48,49], with the aim of improving energy management by leveraging information measured from power supplies, storage systems and energy loads within the microgrid.

Author Contributions

Conceptualization, A.A.; methodology, C.G.; software, V.I. and F.M.; validation, F.M. and A.A.; formal analysis, C.G. and R.B.; investigation, V.I. and F.M.; resources, R.B., A.A. and C.G.; data curation, F.M.; writing—original draft preparation, V.I.; writing—review and editing, R.B. and C.G.; visualization, V.I.; supervision, R.B. and C.G.; project administration, A.A., funding acquisition, R.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish “Ministerio de Ciencia, Innovación y Universidades”, grant number PGC2018-098813-B-C33, by “UALFEDER 2020”, grant number UAL2020-TIC-A2080, and by European Regional Development Funds (ERDF).

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bhalshankar, S.S.; Thorat, C.S. Integration of smart grid with renewable energy for energy demand management: Puducherry case study. In Proceedings of the 2016 International Conference on Signal Processing, Communication, Power and Embedded System (SCOPES), Paralakhemundi, India, 3–5 October 2016; pp. 279–289. [Google Scholar]
  2. Ramadan, R.; Huang, Q.; Bamisile, O.; Zalhaf, A.S. Intelligent home energy management using Internet of Things platform based on NILM technique. Sustain. Energy Grids Netw. 2022, 31, 100785. [Google Scholar] [CrossRef]
  3. Çimen, H.; Çetinkaya, N.; Vasquez, J.C.; Guerrero, J.M. A microgrid energy management system based on non-intrusive load monitoring via multitask learning. IEEE Trans. Smart Grid 2020, 12, 977–987. [Google Scholar] [CrossRef]
  4. Kakran, S.; Chanana, S. Smart operations of smart grids integrated with distributed generation: A review. Renew. Sustain. Energy Rev. 2018, 81, 524–535. [Google Scholar] [CrossRef]
  5. Sami, M.S.; Abrar, M.; Akram, R.; Hussain, M.M.; Nazir, M.H.; Khan, M.S.; Raza, S. Energy management of microgrids for smart cities: A review. Energies 2021, 14, 5976. [Google Scholar] [CrossRef]
  6. Reddy, G.P.; Kumar, Y.V.P.; Chakravarthi, M.K. Communication Technologies for Interoperable Smart Microgrids in Urban Energy Community: A Broad Review of the State of the Art, Challenges, and Research Perspectives. Sensors 2022, 22, 5881. [Google Scholar] [CrossRef]
  7. Viciana, E.; Alcayde, A.; Montoya, F.G.; Baños, R.; Arrabal-Campos, F.M.; Manzano-Agugliaro, F. An open hardware design for Internet of Things power quality and energy saving solutions. Sensors 2019, 19, 5881. [Google Scholar] [CrossRef]
  8. Brown, J.; Abate, A.; Rogers, A. Disaggregation of household solar energy generation using censored smart meter data. Energy Build. 2021, 231, 110617. [Google Scholar] [CrossRef]
  9. Wang, S.J.; Moriarty, P. Energy savings from Smart Cities: A critical analysis. Energy Procedia 2019, 158, 3271–3276. [Google Scholar] [CrossRef]
  10. Liaqat, R.; Sajjad, I.A. An event matching energy disaggregation algorithm using smart meter data. Electronics 2022, 11, 3596. [Google Scholar] [CrossRef]
  11. Çimen, H.; Bazmohammadi, N.; Lashab, A.; Terriche, Y.; Vasquez, J.C.; Guerrero, J.M. An online energy management system for AC/DC residential microgrids supported by non-intrusive load monitoring. Appl. Energy 2022, 307, 118136. [Google Scholar] [CrossRef]
  12. Grover, H.; Panwar, L.; Verma, A.; Panigrahi, B.K.; Bhatti, T.S. A multi-head Convolutional Neural Network based non-intrusive load monitoring algorithm under dynamic grid voltage conditions. Sustain. Energy Grids Netw. 2022, 32, 100938. [Google Scholar] [CrossRef]
  13. Holweger, J.; Dorokhova, M.; Bloch, L.; Ballif, C.; Wyrsch, N. Unsupervised algorithm for disaggregating low-sampling-rate electricity consumption of households. Sustain. Energy Grids Netw. 2019, 19, 100244. [Google Scholar] [CrossRef]
  14. Saeed, M.H.; Fangzong, W.; Kalwar, B.A.; Iqbal, S. A review on microgrids’ challenges & perspectives. IEEE Access 2021, 9, 166502–166517. [Google Scholar]
  15. Bibri, S.E.; Krogstie, J. Smart sustainable cities of the future: An extensive interdisciplinary literature review. Sustain. Cities Soc. 2017, 31, 183–212. [Google Scholar] [CrossRef]
  16. Singh, T.; Solanki, A.; Sharma, S.K.; Nayyar, A.; Paul, A. A Decade Review on Smart Cities: Paradigms, Challenges and Opportunities. IEEE Access 2022, 10, 68319–68364. [Google Scholar] [CrossRef]
  17. Anthopoulos, L.G. The rise of the smart city. In Understanding Smart Cities: A Tool for Smart Government or an Industrial Trick? Springer: Cham, Switzerland, 2017; pp. 5–45. [Google Scholar]
  18. Kim, H.; Choi, H.; Kang, H.; An, J.; Yeom, S.; Hong, T. A systematic review of the smart energy conservation system: From smart homes to sustainable smart cities. Renew. Sustain. Energy Rev. 2021, 140, 110755. [Google Scholar] [CrossRef]
  19. Mansouri, S.A.; Ahmarinejad, A.; Nematbakhsh, E.; Javadi, M.S.; Jordehi, A.R.; Catalao, J. Energy management in microgrids including smart homes: A multi-objective approach. Sustain. Cities Soc. 2021, 69, 102852. [Google Scholar] [CrossRef]
  20. Albogamy, F.R. Optimal Energy Consumption Scheduler Considering Real-Time Pricing Scheme for Energy Optimization in Smart Microgrid. Energies 2022, 15, 8015. [Google Scholar] [CrossRef]
  21. Wijaya, F.D.; Syafrudi, S.; Sarjiya, S. A Strategy to Balance Supply and Demand Fluctuation for RES-Based Microgrids in Isolated Area. Int. Energy J. 2022, 22, 327–338. [Google Scholar]
  22. Kabalci, Y. A survey on smart metering and smart grid communication. Renew. Sustain. Energy Rev. 2016, 57, 302–318. [Google Scholar] [CrossRef]
  23. Zhang, G.; Wang, G.G.; Farhangi, H.; Palizban, A. Data mining of smart meters for load category based disaggregation of residential power consumption. Sustain. Energy Grids Netw. 2017, 10, 92–103. [Google Scholar] [CrossRef]
  24. Amayri, M.; Silva, C.S.; Pombeiro, H.; Ploix, S. Flexibility characterization of residential electricity consumption: A machine learning approach. Sustain. Energy Grids Netw. 2022, 32, 100801. [Google Scholar] [CrossRef]
  25. Nejabatkhah, F.; Li, Y.W.; Liang, H.; Reza-Ahrabi, R. Cyber-security of smart microgrids: A survey. Energies 2020, 14, 27. [Google Scholar] [CrossRef]
  26. Canaan, B.; Colicchio, B.; Ould-Abdeslam, D. Microgrid cyber-security: Review and challenges toward resilience. Appl. Sci. 2020, 10, 5649. [Google Scholar] [CrossRef]
  27. Gopinath, R.; Kumar, M.; Joshua, C.P.C.; Srinivas, K. Energy management using non-intrusive load monitoring techniques–State-of-the-art and future research directions. Sustain. Cities Soc. 2020, 62, 102411. [Google Scholar] [CrossRef]
  28. Kabalcı, E.; Kabalcı, Y.; Siano, P. Design and implementation of a smart metering infrastructure for low voltage microgrids. Int. J. Electr. Power Energy Syst. 2022, 134, 107375. [Google Scholar] [CrossRef]
  29. Kumar, G.; Kumar, L.; Kumar, S. Multi-objective control-based home energy management system with smart energy meter. Electr. Eng. 2023, 105, 2095–2105. [Google Scholar] [CrossRef]
  30. Ridi, A.; Gisler, C.; Hennebert, J. A survey on intrusive load monitoring for appliance recognition. In Proceedings of the 22nd international conference on pattern recognition, Stockholm, Sweden, 24–28 August 2014; IEEE: Piscataway, NJ, USA, 2014; pp. 3702–3707. [Google Scholar]
  31. Francou, J.; Calogine, D.; Chau, O.; David, M.; Lauret, P. Expanding variety of non-intrusive load monitoring training data: Introducing and benchmarking a novel data augmentation technique. Sustain. Energy Grids Netw. 2023, 35, 101142. [Google Scholar] [CrossRef]
  32. Hart, G.W. Nonintrusive appliance load monitoring. Proc. IEEE 1992, 80, 1870–1891. [Google Scholar] [CrossRef]
  33. Alcalá, J.; Ureña, J.; Hernández, A.; Gualda, D. Event-based energy disaggregation algorithm for activity monitoring from a single-point sensor. IEEE Trans. Instrum. Meas. 2017, 66, 2615–2626. [Google Scholar] [CrossRef]
  34. Ghosh, S.; Chatterjee, A.; Chatterjee, D. An improved load feature extraction technique for smart Homes using fuzzy-based NILM. IEEE Trans. Instrum. Meas. 2021, 70, 1–9. [Google Scholar] [CrossRef]
  35. Kong, W.; Dong, Z.Y.; Ma, J.; Hill, D.J.; Zhao, J.; Luo, F. An extensible approach for non-intrusive load disaggregation with smart meter data. IEEE Trans. Smart Grid 2016, 9, 3362–3372. [Google Scholar] [CrossRef]
  36. Isanbaev, V.; Baños, R.; Arrabal-Campos, F.M.; Gil, C.; Montoya, F.G.; Alcayde, A. A comparative study on pretreatment methods and dimensionality reduction techniques for energy data disaggregation in home appliances. Adv. Eng. Inform. 2022, 54, 101805. [Google Scholar] [CrossRef]
  37. Viciana, E.; Arrabal-Campos, F.M.; Alcayde, A.; Baños, R.; Montoya, F.G. All-in-one three-phase smart meter and power quality analyzer with extended IoT capabilities. Measurement 2023, 206, 112309. [Google Scholar] [CrossRef]
  38. Wu, T.; Wang, J. Artificial intelligence for operation and control: The case of microgrids. Electr. J. 2021, 34, 106890. [Google Scholar] [CrossRef]
  39. Kouache, I.; Sebaa, M.; Bey, M.; Allaoui, T.; Denai, M. A new approach to demand response in a microgrid based on coordination control between smart meter and distributed superconducting magnetic energy storage unit. J. Energy Storage 2020, 32, 101748. [Google Scholar] [CrossRef]
  40. Mbungu, N.T.; Bansal, R.C.; Naidoo, R.M.; Bettayeb, M.; Siti, M.W.; Bipath, M. A dynamic energy management system using smart metering. Appl. Energy 2020, 280, 115990. [Google Scholar] [CrossRef]
  41. Hafidz, I.; Priyadi, A.; Pujiantara, M.; Anggriawan, D.O.; Purnomo, M.H. Development of IoT-Based Portable Power Quality Monitoring on Microgrids by Enhancing Protection Features. IEEE Access 2023, 11, 49481–49492. [Google Scholar] [CrossRef]
  42. Tsai, K.-L.; Leu, F.-Y.; You, I. Residence energy control system based on wireless smart socket and IoT. IEEE Access 2016, 4, 2885–2894. [Google Scholar] [CrossRef]
  43. Rosiek, S.; Batlles, F.J. Renewable energy solutions for building cooling, heating and power system installed in an institutional building: Case study in southern Spain. Renew. Sustain. Energy Rev. 2013, 26, 147–168. [Google Scholar] [CrossRef]
  44. Hannagan, J.; Woszczeiko, R.; Langstaff, T.; Shen, W.; Rodwell, J. The Impact of Household Appliances and Devices: Consider Their Reactive Power and Power Factors. Sustainability 2022, 15, 158. [Google Scholar] [CrossRef]
  45. Uddin, M.; Mo, H.; Dong, D.; Elsawah, S.; Zhu, J.; Guerrero, J. Microgrids: A review, outstanding issues and future trends. Energy Strategy Rev. 2023, 49, 101127. [Google Scholar] [CrossRef]
  46. Aslam, S.; Herodotou, H.; Mohsin, S.M.; Javaid, N.; Ashraf, N.; Aslam, S. A survey on deep learning methods for power load and renewable energy forecasting in smart microgrids. Renew. Sustain. Energy Rev. 2021, 144, 110992. [Google Scholar] [CrossRef]
  47. González-Briones, A.; Hernandez, G.; Corchado, J.M.; Omatu, S.; Mohamad, M.S. Machine learning models for electricity consumption forecasting: A review. In Proceedings of the 2019 2nd International Conference on Computer Applications & Information Security (ICCAIS), Riyadh, Saudi Arabia, 1–3 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–6. [Google Scholar]
  48. Baños, R.; Gil, C.; Agulleiro, J.I.; Reca, J. A memetic algorithm for water distribution network design. In Soft Computing in Industrial Applications: Recent Trends; Saad, A., Dahal, K., Sarfraz, M., Roy, R., Eds.; Springer: Berlin/Heidelberg, Germany, 2007; pp. 279–289. [Google Scholar]
  49. Dashtdar, M.; Flah, A.; Hosseinimoghadam, S.M.S.; El-Fergany, A. Frequency control of the islanded microgrid including energy storage using soft computing. Sci. Rep. 2022, 12, 20409. [Google Scholar] [CrossRef]
Energies 17 01251 g001

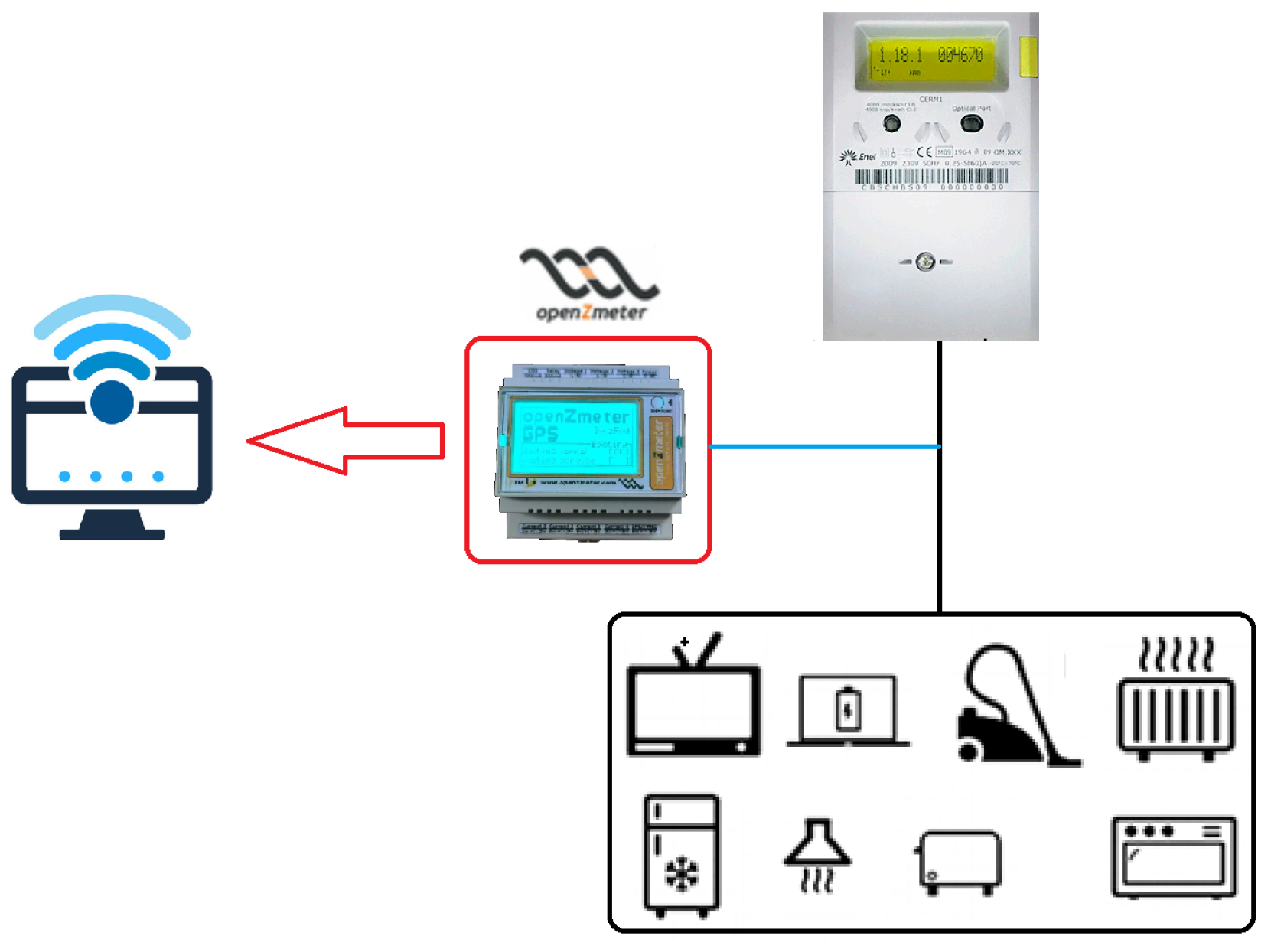

Figure 1. Measuring electrical variables in home appliances using the openZmeter.
Figure 1. Measuring electrical variables in home appliances using the openZmeter.
Energies 17 01251 g001
Energies 17 01251 g002

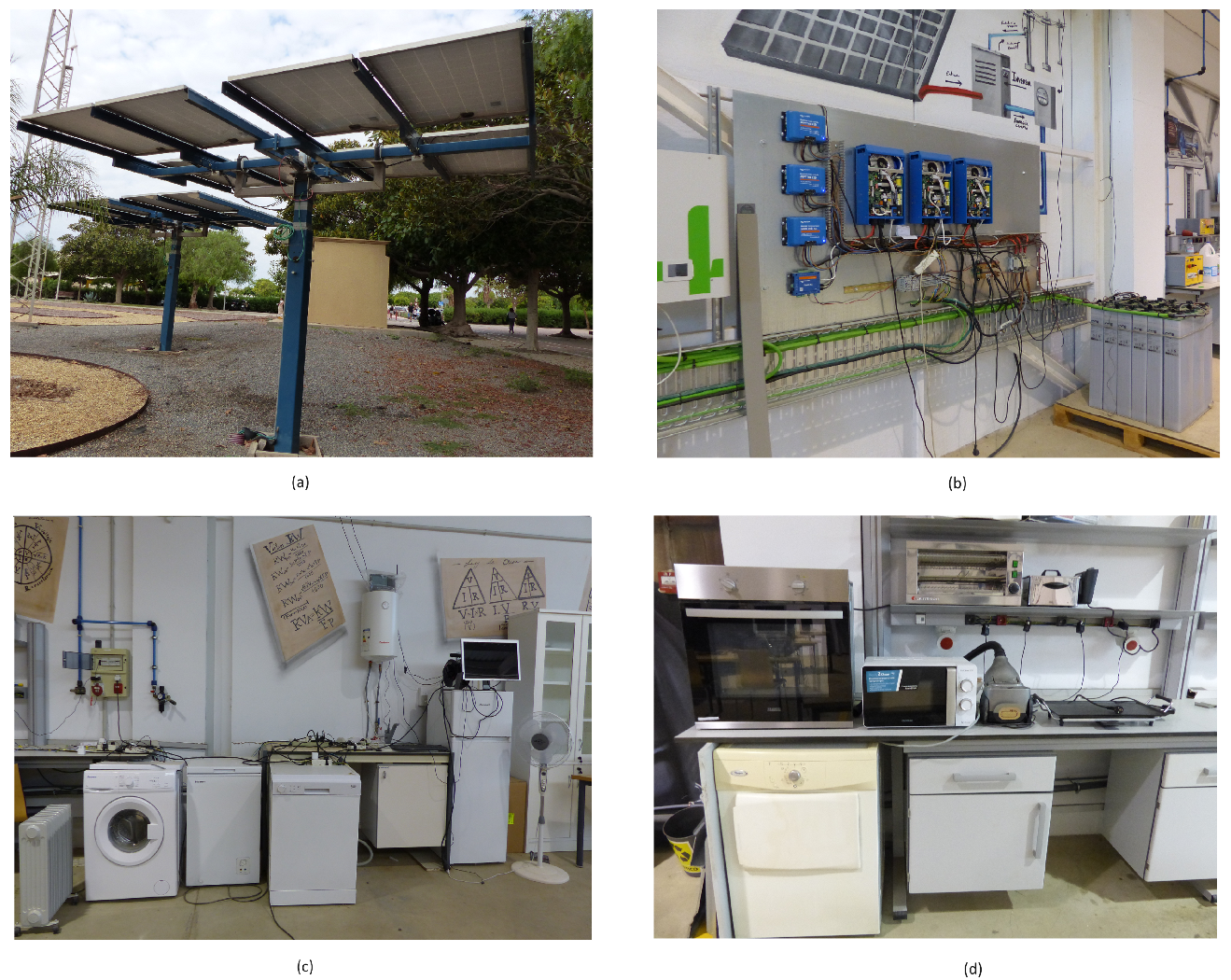

Figure 2. (a) Photovoltaic solar trackers; (b) power electronics and storage systems; (c,d) loads (home appliances).
Figure 2. (a) Photovoltaic solar trackers; (b) power electronics and storage systems; (c,d) loads (home appliances).
Energies 17 01251 g002
Energies 17 01251 g003

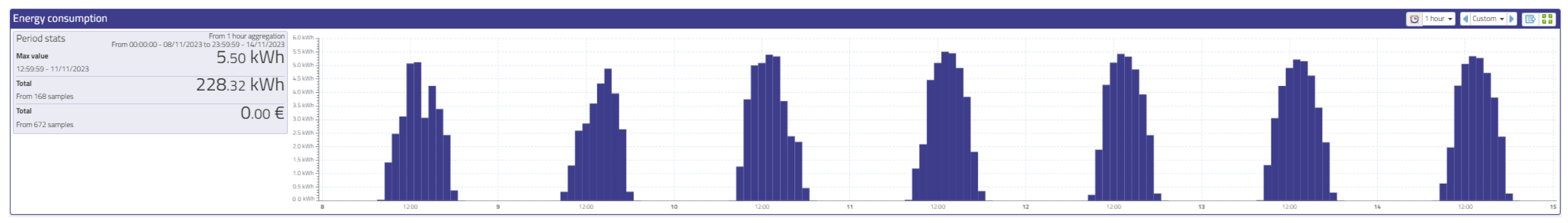

Figure 3. Energy produced by renewable sources in the microgrid.
Figure 3. Energy produced by renewable sources in the microgrid.
Energies 17 01251 g003
Energies 17 01251 g004

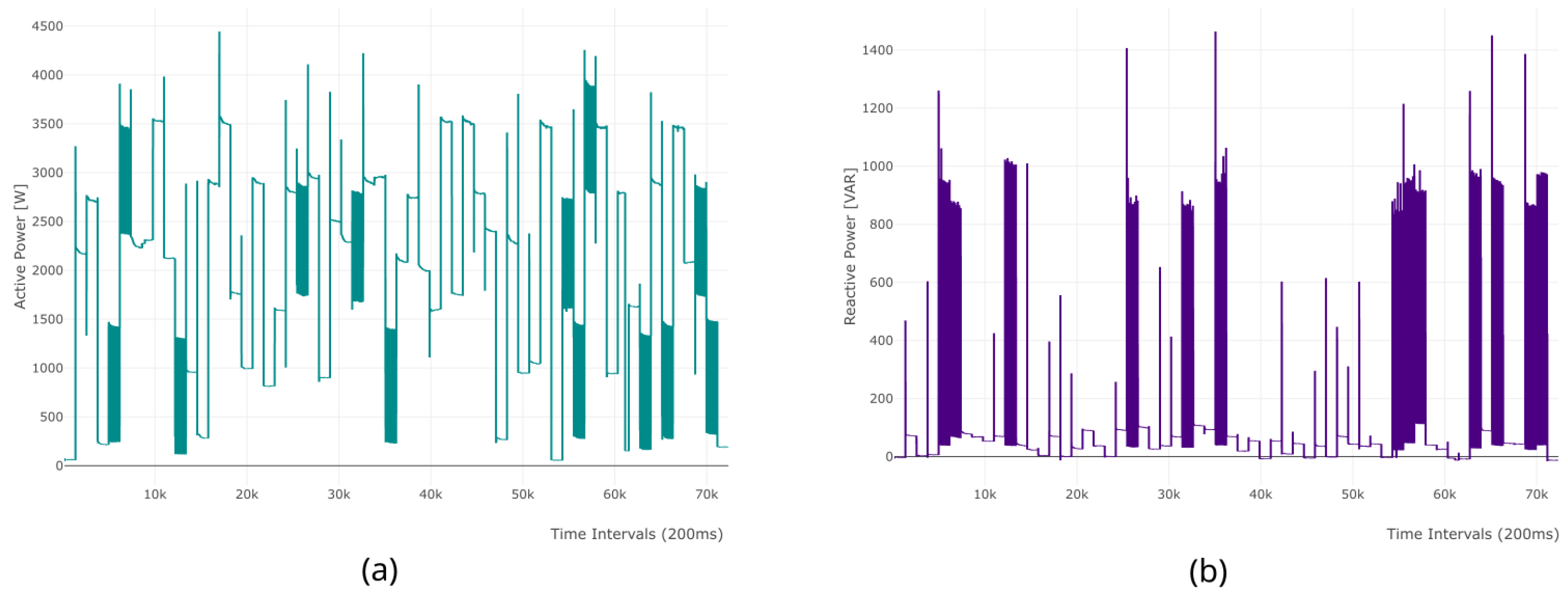

Figure 4. (a) Active power and (b) reactive power during the experiments.
Figure 4. (a) Active power and (b) reactive power during the experiments.
Energies 17 01251 g004
Energies 17 01251 g005

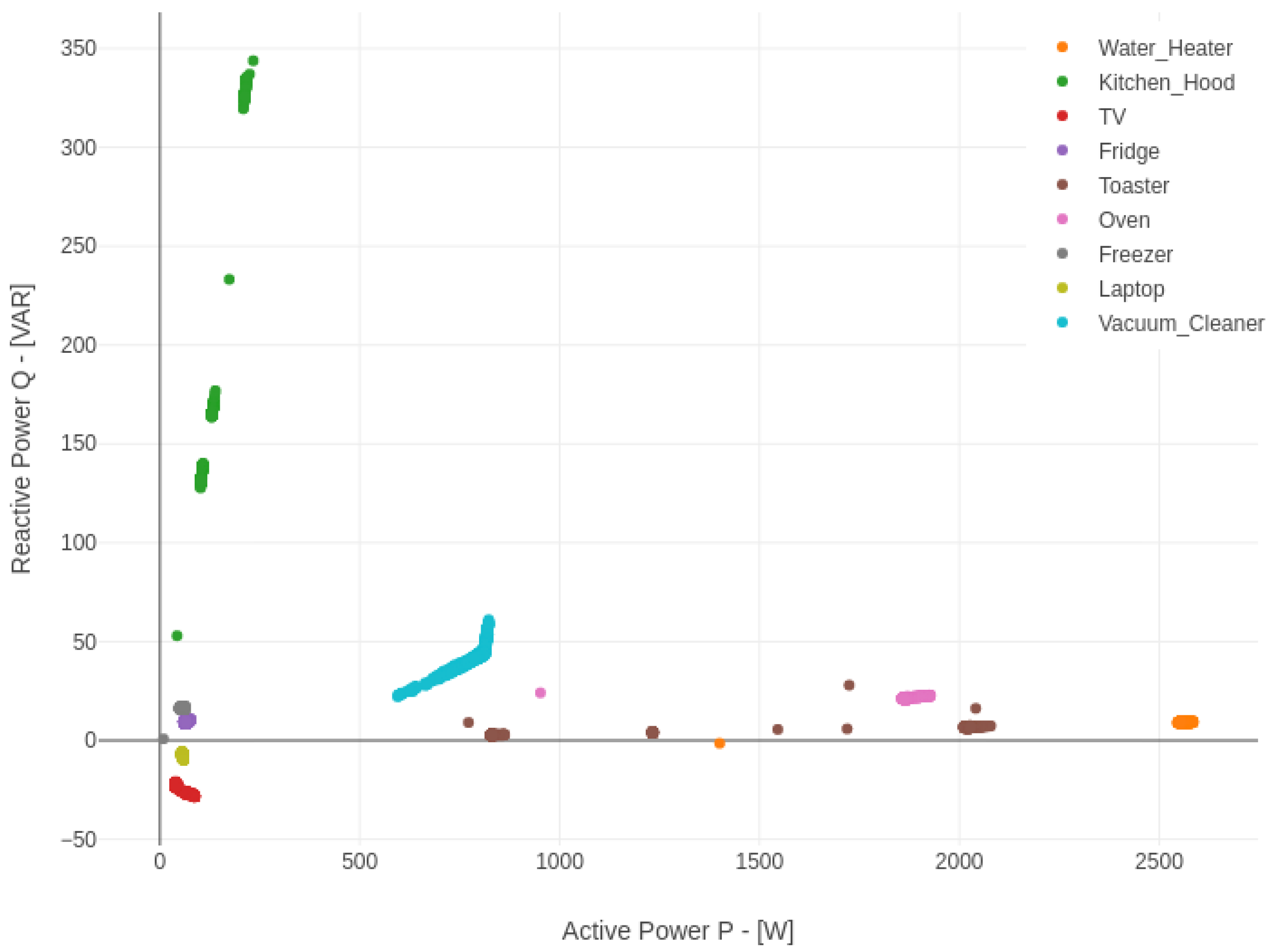

Figure 5. Active and reactive energy measured for each home appliance.
Figure 5. Active and reactive energy measured for each home appliance.
Energies 17 01251 g005
Energies 17 01251 g006

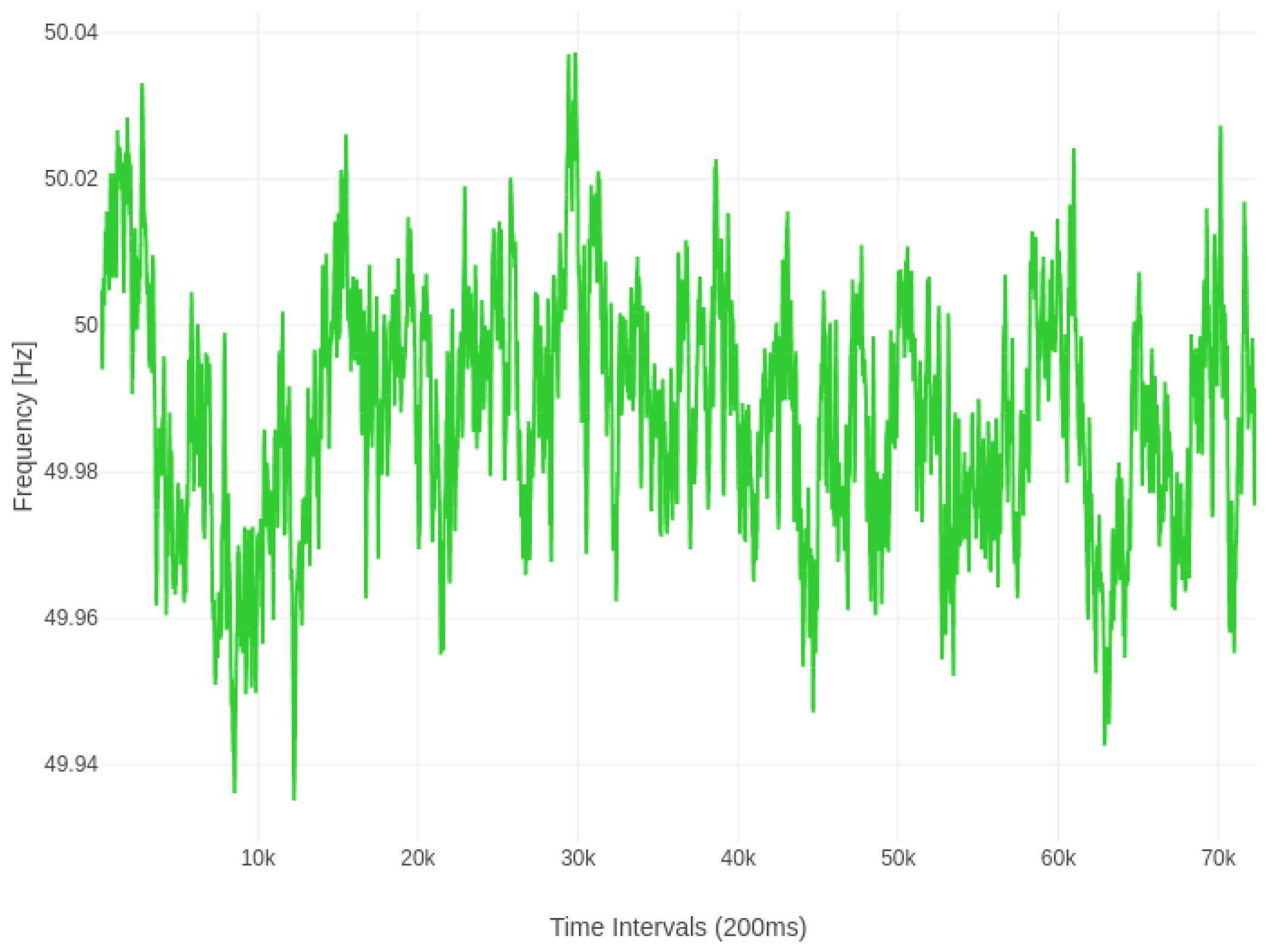

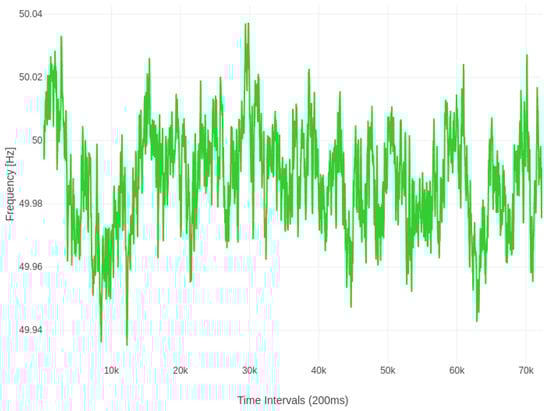

Figure 6. Frequency measured during the experiment.
Figure 6. Frequency measured during the experiment.
Energies 17 01251 g006
Energies 17 01251 g007

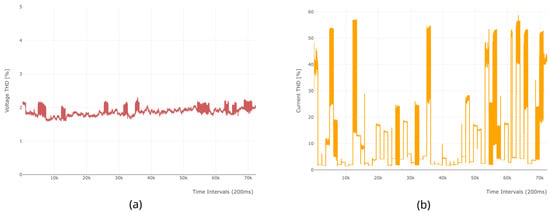

Figure 7. (a) Voltage THD and (b) current THD measured during the experiments.
Figure 7. (a) Voltage THD and (b) current THD measured during the experiments.
Energies 17 01251 g007
Table 1. Statistical values obtained during the experiment.
Table 1. Statistical values obtained during the experiment.
Active Power
[W]		Reactive Power
[VAR]		Power Factor
[0–1]		Frequency
[Hz]		THD(v)
[%]
THD(i)
[%]
MIN45.71−16.010.2049.941.581.38
MAX4445.291464.031.0050.042.3058.70
MEAN1911.8880.060.9849.991.8711.56
STD1094.46142.200.060.020.1213.61
