Ethylene Separation via Hydrate Formation in W/O Emulsions

Abstract

An hybrid absorption-hydration method was adopted to recover C₂H₄ from C₂H₄/CH₄ binary gas mixtures and the hydrate formation conditions of C₂H₄/CH₄ mixtures was studied experimentally in diesel in water (w/o) emulsions. Span 20 at a concentration of 1.0 wt% in the aqueous phase was added to form water in diesel emulsions before hydrate formation and then hydrate in diesel slurry was separated after hydrate formation. The influences of initial gas-liquid volume ratio (53–142), pressure (3.4–5.4 MPa), temperature (274.15–278.15 K), water cuts (10–30 vol%), and the mole fraction of C₂H₄ in feed gas (13.19–80.44 mol%) upon the C₂H₄ separation efficiency were systematically investigated. The experimental results show that ethylene can be enriched in hydrate slurry phase with high separation factor (S) and recovery ratio (R). Most hydrate formation finished in 20 min, after that, the hydrate formation rate became very slow. The conclusion is useful for determining the suitable operation conditions when adopting an absorption-hydration method to separate C₂H₄/CH₄.

1. Introduction

Separation of C2 hydrocarbons from methane is a very important industrial process [1]. This is because the recovery of C2 hydrocarbons from methane not only upgrades the quality of natural gas (NG) for its efficient usage, but can also provide an alternative chemical source of C2s for further chemical processing and transformation. Furthermore, C2s are the main products of oxidative coupling of methane (OCM) in the process for converting NG into a more useful chemical feedstock, thus they certainly need to be separated from the un-reacted methane [2]. Now industrial hydrocarbon mixture separations mainly rely upon the energy-intensive distillation-based technologies, which represent a class of the most important and also the most costly processes in the chemical industry [3]. A new separation technology based on hydrate formation/dissociation might be an optional method for the separation of low boiling gas mixtures.

Gas hydrates are nonstoichiometric crystalline compounds composed of water and gases with small molecules [4]. The mechanism of hydrate-based gas separation is that some components can form hydrates more easily and thus be enriched in hydrate phase, therefore leading to the relative concentration of each component in the hydrate phase and that in the residual vapor phase be different [5]. An obvious advantage of hydrate approach over a cryogenic one is that separation process can be operated around the ice point, thus deep cooling can be avoided. Zhang et al. [5,6] have effectively separated C₂H₄ and C₂H₆ over CH₄ by forming hydrates in aqueous solution, where it was found that both SDS and THF could increase the C2s’ partition coefficient and recovery ratio. Naeiji et al. [7] studied the separation of methane-ethane mixtures of various compositions through hydrate formation. Their experimental data showed that the two gases could be fully separated, no matter whether the mole fractions of methane in the mixture were low or high. The separation of other components such as CO₂ [8,9], CH₄ [10], H₂S [11], SF₆ [12], and HFC-134a [13], etc. by hydrate formation in aqueous solutions by adding hydrate additives were also widely investigated. However, these additives cannot guarantee the formation of flowable hydrate, which is required for the continuous separation of gas mixtures in practical industrial processes.

Rather than using a single phase aqueous solution, we recently proposed a new method for separating gas mixtures, the so-called absorption-hydration hybrid method. In this method, water-in-oil (W/O) emulsions are used under hydrate formation conditions [14,15,16]. The separation mechanism of this method is that gas components are firstly selectively absorbed by the oil phase due to the different solubility of each gas component and the dissolved gas molecules then further selectively form hydrate. This is to say there exists two separation processes in an equilibrium separation stage, thus high separation efficiency could be obtained. Anti-agglomerants added to the system could help hydrate particles suspend in the oil phase and prevent them from aggregating into blockages, thus a flowable hydrate slurry can be formed. In our previous works, we have effectively separated C2 from multicomponent refinery dry gases by using this absorption-hydration hybrid separation method and we found methane and ethylene are two critical components affecting the separation efficiency [15,16]. In order to understand more about the absorption-hydration hybrid method for the separation of hydrocarbons, determine the suitable operation conditions, and provide basic data for process design, in this work, the absorption-hydration hybrid method is adopted to recover C₂H₄ from binary C₂H₄/CH₄ gas mixtures.

2. Results and Discussion

A series of absorption-hydration separation experiments were performed for C₂H₄/CH₄ mixtures using w/o emulsions under different hydrate formation conditions. The influences of initial gas-liquid volume ratio, pressure, temperature, water cuts, and gas composition on the emulsion’s separation ability were studied systematically and the results are given in Table 1, Table 2, Table 3, Table 4, Table 5 and Table 6 and Figure 1 and Figure 2.

Table 1. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) mixture in diesel-water emulsion with different initial gas-liquid ratio Φ. Temperature and water cut were specified to 274.15 K and 30 vol%, respectively.

P0/MPa	PE/MPa	PE’/MPa	Φ	y1	x1	R/mol%	S
2.2	1.65	1.55	53	19.02	53.63	57.00	4.92
3.4	1.83	1.74	80	14.19	47.74	75.18	5.53
4.2	2.38	1.81	109	12.77	46.50	79.19	5.94
4.3	2.17	1.85	80	11.96	45.28	81.87	6.09
5.0	2.31	1.90	80	10.99	43.27	85.07	6.18
5.2	3.63	1.65	142	16.23	50.75	67.06	5.31

Table 1. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) mixture in diesel-water emulsion with different initial gas-liquid ratio Φ. Temperature and water cut were specified to 274.15 K and 30 vol%, respectively.

P0/MPa	PE/MPa	PE’/MPa	Φ	y1	x1	R/mol%	S
2.2	1.65	1.55	53	19.02	53.63	57.00	4.92
3.4	1.83	1.74	80	14.19	47.74	75.18	5.53
4.2	2.38	1.81	109	12.77	46.50	79.19	5.94
4.3	2.17	1.85	80	11.96	45.28	81.87	6.09
5.0	2.31	1.90	80	10.99	43.27	85.07	6.18
5.2	3.63	1.65	142	16.23	50.75	67.06	5.31

Table 2. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different initial pressure. Temperature, initial gas-liquid volume ratio, and water cut were specified to 274.15 K, 80, and 30 vol%, respectively.

P0/MPa	PE/MPa	PE’/MPa	y1	x1	R/mol%	S
3.4	1.83	1.74	14.19	47.74	75.18	5.53
4.3	2.17	1.85	11.96	45.28	81.87	6.09
5.0	2.31	1.90	10.99	43.27	85.07	6.18
5.4	2.36	1.98	9.61	40.41	89.28	6.38

Table 2. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different initial pressure. Temperature, initial gas-liquid volume ratio, and water cut were specified to 274.15 K, 80, and 30 vol%, respectively.

P0/MPa	PE/MPa	PE’/MPa	y1	x1	R/mol%	S
3.4	1.83	1.74	14.19	47.74	75.18	5.53
4.3	2.17	1.85	11.96	45.28	81.87	6.09
5.0	2.31	1.90	10.99	43.27	85.07	6.18
5.4	2.36	1.98	9.61	40.41	89.28	6.38

Table 3. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different temperatures. Initial gas-liquid volume ratio, pressure, and water cut were specified to 80, 3.4 MPa, and 30 vol%, respectively.

PE/MPa	T/K	y1	x1	R/mol%	S
1.83	274.15	14.19	47.74	75.18	5.53
1.96	275.15	16.03	48.02	70.12	4.84
2.09	276.15	17.21	49.59	65.55	4.73
2.10	277.15	18.66	51.19	59.75	4.57
2.29	278.15	19.69	52.29	55.42	4.47

Table 3. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different temperatures. Initial gas-liquid volume ratio, pressure, and water cut were specified to 80, 3.4 MPa, and 30 vol%, respectively.

PE/MPa	T/K	y1	x1	R/mol%	S
1.83	274.15	14.19	47.74	75.18	5.53
1.96	275.15	16.03	48.02	70.12	4.84
2.09	276.15	17.21	49.59	65.55	4.73
2.10	277.15	18.66	51.19	59.75	4.57
2.29	278.15	19.69	52.29	55.42	4.47

Table 4. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different water cuts. Temperature, initial pressure, and initial gas-liquid volume ratio were specified to 274.15 K, 3.4 MPa, and 80, respectively.

PE/MPa	QW/%	y1	x1	R/mol%	S
1.88	10	17.04	49.04	66.43	4.68
1.77	15	15.22	48.68	71.88	5.28
1.73	20	14.57	48.28	73.85	5.47
1.71	30	14.19	47.74	75.18	5.53

Table 4. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) in diesel-water emulsion with different water cuts. Temperature, initial pressure, and initial gas-liquid volume ratio were specified to 274.15 K, 3.4 MPa, and 80, respectively.

PE/MPa	QW/%	y1	x1	R/mol%	S
1.88	10	17.04	49.04	66.43	4.68
1.77	15	15.22	48.68	71.88	5.28
1.73	20	14.57	48.28	73.85	5.47
1.71	30	14.19	47.74	75.18	5.53

Table 5. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) mixture in diesel-water emulsion. Initial gas-liquid ratio Φ, initial pressure, temperature, and water cut were specified to 80, 4.2 MPa, 274.15 K, and 20 vol%, respectively.

P0/MPa	PE/MPa	y1	x1	R/mol%	S
4.2	2.46	13.13	45.68	79.08	5.56

Table 5. Separation results for C₂H₄/CH₄ (30.08/69.92 mol%) mixture in diesel-water emulsion. Initial gas-liquid ratio Φ, initial pressure, temperature, and water cut were specified to 80, 4.2 MPa, 274.15 K, and 20 vol%, respectively.

P0/MPa	PE/MPa	y1	x1	R/mol%	S
4.2	2.46	13.13	45.68	79.08	5.56

Table 6. Vapor-hydrate equilibrium data for C₂H₄/CH₄ binary system in diesel-water emulsion with respect to six feed gas mixtures with different compositions while temperature, initial pressure, and water cut are 274.15 K, 3.4 MPa, and 30 vol%, respectively.

PE/MPa	Φ (v/v)	Z1	y1	x1	R/mol%	S
2.34	75	13.19	8.71	21.53	57.08	2.88
2.20	77	20.84	11.97	34.28	65.39	3.83
1.93	80	30.08	14.19	47.95	75.04	5.57
1.77	85	48.43	26.53	67.04	76.83	5.63
1.46	103	61.22	41.57	70.17	78.75	3.31
1.48	112	80.44	64.52	86.73	76.38	3.49

Table 6. Vapor-hydrate equilibrium data for C₂H₄/CH₄ binary system in diesel-water emulsion with respect to six feed gas mixtures with different compositions while temperature, initial pressure, and water cut are 274.15 K, 3.4 MPa, and 30 vol%, respectively.

PE/MPa	Φ (v/v)	Z1	y1	x1	R/mol%	S
2.34	75	13.19	8.71	21.53	57.08	2.88
2.20	77	20.84	11.97	34.28	65.39	3.83
1.93	80	30.08	14.19	47.95	75.04	5.57
1.77	85	48.43	26.53	67.04	76.83	5.63
1.46	103	61.22	41.57	70.17	78.75	3.31
1.48	112	80.44	64.52	86.73	76.38	3.49

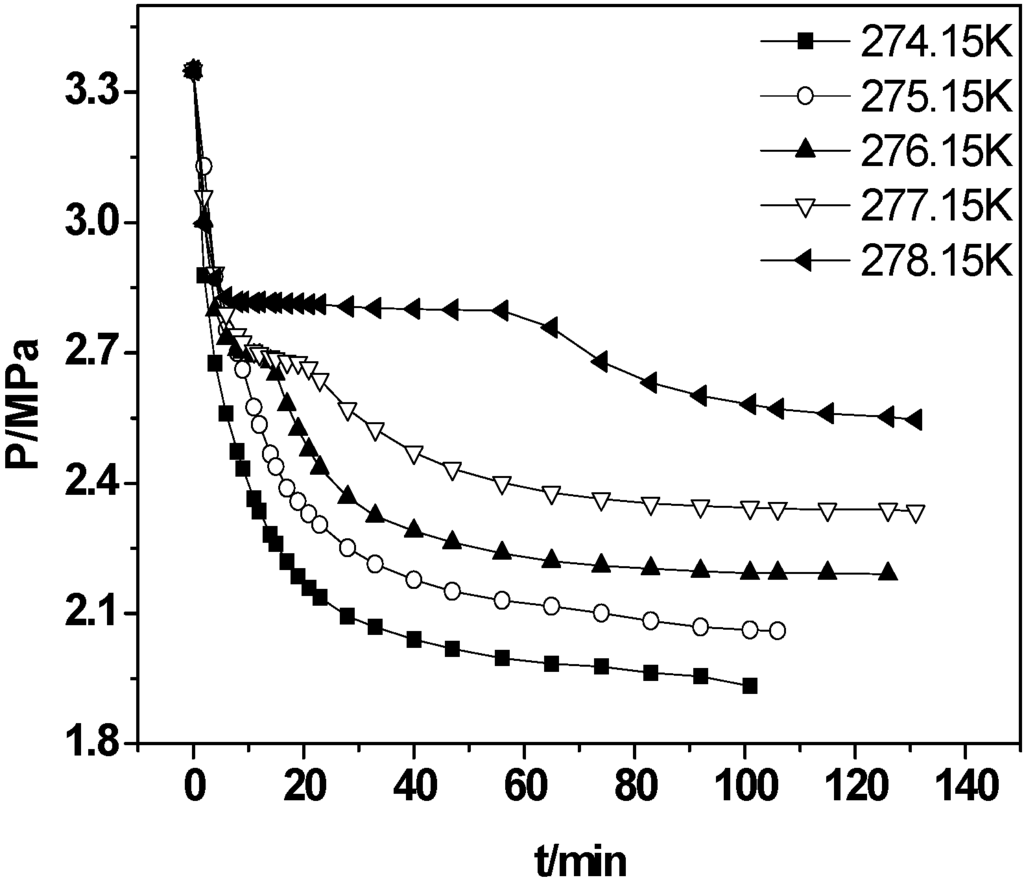

Figure 1. Kinetic curves of C₂H₄/CH₄ (30.08/69.92 mol%) mixture separation in W/O emulsion at fixed initial pressure 3.4 MPa but different temperatures.

Figure 1. Kinetic curves of C₂H₄/CH₄ (30.08/69.92 mol%) mixture separation in W/O emulsion at fixed initial pressure 3.4 MPa but different temperatures.

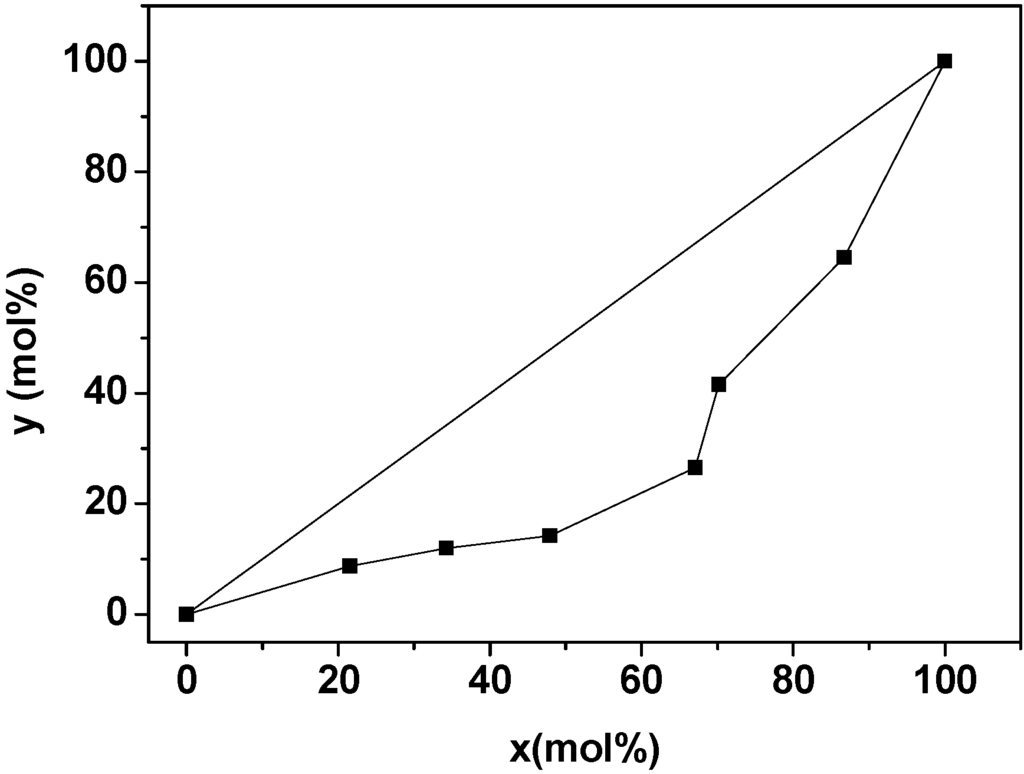

Figure 2. Pseudo-x-y diagram of C₂H₄/CH₄ binary systems. Temperature, initial pressure, and water cut are 274.15K, 3.4 MPa, and 30 vol%, respectively.

Figure 2. Pseudo-x-y diagram of C₂H₄/CH₄ binary systems. Temperature, initial pressure, and water cut are 274.15K, 3.4 MPa, and 30 vol%, respectively.

2.1. Effect of Initial Gas-Liquid Volume Ratio and Pressure

Table 1 shows the influence of initial gas-liquid volume ratio and pressure upon the separation efficiency of ethylene with respect to a C₂H₄/CH₄ (30.08/69.92 mol%) feed gas. In this group of experiments, temperature and water cut were specified to 274.15 K and 30 vol%, respectively. P₀ and P_E are the initial pressure and equilibrium pressure in the sapphire cell, respectively; P_E’ is the hydrate formation pressure of residual C₂H₄/CH₄ mixture in the sapphire cell; y₁ and x₁ are the mole fraction of C₂H₄ in equilibrium gas phase and slurry phase; R is the recovery ratio of C₂H₄ in the slurry phase; and S is the separation factor of C₂H₄ over CH₄. From Table 1 we can see the separation ability of the absorption-hydration hybrid method increases remarkably with the increase of Φ and P₀ as y₁ decreases and both R and S increase. This can be attributed to the fact that under higher Φ, more water is converted into hydrate, which increased the hydration separation ability dramatically. However, as shown in Table 1, when the initial gas-liquid volume ratio (Φ) increased to 109, the hydrate formation pressure of residual C₂H₄/CH₄ (12.77/87.23 mol%) mixture in the sapphire cell is only about 1.81 MPa as calculated by Chen-Guo model [17]. This formation pressure is much lower than the equilibrium separation pressure (2.38 MPa), indicating all water has converted to hydrate under these conditions and the V-L_{hydrocarbon-rich}-H three-phase equilibrium has been established after the completion of hydrate formation. This can also be proved from another series of experimental runs listed in Table 2, where the experimental temperature and initial gas-liquid volume ratio were respectively specified at 274.15 K and 80 but under different initial pressures by pushing the piston in the sapphire cell after gases were injected into it. As one can see, when the initial pressure (P₀) is higher than 4.3 MPa, the equilibrium pressure (P_E) becomes remarkably higher than V-L_{hydrocarbon-rich}-W-H four-phase equilibrium pressure P_E’, indicating all water has been converted into hydrate and V-L_{hydrocarbon-rich}-H three-phase equilibrium exists in the sapphire cell in these cases. From Table 2 we can also see that y₁ and the separation factor S just change a little with increasing the initial pressure when all water has been converted into hydrate, so in a practical separation process, the appropriate initial gas-liquid volume ratio and operation pressure should be less than 100 and 4.2 MPa, respectively, in order to not be working in a V-L_{hydrocarbon-rich}-H three phase co-existence area.

2.2. Effect of Temperature

Table 3 shows the influence of temperature upon the separation efficiency of ethylene with respect to the same C₂H₄/CH₄ feed gas. The initial pressure and the initial gas-liquid volume ratio were specified at 3.4 MPa and 80, respectively. It is evident that the concentration of C₂H₄ in the equilibrium gas phase (y₁) decreases and the fraction of C₂H₄ recycled from feed gas (R) and the separation factor (S) increases quickly when the temperature decreases from 278.15 K to 274.15 K. This is due to an increase of the quantity of hydrate formed with decreasing temperature. As can be seen, when the temperature is 274.15 K, after a single equilibrium separation stage, the mole fraction of C₂H₄ could be enriched from 30.08 to 48 mol% in the hydrate slurry. Under this condition, the separation factor S reached 5.53 and more than 75% of C₂H₄ could be recovered from the slurry, demonstrating the good separation ability of the absorption-hydration method. Figure 1 shows the kinetic behaviors of the phase equilibrium process for C₂H₄/CH₄ mixture at these four different temperatures. As one can see there are three sequential stages, i.e., gas dissolution, induction of hydrate nucleation, and hydrate growth, for a single kinetic behavior. The first rapid decrease of pressure corresponds to the dissolution of gas in the oil phase. One can see that the induction time decreased and the hydrate formation rate increased dramatically with decreasing temperature. This can be attributed to a result of an increase of the driving force for hydrate formation. When temperature dropped to 275.15 K, the induction period nearly disappeared. In addition, from Figure 1 we can see that most hydrate formation finished in 20 min, and after that, hydrate formation rate became very slow. It should be pointed out that if using pure water instead of w/o emulsion, the induction time is always more than half an hour and the formation rate of hydrate is very slow then [18]. As higher hydrate formation rates are always pursued in practical applications to increase the efficiency of a separation process and reduce the scales of the equipment involved, kinetic behavior should be given more weight when determining the operation conditions. Experimental results obtained here means the suitable operation temperature is approximately 274.15 K.

2.3. Effect of Water Cuts

Water cut (Q_w) is an important factor to evaluate the separation capacity. Higher water cut means more hydrate formation and larger gas processing of the w/o emulsion. Therefore, a group of separation experiments on the same C₂H₄/CH₄ mixture with four different water cuts were performed to evaluate the influence of Q_w on the separation results of absorption-hydration hybrid method, where the content of Span 20 added in water phase is still 1.0 wt%. Temperature, initial pressure, and initial gas-liquid volume ratio were specified to 274.15 K, 3.4 MPa, and ~80, respectively. As shown in Table 4, both the separation factor S and the recovery ratio R of C₂H₄ increased with increasing water cuts. This demonstrates that a higher water cut is favorable for the recovery of C₂H₄ from C₂H₄/CH₄ mixtures using the absorption-hydration method. Although a higher water cut allows a greater contribution of hydrate separation to the entire absorption-hydration separation process, it was found that the hydrate slurry formed from the emulsions with higher water cuts had higher viscosities. Therefore, more energy would be needed for the transportation of the hydrate slurry in practical separation processes. More seriously, when water cut is higher than 30 vol%, it might become impossible for the hydrate slurry to flow [19]. From Table 4 you can see when water cut increases from 20 to 30 vol%, both R and S increase by only 1.5% or so. As the formation of stable and flowable hydrate slurry is critical for the absorption-hydration hybrid separation approach, in view of both separation efficiency and energy cost, here we recommend that water cut should be around 20 vol% in practical use.

In addition, an experiment with all of optimized conditions has been carried out and the results are given in Table 5. From Table 5 we can see the separation efficiency of C₂H₄/CH₄ mixtures by forming hydrate in w/o emulsion is very promising.

2.4. Effect of Gas Compositions

Gas composition is another important factor to evaluate the emulsion’s separation capacity as refinery gases or cracking gases, etc. have different concentrations of C₂H₄. Table 6 displays the separation results for six different C₂H₄/CH₄ mixtures in w/o emulsion, where T, P₀, and water cut are 274.15 K, 3.4 MPa, and 30 vol%. As shown in Table 6, equilibrium pressure (P_E) decreases with the increase of z₁, while for S, there exists a suitable z₁, i.e., 48 mol% or so, at which the highest S was obtained. We think it could be attributed to the fact that under this condition, z₁ is close to the critical value at which the V-L_{hydrocarbon-rich}-L_water-rich-H four-phase equilibrium converts to the V-L_{hydrocarbon-rich}-H three phase equilibrium. When z₁ exceeded 48 mol%, all water was converted into hydrate and the V-L_{hydrocarbon-rich}-H three phase equilibrium was established after the completion of hydrate formation. In this case, the quantity of hydrate did not increase with increasing z₁. However, the amount of C₂H₄ dissolved in the oil phase increased with z₁ and the contribution of the absorption separation to the entire hybrid separation increased with z₁. Because the separation factor of single absorption is lower than that of hydration as stated in our previous works [15,16], the separation factor of the entire absorption-hydration hybrid process decreased with increasing z₁. Separation results obtained here implies that it is very feasible to recover C₂H₄ for C₂H₄/CH₄ mixtures by using the absorption-hydration hybrid method. In order to display the separation efficiencies of C₂H₄/CH₄ mixtures by forming hydrate and the vapor-slurry equilibrium behavior of this binary system, the P-T-x-y data listed in Table 6 were used to produce a pseudo-x-y diagram, i.e., Figure 2, which clearly shows that the separation efficiency of C₂H₄/CH₄ mixtures by forming hydrate in w/o emulsions is very encouraging in the lower to medium ethylene concentration range.

3. Experimental Section

3.1. Experimental Apparatus

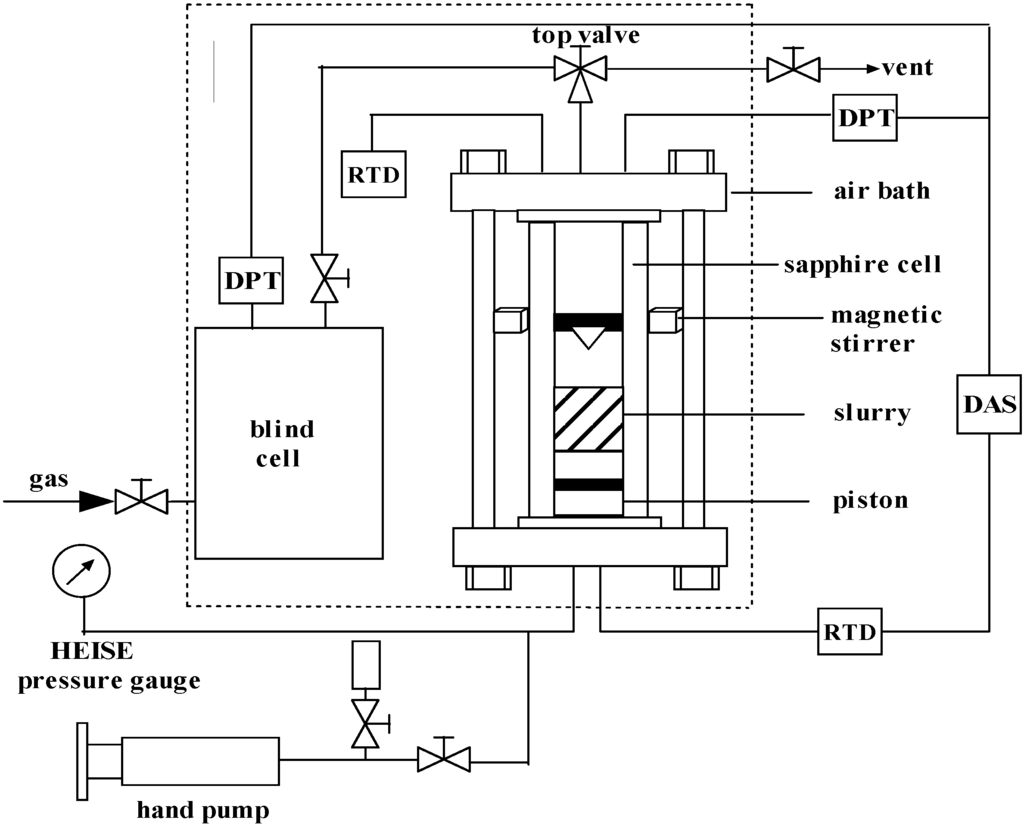

A schematic diagram of the experimental apparatus, which has been described in detail in our previous work [16], is shown in Figure 3. The main part of the apparatus is a high-pressure sapphire cell, in which gas mixtures contact with a w/o emulsion. Another important part is a blind cell, in which feed gas is pre-stored. The mole number of feed gas injected into the sapphire cell can be determined precisely through the pressure drop in the cell at a given temperature.

Figure 3. Schematic diagram of the experimental apparatus for hydrate formation: RTD, resistance thermocouple detector; DPT, differential pressure transducer; and DAS, data acquisition system.

Figure 3. Schematic diagram of the experimental apparatus for hydrate formation: RTD, resistance thermocouple detector; DPT, differential pressure transducer; and DAS, data acquisition system.

3.2. Materials and Preparation of Samples

Analytical grade methane (99.99%) and ethylene (99.99%) were purchased from Beijing AP Beifen Gas Industry Company (Beijing, China). The diesel, with a freezing point of 263.2 K, was purchased from Sinopec (Beijing, China). The synthetic C₂H₄/CH₄ (30.08/69.92 mol%) gas mixtures were prepared by ourselves. A Hewlett-Packard gas chromatograph (HP 7890, Hewlett-Packard Development Company, Palo Alto, CA, USA) was used to analyze the composition of the synthetic gases and residual gases after separation equilibrium. An electronic balance with a precision of ±0.1 mg was used in preparing the emulsion system with the required water cut and the content of Span 20. Span 20 was supplied by Beijing Reagents Corporation (Beijing, China). In all experimental runs, the mass content of Span 20 added in water was specified at 1%.

3.3. Experimental Procedures

Prior to the experiment, the sapphire cell was dismounted from the apparatus, washed with distilled water and dried. Next, 20 mL of liquid sample, e.g., water in diesel emulsion, was added into it. The system (sapphire cell + blind cell + tubes connecting two cells) was then purged through vacuuming, being replaced with feed gas, and vacuuming in turn to ensure the absence of air. Subsequently, the feed gas was injected into the blind cell until pressure was high enough. The air-bath temperature was then adjusted to the desired value. Once both temperature and pressure of the blind cell are constant, the desired amount of feed gas was injected into the sapphire cell from the blind cell and the magnetic stirrer was started to accelerate the hydrate formation. With absorption and hydration of gas mixtures, the system pressure in the sapphire cell decreased gradually. The change of pressure with elapsed time was recorded by a computer. When the system pressure became a constant for a long time, the formation of hydrate was assumed to be finished. The equilibrium gas mixture in the sapphire cell was then sampled under the constant pressure by pushing the piston in the sapphire cell using a hand pump and the compositions of the gas mixture were analyzed by the HP 7890 gas chromatograph. It should be pointed out that temperature of the air bath was kept constant during each experimental run. The volume of the emulsion or slurry phase in the sapphire cell can be obtained by measuring its height because the inner radius of the sapphire cell is known to be 1.27 cm. After each experimental run, the system was depressurized to atmospheric pressure and temperature was increased to 298 K or so to decompose hydrate thoroughly. Finally the cell was cleaned for the next experimental run.

3.4. Experimental Data Processing

In this work, the gas composition in slurry phase after separation equilibrium was determined by mass balance based on the following equations [15,16].

The total mole number of gas mixture (n_t) that injected into the sapphire cell was calculated by the following formula:

$$n_t=\frac{P_1{V}_{\text{t}}}{Z_{0}RT}-\frac{P_2{V}_{\text{t}}}{Z_{1}RT}$$

(1)

where P₁ and P₂ are pressures of the blind cell before and after gas mixture was injected into the sapphire cell, respectively; V_t is the total volume of the blind cell plus tubes connected to it; T is the system temperature; R is the universal gas constant. The compressibility factors Z₀ and Z₁ were calculated with the Benedict-Webb-Rubin-Starling equation of state. The total gas amount (n_E) in the equilibrium gas phase of the sapphire cell after absorption and adsorption equilibrium is determined by:

$$n_{\text{E}}=\frac{P_{\text{E}}{V}_{\text{g}}}{Z_{\text{E}}RT}$$

(2)

where P_E is the equilibrium pressure of the sapphire cell and Z_E is the compressibility factor corresponding to P_E and T. V_g is the volume of equilibrium gas phase in the sapphire cell at the end of each experiment run. The total uptake of C₂H₄ (n₁) and CH₄ (n₂) in the hydrate slurry are calculated as follows:

$$n_1=n_{\text{t}}{\text{z}}_1-n_{\text{E}}{y}_1$$

(3)

$$n_2=n_{\text{t}}{\text{z}}_2-n_{\text{E}}{y}_2$$

(4)

where z_i and y_i are the mole fractions of C₂H₄ and CH₄ in the feed gas and equilibrium gas phase, respectively. After that, the mole fractions of them in the equilibrium hydrate slurry phase can be obtained by the following formulas:

$$x_1=\frac{n_1}{n_1+n_2}$$

(5)

$$x_2=\frac{n_2}{n_1+n_2}$$

(6)

In this work the separation factor (S) of C₂H₄ over CH₄ and the recovery ratio (R) of C₂H₄ in slurry phase are used to indicate the separation ability of the method adopted here:

$$S=\frac{x_1/y_1}{x_2/y_2}$$

(7)

$$R=\left(1-\frac{n_E{y}_1}{n_t{z}_1}\right)\times 100\%$$

(8)

The initial gas-emulsion volume ratio (Φ) is defined as

$$\text{φ}=\frac{22400n_t}{V_S}$$

(9)

where V_s is the volume of the emulsion.

4. Conclusions

In this work, an absorption-hydration hybrid method was employed to recover C₂H₄ from C₂H₄/CH₄ mixtures. Span 20 was used to disperse water or hydrate in diesel to form emulsions or hydrate slurries. The effects of initial gas-liquid volume ratio, initial pressure, temperature, and water cuts on the separation ability of C₂H₄ from C₂H₄/CH₄ mixtures in w/o emulsions were systematically investigated. The experimental results show the separation efficiency of C₂H₄/CH₄ mixtures by forming hydrate in w/o emulsions is very promising in the lower to medium C₂H₄ concentration range. It implies that it is very feasible to recover ethylene from various kinds of refinery gases or cracking gases in an ethylene plant by the absorption-hydration hybrid method.
