On-Site Measurements of CO₂ Emissions during the Construction Phase of a Building Complex

Abstract

This study describes the environmental impact of the material production, transportation, and construction phases from the construction site perspective. CO₂ emissions for each process were determined using the Korea Life Cycle Inventory Database (LCI DB) in the material production phase, and the actual amounts of oil consumption for transportation equipment were identified in the material transportation phase. Generally, the oil and electric energy consumed during the construction was evaluated by direct monitoring. Through the construction period and cost according to work type, a correlation with CO₂ emissions was also investigated. In addition, CO₂ emissions were examined through the system capacity and gross floor area for each work type. The calculations have shown that CO₂ emissions from the material production phase constitute 93.4% of the total CO₂ emissions. In addition, CO₂ emissions from the material transportation and on-site construction account for 2.4% and 4.2% of the total CO₂ emissions, respectively. This paper concludes that it is important to select appropriate input materials and resources for the reduction of CO₂ emissions. Furthermore, the amount of CO₂ emissions arising from the construction site was reduced by finding and practicing measures to reduce CO₂ emissions for each process.

1. Introduction

Globally, while the construction industry has made a major contribution to social and economic development, a great deal of energy and many resources are used in construction [1]. The construction process consumes 40% of the world economy’s resources and is responsible for 40% to 50% of the greenhouse gases (GHGs) generated [2]. A lot of CO₂ is emitted during the material manufacturing, transportation and construction stages [3,4]. The construction process is therefore a very significant factor environmentally [5]. In addition, the CO₂ emission factor is very important in the construction industry [6], and the amount of energy and number of materials consumed during the construction process is considerable [7]. During the life cycle of a building, a large amount of CO₂ is also generated in the operation process. Most previous research has focused on CO₂ emissions from construction materials [8,9,10,11,12] and a few studies have been conducted on CO₂ emissions resulting from the building material manufacturing process and on the energy consumption of construction equipment [6], transportation for materials, and treatment of waste [13,14]. However, there is still a lack of studies related to GHG or CO₂ emissions in the construction process that target the actual construction site [15].

This study deals with the environmental impact of CO₂ emissions in the material production phase, transportation phase, construction phase, and waste treatment phase of the construction site. In the study of the material production phase, the Korea Life Cycle Inventory Database (LCI DB) was used to determine CO₂ emissions for each task, and the actual amount of oil consumption for transportation equipment was identified in the material transportation phase. In the construction phase, the amount of oil used in the construction equipment [16,17,18] and the amount of electricity consumed in the temporary office were calculated separately. In the waste treatment process, CO₂ emissions from the transportation phase, intermediate treatment phase, and landfill phase were estimated. In this regard, the aim of this study is to calculate accurate and quantitative CO₂ emissions through the measurement and estimated results of CO₂ generated from the construction site, and to propose alternatives for the reduction in CO₂ emissions that arise from the construction process.

2. Measurement and Calculation Methods

2.1. Methods

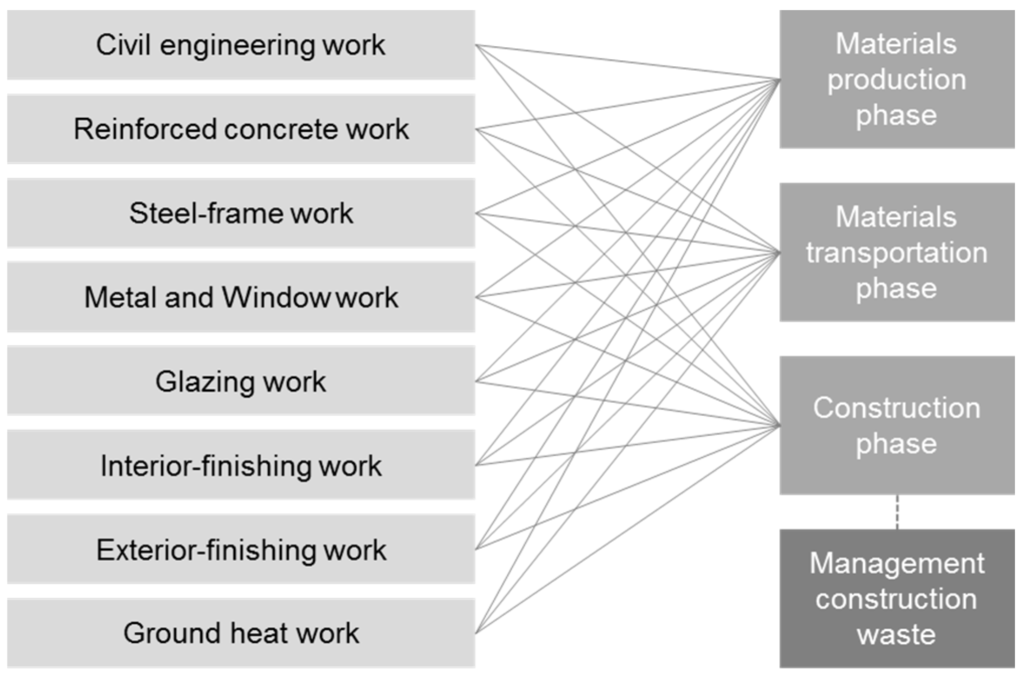

While the life cycle of buildings is usually divided into the production of materials, transportation of materials, construction phase, operational and maintenance phase, and dismantling and disposal phase [19,20,21], in this study it was divided into the material production phase, material transportation phase, and on-site construction phase. While there are six types of main factors contributing to global warming (CO₂, CH₄, N₂O, HFCS, PFCS, and SF₆), as defined in the UN Framework Convention on Climate Change, the subject of this study is the calculation of CO₂ emissions. The subjects of evaluation for each type of work are shown in Figure 1, and detailed construction processes are listed below:

(1)

Civil engineering works: soil cement wall (SCW) work, pre-stressed high-strength concrete (PHC) pile work, earthwork, appurtenant work;

(2)

Reinforced concrete works: rebar, formwork, concrete construction, lifting, and temporary work;

(3)

Steel-frame works: steel structure erection, deck plate;

(4)

Metal and window work;

(5)

Glass work;

(6)

Interior finishing works: masonry/plaster work, waterproof work, painting/insulation work;

(7)

Exterior finishing work;

(8)

Ground heat construction: closed/open loop.

In addition, CO₂ emissions were included with respect to the treatment of wastes generated from the construction process. However, landscaping and electrical construction, and HVAC equipment construction completed after the evaluation period were excluded from the scope of this study.

2.1.1. Calculation Method for Material Production Phase

For the selection of materials according to work type, the quantity of input materials that account for more than 90% of the material cost was calculated based on the quantity calculation and itemized statements, prioritizing the key materials. Carbon emissions according to the material inputs were estimated using Korea LCI DB information network [22]. The Korea Environment Industry & Technology Institute has compiled a Life Cycle Inventory Database of the materials according to the ISO 14044 process.

2.1.2. Calculation Method for Material Transportation Phase

In order to calculate the amount of oil consumption in the material transportation phase, the type of transport equipment, specifications, transport distance, oil used, and oil consumption rate were investigated according to the materials introduced for each process and method. Since fuel economy varies depending on the load capacity, driving speed, road condition, and latency, additional investigations on the actual oil usage logs, vehicle instrument panel (oil gauge), and interviews with drivers were conducted for exact calculation. If it was difficult to identify the actual amount of oil consumption, the average fuel economy of the vehicle to transport the materials was used.

2.1.3. Calculation Method for on-site Construction Phase

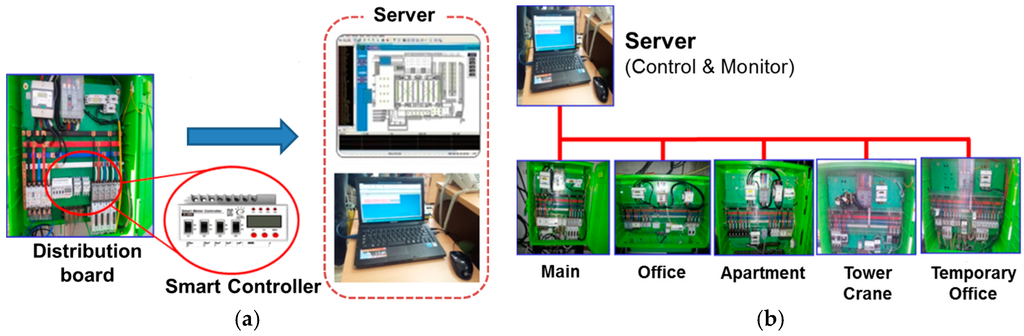

The amount of energy consumption in the on-site construction phase was subdivided into oil and electricity consumption for calculation. Oil energy sources were limited to diesel oil; gasoline and kerosene were excluded from the evaluation due to their minimal usage. The amount of electricity consumption was analyzed based on the measurement data after setting a remote meter reading plan prior to starting construction work. For monitoring of electricity consumption, the usage was divided into common temporary work, temporary office, direct construction, and lifting equipment as shown in Figure 2, and the exact amount of electricity consumption was measured by the remoter meter reading, and then investigated and analyzed.

2.1.4. Calculation Method for Waste Treatment Phase

The waste treatment process CO₂ emissions arising from the construction process were calculated by adding the CO₂ emissions of the transportation phase, intermediate treatment phase, and landfill phase. The CO₂ emissions due to electricity consumption and oil used for transportation of construction equipment were calculated.

2.2. Case Study Building

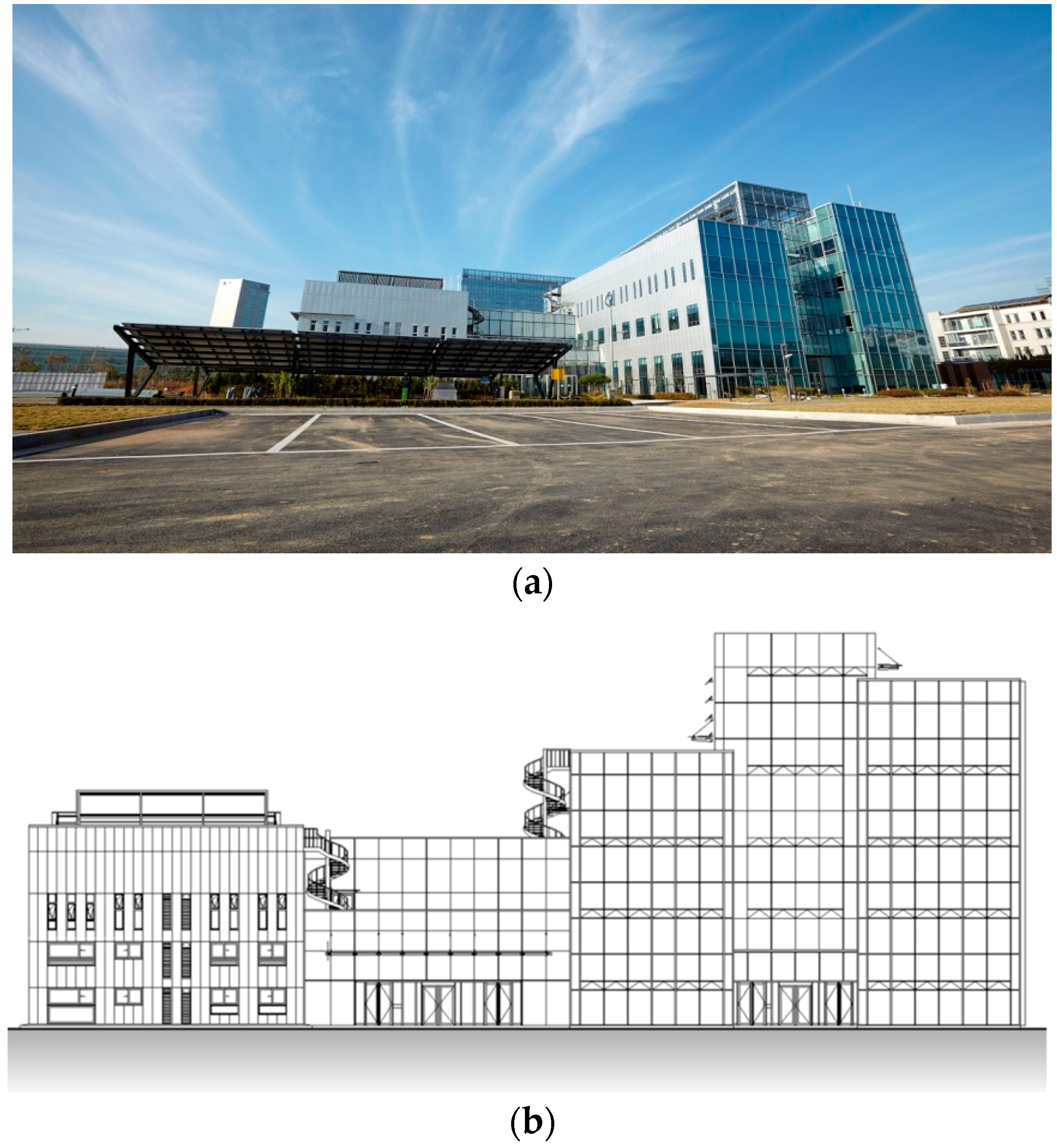

The subject of evaluation is a building complex, including offices and apartment housing (Figure 3 and

Table 1. Building overview.

Description
Building Site Location	Korea
Scope of work	Offices + Apartments
Size	One story underground, four stories aboveground (up to 24.9 m)
Land area	3967 m2
Construction area	1934.18 m2
Gross floor area	5555.55 m2
Structure	Steel structure and reinforced concrete [6] structure
Main element technologies	Offices: Steel curtain wall, triple glass, photovoltaic
	Apartments: Exterior insulation panel, radiant panel, household fuel cell energy, solar water heating system

). The total construction period of the building is 12 months. The evaluation period of this study is from September to June, and all processes conducted during this period were investigated and monitored.

3. Results

3.1. CO₂ Emission Analysis Results

3.1.1. CO₂ Emissions in the Material Production Phase

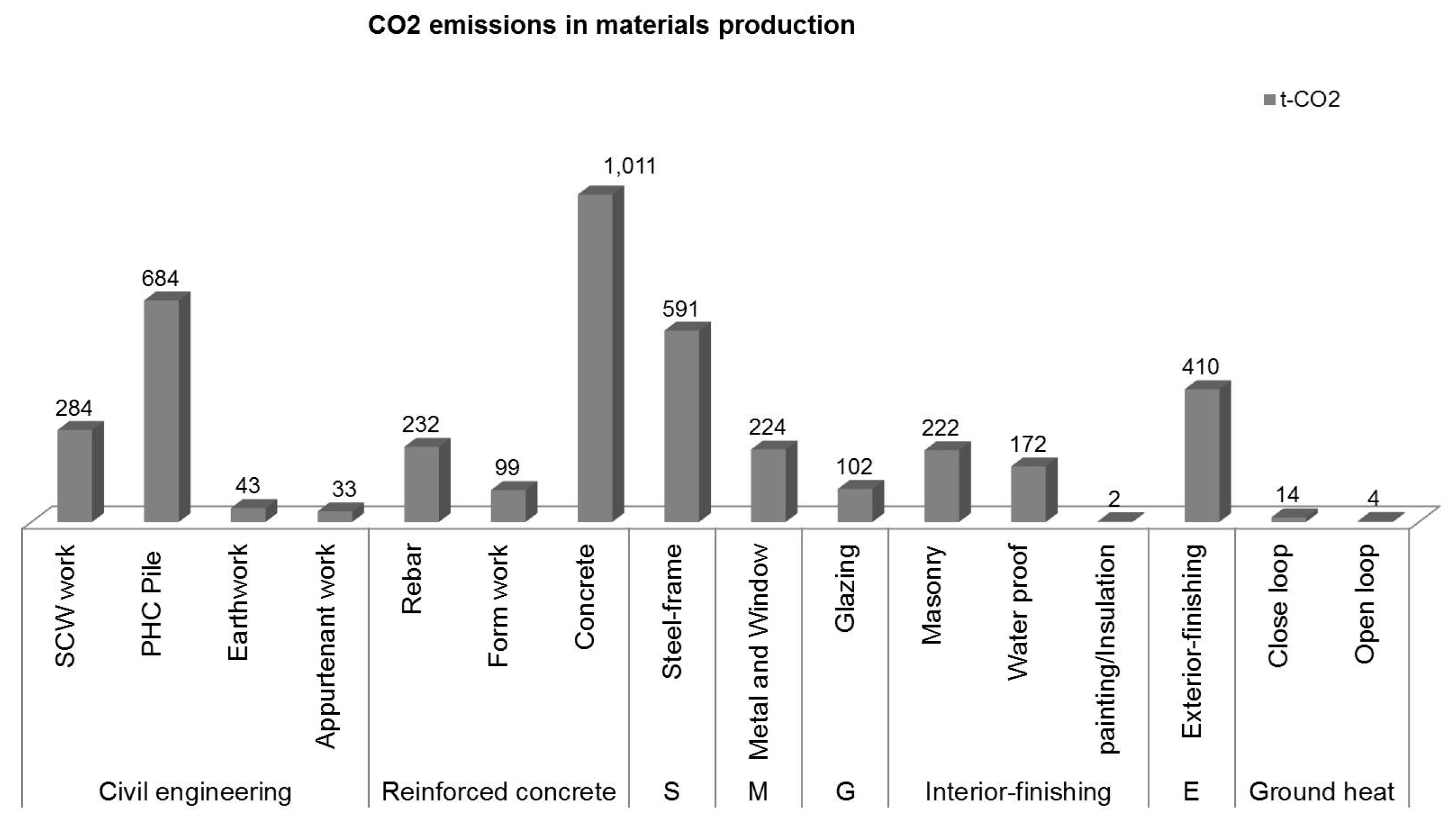

Examination of the CO₂ emissions in the material production phase according to the detailed process reveal that CO₂ emissions from ready-mixed concrete production in the concrete construction of the reinforced concrete works were calculated to be 1011.3 (t-CO₂), which accounts for the largest portion of 24.5% in the total CO₂ emissions from the material production phase, followed by 684.4 (t-CO₂) 16.6% of foundation work (PHC PILE), 591.2 (t-CO₂) 14.3% from steel materials of steel construction, 410.0 (t-CO₂) 9.9% from steel curtain walls of exterior work, and 284.2 (t-CO₂) 6.9% of SCW bulk cement. CO₂ from building materials of the top five detailed processes accounted for 72.2% of the total CO₂ emissions (Figure 4).

3.1.2. CO₂ Emissions in the Material Transportation Phase

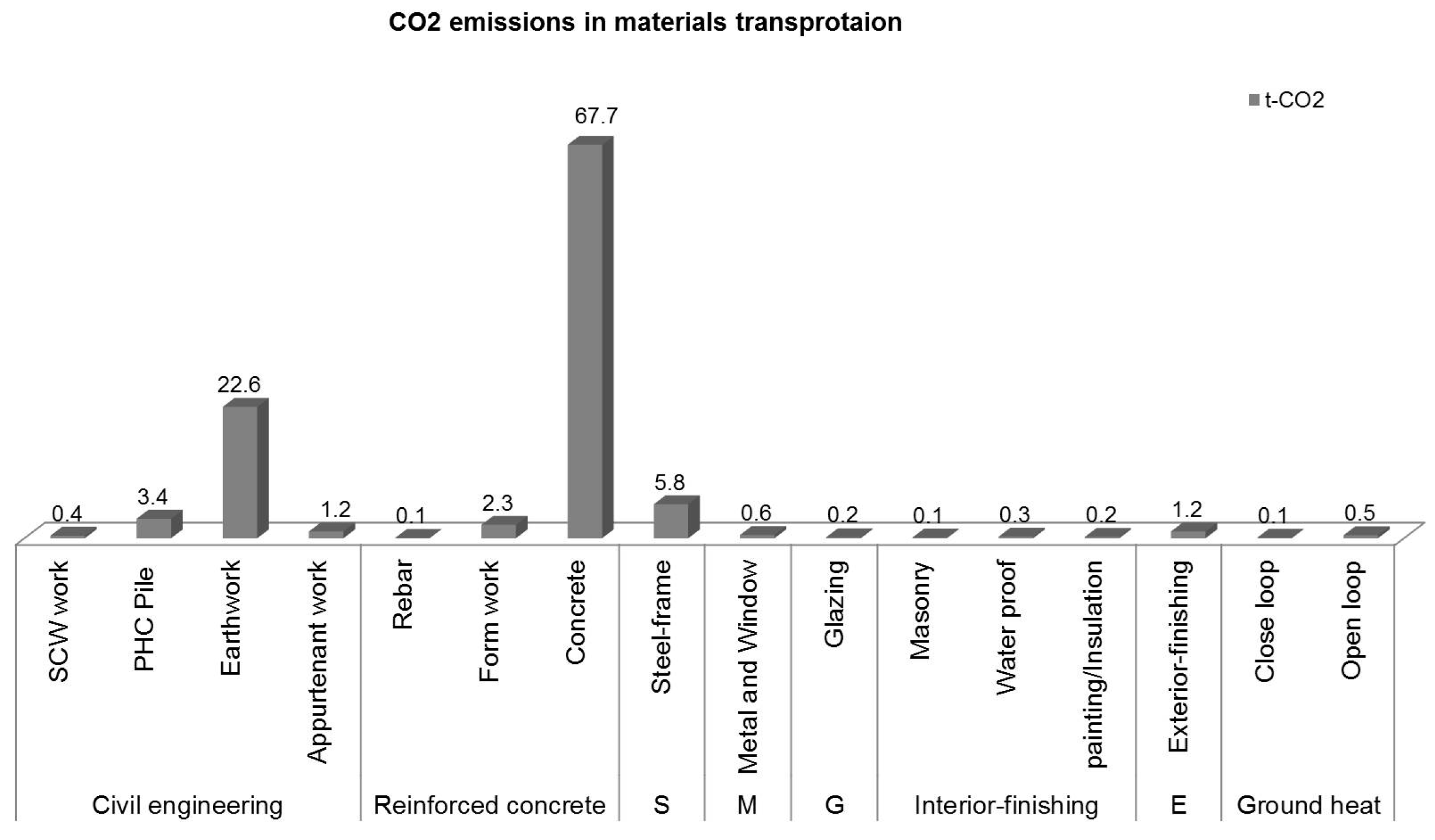

In the material transportation phase, the amount of CO₂ emissions was calculated to be 107.7 (t-CO₂), which comprises 2.4% of the total CO₂ emissions. CO₂ emissions from the ready-mixed concrete transportation of reinforced concrete works showed the highest figure with 68.7 (t-CO₂), corresponding to 63.4% of the total CO₂ emissions from the material transportation phase as shown in Figure 5.

In the case of the ready-mixed concrete vehicle for transportation of concrete materials, the fuel economy was calculated by analyzing the round-trip distance from the place of shipment by the supplier and statement of oil use by vehicle, and the oil consumption of the vehicle was 26,093 L, which accounts for most of the entire transportation phase. In addition, the fuel economy was calculated to be 0.56 (km/L), which was significantly below the average fuel economy of 4.0 (km/L) of the vehicle specifications, showing the largest energy consumption in the transportation phase. This indicates that the transportation distance between the ready-mixed concrete factory and the site has the greatest effect on the CO₂ emissions in the construction process.

In the case of earthworks, energy consumption can be reduced by utilizing the dumping site to minimize sediment transportation and the distance for backfilling. Therefore, CO₂ emission was calculated to be 22.6 (t-CO₂) 21.2%, followed by 6.8 (t-CO₂) 5.5% from the transportation of steel materials of steel construction, and 3.4 (t-CO₂) 3.1% of foundation work (PHC PILE).

3.1.3. CO₂ Emissions in the on-site Construction Phase

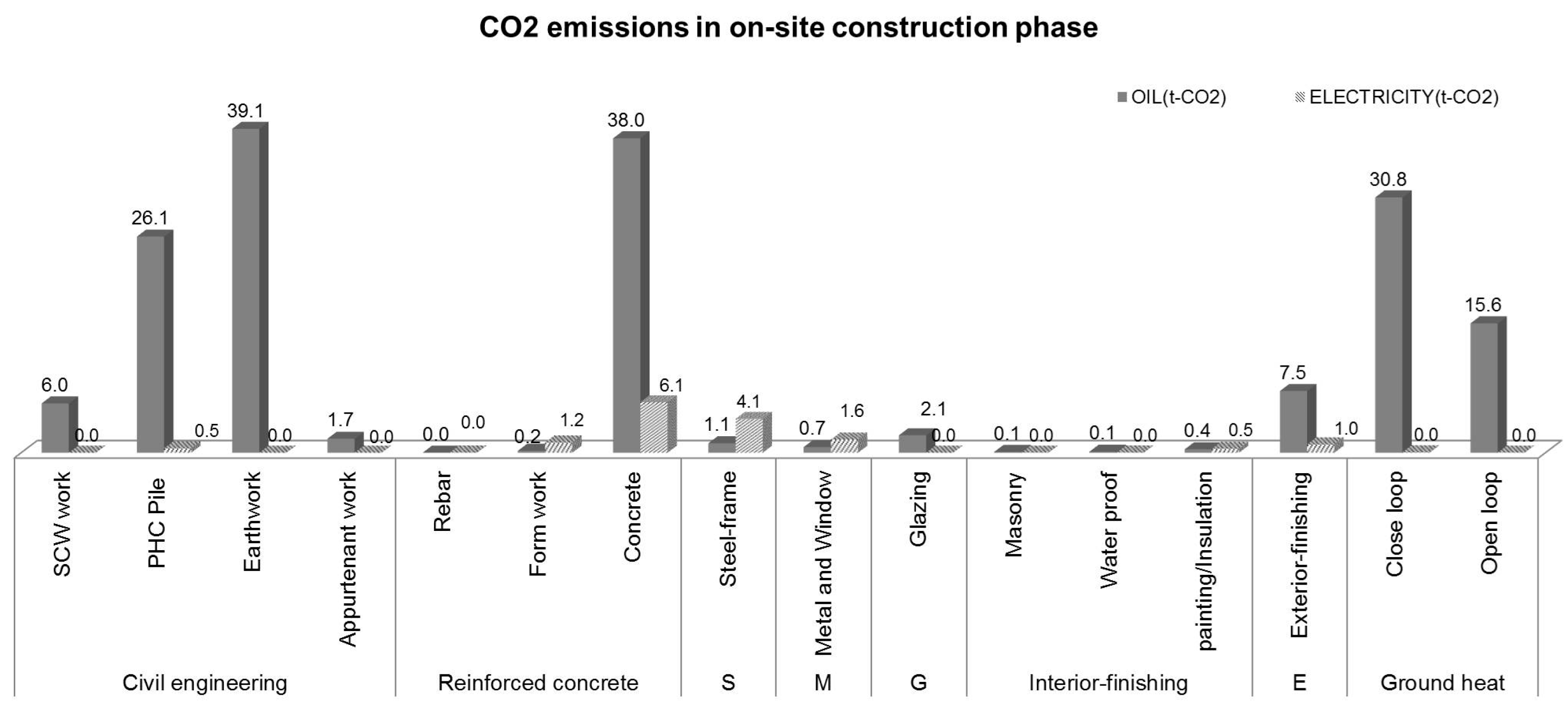

In the on-site construction phase, the oil and electricity energy consumption according to the detailed work processes is shown in Figure 6. CO₂ emissions from the on-site construction phase was highest in reinforced concrete work that uses the largest quantities of equipment in the process with 44.1 (t-CO₂) 23.9%, followed by earthworks with 39.1 (t-CO₂) 21.2%, ground heat construction (close loop) with 31.9 (t-CO₂) 16.7%, foundation work (PHC PILE) with 26.7 (t-CO₂) 14.4%, and ground heat construction (open loop) with 16.6 (t-CO₂) 8.5%. CO₂ emission from these five work types corresponds to 84.6% of the total CO₂ emissions in the on-site construction phase, which indicates that the energy consumption due to the use of various construction equipment according to work methods in the construction process results in high CO₂ emissions.

3.1.4. CO₂ Emissions in the Waste Treatment Phase

The waste treatment process is largely divided according to the physical property of waste as follows: (1) discharge, transport, demolition/incineration or treatment, recycling step; and (2) discharge and landfill step. The energy consumption and CO₂ emissions of the waste transportation phase were then calculated.

The total amount of waste generated during the evaluation period was 530 ton, and the total oil consumption (diesel oil) in the transportation phase was 527 L. The total CO₂ emissions from the waste transportation phase was calculated to be 1.4 (t-CO₂).

Of the wastes discharged from the construction process, the materials with physical properties that require crushing, grinding, and incineration at the intermediate treatment company include construction sludge, waste concrete, and waste wood. With the use of oil (316 L) and electricity (787.1 kWh) consumption, the total CO₂ emission was calculated to be 1.2 (t-CO₂).

Mixed waste is immediately transported to the landfill for treatment. The oil consumption was 10.05 L, and thus the CO₂ emission was calculated to be 26.06 (kg-CO₂).

3.1.5. Total CO₂ Emission According to Work Type

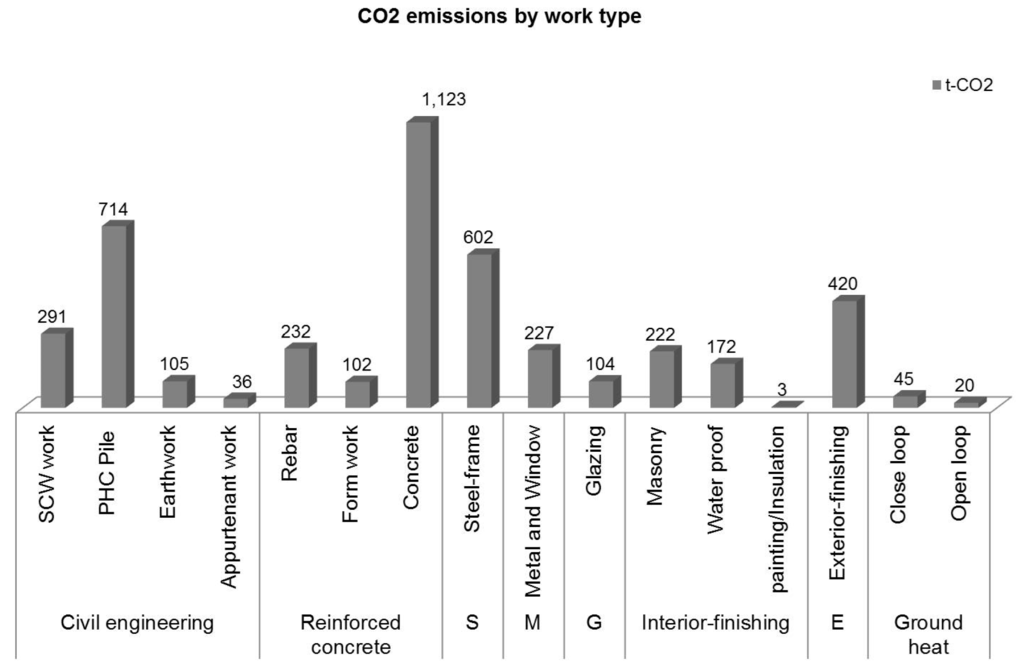

For the total CO₂ emissions in the construction phase, the results of CO₂ emissions calculated from the preceding material production phase, material transportation phase, and on-site construction phase were added. The concrete construction of reinforced concrete works was calculated to be 1123.1 (t-CO₂), which corresponds to 25.4% of the total CO₂ emissions, followed by foundation work (PHC PILE) 714.4 (t-CO₂) 16.2%, steel structure erection 602,294.59 (kg-CO₂) 13.6%, exterior work 419.7 (t-CO₂) 9.5%, and SCW work 290.7 (t-CO₂) 6.6%, as shown in Figure 7.

3.1.6. Analysis of Electrical and Oil Consumption in the Construction Phase

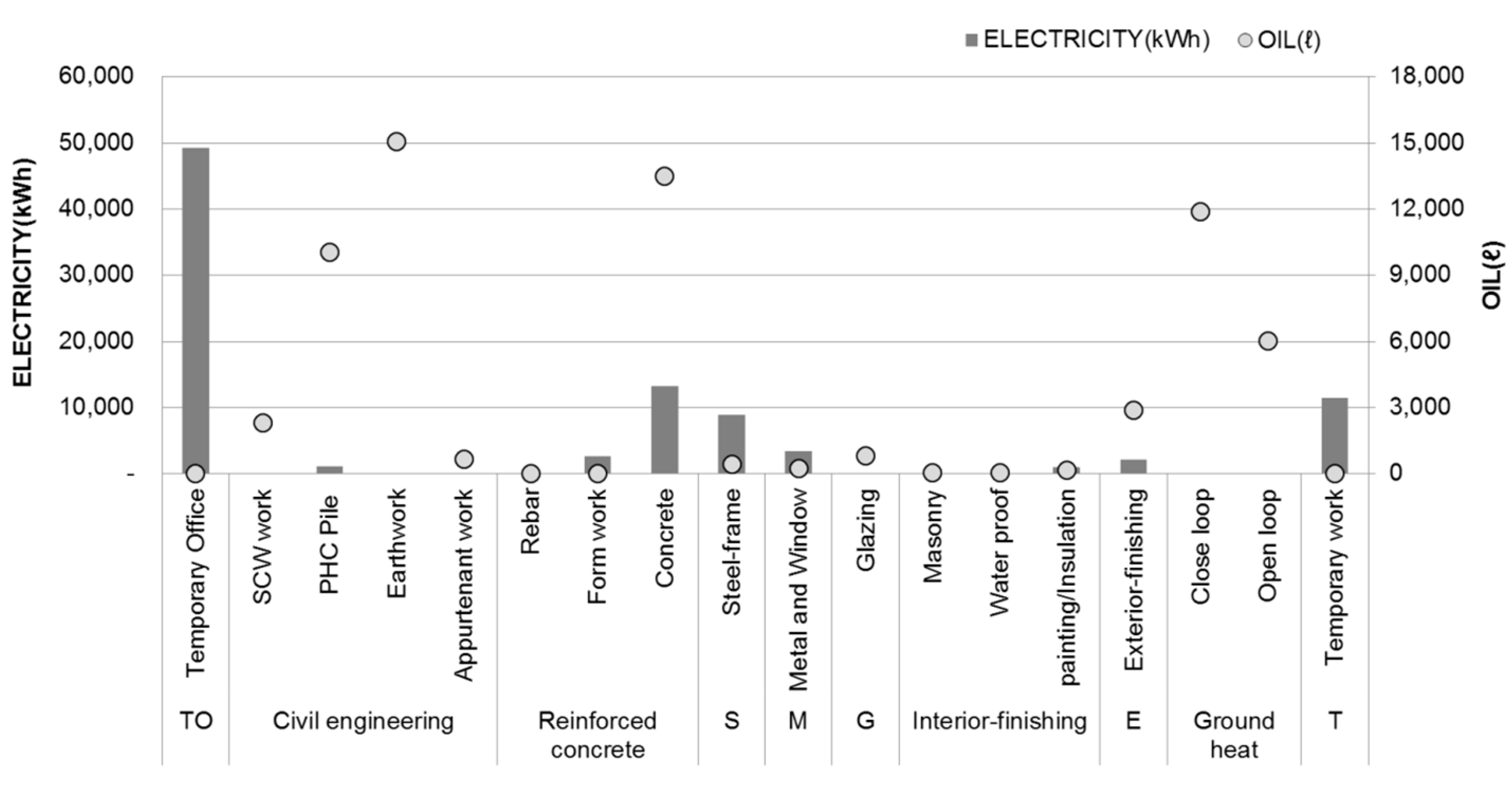

The total electricity consumption in the on-site construction phase was 93,793 kWh, and it was measured at 49,255 kWh 52.5% for the temporary office, showing the largest consumption, followed by direct construction, lifting equipment, and common temporary work. The electricity consumption for the temporary office was higher than that of the direct construction because of the concentrated use of computerized office equipment and heaters during the winter.

An analysis of electricity consumption according to the process shows that the electricity used in reinforced concrete works was 13,270 kWh, which accounts for 14.1% of the total electricity consumption, followed by common temporary work 11,520 kWh 12.3%, steel structure erection 8910 kWh 9.5%, metal and window work 3454 kWh 3.7%, and exterior work 2191 kWh 2.3%. The electricity consumption from these five processes accounted for 41.9% of the total electricity consumption, indicating that field management is important for emission sources from electricity used in these processes.

Oil consumption varies depending on the use of transport vehicles in the material transportation phase and construction equipment and instruments in the on-site construction phase. The total oil consumption was estimated to be 106,607 L, and the amount of oil used in the construction process was 65,476 L. Most of the oil is consumed in the process, which uses a lot of construction equipment, and the oil consumption was highest in earthworks, followed by reinforced concrete work, and ground heat construction as shown in Figure 8.

3.2. CO₂ Emission Intensity Results

Through the construction period and construction cost according to work type, a correlation with CO₂ emissions was investigated. In addition, CO₂ emissions were examined through the system capacity and gross floor area for each work type as shown in

Table 2. CO₂ emissions and construction costs according to work type.

Work Type	Total CO2 Emissions (t-CO2)	Construction Costs (USD)		Construction Period (Day)		Area and Capacity
		Construction Cost (USD)	kg-CO2/USD	Construction Period (Day)	t-CO2/Day	Gross Floor Area/Capacity	Unit	t-CO2/Area, Capacity
Civil engineering work	1145	669,760	1.71	77	15	754	m2	1.52
Reinforced concrete work	1458	1,434,160	1.02	103	14	5556	m2	0.26
Steel-frame work	602	1,181,180	0.51	51	12	386	t	1.56
Metal and window work	227	743,470	0.31	54	4	5556	m2	0.04
Glazing work	104	600,600	0.17	18	6	5556	m2	0.02
Interior-finishing work	398	313,040	1.27	82	5	5556	m2	0.07
Exterior-finishing work	420	1,935,570	0.22	52	8	5556	m2	0.08
Ground heat work	65	354,900	0.18	45	1	110	RT	0.59
Waste treatment	3	11,038	0.23	268	0.01	530	t	0.01

.

3.2.1. CO₂ Emissions According to Construction Cost

As shown in Table 2, the construction cost was highest in the exterior work, followed by reinforced concrete work and steel structure construction. Related to this, civil engineering works showed high CO₂ emissions compared to the construction cost, followed by interior finishing works and reinforced concrete works. Among civil engineering works, SCW work and foundation work (PHC PILE) was high, as well as masonry and plasterwork among the interior finishing works. Exterior work was found to produce low CO₂ emissions compared to the construction cost.

3.2.2. CO₂ Emissions According to Construction Period

In the entire construction, the process that shows the highest level of CO₂ emissions compared to the number of actual working days was civil engineering work, followed by reinforced concrete work and steel structure construction. Of these, the civil engineering work showed high CO₂ emissions in SCW work and foundation work (PHC PILE). The percentages of formwork (a subset of reinforced concrete work) and painting/insulation work (a subset of interior finishing work) make up 14.4% and 5.5%, respectively, of the total number of actual working days, but CO₂ emissions was relatively low with 2.4% and 0.1% of the total emissions, respectively.

The percentages of waterproofing and masonry/plaster work in the total number of working days was 6.0% and 3.8%, respectively, but the energy consumption was 0.1% and 0.04%, respectively, of the total energy consumption, showing the lowest energy consumption compared to the number of working days.

3.2.3. CO₂ Emissions According to Installation Capacity and Area by Process

CO₂ emission intensity results according to gross floor area and unit capacity are listed in Table 2. In steel structure construction, CO₂ emission intensity per unit weight of steel materials was highest with 1.6 (t-CO₂/t). When calculated with total floor area, reinforced concrete work was calculated to be as high as 262.34 (kg-CO₂/m²).

3.3. CO₂ Reduction Measures Found in the Construction Process

In terms of material selection, in the foundation work, the CO₂ emission of 35.7 (t-CO₂) was reduced through the reduction in materials and changes in construction equipment specifications by changing high-strength PHC pile to ultra-high-strength PHC pile and reducing the number of piles and embedded depth based on the structural reanalysis and precision analysis-based design. The reduced figure corresponds to 5.0% of the total CO₂ emissions in the foundation work. In addition, the CO₂ emission of 553.7 (t-CO₂) was reduced by using environmentally-friendly concrete made by recycling blast-furnace slag, a steel byproduct, and the reduced figure is equivalent to 37.9% of the total CO₂ emissions in the reinforced concrete work.

In terms of material transportation, as a result of reducing the energy consumption resulting from the transportation by selecting a nearby glass processing plant, the CO₂ emission reduction was calculated to be 186.37 (kg-CO₂), which accounts for 0.2% of the total CO₂ emissions. This suggests that the energy consumption can be reduced by using materials and resources produced in nearby regions for all the materials required for the entire process in addition to glass materials.

In terms of construction, the construction period was reduced by applying a hollow-slab method to one floor and thus reducing input materials such as rebar, plywood formwork, shoring, and concrete, thereby helping to reduce CO₂ emissions to 8.5 (t-CO₂).

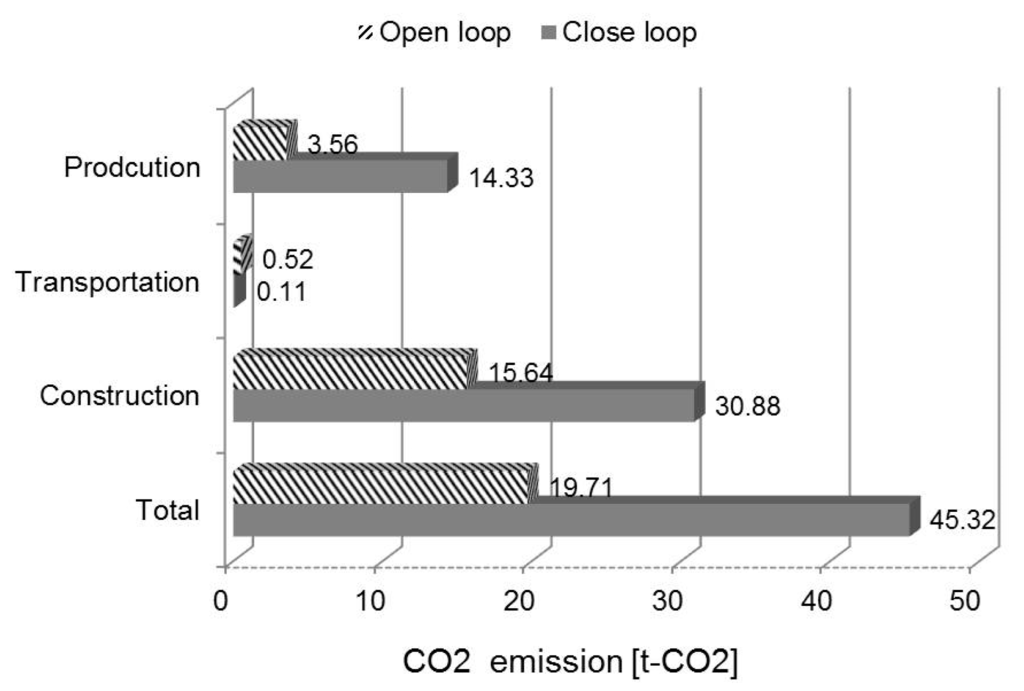

Figure 9 shows a comparative analysis between closed type and open type of ground heat construction in relation to the total CO₂ emissions in the construction phase. According to the analysis results, the open type was found to be advantageous not only in terms of energy efficiency, but also in terms of reduction of construction period and costs. In addition, the total CO₂ emission from the construction phase was doubled in the closed type compared to that of the open type. In this study, the capacity of the closed type was 58 RT and that of the open type was 52 RT. Therefore, the open-type method of ground heat construction is expected to become a more environmentally friendly component technology if it secures the same energy performance as the closed-type method.

From the waste treatment process, the transportation energy consumption was reduced by managing the sediment transport of earthwork at the dumping site within the construction site and using it again in backfilling. The CO₂ emission of 37.5 (t-CO₂), corresponding to 45.4% of the total CO₂ emissions in earthworks, was reduced accordingly. The 3.3 CO₂ reduction measures were applied to the original construction design and emissions were reduced by 656.4 (t-CO₂) and the total amount of CO₂ emissions was reduced by 13%.

4. Discussion

In the material production phase in this case study, the amount of CO₂ emissions was highest for ready-mixed concrete, followed by PHC pile, cement, ready-mixed mortar, steel structure materials, rebar, and glass materials. The percentage of CO₂ emissions of these materials constituted 80% of the total CO₂ emissions. These materials constituted over 70% of the total CO₂ emissions in other research as well [23,24].

For the reduction in CO₂ emissions from the material transportation phase, material suppliers need to be selected by considering the moving distance from the materials manufacturing plant, the supplier, and the processing factory to the construction site. A purchase process linked to CO₂ emission management plans also needs to be devised and measures need to be taken to reduce the energy consumption of material transport vehicles.

In the case of CO₂ emissions from the on-site construction phase, CO₂ emissions were estimated to be high in processes that require high energy consumption due to the use of construction and lifting equipment. For the detailed process, CO₂ emission was calculated to be highest in concrete construction, earthworks, foundation (PHC PILE) work, and ground heat system construction. These processes are classified as those in which CO₂ reduction controls are available in terms of on-site management; thus, substantial construction management is required for the reduction of CO₂ emissions. This needs to be achieved through the establishment of optimal plans for the selection of materials and methods, the creation of the best construction proposals, energy consumption monitoring of the construction process, and performance management from the design phase. The amount of CO₂ emissions from the on-site construction phase of metal/window work was only 1% compared to that from the material production phase. Thus, measures to recycle and reuse the existing metal materials need to be considered in terms of the efficiency of resources. The use of unnecessary metal materials needs to be reduced and alternative materials need to be selected. The energy consumption in the interior finishing works, including masonry/plaster work, waterproofing work, and painting/insulation work showed a relatively smaller consumption pattern compared to that of other work types. This is because the above processes require a great deal of man power compared to using construction equipment.

CO₂ emission intensity was evaluated according to the construction cost, construction period, gross floor area, and capacity, and was investigated according to the amount of CO₂ emitted: reinforced concrete work, civil engineering work, steel structure construction, exterior work, and interior finishing work. CO₂ emissions from the five work types were found to account for 90% of the total CO₂ emissions, which indicates that plans and measures are urgently needed to reduce the CO₂ emissions for these types of works. Data from the determination of CO₂ emission intensity related to the construction period for each process can be utilized as an important resource to predict life-cycle CO₂ emissions and environmental loads of buildings in the project planning stage. Since there is a significant difference between the construction period given in the construction schedule and the number of actual working days, the CO₂ emission intensity determined from the annual working capacity utilization rate and the number of actual working days is expected to contribute to predicting environmental loads that are more accurate, created from the construction period. This research focused only on the construction process due to the limits in use and maintenance and disposal. However, the application and disposal phase constituted 70% of the total CO₂ emissions in other research [25,26].

5. Conclusions

In this study, CO₂ emissions were calculated with respect to the material production, material transportation, construction process, and waste treatment phases on an actual construction site. Since the oil and electric energy consumed during the construction process was evaluated by direct monitoring, more specific and quantified CO₂ emissions were calculated for each process, and measures for reduction in CO₂ emissions were selected and analyzed based on the results.

CO₂ emissions from the material production phase were calculated to be 4128 (t-CO₂), which constitutes 93.4% of the total CO₂ emissions. On the other hand, CO₂ emissions from the material transportation phase and on-site construction phase were 107 (t-CO₂) and 185 (t-CO₂), respectively, which account for 2.4% and 4.2% of the total CO₂ emissions. Thus, it can be seen that the selection of input materials and resources is important for the reduction of CO₂ emissions.

Through this study, CO₂ emissions and energy consumption according to work type were evaluated with respect to the material selection, transportation, and construction phase. The amount of CO₂ emissions arising from the construction site was reduced by finding and practicing measures to reduce CO₂ emissions for each process. Therefore, CO₂ emissions in the construction phase need to be specifically identified, an alternative proposal needs to be devised, and a systematic construction management plan is needed to find measures for reducing the environmental impacts and CO₂ emissions in the life cycle of buildings.
