Communication

Probing Transition-Metal Silicides as PGM-Free Catalysts for Hydrogen Oxidation and Evolution in Acidic Medium

1
Department of Chemistry and Catalysis Research Center, Technical University of Munich, Lichtenbergstr. 4, D-85748 Garching, Germany
2
Johnson Matthey Catalysts (Germany) GmbH, Bahnhofstr. 43, D-96257 Redwitz, Germany
*
Author to whom correspondence should be addressed.
Current Address: BMW Group, D-80788 Munich, Germany.
Materials 2017, 10(6), 661; https://doi.org/10.3390/ma10060661
Submission received: 3 May 2017 / Revised: 10 June 2017 / Accepted: 13 June 2017 / Published: 16 June 2017
(This article belongs to the Special Issue Advanced Materials in Polymer Electrolyte Fuel Cells)

Abstract

:
In this experimental study, we investigate various transition-metal silicides as platinum-group-metal-(PGM)-free electrocatalysts for the hydrogen oxidation reaction (HOR), and for the hydrogen evolution reaction (HER) in acidic environment for the first time. Using cyclic voltammetry in 0.1 M HClO4, we first demonstrate that the tested materials exhibit sufficient stability against dissolution in the relevant potential window. Further, we determine the HOR and HER activities for Mo, W, Ta, Ni and Mo-Ni silicides in rotating disk electrode experiments. In conclusion, for the HOR only Ni2Si shows limited activity, and the HER activity of the investigated silicides is considerably lower compared to other PGM-free HER catalysts reported in the literature.

1. Introduction

The hydrogen oxidation/evolution reaction (HOR/HER) is one of the most-studied reactions in aqueous and proton-exchange-membrane-(PEM)-relevant electrocatalysis, with platinum (Pt) exhibiting an exchange current density as high as 0.2   A / cm metal 2 [1]. With this high HOR activity, the Pt demand in typical PEM fuel cells (PEMFCs) is mainly dominated by the cathode electrode requirements rather than those of the anode, in order to minimize kinetic voltage penalties due to the orders of magnitude slower oxygen reduction reaction (ORR) [2]. Consequently, only few attempts have been made to substitute Pt with a platinum-group-metal-(PGM)-free catalyst for the HOR, while future targets as low as 0.05 mgPt/cm2 for the ORR electrode may render the HOR Pt demand no longer negligible [3]. So far, only compounds of nickel, tungsten and molybdenum demonstrated electrocatalytic HOR activity [4,5]. On most PGMs, both HOR and HER were shown to be mechanistically closely related yielding comparably symmetric HOR and HER activities [6]. However, on non-noble metals, it is commonly observed that they have reasonable HER kinetics while the HOR seems to be hindered by oxide formation. As for the HOR in an acidic environment, the high HER activity of Pt has driven only little demand for the development of PGM-free HER electrocatalysts. To our knowledge, only PGM-free materials based on Ni, W, Mo, and/or Co have exhibited significant activity for the HER. Apart from bare non-noble metals [7,8,9,10,11] that intrinsically suffer from poor acid stability, few types of materials were investigated, amongst those are transition metal carbides [12,13,14,15,16,17], sulfides [18,19,20,21,22,23,24], phosphides [25,26,27], and borides [9,28]. Bi-metallic catalysts from Ni and Co have demonstrated promising activities in alkaline environment [29,30,31], and outstanding, yet experimentally questionable (due to the use of platinum counter electrodes, with possible contamination of the working electrodes), exchange current densities i0 of about 1–3 mA/cm2 in acid [7,8]. However, silicide compounds of the previously mentioned transition metals have never been studied before for HOR or HER, while being promising in terms of stability against anodic dissolution [32].
In this study, we report the examination of transition metal silicides in terms of their electrochemical behavior in an acidic environment at inert atmosphere, and for the first time, with respect to their HOR/HER properties. Therefore, we first discuss the preparation of various transition-metal silicides and their characterization with X-ray diffraction (XRD) to investigate phase purity. The prepared materials are then characterized electrochemically using cyclic voltammetry in 0.1 M HClO4, first to test their stability against dissolution in acid in the relevant potential window, then to determine their HOR and HER activities. As the PGM-free silicides tested in this study exhibit minor or no HOR activity, probing the methanol oxidation reaction (MOR) or other anodic reactions on these materials is not further focused. With respect to the HER, we find minor activity on the investigated silicides compared to literature data available for other PGM-free materials.

2. Results and Discussion

X-ray diffractograms are shown in Figure 1. The diffraction patterns of all samples are well consistent with the reference data of the corresponding silicide phases. The tested silicides are phase pure, with the main reflexes being attributable to the respective material reference. However, the prominent reflexes of tungsten carbide (WC) at 2θ ≈ 14°, 16° and 22° cannot be excluded in the spectra of all produced silicides, which may indicate traces of fragmented ball milling vessel and bead material transferred to these materials. A quantitative assessment of such scored WC from ball milling vessel and beads by energy-dispersive X-ray spectroscopy (EDS) against a 1 wt % WC reference yields values below the detection limit for the silicides tested in this study.
Brunauer–Emmett–Teller (BET) analyses show that the ball-milled silicides have specific surface areas ranging from 5 to 20 m2/g (Table 1). When compared to the metal silicides, WC and WC5 wt % Co have a ≈ 2.5–10 times lower BET surface area (ABET). However, it should be noted that all BET surface areas measured on the present samples are at least an order of magnitude lower compared to current state-of-the-art carbon-supported platinum catalysts used in acidic HOR/HER electrocatalysis [1]. From ABET, together with the material density ρ20 °C given in Table 1, it is possible to estimate particle diameters of the investigated materials. Assuming spherical shape, we obtain diameters between ≈40 nm (TaSi) and ≈190 nm (WC). It should be noted that this might serve only as a rule-of-thumb estimate, due to the assumption that the particles are spherical and non-porous (both are best-guess estimates from SEM images; see Figure 2). For each of the catalysts, the so estimated particle diameter is several times the value obtained from X-ray diffractograms via the Scherrer equation (see Table 1), suggesting that the samples consist of agglomerates of crystallites (primary particles). This is supported by laser scattering analysis, where the observed number-averaged diameters are between a factor of ≈2–85 higher than those obtained from XRD. Thus, in all cases, agglomerates of primary particles are present on the investigated materials.
Figure 2 shows exemplary scanning electron microscopy (SEM) micrographs of the investigated ball-milled silicides. In case of MoSi2, WSi2 and TaSi2 (a–c), the absence of sharp edges justifies the previously described rule-of-thumb estimate assuming spherical particles for an estimate of particle diameter from BET surface. In the case of Ni2Si (Figure 2d), the particles are significantly larger, which is well reflected by the measured number averaged particle diameter obtained via laser scattering (Table 1). In general, the relative trends of particle sizes determined by laser scattering analysis and via SEM exhibit an analogous behavior in this semi-quantitative analysis.
Cyclic voltammograms (CVs) of the investigated silicides, carbides, and of a blank glassy carbon (GC) disk as reference in Ar (from 0.05 VRHE to 0.40 VRHE) and in H2 atmosphere (−0.40 VRHE to 0.40 VRHE) are shown in Figure 3. The blank GC does not exhibit any oxidative or reductive features in the applied potential region, as would be expected. MoSi2, TaSi2, and WSi2 exhibit considerable reduction currents below ≈−0.2 VRHE, indicating activity towards the HER. At potentials positive of 0 VRHE, however, these materials do not exhibit oxidative currents significantly higher than the purely capacitive currents recorded in Ar atmosphere, thus, the hydrogen oxidation reaction (HOR) is not catalyzed at potentials E being 0 VRHE < E < 0.4 VRHE. In contrast, Ni2Si, WC, and WC5 wt % Co feature oxidative currents at E > 0 VRHE, which indicates electrocatalytic activity of these materials towards the HOR. However, both stability limitations (oxidation of materials) and real-life-application considerations (high polarization of fuel-cell anode is not feasible) prevent from opening the potential window more positively, where potential HOR currents would be sufficiently high for quantitative kinetic analyses. Ni2Si exhibits an additional oxidation wave at ≈0.13 VRHE, with a magnitude negatively correlated with rotation rate and occurring only when the negative potential vertex is <−0.1 VRHE (not shown). With the reduction potential of the Ni2+|Ni redox couple situated at −0.19 VRHE at pH = 1, this additional oxidation wave on Ni2Si can likely be attributed to the oxidation of underpotentially deposited Ni, a hint that Ni can be leached out of Ni2Si and re-deposited when the potential is cycled between low enough values (here <−0.1 VRHE) and 0.4 VRHE. Since the discussed oxidative wave at ≈0.13 VRHE occurs only when the negative potential vertex is below −0.1 VRHE, but also in its absence oxidative currents are observed above 0 VRHE, it is likely that anodic dissolution and HOR on Ni2Si occur simultaneously at positive potentials upon potential cycling. Further tests on Ni2Si and WC5 wt % Co introducing methanol to the electrolyte solution were carried out, however, at no significant activity towards the MOR (not shown).
In order to further investigate the origin of the oxidative wave observed on Ni2Si at ≈0.13 VRHE (Figure 3), Figure 4 shows a series of Ni2Si CVs recorded in an independent experiment, varying the potential window in hydrogen atmosphere at a fixed rotation rate of 1600 rpm. The topmost panel (labeled 0th cycle), shows a steady-state CV of Ni2Si in the potential window of −0.05–0.40 VRHE, where maximum anodic currents are on the order of ≈0.02 mA/cm2, significantly below the diffusion-limited current of ≈3 mA/cm2 observed in aqueous electrolyte at comparable conditions [1]. Thus, kinetic losses on Ni2Si are dominant against mass-transport for the HOR in the applied potential range, indicating a low HOR activity. Opening the potential window to −0.30 VRHE, the 1st CV results in a significant reductive current, and in the subsequent positive going scan (2nd scan in Figure 4) an oxidative wave appears at ≈0.13 VRHE together with significantly increased overall oxidative current at potentials more positive of that. Upon continued potential cycling (10th cycle), a maximum height of the observed oxidative wave is reached, followed by decreasing magnitude of both oxidative (at E > 0 VRHE) and reductive (at E < 0 VRHE) currents (15th). When subsequent CVs are recorded in the previous potential range from −0.05–0.40 VRHE (16th–120th), both oxidative wave and overall anodic currents decrease and fall even below the values recorded in the 0th scan (for reference indicated as dashed line in the bottom panel of Figure 4). It is noteworthy that the integrated charge (i.e., the area enclosed by the CV) of the 120th scan is over 40% lower than the one observed in the 0th CV, which indicates the loss of a significant amount of surface area during the conducted CVs.
As hypothesized before (see discussion of Figure 3), the above described behavior of Ni2Si can potentially be attributed to a partial reduction and subsequent anodic dissolution of Ni, which would be in line with a mass-loss of Ni2Si during potential cycles and finally manifest in a surface area loss as it is indeed observed (see Figure 4). However, a potential second reason to cause an oxidative wave with preceding negative potential excursions would be the formation and storage of hydrogen during excursions to potentials <<0 VRHE either inside the Ni2Si compound (absorption) or in the electrode layer (as gas bubbles). In gas phase experiments, Morozkin et al. reported that absorption of hydrogen into similar materials, i.e., lanthanum and cerium nickel silicides is possible [38]. As stated before, the magnitude of the observed oxidation wave at ≈0.13 VRHE gets smaller when rotation rate is increased. Therefore, an absorption of hydrogen into the silicide material seems rather unlikely as a governing mechanism, since it can be expected to be independent of rotation rate in the H2 saturated electrolyte. While we indeed cannot rule out either dissolution of Ni or hydrogen accumulation inside the electrode layer with the present results, the occurring mechanism obviously leads to a dramatic loss of catalyst surface, rendering a cathodic activation of Ni2Si in acidic environment impracticable.
From Figure 5 is apparent that WC and WC5 wt % Co possess the highest HER activity among the tested materials. Upon investigating sulfide compounds, Bonde et al. [19] state that Co2S lacks stability and de-activates upon subsequent HER polarization scans. They also find a promotion of the HER activity by Co addition to WS. This finding from sulfide compounds, obviously, cannot directly be translated to WC/WC5 wt % Co investigated here, where WC5 wt % Co exhibits no superior HER activity compared to pure WC. It is noteworthy that the latter two materials are comparable to the materials utilized in the ball-mill vessel and beads to produce nanometric powders. However, scoring of such ball-milling material does not lead to high erroneous activities on the produced nanometric silicides in this study, as on WSi2, MoSi2, Ni2Si, and TaSi2, no measureable amounts of WC could be found by EDS analysis (see discussion of Figure 1).
In order to enable a quantitative assessment of the HER activity of the tested materials, exchange current densities are extracted via a Tafel extrapolation. To do so, measured data from negative potential scans (cf. Figure 3) are corrected by capacitive current. The capacitive currents for the relevant WC and WC5 wt % Co samples are 0.025 and 0.012 A/g, respectively (estimated from the currents obtained under Ar atmosphere at 0.05 VRHE; cf. Figure 3). Figure 5, showing the so corrected currents, however, reveals non-linear trends, rendering a precise estimation of the exchange current density difficult. It is noteworthy that at HER currents close to and beyond the diffusion limit of ≈3 mA/cm2 (although determined for the HOR, this transport-related limit should be somewhat significant for HER as well [1]) evolved gaseous H2 would shield parts of the electrode. Bearing in mind possible limitations stemming from capacitive currents and from accumulated H2, we choose a window between 0.025/0.049 A/g for WC5 wt % Co/WC (corresponding to ≈3 times the capacitive current) and 2 A/g (corresponding to 1/3 of the diffusion limiting current) for the fits. The resulting Tafel slopes are 68/58 mV/decade for WC5 wt % Co/WC. An analogous evaluation of the currents obtained on WSi2 yields a slightly higher Tafel slope of 107 mV/decade. Since its activity is considerably lower than the one observed on WC and WC5 wt % Co, an extrapolation to 0 VRHE over roughly two orders of magnitude can be considered an order-of-magnitude-estimation, with a resulting exchange current density of ≈1 × 10−4 A/g (corresponding to ≈1 × 10−9 A/cm2, normalized to BET area).
It is noteworthy that we implicitly assume any reduction of current observed on the investigated materials to originate from hydrogen evolution in the discussion above. For the WC based materials investigated here, this can be considered a valid assumption, since WC has been reported to exhibit profound activity for the HER before [5,39]. For the investigated silicide materials, we observe only limited activities, and therefore omit the proof that reductive current stems only from the HER instead of any possible parasitic reduction in this place, while stringently it would be necessary to prove in any potential application for the HER electrocatalysis.
Mass based exchange current densities i0m of WC and WC5 wt % Co investigated in this study are of comparable magnitude as reported for Mo-based carbides (Table 2). In contrast, WC exhibits almost one order of magnitude higher i0m compared to the value reported by Xiao et al. [11] (3 vs. 0.53 mA/g). Classifying this discrepancy remains speculative, as the authors do not provide an estimation for the active surface area of their sample. One possible reason would be a bigger particle size, thus a lower geometric surface area. The same argument holds true for Esposito and co-workers, who report a geometric exchange current density of 2.7 µA/cm2 for a WC foil, pre-etched upon potential cycling to the oxidative onset potential [12,13]. One may note that a roughness factor of ≈15 (not unlikely for a pre-etched foil) would be sufficient to explain the discrepancy between their data and the data reported on nanometric WC (or WC5 wt % Co) in this study (cf. Table 2).
The previously described results indicate no significant activity of the investigated silicide materials for the HOR and limited activity for the HER. Previous studies on noble metals [6,41] have demonstrated activation energies for the HOR/HER of ≈15–30 kJ/mol (roughly equivalent with a factor of ≈3.5–7 between the exchange current densities when increasing the temperature from 25 °C to 80 °C). While it is beyond the scope of the present study to perform a detailed investigation on the effective activation energies as function of pH, as done by Durst et al. [6] and by Sheng et al. [41], it should be noted that a significant increase of the HER/HOR activity of transition metal silicides at elevated temperatures would require a comparably high activation energy.

3. Materials and Methods

3.1. Chemicals

Tantalum disilicide (TaSi2), tungsten silicide (WSi2, 99.5%) and nickel silicide (Ni2Si, 99%, 0.1%–1% of Co) were purchased from Alfa Aesar (via Thermo Fisher (Kandel) GmbH, Karlsruhe, Germany). Molybdenum disilicide (MoSi2, ≥99%) was obtained from Aldrich (Sigma, Darmstadt, Germany). Tungsten carbide nanopowder with and without addition of cobalt (WC, 99.95%, 30–100 nm, hexagonal and WC5 wt % Co, 99.9%, 40–80 nm, hexagonal) was bought from US Research Nanomaterials, Inc. (Houston, TX, USA). All organic solvents and other chemicals were of analytical grade and used as received.

3.2. Preparation of Metal Silicide Nanopowders with Ball Milling

The commercial metal silicide raw materials were ground by wet high-energy ball milling (Fritsch Planetary Pulverisette 7 Premium Line, Fritsch GmbH, Idar-Oberstein, Germany, WC-Co (6 wt %) vessel (20 mL) and balls (diameter of 10, 3 and 0.6 mm)) with 1-octadecene as the dispersion medium. For grinding MoSi2 and WSi2 powders (both with particle size ≤20 μm), around 1 g of the silicide was mixed with 5–8 mL of 1-octadecene and 30 g of balls (Ø of 0.6 mm) in the vessel. The milling was conducted at 400 rpm for 4 h. In the case of TaSi2 (particle size ≤50 μm) and Ni2Si (up to 500 μm), 1 g of the powder dispersed in 3 mL of 1-octadecene was first ground at 800 rpm for 2 h with balls of 3 mm (30 g, for TaSi2) and 10 mm (80 g, for Ni2Si). Afterwards, the milled powder was further ground with balls of 0.6 mm at conditions described above. A grinding‒pausing time interval of 2–10 min was applied to avoid significant increase of temperature and pressure in the system. After milling, the resulting powders were isolated by centrifugation, washed with hexane, and finally dried at ambient conditions.

3.3. Characterization of the Metal Silicides Catalysts

The particle size of metal silicides was measured with a laser scattering particle size distribution analyzer (HORIBA Scientific LA-950V2, HORIBA, Ltd., Kyoto, Japan) using ethanol as dispersing medium. BET analyses were carried out using an automated gas sorption analyzer (autosorb®iQ, Quantachrome Instruments, Boynton Beach, FL, USA) to obtain the specific surface area of the powders. X-ray diffraction (XRD) patterns of the silicides were obtained on a STOE powder diffractometer (Stadi MP, STOE & CIE GmbH, Darmstadt, Germany) equipped with a Mo Kα X-ray source. The measurements were performed in transmission mode, where the silicide powder was configured to a thin layer on the sample holder. For scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS), a JSM-6000 benchtop scanning electron microscope (JEOL, Tokyo, Japan) equipped with MP-00040EDAP was used at an acceleration voltage of 15 kV and a working distance of 19 mm at 100-fold magnification. The solid powdered samples were transferred on a copper tape (3M) with adhesive conductive coating for the measurements.
In order to prepare electrodes for cyclic voltammetry, the catalyst powder of interest was suspended in 70/30 vol % H2O/2-propanol and 2 × 10−5 gNafion/m2BET were added via 5 wt % Nafion® solution (Sigma, Darmstadt, Germany). The ink was dispersed in an ice-cold ultrasonic bath for 30 min, before pipetting 10 µL onto a freshly polished glassy carbon rotating disk electrode (5 mm diameter, Pine Research Instrumentation), resulting in a catalyst loading of 500 µg/cm2. The electrochemical set-up employed is reported in a previous publication, using a gold mesh in a glass-frit separated compartment (25 × 25 mm2, 82 mesh, 0.060 mm wire diameter, 99.99% purity, Advent Research Materials, Eynsham, UK) as the counter electrode and a trapped hydrogen electrode separated with an electrolyte bridge (Pt wire of 1.0 mm diameter sealed into a glass plug with end drawn to a capillary, >99.99% purity, Advent Research Materials, Eynsham, UK) as the reference electrode [42]. All cyclic voltammograms were recorded in 0.1 M HClO4, at room temperature and the indicated rotation rate. The electrolyte was prepared from a 60% stock solution (Guaranteed Reagent, Kanto Chemical Co., Inc., Tokyo, Japan) by dilution in ultrapure water.

4. Conclusions

This study reports probing of transition metal silicides for the HER and HOR for the first time. The single-metal silicides investigated here do not exhibit profound activity for the HER and HOR in acidic electrolyte. On WC, we demonstrate both mass- and surface-specific exchange current densities at ≈2–3 mA/g and ≈0.1–0.2 µA/cm2, reasonably consistent with values reported in literature, taking into account that most cited references do not provide sufficient information about the active surface area of their materials (a task admittedly difficult at unknown reactive centers).

Acknowledgments

The research leading to these results received funding from the Fuel Cells and Hydrogen Joint Undertaking under Grant Agreement Duramet n°278054 as part of the Seventh Framework Program of the European Community for research, technological development and demonstration activities (FP7/2007-2013). The authors are grateful to Katia Rodewald for the help in SEM measurements.

Author Contributions

Thomas Mittermeier performed the electrochemical characterization with the help of Pankaj Madkikar, compared it with the literature and wrote/edited the manuscript, Xiaodong Wang and Pankaj Madkikar prepared the silicides and characterized them using X-ray diffraction. Pankaj Madkikar measured and analyzed EDS; Hubert A. Gasteiger and Michele Piana conceived and supervised the work and corrected/edited the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Durst, J.; Siebel, A.; Simon, C.; Hasche, F.; Herranz, J.; Gasteiger, H.A. New insights into the electrochemical hydrogen oxidation and evolution reaction mechanism. Energy Environ. Sci. 2014, 7, 2255–2260. [Google Scholar] [CrossRef]
  2. Neyerlin, K.C.; Gu, W.; Jorne, J.; Gasteiger, H.A. Determination of Catalyst Unique Parameters for the Oxygen Reduction Reaction in a PEMFC. J. Electrochem. Soc. 2006, 153, A1955–A1963. [Google Scholar] [CrossRef]
  3. Kongkanand, A.; Mathias, M.F. The Priority and Challenge of High-Power Performance of Low-Platinum Proton-Exchange Membrane Fuel Cells. J. Phys. Chem. Lett. 2016, 7, 1127–1137. [Google Scholar] [CrossRef] [PubMed]
  4. Barnett, C.J.; Burstein, G.T.; Kucernak, A.R.J.; Williams, K.R. Electrocatalytic activity of some carburized nickel, tungsten and molybdenum compounds. Electrochim. Acta 1997, 42, 2381–2388. [Google Scholar] [CrossRef]
  5. Böhm, H. New Non-noble Metal Anode Catalysts for Acid Fuel Cells. Nature 1970, 227, 483–484. [Google Scholar] [CrossRef] [PubMed]
  6. Durst, J.; Simon, C.; Hasché, F.; Gasteiger, H.A. Hydrogen Oxidation and Evolution Reaction Kinetics on Carbon Supported Pt, Ir, Rh, and Pd Electrocatalysts in Acidic Media. J. Electrochem. Soc. 2015, 162, F190–F203. [Google Scholar] [CrossRef]
  7. Highfield, J.G.; Claude, E.; Oguro, K. Electrocatalytic synergism in Ni/Mo cathodes for hydrogen evolution in acid medium: A new model. Electrochim. Acta 1999, 44, 2805–2814. [Google Scholar] [CrossRef]
  8. Martinez, S.; Metikoš-Huković, M.; Valek, L. Electrocatalytic properties of electrodeposited Ni–15Mo cathodes for the HER in acid solutions: Synergistic electronic effect. J. Mol. Catal. A Chem. 2006, 245, 114–121. [Google Scholar] [CrossRef]
  9. Vrubel, H.; Hu, X. Molybdenum boride and carbide catalyze hydrogen evolution in both acidic and basic solutions. Angew. Chem. Int. Ed. 2012, 51, 12703–12706. [Google Scholar] [CrossRef] [PubMed]
  10. Wan, C.; Regmi, Y.N.; Leonard, B.M. Multiple phases of molybdenum carbide as electrocatalysts for the hydrogen evolution reaction. Angew. Chem. Int. Ed. 2014, 53, 6407–6410. [Google Scholar] [CrossRef] [PubMed]
  11. Xiao, P.; Ge, X.; Wang, H.; Liu, Z.; Fisher, A.; Wang, X. Novel molybdenum carbide–tungsten carbide composite nanowires and their electrochemical activation for efficient and stable hydrogen evolution. Adv. Funct. Mater. 2015, 25, 1520–1526. [Google Scholar] [CrossRef]
  12. Esposito, D.V.; Hunt, S.T.; Stottlemyer, A.L.; Dobson, K.D.; McCandless, B.E.; Birkmire, R.W.; Chen, J.G. Low-cost hydrogen-evolution catalysts based on monolayer platinum on tungsten monocarbide substrates. Angew. Chem. Int. Ed. 2010, 49, 9859–9862. [Google Scholar] [CrossRef] [PubMed]
  13. Esposito, D.V.; Hunt, S.T.; Kimmel, Y.C.; Chen, J.G. A new class of electrocatalysts for hydrogen production from water electrolysis: Metal monolayers supported on low-cost transition metal carbides. J. Am. Chem. Soc. 2012, 134, 3025–3033. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, W.F.; Wang, C.H.; Sasaki, K.; Marinkovic, N.; Xu, W.; Muckerman, J.T.; Zhu, Y.; Adzic, R.R. Highly active and durable nanostructured molybdenum carbide electrocatalysts for hydrogen production. Energy Environ. Sci. 2013, 6, 943–951. [Google Scholar] [CrossRef]
  15. Chen, W.F.; Iyer, S.; Iyer, S.; Sasaki, K.; Wang, C.H.; Zhu, Y.; Muckerman, J.T.; Fujita, E. Biomass-derived electrocatalytic composites for hydrogen evolution. Energy Environ. Sci. 2013, 6, 1818–1826. [Google Scholar] [CrossRef]
  16. Hunt, S.T.; Nimmanwudipong, T.; Román-Leshkov, Y. Engineering non-sintered, metal-terminated tungsten carbide nanoparticles for catalysis. Angew. Chem. Int. Ed. 2014, 53, 5131–5136. [Google Scholar]
  17. Liao, L.; Wang, S.; Xiao, J.; Bian, X.; Zhang, Y.; Scanlon, M.D.; Hu, X.; Tang, Y.; Liu, B.; Girault, H.H. A nanoporous molybdenum carbide nanowire as an electrocatalyst for hydrogen evolution reaction. Energy Environ. Sci. 2014, 7, 387–392. [Google Scholar] [CrossRef]
  18. Jaramillo, T.F.; Jørgensen, K.P.; Bonde, J.; Nielsen, J.H.; Horch, S.; Chorkendorff, I. Identification of Active Edge Sites for Electrochemical H2 Evolution from MoS2 Nanocatalysts. Science 2007, 317, 100–102. [Google Scholar] [CrossRef] [PubMed]
  19. Bonde, J.; Moses, P.G.; Jaramillo, T.F.; Nørskov, J.K.; Chorkendorff, I. Hydrogen evolution on nano-particulate transition metal sulfides. Faraday Discuss. 2009, 140, 219–231. [Google Scholar] [CrossRef]
  20. Chen, Z.; Cummins, D.; Reinecke, B.N.; Clark, E.; Sunkara, M.K.; Jaramillo, T.F. Core-shell MoO3-MoS2 nanowires for hydrogen evolution: A functional design for electrocatalytic materials. Nano Lett. 2011, 11, 4168–4175. [Google Scholar] [CrossRef] [PubMed]
  21. Benck, J.D.; Chen, Z.; Kuritzky, L.Y.; Forman, A.J.; Jaramillo, T.F. Amorphous molybdenum sulfide catalysts for electrochemical hydrogen production: Insights into the origin of their catalytic activity. ACS Catal. 2012, 2, 1916–1923. [Google Scholar] [CrossRef]
  22. Chen, Z.; Forman, A.J.; Jaramillo, T.F. Bridging the gap between bulk and nanostructured photoelectrodes: The impact of surface states on the electrocatalytic and photoelectrochemical properties of MoS2. J. Phys. Chem. C 2013, 117, 9713–9722. [Google Scholar] [CrossRef]
  23. Sun, Y.; Liu, C.; Grauer, D.C.; Yano, J.; Long, J.R.; Yang, P.; Chang, C.J. Electrodeposited cobalt-sulfide catalyst for electrochemical and photoelectrochemical hydrogen generation from water. J. Am. Chem. Soc. 2013, 135, 17699–17702. [Google Scholar] [CrossRef] [PubMed]
  24. Li, F.; Zhang, L.; Li, J.; Lin, X.; Li, X.; Fang, Y.; Huang, J.; Li, W.; Tian, M.; Jin, J.; Li, R. Synthesis of Cu–MoS2/rGO hybrid as non-noble metal electrocatalysts for the hydrogen evolution. J. Power Sources 2015, 292, 15–22. [Google Scholar] [CrossRef]
  25. Tian, J.; Liu, Q.; Asiri, A.M.; Sun, X. Self-supported nanoporous cobalt phosphide nanowire arrays: An efficient 3D hydrogen-evolving cathode over the wide range of pH 0–14. J. Am. Chem. Soc. 2014, 136, 7587–7590. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, C.; Jiang, J.; Zhou, X.; Wang, W.; Zuo, J.; Yang, Q. Alternative synthesis of cobalt monophosphide@C core–shell nanocables for electrochemical hydrogen production. J. Power Sources 2015, 286, 464–469. [Google Scholar] [CrossRef]
  27. Gao, S.; Liu, Y.; Li, G.D.; Guo, Y.; Zou, Y.; Zou, X. General urea-assisted synthesis of carbon-coated metal phosphide nanoparticles for efficient hydrogen evolution electrocatalysis. Electrochim. Acta 2016, 199, 99–107. [Google Scholar] [CrossRef]
  28. Gupta, S.; Patel, N.; Miotello, A.; Kothari, D.C. Cobalt-boride: An efficient and robust electrocatalyst for hydrogen evolution reaction. J. Power Sources 2015, 279, 620–625. [Google Scholar] [CrossRef]
  29. Hu, C.C.; Weng, C.Y. Hydrogen evolving activity on nickel–molybdenum deposits using experimental strategies. J. Appl. Electrochem. 2000, 30, 499–506. [Google Scholar] [CrossRef]
  30. Brown, D.E.; Mahmood, M.N.; Man, M.C.M.; Turner, A.K. Preparation and characterization of low overvoltage transition metal alloy electrocatalysts for hydrogen evolution in alkaline solutions. Electrochim. Acta 1984, 29, 1551–1556. [Google Scholar] [CrossRef]
  31. Jakšić, J.M.; Vojnović, M.V.; Krstajić, N.V. Kinetic analysis of hydrogen evolution at Ni-Mo alloy electrodes. Electrochim. Acta 2000, 45, 4151–4158. [Google Scholar] [CrossRef]
  32. Armstrong, R.D.; Douglas, A.F. The anodic oxidation of the binary compounds of the transition elements in sulphuric acid. J. Appl. Electrochem. 1972, 2, 143–149. [Google Scholar] [CrossRef]
  33. Gottlieb, U.; Nava, F.; Affronte, M.; Laborde, O.; Madar, R. Properties of Metal Silicides, 1st ed.; Maex, K., Van Rossum, M., Eds.; INSPEC, the Institution of Electrical Engineers: London, UK, 1995; pp. 188–204. [Google Scholar]
  34. Maex, K.; Van Rossum, M.; Reader, A. Properties of Metal Silicides, 1st ed.; Maex, K., Van Rossum, M., Eds.; INSPEC, the Institution of Electrical Engineers: London, UK, 1995; pp. 3–14. [Google Scholar]
  35. Colgan, E.G.; Mäenpää, M.; Finetti, M.; Nicolet, M.A. Electrical characteristics of thin Ni2Si, NiSi, and NiSi2 layers grown on silicon. J. Electron. Mater. 1983, 12, 413–422. [Google Scholar] [CrossRef]
  36. Lide, D.R. CRC Handbook of Chemistry and Physics, 86th ed.; CRC Press: Boca Raton, FL, USA, 2005; Section 4–37; pp. 34–96. [Google Scholar]
  37. Bachmann, K.; Williams, W.S. Low-temperature electrical resistivity and Hall effect of single-crystal α-tungsten carbide. J. Appl. Phys. 1971, 42, 4406–4407. [Google Scholar] [CrossRef]
  38. Morozkin, A.V.; Klyamkin, S.N.; Verbetsky, V.N.; Lushnikov, S.N.; Portnoy, V.K.; Movlaev, E.A.; Chernavskii, A.P.; Tarasov, A.V. Hydrogen sorption in homologous lanthanum and cerium nickel silicides. J. Alloys Compd. 2000, 309, 197–200. [Google Scholar] [CrossRef]
  39. Levy, R.B.; Boudart, M. Platinum-Like Behavior of Tungsten Carbide in Surface Catalysis. Science 1973, 181, 547–549. [Google Scholar] [CrossRef] [PubMed]
  40. Jaramillo, T.F.; Bonde, J.; Zhang, J.; Ooi, B.L.; Andersson, K.; Ulstrup, J.; Chorkendorff, I. Hydrogen evolution on supported incomplete cubane-type [Mo3S4]4+ electrocatalysts. J. Phys. Chem. C 2008, 112, 17492–17498. [Google Scholar] [CrossRef]
  41. Sheng, W.; Gasteiger, H.A.; Yang, S.H. Hydrogen Oxidation and Evolution Reaction Kinetics on Platinum: Acid vs. Alkaline Electrolytes. J. Electrochem. Soc. 2010, 157, B1529–B1536. [Google Scholar] [CrossRef]
  42. Mittermeier, T.; Weiß, A.; Hasché, F.; Gasteiger, H.A. Activity, stability and degradation of carbon supported palladium (Pd/C) fuel cell electrocatalysts for the oxygen reduction. ECS Trans. 2015, 69, 303–313. [Google Scholar] [CrossRef]

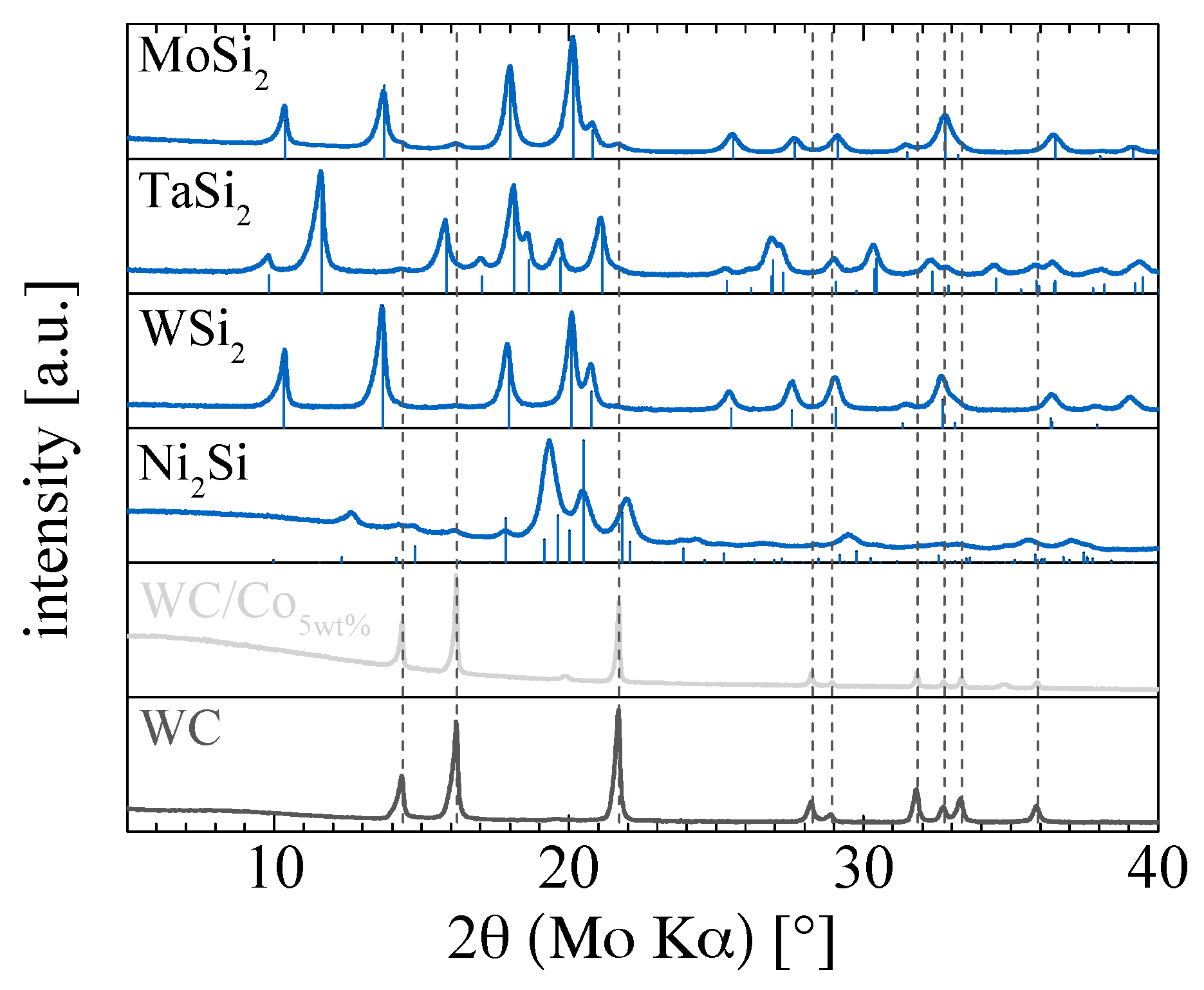

Figure 1. X-ray diffraction patterns of the materials investigated in this study as obtained with a Mo Kα X-ray source. Drop lines indicate reference patterns for MoSi2: PDF 410612, TaSi2: PDF 380483, WSi2: PDF 741149, Ni2Si: PDF 768258; the vertical dashed drop lines indicate the WC reference pattern: PDF 510939.
Figure 1. X-ray diffraction patterns of the materials investigated in this study as obtained with a Mo Kα X-ray source. Drop lines indicate reference patterns for MoSi2: PDF 410612, TaSi2: PDF 380483, WSi2: PDF 741149, Ni2Si: PDF 768258; the vertical dashed drop lines indicate the WC reference pattern: PDF 510939.
Materials 10 00661 g001

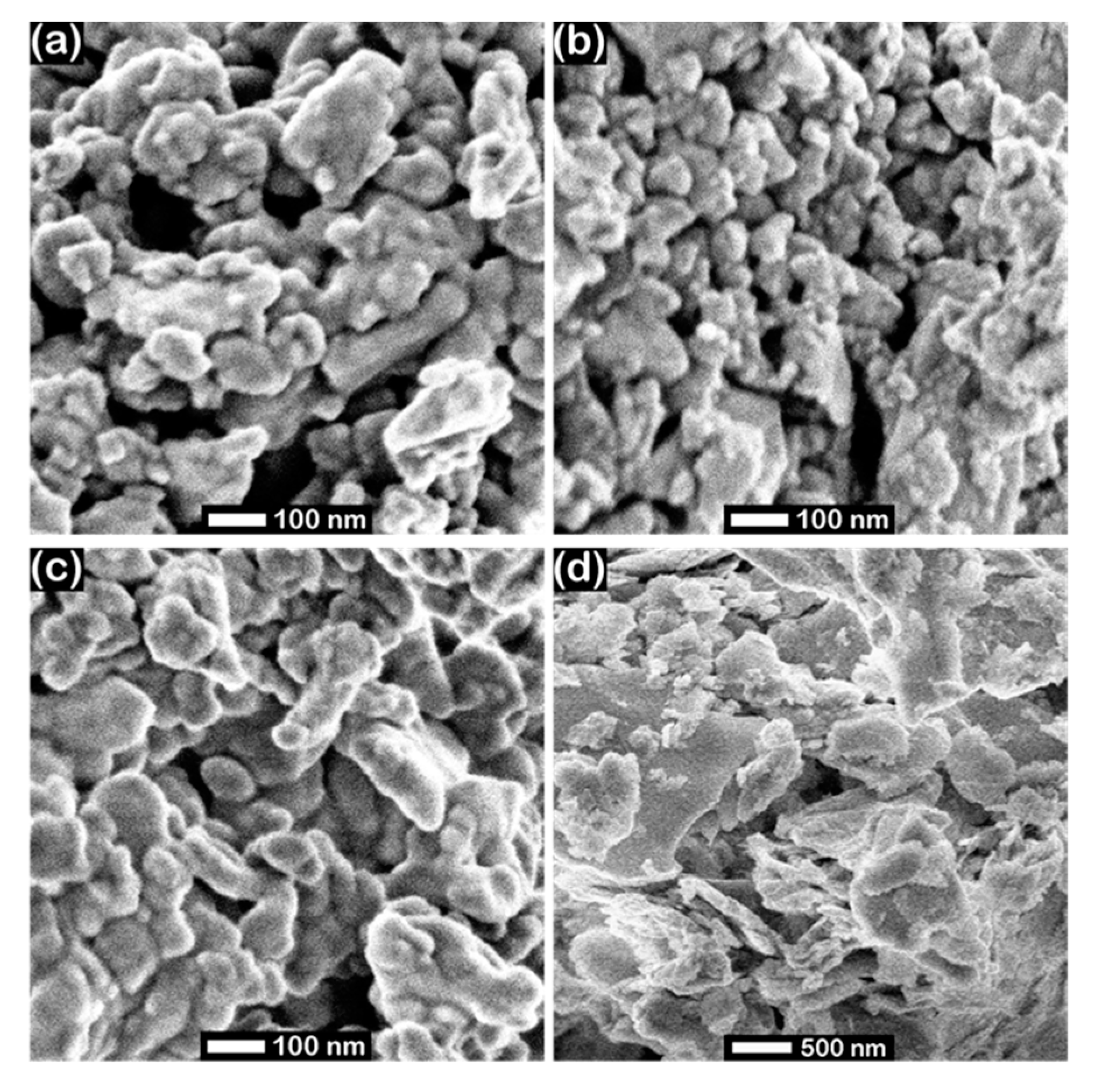

Figure 2. SEM micrographs of the investigated transition metal silicides after ball milling: (a) MoSi2; (b) WSi2; (c) TaSi2; (d) Ni2Si recorded at 15 kV acceleration voltage.
Figure 2. SEM micrographs of the investigated transition metal silicides after ball milling: (a) MoSi2; (b) WSi2; (c) TaSi2; (d) Ni2Si recorded at 15 kV acceleration voltage.
Materials 10 00661 g002

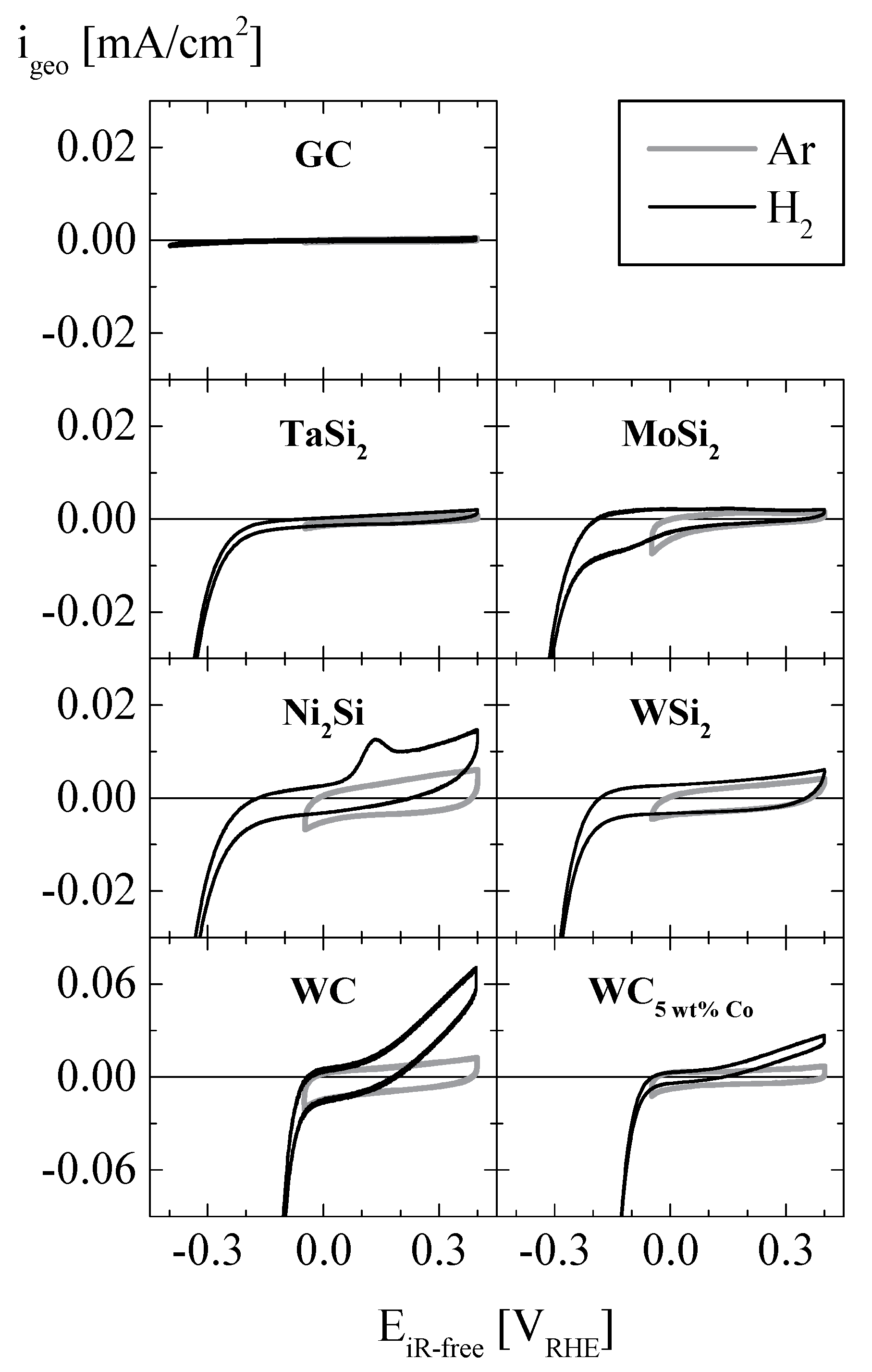

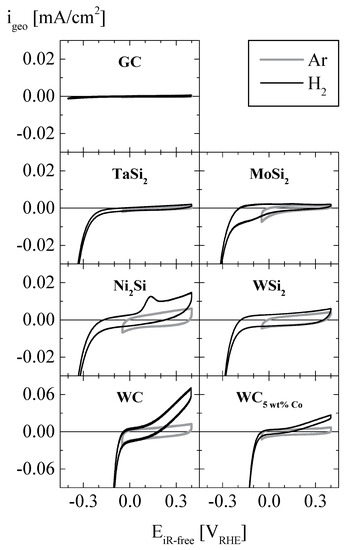

Figure 3. Cyclic voltammograms in 0.1 M HClO4, taken at room temperature and a scan rate of 10 mV/s in either Ar (0 rpm, light grey) or H2 atmosphere (1600 rpm, black). Catalyst loading for MoSi2, TaSi2, WSi2, Ni2Si, WC5 wt % Co, WC: 0.50 mg/cm2; blank glassy carbon disk (GC) as reference.
Figure 3. Cyclic voltammograms in 0.1 M HClO4, taken at room temperature and a scan rate of 10 mV/s in either Ar (0 rpm, light grey) or H2 atmosphere (1600 rpm, black). Catalyst loading for MoSi2, TaSi2, WSi2, Ni2Si, WC5 wt % Co, WC: 0.50 mg/cm2; blank glassy carbon disk (GC) as reference.
Materials 10 00661 g003

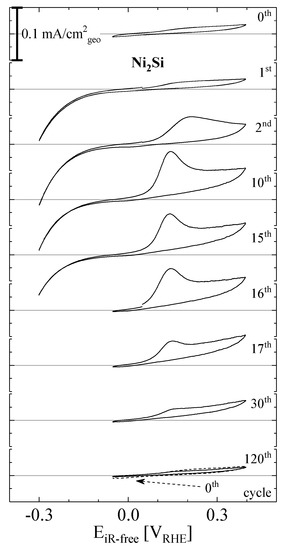

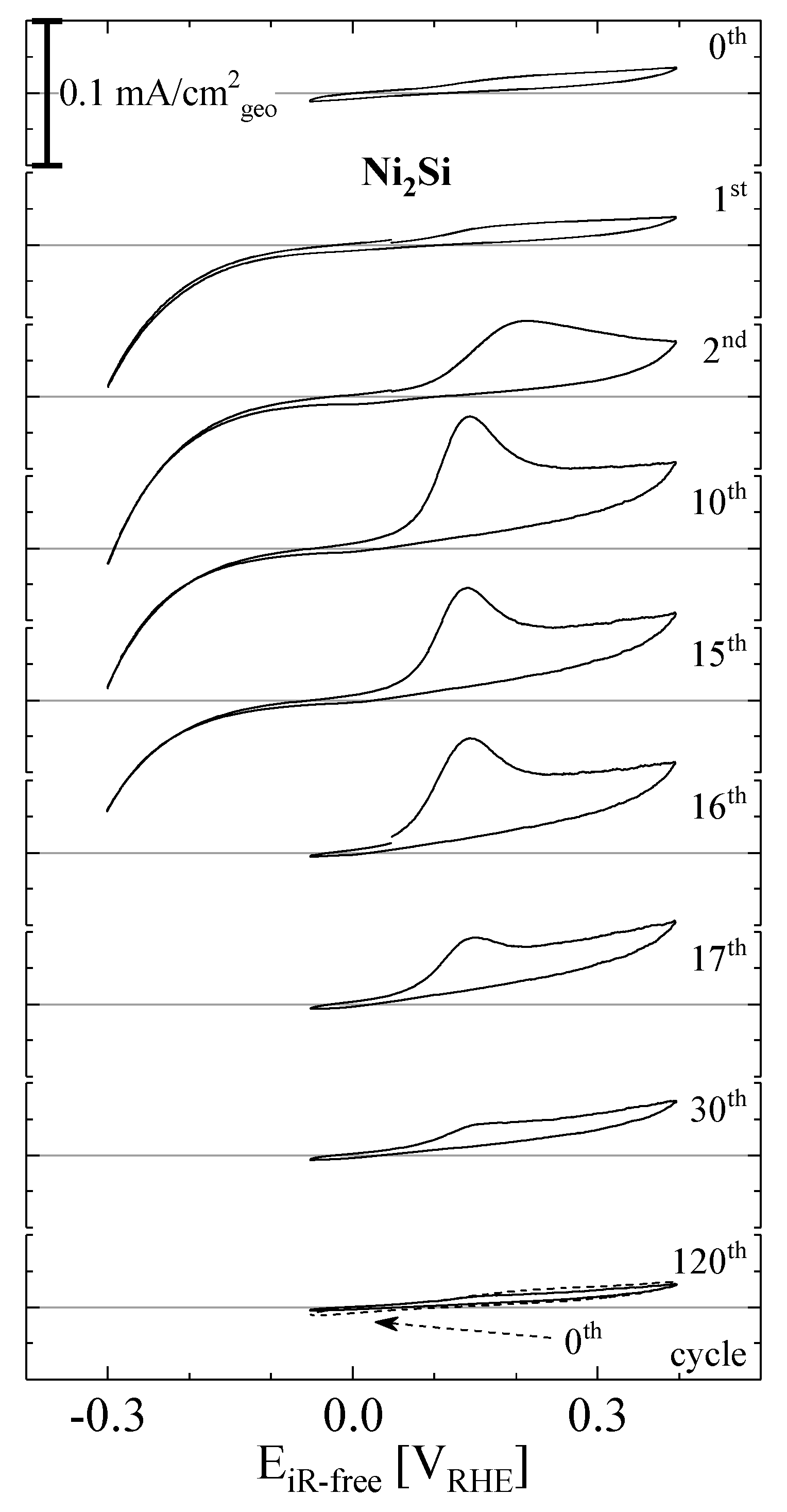

Figure 4. Subsequent cyclic voltammograms of Ni2Si in 0.1 M HClO4, taken at room temperature and a scan rate of 20 mV/s in H2 atmosphere at 1600 rpm. The dashed line in the bottom panel is the same signal as shown in the top panel.
Figure 4. Subsequent cyclic voltammograms of Ni2Si in 0.1 M HClO4, taken at room temperature and a scan rate of 20 mV/s in H2 atmosphere at 1600 rpm. The dashed line in the bottom panel is the same signal as shown in the top panel.
Materials 10 00661 g004

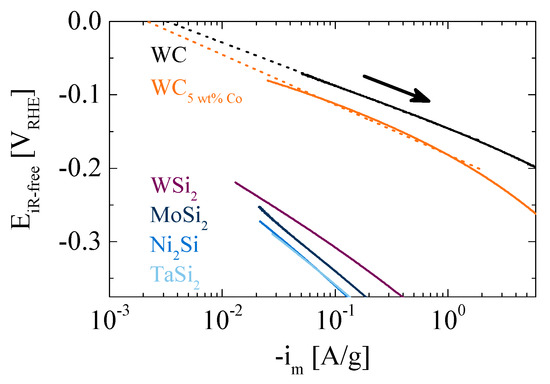

Figure 5. Tafel plot as determined from negative going scans in Figure 3, corrected for capacitive currents obtained from cyclic voltammograms in Ar at 0.05 VRHE (full lines) and linear extrapolations (dashed lines). Extrapolations are performed from an interval where measured current is between three times the capacitive current and 2 A/g.
