Effect of Oxygen Partial Pressure on the Phase Stability of Copper–Iron Delafossites at Elevated Temperatures

by
Thomas Stöcker
and
Ralf Moos
*
Department of Functional Materials, Zentrum für Energietechnik (ZET), University of Bayreuth, 95440 Bayreuth, Germany
*
Author to whom correspondence should be addressed.
Materials 2018, 11(10), 1888; https://doi.org/10.3390/ma11101888
Submission received: 13 September 2018 / Revised: 28 September 2018 / Accepted: 28 September 2018 / Published: 2 October 2018
(This article belongs to the Special Issue Advanced Thermoelectric Materials)
Browse Figures
Versions Notes

Abstract

Oxide-based materials are promising candidates for use in high temperature thermoelectric generators. While their thermoelectric performance is inferior to commonly used thermoelectrics, oxides are environmentally friendly and cost-effective. In this study, Cu-based delafossites (CuFeO2), a material class with promising thermoelectric properties at high temperatures, were investigated. This work focuses on the phase stability of CuFeO2 with respect to the temperature and the oxygen partial pressure. For this reason, classical material characterization methods, such as scanning electron microscopy, energy dispersive X-ray spectroscopy, and X-ray diffraction, were combined in order to elucidate the phase composition of delafossites at 900 °C at various oxygen partial pressures. The experimentally obtained results are supported by the theoretical calculation of the Ellingham diagram of the copper–oxygen system. In addition, hot-stage X-ray diffraction and long-term annealing tests of CuFeO2 were performed in order to obtain a holistic review of the phase stability of delafossites at high temperatures and varying oxygen partial pressure. The results support the thermoelectric measurements in previous publications and provide a process window for the use of CuFeO2 in thermoelectric generators.

1. Introduction

In past years, huge efforts have been undertaken to cope with global warming and climate change, mainly originating of ever-growing economics and societies in industrial countries. By doing so, it is a significant challenge to recycle the waste-heat, accountable for up to 60% of all energy losses, using efficient energy converters. Thermoelectric generators (TEG) make use of the Seebeck effect to directly convert thermal into electrical energy. Various material combinations have been investigated in the last decades, especially for applications in mid-temperature ranges [1,2,3,4,5,6,7]. Thereby, various material combinations have been used to increase conversion efficiency, but not focusing on cost efficiency, availability, and sustainability.
Hence, oxide thermoelectrics have attracted much attention in recent years for use in thermoelectric generators [8,9,10,11,12,13,14,15,16,17,18]. Whereas commonly used material classes such as chalcogenides [19,20,21,22,23,24,25,26,27,28,29], skudderudites [30,31,32], and polymers [33,34,35,36,37] exhibit good thermoelectric performance at low- and mid-temperature ranges, oxides show their advantages at elevated temperatures above 700 °C. Above all, oxide materials follow the prevailing trend to substitute costly and less abundant thermoelectrics in favor of inexpensive materials. Whereas their thermoelectric performance might be inferior to prevalently used materials, oxides exhibit a remarkable relationship between thermoelectric performance and cost. Thus, thermoelectric oxides make use of their inherent advantages where no high-performance thermoelectric efficiency is required, but the application of cost-effective and environmentally friendly materials are a must.
Lately, several promising groups of oxide thermoelectrics were reported to have a considerable good thermoelectric performance. Among those, cobaltites such as NaCo2O4 [38,39] or Ca3Co4O9 [40,41,42,43,44,45,46,47,48] were seen as potential p-type material in thermoelectric generators. However, they are not stable against temperature cycling and require complex synthesis routes. Concerning n-type thermoelectrics, especially titanates such as SrTiO3, show the most promising thermoelectric properties. While their mobility is comparatively low, the effective mass is notably high [49,50,51,52], resulting in a very good thermoelectric efficiency. Further improvement was possible by using natural superlattices of SrTiO3, the so-called Ruddlesden–Popper phases [53,54,55]. Current research also focuses on layered In2O3 composites, enabling sustainable, cost-effective, and efficient n-type thermoelectrics for thermoelectric generators. Korotenchok et al. provide a highly topical review on oxide thermoelectrics with focus on the above-mentioned In2O3 [56].
Recently, some studies describe copper–iron oxides and claim them as promising thermoelectric materials due to their high Seebeck coefficient, while sustaining a high electrical conductivity and thermal stability [57,58,59,60]. Former studies have focused on the thermoelectric performance and the electrical conductivity of the delafossite-type oxide CuFeO2, its dependence on the oxygen partial pressure at high temperatures, and on the novel aerosol deposition coating technique [61,62,63,64]. In this work, we focus on the phase stability of delafossites at elevated temperatures and under varying oxygen concentrations. Whereas Stöcker et al. showed an in-situ phase transition by measuring the thermopower of CuFeO2 with increasing oxygen partial pressure, this study aims on a holistic material characterization of CuFeO2 and its stability for their application in thermoelectric generators at high temperatures.

2. Materials and Methods

Delafossite powders were prepared in a conventional mixed-oxide technique. In order to obtain a high purity starting material, a synthesis route as reported in [64] was chosen, describing the formation of CuFeO2 with no impurities or secondary phases. As starting materials, copper(I) oxide (99.9%, Alfa-Aesar, Karlsruhe, Germany) and iron(III) oxide (99%, Alfa-Aesar, Karlsruhe, Germany) were used and processed in a wet planetary ball mill (Fritsch, Idar-Oberstein, Germany) with cyclohexane as solvent. The stoichiometric mixtures were ball-milled for 4 h in order to homogenize the materials. After removing the solvent in a rotary evaporator (Heidolph Instruments, Schwabach, Germany), the powders were calcined in a high-temperature furnace (STF/15 450, Carbolite-Gero, Germany) at 1050 °C for 12 h in a mixed gas atmosphere of 0% O2, 1% O2, and 10% O2 in nitrogen. The obtained delafossite powders were again reground in a planetary mill, sieved with a 90 µm screen in order to reduce agglomerates, and dried in a furnace at 200 °C. The phase composition of the obtained powders was elucidated by using an X-ray diffraction system (PANalytical, Almelo, The Netherlands) operating with CuKα radiation (1.541874 Å) within 2θ = 25° … 60° at a step size of 0.02°.
In order to evaluate the phase composition of CuFeO2 as a function of pO2 at elevated temperatures, CuFeO2 brick shaped pellets were cold-pressed uniaxially [64] and annealed at 900 °C under different oxygen concentrations (0, 1, 5, 10, 20, and 100%) mixed in nitrogen for 12 h. While the oxygen diffusivity of CuFeO2 is low, previous investigations have shown that an annealing time of 12 h is sufficient for the samples to reach an equilibrium [64]. A scanning electron microscope (LEO 1450 VP, Zeiss, Oberkochen, Germany) was used for energy dispersive X-ray spectroscopy (EDX) and back-scattered electron (BSE) imaging of the samples. Additionally, pellets were reground for X-ray diffraction analysis. This combination of XRD and EDX/BSE studies facilitates an in-depth analysis of the pO2 influence on the crystal structure and phase composition of CuFeO2. Additionally, the results were combined with theoretical calculations of the predominance diagram for the copper–iron–oxygen system in order to verify the experimental findings.
Since delafossites are possible candidates for high-temperature thermoelectrics, hot-stage XRD (D8 ADVANCE, Bruker with hot stage HTK 1200-N, Anton Paar, CuKα radiation) analysis of CuFeO2 powder calcined at 1% O2 in nitrogen was conducted from 20 to 900 °C under nitrogen gas atmosphere. After an equilibration time of 30 min, XRD patterns were recorded at discrete temperature levels, so possible phase changes could be investigated in operando. Finally, long-term tests of CuFeO2 were performed, by thermally treating bulk samples that were free from secondary phases for 96 h in nitrogen. These specimens were investigated by a combination of XRD and SEM analysis.

3. Results and Discussion

Figure 1 shows the XRD patterns of the calcined delafossite powders and the reference spectrum of delafossite CuFeO2 (JCPDS 39-0246) and indicates no impurities i.e., no secondary phases for samples processed with 1% O2 mixed in nitrogen. This result is in good agreement with previous investigations [64,65,66,67], whereas the calcination in pure N2 leads to an elemental copper phase, due to the reduced oxygen partial pressure. Here, we focus on the influence of an elevated oxygen partial pressure on the phase stability of delafossites. In contrast to characteristic diffraction reflexes of delafossite, CuFe2O4, and possibly CuO (marked as †) are predominant for samples annealed under 10% oxygen mixed with nitrogen.
In order to verify the phase transition of CuFeO2 to CuFe2O4 and CuO, energy dispersive X-ray spectroscopy investigations were conducted on samples of CuFeO2 calcined in 1% oxygen and annealed in different oxygen atmospheres. The EDX mapping of characteristic regions of a polished cross-sectional sample, annealed at 900 °C for 12 h in a gas mixture of 10% oxygen in nitrogen, is depicted in Figure 2. It indicates copper, iron, and oxygen. In the element distribution images, two homogeneous distributed phases can be seen, whereas the brightness in the images represents qualitatively the concentration of the corresponding element.
The first phase exhibits no iron and is depicted in Figure 2a as white zones, consisting of copper and oxygen. Contrarily, the second phase solely contains iron and oxygen, illustrated in Figure 2b,c. In order to elucidate the phase composition, quantitative EDX analyses for the cuprous phase (marked as A in Figure 2a) and the ferrous phase (marked as B in Figure 2b,c) were conducted. The element mole fraction for the two regions and the theoretical compositions of CuO and CuFe2O4 are listed in Table 1. While the deviation of oxygen in EDX spectroscopy can be up to 3 mol %, the results provide a rough estimation of the phase compositions.
The findings of the EDX analysis are in line with the results of the XRD recordings. The delafossite is subject to a pO2-dependent phase transition at elevated temperatures to CuO and CuFe2O4. Our findings reveal a fully completed conversion when annealing CuFeO2 in a gas mixture of 10% oxygen in nitrogen. Against the background of thermoelectric performance of delafossites in thermoelectric generators, this phase change limits the usage of CuFeO2 in oxygen-rich atmospheres. While the conduction mechanism of the delafossites is p-type, the arising mixed phase of CuO/CuFe2O4 shows a mixed conduction, since copper (I) oxide is an n-type and the cuprospinel CuFe2O4 is a p-type semiconductor, resulting in bipolar thermoelectric effects and therefore reducing the overall thermoelectric performance [68,69]. Previous defect-chemical studies with variations in the oxygen partial pressure on thin delafossite films prepared by aerosol deposition also showed an abrupt change in the conductivity at characteristic pO2 levels at high temperatures, and this change results in bipolar thermoelectric effects [64]. These findings are supported by the results in the present work. They provide a process window for the usage of CuFeO2 as a thermoelectric material at elevated temperatures.
To specify the phase stability threshold for delafossites, XRD patterns of CuFeO2 samples annealed at 900 °C in graduated oxygen–nitrogen gas atmospheres were taken. Figure 3 shows the resulting diffraction patterns and the reference spectra of CuFeO2 (JCPDS 39-0246) and CuFe2O4 (JCPDS 34-0425).
Delafossits annealed in 0% and 1% oxygen exhibit no secondary phases, while all samples starting from an oxygen concentration of 5% show a phase transition to CuFe2O4 and CuO, with no additional phase changes at higher oxygen partial pressures and no remaining CuFeO2. These findings correspond well with defect-chemical characterizations of CuFeO2, where the phase transition at 900 °C was observed at oxygen concentrations between 1 and 3.1% [64]. Hence, these results provide a rough process window in the context of oxygen stability for delafossites at 900 °C. In order to refine these experimental findings, calculations of the equilibrium equation for the oxidization of CuFeO2 according to Equation (1) lead to a theoretical stability window for delafossites.
4 CuFeO2 + O2 ↔ 2 CuFe2O4 + 2 CuO.
Equation (1) describes the observed phase transition under oxidizing atmospheres. The Gibbs energy ΔG of a system is determined by the following expression [70]:
ΔG = ΔG0 + RT ln(Keq).
ΔG0 stands for the Gibbs free energy change per mole of reaction for unmixed reactants and products at standard conditions, R for the gas constant, T for the absolute temperature, and Keq denotes the equilibrium constant. If the system is in chemical equilibrium, the Gibbs free energy of Reaction (1) can be calculated as follows, assuming solid solutions for the reactants [71]:
ΔG0 = −RT ln(pO2).
The Gibbs free energy per mole of formation, ΔG0,1 for Reaction (1), can be described as [71]
ΔG0,1 = −22115 J mol−1 + 160.20 J mol−1 K−1·T.
Combined with Expression (3), this yields the Ellingham diagram for Reaction (1) shown in Figure 4.
In addition to the oxidation reaction, the equilibrium curve for the reduction of CuFeO2 at low pO2 corresponding to Expressions (5) and (6) is displayed [71]. The expressions are as follows:
3 CuFeO2 ↔ 3 Cu + Fe3O4 + O2
ΔG0,2 = −405350 J mol−1 + 191.40 J mol−1 K−1·T.
The calculated Ellingham diagram is in good agreement with the experimental findings in this work, verifying the observed phase transitions by XRD and EDX with theoretical calculations. It also supports the thermoelectric measurements in the previous publications [64,72]. For 700, 800, and 900 °C, Table 2 lists upper and lower limit of pO2 for the stability of CuFeO2. At higher oxygen concentrations, the delafossite oxidizes to CuFe2O4 and CuO and at low pO2, it decomposes to Cu, Fe3O4, and O2. While the reduction of CuFeO2 can be observed during the synthesis at 1050 °C under nitrogen [64], the employed nitrogen (N2, 5.0) contains up to 3 ppm oxygen (pO2 = 3 × 10−6 bar), resulting in no decomposition at 900 °C.
These results yield a stability region for the delafossite, depicted as a hatched area in Figure 4, as a function of temperature and oxygen partial pressure. For example, at temperatures above 700 °C, CuFeO2 is not stable in ambient air, so an encapsulation would be required if delafossites are used as thermoelectric materials in high-temperature thermoelectric generators.
In order to verify the long-term stability of CuFeO2 and to rule out occurring secondary phases when heating up the material, high-temperature XRD was conducted on delafossites in a nitrogen gas atmosphere. Figure 5 depicts the diffraction pattern at different temperatures. Owing to grain growth, the reflexes, respectively the FWHM, broaden with increasing temperature, but no impurities or secondary phases can be detected, confirming that no phase transformations occur from room temperature to 900 °C.
The previous investigations were conducted on samples that were annealed for 12 h in the corresponding gas atmospheres. Especially at high temperatures, aging effects and the interdependency of the substrate with the delafossites, caused by ion exchanges [73,74], may deteriorate the material leading to poorer thermoelectric properties. For this reason, long-term tests of CuFeO2 with no secondary phases on alumina substrates were performed. Figure 6a shows the diffraction pattern of a delafossite annealed in nitrogen at 900 °C for 96 h, revealing neither impurities nor any phase changes. This result is confirmed by the BSE image in Figure 6b, where solely CuFeO2 was observed. Neither elemental copper, nor copper–alumina-spinel phases, resulting from possible interactions between the delafossite and the alumina substrate, were detected. The black areas are voids resulting from sample preparation.

4. Conclusions

In the present study, the phase stability of delafossites at high temperatures and elevated oxygen concentrations was studied. Previous investigations indicated a change in the conduction mechanism of CuFeO2 at high oxygen concentrations, assuming a phase change of the material and reducing the thermoelectric performance. In this work, classical material characterization methods were employed to elucidate this effect in detail. The experimentally obtained results indicated the proposed transition of CuFeO2 to CuFe2O4 and CuO being caused by a further oxidation of the delafossites with increasing oxygen partial pressure. Both XRD and SEM/EDX analysis confirmed this reaction, thus limiting the usage of CuFeO2 as high-temperature thermoelectric material to a small process window with respect to oxygen concentration of the ambience and temperature.
While the experimental data gave a rough estimation of the boundaries of the stability of delafossites, theoretical calculations of the Ellingham diagram for the CuFeO2, the CuFe2O4, and the CuO system, respectively, lead to a detailed pO2 range in which the delafossites can be considered phase-stable. At temperatures above 700 °C, the upper pO2 limit for the phase change is lower than the oxygen partial pressure of ambient air. Hence, the usage of delafossites as thermoelectric material at high temperatures is limited to low oxygen environments or requires the thermoelectric generator to be encapsulated.
Further investigations and thermoelectric characterizations on the occurring CuFe2O4/CuO bipolar phase may lead to an eligible n-type counterpart for delafossites in thermoelectric generators, since both thermoelectric materials could be processed from the same raw material. For that matter, both thermoelectric legs of a thermoelectric generator can be assembled from CuFeO2 as starting material. While the p-type legs are protected from an oxidizing gas atmosphere, thus remaining delafossites, the n-type legs undergo a phase transition as described in this work, leading to a thermoelectric generator of p-type CuFeO2 and n-type CuFe2O4/CuO.

Author Contributions

R.M. and T.S. planned the experiments. R.M. supervised the study. T.S. conducted the experiments and evaluated the data. All authors contributed to the article.

Funding

This publication was funded by the University of Bayreuth in the funding program—"Open-Access Publishing”.

Acknowledgments

The authors are indebted to the following persons and organizations for supporting this work: A. Mergner (Department for Functional Materials) and M. Heider (BIMF) for SEM sample preparation and characterization. W. Milius (Chair of Inorganic Chemistry I) for XRD and U. Glatzel (Metals and Alloys) for high-temperature XRD characterization.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rowe, D.M. CRC Handbook of Thermoelectrics; CRC Press: Boca Raton, FL, USA, 1995. [Google Scholar]
  2. Snyder, G.J.; Toberer, E.S. Complex thermoelectric materials. Nat. Mater. 2008, 7, 105–114. [Google Scholar] [CrossRef] [PubMed]
  3. Nolas, G.S.; Sharp, J.; Goldsmid, H.J. Thermoelectrics: Basic Principles and New Materials Developments; Springer: Berlin, Germany, 2001. [Google Scholar]
  4. Sootsman, J.R.; Chung, D.Y.; Kanatzidis, M.G. Alte und neue Konzepte für thermoelektrische Materialien. Angew. Chem. 2009, 121, 8768–8792. [Google Scholar] [CrossRef]
  5. Rowe, D.M. Thermoelectrics and Its Energy Harvesting: Materials Preparation and Characterization in Thermoelectrics; CRC Press: Boca Raton, FL, USA, 2012. [Google Scholar]
  6. Hong, M.; Chen, Z.-G.; Zou, J. Fundamental and progress of Bi2Te3-based thermoelectric materials. Chin. Phys. B 2018, 27, 48403. [Google Scholar] [CrossRef]
  7. Zhu, T.; Liu, Y.; Fu, C.; Heremans, J.P.; Snyder, J.G.; Zhao, X. Compromise and Synergy in High-Efficiency Thermoelectric Materials. Adv. Mater. 2017, 29, 1605884. [Google Scholar] [CrossRef] [PubMed]
  8. Ren, G.-K.; Lan, J.-L.; Ventura, K.J.; Tan, X.; Lin, Y.-H.; Nan, C.-W. Contribution of point defects and nano-grains to thermal transport behaviours of oxide-based thermoelectrics. Npj Comput. Mater. 2016, 2, 16023. [Google Scholar] [CrossRef]
  9. Yin, Y.; Tudu, B.; Tiwari, A. Recent advances in oxide thermoelectric materials and modules. Vacuum 2017, 146, 356–374. [Google Scholar] [CrossRef]
  10. Tomeš, P.; Robert, R.; Trottmann, M.; Bocher, L.; Aguirre, M.H.; Bitschi, A.; Hejtmánek, J.; Weidenkaff, A. Synthesis and characterization of new ceramic thermoelectrics implemented in a thermoelectric oxide module. J. Electron. Mater. 2010, 39, 1696–1703. [Google Scholar] [CrossRef]
  11. Weidenkaff, A.; Robert, R.; Aguirre, M.; Bocher, L.; Lippert, T.; Canulescu, S. Development of thermoelectric oxides for renewable energy conversion technologies. Renew. Energy 2008, 33, 342–347. [Google Scholar] [CrossRef]
  12. Bocher, L.; Aguirre, M.H.; Logvinovich, D.; Shkabko, A.; Robert, R.; Trottmann, M.; Weidenkaff, A. CaMn(1-x)Nb(x)O3 (x <0.08) perovskite-type phases as promising new high-temperature n-type thermoelectric materials. Inorg. Chem. 2008, 47, 8077–8085. [Google Scholar] [PubMed]
  13. Koumoto, K.; Terasaki, I.; Funahashi, R. Complex oxide materials for potential thermoelectric applications. MRS Bull. 2006, 31, 206–210. [Google Scholar] [CrossRef]
  14. Koumoto, K.; Koduka, H.; Seo, W.-S. Thermoelectric properties of single crystal CuAlO2 with a layered structure. J. Mater. Chem. 2001, 11, 251–252. [Google Scholar] [CrossRef]
  15. Koumoto, K.; Funahashi, R.; Guilmeau, E.; Miyazaki, Y.; Weidenkaff, A.; Wang, Y.; Wan, C.; Zhou, X.-D. Thermoelectric ceramics for energy harvesting. J. Am. Ceram. Soc. 2013, 96, 1–23. [Google Scholar] [CrossRef]
  16. Liang, X.; Clarke, D.R. Relation between thermolectric properties and phase equilibria in the ZnO–In2O3 binary system. Acta Mater. 2014, 63, 191–201. [Google Scholar] [CrossRef]
  17. Misture, S.; Edwards, D. High-Temperature oxide thermoelectrics. Am. Ceram. Soc. Bull. 2012, 91, 24–27. [Google Scholar]
  18. Fergus, J.W. Oxide materials for high temperature thermoelectric energy conversion. J. Eur. Ceram. Soc. 2012, 32, 525–540. [Google Scholar] [CrossRef]
  19. Zhao, L.-D.; Tan, G.; Hao, S.; He, J.; Pei, Y.; Chi, H.; Wang, H.; Gong, S.; Xu, H.; Dravid, V.P.; et al. Ultrahigh power factor and thermoelectric performance in hole-doped single-crystal SnSe. Science 2016, 351, 141–144. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, Z.; Jian, Z.; Li, W.; Chang, Y.; Ge, B.; Hanus, R.; Yang, J.; Chen, Y.; Huang, M.; Snyder, G.J.; et al. Lattice dislocations enhancing thermoelectric PbTe in addition to band convergence. Adv. Mater. 2017, 29, 1606768. [Google Scholar] [CrossRef] [PubMed]
  21. Li, J.; Zhang, X.; Chen, Z.; Lin, S.; Li, W.; Shen, J.; Witting, I.T.; Faghaninia, A.; Chen, Y.; Jain, A.; et al. Low-symmetry rhombohedral GeTe thermoelectrics. Joule 2018, 2, 976–987. [Google Scholar] [CrossRef]
  22. Hong, M.; Chen, Z.-G.; Yang, L.; Zou, Y.-C.; Dargusch, M.S.; Wang, H.; Zou, J. Realizing zT of 2.3 in Ge1-x-ySbxInyTe via reducing the phase-transition temperature and introducing resonant energy doping. Adv. Mater. 2018, 30, 1705942. [Google Scholar] [CrossRef] [PubMed]
  23. Hong, M.; Chen, Z.-G.; Matsumura, S.; Zou, J. Nano-scale dislocations induced by self-vacancy engineering yielding extraordinary n -type thermoelectric Pb0.96-yInySe. Nano Energy 2018, 50, 785–793. [Google Scholar] [CrossRef]
  24. Hong, M.; Chasapis, T.C.; Chen, Z.-G.; Yang, L.; Kanatzidis, M.G.; Snyder, G.J.; Zou, J. n-type Bi2Te3-xSex nanoplates with enhanced thermoelectric efficiency driven by wide-frequency phonon scatterings and synergistic carrier scatterings. ACS Nano 2016, 10, 4719–4727. [Google Scholar] [CrossRef] [PubMed]
  25. Tang, X.; Xie, W.; Li, H.; Zhao, W.; Zhang, Q.; Niino, M. Preparation and thermoelectric transport properties of high-performance p-type Bi2Te3 with layered nanostructure. Appl. Phys. Lett. 2007, 90, 12102. [Google Scholar] [CrossRef]
  26. Venkatasubramanian, R.; Siivola, E.; Colpitts, T.; O’Quinn, B. Thin-film thermoelectric devices with high room-temperature figures of merit. Nature 2001, 413, 597–602. [Google Scholar] [CrossRef] [PubMed]
  27. Goldsmid, H. Bismuth telluride and its alloys as materials for thermoelectric generation. Materials 2014, 7, 2577–2592. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, G.; Dresselhaus, M.S.; Dresselhaus, G.; Fleurial, J.-P.; Caillat, T. Recent developments in thermoelectric materials. Int. Mater. Rev. 2003, 48, 45–66. [Google Scholar] [CrossRef]
  29. Baba, S.; Sato, H.; Huang, L.; Uritani, A.; Funahashi, R.; Akedo, J. Formation and characterization of polyethylene terephthalate-based (Bi0.15Sb0.85)2Te3 thermoelectric modules with CoSb3 adhesion layer by aerosol deposition. J. Alloys Compd. 2014, 589, 56–60. [Google Scholar] [CrossRef]
  30. Nolas, G.S.; Kaeser, M.; Littleton, R.T.; Tritt, T.M. High figure of merit in partially filled ytterbium skutterudite materials. Appl. Phys. Lett. 2000, 77, 1855–1857. [Google Scholar] [CrossRef]
  31. Sales, B.C.; Mandrus, D.; Chakoumakos, B.C.; Keppens, V.; Thompson, J.R. Filled skutterudite antimonides: Electron crystals and phonon glasses. Phys. Rev. B 1997, 56, 15081–15089. [Google Scholar] [CrossRef]
  32. Tang, X.; Chen, L.; Goto, T.; Hirai, T. Effects of Ce filling fraction and Fe content on the thermoelectric properties of Co-rich CeyFexCo4−xSb12. J. Mater. Res. 2001, 16, 837–843. [Google Scholar] [CrossRef]
  33. Stöcker, T.; Köhler, A.; Moos, R. Why does the electrical conductivity in PEDOT:PSS decrease with PSS content? A study combining thermoelectric measurements with impedance spectroscopy. J. Polym. Sci. Part B Polym. Phys. 2012, 50, 976–983. [Google Scholar] [CrossRef]
  34. Kim, G.-H.; Shao, L.; Zhang, K.; Pipe, K.P. Engineered doping of organic semiconductors for enhanced thermoelectric efficiency. Nat. Mater. 2013, 12, 719–723. [Google Scholar] [CrossRef] [PubMed]
  35. He, J.; Kanatzidis, M.G.; Dravid, V.P. High performance bulk thermoelectrics via a panoscopic approach. Mater. Today 2013, 16, 166–176. [Google Scholar] [CrossRef]
  36. Plochmann, B.; Lang, S.; Rüger, R.; Moos, R. Optimization of thermoelectric properties of metal-oxide-based polymer composites. J. Appl. Polym. Sci. 2013, 131, 40038. [Google Scholar] [CrossRef]
  37. Bubnova, O.; Crispin, X. Towards polymer-based organic thermoelectric generators. Energy Environ. Sci. 2012, 5, 9345–9362. [Google Scholar] [CrossRef]
  38. Fujita, K.; Mochida, T.; Nakamura, K. High-temperature thermoelectric properties of NaxCoO2 single crystals. Jpn. J. Appl. Phys. 2001, 40, 4644–4647. [Google Scholar] [CrossRef]
  39. Tsai, P.H.; Norby, T.; Tan, T.T.; Donelson, R.; Chen, Z.D.; Li, S. Correlation of oxygen vacancy concentration and thermoelectric properties in Na0,73CoO2-δ. Appl. Phys. Lett. 2010, 96, 141905. [Google Scholar] [CrossRef]
  40. Paul, B.; Schroeder, J.L.; Kerdsongpanya, S.; van Nong, N.; Schell, N.; Ostach, D.; Lu, J.; Birch, J.; Eklund, P. Mechanism of formation of the thermoelectric layered cobaltate Ca3Co4O9 by annealing of CaO-CoO thin films. Adv. Electron. Mater. 2015, 1, 1400022. [Google Scholar] [CrossRef]
  41. Paul, B.; Lu, J.; Eklund, P. Nanostructural tailoring to induce flexibility in thermoelectric Ca3Co4O9 thin films. ACS Appl. Mater. Interfaces 2017, 9, 25308–25316. [Google Scholar] [CrossRef] [PubMed]
  42. Paul, B.; Björk, E.M.; Kumar, A.; Lu, J.; Eklund, P. Nanoporous Ca3Co4O9 thin films for transferable thermoelectrics. ACS Appl. Energy Mater. 2018, 1, 2261–2268. [Google Scholar] [CrossRef] [PubMed]
  43. Saini, S.; Yaddanapudi, H.S.; Tian, K.; Yin, Y.; Magginetti, D.; Tiwari, A. Terbium ion doping in Ca3Co4O9: A step towards high-performance thermoelectric materials. Sci. Rep. 2017, 7, 44621. [Google Scholar] [CrossRef] [PubMed]
  44. Prevel, M.; Reddy, E.S.; Perez, O.; Kobayashi, W.; Terasaki, I.; Goupil, C.; Noudem, J.G. Thermoelectric properties of sintered and textured Nd-substituted Ca3Co4O9 ceramics. Jpn. J. Appl. Phys. 2007, 46, 6533–6538. [Google Scholar] [CrossRef]
  45. Mikami, M.; Funahashi, R. The effect of element substitution on high-temperature thermoelectric properties of Ca3Co2O6 compounds. J. Solid State Chem. 2005, 178, 1670–1674. [Google Scholar] [CrossRef]
  46. Nong, N.V.; Liu, C.-J.; Ohtaki, M. High-temperature thermoelectric properties of late rare earth-doped Ca3Co4O9+δ. J. Alloys Compd. 2011, 509, 977–981. [Google Scholar] [CrossRef]
  47. Soon-mok, C.; Chang-Hyun, L.I.M.; Won-Seon, S.E.O. High-temperature thermoelectric properties of the Ca3-xKxCo4O9 (0 ≤ x ≤ 0.3) system. J. Korean Phys. Soc. 2010, 57, 1054–1058. [Google Scholar]
  48. Bresch, S.; Mieller, B.; Selleng, C.; Stöcker, T.; Moos, R.; Rabe, T. Influence of the calcination procedure on the thermoelectric properties of calcium cobaltite Ca3Co4O9. J. Electroceram. 2018, 40, 225–234. [Google Scholar] [CrossRef]
  49. Muta, H.; Kurosaki, K.; Yamanaka, S. Thermoelectric properties of reduced and La-doped single-crystalline SrTiO3. J. Alloys Compd. 2005, 392, 306–309. [Google Scholar] [CrossRef]
  50. Ohta, S.; Nomura, T.; Ohta, H.; Hirano, M.; Hosono, H.; Koumoto, K. Large thermoelectric performance of heavily Nb-doped SrTiO3 epitaxial film at high temperature. Appl. Phys. Lett. 2005, 87, 92108. [Google Scholar] [CrossRef]
  51. Moos, R.; Härdtl, K.H. Electronic transport properties of Sr1−xLaxTiO3 ceramics. J. Appl. Phys. 1996, 80, 393–400. [Google Scholar] [CrossRef]
  52. Moos, R.; Gnudi, A.; Härdtl, K.H. Thermopower of Sr1−xLaxTiO3 ceramics. J. Appl. Phys. 1995, 78, 5042–5047. [Google Scholar] [CrossRef]
  53. Wang, Y.; Lee, K.H.; Ohta, H.; Koumoto, K. Thermoelectric properties of electron doped SrO(SrTiO3)n (n = 1,2) ceramics. J. Appl. Phys. 2009, 105, 103701. [Google Scholar] [CrossRef]
  54. Haeni, J.H.; Theis, C.D.; Schlom, D.G.; Tian, W.; Pan, X.Q.; Chang, H.; Takeuchi, I.; Xiang, X.-D. Epitaxial growth of the first five members of the Srn+1TinO3n+1 Ruddlesden–Popper homologous series. Appl. Phys. Lett. 2001, 78, 3292–3294. [Google Scholar] [CrossRef]
  55. Lee, K.H.; Kim, S.W.; Ohta, H.; Koumoto, K. Ruddlesden-Popper phases as thermoelectric oxides. Nb-doped SrO(SrTiO3)n (n = 1,2). J. Appl. Phys. 2006, 100, 63717. [Google Scholar] [CrossRef]
  56. Korotcenkov, G.; Brinzari, V.; Cho, B.K. In2O3-based multicomponent metal oxide films and their prospects for thermoelectric applications. Solid State Sci. 2016, 52, 141–148. [Google Scholar] [CrossRef]
  57. Ono, Y.; Satoh, K.-I.; Nozaki, T.; Kajitani, T. Structural, magnetic and thermoelectric properties of delafossite-type oxide, CuCr1-xMgxO2 (0 ≤ x ≤ 0.05). Jpn. J. Appl. Phys. 2007, 46, 1071–1075. [Google Scholar] [CrossRef]
  58. Nozaki, T.; Hayashi, K.; Kajitani, T. Thermoelectric properties of delafossite-type oxide CuFe1-xNixO2 (0 ≤ x ≤ 0.05). J. Chem. Eng. Jpn. 2007, 40, 1205–1209. [Google Scholar] [CrossRef]
  59. Nozaki, T.; Hayashi, K.; Kajitani, T. Electronic structure and thermoelectric properties of the delafossite-type oxides CuFe1-xNixO2. J. Electron. Mater. 2009, 38, 1282–1286. [Google Scholar] [CrossRef]
  60. Hayashi, K.; Nozaki, T.; Kajitani, T. Structure and high temperature thermoelectric properties of delafossite-type oxide CuFe1- xNixO2 (0 ≤ x ≤ 0.05). Jpn. J. Appl. Phys. 2007, 46, 5226–5229. [Google Scholar] [CrossRef]
  61. Kim, Y.; Ahn, C.-W.; Choi, J.-J.; Ryu, J.; Kim, J.-W.; Yoon, W.-H.; Park, D.-S.; Yoon, S.-Y.; Ma, B.; Hahn, B.-D. Next generation ceramic substrate fabricated at room temperature. Sci. Rep. 2017, 7, 6637. [Google Scholar] [CrossRef] [PubMed]
  62. Hanft, D.; Exner, J.; Schubert, M.; Stöcker, T.; Fuierer, P.; Moos, R. An overview of the aerosol deposition method: Process fundamentals and new trends in materials applications. J. Ceram. Sci. Technol. 2015, 6, 147–182. [Google Scholar]
  63. Akedo, J. Room temperature impact consolidation (RTIC) of fine ceramic powder by aerosol deposition method and applications to microdevices. J. Therm. Spray Technol. 2008, 17, 181–198. [Google Scholar] [CrossRef]
  64. Stöcker, T.; Exner, J.; Schubert, M.; Streibl, M.; Moos, R. Influence of oxygen partial pressure during processing on the thermoelectric properties of aerosol-deposited CuFeO2. Materials 2016, 9, 227. [Google Scholar] [CrossRef] [PubMed]
  65. Amrute, A.P.; Łodziana, Z.; Mondelli, C.; Krumeich, F.; Pérez-Ramírez, J. Solid-state chemistry of cuprous delafossites: Synthesis and stability aspects. Chem. Mater. 2013, 25, 4423–4435. [Google Scholar] [CrossRef]
  66. Zhao, T.-R.; Hasegawa, M.; Takei, H. Oxygen nonstoichiometry in copper iron oxide [CuFeO2+δ] single crystals. J. Cryst. Growth 1997, 181, 55–60. [Google Scholar] [CrossRef]
  67. Zhao, T.-R.; Hasegawa, M.; Takei, H. Phase equilibrium of the Cu-Fe-O system under Ar, CO2 and Ar+0.5% O2 atmospheres during CuFeO2 single-crystal growth. J. Mater. Sci. 1996, 31, 5657–5663. [Google Scholar] [CrossRef]
  68. Greenwood, N.N.; Anderson, J.S. Conductivity and thermo-electric effect in cuprous oxide. Nature 1949, 164, 346–347. [Google Scholar] [CrossRef]
  69. Suda, S.; Fujitsu, S.; Koumoto, K.; Yanagida, H. The effect of atmosphere and doping on electrical conductivity of CuO. Jpn. J. Appl. Phys. 1992, 31, 2488–2491. [Google Scholar] [CrossRef]
  70. Ellingham, H.J.T. Transactions and communications. J. Chem. Technol. Biotechnol. 1944, 63, 125–160. [Google Scholar]
  71. Schaefer, S.C.; Hundley, G.L.; Block, F.E.; McCune, R.A.; Mrazek, R.V. Phase equilibria and X-ray diffraction investigation of system Cu-Fe-O. Metall. Trans. 1970, 1, 2557–2563. [Google Scholar]
  72. Hayashi, K.; Sato, K.-I.; Nozaki, T.; Kajitani, T. Effect of doping on thermoelectric properties of delafossite-type oxide CuCrO2. Jpn. J. Appl. Phys. 2008, 47, 59–63. [Google Scholar] [CrossRef]
  73. Barnabé, A.; Mugnier, E.; Presmanes, L.; Tailhades, P. Preparation of delafossite CuFeO2 thin films by rf-sputtering on conventional glass substrate. Mater. Lett. 2006, 60, 3468–3470. [Google Scholar] [CrossRef]
  74. Zhao, T.-R.; Hasegawa, M.; Takei, H. Crystal growth and characterization of cuprous ferrite (CuFeO2). J. Cryst. Growth 1996, 166, 408–413. [Google Scholar] [CrossRef]
Materials 11 01888 g001

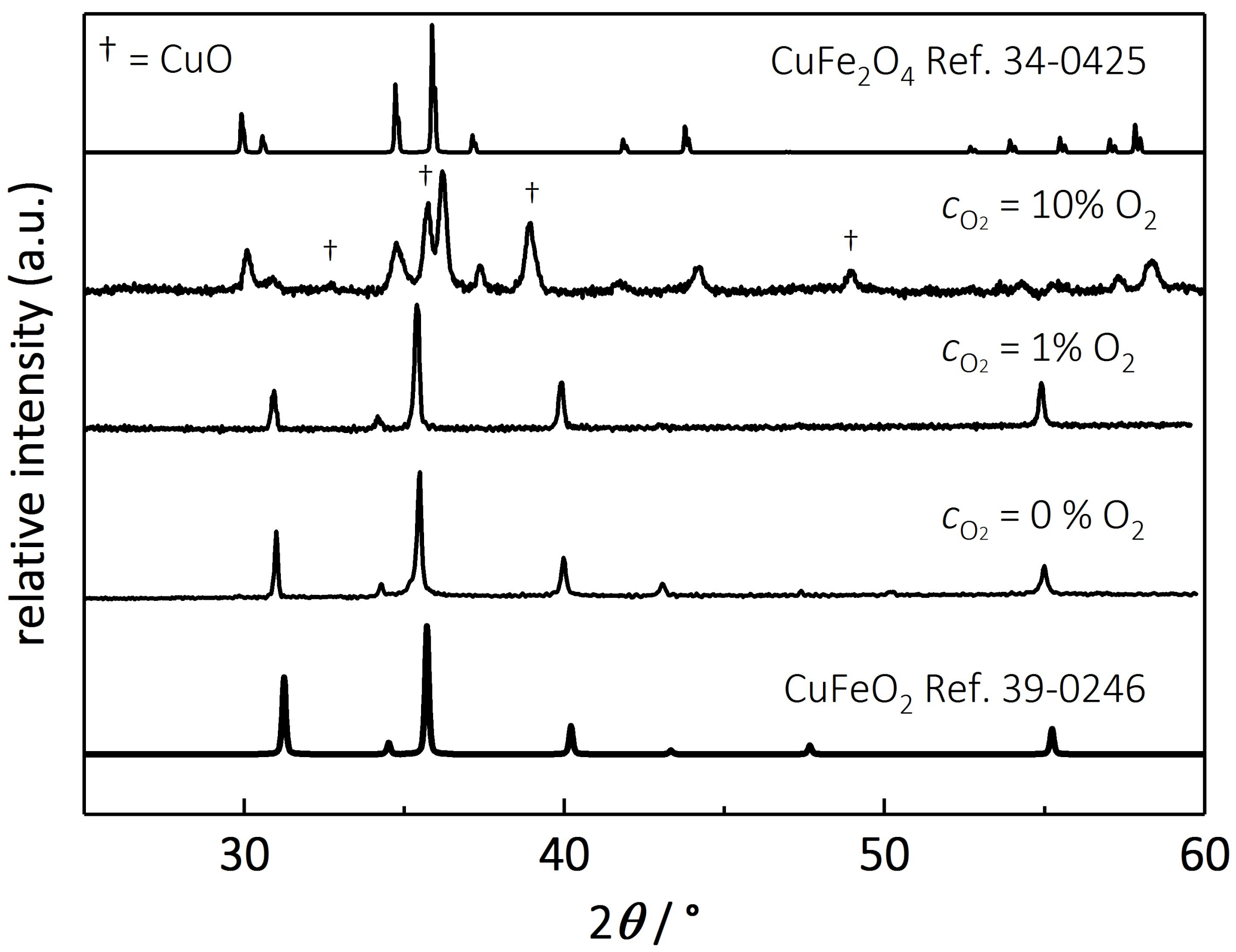

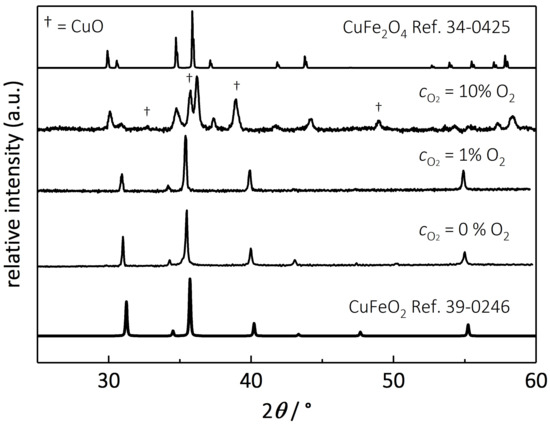

Figure 1. XRD patterns of CuFeO2 calcined under nitrogen as well as 1% and 10% oxygen mixed in nitrogen. Additionally, the reference spectra of CuFeO2 (JCPDS 39-0246) and CuFe2O4 (JCPDS 34-0425) are depicted.
Figure 1. XRD patterns of CuFeO2 calcined under nitrogen as well as 1% and 10% oxygen mixed in nitrogen. Additionally, the reference spectra of CuFeO2 (JCPDS 39-0246) and CuFe2O4 (JCPDS 34-0425) are depicted.
Materials 11 01888 g001
Materials 11 01888 g002

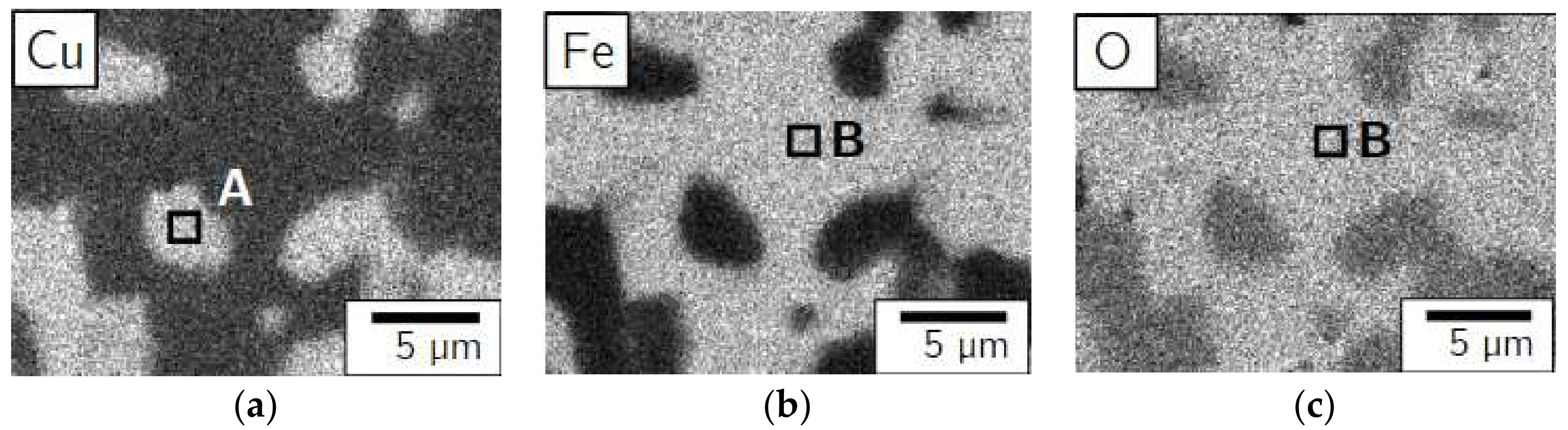

Figure 2. EDX pattern of the delafossite, annealed at 900 °C for 12 h in a gas mixture of 10% oxygen in nitrogen. (a) copper; (b) iron; (c) oxygen.
Figure 2. EDX pattern of the delafossite, annealed at 900 °C for 12 h in a gas mixture of 10% oxygen in nitrogen. (a) copper; (b) iron; (c) oxygen.
Materials 11 01888 g002
Materials 11 01888 g003

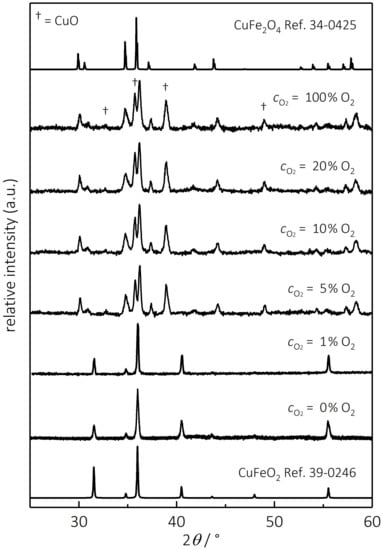

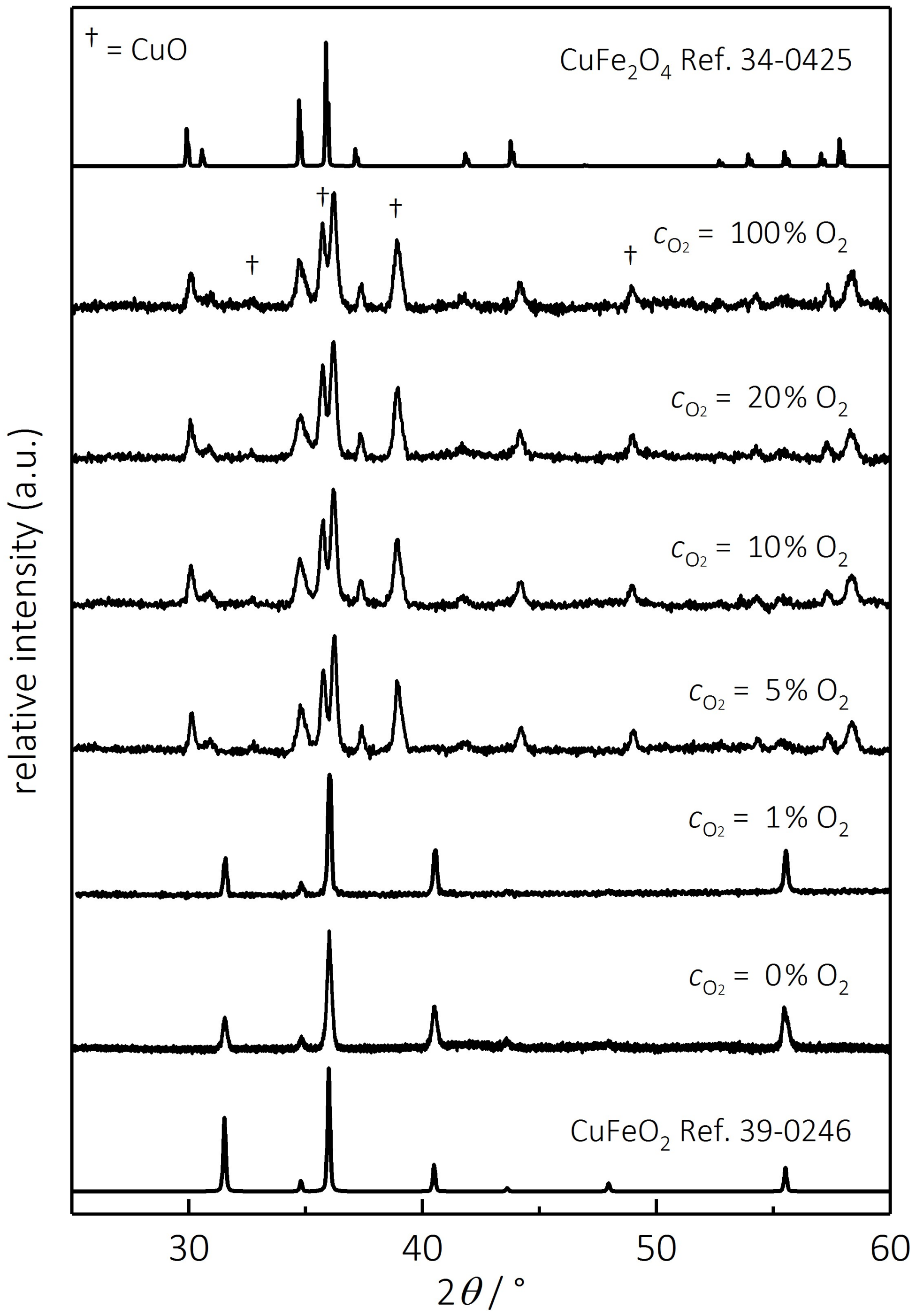

Figure 3. XRD patterns of CuFeO2 annealed in 900 °C for 12 h under different oxygen–nitrogen gas mixtures. Additionally, the reference spectra of CuFeO2 (JCPDS = 39-0246) and CuFe2O4 (JCPDS = 34-0425) are displayed.
Figure 3. XRD patterns of CuFeO2 annealed in 900 °C for 12 h under different oxygen–nitrogen gas mixtures. Additionally, the reference spectra of CuFeO2 (JCPDS = 39-0246) and CuFe2O4 (JCPDS = 34-0425) are displayed.
Materials 11 01888 g003
Materials 11 01888 g004

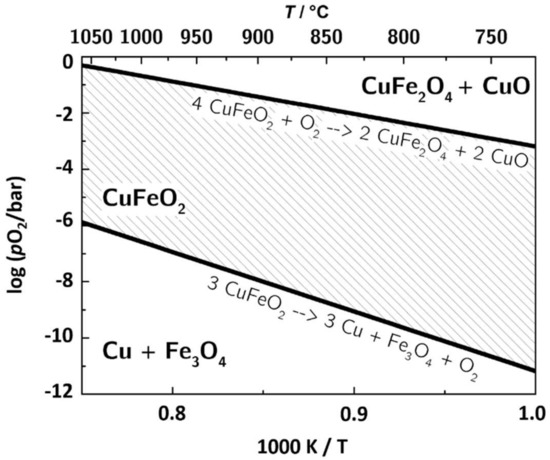

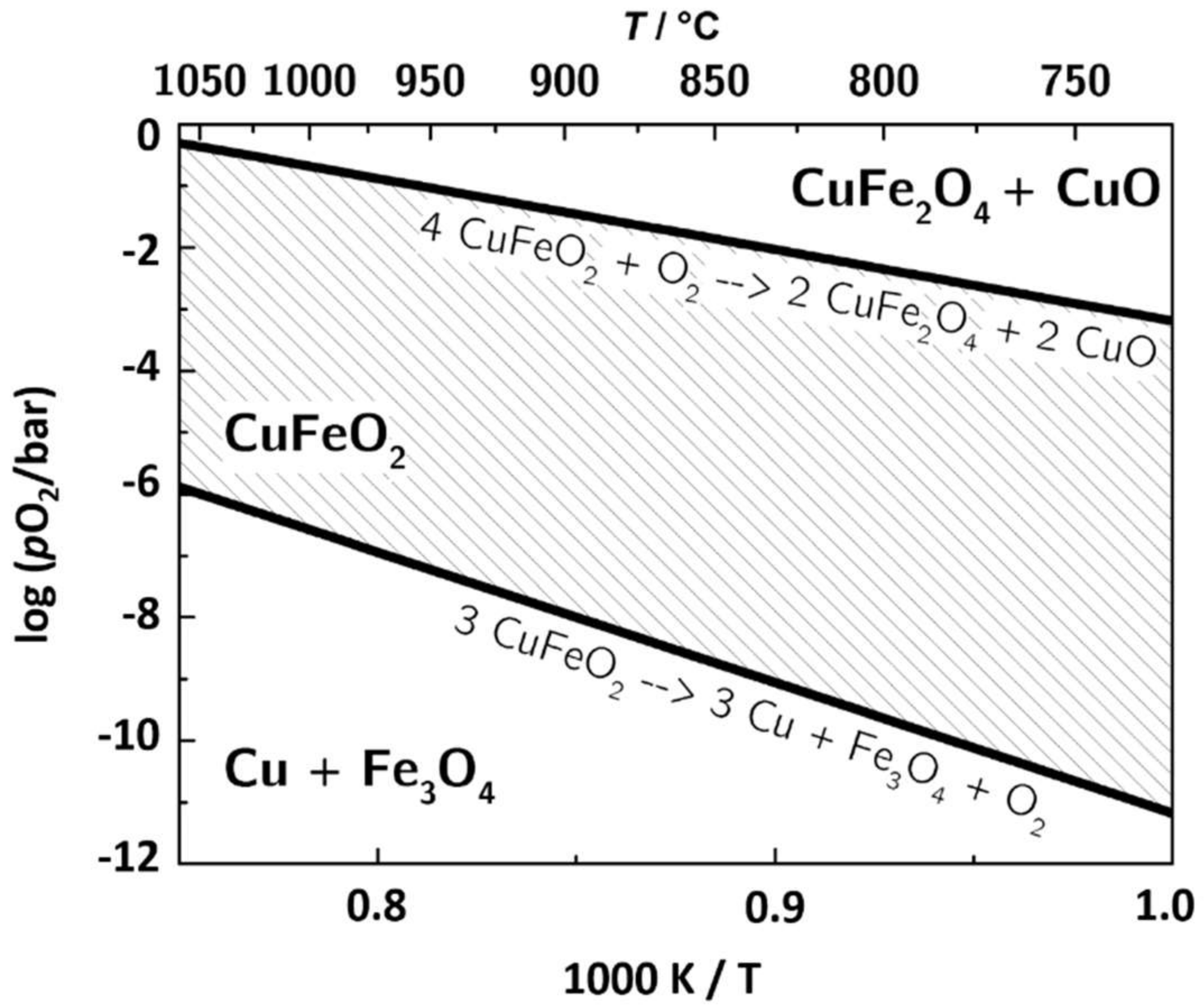

Figure 4. Ellingham diagram of the CuFeO2, CuFe2O4, CuO, and the Fe3O4 system, respectively.
Figure 4. Ellingham diagram of the CuFeO2, CuFe2O4, CuO, and the Fe3O4 system, respectively.
Materials 11 01888 g004
Materials 11 01888 g005

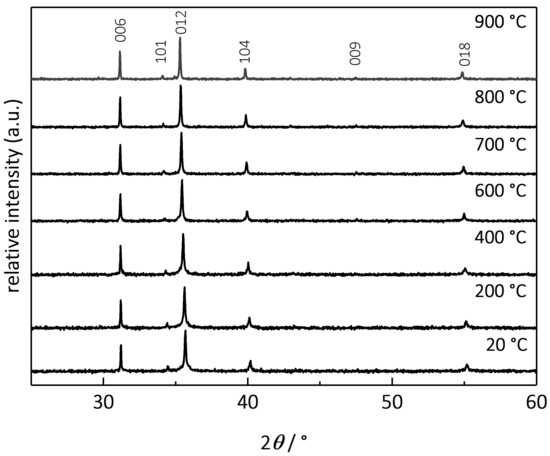

Figure 5. High-temperature X-ray diffraction patterns of CuFeO2, measured in nitrogen at discrete temperature levels as indicated.
Figure 5. High-temperature X-ray diffraction patterns of CuFeO2, measured in nitrogen at discrete temperature levels as indicated.
Materials 11 01888 g005
Materials 11 01888 g006

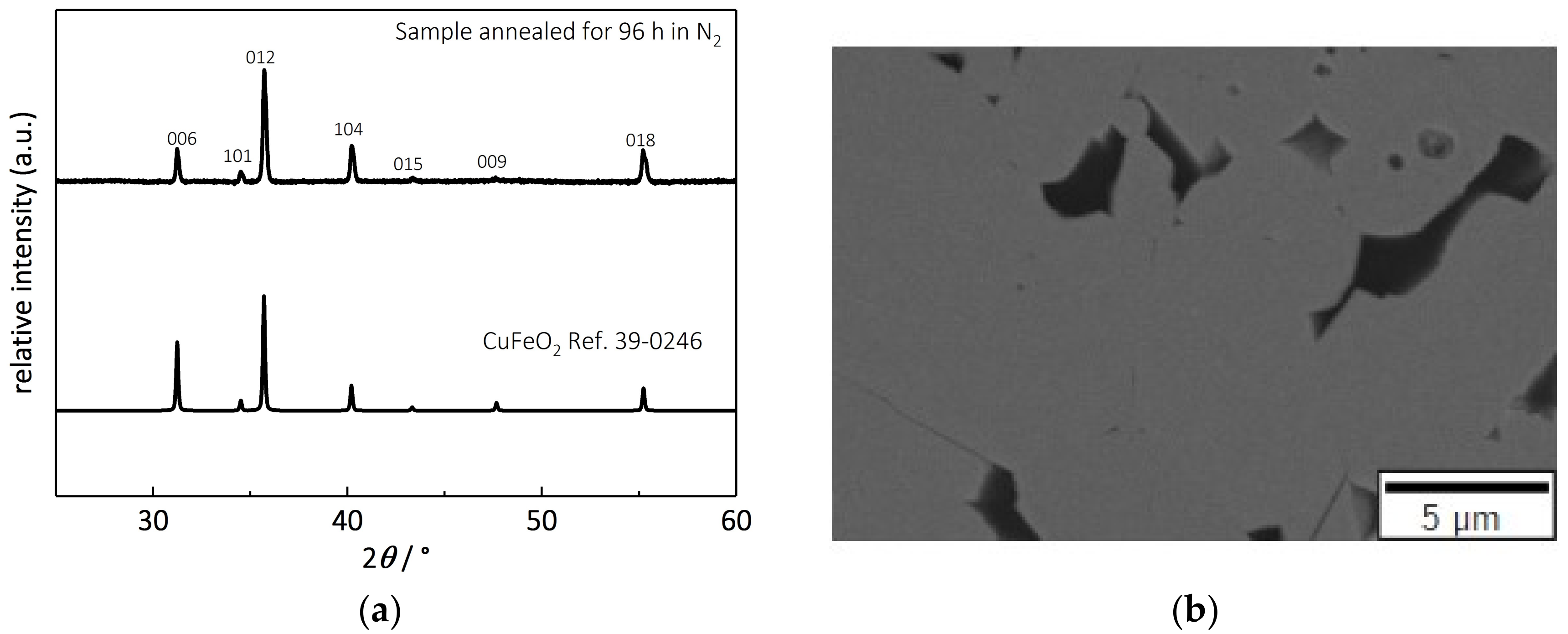

Figure 6. Delafossite annealed for 96 h at 900 °C in nitrogen. (a) Diffraction and reference patterns of CuFeO2 for comparison; (b) scanning microscope image (BSE detector) of the annealed sample showing no secondary phases. The dark areas are voids resulting from sample preparation.
Figure 6. Delafossite annealed for 96 h at 900 °C in nitrogen. (a) Diffraction and reference patterns of CuFeO2 for comparison; (b) scanning microscope image (BSE detector) of the annealed sample showing no secondary phases. The dark areas are voids resulting from sample preparation.
Materials 11 01888 g006
Table 1. Calculated element mole fraction based on the quantitative EDX analysis of the two regions marked in Figure 2 and the theoretical composition of CuO and CuFe2O4.
Table 1. Calculated element mole fraction based on the quantitative EDX analysis of the two regions marked in Figure 2 and the theoretical composition of CuO and CuFe2O4.
ElementRegion ARegion BCuOCuFe2O4
Copper49 mol %15 mol %50 mol %14 mol %
Iron-24 mol %-29 mol %
Oxygen51 mol %61 mol %50 mol %57 mol %
Table 2. Stability limit of CuFeO2 for three characteristic temperatures, corresponding to the Ellingham diagram shown in Figure 4. The upper (oxidization) and lower (reduction) limits are listed.
Table 2. Stability limit of CuFeO2 for three characteristic temperatures, corresponding to the Ellingham diagram shown in Figure 4. The upper (oxidization) and lower (reduction) limits are listed.
Temperature700 °C800 °C900 °C
Oxidation/log(pO2/bar)−3.50−2.40−1.48
Reduction/log(pO2/bar) −11.76−9.74−6.00
