Article

Catalytic Oxidation of Soot on a Novel Active Ca-Co Dually-Doped Lanthanum Tin Pyrochlore Oxide

by
Lijie Ai
,
Zhongpeng Wang
*,
Chenchen Cui
,
Wei Liu
and
Liguo Wang
School of Resources and Environment, Key Laboratory of Water Resources and Environmental Engineering in Universities of Shandong, University of Jinan, 336 Nanxinzhuang West Road, Jinan 250022, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(5), 653; https://doi.org/10.3390/ma11050653
Submission received: 7 March 2018 / Revised: 3 April 2018 / Accepted: 19 April 2018 / Published: 24 April 2018
(This article belongs to the Special Issue Supported Materials for Catalytic Application)
Browse Figures
Versions Notes

Abstract

:
A novel active Ca-Co dually-doping pyrochlore oxide La2−xCaxSn2−yCoyO7 catalyst was synthesized by the sol-gel method for catalytic oxidation of soot particulates. The microstructure, atomic valence, reduction, and adsorption performance were investigated by X-ray powder diffraction (XRD), scanning electron microscope (SEM), Fourier-transform infrared spectroscopy (FT-IR), X-ray photoelectron spectroscopy (XPS), H2-TPR (temperature-programmed reduction), and in situ diffuse reflection infrared Fourier transformed (DRIFTS) techniques. Temperature programmed oxidation (TPO) tests were performed with the mixture of soot-catalyst under tight contact conditions to evaluate the catalytic activity for soot combustion. Synergetic effect between Ca and Co improved the structure and redox properties of the solids, increased the surface oxygen vacancies, and provided a suitable electropositivity for oxide, directly resulting in the decreased ignition temperature for catalyzed soot oxidation as low as 317 °C. The presence of NO in O2 further promoted soot oxidation over the catalysts with the ignition temperature decreased to about 300 °C. The DRIFTS results reveal that decomposition of less stable surface nitrites may account for NO2 formation in the ignition period of soot combustion, which thus participate in the auxiliary combustion process.

Graphical Abstract

1. Introduction

The diesel engine has been widely used in the transport vehicle market for decades due to its inherent high thermal efficiency, low fuel consumption, and durability. However, particulate matter (PM) from diesel engine emissions is gradually evolving to a serious threat to human health and the global environment [1,2,3,4]. Increasingly stringent emission regulations require solutions based on appropriate post-processing technology and improvements to the engine. The combination of diesel particulate filter (DPF) and the catalytic combustion of soot appears to be a promising after-treatment technique for soot removal, where soot is first captured by DPF and then removed by catalytic combustion [5]. Up to now, a variety of catalysts have been widely investigated and applied to soot removal, including noble metal [4,6], alkaline metal oxides [6,7], transition metal oxides [8,9], as well as mixed metal oxide [10] materials. Although these catalysts have certain advantages in catalyzing soot combustion, they are still constrained by some drawbacks. For example, noble metals have excellent activity at low temperatures, but they are expensive and less stable at high temperatures. Alkali metal catalysts also have good activity but are easily lost at high temperatures. Consequently, there is still substantial interest in the development of low-cost, better-performing, and more durable soot oxidation catalysts.
Pyrochlore oxides are a family of new inorganic functional material with open structure, which show excellent chemical adjustable denaturation and thermal durability in the catalytic reaction. In recent years, stannate pyrochlore has been well applied to the fields of CH4 oxidation and NO oxidation due to its superior physical and chemical properties [11,12]. Pyrochlores always have the empirical formula A2B2O7, where A generally designates a rare-earth with a +3 valence state forming a tetrahedron around the oxygen ions and B a transition metal cation with a +4 valence state combined with oxygen to form [BO6] octahedrons. Similar to perovskite, this structure can tolerate a certain degree of cation and anion vacancies and also a mixed valence state of transition with metal ions while maintaining stable. The A-site of the pyrochlore structure is mainly responsible for the thermal stability, which once substituted with the alkali metal or alkaline earth metal the valence and distribution of the B-site ions may be changed. Meanwhile, some compensating oxide ion vacancies would be introduced due to the lower charge of doping ions such as Sr2+, Y3+ and Ca2+ to further enhance gaseous oxygen adsorption and oxygen-ion migration. It indicated that the “A” ions indirectly affect the catalytic activity [13]. In addition, the B-site ions are usually “active” ions, mainly responsible for the activity of the catalyst. Transition-metal cations such as Cu2+, Co3+, Fe3+ and Mn3+ have always been introduced as dopants into B-site of pyrochlore lattice, and these metals themselves may present additional redox activity due to their accessible reducing capability [14].
In the recent studies it was found that cobalt incorporation can greatly improve redox capacity of La2Sn2O7 to facilitate CH4 oxidation and NO oxidation [14,15]. Besides, metal-doped pyrochlore has also been reported in catalyzing soot combustion. Nevertheless, there are few studies that can provide sufficient data on the A, B-site double doped pyrochlore for soot removal. Alkali metal and alkaline-earth metal oxides have been claimed to bring stupendous benefit for soot oxidation in many reports [16,17]. Luca Lietti et al. also proposed the theory of electrodeposition of alkali and alkaline earth metals to the soot oxidation, which inspired us to study the substitution of Ca to the A site of pyrochlore in this study [7]. In order to investigate the effect of the single and double substitution in A/B sites of La2Sn2O7 for catalyzing soot combustion, a series of mixed oxides La2−xCaxSn2−yCoyO7 were synthesized, characterized, and tested in this work. The structure-activity relationship of the catalysts was constructed by various means such as scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), temperature-programmed reduction (TPR) and temperature programmed oxidation (TPO). In particular, the in situ DRIFT technique was employed with individual catalysts in the presence of NO + O2, to explore the intermediate species that produced by the NO2 auxiliary combustion process.

2. Experimental

2.1. Catalyst Preparation

La2−xCaxSn2−yCoyO7 (x = 0, 0.4; y = 0, 0.2) pyrochlore oxides were prepared by CTAB-assisted sol-gel method [18]. The reagents used were analytically pure and no further purification was required. The stoichiometric amounts of SnCl4·5H2O and Co (NO3)3·6H2O were dissolved in 30 mL of deionized water and then heated the mixed salt solution to 80 °C. An appropriate amount of 1 mol/L sodium hydroxide solution was added dropwise to the above solution to form a white precipitate accompanied by constant magnetic stirring to ensure the salt ions were completely precipitated. In addition, an appropriate amount of La (NO3)3·6H2O and CaCl2 were dissolved in the same manner and a white slurry was formed. Afterwards, the two slurries were slowly mixed together, accompanied by continuous stirring. The pH of the mixed solution was adjusted to 10 with 1 mol/L NaOH solution. A certain amount of cetyltrimethyl ammonium bromide(CTAB) with a ratio 1:1 to metal cations was rapidly dissolved in 50 mL of deionized water by sonication, followed by addition to the above-mentioned precipitation mixed solution, and the pH was controlled around 12.5. The mixture was then stirred continuously in a water bath for 5 h at 80 °C and retained at 80 °C for 24 h. Afterwards, the supernatant was decanted and the solid residue was filtered and washed several times with water and ethanol by crossing. The achieved wet cake was dried overnight at 110 °C and then calcined at 900 °C for 6 h in an air atmosphere to get the finalized catalysts. For convenience, the obtained catalysts were denoted as LS (x = y = 0), LCS (x = 0.4, y = 0), LSC (x = 0, y = 0.2), LCSC (x = 0.4, y = 0.2), respectively.

2.2. Catalyst Characterization

XRD patterns were measured on a BRUKER-AXS D8 Advance X-ray Diffractometer (Bruker, Billerica, MA, USA) using Cu Kα radiation (λ = 0.15418 nm). The X-ray tube was operated at 40 kV and 40 mA. The data of 2θ from 20° to 80° were recorded at 0.02° intervals with a scanning velocity of 6°/min.
The surface morphology was confirmed by a Quanta FEG250 SEM instrument (FEI, Houston, TX, USA) using an accelerating voltage of 10 kV. In order to improve the electrical conductivity, the sample was previously sprayed a very thin gold layer before scanning.
Specific surface area and pore distribution information of the prepared catalysts were derived from the corresponding nitrogen adsorption isotherm conducted on a Micromeritics ASAP 2020 surface area analyzer (Mcromeritics Instruments, Norcross, GA, USA). All the samples were degassed at 300 °C for 5 h under vacuum prior to measurement.
FT-IR spectroscopy were recorded on a Bruker Tensor 27 spectrometer (Bruker, Ettlingen, Germany) over 400–4000 cm−1 after 16 scans at a resolution of 4 cm−1. The catalysts were prepared in the form of pressed wafers (ca. 1% sample in KBr).
H2-Temperature Programmed Reduction (H2-TPR) measurements were performed in a fixed-bed quartz reactor connected with a thermal conductivity detector (TCD) (Lunan Ruihong Chemical Instrument Corporation, Tengzhou, China) in series to record responses. Prior to each experiment, the 50 mg sample (40–80 mesh) was pretreated in N2 (50 mL/min) for 30 min to remove physisorbed water. After cooling to RT, it was then switched to an H2 (35 mL/min) gaspath and the temperature was raised to 900 °C at a rate of 10 °C/min.
XPS analysis was conducted on a Thermo Scientific Escalab 250Xi X-ray photoelectron spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with a non-monochromatic Al Kα X-ray source. Correction of the energy shift due to the static charging of the samples was finished using C 1s peak of contaminant carbon (B.E. = 284.6 eV) as standard.

2.3. Catalytic Activity Measurement

Catalytic activity for soot combustion was investigated by TPO reaction in a continuous fixed-bed tubular quartz (i.d. = 10 mm) system. Printex-U (Degussa, Germany) was used as the model soot. Its average particle size is 25 nm and the specific surface area is 93.5 m2/g. Elemental analysis showed that its carbonaceous nature was 90.43 wt % C, 1.09 wt % H, 0.17 wt % N, and 0.51 wt % S. Volatility was detected to be about 5 wt % and desorbed at about 200 °C (by thermogravimetric analysis, TGA/DSC1/1600 HT, METTLER TOLEDO, ‎Greifensee‎, Switzerland). The soot and catalyst powders were mixed in a 1/9 weight ratio and grinded for “tight contact” conditions. A 50 mg soot/catalyst mixture was used for each trial. Prior to the experiment, the sample was pretreated under He flow (50 mL/min) maintaining at 200 °C for 30 min. After cooling to RT, the catalytic oxidation was carried out in 100 mL/min flow of 5 vol % O2/He or 1000 ppm NO/5% O2/He at 4 °C/min up to 700 °C. The effluent composition was analyzed by a linked on-line chromatograph with FID detector (GC) (SP-6890, Shandong Lunan Ruihong Chemical Instrument Corporation, Tengzhou, China) and a chemiluminescence NOx analyser (Model 42i-HL, Thermo Fisher Scientific, Waltham, MA, USA). Characteristic temperature (T5, T50, T90) at the conversion of 5%, 50% and 90% and the CO2-to-COx concentration ratio (SCO2) at the outlet were used to evaluate the catalyst activity by the TPO profiles.
NO oxidation on the La2−xCaxSn2−yCoyO7 (x = 0, 0.4; y = 0, 0.2) oxide catalysts was carried out in a fixed-bed quartz flow reactor using a 50 mg sample (40–80 mesh). The catalyst was pretreated in a flow of helium at 500 °C for 30 min and then cooled to RT followed by introduction of a mixed flow of 1000 ppm NO and 5 vol % O2 at a rate of 100 mL/min to begin test. The NOx concentration was monitored by a chemiluminescence NOx analyser (Model 42i-HL, Thermo Electron Corporation, Waltham, MA, USA) tracking in the experiment.

2.4. In Situ DRIFTS Experiments

The in situ diffuse reflection infrared Fourier transformed (DRIFT) experiments were carried out on a Nicolet iS50 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with a temperature-controllable diffuse reflection chamber and a high sensitivity MCT detector. The sample powder was purged in situ under a He stream flow at 50 mL/min with a temperature 500 °C for 30 min, and then cooled down to RT, simultaneously, the background spectrum of sample was collected at every testing temperature. Then a gas mixture of 1000 ppm NO/5%O2/He was fed at a flow rate of 100 mL/min, accompanied by raising the temperature to 500 °C and remaining in 500 °C for 30 min. All the spectra were determined by accumulating 16 scans at a resolution of 4 cm−1 as a function of temperature at a heating rate of 10 °C/min.

3. Results and Discussion

3.1. XRD Analysis

XRD characterization was conducted to identify the phase composition of the catalysts. Figure 1 gives the XRD patterns of the four pyrochlore oxides. All of the samples show obvious diffraction peaks at 2θ value of 28.9°(222), 33.5°(440), 48.1°(622), and 57.0°(400), which are typical diffraction patterns of the face-centered cubic structure La2Sn2O7(JCPDS 13-0082). Meanwhile, two small diffraction peaks at 26.6° and 51.7° are presented for all the samples, which can be assigned to the SnO2 formed due to an incomplete precipitation process. In addition, for the catalysts LCS and LCSC, a very weak diffraction signal at 2θ = 22.5°, 32.11° and 45.9° can be detected, suggesting that a small amount of CaSnO3 may be present. However, for the Co substituted samples, no other diffraction peaks pertaining to individual transition metal oxides can be detected. This well demonstrates that A-site substitution may lead to the formation of tiny separated phases, whereas B-site doping allows the doping ions to be highly dispersed into the crystal lattice, as reported previously [14].
The lattice parameter calculated from the Debye-Scherrer equation and the main peak position in the XRD patterns of the catalysts are summarized in Table 1. The obtained lattice parameters of three modified samples are smaller than that of pure La2Sn2O7 and the peak of crystal plane (222) slightly shifts to a higher 2θ angle. According to Bragg’s law, it means the lattice contraction and the decrease in d-spacing as a result of the substitution of larger La3+ (1.06 Å) and Sn4+ (0.69 Å) with smaller Ca2+ (0.99 Å) and Co3+ (0.63 Å) cations in the crystal structure, which indicates that the Ca2+/Co3+ ions are incorporated into the crystal lattice as expected [6]. In addition, a significant broadening of the peak width is observed in the Ca-containing samples, indicating the occurrence of a more defective lattice with smaller crystallite size. The mean crystallite sizes of all oxides are also shown in Table 1. It can be found that with the introduction of Ca, the grain size is significantly reduced, revealing that Ca inhibits the crystal growth of pyrochlore.

3.2. Catalyst Morphologies

As a solid-solid-gas reaction, the morphology of the catalyst strongly influences the catalytic oxidation of soot. In general, catalysts with high specific surface area and large pores can better contact with soot, thereby exhibiting excellent soot oxidation activity. SEM analysis was performed for the purpose of observing the morphology of the synthesized pyrochlore oxides, as shown in Figure 2. It can be seen that all samples mainly consisted of spherical primary particles with an estimated diameter of 50–80 nm, accompanied by a certain degree of sintering. Noticeably, small pores formed by the accumulation of basic particles can be observed over all oxides, which might vitally facilitate a gaseous oxygen reaction during catalysis. No obvious morphological changes can be identified based on the obtained SEM images of these catalysts. The features of pore distribution in detail need to be further investigated by the following N2 adsorption-desorption characterization.

3.3. N2 Adsorption-Desorption Characterization

N2 physisorption experiments were executed to obtain the direct information on the texture characteristics of the oxides. As shown in Figure S1a, all samples clearly present Type II adsorption isotherms in the IUPAC classification with an H3 hysteresis loop typical of non-porous or macroporous materials [19]. It can be seen from the BJH pore size distribution curves (see Figure S1b) that most of the pores fall in macro size range. The hysteresis loops at a high relative pressure indicate a capillary condensation of adsorbate in the macropores of the solids.
The specific surface area (SBET), total pore volume (VP) and average pore diameter (DP) of the oxides determined from the isotherms are listed in Table 1. The synthesized pyrochlore oxides exhibit relatively low specific surface areas (17.92–27.22 m2/g), consistent with results reported in previous studies [12,20]. One possible explanation to the poor surface areas can be that a high synthesis temperature (>700 °C) is required to form a pyrochlore phase.
Among all oxides, LCS shows the largest specific surface area of 27.22 m2/g and pore volume of 0.12 cm3/g, which avail to supply more active sites for adsorption of reactive gas molecules. It appears that the Ca-doped samples (LCS and LCSC) exhibit greater specific surface area and extended pore morphology, indicating that calcium may act as a structural promoter [21]. All the advantages may probably increase the contact area between soot and catalysts based on the so-called “triple contact point (soot, catalyst and gas)” theory. Notwithstanding, it is worth mentioning that in addition to the structural properties, the reducibility of the components contained in the catalyst and the degree of lattice deficiency are all factors that may affect the activity of the catalyst.

3.4. FT-IR

For pyrochlore compounds, usually the region of interest in IR adsorption spectra is in the range of 400–1000 cm−1, which is ascribed to the vibrations of cations in the crystal lattice [22]. The IR spectra of the as-prepared La2−xCaxSn2−yCoyO7 samples are shown in Figure 3. For all oxides, a prominent absorption band (ν1) at about 600 cm−1 and a weaker (ν2) at about 450 cm−1 can be observed. According to the literature [23], the band at about 600 cm−1 is from the B–O (mainly Sn–O) stretching vibrations in the BO6 octahedron and the band around 450 cm−1 can be ascribed to the A–O′(mainly La–O) stretching vibrations. It can be seen from Figure 3 that the ν1 (B–O) of all doping samples slightly shift to a higher frequency compared to LS, indicating changes in B–O bond strength. It was reported that B–O bonding energy is always lower than A–O′ in pyrochlore crystallite and that the difference in the B–O bond strength would affect the release of lattice oxygens and oxygen vacancy formation [24]. Therefore, the generation of surface oxygen defects, by breaking oxygen bonds in the vicinity of the surface, may be promoted by the incorporation of Ca/Co ions.

3.5. H2-TPR

Since most heterogeneous catalytic reactions occur on the surface of the catalyst, morphology, specific surface area as well as porosity are the important features that effect the oxidation reaction for the material [8,10,25]. However, from the viewpoint of pure oxidation-reduction activity, the reduction ability of a substance derived from the metal-oxygen bond is directly related to the redox activity. The reducibility of the pyrochlore oxides was characterized by the TPR technique and the TPR profiles are depicted in Figure 4. It can be seen that pure La2Sn2O7 shows a main hydrogen consumption peak between 500 °C and 700 °C, which corresponds to a partial reduction of Sn4+ to Sn2+. The higher temperature peak above 750 °C can be assigned to the reduction of Sn2+ → Sn0. That is, the pyrochlore structure is difficult to reduce when the temperature is below 500 °C. After the incorporation of Ca into the La2Sn2O7 system, the first reduction was slightly delayed. Furthermore, as Co was introduced into La2Sn2O7, the LSC and LCSC samples showed profiles containing two additional peaks around 440 °C and 720 °C, which evinced the stepwise reduction of cobalt in lattice (Co3+ to Co2+ and Co2+ to Co0, respectively) [26]. According to the previous report [15], it precisely is the interaction between Co and Sn in the lattice that heavily modified the redox property of the oxide by doping Co with multiple valences. However, for the LCSC sample, those two Co reduction peaks were gently shifted to a higher temperature range comparing with LSC, indicating the decreased reducibility of LCSC. In general, oxides with more readily reduced oxygen species have higher redox activity. When these catalysts are compared based on their lowest temperature reduction peaks, the reducibility decreases in the order of LSC (433 °C) > LCSC (444 °C) > LS (626 °C) > LCS (657 °C).

3.6. Catalyst Chemical States and Surface Oxygen Vacancies

The chemical states and the relative abundance of elements on the surface of oxides were analyzed using the XPS technique.
Figure S2a depicts the XPS spectra of La 3d, which has the typical position (833.3–833.9 eV) and a band shape of La (III) compounds [27]. Both La 3d3/2 and La 3d5/2 show double peaks. Natile et al. [28] once explained that the bimodal was resulted from the energy loss phenomenon (“jitter” satellite) caused by the charge transfer of O 2p → La 4f or the strong final state mixing of electronic configuration. The substitution of La by Ca atoms caused a small shift in these peaks to higher binding energies, which was probably connected with a different chemical environment. On the other hand, it was clear that the doping of cobalt did not affect the peak position of La 3d. Among all oxides, LSC, and LCSC display weaker responses than LS and LCS, which is consistent with the surface atomic percentage summarized in Table 2, conveying that Co ions distort the balance state between La and surroundings, with less La exposed on the outer-layer of lattice.
Figure S2b depicts the Sn 3d spectra of different catalysts, which has the typical position (485.5–486.0 eV) and band shape of Sn (IV) compounds [29]. It can be seen that the change of dominant position is similar to La 3d, which proves that the introduction of calcium made the lattice internal environment undergo great changes. Furthermore, consistent with the surface atomic content, the overall peak intensity of LCSC is much weaker than others, implying lower Sn exposure on the catalyst surface after the double substitution.
Figure S2c depicts the Ca 2p patterns of LCS and LCSC. The spectra show the 2p3/2 and 2p1/2 components of the 2p level at around ~346.5 eV and ~350.5 eV with an intensity ratio of 2:1 among them, and separated by 4.0 eV due to spin orbit coupling. The binding energy values of Ca 2p in LCS and LCSC agree with the literature value [30], thus confirms that Ca is in +2 valence state in lattice.
Figure S2d shows the Co 2p patterns of LSC and LCSC. The two that are marked peak at around ~779.1 eV and ~794.4 eV due to the spin orbit split of 2p3/2 and 2p1/2, respectively. It can be noticed that in the case of LCSC, quite low signal intensity is present in the spectra, indicating that Ca ions distort the surroundings around Co ions in crystal. Nevertheless, the prominent peak of 2p3/2 over two samples powerfully proves that Co is in +3 valance state, as reported in previous data [28,31].
Figure 5 exhibits the XPS spectra of O 1s that contains two oxygen signals: lattice oxygen (Olatt: O2−) at 528.8–529.4 eV and surface chemisorbed oxygen (Oads: O− or O22−) at 530.5–531.2 eV [32]. According to the oxygen spillover mechanism, when more oxygen vacancies are generated, more molecular oxygen may be adsorbed on the oxygen vacancy forming surface adsorbed oxygen species and activated by dissociating into the reactive oxygen species, thereby accelerating the oxidation reaction [33]. Generally, the number of surface oxygen vacancies over solid oxide materials can be roughly estimated based on the ratio of Oads/Olatt. Table 2 summarizes the values of Oads/Olatt, decreasing in the following order: LCSC > LCS > LSC > LS, indicating the increase of oxygen vacancy after substitution. An obvious highest Oads/Olatt ratio has been obtained for the LCSC sample, indicating oxygen species are the most abundant at the surface of the dually-substituted sample. The partial substitution of La by Ca and Sn by Co simultaneously in lanthanum stannate pyrochlore structure substantially changes electron density distribution in the structure and thus oxygen vacancies are formed to keep the lattice charge balance. For the same circumstances, the oxygen vacancies of single-element-substituted samples (LCS and LSC) were increased as expected when compared to the dopant-free LS. Under an oxygen atmosphere, oxygen vacancies can effectively combine with oxygen molecules, resulting in the formation of positive holes and partially reduced oxygen, such as O22−, O2− or O−, which has been proposed to be a strongly electrophilic medium in oxidation reactions [34].
From the surface elements contents listed in Table 2, it can be seen that the determined value is always disagreeing with the stoichiometry ratio of each sample, indicating that the lack of an oxygen species on the pyrochlore surface is expected and a different surface element enriches the different elements’ doping catalysts.

3.7. Catalytic Soot Combustion over La2−xCaxSn2−yCoyO7 Catalysts

The performance of La2−xCaxSn2−yCoyO7 (x = 0, 0.4; y = 0, 0.2) catalysts for soot combustion in the atmosphere of O2 and NO + O2 is shown in Figure 6 and Table 3. For comparison, the result of un-catalyzed soot oxidation is also included. As shown in Figure 6a, the un-catalyzed experiment with O2 was performed mixing the soot with SiO2, and the ignition temperature was 470 °C (T5) while the soot was totally burnt at 633 °C (T90). In the presence of catalysts, the soot conversion curves shift to lower a temperature range and the CO2 selectivity was significantly improved (see Table 3). Pure La2Sn2O7 exhibits modest activity with a shift of T5 by 98 °C to lower temperature. When La2Sn2O7 was partially substituted by Ca or Co separately, the T5 was further decreased to 346 °C and 341 °C, respectively.
The enhanced activity of the Ca-substituted sample could be partly ascribed to the improved contact condition between catalyst and soot and the formation of more oxygen vacancies. As shown by the previous XRD and BET results, the introduction of calcium inhibits the crystallinity of the catalyst crystals to some extent and the Ca-modified sample shows smaller particle size and bigger specific surface area, which are favorable to achieving high contacting efficiency between soot and catalyst. Furthermore, in the view of oxygen spillover, gaseous oxygen can be adsorbed on the surface oxygen vacancies and activated by dissociating into active oxygen species, which are subsequently transported through the surface oxide layer to the catalyst-soot interface, where the soot particles are oxidized into carbon oxides. Thus, oxygen vacancy can be also regarded as one kind of catalytically active site in a redox cycling [2]. Substitution of La3+ by lower valence Ca2+ leads to generating higher concentrations of oxygen vacancies, which has been confirmed by XPS study. Increasing oxygen vacancies in a LCS structure substantially increases the adsorption and activation rate of oxygen at the catalyst surface.
The electropositivity of Ca component in the catalyst may be another factor for improved catalysis behavior over the LCS sample. Luca Lietti et al. [7] once suggested that the electronegativity of alkali and alkaline-earth metals may account for their remarkable reactivity for soot removal. B. Ura et al. also stated that the beneficial electropositive nature of alkaline metal might result in a strengthening of carbon-oxygen bonds and a corresponding weakening of carbon-carbon bonds based on an electron transfer theory, and thus promoting the carbon gasification process [34].
The promotional effect on catalytic activity by incorporating Co is attributed to not only the increasing oxygen vacancy content originating from the substitution of Sn4+ by Co3+, but also improved reducibility. Specifically, Co doping effectively changed the strength of the B-O bond in the crystallite, making it more prone to rupture at 300–600 °C, proving that the released capacity of lattice oxygen greatly improves and the mobility of oxygen species from bulk to surface is significantly enhanced. Meanwhile, more additional active sites of Co (Co3+, Co2+) were generated during redox proceeding, as described in the TPR analysis.
Once Ca and Co were simultaneously introduced into the structure of the La2Sn2O7 pyrochlore, the T5 was greatly decreased to 317 °C, revealing the synergistic effect between the Ca and Co cations in the lattice, which was mainly manifested in a substantial increase in oxygen vacancy concentration. Furthermore, LCSC possessed a small particle size, a suitable surface electropositivity and an excellent reducibility. All these superiorities directly determined the further decreased ignition temperature of the dually-doping sample.
Table 3 summarizes the selectivity to CO2 formation (SCO2) for the catalytic reaction of each catalyst. It can be seen that La2Sn2O7 improved this value by about 50% from the non-catalytic situation. The A-site incorporation of Ca did not seem to enhance that value, whereas the introduction of Co at the B-site increased it to 96.9%, which can be further confirmed from the double-doped LCSC sample. This indicates that the Co component plays a vital role in promoting CO2 production in the course of soot combustion, mainly due to the high CO oxidation activity of Co3O4 as reported before [35].
Based on the NO2-assisted combustion mechanism, we also explored the catalytic behavior of each catalyst in the presence of NO + O2. As shown, the soot conversion profiles are in Figure 6b and the parameters of soot combustion are in Table 3. While nitric oxide was present, the combustion temperature of LSC and LCSC decreased more obviously than others when compared with the results in the oxygen atmosphere, which seemed to indicate that in the NO + O2 atmosphere these two catalysts more fully utilized NO. For the sake of clarity, Figure 6c shows the evolutions of COx and NOx during the soot oxidation process. As shown, the LSC and LCSC consumed larger number of NOx and the whole process showed a continuing consumption trend to it with the more COx releasing in relative low temperatures, demonstrating the fact that their surface was more likely to adsorb nitric oxide, producing nitrates or nitrites to release nitrogen dioxide to accelerate burning at the ignition stage. An obvious NOx desorption peak appears at 350 °C for both LSC and LCSC, just after the onset of soot combustion, referring to the results of soot combustion in Table 3. Therefore, a large amount of NOx released is believed to be caused by the decomposition of nitrate and/or nitrite species, which is promoted by the intense exothermic combustion of soot [36]. Subsequently, NOx concentration dramatically decreased, demonstrating the occurrence of NOx reduction by soot [37]. It can be seen that for the LS and LCS, there appears to be no NOx participates into the soot ignition reaction at low temperature, but similarly a significant NOx consumption peak can be observed after ignition, attributable to the reduction of NOx by soot. In addition, Table 3 also lists the characteristic temperature and CO2 selectivity of each catalyst in the presence of NO. It is found that the presence of NO does not affect SCO2, indicating that CO formation may only be related to O2.

3.8. Catalytic Activities for NO Oxidation

NO2 can play an important role in auxiliary combustion during soot catalytic oxidation due to its greater oxidability than O2 [5,38]. In order to obtain information about the relationship between NO2 production and soot combustion for the prepared oxide catalysts that evince the NO2-assited mechanism, the NO oxidation experiments were carried out, and the results are depicted in Figure 7.
According to the literature [39], the gas phase oxidation of NO to NO2 is almost negligible within the exhaust temperature range of diesel vehicles and is only detected above 500 °C. As can be seen from Figure 7, in the presence of the catalyst, NO can be readily oxidized to NO2 on all catalysts at low temperatures with about 15% of NO converted. It is worth mentioning that LCS and LS have qualitatively similar NO oxidative capacities, which mainly took place at high temperatures (maximum at 500 °C). A slightly better performance of LCS may be attributed to more active adsorption sites due to the increased specific surface area and oxygen defect concentration after introducing calcium. Moreover, the LSC and LCSC catalysts yield more NO2 and tend to lower temperatures, which is consistent with their catalytic effect on soot combustion. It is confirmed that the NO2 production by the pyrochlore oxide is improved by Co doping, which explains the superior promotion effect of LSC and LCSC for soot removal in the NO + O2 atmosphere. In addition, from the maximum NO2 generating level in the TPO profiles, the NO2 production capacity decreases by the following order: LSC > LCSC > LCS > LS. These results clearly indicate that the presence of the dopant permits the boost of NO2 formation.

3.9. In Situ DRIFTS

In the preceding section, it was confirmed that the presence of NO contributes to the oxidation of soot, that is, is based on the NO2-assist mechanism. In order to further investigate the catalytic oxidation of NO to NO2 by the Co-containing catalysts, the in situ DRIFT experiments were carried out under a NO + O2 gas stream from RT to 500 °C, and the surface processes have been analyzed.
As shown in Figure 8a, the intermediates formed by the adsorption are mainly chelating nitrites (1262 cm−1) on LSC at low temperatures (<300 °C) accompanied by initial bidentate nitrates (1583 cm−1), which disappeared immediately after 100 °C [9,40]. As the temperature increases, the band intensity for above nitrites species declines gradually and disappears at 300 °C with simultaneous forming of trace nitrates, including monodentate nitrates (1082, 1432 cm−1) and bidentate nitrates (1318, 1543 cm−1) [9,41], which are extremely stable at high temperatures. Considering the NO-TPO results, the trend of NO2 production correlates well with that of the IR intensity of nitrites versus temperature, which well illustrates that the NO2 involved in the oxidation of soot originates from the decomposition of nitrites due to inferior thermostability.
The formation of nitrates is advanced by about 50 °C on LCSC, as depicted in Figure 8b, implying that the co-existence of Ca and Co results in a more facile formation of nitrate species from nitrites. Similar to the LSC sample, at low temperatures (<250 °C) the adsorbate species on the catalyst are mainly monodentate nitrites (1124 cm−1) and bridged bidentate nitrites (1186 cm−1), accompanied by a small amount of bridged bidentate nitrates (1614 cm−1) [42], appears at about 100 °C and then immediately disappears. After heating to 250 °C, the catalyst only reserves trace more-stable bidentate nitrates (1025, 1297 cm−1) and monodentate nitrates (1262, 1553 cm−1) [43]. It is noteworthy that compared with LSC, the intensity of nitrate species adsorbed on the LCSC catalyst is stronger in the higher temperature range. This result is consistent with the previous NO oxidation, that is, the calcium dopant enhances the stability of nitrate species on the catalyst, which leads to less releasing NO2 in the NO oxidation process. Furthermore, several different types of nitrites/nitrates appear on these two samples, indicating different active sites are present as Ca is introduced.

4. Conclusions

In this study, a series of lanthanum-tin pyrochlore oxides with A/B sites substituted by Ca/Co were successfully prepared for catalytic combustion of soot particulates. Dually-substitution of calcium and cobalt improved the structural properties and redox properties of the catalyst. Simultaneously, LCSC possessed a favorable electropositivity. Therefore, LCSC presents a much lower ignition temperature with an overall high performance towards soot combustion, revealing the synergistic effect of Ca and Co in the crystal. In addition, doping allowed the oxygen vacancy concentration on the catalyst surface to be enhanced, facilitating the adsorption activation of O2/NO during the catalytic process. Furthermore, two main periods of NO adsorption on the catalysts are observed by the DRIFT technique: the low temperature stage (<250–300 °C) and the high temperature stage (>300 °C). Indeed, it reveals that the low temperature adsorption period is mainly associated with weakly adsorbed nitrite species that are responsible for the production of NO2 participating in the ignition period of soot combustion.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/11/5/653/s1.

Author Contributions

L.A. and Z.W. conceived and designed the experiments; L.A. and C.C. performed the experiments; L.A. and Z.W. analyzed the data; W.L. and L.W. assisted with the interpretation of materials characterization; L.A. wrote the paper.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (Nos. 21777055), Shandong Provincial Natural Science Foundation (ZR2017BB004), Shandong Province Key Research and Development Plan (2017GGX202004), and Shandong Province Major Science and Technology Innovation Project (2017CXGC1004).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, G.; Zhao, Z.; Xu, J.; Zheng, J.; Liu, J.; Jiang, G.; Duan, A.; He, H. Comparative study on the preparation, characterization and catalytic performances of 3DOM Ce-based materials for the combustion of diesel soot. Appl. Catal. B Environ. 2011, 107, 302–315. [Google Scholar] [CrossRef]
  2. Jampaiah, D.; Venkataswamy, P.; Tur, K.M.; Ippolito, S.J.; Bhargava, S.K.; Reddy, B.M. Effect of mnoxloading on structural, surface, and catalytic properties of CeO2-mnoxmixed oxides prepared by sol-gel method. Z. Anorg. Allg. Chem. 2015, 641, 1141–1149. [Google Scholar] [CrossRef]
  3. Russo, N.; Fino, D.; Saracco, G.; Specchia, V. Promotion effect of au on perovskite catalysts for the regeneration of diesel particulate filters. Catal. Today 2008, 137, 306–311. [Google Scholar] [CrossRef]
  4. Lee, C.; Park, J.-I.; Shul, Y.-G.; Einaga, H.; Teraoka, Y. Ag supported on electrospun macro-structure CeO2 fibrous mats for diesel soot oxidation. Appl. Catal. B Environ. 2015, 174–175, 185–192. [Google Scholar] [CrossRef]
  5. Fino, D.; Russo, N.; Saracco, G.; Specchia, V. Catalytic removal of nox and diesel soot over nanostructured spinel-type oxides. J. Catal. 2006, 242, 38–47. [Google Scholar] [CrossRef]
  6. Guo, X.; Meng, M.; Dai, F.; Li, Q.; Zhang, Z.; Jiang, Z.; Zhang, S.; Huang, Y. Nox-assisted soot combustion over dually substituted perovskite catalysts La1−xKxCo1−yPdyO3−δ. Appl. Catal. B Environ. 2013, 142–143, 278–289. [Google Scholar] [CrossRef]
  7. Castoldi, L.; Matarrese, R.; Lietti, L.; Forzatti, P. Intrinsic reactivity of alkaline and alkaline-earth metal oxide catalysts for oxidation of soot. Appl. Catal. B Environ. 2009, 90, 278–285. [Google Scholar] [CrossRef]
  8. Venkataswamy, P.; Jampaiah, D.; Rao, K.N.; Reddy, B.M. Nanostructured Ce0.7Mn0.3O2−δ and Ce0.7Fe0.3O2−δ solid solutions for diesel soot oxidation. Appl. Catal. A Gen. 2014, 488, 1–10. [Google Scholar] [CrossRef]
  9. Lin, F.; Wu, X.; Weng, D. Effect of barium loading on CuOx–CeO2 catalysts: NOx storage capacity, NO oxidation ability and soot oxidation activity. Catal. Today 2011, 175, 124–132. [Google Scholar] [CrossRef]
  10. Oliveira, C.F.; Garcia, F.A.C.; Araújo, D.R.; Macedo, J.L.; Dias, S.C.L.; Dias, J.A. Effects of preparation and structure of cerium-zirconium mixed oxides on diesel soot catalytic combustion. Appl. Catal. A Gen. 2012, 413–414, 292–300. [Google Scholar] [CrossRef]
  11. Zahir, M.H.; Suzuki, T.; Fujishiro, Y.; Awano, M. Hydrothermal synthesis of Sr–Ce–Sn–Mn–O mixed oxidic/stannate pyrochlore and its catalytic performance for NO reduction. Mater. Chem. Phys. 2009, 116, 273–278. [Google Scholar] [CrossRef]
  12. Peng, H.; Xu, J.; Tian, J.; Liu, Y.; He, Y.; Tan, J.; Xu, X.; Liu, W.; Zhang, N.; Wang, X. Mesoporous Y2Sn2O7pyrochlore with exposed (111) facets: An active and stable catalyst for CO oxidation. RSC Adv. 2016, 6, 71791–71799. [Google Scholar] [CrossRef]
  13. Modeshia, D.R.; Walton, R.I. Cheminform abstract: Solvothermal synthesis of perovskites and pyrochlores: Crystallization of functional oxides under mild conditions. Chem. Soc. Rev. 2010, 42, 4303–4325. [Google Scholar] [CrossRef] [PubMed]
  14. Teraoka, Y.; Torigoshi, K.I.; Yamaguchi, H.; Ikeda, T.; Kagawa, S. Direct decomposition of nitric oxide over stannate pyrochlore oxides: Relationship between solid-state chemistry and catalytic activity. J. Mol. Catal. A Chem. 2000, 155, 73–80. [Google Scholar] [CrossRef]
  15. Cheng, J.; Wang, H.; Hao, Z.; Wang, S. Catalytic combustion of methane over cobalt doped lanthanum stannate pyrochlore oxide. Catal. Commun. 2008, 9, 690–695. [Google Scholar] [CrossRef]
  16. Shangguan, W.F.; Teraoka, Y.; Kagawa, S. Promotion effect of potassium on the catalytic property of CuFe2O4 for the simultaneous removal of NOx and diesel soot particulate. Appl. Catal. B Environ. 1998, 16, 149–154. [Google Scholar] [CrossRef]
  17. Lv, M.; Guo, X.; Wang, Z.; Wang, L.; Li, Q.; Zhang, Z. Synthesis and characterization of Co–Al–Fe nonstoichiometric spinel-type catalysts for catalytic CO oxidation. RSC Adv. 2016, 6, 27052–27059. [Google Scholar] [CrossRef]
  18. Wu, S.; Zhang, L.; Wang, X.; Zou, W.; Cao, Y.; Sun, J.; Tang, C.; Gao, F.; Deng, Y.; Dong, L. Synthesis, characterization and catalytic performance of FeMnTiOx mixed oxides catalyst prepared by a CTAB-assisted process for mid-low temperature NH3-SCR. Appl. Catal. A Gen. 2015, 505, 235–242. [Google Scholar] [CrossRef]
  19. Wang, Z.; Zhu, H.; Ai, L.; Liu, X.; Lv, M.; Wang, L.; Ma, Z.; Zhang, Z. Catalytic combustion of soot particulates over rare-earth substituted Ln2Sn2O7 pyrochlores (Ln = La, Nd and Sm). J. Colloid Interface Sci. 2016, 478, 209–216. [Google Scholar] [CrossRef] [PubMed]
  20. Fang, X.; Zhang, X.; Guo, Y.; Chen, M.; Liu, W.; Xu, X.; Peng, H.; Gao, Z.; Wang, X.; Li, C. Highly active and stable Ni/Y2Zr2O7 catalysts for methane steam reforming: On the nature and effective preparation method of the pyrochlore support. Int. J. Hydrog. Energy 2016, 41, 11141–11153. [Google Scholar] [CrossRef]
  21. Kim, C.H.; Qi, G.; Dahlberg, K.; Li, W. Strontium-doped perovskites rival platinum catalysts for treating nox in simulated diesel exhaust. Science 2010, 327, 1624–1627. [Google Scholar] [CrossRef] [PubMed]
  22. López-Suárez, F.E.; Bueno-López, A.; Illán-Gómez, M.J.; Trawczynski, J. Potassium-copper perovskite catalysts for mild temperature diesel soot combustion. Appl. Catal. A Gen. 2014, 485, 214–221. [Google Scholar] [CrossRef]
  23. Li, K.W.; Zhang, T.T.; Wang, H.; Yan, H. Low-temperature synthesis and structure characterization of the serials Y2−δBiδSn2O7 (δ = 0–2.0 δ = 0–2.0 mathcontainer loading mathjax) nanocrystals. J. Solid State Chem. 2006, 179, 1029–1034. [Google Scholar] [CrossRef]
  24. Petit, C.; Kaddouri, A.; Libs, S.; Kiennemann, A.; Rehspringer, J.L.; Poix, P. Bond energy effects in methane oxidative coupling on pyrochlore structures. J. Catal. 1993, 140, 328–334. [Google Scholar] [CrossRef]
  25. Bensaid, S.; Russo, N.; Fino, D. CeO2 catalysts with fibrous morphology for soot oxidation: The importance of the soot–catalyst contact conditions. Catal. Today 2013, 216, 57–63. [Google Scholar] [CrossRef]
  26. Liu, J.; Zhao, Z.; Xu, J.; Xu, C.; Duan, A.; Jiang, G.; He, H. The highly active catalysts of nanocomposite K-Co-CeO2 for soot combustion. Chem. Commun. 2011, 47, 11119–11121. [Google Scholar] [CrossRef] [PubMed]
  27. Pecchi, G.; Dinamarca, R.; Campos, C.M.; Garcia, X.; Jimenez, R.; Fierro, J.L.G. Soot oxidation on silver-substituted LaMn0.9Co0.1O3 perovskites. Ind. Eng. Chem. Res. 2014, 53, 10090–10096. [Google Scholar] [CrossRef]
  28. Yao, W.; Wang, R.; Yang, X. LaCo1−xPdxO3 perovskite-type oxides: Synthesis, characterization and simultaneous removal of NOx and diesel soot. Catal. Lett. 2009, 130, 613–621. [Google Scholar] [CrossRef]
  29. Tian, J.; Peng, H.; Xu, X.; Liu, W.; Ma, Y.; Wang, X.; Yang, X. High surface area La2Sn2O7 pyrochlore as a novel, active and stable support for Pd for CO oxidation. Catal. Sci. Technol. 2015, 5, 2270–2281. [Google Scholar] [CrossRef]
  30. Asuvathraman, R.; Gnanasekar, K.I.; Clinsha, P.C.; Ravindran, T.R.; Govindan Kutty, K.V. Investigations on the charge compensation on Ca and U substitution in CePO4 by using XPS, XRD and raman spectroscopy. Ceram. Int. 2015, 41, 3731–3739. [Google Scholar] [CrossRef]
  31. Natile, M.M.; Ugel, E.; Maccato, C.; Glisenti, A. LaCoO3: Effect of synthesis conditions on properties and reactivity. Appl. Catal. B Environ. 2007, 72, 351–362. [Google Scholar] [CrossRef]
  32. Tang, X.; Li, Y.; Huang, X.; Xu, Y.; Zhu, H.; Wang, J.; Shen, W. MnOx–CeO2 mixed oxide catalysts for complete oxidation of formaldehyde: Effect of preparation method and calcination temperature. Appl. Catal. B Environ. 2006, 62, 265–273. [Google Scholar] [CrossRef]
  33. Piumetti, M.; Bensaid, S.; Russo, N.; Fino, D. Investigations into nanostructured ceria–zirconia catalysts for soot combustion. Appl. Catal. B Environ. 2016, 180, 271–282. [Google Scholar] [CrossRef]
  34. Ura, B.; Trawczyński, J.; Kotarba, A.; Bieniasz, W.; Illán-Gómez, M.J.; Bueno-López, A.; López-Suárez, F.E. Effect of potassium addition on catalytic activity of SrTiO3 catalyst for diesel soot combustion. Appl. Catal. B Environ. 2011, 101, 169–175. [Google Scholar] [CrossRef]
  35. Jia, C.J.; Schwickardi, M.; Weidenthaler, C.; Schmidt, W.; Korhonen, S.; Weckhuysen, B.M.; Schüth, F. Co3O4-SiO2 nanocomposite: A very active catalyst for Co oxidation with unusual catalytic behavior. J. Am. Chem. Soc. 2011, 133, 11279–11288. [Google Scholar] [CrossRef] [PubMed]
  36. Li, Z.; Meng, M.; Zha, Y.; Dai, F.; Hu, T.; Xie, Y.; Zhang, J. Highly efficient multifunctional dually-substituted perovskite catalysts La1−xKxCo1−yCuyO3−δ used for soot combustion, NOx storage and simultaneous NOx-soot removal. Appl. Catal. B Environ. 2012, 121–122, 65–74. [Google Scholar] [CrossRef]
  37. Li, Q.; Meng, M.; Tsubaki, N.; Li, X.; Li, Z.; Xie, Y.; Hu, T.; Zhang, J. Performance of k-promoted hydrotalcite-derived comgalo catalysts used for soot combustion, nox storage and simultaneous soot–nox removal. Appl. Catal. B Environ. 2009, 91, 406–415. [Google Scholar] [CrossRef]
  38. Li, Q.; Meng, M.; Zou, Z.Q.; Li, X.G.; Zha, Y.Q. Simultaneous soot combustion and nitrogen oxides storage on potassium-promoted hydrotalcite-based comgalo catalysts. J. Hazard. Mater. 2009, 161, 366–372. [Google Scholar] [CrossRef] [PubMed]
  39. Hernández-Giménez, A.M.; Xavier, L.P.d.S.; Bueno-López, A. Improving ceria-zirconia soot combustion catalysts by neodymium doping. Appl. Catal. A Gen. 2013, 462–463, 100–106. [Google Scholar]
  40. Wu, X.; Lin, F.; Xu, H.; Weng, D. Effects of adsorbed and gaseous NOx species on catalytic oxidation of diesel soot with MnOx–CeO2 mixed oxides. Appl. Catal. B Environ. 2010, 96, 101–109. [Google Scholar] [CrossRef]
  41. Yang, G.; Li, Y.; Men, Y. Synergistic catalysis effect of mn-promoted BaAl2O4 catalysts on catalytic performance for soot combustion. Catal. Commun. 2015, 69, 202–206. [Google Scholar] [CrossRef]
  42. Sedlmair, C. Elementary steps of nox adsorption and surface reaction on a commercial storage–reduction catalyst. J. Catal. 2003, 214, 308–316. [Google Scholar] [CrossRef]
  43. Liu, S.; Wu, X.; Weng, D.; Li, M.; Ran, R. Roles of acid sites on Pt/H-ZSM5 catalyst in catalytic oxidation of diesel soot. ACS Catal. 2015, 5, 909–919. [Google Scholar] [CrossRef]
Materials 11 00653 g001 550
Figure 1. X-ray diffraction (XRD) patterns of La2−xCaxSn2−yCoyO7 pyrochlore oxides.
Figure 1. X-ray diffraction (XRD) patterns of La2−xCaxSn2−yCoyO7 pyrochlore oxides.
Materials 11 00653 g001
Materials 11 00653 g002 550
Figure 2. Scanning electron microscope (SEM) images of La2−xCaxSn2−yCoyO7 catalysts: (a) LS; (b) LCS; (c) LSC; (d) LCSC.
Figure 2. Scanning electron microscope (SEM) images of La2−xCaxSn2−yCoyO7 catalysts: (a) LS; (b) LCS; (c) LSC; (d) LCSC.
Materials 11 00653 g002
Materials 11 00653 g003 550

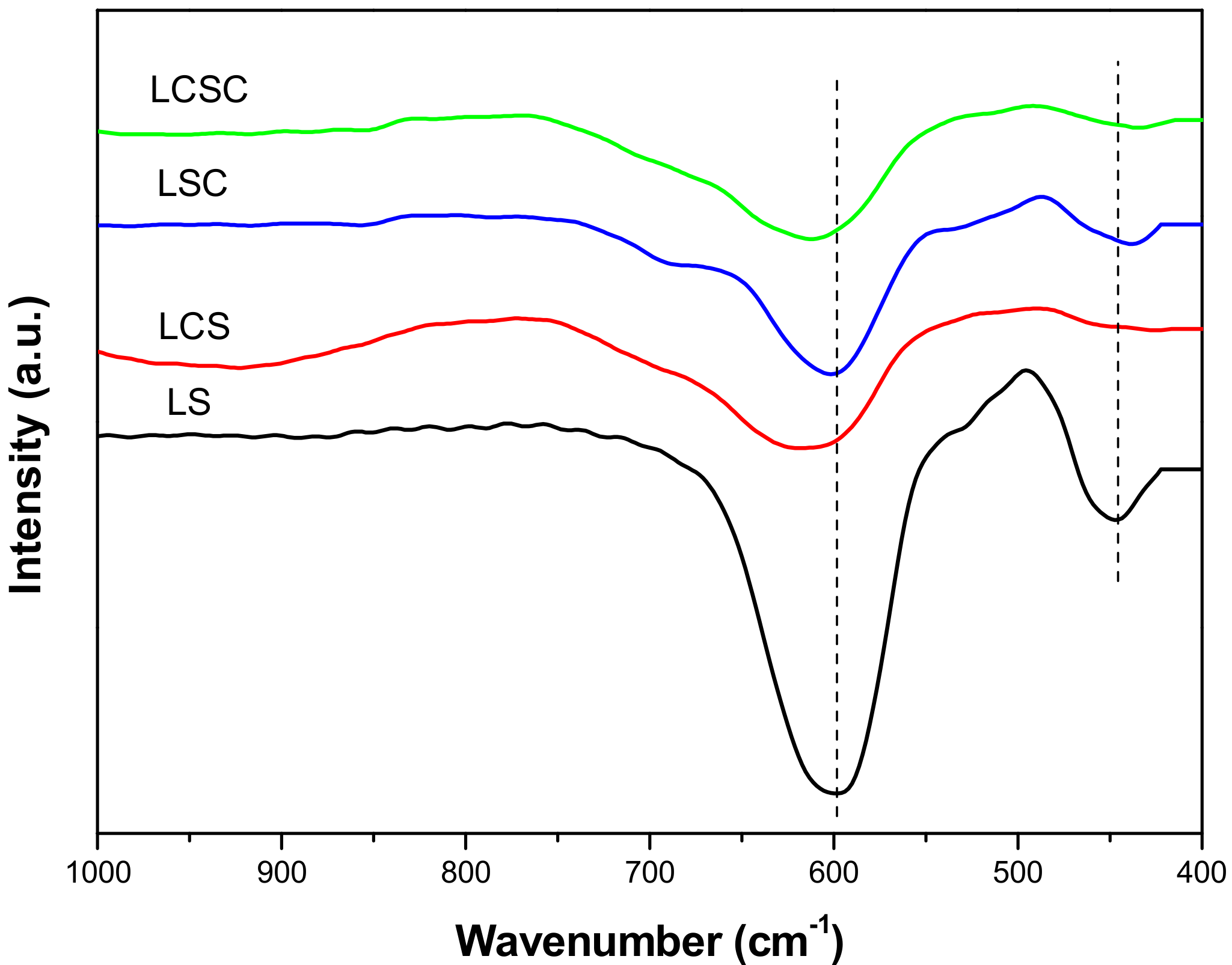

Figure 3. Fourier-transform infrared spectroscopy (FT-IR) spectra of La2−xCaxSn2−yCoyO7 catalysts.
Figure 3. Fourier-transform infrared spectroscopy (FT-IR) spectra of La2−xCaxSn2−yCoyO7 catalysts.
Materials 11 00653 g003
Materials 11 00653 g004 550

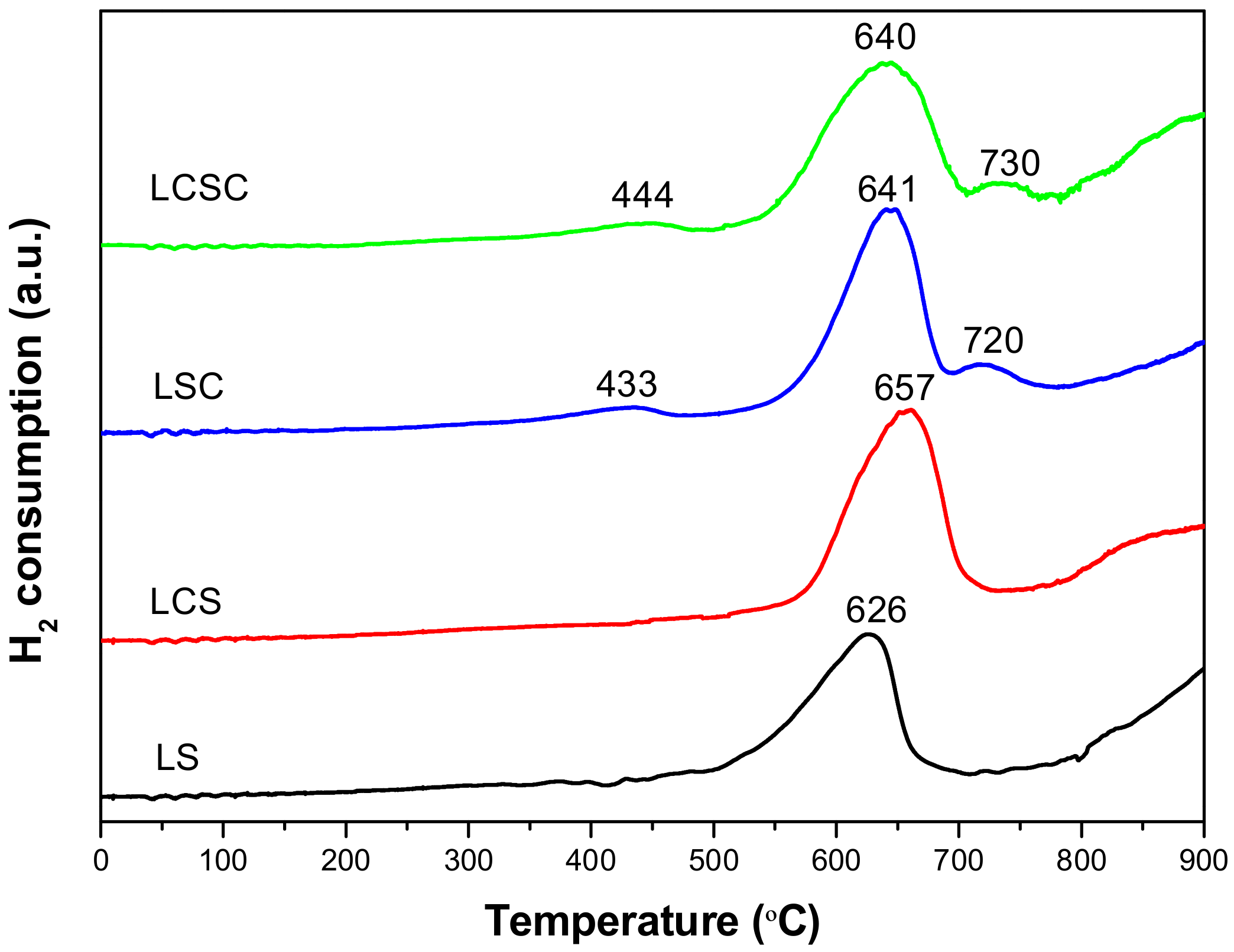

Figure 4. H2-TPR profiles of La2−xCaxSn2−yCoyO7 oxides catalysts.
Figure 4. H2-TPR profiles of La2−xCaxSn2−yCoyO7 oxides catalysts.
Materials 11 00653 g004
Materials 11 00653 g005 550
Figure 5. XPS spectra of O 1s region of La2−xCaxSn2−yCoyO7 catalysts.
Figure 5. XPS spectra of O 1s region of La2−xCaxSn2−yCoyO7 catalysts.
Materials 11 00653 g005
Materials 11 00653 g006a 550Materials 11 00653 g006b 550
Figure 6. Catalytic oxidation of soot over La2−xCaxSn2−yCoyO7 oxides catalysts (a) 5 vol % O2 balanced with He; (b) 1000 ppm NO with 5 vol % O2 balanced with He; and (c) outlet CO2 and NOx concentration profiles.
Figure 6. Catalytic oxidation of soot over La2−xCaxSn2−yCoyO7 oxides catalysts (a) 5 vol % O2 balanced with He; (b) 1000 ppm NO with 5 vol % O2 balanced with He; and (c) outlet CO2 and NOx concentration profiles.
Materials 11 00653 g006aMaterials 11 00653 g006b
Materials 11 00653 g007 550

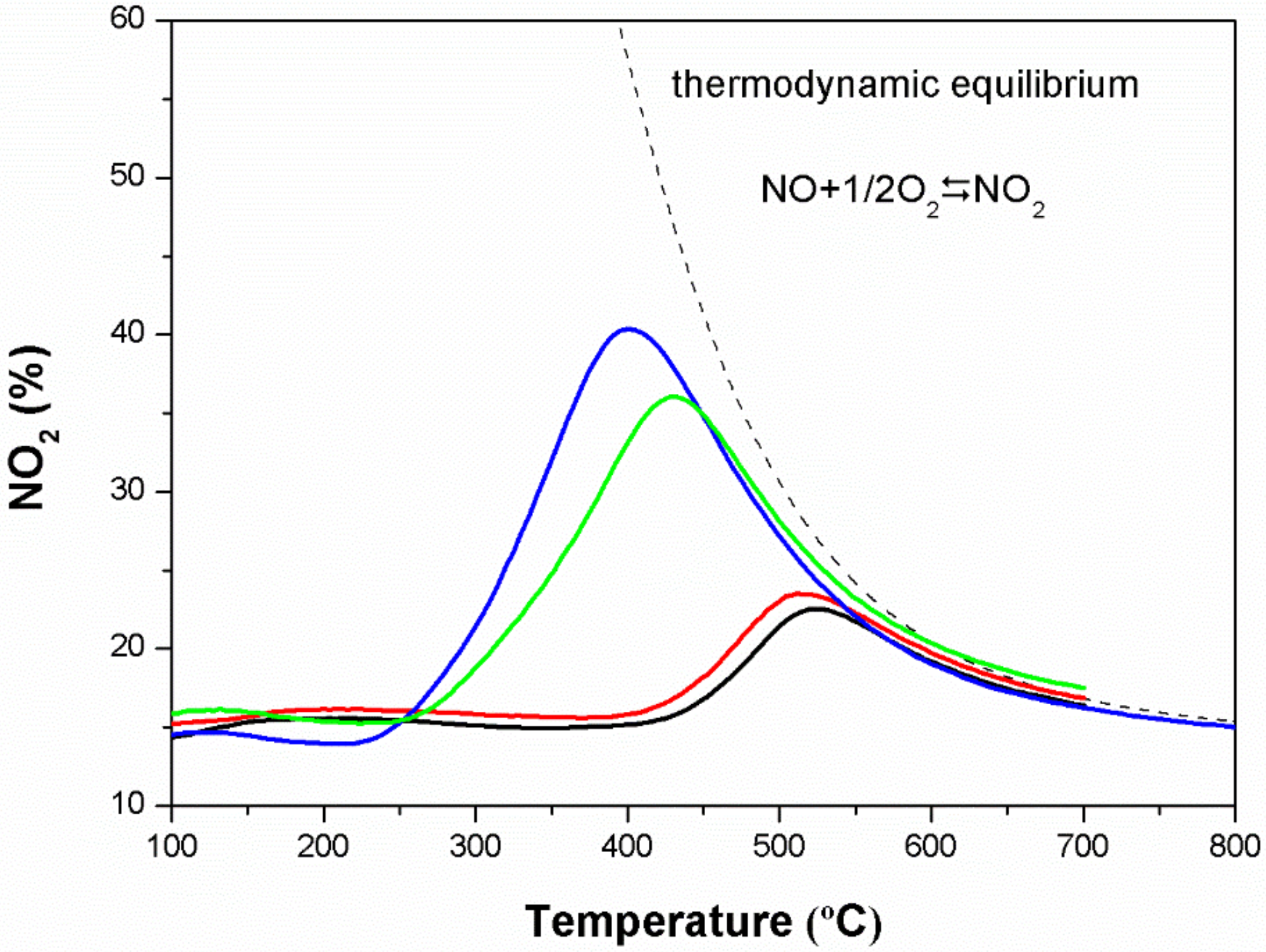

Figure 7. Oxidation of NO to NO2 in the absence of soot. NO2 (%) was calculated as 100 × [NO2]out/([NO]out + [NO2]out).
Figure 7. Oxidation of NO to NO2 in the absence of soot. NO2 (%) was calculated as 100 × [NO2]out/([NO]out + [NO2]out).
Materials 11 00653 g007
Materials 11 00653 g008 550
Figure 8. Diffuse reflection infrared Fourier transformed (DRIFT) spectra obtained on (a) LSC and (b) LCSC catalysts exposed to 1000 ppm NO/5% O2/He with the increase of temperature.
Figure 8. Diffuse reflection infrared Fourier transformed (DRIFT) spectra obtained on (a) LSC and (b) LCSC catalysts exposed to 1000 ppm NO/5% O2/He with the increase of temperature.
Materials 11 00653 g008
Table
Table 1. Structural information of the pyrochlore catalysts.
Table 1. Structural information of the pyrochlore catalysts.
Samples2θ (°) aa (Å) bXs (nm) cSBET (m2/g) dVp (cm3/g) eDp (nm) f
LS28.8810.6965 ± 0.001122.219.590.0817.91
LCS28.9210.6773 ± 0.002112.127.220.1218.21
LSC28.9610.6863 ± 0.002021.417.920.0613.36
LCSC28.9610.6711 ± 0.00388.921.180.1018.17
a 222 crystal face; b Lattice constant calculated from X-ray powder diffraction (XRD) characteristic peaks of samples; c Average crystallite size calculated from the 222 crystal face by XRD; d Brunauer–Emmett–Teller (BET) specific surface area; e Total pore volume; f Average pore diameter.
Table
Table 2. X-ray photoelectron spectroscopy (XPS) quantitative analysis results of catalysts.
Table 2. X-ray photoelectron spectroscopy (XPS) quantitative analysis results of catalysts.
SamplesLa (at %)Sn (at %)Theoretical La/SnPractical La/SnCa (at %)Co (at %)Oads/Olatt
LS14.0521.221.000.66--1.02
LCS14.1717.240.80.820.66-2.44
LSC11.5620.71.110.56-1.171.66
LCSC11.3112.120.890.930.980.884.25
Table
Table 3. Catalytic performances of oxides for soot removal.
Table 3. Catalytic performances of oxides for soot removal.
SamplesSoot + O2Soot + NO + O2
T5 (°C)T50 (°C)T90 (°C)SCO2 (%)T5 (°C)T50 (°C)T90 (°C)SCO2 (%)
Blank47059063337.746060064749.1
LS37249253186.636048953085.8
LCS34647451685.134347351486.8
LSC34144948796.931342446396.2
LCSC31745149196.430543247395.7

Share and Cite

MDPI and ACS Style

Ai, L.; Wang, Z.; Cui, C.; Liu, W.; Wang, L. Catalytic Oxidation of Soot on a Novel Active Ca-Co Dually-Doped Lanthanum Tin Pyrochlore Oxide. Materials 2018, 11, 653. https://doi.org/10.3390/ma11050653

AMA Style

Ai L, Wang Z, Cui C, Liu W, Wang L. Catalytic Oxidation of Soot on a Novel Active Ca-Co Dually-Doped Lanthanum Tin Pyrochlore Oxide. Materials. 2018; 11(5):653. https://doi.org/10.3390/ma11050653

Chicago/Turabian Style

Ai, Lijie, Zhongpeng Wang, Chenchen Cui, Wei Liu, and Liguo Wang. 2018. "Catalytic Oxidation of Soot on a Novel Active Ca-Co Dually-Doped Lanthanum Tin Pyrochlore Oxide" Materials 11, no. 5: 653. https://doi.org/10.3390/ma11050653

APA Style

Ai, L., Wang, Z., Cui, C., Liu, W., & Wang, L. (2018). Catalytic Oxidation of Soot on a Novel Active Ca-Co Dually-Doped Lanthanum Tin Pyrochlore Oxide. Materials, 11(5), 653. https://doi.org/10.3390/ma11050653

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
