Synthesis of TiO2NWS@AuNPS Composite Catalyst for Methylene Blue Removal

1
National Engineering Laboratory for Modern Silk, College of Textile and Clothing Engineering, Soochow University, Suzhou 215123, China
2
Nantong Textile & Silk Industrial Technology Research Institute, Nantong 226314, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(6), 1022; https://doi.org/10.3390/ma11061022
Submission received: 7 May 2018 / Revised: 11 June 2018 / Accepted: 11 June 2018 / Published: 15 June 2018

Abstract

:
In this article, HBP-NH2-modified titania nanowire (TiO2NWS)-decorated Au nanoparticles (TiO2NWS@AuNPS) were synthesized by one-step method. The role of HBP-NH2 concentration in the formation of TiO2NWS was investigated. The fineness and uniformity of pure TiO2NWS were enhanced by absorbed amino groups from amino-terminated hyperbranched polymer (HBP-NH2). The morphology and crystal structure of TiO2NWS and TiO2NWS@AuNPS were examined by transmission electron microscopy (TEM), X-ray diffraction (XRD), and Fournier transform infrared (FTIR) spectroscopy. The chemical states of gold, titanium and oxygen were analyzed by X-ray photoelectron spectroscopy (XPS). The results showed that at the concentration of HBP-NH2 100 g/L, the mean diameter of TiO2NWS was nearly 72 nm and Au nanoparticles were uniformly distributed on the surface of TiO2NWS. The presence of AuNPS improved the photocatalytic properties of TiO2NWS under UV light irradiation. The Au load was believed to improve the utilization rate of the photoelectron and activated the adsorbed oxygen. The obtained TiO2NWS@AuNPS decomposed 99.6% methylene blue (MB) after 300 min when subjected to UV light irradiation. After five cycles of the catalyzing process, the TiO2NWS@AuNPS still retained over 90% of its catalytic ability for MB. The Au deposition was found responsible for the high catalytic activity of TiO2NWS@AuNPS.

1. Introduction

The constant increase in environmental pollution has raised public concern in recent years. Anthropogenic pollution has so far exceeded the acceptable safety levels to the environment to become dangerous to human health [1,2]. Although great advances have been made in technologies associated with pollutant sources and disposal, many problems still exist when it comes to conversion of polluted waters into harmless products. The textile printing and dyeing industry is one particular field that requires more attention [3,4]. Printing and dyeing wastewaters and heavy metal wastewaters count for more than 70% of all world annual wastewaters. This is far higher in comparison with other pollutions. Therefore, the problem captures lots of interest in both academic and industrial research. For instance, Rehorek et al. studied the degradation of dye using ultrasounds [5]. Wang et al. investigated the catalytic degradation of methyl orange using semiconductor catalysts [6].
Titanium dioxide (TiO2) is a promising photocatalyst for environmental application due its high reactivity, chemical stability, low cost, and environmentally friendly features [7]. Titanium dioxide has a conduction band, valence band potential, and gap energy. Despite that, bare TiO2 assumes several flaws, such as absorption capacity of ultraviolet wave band due to its higher forbidden band in width (3.2 eV for anatase and 3.0 eV for rutile), as well as less effective photoelectric quantity attributed to photo-generated electron holes [8,9,10,11]. Some studies dealing with the mechanism of filling the gap and strengthening the photocatalytic activities have been reported [1]. Inorganic metallic elements, such as C, S and N, have been used to improve the catalytic activity of TiO2. Other materials such as surface precious metal deposition and semiconductors compounding have also been tested [12,13,14].
So far, not all methods have been found useful. Precious metal-based catalysts have been the subject of great interest for eliminating pollution due to their high activities and superior stabilities, despite their cost. One attractive feature of metal-based catalysts is the ability of the metals to scavenge photogenerated electrons when subjected to UV-illumination and reduce charge carrier recombination [15]. Gold (Au) has a unique conductivity and magnetic-optical properties, making it an attractive metal for this kind of applications [16,17,18,19]. The method of depositing precious metals normally was prepared by two-step process which required scaffolding work [20,21]. Hence, precious metal modification has constantly been employed in solar cells [22,23].
One-dimensional nanomaterials have received significant advancement in terms of morphology and microstructure. These include nanowires, nanorods and nanotubes, among others. From the photocatalytic perspective, the nanowires possess high specific surface areas which facilitate the electron transport and minimize electron loss at the surface boundary [24,25]. Our group designed poly amide network polymer (HBP-NH2) with reticulated porous cavity, which is promising for excellent nanometer reaction container for controlling morphology and size of nanomaterials. This method was applied to the synthesis of silver nanoparticles [26,27].
In this work, nanometer-sized titanium dioxide and gold composite catalyst were prepared by the sol-hydrothermal-gel method. The influence of HBP-NH2 in nanowires formation was examined. Moreover, the effect of exposure to UV light, TiO2 and amount of Au deposited on TiO2 surface on catalyst performance were investigated and the results were discussed.

2. Experimental

2.1. Materials

Tetrabutyl titanate (TBT, Sigma-Aldrich, St. Louis, MI, USA) and HAuCl4 (Sigma-Aldrich) were used as catalyst supports in all experiments. All chemicals were of analytical grade and used as received. These included ethylic acid (>99%, Sigma-Aldrich), ethyl alcohol (>99%, Sigma-Aldrich), hydrochloric acid (36%, Sigma-Aldrich), sodium hydroxide (>99%, Sigma-Aldrich), and methylene blue (MB) (>99%, Sigma-Aldrich). amino-terminated hyperbranched polymer (HBP-NH2) was synthesized as described in our previous paper [26], and then diluted to 100 g/L for subsequent usage.

2.2. Catalyst Preparation

2.2.1. Preparation of Pure TiO2NWS

TBT was first dissolved in ethanol at volume ratio of 1:5, and vigorously stirred at ambient temperature until the color changed from colorless to yellow (solution A). Another mixture (solution B) was prepared by mixing glacial acetic acid, deionized water, and ethanol at volume ratio of 1:1:5. Then, solution A was dropped into solution B and evenly stirred at room temperature. The sol was obtained after 12–24 h, which would turn to a hard gel with light blue color.
A certain concentration of HBP-NH2 was gently dropped into 10 g of the gel. Afterward, NaOH solution was dropped under constant stirring for 30 min. Finally, the mixture was placed in a 100 mL Teflon-lined autoclave and sealed into a stainless steel tank. The hydrothermal temperature was then elevated to 200 °C for 24 h without shaking or stirring during heating. Next, the autoclave was naturally cooled to room temperature, and the obtained sample was sequentially washed several times with diluted HCl aqueous solution, distilled water, and absolute ethanol to remove any remaining ions. The samples were then dried at 70 °C and the titania nanowires with white color were finally produced. Three kinds of HBP-NH2 concentrations (30 g/L, 100 g/L and 200 g/L) were used.

2.2.2. Preparation of TiO2NWS@AuNPS

All Au-loaded catalysts reported here were prepared by the hydrothermal gel method using TBT as precursor and HAuCl4 as Au source. A typical synthesis procedure consisted of dispersing 10 g TBT in 50 mL ethyl alcohol. The obtained mixture was then added drop-wise to the solution which comprised deionized water, ethyl alcohol and ethylic acid at volume ration of 1:5:1. The mixed solution was stirred for 2 h then placed at room temperature until the sols became gels before the hydrothermal reaction in a Teflon-lined stainless-steel vessel. Gels were formed at 200 °C under air oven by mixing tertiary mixture of NaOH, HBP-NH2 and HAuCl4 (0.05 M), as well as binary mixture of NaOH and HBP-NH2.
The hydrothermal reaction conditions were maintained for 24 h, and HBP-NH2 was carried out in 100 g/L. The corresponding mole ratios of AuCl4 to Ti4+ were 5%, 2%, 1% and 0.5%, respectively. After cooling to room temperature, the samples were washed with HCl and deionized water before drying. Also, different samples were used as controls.

2.3. Catalyst Characterization

The characterizations of TiO2 nanowires were conducted by field emission microscope scanning electron microscopy (FESEM, Hitachi S-4800, Hitachi, Ibaraki, Japan). Transmission electron microscopy (TEM), selected area electron diffraction (SAED), high-resolution electron microscopy (HRTEM) and EDS spectra Ti catalysts were performed on a Tecnai G20 microscope (FEI Company, Hillsboro, OR, USA) operating at 200 kV and equipped with both energy dispersive X-ray spectroscopy system and SIS CCD camera for digital imaging.
The crystal structures of the samples were determined in air by X-ray diffraction (XRD) using Cu Kα X-ray high source at voltage of 40 kV and current of 30 mA (Philips, Amsterdam, The Netherlands). The data were collected by varying 2Theta between 30° and 90° at step size of 5.0 °/min. Fourier transform infrared spectroscopy (FTIR) measurements were recorded on Nicolet 5700 (Thermo, Madison, MI, USA) at resolution of 4 cm−1. X-ray photoelectron spectroscopy (XPS) analyses were performed on a monochromatic X-ray source (AlKα, 1486.68 eV) using VG ESCALAB Mk II. The Ti 2p, Au 4f and O 1s core-level spectra were recorded and their corresponding binding energies were referenced to as C 1s peak at 285 eV (from surface carbon). The core-level spectra were obtained using software package Thermo Advantage after subtraction of Shirley-type background. The total MB contents in the catalysts were analyzed by Cary 50 Bio UV-visible spectrophotometer (Varian, Palo Alto, CA, USA) at wavelength of 665 nm.

2.4. Catalysts Activity Testing

The catalytic activities of the samples were assessed by spiral reactor as described elsewhere [15]. Typical measurements consisted of loading 100 mg catalysts into a beaker containing 50 mL MB. The mixture was then ultra-sonicated for approximately 15 min. The initial concentration of MB was set to 10 mg/L, and catalysts were exposed to UV light (20 W black-light-blue lamp). The suspension was first stirred for 30 min under dark conditions to reach adsorption equilibrium [15]. Next, the suspension was exposed to UV light and stirred for 5 h at the distance of 15 cm between the light source and liquid surface. During pre-treating stage, the solution was fetched 3 mL liquid followed by centrifugation at 9000 r/m for 15 min to separate the catalyst from the solution. The described procedure was followed at regular intervals while UV light was kept on. Afterward, MB concentration was monitored by UV-visible spectrophotometry. With absorption standard curve equations of MB, the concentration of MB (c) was obtained by measuring the intensity of characteristic peak located at 665 nm, and the pre-treated concentration was designated as c0.
To evaluate the recoverability and reusability, the TiO2NWS@AuNPS was catalyzed repeatedly for five consecutive cycles under UV light. The catalyzed process was performed in MB solution with the concentration of 10 mg/L with stirring for 4 h. After each cycle, the TiO2NWS@AuNPS was alternated with deionized water and washed three times with ethanol, then centrifuged and dried at 80 °C to obtain the recoverableTiO2NWS@AuNPS

3. Results and Discussion

3.1. Catalyst Characteristics

The respective SEM images of pure TiO2NWS catalysts with four kinds of HBP-NH2 concentrates are shown in Figure 1. After 24 h of hydrothermal reaction at 200 °C, the formed nanowires became very copious in quantity. Also, they showed good dispersion without contaminants attached to their surfaces.
Moreover, from Table 1, HBP-NH2 structure in the used concentration range accelerated fineness of TiO2NWS but the effect decreased gradually as HBP-NH2 levels rose [26].
For each HBP-NH2 concentrate, 100 nanowires were selected randomly to calculate the mean diameter. The results are shown in Table 1. The standard deviation values ( σ ) were high due to estimating diameters of nanowires by observed sample data. A confidence interval gave an estimated range of values which was likely to include unknown diameters of TiO2NWS, the estimated range being calculated from a given set of sample data. In addition, a confidence interval for the mean diameter ( D ¯ ), based on a simple random sample of size (n = 100), was D ¯ ± z * σ n , where z * was the upper (1 − C)/2 critical value for the standard normal distribution. For a confidence interval with level C = 95 % , the value z * was equal to 1.96. As the sample size increased, the standard error approached the true standard deviation σ for large n. These confidence intervals obtained were presented in Table 1.
It could be seen that the diameter of the nanowires decreased first with the increase of HBP-NH2 concentration. At the concentration of 100 g/L, the mean diameter was nearly 72 nm. However, the mean diameter increased when the HBP-NH2 concentration increased to 200 g/L. Therefore, the mean diameter of pure TiO2NWS can be controlled by the concentration of HBP-NH2. Thus, 100 g/L of HBP-NH2 was selected to prepare TiO2NWS@AuNPS. TEM was used to characterize the surface morphologies of TiO2NWS and TiO2NWS@AuNPS. Figure 2a estimated the average diameters of TiO2NWS to around 72 nm, and with high purity surface. Figure 2d depicted that Au deposits with very small sizes (<8 nm) were formed and distributed all over the TiO2NWS support surface.
Figure 2b,e represent high-resolution transmission electron microscopy (HRTEM) images of Figure 2a,d, respectively. The plane intervals were measured as multiples of 0.35 nm, representing stripe images of (101) plane of anatase TiO2. The structural features of these materials were also observed by Chemseddine and Moritz [28] and were linked to cluster-cluster growth and condensation of skewed octahedral for anatase. Also, the crystals were grown along the (001) direction, marked with an arrow. Figure 2c,f displayed selected high crystallinity images of TiO2NWS and TiO2NWS@AuNPS obtained by selected area electron diffraction (SAED) which indicates that the crystal has an anatase phase crystalline structure [29]. Figure 2g represents the EDS of TiO2NWS, which was mainly composed of Ti and O. Figure 2h depicts the EDS of TiO2NWS@AuNPS, which was mainly composed of Ti, O, and Au (Cu was copper during measurement).
The formation mechanism of the nanowires can be explained by Figure 3a. Some studies reported that the surface density of six-fold-coordinated Ti-atoms with hydroxyls on (001) surface structure was much higher than the (101) surface [30,31]. The number of hydroxyl groups was estimated to 7.0 nm−2 for (001) surface and 5.1 nm−2 for (101) surface [32]. The (001) plane adsorbed much more HBP-NH2 than the (101) plane for hydrogen bonds formed by hydroxyl and amino groups. This also hindered the contact between (001) planes. As shown in the schematic model, oriented attachment on the (101) plane could occur, attributed to high concentrations of HBP- NH2 which would restrict the growth of cross-sections.
The formation of TiO2NWS@AuNPS is schematically shown in Figure 3b. During the initial stage of hydrothermal reaction, AuCl4 was deoxidized into Au [27]. The amino-rich surface of Au particles made them easy to be attached to precursor particles by hydrogen bonding. This induced Au-load precursor grown through the (101) surface, together with formation of nanowires and TiO2NWS@AuNPS in one step in situ method.
Figure 4 depicts the XRD patterns of pure TiO2NWS and TiO2NWS@AuNPS nanocomposite prepared by one step in situ hydrothermal method. The XRD pattern contained line (a) corresponding to pure TiO2NW and line (b) of TiO2NWS@AuNPS. Both samples showed 6 distinct peaks, indexed as (101), (004), (200), (105), (211) and (204) lattice planes (black hash symbol). By consulting the standard color card (JCPDSPDF#: 021-1272), no rutile or irrelevant diffraction peaks were observed [33,34]. The crystal shapes of the diffraction peaks looked clear and sharp, indicating well-formed crystals of the material in anatase. In addition, the (111), (200), (220) and (311) lattice planes (red five-point star) belonged to Au, which were uniformly distributed on TiO2NWS surface. This suggested the successful formation of gold particles in the composites, which were dispersed on TiO2NWS surface [35]. No other lattice planes were found in (103), (004) and (112), which may be due to the proximity to strong lattices of Au (111) that overlapped each other. The (200) crystal surface of Au was brought into the Scherrer Formula: ( D = K γ B cos θ ), and the calculated mean diameter of AuNP was estimated to 7 nm. The diameter agreed with TEM results.
The FTIR spectra of TiO2NWS and TiO2NWS@AuNPS catalysts collected under ambient conditions were gathered in Figure 5. Different sharp transmittance peaks of TiO2NWS and TiO2NWS@AuNPS appeared at approximately 1650 cm−1 and 3410 cm−1. At wavelengths from 1200 cm−1 to 3650 cm−1, the spectra demonstrated changes in infrared transmission characteristics resulting from deposition of Au on titanium dioxide supports. The strong absorption peak of line (a) and line (b) at 3200–3250 cm−1 was assigned to gamma O-H stretching vibration of hydroxyl groups (Ti-OH) present on the materials. This could be water molecules accompanied by the surface of titanium. In addition, the shift in transmission of TiO2NWS@AuNPS was due to generation of additional energy levels within the band gap of TiO2NWS and overlapped original TiO2 band gap excitation with plasmon band of Au nanoparticles [30]. A narrow transmittance peak was apparent for O-H bending vibration of TiO2NWS particle surface hydroxyls at 1652 cm−1, which slightly increased as gold load increase. Compared to pure TiO2NWS, the band signal increased the transmission coefficient, suggesting the composite generated more active O-H groups. Based on FTIR analysis, the density of hydroxyl of TiO2NWS was lower than that of TiO2NWS@AuNPS, which was important to the photocatalytic activity.
To further explain the differences in reactivities between both Au-loaded and pure TiO2NWS, XPS analyses were conducted to investigate the surface oxidation states of Ti 2p, Au 4f, and O 1s core levels. The XPS results are summarized in Figure 6a and the original spectra are provided in Figure 6b–d. The XPS profiles of TiO2NWS@AuNPS showed binding energy peaks of C, Ti, O, N, and Au (Figure 6a). The presence of Au peak indicated the successful immobilization of AuNPS on TiO2NWS. The C 1s and N 1s were attributed to the incomplete removal HBP-NH2. The high–resolution Ti 2p XPS spectrum in Figure 6c showed two binding energy (BE) peaks at 465.5 eV and 459.8 eV, corresponding to Ti 2p1/2 and Ti 2p3/2 spin-orbit in TiO2NWS, respectively. After Au doping, the Ti position shifted to high energy of about 1.2 eV, resulting from electron in titanium dioxide oxygen void transferred to the gold particles [36]. Furthermore, the distance between the two peaks was nearly 5.7 eV, indicating that titanium existed in the crystal lattice as Ti4+ [37,38,39]. The O 1s XPS spectrum showed TiO2NWS@AuNPS a lower binding energy of 529.78 eV (Figure 6b), characteristic of Ti-O bond. Also, a higher binding energy of 531.25 eV characteristic of O–H bonds appeared [40,41,42]. Figure 6d showed the high electron spectrum of Au 4f region. The two BE peaks at 84.0 eV and 87.7 eV corresponded to Au 4f7/2 and Au 4f5/2 spin-orbit energies [43]. The distance between the two peaks was 3.7 eV, meaning that the samples contained one state of Au, namely Au0. In addition, all HAuCl4 was reduced [44]. The pattern showed clear peaks at positions and locations of binding energies matching reported values.

3.2. Catalytic Performance

To investigate the catalytic activity of the TiO2NWS@AuNPS during photocatalytic reactions, the degradation of MB was conducted under UV. The photodegradation efficiency calculated as η = ( c / c 0 ) × 100 % , where c is the concentration of MB after certain catalysis time and c0 represents the pre-treated concentration.
The photodegradation efficiencies after 5 h of UV light irradiation are presented in Figure 7a. The photodegradation efficiency decreased in the following order: TiO2NWS@AuNPS (5 at% Au) > TiO2NWS@AuNPS (2 at% Au) > TiO2NWS@AuNPS (1 at% Au) > TiO2NWS@AuNPS (0.5 at% Au) > neat TiO2. The MB photodegradation efficiencies using pure TiO2NWS and different Au-based photocatalysts were estimated to be 63.06%, 74.19%, 90.69%, 99.3%, and 99.6%, respectively. Obviously, gold complexes displayed higher photodegradation efficiencies than pure TiO2NWS. Furthermore, the degradation effect of samples increased as mole rate of Ti rose. This implied that Au played an important role in MB degradation. Furthermore, the degradation efficiency was higher than particle doping with a gold test result [45]. The corresponding color change using Au:Ti 1 at% is also shown in Figure 7a. The color started to fade after 5 h, indicating the degradation of MB.
Additionally, TiO2NWS@AuNPS (1 at% Au) suspension UV-absorption spectra were recorded during the degradation process (Figure 7b). The absorption peak intensity of MB decreased gradually as irradiation time rose accompanied by hypochromic shift from 665 nm to 610 nm. The peak intensity sharply reduced with time after 60 min and became stable after 300 min. The hypsochromic shift suggested that the degradation of MB underwent a series of demethylation processes [46]. Based on the experimental results, chromophoric groups of MB were conjugated in the nitrogen–sulfur system, representing the N-methyl group in the benzene ring. The group corresponded to a wavelength at 665 nm [47]. The presented concentrations of MB in solution were estimated by measuring the maximum absorption peak intensity at 665 nm. During degradation, the conjugated nitrogen–sulfur system became destroyed, and wavelength peak intensity decreased.

3.3. Photocatalytic Mechanism

Based on the above findings and associated discussions presented previously, a schematic depiction of possible reaction mechanisms of the catalytic process was presented in Figure 8 (with dark pre-treatment). Under UV light, electrons in the valence band (VB) of TiO2 moved to the conduction band (CB), leaving holes at the valence band (VB). These electrons then reduced O2 in TiO2 to O2 anion radicals, with hole oxidation OH to ·HO free radical. Next, they moved to CB of TiO2 to be further trapped by neighboring AuNPS. Afterward, the electrons reduced O2 present on AuNPS to O2. These radicals could receive more electrons to become ·HO. Meanwhile, holes in VB oxidized water present on TiO2 to induce ·HO free radicals. Next, ·HO would oxidize MB to form degradation products. Consequently, the synergic effect of oxidation states of gold, including two BE peaks at 87.7 and 84.0 eV (Figure 7d), significantly enhanced the photocatalytic performance of TiO2NWS@AuNPS. Moreover, FTIR results showed the formation of more OH species following Au loading. This was believed to occur during the leading step to increase ·HO free radicals on the TiO2 surface. On the other hand, the crystal structures of Au nanoparticles and TiO2NWS were different, and hence defects and crystal barriers were inevitable at the interfaces of TiO2NWS and Au nanoparticles. Therefore, tremendous defects and barriers existed in AuNP. The presence of few interfaces of Au particles could significantly reduce recombination of electrons and holes [48]. Conversely, pure TiO2NWS did not provide distinct transfer paths for electrons, causing easy recombination of electrons and holes. Furthermore, the electrons in the CB can transfer from TiO2NWS to AuNPS, resulting from a Schottky barrier being formed at the metal-semiconductor interface [49]. It may be lead to the photo-induced electrons being trapped by AuNPS under UV irradiation, and electrons could reduce O2 in TiO2 to O2 anion radicals. Therefore, low recombination of photogenerated carriers and high photocatalytic activity made TiO2NWS@AuNPS provide valuable scaffold for many potential applications, such as photo electrocatalysts, solar cells, hydrogen generation by water splitting, and sensors.

3.4. Reusability of TiO2NWS@AuNPS

Reusability is an essential parameter for potential practical application and further analysis of the mechanism of the catalysis between the catalyst and pollutant. The reusability of TiO2NWS@AuNPS (5 at% Au) was investigated by operating the catalyzation process for five consecutive cycles and the degradation amount at each cycle was detected. As displayed in Figure 9, the degradation efficiency for the MB was still above 90% of their initial amounts in the 5th regeneration cycle. Thus, the TiO2NWS@AuNP catalyst can be recycled almost without obvious loss in the catalytic performance, demonstrating a benign renewable catalyst.

4. Conclusions

A new method to synthesize TiO2NWS and TiO2NWS@AuNPS was provided. Insights into the generating role of key nanowires under different conditions were established. Under hydrothermal conditions, the concentration of HBP-NH2 played an important role in size and uniformity of obtained TiO2NWS and TiO2NWS@AuNPS. The results also indicated that within the load of AuNPS, the reaction rate improved during degradation of MB under UV light. 5 at% Au of TiO2NWS@AuNPS showed the highest level of degradation efficiency, and the lowest degradation efficiency rate was recorded with pure TiO2NWS. The Au deposits on TiO2NWS played a major contribution in UV light catalytic activity. The surface-active electron was identified as the primary active species for improving the catalytic reaction. These facts are crucial in defining the catalytic activity in the presence of ultraviolet light. After five cycles of the catalyzation process, the TiO2NWS@AuNPS can retain over 90% of its catalytic ability for MB, demonstrating an efficient and benign renewable candidate for pollutant removal

Author Contributions

F.F. and Y.Z. conceived and designed the experiments; F.F. synthesised the samples and performed the structural and photocatalytic characterisation; F.W. collected the SEM data; and T.L. collected the XPS data; T.L. and C.J. assisted with data collection at the catalytic performance and reusability of TiO2NWS@AuNPS, respectively; F.F. and C.J. analysed the data; F.F. wrote the paper with help of Y.Z. and Y.C.

Funding

This research was funded by the National Natural Science Foundation of China (11602156), Nantong Science and Technology Planning Project (GY12016028), and Suzhou Science and Technology Project (SS201615).

Acknowledgments

This research testing supported was by the National Engineering Laboratory for Modern Silk of China.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, R.; Hashimoto, K.; Fujishima, A.; Chikuni, M.; Kojima, E.; Kitamura, A.; Shimohigoshi, M.; Watanabe, T. Light-induced amphiphilic surfaces. Nature 1997, 388, 431. [Google Scholar] [CrossRef]
  2. Xu, X.; Randorn, C.; Efstathiou, P.; Irvine, J.T. A red metallic oxide photocatalyst. Nat. Mater. 2012, 11, 595. [Google Scholar] [CrossRef] [PubMed]
  3. Zhao, L.; Yu, J.G.; Zhao, X.J.; Cheng, B.; Zhang, Z.Q.; Guo, R. Research and development of mesoporous nanostructured materials. Rare Met. Mater. Eng. 2004, 33, 5–10. [Google Scholar]
  4. Tahir, B.; Tahir, M.; Amin, N.A.S. Photocatalytic CO2 conversion over Au/TiO2 nanostructures for dynamic production of clean fuels in a monolith photoreactor. Clean Technol. Environ. Policy 2016, 18, 2147–2160. [Google Scholar] [CrossRef]
  5. Rehorek, M.; Heyn, M.P. Binding of all-trans-retinal to the purple membrane. Evidence for cooperativity and determination of the extinction coefficient. Biochemistry 1979, 18, 4977–4983. [Google Scholar] [CrossRef] [PubMed]
  6. Venter, J.C.; Adams, M.D.; Myers, E.W.; Li, P.W.; Mural, R.J.; Sutton, G.G.; Smith, H.O.; Yandell, M.; Evans, C.A.; Holt, R.A. The sequence of the human genome. Science 2001, 291, 1304–1351. [Google Scholar] [CrossRef] [PubMed]
  7. Yoon, T.P.; Ischay, M.A.; Du, J. Visible light photocatalysis as a greener approach to photochemical synthesis. Nat. Chem. 2010, 2, 527–532. [Google Scholar] [CrossRef] [PubMed]
  8. Bagwasi, S.; Tian, B.; Zhang, J.; Nasir, M. Synthesis, characterization and application of bismuth and boron Co-doped TiO2: A visible light active photocatalyst. Chem. Eng. J. 2013, 217, 108–118. [Google Scholar] [CrossRef]
  9. Jing, L.; Wang, J.; Qu, Y.; Luan, Y. Effects of surface-modification with Bi2O3 on the thermal stability and photoinduced charge property of nanocrystalline anatase TiO2 and its enhanced photocatalytic activity. Appl. Surf. Sci. 2009, 256, 657–663. [Google Scholar] [CrossRef]
  10. Colmenares, J.C.; Aramendía, M.A.; Marinas, A.; Marinas, J.M.; Urbano, F.J. Synthesis, characterization and photocatalytic activity of different metal-doped titania systems. Appl. Catal. A Gen. 2006, 306, 120–127. [Google Scholar] [CrossRef]
  11. Li, Z.; Fang, Y.; Zhan, X.; Xu, S. Facile preparation of squarylium dye sensitized TiO2 nanoparticles and their enhanced visible-light photocatalytic activity. J. Alloy Compd. 2013, 564, 138–142. [Google Scholar] [CrossRef]
  12. Obora, Y.; Shimizu, Y.; Ishii, Y. Intermolecular oxidative amination of olefins with amines catalyzed by the Pd (II)/NPMoV/O2 system. Org. Lett. 2009, 11, 5058–5061. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Z.; Yuan, Y.; Fang, Y.; Liang, L.; Ding, H.; Shi, G.; Jin, L. Photoelectrochemical oxidation behavior of methanol on highly ordered TiO2 nanotube array electrodes. J. Electroanal. Chem. 2007, 610, 179–185. [Google Scholar] [CrossRef]
  14. Jia, C.; Yin, H.; Ma, H.; Wang, R.; Ge, X.; Zhou, A.; Xu, X.; Ding, Y. Enhanced photoelectrocatalytic activity of methanol oxidation on TiO2-decorated nanoporous gold. J. Phys. Chem. C 2009, 113, 16138–16143. [Google Scholar] [CrossRef]
  15. Zhang, Y.B.; Zhang, W.Y. Research progress on the photocatalysis of TiO2 under visible light. Rare Metal Mater. Eng. 2007, 36, 1299–1303. [Google Scholar]
  16. Musick, M.D.; Keating, C.D.; Keefe, M.H.; Natan, M.J. Stepwise construction of conductive Au colloid multilayers from solution. Chem. Mater. 1997, 9, 1499–1501. [Google Scholar] [CrossRef]
  17. Grabar, K.C.; Allison, K.J.; Baker, B.E.; Bright, R.M.; Brown, K.R.; Freeman, R.G.; Fox, A.P.; Keating, C.D.; Musick, M.D.; Natan, M.J. Two-dimensional arrays of colloidal gold particles: A flexible approach to macroscopic metal surfaces. Langmuir 1996, 12, 2353–2361. [Google Scholar] [CrossRef]
  18. Bharathi, S.; Lev, O. Direct synthesis of gold nanodispersions in sol–gel derived silicate sols, gels and films. Chem. Commun. 1997, 23, 2303–2304. [Google Scholar] [CrossRef]
  19. Bharathi, S.; Fishelson, N.; Lev, O. Direct synthesis and characterization of gold and other noble metal nanodispersions in sol−gel-derived organically modified silicates. Langmuir 1999, 15, 1929–1937. [Google Scholar] [CrossRef]
  20. Sudhagar, P.; Devadoss, A.; Song, T.; Lakshmipathiraj, P.; Han, H.; Lysak, V.V.; Terashima, C.; Nakata, K.; Fujishima, A.; Paik, U.; et al. Enhanced photocatalytic performance at a Au/N-TiO2 hollow nanowire array by a combination of light scattering and reduced recombination. Phys. Chem. Chem. Phys. 2014, 16, 17748–17755. [Google Scholar] [CrossRef] [PubMed]
  21. Ding, D.; Liu, K.; He, S.; Gao, C.; Yin, Y. Ligand-exchange assisted formation of Au/TiO2 Schottky contact for visible-light photocatalysis. Nano Lett. 2014, 14, 6731–6736. [Google Scholar] [CrossRef] [PubMed]
  22. Khudhair, D.; Bhatti, A.; Li, Y.; Hamedani, H.A.; Garmestani, H.; Hodgson, P.; Nahavandi, S. Anodization parameters influencing the morphology and electrical properties of TiO2 nanotubes for living cell interfacing and investigations. Mater. Sci. Eng. C-Mater. Biol. Appl. 2016, 59, 1125–1142. [Google Scholar] [CrossRef] [PubMed]
  23. Kochuveedu, S.T.; Kim, D.-P.; Kim, D.H. Surface-plasmon-induced visible light photocatalytic activity of TiO2 nanospheres decorated by Au nanoparticles with controlled configuration. J. Phys. Chem. C 2012, 116, 2500–2506. [Google Scholar] [CrossRef]
  24. Chandrasekharan, N.; Kamat, P.V. Improving the photoelectrochemical performance of nanostructured TiO2 films by adsorption of gold nanoparticles. J. Phys. Chem. B 2000, 104, 10851–10857. [Google Scholar] [CrossRef]
  25. Yu, K.; Tian, Y.; Tatsuma, T. Size effects of gold nanaoparticles on plasmon-induced photocurrents of gold—TiO2 nanocomposites. Phys. Chem. Chem. Phys. 2006, 8, 5417–5420. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, D.S.; Liu, X.Y.; Li, J.L.; Xu, H.Y.; Lin, H.; Chen, Y.Y. Design and fabrication of a new class of nano hybrid materials based on reactive polymeric molecular cages. Langmuir 2013, 29, 11498–11505. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, D.; Xiong, J.; Li, C.; Zhang, Y.; Toh, G.W.; Lin, H.; Chen, Y. Synthesis of size tunable gold nanoparticles polymeric hybrid based on molecular nanocages. Micro Nano Lett. 2014, 9, 235–238. [Google Scholar] [CrossRef]
  28. Chemseddine, A.; Moritz, T. Nanostructuring titania: Control over nanocrystal structure, size, shape, and organization. Eur. J. Inorg. Chem. 1999, 2, 235–245. [Google Scholar] [CrossRef]
  29. Wang, C.; Wu, Y.; Lu, J.; Zhao, J.; Cui, J.; Wu, X.; Yan, Y.; Huo, P. Bioinspired synthesis of photocatalytic nanocomposite membranes based on synergy of Au-TiO2 and polydopamine for degradation of tetracycline under visible light. ACS Appl. Mater. Interfaces 2017, 9, 23687–23697. [Google Scholar] [CrossRef] [PubMed]
  30. Li, F.B.; Li, X.Z. The enhancement of photodegradation efficiency using Pt–TiO2 catalyst. Chemosphere 2002, 48, 1103–1111. [Google Scholar] [CrossRef]
  31. Adachi, M.; Murata, Y.; Takao, J.; Jiu, J.T.; Sakamoto, M.; Wang, F.M. Highly efficient dye-sensitized solar cells with a titania thin-film electrode composed of a network structure of single-crystal-like TiO2 nanowires made by the “oriented attachment” mechanism. J. Am. Chem. Soc. 2004, 126, 14943–14949. [Google Scholar] [CrossRef] [PubMed]
  32. Lazzeri, M.; Vittadini, A.; Selloni, A. Structure and energetics of stoichiometric TiO2 anatase surfaces. Phys. Rev. B 2001, 63, 155409. [Google Scholar] [CrossRef]
  33. Li, M.; Li, J.T.; Sun, H.W. Decolorizing of azo dye reactive red 24 aqueous solution using exfoliated graphite and H2O2 under ultrasound irradiation. Ultrason. Sonochem. 2008, 15, 717–723. [Google Scholar] [CrossRef] [PubMed]
  34. Subramanian, V.; Wolf, E.E.; Kamat, P.V. Influence of metal/metal ion concentration on the photocatalytic activity of TiO2—Au composite nanoparticles. Langmuir 2003, 19, 469–474. [Google Scholar] [CrossRef]
  35. Pu, Y.C.; Wang, G.; Chang, K.D.; Ling, Y.; Lin, Y.K.; Fitzmorris, B.C.; Liu, C.M.; Lu, X.; Tong, Y.; Zhang, J.Z.; et al. Au nanostructure-decorated TiO2 nanowires exhibiting photoactivity across entire UV-visible region for photoelectrochemical water splitting. Nano Lett. 2013, 13, 3817–3823. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, Y.; Tao, Q.; Fu, W.; Yang, H.; Zhou, X.; Su, S.; Ding, D.; Mu, Y.; Li, X.; Li, M. Enhanced photoelectric performance of PbS/CdS quantum dot co-sensitized solar cells via hydrogenated TiO2 nanorod arrays. Chem. Commun. 2014, 50, 9509–9512. [Google Scholar] [CrossRef] [PubMed]
  37. Leshuk, T.; Parviz, R.; Everett, P.; Krishnakumar, H.; Varin, R.A.; Gu, F. Photocatalytic activity of hydrogenated TiO2. ACS Appl. Mater. Interfaces 2013, 5, 1892–1895. [Google Scholar] [CrossRef] [PubMed]
  38. Li, H.; Zeng, Y.; Huang, T.; Liu, M. Oxygen vacancies contained TiO2 spheres: Facile fabrication and enhanced ferromagnetism. J. Nanopart. Res. 2012, 14, 1030. [Google Scholar] [CrossRef]
  39. Moulder, J.; Stickle, W.; Sobol, P.; Bomben, K. Handbook of X-ray Photoelectron Spectroscopy: Physical Electronics Division; Perkin-Elmer Corporation: Eden Prairie, MN, USA, 1979; p. 340. [Google Scholar]
  40. Sanjines, R.; Tang, H.; Berger, H.; Gozzo, F.; Margaritondo, G.; Levy, F. Electronic structure of anatase TiO2 oxide. J. Appl. Phys. 1994, 75, 2945–2951. [Google Scholar] [CrossRef]
  41. Patrocínio, A.O.T.; Paniago, E.B.; Paniago, R.M.; Iha, N.Y.M. XPS characterization of sensitized n-TiO2 thin films for dye-sensitized solar cell applications. Appl. Surf. Sci. 2008, 254, 1874–1879. [Google Scholar] [CrossRef]
  42. Ohtsu, N.; Masahashi, N.; Mizukoshi, Y.; Wagatsuma, K. Hydrocarbon decomposition on a hydrophilic TiO2 surface by UV irradiation: Spectral and quantitative analysis using in-situ XPS technique. Langmuir 2009, 25, 11586–11591. [Google Scholar] [CrossRef] [PubMed]
  43. Visco, A. X-ray photoelectron spectroscopy of Au/Fe2O3 catalysts. Phys. Chem. Chem. Phys. 1999, 1, 2869–2873. [Google Scholar] [CrossRef]
  44. Lim, H.; Rawal, S.B. Integrated Bi2O3 nanostructure modified with Au nanoparticles for enhanced photocatalytic activity under visible light irradiation. Prog. Nat. Sci. Mater. Int. 2017, 27, 289–296. [Google Scholar] [CrossRef]
  45. Xiang, L.; Zhao, X.; Shang, C.; Yin, J. Au or Ag nanoparticle-decorated 3D urchin-like TiO2 nanostructures: Synthesis, characterization, and enhanced photocatalytic activity. J. Colloid Interface Sci. 2013, 403, 22–28. [Google Scholar] [CrossRef] [PubMed]
  46. Rauf, M.A.; Meetani, M.A.; Khaleel, A.; Ahmed, A. Photocatalytic degradation of Methylene Blue using a mixed catalyst and product analysis by LC/MS. Chem. Eng. J. 2010, 157, 373–378. [Google Scholar] [CrossRef]
  47. Houas, A.; Lachheb, H.; Ksibi, M.; Elaloui, E.; Guillard, C.; Herrmann, J.-M. Photocatalytic degradation pathway of methylene blue in water. Appl. Catal. B Environ. 2001, 31, 145–157. [Google Scholar] [CrossRef]
  48. Li, X.Z.; Liu, H.L.; Yue, P.T.; Sun, Y.P. Photoelectrocatalytic oxidation of rose bengal in aqueous solution using a Ti/TiO2 mesh electrode. Environ. Sci. Technol. 2000, 34, 4401–4406. [Google Scholar] [CrossRef]
  49. Ma, J.; Guo, S.; Guo, X.; Ge, H. A mild synthetic route to Fe3O4@TiO2-Au composites: Preparation, characterization and photocatalytic activity. Appl. Surf. Sci. 2015, 353, 1117–1125. [Google Scholar] [CrossRef]
Figure 1. Scanning electron microscope (SEM) images of pure TiO2 (a) HBP-NH2: 0 g/L; (b) HBP-NH2: 30 g/L; (c) HBP-NH2: 100 g/L; and (d) HBP-NH2: 200 g/L.
Figure 1. Scanning electron microscope (SEM) images of pure TiO2 (a) HBP-NH2: 0 g/L; (b) HBP-NH2: 30 g/L; (c) HBP-NH2: 100 g/L; and (d) HBP-NH2: 200 g/L.
Materials 11 01022 g001
Figure 2. (a) Transmission electron microscopy (TEM) image of TiO2NWS; (b) high-resolution transmission electron microscopy (HRTEM) image of TiO2NWS; (c) selected area electron diffraction (SAED) image stated of TiO2NWS; (d) TEM image of TiO2NWS@AuNPS; (e) high-resolution transmission electron microscopy (HRTEM) image of TiO2NWS@AuNPS; (f) selected area electron diffraction (SAED) image stated of TiO2NWS@AuNPS; (g) EDS of TiO2NWS; and (h) EDS of TiO2NWS@AuNPS.
Figure 2. (a) Transmission electron microscopy (TEM) image of TiO2NWS; (b) high-resolution transmission electron microscopy (HRTEM) image of TiO2NWS; (c) selected area electron diffraction (SAED) image stated of TiO2NWS; (d) TEM image of TiO2NWS@AuNPS; (e) high-resolution transmission electron microscopy (HRTEM) image of TiO2NWS@AuNPS; (f) selected area electron diffraction (SAED) image stated of TiO2NWS@AuNPS; (g) EDS of TiO2NWS; and (h) EDS of TiO2NWS@AuNPS.
Materials 11 01022 g002

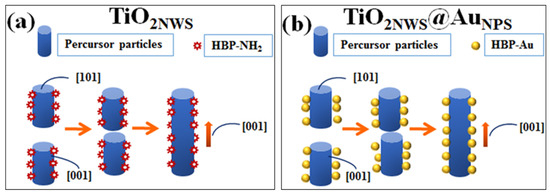

Figure 3. (a) Schematic diagram for the synthesis route of TiO2NWS and (b) schematic diagram for the synthesis route of TiO2NWS@AuNPS composite.
Figure 3. (a) Schematic diagram for the synthesis route of TiO2NWS and (b) schematic diagram for the synthesis route of TiO2NWS@AuNPS composite.
Materials 11 01022 g003

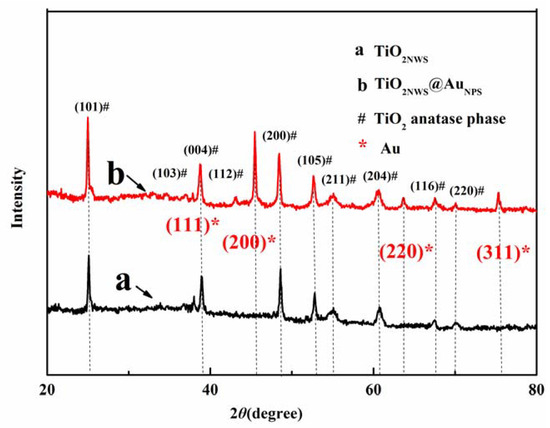

Figure 4. X-ray diffraction (XRD) patterns of pure TiO2NWS and TiO2NWS@AuNPS.
Figure 4. X-ray diffraction (XRD) patterns of pure TiO2NWS and TiO2NWS@AuNPS.
Materials 11 01022 g004
Figure 5. FTIR spectra of pure TiO2NWS and TiO2NWS@AuNPS.
Figure 5. FTIR spectra of pure TiO2NWS and TiO2NWS@AuNPS.
Materials 11 01022 g005

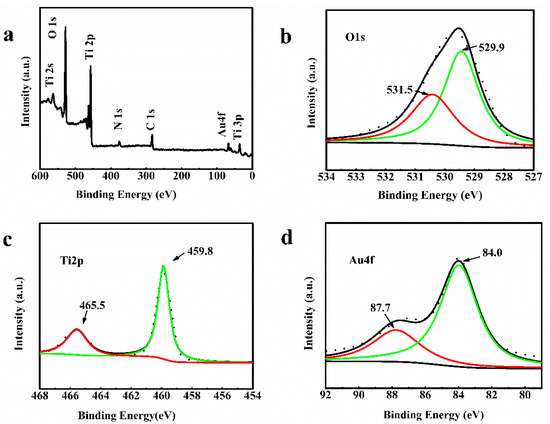

Figure 6. XPS spectrum of TiO2NWS@AuNPS (a); Core-level spectra of O 1s (b); Ti 2p (c); and Au 4f (d).
Figure 6. XPS spectrum of TiO2NWS@AuNPS (a); Core-level spectra of O 1s (b); Ti 2p (c); and Au 4f (d).
Materials 11 01022 g006
Figure 7. (a) MB photodegradation efficiency of materials under UV light irradiation and changes in color during MB degrade process; (b) UV-absorption spectra during MB degrade process.
Figure 7. (a) MB photodegradation efficiency of materials under UV light irradiation and changes in color during MB degrade process; (b) UV-absorption spectra during MB degrade process.
Materials 11 01022 g007

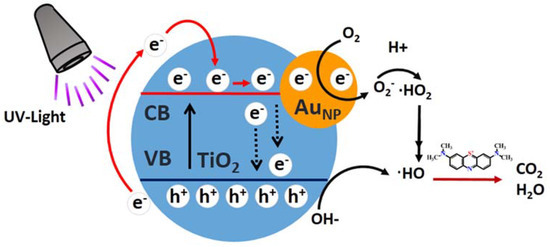

Figure 8. Schematic representation of the mechanism of catalytic MB under UV light.
Figure 8. Schematic representation of the mechanism of catalytic MB under UV light.
Materials 11 01022 g008

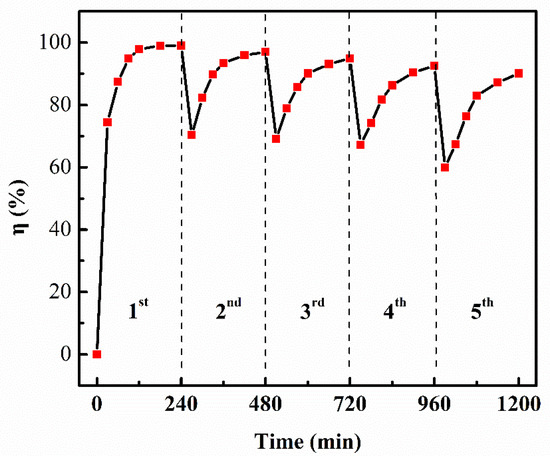

Figure 9. Cyclic catalysis of TiO2NWS@AuNPS degradation of MB dye.
Figure 9. Cyclic catalysis of TiO2NWS@AuNPS degradation of MB dye.
Materials 11 01022 g009
Table 1. The relationship between the concentration of the HBP-NH2 and the average diameters of TiO2NWS.
Table 1. The relationship between the concentration of the HBP-NH2 and the average diameters of TiO2NWS.
Concentration of HBP-NH2 (g/L)Average Diameter ( D ¯ ) (nm)Standard Deviation ( σ ) (nm)Confidence Interval (nm)
097.3545.21±8.86
3089.4541.48±8.13
10071.9335.21±6.90
20079.1939.30±7.70
