Unusually Small Thermal Expansion of Ordered Perovskite Oxide CaCu3Ru4O12 with High Conductivity

by
Akihiro Tsuruta
1,*,
Katsuhiro Nomura
1,
Masashi Mikami
1,
Yoshiaki Kinemuchi
1,
Ichiro Terasaki
1,2,
Norimitsu Murayama
3 and
Woosuck Shin
1
1
National Institute of Advanced Industrial Science and Technology (AIST), Shimo-Shidami, Moriyama-ku, Nagoya 463-8560, Japan
2
Department of Physics, Nagoya University, Furo-cho, Chuikusa-ku, Nagoya 464-8602, Japan
3
National Institute of Advanced Industrial Science and Technology (AIST), 1-1-1 Higashi, Tsukuba 305-8565, Japan
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1650; https://doi.org/10.3390/ma11091650
Submission received: 16 August 2018 / Revised: 4 September 2018 / Accepted: 5 September 2018 / Published: 7 September 2018
(This article belongs to the Section Materials Physics)
Browse Figures
Versions Notes

Abstract

:
We measured the coefficient of thermal expansion (CTE) of conducting composite ceramics 30 vol.% CuO-mixed CaCu3Ru4O12 together with CaCu3Ru4O12 and CuO. Although conducting ceramics tend to show higher CTE values than insulators, and its CTE value does not match with other ceramic materials, the CTE of CaCu3Ru4O12 (7–9 × 10−6/K) was as small as those of insulators such as CuO (9 × 10−6/K), alumina (8 × 10−6/K), and other insulating perovskite oxides. We propose that the thermal expansion of CaCu3Ru4O12 was suppressed by the Cu-O bond at the A-site due to the Jahn–Teller effect. This unusually small CTE of CaCu3Ru4O12 compared to other conducting oxides plays a vital role enabling successful coating of 30 vol.% CuO-mixed CaCu3Ru4O12 thick films on alumina substrates, as demonstrated in our previous study.

1. Introduction

The coefficient of thermal expansion (CTE) and matching the thermal expansion between different materials are important factors when processing brittle ceramic materials that require high sintering temperatures. Currently, in order to use the heat resistance and functions of ceramic materials, devices containing heterogeneous ceramics with ceramic/ceramic or metal/ceramic interfaces have been actively developed using cofiring [1,2], printing [3,4], and coating [5,6,7,8,9,10] processes in various industrials fields, including energy [11,12,13], automotive [14,15], and healthcare [16,17]. Since the target ceramic materials are rarely well-sintered at the desired position when sintered with other materials, the thermal expansion needs to be tailored by optimizing the process, adding complementary materials, or controlling the composition of the ceramic [18,19]. In the case of devices using functional materials, such as perovskite oxides with CTE values often higher than those of other oxides, their thermal expansion behavior has been extensively investigated. When the perovskite composition is modified by the addition of other materials for thermal expansion matching, the properties of the original material may be degraded.
We have focused on the conducting oxide CaCu3Ru4O12 [20,21,22,23,24] as an alternative conducting material to replace Pt in various high-temperature electrical devices, such as gas sensors [16] and solid oxide fuel cells [25], and have studied its physical properties and processing [26,27]. CaCu3Ru4O12 is an ordered perovskite oxide, the crystal structure of which is shown in the schematic diagram in Figure 1a. The resistivity is lower than 1 m·Ωcm, even at 500 °C, and the temperature dependence shows metallic behavior, which is rarely seen in oxides, as shown in Figure 1b (black plot). Although CaCu3Ru4O12 is difficult to sinter, we overcame this drawback by adding CuO as a sintering additive, which enabled the fabrication of dense bulks and thick films on alumina substrates [26]. The temperature dependences of the resistivity of 20 vol.% CuO-mixed CaCu3Ru4O12 bulk and thick film are shown in Figure 1b. The thick film showed resistivity as low as the bulk sample. Scanning Electron Microscope (SEM) images of the thick film are shown in Figure 1c–e, where CaCu3Ru4O12 grains were firmly bound to adjacent CaCu3Ru4O12 grains and to the alumina substrate without cracks and peeling. Recently, we tried to fabricate a SnO2 gas sensor using CuO-mixed CaCu3Ru4O12 thick films as electrodes and heater instead of Pt on an alumina substrate [28]. Our trial successfully showed similar sensing performance as the sensor using Pt. In addition, CuO-mixed CaCu3Ru4O12 thick film heaters on alumina substrates were robust against thermal shock and rapid thermal cycling.
We observed that CaCu3Ru4O12 and CuO can be easily compounded, and the composite thick film showed excellent sintering on an alumina substrate without any cracks. We further observed that the thick film heater showed excellent durability against rapid heat cycles. All these findings were truly unexpected for a conventional ceramic device. Hence, in this study, we investigated the thermal expansion of CaCu3Ru4O12, CuO, and CuO-mixed CaCu3Ru4O12 in order to clarify the reason for the excellent properties of our ceramic device. In addition, we compared the thermal expansion of CaCu3Ru4O12 with that of other perovskite oxides.

2. Experimental

CaCu3Ru4O12 was prepared via a solid-state reaction [22,26,29]. Stoichiometric mixtures of CaCO3, CuO, and RuO2 were pressed into pellets and calcined in air at 1000 °C for 48 h. The pellets were covered by a mixture of excess CaCO3, CuO, and RuO2 powders to prevent Ru sublimation during sintering and subsequent deviations from the desired composition. The CaCu3Ru4O12 powder was obtained via mechanical grinding and ball-milling of the calcined pellets.
The CaCu3Ru4O12 powder was then mixed with CuO powder (as a sintering additive), then pressed into a pellet and sintered at 1000 °C for 48 h in air. The CuO volume fraction in the bulk was 30 vol.% corresponding to 29.5 wt.%. The volume fraction was calculated using the molecular weights and lattice constants of each material. A CuO bulk sample was obtained by calcining a pressed pellet of CuO powder under the same conditions as the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk sample. The relative densities of the 30 vol.% CuO-mixed CaCu3Ru4O12 and CuO bulk samples were 73% and 92%, respectively.
X-ray diffraction (XRD) of the CaCu3Ru4O12 powder was performed using a standard diffractometer with parallel-beam optics of Cu Kα radiation in the 2θ-θ scan mode (X’Pert Pro MPD, Malvern Panalytical, Malvern, UK) at 25, 100, 200, 300, 400, 500, 600, 700, 800, and 900 °C using a reactor chamber (XRK900, Anton Paar, Graz, Austria) in air [30]. The XRD patterns at all temperatures were analyzed using the Rietveld method [31] and we calculated the lattice constants using the reported space group and crystal structural parameters as the initial value [32]. The CTEs of 30 vol.% CuO-mixed CaCu3Ru4O12 and CuO bulk samples were measured in air using a thermomechanical analyzer (TMA; Thermo Plus EVO2, Rigaku, Tokyo, Japan).

3. Results and Discussion

Figure 2 shows the XRD pattern for CaCu3Ru4O12 powder measured at 25 °C. All peaks were well-indexed to those of CaCu3Ru4O12 [32] and no heterogeneous or impurity phases were identified. Figure 3a shows the lattice constant of CaCu3Ru4O12 calculated from powder XRD, plotted as a function of temperature. CaCu3Ru4O12 belongs to a large family of ordered perovskites described by the general formula AC3B4O12, and can be considered as a fourfold superstructure of the ABO3 perovskite shown in Figure 1a. The lattice constant increased with increasing temperature, indicating positive thermal expansion, similar to other conventional oxide materials. The plot represents the lattice constant a for the cubic structure, from which the relative thermal expansion and CTE values were evaluated.
Considering the potential applications of the perovskite, the thermal expansion should be evaluated using TMA. However, here the CTE of CaCu3Ru4O12 had to be calculated from the lattice constant because CaCu3Ru4O12 could not be fully sintered. Figure 3b shows the thermal expansion relative to the value at 25 °C (ΔL/L25) for the 30 vol.% CuO-mixed CaCu3Ru4O12 and CuO bulk samples measured using TMA, together with that of CaCu3Ru4O12 calculated from the data shown in Figure 3a. The thermal-expansion curves of CaCu3Ru4O12 and CuO were nearly identical between 25 °C and 900 °C. Hence, we concluded that the addition of 30 vol.% CuO to CaCu3Ru4O12 did not significantly affect thermal-expansion behavior, although a detailed analysis was not performed [33]. This good thermal-expansion match is the reason that no serious cracks or exfoliation at the interface between CaCu3Ru4O12 and CuO were observed in the composite material; this supports the results of our previous study where we successfully used CuO as a sintering additive for CaCu3Ru4O12 [26].
Figure 3c shows the temperature dependence of the CTE of the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk, CuO bulk, and CaCu3Ru4O12 samples. The dotted and broken lines show the CTE at 400 °C of alumina and ZrO2, respectively, for comparison, as they are widely used ceramic substrate materials. Although the ΔL/L25 of the three materials were almost the same at all temperatures, the CTEs, which are generally calculated as the differential value of ΔL/L25, were slightly different, especially around room temperature. The CTE curve of the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk sample was located between those of CuO bulk and CaCu3Ru4O12 at all temperatures, showing an acceptable average value. The 30 vol.% CuO-mixed CaCu3Ru4O12 bulk sample showed almost the same CTE value as alumina. Thus, in our previous study, the CuO-mixed CaCu3Ru4O12 thick film was successfully coated and sintered on alumina substrates without cracking or peering due to this good CTE match.
Inorganic materials have various favorable properties, including conductivity, dielectricity, and magnetism. The CTE (α) depends on such properties, as follows: [34]
α = αvib + αelec + αmag + αfe + αvac
where αvib, αelec, αmag, αfe, and αvac correspond to the CTE due to vibrational, electronic, magnetic, ferroelectric contribution, and vacancy formation, respectively. This formula is derived considering that the CTE is the second derivative of the Gibbs energy, where functional materials have higher energies than materials without these properties. Therefore, α of a simple insulator should be the lowest among ceramic oxide materials, except for ZrW2O8 [35] and LaCu3Fe4O12 [36], which show negative thermal expansion due to peculiar mechanisms, such as lattice bending and valence transitions. Since CaCu3Ru4O12 shows particularly high electrical conductivity compared to other perovskite oxides, its αelec and α values are expected to be larger than those of other materials.
Let us compare CaCu3Ru4O12 with other ABO3-type oxides; Table 1 shows the CTE, conducting behavior, B-site cation, electron orbital of the B-site cation, and the number of d-electron of various oxides. Here, we focus on simple ABO3-type oxides in order to simplify the comparison and discussion. The CTE values were taken directly from the references, or calculated from the temperature dependence of the lattice volume. In this paper, the materials are classified as conductor or insulator using 10 Ωcm of resistivity at room temperature as a threshold. As expected, the conductors Sr0.8La0.2TiO3, SrRuO3, La0.6Sr0.4Fe0.2Co0.8O3-x, SrCoO3, LaCoO3, and LaCo0.5Ni0.5O3 show larger CTE values than materials with insulating, ferroelectric, or dielectric properties. However, the CTE of CaCu3Ru4O12 is remarkably small compared to other conductors. La0.6Sr0.4Fe0.2Co0.8O3−x, SrCoO3, and LaCoO3 are used as cathode materials in solid oxide fuel cells, and many oxygen vacancies are generated at high temperature; hence, αelec. and αvac. strongly contribute to α in these materials.
The conduction behavior of the perovskite oxides correlates with the number of d-electrons in the B-site cation. Hence, CTE values are plotted as a function of the number of d-electrons in Figure 4, where the conduction behavior of each material is represented by symbols. The CTE values of all insulators are located in the lower part of the figure, consistent with the theory expressed by Equation (1). Although the ferroelectric materials, such as BaTiO3, LiTaO3 and LiNbO3, are electrically insulating, they show relatively large CTE values compared to the other insulators because of structural deformations due to polarization. Almost all conductors show CTE values larger than 10 × 10−6/K, where that of CaCu3Ru4O12 is surprisingly small, despite of its high electrical conductivity. CaCu3Ru4O12 and SrRuO3 are closely related materials; they both show high conductivity and have Ru occupying the B-site of perovskite. However, the CTE values of these materials are significantly different, where CaCu3Ru4O12 has a smaller value than the simple SrRuO3 perovskite. The structural difference between those materials is that Ca and Cu are ordered at the A-site of the perovskite structure in CaCu3Ru4O12. Cu does not usually occupy the A-site because Cu2+ normally appears in 6 coordination. However, Cu in CaCu3Ru4O12 is stabilized at the A-site owing to the Jahn–Teller effect. CuO octahedra extend in the z-axis direction with separation of the degenerated eg orbital, while Cu2+ acts as a large cation and can occupy the A-site. Cu atoms occupy 75% of the A-site in CaCu3Ru4O12, and the Cu-O bond, which is stabilized at lower energy via separation of the degenerated eg orbital, would be stronger than other simple bonds such as Ca-O and Ru-O. If this Cu-O bond is predominant in the thermal expansion of the CaCu3Ru4O12 lattice, the thermal expansion will be similar to that of CuO, as shown in Figure 3b. Such a contribution of the A-site cation to the thermal expansion is a novel feature of ordered perovskite and is a great advantage in material design and applications.
Finally, we show the heater characteristics of a 30 vol.% CuO-mixed CaCu3Ru4O12 thick-film heater on an alumina substrate realized by the unusually small thermal expansion of CaCu3Ru4O12 and CTE matching between CaCu3Ru4O12 and alumina. The thick-film heater was fabricated on an alumina substrate (3.0 × 25 × 0.3 mm) by screen-printing a paste of CuO and CaCu3Ru4O12 powders mixed in a suitable vehicle. Figure 5a shows a photograph and a thermal-camera image while 32 V DC voltage was applied to the 30 vol.% CuO-mixed CaCu3Ru4O12 thick-film heater. The meandering heater pattern generates heat up to 600 °C due to Joule heating. Figure 5b shows the temperature (T), defined as the maximum temperature over the heater pattern in air as a function of the applied voltage. The temperature increased linearly with applied voltage, expressed as T = 23.4 V − 146 in units of degrees Celsius; this linear V-T characteristic indicates good temperature controllability of the heater. The temperature of the heater under 32.0 V pulses, with a width of 10 s and a cycle length of 20 s, is shown in Figure 5c. The temperature increased immediately from room temperature when the voltage was applied, reaching 600 °C within 9 s. The heater temperature followed the cyclic voltage pulses without degradation, and the performance was maintained after many cycles. It is clear from these results that the 30 vol.% CuO-mixed CaCu3Ru4O12 thick-film heater on an alumina substrate is surprisingly robust and is thought to be reliable enough to be used as a substitute for Pt as a conducting material for various electrical devices.

4. Conclusions

We measured the CTE of 30 vol.% CuO-mixed CaCu3Ru4O12 and CuO bulk samples using TMA and calculated the CTE of CaCu3Ru4O12 from the lattice constant determined using high-temperature XRD measurements. The ΔL/L25 of these materials were nearly identical between 25 °C and 900 °C; we measured the values for CaCu3Ru4O12, CuO, and 30 vol.% CuO-mixed CaCu3Ru4O12 of 8.27 × 10−6 K−1, 9.59 × 10−6 K−1, and 8.60 × 10−6 K−1, respectively, at 500 °C. These values were similar to those of alumina (8.0 × 10−6 K−1). The CTE matches between CaCu3Ru4O12/CuO and 30 vol.% CuO-mixed CaCu3Ru4O12/alumina explain the successful compounding and coating of these material pairs demonstrated in our previous study. The CTE of CaCu3Ru4O12 is smaller than that of other conducting perovskite oxides, and close to the values for insulating perovskite oxides. The unusually small CTE of CaCu3Ru4O12 is thought to be due to the influence of Cu occupying the A-site of the perovskite via the Jahn–Teller effect. Such a contribution of the A-site cation in the ordered perovskite material to the thermal expansion offers a novel and superior advantage in material design and applications.

Author Contributions

A.T., I.T., and W.S. conceived and designed the experiments; A.T. performed the experiments; K.N. measured and analyzed high-temperature XRD; A.T., I.T., and W.S. analyzed the data; M.M., Y.K., and N.M. helped with the experiments and discussed the results; A.T. wrote the paper.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gongora-Rubio, M.R.; Espinoza-Vallejos, P.; Sola-Laguna, L; Santiago-Avilés, J.J. Overview of low temperature co-fired ceramics tape technology for meso-system technology (MsST). Sens. Actuators A 2001, 89, 222–241. [Google Scholar] [CrossRef]
  2. Miyazaki, H.; Iwakiri, S.; Hirao, K.; Fukuda, S.; Izu, N.; Yoshizawa, Y.; Hyuga, H. Effect of high temperature cycling on both crack formation in ceramics and delamination of copper layers in silicon nitride active metal brazing substrates. Ceram. Int. 2017, 43, 5080–5088. [Google Scholar] [CrossRef]
  3. Jean, J.H.; Chang, C.R.; Chen, Z.C. Effect of Densification Mismatch on Camber Development during Cofiring of Nickel-Based Multilayer Ceramic Capacitors. J. Am. Ceram. Soc. 1997, 80, 2401–2406. [Google Scholar] [CrossRef]
  4. Niimi, H.; Mihara, K.; Sakabe, Y.; Kuwabara, M. Preparation of Multilayer Semiconducting BaTiO3 Ceramics Co-Fired with Ni Inner Electrodes. Jpn. J. Appl. Phys. 2007, 46, 6715–6718. [Google Scholar] [CrossRef]
  5. Park, J.H.; Akedo, J.; Sato, H. High-speed metal-based optical microscanners using stainless-steel substrate and piezoelectric thick films prepared by aerosol deposition method. Sens. Actuators A 2007, 135, 86–91. [Google Scholar] [CrossRef]
  6. Akedo, J.; Lebedev, M. Piezoelectric properties and poling effect of Pb(Zr, Ti)O3 thick films prepared for microactuators by aerosol deposition. Appl. Phys. Lett. 2000, 77, 1710–1712. [Google Scholar] [CrossRef]
  7. Iijima, Y.; Tanabe, N.; Kohno, O.; Ikeno, Y. In-plane aligned YBa2Cu3O7−x thin films deposited on polycrystalline metallic substrates. Appl. Phys. Lett. 1992, 60, 769–771. [Google Scholar] [CrossRef]
  8. Kakimoto, K.; Iijima, Y.; Saitoh, T. Fabrication of long-Y123 coated conductors by combination of IBAD and PLD. Physica C 2003, 392–396, 783–789. [Google Scholar] [CrossRef]
  9. Doi, T.; Hashimoto, M.; Horii, S.; Ichinose, A. Fabrication of YBa2Cu3O7 Superconducting Film on {100}<001> Textured Cu Tape via Conductive Buffer Layers. Mater. Trans. 2017, 58, 1493–1499. [Google Scholar] [CrossRef]
  10. Ichinose, A.; Horii, S.; Doi, T. Possibility of the material cost reduction forward developing low-cost 2nd generation superconducting wires. Jpn. J. Appl. Phys. 2017, 56, 103101. [Google Scholar] [CrossRef]
  11. Tucker, M.C.; Lau, G.Y.; Jacobson, C.P.; DeJonghe, L.C.; Visco, S.J. Performance of metal-supported SOFCs with infiltrated electrodes. J. Power Sources 2007, 171, 477–482. [Google Scholar] [CrossRef]
  12. Tucker, M.C. Progress in metal-supported solid oxide fuel cells: A review. J. Power Sources 2010, 195, 4570–4582. [Google Scholar] [CrossRef]
  13. Nagaya, S.; Watanabe, T.; Tamada, T.; Naruse, M.; Kashima, N.; Katagiri, T.; Hirano, N.; Awaji, S.; Oguro, H.; Ishiyama, A. Development of High Strength Pancake Coil With Stress Controlling Structure by REBCO Coated Conductor. IEEE Trans. Appl. Supercond. 2013, 23, 4601204. [Google Scholar] [CrossRef]
  14. Gérard, B. Application of thermal spraying in the automobile industry. Surf. Coat. Technol. 2006, 201, 2028–2031. [Google Scholar] [CrossRef]
  15. Song, R.G. Hydrogen permeation resistance of plasma-sprayed Al2O3 and Al2O3–13wt.% TiO2 ceramic coatings on austenitic. Surf. Coat. Technol. 2003, 168, 191–194. [Google Scholar] [CrossRef]
  16. Itoh, T.; Miwa, T.; Tsuruta, A.; Akamatsu, T.; Izu, N.; Shin, W.; Park, J.; Hida, T.; Eda, T.; Setoguchi, Y. Development of an Exhaled Breath Monitoring System with Semiconductive Gas Sensors, a Gas Condenser Unit, and Gas Chromatograph Columns. Sensors 2016, 16, 1891. [Google Scholar] [CrossRef] [PubMed]
  17. Itoh, T.; Nakashima, T.; Akamatsu, T.; Izu, N.; Shin, W. Nonanal gas sensing properties of platinum, palladium, and gold-loaded tin oxide VOCs sensors. Sens. Actuators B 2013, 187, 135–141. [Google Scholar] [CrossRef]
  18. Takenaka, K. Negative thermal expansion materials: Technological key for control of thermal expansion. Sci. Technol. Adv. Mater. 2012, 13, 013001. [Google Scholar] [CrossRef] [PubMed]
  19. Ullmann, H.; Trofimenko, N.; Tietz, F.; Stöver, D.; Ahmad-Khanlou, A. Correlation between thermal expansion and oxide ion transport in mixed conducting perovskite-type oxides for SOFC cathodes. Solid State Ion. 2000, 138, 79–90. [Google Scholar] [CrossRef]
  20. Labeau, M.; Bochu, B.; Joubert, J.C.; Chenavas, J. Synthèse et caractérisation cristallographique et physique d’une série de composés ACu3Ru4O12 de type perovskite. J. Solid State Chem. 1980, 33, 257–261. [Google Scholar] [CrossRef]
  21. Subramanian, M.A.; Sleight, A.W. ACu3Ti4O12 and ACu3Ru4O12 perovskites: High dielectric constants and valence degeneracy. Solid State Sci. 2002, 4, 347–351. [Google Scholar] [CrossRef]
  22. Kobayashi, W.; Terasaki, I.; Takeya, J.; Tsukada, I.; Ando, Y. A Novel Heavy-Fermion State in CaCu3Ru4O12. J. Phys. Soc. Jpn. 2004, 73, 2373–2376. [Google Scholar] [CrossRef]
  23. Tran, T.T.; Takubo, K.; Mizokawa, T.; Kobayashi, W.; Terasaki, I. Electronic structure of CaCu3Ru4O12 studied by X-ray photoemission spectroscopy. Phys. Rev. B 2006, 73, 193105. [Google Scholar] [CrossRef]
  24. Juan, W.R.; Yuan, Z.Y.; Li, W.; Yong, L.; Jing, S.; Rui, X.; Feng, W.J. Growth and characterization of CaCu3Ru4O12 single crystal. Chin. Phys. B 2015, 24, 097501. [Google Scholar] [CrossRef]
  25. Sumi, H.; Yamaguchi, T.; Hamamoto, K.; Suzuki, T.; Fujishiro, Y.; Matsui, T.; Eguchi, K. AC impedance characteristics for anode-supported microtubular solid oxide fuel cells. Electrochim. Acta 2012, 67, 159–165. [Google Scholar] [CrossRef]
  26. Tsuruta, A.; Mikami, M.; Kinemuchi, Y.; Terasaki, I.; Murayama, N.; Shin, W. High electrical conductivity of composite ceramics consisting of insulating oxide and ordered perovskite conducting oxide. Phys. Status Solidi A 2017, 214, 1600968. [Google Scholar] [CrossRef]
  27. Tsuruta, A.; Mikami, M.; Kinemuchi, Y.; Terasaki, I.; Murayama, N.; Shin, W. Element Strategy Using Ru-Mn Substitution in CuO-CaCu3Ru4O12 Composite Ceramics with High Electrical Conductivity. Crystals 2017, 7, 213. [Google Scholar] [CrossRef]
  28. Tsuruta, A.; Itoh, T.; Mikami, M.; Kinemuchi, Y.; Terasaki, I.; Murayama, N.; Shin, W. Trial of an All-Ceramic SnO2 Gas Sensor Equipped with CaCu3Ru4O12 Heater and Electrode. Materials 2018, 11, 981. [Google Scholar] [CrossRef] [PubMed]
  29. Brizé, V.; Lambert, C.A.; Wolfman, J.; Gervais, M.; Gervais, F. Synthesis and microstructural TEM investigation of CaCu3Ru4O12 ceramic and thin film. J. Solid State Chem. 2011, 184, 2719–2723. [Google Scholar] [CrossRef]
  30. Nomura, K. Crystal Structure and Proton Conduction Path of Perovskite-type Oxides by Using a Laboratory X-ray Diffractometer with a Parallel Beam Optics. J. Cryst. Soc. Jpn. 2008, 50, 155–160. [Google Scholar] [CrossRef]
  31. Izumi, F.; Momma, K. Three-dimensional visualization in powder diffraction. Solid State Phenom. 2007, 130, 15–20. [Google Scholar] [CrossRef]
  32. Ebbimghaus, S.G.; Weidenkaff, A.; Cava, R.J. Structural Investigations of ACu3Ru4O12 (A = Na, Ca, Sr, La, Nd)—A Comparison between XRD-Rietveld and EXAFS Results. J. Solid State Chem. 2002, 167, 126–136. [Google Scholar] [CrossRef]
  33. Rosen, B.W.; Hashin, Z. Effective thermal expansion coefficients and specific heats of composite materials. Int. J. Eng. Sci. 1970, 8, 157–173. [Google Scholar] [CrossRef]
  34. Inaba, H.; Tagawa, H. Semi-Empirical Estimation of Thermal Expansion Coefficients of Perovskite-Type Oxides. J. Ceram. Soc. Jpn. 1998, 106, 272–278. [Google Scholar] [CrossRef] [Green Version]
  35. Mary, T.A.; Evans, J.S.O.; Vogt, T.; Sleight, A.W. Negative Thermal Expansion from 0.3 to 1050 Kelvin in ZrW2O8. Science 1996, 272, 90–92. [Google Scholar] [CrossRef]
  36. Long, Y.W.; Hayashi, N.; Saito, T.; Azuma, M.; Muranaka, S.; Shimakawa, Y. Temperature-induced A–B intersite charge transfer in an A-site-ordered LaCu3Fe4O12 perovskite. Nature 2009, 458, 60–63. [Google Scholar] [CrossRef] [PubMed]
  37. Park, B.; Lee, J.; Lee, S.; Lim, T.; Park, S.; Snog, R.; Im, W.B.; Shin, D. La-doped SrTiO3 interconnect materials for anode-supported flat-tubular solid oxide fuel cells. Int. J. Hydrogen Energy 2012, 37, 4319–4327. [Google Scholar] [CrossRef]
  38. Blake, G.R.; Palstra, T.T.M.; Ren, Y.; Nugroho, A.A.; Menovsky, A.A. Neutron diffraction, x-ray diffraction, and specific heat studies of orbital ordering in YVO3. Phys. Rev. B 2002, 65, 174112. [Google Scholar] [CrossRef]
  39. Kennedy, B.J.; Hunter, B.A. High-temperature phases of SrRuO3. Phys. Rev. B 1998, 58, 653. [Google Scholar] [CrossRef]
  40. Wang, X.; Han, Y.; Song, X.; Liu, W.; Jin, Y.; Liu, W.; Cui, H. An insight into the effects of transition metals on the thermal expansion of complex perovskite compounds: An experimental and density functional theory investigation. Phys. Chem. Chem. Phys. 2018, 20, 17781–17789. [Google Scholar] [CrossRef] [PubMed]
  41. Alonso, J.A.; Martínez-Lope, M.J.; Casais, M.T.; García-Muñoz, J.L.; Fernández-Díaz, M.T.; Aranda, M.A.G. High-temperature structural evolution of RNiO3 (R = Ho, Y, Er, Lu) perovskites: Change disproportionation and electronic localization. Phys. Rev. B 2001, 64, 094102. [Google Scholar] [CrossRef]
Materials 11 01650 g001 550

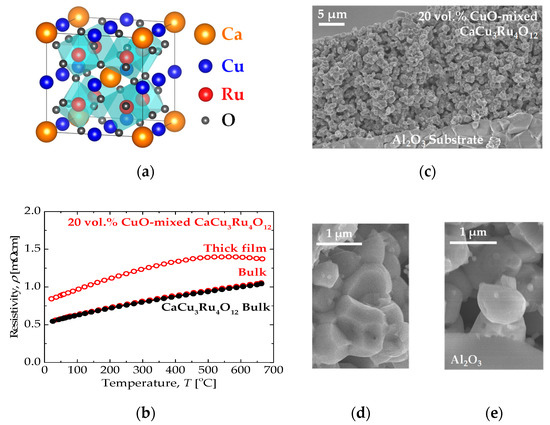

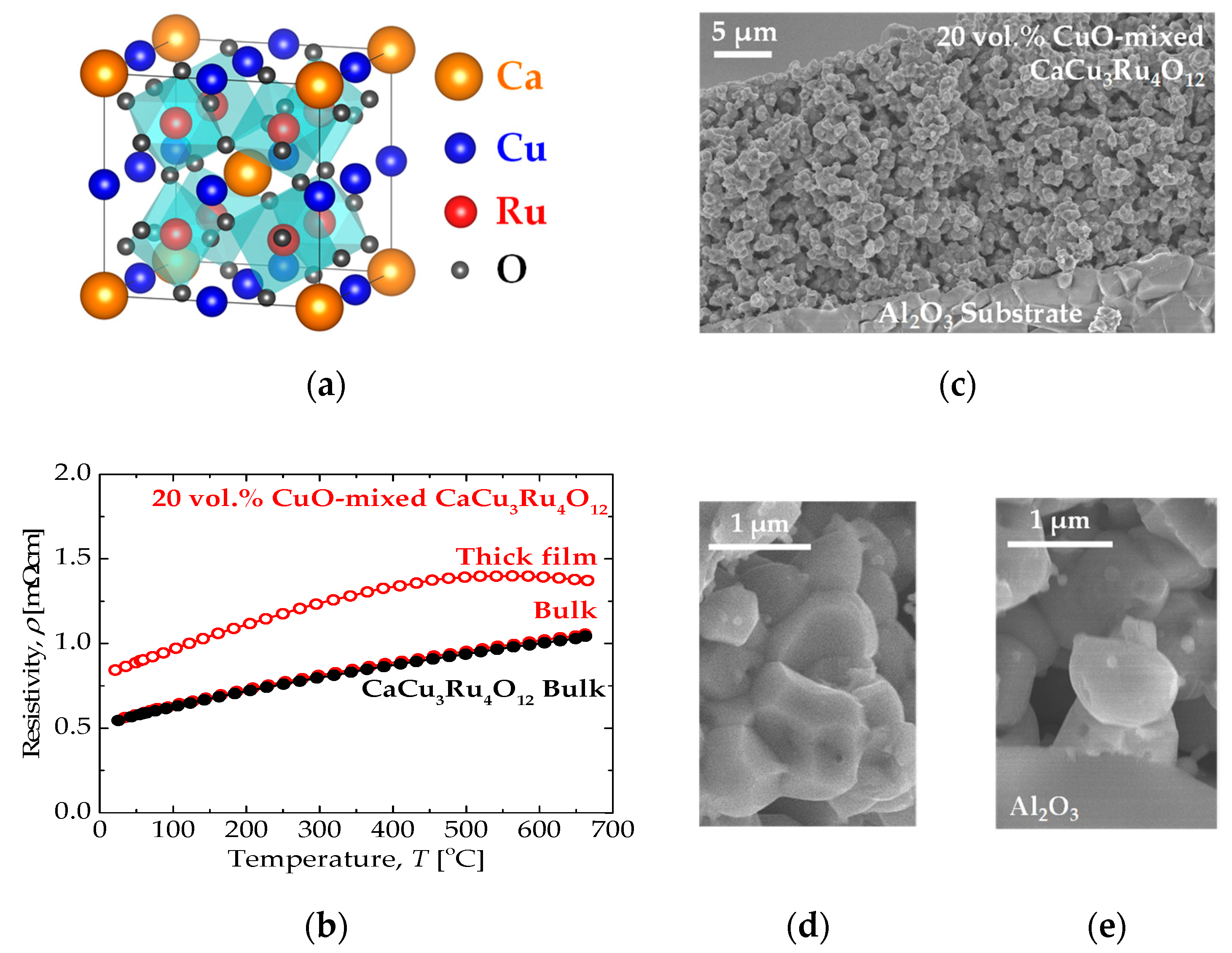

Figure 1. (a) Crystal structure of CaCu3Ru4O12. (b) Temperature dependence of the resistivity of a CaCu3Ru4O12 bulk, a 20 vol.% CuO-mixed CaCu3Ru4O12 bulk, and a 20 vol.% CuO-mixed CaCu3Ru4O12 thick film. (c) Cross-sectional SEM image of a 20 vol.% CuO-mixed CaCu3Ru4O12 thick film on an alumina substrate. (d) and (e) are magnified images of the film and the film–substrate interface, respectively, shown in (c).
Figure 1. (a) Crystal structure of CaCu3Ru4O12. (b) Temperature dependence of the resistivity of a CaCu3Ru4O12 bulk, a 20 vol.% CuO-mixed CaCu3Ru4O12 bulk, and a 20 vol.% CuO-mixed CaCu3Ru4O12 thick film. (c) Cross-sectional SEM image of a 20 vol.% CuO-mixed CaCu3Ru4O12 thick film on an alumina substrate. (d) and (e) are magnified images of the film and the film–substrate interface, respectively, shown in (c).
Materials 11 01650 g001
Materials 11 01650 g002 550

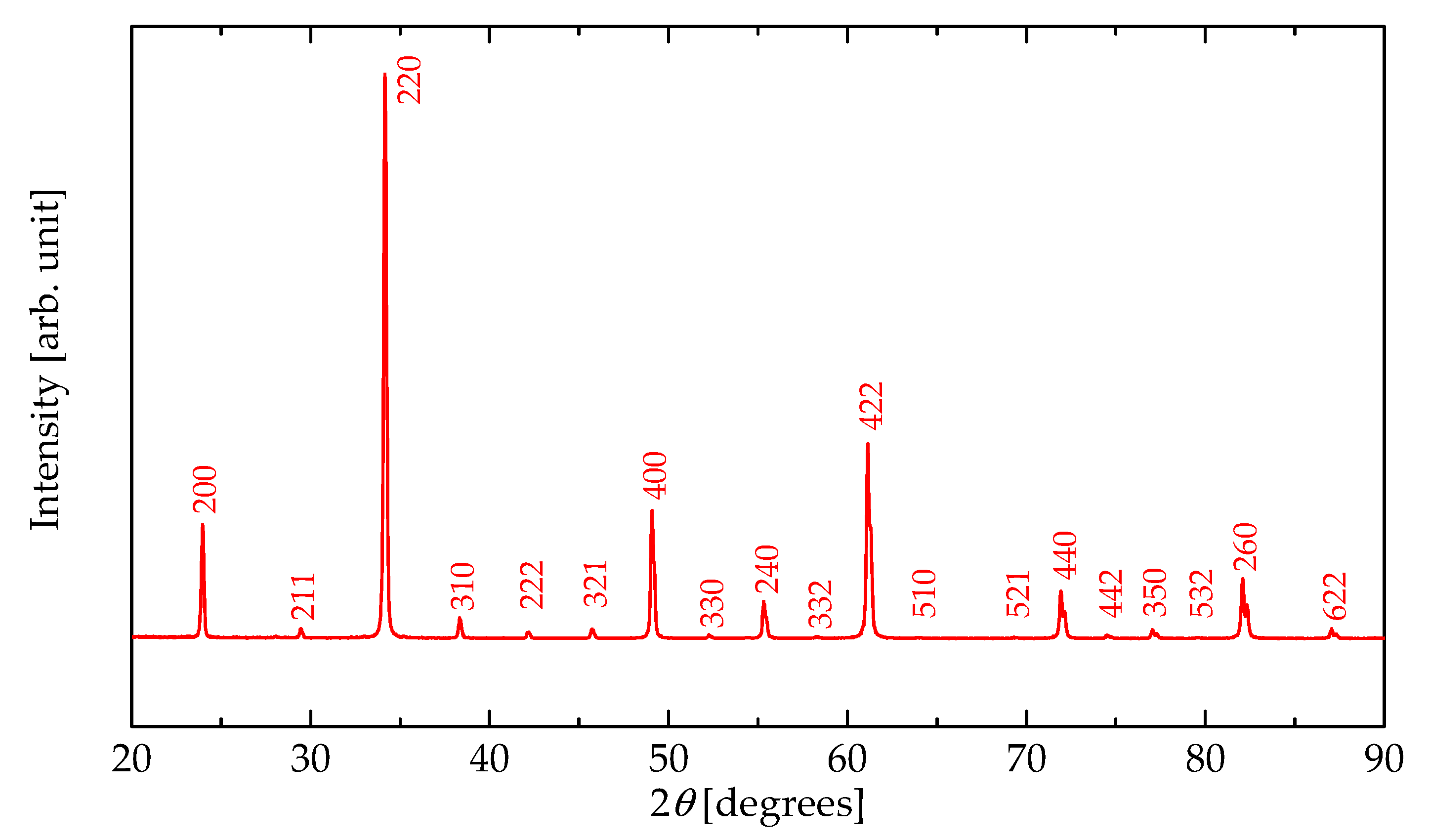

Figure 2. X-ray diffraction (XRD) (CuKα) pattern of CaCu3Ru4O12 powder measured at 25 °C.
Figure 2. X-ray diffraction (XRD) (CuKα) pattern of CaCu3Ru4O12 powder measured at 25 °C.
Materials 11 01650 g002
Materials 11 01650 g003 550

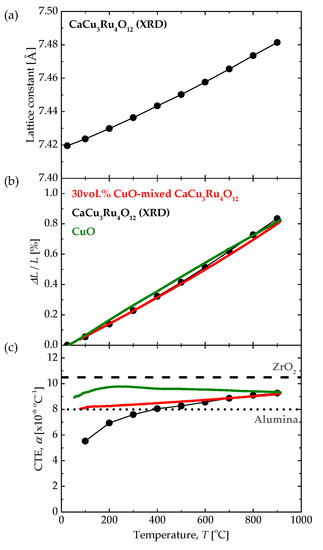

Figure 3. (a) Lattice constant of CaCu3Ru4O12 as a function of temperature. (b) Temperature dependence of ΔL/L25 and (c) temperature dependence of the CTE of the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk, CuO bulk, and CaCu3Ru4O12 samples. Data for the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk and CuO bulk were measured using a thermomechanical analyzer (TMA), while those for CaCu3Ru4O12 were calculated from powder XRD.
Figure 3. (a) Lattice constant of CaCu3Ru4O12 as a function of temperature. (b) Temperature dependence of ΔL/L25 and (c) temperature dependence of the CTE of the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk, CuO bulk, and CaCu3Ru4O12 samples. Data for the 30 vol.% CuO-mixed CaCu3Ru4O12 bulk and CuO bulk were measured using a thermomechanical analyzer (TMA), while those for CaCu3Ru4O12 were calculated from powder XRD.
Materials 11 01650 g003
Materials 11 01650 g004 550

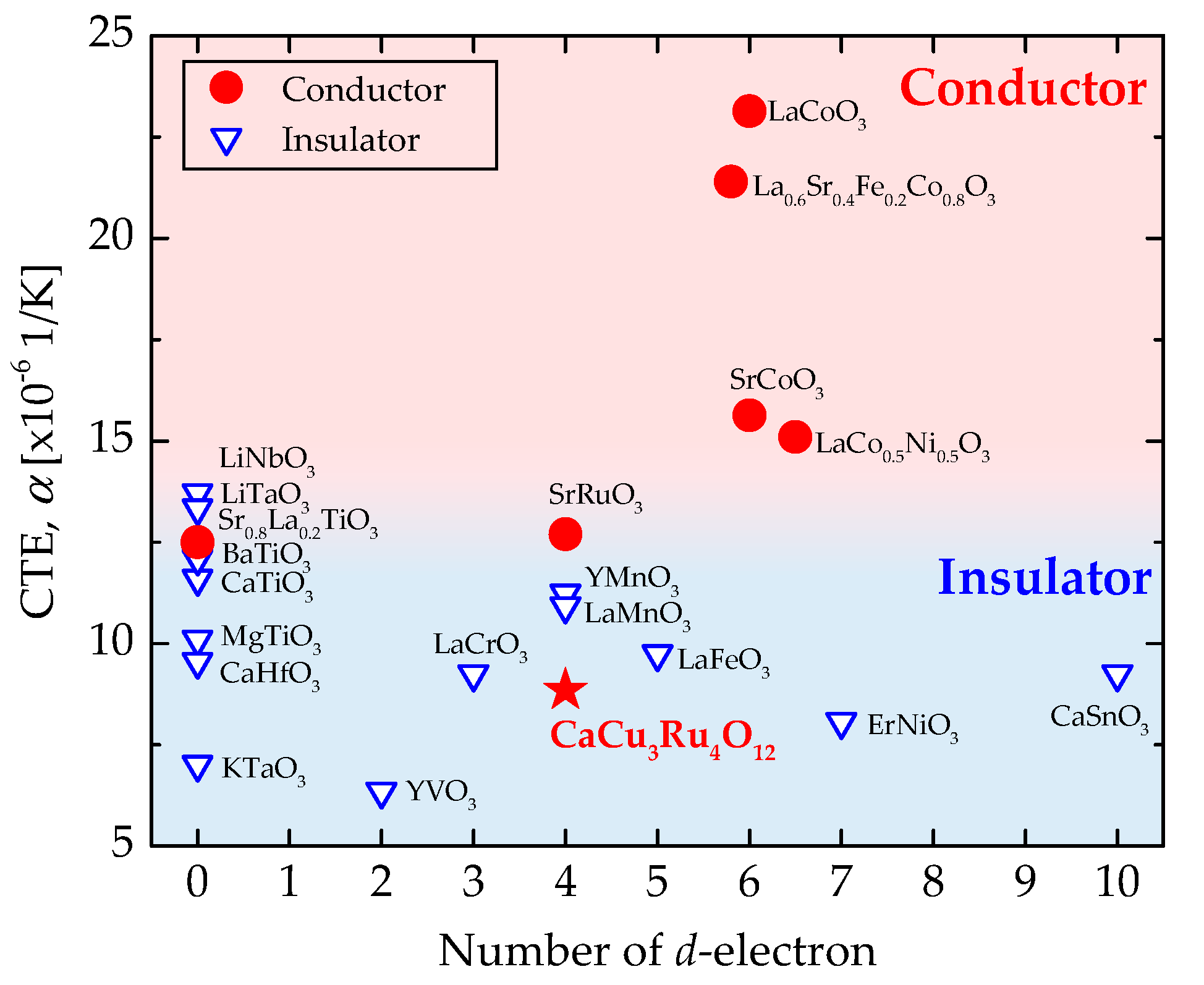

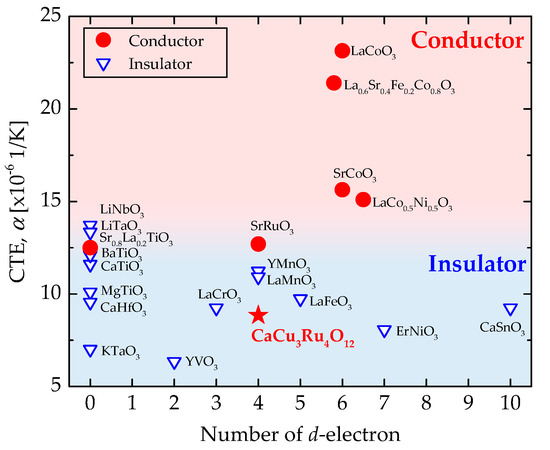

Figure 4. CTE of various perovskite oxides plotted as a function of the number of d-electrons.
Figure 4. CTE of various perovskite oxides plotted as a function of the number of d-electrons.
Materials 11 01650 g004
Materials 11 01650 g005 550

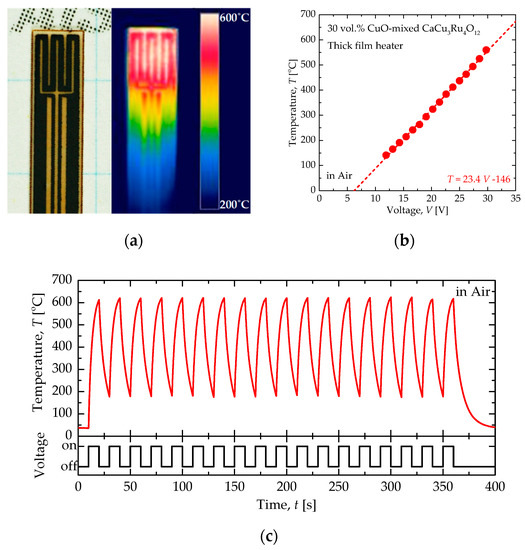

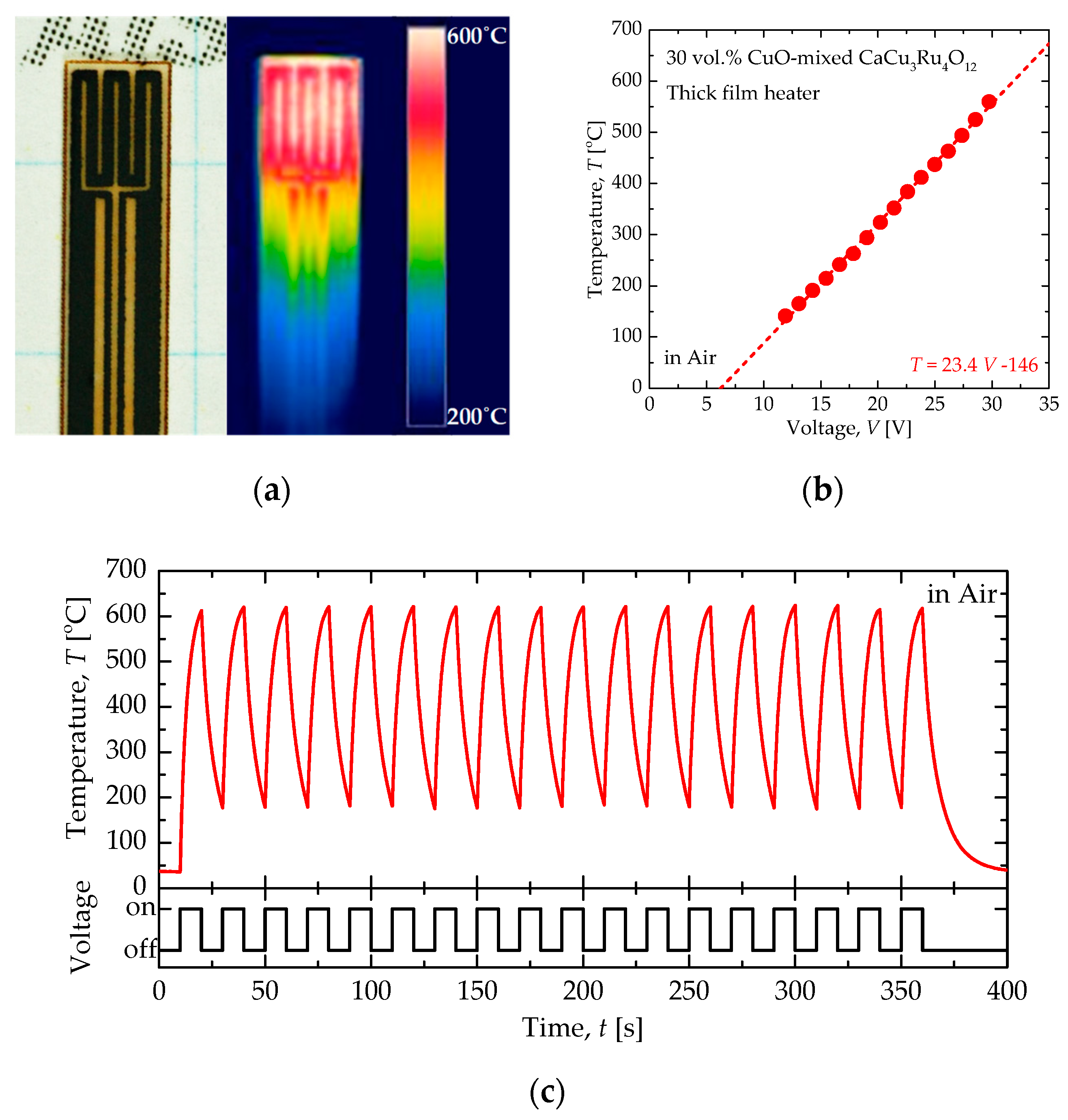

Figure 5. (a) Photograph of the 30 vol.% CuO-mixed CaCu3Ru4O12 thick-film heater on the alumina substrate and a thermal-camera image with an applied voltage of 32 V DC. (b) Temperature (T), defined as the maximum temperature over the meandering heater pattern, as a function of the applied voltage. (c) Temperature of the heater under cyclic 32.0 V pulses with a width of 10 s and cycle time of 20 s. All experiments were performed in air.
Figure 5. (a) Photograph of the 30 vol.% CuO-mixed CaCu3Ru4O12 thick-film heater on the alumina substrate and a thermal-camera image with an applied voltage of 32 V DC. (b) Temperature (T), defined as the maximum temperature over the meandering heater pattern, as a function of the applied voltage. (c) Temperature of the heater under cyclic 32.0 V pulses with a width of 10 s and cycle time of 20 s. All experiments were performed in air.
Materials 11 01650 g005
Table
Table 1. CTE, conduction behavior, B-site cation, electron orbital of B-site cation, and number of d-electron of various perovskite oxide.
Table 1. CTE, conduction behavior, B-site cation, electron orbital of B-site cation, and number of d-electron of various perovskite oxide.
MaterialCTE (×10−6/K)Conduction BehaviorB-Site CationElectron Orbital of B-Site CationNumber of D-Electron
MgTiO3[34]10.1InsulatorTi4+3d00
CaTiO3[34]11.6InsulatorTi4+3d00
BaTiO3[34]12.1InsulatorTi4+3d00
Sr0.8La0.2TiO3[37]12.5ConductorTi4+3d00
LiNbO3[34]13.7InsulatorNb5+4d00
CaHfO3[34]9.6InsulatorHf4+5d00
LiTaO3[34]13.3InsulatorTa5+5d00
KTaO3[34]7.01InsulatorTa5+5d00
YVO3[38]6.4InsulatorV3+3d22
LaCrO3[34]9.2InsulatorCr3+3d33
YMnO3[34]11.2InsulatorMn3+3d44
LaMnO3[34]10.9InsulatorMn3+3d44
SrRuO3[39]12.7ConductorRu4+4d44
CaCu3Ru4O12 8.9ConductorRu4+4d44
LaFeO3[34]9.7InsulatorFe3+3d55
La0.6Sr0.4Fe0.2Co0.8O3−x[19]21.4ConductorFe3+, Co3+3d5, 3d65.8
SrCoO3[34]15.6ConductorCo4+3d55
LaCoO3[34]23.1ConductorCo3+3d66
LaCo0.5Ni0.5O3[40]15.1ConductorCo3+, Ni3+3d6, 3d76.5
ErNiO3[41]8.1InsulatorNi3+3d77
CaSnO3[34]9.2InsulatorSn4+4d1010
The CTE values are quoted at 500 °C; for the datasets where this value was not stated, the data were linearly extrapolated to 500 °C.
