Structural Properties and Damage Detection Capability of Carbon Nanotube Modified Mortars after Freeze-Thaw

by
Panagiota Alafogianni
,
Ilias Tragazikis
,
Anastasios Balaskas
and
Nektaria-Marianthi Barkoula
*
Department of Materials Science and Engineering, University of Ioannina, 45110 Ioannina, Greece
*
Author to whom correspondence should be addressed.
Materials 2019, 12(11), 1747; https://doi.org/10.3390/ma12111747
Submission received: 6 May 2019 / Revised: 21 May 2019 / Accepted: 26 May 2019 / Published: 29 May 2019
(This article belongs to the Special Issue Carbon Nanotube Nanocomposites: Modeling and Applications)
Browse Figures
Versions Notes

Abstract

:
Here we explore the structural properties and damage sensing of cementitious mortars after a freeze-thaw process (F-T) as a function of nano-modification. For this purpose, carbon nanotubes were added at 0.2–0.8 wt.% cement using two different dispersive agents. F-T resulted in reduced fracture energy in nano-modified specimens prepared using superplasticizer as a dispersant while the opposite held true for the surfactant-containing ones. All nano-modified mortars possessed significantly higher fracture energy compared to the plain specimens after F-T (up to 73% improvement). The acoustic emission activity was lower after F-T, while acoustic emission indicators revealed a more tensile mode of fracture in both plain and nano-modified mortars.

Graphical Abstract

1. Introduction

Over the last two decades, carbon nanotube (CNT) modified cementitious composites [1,2,3,4,5,6] have been investigated with focus on two main aspects: a) the improvement of their performance and b) the production of multifunctional, smart and self-sensing materials [7,8,9]. The ability of CNTs to bridge micro-cracks and delay their propagation [10,11,12] has been proven beneficial for the fracture behavior of cementitious materials [13,14]. It has been documented that the fracture strength, toughness as well as flexural toughness index is considerably increased after the addition of low amounts of single- and multi-walled CNTs in cementitious pastes and mortars [3,13,15,16,17]. Furthermore, mechanical and fracture studies combined with acoustic emission (AE) measurements also demonstrate the enhanced damage sensing capability of cementitious materials modified with carbon nano-inclusions [18,19].
An environmental parameter of huge significance for the fracture behavior and integrity of cementitious materials is the freeze-thaw (F-T) cycling encountered in cold environments. F-T can damage cementitious materials by creating internal cracking due to cold temperature cycling. When water freezes, it exhibits a 9% volume increase that may cause deterioration either to the hardened paste, the aggregates, or both [20]. Since water is contained within the pores of the cementitious matrix destructive tensile stresses varying between 1N/mm2 and 4N/mm2 may be generated, depending on the exposure temperature, the connectivity of the pores and the degree of saturation [21,22,23]. This may result in internal micro-cracks at an early exposure stage while repeated F-T cycles may cause permanent damage to the material. The extent of deterioration depends on the conditions of exposure of the material and its transport properties, i.e. its water absorption profile. Thus, damage due to F-T may occur with low-temperature cycling combined with a high degree of saturation (>86%) [24,25].
Several studies suggest a beneficial role of carbon-based nano-inclusions on the microstructure [3,4,5,6,7,17,26,27] and in turn water sorption and water permeability [28,29,30] of cementitious materials. This has been mainly attributed to the refinement of pores and reduction in pore connectivity and bridging. Since pore structure and water permeability are of enormous significance for the F-T response of cementitious materials the addition of CNTs is also expected to greatly affect their performance after F-T cycling [31]. Indeed, recent studies demonstrate a considerable increase of the mechanical properties and dimensional stability of cementitious composites after the addition of small amounts of CNTs [32,33,34]. It has been suggested that the optimized performance of CNT-modified cementitious materials is linked with the aforementioned bridging effect of CNTs as well as the decreased fraction of large-capillary pores caused by the incorporation of the nano-phase inclusions [33]. Elsewhere however a more rapid deterioration of the relative dynamic modulus of CNT-modified composites after F-T cycling is presented in comparison to un-modified specimens [35].
It is well accepted that the dispersion of CNTs is of huge significance for the performance of cementitious materials. Insufficient dispersion has been related to the agglomeration of CNTs and in turn, inadequate stress transfer, crack initiation due to stress concentration around agglomerates and limited sensing potential [36]. CNTs are commonly dispersed by an agent (surfactant or plasticizer) in the water of the cementitious mixture, a procedure which is normally supported by the application of sonication [2,3]. The selection of type/concentration of dispersive agents is however not straightforward due to limitations in the dispersion ability of plasticizers and substantial increase of the air content values in the case of surfactants [37]. Quite recently we have demonstrated that the nature of dispersive agents determines the microstructure, absorption and barrier properties of CNT-modified cementitious mortars [37].
Based on the above, the present study contributes to current knowledge by exploring the effect of F-T on the structural properties and damage detection capability of nano-modified cementitious mortars. The dynamic modulus of elasticity, compressive strength, and fracture energy were examined before and after F-T cycling while damage sensing was monitored via AE measurements. Two different agents were used to support CNT dispersion in the cementitious matrix, one belonging to the surfactant and the other to the superplasticizer family. CNT content varied between 0 and 0.8 wt.%, in order to cover the range below and above the multi-functionality threshold of approximately 0.5–0.6 wt.% [9,38].

2. Materials and Methods

2.1. Materials

CNTs (“ONEX MW1000C1”) with a 20 to 45 nm diameter and a length over 10 μm were purchased from Glonatech SA, Athens, Greece. Two dispersive agents were used in the current study, an anionic surfactant (sodium-dodecyl-benzene sulfonate, Sigma-Aldrich, Taufkirchen, Germany) particularly popular for CNT separation and an anionic, polycarboxylate based superplasticizer (Viscocrete Ultra 300, Sika Hellas SA., Krioneri, Greece) specific to suspensions targeted for nano-modified cementitious materials [37]. Portland cement type I and natural sand were used for the preparation of the cementitious mortars. When necessary, tributyl-phosphate (TBP) (Sigma-Aldrich, Taufkirchen, Germany) and Viscocrete ultra 600 (Sika Hellas SA., Krioneri, Greece) were applied to adjust the air content and workability of the fresh mortars, respectively.

2.2. Preparation of Nano-Modified Mortars

BS EN 196-1 was followed for the preparation of the mortar specimens. Specimen’s preparation procedure is schematically illustrated in Figure 1, while details on the preparation procedure can be found elsewhere [37]. In brief, the water to cement (w/c) ratio was set at 0.5 while the sand to cement (s/c) ratio was 3. A constant amount of cement (450 g), water (225 g) and sand (1350 g) were used for the preparation of all mortars. First, CNTs (0.2–0.8 wt.% of cement) were dispersed in the water of the mixture following a procedure developed by members of our research group [36,39]. For optimum dispersion and limited alteration of the physical properties of the prepared mortars, the surfactant’s concentration was kept as low as 50% of CNTs, while the respective amount of superplasticizer was as high as 150% [36,38,39]. CNT-based suspensions were then mixed together with cement and sand for the preparation of the nano-modified mortars. In the case of surfactant-assisted mixtures, a constant amount of TBP (0.7 g) was also added together with the CNT-based suspensions. Workability was fixed by adding an appropriate amount of Viscocrete Ultra 600 (up to 2 g) at the end of the mixing procedure. Mixtures were molded for 24h and then demolded and stored in a humid environment for 27 days.

2.3. Freeze-Thaw Cycling

F-T conditions were simulated using an environmental chamber (Vötsch VC 4018, Vötsch Industrietechnik GmbH, Balingen, Germany) according to ASTM C666 [40]. Six saturated specimens of each composition were placed in the chamber and subjected to 300 F-T cycles. Each cycle included 4 h of freezing at −18 °C (dry conditions) and 4 h of thawing at 4 °C (relative humidity approximately 98%). An equal number of un-modified and CNT-modified mortars were stored in a laboratory environment for reference (un-exposed specimens, designated as “before F-T” specimens).

2.4. Testing Procedure

Ultrasound experiments were conducted on un-modified and CNT-modified mortars employing R15a AE sensors (Physical Acoustics Corp, Princeton, NJ, USA), fixed on the two opposite sides of the mortar beams [19]. The dynamic elastic modulus, E, was calculated according to Equation (1):
C p = E d ( 1 − ν ) ρ ( 1 + ν ) ( 1 − 2 ν )
where Ed is the dynamic elastic modulus in GPa, Cp is the longitudinal wave velocity in m/s, ρ is the density of mortar beams in Kg/m3, and ν the Poisson’s ratio.
Compression tests were conducted according to BS EN 196–1:2005 standard [41] on a MATEST mortar testing machine (Matest, Arcore, Italy) with a loadcell of 250 kN. Cubic specimens (40 × 40 × 40 mm3) were tested at a rate of 1.5 MPa/s.
The fracture energy of the un-modified and CNT-modified mortars was assessed using notched beams as illustrated in Figure 2, according to Reference [19]. The notch on each prismatic specimen (40 × 40 × 160 mm3) was cut to half of the prism’s height (i.e., 20 mm) [19]. Three-point bending experiments were conducted on an Instron 5967 (Instron, Norwood, MA, USA) 30 kN testing machine at a speed of 0.02 mm/s. An Instron clip on gauge was used to monitor the crack mouth opening displacement (CMOD) of the notch. Details on the test configuration and experimental set-up are provided elsewhere [19,42]. The fracture energy (Gf) in N/m of all specimens was calculated using Equation (2) [19,42]:
G F = W o + m g δ o A l i g
where Wo is the area under the load-CMOD curve, m is the weight of the device participating in the experiment (kg), g is the acceleration due to gravity (9.81 m/s2), δo the CMOD of the beam at fracture (m), and Alig is the area of the ligament (m2) [19,42].
Damage monitoring was performed using two R15a AE sensors, with max sensitivity at 150 kHz, attached on the specimen at a distance of 40mm, as illustrated in Figure 2. Details on the experimental set-up can be found in our previous publication [19].
Statistical calculations (mean values and standard deviation) were performed on the results of six specimens.

3. Results

The dynamic elastic modulus of un-modified and CNT-modified mortars is presented in Figure 3 as a function of F-T exposure. The obtained values show little variation with CNT content, and F-T cycling when superplasticizer is the dispersant (Figure 3a). For nano-modified mortars with surfactant, a slight increase was observed in the dynamic modulus after F-T cycling (Figure 3b).
The same holds for the un-modified specimens. This behavior could be linked with the continuation of the hydration process during F-T in the case of un-modified and CNT-modified specimens with surfactant. Ιn specimens where superplasticizer was used as dispersant it was speculated that hydration was completed prior to F-T exposure. Improved hydration, even after 7 days of curing, has been documented in the past in cementitious mortars with polycarboxylate-based superplasticizers [43,44], while the opposite has been observed in surfactant-containing specimens [45,46].
The compressive strength of un-modified and CNT-modified mortars before and after F-T is presented in Figure 4a for specimens with superplasticizer and Figure 4b for those with a surfactant as a dispersive agent. Figure 4a shows an up to 10% enhancement of the compressive strength, which finds its maximum after the addition of 0.6% CNTs before F-T exposure. As observed, further addition of CNTs results in a reduction of the compressive strength. This phenomenon has been documented before and has been linked with nanotube agglomeration at higher loading fractions [18]. Interestingly, F-T cycling results in a further increase of the compressive strength of specimens without and with low amounts of CNTs (up to 0.4%) while the strength is not negatively affected at higher CNT contents after F-T when superplasticizer was applied as a dispersant (Figure 4a). Independent to the CNT content, surfactant-containing specimens (Figure 4b) did not show a significant enhancement of their strength before F-T. At the same time, the compressive strength slightly dropped in all nano-modified specimens after F-T (Figure 3b). It is well accepted that the compressive strength of the cementitious matrix is related to the w/c ratio, the level of compaction and the porosity of the matrix [47]. Since compressive loading does not support extensive crack mouth opening, micro-cracks that developed during the F-T stage were not expected to substantially propagate during compression and thus, the behavior presented in Figure 4 should be more linked to the effect of F-T on the microstructure of the matrix. It has been previously documented that small amounts of nano-modification lead to a reduction in the number of capillary pores in both surfactant and superplasticizer containing specimens [37]. The reduction was, however, higher in nano-modified mortars using superplasticizer as a dispersant [37]. Another factor that needs to be considered is the macro-porosity in surfactant-containing specimens due to the air-entrapment action of the surfactant. As aforementioned, TBP was used during the preparation of the surfactant-containing specimens in order to keep the air content values constant. However, it was speculated that air was locally entrapped in the cementitious matrix leading to as light deterioration of the compressive strength. Based on the above, it can be understood why the compressive strength of CNT-modified specimens prepared with superplasticizer was superior to those prepared using surfactant, prior and post F-T cycling.
Since the opening of a crack is not supported during compression, it is imperative to evaluate the effect of F-T on the fracture behavior of the nano-modified mortars under bending conditions, which facilitate the crack propagation. This effect is illustrated in Figure 5a,b, based on the energy required to fracture notched specimens prepared using a superplasticizer and surfactant as dispersive agents, respectively. Nano-modified mortars prepared with the aid of superplasticizer presented a slight increase in the fracture energy before F-T cycling, with the exception of specimens with 0.8 wt.% CNTs which showed an approximately 20% drop in the fracture energy(Figure 5a). Surfactant-based mortars maintained their fracture energy for CNT contents up to 0.6 wt.% before F-T, while further addition resulted in a slight deterioration of the energy (Figure 5b). This could be due to the insufficient dispersion of CNTs at high CNT loadings. Agglomerates acted as stress concentration points, which facilitated the generation and propagation of cracks and in turn resulted in reduced fracture energy.
It is worth mentioning that after F-T, the response of nano-modified mortars presented opposite trends under bending loading compared to compression. Nano-modified specimens prepared with superplasticizer showed a considerable reduction (up to 32%) of the fracture energy after F-T exposure when the CNT content was as high as 0.6 wt.% while mortars modified with 0.8 wt.% CNTs displayed an approximately 20% increase in the fracture energy. On the contrary, surfactant-assisted nano-modified mortars demonstrated enhanced fracture behavior after F-T exposure for all CNT contents, while mortars with 0.6 wt.% CNTs displayed the highest improvement (approximately 37% increase of the fracture energy compared to the same specimens before F-T cycling). Another interesting observation was that all nano-modified mortars possessed a much higher fracture energy compared to plain specimens after F-T (up to 73% improvement). Thus it was obvious that nano-modification was beneficial for the durability of cementitious mortars exposed to F-T conditions. Furthermore, it can be concluded that the dispersive agent-related microstructure played a substantial role in the fracture behavior of nano-modified mortars.
In order to elucidate on these findings, a direct comparison of the representative load-CMOD curves is provided in Figure 6, based on the example of specimens with 0.6 wt.% CNTs. As illustrated in Figure 6a–c, the elastic region of the load-CMOD curves was not altered due to F-T cycling in both un-modified and 0.6 wt.% CNT-modified mortars. On the contrary, plastic deformation was considerably affected by F-T cycling. Un-modified and modified specimens with 0.6 wt.% CNTs prepared using superplasticizer as a dispersant displayed lower fracture toughness after F-T, as illustrated by the reduction of the area under the load-CMOD curve compared to that before F-T. On the other hand, surfactant-containing specimens modified with 0.6 wt.% CNTs showed a slightly lower peak load but considerably higher plastic deformation, indicative of their higher toughness after F-T. The elastic response was determined by the stiffness of the prepared mortars, while their plastic deformation was linked with the initiation, propagation and bridging of cracks as well as pull-out of the reinforcement.
Thus, in order to explain the behavior presented in Figure 5 and Figure 6 we need to consider the crack formation and propagation during F-T, and how this is influenced by CNT dispersion with the aid of dispersive agents. The main driving force for crack formation is F-T of water. As mentioned above, the pressure that builds up during F-T cycling depends greatly on the amount of absorbed water as well as the size and the connectivity of the pores. Overall the enhanced fracture response of nano-modified specimens after F-T compared to un-modified ones could be explained on the basis of pore refinement, and thus reduction of contained water, as well as bridging of cracks due to the dispersion of CNTs. Previous studies have demonstrated that the total amount of water after full immersion was lower in nano-modified specimens prepared with a surfactant as a dispersive agent compared to those prepared with superplasticizer [37]. As explained in Reference [37], both sodium-dodecyl-benzene sulfonate and Viscocrete contain hydrophilic groups (sulfonate groups of the former, hydroxyl- and carboxyl-groups of the later) that may interact with water. However, due to the higher amount of superplasticizer based specimens were more susceptible to water than surfactant ones. Furthermore, as aforementioned, it was documented that specimens prepared with superplasticizer presented smaller gel-sized pores compared to the medium-sized pores of surfactant specimens [37]. Taking these two facts into consideration, it can be speculated that compared to nano-modified specimens using surfactant, those prepared using superplasticizer hold more water which cannot be freely expanded since it is contained in smaller-sized pores, leading thus in higher build-up pressures. This argument is in line with the results of atomistic modeling and molecular dynamic simulations on water desorption/adsorption during F-T cycles, which revealed increased nano-pore failure in graphene reinforced cementitious materials due to water movement between gel and capillary pores [48]. Thus, the enhanced performance of surfactant-containing specimens after F-T could be associated with a lower amount of water and ease of water migration from medium-sized to capillary pores during F-T, which results in a lower amount of nano-pore failure. Additionally, as already discussed, although an antifoaming agent (TBP) has been used in surfactant-containing specimens, it was expected that air was locally entrained, improving the F-T resistance of these specimens. Overall it can be concluded that next to pore refinement due to nano-modification, one should consider also the type of dispersive agents used for the preparation of the nano-modified specimens, the air forming behavior and their affinity with water in order to access their F-T response.
Damage sensing capability during fracture as a function of F-T exposure is being illustrated based on the AE activity of un-modified, CNT-modified specimens prepared with superplasticizer or surfactant as dispersive agent (Figure 7a,b, respectively). The AE activity varied with the CNT content and dispersive agent in a non-monotonic way. Since pull-out of individual CNTs was expected to result in an enhanced acoustic response, a higher activity was indicative of a higher amount of well-dispersed tubes. Furthermore, it was observed that F-T cycling led to a decrease of the AE activity of all compositions. The observed reduction could be linked with the attenuation of the AE signal due to the water absorbed in the cementitious matrix during the thawing phase, as well as the existence of micro-cracks. Surfactant-containing mortars displayed a greater reduction of their AE activity after the exposure, which can be further linked with their more ductile failure pattern, assuming that brittle fracture creates more noise during crack propagation.
Two very interesting AE parameters used to evaluate the fracture mode of cementitious materials are the rise time/amplitude (RA) of the AE signal and the average frequency, counts/duration (AF) of the AE signal [49,50,51]. As stated before, in three-point bending tests mode I (tensile) cracks resulted in waveforms with low RA (in the vicinity of 2000 μs/V) and high AF (approximately 60 kHz), whereas mode II (shear) cracks corresponded to waveforms with higher RA (in the vicinity of 4000 μs/V) and lower AF (approximately 30 kHz) [49,50,51]. RA and AF values of the nano-modified mortars before and after F-T are plotted in Figure 8 and Figure 9, respectively.
As observed in Figure 8, F-T cycling resulted in a considerable reduction of RA on both un-modified and CNT-modified mortars prepared with superplasticizer/surfactant. Un-modified specimens exhibited a reduction of RA from approximately 1250 to 930 μs/V (26% drop). For CNT-modified mortars, the highest reduction was found after 0.4 wt.% nano-modification (28% and 37%, drop for superplasticizer and surfactant specimens, respectively). At the same time, as illustrated in Figure 9, all specimens presented an increase in the AF after F-T cycles from approximately 45 kHz to 55–60 kHz. The increase in un-modified specimens was approximately 12%, while nano-modified mortars presented a maximum increase of approximately 20%, which was found at intermediate CNT contents (0.4–0.6 wt.%), independent to the dispersive medium.
Based on the obtained RA and respective AF values, the mode of fracture can be identified as tensile. The fact that the RA values drop, while the corresponding AF values increase, indicate a more tensile mode of fracture after F-T. This was observed, as aforementioned, in both un-modified and CNT-modified specimens, but became more intense in the case of CNT-modified mortars with 0.4–0.6 wt.% CNTs. As discussed throughout the current manuscript, F-T cycling resulted in the development of micro-cracks due to the expansion of absorbed water within the cementitious matrix and at the boundaries between the matrix and the aggregates. Modification of the cementitious matrix with CNTs was expected to lead to crack-bridging as well as pull-out at the nano-scale during bending, and in turn delayed fracture, providing the tubes were well dispersed and do not form agglomerates.
The fact that RA took its minimum value at 0.4–0.6 wt.% CNT content, where AF found its maximum after F-T implied that, at this range, CNTs were better dispersed and support pull-out and bridging mechanisms in a more controlled manner than in the case where the CNT content was low (0.2%), or very high (0.8%—extensive agglomeration). This is in line with previous data that found maximum improvement in flexural strength and respective drop of RA value of nano-modified mortars reinforced with 0.4 wt.% CNTs [18].

4. Conclusions

The current study investigated the durability of CNT-modified cementitious mortars after F-T cycling. CNTs were dispersed using two different types of agents, one belonging to the superplasticizer and the other to the surfactant family. Structural properties were assessed based on the dynamic elastic modulus, compressive strength and fracture energy of notched specimens under 3-point bending configuration. The obtained results led to the following conclusions:
  • F-T exposure slightly enhanced the dynamic elastic modulus of un-modified and CNT-modified mortars prepared with a surfactant as a dispersive agent, while those prepared with superplasticizer present minor variations before and after F-T. This has been associated with enhanced hydration and compaction in specimens prepared with superplasticizer as a dispersant.
  • F-T cycling did not significantly impact the compressive strength of CNT-modified specimens which was mainly determined by the microstructure of the specimens. The use of a superplasticizer as a dispersant facilitated the compaction of the specimens and enhanced their compressive strength prior and post F-T cycling.
  • Nano-modification was beneficial for the durability of cementitious mortars exposed to F-T conditions since it resulted in an up to 73% higher fracture energy. The level of improvement was, however, dictated not only by the CNT content and dispersion efficiency but also by the nature of the dispersive agents. The dispersive agents controlled the size of micro-pores, the level of pressure built and, in turn, the way microcracks developed during the F-T cycling.
  • Damage sensing activity was lower; however, it was still possible to identify a more tensile mode of fracture after F-T using critical AE indicators (RA and AF). This was more obvious in the case of nano-modified mortars with 0.4–0.6 wt.% CNTs. This fact was linked with better-dispersed nanotubes that supported pull-out/crack bridging mechanisms.

Author Contributions

Conceptualization, N.-M.B.; methodology, P.A., I.T., A.B., and N.-M.B.; validation, N.-M.B.; formal analysis, P.A., I.T., A.B., and N.-M.B.; investigation, P.A., I.T., and A.B.; resources, N-M.B.; writing—original draft preparation, P.A.; writing—review and editing, N.-M.B.; visualization, P.A., I.T., A.B., and N.-M.B.; supervision, N.-M.B.; project administration, N.-M.B.; funding acquisition, N.-M.B.

Funding

This research project was implemented through the Operational Program “Human Resources Development, Education and Lifelong Learning” and was co-financed by the European Union (European Social Fund) and Greek national funds.

Acknowledgments

The authors wish to thank the MSS-NDE Laboratory of the University of Ioannina for providing access to the concrete technology lab, mechanical testing and AE facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, B.; Wang, Y.; Dong, S.; Zhang, L.; Ding, S.; Yu, X.; Ou, J. Smart concretes and structures: A review. J. Intell. Mater. Syst. Struct. 2015, 26, 1303–1345. [Google Scholar] [CrossRef]
  2. Han, B.; Sun, S.; Ding, S.; Zhang, L.; Yu, X.; Ou, J. Review of nanocarbon-engineered multifunctional cementitious composites. Compos. Part A Appl. Sci. Manuf. 2015, 70, 69–81. [Google Scholar] [CrossRef]
  3. Parveen, S.; Rana, S.; Fangueiro, R. A Review on Nanomaterial Dispersion, Microstructure, and Mechanical Properties of Carbon Nanotube and Nanofiber Reinforced Cementitious Composites. J. Nanomater. 2013, 2013, 710175. [Google Scholar] [CrossRef]
  4. Manzur, T.; Yazdani, N.; Emon, A.B. Potential of Carbon Nanotube Reinforced Cement Composites as Concrete Repair Material. J. Nanomater. 2016, 2016, 1421959. [Google Scholar] [CrossRef]
  5. Chen, S.J.; Collins, F.G.; Macleod, A.J.N.; Pan, Z.; Duan, W.H.; Wang, C.M. Carbon nanotube-cement composites: A retrospect. IES J. Part A Civ. Struct. Eng. 2011, 4, 254–265. [Google Scholar] [CrossRef]
  6. Li, Q.; Liu, J.; Xu, S. Progress in Research on Carbon Nanotubes Reinforced Cementitious Composites. Adv. Mater. Sci. Eng. 2015, 2015, 307435. [Google Scholar] [CrossRef]
  7. Han, B.; Yu, X.; Ou, J. Multifunctional and Smart Carbon Nanotube Reinforced Cement-Based Materials. Nanotechnol. Civ. Infrastruct. 2011, 1–47. [Google Scholar] [CrossRef]
  8. Li, G.Y.; Wang, P.M.; Zhao, X. Pressure-sensitive properties and microstructure of carbon nanotube reinforced cement composites. Cem. Concr. Compos. 2007, 29, 377–382. [Google Scholar] [CrossRef]
  9. Dalla, P.T.; Dassios, K.G.; Tragazikis, I.K.; Exarchos, D.A.; Matikas, T.E. Carbon nanotubes and nanofibers as strain and damage sensors for smart cement. Mater. Today Commun 2016, 8, 2352–4928. [Google Scholar] [CrossRef]
  10. Abu Al-Rub, R.K.; Ashour, A.I.; Tyson, B.M. On the aspect ratio effect of multi-walled carbon nanotube reinforcements on the mechanical properties of cementitious nanocomposites. Constr. Build. Mater. 2012, 35, 647–655. [Google Scholar] [CrossRef]
  11. Li, G.Y.; Wang, P.M.; Zhao, X. Mechanical behavior and microstructure of cement composites incorporating surface-treated multi-walled carbon nanotubes. Carbon N. Y. 2005, 43, 239–1245. [Google Scholar] [CrossRef]
  12. Parveen, S.; Rana, S.; Fangueiro, R.; Paiva, M.C. Microstructure and mechanical properties of carbon nanotube reinforced cementitious composites developed using a novel dispersion technique. Cem. Concr. Res. 2015, 73, 215–227. [Google Scholar] [CrossRef]
  13. Zohhadi, N.; Koohbor, B.; Matta, F.; Kidane, A. Characterization of Fracture Behavior of Multi-Walled Carbon Nanotube Reinforced Cement Paste Using Digital Image Correlation. Conf. Proc. Soc. Exp. Mech. Ser. 2015, 5, 73–79. [Google Scholar] [CrossRef]
  14. Sindu, B.S.; Sasmal, S. Properties of carbon nanotube reinforced cement composite synthesized using different types of surfactants. Constr. Build. Mater. 2017, 155, 389–399. [Google Scholar] [CrossRef]
  15. Wang, B.; Han, Y.; Liu, S. Effect of highly dispersed carbon nanotubes on the flexural toughness of cement-based composites. Constr. Build. Mater. 2013, 46, 8–12. [Google Scholar] [CrossRef]
  16. Hawreen, A.; Bogas, J.A.; Dias, A.P.S. On the mechanical and shrinkage behavior of cement mortars reinforced with carbon nanotubes. Constr. Build. Mater. 2018, 168, 459–470. [Google Scholar] [CrossRef]
  17. Zou, B.; Chen, S.J.; Korayem, A.H.; Collins, F.; Wang, C.M.; Duan, W.H. Effect of ultrasonication energy on engineering properties of carbon nanotube reinforced cement pastes. Carbon N. Y. 2015, 85, 212–220. [Google Scholar] [CrossRef]
  18. Tragazikis, I.K.; Dassios, K.G.; Exarchos, D.A.; Dalla, P.T.; Matikas, T.E. Acoustic emission investigation of the mechanical performance of carbon nanotube-modified cement-based mortars. Constr. Build. Mater. 2016, 122, 518–524. [Google Scholar] [CrossRef]
  19. Tragazikis, I.K.; Dassios, K.G.; Dalla, P.T.; Exarchos, D.A.; Matikas, T.E. Acoustic emission investigation of the effect of graphene on the fracture behavior of cement mortars. Eng. Fract. Mech. 2019, 210, 444–451. [Google Scholar] [CrossRef]
  20. Trofimov, B.Y.; Kramar, L.Y.; Schuldyakov, K.V. On Deterioration Mechanism of Concrete Exposed to Freeze-Thaw Cycles. IOP Conf. Ser. Mater. Sci. Eng. 2017, 262, 012019. [Google Scholar] [CrossRef] [Green Version]
  21. Powers, T.C. Freezing Effects in Concrete. Spec. Publ. 1975, 47, 1–12. [Google Scholar] [CrossRef]
  22. Zeng, Q.; Fen-Chong, T.; Dangla, P.; Li, K. A study of freezing behavior of cementitious materials by poromechanical approach. Int. J. Solids Struct. 2011, 48, 3267–3273. [Google Scholar] [CrossRef]
  23. Bjegovic, D.; Ukraincik, V. Theoretical Aspect and Methods of Testing Concrete Resistance to Freezing and Deicing Chemicals. Spec. Publ. 1987, 100, 947–972. [Google Scholar] [CrossRef]
  24. Li, W.; Pour-Ghaz, M.; Asce, M.; Castro, J.; Weiss, J. Water Absorption and Critical Degree of Saturation Relating to Freeze-Thaw Damage in Concrete Pavement Joints Background on the Problem of Joint Deterioration in Concrete Pavements. J. Mater. Civ. Eng. 2012, 24, 299–307. [Google Scholar] [CrossRef]
  25. Farnam, Y.; Bentz, D.; Hampton, A.; Weiss, W.J. Acoustic Emission and Low-Temperature Calorimetry Study of Freeze and Thaw Behavior in Cementitious Materials Exposed to Sodium Chloride Salt. Transp. Res. Rec. 2014, 2441, 81–90. [Google Scholar] [CrossRef]
  26. Nochaiya, T.; Chaipanich, A. Behavior of multi-walled carbon nanotubes on the porosity and microstructure of cement-based materials. Appl. Surf. Sci. 2011, 257, 1941–1945. [Google Scholar] [CrossRef]
  27. Yakovlev, G.I.; Skripkiunas, G.; Polianskich, I.S.; Lahayne, O.; Eberhardsteiner, J.; Urkhanova, L.A.; Pudova, I.A.; Sychugova, S.V.; Karpovaa, E.A.; Sen’kov, S.A. Modification of Cement Matrix Using Carbon Nanotube Dispersions and Nanosilica. Procedia Eng. 2017, 172, 1261–1269. [Google Scholar] [CrossRef]
  28. Han, B.; Yang, Z.; Shi, X.; Yu, X. Transport properties of carbon-nanotube/cement composites. J. Mater. Eng. Perform. 2013, 22, 184–189. [Google Scholar] [CrossRef]
  29. Mohammed, A.; Sanjayan, J.G.; Duan, W.H.; Nazari, A. Incorporating graphene oxide in cement composites: A study of transport properties. Constr. Build. Mater. 2015, 84, 341–347. [Google Scholar] [CrossRef]
  30. Du, H.; Pang, S.D. Enhancement of barrier properties of cement mortar with graphene nanoplatelet. Cem. Concr. Res. 2015, 76, 10–19. [Google Scholar] [CrossRef]
  31. Cwirzen, A.; Habermehl-Cwirzen, K. The Effect of Carbon Nano- and Microfibers on Strength and Residual Cumulative Strain of Mortars Subjected to Freeze-Thaw Cycles. J. Adv. Concr. Technol. 2013, 11, 80–88. [Google Scholar] [CrossRef] [Green Version]
  32. Yakovlev, G.; Pervushin, G.; Maeva, I.; Keriene, J.; Pudov, I.; Shaybadullina, A.; Buryanovc, A.; Korzhenko, A.; Senkov, S. Modification of construction materials with multi-walled carbon nanotubes. Procedia Eng. 2013, 57, 407–413. [Google Scholar] [CrossRef]
  33. Li, W.W.; Ji, W.M.; Wang, Y.C.; Liu, Y.; Shen, R.X.; Xing, F. Investigation on the mechanical properties of a cement-based material containing carbon nanotube under drying and freeze-thaw conditions. Materials 2015, 8, 8780–8792. [Google Scholar] [CrossRef]
  34. Wang, X.; Rhee, I.; Wang, Y.; Xi, Y. Compressive strength, chloride permeability, and freeze-thaw resistance of mwnt concretes under different chemical treatments. Sci. World J. 2014, 2014, 572102. [Google Scholar] [CrossRef]
  35. Kumar, S.; Kolay, P.; Malla, S.; Mishra, S. Effect of Multiwalled Carbon Nanotube in Cement Composite on Mechanical Strength and Freeze-Thaw Susceptibility. Adv. Civ. Eng. Mater. 2015, 4, 257–274. [Google Scholar] [CrossRef]
  36. Dassios, K.G.; Alafogianni, P.; Antiohos, S.K.; Leptokaridis, C.; Barkoula, N.M.; Matikas, T.E. Optimization of sonication parameters for homogeneous surfactant assisted dispersion of multiwalled carbon nanotubes in aqueous solutions. J. Phys. Chem. C 2015, 119, 7506–7516. [Google Scholar] [CrossRef]
  37. Alafogianni, P.; Dassios, K.; Tsakiroglou, C.D.; Matikas, T.E.; Barkoula, N.M. Effect of CNT addition and dispersive agents on the transport properties and microstructure of cement mortars. Constr. Build. Mater. 2018, 197, 251–261. [Google Scholar] [CrossRef]
  38. Al-Dahawi, A.; Sarwary, M.H.; Öztürk, O.; Yıldırım, G.; Akın, A.; Şahmaran, M.; Lachemi, M. Electrical percolation threshold of cementitious composites possessing self-sensing functionality incorporating different carbon-based materials. Smart Mater. Struct. 2016, 25, 105005. [Google Scholar] [CrossRef]
  39. Alafogianni, P.; Dassios, K.; Farmaki, S.; Antiohos, S.K.; Matikas, T.E.; Barkoula, N.M. On the efficiency of UV-vis spectroscopy in assessing the dispersion quality in sonicated aqueous suspensions of carbon nanotubes. Colloids Surf. A Physicochem. Eng. Asp. 2016, 495, 118–124. [Google Scholar] [CrossRef]
  40. American Society for Testing Materials. Committee C-9 on Concrete and Concrete Aggregates. In Standard Test Method Foe Resistance of Concrete to Rapid Freezing and Thawing; ASTM International: West Conshohocken, PA, USA, 2008. [Google Scholar]
  41. BS EN 196-1:2005. Methods Of Testing Cement—Part 1: Determination of Strength; British Standards Institution: London, UK, 2013. [Google Scholar]
  42. Matikas, T.E. Towards the Next Generation of Standards for Service Life of Cement-Based Materials and Structures; COST Action-TU1404; COST Association: Brussels, Belgium, 2016. [Google Scholar]
  43. Huang, H.; Qian, C.; Zhao, F.; Qu, J.; Guo, J.; Danzinger, M. Improvement on microstructure of concrete by polycarboxylate superplasticizer (PCE) and its influence on durability of concrete. Constr. Build. Mater. 2016, 110, 293–299. [Google Scholar] [CrossRef]
  44. Zhang, Y.; Kong, X. Influences of superplasticizer, polymer latexes and asphalt emulsions on the pore structure and impermeability of hardened cementitious materials. Constr. Build. Mater. 2014, 53, 392–402. [Google Scholar] [CrossRef]
  45. Shao, H.; Chen, B.; Li, B.; Tang, S.; Li, Z. Influence of dispersants on the properties of CNTs reinforced cement-based materials. Constr. Build. Mater. 2017, 131, 186–194. [Google Scholar] [CrossRef]
  46. Sobolkina, A.; Mechtcherine, V.; Khavrus, V.; Maier, D.; Mende, M.; Ritschel, M.; Leonhardt, A. Dispersion of carbon nanotubes and its influence on the mechanical properties of the cement matrix. Cem. Concr. Compos. 2012, 34, 1104–1113. [Google Scholar] [CrossRef]
  47. Ouyang, X.; Guo, Y.; Qiu, X. The feasibility of synthetic surfactant as an air entraining agent for the cement matrix. Constr. Build. Mater. 2008, 22, 1774–1779. [Google Scholar] [CrossRef]
  48. Tong, T.; Fan, Z.; Liu, Q.; Wang, S.; Tan, S.; Yu, Q. Investigation of the effects of graphene and graphene oxide nanoplatelets on the micro- and macro-properties of cementitious materials. Constr. Build. Mater. 2016, 106, 102–114. [Google Scholar] [CrossRef]
  49. Aggelis, D.G.; Mpalaskas, A.C.; Matikas, T.E. Investigation of different fracture modes in cement-based materials by acoustic emission. Cem. Concr. Res. 2013, 48, 1–8. [Google Scholar] [CrossRef]
  50. Soulioti, D.; Barkoula, N.M.; Paipetis, A.; Matikas, T.E.; Shiotani, T.; Aggelis, D.G. Acoustic emission behavior of steel fibre reinforced concrete under bending. Constr. Build. Mater. 2009, 23, 3532–3536. [Google Scholar] [CrossRef] [Green Version]
  51. Ohtsu, M.; Shiotani, T.; Shigeishi, M.; Kamada, T.; Yuyama, S.; Watanabe, T.; Grosse, C.; Helmerich, R.; Forde, M.C.; Moczko, A.; et al. Recommendation of RILEM TC 212-ACD: Acoustic emission and related NDE techniques for crack detection and damage evaluation in concrete: Measurement method for acoustic emission signals in concrete. Mater. Struct. 2010, 43, 1187–1189. [Google Scholar] [CrossRef]
Materials 12 01747 g001 550

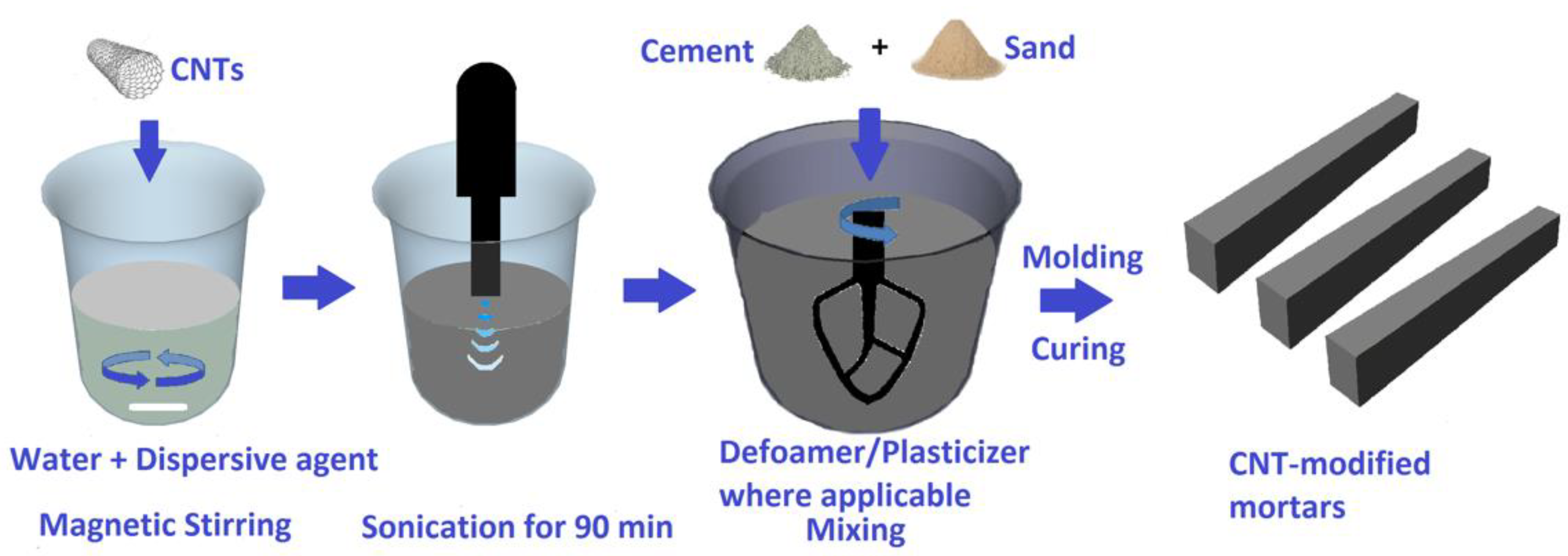

Figure 1. Schematic illustration of the specimen’s preparation procedure.
Figure 1. Schematic illustration of the specimen’s preparation procedure.
Materials 12 01747 g001
Materials 12 01747 g002 550
Figure 2. Configuration of the fracture energy test set-up.
Figure 2. Configuration of the fracture energy test set-up.
Materials 12 01747 g002
Materials 12 01747 g003 550

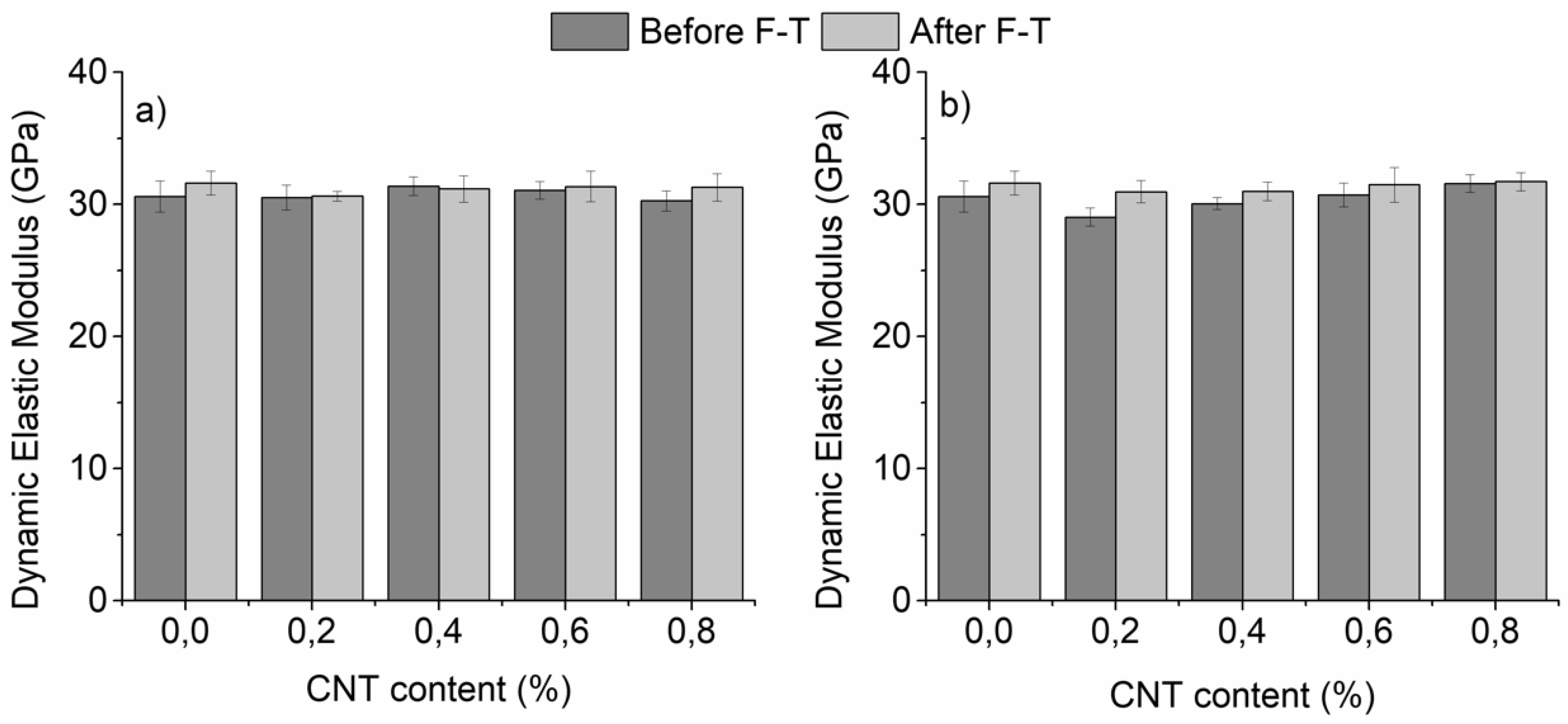

Figure 3. Dynamic elastic modulus of nano-mortars prepared with (a) superplasticizer and (b) surfactant as a dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Figure 3. Dynamic elastic modulus of nano-mortars prepared with (a) superplasticizer and (b) surfactant as a dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Materials 12 01747 g003
Materials 12 01747 g004 550
Figure 4. Compressive strength of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Figure 4. Compressive strength of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Materials 12 01747 g004
Materials 12 01747 g005 550
Figure 5. Fracture energy of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Figure 5. Fracture energy of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Materials 12 01747 g005
Materials 12 01747 g006 550

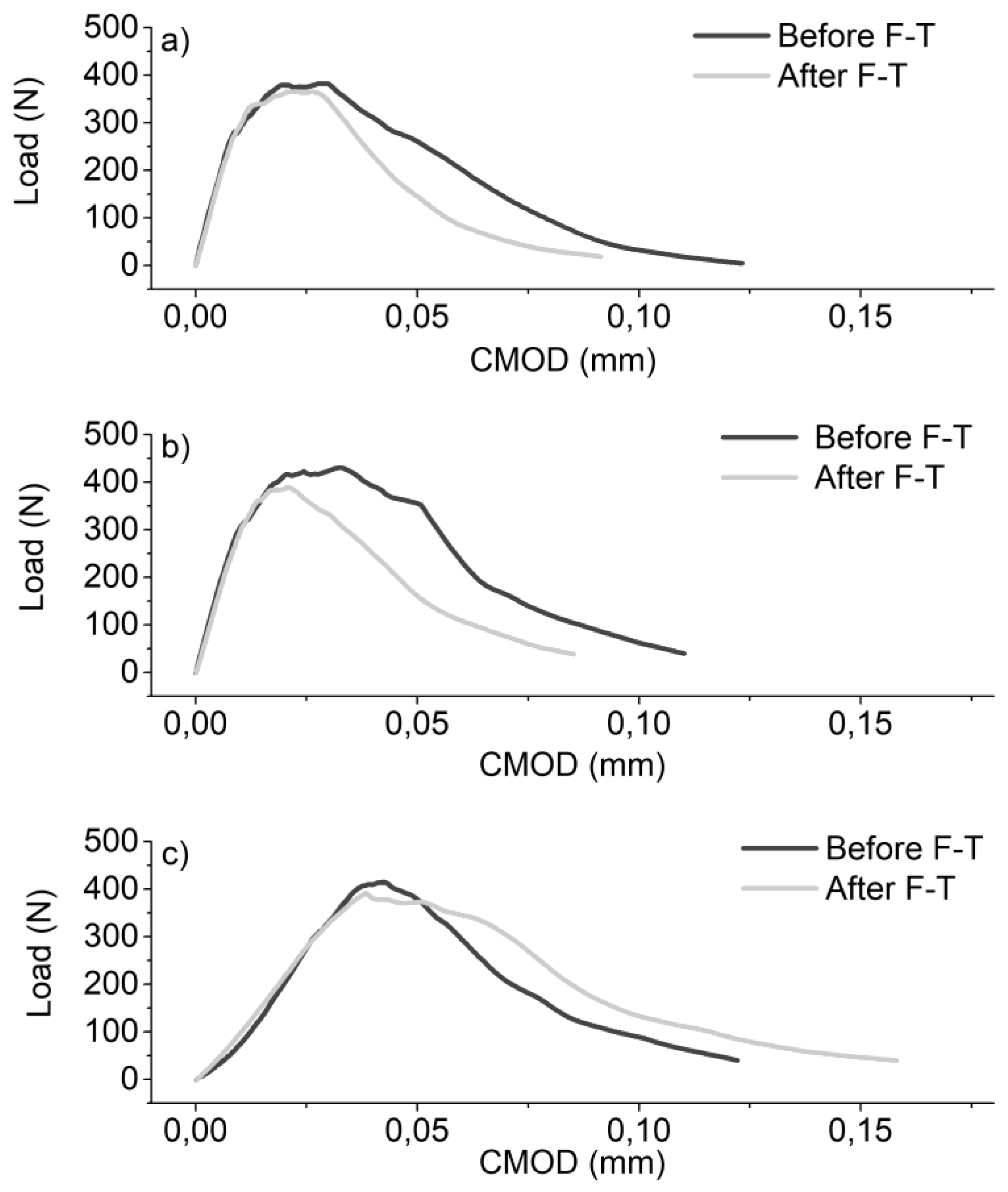

Figure 6. Load-crack mouth opening displacement (CMOD) graphs of unmodified (a) and 0.6% nano-modified mortars prepared with (b) superplasticizer and (c) surfactant as a dispersive agent, as a function of F-T exposure.
Figure 6. Load-crack mouth opening displacement (CMOD) graphs of unmodified (a) and 0.6% nano-modified mortars prepared with (b) superplasticizer and (c) surfactant as a dispersive agent, as a function of F-T exposure.
Materials 12 01747 g006
Materials 12 01747 g007 550

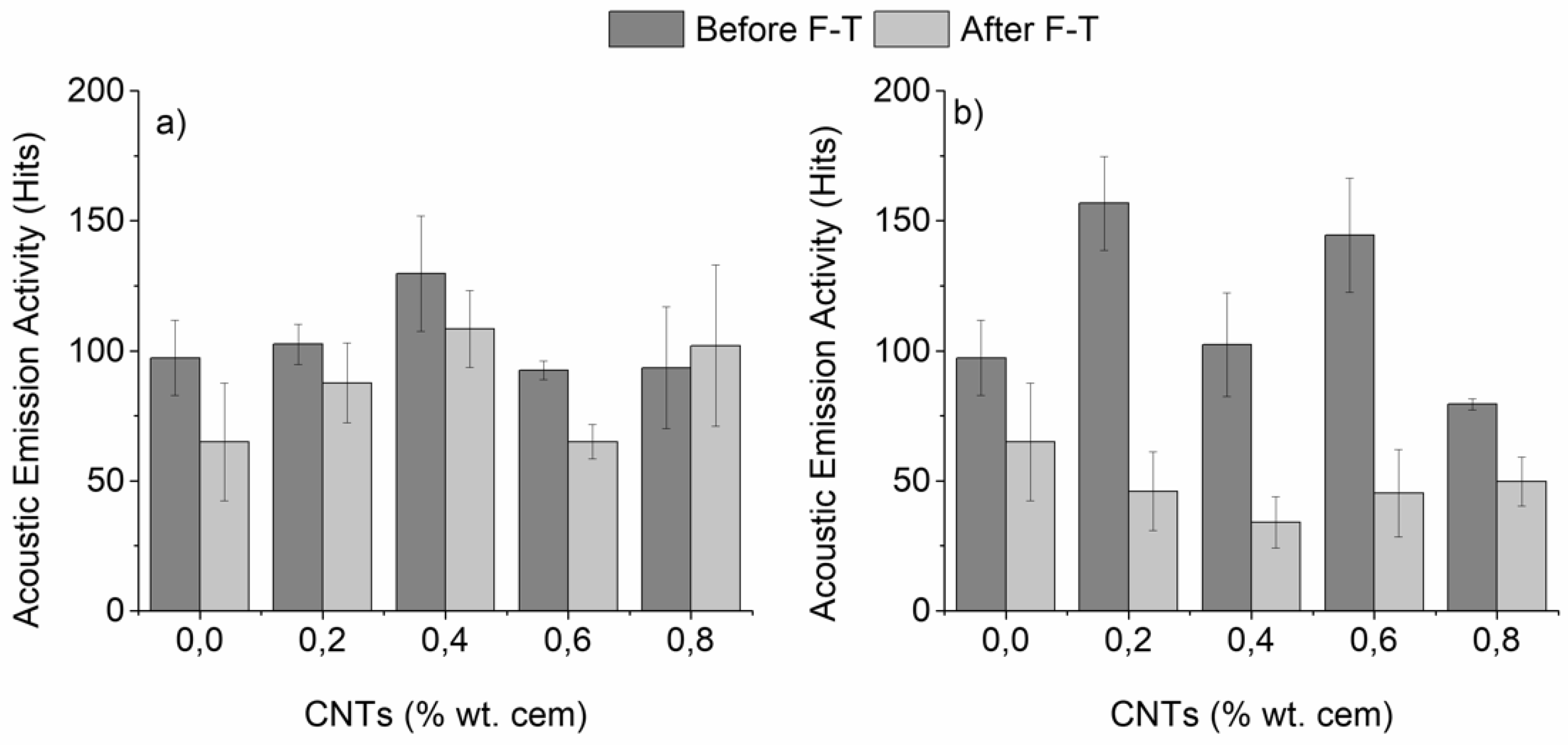

Figure 7. Acoustic emission activity of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Figure 7. Acoustic emission activity of nano-mortars prepared with (a) superplasticizer and (b) surfactant as dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Materials 12 01747 g007
Materials 12 01747 g008 550

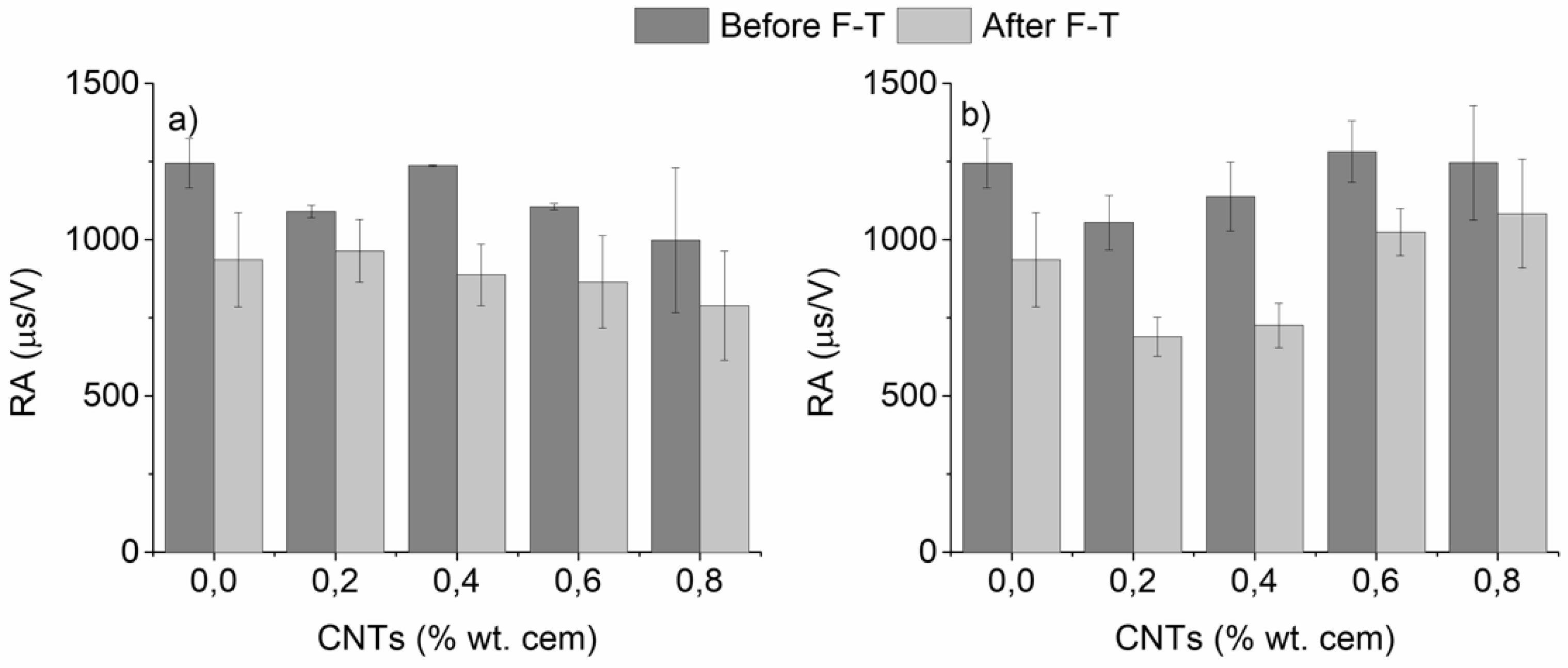

Figure 8. Rise time/amplitude (RA) values of nano-mortars prepared with (a) superplasticizer and (b) surfactant as a dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Figure 8. Rise time/amplitude (RA) values of nano-mortars prepared with (a) superplasticizer and (b) surfactant as a dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
Materials 12 01747 g008
Materials 12 01747 g009 550

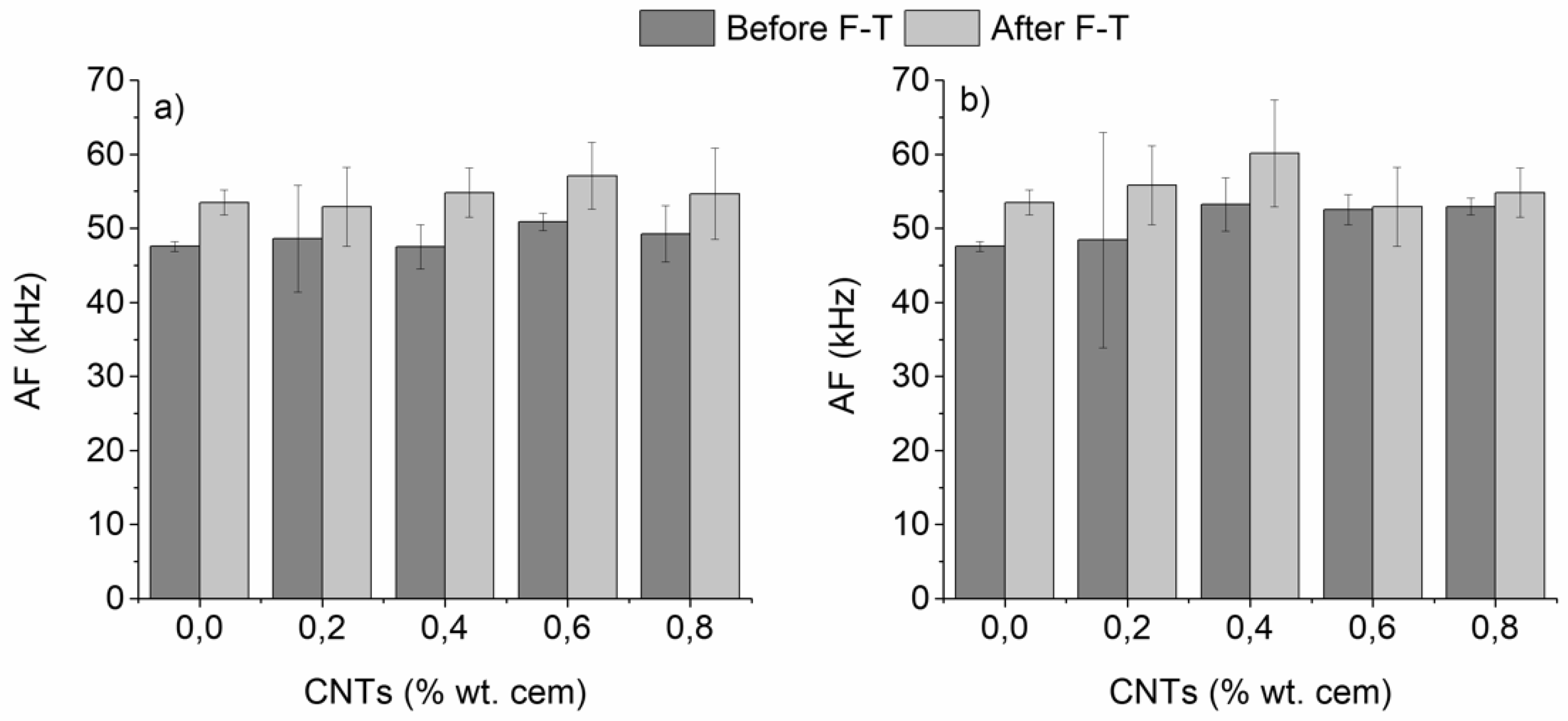

Figure 9. Average frequency of nano-mortars prepared with (a) superplasticizer and (b) surfactant as a dispersive agent, as a function of F-T exposure (plain specimens have been added for reference).
