Organic Solvent-Free Olefins and Alcohols (ep)oxidation Using Recoverable Catalysts Based on [PM₁₂O₄₀]³⁻ (M = Mo or W) Ionically Grafted on Amino Functionalized Silica Nanobeads

Abstract

Catalyzed organic solvent-free (ep)oxidation were achieved using H₃PM₁₂O₄₀ (M = Mo or W) complexes ionically grafted on APTES-functionalized nano-silica beads obtained from straightforward method (APTES = aminopropyltriethoxysilane). Those catalysts have been extensively analyzed through morphological studies (Dynamic Light Scattering (DLS), TEM) and several spectroscopic qualitative (IR, multinuclear solid-state NMR) and quantitative (¹H and ³¹P solution NMR) methods. Interesting catalytic results were obtained for the epoxidation of cyclooctene, cyclohexene, limonene and oxidation of cyclohexanol with a lower [POM]/olefin ratio. The catalysts were found to be recyclable and reused during three runs with similar catalytic performances.

1. Introduction

Oxidation of olefins and alcohols are important reactions in organic chemistry, with fundamental and applicative interest of those chemical transformations [1,2,3,4,5,6,7,8,9,10]. Indeed, epoxides can be obtained using very efficient organic oxidants (m-CPBA [11], NaClO [12] and RCO₃H [13,14]) but with procedures needing long workup, detrimental for ecological and economical purposes. Those issues can be diminished using metal-based catalysts, but some drawbacks of those processes come from the use of (toxic) metals and/or the use of (toxic) organic solvent(s). As examples for epoxidation, several Mo complexes used in industrial plants need the use of chlorinated solvents [15] such as 1,2-dichloroethane (DCE), a highly toxic solvent that has to be avoided [16]. An elegant way to circumvent those issues, in straight line with the principles of green chemistry [17,18,19], is to diminish/suppress the use of organic solvent within the oxidation process. We demonstrated it in several organic solvent-free processes we published with active (pre)catalysts (Mo, V or W based, complexes with tridentate ligands and/or polyoxometalates (POMs)), giving a first step towards a cleaner process [20,21,22,23,24,25,26,27,28,29,30,31]. In term of an efficient greener process, the best oxidant found with our protocols was TBHP in aqueous solution for the epoxidation since the “waste”, tBuOH is potentially recycled [32]. In terms of atom economy, the oxidation reactions could be even more improved using for example H₂O₂ or O₂ as oxidant [33]. Although advantageous, some of those cited processes could not allow an easy separation of the catalysts from the media. One strategy we employed to recover the POM catalyst was to graft ionically the catalyst on Merrifield resin [34]. Merrifield resin as covalent support has been used by other research groups especially with vanadium [35]. Other supports were also explored [36]. Mesoporous silica as a support was tried by several research groups in order to retain the POMs within the pores [37,38,39,40,41]. Although the compounds were active (under organic solvent conditions mainly), the disadvantage of mesoporous supports is the potential incomplete accessibility of the POMs present in the material for a catalytic process and thus a loss of efficiency. For this, it was interesting to take advantage to the known sol–gel chemistry and Stöber process, and the possibility of functionalization of silica—using trialkoxysilane precursors—to obtain pending ammonium functions only on the surface of the silica beads [42,43,44]. This strategy was employed for different uses, in order to graft in a covalent way polydentate ligands and related complexes or POMs for catalyzed reactions [45,46], luminescence properties [47,48], analytical purposes [49], to trap heavy metals for depollution [50] concerns or organic molecules for controlled release [51], mainly on mesoporous compounds [52,53] but scarcely with non-porous silica beads [54,55,56,57]. In order to find an easy recoverable catalyst, those functionalized silica beads played the role of countercations of the anionic polyoxometalate. The influence of the metal (Mo vs. W) was studied on different substrates. In the case of the most active complex, the silica beads were recovered and reused three times.

2. Materials and Methods

2.1. Materials

All manipulations were carried out under air. Distilled water was used directly from a Milli-Q purification system (Millipore, Burlington, MA, USA). Acetonitrile, ethanol, methanol and diethyl ether (synthesis grade, Aldrich, St. Louis, MI, USA) were used as solvents and employed as received. Tetraethyl orthosilicate (TEOS, 98% Aldrich), ammonium hydroxide solution (25%, Aldrich), 3-aminopropyltriethoxysilane (APTES, 99%, Aldrich), cis-cyclooctene (CO, 95%, Alfa Aesar, Ward Hill, MA, USA), cyclooctene oxide (COE, 99%, Aldrich), cyclohexene (CH, 99%, Acros, Geel, Belgium), cyclohexene oxide (CHO, 98%, Aldrich), 2-cyclohexen-1-ol (CHol, 95%, TCI, Tokyo, Japan), 2-cyclohexen-1-one (CHone, 96%, TCI), cis-1,2-cyclohexanediol (CHD, 99%, Acros), limonene (Lim, 98%, Aldrich), limonene oxide (LO cis/trans mixture, 97%, Aldrich), (1S, 2S, 4R)-(+)-limonene-1,2-diol (ax-LD, 97%, Aldrich), L-carveol (C^ol cis/trans mixture, 95%, Aldrich), (R)-(-) Carvone (C^one 98%, Aldrich), cyclohexanol (CYol, 99%, Alfa Aesar, Karlsruhe, Germany), cyclohexanone (CYone, 99.8%, Acros), phosphotungstic acid hydrate (reagent grade, Aldrich), molybdatophosphoric acid hydrate (reagent grade, Merck, Darmstadt, Germany) and TBHP (70% in water, Aldrich) were used as received. The pure cis-LO, trans-LO and eq-LD were synthesized according to literature procedures [58,59,60].

2.2. Methods

Powder X-ray diffraction: The solids were analyzed by X-ray diffraction (XRD) with a Bruker (Karlsruhe, Germany) D2 X’Pert PRO diffractometer using Cu Kα radiation (40 kV and 40 mA).

Dynamic Light Scattering (DLS): In order to be able to obtain repetitive and correct data analysis, particle samples were prepared at 0.1 wt.% in water. Sonication of particles suspension was made before DLS analysis during 10 min at 350 W (FB705 Fisherbrand Ultrasonic Processor, Fisherbrand, Waltham, MA, US) and using an ice bath, facilitating the dispersion of silica particles. Hydrodynamic diameters of the particles in suspension were obtained with a ZetaSizer Nano-ZS (Malvern Instruments Ltd., Worcestershire, UK,) at 25 °C. This equipment uses a laser (He-Ne at λ = 633 nm, under voltage of 3 mV) and the detector was located at 173° to analyze the scattered intensity fluctuations.

TEM: Particles morphology was performed with a JEOL (Tokyo, Japan) JEM1400 transmission electron microscope equipped with 120 kV voltage acceleration and tungsten filament (Service Commun de Microscopie Electronique TEMSCAN, Centre de Microcaractérisation Raimond Castaing, Toulouse, France). A drop of sonicated particles solution (at 0.1 wt.% in water) was disposed on a formvar/carbon-coated copper grid (400 mesh) and dried in air for 48 h.

Infrared spectroscopy: Fourier transform infrared (FTIR) spectra were recorded by Spectrum two—PerkinElmer (Llantrisant, UK).

Solid state NMR: NMR experiments were recorded on Bruker Avance (Fällanden, Switzerland) 400 III HD spectrometers operating at magnetic fields of 9.4 T. Samples were packed into 4 mm zirconia rotors. The rotors were spun at 8 kHz at 293 K. ¹H MAS was performed with DEPTH pulse sequence and a relaxation delay of 3 s. For ²⁹Si MAS single pulse experiments, small flip angle of 30° were used with a recycle delays of 60 s. ¹³C CP and ²⁹Si CP MAS spectra were recorded with a recycle delay of 2 s and contact times of 3 ms and 4 ms, respectively. Chemical shifts were referenced to TMS. All spectra were fitted using the DMfit software (version 20190125).

Solution NMR: ¹H-NMR, ¹³C-NMR and ³¹P-NMR spectra were recorded on Bruker (Fällanden, Switzerland) NMR III HD 400 MHz spectrometers. 400 MHz for ¹H-NMR, 101 MHz for ¹³C-NMR and 162 MHz for ³¹P-NMR.

Quantification of the number of functions per gram of grafted silica through ¹H NMR in solution: 7 mg of SiO₂@R (R=NH₂, PM) were added in 4 mL of D₂O/NaOH solution (pH ≈ 13) in an NMR tube. The mixture was heated until the powder completely dissolved. A known amount of benzoic acid (ca. 4 mg) was added as internal standard. Then the NMR proton data were collected immediately.

Quantification of the number of POMs per gram of grafted silica through ³¹P NMR in solution: 7 mg of SiO₂@PM was added in 4 mL of D₂O/NaOH solution (pH ≈ 13) in an NMR tube. The mixture was heated until the powder completely dissolved. The PM amount per gram of the SiO₂@PM sample was calculated from calibration curves (r² = 0.999) obtained with different concentrations on phosphates at the same pH.

Elemental analysis: Elemental analyses (EA) were performed by the LCC microanalysis service on PerkinElmer 2400 série II (Llatrisant, UK)

Centrifugation: The silica beads were collected by centrifugation on a Sigma 2-16P with 11192 rotor (Max. rpm 4500, Sigma, Osterode am Harz, Germany).

Gas chromatography: The catalytic reactions were followed by gas chromatography (GC) on an Agilent 7820A chromatograph equipped with an FID detector, a DB-WAX capillary column (30 m × 0.32 mm × 0.5 μm) and autosampler. Authentic samples of reactants (cyclooctene, cyclohexene, limonene and cyclohexanol) and some potential products (cyclooctene oxide, cyclohexene oxide, 2-cyclohexen-1-ol, cis-1.2-cyclohexanediol, 2-cyclohexen-1-ol, L-carveol, R-carvone, limonene oxide, limonene-diol and cyclohexanone) were used for calibration. The Lim conversion and the formation of LimOs and limDs were calculated from the calibration curves (r² = 1) and an internal standard.

2.3. Synthesis of Nanoparticles.

Synthesis of Stöber SiO₂ nanoparticles.

72 mL of H₂O (4 mol) and 60 mL of ammonic solution (28% wt) were mixed in 630 mL (15.57 mol) of methanol at room temperature. 40 mL of tetraethyl orthosilicate (TEOS) (0.18 mol) were added into the solution. A suspension of a white solid appeared. The mixture was stirred at 50 °C for 6 h. Then the solid was washed by absolute ethanol five times and was collected by centrifugation. SiO₂ nanoparticles were dried under vacuum at 120 °C overnight. A white powder was obtained.

SiO₂: ¹H NMR (400 MHz, D₂O/NaOH-Benzoic acid) δ 7.65 (m, 2H, Ar–H), 7.29 (m, 3H, Ar–H) and 3.10 (s, 3H, CH₃). ²⁹Si CP MAS-NMR: –93.3 ppm (Q²), –101.9 ppm (Q³) and –111.8 ppm (Q⁴). EA. Found: C, 1.09%; H, 0.67%. IR (ATR, ν(cm^-1)): 2930–3707 (OH), 1053 (Si–O–Si), 942 (Si–OH), 795 and 434 (Si–O–Si).

Synthesis of SiO₂@NH₂ particles.

3.5 g of SiO₂ particles were mixed with 12.08 mL (51.6 mmol) of APTES in 87.5 mL (823.3 mmol) of toluene. The mixture was refluxed under stirring for 18h. The product was washed by toluene (5 mL × 40 mL) and collected by centrifugation. The collected powder was dried under vacuum at 120 °C overnight.

SiO₂@NH₂: ¹H NMR for the quantification (400 MHz, D₂O/NaOH-Benzoic acid) δ 7.6 (m, 2H, Ar–H), 7.25 (m, 3H, Ar–H), 3.33 (q, J = 7.1 Hz, 0.07H, CH₂), 3.03 (s, 0.09H, CH₃), 2.25 (t, J = 7.0 Hz 0.21H, CH₂), 1.18 (m, 0.23H, CH₂), 0.87 (t, J = 7.1 Hz 0.1H, CH₃) and 0.08 (m, 0.23H, CH₂). ²⁹Si CP MAS-NMR: –62.1 ppm (T²), –67.7 ppm (T³), –92.8 ppm (Q²), –102.0 ppm (Q³) and –111.5 ppm (Q⁴). ¹³C CP MAS-NMR: 60.4 ppm (CH₂O), 58.2 ppm (CH₂O), 50.9 ppm (CH₂N), 42.3 ppm (CH₂N), 21.5 ppm (CH₂), 16.5 ppm (CH₃) and 9.6 ppm (CH₂Si). EA. Found: C, 3.74%; H, 1.32% and N, 0.74%. IR (ATR, ν(cm^-1)): 2969–3700 (OH and NH), 1485 (CH₂ and NH₂), 1049 (Si–O–Si), 939 (Si–OH), 785 and 429 (Si–O–Si). ρ(NH₂) (mmol/g) = 0.52 (by ¹H NMR) and 0.53 (by EA).

Syntheses of SiO₂@PM objects.

500 mg of SiO₂@NH₂ and 0.32 g (0.1 mmol) of H₃PW₁₂O₄₀–15H₂O (0.23 g for H₃PMo₁₂O₄₀–26H₂O) were mixed in 10 mL of H₂O at 60 °C and stirred for 24 h. The product was washed by H₂O (3 mL × 40 mL), collected by centrifugation as a powder and dried under vacuum at 120 °C overnight.

SiO₂@PW: ¹H NMR for the quantification (400 MHz, D₂O/NaOH–benzoic acid) δ 7.66 (m, 2H, Ar–H), 7.31 (m, 3H, Ar–H), 3.41 (q, J = 7.1 Hz, 0.11H, CH₂), 3.10 (s, 0.09H, CH₃), 2.33 (t, J = 7.0 Hz, 0.18H, CH₂), 1.26 (m, 0.18H, CH₂), 0.94 (t, J = 7.1 Hz, 0.16H, CH₃) and 0.17 (m, 0.19H, CH₂). ²⁹Si CP MAS-NMR: –58.3 ppm (T²), –67.9 ppm (T³), –93.0 ppm (Q²), –102.1 ppm (Q³) and –111.7 ppm (Q⁴). ¹³C CP MAS-NMR: 59.9 ppm (CH₂O), 58.2 ppm (CH₂O), 50.8 ppm (CH₂N), 42.8 ppm (CH₂N), 20.6 ppm (CH₂), 16.6 ppm (CH₃) and 9.2 ppm (CH₂Si). ³¹P CP MAS-NMR: –12.8 ppm. IR (ATR, ν(cm^-1)): 2969–3700 (–OH and –NH), 1485 (CH₂ and NH₂), 1065 (P–O), 1067 (Si–O–Si), 981 (W–O), 873 (W–O-W), 785 and 429 (Si–O–Si). EA. Found: C, 2.99%; H, 0.89% and N, 0.43%. ρ(NH₂) (mmol/g) = 0.33 (by ¹H NMR) and 0.31 (by EA). ρ(PW₁₂) = 0.15 (by EA) and 0.14 (by ³¹P NMR).

SiO₂@PMo: ¹H NMR for the quantification (400 MHz, D₂O/NaOH-Benzoic acid) δ 7.65 (m, 2H, Ar–H), 7.30 (m, 3H, Ar–H), 3.41 (q, J = 7.1 Hz, 0.16H, CH₂), 3.10 (s, 0.13H, CH₃), 2.33 (t, J = 7.0 Hz, 0.25H, CH₂), 1.26 (m, 0.28H, CH₂), 0.94 (t, J = 7.1 Hz, 0.23H, CH₃) and 0.17 (m, 0.27H, CH₂). ²⁹Si CP MAS-NMR: –58.6 ppm (T²), –68.2 ppm (T³), –93 ppm (Q²), –102.1 ppm (Q³) and –111.7 ppm (Q⁴). ¹³C CP MAS-NMR: 59.9 ppm (CH₂O), 58.2 ppm (CH₂O), 50.9 ppm (CH₂N), 42.9 ppm (CH₂N), 20.7 ppm (CH₂), 16.6 ppm (CH₃) and 8.8 ppm (CH₂Si). ³¹P CP MAS-NMR: –1.5 ppm. IR (ATR, ν(cm^-1)): 2969–3700 (–OH and –NH), 1485 (CH₂ and NH₂), 1065 (P–O), 1068 (Si–O–Si), 944 (Mo–O), 879 (Mo–O–Mo), 785 and 443 (Si–O–Si). EA. Found: C, 2.49%; H, 1.29% and N, 0.59%. ρ(NH₂) (mmol/g) = 0.40 (by ¹H NMR) and 0.41 (by EA). ρ(PMo₁₂) = 0.12 (by EA) and 0.12 (by ³¹P NMR).

2.4. Catalytic Experiments

Epoxidation of cyclooctene.

1.09 g (9.89 mmol) of cyclooctene, a quantity of catalyst (24.6 mg (7.8 μmol) of H₃PW₁₂O₄₀–15H₂O or 13.2 mg (5.7 μmol) of H₃PMo₁₂O₄₀–26H₂O or 50 mg of SiO₂@PM (7.7 μmol for PW₁₂ 5.7 μmol for PMo₁₂)) and 0.35 mL (2.83 mmol) of acetophenone (internal standard) were mixed in a 25 mL flask. 2.05 mL of TBHP (14.84 mmol; 70 wt.% in H₂O) were added into the mixture when the temperature was stabilized at 80 °C. The reaction mixture was heated at 80 °C under stirring for 24 h. The reaction was followed by GC-FID.

Epoxidation of cyclohexene.

With free-POM: 5 g (60.9 mmol) of cyclohexene were mixed with 26.9 mg (8.5 μmol) H₃PW₁₂O₄₀. 15H₂O (or 15.4 mg (6.7 μmol) for H₃PMo₁₂O₄₀.26H₂O) and 0.7 mL (5.66 mmol) of acetophenone (internal standard). 12.5 mL of TBHP (91.3 mmol; 70 wt.% in H₂O) were added into the mixture at 60 °C and the solution was left under stirring for 48 h. The reaction was followed by GC-FID.

With SiO₂@POM: 6.3 g (77 mmol) of cyclohexene, 75 mg SiO₂@PM (11.5 μmol for PW₁₂, 8.14 μmol for PMo₁₂) and 0.7 mL (5.66 mmol) of acetophenone (internal standard) were mixed in a 50 mL flask. 15.2 mL of TBHP (111.3 mmol; 70 wt.% in H₂O) were added into the mixture at 60 °C and left under stirring for 48 h. The reaction was followed by GC-FID.

Epoxidation of limonene.

2 g (14.9 mmol) of limonene, 33.3 mg (10.4 μmol) of H₃PW₁₂O₄₀.15H₂O or 19.6 mg (8.6 μmol) of H₃PMo₁₂O₄₀.26H₂O) or 75 mg of SiO₂@PM (11.5 μmol for PW₁₂, 8.6 μmol for PMo₁₂) and 0.7 mL (5.66 mmol) of acetophenone (internal standard) were mixed in a 50 mL flask. 3.05 mL (22.3 mmol) of TBHP (70 wt.% in H₂O) were added into the mixture at 80 °C. Then the mixture was heated at 80 °C under stirring for 24 h. The reaction was followed by GC-FID.

Oxidation of cyclohexanol.

With free-POM: 2 g (20 mmol) of cyclohexanol, 49.7 mg (14 μmol) of H₃PW₁₂O₄₀–15H₂O (23.5 mg (11.6 μmol) for H₃PMo₁₂O₄₀–26H₂O) and 0.35 mL (2.83 mmol) of acetophenone (internal standard) were mixed in a 50 mL flask. Of TBHP 4.1 mL (29.9 mmol; 70 wt.% in H₂O) were added into the mixture at 80 °C. Then the mixture was heated at 80 °C under stirring for 24 h. The reaction was followed by GC-FID.

With SiO₂@PM: 1.46 g (14.6 mmol) of cyclohexanol were mixed with 75 mg of SiO₂@POM (11.52 μmol of POM for SiO₂@PW and 8.6 μmol of POM for SiO₂@PMo₁₂) and 0.35 mL (2.83 mmol) of acetophenone (internal standard). Then 3 mL (21.9 mmol) of TBHP (70 wt.% in H₂O) were added into the mixture at 80 °C. Then the mixture was stirred at 80 °C for 48 h. The reaction was followed by GC-FID.

3. Results and Discussion

3.1. Synthesis of the Catalytic Objects.

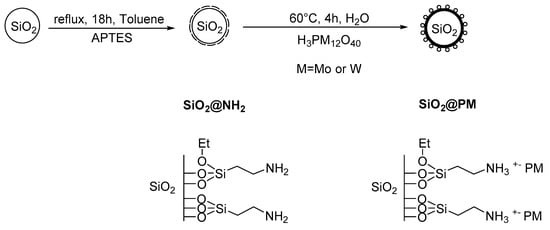

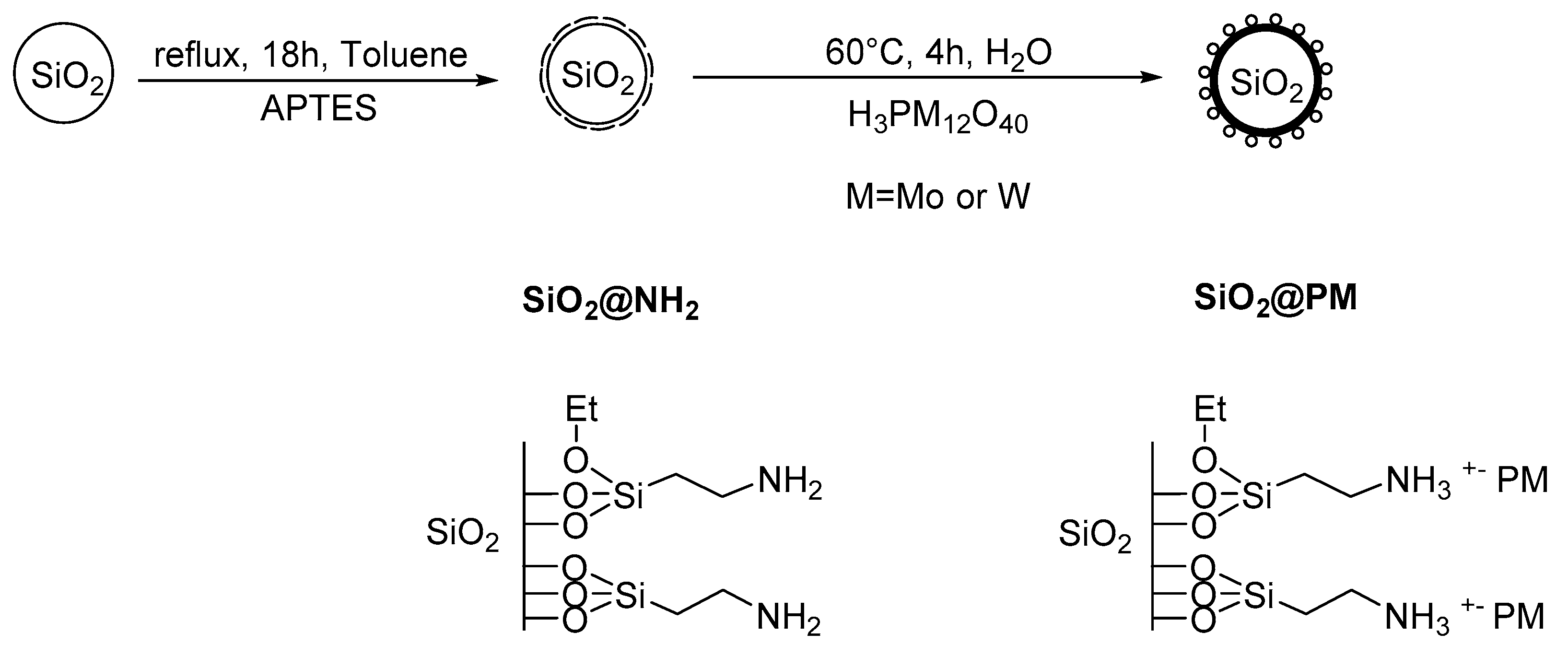

The synthesis of the catalytic objects was a three-step method (Scheme 1), starting from the synthesis of non-porous SiO₂ beads according to a modified Stöber method using Si(OEt)₄ (TEOS) and ammonia in MeOH [61]. The second step, i.e., the grafting of aminopropyltrietoxysilane (APTES) at the surface of SiO₂, was performed under classical conditions in toluene [62], the grafted species with pending NH₂ functions (named here SiO₂@NH₂) being isolated as white powder. The final step consisted of the ionic grafting of the POM catalysts on SiO₂@NH₂ simply by mixing in water SiO₂@NH₂ beads and the corresponding Keggin heteropolyacids H₃PM₁₂O₄₀ (M=Mo or W) in water, in a POM/NH₂ functions ratio of 1/3. The final solids SiO₂@PMo and SiO₂@PW were isolated as powders. In the case of molybdenum, the powder was slightly blue, indicating an interaction with ammonium [63]. The mixture with the tungsten gave a white powder.

Amorphous nature, as well as the sizes and morphologies of the isolated objects SiO₂, SiO₂@NH₂, SiO₂@PMo and SiO₂@PW were analyzed before the catalytic experiments by PXRD, DLS and TEM. Accurate analysis of the functional content has been performed using IR and multinuclear solid-state NMR. Qualitative studies were performed through elemental analysis and ¹H and ³¹P solution NMR.

3.2. Morphological Characterization of the Silica Beads

3.2.1. Analysis by PXRD

The amorphous state of isolated SiO₂@PM beads was characterized through powder X-ray diffraction (Figure S1) and did correspond to what was expected with 2θ = 23° [49,64,65]. At the difference with POMs grafted in a similar way in mesoporous SBA-15 [66], no diffraction peaks corresponding to the starting heteropolyacids (Figure S2) could be detected (in comparison with the PXRD spectra of the starting materials), certainly indicating that POMs were grafted but did not remain agglomerated in a crystalline way.

3.2.2. Dynamic Light Scattering (DLS) Analysis.

The DLS measurements are usually performed to determine the hydrodynamic diameter of colloidal particles. As described previously with the silica particles obtained by the Stöber method [61], we considered the objects as spherical. This technique can give a perfect size (hydrodynamic diameter D_h) of the particles when enough dispersed in the suspension and that no time depending aggregation phenomena do occur [67]. Measurements were performed with SiO₂, SiO₂@NH₂, SiO₂@PW and SiO₂@PMo. The results have been graphically indicated in Figure 1.

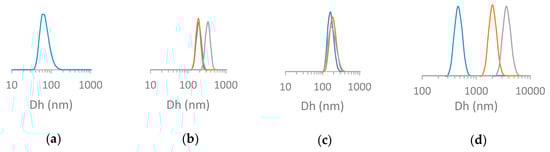

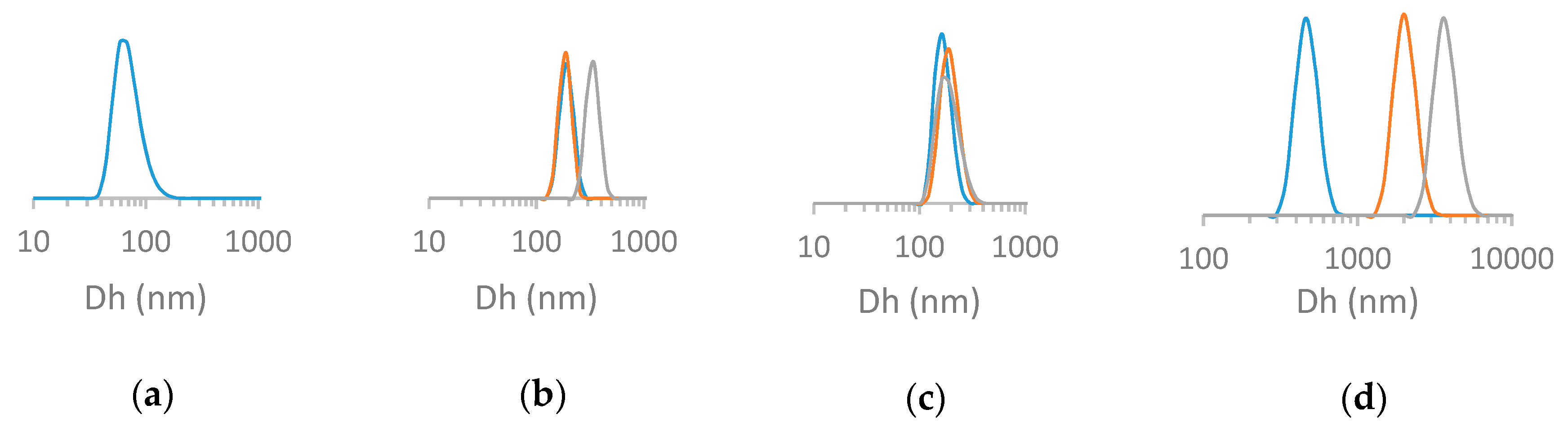

The DLS measurements gave stable measurements within the time range for the SiO₂ beads only (Figure 1a), the D_h found being around 70 nm in suspension in water. The SiO₂@NH₂ beads show different behavior (Figure 1b). Within the time, the size distribution was changing and aggregation seemed to occur, the diameter evolving from 190 nm at the first measurement (implicating some small association of the beads under the conditions of the measurements if we considered that the starting beads used for the grafting were the SiO₂ presented previously) to even bigger aggregation with higher Rh values, i.e., 340 nm after a longer time. This might be due to the nature of the pending NH₂ functions and the possibility of hydrogen bonds.

Addition of the POMs to the SiO₂@NH₂ beads did profound changes to the DLS measurements according to the nature of the POM. With SiO₂@PW, the starting measured size was around 190 nm (as for the SiO₂@NH₂) and evolved to 220 nm (Figure 1c). In the case of the SiO₂@PMo beads (Figure 1d), the starting value was huge from 450 nm to 3900 nm between the different time measurements. This was proof of a time-dependent rearrangement of the beads. DLS did not give information for the hydrodynamic radii of the single particles in this case but pointed out an aggregation phenomenon due to the nature of the surrounding of the silica particles, once the grafting was done. Interactions with the POMs (and protonation of the pending NH₂) might change the pH value and favor the aggregation [68]. Such a phenomenon was observed with thiolated silica particles interacting with different concentrations of hydroxyethylcellulose [69].

3.2.3. TEM Analysis

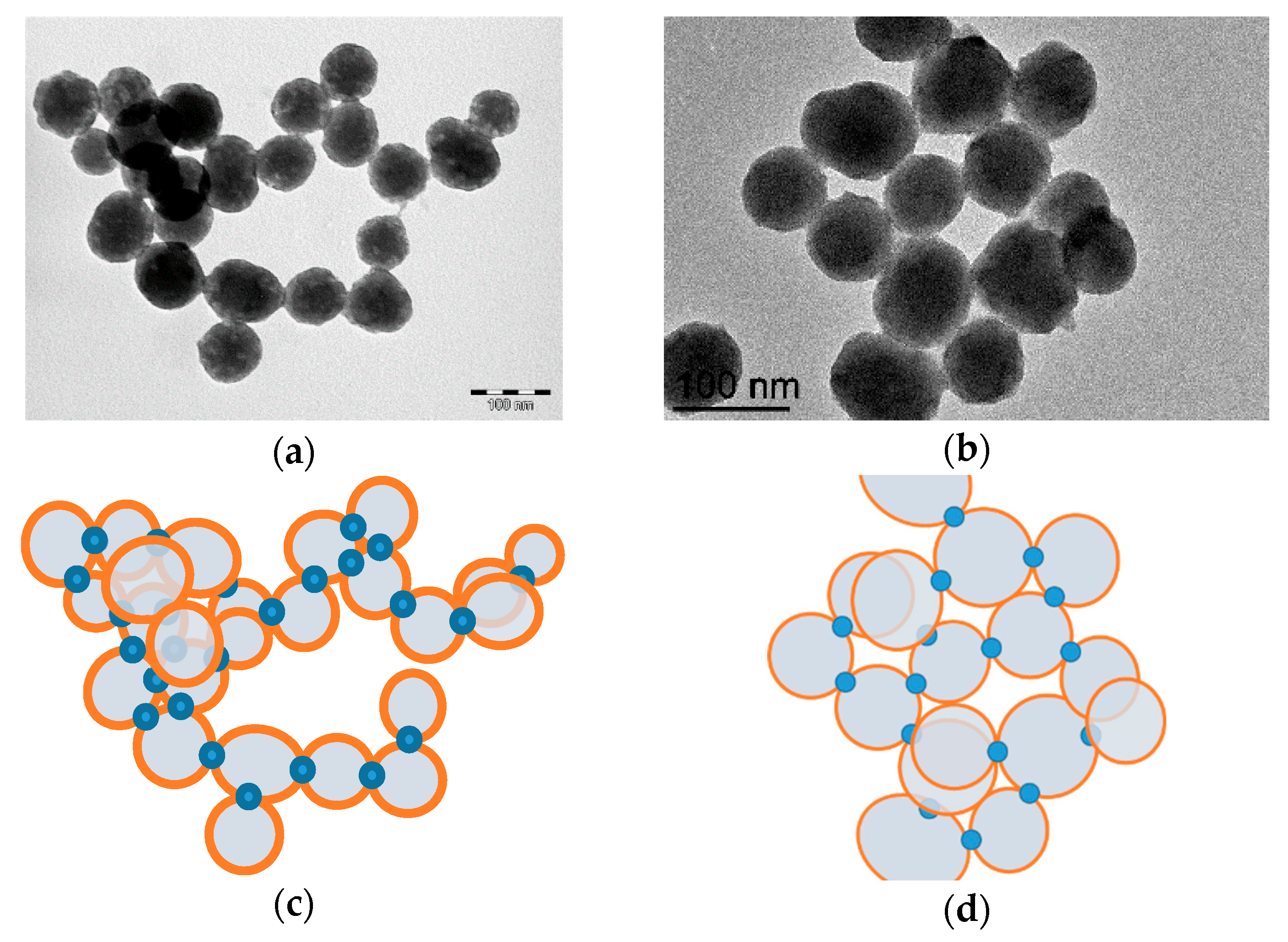

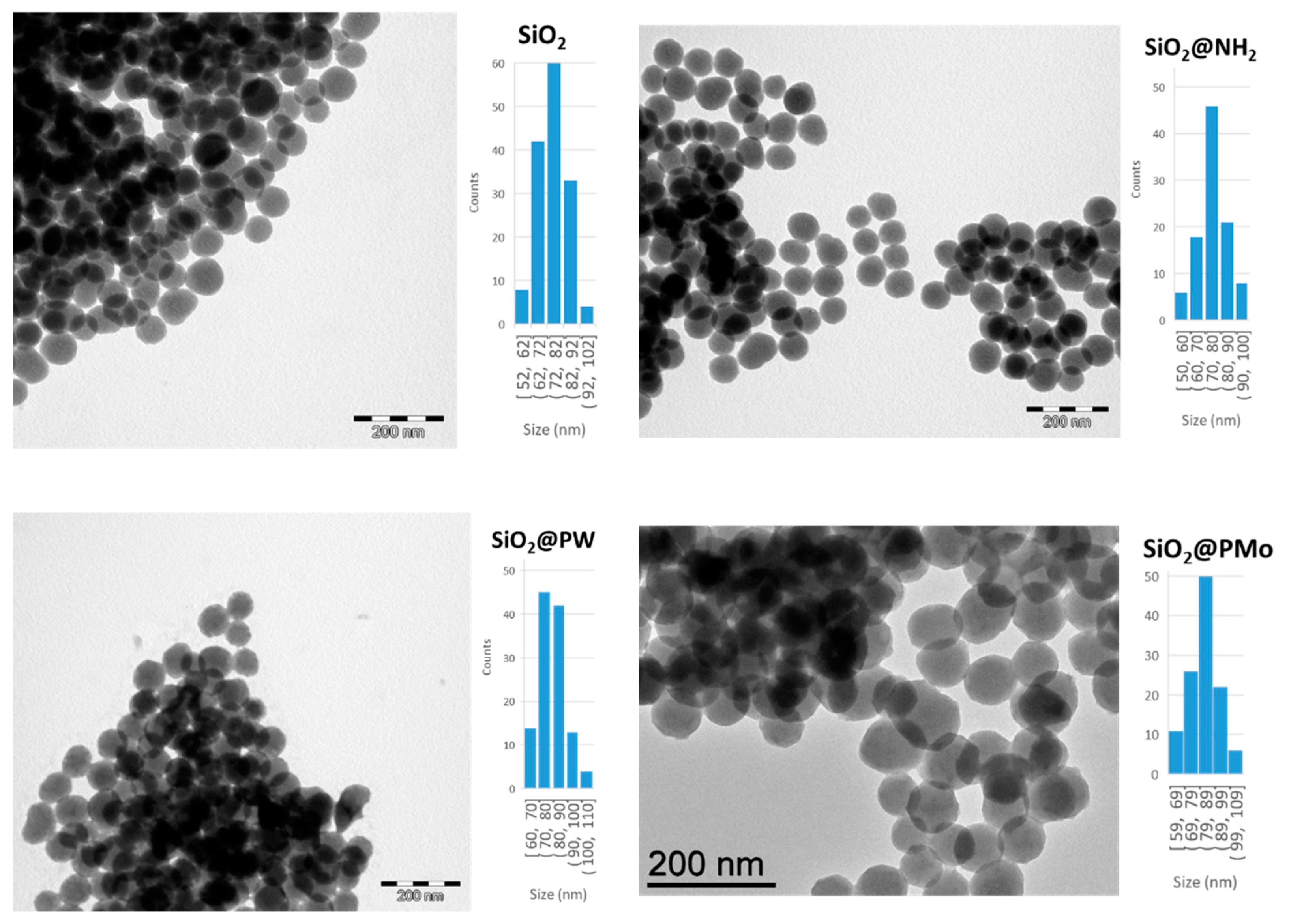

TEM measurements gave the proof of narrow dispersity of the silica beads (Figure 2). The beads had an average diameter of 75.9 nm for SiO₂ and SiO₂@NH₂ and around 80.6 and 82.9 nm for the SiO₂@PW and SiO₂@PMo ones respectively, indicating that the structure of the SiO₂ core was maintained during the three steps. The coverage of SiO₂@NH₂ with POMs could be proven in addition by a textural change of the surface of the beads.

Interesting observations could be done concerning the interactions between particles in the case of SiO₂@PW and SiO₂@PMo. The contrast at the contact area between particles in TEM pictures (Figure 3) seem to indicate contacts between the beads, stronger than with SiO₂ or SiO₂@NH₂ with angles that seem to be not due to a simple packing. This feature could be similar to the one observed with Europium-containing POMs entrapped within SiO₂ [70] on which fusing could be possible since silica covered the POMs but the situation described herein was reverse since POMs covered the surface of the silica beads. The first possible explanation could be that the surface of the beads was rearranged in the presence of acidic POM (and water media) twinning the silica nanoparticles. The surface of silica could be corroded and reacted again, fusing on contact points. This explanation could be valid since this phenomenon did need the presence of POMs and it was not observed in the case of SiO₂@NH₂. The fusing was proved by Greasley et al. using SiO₂ particles and CaO [71] at temperatures higher than the ones used herein. Another explanation could be that POMs are “agglomerated” between SiO₂ beads (but not in a crystalline arrangement since no peaks of the POMs were observed in the XRD spectra of SiO₂@PM) and favor a simple ionic contact/fusing between the beads. This plausible explanation looks like silica beads functionalized with β-cyclodextrin and G1 adamantly PPI dendrimers (H-bond interactions) [72] or gold nanoparticles decorated with POMs (ionic interactions) [73]. Due to the nature of the silica part in SiO₂@PM beads (positively charged in surface through ammonium functions), a complex association composed of POM/ammonium attractions and ammonium/ammonium repulsions might favor electrostatic interactions with specific angles corresponding to superficial contacts, the closest contact between three beads giving a triangular aspect. Thus, an explanation of the observed phenomenon in TEM seems to be situated between beads fusing and/or strong inter-bead electrostatic interactions. Both phenomena being possible in the aqueous media, it might be concluded that ionic rearrangements can occur when the species are mixed in water. Although TEM did give an image of a dried sample, the time dependent aggregation phenomena observed in solution through DLS seemed to corroborate those assumptions.

3.3. Qualitative Functional Characterization of the Silica Beads

3.3.1. Infrared Spectroscopy

IR spectra of all studied silica nanoparticles (Figure S3) show the typical vibration bands with SiO₂ at 793 cm⁻¹ (Si–O–Si)_sym, 945 cm⁻¹ (Si-OH), 1060 cm⁻¹ (Si–O–Si)_asym and 2930–3700 cm⁻¹ for –OH stretching mode. With SiO₂@NH₂ and SiO₂@PM vibrations were observed at 1495 cm⁻¹ for CH₂ and 2832 cm⁻¹ for –CH stretching mode [74]. Very small vibrations corresponding the NH₂ at 2930–3700 cm⁻¹ for –NH stretching mode and 1485 cm⁻¹ for NH₂ bending mode were observed for SiO₂@NH₂ [75,76].

At the difference with mesoporous silica based materials [77], the content of APTES and PMs on non-porous silica beads was very low (only onto the surface of non-porous silica beads). Thus, it was not obvious to determine directly through IR if some APTES and PMs were grafted on the surface of SiO₂ and SiO₂@NH₂ respectively. Some shouldering could be seen in SiO₂@PMo and SiO₂@PW at 950 cm⁻¹ for P–O, 870 cm⁻¹ for Mo=O and 805 cm⁻¹ for Mo–O–Mo in case of SiO₂@PMo, 1083–1092 cm⁻¹ for P–O, 979–982 cm⁻¹ for W=O, 897–901 cm⁻¹ and 810–814 cm⁻¹ for W–O–W in the case of SiO₂@PW [66,78]. Those absorptions could correspond to the presence of polyanions. In addition, typical vibrations corresponding to Keggin units are overlapped with the ones of SiO₂ [79]. An elegant method to prove the grafting was to do difference spectra between SiO₂@NH₂ and SiO₂ (Figure S4) or SiO₂@PM and SiO₂@NH₂ (Figure 4). Very small changes could be observed at 2926 and 1450–1700 cm⁻¹ that could give a proof of the presence of the grafted APTES on SiO₂ (Figure S4).

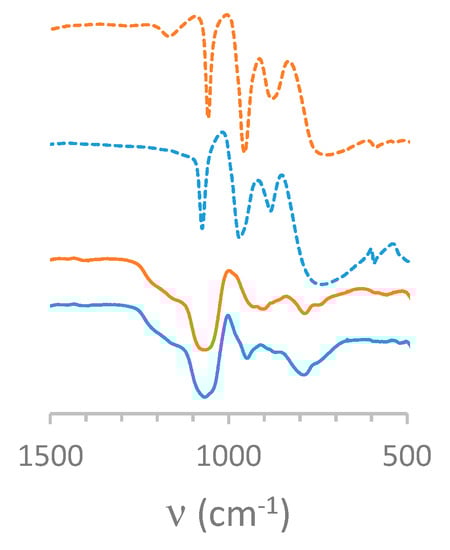

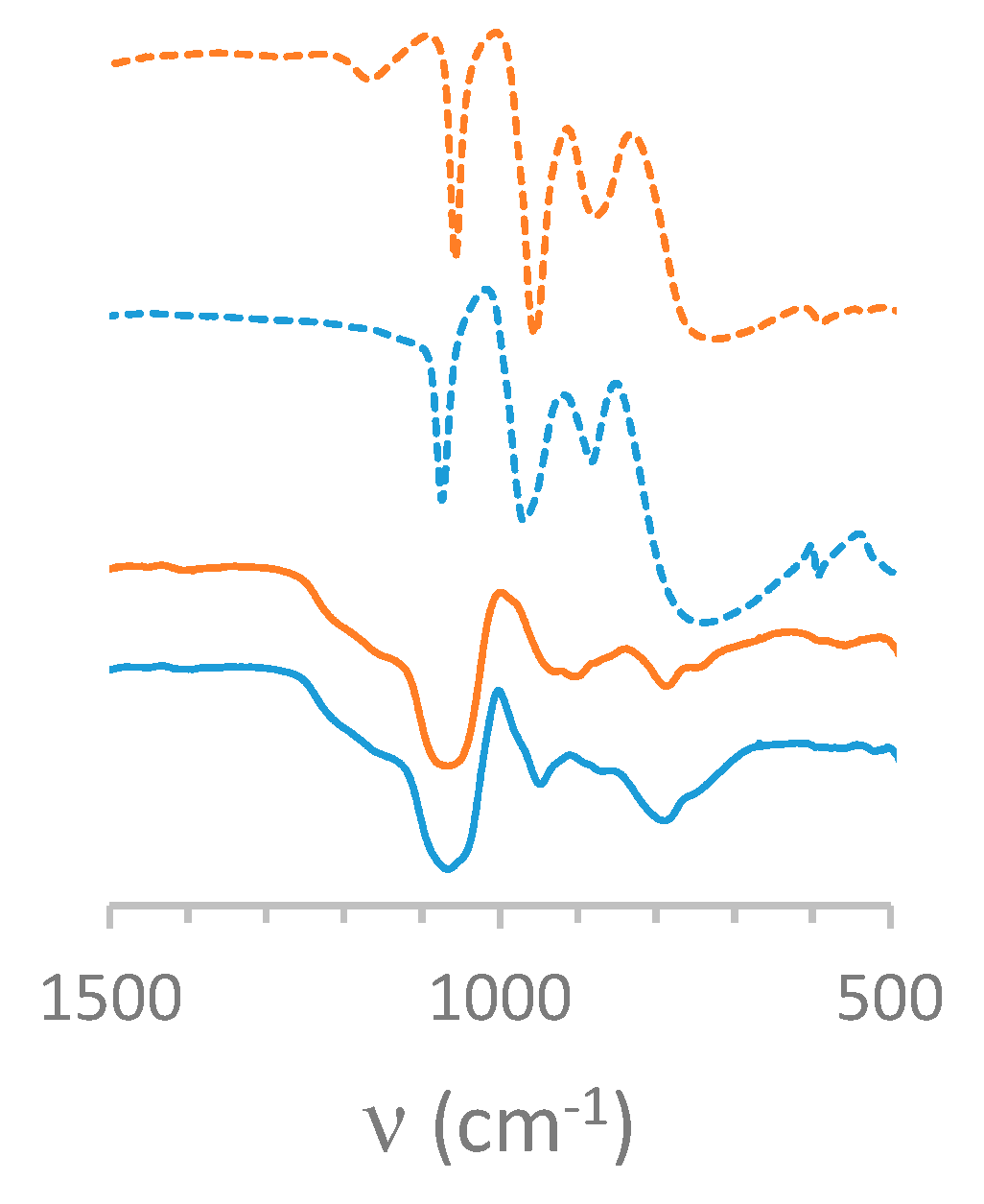

After addition of POMs, the difference spectra show vibrations corresponding to the POM backbone at 1060 cm⁻¹ (P=O), 981 (W=O) and 873 cm⁻¹ (W–O–W) for SiO₂@PW or 944 (Mo=O) and 879 cm⁻¹ (Mo–O–Mo) for SiO₂@PMo with small shifts in comparison to pure POMs [53] (Figure 4). MAS NMR gave direct proofs of the grafting.

3.3.2. Multinuclear Solid State NMR

Since IR did not give strongly affirmative answers concerning the nature of the functions surrounding the beads, solid state NMR has been an efficient tool. Indeed, ¹H, ¹³C, ²⁹Si and ³¹P are nuclei that can bring several information. All data have been summarized in Table S1.

The ¹H MAS NMR spectra exhibited very large signals attributed to different groups on silica beads, silanols and physisorbed water molecules (3.5–5 ppm), ethoxy (3.3–3.6 ppm) and methoxy (1.1–1.3 ppm) as well as the CH₂ from the grafted silane (0.7–0.9 (Si-CH₂), 6.5–6.8 (CH₂-N) and 4.0–4.1 (CH₂)) [80]. Unfortunately, large and/or overlapped signals were simply indicative. The ¹³C MAS NMR spectra show signals corresponding to the organic functions grafted on SiO₂ and slight changes when POMs were added (see Table S1 and Figure S5) [81]. This method did confirm the silane and POM grafting.

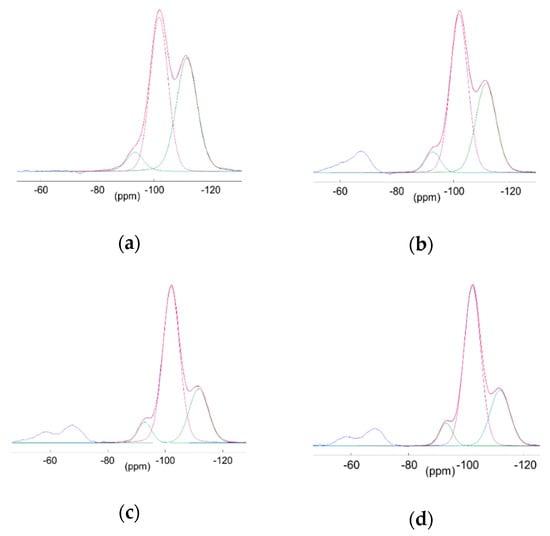

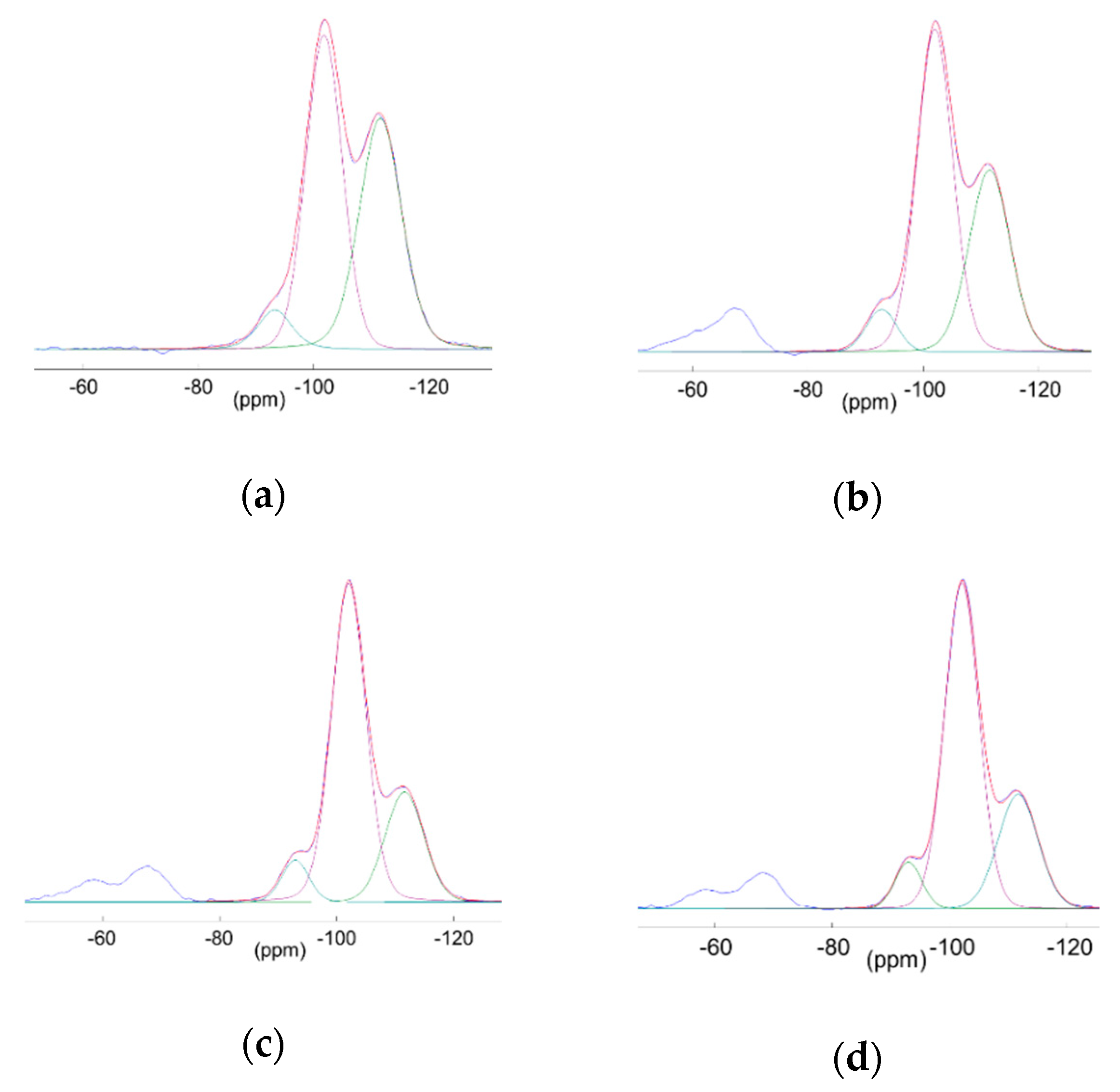

The ²⁹Si CP MAS NMR (Table S1 and Figure 5) spectra gave additional information about the grafting on the silica bead itself. In all spectra, the signals at −93, −102 and −111 ppm corresponding to Q₂, Q₃ and Q₄ respectively (Q_n = Si(Osi)_n(OH)_4-n) were in accordance with the SiO₂ core [49]. The silane grafting was proved by two signals around −60 and −68 ppm (T₂ and T₃) [82]. A change of signals proportion was observed from SiO₂ to SiO₂@NH₂ and from SiO₂@NH₂ to SiO₂@PM, the trend being identical when both POMs were added.

Since ²⁹Si CP MAS NMR could not quantify the Q_n, deconvolutions on SiO₂ cores only were done on ²⁹Si MAS NMR spectra, the relative intensity of the signals being indicated in parenthesis in Table S1. The stronger differences observed in ²⁹Si CP-MAS (due to cross-polarization) were not so pronounced in ²⁹Si MAS. (Figure S6) Those effects could be linked to the interactions between the ionic POMs and the SiO₂@NH₂ beads, once the proton exchange was performed.

Added POMs covering the SiO₂@NH₂ beads, different environments could be found, according to ionic interactions between charged POMs and pending ammonium, as well as H-interactions with silanol surfaces [83,84,85,86]. ³¹P MAS NMR signals of the grafted ones (Table S1) were shifted comparing to the value of the free POMs (the one used for the grafting) and relatively close to some referenced in the literature in ³¹P MAS for “PW₁₂O₄₀” [87] and “Pmo₁₂O₄₀” [88] backbones.

3.4. Quantitative Functional Characterization of the Silica Beads

3.4.1. Quantification by Elemental Analysis

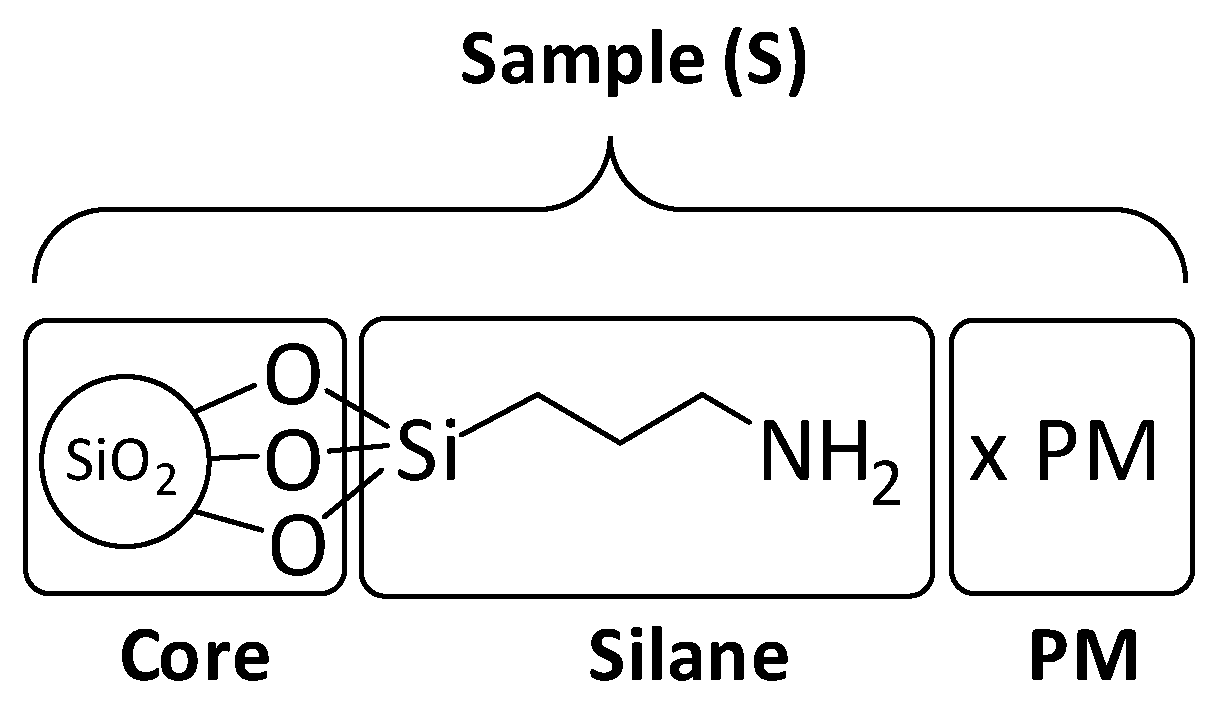

From the nitrogen content (%N) found in elemental analysis, it is possible to calculate the number of moles of grafted aminosilane ρ(NH₂) and POM grafted (ρ(PM)) per gram of sample S. The values could be compared to the one found using ¹H liquid NMR. The number of moles of nitrogen atoms found in a sample S being equivalent to the number of NH₂ fragments, the formula could be defined as follows in Equation (1). According to the Scheme 2, ρ(PM) could be calculated from the elemental analysis since we could postulate that the mixture of SiO₂@NH₂ with POM did a proton exchange from POM to the pending NH₂ functions and no other modifications. ρ(NH₂) and ρ(PM) are gathered in

Table 1. POM/NH₂ molar ratio (x) obtained through elemental analysis (EA) data.

Sample	SiO2@NH2	SiO2@PW	SiO2@PMo
N (%)	0.74	0.43	0.58
x	0	0.47	0.29

and

Table 2. Calculated ρ(NH₂) and ρ(PM) data and surface coverage μ(NH₂).

Sample	ρ(NH2) 1 (1H NMR)	ρ(PM) 1 (31P NMR)	ρ(NH2) 1 (EA)	ρ(PM) 1 (EA)	μ(NH2) 2
SiO2@NH2	0.52	-	0.53	-	6.8
SiO2@PW	0.33	0.15	0.31	0.14	6.8
SiO2@PMo	0.40	0.12	0.41	0.12	6.7

¹ in mmol functions/g sample, ² in number functions/nm².

.

$$\rho \left(N{H}_2\right)=\frac{n_{N{H}_2}}{m_S}=\frac{n_N}{m_S}=\frac{m_N}{m_S·M_N}=\frac{\%N}{M_N}.$$

(1)

$$\rho \left(PM\right)=\frac{n_{PM}}{m_{Si{O}_2@PM}}=x·\rho \left(N{H}_2\right).$$

(2)

In order to find the x value, the important parameter is the mass of the SiO₂ core within SiO₂@NH₂, obtained from %N values that corresponds to the number of grafted APTS fragments. This number is supposed to be unchanged after addition of POM, the variation observed in %N for SiO₂@PMo and SiO₂@PW will depend on the quantity of POMs retained by the beads (Equation (3))

$$\%N_{Si{O}_2@PM}=\frac{M_N}{M_{Si{O}_2@N{H}_2}+x·M_{PM}}.$$

(3)

M(SiO₂@NH₂) can be found using the N% of SiO₂@NH₂ (Equation (4))

$$\%N_{Si{O}_2@N{H}_2}=\frac{M_N}{M_{Si{O}_2@N{H}_2}}.$$

(4)

Then, injecting in equation W, the x can be obtained from simple data using Equation (5).

$$x=\frac{M_N}{M_{PM}}\left(\frac{1}{\%N_{Si{O}_2@PM}}-\frac{1}{\%N_{Si{O}_2@N{H}_2}}\right).$$

(5)

x will give the number of POM vs. N within the sample. According to the equation, the calculated data have been compilated in Table 1.

The ideal x value would have been 0.33, i.e., one POM retained by three NH₂ functions. This could be due to the fact the some NH₂ functions are “free” and the POM in the complete deprotonated form in the case of SiO₂@PMo while in the case of SiO₂@PW, the POM was not completely deprotonated.

3.4.2. Quantification of Grafted Functions and Retained POM by Liquid NMR

Multinuclear liquid NMR (¹H, and ³¹P) was used for this purpose with SiO₂@NH₂, SiO₂@PMo and SiO₂@PW beads. Silica beads and POMS can be destroyed in alkaline medium, giving silicates for the silica part, and tungstates/molybdates and phosphates for the POMs. It was proved that quantification could be done through the dissolution of the silica in aqueous solution in an alkali medium [89]. The organic backbone was maintained and could be quantified using an internal standard with ¹H NMR. Using this method, the number of APTS fragments ρ(NH₂) could be evaluated per gram of sample (Table 2).

Using the same methodology than the ¹H NMR, the SiO₂@PM was dissolved in very basic solution (pH = 13), in order to isolate the PO₄³⁻. The ³¹P NMR signals obtained with the beads were quantified using an external calibration curve with different aqueous solutions of H₃PO₄ at pH = 13. The parameter found through this method (Table 2), ρ(PM), was relatively close to the one found through elemental analysis.

3.4.3. Surface Coverage of the Beads Through EA and NMR.

Considering the number of functions present on one bead and the average size of the beads, using the classical density of SiO₂, we could evaluate the surface coverage in number of functions per nm². The demonstration of equation 6 is given in Supplementary information (Appendix A1).

$$\mu \left(N{H}_2\right)=\frac{{\rho }^{\prime }\left(N{H}_2\right)·r_S·{\rho }_{Si{O}_2}}{3\times {10}^{+21}}\times N_A.$$

(6)

Using those calculations, results (Table 2) indicated a relatively constant μ(NH₂) value around 6.8 functions per nm². This is in agreement with the hypothesis we assumed for the calculations on 3.4.1.

3.5. Catalysis

Homogenous catalysis with commercial POMs (especially H₃PW₁₂O₄₀ and H₃PMo₁₂O₄₀) has shown excellent activity in oxidation reactions [90,91,92,93,94,95,96,97]. Several examples have proven to be effective and the composition of the POMs can be modified for better selectivity [23,34]. In most of published experiments, organic solvent was needed, and the catalyst could not be recovered. Few examples described grafted POMs using Merrifield resins [34], polymeric quaternary ammonium salts [98], mesoporous supports [99,100,101], MOFs [102,103] or carbonaceous supports [104]. Mesoporous supports are interesting, but POMs entrapped within zeolites might be not all accessible. The advantage of the present process lies on complete accessibility of all POMs since only at the surface of the support. One drawback could be the lack of selectivity, but the reactions studied being quite simple, selectivity is not such a big issue. Following the grafting concept, SiO₂@PM (M= Mo or W) was studied herein to achieve activity, recovery and reuse. A low ratio of POMs vs. substrate was tested. The SiO₂@PM objects were recycled and used during three runs, with aqueous TBHP as an oxidant. The activity of the catalysts was tested on four model substrates. Cyclooctene (CO) is known to give essentially the cyclooctene oxide (COE) and few by-products. Cyclohexene (CH) gives cyclohexene oxide (CHO) and more products due to ring opening. Limonene (Lim) is a good biomass-issued substrate to study with different useful by-products. Cyclohexanol (CHol) is also interesting since its oxidation gives normally cyclohexanone, useful for the adipic acid synthesis. Relevant points are the low POM/substrate ratio used in the experiments (see tables) and no added organic solvent. This last point is something important towards the quest of chemical process tending to diminish the Green House effect [105].

3.5.1. Cyclooctene (CO) Epoxidation.

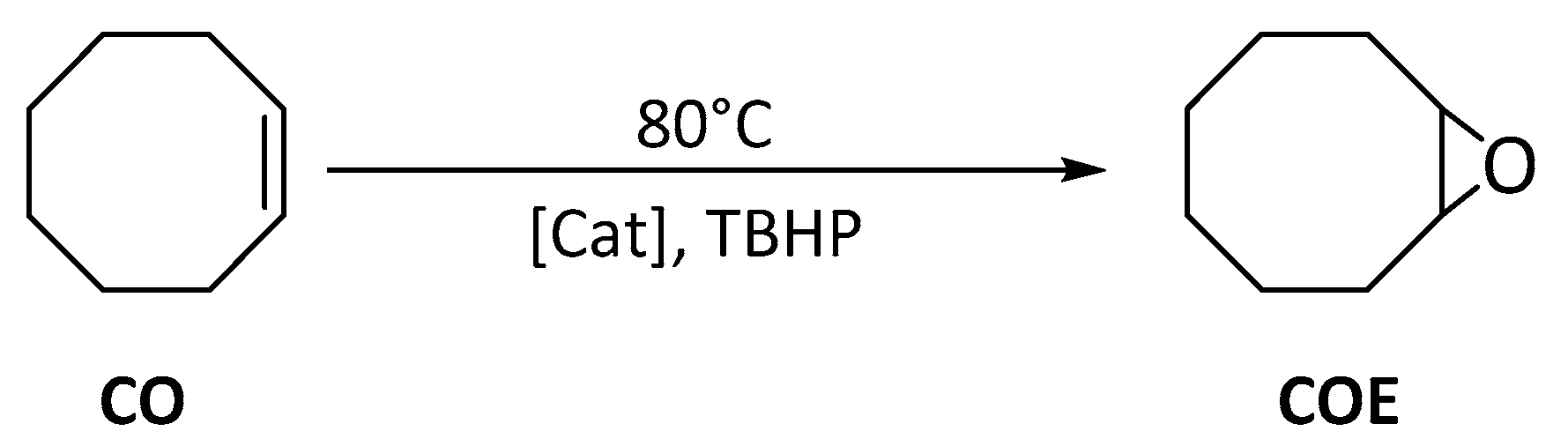

CO is interesting because the corresponding epoxide, cyclooctene oxide (COE) is known to be relatively stable towards ring-opening reactions. (Scheme 3) Although not frequent, hydrolysis and subsequent ring-opening might respectively lead to cyclooctanediol and suberic acid [106]. The oxidant (CO/TBHP ratio being 1:1.5) [23] is added once the temperature reached 80 °C. It must be pointed out that no organic solvent was added. The engaged mass of functionalized silica was identical but due to different POM/SiO₂ grafting ratios between Mo and W experiments, the POM/substrate ratio differ. A relatively low POM/substrate ratio (0.070% and 0.058% for H₃PW₁₂O₄₀ and H₃PMo₁₂O₄₀ respectively) was added, among the lowest observed in the literature. Recovered catalysts were reused under the same experimental conditions to test the activity persistence. A test with non-grafted POMs was performed for comparison. Results have been compiled in

Table 3. Relevant data for the catalyzed epoxidation of CO ¹.

Catalyst	Run	CO Conv. 2	COE Sel. 3	TON 4
H3PW12O40	1	64	14	807
SiO2@PW	1	72	41	981
	2	75	38	987
	3	77	37	968
H3PMo12O40	1	99	44	1712
SiO2@PMo	1	98	71	1693
	2	96	72	1620
	3	93	69	1598

¹ Conditions: 80 °C. POM/TBHP/CO = 0.070/150/100 for W, 0.058/150/100 for Mo; t = 24 h. ² nCO converted/nCO engaged (in %) after 24 h. ³ nCOE formed/nCO converted (in %) at 24 h. ⁴ nCO transformed /nPOM at 24 h.

.

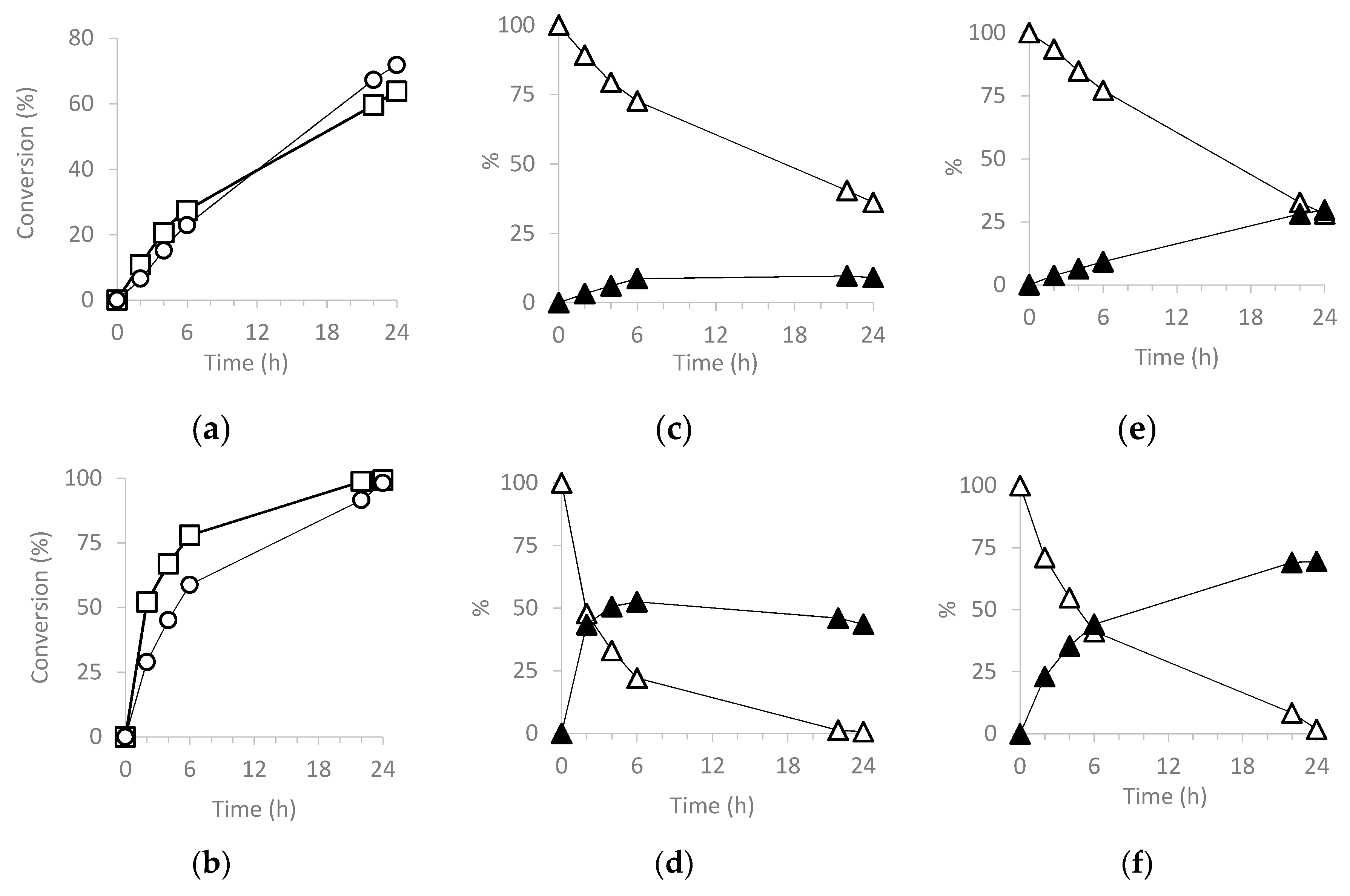

Although the activity of SiO₂@PM was slower during the first 6 h, CO conversions were almost the same than free POMs after 24 h but more selective towards COE in the case of the grafted POMs (Figure 6). The higher selectivity might be due to less acidic media with SiO₂@PM. The SiO₂@PMo catalyst was more active than SiO₂@PW₁₂, giving better CO conversion and higher selectivity towards COE. This trend was also observed with the free POMs. An interesting fact was the reuse of SiO₂@PM. For both metals, catalytic performances were close during two extra runs (Figure S7; with average Turn Over Number (TON) values around 950 and 1640 for W and Mo respectively).

The mechanism is not straightforward since the POMs are non-substituted and do not act as support of active metal as found in several other articles [107,108]. We suppose the formation of diperoxo on one metal, responsible to the oxygen transfer from perox to olefin [109].

3.5.2. Cyclohexene (CH) (ep)oxidation

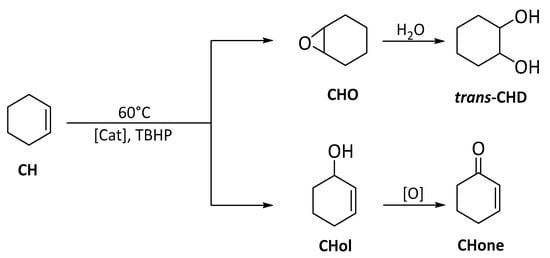

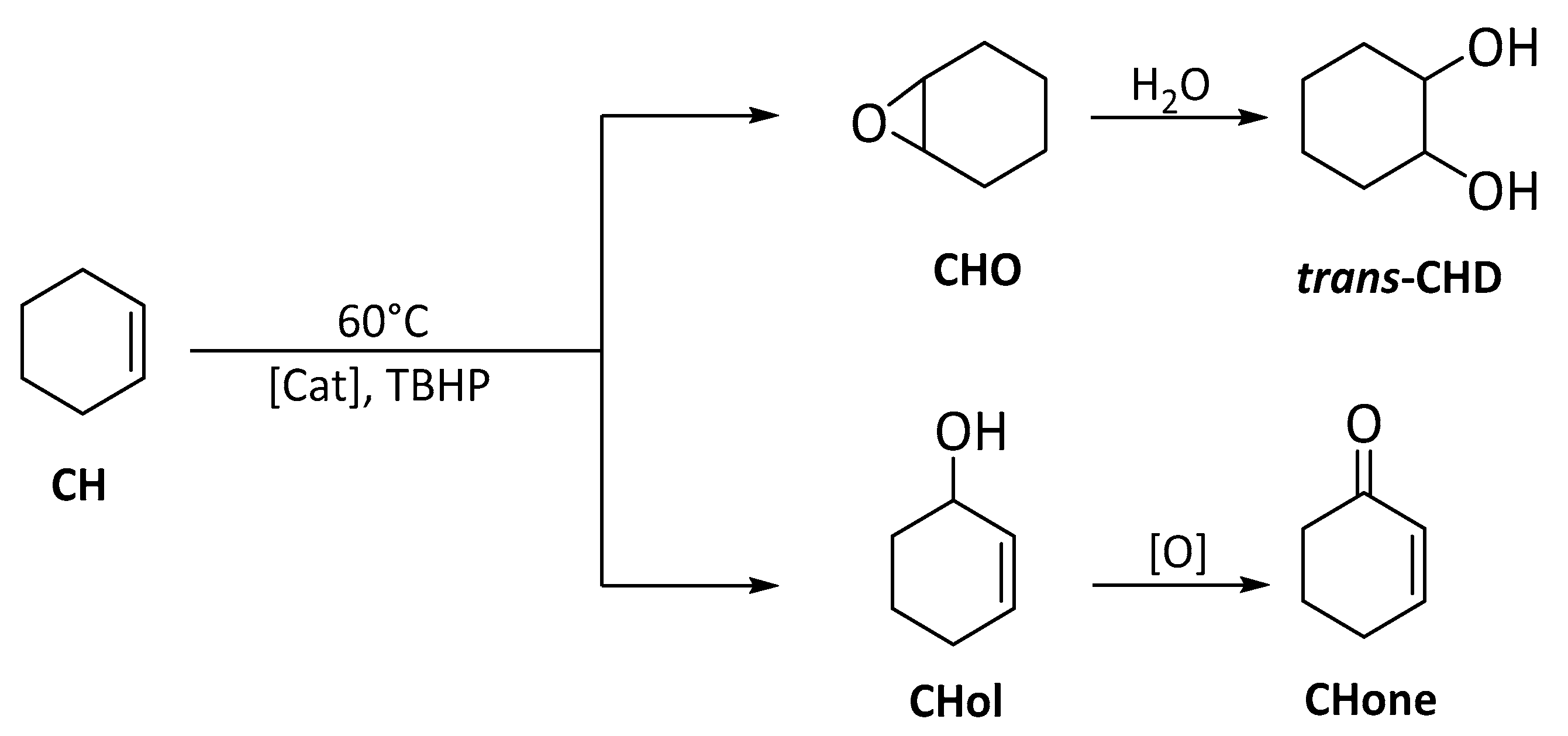

(Ep)oxidation of CH, precursor of adipic acid [40] and simplified version of limonene, competes between epoxidation (CHO and the ring opening CHD) and allylic oxidation (CHol and CHone). The studies were done with the same TBHP ratio than for CO but with a five times lower catalyst charge than for CO (i.e., POM/CH ratio of 0.014% and 0.0116% for H₃PW₁₂O₄₀ and H₃PMo₁₂O₄₀ respectively) in order to exhibit the high activity of the catalysts. (Scheme 4) As we observed previously with Mo tridentate compounds [30], the epoxidation is the main reaction when TBHP was used as oxidant.

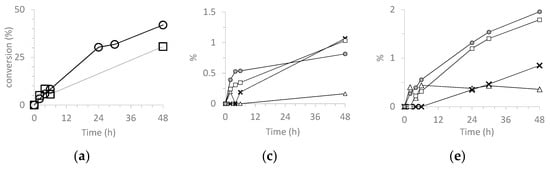

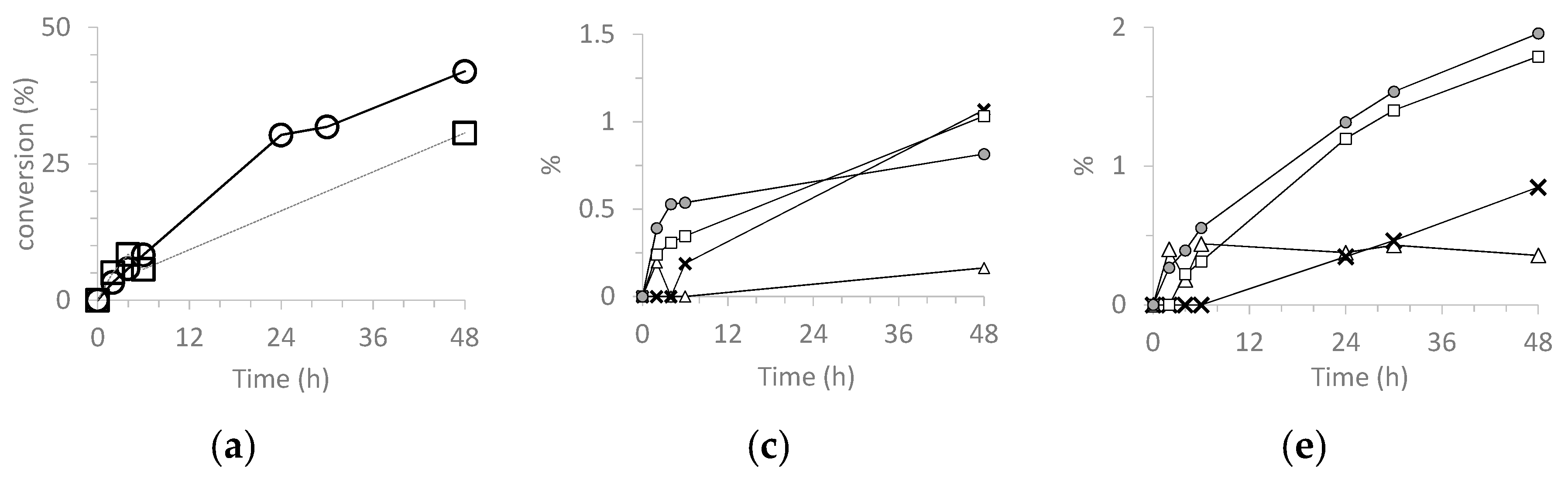

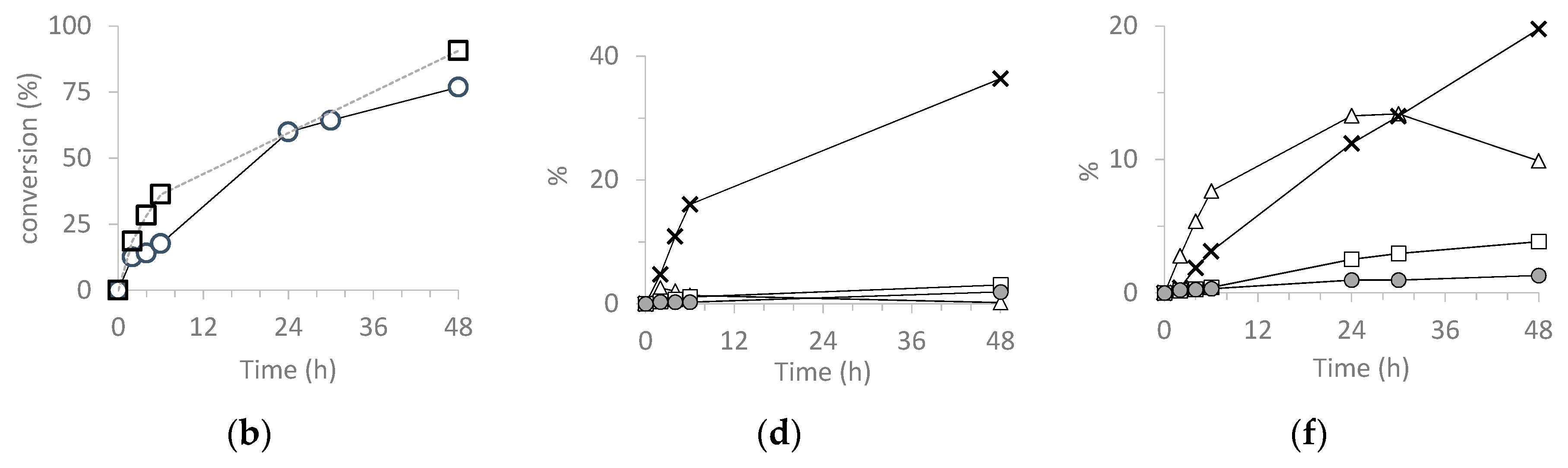

After 48 h at 60 °C, as for CO substrate, SiO₂@PMo was much more active than SiO₂@PW₁₂. (

Table 4. Relevant data for the catalyzed (ep)oxidation of cyclohexene ¹.

Catalyst	Run	CH Conv 2	CHO Sel 3	CHD Sel 3	Chol Sel 3	Chone Sel 3	TON 4
H3PW12O40	1	31	<1	4	3	3	11,307
SiO2@PW	1	45	1	2	4	5	21,458
	2	43	1	2	2	3	20,649
	3	26	3	3	7	7	12,373
H3PMo12O40	1	91	<1	40	3	2	52,728
SiO2@PMo	1	80	13	26	5	2	46,732
	2	74	15	22	6	3	42,487
	3	60	26	20	4.9	2	36,345

¹ Conditions: 80 °C. POM/TBHP/CH = 0.014/150/100 for W, 0.0116/150/100 for Mo; t = 48 h. ² nCH converted/nCH engaged (%) after 48 h. ³ n product formed/nCH converted (%) at 48 h. ⁴ nCH transformed /nPOM at 48 h.

) The free H₃PMo₁₂O₄₀ favored the epoxidation and the ring opening of the epoxide. The allylic oxidation seemed to be the preferred pathway with W containing species but not with a high difference towards Mo ones, showing that allylic oxidation did work without a catalyst (Figure 7). The reuse of the SiO₂@PM exhibited interesting durability during two runs and the third started to show lower activity (Figure S8).

3.5.3. Catalyzed Oxidation of Limonene

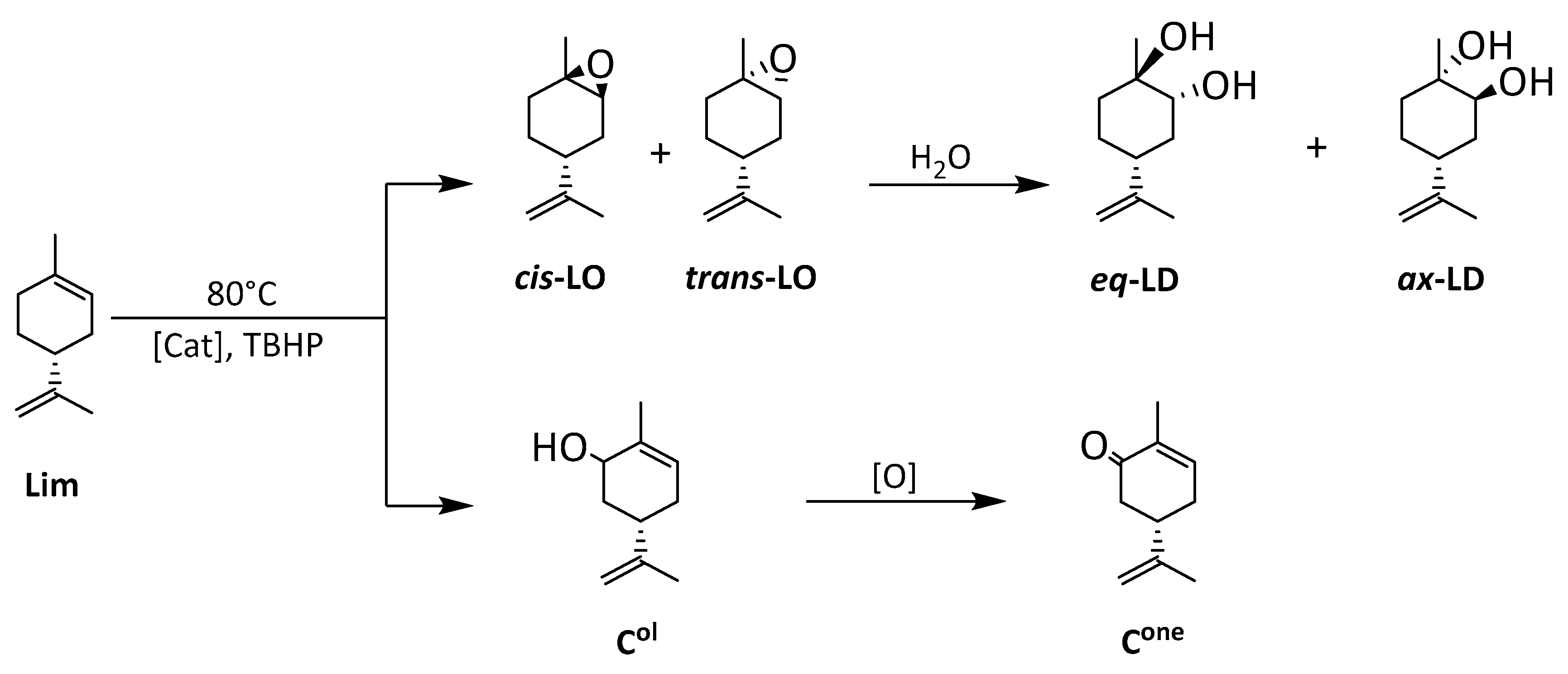

Oxidation reaction of limonene could lead to several different products corresponding to epoxidation with LO (cis and trans) and epoxide opening LD (ax and eq) and allylic oxidation (carveol C^ol, and carvone C^one) [27,29] (Scheme 5).

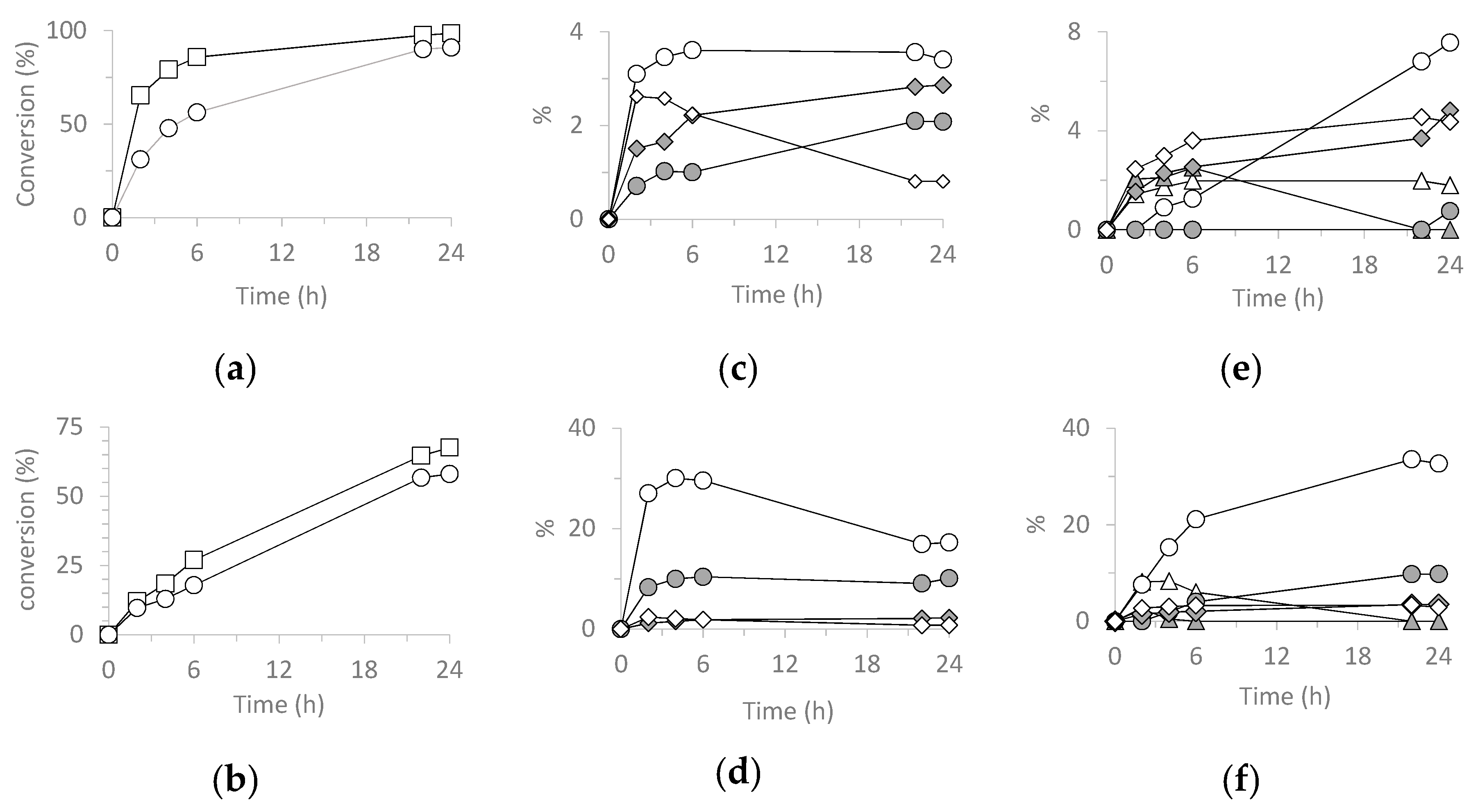

Under the same conditions than for CO, results have been complied in

Table 5. Relevant data for the catalyzed oxidation of limonene ¹.

Catalyst	Run	Lim Conv 2	cis-LO Sel 3	trans-LO Sel 3	ax-LD Sel 3	eq-LD Sel 3	Col Sel 3	Cone Sel 3	TON 4
H3PW12O40	1	67	0	0	5	3	1	4	1287
SiO2@PW	1	58	0	3	13	1	8	8	754
	2	59	0	3	13	1	10	8	768
	3	62	0	2	12	2	11	8	754
H3PMo12O40	1	99	0	0	18	10	1	2	1859
SiO2@PMo	1	91	0	0	36	11	4	3	1721
	2	86	0	0	32	8	6	7	1626
	3	81	0	< 1	20	5	6	6	1526

¹ Conditions: 80 °C. POM/TBHP/Lim=0.070/150/100 for W, 0.058/150/100 for Mo; t = 24 h. ² nLim converted/nLim engaged (in%) after 24 h. ³ n product formed/nLim converted at 24 h. ⁴ nLim transformed /nPOM at 24 h.

. The results were strongly depending to the nature of the catalysts. The major products observed were ax- and equ-LD for SiO₂@PMo, and carveol and carvone for SiO₂@PW₁₂ (Figure 8). This observation went in a straight line with observations done with CH.

Activity of SiO₂@PMo was higher than SiO₂@PW after each run (Figure S9). This could be also assumed by the absence of LO with Mo after 24 h, (but present at 6 h) and the presence of LDs. This was previously observed with other type of complexes [32]. Catalysts have a very weak influence on allylic oxidation, which could explain the similar selectivity of carveol and carvone. Durability of SiO₂@PM was also proved by recycling with average TONs of 110 and 228 for SiO₂@PW and SiO₂@PMo respectively.

3.5.4. Catalysis Oxidation of Cyclohexanol

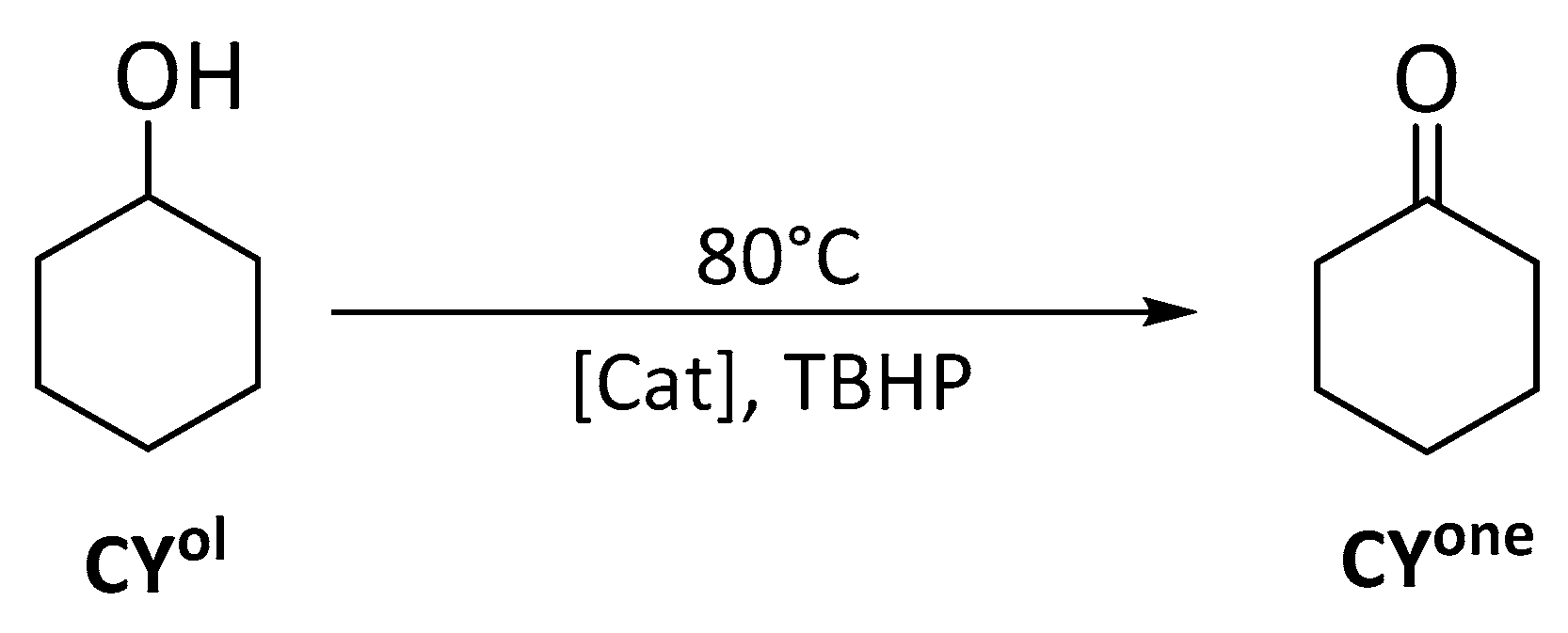

Cyclohexanol (CYol), as a precursor of adipid acid, i.e., one component of KA oil. Cyclohexanone (CYone) was the only oxidation product that was observed (Scheme 6). Under the same catalytic conditions than for CO and Lim, results have been compiled in

Table 6. Relevant data for the catalyzed oxidation of cyclohexanol after 24 h ^1.

Catalyst	Run	CYol Conversion 2	CYone Selectivity 3	TON 4
H3PW12O40	1	44	34	525
SiO2@PW	1	11	51	137
	2	8	97	101
	3	7	87	92
H3PMo12O40	1	58	54	728
SiO2@PMo	1	18	76	228
	2	17	90	207
	3	20	75	249

¹ Conditions: 80 °C. POM/TBHP/CYol=0.070/150/100 for W, 0.058/150/100 for Mo; t = 24 h. ² n CYol converted/n CYol engaged (in %) after 24 h. ³ n CYone formed/nCYol converted (in %) at 24 h. ⁴ n CYol transformed /nPOM at 24 h.

.

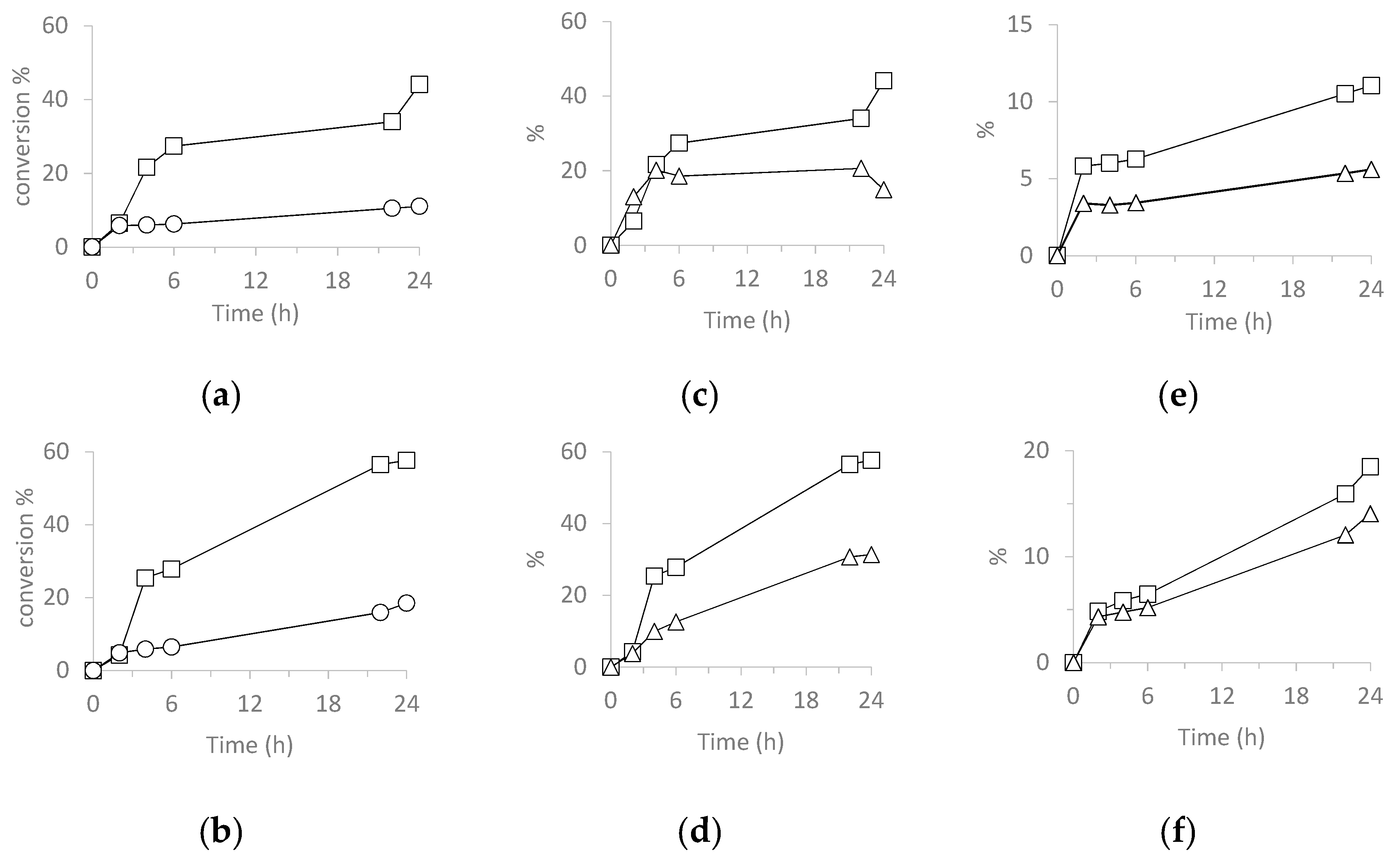

Both grafted catalysts had low conversion (Figure 9), SiO₂@PMo being more active than SiO₂@PW₁₂ (with average conversion of 10% and 18% respectively) but with moderate activity compared to the free POMs. The mechanism might imply the formation of the diperoxo compound [110]. Although slow, the processes were more selective when grafted, certainly due to less acidic conditions. At the difference with other efficient processes using non-grafted compounds but microwave activation [111], recycling of the catalyst was possible (Figure S10) and interesting with similar conversions within the time.

4. Conclusions

Ionic immobilization of POMs on silica beads functionalized by APTES led to the development of new catalytic materials (SiO₂@PM) used for organic solvent-free (ep)oxidation reactions, showing with the studied substrates better selectivity than the corresponding free POMs. Morphological (DLS and TEM) studies of the SiO₂@PM objects exhibited interesting behavior with ionic interactions going to dynamic particles agglomeration. This phenomenon seems to ensure the stability of non-monolithic recoverable catalytic objects, interesting in terms of potential industrial use. This methodology of catalysis uses organic solvent-free process, smoother oxidant, minimal catalyst loading and catalyst recyclability in a straight line with some principles of green chemistry. This environmentally benign protocol with a new type of catalytic materials can be easily modulated (other functionalization on beads, other grafted catalysts and other catalyzed reactions) and does open a new field of future investigations.
