Feasibility of ANFIS-PSO and ANFIS-GA Models in Predicting Thermophysical Properties of Al2O3-MWCNT/Oil Hybrid Nanofluid

by
Ibrahim M. Alarifi
1,
Hoang M. Nguyen
2,3,
Ali Naderi Bakhtiyari
4 and
Amin Asadi
2,3,*
1
Department of Mechanical and Industrial Engineering, College of Engineering, Majmaah University, Al-Majmaah 11952, Saudi Arabia
2
Division of Computational Physics, Institute for Computational Science, Ton Duc Thang University, Ho Chi Minh City 700000, Vietnam
3
Faculty of Electrical and Electronics Engineering, Ton Duc Thang University, Ho Chi Minh City 700000, Vietnam
4
Center for Advanced Laser Manufacturing, School of Mechanical Engineering, Shandong University of Technology, Shandong 255049, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(21), 3628; https://doi.org/10.3390/ma12213628
Submission received: 2 September 2019 / Revised: 9 October 2019 / Accepted: 30 October 2019 / Published: 4 November 2019
(This article belongs to the Special Issue Nanofluids: From Fundamental Sciences to Applications)
Browse Figures
Versions Notes

Abstract

:
The main purpose of the present paper is to improve the performance of the adaptive neuro-fuzzy inference system (ANFIS) in predicting the thermophysical properties of Al2O3-MWCNT/thermal oil hybrid nanofluid through mixing using metaheuristic optimization techniques. A literature survey showed that the use of an artificial neural network (ANN) is the most widely used method, although there are other methods that showed better performance. Moreover, it was found in the literature that artificial intelligence methods have been widely used for predicting the thermal conductivity of nanofluids. Thus, in the present study, genetic algorithms (GAs) and particle swarm optimization (PSO) have been utilized to search and determine the antecedent and consequent parameters of the ANFIS model. Solid concentration and temperature were considered as input variables, and thermal conductivity, dynamic viscosity, heat transfer performance, and pumping power in both the internal laminar and turbulent flow regimes were the outputs. In order to evaluate and compare the performance of the models, two statistical indices of root mean square error (RMSE) and determination coefficient (R) were utilized. Based on the results, both of the models are able to predict the thermophysical properties appropriately. However, the ANFIS-PSO model had a better performance than the ANFIS-GA model. Finally, the studied thermophysical properties were developed by the trained ANFIS-PSO model.

1. Introduction

According to Choi and Eastman [1], the introduction of nanofluids, which are a suspension of nano-sized particles in conventional fluids (i.e., water, ethylene glycol (EG), oil, and so forth), has opened new doors to improve heat transfer rate. After this pioneering study, many researchers conducted different projects on preparation methods [2,3,4], characterization [5,6], thermophysical properties [7,8,9,10,11], heat transfer performance [12,13,14,15,16], and the possible applications [17,18,19] of different nanofluids. Due to the importance of nanofluids, many researchers have reviewed the published literature on different aspects of nanofluids, such as their thermophysical properties [20,21], methods regarding their modeling and simulation [22], and their applications [23,24].
No one would disagree that conducting an experimental study on the thermophysical properties and heat transfer of nanofluids is time-consuming and costly. Thus, it would be useful to have a tool to predict the thermophysical properties and heat transfer of nanofluids. Here, artificial intelligence could be utilized. Over the last decade, a growing body of literature has been published on the application of artificial intelligence in predicting the thermophysical properties of different nanofluids [25,26,27]. In this regard, Li et al. [28] employed an adaptive neuro-fuzzy inference system (ANFIS) and an artificial neural network (ANN) to predict the thermophysical properties of SWCNT/Silver-water nanofluid. They proposed a new correlation to predict the thermophysical properties. In another study performed by Hojjat [29], the thermal and hydrodynamic performance of a nanofluid was predicted by ANN method. They used four parameters of thermal conductivity, the Reynolds number, the solid concentration of nanoparticles, and the Prandtl number as the input variables to predict the Nusselt number and pressure drop. They found that there was a good agreement between the experimental data and the ANN output. The mixed convection of a water-based nanofluid with CNT nanoparticles has been modeled using ANFIS by Selimefendigil and Oztop [30]. Alrashed et al. [31] experimentally studied the thermophysical properties of Cu-water nanofluid and employed the ANN method to predict the thermophysical properties. They stated that the ANN has a good capacity in predicting the thermophysical properties of the studied nanofluid. Baghban et al. [32] used different machine learning methods (ANFIS, ANN, and least square support vector machine (LSSVM)) to predict the thermophysical properties of a CNT-water nanofluid. They reported that the LSSVM possesses the best performance over the other studied methods. Adio et al. [33] employed a genetic algorithm-polynomial neural network (GA-PNN) and a fuzzy C-means clustering-based adaptive neuro-fuzzy inference system (FCM-ANFIS) to predict the dynamic viscosity of MgO-EG nanofluid at different temperatures and solid concentrations. They reported that both of the employed methods possessed a good capability to predict the dynamic viscosity of the nanofluid. Table 1 presents a summary of the published literature on the application of artificial intelligence in predicting the thermophysical properties of nanofluids. Moreover, Bahiraei et al. [34] and Ramezanizadeh et al. [35] have reviewed different machine learning methods employed by researchers to predict the thermophysical properties of various nanofluids.
A literature survey showed that most of the conducted studies evaluated the thermal conductivity of nanofluids by applying the ANN method. Even though many researchers have appropriately used a variety of artificial intelligent methods for predicting the thermophysical properties, the novel artificial intelligent methods (e.g., hybrids and ensembles) have still not been used to fully explore the thermophysical properties. In the present study, the performance of an ANFIS model in predicting the thermophysical properties, heat transfer performance, and pumping power of MWCNT-Al2O3/oil hybrid nanofluid has been improved through combining it with metaheuristic optimization techniques; genetic algorithms (GAs) and particle swarm optimization (PSO) have been utilized to search and determine the antecedent and consequent parameters of the ANFIS model. The temperature and solid concentration were considered as the input variables, and thermophysical properties (thermal conductivity and dynamic viscosity), heat transfer, and pumping power were the output variables. The performance of the ANFIS models (ANFIS-GA and ANFIS-PSO) were evaluated using two statistical indices of root mean square error (RMSE) and determination coefficient (R).

2. Experimental Data

In the present study, the experimental data of thermophysical properties as well as theoretical data of heat transfer performance and pumping power of a hybrid oil-based nanofluid containing MWCNT and Al2O3 nanoparticle presented by Asadi et al. [46] have been used. They prepared the nanofluid samples by employing the two-step method, which is a method widely used in the literature. The measurement of the thermal conductivity and dynamic viscosity of the nanofluid were done at different temperatures (25–50 °C) and solid concentrations (0.125–1.5 vol.%). Measuring the dynamic viscosity of the nanofluid, they employed a Brookfield cone and plate viscometer, which had been calibrated before starting the experiments. Moreover, they used the KD2 Pro thermal analyzer (Decagon device, Pullman, WA, USA) to measure the thermal conductivity of the nanofluids.

3. Adaptive Neuro-Fuzzy Inference System

Jang was the first researcher who introduced the adaptive neuro-fuzzy inference system (ANFIS) in 1993 [47]. In general, the chief incentive of using ANFIS is to make a powerful mixture of an artificial neural network (ANN) and a fuzzy inference system (FIS) [36]. The FIS is constructed based on the if-then rules, so that the relationship between input and output variables can be determined through the regulations [48]. Hence, it can be fitted as a prediction model for situations when input and output data are highly uncertain; as under these conditions, the uncertainties in the data cannot be considered in classical prediction methods [49]. Principally, two inference systems of Mamdani and Takagi–Sugeno are implemented in fuzzy logic [50]. ANFIS is usually applied based on the inference system of Takagi–Sugeno [51].
The ANFIS structure consists of five layers, as displayed in Figure 1. In each layer, the nodes are divided into two forms of adaptable and fixed. In this system, the nodes of layers 2, 3, and 5 (circular nodes) signify fixed nodes, and the nodes of layers 1 and 4 (square nodes), known as adaptive nodes, represent nodes in which parameters are capable to learn [52].
In order to explain the rules of each layer, we take two fuzzy if-then rules into consideration as follows:
Rule 1 :   if   x   is   A 1   and   y   is   B 1   then   f = p 1 x + q 1 y + r 1 ,
Rule 2 :   if   x   is   A 2   and   y   is   B 2   then   f = p 2 x + q 2 y + r 2 ,
where x and y are input variables, Ai and Bi are fuzzy sets, and f is the output (linguistic variables). {pi, qi, ri} are consequent parameters, which should be measured during the ANFIS training process. The function of each layer can be measured as follows:
Layer 1: In this layer, each node, i, is defined by a membership function. The variables in fuzzy logic become fuzzy by means of membership functions. In fact, these membership functions are curves that define how a point in the input space is mapped to a membership value in the interval of [0,1] [53]. Membership functions have various forms; the most common one is the Triangular, Trapzoidum, and Gaussian membership function.
O 1 . i = σ A i ( x ) ,
O 1 . i = σ B i ( x ) ,
where x is defined as the input of node i and O1.i is the membership function of Ai, which is usually defined by the Gaussian function as follows:
σ A i ( x ) = e x p ( − ( x − c ) 2 σ 2 ) .
In this formula, σ stands for standard deviation and C is the center of the Gaussian membership function, which are called antecedent parameters. These parameters are relevant to membership functions, and their value is measured by the optimization algorithm.
Layer 2: The firing strength of a rule is defined by the following relation:
ω i = σ A i ( x ) × σ B i ( x )    i = 1.2 .
Layer 3: The firing strength of each rule is normalized by dividing the firing strength of the ith rule to the total firing strength of all rules.
O 3 . i = ω ¯ i = ω i ω 1 + ω 2    i = 1.2 .
Layer 4: The result section of the fuzzy rule is measured as follows:
O 4 . i = ω ¯ i f i = ω ¯ i ( p i x + q i y + r i )    i = 1.2 ,
where {pi, qi, ri} are the set of consequent parameters, which are computed by the optimization algorithm.
Layer 5: In this layer, all the outputs of Layer 4 are added to each other.
O 5 . i = ∑ i = 1 R ω ¯ i f i    i = 1.2 .

3.1. ANFIS Training

In general, two structural parameters of the ANFIS model include antecedent and consequent parameters [54]. The gradient-based methods are usually used to adjust the antecedent and consequent parameters in the ANFIS model [55]. One of the issues with the gradient-based methods is that the answer is placed in local optimality, and convergence rate is slow [56,57]. Metaheuristic optimization algorithms, such as particle swarm optimization (PSO) or the genetic algorithm (GA), can be utilized as an effective solution for the issues relating to the gradient-based methods [58,59,60]. The process of training an ANFIS model using metaheuristic optimization techniques (PSO and GA) is displayed in Figure 2.

3.2. Genetic Algorithm

One of the most effective metaheuristic methods used to find the minimum and maximum points of a target function is the genetic algorithm [61]. This algorithm was first presented by Holland in 1967 and then completed by Goldberg in 1989 [62,63]. Genetic algorithms utilize Darwin’s natural selection principles to find the optimal formula for predicting or matching patterns. Genetic algorithms are frequently great options for random prediction techniques.
In genetic algorithm solutions, the problem is searched for randomly, step by step. The objective of the search is to find better answers at every stage rather than just the previous one. One of the highlighted features of the genetic algorithm is its ability to run in parallel, which helps it solve complex problems [64]. In this method, the parameters of the search space are first shaped in the form of strings called chromosomes. Each chromosome denotes an answer to the problem in question. Together, the chromosomes form a set called the population, and at the beginning of the operation, the initial population elements are typically selected randomly. The algorithm applies two crossover intersection and mutation functions on population elements iteratively and makes a new population from another one. The answers of a population are usually called the generation. In the end, the favorable answers are produced in the last generation, after the finite repetition. Without a shadow of a doubt, all answers are not necessarily optimal. In order to determine the optimality of each answer, a criterion is used that is called “the objective function.” The target function allocates a value to each population chromosome of one generation, which specifies the suitability of this answer rather than the other answers of the same generation.

3.3. Particle Swarm Optimization (PSO)

The PSO algorithm is one of the optimization methods, inspired by nature, which was first invented in 1995 by Hub and Kennedy [65]. This algorithm is mostly utilized to solve numerical optimization issues with very big search space without knowing about the target function gradient [66]. To solve a problem, a population of candidate solutions moves randomly, using a simple formula, into the problem domain. It then explores, aiming to find the optimal global solution (each candidate solution is called a particle).
As in the PSO algorithm, a population of solutions is randomly produced by the algorithm, which look for the answer by moving within the problem domain, in a similar way to the genetic algorithm [67]. Nevertheless, unlike genetic algorithms, in the PSO algorithm, a random velocity is assigned to each potential answer of the optimization problem, or rather each particle, such that in each iteration, any particle is moved regarding its velocity. Furthermore, in the PSO algorithm, unlike the genetic algorithm, the best solution for the optimization problem (from the start of the program to the last repetition) should be stored by each particle. The PSO algorithm is fundamentally appropriate for solving continuous unconstrained maximization problems, like the genetic algorithm [68]. Yet, they can also be utilized to solve optimization problems (including minimization or maximization) in a continuous state with some changes in definition of the function definition [58].

4. Results and Discussion

The values of thermal conductivity, as well as dynamic viscosity, heat transfer performance, and pumping power in both the internal laminar and turbulent flow regimes were measured at temperatures of 25, 30, 35, 40, 45, and 50 °C, and volume fractions of 0.125%, 0.25%, 0.5%, 1%, and 1.5% so as to train and test the presented models in this paper. Among all the experimental data, 80% were randomly utilized as training data, and the surplus were used to test the models.
The two statistical indices correlation coefficient (R), which compares the linear relationship between the experimental and predicted values, and the root mean square of error (RMSE), which compares the deviation between the predicted and actual values through some positive values, were chosen in this study so as to assess and compare the performance of developed models in prediction.
Table 2 demonstrates the parameters of the genetic and the PSO algorithms in which the stopping factor is the number of iterations. The parameters in Table 2 were chosen based on the authors’ experience and through trial and error. It is noteworthy to mention that the RMSE is considered as a target function for the optimization algorithms.
Table 3 displays the values of the statistical indices computed for any models in predicting thermophysical properties. Inspecting the lowest value of RMSE, it can be concluded that the ANFIS-PSO model shows the best performance in estimating studied thermophysical properties, rather than the ANFIS-GA.
In order to perform further examinations, the regression diagram of the experimentally measured values versus the predicted values are displayed in Figure 3. As can be observed, the points are scattered around the fit line (the fit line represents the experimental data), indicating a great adjustment between the model output values and the actual values. It is easy to perceive that having a correlation coefficient close to one, the ANFIS-PSO model gives a minor error compared to the other model in predicting thermophysical properties.
Finally, since the ANFIS-PSO model performed better than the ANFIS-GA model in predicting thermophysical properties, in the present study, this model is utilized as the preferred one to develop the thermophysical properties in different temperatures ranging from 20–50 °C and solid concentrations ranging from 0%–1.6%. Employing the well-trained ANFIS-PSO model, the input data set considered all the states of temperature and solid concentration with increments of 1 °C and 0.1 vol.% in the mentioned ranges, respectively. Regarding the capability of the proposed ANFIS-PSO model in accurate estimation of the thermophysical properties of Al2O3-MWCNT-oil hybrid nanofluid, the outputs of the ANFIS-PSO model regarding temperature and solid concentration are shown in a three-dimensional mesh plot (Figure 4). As can be seen, the ANFIS-PSO model produces a smooth surface that shows the high accuracy of the model. The values of the studied thermophysical properties in the defined temperature and solid concentration data set obtained from the ANFIS-PSO models are displayed in Figure 4.

5. Concluding Remarks

In this paper, in order to improve the performance of the ANFIS model to predict the thermophysical properties of Al2O3-MWCNT/thermal oil hybrid nanofluid, PSO and genetic algorithms were utilized. In this method, the antecedent and consequent parameters of the ANFIS model were regulated by the searching mechanism of optimal values of genetic algorithms and PSO. In order to train and test the models, data sets of experimental thermophysical properties measured by Asadi et al. [46] at different temperatures and solid concentration were employed. Thermal conductivity coefficient, dynamic viscosity, heat transfer performance, and pumping power in both internal laminar and turbulent flow regimes were utilized as predictive parameters. Based on the outcomes, we can conclude that the use of metaheuristic algorithms can be helpful in improving the ANFIS model training process. The results demonstrate that both models are capable of predicting thermophysical properties, appropriately. However, based on comparisons between models, the ANFIS-PSO model produced better results in comparison to the ANFIS-GA model. Finally, using the ANFIS-PSO model at a temperature range of 10–50 °C and a volume fraction of 0%–2%, the studied thermophysical properties were developed.

Author Contributions

Conceptualization, funding acquisition, and project administration, I.M.A.; formal analysis and visualization, H.M.N.; software and validation, A.N.B., methodology, writing—review, answering the reviewers’ comments, editing, and supervision, A.A.

Funding

This research was funded by the Deanship of Scientific Research at Majmaah University under project number No. (RGP-2019-15).

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at Majmaah University for funding this work under project number No. (RGP-2019-15).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Choi, S.U.S.; Eastman, J.A. Enhancing thermal conductivity of fluids with nanoparticles. In Proceedings of the 1995 ASME International Mechanical Engineering Congress And Exposition, San Francisco, CA, USA, 12–17 November 1995. [Google Scholar]
  2. Zhao, M.; Lv, W.; Li, Y.; Dai, C.; Zhou, H.; Song, X.; Wu, Y. A Study on Preparation and Stabilizing Mechanism of Hydrophobic Silica Nanofluids. Materials 2018, 11, 1385. [Google Scholar] [CrossRef]
  3. Asadi, A.; Alarifi, I.M.; Ali, V.; Nguyen, H.M. An Experimental Investigation on the Effects of Ultrasonication Time on Stability and Thermal Conductivity of MWCNT-water Nanofluid: Finding the Optimum Ultrasonication Time. Ultrason. Sonochem. 2019, 58, 104639. [Google Scholar] [CrossRef]
  4. Asadi, A.; Asadi, M.; Siahmargoi, M.; Asadi, T.; Gholami Andarati, M. The effect of surfactant and sonication time on the stability and thermal conductivity of water-based nanofluid containing Mg(OH)2 nanoparticles: An experimental investigation. Int. J. Heat Mass Transf. 2017, 108, 191–198. [Google Scholar] [CrossRef]
  5. Seong, H.; Kim, G.; Jeon, J.; Jeong, H.; Noh, J.; Kim, Y.; Kim, H.; Huh, S. Experimental Study on Characteristics of Grinded Graphene Nanofluids with Surfactants. Materials 2018, 11, 950. [Google Scholar] [CrossRef] [PubMed]
  6. Yu, X.; Wu, Q.; Zhang, H.; Zeng, G.; Li, W.; Qian, Y.; Li, Y.; Yang, G.; Chen, M. Investigation on Synthesis, Stability, and Thermal Conductivity Properties of Water-Based SnO2/Reduced Graphene Oxide Nanofluids. Materials 2017, 11, 38. [Google Scholar] [CrossRef] [PubMed]
  7. Alarifi, I.M.; Alkouh, A.B.; Ali, V.; Nguyen, H.M.; Asadi, A. On the rheological properties of MWCNT-TiO2/oil hybrid nanofluid: An experimental investigation on the effects of shear rate, temperature, and solid concentration of nanoparticles. Powder Technol. 2019, 355, 157–162. [Google Scholar] [CrossRef]
  8. Asadi, A.; Pourfattah, F. Heat transfer performance of two oil-based nanofluids containing ZnO and MgO nanoparticles; a comparative experimental investigation. Powder Technol. 2019, 343, 296–308. [Google Scholar] [CrossRef]
  9. Asadi, A. A guideline towards easing the decision-making process in selecting an effective nanofluid as a heat transfer fluid. Energy Convers. Manag. 2018, 175, 1–10. [Google Scholar] [CrossRef]
  10. Ranjbarzadeh, R.; Moradikazerouni, A.; Bakhtiari, R.; Asadi, A.; Afrand, M. An experimental study on stability and thermal conductivity of water/silica nanofluid: Eco-friendly production of nanoparticles. J. Clean. Prod. 2019, 206, 1089–1100. [Google Scholar] [CrossRef]
  11. Asadi, A.; Asadi, M.; Rezaei, M.; Siahmargoi, M.; Asadi, F. The effect of temperature and solid concentration on dynamic viscosity of MWCNT/MgO (20–80)–SAE50 hybrid nano-lubricant and proposing a new correlation: An experimental study. Int. Commun. Heat Mass Transf. 2016, 78, 48–53. [Google Scholar] [CrossRef]
  12. Pourfattah, F.; Abbasian Arani, A.A.; Babaie, M.R.; Nguyen, H.M.; Asadi, A. On the thermal characteristics of a manifold microchannel heat sink subjected to nanofluid using two-phase flow simulation. Int. J. Heat Mass Transf. 2019, 143, 118518. [Google Scholar] [CrossRef]
  13. Hadavand, M.; Yousefzadeh, S.; Ali Akbari, O.; Pourfattah, F.; Minh Nguyen, H.; Asadi, A. A Numerical Investigation on the Effects of Mixed Convection of Ag-Water Nanofluid Inside a Sim-Circular Lid-Driven Cavity on the Temperature of an Electronic Silicon Chip. Appl. Therm. Eng. 2019, 162, 114298. [Google Scholar] [CrossRef]
  14. Bazdar, H.; Toghraie, D.; Pourfattah, F.; Akbari, O.A.; Nguyen, H.M.; Asadi, A. Numerical investigation of turbulent flow and heat transfer of nanofluid inside a wavy microchannel with different wavelengths. J. Therm. Anal. Calorim. 2019, 1–16. [Google Scholar] [CrossRef]
  15. Asadi, A.; Asadi, M.; Rezaniakolaei, A.; Rosendahl, L.A.; Wongwises, S. An experimental and theoretical investigation on heat transfer capability of Mg(OH)2/MWCNT-engine oil hybrid nano-lubricant adopted as a coolant and lubricant fluid. Appl. Therm. Eng. 2018, 129, 577–586. [Google Scholar] [CrossRef]
  16. Asadi, M.; Asadi, A.; Aberoumand, S. An experimental and theoretical investigation on the effects of adding hybrid nanoparticles on heat transfer efficiency and pumping power of an oil-based nanofluid as a coolant fluid. Int. J. Refrig. 2018, 89, 83–92. [Google Scholar] [CrossRef] [Green Version]
  17. Gupta, M.K.; Jamil, M.; Wang, X.; Song, Q.; Liu, Z.; Mia, M.; Hegab, H.; Khan, A.M.; Collado, A.G.; Pruncu, C.I.; et al. Performance Evaluation of Vegetable Oil-Based Nano-Cutting Fluids in Environmentally Friendly Machining of Inconel-800 Alloy. Materials 2019, 12, 2792. [Google Scholar] [CrossRef]
  18. Rodriguez Acevedo, E.; Cortés, F.B.; Franco, C.A.; Carrasco-Marín, F.; Pérez-Cadenas, A.F.; Fierro, V.; Celzard, A.; Schaefer, S.; Cardona Molina, A. An Enhanced Carbon Capture and Storage Process (e-CCS) Applied to Shallow Reservoirs Using Nanofluids Based on Nitrogen-Rich Carbon Nanospheres. Materials 2019, 12, 2088. [Google Scholar] [CrossRef]
  19. Alnaqi, A.A.; Aghakhani, S.; Pordanjani, A.H.; Bakhtiari, R.; Asadi, A.; Tran, M. Effects of magnetic field on the convective heat transfer rate and entropy generation of a nanofluid in an inclined square cavity equipped with a conductor fin: Considering the radiation effect. Int. J. Heat Mass Transf. 2019, 133, 256–267. [Google Scholar] [CrossRef]
  20. Asadi, A.; Pourfattah, F.; Miklós Szilágyi, I.; Afrand, M.; Żyła, G.; Seon Ahn, H.; Wongwises, S.; Minh Nguyen, H.; Arabkoohsar, A.; Mahian, O. Effect of sonication characteristics on stability, thermophysical properties, and heat transfer of nanofluids: A comprehensive review. Ultrason. Sonochem. 2019, 58, 104701. [Google Scholar] [CrossRef]
  21. Asadi, A.; Aberoumand, S.; Moradikazerouni, A.; Pourfattah, F.; Żyła, G.; Estellé, P.; Mahian, O.; Wongwises, S.; Nguyen, H.M.; Arabkoohsar, A. Recent advances in preparation methods and thermophysical properties of oil-based nanofluids: A state-of-the-art review. Powder Technol. 2019, 352, 209–226. [Google Scholar] [CrossRef]
  22. Mahian, O.; Kolsi, L.; Amani, M.; Estellé, P.; Ahmadi, G.; Kleinstreuer, C.; Marshall, J.S.; Taylor, R.A.; Abu-Nada, E.; Rashidi, S.; et al. Recent Advances in Modeling and Simulation of Nanofluid Flows-Part II: Applications. Phys. Rep. 2018, 791, 1–59. [Google Scholar] [CrossRef]
  23. Chamkha, A.J.; Molana, M.; Rahnama, A.; Ghadami, F. On the nanofluids applications in microchannels: A comprehensive review. Powder Technol. 2018, 332, 287–322. [Google Scholar] [CrossRef]
  24. Izadi, S.; Armaghani, T.; Ghasemiasl, R.; Chamkha, A.J.; Molana, M. A comprehensive review on mixed convection of nanofluids in various shapes of enclosures. Powder Technol. 2019, 343, 880–907. [Google Scholar] [CrossRef]
  25. Karimipour, A.; Bagherzadeh, S.A.; Goodarzi, M.; Alnaqi, A.A.; Bahiraei, M.; Safaei, M.R.; Shadloo, M.S. Synthesized CuFe2O4/SiO2nanocomposites added to water/EG: Evaluation of the thermophysical properties beside sensitivity analysis & EANN. Int. J. Heat Mass Transf. 2018, 127, 1169–1179. [Google Scholar]
  26. Safaei, M.R.; Hajizadeh, A.; Afrand, M.; Qi, C.; Yarmand, H.; Zulkifli, N.W.B.M. Evaluating the effect of temperature and concentration on the thermal conductivity of ZnO-TiO2/EG hybrid nanofluid using artificial neural network and curve fitting on experimental data. Phys. A Stat. Mech. Appl. 2019, 519, 209–216. [Google Scholar] [CrossRef]
  27. Bagherzadeh, S.A.; D’Orazio, A.; Karimipour, A.; Goodarzi, M.; Bach, Q.V. A novel sensitivity analysis model of EANN for F-MWCNTs–Fe3O4/EG nanofluid thermal conductivity: Outputs predicted analytically instead of numerically to more accuracy and less costs. Phys. A Stat. Mech. Appl. 2019, 521, 406–415. [Google Scholar] [CrossRef]
  28. Bahrami, M.; Akbari, M.; Bagherzadeh, S.A.; Karimipour, A.; Afrand, M.; Goodarzi, M. Develop 24 dissimilar ANNs by suitable architectures & training algorithms via sensitivity analysis to better statistical presentation: Measure MSEs between targets & ANN for Fe–CuO/Eg–Water nanofluid. Phys. A Stat. Mech. Appl. 2019, 519, 159–168. [Google Scholar]
  29. Li, Z.X.; Renault, F.L.; Gómez, A.O.C.; Sarafraz, M.M.; Khan, H.; Safaei, M.R.; Filho, E.P.B. Nanofluids as secondary fluid in the refrigeration system: Experimental data, regression, ANFIS, and NN modeling. Int. J. Heat Mass Transf. 2019, 144, 118635. [Google Scholar] [CrossRef]
  30. Hojjat, M. Nanofluids as coolant in a shell and tube heat exchanger: ANN modeling and multi-objective optimization. Appl. Math. Comput. 2020, 365, 124710. [Google Scholar] [CrossRef]
  31. Selimefendigil, F.; Öztop, H.F. Numerical analysis and ANFIS modeling for mixed convection of CNT-water nanofluid filled branching channel with an annulus and a rotating inner surface at the junction. Int. J. Heat Mass Transf. 2018, 127, 583–599. [Google Scholar] [CrossRef]
  32. Alrashed, A.A.A.A.; Karimipour, A.; Bagherzadeh, S.A.; Safaei, M.R.; Afrand, M. Electro- and thermophysical properties of water-based nanofluids containing copper ferrite nanoparticles coated with silica: Experimental data, modeling through enhanced ANN and curve fitting. Int. J. Heat Mass Transf. 2018, 127, 925–935. [Google Scholar] [CrossRef]
  33. Baghban, A.; Kahani, M.; Nazari, M.A.; Ahmadi, M.H.; Yan, W.M. Sensitivity analysis and application of machine learning methods to predict the heat transfer performance of CNT/water nanofluid flows through coils. Int. J. Heat Mass Transf. 2019, 128, 825–835. [Google Scholar] [CrossRef]
  34. Adio, S.A.; Mehrabi, M.; Sharifpur, M.; Meyer, J.P. Experimental investigation and model development for effective viscosity of MgO–ethylene glycol nanofluids by using dimensional analysis, FCM-ANFIS and GA-PNN techniques. Int. Commun. Heat Mass Transf. 2016, 72, 71–83. [Google Scholar] [CrossRef]
  35. Bahiraei, M.; Heshmatian, S.; Moayedi, H. Artificial intelligence in the field of nanofluids: A review on applications and potential future directions. Powder Technol. 2019, 353, 276–301. [Google Scholar] [CrossRef]
  36. Ramezanizadeh, M.; Ahmadi, M.H.; Nazari, M.A.; Sadeghzadeh, M.; Chen, L. A review on the utilized machine learning approaches for modeling the dynamic viscosity of nanofluids. Renew. Sustain. Energy Rev. 2019, 114, 109345. [Google Scholar] [CrossRef]
  37. Alrashed, A.A.A.A.; Gharibdousti, M.S.; Goodarzi, M.; de Oliveira, L.R.; Safaei, M.R.; Bandarra Filho, E.P. Effects on thermophysical properties of carbon based nanofluids: Experimental data, modelling using regression, ANFIS and ANN. Int. J. Heat Mass Transf. 2018, 125, 920–932. [Google Scholar] [CrossRef]
  38. Ghasemi, A.; Hassani, M.; Goodarzi, M.; Afrand, M.; Manafi, S. Appraising influence of COOH-MWCNTs on thermal conductivity of antifreeze using curve fitting and neural network. Phys. A Stat. Mech. Appl. 2019, 514, 36–45. [Google Scholar] [CrossRef]
  39. Kannaiyan, S.; Boobalan, C.; Nagarajan, F.C.; Sivaraman, S. Modeling of thermal conductivity and density of alumina/silica in water hybrid nanocolloid by the application of Artificial Neural Networks. Chin. J. Chem. Eng. 2019, 27, 726–736. [Google Scholar] [CrossRef]
  40. Moradikazerouni, A.; Hajizadeh, A.; Safaei, M.R.; Afrand, M.; Yarmand, H.; Zulkifli, N.W.B.M. Assessment of thermal conductivity enhancement of nano-antifreeze containing single-walled carbon nanotubes: Optimal artificial neural network and curve-fitting. Phys. A Stat. Mech. Appl. 2019, 521, 138–145. [Google Scholar] [CrossRef]
  41. Hemmat Esfe, M.; Ahangar, M.R.H.; Toghraie, D.; Hajmohammad, M.H.; Rostamian, H.; Tourang, H. Designing artificial neural network on thermal conductivity of Al2O3–water–EG (60–40%) nanofluid using experimental data. J. Therm. Anal. Calorim. 2016, 126, 837–843. [Google Scholar] [CrossRef]
  42. Eshgarf, H.; Sina, N.; Esfe, M.H.; Izadi, F.; Afrand, M. Prediction of rheological behavior of MWCNTs–SiO2/EG–water non-Newtonian hybrid nanofluid by designing new correlations and optimal artificial neural networks. J. Therm. Anal. Calorim. 2018, 132, 1029–1038. [Google Scholar] [CrossRef]
  43. Vakili, M.; Karami, M.; Delfani, S.; Khosrojerdi, S.; Kalhor, K. Experimental investigation and modeling of thermal conductivity of CuO–water/EG nanofluid by FFBP-ANN and multiple regressions. J. Therm. Anal. Calorim. 2017, 129, 629–637. [Google Scholar] [CrossRef]
  44. Maddah, H.; Aghayari, R.; Ahmadi, M.H.; Rahimzadeh, M.; Ghasemi, N. Prediction and modeling of MWCNT/Carbon (60/40)/SAE 10 W 40/SAE 85 W 90(50/50) nanofluid viscosity using artificial neural network (ANN) and self-organizing map (SOM). J. Therm. Anal. Calorim. 2018, 134, 2275–2286. [Google Scholar] [CrossRef]
  45. Vafaei, M.; Afrand, M.; Sina, N.; Kalbasi, R.; Sourani, F.; Teimouri, H. Evaluation of thermal conductivity of MgO-MWCNTs/EG hybrid nanofluids based on experimental data by selecting optimal artificial neural networks. Phys. E Low Dimens. Syst. Nanostruct. 2017, 85, 90–96. [Google Scholar] [CrossRef]
  46. Asadi, A.; Asadi, M.; Rezaniakolaei, A.; Rosendahl, L.A.; Afrand, M.; Wongwises, S. Heat transfer efficiency of Al2O3-MWCNT/thermal oil hybrid nanofluid as a cooling fluid in thermal and energy management applications: An experimental and theoretical investigation. Int. J. Heat Mass Transf. 2018, 117, 474–486. [Google Scholar] [CrossRef]
  47. Jang, J.S.R. ANFIS: Adaptive network based fuzzy inference system. IEEE Trans. Syst. Man Cybern. 1993, 23, 665–683. [Google Scholar] [CrossRef]
  48. Amirkhani, S.; Nasirivatan, S.; Kasaeian, A.B.; Hajinezhad, A. ANN and ANFIS models to predict the performance of solar chimney power plants. Renew. Energy 2015, 83, 597–607. [Google Scholar] [CrossRef]
  49. Shamshirband, S.; Baghban, A.; Hadipoor, M.; Mosavi, A. Developing an ANFIS-PSO Model to Estimate 2 Mercury Emission in Combustion Flue Gases 3. Mathematics 2019, 7, 965. [Google Scholar] [CrossRef]
  50. Ouyang, H.T. Input optimization of ANFIS typhoon inundation forecast models using a Multi-Objective Genetic Algorithm. J. Hydro Environ. Res. 2018, 19, 16–27. [Google Scholar] [CrossRef]
  51. Baghban, A.; Jalali, A.; Shafiee, M.; Ahmadi, M.H.; Chau, K. Developing an ANFIS-based swarm concept model for estimating the relative viscosity of nanofluids. Eng. Appl. Comput. Fluid Mech. 2018, 13, 26–39. [Google Scholar] [CrossRef] [Green Version]
  52. Zendehboudi, A.; Li, X.; Wang, B. Utilization of ANN and ANFIS models to predict variable speed scroll compressor with vapor injection. Int. J. Refrig. 2017, 74, 473–485. [Google Scholar] [CrossRef]
  53. Nwobi-Okoye, C.C.; Ochieze, B.Q.; Okiy, S. Multi-objective optimization and modeling of age hardening process using ANN, ANFIS and genetic algorithm: Results from aluminum alloy A356/cow horn particulate composite. J. Mater. Res. Technol. 2019, 8, 3054–3075. [Google Scholar] [CrossRef]
  54. Hussein, A.M. Adaptive Neuro-Fuzzy Inference System of friction factor and heat transfer nanofluid turbulent flow in a heated tube. Case Stud. Therm. Eng. 2016, 8, 94–104. [Google Scholar] [CrossRef] [Green Version]
  55. Esfe, M.H. Thermal Conductivity Modeling of Aqueous CuO Nanofluids by Adaptive Neuro-Fuzzy Inference System (ANFIS) Using Experimental Data. Period. Polytech. Eng. 2018, 62, 202–208. [Google Scholar] [CrossRef]
  56. Bayat, S.; Pishkenari, H.N.; Salarieh, H. Observer design for a nano-positioning system using neural, fuzzy and ANFIS networks. Mechatronics 2019, 59, 10–24. [Google Scholar] [CrossRef]
  57. Marzi, H.; Haj Darwish, A.; Helfawi, H. Training ANFIS Using the Enhanced Bees Algorithm and Least Squares Estimation. Intell. Autom. Soft Comput. 2017, 23, 227–234. [Google Scholar] [CrossRef]
  58. Kaveh, A.; Bakhshpoori, T. Feasibility of pso-anfis-pso and ga-anfis-ga models. Iran Univ. Sci. Technol. 2018, 8, 1–14. [Google Scholar]
  59. Zounemat-Kermani, M.; Kisi, O.; Piri, J.; Mahdavi-Meymand, A. Assessment of Artificial Intelligence–Based Models and Metaheuristic Algorithms in Modeling Evaporation. J. Hydrol. Eng. 2019, 24, 04019033. [Google Scholar] [CrossRef]
  60. Rezakazemi, M.; Dashti, A.; Asghari, M.; Shirazian, S. H2-selective mixed matrix membranes modeling using ANFIS, PSO-ANFIS, GA-ANFIS. Int. J. Hydrog. Energy 2017, 42, 15211–15225. [Google Scholar] [CrossRef]
  61. Azimi, H.; Shabanlou, S.; Ebtehaj, I.; Bonakdari, H.; Kardar, S. Combination of computational fluid dynamics, adaptive neuro-fuzzy inference system, and genetic algorithm for predicting discharge coefficient of rectangular side orifices. J. Irrig. Drain. Eng. 2017, 143, 04017015. [Google Scholar] [CrossRef]
  62. Holland, J.H. Genetic Algorithms and the Optimal Allocation of Trials. SIAM J. Comput. 1973, 2, 88–105. [Google Scholar] [CrossRef]
  63. Goldberg, D.E. Genetic Algorithms in Search, Optimization and Machine Learning; Addison-Wesley Longman: Boston, MA, USA, 1989. [Google Scholar]
  64. Gao, W.; Moayedi, H.; Shahsavar, A. The feasibility of genetic programming and ANFIS in prediction energetic performance of a building integrated photovoltaic thermal (BIPVT) system. Sol. Energy 2019, 183, 293–305. [Google Scholar] [CrossRef]
  65. Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the IEEE International Conference on Neural Networks, Perth, WA, Australia, 27 November–1 December 1995; Volume 4, pp. 1942–1948. [Google Scholar]
  66. Mottahedi, A.; Sereshki, F.; Ataei, M. Overbreak prediction in underground excavations using hybrid ANFIS-PSO model. Tunn. Undergr. Sp. Technol. 2018, 80, 1–9. [Google Scholar] [CrossRef]
  67. Qasem, N.; Ebtehaj, I.; Madavar, H.R. Optimizing ANFIS for sediment transport in open channels using different evolutionary algorithms. J. Appl. Res. Water Wastewater 2017, 7, 290–298. [Google Scholar]
  68. Rini, D.P.; Shamsuddin, S.M.; Yuhaniz, S.S. Particle swarm optimization for ANFIS interpretability and accuracy. Soft Comput. 2016, 20, 251–262. [Google Scholar] [CrossRef]
Materials 12 03628 g001 550

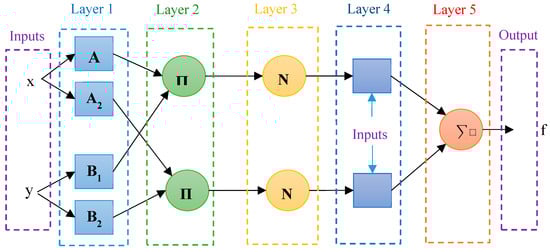

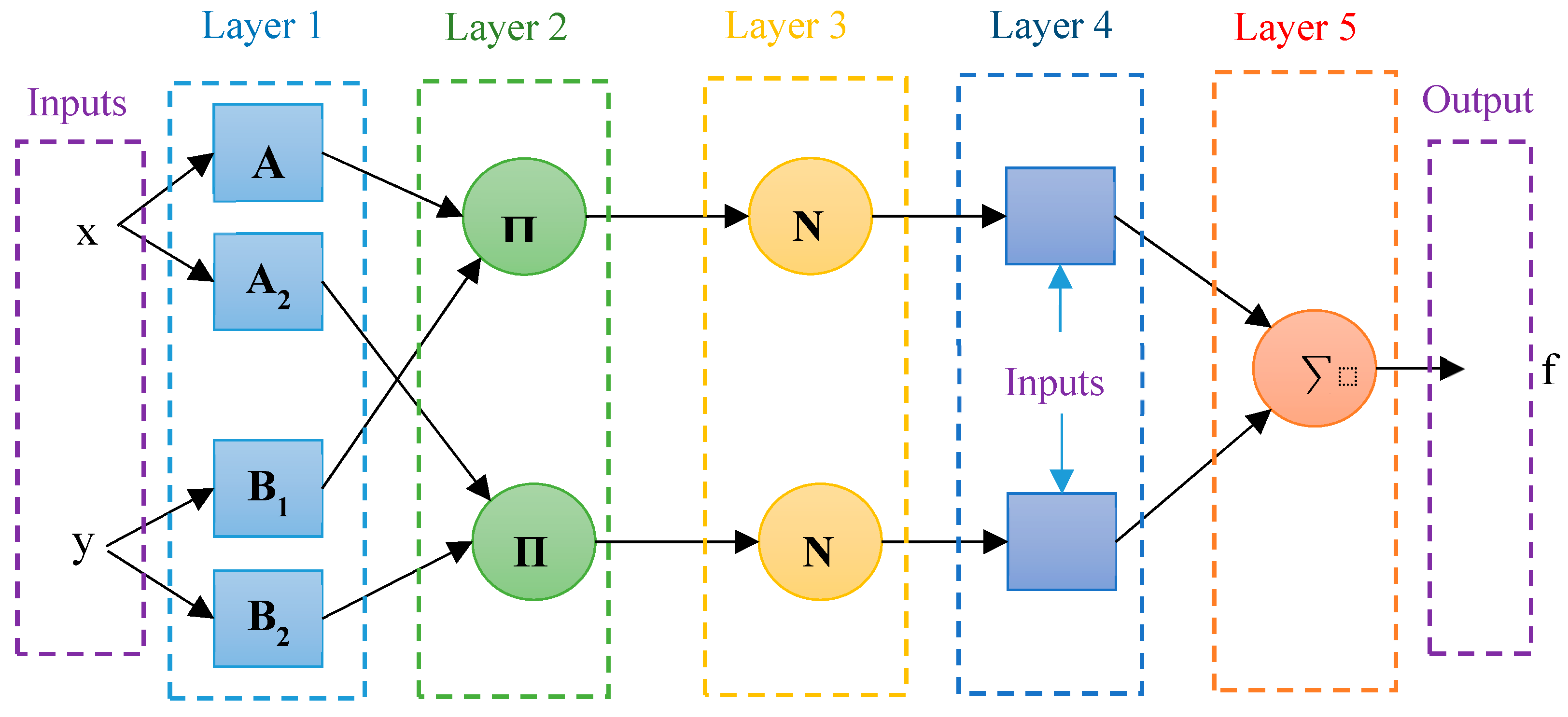

Figure 1. ANFIS Structure.
Figure 1. ANFIS Structure.
Materials 12 03628 g001
Materials 12 03628 g002 550

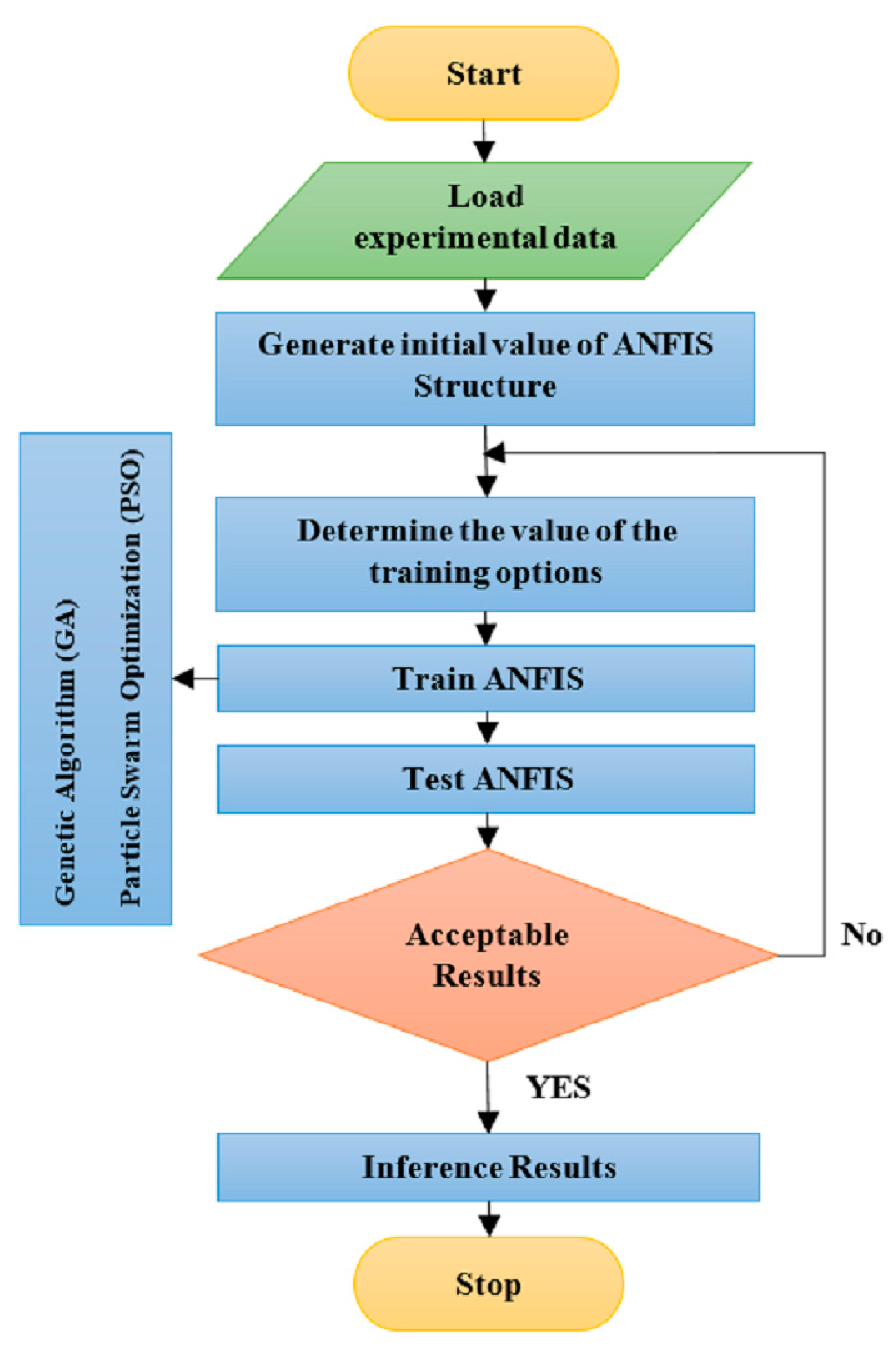

Figure 2. The process of ANFIS training.
Figure 2. The process of ANFIS training.
Materials 12 03628 g002
Materials 12 03628 g003a 550Materials 12 03628 g003b 550

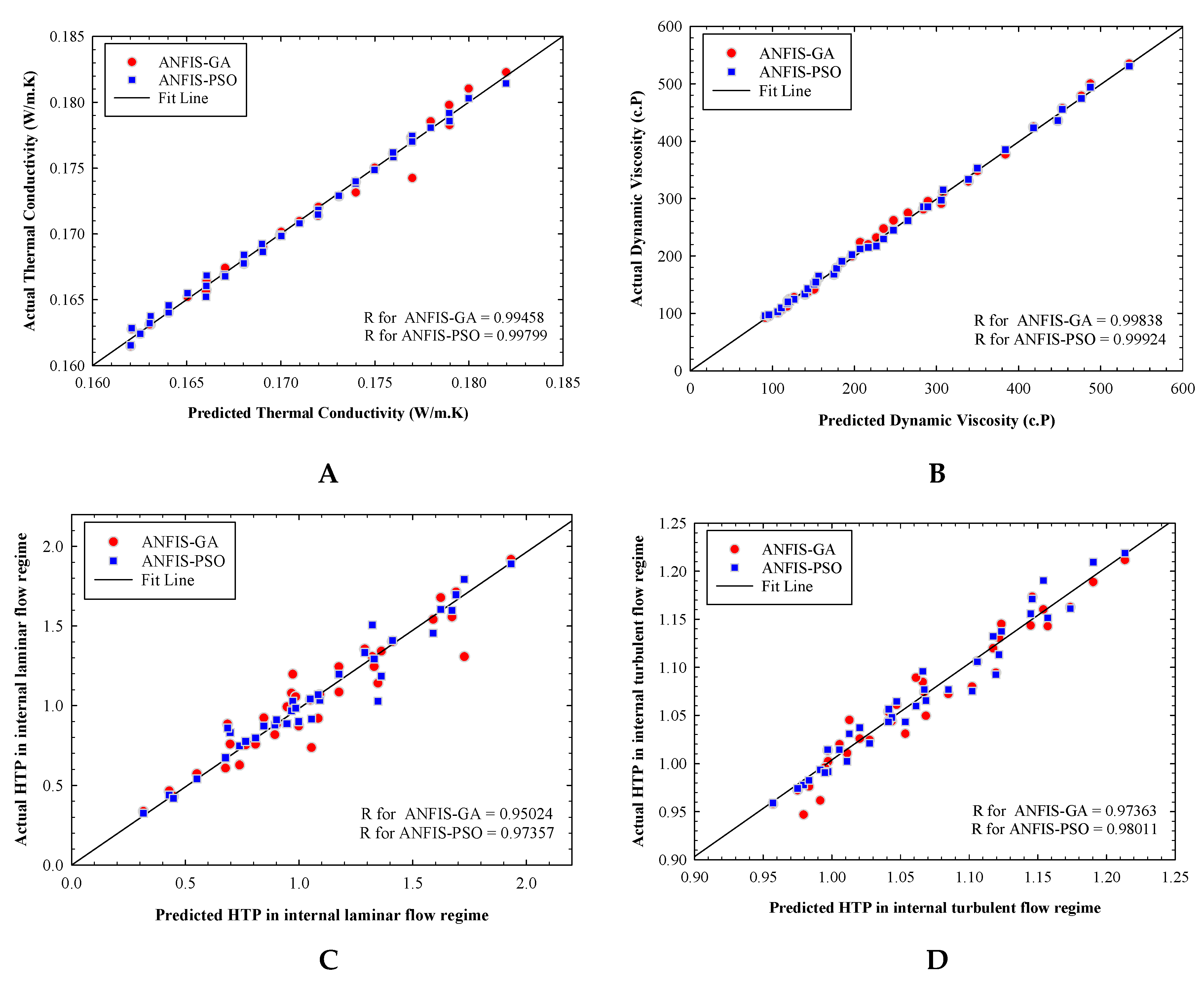

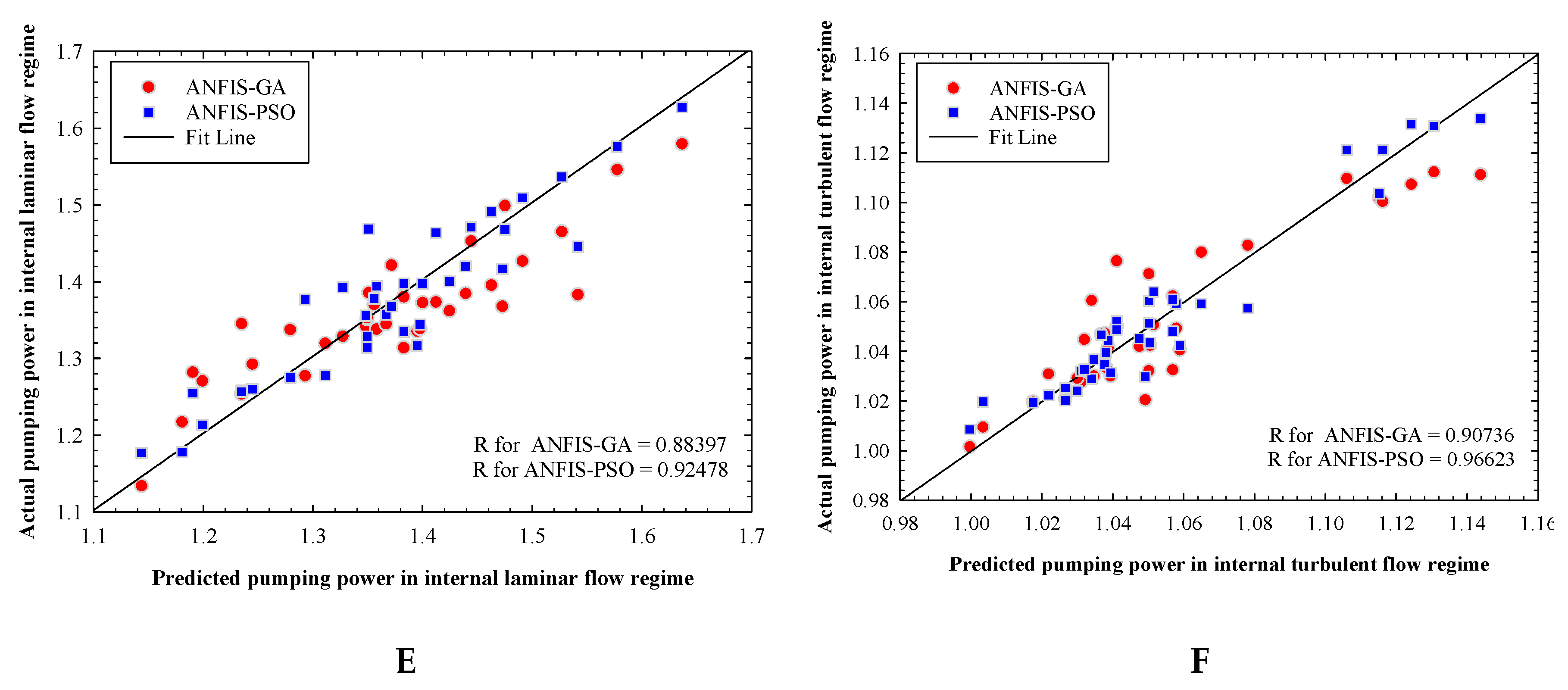

Figure 3. Regression plot for (A) thermal conductivity, (B) dynamic viscosity, (C) internal laminar flow, (D) internal turbulent flow, (E) internal laminar pumping power, and (F) internal turbulent pumping power prediction of Mg(OH)2-MWCNT-oil hybrid nanofluid.
Figure 3. Regression plot for (A) thermal conductivity, (B) dynamic viscosity, (C) internal laminar flow, (D) internal turbulent flow, (E) internal laminar pumping power, and (F) internal turbulent pumping power prediction of Mg(OH)2-MWCNT-oil hybrid nanofluid.
Materials 12 03628 g003aMaterials 12 03628 g003b
Materials 12 03628 g004a 550Materials 12 03628 g004b 550

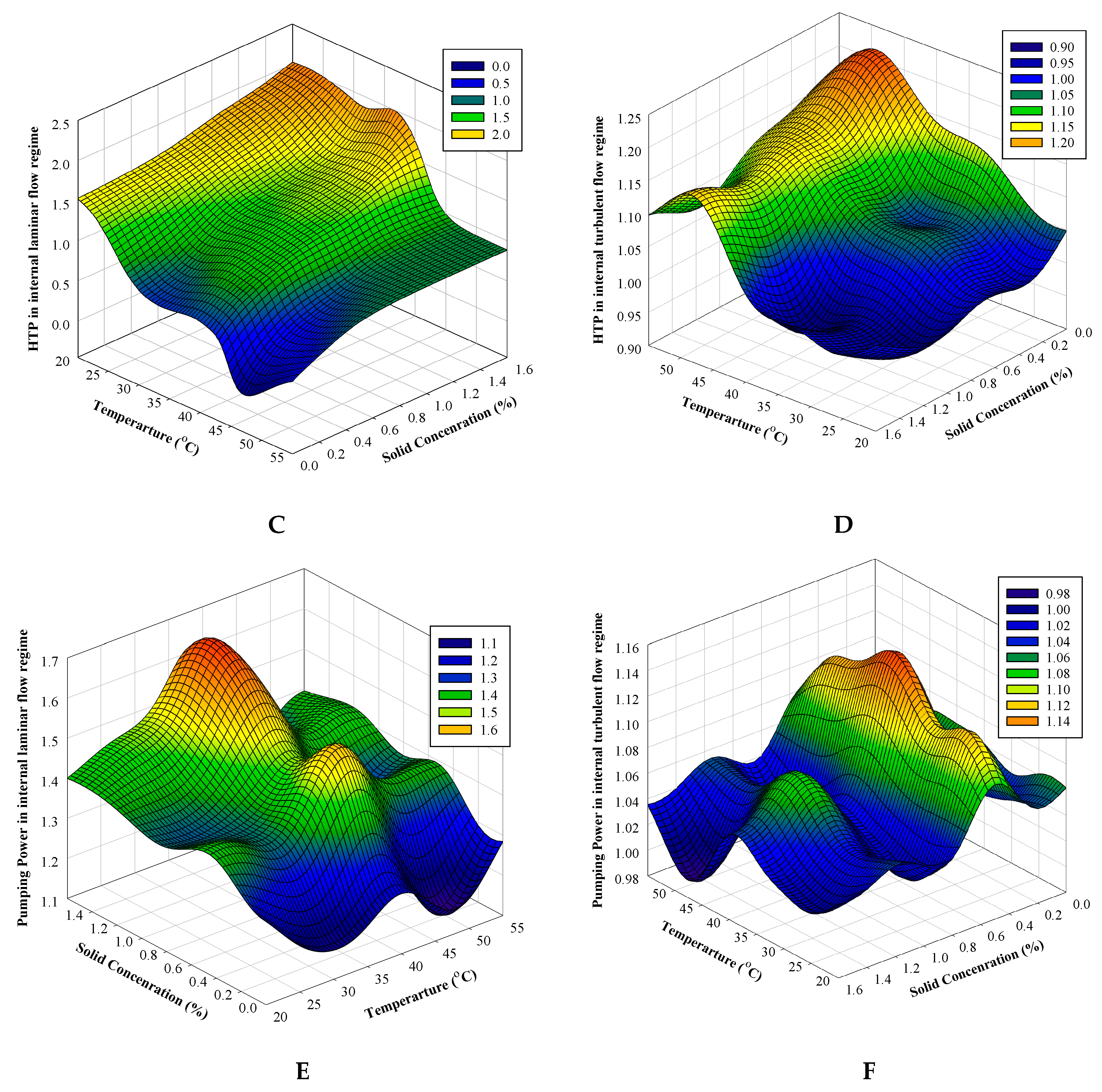

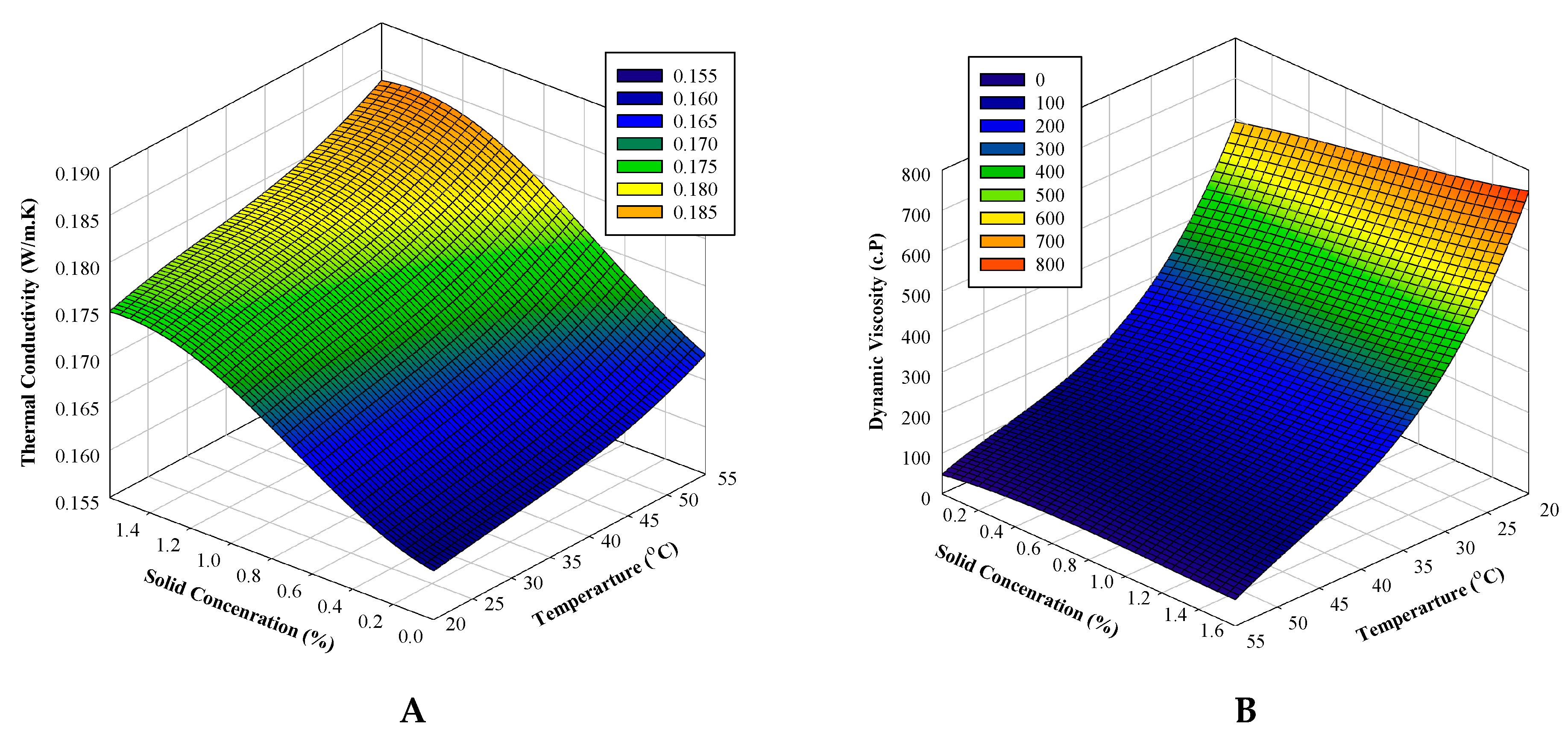

Figure 4. Three-dimensional mesh plot of the developed; (A) thermal conductivity, (B) dynamic viscosity, (C) HTP in the internal laminar flow regime, (D) HTP in the internal turbulent flow regime, (E) pumping power in the internal laminar flow regime, and (F) pumping power in the internal turbulent flow regime using ANFIS-PSO via temperature and solid concentration.
Figure 4. Three-dimensional mesh plot of the developed; (A) thermal conductivity, (B) dynamic viscosity, (C) HTP in the internal laminar flow regime, (D) HTP in the internal turbulent flow regime, (E) pumping power in the internal laminar flow regime, and (F) pumping power in the internal turbulent flow regime using ANFIS-PSO via temperature and solid concentration.
Materials 12 03628 g004aMaterials 12 03628 g004b
Table
Table 1. A summary of the recently published literature on using neural networks in predicting the thermophysical properties of nanofluids.
Table 1. A summary of the recently published literature on using neural networks in predicting the thermophysical properties of nanofluids.
ReferenceNanofluidStudied PropertiesMethod
Bagherzadeh et al. [26]F-MWCNT-Fe3O4/EGThermal conductivityEnhanced ANN
Alrashed et al. [36]Diamond- and MWCNT-COOH/waterViscosity, density, and thermal conductivityANFIS and ANN
Bahrami et al. [27]Fe-CuO/EG-waterDynamic viscosityANN
Safaei et al. [37]ZnO-TiO2/EGThermal conductivityANN and Curve-fitting
Ghasemi et al. [38]COOH-MWCNT/EGThermal conductivityANN and Curve-fitting
Kannaiyan et al. [39]Al2O3-SiO2/waterThermal conductivity and densityANN
Moradikazerouni et al. [40]SWNT-EGThermal conductivityANN and curve-fitting
Hemmat Esfe et al. [41]Al2O3/Water-EG (60%–40%)Thermal conductivityANN
Eshgarf et al. [42]MWCNT-SiO2/EG-WaterviscosityANN
Vakili et al. [43]CuO/Water-EGThermal conductivityANN
Maddah et al. [44]MWCNT-Carbon (60%–40%)/SAE 10W40-SAE 85W90 (50-50%)ViscosityANN
Vafaei et al. [45]MgO-MWCNT/EGThermal conductivityANN
Table
Table 2. Genetic algorithm (GA) and particle swarm optimization (PSO) algorithm parameters.
Table 2. Genetic algorithm (GA) and particle swarm optimization (PSO) algorithm parameters.
GA ParametersPSO Parameters
Population Size20Population Size20
Maximum Number of Iterations1000Maximum Number of Iterations1000
Crossover Percentage0.7Inertia Weight1
Mutation Percentage0.5Inertia Weight Damping Ratio0.99
Mutation Rate0.1Personal Learning Coefficient1
Selection Pressure8Global Learning Coefficient2
Gamma0.2
Table
Table 3. The values of the root mean square of error (RMSE) computed for the models.
Table 3. The values of the root mean square of error (RMSE) computed for the models.
ModelANFIS-GAANFIS-PSO
Data SetTrainTestTrainTest
Thermal Conductivity3.91 ×10−41.44 × 10−33.47 × 10−45.11 × 10−4
Dynamic Viscosity7.078.554.567.31
HTP in internal laminar flow regime8.38 × 10−22.89 × 10−15.68 × 10−22.14 × 10−1
HTP in internal turbulent flow regime1.37 × 10−22.24 × 10−21.11 × 10−22.35 × 10−2
PP in internal laminar flow regime5.59 × 10−25.64 × 10−23.99 × 10−26.22 × 10−2
PP in internal turbulent flow regime2.45 × 10−21.30 × 10−28.66 ×10−31.12 × 10−2

Share and Cite

MDPI and ACS Style

Alarifi, I.M.; Nguyen, H.M.; Naderi Bakhtiyari, A.; Asadi, A. Feasibility of ANFIS-PSO and ANFIS-GA Models in Predicting Thermophysical Properties of Al2O3-MWCNT/Oil Hybrid Nanofluid. Materials 2019, 12, 3628. https://doi.org/10.3390/ma12213628

AMA Style

Alarifi IM, Nguyen HM, Naderi Bakhtiyari A, Asadi A. Feasibility of ANFIS-PSO and ANFIS-GA Models in Predicting Thermophysical Properties of Al2O3-MWCNT/Oil Hybrid Nanofluid. Materials. 2019; 12(21):3628. https://doi.org/10.3390/ma12213628

Chicago/Turabian Style

Alarifi, Ibrahim M., Hoang M. Nguyen, Ali Naderi Bakhtiyari, and Amin Asadi. 2019. "Feasibility of ANFIS-PSO and ANFIS-GA Models in Predicting Thermophysical Properties of Al2O3-MWCNT/Oil Hybrid Nanofluid" Materials 12, no. 21: 3628. https://doi.org/10.3390/ma12213628

APA Style

Alarifi, I. M., Nguyen, H. M., Naderi Bakhtiyari, A., & Asadi, A. (2019). Feasibility of ANFIS-PSO and ANFIS-GA Models in Predicting Thermophysical Properties of Al2O3-MWCNT/Oil Hybrid Nanofluid. Materials, 12(21), 3628. https://doi.org/10.3390/ma12213628

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
