Analysis of Strength Development and Soil–Water Characteristics of Rice Husk Ash–Lime Stabilized Soft Soil
Abstract
:1. Introduction
2. Materials and Laboratory Tests
2.1. Materials
2.2. Test Design
2.3. Test Methods
2.3.1. Preparation of Specimens
2.3.2. Strength Test
2.3.3. Soil Water Characteristic Curve Test
2.3.4. Shear Strength Test

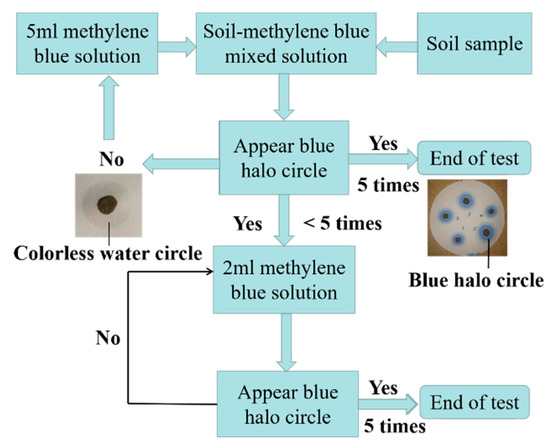

2.3.5. Methylene Blue Test
2.3.6. Microscopic Characteristic Test
3. Analysis of Characteristics of Strength Development

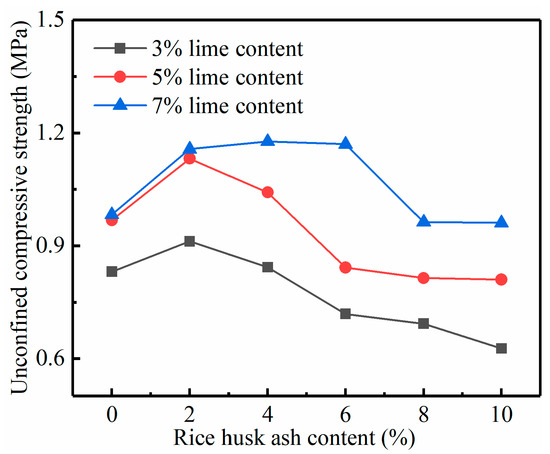

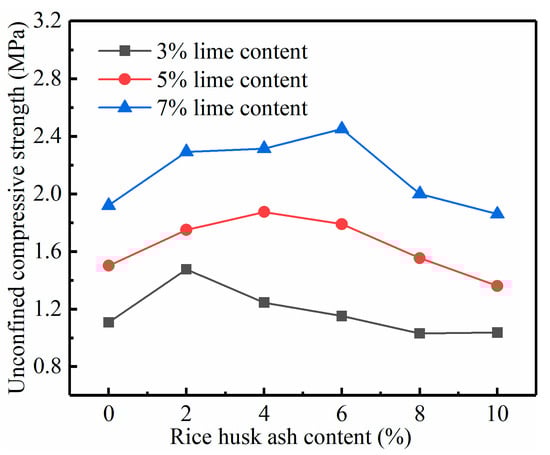

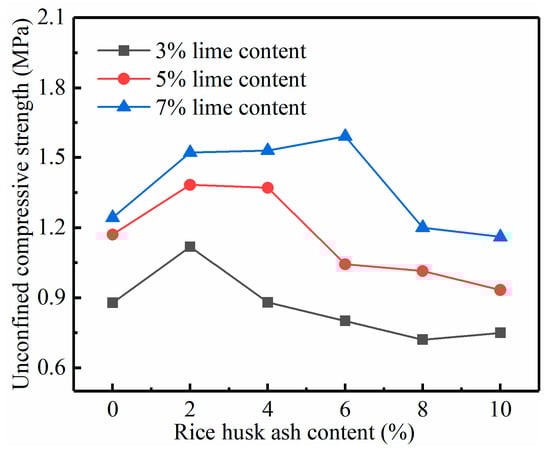

3.1. Effect of RHA on Unconfined Compressive Strength

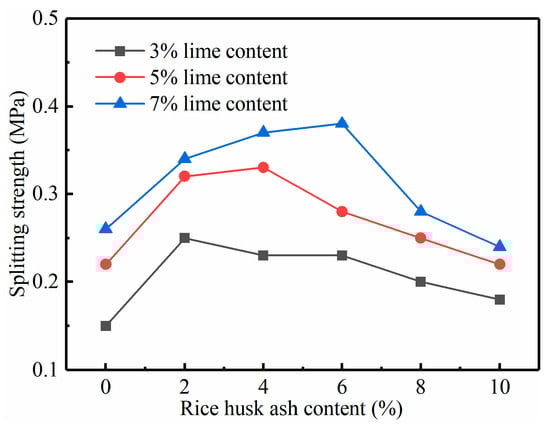

3.2. Effect of RHA on Splitting Strength
4. Analysis of Soil–Water Characteristics

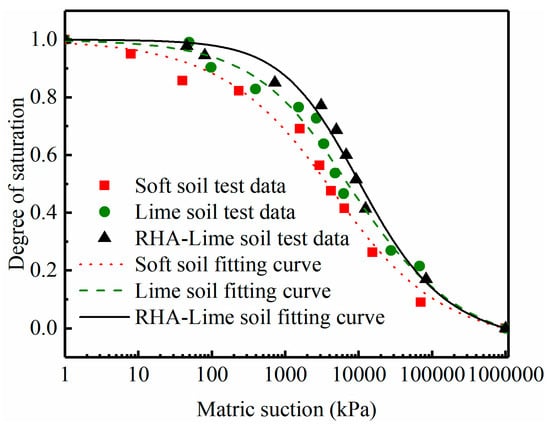

4.1. Effect of RHA on SWCC

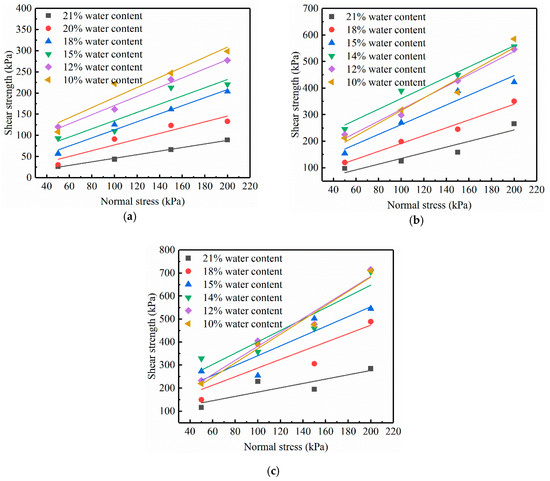

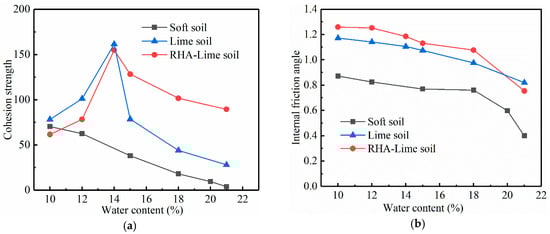

4.2. The Change of Shear Strength with Water Content
4.3. Methylene Blue Test Analysis
5. Microscopic Tests Analysis

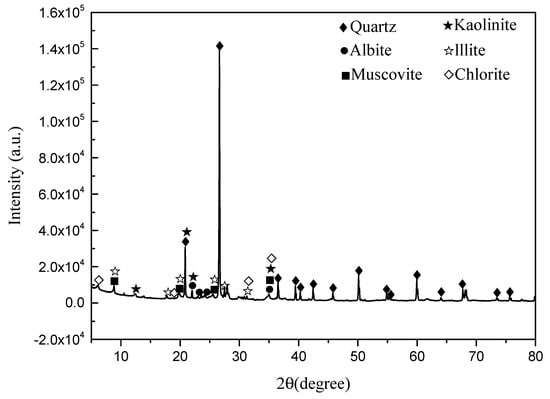

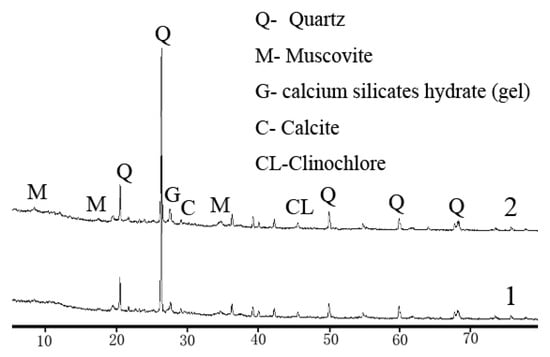

5.1. XRD Phase Analysis

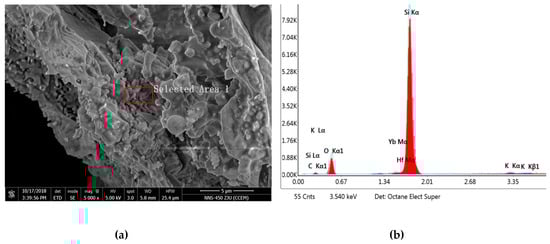

5.2. SEM Test Analysis
6. Conclusion
- The RHA has a significant effect on the unconfined compressive strength and splitting strength of the lime-stabilized soil, of which the impact on the latter is greater. The optimum dosage of the RHA is 2%, 4%, and 6% when the lime content is 3%, 5%, and 7%, respectively.
- The RHA has a great influence on the soil–water characteristic curve of lime-stabilized soil. After adding RHA, the air entry value of the soil–water characteristic curve increases obviously, and the curve between the air entry value and residual water content is steeper. It demonstrates that the RHA makes the pore size distribution more uniform and the soil structure more compact.

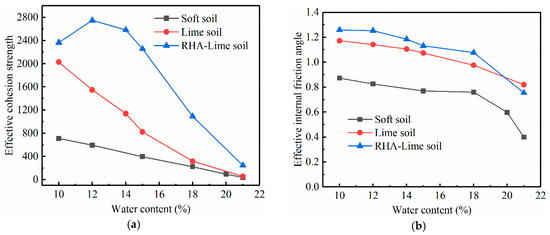

- With the increase of the water content, the effective cohesion of the RHA–lime stabilized soil increases first and then decreases, which is always greater than that of lime-stabilized soil and soft soil. Especially in the state of high water content, the RHA can enhance the water stability of lime-stabilized soil.
- The results of the methylene blue test show that the incorporation of the RHA promotes the reduction of the specific surface area and swelling potential of lime-stabilized soil.

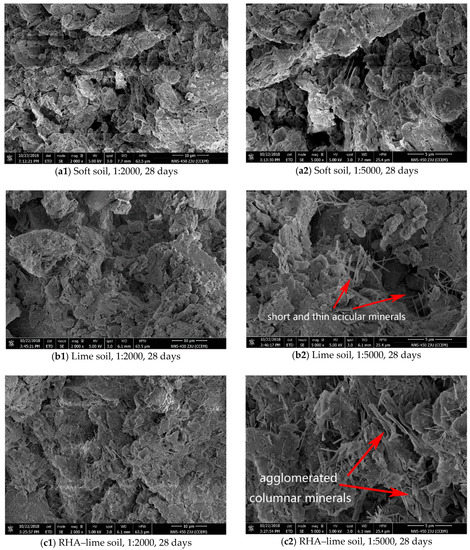

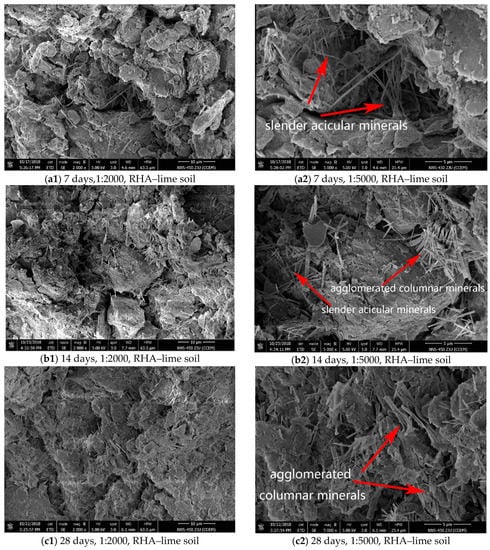

- Through the scanning electron microscope test, the mineral structure of the lime-stabilized soil changes from a thin acicular to form a more agglomerated columnar mixture when the RHA is added. As the curing time increases, the cementitious minerals in the RHA–lime stabilized soil increase continuously, and the overlap between them is more obvious.
- The microscopic test analyses reveal that the main reasons for strength increase and soil–water characteristics change with the addition of RHA are the enhanced cohesion by cementation and pore fillings with agglomerated minerals.
Author Contributions
Funding
Conflicts of Interest
References
- Ta’negonbadi, B.; Noorzad, R. Stabilization of clayey soil using lignosulfonate. Transp. Geotech. 2017, 12, 45–55. [Google Scholar] [CrossRef]
- Ling, F.N.L.; Robani, R. A study on unconfined of a chemically stabilized soil with cement and timber industrial ash (TIA). Proceedings of Public National Conference, Langkawi, Malaysia, 29–31 May 2007. [Google Scholar]
- Hataf, N.; Ghadir, P.; Ranjbar, N. Investigation of soil stabilization using chitosan biopolymer. J. Clean. Prod. 2018, 170, 1493–1500. [Google Scholar] [CrossRef]
- He, W.; Zhang, Z.; Ji, J. Research progress of rice husk utilization technologies. Chem. Ind. Eng. Prog. 2016, 35, 1366–1376. (in Chinese). [Google Scholar]
- Pode, R. Potential applications of rice husk ash waste from rice husk biomass power plant. Renew. Sustain. Energy Rev. 2016, 53, 1468–1485. [Google Scholar] [CrossRef]
- Farooque, K.N.; Zaman, M.; Halim, E.; Islam, S.; Hossain, M.; Mollah, Y.A.; Mahmood, A.J. Characterization and utilization of rice husk ash (RHA) from rice mill of Bangladesh. Bangladesh J. Sci. Ind. Res. 2009, 44, 157–162. [Google Scholar] [CrossRef]
- Rao, D.K.; Pranav, P.R.T.; Anusha, M. Stabilization of expansive soil with rice husk ash, lime and gypsum–an experimental study. Int. J. Eng. Sci. Technol. 2011, 3, 8076–8085. [Google Scholar]
- Muntohar, A.S.; Widianti, A.; Hartono, E.; Diana, W. Engineering properties of silty soil stabilized with lime and rice husk ash and reinforced with waste plastic fiber. J. Mater. Civil Eng. 2012, 25, 1260–1270. [Google Scholar] [CrossRef]
- Rahgozar, M.A.; Saberian, M.; Li, J. Soil stabilization with non-conventional eco-friendly agricultural waste materials: An experimental study. Transp. Geotech. 2018, 14, 52–60. [Google Scholar] [CrossRef]
- Ashango, A.A.; Patra, N.R. Behavior of expansive soil treated with steel slag, rice husk ash, and lime. J. Mater. Civil Eng. 2016, 28, 06016008. [Google Scholar] [CrossRef]
- Bagheri, Y.; Ahmad, F.; Ismail, M.A.M. Strength and mechanical behavior of soil–cement–lime–rice husk ash (soil–CLR) mixture. Mater. Struct. 2014, 47, 55–66. [Google Scholar] [CrossRef]
- Karatai, T.R.; Kaluli, J.W.; Kabubo, C.; Thiong’o, G. Soil stabilization using rice husk ash and natural lime as an alternative to cutting and filling in road construction. J. Constr. Eng. Manag. 2016, 143, 04016127. [Google Scholar] [CrossRef]
- Liu, Y.; Su, Y.; Namdar, A.; Zhou, G.; She, Y.; Yang, Q. Utilization of Cementitious Material from Residual Rice Husk Ash and Lime in Stabilization of Expansive Soil. Adv. Civil Eng. 2019. [CrossRef]
- James, J.; Rao, M.S. Reaction product of lime and silica from rice husk ash. Cem. Concr. Res. 1986, 16, 67–73. [Google Scholar] [CrossRef]
- Cook, D.J. A discussion of the paper reaction product of lime and silica from rice husk ash by J. James and M. Subba Rao. Cem. Concr. Res. 1987, 17, 685–686. [Google Scholar] [CrossRef]
- Boateng, A.A.; Skeete, D.A. Incineration of rice hull for use as a cementitious material: The Guyana experience. Cem. Concr. Res. 1990, 20, 795–802. [Google Scholar] [CrossRef]
- Ali, F.H.; Adnan, A.; Choy, C.K. Use of rice husk ash to enhance lime treatment of soil. Can. Geotech. J. 1992, 29, 843–852. [Google Scholar] [CrossRef]
- Muntohar, A.S. Geotechnical properties of rice husk ash enhanced lime-stabilized expansive clay. Media Komun. Tek. Sipil 2005, 13, 36–47. [Google Scholar]
- Basha, E.A.; Hashim, R.; Mahmud, H.B.; Muntohar, A.S. Stabilization of residual soil with rice husk ash and cement. Constr. Build. Mater. 2005, 19, 448–453. [Google Scholar] [CrossRef]
- The Professional Standards Compilation Group of Peoples Republic of China. JTG D40-2007. Test Methods of Soils for Highway Engineering; Communications Press: Beijing, China, 2007. (in Chinese) [Google Scholar]
- ASTM International. Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System); ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- The Highway Research Institute of Transportation Ministry. JTG E51-2009. Test Methods of Materials Stabilized with Inorganic Binders for Highway Engineering; Communications Press: Beijing, China, 2009. (In Chinese) [Google Scholar]
- Standard Test Method for Measurement of Soil Potential (Suction) Using Filter Paper; ASTM international: West Conshohocken, PA, USA, 2003; p. D5298.
- Turkoz, M.; Tosun, H. The use of methylene blue test for predicting swell parameters of natural clay soils. Sci. Res. Essays 2011, 6, 1780–1792. [Google Scholar]
- Lu, S.G.; Sun, F.F.; Zong, Y.T. Effect of rice husk biochar and coal fly ash on some physical properties of expansive clayey soil (Vertisol). Catena 2014, 114, 37–44. [Google Scholar] [CrossRef]
- Yu, J.; Zhao, Y. Synthesis and characterization of rice husk ash concrete. J. Adv. Microsc. Res. 2015, 10, 65–68. [Google Scholar] [CrossRef]
- Fredlund, D.G.; Xing, A. Equations for the soil-water characteristic curve. Can. Geotech. J. 1994, 31, 521–532. [Google Scholar] [CrossRef]
- Lu, N.; Likos, W.J. Unsaturated Soil Mechanics; Wiley: Hoboken, NJ, USA, 2004. [Google Scholar]
- Dang, L.C.; Khabbaz, H.; Fatahi, B. Evaluation of swelling behaviour and soil water characteristic curve of bagasse fibre and lime stabilised expansive soil. PanAm Unsaturated Soils 2017, 2017, 58–70. [Google Scholar]
- Khattab, S.A.A.; Al-Taie, L.K.I. Soil-water characteristic curves (SWCC) for lime treated expansive soil from Mosul City. Unsaturated Soils 2006, 2006, 1671–1682. [Google Scholar]
- Elkady, T.Y. The effect of curing conditions on the unconfined compression strength of lime-treated expansive soils. Road Mater. Pavement Des. 2016, 17, 52–69. [Google Scholar] [CrossRef]
- Oloo, S.Y.; Fredlund, D.G. A method for determination of φ b for statically compacted soils. Can. Geotech. J. 1996, 33, 272–280. [Google Scholar] [CrossRef]
- Santamarina, J.C.; Klein, K.A.; Wang, Y.H.; Prencke, E. Specific surface: Determination and relevance. Can. Geotech. J. 2002, 39, 233–241. [Google Scholar] [CrossRef]
- Cokca, E.; Birand, A. Determination of cation exchange capacity of clayey soils by the methylene blue test. Geotech. Test. J. 1993, 16, 518–524. [Google Scholar]
- Yukselen, Y.; Kaya, A. Suitability of the methylene blue test for surface area, cation exchange capacity and swell potential determination of clayey soils. Eng. Geol. 2008, 102, 38–45. [Google Scholar] [CrossRef]
- Muntohar, A.S. Utilization of uncontrolled burnt rice husk ash in soil improvement. Civil Eng. Dimens. 2004, 4, 100–105. [Google Scholar]
- Kassim, K.A.; Chern, K.K. Lime stabilized Malaysian cohesive soils. Malays. J. Civil Eng. 2004, 16, 13–23. [Google Scholar]
- Yu, Q.; Sawayama, K.; Sugita, S.; Shoya, M.; Isojima, Y. The reaction between rice husk ash and Ca (OH) 2 solution and the nature of its product. Cem. Concr. Res. 1999, 29, 37–43. [Google Scholar] [CrossRef]
- Taylor H F, W. Cement chemistry; Academic press: London, UK, 1990. [Google Scholar]
Soil Type | Liquid Limit, WL/% | Plastic Limit, WP/% | Plastic Index, IP | Optimum Moisture Content/% | Maximum Dry Density/ (g/cm3) |
---|---|---|---|---|---|
Silt clay | 38 | 19 | 19 | 18 | 1.798 |
Materials | SiO2 | CaO | Al2O3 | MgO | Others |
---|---|---|---|---|---|
Lime | - | 86.2 | - | 0.68 | - |
Rice husk ash | 88.09 | 0.98 | 1.25 | 0.34 | - |
Soft soil | 3000 | 2000 | 0.509 | 1.581 |
Lime soil | 3000 | 3059 | 0.589 | 1.192 |
RHA–lime soil | 3000 | 7980 | 0.787 | 1.241 |
Soil Sample | Vcc (mL) | MBV (g/100 g) | SSA (m2/g) |
---|---|---|---|
Soft soil | 37.00 | 1.23 | 30.17 |
Lime-stabilized soil | 32.00 | 1.07 | 26.10 |
RHA–lime stabilized soil | 29.00 | 0.97 | 23.65 |
MBV(g/100g) | Degree of Expansion |
---|---|
0–4 | Low |
4–8 | Medium |
8–15 | High |
>15 | Very high |
