Standard Hot Pressing as a Possible Solution to Obtain Dense K0.5Na0.5NbO3 Ceramic Doped by Er2O3 and Yb2O3

Rutkowski, Paweł; Huebner, Jan; Graboś, Adrian; Kata, Dariusz; Grzybek, Dariusz; Sapiński, Bogdan

doi:10.3390/ma12244171

Open AccessArticle

Standard Hot Pressing as a Possible Solution to Obtain Dense K_0.5Na_0.5NbO₃ Ceramic Doped by Er₂O₃ and Yb₂O₃

by

Paweł Rutkowski

^1,*

,

Jan Huebner

¹,

Adrian Graboś

¹,

Dariusz Kata

¹,

Dariusz Grzybek

²

and

Bogdan Sapiński

²

¹

Faculty of Materials Science and Ceramics, Department of Ceramics and Refractories, AGH University of Science and Technology, al. Mickiewicza 30, 30-059 Kraków, Poland

²

Faculty of Mechanical Engineering and Robotics, Department of Process Control, AGH University of Science and Technology, al. Mickiewicza 30, 30-059 Kraków, Poland

^*

Author to whom correspondence should be addressed.

Materials 2019, 12(24), 4171; https://doi.org/10.3390/ma12244171

Submission received: 3 September 2019 / Revised: 9 December 2019 / Accepted: 9 December 2019 / Published: 12 December 2019

(This article belongs to the Special Issue High Performance Nonferrous Alloys: Composition, Microstructure and Properties)

Download

Browse Figures

Versions Notes

Abstract

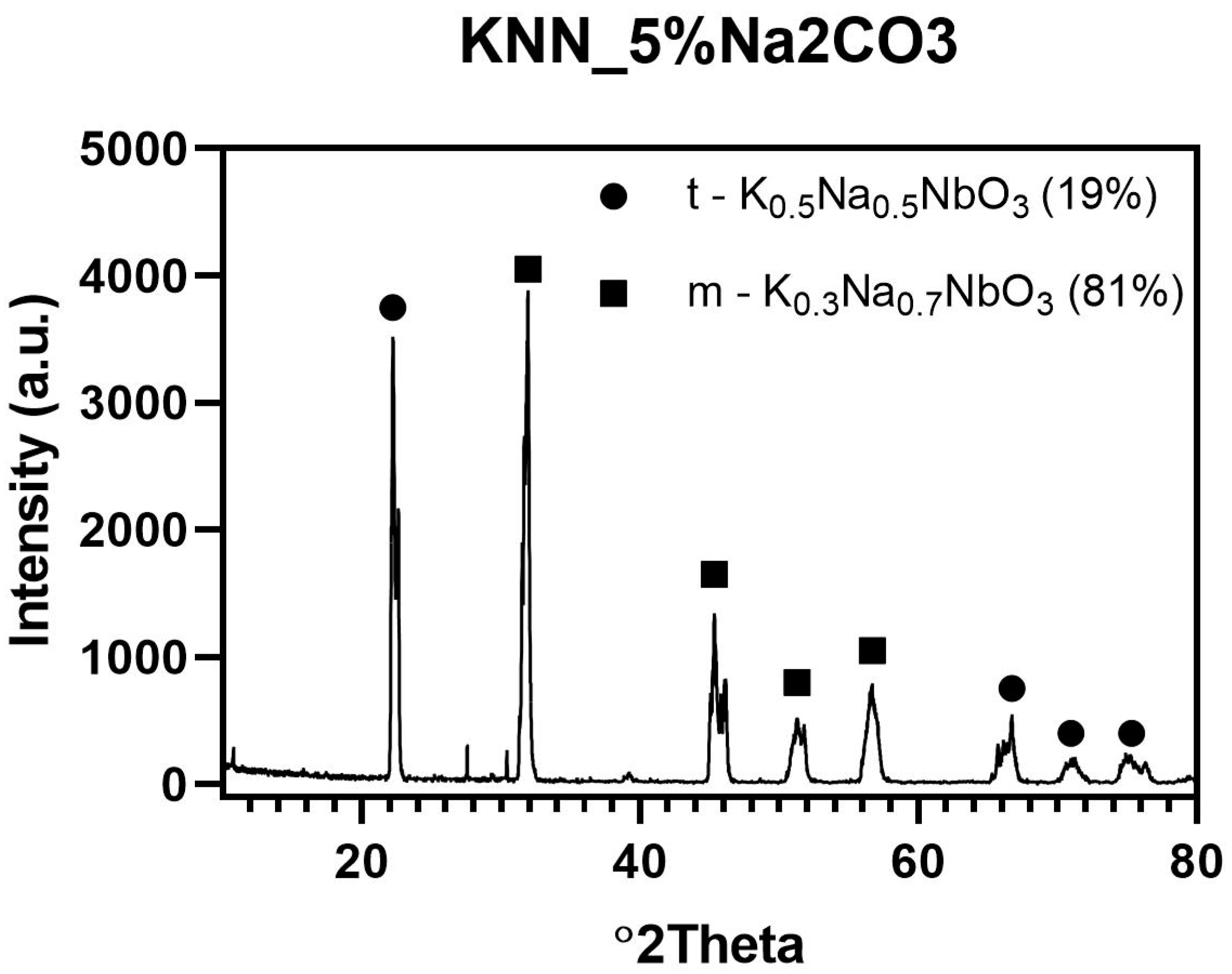

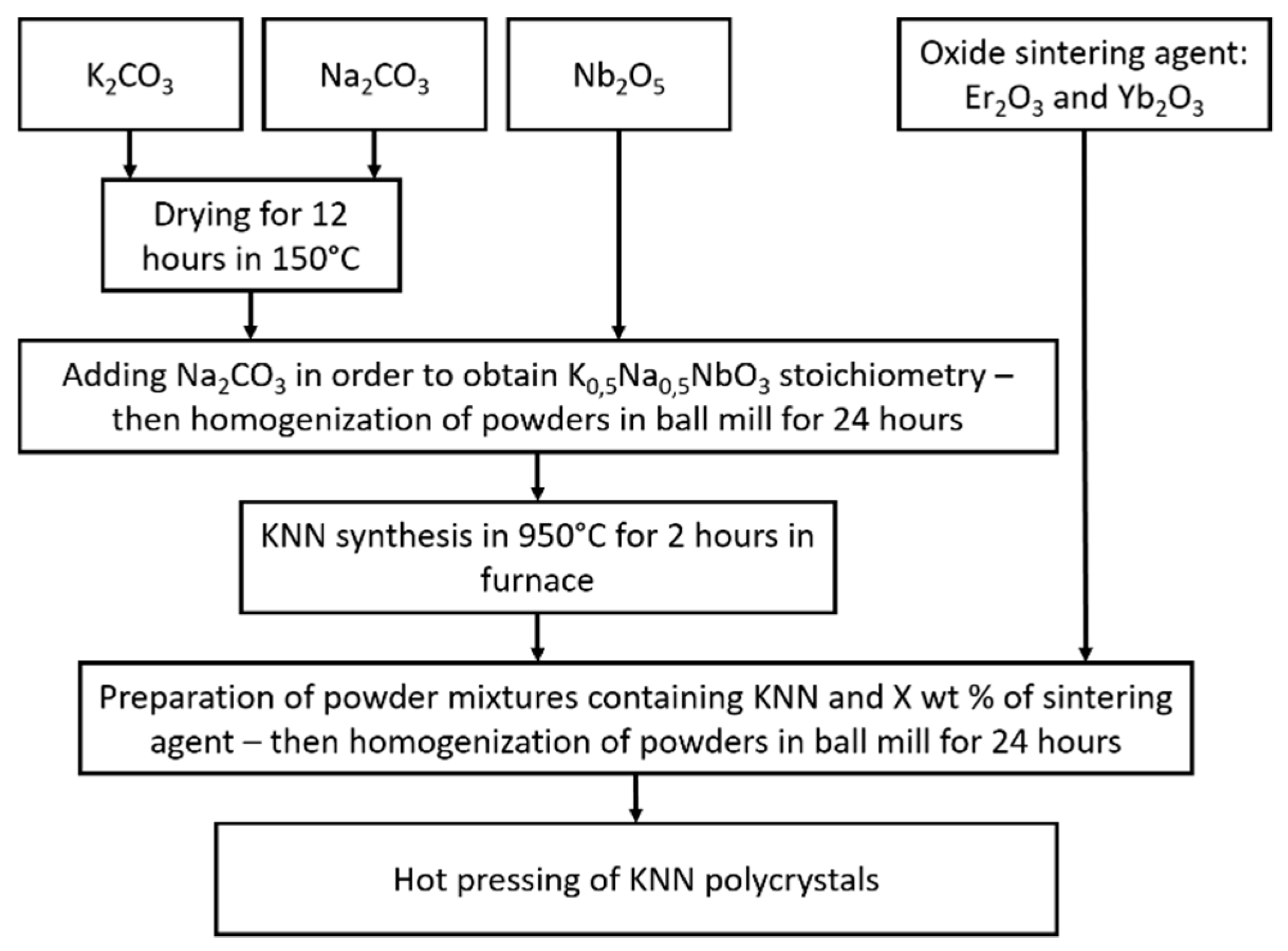

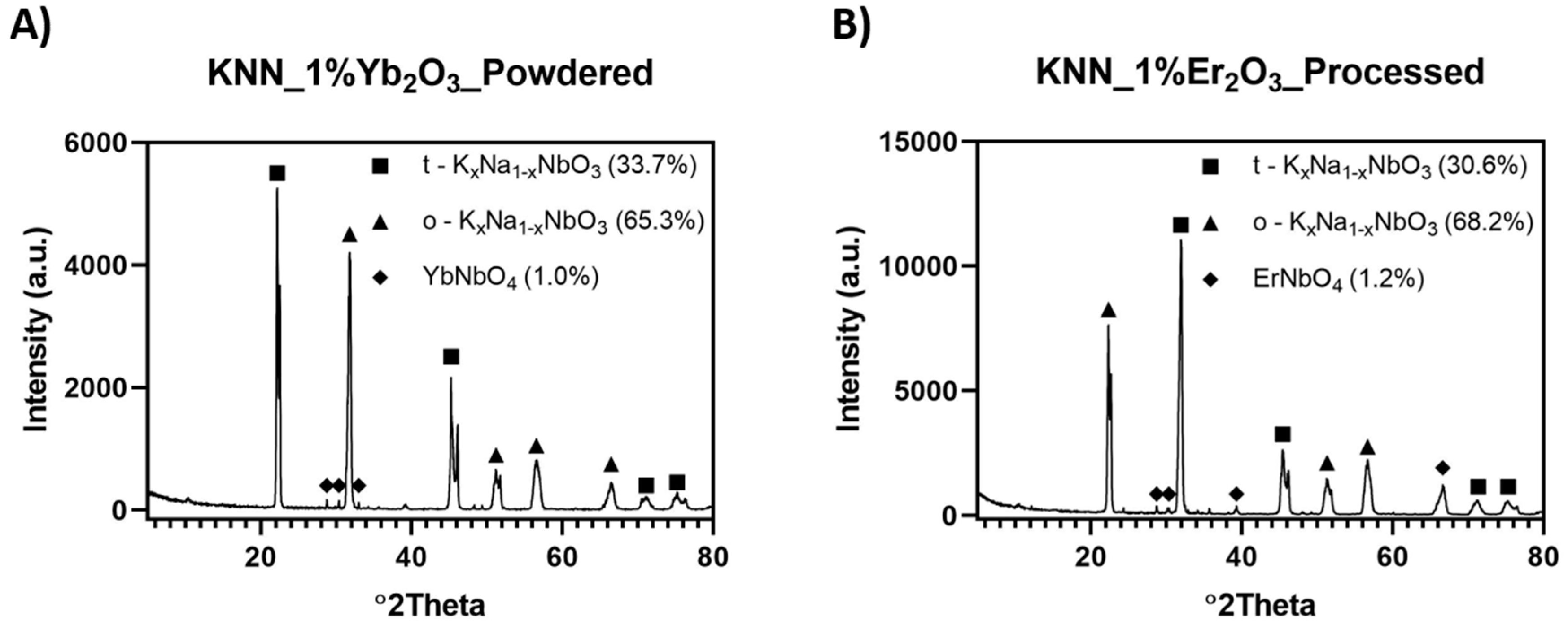

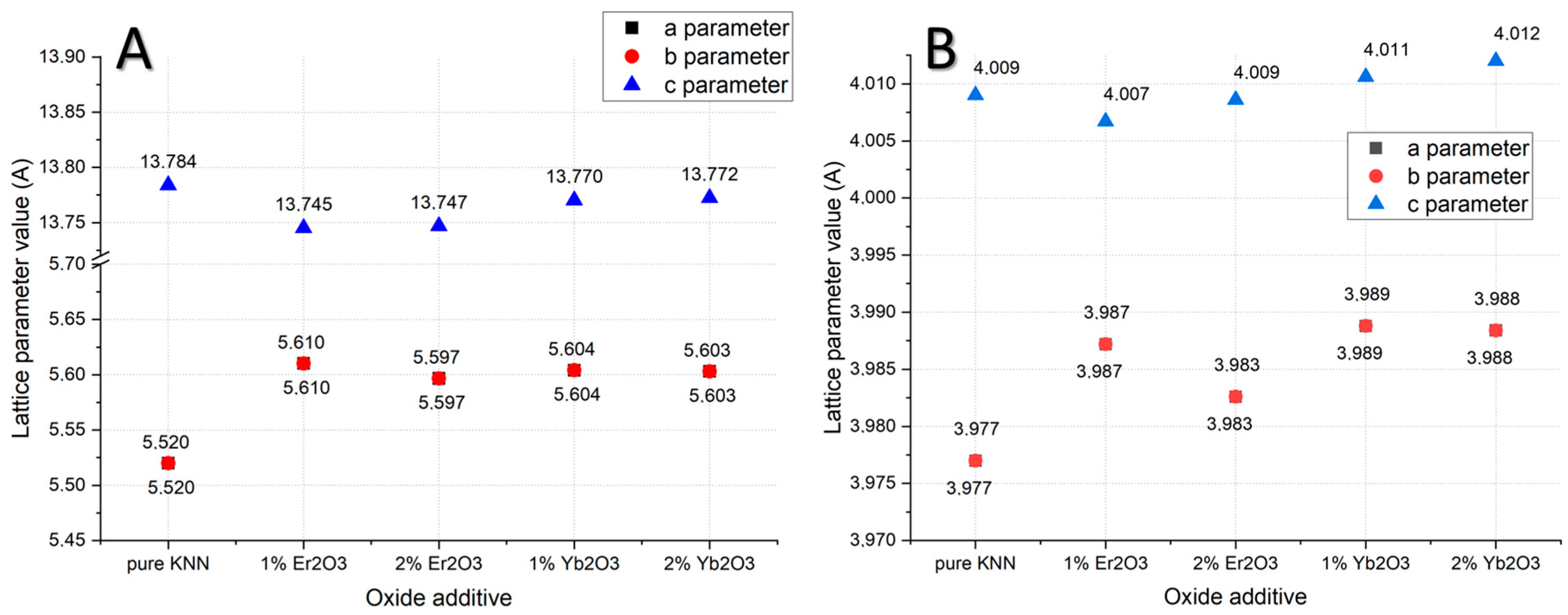

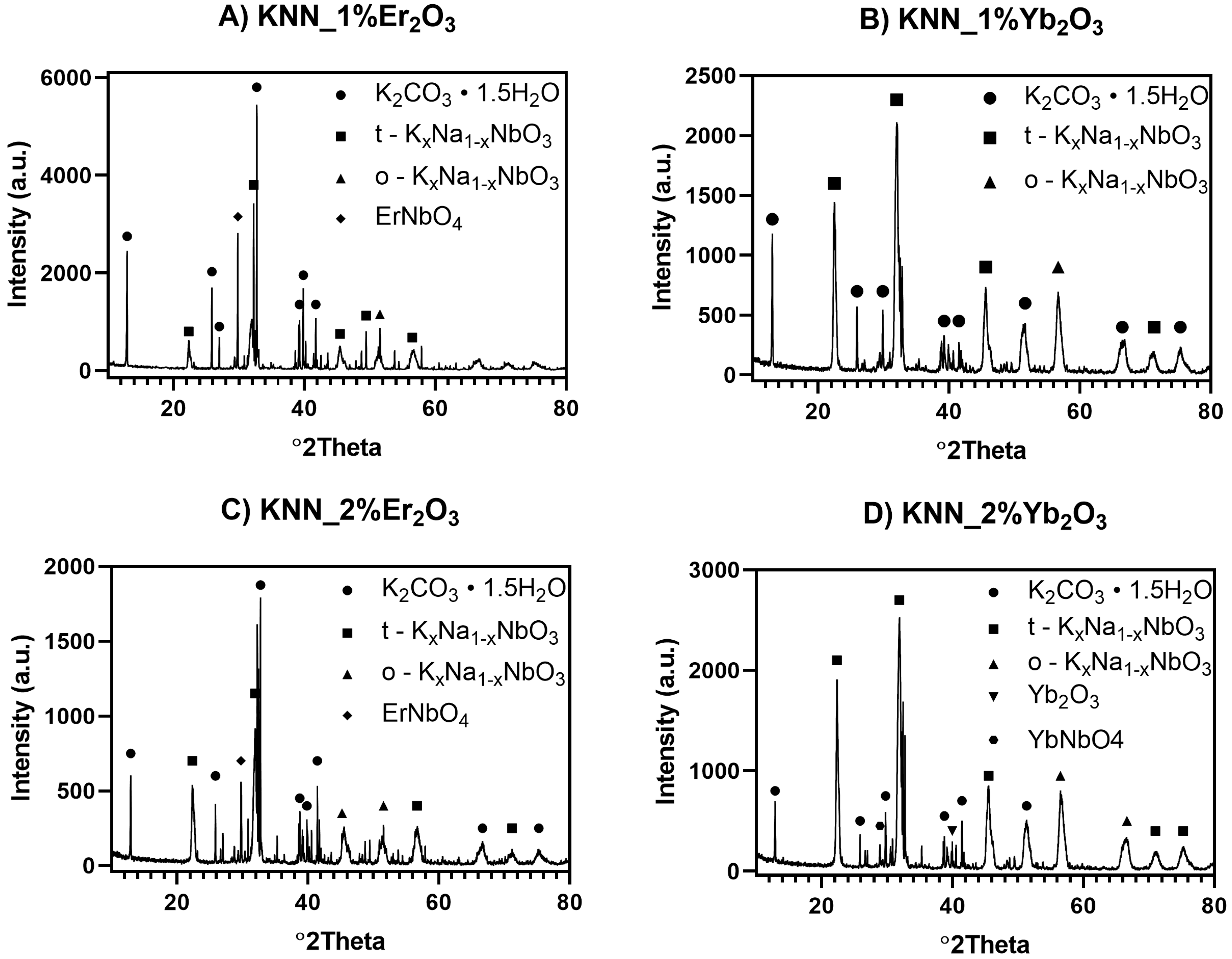

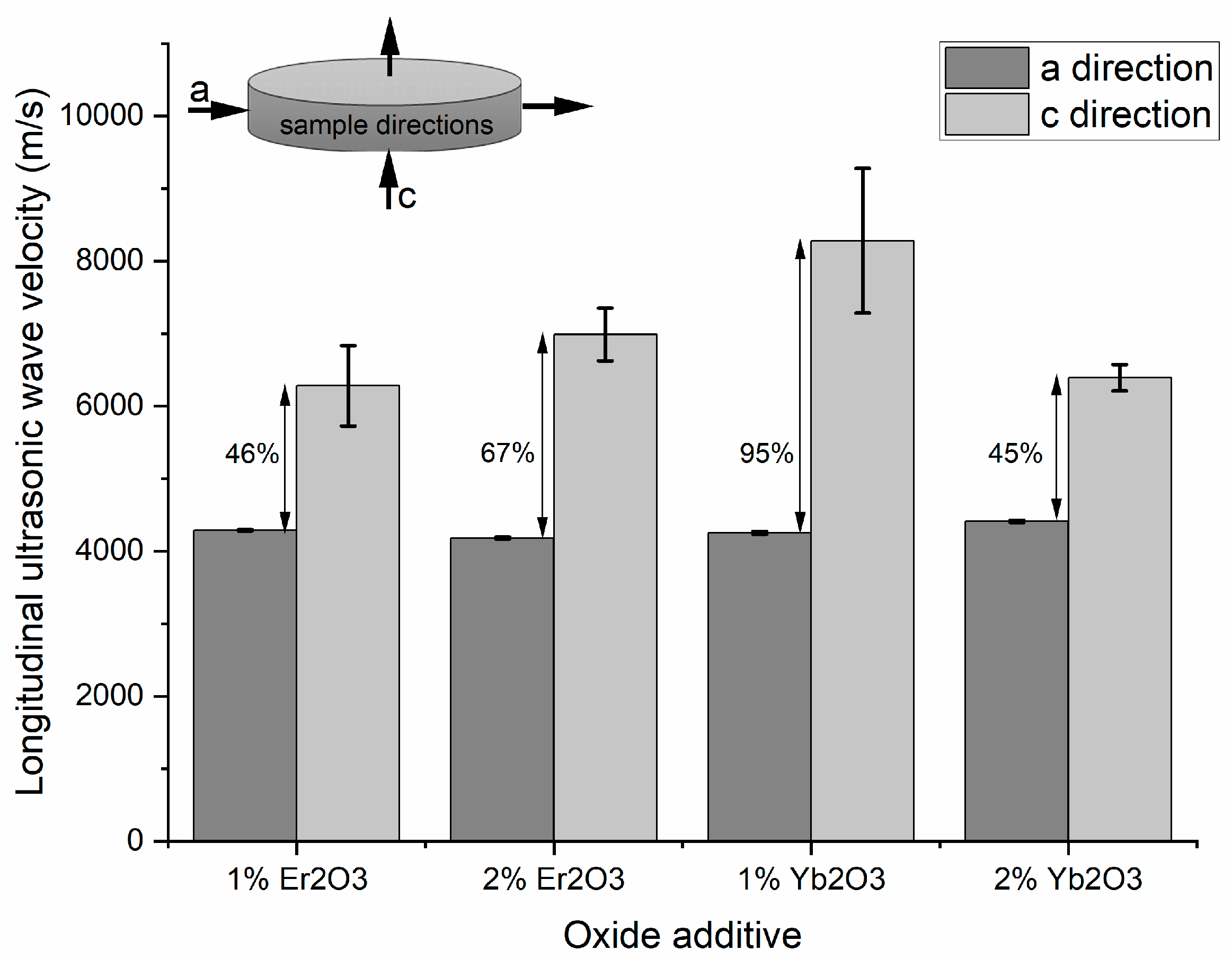

In this study, the influence of the addition of rare earth oxides on the phase composition and density of KNN piezoelectric ceramics was investigated. The initial powders of Na₂CO₃ and K₂CO₃ were dried at 150 °C for 2 h. Then, a powder mixture for synthesis was prepared by adding a stoichiometric amount of Nb₂O₅ and 5 and 10 wt % overabundance of Na₂CO₃. All powders were mixed by ball-milling for 24 h and synthesized at 950 °C. The phase composition of the reaction bed was checked by means of X-ray diffraction (XRD). It had an appearance of tetragonal and monoclinic K_0.5Na_0.5NbO₃ (KNN) phases. Then, 1 and 2 wt % of Er₂O₃ and Yb₂O₃, were added to the mixture. Green samples of 25 mm diameter and 3 mm thickness were prepared and sintered by hot pressing at 1000 °C for 2 h under 25 MPa pressure. The final samples were investigated via scanning electron microscopy (SEM)-energy-dispersive X-ray spectroscopy (EDS), XRD, Rietveld, and ultrasonic methods. Phase analysis showed tetragonal and orthorhombic KNN phases, and a contamination of (K₂CO₃·1.5H₂O) was present. The obtained KNN polycrystals had a relative density above 95%. Texturing of the material was confirmed as a result of hot pressing.

Keywords: hot pressing; porosity; piezoelectric properties; sensors
