Investigation of Ferroelectric Grain Sizes and Orientations in Pt/Ca_xSr_1–xBi₂Ta₂O₉/Hf–Al–O/Si High Performance Ferroelectric-Gate Field-Effect-Transistors

Abstract

Electron backscatter diffraction (EBSD) was applied to investigate the grain size and orientation of polycrystalline Ca_xSr_1–xBi₂Ta₂O₉ (C_xS_1–xBT) films in ferroelectric-gate field-effect transistors (FeFETs). The C_xS_1–xBT FeFETs with x = 0, 0.1, 0.2, 0.5, and 1 were characterized by the EBSD inverse pole figure map. The maps of x = 0, 0.1, and 0.2 showed more uniform and smaller grains with more inclusion of the a-axis component along the film normal than the maps of x = 0.5 and 1. Since spontaneous polarization of C_xS_1–xBT is expected to exist along the a-axis, inclusion of the film normal a-axis component is necessary to obtain polarization versus electric field (P–E) hysteresis curves of the C_xS_1–xBT when the E is applied across the film. Since memory windows of FeFETs originate from P–E hysteresis curves, the EBSD results were consistent with the electrical performance of the FeFETs, where the FeFETs with x = 0, 0.1, and 0.2 had wider memory windows than those with x = 0.5 and 1. The influence of annealing temperature for C_0.1S_0.9BT poly-crystallization was also investigated using the EBSD method.

1. Introduction

As a memory device, the ferroelectric-gate field-effect transistor (FeFET) has attracted much interest [1,2,3,4,5,6,7]. It has many features, such as non-volatile memory function, voltage driven write operation, nondestructive read operation, and possible compact 4F² cell size (F: feature size) [1,3]. FeFETs can be applied not only to NAND flash memories intended for large scale storage [8,9,10,11], but also to embedded flash memories with logic devices for portable and other IOT (internet of things) devices with low power dissipation and low voltage operation [12,13,14]. The FeFET in this paper is a type of metal-ferroelectric-insulator-semiconductor (MFIS). The FeFET is shown schematically in Figure 1. MFIS FeFETs with long retention and high endurance were realized for the first time using Pt/SrBi₂Ta₂O₉(SBT)/Hf–Al–O(HAO)/Si gate stacks, where the HAO is (HfO₂)_y(Al₂O₃)_1–y, often with y = 0.75 [15,16,17]. One-month-long retention was demonstrated by a self-aligned gate FeFET with Pt/SBT/HAO/Si [18]. In 2013, calcium doped SBT, Ca_xSr_1–xBi₂Ta₂O₉ or C_xS_1–xBT, was introduced as a ferroelectric material in MFIS FeFETs that attained larger memory windows of the FeFETs than the conventional SBT [19]. After the FeFETs with C_xS_1–xBT were developed, 3.3 V-write-voltage FeFETs [14] and 100-nm metal-gate FeFETs [20] were demonstrated. Write performances of FeFETs were precisely investigated by applying pulse voltages [21]. Memory-cell properties for new ferroelectric NOR flash memories were examined [22].

Ferroelectricity of materials strongly depends on the crystallinity, which has been conventionally characterized by X-ray diffraction (XRD) [23,24]. Recently, the electron backscatter diffraction (EBSD) method was developed into an important technique for metallography [25] and was also used to characterize the ferroelectric materials [26,27]. In this study, the EBSD is applied for the first time in order to discuss the relevance of the nonvolatile-memory-cell performances of the FeFETs with the ferroelectric crystallinity of the C_xS_1–xBT hidden inside the MFIS gate stacks. The EBSD method exhibits a two-dimensional map of the C_xS_1–xBT grains, whose size and crystal orientation can be understood visually. The minimum size detectable by the EBSD is as small as 10 nm, which can be observed in situ by the field-emission-type scanning electron microscope (FESEM) [25]. The spatial resolution of the EBSD is much higher than that of XRD. With downsizing of ferroelectric devices [20,28], micro area analysis of the ferroelectric layers would be very helpful to understand the quality and achieve better device performance. In this work, the EBSD characterizations of C_xS_1–xBT layers in the FeFETs were performed after the manufacturing processes were completed and the electrical properties were identified. In the processes, the whole MFIS stacks were annealed for the C_xS_1–xBT crystallization with the Pt electrodes formed on the C_xS_1–xBT by photo-lithography and ion-beam etching [19]. Therefore, grain size and orientation of the polycrystalline C_xS_1–xBT underneath the gate-electrode Pt could not be directly observed. How to remove the Pt layer was an important technique in this work.

2. Experimental

2.1. Fabrication of FeFETs and Electrical Characterization

P-type Si substrates, with n⁺ source and drain regions formed in advance, were used to fabricate n-channel MFIS FeFETs with Pt/C_xS_1–xBT/(HAO)/Si gate stacks [19]. The thicknesses of HAO, C_xS_1–xBT, and Pt were 7 nm, 200 nm, and 200 nm, respectively. HAO and C_xS_1–xBT were deposited by pulse laser deposition. Pt was deposited by electron-beam evaporation. Further details of the fabrication process were reported elsewhere [19]. The metal gate length (L) was 10 μm, and the gate width (W) was 200 μm [19]. Here, two groups of FeFETs were investigated by EBSD. In the first group, x was varied. Namely, C_xS_1–xBT FeFETs with x = 0 (SBT), x = 0.1, x = 0.2, x = 0.5, and x = 1 (CaBi₂Ta₂O₉, CBT), were characterized. The SBT FeFET was annealed at 813 °C. The other C_xS_1–xBT FeFETs were annealed at 800 °C. In the second group, x was fixed at x = 0.1 and the C_0.1S_0.9BT FeFETs were annealed at nine different temperatures in O₂ ambient, which were 748, 755, 763, 775, 788, 800, 813, 823, and 833 °C. All the temperatures were set-temperatures, which were about 10 °C higher than the real sample temperatures according to a temperature sensor. The sensor was an R-type thermocouple buried in a 20 mm² diced Si wafer. Drain current versus gate voltage (I_d–V_g) curves were measured using an Agilent 4156C transistor analyzer. Memory window (MW) was defined as the difference of the threshold voltages when I_d/W = 10⁻⁸ A/μm on the I_d–V_g hysteresis loops [19]. Polarization (P) versus gate voltage (P–V_g) hysteresis curves were obtained using the virtual ground mode of the Radiant RT6000S ferroelectric test system.

2.2. EBSD Sample Preparation

High quality Pt/C_xS_1–xBT/HAO/Si FeFETs were manufactured successfully with good reproducibility [19]. For crystallizing the C_xS_1–xBT, the whole MFIS stacks were annealed. Due to the coverage by the Pt gate metal, the ferroelectric C_xS_1–xBT film was hidden in the MFIS stacks. To observe the C_xS_1–xBT by EBSD, therefore, the Pt layer was removed using polishing cloths with 0.25 μm-size fine diamond pastes of SCAN-DIA. After the polishing, the samples were ultrasonically cleaned in acetone and in deionized water. Although the polishing made linear scratches to some extent on the surface of the C_xS_1–xBT layer, such scratches had no influence on crystal-orientation characterization by EBSD.

2.3. EBSD Scanning

An EBSD system (EDAX-TSL, AMETEK, Inc., Berwyn, PA, USA) was installed in the FESEM (JSM-7001F, JEOL Ltd., Tokyo, Japan). During EBSD scanning, the samples were kept 70° tilted from the horizontal position in order to optimize the fraction of electrons scattered and the contrast in the diffraction pattern. When the electron beam hit the sample surface region, some of the scattered electrons agreed with the Bragg’s law and were diffracted from lattice planes. The diffraction patterns in the space, which are well known as Kikuchi bands, were captured by a phosphor screen equipped inside the FESEM. The Kikuchi band of every sample point was collected by the EBSD software and outputted into EBSD maps after Miller indexing. The crystal structure of C_XS_1–xBT is orthorhombic (A21am) [29]. However, since the EBSD software could hardly identify the very small difference of a and b, we assumed it to be a pseudo-tetragonal structure (I4/mmm), with a = b = 0.5523 nm and c = 2.5026 nm, to index the Kikuchi patterns [27], where a, b, and c were the lattice parameters of the crystal unit cell. During the scanning in this work, the FESEM accelerating voltage, work distance, and magnification were set to 15 kV, 25 mm, and 20,000, respectively. The scanning area and step were 4.4 × 6.6 μm² and 15 nm, respectively. The EBSD is a good method to know the relationship between electrical properties and crystal orientations of ferroelectric materials [27].

3. Results and Discussion

3.1. Electrical Properties of C_xS_1–xBT FeFETs with Varying x

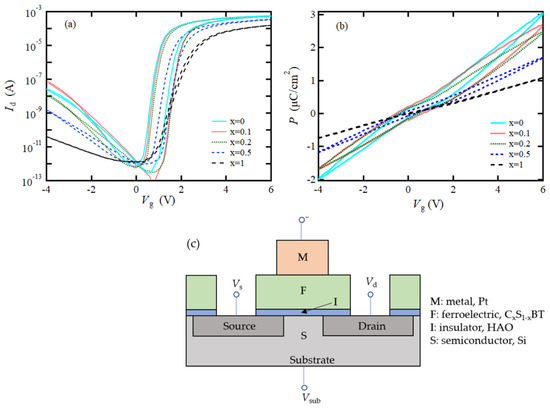

The electrical properties of Pt/C_xS_1–xBT/HAO/Si FeFETs with x = 0, 0.1, 0.2, 0.5, and 1 were reported in our former work [19]. I_d–V_g curves are shown in Figure 1a, with V_g scanning from −4 V to 6 V, and then back to −4 V. During the scanning, the drain voltage (V_d) was set to 0.1 V. The source voltage (V_s) and substrate voltage (V_sub) were kept to zero. Drawing directions of the I_d–V_g hysteresis loops were counter-clockwise in the cases of x = 0, 0.1, 0.2, and 0.5 V, indicating that the origins of the loops were ferroelectric. MWs of the C_xS_1–xBT FeFETs were 0.75 V (x = 0, namely, SBT), 0.89 V (x = 0.1), 0.84 V (x = 0.2), and 0.43 V (x = 0.5). In the case of CBT (x = 1), the MW was almost zero, but, more exactly, the loop direction was clockwise, indicating that the CBT was not ferroelectric and that the CBT FeFET showed weak charge-injection behavior in the I_d–V_g measurement.

The polarization, P, of the C_xS_1–xBT FeFETs was also measured as a function of V_g, as shown in Figure 1b. During the P–V_g measurements, V_d, V_s, and V_sub were set to 0 V. Note that the V_g was applied across all the stacked layers, which included C_xS_1–xBT, HAO, and the interfacial layer between HAO and Si, and the surface potential of the silicon. While V_g changed between −4 V and 6 V, half the peak-to-peak amplitudes of polarization (P_hppa) [21,30], were 2.56 μC/cm² (x = 0), 2.22 μC/cm² (x = 0.1), 2.12 μC/cm² (x = 0.2), 1.46 μC/cm² (x = 0.5), and 0.93 μC/cm² (x = 1). The MWs on P–V_g curves, i.e., the voltage differences when P = 0, were 0.72 V (x = 0), 1.18 V (x = 0.1), 0.86 V (x = 0.2), 0.56 V (x = 0.5), and 0.1 V (x = 1). Drawing directions of the P–V_g hysteresis loops for all cases were counter-clockwise. As a non-volatile memory FeFET cell, a large coercive field of the C_xS_1–xBT is preferred rather than a spontaneous or remnant polarization if an appropriate P_hppa (typically 2.5 μC/cm²) is attained [30].

3.2. EBSD Characterization Results for C_xS_1–xBT FeFETs with Varying x

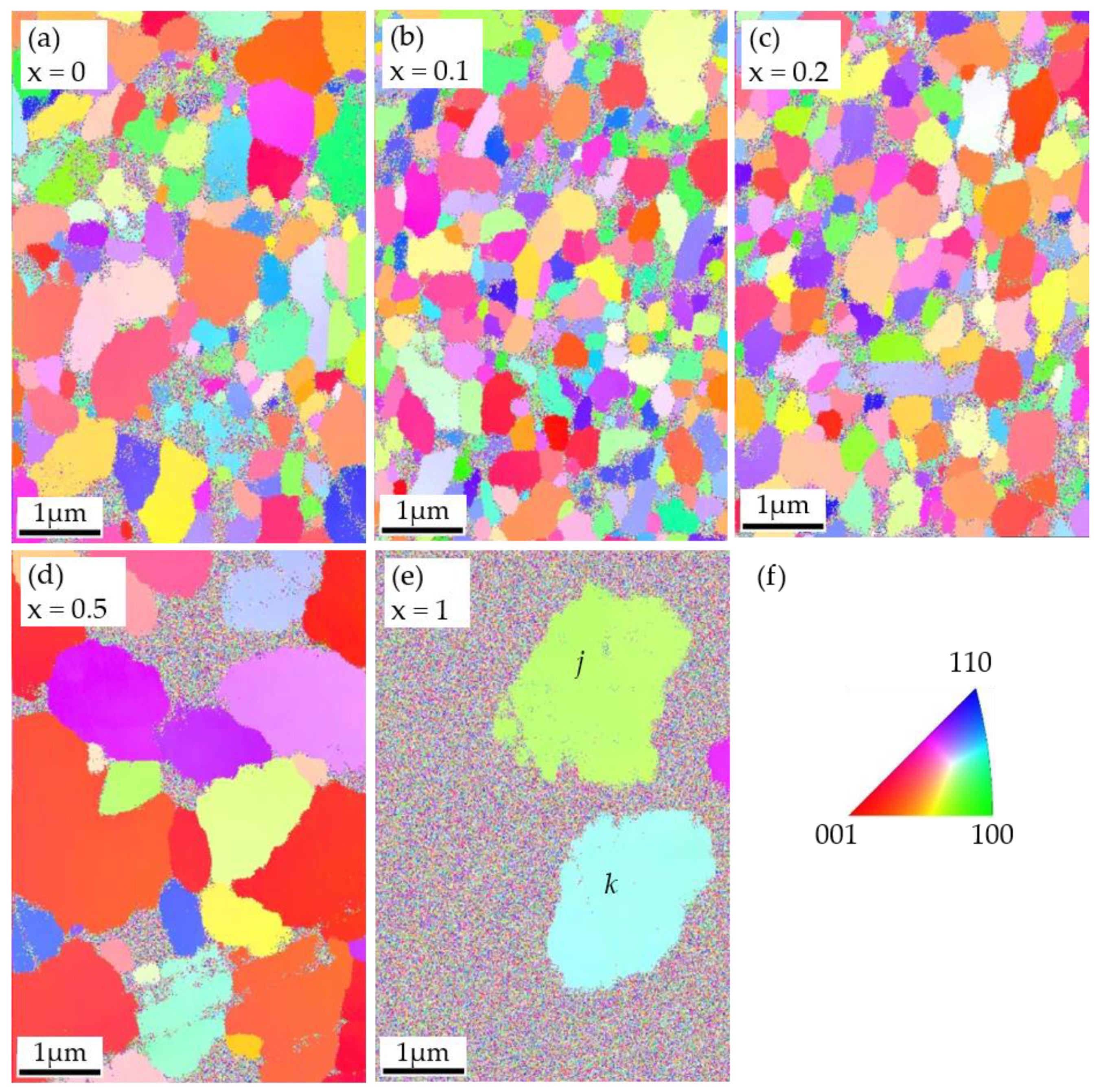

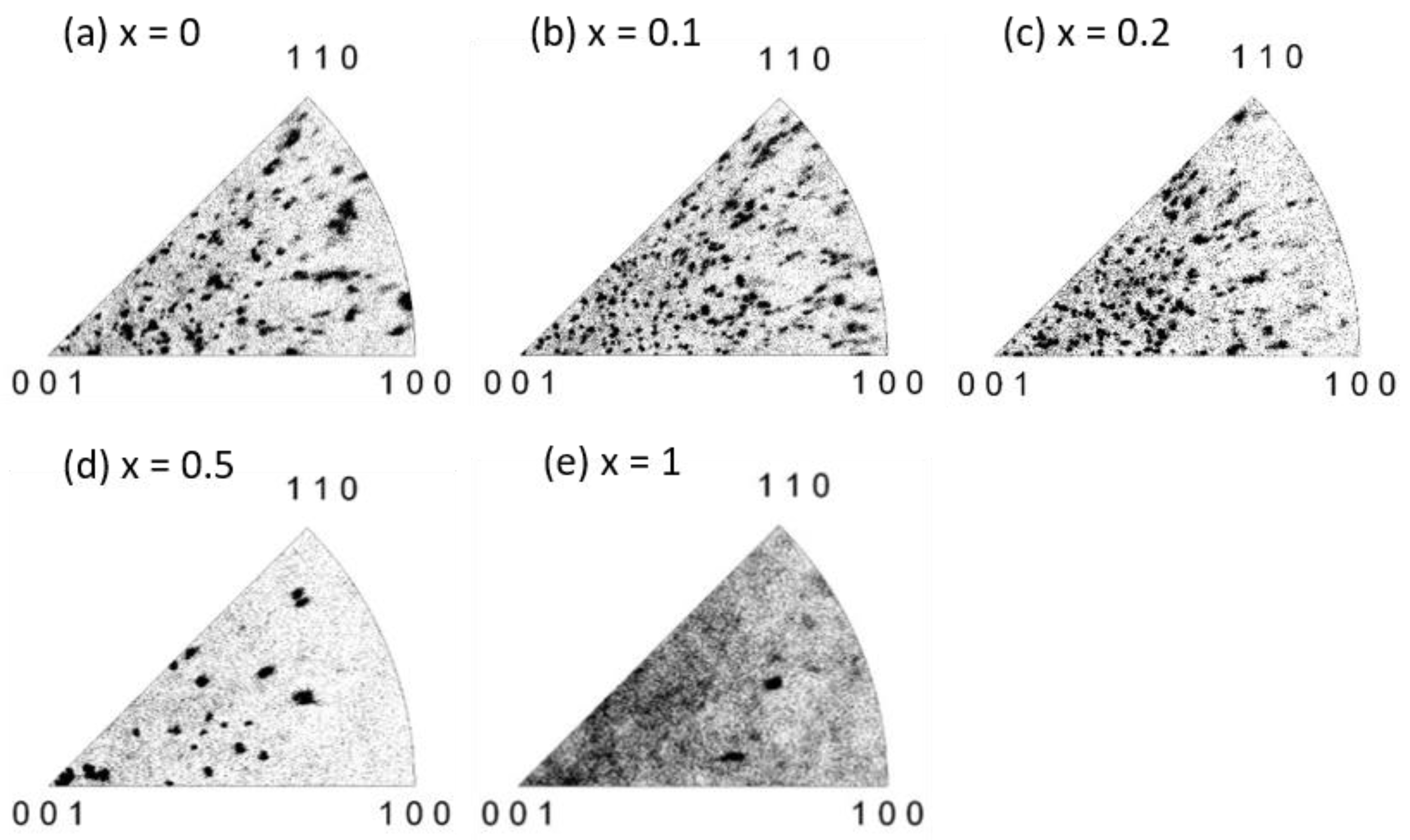

The EBSD scanning results are shown in Figure 2 and Figure 3. Figure 2a–e are inverse pole figure maps, where every point of the C_xS_1–xBT was shaded with a color guided by the color code unit triangle according to its orientation (Figure 2f). In the map (Figure 2), the different colors represent the different orientations. The red color point designated as (001) means that the c-axis of the grain is parallel to the film normal. The green color point designated as (100) means that the a-axis of the grain is parallel to the film normal. When the points with the same crystal orientation are accumulated together and make an area of one color, this is a grain of C_xS_1–xBT observed by EBSD. A neutron diffraction showed that SBT and CBT have spontaneous polarization along the a-axis [31]. Electrical measurements of polarization versus electric field (P–E) curves of epitaxial SBT thin films supported the a-axis directed spontaneous polarization [32,33]. Hence the direction of spontaneous polarization of C_xS_1–xBT can be regarded as the a-axis, and the more green color in the EBSD map (Figure 2f) can be attributed to larger polarization. Figure 3 indicates the unit triangles of inverse pole figures, in which one black point represents one unique orientation of the C_xS_1–xBT.

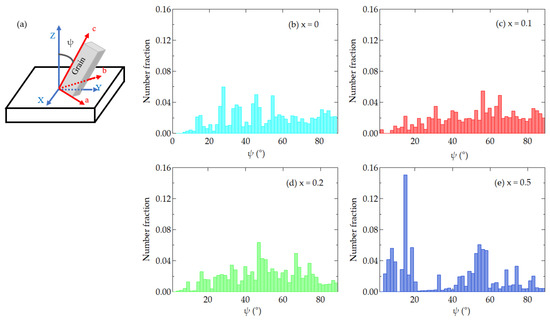

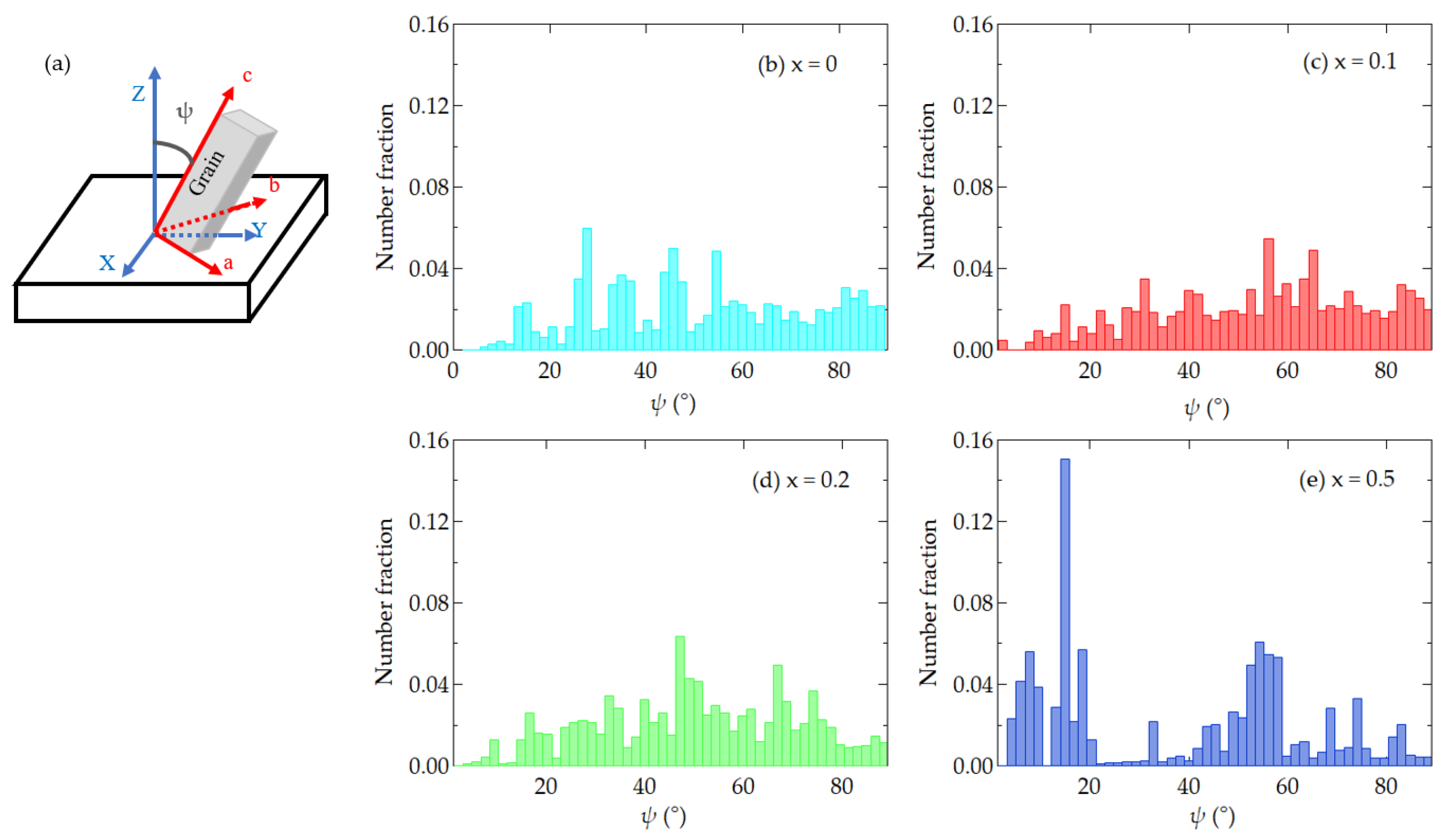

The crystal orientation data of grains can also be characterized by the angle ψ (Figure 4a) between the film normal and the grain c-axis. Here the EBSD distribution density was integrated over with respect to the other Euler angles. Orientation distributions as a function of ψ for C_xS_1–xBT FeFETs with x = 0, 0.1, 0.2, and 0.5 are shown in Figure 4b–e, respectively. The crystal orientations in the SBT (x = 0), C_0.1S_0.9BT (x = 0.1), and C_0.2S_0.2BT (x = 0.2) are broadly distributed in the range of 0° < ψ ≤ 90°. On the other hand, the distribution of C_0.5S_0.5BT (x = 0.5) shows a large distribution below 20°, representing the near-c-axis oriented crystallization. Average values of the grain diameters (Figure 2a–d) and crystal orientation angles (Figure 4b–e) of the C_xS_1–xBT with x = 0, 0.1, 0.2, and 0.5 were statistically calculated with the standard deviations as shown in Figure 5a,b.

3.3. Energy Dispersive X-ray Spectroscopy Characterization of CBT

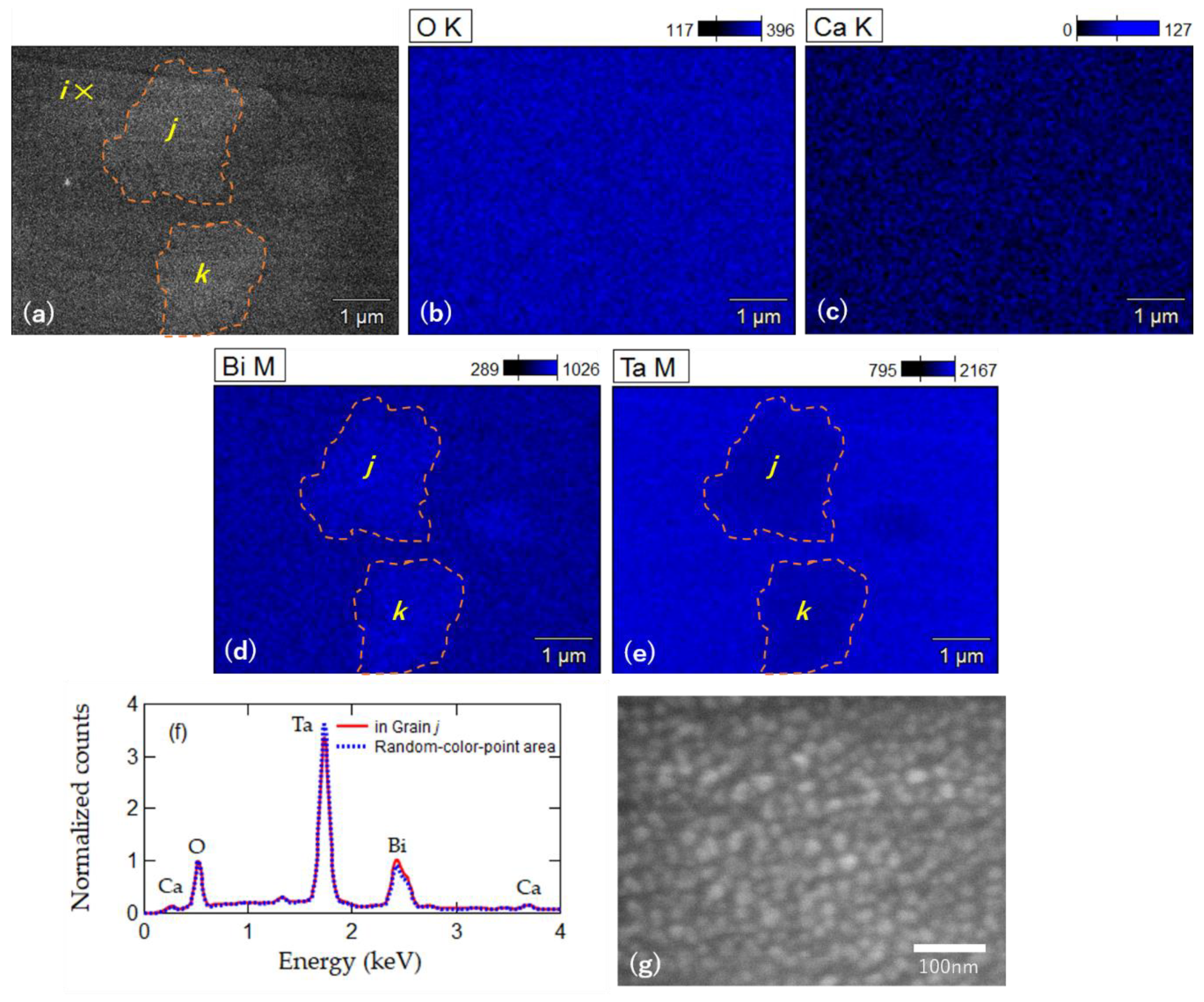

In Figure 2, there were noisy areas composed of dots with multiple colors. Such noisy areas existed only near the grain boundaries in the C_xS_1–xBT maps of x = 0, 0.1, and 0.2, but appeared more in the maps of x = 0.5. In the case of CBT, more than half the area was noisy. As an experimental fact, no Kikuchi bands appeared on these noisy multi-color-dot areas during the EBSD scanning. In order to consider the origin of the noises, we made an energy dispersive X-ray spectroscopy (EDX) characterization for the CBT as shown in Figure 2e. EDX (Noran System 7, Thermo Scientific) was equipped with the same FESEM as the EBSD was. The observed area was the same as the area used for the EBSD characterization. Figure 6a–e show the EDX mapping results. Figure 6a is the gray-colored intensity map of the integrated counts. Figure 6b–e are the separated maps of the elements, O, Ca, Bi, and Ta. The surrounded areas j and k shown in Figure 6a,d,e are positioned at the same grains j and k in Figure 2e by the EBSD. Maps for Bi and Ta had shades of colors with the same shapes of the grains j and k (Figure 6d,e), whereas those for O and Ca had no features with uniform colors (Figure 6b,c). According to the EDX maps for the Bi and Ta (Figure 6d,e), the noisy multi-color-dot area outside j and k included less Bi and more Ta than the area inside j and k. The EDX spectra of the local two spots, inside j and outside j and k, were investigated using ten-times as large a magnification as that used in Figure 6a–e. As shown in Figure 6f, the spot outside j and k exhibited lower Bi and higher Ta intensity peaks than the spot inside j, while both spots had exactly overlapped Ca peaks. A magnified SEM image at the position i in Figure 6a indicated that the spot outside j and k, which was in the multi-color-dot area in Figure 2e, consisted of tiny grains as small as 20 nm (Figure 6g). By these experimental results, there are possible two explanations for the multi-color-dot areas. The first explanation is that grains in the areas were crystalized with random orientations, but they were as small as the resolution limit of EBSD. Hence Kikuchi bands could not be observed. The second one is that grains were not well crystalized yet. From the latter view point, a possible phase was Bi-substituted CaTa₂O₆ on the multi-color-dot area, whose crystallization temperature was much higher than the present annealing temperature of about 800 °C [34,35]. Further investigation in the future will provide a sure solution.

3.4. X-ray Diffraction for C_xS_1–xBT

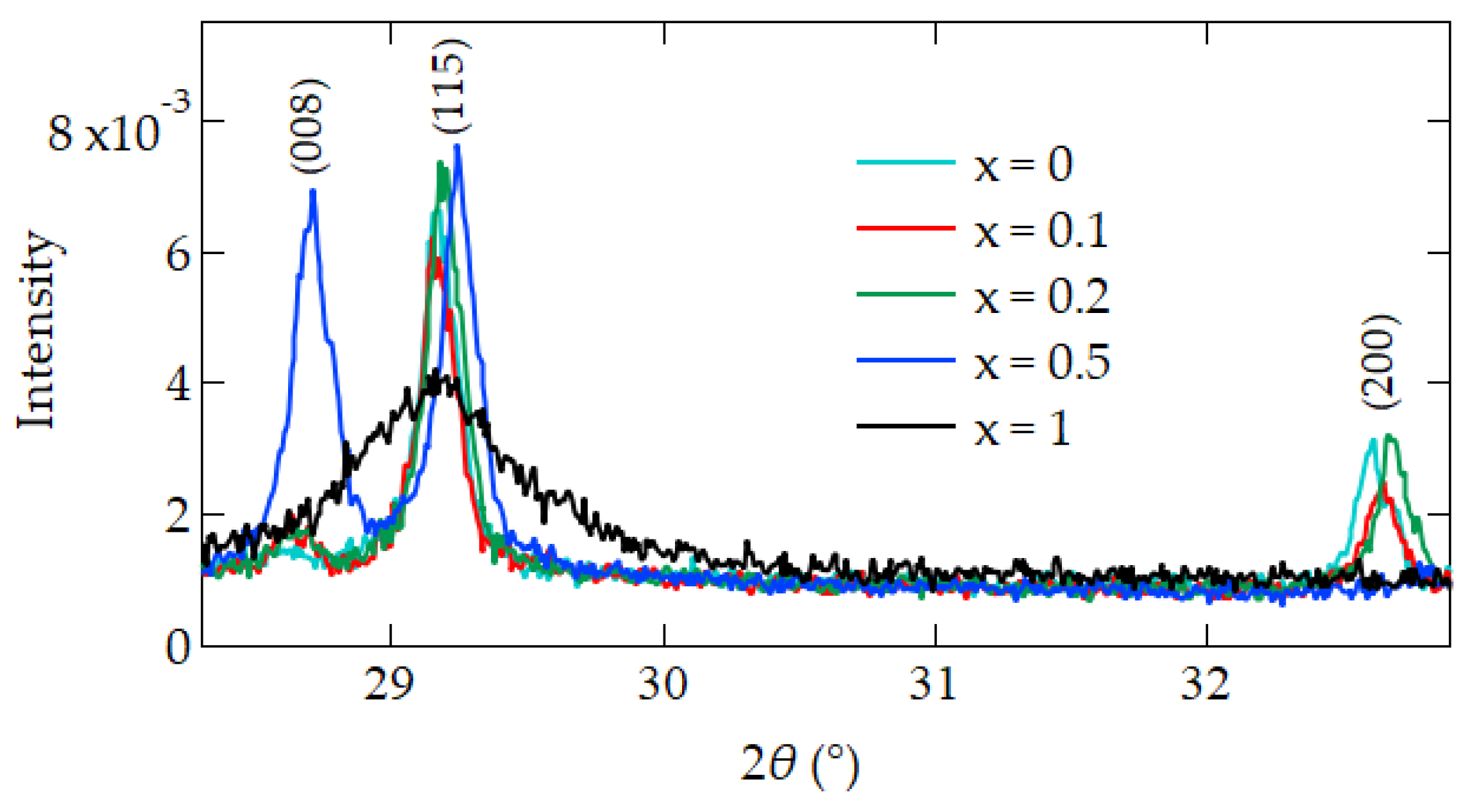

The XRD spectra of C_xS_1–xBT are shown in the Figure 7. Samples of Pt/CSBT/HAO/Si with non-patterned Si were used [19]. The SBT and C_xS_1–xBT with x = 0.1 and 0.2 have narrow and strong non-c-axis peaks of (115) and (200). They do not have the c-axis oriented (008) peak. On the other hand, C_0.5S_0.5BT shows the (008) c-axis peak as well as the (115) peak but does not have the (200) peak. The XRD measurements of the c-axis orientation more in the C_0.5S_0.5BT than in the C_xS_1–xBT with x = 0, 0.1, and 0.2 are in good agreement with the EBSD characterization, which showed the C_0.5S_0.5BT orientated near the c-axis direction (Figure 4e). The XRD of the CBT seemed insufficiently crystalized because the (115) peak got weaker and broader than those of SBT and C_xS_1–xBT of x = 0.1 and 0.2, and the (008) and (200) peaks did not appear. The insufficient crystallization of the CBT was supported by EBSD observation of a major area occupied by multi-color dots (Figure 2e).

3.5. Comparison of Electrical Properties with Results of EBSD and Other Characterizations

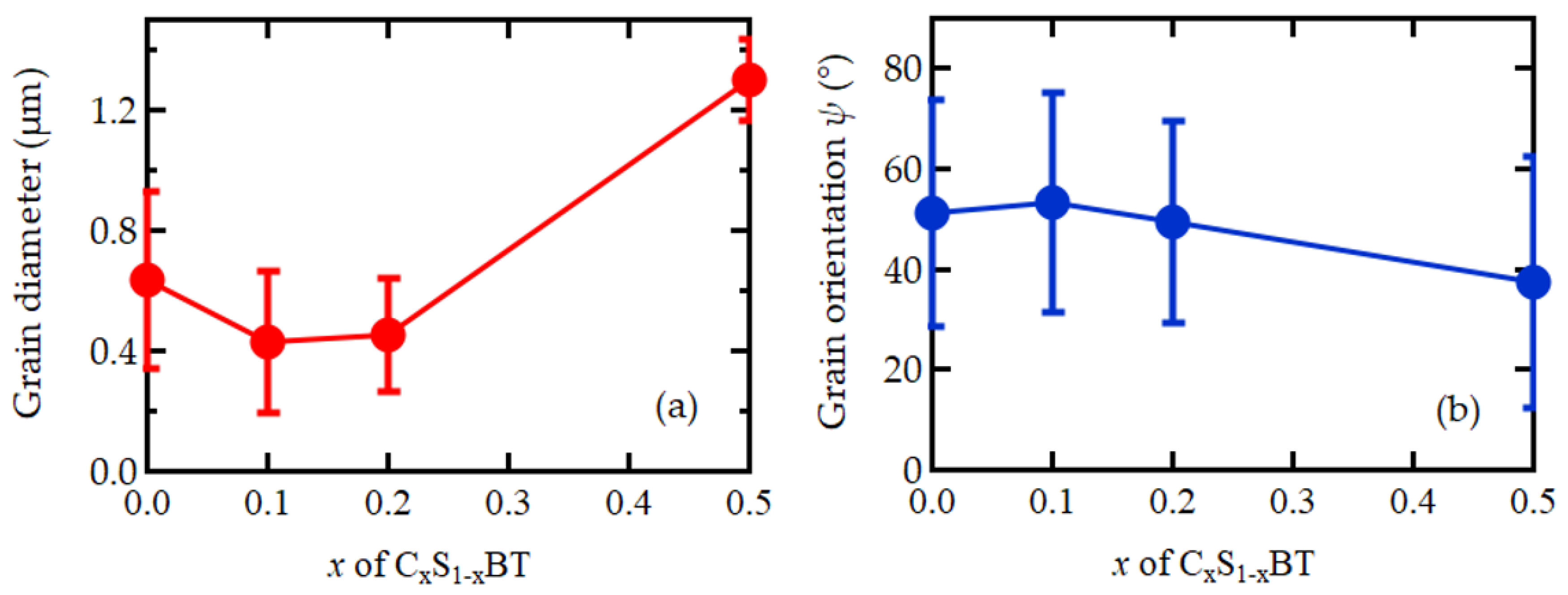

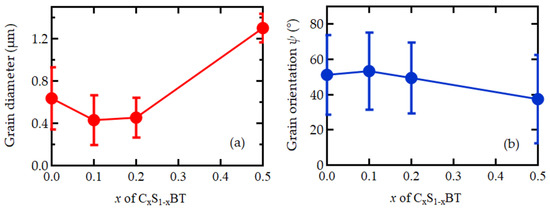

In the EBSD maps of Figure 2a–c, many grains with rather uniform size and non-c-axis orientation were recognized on SBT, C_0.1S_0.9BT, and C_0.2S_0.8BT layers. As a function of the angle ψ between the film normal and the grain c-axis (Figure 4a), the crystal orientations of the SBT, C_0.1S_0.9BT, and C_0.2S_0.8BT layer were broadly distributed in the wide range of 0° < ψ ≤ 90° as shown in Figure 4b–d. In fact, the average values of the ψ were about 50° regarding the C_xS_1–xBT with x = 0, 0.1 and 0.2 (Figure 5b). The XRD profiles of the C_xS_1–xBT with x = 0, 0.1, and 0.2 in Figure 7, which have the (200) and (115) peaks without the (008) peak, are consistent with the wide range ψ distributions of the crystal orientations observed by the EBSD. Since spontaneous polarization of C_xS_1–xBT is expected to exist along the a-axis, inclusion of the film-normal a-axis component is required to obtain polarization versus electric field (P–E) hysteresis curves of the C_xS_1–xBT, where the E is applied across the C_xS_1–xBT film. Regarding the C_xS_1–xBT with x = 0, 0.1, and 0.2, the wide range ψ distributions observed by EBSD (Figure 4b–d) agreed with the large MWs of the C_xS_1–xBT FeFETs (Figure 1a) due to the inclusion of the a-axis components in the C_xS_1–xBT film-normal directions, which were also supported by Figure 7.

In the case of the C_0.5S_0.5BT FeFET, the EBSD map (Figure 2d) showed many grains painted in nearly red colors, which indicated c-axis-preferred crystal orientations. Figure 4e also indicated the c-axis-preferred crystal orientations of the C_0.5S_0.5BT by the large number of fractions below 20°. As shown in Figure 5b, the average value of ψ was 37°, which was about 13° lower than those of C_xS_1–xBT with x = 0, 0.1, and 0.2. In the XRD profile of the C_0.5S_0.5BT in Figure 7, the inclusion of c-axis crystal orientation was confirmed by the (008) peak. Figure 7 indicated that the C_0.5S_0.5BT had the (115) peak but had no (200) peak corresponding to the a-axis orientation. The c-axis-preferred crystal orientations are expected to show very small ferroelectric-polarization switching by imposing bipolar V_g pulses. Actually, the C_0.5S_0.5BT FeFET had smaller MW than the C_xS_1–xBT with x = 0, 0.1, and 0.2 (Figure 1a). The increase of a noisy multi-color-dot area of the C_0.5S_0.5BT (Figure 2d) can be another reason for the small MW of the C_0.5S_0.5BT FeFET because it would be non-ferroelectric in the area. In the C_0.5S_0.5BT FeFET, therefore, the ferroelectric behavior was weakened, resulting in the memory window 0.43 V being much narrower than those for the FeFET of x = 0, 0.1, and 0.2 (Figure 1a).

In the CBT FeFET case, more than half of the EBSD map was occupied by the multi-color-dot areas (Figure 2e). This suggests insufficient crystallization of such areas, in which no ferroelectricity is expected. The XRD profile in Figure 7 showed only a weak and broad peak at the (115) position, which also indicated the insufficient crystallization of the CBT. The non-ferroelectric I_d–V_g and P–V_g curves of the CBT FeFET in Figure 1a can be understood by the EBSD and XRD investigations.

3.6. EBSD Characterization for C_0.1S_0.9BT with Various Annealing Temperatures

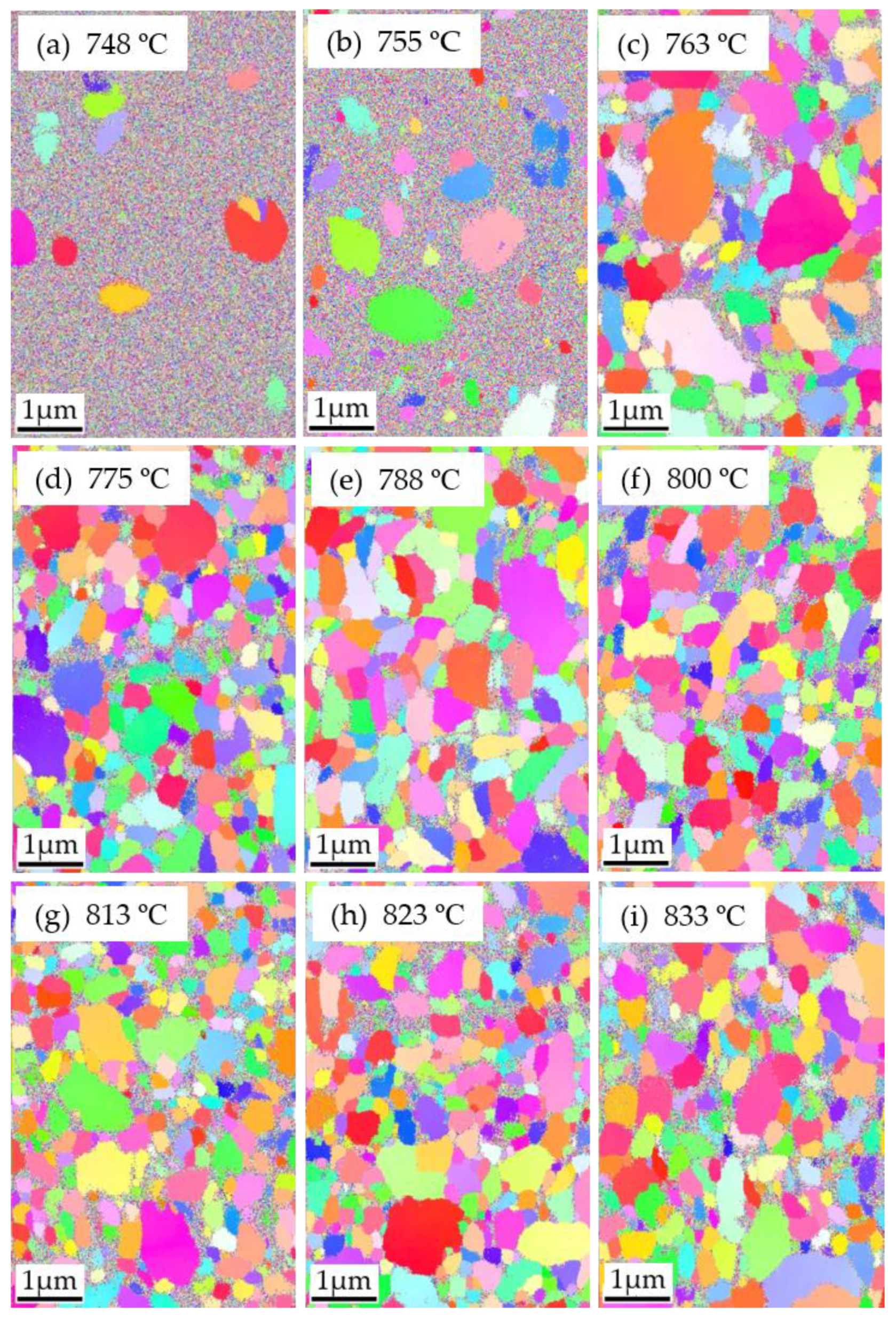

The EBSD characterization was also performed to investigate the influence of annealing temperature (T_a) on the C_0.1S_0.9BT crystallization. Figure 8 shows the EBSD map of C_0.1S_0.9BT in the FeFET annealed at T_a = 748, 755, 763, 775, 788, 800, 813, 823, and 833 °C. For T_a = 748 °C, several grains were found, but noisy multi-color-dot areas covered most parts of the scanning area. For T_a = 755 °C, although the multi-color-dot areas still occupied more than half the map, grain size and number were increased in comparison with those for T_a = 748 °C. In the case of T_a ≥ 763 °C, grains with certain crystal orientations covered the most scanning area. In the temperature range from T_a = 775 °C to 833 °C (Figure 8c–i), the grains had uniform sizes and random crystal orientations. Multi-color-dot areas were located only on the grain boundaries in Figure 8c–i, without significant differences among the figures.

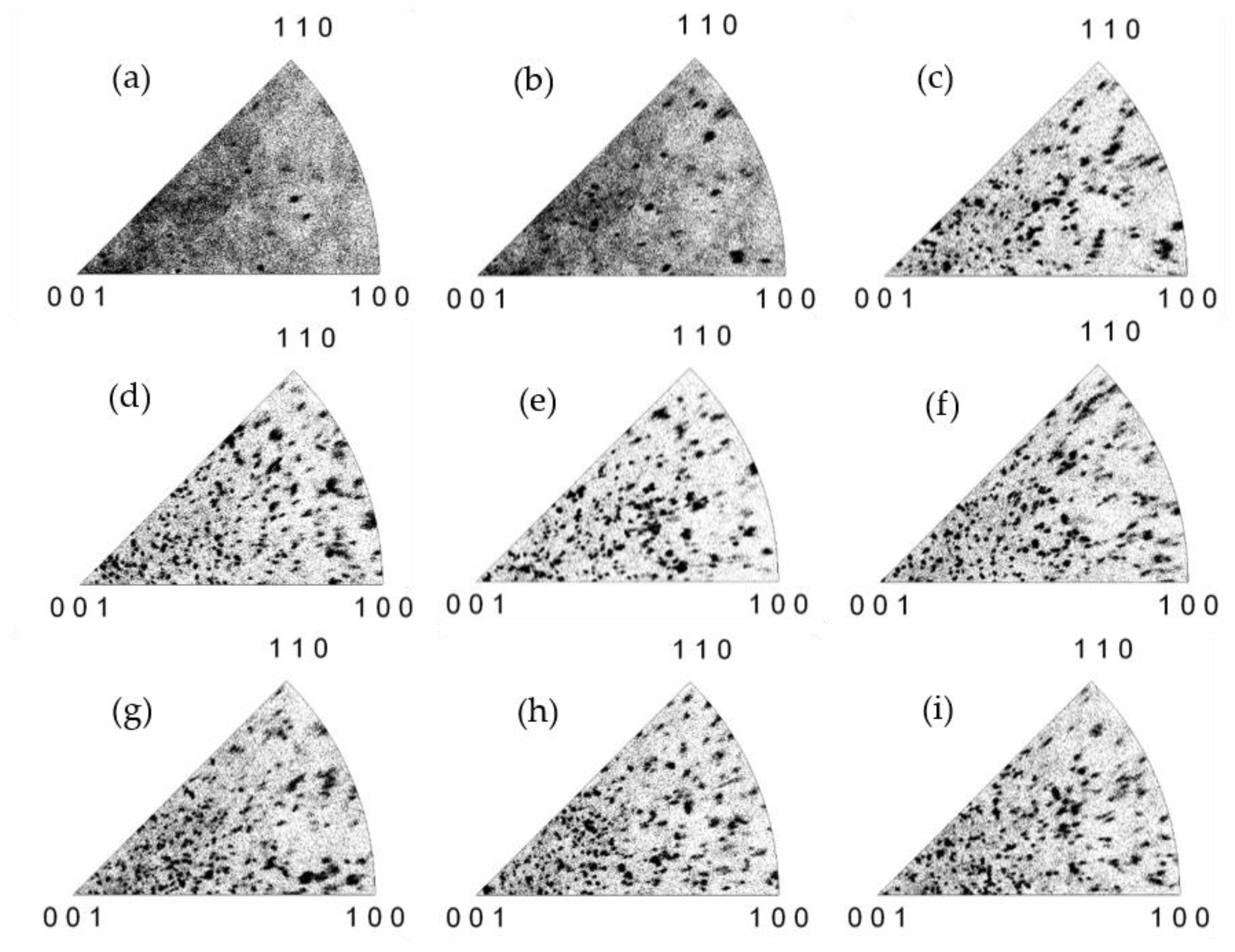

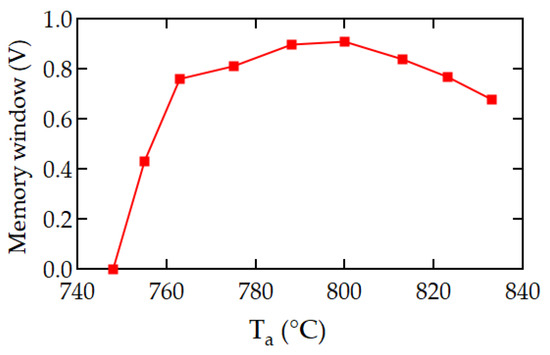

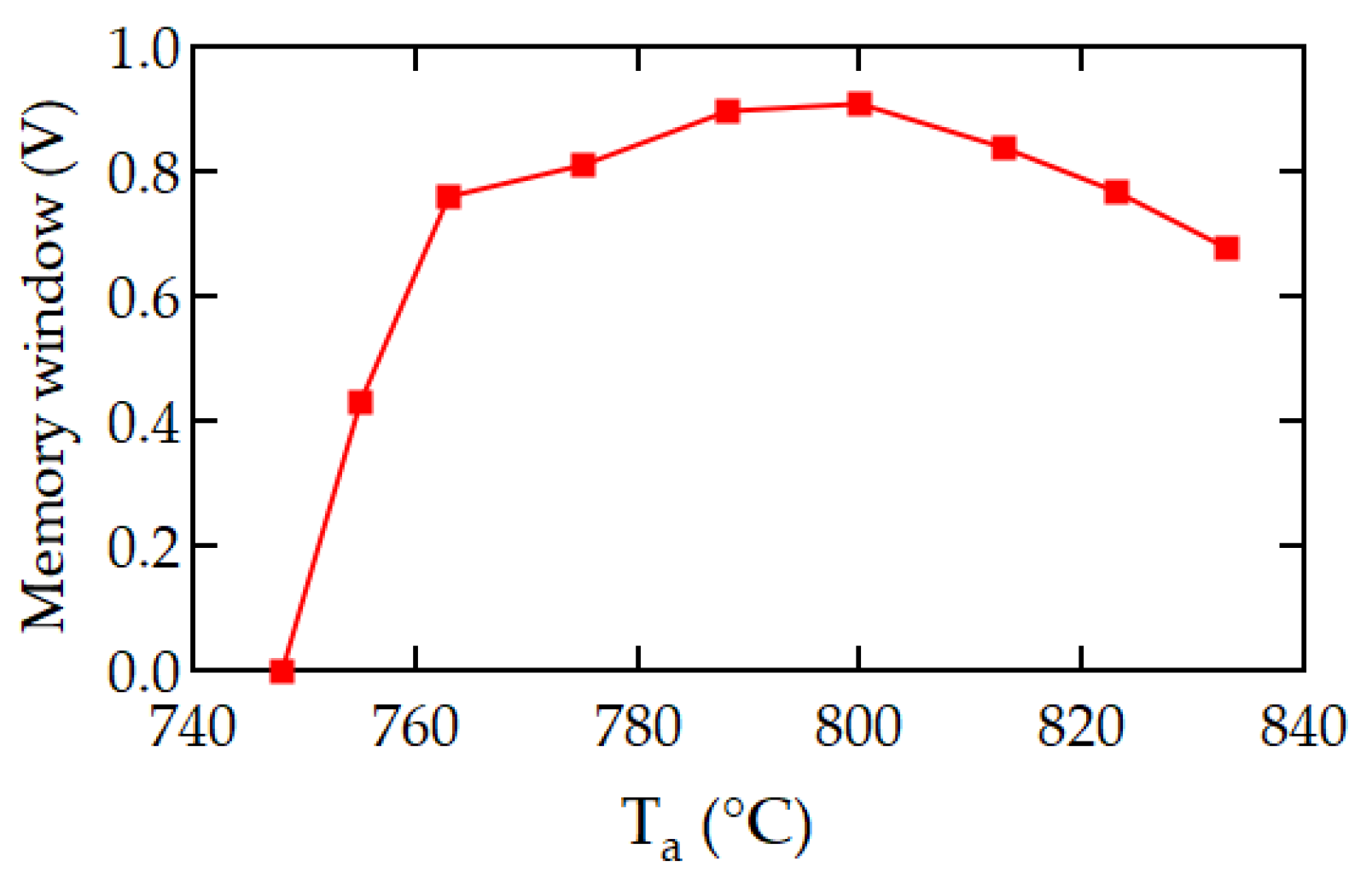

The inverse polar figures (Figure 9a–i) showed a similar tendency without significant differences from Figure 8a–i. The memory windows of these FeFETs that were reported [19] are shown in the Figure 10 as a function of T_a. The MW of the C_0.1S_0.9BT FeFET with T_a = 748 °C was 0 V. The MW with T_a = 755 °C was 0.43 V. With further increases of T_a from 763 °C to 813 °C, the MW became as large as 0.8 V–0.9 V. More exactly, at T_a = 788 °C and 800 °C the MWs exhibited the maximum. After exceeding the maximum region, the MWs were gradually decreased. MW = 0.68 V was obtained at T_a = 833 °C.

The increasing MW with increasing T_a from 748 °C to 763 °C can be explained by the increase of the size and frequency of grains and by the decrease of the noisy multi-color-dot areas. Crystallinity may be improved with further increases of T_a. The FeFETs showed the maximum MW in the T_a range from 788 °C to 800 °C. The decreases of MWs at T_a > 800 °C may be caused by the increase of a SiO₂-like interfacial layer (IL) grown between the I layer and the S surface in the MFIS of the FeFETs. As shown in [14,16,17,19], during the annealing for the C_xS_1–xBT crystallization, the IL is grown to normally a few nano-meters-thick. The IL may get thick as the T_a increases from 800 °C to 833 °C. In the MFIS, three capacitances of F, I, and IL and a capacitance of S (appearing when the depletion layer is formed) are connected in series and share the V_g. The voltage across the C_xS_1–xBT is reduced when the IL becomes thick because the voltage across the IL is increased. With the voltage decrease across the C_xS_1–xBT, the MW may become narrow as T_a is increased from 800 °C to 833 °C.

4. Conclusions

The EBSD method was used to characterize the Ca_xSr_1–xBi₂T₂O₉ layer inside the FeFET stacks. The distributions of grain size and orientation of C_xS_1–xBT with x = 0 (SBT), 0.1, 0.2, 0.5, and 1 (CBT) were presented in the inverse polar figure maps and the unit triangles of EBSD. The grain size and crystal orientation distributions depended on the content x of C_xS_1–xBT. There were more uniform and smaller grains with random orientation in SBT, C_0.1S_0.9BT, and C_0.2S_0.8BT. In C_0.5S_0.5BT, grains got larger and the major grains were orientated near the c-axis direction. Since spontaneous polarization exists along the a-axis, these EBSD results explain well the reason that the memory windows of SBT, C_0.1S_0.9BT, and C_0.2S_0.8BT FeFETs were much wider than that of the C_0.5S_0.5BT FeFET. EBSD investigation also revealed the existence of noisy multi-color-dot areas on which no Kikuchi-bands appeared, indicating that the areas were non-ferroelectric. EBSD characterizations of the C_0.1S_0.9BT FeFETs with various annealing temperatures from T_a = 748 to 833 °C were performed. As the T_a was raised from 748 °C toward 763 °C, grain size and number increased, and the noisy multi-color-dot areas decreased. When T_a was increased from 763 °C to 833 °C, the EBSD maps showed the C_0.1S_0.9BT mostly composed of grains with rather uniform sizes and random crystal orientations. Good consistency among the EBSD investigations of the C_xS_1–xBT and memory window widths of the C_xS_1–xBT FeFETs could be discussed.
