Coercivity Increase of the Recycled HDDR Nd-Fe-B Powders Doped with DyF3 and Processed via Spark Plasma Sintering & the Effect of Thermal Treatments

by
Awais Ikram
1,2,*,
M. Farhan Mehmood
1,2,
Zoran Samardžija
1,
Richard Stuart Sheridan
3,
Muhammad Awais
3,
Allan Walton
3,
Saso Sturm
1,2,
Spomenka Kobe
1,2 and
Kristina Žužek Rožman
1,2
1
Department for Nanostructured Materials, Jožef Stefan Institute, Jamova 39, SI-1000 Ljubljana, Slovenia
2
Jožef Stefan International Postgraduate School, Jamova 39, SI-1000 Ljubljana, Slovenia
3
School of Metallurgy and Materials, University of Birmingham, Edgbaston, Birmingham B15 2TT, UK
*
Author to whom correspondence should be addressed.
Materials 2019, 12(9), 1498; https://doi.org/10.3390/ma12091498
Submission received: 22 March 2019 / Revised: 3 May 2019 / Accepted: 6 May 2019 / Published: 8 May 2019
(This article belongs to the Section Energy Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The magnetic properties of the recycled hydrogenation disproportionation desorption recombination (HDDR) Nd-Fe-B powder, doped with a low weight fraction of DyF3 nanoparticles, were investigated. Spark plasma sintering (SPS) was used to consolidate the recycled Nd-Fe-B powder blends containing 1, 2, and 5 wt.% of DyF3 grounded powder. Different post-SPS sintering thermal treatment conditions (600, 750, and 900 °C), for a varying amount of time, were studied in view of optimizing the magnetic properties and developing characteristic core-shell microstructure in the HDDR powder. As received, recycled HDDR powder has coercivity (HCi) of 830 kA/m, and as optimally as SPS magnets reach 1160 kA/m, after the thermal treatment. With only 1–2 wt.% blended DyF3, the HCi peaked to 1407 kA/m with the thermal treatment at 750 °C for 1 h. The obtained HCi values of the blend magnet is ~69.5% higher than the starting recycled HDDR powder and 17.5% higher than the SPS processed magnet annealed at 750 °C for 1 h. Prolonging the thermal treatment time to 6 h and temperature conditions above 900 °C was detrimental to the magnetic properties. About ~2 wt.% DyF3 dopant was suitable to develop a uniform core-shell microstructure in the HDDR Nd-Fe-B powder. The Nd-rich phase in the HDDR powder has a slightly different and fluorine rich composition i.e., Nd-O-F2 than in the one reported in sintered magnets (Nd-O-F). The composition of reaction zone-phases after the thermal treatment and Dy diffusion was DyF4, which is more abundant in 5 wt.% doped samples. Further doping above 2 wt.% DyF3 is ineffective in augmenting the coercivity of the recycled HDDR powder, due to the decomposition of the shell structure and formation of non-ferromagnetic rare earth-based complex intermetallic compounds. The DyF3 doping is a very effective single step route in a controlled coercivity improvement of the recycled HDDR Nd-Fe-B powder from the end of life magnetic products.

Graphical Abstract

1. Introduction

The Nd-Fe-B type permanent magnets are vital from a technological point of view, spanning in applications like: Electric motors, medical imaging, telecommunication, and consumer electronics because of their high energy product [1,2,3]. Since the supply chain of rare earth elements (REE) was plagued with the crisis in 2011 [4], they are effectively considered as the most critical raw materials especially for incessantly growing automotive applications [1,5]. Therefore, to meet this demand, the recycling of the rare earth (RE) based permanent magnet is a feasible option [6,7,8,9,10,11,12,13,14,15,16,17,18], which has proven successful in developing sintered magnets from the end-of-life (EOL) scrap. The hydrogenation disproportionation desorption recombination (HDDR) Nd-Fe-B powder, from the recycled scrap, has been effectively consolidated to fully dense magnets via pulsed electric current sintering technique, retaining the coercivity (HCi) of the EOL magnet [19]. The HDDR powder has less than 30 wt.% of rare earth elements (i.e., RE lean), so modification of the grain boundary structure is necessary for increasing the coercivity [12,20]. The coercivity enhancement helps prevent higher temperature demagnetization in high torque permanent magnet motors [5].
Several researchers have utilized rare earth fluorides (RE-F3) as dopant or surface diffusion agents, to increase the coercivity in sintered magnets; with the coercivities reaching up to 2790 kA/m (35 kOe) [21,22,23,24,25,26,27,28,29,30,31,32] and in rapidly consolidated melt-spun ribbons, where coercivities reached up to 1990 kA/m [33,34]. On the contrary, no such research has been made on the HDDR Nd-Fe-B powders, which is a relatively cheap hydrogen reprocessing alternative for the EOL magnetic products [6]. In this study, we compared the magnetic properties and microstructural characteristics after doping the recycled HDDR powder with DyF3. These blends are rapidly consolidated with Spark Plasma Sintering (SPS), which has been proven to preserve the microstructure, as well as the magnetic properties of HDDR Nd-Fe-B powder. The magnetic properties of DyF3 blended recycled HDDR powder are compared with un-doped powder, consolidated with the SPS. The discussion is focused on the mechanism of diffusion at different thermal treatment conditions and the formation of core-shell structure in the HDDR Nd-Fe-B system.

2. Experimental

The recycled HDDR powder, as used in the previous study [19], has a nominal composition: Nd13.4Dy0.67Fe78.6B6.19Nb0.43Al0.72. The oxygen content of 4760 ppm was measured with Eltra ON 900 oxygen and nitrogen analyzer (Haan, Germany). The DyF3 powder was grounded by a mortar and mixed in weight fractions of 1, 2 and 5% with the recycled HDDR powder.
A total 3 g of the powder blend was added to 10 mm graphite dies, with spacers on the top and bottom. The dies were sealed in a vacuum bag within the glove box to avoid oxidation during the sample handling. A uniaxial pressure of 5 kN was applied to squeeze the powder blend. No prior magnetic alignment was made on the blended powder. Under protective Ar gas, the graphite dies, containing blends, were placed inside the Syntex 3000 (Fuji DR. SINTER, Saitama, Japan) SPS furnace with a uniaxial pressure controller. The SPS operation was performed under 2 × 10−2 mbar vacuum. The sintering temperature was kept at 750 °C, which was optimized from the previous study and 100 MPa uniaxial pressure was constantly applied. The heating rate of 100 °C/min was maintained until 700 °C and reduced to 50 °C/min for reaching the maximum temperature; 1 min of holding time was given at 750 °C to reach nearly full densification. The sintering temperature was measured with a calibrated infrared pyrometer. After the SPS operation, the samples were grinded with SiC papers to remove the graphite spacers. The demagnetization measurements were taken on a permeameter (Magnet-Physik Dr. Steingroever, Cologne, Germany). The relative density was measured with bulk density-measurement system (Exelia AG DENSITEC, Zurich, Switzerland) based on Archimedes principle by submerging the samples in silicone oil.
The thermal treatments were performed at 600, 750, and 900 °C within a horizontal tube furnace under a vacuum of > 10−5 mbar with a heating rate of 50 °C/minute. The magnetic measurements were retaken on thermally treated samples. The samples were thermally demagnetized at 400 °C for 15 min in the vacuum furnace. For the microstructural analysis, the demagnetized samples were finely grinded by 2400 grit SiC papers and polished with 1/4 µm diamond paste on a velvet cloth. The microstructural studies were carried out with a Field Emission Scanning Electron Microscope (JEOL 7600F, Tokyo, Japan). The phase identification and elemental distribution were carried out at 20 keV with an electron energy dispersive X-ray spectroscopy (EDXS, Oxford Instruments, High Wycombe, UK) analysis fitted with a 20 mm2 Oxford X-Max detector (High Wycombe, UK).

3. Results and Discussion

Characterization of Coarse Recycled HDDR Nd-Fe-B Powder.

Figure 1a shows the initial recycled HDDR Nd-Fe-B powder, with an average particle size of 220 µm. The agglomerates of DyF3 powder, shown in Figure 1b. These can be grounded to a fine powder of size <500 nm on average as in Figure 1c before blending with Nd-Fe-B powder. The weight fractions of 1, 2, and 5% DyF3 dopant were grounded and then mixed with the recycled HDDR powder. Figure 1d shows fine individual nanoparticles of DyF3 uniformly dispersed on the recycled HDDR powder grains of 400 nm average size.
Figure 2 shows the dopant distribution in the back-scattered electron (BSE) microstructure of as SPS samples, with DyF3 in different weight fractions. It is quite clear that for 1 wt.% DyF3, the microstructure appears quite similar to the representative microstructure of the sintered HDDR powder [19] and the distribution is uniform. With higher content of DyF3, the dopant nanoparticles are concentrated along the edges of the HDDR powder particles and also the bright contrast increased towards the center of the particle. In the case of 1 and 2 wt.% DyF3, the dopant clustering (<5 µm) was not very prominent and its distribution along the HDDR particles can be considered as uniform. The dopant agglomerates in size range, from 10–100 µm, were observed for 5 wt.% DyF3 SPS sample, as shown in Figure 2c. The presence of non-ferromagnetic phase was projected to reduce the sintered density, as well as remanence [34].
Figure 3 shows the magnetic properties of DyF3 doped recycled HDDR powder, consolidated with SPS at 750 °C for 1 min and then vacuum heat-treated at 600 °C for 6 h to compare the annealing parameters from the literature [33,34]. The blended magnets with 1, 2 and 5 wt.% DyF3 after annealing at 600 °C, resulted in coercivity values of 1274, 1252, and 201 kA/m, respectively. Since no prior magnetic alignment of the blend powder was performed before the sintering, the presented results of remanence conclude that the samples were isotropic. The Br was 0.78 T for 1 wt.% dopant and reduced to 0.75 T for 2 wt.%, and then dropped down substantially to 0.53 T for 5 wt.% DyF3. The un-doped recycled HDDR powder has HCi = 830 kA/m and Br = 0.92 T. Using similar SPS reprocessing conditions, the sintered magnets from the un-doped recycled HDDR powder resulted in HCi = 1060 kA/m and Br = 0.76 T, which improved to HCi = 1160 kA/m and Br = 0.77 T after vacuum heat treatment at 750 °C [19].
The melting temperature (Tm) for DyF3 is 1350 °C and previous reports on doped sintered Nd-Fe-B magnets suggested a high thermal treatment temperature range (800–950 °C) [26,28,34]. The eutectic liquid phase transformation in the HDDR system begins at 665 °C and transformation is complete at 743 °C [19]. Thereby, in order to determine the magnetic property variation, temperatures of 750 °C (above the eutectic transformation temperature) and 900 °C (above the HDDR Nd-Fe-B grain growth temperature [35,36]) were selected. As the annealing temperature was increased to 750 and 900 °C, the holding time was varied from 1 to 6 h to identify the changes in magnetic properties. In the thermal treatment at 900 °C, the coercivity, as shown in Figure 4a, reached a maximum value of 1279 kA/m for 2 wt.% doped magnets thermally treated for a relatively shorter timeframe (1 h). By increasing the dopant weight fraction as well as holding time, the coercivity declined substantially to 452 kA/m (5 wt.% DyF3 for 6 h). The Br dropped from 0.77 T to 0.72 T for 1 wt.% dopant after annealing for 1 and 6 h respectively. For higher weight fraction of dopant, the reduction in Br was more significant after thermal treatments at 900 °C as compared to 750 °C sample as shown in Figure 4b.
Figure 4c shows the coercivity increased to 1407, 1399, and 1212 kA/m for 1, 2, and 5 wt.% DyF3 respectively after the heat treatment at 750 °C for 1 h. The coercivity began to decline by increasing the holding time from 1 to 3, and 6 h. The coercivity for 1 and 2 wt.% DyF3 remained over ~1200 kA/m even after 6 h of thermal treatment, whereby it declined sharply to 977 kA/m for 5 wt.% sample held for 6 h. The HCi of 2 wt.% DyF3 was slightly higher when heat treatment was increased to 3 h or more as compared to 1wt.% doped samples. The Br increased from 0.75T to 0.85 T for 1 wt.% DyF3 blend sample after 1-h thermal treatment. The Br was in the range of 0.77–0.78 T after the heat treatment up to 6 h for 1 and 2 wt.% DyF3, as shown in Figure 4d. The Br values were gradually reduced from 0.77 T to 0.70 T as the holding time was increased from 1 to 6 h in the 5 wt.% doped samples.
Figure 5 shows the SEM microstructure in backscattered mode after the thermal treatment at 750 °C for 6 h of 1–5 wt.% SPS-ed HDDR powder. As compared with Figure 2, with the thermal treatment, there has been an evident formation of core-shell structure. At low dopant weight fraction (1%), the microstructure consists of two zones as shown in Figure 5a,b: Zone A consists of a core-shell structure and zone B is characteristic of HDDR powder i.e., a thin grain boundary film between the matrix grains. The core shell microstructure is more homogenous with an increase in dopant content up to 2 wt.% as shown in Figure 5c,d. As the DyF3 weight concentration is increased to 5%, the microstructural homogeneity was reduced. Figure 5e shows a core-shell zone with the unreacted and non-diffused dopant (bright phase). This microstructure was not homogenous for the 5 wt.% doped samples as Figure 5f shows an abnormal growth zone with excessive formation of DyNdFe14B shells over the Nd2Fe14B matrix grains. This abnormal grain coarsening in 5 wt.% doped samples also reflected in significantly poor magnetic properties (HCi = 977 kA/m and Br = 0.7 T).
After thermal treatment, the region of dopant nanoparticles becomes the reaction zones (RZ), from where the Dy diffuses with the liquid phase towards the center of the particle and precipitate on the surface of the matrix grains, as shown in Figure 6. The morphology and phase formation of bright phases change with an increase in dopant concentration. The reaction zones are smaller in 1 wt.% samples, as in Figure 6a, where the Dy diffusion is limited to matrix phase in the vicinity of the reaction zone. The 2 wt.% DyF3 sample has the most optimal microstructure and magnetic properties after the thermal treatment at 750 °C, the reaction zone widens and the formation of complex interphases was identified with EDXS in Figure 6b. The phase No. 1 corresponds to the Nd2Fe14B matrix phase and after the Dy diffusion, the shell structure of DyNdFe14B reinforces the matrix phase. The shell structure has ~6 at.% Dy as compared to the cores with ≤ 1.2 at.% of Dy. The nominal phase composition of the core-shell structure measured with EDS is presented in Table 1. Before thermal treatment, the DyF3 nanoparticles do not react or decompose and the Nd-rich phase composition corresponds to NdOX (No. 2). The Nd2O3 oxide phase (No. 3), NbFe2 Laves (No. 4), and the tetragonal NdFe4B4 boride (No. 9) phases, were initially present in the recycled HDDR powder. From Figure 6b, the primary Nd-rich phase identified (No. 12) in the HDDR Nd-Fe-B system has fluorine-rich composition Nd-O-F2. Similar to the conventionally sintered magnets and melt-spun ribbons, the oxyfluoride phases Nd-O-F (No. 5) and Dy-O-F (No. 6) were also detected along the RZ. The complex interphase compounds were easy to analyze in the relatively larger RZ of the 5 wt.% doped sample, as shown in Figure 6 c–f. The Nd-rich oxyfluoride regions Nd-O-F and Nd-O-F2 had similar greyish contrast and could only be identified with the EDXS. After the thermal treatment the constituent dopant particle has a composition of DyF4 (No. 10) as shown in Figure 6c. As the core-shell structure forms up and Dy begins to diffuse further from the RZ towards the HDDR particles, this phase is reduced to NdF4 (No. 7). The interphase complexes are shown in Figure 6e,f surrounding the RE-F4 phase (dopant particle) are listed in Table 1 as Nd-Fe-O-F (No. 8), DyFe2 (No. 11), Nd-Fe-F (No. 13 and 15) and Dy-Nd-O-F2 (No. 14). During the prolonged thermal treatment (750 °C–6 h), the core-shell structure in 5 wt.% sample is obvious in regions closer to the RZ (Figure 6e), whereby the matrix structure collapses, due to the exaggerated growth of shells, as shown in Figure 5f. The presence of porosity in the RZ of Figure 6f indicates the diffusion of Dy until the core-shells grow throughout the microstructure, which gets circumvented as the diffusion stops and the complex RE-Fe-F intermetallic phases begin to form (No. 11, 13 and 15).

4. Discussion

The concept of recycling the permanent magnets includes the techniques like: hydrometallurgical, pyro-metallurgical, direct reusage and indirect recycling approaches [37,38,39,40,41,42,43,44,45,46]. The advantage of direct recycling and re-usage methods, based on hydrogen-based technologies and sintering, which we have proposed in our previous study [19] and the present work, is that they have a smaller environmental footprint, as compared to conventional hydro- and pyro-metallurgical methods, which are energy intensive and require plentiful of highly corrosive chemical mediums. Therefore, the hydrogen-based methods offer more economical and energy efficient route to obtain pulverized and demagnetized powder from the end-of-life (EOL) magnets. The added benefit of hydrogenation disproportionation desorption recombination route is that the powder with anisotropic nano-crystalline grains can be used as plastic bonded as well as sintered magnets.
The rapidly sintered magnets from the recycled HDDR powder were prepared by blending low weight fraction of fine DyF3 powder, by rapidly consolidating it with spark plasma sintering and thermally treating at different conditions. The recycled HDDR powder has a nominal grain size of 240–420 nm, which is slightly above the critical single domain size. Developing this characteristic microstructure from the EOL magnet is vital during the HDDR reprocessing for achieving the desired level of magnetic properties is important. The suitable reuse of reprocessed powder can be difficult if the scrap magnet has already been excessively oxidized or corroded in the harsh environments. The recovery of magnetic properties is strongly dependent on the initial chemical composition of the EOL magnets and recycling different magnets in a single batch, which were used in different service conditions, is challenging. Nonetheless the rejected industrial waste or the EOL material from similar appliances can be effectively recycled by the hydrogen processing routes. Practically, it is difficult to increase the coercivity of the as prepared recycled HDDR powder, if the EOL magnets do not contain an excessive amount of heavy rare earth elements (HREE: Dy, Tb). It is also not technologically feasible to add the HREEs in multiple stages of the HDDR process. Contemporary solution for increasing the HCi of the recycled HDDR powder is by blending small amounts (1–5 wt.%) of DyF3 powder and SPS to bulk magnets, followed by the experimentally-determined optimal heat treatment at 750 °C, increasing the HCi > 1400 kA/m, which is 69.5% higher than the starting recycled HDDR powder as shown in Figure 3 and Figure 4. The HCi increment is more prominent at 1–2 wt.% dopant addition and subsequent thermal treatment above eutectic liquidus transition temperature i.e., 750 °C for shorter periods, due to the formation of uniform core-shell microstructure. It is relatively easy for Dy to diffuse at temperatures above the eutectic transition at 665 °C. The activation energy for decomposition of heavy rare earth based fluorides like DyF3 is lower than NdF3, which stimulates the high diffusivity of Dy via Nd-rich grain boundary channels, from the edges of the HDDR particles to the center during the thermal treatments [22].
According to U. M. R. Seelam et al. [36], in vapor sorption treated conventionally sintered magnets, the Dy vapors become part of the liquid phase at 900 °C (above the ternary transformation temperature) and the Dy-rich (DyNd)2Fe14B shells precipitate out of the liquid phase upon cooling and condense on the surface of 2:14:1 grains. At 900 °C, the surface of Nd2Fe14B grains experience partial melting and more Nd atoms become part of this Nd/Dy rich liquid phase. Since the sintered magnets have single, crystal Nd2Fe14B grains, in the size range of 5–10 µm, and the continuous grain boundary phase surrounding all the matrix grains, a high Dy concentration at the GBs during sorption treatment effectively develops the (DyNd)2Fe14B core-shell structure. The core-shell formation mechanism, as proposed by U. Seelam [36], is based on the solidification of Dy-enriched liquid Nd2Fe14B that partially melted upon annealing and the Nd-rich phase, which connects all the grains in the sintered magnet. The (DyNd)2Fe14B shell begins to develop coherently below 900 °C on the Nd2Fe14B facets as the Nd-rich phase is still in a liquid state above 665 °C. Below this ternary transition temperature ~400 nm thick DyNdFe14B shells already have deposited on the surface of Nd2Fe14B grains and the solidifying liquid phase now contains a lesser amount of Dy, but a higher concentration of Nd. Since the formation energies of Dy2Fe14B structure is more negative (favorable) than Nd2Fe14B, a preferential solidification proposes DyNdFe14B phase to solidify on the facets of partially melted Nd2Fe14B grains. Dy remains part of the liquid phase until solidification below 700 °C. With negative enthalpy of formation, DyNdFe14B shell will form the first along the partially molten surface of the Nd2Fe14B grains.
In the case of the recycled HDDR blended with the DyF3 nanoparticles, the explanation of complex diffusion process may not adhere entirely to this theory. The recycled HDDR powder particle are sized on average 220 µm, whereas each particle is composed of networked ~400 nm sized nanocrystalline grains. The Nd-content of the recycled HDDR powder is lean, as from the previous studies, due to higher oxygen content and the multiple grains are sometimes even in direct contact with each other, due to the low amount and lack of the grain boundary phase in some places [19]. Since the grain boundary thickness is not more than 3 nm in the HDDR system, the capillary forces are responsible for the liquid phase transport and uniform dispersal along the 2:14:1 grains [10,47,48].
The mechanism for subtle HCi increment with the low weight fraction of dopant in the recycled HDDR based magnets and subsequent degradation of magnetic properties for ≥ 5 wt.% DyF3, containing samples, is characterized with the aid of EDS composition analysis for various thermal treatment conditions. After SPS reprocessing, diffusion of Dy was limited, as shown in Figure 2 and up to 2 wt.%, the dopant nanoparticles remain finely distributed along the HDDR particles whereby for 5 wt.% dopant, the larger DyF3 nanoparticles were segregated along the HDDR particles. Since the optimal SPS reprocessing temperature was 750 °C, short range diffusion of Dy can be expected [33,34] during the liquid phase sintering, allowing the transformation of Nd-rich phase to Nd oxyfluorides, but the typical (DyNd)2Fe14B core-shell structure was not observed prior to the thermal treatment. Pressure during SPS consolidation aids in the uniform dispersal of dopant nanoparticles [19] and increases their surface distribution with the HDDR powder particles. The short SPS holding time is 1 min, however this restricts any diffusion process and rapid cooling retains the short range order of the dopant nanoparticles, settled along the HDDR powder particles. During the SPS, the only expected transformation is the partial formation of Nd-oxyfluorides along the particle boundaries. However, when Nd-rich liquid phase comes in contact with DyF3 nanoparticles above 665 °C, it should decompose and form Nd-oxyfluorides and Dy will become part of the liquid phase. The enthalpy of formation NdFX (X = 3 & 4) is higher than DyF3 [33,34]. On the other hand, as the heating and cooling are rapid, the diffusive transport of Dy/Nd-rich liquid phase is restricted during the SPS [19].
During the post-SPS thermal treatment at 600 °C, a partial decomposition of DyF3 restricts the formation of the core-shell structure, even at prolonged time periods and HCi increment is ~6% approx. This indicates the thermal decomposition is favored for substitution between Nd and Dy even at 600 °C [33]. Therefore, the thermal treatment at 600 °C results in only ~70 kA/m improvement of coercivity. With the availability of liquefied Nd-rich phase above the ternary eutectic temperature 665 °C, the Dy gets transported from the edges of the particles towards the center and (DyNd)2Fe14B shells form upon cooling below 700 °C. Therefore, during the thermal treatment at 750 °C (which is above the ternary eutectic temperature), the DyF3 particle decomposes at this temperature and the surface of Nd-Fe-B grain experience melting. Now the HDDR particles ~220 microns in size have the dopant particles sitting at their edges only. The Nd-rich phase is in a liquid state above the ternary eutectic point and connects the GBs to the edges of the particles. In order to form uniform core-shell facets, which are attached to the GBs, liquid phase diffusion is necessary. The decomposed Dy becomes part of the liquid phase and is transported via capillary forces towards the GB interface of nanocrystalline grains. During this thermal treatment, the overall RE-content of GBs is higher than the starting HDDR powder and the liquid phase contains both, Dy atoms from the dopant, as well as the Nd atoms from the partially decomposed grain surfaces. The formation enthalpy of (DyNd)2Fe14B grains is higher than Nd2Fe14B grains, so when the cooling begins, the shells are more thermodynamically favorable to precipitate out, as compared to the original Nd2Fe14B composition on the activated surfaces [36]. At the onset of cooling, and when the 2:14:1 phase begins to condense, the Dy atoms from the liquid phase partially substitute the Nd atoms on the surface of matrix grains (favorable thermodynamic kinetics) and precipitate out as the (DyNd)2Fe14B shell structure [33] of thickness ≤100 nm, forming thoroughly in 2 wt.% doped samples. The diffusion of Dy atoms is not localized at the particle edges as in case of 600 °C heat treated samples and rapidly diffuses via GB channels to all the intergranular regions of the individual HDDR particle. Above the eutectic transition temperature (665 °C), the three processes in chronological sequence explain the core-shell formation mechanism are: liquid phase diffusion increase in GB RE-content), upon cooling the Dy-Nd substitution and the (DyNd)2Fe14B shells precipitation from the solution are definitive in the HDDR Nd-Fe-B system. The Br trend indicates the optimal presence of hard magnetic phase Nd2Fe14B and DyNd2Fe14B for up to 2 wt.% of the dopant. The Br decline can be attributed to the formation of non-ferromagnetic intermetallic compounds in 5 wt.% samples.
Nd is found in the intergranular regions to combine with fluorine and oxygen to form oxyfluorides of composition Nd-O-F2. For shorter thermal treatment time at 750 °C in 1 wt.% DyF3 sample, the coercivity reaches 1400 kA/m, due to the diffusion of Dy which was found to degrade over prolonged treatments. A partial decomposition of the shell structure is observed, thereby developing two distinct zones in the microstructure, as shown in Figure 5 (A: core-shell near the reaction zone and B: normal HDDR microstructure). The excessive Dy is not available in 1 wt.% samples in forming complex interphase compounds near the reaction zone. With the increase in dopant concentration at 5 wt.%, the reaction zone widens and the intermetallic species (DyFe2 and RE-Fe-F), as analyzed in EDS Table 1 originate due to concentration gradient of Dy from the grain boundaries towards the activated facets of Nd2Fe14B matrix grains.
The lower activation energy for the thermal decomposition of DyF3, above the eutectic transformation temperature, promotes the liquid phase Dy diffusion and the partial substitution of Nd atoms from the activated surfaces of the matrix phase; whereby the highly reactive residual fluorine atoms preferentially react with the Nd-rich phase, forming a higher stability cubic Nd-O-F phase [22]. The intergranular phase of the starting HDDR powder is composed of Nd-rich metallic phase and the NdO2 phase with Nd2O3 (cubic + hcp) oxide phase [19]. The diffused, yet unreacted, F atoms promote the formation of cubic Nd-O-F phase from NdO2 phase and the oxyfluorides phase has a smaller lattice mismatch of 2.62% with Nd2Fe14B matrix, as compared to cubic Nd2O3 with 3.11%, therefore the smaller the lattice mismatch, the more positive the influence on the HCi [22]. The hcp-Nd2O3 having a lattice mismatch of 12.1% with the matrix phase develops micro-strains at the interface and reduce the HCi [49], remains stable and does not react anymore as it was traced in the doped samples. For greater than 1 wt.% DyF3, the main intergranular phase was composed of Nd-O-F2 due to excessive fluoride ions available to react with the Nd-rich phase as Dy is consumed in shell formation. The stoichiometric 1:1:1 type oxyfluorides RE-O-F (RE = Dy, Nd) replaced the NdO2 phase, whereby the oxyfluorides composition changes to 1:1:2 and Dy-Nd-O-F2 (interphase) species accommodating more F in the sample with ≥ 2 wt.% dopant. The DyF3 readily decomposes during the thermal treatment even for a shorter holding time of 1 h at 750 °C, allowing complete liquid phase diffusion of Dy via grain boundaries throughout the bulk microstructure and developing a core-shell structure. The liquefied GB, due to the diffusion process are enriched with Dy atoms, which will precipitate in shells on the grains’ surface upon cooling and, in turn, the substituted Nd atoms will become part of the intergranular phase. Therefore, in Figure 5b,d the core-shells structures are separated by continuous thin grain boundary layers. So the overall system should not be lean of Nd-content anymore. Therefore, the core-shell formation and supplication of Nd-rich grain boundary phase in turn increases the coercivity by 69.5%.
At 5 wt.% dopant, the formation of DyF4, NdF4 and Nd-Fe-F phases at the triple point regions and particle boundaries increases. The neodymium trifluoride (NdF3) having higher formation enthalpy of −1713 kJ/mol, compared to DyF3 (−1678 kJ/mol), and has been reported to reduce the magnetic properties as the intermetallic compounds have higher chemical and thermal stability than dysprosium trifluoride (DyF3), and form barriers against the Dy diffusion with the liquid phase [33], as shown in Figure 6. The report suggests lanthanide (Nd and Dy) tetrafluorides formed during annealing treatment are more thermally stable than DyF3 compound [50], which is a plausible reason for their presence in higher dopant concentration as more Dy diffuses from the DyF3 particle towards the matrix, DyF4 becomes the composition of residual dopant particle. After the thermal decomposition of DyF3 dopant, the shell structure is formed by partial substitution of the Nd atoms by the Dy atoms from the RE-rich liquid phase, which precipitates on the activated surface of Nd2Fe14B grains and the mechanism is illustrated in Figure 7. During the SPS reprocessing minimal DyF3 decomposition or Dy diffusion is expected due to rapid consolidation phenomenon as can be seen in Figure 2. When the thermal treatment begins, the dopant decomposes and Dy atoms become part of the liquid phase. Above the ternary transition temperature, the surface of Nd2Fe14B grains partially experience melting and Nd atoms infiltrate the Dy-enriched grain boundaries. Upon cooling below 700 °C, the (DyNd)2Fe14B shells precipitate on the activated Nd2Fe14B grains’ surfaces as more energetically favorable phase transformation. Finally, below the eutectic point, the excessive Nd atoms become part of the Nd-rich grain boundary phase and, therefore, the GBs are continuous and more uniformly distributed, as compared to the starting recycled HDDR powder. The formation of high anisotropy field (DyNd)2Fe14B shells and the continuous Nd-rich GB layer surrounding these grain act as a spacer phase to effectively reduce the localized exchange effects, and therefore these two reasons can be associated with the HCi increment by ~69.5% over the recycled HDDR powder.
A larger concentration of fluoride anions reacts with this metallic Nd (reduced) and NdO2, leading to the formation of NdF4, and Nd-O-F2, respectively, as shown in Figure 6. The EDS results in Table 1 indicated that, with the increase in dopant weight fraction, the concentration of unreacted DyF4, intergranular NdF4, and RE-Fe-F interphase compounds increase exponentially, which contribute to a significant reduction in the magnetic properties, as shown in Figure 4. The prolongation of thermal treatment at 750 or 900 °C to 6 h also deteriorate the magnetic properties because of the thermally induced disintegration of the core—shell structure as in Figure 5f. As Dy forms more 2:14:1 structure, the substituted Nd is forced to react with highly reactive and mobile F ions in the vicinity, and subsequently, the total amount of Nd2Fe14B phase is reduced in the system.
The results of the present study classify the addition of DyF3 in the recycled HDDR Nd-Fe-B system shows to be very effective for forming the (DyNd)2Fe14B core-shell structure. But there is an effective limit of DyF3 doping to ≤ 2 wt.%, which not only gives the best magnetic properties, but it is also pivotal to REE criticality and conservation [1,2]. The controlled post-SPS thermal treatment in recycled HDDR system is very efficient for shorter durations and lower temperatures in developing higher coercivity and the core-shell structure, as compared to conventionally sintered magnets treated at elevated temperatures [21,22,23] or prolonged periods [33], due to ultrafine microstructure. For shorter periods, the formation of smaller RZ is important as only Dy forms core-shell structure by Nd substitution to Nd-O-F phase. With excess of F anions, the cubic intergranular phase transforms to Nd-O-F2 structure. The DyF3 concentration of >5 wt.% contributes to the formation of complex intermetallic compounds with REE (Dy, Nd) as well as stable non-decomposing trifluorides and tetrafluorides (NdF3 and NdF4) at the expense of the Nd2Fe14B phase as the Dy diffusion is circumvented at large RZs, which plagues the microstructure with excessive non-ferromagnetic species.

5. Conclusions

The DyF3 powder was blended with the recycled HDDR powder prior to SPS reprocessing, in order to determine the variation in magnetic properties and to investigate the microstructural evolution. As SPS blend samples had the magnetic properties lower than the starting HDDR powder, which increased significantly with annealing. The thermal treatment conditions were varied from 600 to 900 °C and from 1 to 6 h. The best annealing conditions were determined for the recycled HDDR powder, i.e., 750 °C for 1 h. By annealing at 750 °C for 1 h, even with 1 wt.% DyF3, the coercivity (HCi) of sintered magnets can be increased to 17.5%, as compared with the undoped magnets. Up to 2 wt.% DyF3, these coercivity value ~1400 kA/m are ~69.5% higher than the starting recycled HDDR powder. Additionally, the reduction in remanence (Br) was insignificant up to 2 wt.% DyF3 for thermal treatment at 750 °C for 3 h. Prolonging the thermal treatment time to 6 h causes a reduction in the magnetic properties. The thermal treatment at 900 °C for shorter intervals (1 h) resulted in HCi = 1280 kA/m in 2 wt.% DyF3 samples and above 1200 kA/m for all doping conditions. With a further increase in holding time to 6 h at 900 °C, the magnetic properties decline rapidly to: HCi = 726 and Br = 0.66 T, which is associated with the formation of NdF4 and non-ferromagnetic interphase compounds. By optimal thermal treatments, the microstructure of DyF3 doped recycled HDDR based magnets exhibit core-shell structure (DyNdFe14B shell and Nd2Fe14B core). Optimal core-shell formation occurs at 1–2 wt.% DyF3 and above this concentration, the Dy diffusion in the microstructure from the liquid phase is heterogeneous leading to the formation of complex intermetallic phases at the reaction zones. The secondary phase composition was identified as: Nd-O-F2. Moreover, the Nd2O3 and RE-O-F phases were also observed, due to the transformation of NdOX type Nd-rich phase in the recycled HDDR powder. For the higher weight fraction of dopant, the DyF4 is the main composition of the undiffused aggregates, even after prolonged thermal treatments. Therefore, for very small weight fractions, keeping the rare earth’s criticality and recyclability in perspective, the DyF3 doping of the recycled HDDR powder is very effective in forming a uniform core shell microstructure in the sintered magnets, which is indicated by a marked improvement in the magnetic properties.

Author Contributions

Conceptualization, A.I.; methodology, A.I.; software, A.I.; validation, A.I. and K.Ž.R.; formal analysis, A.I.; investigation, A.I., M.F.M. and Z.S.; resources, M.A., R.S.S. and A.W.; data curation, A.I.; writing—original draft preparation, A.I.; writing—review and editing, A.I., M.A. and K.Ž.R.; visualization, A.I.; supervision, S.K., S.S., A.W. and K.Ž.R; project administration, K.Ž.R., S.K. and S.S.; funding acquisition, S.K., S.S., A.W. and K.Ž.R.

Funding

The research leading to these results has received the funding from the European Community’s Horizon 2020 Program ([H2020/2014-2019]) under Grant Agreement no. 674973 (MSCA-ETN DEMETER). Project website: http://etn-demeter.eu/. This publication reflects only the authors’ views, which contribute to the betterment of the global community.

Acknowledgments

The authors duly acknowledge the Department for Nanostructured Materials (K7 Nano) for provisioning the magnet synthesis/measurement facilities and the Center for Electron Microscopy & Microanalysis (CEMM) for scanning electron microscopy analysis at the Jozef Stefan Institute, Slovenia.

Conflicts of Interest

The authors hereby declare no conflict of interest.

References

  1. Sugimoto, S. Current status and recent topics of rare-earth permanent magnets. J. Phys. D Appl. Phys. 2011, 44, 064001. [Google Scholar] [CrossRef]
  2. European Commission. Critical Raw Materials for the EU; European Commission: Brussels, Belgium, 2014. [Google Scholar]
  3. Poudyal, N.; Liu, J.P. Advances in nanostructured permanent magnets research. J. Phys. D Appl. Phys. 2013, 46, 043001. [Google Scholar] [CrossRef]
  4. Gutfleisch, O.; Willard, M.A.; Brück, E.; Chen, C.H.; Sankar, S.G.; Liu, J.P. Magnetic materials and devices for the 21st century: Stronger, lighter, and more energy efficient. Adv. Mater. 2011, 23, 821–842. [Google Scholar] [CrossRef] [PubMed]
  5. Nakamura, H. The current and future status of rare earth permanent magnets. Scr. Mater. 2018, 154, 273–276. [Google Scholar] [CrossRef]
  6. Walton, A.; Yi, H.; Rowson, N.A.; Speight, J.D.; Mann, V.S.J.; Sheridan, R.S.; Bradshaw, A.; Harris, I.R.; Williams, A.J. The use of hydrogen to separate and recycle neodymium iron boron-type magnets from electronic waste. J. Clean. Prod. 2015, 104, 236–241. [Google Scholar] [CrossRef]
  7. Li, X.; Yue, M.; Miha, Z.; Liu, W.; Zhang, D.; Zuo, T. Regeneration of waste sintered Nd-Fe-B magnets to fabricate anisotropic bonded magnets. J. Rare Earths 2015, 33, 736–739. [Google Scholar] [CrossRef]
  8. Binnemans, K.; Jones, P.T.; Muller, T.; Yurramendi, L. Rare Earths and the Balance Problem: How to Deal with Changing Markets? J. Sustain. Metall. 2018, 4, 126–146. [Google Scholar] [CrossRef] [Green Version]
  9. Li, C.; Liu, W.Q.; Yue, M.; Liu, Y.Q.; Zhang, D.T.; Zuo, T.Y. Waste Nd-Fe-B sintered magnet recycling by doping with rare earth rich alloys. IEEE Trans. Magn. 2014, 50, 2105403. [Google Scholar] [CrossRef]
  10. Sprecher, B.; Xiao, Y.P.; Walton, A.; Speight, J.; Harris, R.; Kleijn, R.; Visser, G.; Kramer, G.J. Life cycle inventory of the production of rare earths and the subsequent production of NdFeB rare earth permanent magnets. Environ. Sci. Technol. 2014, 48, 3951–3958. [Google Scholar] [CrossRef]
  11. Périgo, E.A.; da Silva, S.C.; Martin, R.V.; Taklishi, H.; Landgraf FJ, G. Properties of hydrogenation-disproportionation-desorption-recombination NdFeB powders prepared from recycled sintered magnets. J. Appl. Phys. 2012, 111, 07A725. [Google Scholar] [CrossRef]
  12. Sheridan, R.S.; Sillitoe, R.; Zakotnik, M.; Harris, I.R.; Williams, A.J. Anisotropic powder from sintered NdFeB magnets by the HDDR processing route. J. Magn. Magn. Mater. 2012, 324, 63–67. [Google Scholar] [CrossRef]
  13. Zakotnik, M.; Harris, I.R.; Williams, A.J. Possible methods of recycling Nd-Fe-B-type sintered magnets using the HD/degassing process. J. Alloys Compd. 2008, 450, 525–531. [Google Scholar] [CrossRef]
  14. Zakotnik, M.; Harris, I.R.; Williams, A.J. Multiple recycling of NdFeB-type sintered magnets. J. Alloys Compd. 2009, 469, 314–321. [Google Scholar] [CrossRef]
  15. Itoh, M.; Masuda, M.; Suzuki, S.; Machida, K. Recycling of rare earth sintered magnets as isotropic bonded magnets by melt-spinning. J. Alloys Compd. 2004, 374, 393–396. [Google Scholar] [CrossRef]
  16. Gutfleisch, O.; Güth, K.; Woodcock, T.G. Recycling used Nd-Fe-B sintered magnets via a hydrogen-based route to produce anisotropic, resin bonded magnets. Adv. Energy Mater. 2013, 3, 151–155. [Google Scholar] [CrossRef]
  17. Itoh, M.; Masuda, M.; Suzuki, S.; Machida, K. Recycle for sludge scrap of Nd-Fe-B sintered magnet as isotropic bonded magnet. J. Rare Earths 2004, 22, 168–171. [Google Scholar]
  18. Kim, A.S.; Kim, D.H.; Namkung, S.; Jang, T.S.; Lee, D.H.; Kwon, H.W.; Hwang, D.H. Development of high coercive powder from the Nd-Fe-B sintered magnet scrap. IEEE Trans. Magn. 2004, 40, 2877–2879. [Google Scholar] [CrossRef]
  19. Ikram, A.; Mehmood, M.F.; Podlogar, M.; Eldosouky, A.; Sheridan, R.S.; Awais, M.; Walton, A.; Krzmanc, M.M.; Tomse, T.; Kobe, S.; et al. The sintering mechanism of fully dense and highly coercive Nd-Fe-B magnets from the recycled HDDR powders reprocessed by spark plasma sintering. J. Alloys Compd. 2019, 774, 1195–1206. [Google Scholar] [CrossRef]
  20. Sheridan, R.S.; Harris, I.R.; Walton, A. The development of microstructure during hydrogenation–disproportionation–desorption–recombination treatment of sintered neodymium-iron-boron-type magnets. J. Magn. Magn. Mater. 2016, 401, 455–462. [Google Scholar] [CrossRef]
  21. Bae, K.-H.; Kim, T.-H.; Lee, S.-R.; Kung, S.N.; Jang, T.-S. Magnetic and microstructural characteristics of a DyF3 dip-coated Nd-Fe-B sintered magnet. IEEE Trans. Magn. 2013, 49, 7. [Google Scholar] [CrossRef]
  22. Park, S.-E.; Kim, T.-H.; Lee, S.-R.; Namkung, S.; Jang, T.-S. Effect of sintering conditions on the magnetic and microstructural properties of Nd–Fe–B sintered magnets doped with DyF3 powders. J. Appl. Phys. 2012, 111, 07A707. [Google Scholar] [CrossRef]
  23. Pratomo, S.B.; Oktadinata, H.; Pawawoi. Effect of DyF3 and TbF3 additions on the coercivity enhancement in grain boundary diffusion processed Nd-Fe-B permanent magnets. AIP Conf. Proc. 2018, 1964, 020019. [Google Scholar] [CrossRef]
  24. Sueptitz, R.; Sawatzki, S.; Moore, M.; Uhlemann, M.; Gutfleisch, O.; Gebert, A. Effect of DyF3 on the corrosion behavior of hot-pressed Nd-Fe-B permanent magnets. Mater. Corros. 2015, 66, 152–157. [Google Scholar] [CrossRef]
  25. Mcguiness, P.; Akdogan, O.; Asali, A.; Bance, S.; Bittner, F.; Coey, J.M.D.; Dempsey, N.M.; Fidler, J.; Givord, D.; Gutfleisch, O.; et al. Replacement and original magnet engineering options (ROMEOs): A European seventh framework project to develop advanced permanent magnets without, or with reduced use of, critical raw materials. JOM 2015, 67, 1306–1317. [Google Scholar] [CrossRef]
  26. Xu, F.; Zhang, L.; Dong, X.; Liu, Q.; Komuro, M. Effect of DyF3 additions on the coercivity and grain boundary structure in sintered Nd-Fe-B magnets. Scr. Mater. 2011, 64, 1137–1140. [Google Scholar] [CrossRef]
  27. Cao, X.J.; Chen, L.; Guo, S.; Li, X.B.; Yi, P.P.; Yan, A.R.; Yan, G.L. Coercivity enhancement of sintered Nd-Fe-B magnets by efficiently diffusing DyF3 based on electrophoretic deposition. J. Alloys Compd. 2015, 631, 315–320. [Google Scholar] [CrossRef]
  28. Xu, F.; Wang, J.; Dong, X.; Zhang, L.; Wu, J. Grain boundary microstructure in DyF3-diffusion processed Nd–Fe–B sintered magnets. J. Alloys Compd. 2011, 509, 7909–7914. [Google Scholar] [CrossRef]
  29. Liu, Q.; Zhang, L.; Dong, X.; Xu, F.; Komuro, M. Increased coercivity in sintered Nd-Fe-B magnets with NdF3 additions and the related grain boundary phase. Scr. Mater. 2009, 61, 1048–1051. [Google Scholar] [CrossRef]
  30. Soderžnik, M.; Korent, M.; Soderžnik, K.Ž.; Katter, M.; Üstüner, K.; Kobe, S. High-coercivity Nd-Fe-B magnets obtained with the electrophoretic deposition of submicron TbF3 followed by the grain-boundary diffusion process. Acta Mater. 2016, 115, 278–284. [Google Scholar] [CrossRef]
  31. Cao, X.J.; Chen, L.; Guo, S.; Di, J.H.; Ding, G.F.; Chen, R.J.; Yan, A.R.; Chen, K.Z. Improved thermal stability of TbF3-coated sintered Nd-Fe-B magnets by electrophoretic deposition. AIP Adv. 2018, 8, 056222. [Google Scholar] [CrossRef]
  32. Cao, X.; Chen, L.; Guo, S.; Chen, R.; Yan, G.; Yan, A. Impact of TbF3 diffusion on coercivity and microstructure in sintered Nd-Fe-B magnets by electrophoretic deposition. Scr. Mater. 2016, 116, 40–43. [Google Scholar] [CrossRef]
  33. Žagar, K.; Kocjan, A.; Kobe, S. Magnetic and microstructural investigation of high-coercivity net-shape Nd-Fe-B-type magnets produced from spark-plasma-sintered melt-spun ribbons blended with DyF3. J. Magn. Magn. Mater. 2016, 403, 90–96. [Google Scholar] [CrossRef]
  34. Sawatzki, S.; Dirba, I.; Wendrock, H.; Schultz, L.; Gutfleisch, O. Diffusion processes in hot-deformed Nd-Fe-B magnets with DyF3 additions. J. Magn. Magn. Mater. 2014, 358–359, 163–169. [Google Scholar] [CrossRef]
  35. Takagi, K.; Akada, M.; Soda, R.; Ozaki, K. Preparation of Nd-Fe-B sintered magnets from HDDR-processed powder. J. Magn. Magn. Mater. 2015, 393, 461–466. [Google Scholar] [CrossRef]
  36. Seelam, U.M.R.; Ohkubo, T.; Abe, T.; Hirosawa, S.; Hono, K. Faceted shell structure in grain boundary diffusion-processed sintered Nd-Fe-B magnets. J. Alloys Compd. 2014, 617, 884–892. [Google Scholar] [CrossRef]
  37. Yang, Y.; Walton, A.; Sheridan, R.; Güth, K.; Gauss, R.; Gutfleisch, O.; Buchert, M.; Steenari, B.M.; Gerven, T.V.; Jones, P.T.; et al. REE recovery from end-of-life NdFeB permanent magnet scrap: A critical review. J. Sustain. Metall. 2017, 3, 122–149. [Google Scholar] [CrossRef]
  38. Reimer, M.V.; Schenk-Mathes, H.Y.; Hoffmann, M.F.; Elwert, T. Recycling decisions in 2020, 2030, and 2040—When can substantial NdFeB extraction be expected in the EU? Metals 2018, 8, 867. [Google Scholar] [CrossRef]
  39. Wenga, Z.; Haque, N.; Mudd, G.M.; Jowitt, S.M. Assessing the energy requirements and global warming potential of the production of rare earth elements. J. Clean. Prod. 2016, 139, 1282–1297. [Google Scholar] [CrossRef]
  40. Goodenough, K.M.; Wall, F.; Merriman, D. The rare earth elements: Demand, global resources, and challenges for resourcing future generations. Nat. Resour. Res. 2018, 27, 201–216. [Google Scholar] [CrossRef]
  41. Jin, H.Y.; Afiuny, P.; Dove, S.; Furlan, G.; Zakotnik, M.; Yih, Y.; Sutherland, J.W. Life cycle assessment of neodymium-iron-boron magnet-to-magnet recycling for electric vehicle motors. Environ. Sci. Technol. 2018, 52, 3796–3802. [Google Scholar] [CrossRef]
  42. Lalana, E.H.; Degri, M.J.J.; Bradshaw, A.; Walton, A. Recycling of rare earth magnets by hydrogen processing and re-sintering. In European Congress and Exhibition on Powder Metallurgy. European PM Conference Proceedings; The European Powder Metallurgy Association: Shrewsbury, UK, 2016. [Google Scholar]
  43. Rabatho, J.P.; Tongamp, W.; Takasaki, Y.; Haga, K.; Shibayama, A. Recovery of Nd and Dy from rare earth magnetic waste sludge by hydrometallurgical process. J. Mater. Cycles Waste Manag. 2013, 15, 171–178. [Google Scholar] [CrossRef]
  44. Zakotnik, M.; Tudor, C.O.; Peiró, L.T.; Afiuny, P.; Skomski, R.; Hatch, G.P. Analysis of energy usage in Nd-Fe-B magnet to magnet recycling. Environ. Technol. Innov. 2016, 5, 117–126. [Google Scholar] [CrossRef]
  45. Diehl, O.; Schönfeldt, M.; Brouwer, E.; Dirks, A.; Rachut, K.; Gassmann, J.; Güth, K. Towards an alloy recycling of Nd-Fe-B permanent magnets in a circular economy. J. Sustain. Metall. 2018, 4, 163–175. [Google Scholar] [CrossRef]
  46. Lixandru, A.; Poenaru, I.; Guth, K.; Gauss, R.K.; Gutfleisch, O. A systematic study of HDDR processing conditions for the recycling of end-of-life Nd-Fe-B magnets. J. Alloys Compd. 2017, 724, 51–61. [Google Scholar] [CrossRef]
  47. Li, W.F.; Ohkubo, T.; Hono, K.; Nishiuchi, T.; Hirosawa, S. The role of grain boundaries in the coercivity of hydrogenation disproportionation desorption recombination processed Nd-Fe=B powders. J. Appl. Phys. 2009, 105, 07A706. [Google Scholar] [CrossRef]
  48. Li, W.F.; Ohkubo, T.; Hono, K.; Nishiuchi, T.; Hirosawa, S. Coercivity mechanism of hydrogenation disproportionation desorption recombination processed Nd-Fe-B based magnets. Appl. Phys. Lett. 2008, 93, 052505. [Google Scholar] [CrossRef]
  49. Kim, T.-H.; Lee, S.-R.; Lee, M.-W.; Jang, T.-S.; Kim, J.W.; Kim, Y.D.; Kim, H.-J. Dependence of magnetic, phase-transformation and microstructural characteristics on the Cu content of Nd-Fe-B sintered magnet. Acta Mater. 2014, 66, 12–21. [Google Scholar] [CrossRef]
  50. Vent-Schmidt, T.; Fang, Z.; Lee, Z.; Dixon, D.; Riedel, S. Extending the row of lanthanide tetrafluorides: A combined matrix-isolation and quantum-chemical study. Chem. Eur. J. 2016, 22, 2406–2416. [Google Scholar] [CrossRef]
Materials 12 01498 g001 550

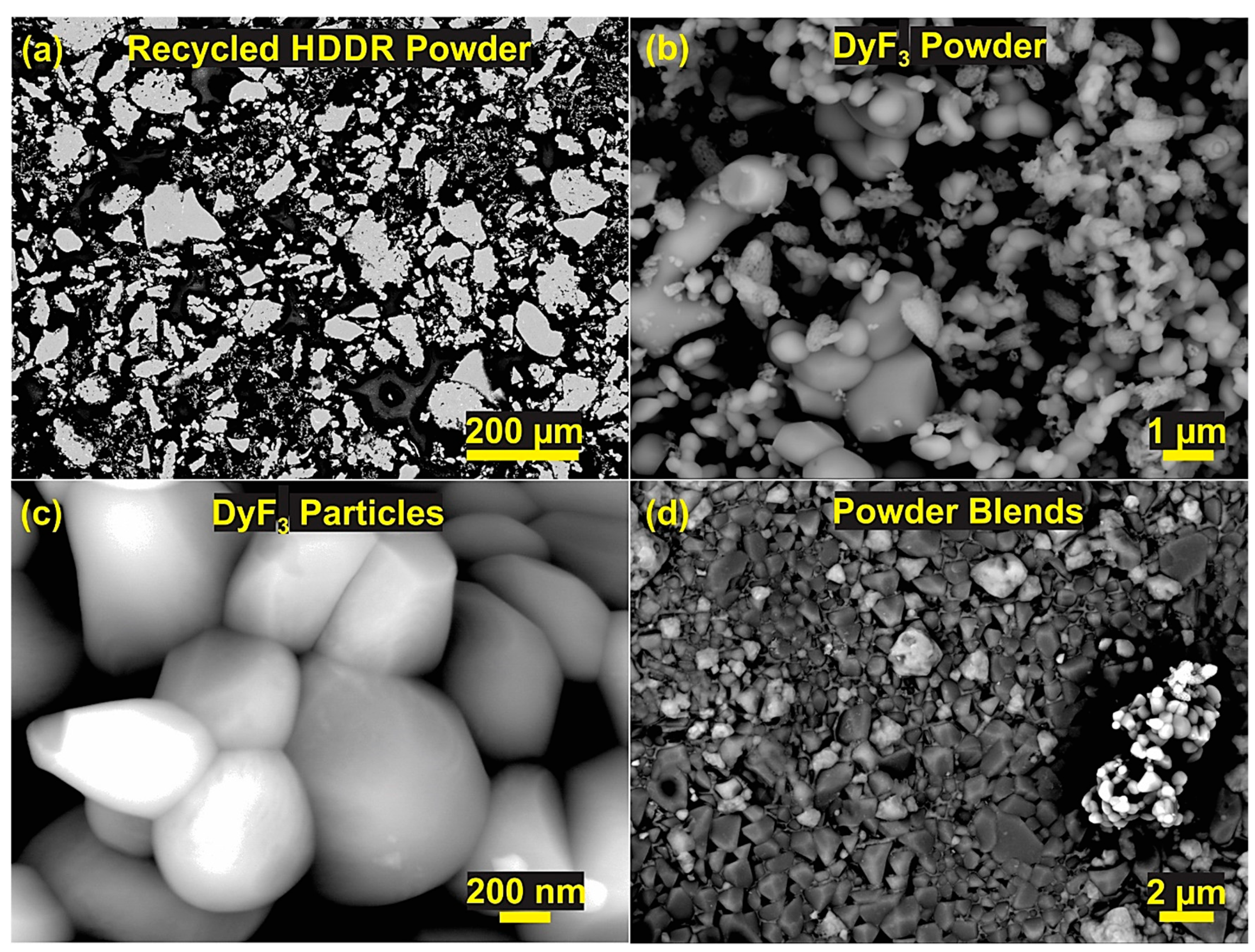

Figure 1. SEM backscattered mode images of (a) Hydrogenation disproportionation desorption recombination (HDDR) powder particles, (b) DyF3 nanoparticles, (c) DyF3 grains and (d) recycled HDDR powder blended with DyF3 nanoparticles.
Figure 1. SEM backscattered mode images of (a) Hydrogenation disproportionation desorption recombination (HDDR) powder particles, (b) DyF3 nanoparticles, (c) DyF3 grains and (d) recycled HDDR powder blended with DyF3 nanoparticles.
Materials 12 01498 g001
Materials 12 01498 g002 550

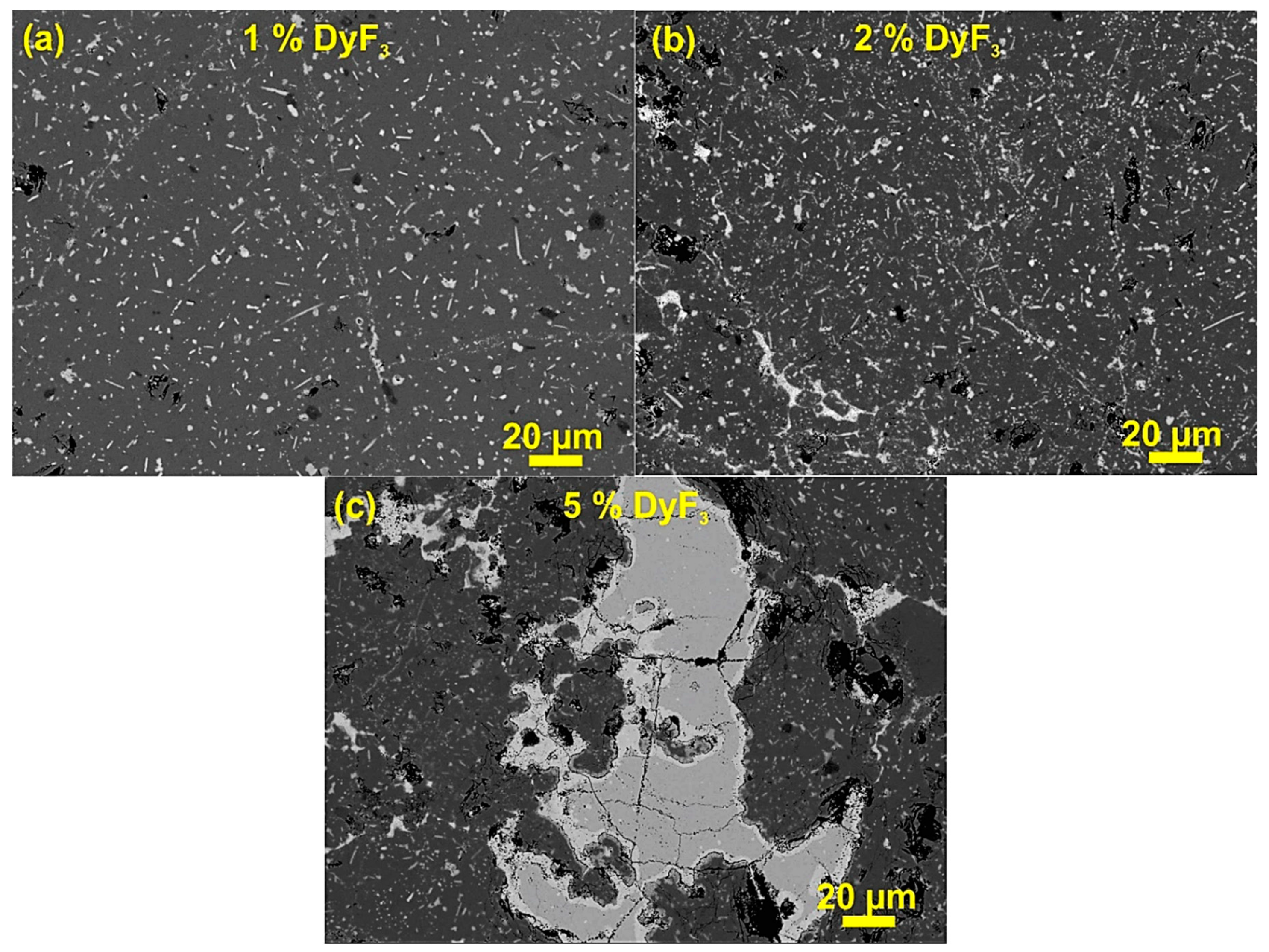

Figure 2. SEM backscattered electron (BSE) images of as-SPS samples with DyF3 in (a) 1 wt.% (b) 2 wt.% and (c) 5 wt.%.
Figure 2. SEM backscattered electron (BSE) images of as-SPS samples with DyF3 in (a) 1 wt.% (b) 2 wt.% and (c) 5 wt.%.
Materials 12 01498 g002
Materials 12 01498 g003 550

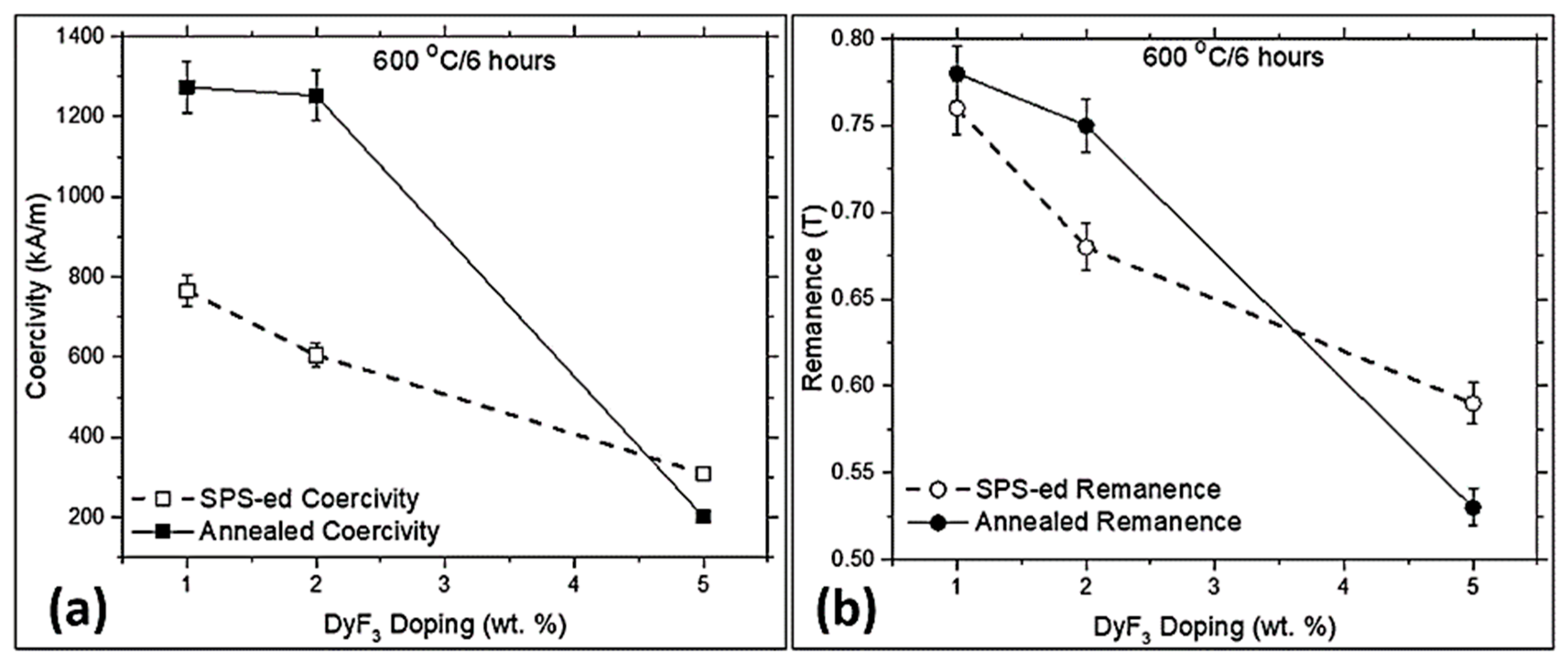

Figure 3. Shows the magnetic properties in DyF3 doped magnets before and after annealing at 600 °C for 6 h, (a) coercivity and (b) remanence.
Figure 3. Shows the magnetic properties in DyF3 doped magnets before and after annealing at 600 °C for 6 h, (a) coercivity and (b) remanence.
Materials 12 01498 g003
Materials 12 01498 g004 550

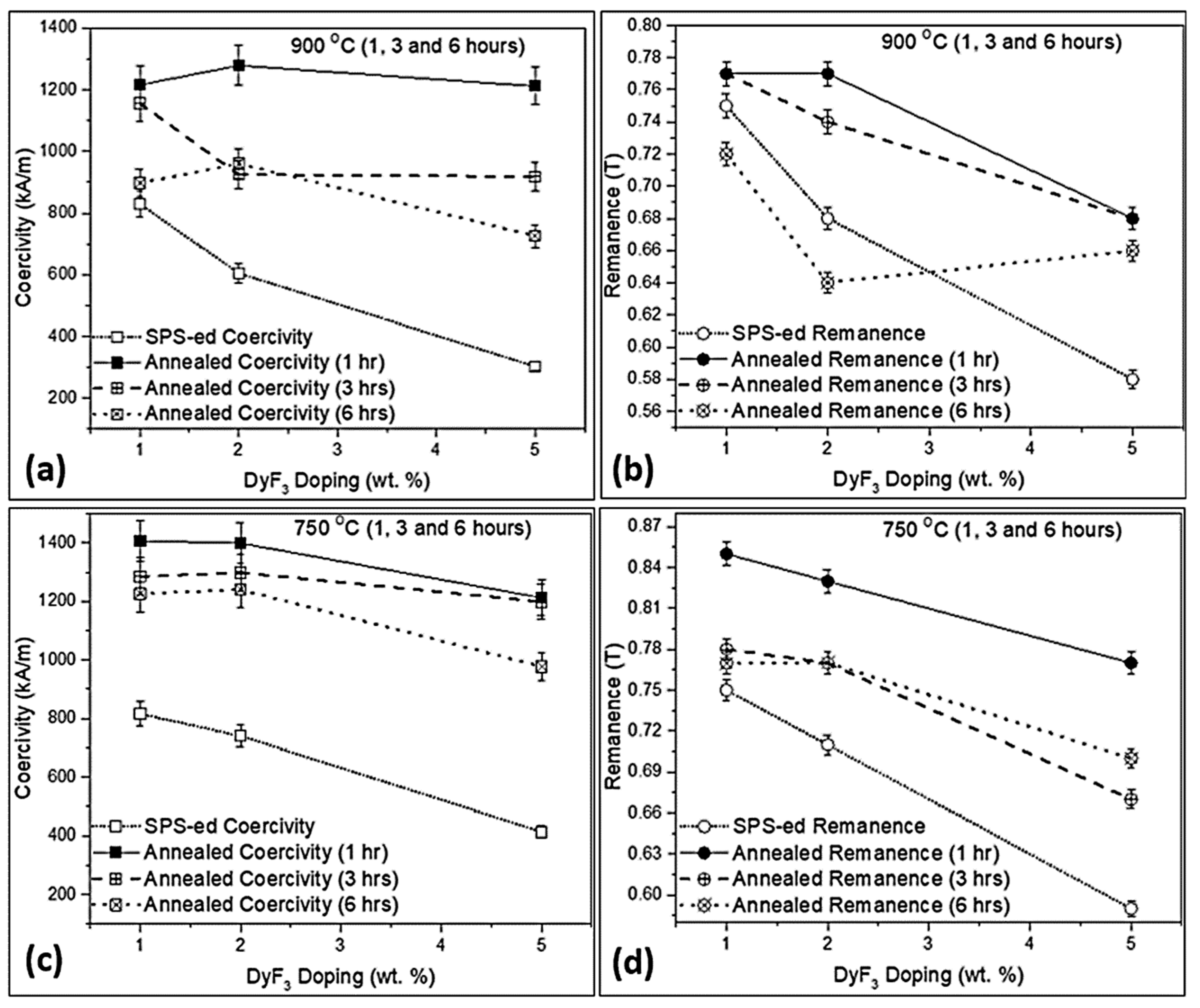

Figure 4. Variation in the magnetic properties of SPS reprocessed blend of DyF3 doped recycled HDDR powder with thermal treatment temperatures of 900 °C (a) coercivity, (b) remanence; and 750 °C (c) coercivity, (d) remanence.
Figure 4. Variation in the magnetic properties of SPS reprocessed blend of DyF3 doped recycled HDDR powder with thermal treatment temperatures of 900 °C (a) coercivity, (b) remanence; and 750 °C (c) coercivity, (d) remanence.
Materials 12 01498 g004
Materials 12 01498 g005 550

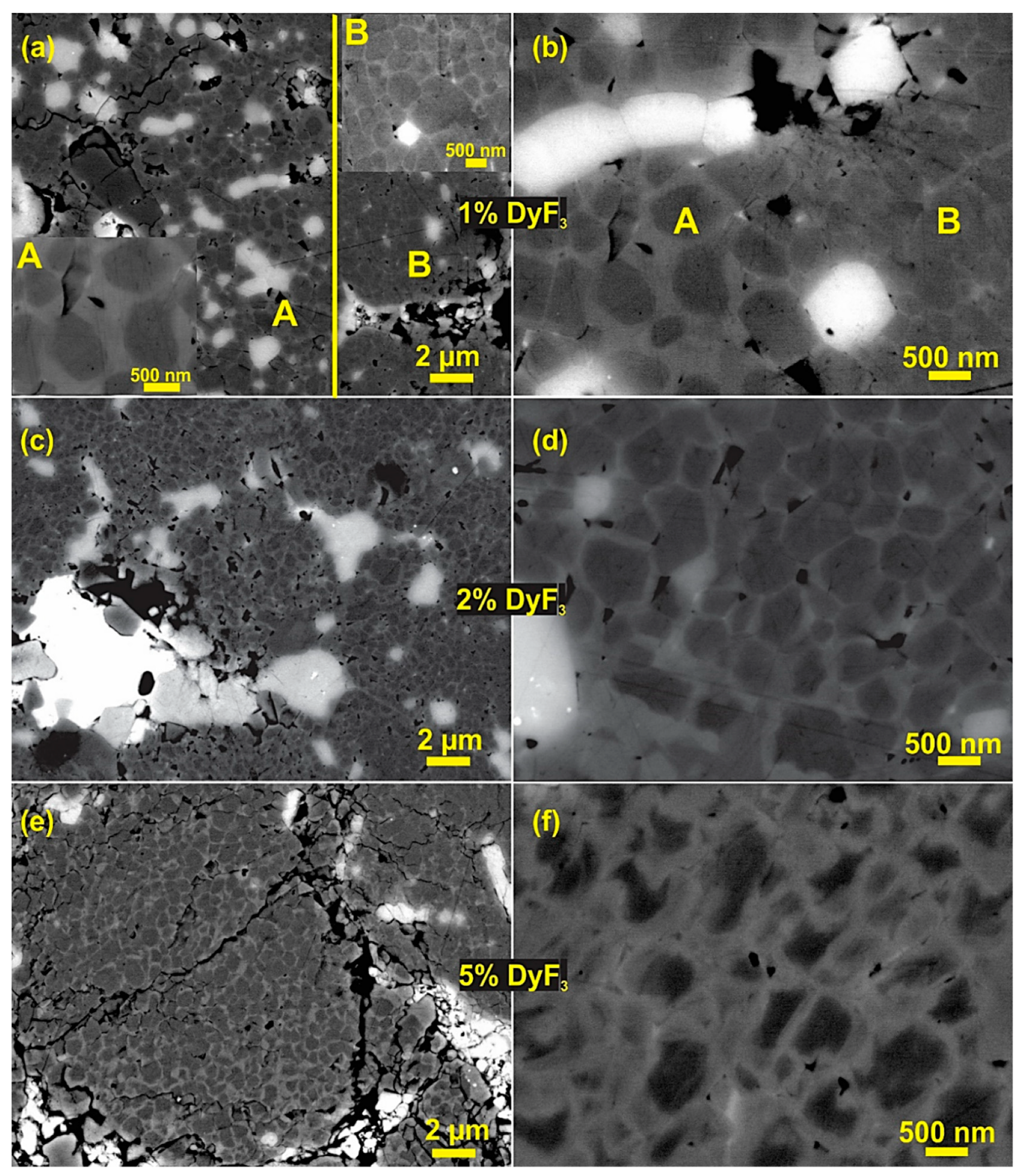

Figure 5. Shows the microstructure of DyF3 doped samples after thermal treatment for 6 h at 750 °C, (a) 1 wt.% doped samples with two zone microstructure (inset A shows core-shell zone and inset B shows normal HDDR microstructure), (b) at higher magnification 1% doped samples; (c) 2% DyF3 blend samples and (d) uniform core-shell structure formation throughout the microstructure; (e) 5 wt.% DyF3 samples, with excessive growth zone of DyNdFe14B shells at the expense of matrix phase clearly shown in (f).
Figure 5. Shows the microstructure of DyF3 doped samples after thermal treatment for 6 h at 750 °C, (a) 1 wt.% doped samples with two zone microstructure (inset A shows core-shell zone and inset B shows normal HDDR microstructure), (b) at higher magnification 1% doped samples; (c) 2% DyF3 blend samples and (d) uniform core-shell structure formation throughout the microstructure; (e) 5 wt.% DyF3 samples, with excessive growth zone of DyNdFe14B shells at the expense of matrix phase clearly shown in (f).
Materials 12 01498 g005
Materials 12 01498 g006 550

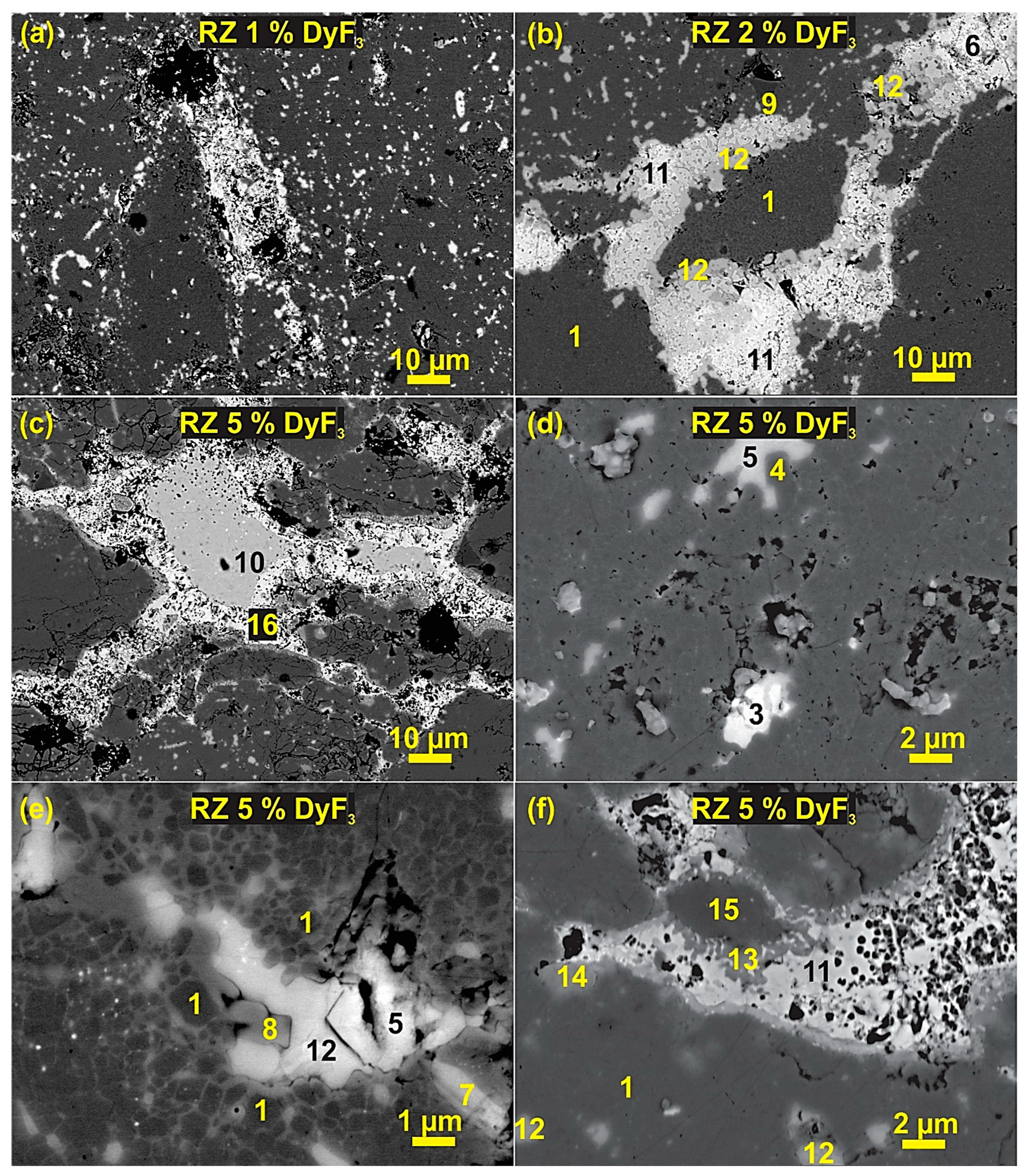

Figure 6. Signifies the reaction zones (RZ) in the microstructure of doped samples after the thermal treatment at 750 °C for 6 h, (a) relatively small RZ in 1 wt.% DyF3 samples, (b) 2 wt.% doped samples have the optimal magnetic properties but RZ contains RE-F4 (rare earth fluoride) and Nd-O-F2 (oxyfluoride) phases, (c–f) the relatively wider RZs of 5 wt.% doped samples containing additional interphase compounds along with rare earth fluorides and oxyfluoride based Nd-rich phase.
Figure 6. Signifies the reaction zones (RZ) in the microstructure of doped samples after the thermal treatment at 750 °C for 6 h, (a) relatively small RZ in 1 wt.% DyF3 samples, (b) 2 wt.% doped samples have the optimal magnetic properties but RZ contains RE-F4 (rare earth fluoride) and Nd-O-F2 (oxyfluoride) phases, (c–f) the relatively wider RZs of 5 wt.% doped samples containing additional interphase compounds along with rare earth fluorides and oxyfluoride based Nd-rich phase.
Materials 12 01498 g006
Materials 12 01498 g007 550

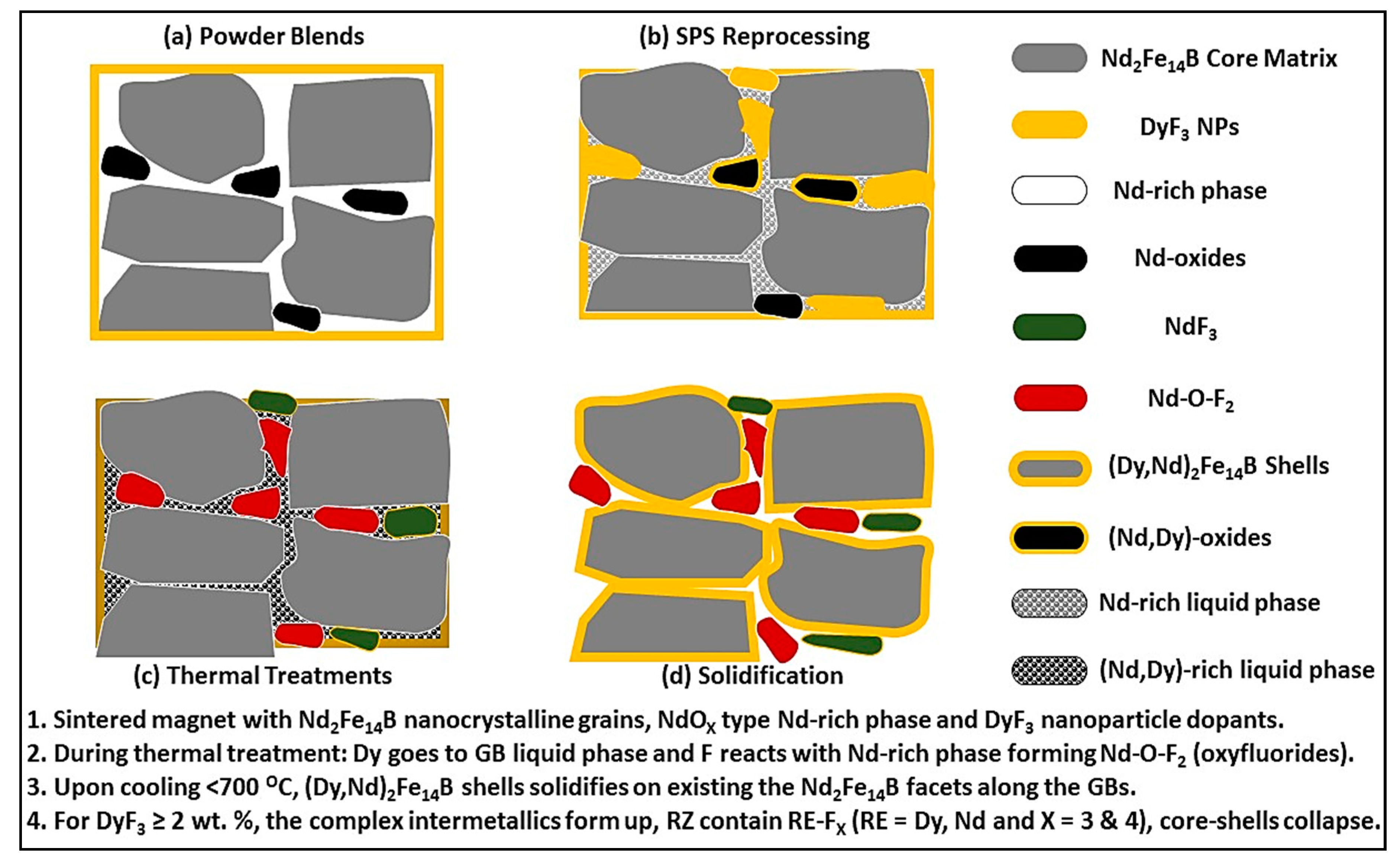

Figure 7. The mechanism of core-shell structure formation in the HDDR Nd-Fe-B system: (a) blend of HDDR Nd-Fe-B powder and DyF3 particels, (b) liquid phase sintering, lack of long range Dy diffusion, (c) Dy diffuses with the liquid phase and F reacts with Nd-rich phases; and (d) the (Dy,Nd)2Fe14B core-shell structures form up upon solidification.
Figure 7. The mechanism of core-shell structure formation in the HDDR Nd-Fe-B system: (a) blend of HDDR Nd-Fe-B powder and DyF3 particels, (b) liquid phase sintering, lack of long range Dy diffusion, (c) Dy diffuses with the liquid phase and F reacts with Nd-rich phases; and (d) the (Dy,Nd)2Fe14B core-shell structures form up upon solidification.
Materials 12 01498 g007
Table
Table 1. EDXS quantification of different phases in the DyF3 doped and SPS-ed recycled HDDR Nd-Fe-B.
Table 1. EDXS quantification of different phases in the DyF3 doped and SPS-ed recycled HDDR Nd-Fe-B.
Phase No.PhasesNd (at.%)Fe (at.%)F (at.%)O (at.%)Nb (at.%)Al (at.%)Dy (at.%)
1Nd2Fe14B Cores1285--0.90.91.2
DyNdFe14B Shells8.185.5----5.8
2Nd-rich NdOx/NdO224.629.5-46.3--
3Nd2O334.71.8-63.5--
4NbFe2 Laves0.747.6--51.7-
5Nd-O-F28.21.838.531.5---
6Dy-O-F4.518.820.928.9--26.9
7Nd-F418-81.1---0.9
8Nd-Fe-O-F (interphase)10.845.428.79--6.1
9NdFe4B418.868.59.6----
10Dy-F4--80.8---19.2
11Dy-Fe2 (interphase)2.454.64.610.4--28
12Nd-O-F220.72.461.313.7--1.9
13Nd-Fe-F (interphase)11.947.233.33.6-2.31.7
14Dy-Nd-O-F2 (interphase)8.96.848.821.7--13.8
15Nd-Fe-F (interphase)13.339.239.33.9-1.33
