Direct Transformation of Crystalline MoO3 into Few-Layers MoS2

by
Felix Carrascoso
1,*,
Gabriel Sánchez-Santolino
1,3,
Chun-wei Hsu
1,2,
Norbert M. Nemes
3,
Almudena Torres-Pardo
4,
Patricia Gant
1,
Federico J. Mompeán
1,
Kourosh Kalantar-zadeh
5,
José A. Alonso
1,
Mar García-Hernández
1,
Riccardo Frisenda
1 and
Andres Castellanos-Gomez
1,*
1
Materials Science Factory, Instituto de Ciencia de Materiales de Madrid (ICMM-CSIC), E-28049 Madrid, Spain
2
Kavli Institute of Nanoscience, Delft University of Technology, 2600 GA Delft, The Netherlands
3
Departamento de Física de Materiales, Universidad Complutense de Madrid, E-28040 Madrid, Spain
4
Departamento de Química Inorgánica, Facultad de Químicas, Universidad Complutense, E-28040 Madrid, Spain
5
School of Chemical Engineering, University of New South Wales, Kensington, NSW 2052, Australia
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(10), 2293; https://doi.org/10.3390/ma13102293
Submission received: 17 April 2020 / Revised: 5 May 2020 / Accepted: 13 May 2020 / Published: 15 May 2020
(This article belongs to the Special Issue Optoelectronic Characterizations of 2D Materials )

Abstract

:
We fabricated large-area atomically thin MoS2 layers through the direct transformation of crystalline molybdenum trioxide (MoO3) by sulfurization at relatively low temperatures. The obtained MoS2 sheets are polycrystalline (~10–20 nm single-crystal domain size) with areas of up to 300 × 300 µm2, 2–4 layers in thickness and show a marked p-type behavior. The synthesized films are characterized by a combination of complementary techniques: Raman spectroscopy, X-ray diffraction, transmission electron microscopy and electronic transport measurements.

1. Introduction

Two-dimensional (2D) transition metal dichalcogenides (TMDCs) have recently gained interest among the scientific community to solve the weakness of the lack of a bandgap in graphene, which limits its applications in field-effect transistors and digital integrated circuits [1]. The TMDC molybdenum disulphide (MoS2) was the first 2D material with an intrinsic bandgap that was isolated [2] and it consists of S-Mo-S layers that are held by weak van der Waal forces in a trigonal prismatic structure [3,4,5,6]. In its bulk form, this material displays an indirect bandgap of about 1.2 eV; nevertheless, it becomes a direct bandgap semiconductor (1.8 eV) when it is thinned down to a monolayer [7]. In addition, when a single-layer MoS2 is used as the channel in a field-effect transistor, it exhibits high in-plane mobility and a large current ON/OFF ratio [8]. These are the reasons why molybdenum disulphide has attracted interest for electronic and optoelectronics applications [8,9,10]. Furthermore, it is an attractive candidate for energy conversion [11,12] and storage [13,14], hydrogen evolution reactions [15,16,17] or oxygen reduction reactions [18].
The first methods that were reported for the synthesis of 2D MoS2 consisted of mechanical and chemical exfoliation from bulk crystals [2,19,20,21] and, in fact, a lot of studies still use these methods since they provide high-quality single layers. However, these techniques present some problems, like randomly deposited flakes, relatively small coverage area of material and poor control over thickness. A solution for these issues is critical to achieve real-life electronic devices based on MoS2 and, therefore, synthesis of large-area MoS2 films is a very active research area. The most-explored methods to synthesize large-area MoS2 thin films are chemical vapour deposition (CVD) [22,23] and the sulfuration of sputtered molybdenum thin films [24,25,26].
Here, we explore an alternative route to obtain atomically thin MoS2 layers: the direct transformation of crystalline molybdenum trioxide (MoO3) layers into MoS2 nanosheets by sulfurization at moderate temperatures. Up to now, the sulfurization of crystalline MoO3 has only been demonstrated to produce MoS2 fullerenes and nanotubes, but, here, we demonstrate that it can be also employed to fabricate large-area MoS2 layers [27,28]. We characterized the resulting layers by Raman spectroscopy, X-ray diffraction and transmission electron microscopy, finding that the resulting layers showed all the characteristics of polycrystalline MoS2. We transferred the as-synthesized films to pre-patterned electrodes to fabricate electronic devices, and we found that they were strongly p-doped, which can be an interesting feature to complement the marked n-doping of mechanically exfoliated or CVD-grown MoS2. Our synthesis method does not require a tube furnace with flow gas control as the sulfurization is carried out in a sealed ampoule, simplifying considerably its implementation and reducing its cost.

2. Materials and Methods

The crystalline MoO3 source is obtained by heating up a molybdenum foil (99.99% purity) to 540 °C in air using a laboratory hot plate. At this temperature, the MoO3 starts to sublime. A mica substrate is placed above the hot molybdenum foil. The MoO3 gas sublimed from the hot molybdenum foil crystalizes on the slightly cooler mica substrate placed on top, as we show in Figure 1a. As reported by Molina-Mendoza et al. [27], this method produces continuous crystalline thin films through a van der Waals epitaxy process thanks to the van der Waals interaction with the mica surface. Note that in the van der Waals epitaxy process there is no need for lattice matching between the substrate and the grown MoO3 overlayer.
Prior to the sulfuration of the MoO3 crystals, they were reduced by heating them at 300 °C for 24 h in a tube furnace in forming gas atmosphere, Figure 1b. This process yields MoO3−x crystals. We found that this step is crucial to avoid the evaporation of MoO3 during the sulfuration process as MoO3 is a highly volatile material. In contrast, MoO2 is a more stable oxide [29]; in fact, by partially reducing the molybdenum trioxide, we observed improved stability of the material upon temperature increase. The MoO3−x layers were then converted to MoS2 by a sulfuration process in a closed glass ampoule. The sample containing the MoO3−x layers was sealed with sulphur powder at 10−5 mbar pressure. The ampoule was placed in a furnace at 500 °C for 5 h and then the temperature was increased at 600 °C for another 5 h. Once the sulfuration process was concluded, the temperature was slowly lowered to room temperature (Figure 1c). The number of MoS2 layers that we obtain depends on the starting MoO3 thickness. Therefore, with this method, we are able to obtain MoS2 continuous layers covering most of the mica substrate with regions of up to 300 × 300 µm2 with < 5 layers in thickness; an example is shown in Figure 2a. As discussed below, single-layer MoS2 could also be observed (see the discussion related to the scanning transmission electron microscopy results). It is important to note that when we tried to sulfurize the as-grown MoO3 layers, without the reduction step, we obtained thick MoS2 crystallites randomly deposited on both the ampoule surface and on the substrate. Scanning transmission electron microscopy (STEM) data was acquired in an aberration-corrected JEOL JEM-ARM200cF electron microscope (JEOL, Tokyo, Japan) operated at 80 kV.

3. Results and Discussion

3.1. Raman Characterization

In Figure 2a, we show an optical image of a thin and large-area MoS2 film on mica. We employed Raman spectroscopy to characterize the MoS2 film as this technique has been demonstrated to be a very powerful tool to characterize 2D materials [30,31]. Figure 2b presents the Raman spectra acquired on two locations (indicated in the figure) of the MoS2 film shown in Figure 2a. The characteristic E12g and A1g phonon modes of MoS2 (around 380 and 415 cm−1) are clearly visible in the spectra [24,32]. One can determine the number of layers from the frequency difference between these two Raman modes. In the inset in Figure 2b, we show the relation between this frequency difference and the number of layers of MoS2, obtained from the literature [33,34], and we compare these values with those obtained in two spots in our sample to determine the number of layers, finding that the MoS2 specimen is composed of a bilayer and a four-layer region. We refer the reader to the Supplementary Materials for a Raman map of another thin MoS2 region.

3.2. XRD Characterization

The crystal structure of the films has been characterized with X-ray diffraction (XRD). XRD was performed at room temperature on the initial sample (MoO3 grown on mica 18 mm × 2 mm substrate) and on the final sample (MoS2 obtained after the sulfuration process). Figure 3 illustrates the X-ray diffractograms that were taken for the initial sample and for the final sample in green and blue, respectively. In red, we also show the X-ray diffractogram for a bare mica substrate, in order to differentiate the peaks that belong to the substrate from the peaks that correspond to the growth film.
Notice that the green spectrum exhibits peaks that correspond to (020), (040) and (060) reflections, which belong to the diffraction peaks of MoO3. The appearance of the (0k0) peaks, parallel to the plane (010), is a product of the preferred orientation of the MoO3 crystal with respect to the mica (001) surface due to the van der Waals epitaxy type of growth [35]. The blue spectrum obtained for the same sample after the sulfuration process shows a peak that corresponds to the (002) reflection of MoS2 [6]. Thus, we further confirm that we are able to obtain MoS2 from MoO3 deposited onto a mica substrate. In some works, it is proposed that the average thickness of a thin sample can be obtained from the analysis of the XRD peaks using the Scherrer equation (D = kλ/βcosθ, where k is the shape factor, λ is the X-ray wavelength, β is the full width at half maximum of the peak and 2θ is the scattering angle) [36,37]. By analyzing the (002) peak of the MoS2 XRD pattern, we estimated a c-stacking height for the analyzed sample of 10 nm, which corresponds to 15 layers of MoS2. Note that this value corresponds to the average thickness of the whole sample; however, thinner regions (such as those shown in Figure 2) can be found on it. It is also worth mentioning that the single-crystal domain size observed in our samples is also of the order of ~10 nm (see STEM discussion below) and thus it is not completely clear if the Scherrer equation provides accurate values of the average thickness of the sample or simply the single-crystal domain size.

3.3. STEM Characterization

The crystal structure of the films can be further characterized in real space by STEM. Figure 4 displays a high-angle annular dark field (HAADF) image of a MoS2 layer transferred over a holey Si3N4 membrane support by an all-dry deterministic transfer process [38]. In order to transfer the MoS2 films on mica, we stuck a polydimethylsiloxane (PDMS) sheet on its surface and we immersed it in distilled water. Due to the hydrophilic character of mica, the water wedges between de MoS2 and the mica surface, separating the MoS2 layer, which remains attached to the PDMS substrate, from the mica surface. The MoS2 is easily transferred to the membrane by gently pressing the PDMS containing the MoS2 film against the acceptor substrate and peeling it off slowly.
The STEM characterization indicates that the MoS2 film is polycrystalline, with a single-crystal domain size of 10–20 nm. Thinner regions can be found at the edges of the sulfurized film, where one can find monolayer, bilayer and trilayer areas (Figure 4 shows the edge of an MoS2 film, where mono-, bi- and tri-layer areas can be resolved). The fast Fourier transform (FFT) obtained from the monolayer region clearly shows the hexagonal symmetry of MoS2.

3.4. Electrical Characterization

The electrical properties of the fabricated MoS2 films were characterized by fabricating a field-effect device, by transferring a MoS2 film onto a SiO2/Si with pre-patterned drain-source electrodes separated by 10 µm. Figure 5a shows the measured source-drain current vs. gate voltage (Isd-Vg) characteristics for a fixed source-drain voltage of Vsd = 1 V. Surprisingly, we obtained a decrease in the source-drain current upon gate voltage increase without reaching the OFF state, which corresponds to a strong p-doped field effect behavior. To confirm this fact, we performed a thermopower measurement. Figure 5b displays the IV characteristics acquired, applying a temperature difference between the two electrodes. It can be seen that a positive voltage offset at zero current appears (thermoelectric voltage) when the temperature different increases. The inset shows the thermoelectric voltage versus the temperature difference. The Seebeck coefficient can be extracted from the slope of a linear fit to the data: S = +33.9 μV/K. This positive value confirms the p-doped nature of the MoS2 film obtained by the direct sulfurization of crystalline MoO3. The low magnitude of the Seebeck coefficient also indicates a high doping level. We have carried out preliminary Hall effect measurements by backing up the p-type electrical behavior of the MoS2 films observed in the Seebeck and electric-field measurements. Unfortunately, the large resistance of our samples precludes us from quantifying the charge carrier concentration as the electronics of our Hall effect measuring system are optimized for low-impedance samples. The highly linear shape of the IVs, together with the high doping inferred from the shallow transconductance and low Seebeck coefficient, points to an Ohmic contact in the Au-MoS2 junction. We also estimated the resistivity of the device as ~100 Ω·cm, which is significantly higher than that of single-crystal MoS2 (~1–5 Ω·cm), [39,40] as expected from the small single-crystal domain size of our synthetic MoS2 layers.
In order to get a deeper insight into the microscopic origin of this p-doping in our MoS2 layers, we have done an electron energy loss spectra (EELS) analysis of the STEM data (see Supplementary Materials). Apart from the presence of Mo and S, we found C (which could come from e-beam-induced deposition of amorphous carbon during the STEM measurement), O and B. The presence of O could be due to an incomplete MoO3-to-MoS2 transformation, and the presence of B impurities could come from unintentional cross-contamination from the surface of the glass ampoules used during the growth. The presence of these foreign species could be a plausible source of the unexpected p-type doping.
Figure 6a represents the measured Isd-Vsd characteristics in dark conditions and under light excitation with different wavelengths. The gate voltage was set to Vg = 0 V during the measurement. Fiber-coupled LED light sources were employed to illuminate the device. The inset of this figure zooms in on the high voltage region of the traces to distinguish the differences induced upon illumination. The photocurrent as a function of the wavelength can be calculated from these data, as we show in Figure 6b. This spectrum reveals that the maximum photocurrent value is located between 530 and 595 nm, whereas it decreases at longer wavelengths. We were not able to measure a sizeable photocurrent beyond 740 nm, as expected for multilayer MoS2.

4. Conclusions

In summary, we presented an alternative method to obtain atomically thin MoS2 layers through the direct transformation of crystalline molybdenum trioxide (MoO3) layers into MoS2 nanosheets by sulfurization. The process can be carried out at moderate temperatures and using simple instrumentation. We obtained large-area polycrystalline MoS2 sheets two to four layers thick and we characterized them by Raman spectroscopy, X-ray diffraction and transmission electron microscopy. Regarding their electronic properties, they are strongly p-doped.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/10/2293/s1, Figure S1: (a) Raman map showing the difference between the E12g and A1g peaks. The map shows a large region of ~4 layers, according to the peak difference value, and a thicker region in the bottom left corner. (b) Optical image of the same region studied in (a), Figure S2: (a) High magnification HAADF image of a MoS2 thin film transferred over a holey Si3N4 membrane support. (b) Electron energy loss spectra (EELS) acquired while scanning over the area in (a) for a total time of 20 s.

Author Contributions

Conceptualization, A.C.-G. and K.K.-z.; Formal analysis, F.C., G.S.-S., C.-w.H., A.T.-P., F.J.M., and R.F.; Funding acquisition, A.C.-G.; Investigation, F.C., G.S.-S., C.-w.H., N.M.N., A.T.-P., P.G., F.J.M., R.F., and A.C.-G.; Project administration, A.C.-G.; Resources, J.A.A., M.G.-H., and A.C.-G.; Supervision, N.M.N., J.A.A., M.G.-H., R.F., A.C.-G., and K.K.-z.; Writing—original draft, F.C. and A.C.-G.; Writing—review & editing, K.K.-z. and R.F. All authors have read and agreed to the published version of the manuscript.

Funding

ACG acknowledge funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement n° 755655, ERC-StG 2017 project 2D-TOPSENSE) and from the EU Graphene Flagship funding (Grant Graphene Core 2, 785219). JAA thanks the Spanish Ministry of Economy, Industry and Competitiveness (MINECO) for funding the project MAT2017-84496-R. RF acknowledges support from MINECO through a “Juan de la Cierva: formación” fellowship (2017 FJCI-2017-32919). GSS acknowledges financial support from MINECO (Juan de la Cierva 2015 program, FJCI-2015-25427).

Acknowledgments

We thank Carmen Munuera (ICMM-CSIC) and the National Center for Electron Microscopy (CNME; UCM, Madrid, Spain) for facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schwierz, F. Graphene transistors. Nat. Nanotechnol. 2010, 5, 487–496. [Google Scholar] [CrossRef] [PubMed]
  2. Novoselov, K.S.; Jiang, D.; Schedin, F.; Booth, T.J.; Khotkevich, V.V.; Morozov, S.V.; Geim, A.K. Two-dimensional atomic crystals. Proc. Natl. Acad. Sci. USA 2005, 102, 10451–10453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Verble, J.L.; Wieting, T.J. Lattice Mode Degeneracy in MoS2 and Other Layer Compounds. Phys. Rev. Lett. 1970, 25, 362–365. [Google Scholar] [CrossRef]
  4. Mattheiss, L.F. Band Structures of Transition-Metal-Dichalcogenide Layer Compounds. Phys. Rev. B 1973, 8, 3719–3740. [Google Scholar] [CrossRef]
  5. Coehoorn, R.; Haas, C.; Dijkstra, J.; Flipse, C.J.F.; de Groot, R.A.; Wold, A. Electronic structure of MoSe2, MoS2, and WSe2. I. Band-structure calculations and photoelectron spectroscopy. Phys. Rev. B 1987, 35, 6195–6202. [Google Scholar] [CrossRef] [Green Version]
  6. Joensen, P.; Frindt, R.F.; Morrison, S.R. Single-layer MoS2. Mater. Res. Bull. 1986, 21, 457–461. [Google Scholar] [CrossRef]
  7. Mak, K.F.; Lee, C.; Hone, J.; Shan, J.; Heinz, T.F. Atomically Thin MoS2: A New Direct-Gap Semiconductor. Phys. Rev. Lett. 2010, 105, 136805. [Google Scholar] [CrossRef] [Green Version]
  8. Radisavljevic, B.; Radenovic, A.; Brivio, J.; Giacometti, V.; Kis, A. Single-layer MoS2 transistors. Nat. Nanotechnol. 2011, 6, 147–150. [Google Scholar] [CrossRef]
  9. Radisavljevic, B.; Whitwick, M.B.; Kis, A. Integrated Circuits and Logic Operations Based on Single-Layer MoS2. ACS Nano 2011, 5, 9934–9938. [Google Scholar] [CrossRef]
  10. Yin, Z.; Li, H.; Li, H.; Jiang, L.; Shi, Y.; Sun, Y.; Lu, G.; Zhang, Q.; Chen, X.; Zhang, H. Single-Layer MoS2 Phototransistors. ACS Nano 2012, 6, 74–80. [Google Scholar] [CrossRef] [Green Version]
  11. Fortin, E.; Sears, W.M. Photovoltaic effect and optical absorption in MoS2. J. Phys. Chem. Solids 1982, 43, 881–884. [Google Scholar] [CrossRef]
  12. Wi, S.; Kim, H.; Chen, M.; Nam, H.; Guo, L.J.; Meyhofer, E.; Liang, X. Enhancement of Photovoltaic Response in Multilayer MoS2 Induced by Plasma Doping. ACS Nano 2014, 8, 5270–5281. [Google Scholar] [CrossRef] [PubMed]
  13. Feng, C.; Ma, J.; Li, H.; Zeng, R.; Guo, Z.; Liu, H. Synthesis of molybdenum disulfide (MoS2) for lithium ion battery applications. Mater. Res. Bull. 2009, 44, 1811–1815. [Google Scholar] [CrossRef]
  14. Ding, S.; Zhang, D.; Chen, J.S.; Lou, X.W. Facile synthesis of hierarchical MoS2 microspheres composed of few-layered nanosheets and their lithium storage properties. Nanoscale 2012, 4, 95–98. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Wang, H.; Xie, L.; Liang, Y.; Hong, G.; Dai, H. MoS2 Nanoparticles Grown on Graphene: An Advanced Catalyst for the Hydrogen Evolution Reaction. J. Am. Chem. Soc. 2011, 133, 7296–7299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Huang, X.; Zeng, Z.; Bao, S.; Wang, M.; Qi, X.; Fan, Z.; Zhang, H. Solution-phase epitaxial growth of noble metal nanostructures on dispersible single-layer molybdenum disulfide nanosheets. Nat. Commun. 2013, 4, 1444. [Google Scholar] [CrossRef] [Green Version]
  17. Ye, G.; Gong, Y.; Lin, J.; Li, B.; He, Y.; Pantelides, S.T.; Zhou, W.; Vajtai, R.; Ajayan, P.M. Defects Engineered Monolayer MoS2 for Improved Hydrogen Evolution Reaction. Nano Lett. 2016, 16, 1097–1103. [Google Scholar] [CrossRef]
  18. Wang, T.; Gao, D.; Zhuo, J.; Zhu, Z.; Papakonstantinou, P.; Li, Y.; Li, M. Size-Dependent Enhancement of Electrocatalytic Oxygen-Reduction and Hydrogen-Evolution Performance of MoS2 Particles. Chem.-A Eur. J. 2013, 19, 11939–11948. [Google Scholar] [CrossRef]
  19. Coleman, J.N.; Lotya, M.; O’Neill, A.; Bergin, S.D.; King, P.J.; Khan, U.; Young, K.; Gaucher, A.; De, S.; Smith, R.J.; et al. Two-Dimensional Nanosheets Produced by Liquid Exfoliation of Layered Materials. Science 2011, 331, 568–571. [Google Scholar] [CrossRef] [Green Version]
  20. Li, H.; Wu, J.; Yin, Z.; Zhang, H. Preparation and Applications of Mechanically Exfoliated Single-Layer and Multilayer MoS2 and WSe 2 Nanosheets. Acc. Chem. Res. 2014, 47, 1067–1075. [Google Scholar] [CrossRef]
  21. Backes, C.; Abdelkader, A.M.; Alonso, C.; Andrieux-Ledier, A.; Arenal, R.; Azpeitia, J.; Balakrishnan, N.; Banszerus, L.; Barjon, J.; Bartali, R.; et al. Production and processing of graphene and related materials. 2D Mater. 2020, 7, 2. [Google Scholar] [CrossRef]
  22. Lee, Y.-H.; Zhang, X.-Q.; Zhang, W.; Chang, M.-T.; Lin, C.-T.; Chang, K.-D.; Yu, Y.-C.; Wang, J.T.-W.; Chang, C.-S.; Li, L.-J.; et al. Synthesis of Large-Area MoS2 Atomic Layers with Chemical Vapor Deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef] [Green Version]
  23. Lee, Y.-H.; Yu, L.; Wang, H.; Fang, W.; Ling, X.; Shi, Y.; Lin, C.-T.; Huang, J.-K.; Chang, M.-T.; Chang, C.-S.; et al. Synthesis and Transfer of Single-Layer Transition Metal Disulfides on Diverse Surfaces. Nano Lett. 2013, 13, 1852–1857. [Google Scholar] [CrossRef] [PubMed]
  24. Kong, D.; Wang, H.; Cha, J.J.; Pasta, M.; Koski, K.J.; Yao, J.; Cui, Y. Synthesis of MoS2 and MoSe 2 Films with Vertically Aligned Layers. Nano Lett. 2013, 13, 1341–1347. [Google Scholar] [CrossRef] [PubMed]
  25. Zhan, Y.; Liu, Z.; Najmaei, S.; Ajayan, P.M.; Lou, J. Large-Area Vapor-Phase Growth and Characterization of MoS2 Atomic Layers on a SiO 2 Substrate. Small 2012, 8, 966–971. [Google Scholar] [CrossRef] [Green Version]
  26. Lee, K.; Gatensby, R.; McEvoy, N.; Hallam, T.; Duesberg, G.S. High-Performance Sensors Based on Molybdenum Disulfide Thin Films. Adv. Mater. 2013, 25, 6699–6702. [Google Scholar] [CrossRef] [Green Version]
  27. Molina-Mendoza, A.J.; Lado, J.L.; Island, J.O.; Niño, M.A.; Aballe, L.; Foerster, M.; Bruno, F.Y.; López-Moreno, A.; Vaquero-Garzon, L.; van der Zant, H.S.J.; et al. Centimeter-Scale Synthesis of Ultrathin Layered MoO 3 by van der Waals Epitaxy. Chem. Mater. 2016, 28, 4042–4051. [Google Scholar] [CrossRef] [Green Version]
  28. Burns, R.P.; DeMaria, G.; Drowart, J.; Grimley, R.T. Mass Spectrometric Investigation of the Sublimation of Molybdenum Dioxide. J. Chem. Phys. 1960, 32, 1363–1366. [Google Scholar] [CrossRef]
  29. Li, X.L.; Li, Y.D. Formation of MoS2 inorganic fullerenes (IFs) by the reaction of MoO3 nanobelts and S. Chem. Eur. J. 2003, 9, 2726–2731. [Google Scholar] [CrossRef]
  30. Castellanos-Gomez, A.; Quereda, J.; van der Meulen, H.P.; Agraït, N.; Rubio-Bollinger, G. Spatially resolved optical absorption spectroscopy of single- and few-layer MoS 2 by hyperspectral imaging. Nanotechnology 2016, 27, 115705. [Google Scholar] [CrossRef] [Green Version]
  31. Splendiani, A.; Sun, L.; Zhang, Y.; Li, T.; Kim, J.; Chim, C.-Y.; Galli, G.; Wang, F. Emerging Photoluminescence in Monolayer MoS2. Nano Lett. 2010, 10, 1271–1275. [Google Scholar] [CrossRef]
  32. Lee, C.; Yan, H.; Brus, L.E.; Heinz, T.F.; Hone, J.; Ryu, S. Anomalous Lattice Vibrations of Single- and Few-Layer MoS2. ACS Nano 2010, 4, 2695–2700. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Iguiñiz, N.; Frisenda, R.; Bratschitsch, R.; Castellanos-Gomez, A.; Castellanos-Gomez, A. Revisiting the Buckling Metrology Method to Determine the Young’s Modulus of 2D Materials. Adv. Mater. 2019, 31, 1807150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Castellanos-Gomez, A.; Barkelid, M.; Goossens, A.M.; Calado, V.E.; Van Der Zant, H.S.J.; Steele, G.A. Laser-thinning of MoS 2: On demand generation of a single-layer semiconductor. Nano Lett. 2012, 12, 3187–3192. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Geng, D.Y.; Zhang, Z.D.; Zhang, M.; Li, D.; Song, X.P.; Hu, K.Y. Structure and surface characterization of α-MoO3 whiskers synthesized by an oxidation process. Scr. Mater. 2004, 50, 983–986. [Google Scholar] [CrossRef]
  36. Chang, K.; Li, M.; Wang, T.; Ouyang, S.; Li, P.; Liu, L.; Ye, J. Drastic Layer-Number-Dependent Activity Enhancement in Photocatalytic H2 Evolution over nMoS2/CdS (n ≥ 1) Under Visible Light. Adv. Energy Mater. 2015, 5, 1402279. [Google Scholar] [CrossRef]
  37. Iqbal, S.; Pan, Z.; Zhou, K. Enhanced photocatalytic hydrogen evolution from: In situ formation of few-layered MoS2/CdS nanosheet-based van der Waals heterostructures. Nanoscale 2017, 9, 6638–6642. [Google Scholar] [CrossRef]
  38. Castellanos-Gomez, A.; Buscema, M.; Molenaar, R.; Singh, V.; Janssen, L.; Van Der Zant, H.S.; Steele, G.A. Deterministic transfer of two-dimensional materials by all-dry viscoelastic stamping. 2D Mater. 2014, 1, 011002. [Google Scholar] [CrossRef]
  39. Giannazzo, F.; Fisichella, G.; Piazza, A.; Agnello, S.; Roccaforte, F. Nanoscale inhomogeneity of the Schottky barrier and resistivity in MoS2 multilayers. Phys. Rev. B 2015, 92, 81307. [Google Scholar] [CrossRef]
  40. Eda, G.; Yamaguchi, H.; Voiry, D.; Fujita, T.; Chen, M.; Chhowalla, M. Photoluminescence from chemically exfoliated MoS2. Nano Lett. 2011, 11, 5111–5116. [Google Scholar] [CrossRef]

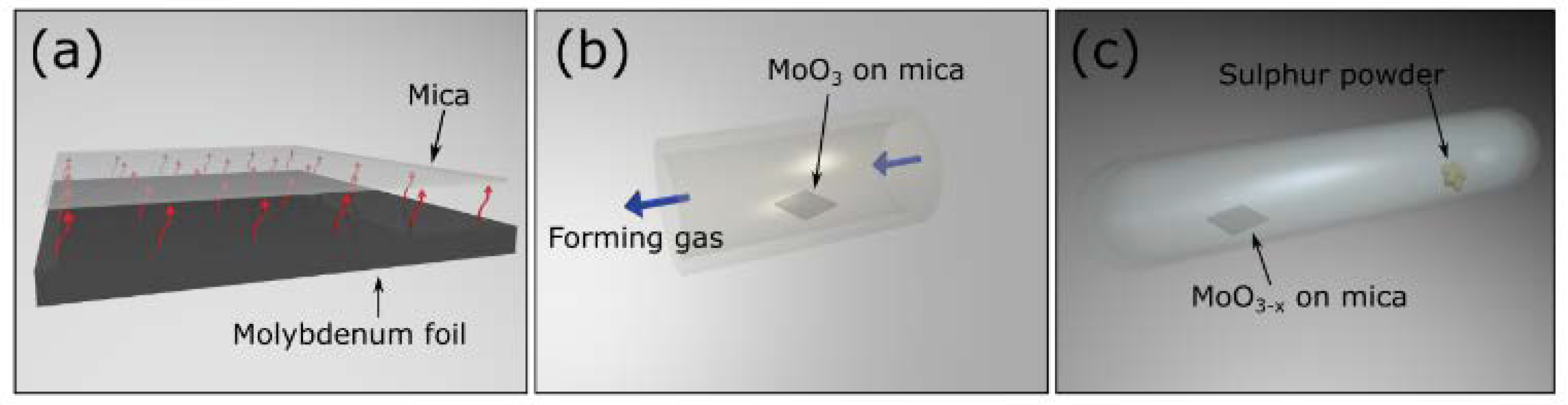

Figure 1. Cartoon of the process followed for the MoO3 conversion into MoS2. (a) MoO3 sublimes from a hot molybdenum foil (540 °C) and crystallizes onto a mica substrate. (b) MoO3−x is formed after placing the MoO3 in a tube furnace at 300 °C in a forming gas atmosphere for 24 h. (c) The sulfuration process is performed in a closed glass ampoule at 500–600 °C.
Figure 1. Cartoon of the process followed for the MoO3 conversion into MoS2. (a) MoO3 sublimes from a hot molybdenum foil (540 °C) and crystallizes onto a mica substrate. (b) MoO3−x is formed after placing the MoO3 in a tube furnace at 300 °C in a forming gas atmosphere for 24 h. (c) The sulfuration process is performed in a closed glass ampoule at 500–600 °C.
Materials 13 02293 g001

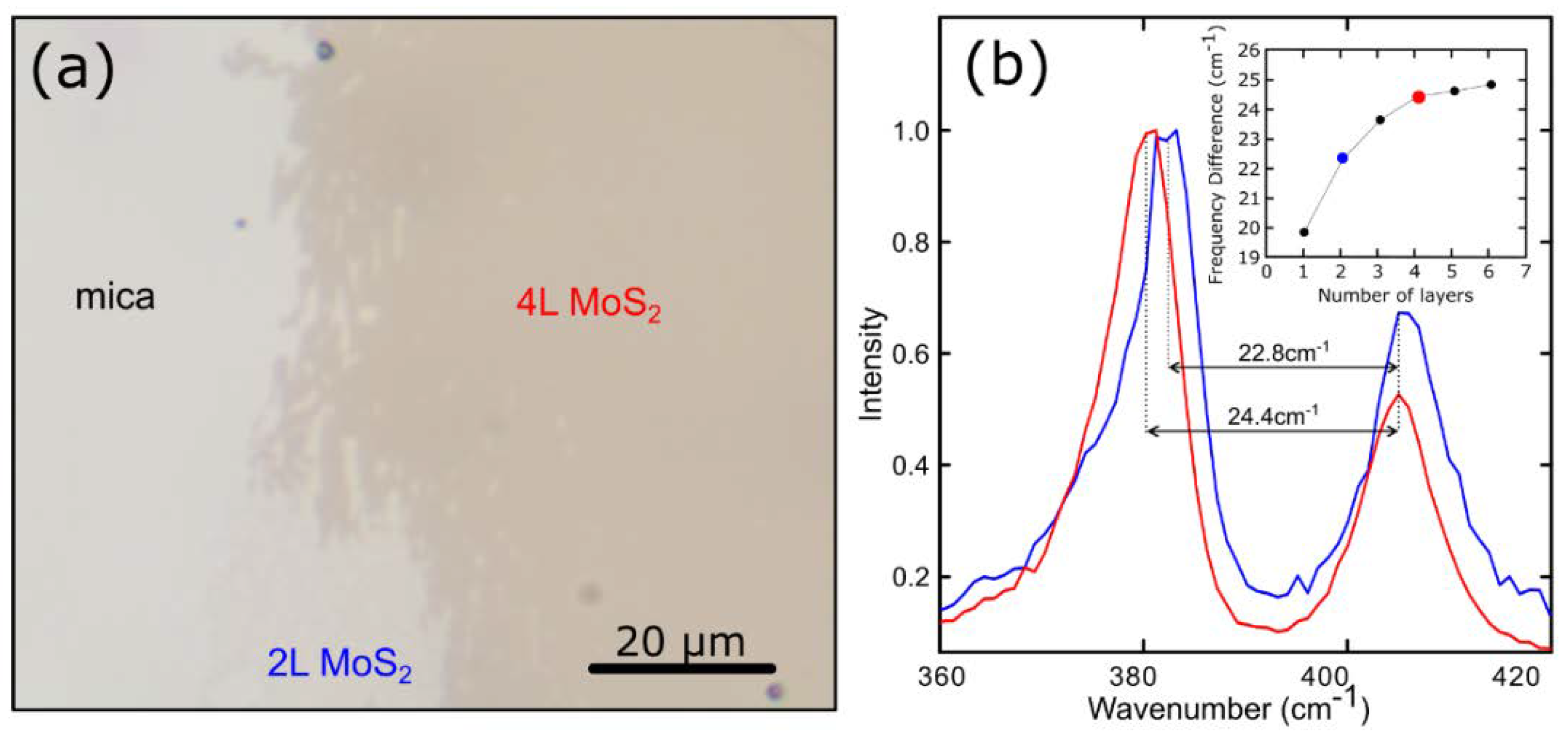

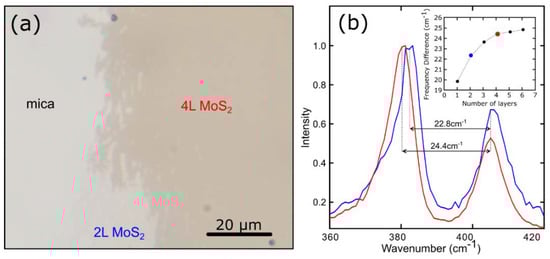

Figure 2. (a) Optical image of a large-area MoS2 on a mica substrate. (b) Raman spectra of MoS2 in different regions of the same sample. The inset displays the relation between the frequency difference of the two peaks and the number of layers of MoS2.
Figure 2. (a) Optical image of a large-area MoS2 on a mica substrate. (b) Raman spectra of MoS2 in different regions of the same sample. The inset displays the relation between the frequency difference of the two peaks and the number of layers of MoS2.
Materials 13 02293 g002

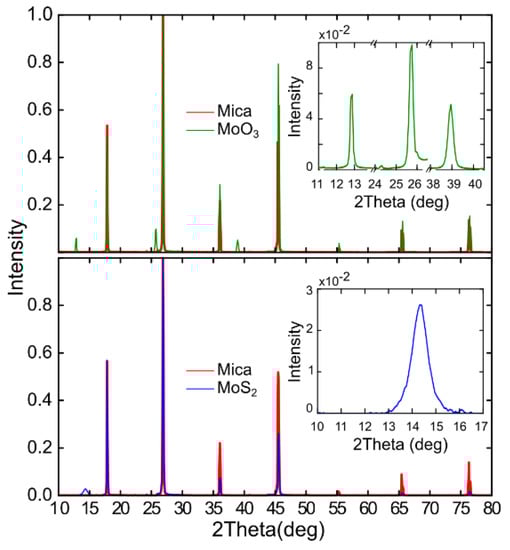

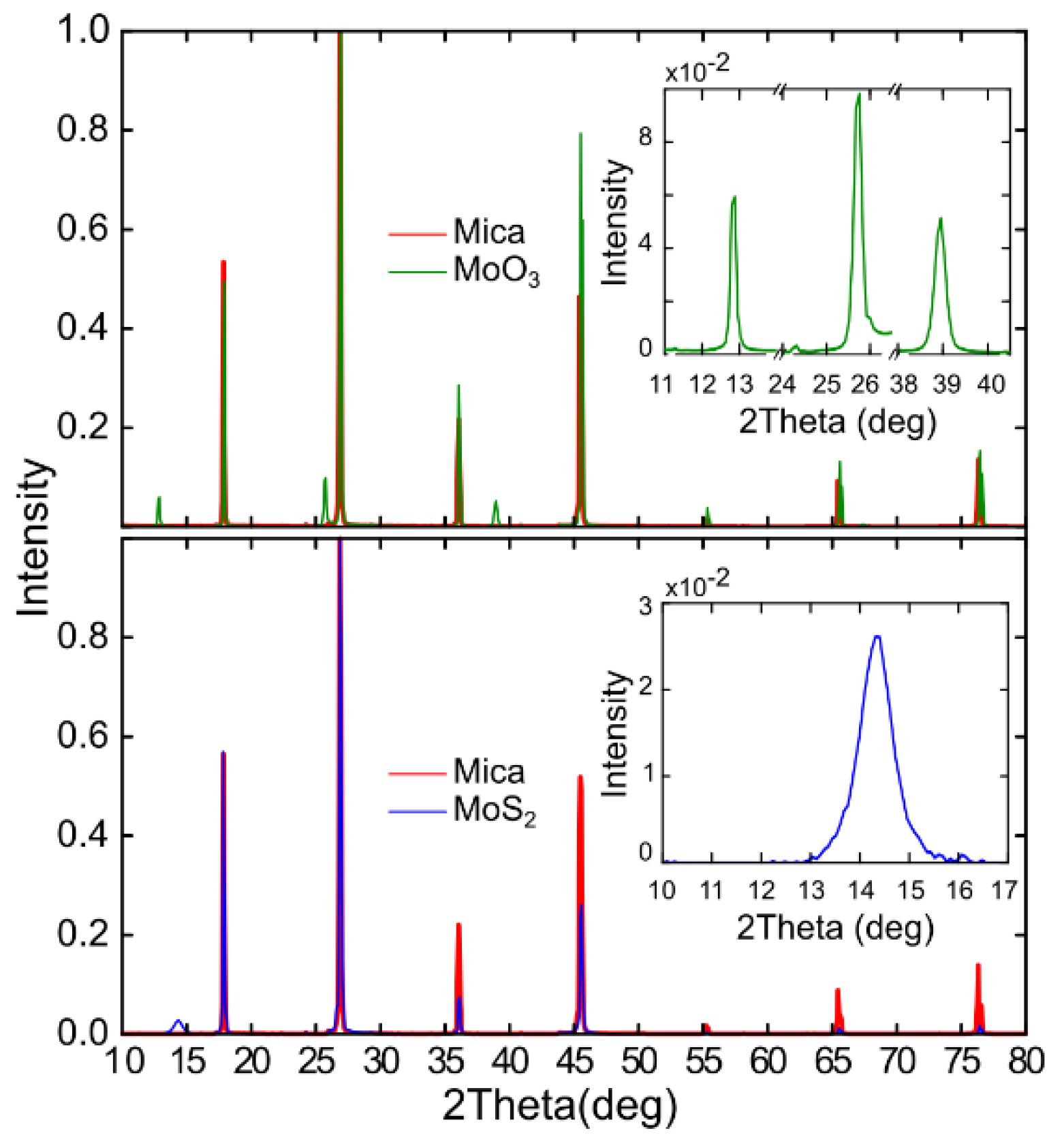

Figure 3. Comparison of XRD spectra of the sample shown in Figure 2, at different steps: MoO3 (initial) and MoS2 (after sulfuration) in green and blue, respectively. XRD spectra of a mica substrate in red to distinguish it from the peaks of the layer analyzed (insets).
Figure 3. Comparison of XRD spectra of the sample shown in Figure 2, at different steps: MoO3 (initial) and MoS2 (after sulfuration) in green and blue, respectively. XRD spectra of a mica substrate in red to distinguish it from the peaks of the layer analyzed (insets).
Materials 13 02293 g003

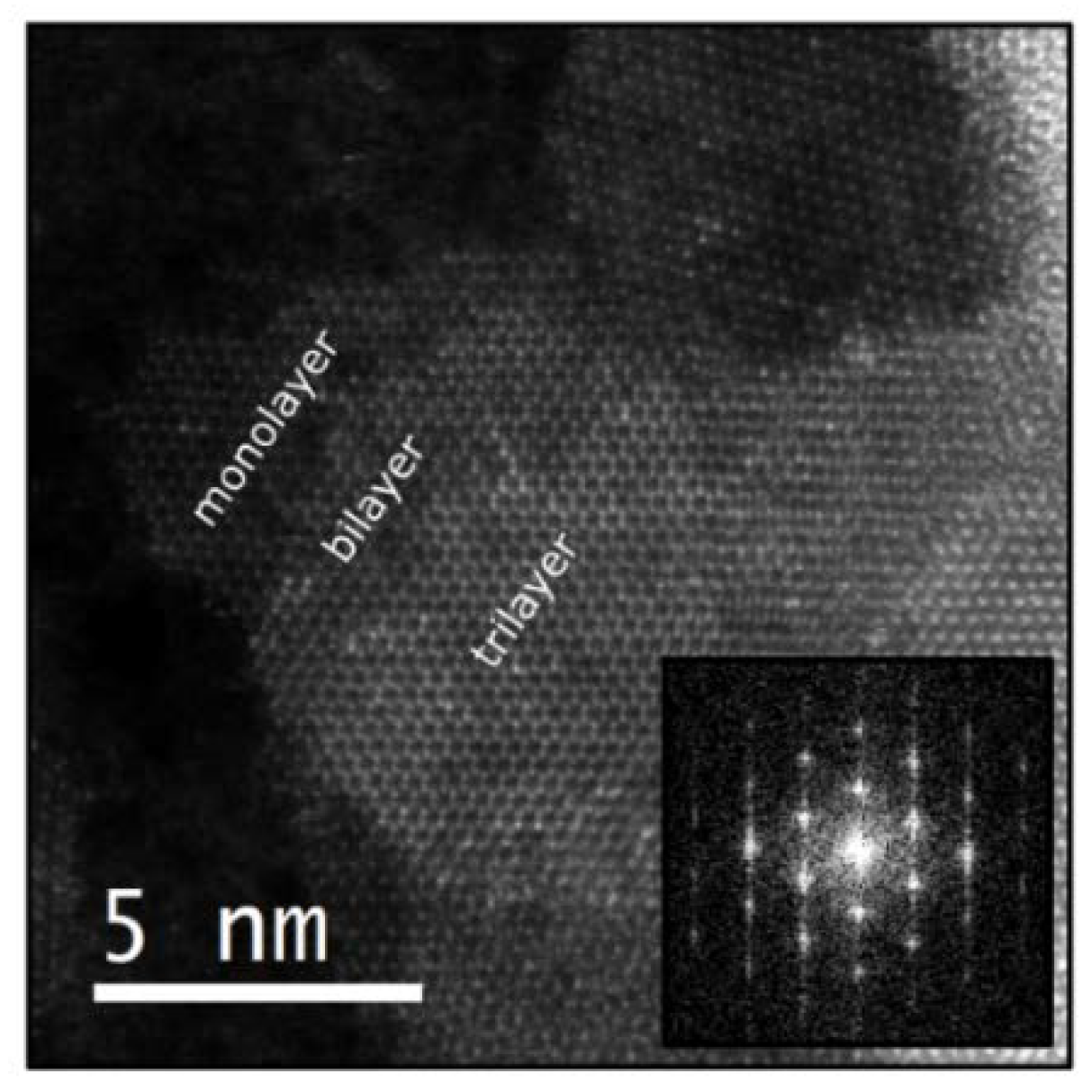

Figure 4. High-magnification HAADF images of a MoS2 thin film transferred over a holey Si3N4 membrane support. Inset shows FFT where a clearly hexagonal symmetry is exhibited.
Figure 4. High-magnification HAADF images of a MoS2 thin film transferred over a holey Si3N4 membrane support. Inset shows FFT where a clearly hexagonal symmetry is exhibited.
Materials 13 02293 g004

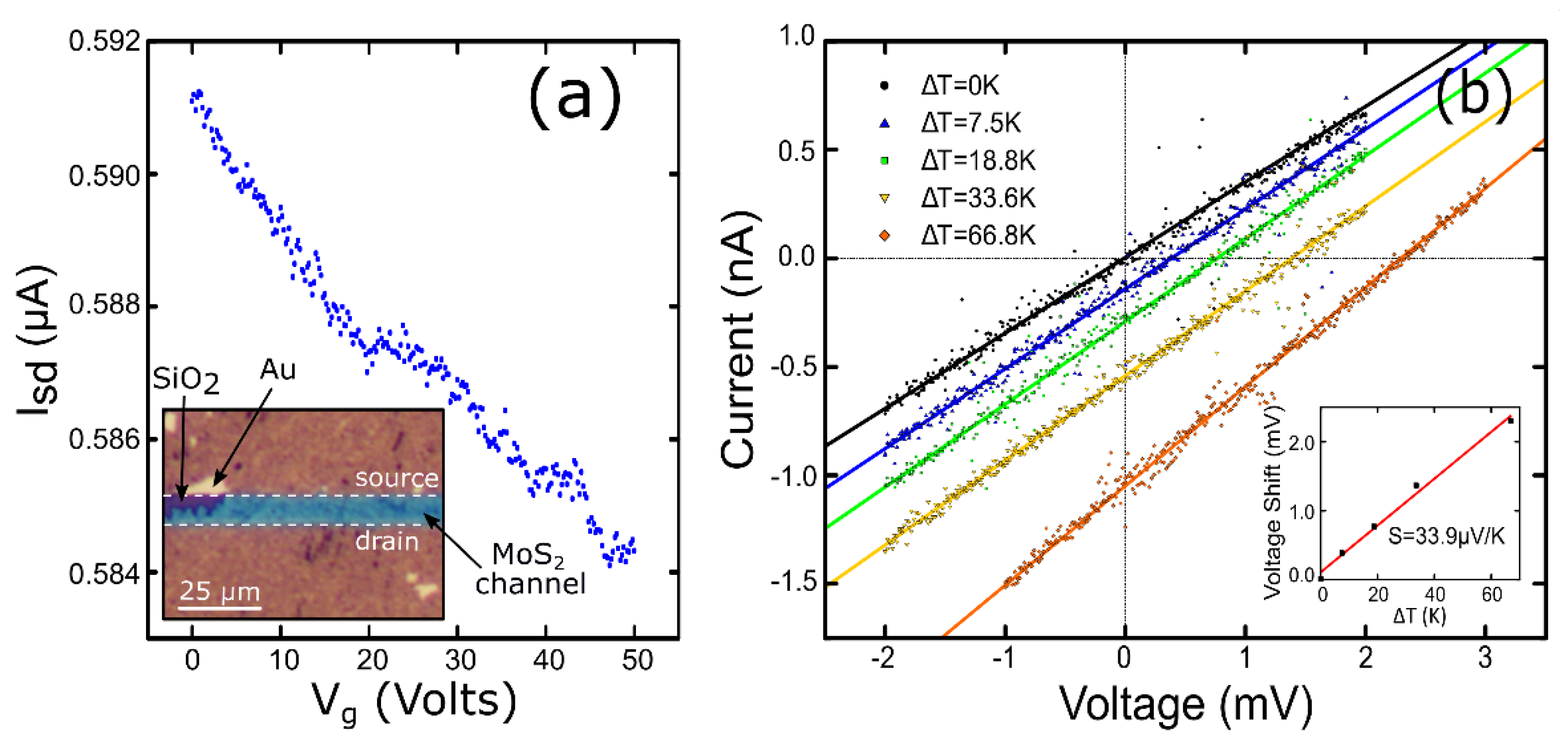

Figure 5. (a) Source-drain current vs. gate voltage measured in dark conditions and at Vsd = 1 V. The inset shows an optical image of the device measured (channel length = 10 µm, channel width = 1 mm). (b) Seebeck effect measurement on an MoS2 layer on a mica substrate by applying a temperature difference between electrodes. The inset shows the linear relationship between the thermovoltage shift and the difference in temperature. The Seebeck coefficient can be readily extracted from the slope.
Figure 5. (a) Source-drain current vs. gate voltage measured in dark conditions and at Vsd = 1 V. The inset shows an optical image of the device measured (channel length = 10 µm, channel width = 1 mm). (b) Seebeck effect measurement on an MoS2 layer on a mica substrate by applying a temperature difference between electrodes. The inset shows the linear relationship between the thermovoltage shift and the difference in temperature. The Seebeck coefficient can be readily extracted from the slope.
Materials 13 02293 g005

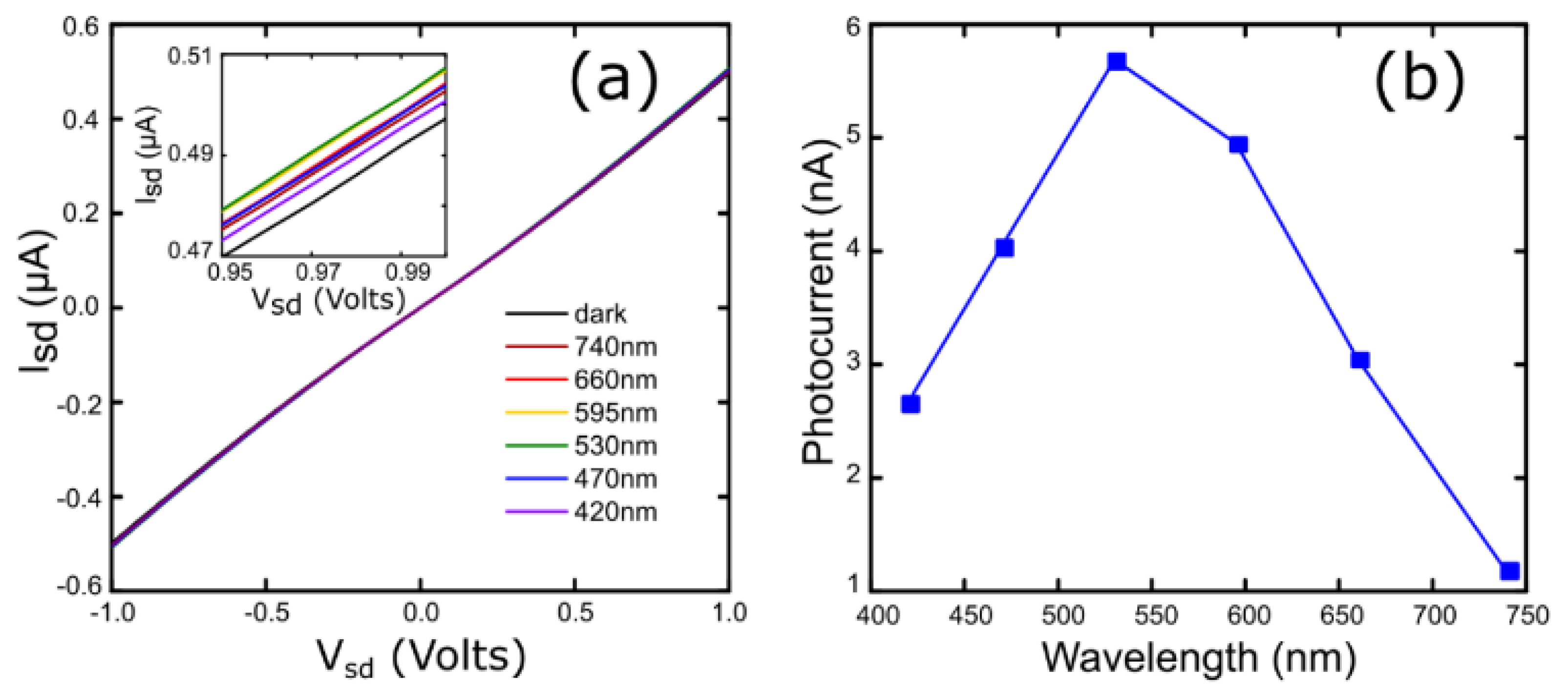

Figure 6. (a) Isd-Vsd curves for different illumination wavelengths and Vg = 0 V. Inset shows a smaller range to facilitate the visualization of the generated photocurrent. (b) Photocurrent spectrum obtained from Isd-Vsd curves.
Figure 6. (a) Isd-Vsd curves for different illumination wavelengths and Vg = 0 V. Inset shows a smaller range to facilitate the visualization of the generated photocurrent. (b) Photocurrent spectrum obtained from Isd-Vsd curves.
Materials 13 02293 g006
