Control of Particle Size in Flame Spray Pyrolysis of Tb–doped Y2O3 for Bio-Imaging

1
Photocatalysis International Research Center, Tokyo University of Science, 2641 Yamazaki, Noda-shi, Chiba 278-8510, Japan
2
Materials Architecturing Research Center, Korea Institute of Science & Technology, 5 Hwarang-ro 14-gil, Seongbuk-gu, Seoul 02792, Korea
3
Department of Mechanical Engineering, Korea University, Anam-dong 5-ga, Seongbuk-gu, Seoul 02841, Korea
4
Display and Nanosystem Laboratory, School of Electrical Engineering, Korea University, 145, Anam-ro, Seongbuk-gu, Seoul 02841, Korea
5
KIST School, Korea University of Science and Technology, 217 Gajeong-ro Yuseong-gu, Daejeon 34113, Korea
*
Authors to whom correspondence should be addressed.
Co-first author, these authors contributed equally to this work.
Materials 2020, 13(13), 2987; https://doi.org/10.3390/ma13132987
Submission received: 25 May 2020 / Revised: 18 June 2020 / Accepted: 29 June 2020 / Published: 4 July 2020

Abstract

:
Recently, the use of oxide-based nanomaterials for bio-imaging has received great attention owing to their remarkable stabilities as compared to those of conventional organic dyes. Therefore, the development of scalable methods for highly luminescent oxide materials with fine control of size has become crucial. In this study, we suggested modified flame spray pyrolysis (FSP) as a scalable method to produce a green-light emitting phosphor—Tb–doped Y2O3—in the nanometer size range. In our FSP method, an alkali salt (NaNO3) was found to be highly effective as a size-controlling agent when it is simply mixed with other metal nitrate precursors. The FSP of the mixture solution resulted in oxide composites of Y2O3:Tb3+ and NaxO. However, the sodium by-product was easily removed by washing with water. This salt-assisted FSP produced nano-sized and well-dispersed Y2O3:Tb3+ nanoparticles; their crystallinity and luminescence were higher than those of the bulk product made without the addition of the alkali salt. The nanoparticle surface was further coated with silica for biocompatibility and functionalized with amino groups for the attachment of biological molecules.

Graphical Abstract

1. Introduction

Nanomaterials have been widely studied for bio-imaging owing to their unique physical and optical properties, such as large surface-area-to-volume ratio and quantum confinement effects [1]. Although various functional nanomaterials have been applied for bio-imaging, fluorescence imaging involves the use of luminescent nanoparticles [2]. Conventionally, organic fluorophores, which emit a visible light color of an appropriate wavelength upon irradiation, have been used for fluorescence imaging. However, their low stability, often resulting in photobleaching during bio-imaging, has led to the development of more robust inorganic nanomaterials [2]. In particular, oxide-based luminescent nanoparticles have recently gained attention as they have been proven as stable substitutes of the organic fluorophores [3,4]. Lanthanide-doped yttrium oxide is an excellent candidate for usage as luminescent nanoparticles for bio-imaging owing to its strong luminescence, high chemical and physical stabilities, and non-toxicity toward living cells [5,6,7].
A number of Y2O3-based phosphors were developed with a wide spectrum of strong visible light luminescence, such as red-light emitting Eu3+–doped Y2O3 phosphor, green-light emitting Tb3+–doped Y2O3, and blue-light emitting Tm3+–doped Y2O3, and they have been commercially used as color-conversion materials for lighting and display [8,9]. However, they have received limited success in bio-imaging until recent years [2,5] because their sizes are typically large (several microns). The conventional methods to produce Y2O3-based phosphors are solid-state reactions or wet chemical methods followed by high temperature post-annealing, and these methods often lead to large particle sizes and aggregations [10,11]. For bio-imaging, the sizes of luminescent materials need to be controlled such that they are small enough to be intergrated into living cells [1]. In addition, the aggregation of particles should be avoided for bio-compatibility. Hence, the control of both particle sizes and dispersity in an aqueous solution is essential for the bio-imaging application of the luminescent materials [4].
Flame spray pyrolysis (FSP) is one of the promising routes for the rapid and consecutive synthesis of various oxide materials from single to complex components [12,13]. Many attempts were made to synthesize Y2O3-based phosphors using FSP, and these phosphors exhibited superior luminescence properties than those obtained using conventional methods owing to their high crystallinity and homogenous dopant distribution. However, FSP commonly resulted in micron-size particles with a broad size distribution owing to an inhomogeneous temperature profile of the flame, which results in various degrees of aggregation and the agglomeration of primary particles [14,15]. To solve this problem, modified FSP processes have been studied in an effort to prevent aggregation and particle size growth [2,15,16].
In our previous study, we also successfully demonstrated the size control of Tb3+–doped Y2O3 phosphors using FSP by manipulations of liquid precursor solutions for spray, such as solvent dilution and the addition of organic additives [17,18]. However, using such methods achieved only limited success, as the resulting nanophosphors exhibited reduced luminescence as compared to that of the bulk products made using FSP. Although it is relatively common that the size reduction of phosphor materials resulted in a decrease in luminescence [19,20], our previous methods were not adaptable for synthesizing nanophosphors for bio-imaging owing to the low luminescence.
Alkali salts (Na, K, Li) have been used as additives for enhancing the crystallinity of phosphor materials in many different synthetic methods, such as solid-state reactions, combustion, and pyrolysis [21,22,23,24]. In general, these salts serve as a molten medium (called as molten salts) for solid reactants during high-temperature reactions, which enables a facile transport of reactants to attain their highly crystalline state within a relatively short time [22]. The molten salts also help in preventing the aggregation of reactant particles as they cover and stabilize the surface of the particles [22,25]. Several researchers have also added alkali salts in FSP to produce lanthanide–doped Y2O3 phosphors [23,24]; however, they could not control the particle size to the submicron range, thus leaving scope for improvement.
In this report, we demonstrated alkali salt-added FSP as a successful method to produce Tb3+–doped Y2O3 phosphors that were approximately 100 nm in diameter with a narrow size distribution. The nanophosphors were single crystalline and highly luminescent, which made them suitable for bio-imaging. We were also able to coat the nanophosphor surface with a silica shell, which was then successfully functionalized with amine-terminated organic ligands for bio-applications.

2. Experimental

2.1. Chemicals

Y(NO3)3∙6H2O and Tb(NO3)3∙6H2O were purchased from Alfa Aesar, Haverhill, MA, USA, and NaNO3 and 3-aminopropyltetraethoxysilane (APTES) were purchased from Sigma Aldrich, St. Louis, MI, USA. Ethanol (97%), tetraethoxyorthosilicate (TEOS), and ammonia solution (28% v/v in water) were purchased from Daejung Chem., Gyeonggi, Korea, and were used as received. Double-distilled water was used for an aqueous solution.

2.2. Alkali Salt-Added FSP of Tb3+-Doped Y2O3

The details of the FSP experimental setup are depicted in Figure 1, which is slightly modified from our previously reported setup [17,18]. The precursor solutions for FSP were prepared by dissolving metal nitrates in a mixture of ethanol and water solution. First, 9.9 μmol of Y(NO3)3∙6H2O, 0.1 μmol of Tb(NO3)3∙6H2O, and 0.1 mol of NaNO3 were dissolved into 50 mL of water via sonication for 20 min. The Tb doping concentration was adjusted to 1 mol% of Y (Tb/Y = 0.01) according to the results of our previous studies [17,18]. Further, 0.95 L of ethanol was added to the aqueous mixture, which was then stirred for 1 h at 25 °C. The mixture was sprayed using an atomizer (¼-air atomizing nozzle, Daewoo Precision Co., Gyeonggi, Korea) at a supply rate of 30 mL/min with a carrier gas of air at a flow rate of 6 L/min. The flame was generated with a constant supply of CH4 and O2 gases. The maximum temperature of the flame was measured using an R-type thermocouple, and the resident time of particles in the flame was less than 0.1 s. Flame-generated particles were cooled using a cooling jacket and collected using a metal mesh filter. Subsequently, the residual salts were removed with de-ionized water via water washing. Finally, the produced tint yellow powder was dried in an oven at 60 °C for 24 h. No further annealing was necessary.

2.3. Surface Functionalization of Tb3+-Doped Y2O3 Nanoparticles

Silica shell formation was conducted following the modified Stöber method [26]. First, 100 mg of Tb–doped Y2O3 nanoparticles that were synthesized with sodium salt and then washed with water were dispersed in ethanol (100 mL). After sonication for 30 min, 1.0 mL of TEOS was added into the ethanol solutions under vigorous stirring; then, 9 mL of water was dropped gradually, which was followed by the slow addition of 3 mL of ammonia solution. After 1 h of stirring, the colloidal solution was centrifuged to separate particles from the reaction mixture. The particles were washed with ethanol three times and dried in an oven at 60 °C. The formation of silica shell was confirmed by FT-IR (Fourier transform infrared) analysis. For further functionalization of the silica-coated Tb–doped Y2O3 nanoparticles with organic ligands, the silica-coated nanoparticles (100 mg) were dispersed in ethanol solution (100 mL) by sonication for 30 min, and then, 100 μL of APTES was added to the colloidal solution while stirring. To the mixture, 0.9 mL of water and 0.3 mL of ammonia solution were added slowly. After 1 h of stirring, the colloidal solution was centrifuged to separate particles from the reaction mixture, washed with ethanol three times, and dried in an oven to provide the amine-functionalized particles as a tint-yellow powder. The presence of organic ligands was evidenced by FT-IR and CHNS elemental analysis, indicating the successful coupling of APTES to the silica shell of Tb–doepd Y2O3 nanoparticles.

2.4. Characterizations

Particle morphology and crystallinity were studied using transmission electron microscopy (TEM, Talos F200X, FEI Company, Hillsboro, OR, USA), selected area electron diffraction (SAED, Talos F200X, FEI Company, Hillsboro, OR, USA), high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM, Talos F200X, FEI Company, Hillsboro, OR, USA), and field emission scanning electron microscopy (FESEM, Inspect F50, FEI Company, Hillsboro, OR, USA). Crystal structure analysis was performed using X-ray diffraction (XRD, D8 Advanced, Bruker Corporation, Billerica, MA, USA). Elemental mapping was carried out using energy dispersive X-ray spectroscopy (EDS, Talos F200X, FEI Company, Hillsboro, OR, USA). Hydrodynamic particle size was obtained using a dynamic light scattering (DLS) method by a particle size analyzer (Microtrac, NanotracBEL, Osaka, Japan). The optical properties such as photoluminescence (PL), photoluminescence excitation (PLE), and decay time of synthesized powder were studied using spectrophotometers (F-7000, Hitachi Inc., Tokyo, Japan). Fourier transform infrared (FT-IR) spectra were obtained by a transmittance mode (Platinum ATR, Bruker Corporation, Billerica, MA, USA). Elemental analysis was performed by X-ray fluorescence (XRF) (ZSX Primus II, Rigaku Corporation, Tokyo, Japan) for Tb, Y, Si, and a CHNS Analyzer (FLASH 2000, Thermo Scientific, Waltham, MA, USA) for C, H and N, elements. The zeta potentials of Y2O3 nanoparticles and surface-modified samples were analyzed by Zetasier Nano ZS (Malvern, Malvern, UK). For this analysis, each sample was suspended in a buffered solution of pH 7.4 (Sigma Aldrich, St. Louis, MI, USA).

3. Results and Discussion

For the optimization of the flame, the flow rates of CH4 and O2 gases were varied, and flame temperatures were monitored (Table 1). Camera images of the flame at different conditions and measured temperatures along the flame lengths from the burner top are presented in Figure 2. At a constant air flow rate of 6 L/min, the flame was longer with a higher CH4 flow rate (#1–3 vs. #4–7), while the supply of O2 gas resulted in the shortening of the flame. At a CH4 flow rate of 6 L/min (#1–3), the maximum temperatures of the flame decreased along with an increase in the O2 flow rate (850 °C, 775 °C, and 700 °C for #1, #2 and #3, respectively). However, at a higher CH4 flow rate of 9 L/min, the flame temperature increased along with an increase in the O2 flow rate (975 °C, 940 °C, 1050 °C, and 1150 °C for #4, #5, #6, and #7, respectively). Although the flame length of the condition of #7 was shorter than that of #5 and #6, the maximum temperature of the flame was highest for #7. Therefore, the flame condition of #7 is considered close to the complete combustion of CH4, and hence, it was selected for the nanoparticle synthesis.
Next, FSP of Y2O3:Tb3+ with alkali salts ([Na]/[Y + Tb] = 10) was carried out at the selected flame condition of #7. The flame was stable during the FSP of the metal precursors, and the obtained powder was a tinted yellow color. For comparison, Y2O3:Tb3+ phosphors without the addition of alkali salts were also obtained at the same flame condition. Figure 3a,c show the SEM images of the FSP products synthesized without and with sodium salts, respectively. Hollow/shell-like spherical particles with broad size distribution (0.1–2 μm) were obtained using FSP without sodium salt addition (Figure 3a). In our previous report, we concluded that these hollow/shell-like spherical particles were formed owing to the preferential precipitation of precursors at the surface of droplets and their subsequent oxidation and aggregation/agglomeration at the outer shell [17]. The size and morphology of the FSP product without sodium salts were not altered after washing with water (Figure 3b). Upon the addition of sodium salts to the precursor solution, which is 10 times equivalent to the metal nitrate precursors of Y and Tb, the FSP resulted in the completely different size and morphology of Y2O3:Tb3+ (Figure 3c). Large spherical particles were not formed. However, submicron-sized particles were observed that appeared to be slightly connected as a sheet structure. When the particles were washed with water, well-dispersed fine particles appeared (Figure 3d).
The FSP product prepared with sodium salts was further examined using the TEM images (Figure 4). The particles appeared covered with amorphous phases before washing with water, which may be associated with residual sodium species (Figure 4a,b). However, the amorphous species were all removed upon washing with water; moreover, well-dispersed and highly crystalline particles of 50–200 nm diameter (Figure 4c,d) were observed. A high-resolution TEM image shown in Figure 4e indicates that the particles are single crystalline with a clear view of crystal lattice planes. A lattice distance of 3.15 Å is observed, which corresponds to the lattice plane (222) of the cubic phase Y2O3 according to JCPDS#71-0099. The SAED image in Figure 4f also indicates the high crystallinity of particles, and its dotted patterns exhibit (211), (222), (332), and (440) lattice planes of the cubic phase Y2O3.
HAADF-STEM and elemental mapping images were also obtained to examine the elemental distribution in the particles (Figure 5). Tb ions were found to be well dispersed into Y2O3 without the formation of aggregates, indicating their homogeneous doping (Figure 5b–d). Remarkably, sodium was also found to be distributed over Y2O3 in spite of severe washing with water. The relative elemental composition was recorded as 40.64 at % of Y, 57.71 at % of O, 1.37 at % of Tb, and 0.28 at % of Na (Figure 5f and its inset) using EDS analysis; the presence of Na was attributed to its incorporation into the crystal lattice of Y2O3.
The XRD analysis of the FSP products prepared without and with sodium salts showed that all the products form Y2O3 in the cubic phase (Figure 6) and corresponded well with the observations made using TEM. No impurity peak associated with Tb was detected, indicating the homogenous doping of Tb into Y2O3 for all samples. However, Na-related impurity peaks (marked by arrows in Figure 6c) were observed in the as-prepared FSP products with sodium salts, which also correlated well with the above EDS analysis. The impurity peaks were matched to those of NaNO3 precursor and its oxidized product, Na2O. However, these impurities were soluble in water, and hence, they were removed by washing with water (Figure 6d). The full-width at half-maximum (FWHM) [27] of the XRD peaks at (222) of Y2O3 prepared without and with sodium salts were compared, and they were 0.245° and 0.139° respectively, indicating that the salt addition to FSP improved the crystallinity of the resulting products.
When a large amount of sodium nitrate was added to the yttrium and terbium nitrate precursors, the sodium salts melted as the flame was introduced, serving as molten salt. Y2O3 nucleated and fast grew in high crystallinity owing to the enhanced mass transfer in the presence of the molten salt. In addition, the excessive molten salts were considered to cover the surfaces of Y2O3 crystals, preventing them from making contact with other crystals. As the boiling point of sodium nitrate is approximately 380 °C [28], some of the sodium salts were lost. Therefore, the use of an excessive amount of sodium nitrate was critical in preventing Y2O3 crystals from aggregating. The possible route of nanoparticle generation using salt-assisted FSP is depicted in Figure 7. The sprayed droplets containing both metal precursors and sodium salts are dried by evaporating the solvents in the initial stage of FSP. The sodium salts melt and metal precursors decompose and oxidize to form oxide nucleates in the subsequent stage. Then, the nucleated particles undergo fast particle growth and aggregation to form highly crystalline particles embedded in the molten salt. The salts are removed during water washing, and the Y2O3 crystals are separated.
The luminescent properties of the FSP products produced without and with sodium salts were evaluated using photoluminescence (PL) and photoluminescence excitation (PLE) spectra (Figure 8). A green light emission spanning from 480 to 700 nm was observed for all the samples when excited at 300 nm (Figure 8a). An intense peak appeared at 547 nm along with four other small peaks, which are the characteristic emissions of the Tb3+ ion. The intense peak corresponds to the transition from the 5D4 to 7F5 energy level, and small peaks at 492 nm, 590 nm, 625 nm, and 669 nm are associated with the transitions from 5D4 to 7F6, 7F4, 7F3, and 7F2 energy levels, respectively. A broad excitation peak at 250 to 330 nm was observed owing to the emission at 547 nm (Figure 8b), which was identified as a charge transfer peak from Y2O3 to Tb3+ ions [2].
The emission peak intensities at 547 nm of all the FSP products, shown in Figure 8a, are compared. The emission peak intensities of the products with sodium salt (both as-prepared and after water-washing) were higher than those of the products without sodium salts. The intensity of products with sodium salt slightly increased after washing with water, which was due to the removal of sodium impurities. Typically, as the particle size of phosphor decreases, additional surface defects arise, resulting in reduced luminescence. However, we discovered that the Y2O3:Tb3+ phosphors produced with sodium salts emit higher luminescence than those produced without the salts, even though their particle sizes are smaller. We considered that the high crystallinity and clean surfaces of Y2O3:Tb3+ nanoparticles, as observed using HR-TEM (Figure 4e), was attributed to the high luminescence. In addition, the incorporation of alkali ions into the crystal lattices of Y2O3:Tb3+, at either substitutional or interstitial sites, may have altered the crystal fields around the Tb3+ ions and charge transfer mechanisms, resulting in higher luminescence [29,30,31].
The luminescence decay curves of all the FSP products are obtained and compared as shown in Figure 8c. All the decay curves are well fitted to a single exponential function [17,18], and the calculated decay times are 2.21, 2.59, and 2.98 ms for Y2O3:Tb3+ produced without salts, Y2O3:Tb3+ produced with salts before washing, and Y2O3:Tb3+ produced with salts after washing, respectively. The increase in the decay time upon the addition of sodium salts is indicative of the charge transfer between the doped Na and Tb as well as reduced defect states in the Y2O3:Tb3+ crystals [29,32].
To examine the feasibility of the Y2O3:Tb3+ nanoparticles produced using the salt-assisted FSP for their application in bio-imaging, the particles were coated with silica, as it is a well-known biocompatible inorganic substance. The nanoparticles were first well dispersed in a solution using sonication, and a modified Stöber method [26] was then performed to form a silica shell on their surfaces (Figure 9, the first step). The Y2O3:Tb3+@silica core–shell particles were further functionalized with an organic compound, APTES, since amino-functional groups have been a great chemical source for coupling with bio-substances (Figure 9, the second step). The formation of the silica shell and ligand attachment were examined using FT-IR transmittance and SEM (Figure 10). The FT-IR spectrum of the silica coated Y2O3:Tb3+ exhibited a broad and strong peak corresponding to Si-O bonds at approximately 1070 cm−1 [33] along with peaks corresponding to Y2O3 at approximately 580 cm−1 and 496 cm−1 [34] (Figure 10a). The amine-functionalized Y2O3:Tb3+@silica particles revealed bands corresponding to C–H stretching modes at 2923 cm−1 and 2880 cm−1 [33], and NH2 deformation modes at approximately 1610 cm−1 [35], indicating the successful modification of Y2O3:Tb3+ nanoparticles with APTES. Besides those peaks, a broad peak corresponding to the O–H stretching mode was observed at around 3500 cm−1, which relates to the presence of water on the particle surface [35].
Changes of surface states were further confirmed by zeta-potential measurement [33]. Prior to the measurement, particles were well dispersed in a phosphate buffer (pH 7.4) to simulate the physiological condition for bio-imaging. The unmodified Y2O3:Tb3+ nanoparticles exhibited a negative potential, −5.6 mV, and the silica-coated Y2O3:Tb3+ nanoparticles showed a more negative potential, −19.5 mV, due to the presence of deprotonated oxide groups on the surface. However, a positive potential of +12.3 mV was observed with the APTES-coated Y2O3:Tb3+@silica particles, indicating the presence of NH2 groups on the surface [33]. The amount of APTES coated on the particles was measured by XRF and CHNS elemental analysis (Table 2). As a result, we found that N contents are 1.1 at %, which comprises approximately 1.77 mol % of yttrium (Y) in Y2O3. This is in accordance of the small bands of APTES in the FT-IR spectrum in Figure 10a.
The SEM image of amine-functionalized Y2O3:Tb3+@silica particles exhibited well-dispersed particles of core–shell morphology (Figure 10b). The luminescence of the amine-functionalized particles was examined and compared with Y2O3:Tb3+ nanoparticles without a surface coating, which showed a slight reduction in intensity after surface functionalization (Figure 10c). The reduction originates from the dilution effect of phosphors, which are responsible for luminescence, due to the addition of luminescence-free silica and organic functional groups. Nevertheless, the phosphors functionalized with silica and amino groups exhibited higher dispersity in an aqueous solution compared with that of bare phosphors, which was confirmed by a dynamic light scattering analysis of unmodified particles and amine-functionalized Y2O3:Tb3+@silica particles dispersed in a phosphate buffer (Figure 11). The size distribution of unmodified particles was found to be somewhat broad (average size = 409 nm) (Figure 11a), which is ascribed to the aggregation of unmodified particles, since it is well known that nanoparticles as small as 100 nm have a high surface energy so that they tend to aggregate by themselves [36]. However, the much smaller average size of amino-functionalized particles (223 nm) was observed (Figure 11b), although the size of particles became almost twice larger than the unmodified ones due to the presence of a silica shell according to the SEM image in Figure 10b. The enhanced dispersity originates from aminopropyl ligands anchored on particle surface, which have repulsive interactions due to the Van der Waals force of organic moiety and positive charge of amino groups.

4. Conclusion

We successfully modified FSP for the synthesis of Y2O3:Tb3+ nanophosphor by adding sodium salt, followed by washing with water. The Y2O3:Tb3+ nanoparticles generated were much less aggregated than those produced without sodium salt, and they exhibited higher crystallinity and luminescence. This salt-assisted FSP was particularly attractive not only because it can be adopted for a continuous reaction to produce nanoparticles in a large scale but also because the resulting products have high crystallinity and luminescence without post-annealing. The surface functionalization of the Y2O3:Tb3+ nanoparticles with the silica shell and organic ligands was also successfully demonstrated by FT-IR and surface potentials. The loading quantity of amino functional groups on the Y2O3:Tb3+ nanophosphor was measured to be 1.7 at % of yttrium by XRF and CHNS analysis. The high dispersity of the amine-modified nanophosphors was observed by DLS analysis in a physiological condition (pH 7.4), proving that they are highly applicable for bio-imaging.

Author Contributions

Methodology and Original Draft Preparation, S.K. and Y.C.; Formal Analysis and Data Curation, H.-Y.A., J.H.H., and B.-K.J.; Conceptualization, Writing—Review and Editing, and Supervision, J.C. and S.-H.C.; Project Administration and Funding Acquisition, J.C., and S.-H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by KIST institutional funding, grant number [#2E30710], and the Technology Innovation Program funded by the Ministry of Trade, Industry & Energy of South Korea, grant number [#10052730].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nune, S.K.; Gunda, P.; Thallapally, P.K.; Lin, Y.Y.; Forrest, M.L.; Berkland, C.J. Nanoparticles for biomedical imaging. Expert Opin. Drug Deliv. 2009, 6, 1175–1194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sotiriou, G.A.; Schneider, M.; Pratsinis, S.E. Green, silica-coated monoclinic Y2O3: Tb3+ nanophosphors: Flame synthesis and characterization. J. Phys. Chem. C 2012, 116, 4493–4499. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Sun, C.; Carpenter, C.; Pratx, G.; Xing, L. Facile synthesis of amine-functionalized Eu3+-doped La(OH)3 nanophosphors for bioimaging. Nanoscale Res. Lett. 2011, 6, 24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Jun, B.H.; Hwang, D.W.; Jung, H.S.; Jang, J.; Kim, H.; Kang, H.; Kang, T.; Kyeong, S.; Lee, H.; Jeong, D.H.; et al. Ultrasensitive, Biocompatible, Quantum-Dot-Embedded Silica Nanoparticles for Bioimaging. Adv. Funct. Mater. 2012, 22, 1843–1849. [Google Scholar] [CrossRef]
  5. Sotiriou, G.A.; Franco, D.; Poulikakos, D.; Ferrari, A. Optically stable biocompatible flame-made SiO2-coated Y2O3: Tb3+ nanophosphors for cell imaging. ACS Nano 2012, 6, 3888–3897. [Google Scholar] [CrossRef] [Green Version]
  6. Keevend, K.; Panzarasa, G.; Starsich, F.H.; Zeltner, M.; Spyrogianni, A.; Tsolaki, E.; Fortunato, G.; Pratsinis, S.E.; Bertazzo, S.; Herrmann, I.K. Facile meltPEGylation of flame-made luminescent Tb3+-doped yttrium oxide particles: Hemocompatibility, cellular uptake and comparison to silica. Chem. Commun. 2018, 54, 2914–2917. [Google Scholar] [CrossRef] [Green Version]
  7. Venkarachalam, N.; Okumura, Y.; Soga, K.; Fukuda, R.; Tsuji, T. Bioimaging of M1 Cells Using Ceramic Nanophosphors: Synthesis and Toxicity Assay of Y2O3 Nanoparticles. J. Phys. Conf. Ser. 2009, 191, 2009. [Google Scholar]
  8. Hao, J.H.; Studenikin, S.A.; Cocivera, M. Blue, green and red cathodoluminescence of Y2O3 phosphor films prepared by spray pyrolysis. J. Lumin. 2001, 93, 313–319. [Google Scholar] [CrossRef]
  9. Dai, Q.L.; Foley, M.E.; Breshike, C.J.; Lita, A.; Strouse, G.F. Ligand-passivated Eu:Y2O3 nanocrystals as a phosphor for white light emitting diodes. J. Am. Chem. Soc. 2011, 133, 15475–15486. [Google Scholar] [CrossRef]
  10. Jung, M.K.; Park, W.J.; Yoon, D.H. Photoluminescence characteristics of red phosphor Eu3+Sm3+ co-doped Y2O3 for white light emitting diodes. Sens. Actuators. B-Chem. 2007, 126, 328–331. [Google Scholar] [CrossRef]
  11. Yang, J.; Quan, Z.W.; Kong, D.Y.; Liu, X.M.; Lin, J. Y2O3:Eu3+ microspheres: Solvothermal synthesis and luminescence properties. Cryst. Growth Des. 2007, 7, 730–735. [Google Scholar] [CrossRef]
  12. Strobel, R.; Pratsinis, S.E. Flame aerosol synthesis of smart nanostructured materials. J. Mater. Chem. 2007, 17, 4743–4756. [Google Scholar] [CrossRef]
  13. Teoh, W.Y.; Amal, R.; Madler, L. Flame spray pyrolysis: An enabling technology for nanoparticles design and fabrication. Nanoscale 2010, 2, 1324–1347. [Google Scholar] [CrossRef]
  14. Kang, Y.C.; Seo, D.J.; Park, S.B.; Park, H.D. Morphological and optical characteristics of Y2O3:Eu phosphor particles prepared by flame spray pyrolysis. Jpn. J. Appl. Phys. 2001, 40, 4083–4086. [Google Scholar] [CrossRef]
  15. Qin, X.; Ju, Y.G.; Bernhard, S.; Yao, N. Flame synthesis of Y2O3:Eu nanophosphors using ethanol as precursor solvents. J. Mater. Res. 2005, 20, 2960–2968. [Google Scholar] [CrossRef] [Green Version]
  16. Xia, B.; Lenggoro, I.; Okuyama, K. Synthesis of CeO2 nanoparticles by salt-assisted ultrasonic aerosol decomposition. J. Mater. Chem. 2001, 11, 2925–2927. [Google Scholar] [CrossRef]
  17. Khan, S.; Han, J.S.; Lee, S.Y.; Cho, S.-H. Flame-synthesized Y2O3:Tb3+ nanocrystals as spectral converting materials. J. Nanoparticle Res. 2018, 20, 241. [Google Scholar] [CrossRef]
  18. Khan, S.; Park, B.-I.; Han, J.S.; Lee, S.Y.; Cho, S.-H. Flame synthesized Y2O3:Tb3+–Yb3+ phosphors as spectral convertors for solar cells. Res. Chem. Intermed. 2018, 44, 4619–4632. [Google Scholar] [CrossRef]
  19. Wang, W.Z.; Li, J.K.; Duan, G.B.; Zhao, W.L.; Cao, B.Q.; Liu, Z.M. Morphology/size effect on the luminescence properties of the [(YxGd1-x)0.98Dy0.02]2O3 phosphor with enhanced yellow emission. J. Lumin. 2017, 192, 1056–1064. [Google Scholar] [CrossRef]
  20. Zhang, K.; Pradhan, A.K.; Loutts, G.B.; Roy, U.N.; Cui, Y.L.; Burger, A. Enhanced luminescence and size effects of Y2O3:Eu3+ nanoparticles and ceramics revealed by x rays and Raman scattering. J. Opt. Soc. Am. B 2004, 21, 1804–1808. [Google Scholar] [CrossRef]
  21. Liu, L.H.; Xie, R.J.; Zhang, C.N.; Hirosaki, N. Role of fluxes in optimizing the optical properties of Sr0.95Si2O2N2:0.05Eu2+ green-emitting phosphor. Materials 2013, 6, 2862–2872. [Google Scholar] [CrossRef] [PubMed]
  22. Boltersdorf, J.; King, N.; Maggard, P.A. Flux-mediated crystal growth of metal oxides: Synthetic tunability of particle morphologies, sizes, and surface features for photocatalysis research. CrystEng Comm. 2015, 17, 2225–2241. [Google Scholar] [CrossRef]
  23. Shimomura, Y.; Kijima, N. High-luminance Y2O3:Eu3+ phosphor synthesis by high temperature and alkali metal ion-added spray pyrolysis. J. Electrochem. Soc. 2004, 151, H86–H92. [Google Scholar] [CrossRef]
  24. Kang, Y.C.; Roh, H.S.; Park, S.B.; Park, H.D. Use of LiCl flux in the preparation of Y2O3:Eu phosphor particles by spray pyrolysis. J. Eur. Ceram. Soc. 2002, 22, 1661–1665. [Google Scholar] [CrossRef]
  25. Itoh, Y.; Lenggoro, I.W.; Pratsinis, S.E.; Okuyama, K. Agglomerate-free BaTiO3 particles by salt-assisted spray pyrolysis. J. Mater. Res. 2002, 17, 3222–3229. [Google Scholar] [CrossRef] [Green Version]
  26. Nozawa, K.; Gailhanou, H.; Raison, L.; Panizza, P.; Ushiki, H.; Sellier, E.; Delville, J.P.; Delville, M.H. Smart control of monodisperse Stöber silica particles: Effect of reactant addition rate on growth process. Langmuir 2005, 21, 1516–1523. [Google Scholar] [CrossRef]
  27. Drits, V.A.; Eberl, D.D.; Srodon, J. XRD measurement of mean thickness, thickness distribution and strain for illite and illite-smectite crystallites by the Bertaut-Warren-Averbach technique. Clays Clay Miner. 1998, 46, 38–50. [Google Scholar] [CrossRef]
  28. Sodium Nitrate. Available online: https://en.wikipedia.org/wiki/Sodium_nitrate (accessed on 19 April 2020).
  29. Khan, S.; Choi, H.; Lee, S.Y.; Lee, K.-R.; Ntwaeaborwa, O.M.; Kim, S.; Cho, S.-H. Unexpected roles of interstitially doped lithium in blue and green light emitting Y2O3:Bi3+: A combined experimental and computational study. Inorg. Chem. 2017, 56, 12139–12147. [Google Scholar] [CrossRef]
  30. Venkatesh, R.; Dhananjaya, N.; Sateesh, M.K.; Shabaaz Begum, J.P.; Yashodha, S.R.; Nagabhushana, H.; Shivakumara, C. Effect of Li, Na, K cations on photoluminescence of GdAlO3:Eu3+ nanophosphor and study of Li cation on its antimicrobial activity. J. Alloys. Compd. 2018, 732, 725–739. [Google Scholar] [CrossRef]
  31. Dhananjaya, N.; Nagabhushana, H.; Nagabhushana, B.M.; Rudraswamy, B.; Shivakumara, C.; Narahari, K.; Chakradhar, R.P.S. Enhanced photoluminescence of Gd2O3:Eu3+ nanophosphors with alkali (M = Li+, Na+, K+) metal ion co-doping. Spectrochim. Acta A 2012, 86, 8–14. [Google Scholar] [CrossRef]
  32. Pandey, A.; Rai, V.K.; Kumar, K. Influence of Li+ codoping on visible emission of Y2O3:Tb3+, Yb3+ phosphor. Spectrochim. Acta A 2014, 118, 619–623. [Google Scholar] [CrossRef] [PubMed]
  33. Talreja, K.; Chauhan, I.; Ghosh, A.; Majumdar, A.; Butola, B.S. Functionalization of silica particles to tune the impact resistance of shear thickening fluid treated aramid fabrics. RSC. Adv. 2017, 7, 49787–49794. [Google Scholar] [CrossRef] [Green Version]
  34. Kruk, A.; Wajler, A.; Bobruk, M.; Adamczyk, A.; Mrozek, M.; Gawlik, W.; Brylewski, T. Preparation of yttria powders co-doped with Nd3+, and La3+ using EDTA gel processes for application in transparent ceramics. J. Eur. Ceram. Soc. 2017, 37, 4129–4140. [Google Scholar] [CrossRef]
  35. Palos-Barba, V.; Moreno-Martell, A.; Hernandez-Morales, V.; Peza-Ledesma, C.L.; Rivera-Munoz, E.M.; Nava, R.; Pawelec, B. SBA-16 Cage-Like Porous Material Modified with APTES as an Adsorbent for Pb2+ Ions Removal from Aqueous Solution. Materials 2020, 13, 927. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Zhang, W. Nanoparticle Aggregation: Principles and Modeling. Adv. Exp. Med. Biol. 2014, 811, 19–43. [Google Scholar] [PubMed]

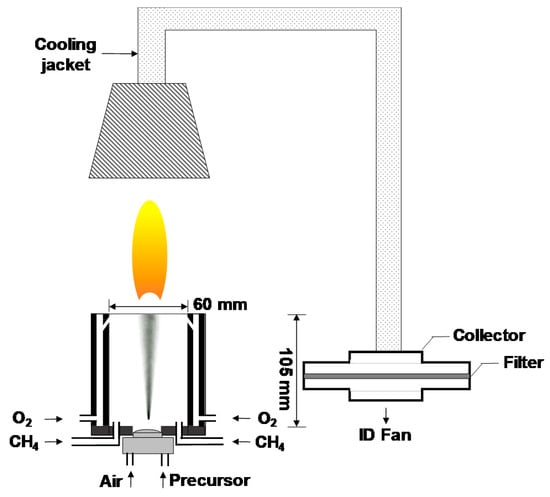

Figure 1. Experimental setup for flame spray pyrolysis (FSP).
Figure 1. Experimental setup for flame spray pyrolysis (FSP).
Materials 13 02987 g001

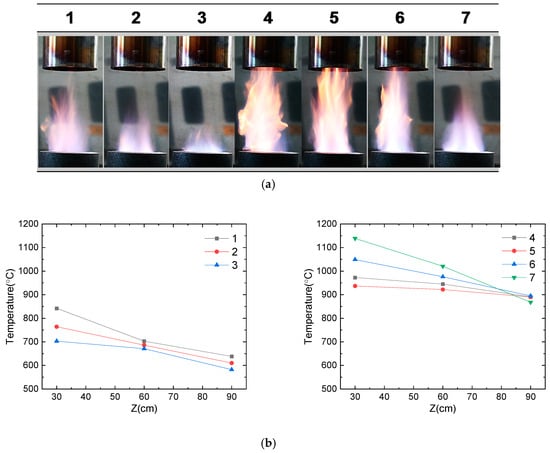

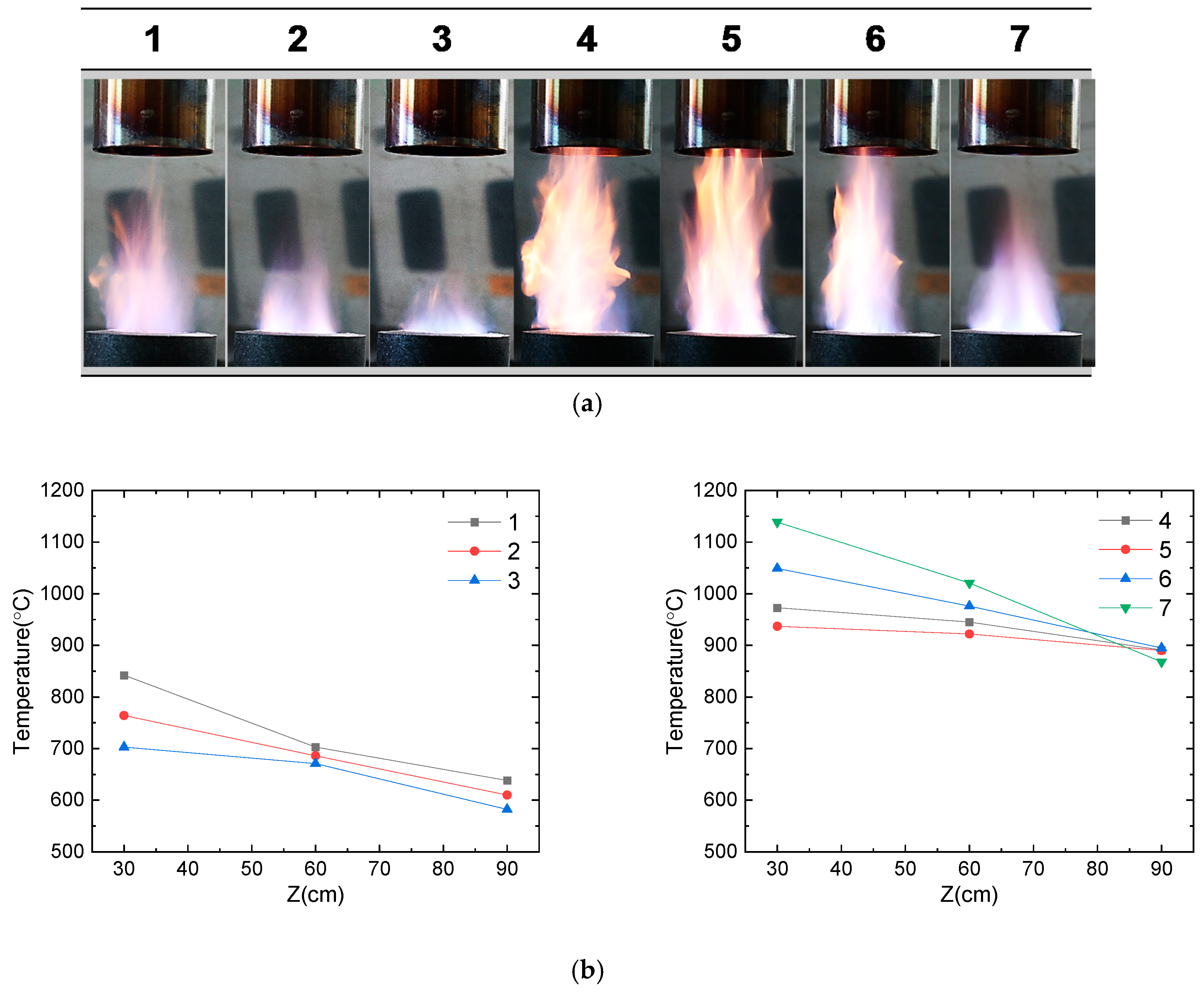

Figure 2. Flame characteristics with different ratios of fuel/oxidant gases (CH4/O2): (a) real-time images of flames and (b) temperature profile of each flame (#1–7) as a function of lengths (cm) from the flame burner.
Figure 2. Flame characteristics with different ratios of fuel/oxidant gases (CH4/O2): (a) real-time images of flames and (b) temperature profile of each flame (#1–7) as a function of lengths (cm) from the flame burner.
Materials 13 02987 g002

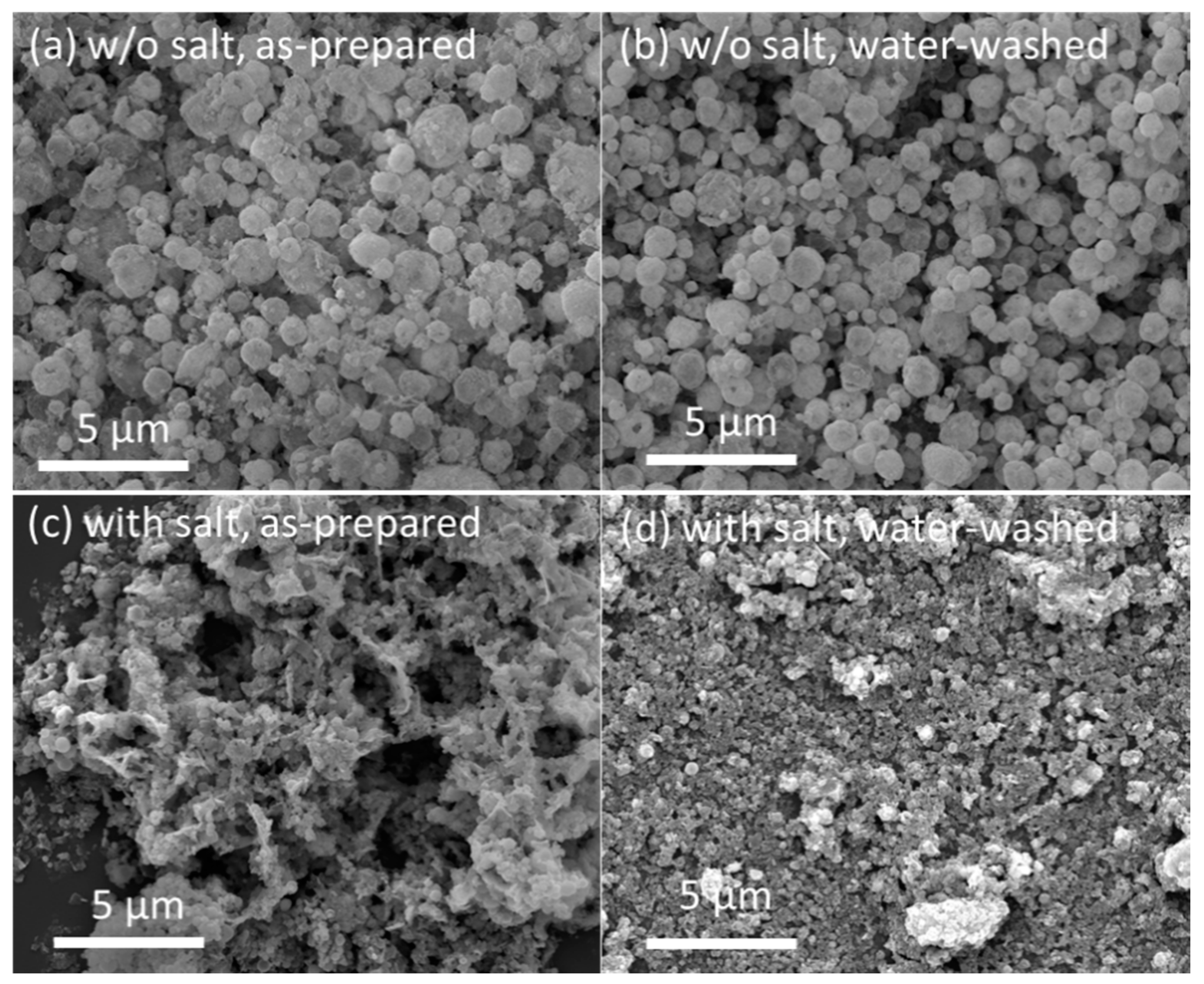

Figure 3. SEM images of: (a) as-prepared FSP product without sodium salts; (b) FSP product without sodium salts after washing with water; (c) as-prepared FSP product with sodium salts; and (d) FSP product with sodium salts after washing with water.
Figure 3. SEM images of: (a) as-prepared FSP product without sodium salts; (b) FSP product without sodium salts after washing with water; (c) as-prepared FSP product with sodium salts; and (d) FSP product with sodium salts after washing with water.
Materials 13 02987 g003

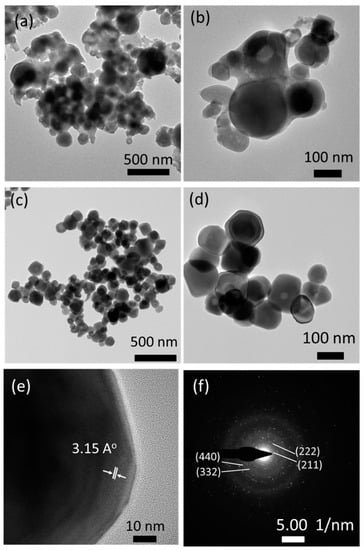

Figure 4. TEM images of FSP products prepared with sodium salts: (a,b) as-prepared; (c,d) after washing with water; (e) high resolution image; and (f) selected area electron diffraction (SAED) pattern.
Figure 4. TEM images of FSP products prepared with sodium salts: (a,b) as-prepared; (c,d) after washing with water; (e) high resolution image; and (f) selected area electron diffraction (SAED) pattern.
Materials 13 02987 g004

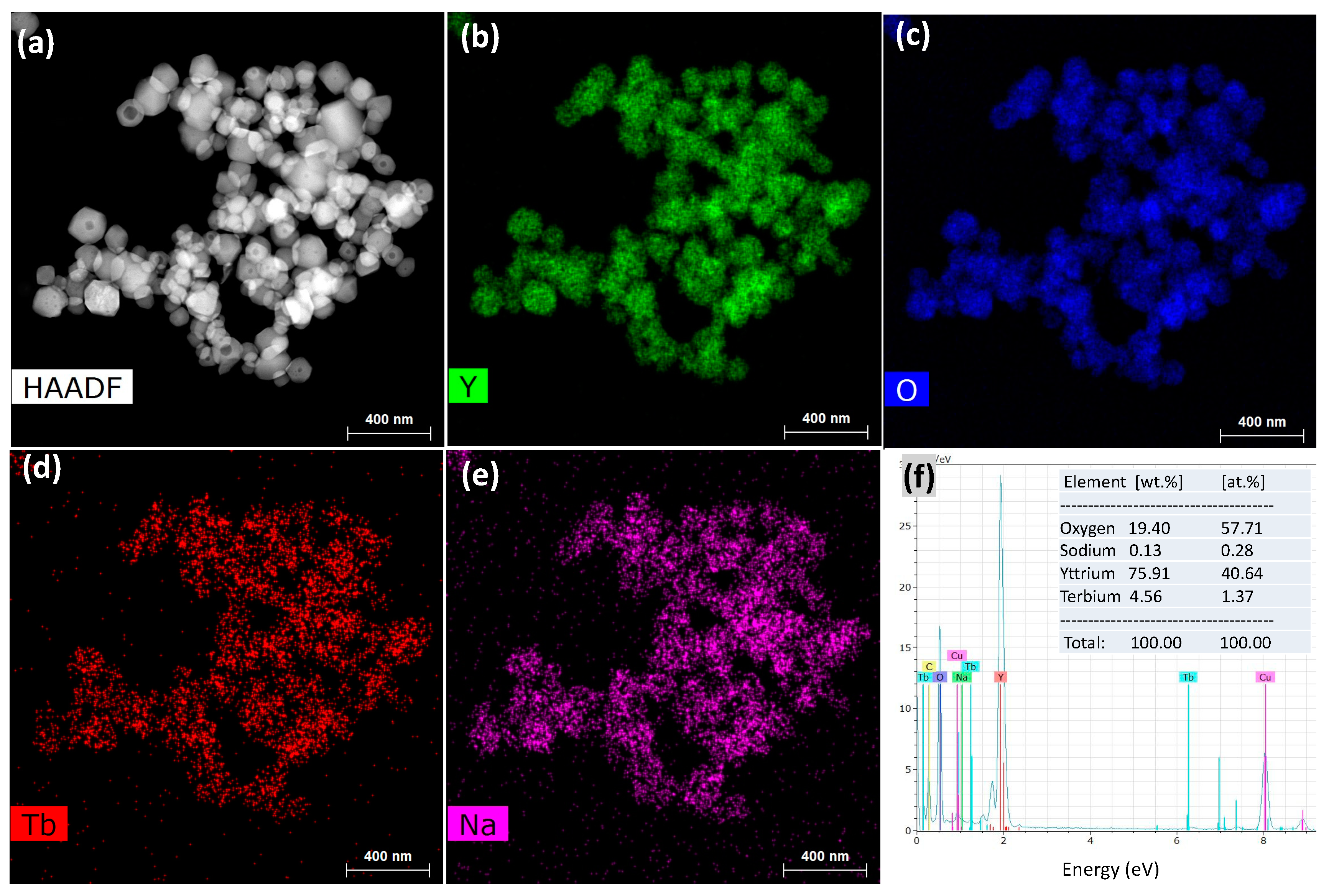

Figure 5. (a) High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image; (be) elemental mapping images of Y, O, Tb, and Na; and (f) energy-dispersive X-ray spectroscopy (EDS) spectrum and elemental compositions of FSP product prepared with sodium salts and water washing.
Figure 5. (a) High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image; (be) elemental mapping images of Y, O, Tb, and Na; and (f) energy-dispersive X-ray spectroscopy (EDS) spectrum and elemental compositions of FSP product prepared with sodium salts and water washing.
Materials 13 02987 g005

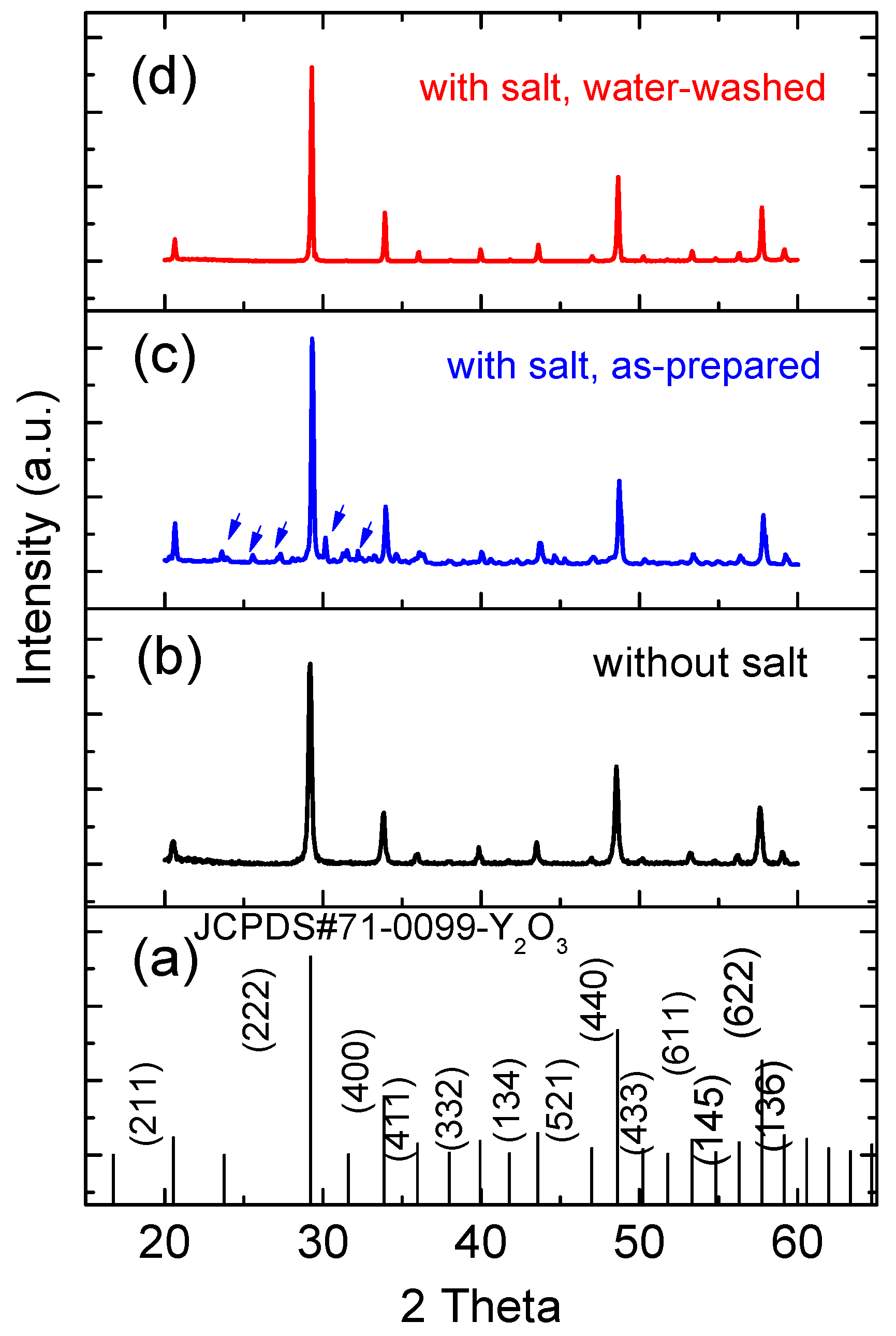

Figure 6. (a) JCPDS #71-0099 reference pattern of cubic phase Y2O3; XRD patterns of (b) as-prepared FSP product without sodium salts; (c) as-prepared FSP product with sodium salts; and (d) water-washed FSP product with sodium salts.
Figure 6. (a) JCPDS #71-0099 reference pattern of cubic phase Y2O3; XRD patterns of (b) as-prepared FSP product without sodium salts; (c) as-prepared FSP product with sodium salts; and (d) water-washed FSP product with sodium salts.
Materials 13 02987 g006

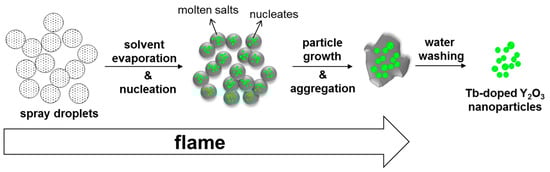

Figure 7. Schematic representation of Tb–doped Y2O3 nanoparticle formation using salt-assisted FSP and subsequent water washing.
Figure 7. Schematic representation of Tb–doped Y2O3 nanoparticle formation using salt-assisted FSP and subsequent water washing.
Materials 13 02987 g007

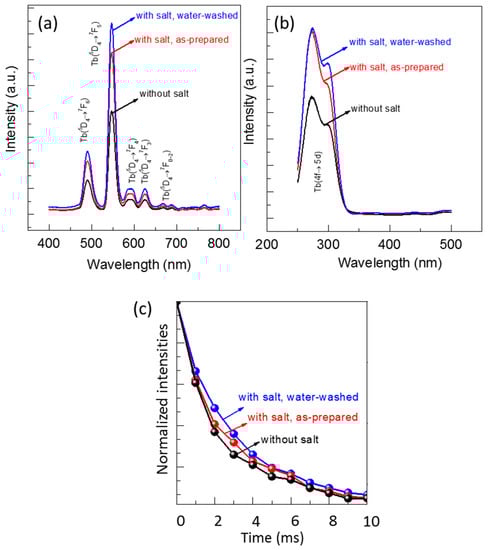

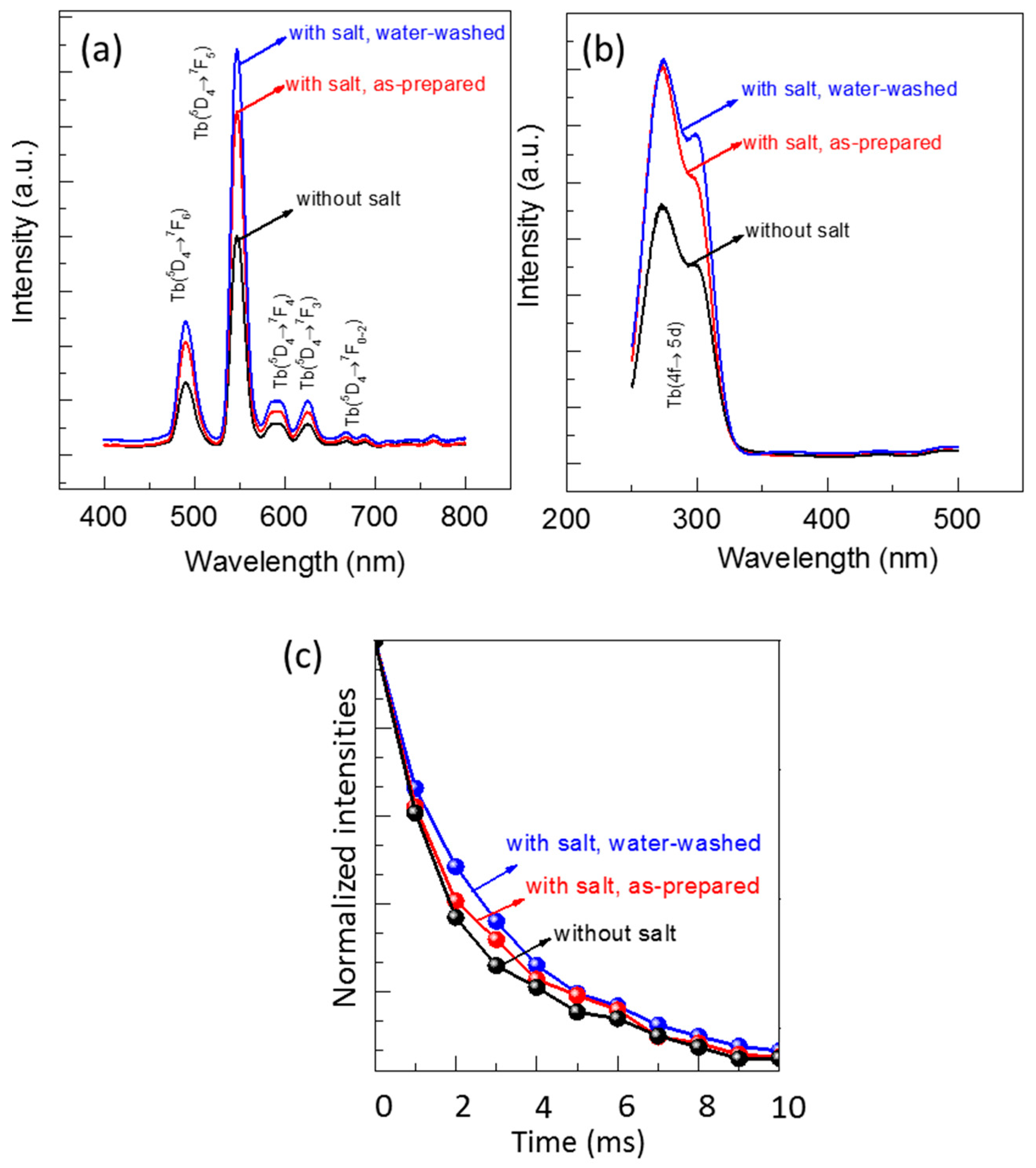

Figure 8. (a) Photoluminescence (PL) spectra for excitation at 365 nm; (b) photoluminescence excitation (PLE) spectra for emission at 547 nm; and (c) decay curves of emission at 547 nm and excitation at 300 nm.
Figure 8. (a) Photoluminescence (PL) spectra for excitation at 365 nm; (b) photoluminescence excitation (PLE) spectra for emission at 547 nm; and (c) decay curves of emission at 547 nm and excitation at 300 nm.
Materials 13 02987 g008

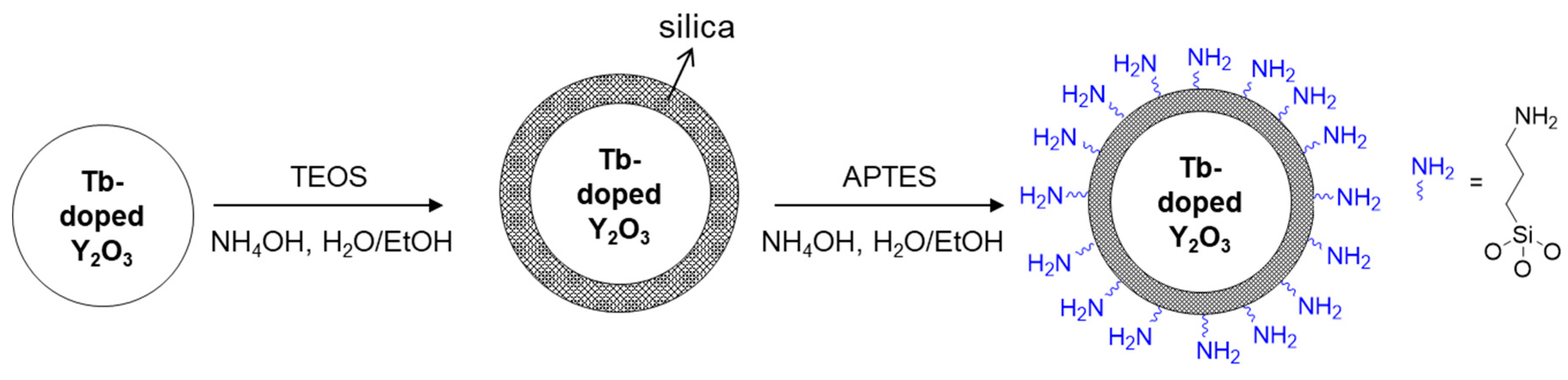

Figure 9. Schematics of silica shell formation and functionalization with aminopropyl groups on the surface of Y2O3:Tb3+ nanoparticles produced by salt-assisted FSP.
Figure 9. Schematics of silica shell formation and functionalization with aminopropyl groups on the surface of Y2O3:Tb3+ nanoparticles produced by salt-assisted FSP.
Materials 13 02987 g009

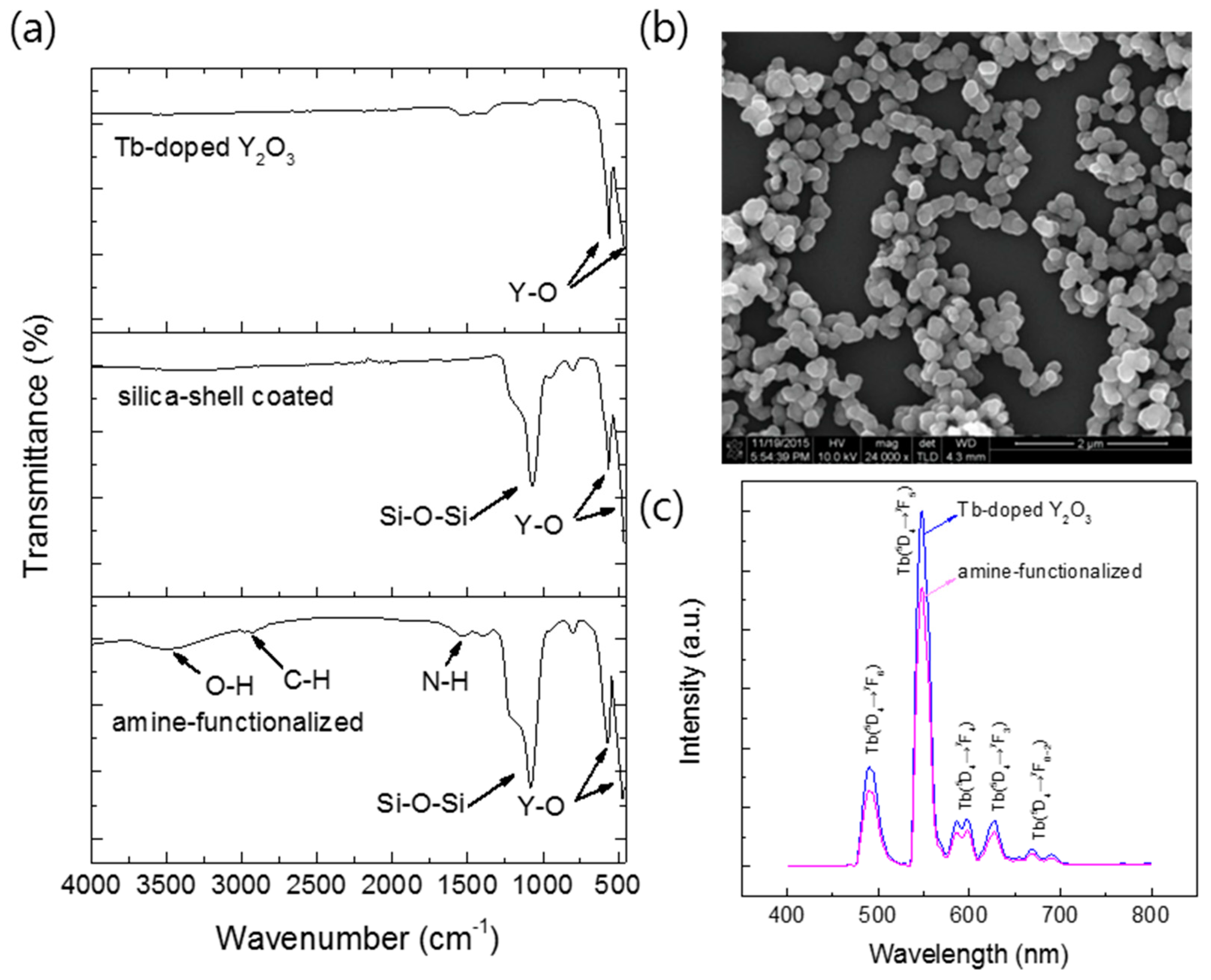

Figure 10. (a) Fourier transform infrared (FT-IR) transmittance spectra of Y2O3:Tb3+ nanoparticles prepared with salt and water-washing; Y2O3:Tb3+ nanoparticles coated with silica; Y2O3:Tb3+@silica particles functionalized with aminopropyl groups (from top to bottom); (b) SEM image of Y2O3:Tb3+@silica particles functionalized with aminopropyl groups; and (c) PL spectra for excitation at 365 nm of Y2O3:Tb3+ nanoparticles and Y2O3:Tb3+@silica particles functionalized with aminopropyl groups.
Figure 10. (a) Fourier transform infrared (FT-IR) transmittance spectra of Y2O3:Tb3+ nanoparticles prepared with salt and water-washing; Y2O3:Tb3+ nanoparticles coated with silica; Y2O3:Tb3+@silica particles functionalized with aminopropyl groups (from top to bottom); (b) SEM image of Y2O3:Tb3+@silica particles functionalized with aminopropyl groups; and (c) PL spectra for excitation at 365 nm of Y2O3:Tb3+ nanoparticles and Y2O3:Tb3+@silica particles functionalized with aminopropyl groups.
Materials 13 02987 g010

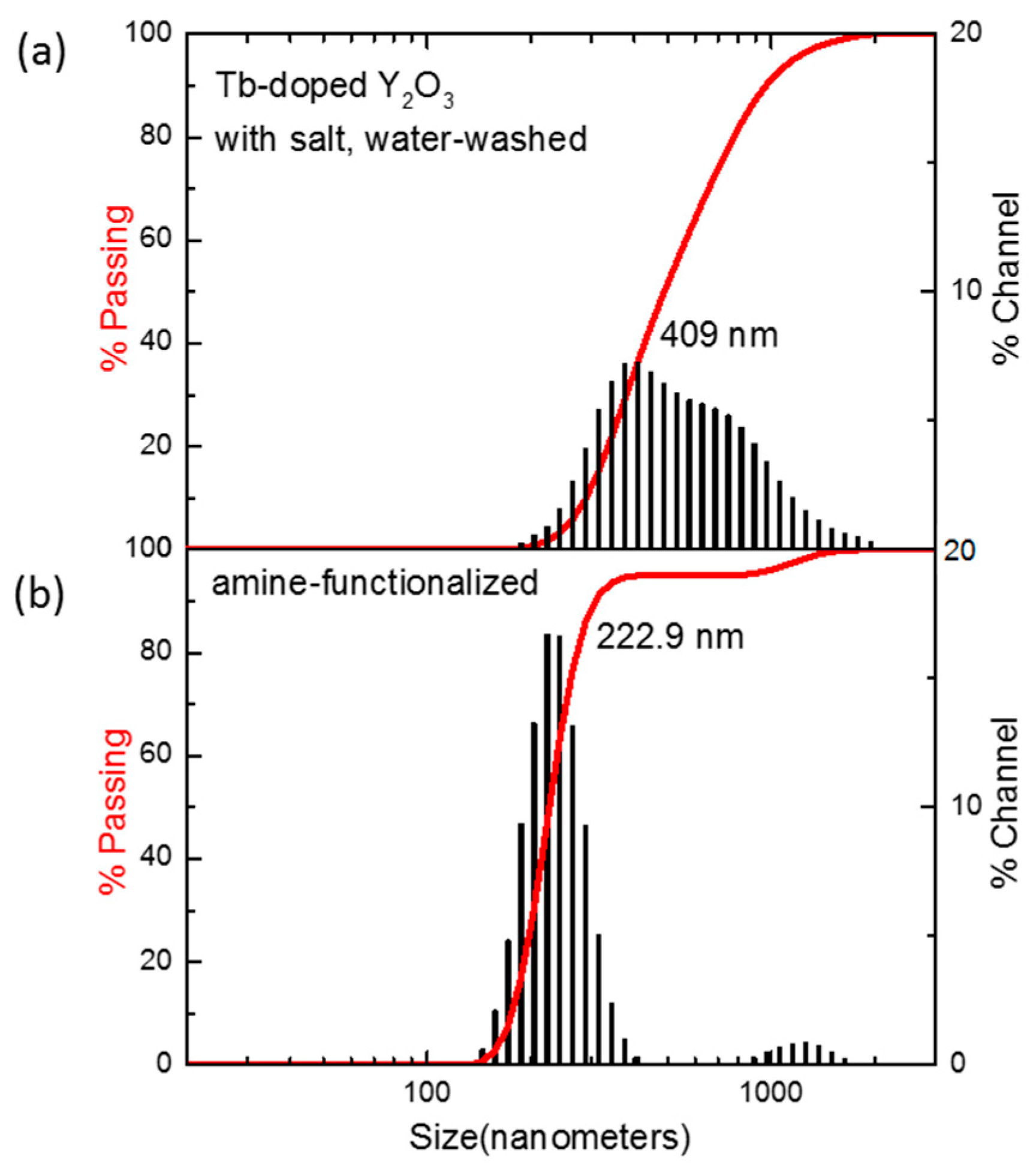

Figure 11. Particle size distributions of (a) Y2O3:Tb3+ nanoparticles prepared with salt and water washing; (b) Y2O3:Tb3+@silica particles functionalized with aminopropyl groups.
Figure 11. Particle size distributions of (a) Y2O3:Tb3+ nanoparticles prepared with salt and water washing; (b) Y2O3:Tb3+@silica particles functionalized with aminopropyl groups.
Materials 13 02987 g011
Table 1. Gas compositions of different flame conditions.
Table 1. Gas compositions of different flame conditions.
No. run#1#2#3#4#5#6#7
CH4 (L/min)6669999
O2 (L/min)0612061218
Air (L/min)6666666
Max. Temperature (°C)85077570097594010501150
Table 2. Elemental compositions of Y2O3:Tb3+@silica particles functionalized with aminopropyl groups by X-ray fluorescence (XRF) and CHNS analysis.
Table 2. Elemental compositions of Y2O3:Tb3+@silica particles functionalized with aminopropyl groups by X-ray fluorescence (XRF) and CHNS analysis.
ElementYTbNaSiNC
at %61.81.00.429.91.15.8
