The resonant excitation of the surface plasmon–polariton waves by the prism structure, where a thin silver film was coated on the prism, was studied. New analytical relations between the angular and spectral sensitivities on the change of the medium refractive index, adjacent to the metal film, were obtained. In addition, the analytical relation between the full width at the half maximum of the spectral and angular resonance dependencies were found.

1. Introduction

Biochemical reactions occurring in liquid solutions affect the refractive index of the solution itself. Knowing changes in the refractive index make it possible to determine the course of reactions and the presence of an active biological substance in the solution [1,2]. It is important in pharmaceuticals, biology and other applications in the field of biochemistry. The prism structure, consisting of a glass prism covered by a gold or silver thin film, has become of considerable use for various measurements [3,4]. In order to achieve the total internal reflection, the refractive index of the prism material must be higher than the refractive index of the researched liquid.
Therefore, prism structures of this type have been intensively studied and improved. It is proposed to coat a thin dielectric perforated layer on the metal film [5]. Thus, both the surface plasmon–polariton waves and the waveguide modes could be excited under TE (Transverse Electric) and TM (Transverse Magnetic) polarizations. The sensitivity increased due to the perforation of the dielectric waveguide layer. A thorough analysis of the structure with a dielectric layer, but without perforation, was performed in [6]. It was shown that the sensitivity of such structure is lower than the sensitivity of the classical one. In addition, it is found that the sensitivity increases when refractive index of the prism material decreases. In [7], a comparison of the sensitivity between the phase and intensity detection in the surface plasmon resonance were studied. It is proposed to arranged a thin dielectric layer with a refractive index lower than the refractive index of the prism material between the prism and the metal film [8]. In this case, the spectral and angular dependence of the reflection coefficient has two resonances, narrow and wide. The narrow resonance band is observed at a shorter wavelength. However, such an innovation did not increase the sensitivity of the sensor. It should be noted, that it is possible to increase the accuracy of detecting the values of the angles or wavelengths at which the reflectance minima are observed. In [9], it is proposed to cover a gold film with the gold grating with a period several times smaller than the wavelength. This contributed to the enhancement in the Q factor which was found to be 3–4 times higher as compared to the conventional Kretschmann configuration.
In [10], the main characteristics of the sensors (detection speed, sensitivity, portability), based on the Otto–Kretchman optical configuration, were presented. Extensive reviews of optical sensors based on resonance in dielectric gratings and on plasmon effects have been published in [11,12]. The small series of prism-based sensors, for quite a long time, were produced [13].
Numerical calculations have shown that the resonant excitation of the surface plasmon–polariton wave occurs in the prism-based structure at carefully selected parameters, namely the refractive index of the prism material, the angle of the beam incidence, wavelength, thickness of the metal film and the refractive index of the researched medium. As a result, the reflection coefficient from the metal film can be zero. When the refractive index of the researched medium changes, the minimum of the reflection coefficient dependence shifts at the constant beam propagation angle in the prism, or the resonant incidence angle changes at the constant wavelength.
The thickness of the metal film and the dielectric constant of the metal film are particularly critical. The measured values of the metals’ dielectric constant are close, but somewhat different in the experimental studies of different authors [14,15,16]. Moreover, the dielectric constant of the metal film depends on its thickness and coating technology [17]. This all leads to a difference between the results of numerical and experimental studies. However, theoretical studies and numerical analysis make it possible to understand the physical processes of plasmon–polariton resonance in the prism structure. In addition, it allows to relate the properties of the dielectric–metal film–dielectric waveguide with the sensitivity (spectral and angular) of the prism structure on the change in the researched medium refractive index.
Therefore, our research aimed to improve the understanding of processes in the prism structures in which the surface plasmon–polariton resonance occurs. In addition, the analytical Equations relating the sensor sensitivity with the waveguide properties of the dielectric–thin metal film–dielectric waveguide were founded. This made it possible to determine the reflection coefficient from the metal film depending on the wavelength, angle of incidence on the metal film, its thickness, and other parameters of the prism structure. In our opinion, these analytical expressions that have been obtained here for the first time, will be useful for further studies in this area.

2. Sensitivity of Prism Structure and its Relation with Properties of the Dielectric–Metal Film–Dielectric Waveguide

A typical prism structure in which a thin gold or silver metal film is deposited based on a triangular prism is shown in Figure 1. The metal film adjoins the researched medium with the refractive index n a = ε a . Plane wave propagates into the glass prism, and falls on the metal film at an angle θ and is reflected at the same angle. The reflection coefficient R can be zero when the surface plasmon–polariton resonance occurs in the structure.
Surface plasmon–polariton wave excited under resonance can be described by as follows:
E ( x , z ) = E 0 ( x ) exp ( i β z )
One of the two propagation constants β under resonance is real according to [9,18]. Thus, the following relation is true:
2 π n λ sin θ = β ( λ , n a )
where λ is the wavelength of incident radiation, and n is the prism material refractive index.
Equality in Equation (2) is strong at the resonance. Therefore, knowing the propagation constant β , one can determine the resonant incidence angle θ of the plane wave.
Propagation constant β can be determined from the following equation [19]:
F ( x , y ) = exp ( 2 k m d ) k m ε m + k ε k m ε m k ε × k m ε m + k a ε a k m ε m k a ε a = 0
where x and y are real and imaginary parts of the propagation constant, respectively, that is β = x + i y , k m 2 = β 2 k 0 2 ε m , k 2 = β 2 k 0 2 ε , k a 2 = β 2 k 0 2 ε a , k 0 2 = ( 2 π λ ) 2 , d is metal layer thickness.
Function F ( x , y ) is generally complex, and will be zero if the real and complex parts of this function are also zero. Therefore, the intersection of the curves corresponding to the following Equations:
Re ( F ( x , y ) ) = 0 ,   Im ( F ( x , y ) ) = 0
will determine the required propagation constants. Figure 2 shows the corresponding graphical dependencies.
These dependencies are shown in the first quadrant, when the surface plasmon–polariton wave propagates in the positive direction, as shown in Figure 1. In Equations (3) and (4), we exclusively have β 2 . If β is a solution of these Equations, and due to the fact that β 2   = ( β ) 2 , then β will also be the solution of the system of Equations (4). This implies a simple physical meaning: the opposite signs before β correspond to the opposite propagation of the surface plasmon–polariton wave on the metal film. Notice that these Equations Re(F(x, y)) = 0, Im(F(x, y)) = 0 are not explicitly expressed functions, i.e., as we have no explicit y = f(x). The graphs of these functions are built using standard software, such as MAPLE, using a single operator. At the intersection of these two functions Re(F(x, y)) = 0, Im(F(x, y)) = 0 (Figure 2) we have the required values of Reβ and Imβ.
Thus, the solution of the system of Equation (4) will be in the third quadrant and the trend of the curves Re ( F ( x , y ) ) = 0 and Im ( F ( x , y ) ) = 0 will be symmetric with respect to the origin of the coordinates in the first and third quadrant. The solutions in the second and fourth quadrants will also be symmetrical with respect to the origin of the coordinates. However, they will not have physical meaning, since they provide the amplification of the surface plasmon–polariton wave during propagation. For instance, in the fourth quadrant, Re(β) > 0, Im(β) < 0, therefore, the field strength will increase as the wave propagates in the positive direction of the z axis according to Equation (1). Therefore, only Re ( F ( x , y ) ) = 0 , and Im ( F ( x , y ) ) = 0 are shown for the first quadrant in Figure 2. The trend of the curves Re ( F ( x , y ) ) = 0 and Im ( F ( x , y ) ) = 0 is not symmetrical with respect to the axes Re ( β ) and Im ( β ) .
Thus, it can be seen that there are the two propagation constants. One of them is real and the other is complex. The real propagation constant corresponds to the resonant excitation and the propagation of the surface plasmon–polariton wave. This propagation constant can be calculated from the left side of Equation (2) and it is equal to 7.945684 μ m 1 . Moreover, it is also equal to the average coordinates of the intersection of the solid and the dotted curves with the axis Re ( β ) , which follows from the insertion in Figure 2. In this insertion, the trend of the curves Im ( F ( x , y ) ) = 0 and Re ( F ( x , y ) ) = 0 is shown within the blue circle in Figure 2, which is shown on an enlarged scale.
Therefore, in this case, the solid curve Re ( F ( x , y ) ) = 0 and the dotted curve Im ( F ( x , y ) ) = 0 do not intersect at one point with the abscissa. It can be explained by the fact that although the reflection coefficient is close to zero, but not equal. It is possible to specify the parameters of the metal film, the wavelength and the incidence angle at which the reflection coefficient was significantly smaller than in the example described above.
The reflection coefficient is equal to R = 2.6 × 10 14 at the following parameters: λ = 1.0645076   μ m , θ = 1.04018937 rad, d = 52.7 nm. Figure 3 shows the graphical dependencies Re ( F ( x , y ) ) = 0 (solid curve) and Im ( F ( x , y ) ) = 0 (dotted curve). It can be seen that these two curves intersect at one point on the abscissa axis. Thus, the propagation constant will be β = 7.94172490   μ m 1 . The propagation constant calculated by the left side of Equation (2) is equal to β = 2 π n λ sin θ = 7.94172494   μ m 1 . That is, Equation (2) is valid, since there is a good match of the calculated propagation constant by different methods.
Relations similar to Equation (2) exist under the guided-mode resonance in the dielectric gratings [21], as well as in the system of dielectric or metal grating on the metal substrate [12] under the surface plasmon–polariton resonance. However, in this case, these relations are approximate because the gratings violate the layers’ homogeneity. It should be noted, that these relations will be more accurate as the modulation coefficient of the grating dielectric constant is smaller, as shown by numerical experiments in [21].
The coefficient of the reflection of such structure was calculated by the matrix method [22]. In accordance with this method, the reflection coefficient in amplitude is determined as follows:
r ( d , θ , λ ) = η E 0 H 0 η E 0 + H 0
where η = n cos θ is the effective refractive index of the prism material for TM polarization waves, E 0 and H 0 are the amplitudes of the electric and magnetic field strengths in the prism, respectively.
Thus, the reflection coefficient in intensity can be written in the following form:
R ( d , θ , λ ) = | r ( d , θ , λ ) | 2
In order to calculate r ( d , θ , λ ) , it is needed to know the numerator and denominator of Equation (5), which are respectively equal to:
η E 0 H 0 = ( i n a sin ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) 1 n 2 sin ( θ ) 2 / n m 2 1 n 2 sin ( θ ) 2 / n a 2 ) n m + cos ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) ) n cos θ n a cos ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) 1 n 2 sin ( θ ) 2 / n a 2 + i sin ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) n m 1 n 2 sin ( θ ) 2 / n m 2 , η E 0 + H 0 = ( i n a sin ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) 1 n 2 sin ( θ ) 2 / n m 2 1 n 2 sin ( θ ) 2 / n a 2 ) n m + cos ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) ) n cos θ + n a cos ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) 1 n 2 sin ( θ ) 2 / n a 2 i sin ( 2 π n m d 1 n 2 sin ( θ ) 2 / n m 2 / λ ) n m 1 n 2 sin ( θ ) 2 / n m 2
It can be seen that the numerator and denominator have opposite signs in front of the third and fourth terms.
The value of the resonant wavelength λ and the resonant incidence angle θ of the beam on the grating at other given parameters of the prism structure can be determined from the condition that the amplitude reflection coefficient is zero r ( λ ,   θ ) = 0 or the numerator of Equation (5) must also be zero. The intersection of the curves Re ( r ( λ ,   θ ) ) = 0 (solid curve) and Im ( r ( λ ,   θ ) ) = 0 (dotted curve) in Figure 4 defines the values λ and θ at which the amplitude of the reflection coefficient is zero. The intersection of these curves corresponds to the values λ = 1.0645076   μ m , θ = 1.04018937 rad. It can be seen that the solid and dotted curves (almost straight lines) intersect at a very acute angle. This means that with a slight change in some parameter of the structure, the resonance will not brake and the reflection coefficient will be close to zero.
Equation (2) is accurate under resonance. It can be seen that the left side of this Equation in the measurement process can depend on the angle θ , and the right part depends on the wavelength λ and the researched medium refractive index n a . On the basis of this Equation (2) it is possible to establish a relation between the parameters of the waveguide, which are present in the right-hand side of the Equation, and the characteristics of the sensor as a whole.
Let the angle of incidence be fixed, and the resonant wavelength will change by d λ changing n a by d n a . Accordingly, the change of the right and left parts of Equation (2) can be written as follows:
2 π n λ 2 sin θ   d λ = β n a d n a + β λ d λ
Let us introduce the following notation S n ( β ) = β n a , S λ ( β ) = β λ . From Equation (5) after simple algebraic transformations, taking into account Equation (2), one can find the spectral sensitivity as the ratio of the resonant wavelength change and the change of the researched medium refractive index, as follows::
S λ = d λ d n a = S n ( β ) λ S λ ( β ) λ + β
The resonant angle θ will change at the fixed wavelength when the refractive index of the researched medium changes. On the basis of Equation (2) the following Equation was obtained:
2 π n λ cos θ   d θ = β n a d n a
From Equation (8) it is possible to find the angular sensitivity, as the ratio of the resonant angle change and the change in the researched medium refractive index, as follows:
S θ = d θ d n a = S n ( β ) λ 2 π n cos θ
On the basis of Equation (2), with a constant refractive index n a , it can be found the change of the resonant wavelength by δ λ as the corresponding incidence angle changes by δ θ using the following Equation:
2 π n λ 2 sin θ   δ λ + 2 π n λ cos θ   δ θ = β λ δ λ
In fact, based on Equation (10), it is possible to calculate how full the width at the half maximum of the spectral and angular resonance dependencies are, related in the next form:
δ λ 0.5 = 2 π n cos θ S λ ( β ) λ + β δ θ 0.5
Let us divide the right part of Equation (7) by the right part of Equation (11), and as a result will be obtained:
S λ δ λ 0.5 = S n ( β ) λ S λ ( β ) λ + β 2 π n cos θ S λ ( β ) λ + β δ θ 0.5 = S n ( β ) λ 2 π n cos θ δ θ 0.5 = S θ δ θ 0.5
The last Equation is crucial for the sensors, since it determines the sensor suitability for measuring the change in the refractive index of the researched medium. The higher the value, the more accurate the refractive index can be measured. It is intuitively felt that Equation (12) is valid for the sensors based on resonance phenomena. However, if δ λ 0.5 or δ θ 0 0.5 are too narrow, then it will be difficult to measure such narrow resonances.
Using Equation (3), the propagation constants β ( λ , n a ) , and on their basis S λ ( β ) and S n ( β ) can be determined using the following Equations:
S λ ( β ) = β ( λ r e z + Δ λ , n a ) β ( λ r e z Δ λ , n a ) 2 Δ λ
S n ( β ) = β ( λ r e z , n a + Δ n a ) β ( λ r e z , n a Δ n a ) 2 Δ n a
where Δ λ = 0.0001   μ m , Δ n a = 0.0001 at the conditon that d = 52.7 nm, n = 1.56 , n a = 1.3242 , λ = 1.0645076   μ m , θ = 1.04018937 rad, S n ( β ) = 6.18685   μ m 1 , S λ ( β ) = 7.7219   μ m 2 .
It is necessary to have δ λ 0.5 or δ θ 0 0.5 to fully describe the prism structure as a sensor. These parameters can be determined from the spectral or angular dependence of the reflection coefficient. The spectral dependence of the reflection coefficient is shown in Figure 5.
The angular dependence of the reflection coefficient at a constant resonant wavelength is shown in Figure 6.
In order to verify the correctness of Equations (7), (9), (11) and (12), it is necessary to calculate S λ . It should be calculated on the base of the resonant wavelength change at the given angle of incidence of the beam, with a slight change in the researched medium refractive index. It can be done using the following equation:
S λ = λ r e z ( n a + Δ n a ) λ r e z ( n a Δ n a ) 2 Δ n a
Sensitivity S θ at the given resonance wavelength can be determined as follows:
S θ = θ r e z ( n a + Δ n a ) θ r e z ( n a Δ n a ) 2 Δ n a
In both cases, at calculating sensitivities S λ and S θ the Δ n a = 0.0001 . The sensitivities are S λ = 24.08 μ m and S θ = 1.328 rad.
The summarized results of the calculation are presented in Table 1. The numbers in brackets indicate the Equations used during the calculations, or on the basis of which figure, the full width at the half maximum of the spectral and angular resonance dependencies are determined.
Comparisons of the cells in rows 1 and 2 contained in columns 4, 5 and 6 show no significant difference between them. That is the relative difference that is not more than 1.6%. If these cells are rounded to two significant digits, then the difference between the data of the corresponding cells will be zero. It can be seen that the cells in columns 7 and 8 are almost the same. In general, the data in Table 1 confirm the correctness of the analytical relations that relate the properties of the dielectric–metal thin film–dielectric waveguide with the parameters of the prism structure as a sensor.

3. Conclusions

Using strong equality under resonance according to Equation (2), the simple analytical Equations that relate the waveguide parameters S n ( β ) and S λ ( β ) with the characteristics of the prism structure as a sensor, in particular: δ θ 0.5 , δ λ 0.5 , S θ ,     S λ , S θ δ θ 0.5 , S λ δ λ 0.5 , were obtained. It is shown that the full width at the half maximum of the spectral and angular resonance dependencies are related by Equation (11). In addition, Equation (12) was obtained. It is important for the sensors since it determines the applicability of the sensor to measure the change in the researched medium refractive index. It is intuitively felt that this ratio is characteristic of other types of sensors, the work of which is based on resonance phenomena. For instance, the surface plasmon–polariton resonance in metal gratings or guided-mode resonance in the dielectric grating. The obtained analytical Equations are confirmed by the numerical calculations, based on which the angular and spectral sensitivities, as well as the widths of the resonance curves, were determined. From the obtained analytical Equation (8), it is clear that the angular sensitivity increases when the wavelength and incidence angle of the waves on a metal film increase and when the refractive index of the prism material decreases. Spectral sensitivity increases when wavelength increases.
An analytical expression is obtained that determines the reflection coefficient from the metal film depending on the wavelength, angle of incidence, its thickness and other parameters of the prism structure.
The strong equality of the right and left sides of Equation (2) under resonance is explained by the fact that the planarity of the boundaries between the metal film and the dielectrics in the prism structure is not disturbed. Similar Equations are approximate for grating structures, where the resonance of surface plasmon–polariton or guided-mode resonance occurs. It is due the fact that the relief grating disturbs the planarity of boundaries between the different media or disturbs the homogeneity of the layers by a volume dielectric grating. The angular and spectral sensitivity to the change in the refractive index of the test medium can be calculated, based on the sensitivity of the propagation constant β of the waveguide to the change in the wavelength and to the change in the refractive index.

Author Contributions

S.B. planned the work and has been involved in writing and drafting the manuscript. V.F. obtained the analytical Equations relating the sensor sensitivity with the waveguide properties of the dielectric–thin metal film–dielectric waveguide. A.B. and I.Y. performed the numerical calculations of the spectral and angular reflection coefficient dependencies and drafted, wrote, and arranged the article. Y.B. critically revised manuscript and added important intellectual content. All authors read and approved the final manuscript.

Funding

This work was supported, in the framework of the NATO Science for Peace and Security Programme, by the Multi-years Project “Nanocomposite Based Photonic Crystal Sensors of Biological and Chemical Agents“—grant SPS G5351, as well as partly for state budget funding in the framework of research work DB/MEV (No 0118U000267).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Homola, J. Surface plasmon resonance sensors for detection of chemical and biological species. Chem. Rev. 2008, 108, 462–493. [Google Scholar] [CrossRef] [PubMed]
  2. Puiu, M.; Bala, C. SPR and SPR imaging: Recent trends in developing nanodevices for detection and real-time monitoring of biomolecular events. Sensors 2016, 16, 870. [Google Scholar] [CrossRef] [PubMed]
  3. Kretschmann, E.; Raether, H. Radiative decay of nonradiative surface plasmons excited by light. Z. Nat. A 1968, 23, 2135–2136. [Google Scholar]
  4. Otto, A. Excitation of nonradiative surface plasma waves in silver by the method of frustrated total reflection. Z. Phys. A 1968, 216, 398–410. [Google Scholar] [CrossRef]
  5. Awazu, K.; Rockstuhl, C.; Fujimaki, M.; Fukuda, N.; Tominaga, J.; Komatsubara, T.; Ikeda, T.; Ohki, Y. High sensitivity sensor made of perforated waveguides. Opt. Express 2007, 5, 2592–2597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Fitio, V.; Yaremchuk, I.; Bobitski, Y. Optical excitation of surface plasmon polariton and waveguide modes resonances on prismatic structures. Opt. Appl. 2011, 4, 929–939. [Google Scholar]
  7. Ran, B.; Lipson, S.G. Comparison between sensitive of phase and intensity detection in surface plasmon resonance. Opt. Express 2006, 14, 5641–5650. [Google Scholar] [CrossRef] [PubMed]
  8. Ayushi, P.; Tomar, M.; Gupta, V. Refractive index sensor using long-range surface plasmon resonance with prism coupler. Plasmonics 2019, 14, 375–381. [Google Scholar]
  9. Arora, P.; Talker, E.; Mazurski, N.; Levy, U. Dispersion engineering with plasmonic nano structures for enhanced surface plasmon resonance sensing. Sci. Rep. 2018, 8, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Zeng, Y.; Hu, R.; Wang, L.; Gu, D.; He, J.; Wu, S.Y.; Shao, Y. Recent advances in surface plasmon resonance imaging: Detection speed, sensitivity, and portability. Nanophotonics 2017, 6, 1017–1030. [Google Scholar] [CrossRef]
  11. Quaranta, G.; Basset, G.; Martin, O.J.F.; Gallinet, B. Recent Advances in Resonant Waveguide Gratings. Laser Photonics Rev. 2018, 12, 1800017. [Google Scholar] [CrossRef]
  12. Xu, Y.; Bai, P.; Zhou, X.; Akimov, Y.; Png, C.E.; Ang, L.K.; Knoll, W.; Wu, L. Optical Refractive Index Sensors with Plasmonic and Photonic Structures: Promising and Inconvenient Truth. Adv. Opt. Mater. 2019, 7, 1801433. [Google Scholar] [CrossRef]
  13. Snopok, B.A.; Kostyukevich, K.V.; Lysenko, S.I.; Lytvyn, P.M.; Lytvyn, O.S.; Mamykin, S.V.; Venger, E.F. Optical biosensors based on the plasmon resonance phenomenon: Optimazation of the metal lauer parameters. Semicond. Phys. Quantum Electron. Optoelectron. 2001, 4, 56–69. [Google Scholar] [CrossRef]
  14. McPeak, K.M.; Jayanti, S.V.; Kress, S.J.P.; Meyer, S.; Iotti, S.; Rossinelli, A.; Norris, D.J. Plasmonic films can easily be better: Rules and recipes. ACS Photonics 2015, 2, 326–333. [Google Scholar] [CrossRef] [PubMed]
  15. Babar, S.; Weaver, J.H. Optical constants of Cu, Ag, and Au revisited. Appl. Opt. 2015, 54, 477–481. [Google Scholar] [CrossRef]
  16. Johnson, P.B.; Christy, R.W. Optical Constants of the Noble Metals. Phys. Rev. B 1972, 6, 4370–4379. [Google Scholar] [CrossRef]
  17. Arsenin, A.V.; Stebunov, Y.V.; Fedyanin, D.Y.; Volkov, V.S. Optical constants and structural properties of thin gold films. Opt. Express 2017, 25, 25574–25587. [Google Scholar]
  18. Fitio, V.M.; Laba, H.P.; Bobitski, Y.W. Absorption of Electromagnetic Waves into Periodic Structure and Thin Film of Metal when a Resonance of Plasmons Appears as a Result of Prism Excitation. Telecommun. Radio Eng. 2007, 66, 607–618. [Google Scholar] [CrossRef]
  19. Maier, S.A. Plasmonics: Fundamentals and Applications; Springer Science & Business Media: Berlin, Germany, 2007. [Google Scholar]
  20. Treacy, M.M.J. Dynamical diffraction explanation of the anomalous transmission of light through metallic gratings. Phys. Rev. B 2002, 66, 195105. [Google Scholar] [CrossRef]
  21. Wang, S.S.; Magnusson, R. Theory and applications of guided-mode resonance filters. Appl. Opt. 1993, 32, 2606–2613. [Google Scholar] [CrossRef] [PubMed]
  22. Dobrowolski, J.A. Optical properties of films and coatings. In Handbook of Optics I; McGREAW-HILL: New York, NY, USA, 1995; Volume 1, pp. 42–43. [Google Scholar]
Figure 1. The optical scheme of the prism structure, β is propagation the constant of the surface plasmon polariton wave, ε is the dielectric constant of the prism material, ε m is the dielectric constant of the metal, and ε a is the dielectric constant of the researched medium.
Figure 1. The optical scheme of the prism structure, β is propagation the constant of the surface plasmon polariton wave, ε is the dielectric constant of the prism material, ε m is the dielectric constant of the metal, and ε a is the dielectric constant of the researched medium.
Materials 13 02989 g001

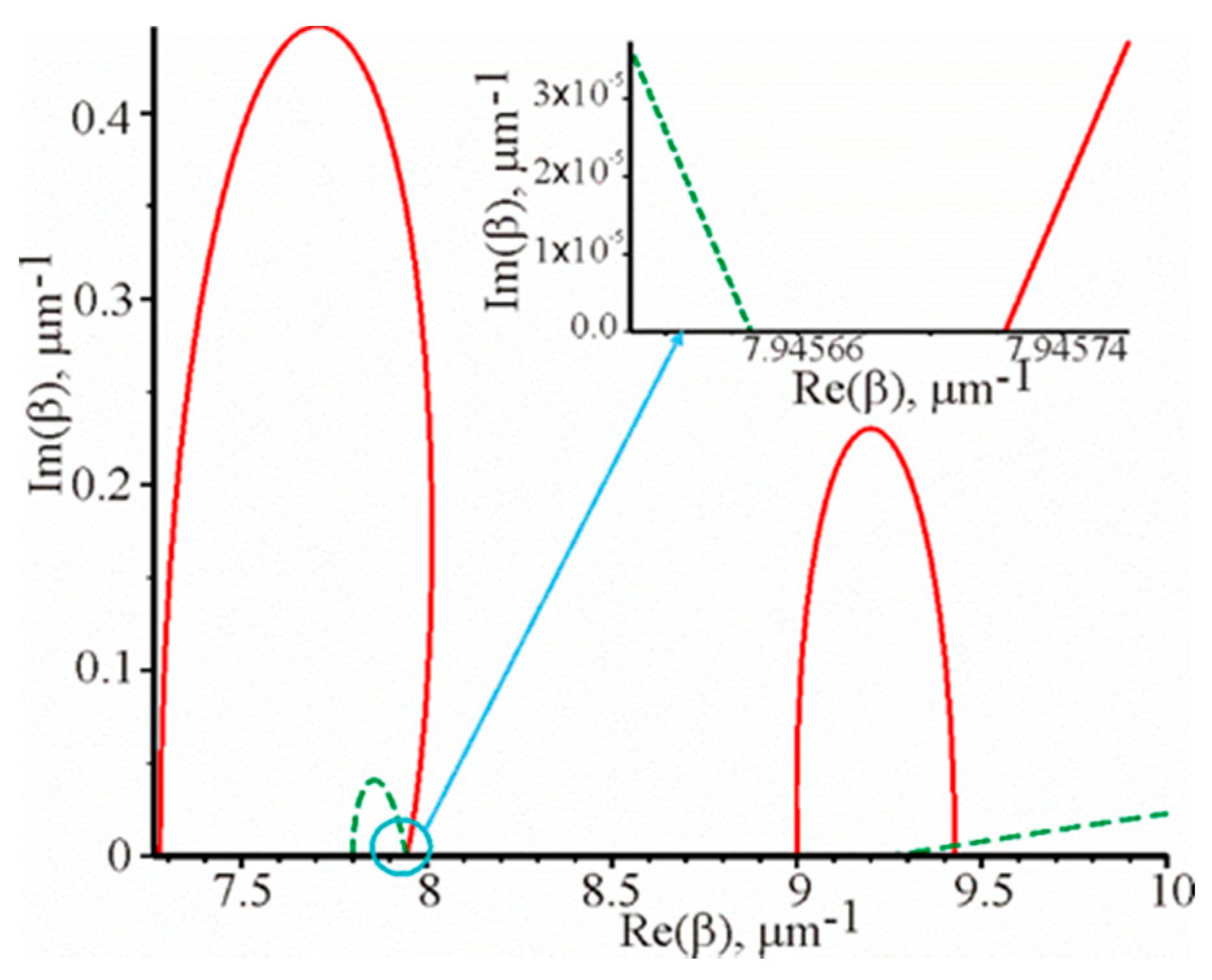

Figure 2. Graphical dependencies Re ( F ( x , y ) ) = 0 (solid line) and Im ( F ( x , y ) ) = 0 (dotted line) at the following parameters of the prism structure: λ = 1.064   μ m , θ = 1.040226 rad, d = 52.55 nm, ε m = 57.1915 + i 1.26097   [16,20], n = 1.56 and n a = 1.3242 . The reflection coefficient from the metal film is 0.000041 at these parameters. The insertion shows solid and dotted curves on a larger scale.
Figure 2. Graphical dependencies Re ( F ( x , y ) ) = 0 (solid line) and Im ( F ( x , y ) ) = 0 (dotted line) at the following parameters of the prism structure: λ = 1.064   μ m , θ = 1.040226 rad, d = 52.55 nm, ε m = 57.1915 + i 1.26097   [16,20], n = 1.56 and n a = 1.3242 . The reflection coefficient from the metal film is 0.000041 at these parameters. The insertion shows solid and dotted curves on a larger scale.
Materials 13 02989 g002
Figure 3. Graphical dependencies Re ( F ( x , y ) ) = 0 (solid line) and Im ( F ( x , y ) ) = 0 (dotted line) at the prism structure parameters mentioned above.
Figure 3. Graphical dependencies Re ( F ( x , y ) ) = 0 (solid line) and Im ( F ( x , y ) ) = 0 (dotted line) at the prism structure parameters mentioned above.
Materials 13 02989 g003

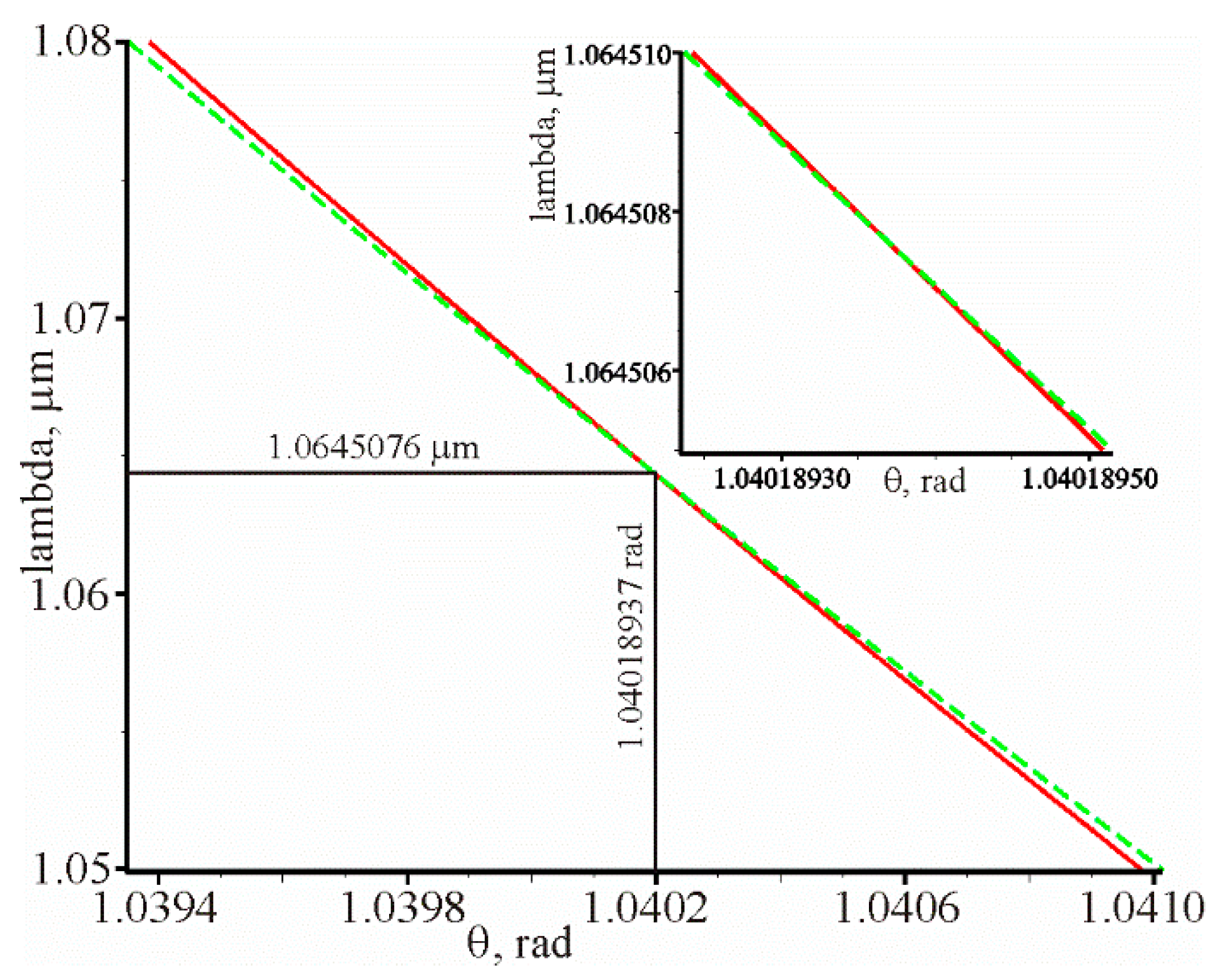

Figure 4. Graphical dependencies Re ( r ( θ , λ ) ) = 0 (solid line) and Im ( r ( θ , λ ) ) = 0 (dotted line) at the following parameters: d = 52.69 nm, = 1.56 , n a = 1.3242 . The intersection of the solid and dotted curves determines the θ and λ , at which the reflection coefficient is equal to R = 2.6 × 10 14   . The inset shows parts of the intersected curves on a larger scale.
Figure 4. Graphical dependencies Re ( r ( θ , λ ) ) = 0 (solid line) and Im ( r ( θ , λ ) ) = 0 (dotted line) at the following parameters: d = 52.69 nm, = 1.56 , n a = 1.3242 . The intersection of the solid and dotted curves determines the θ and λ , at which the reflection coefficient is equal to R = 2.6 × 10 14   . The inset shows parts of the intersected curves on a larger scale.
Materials 13 02989 g004

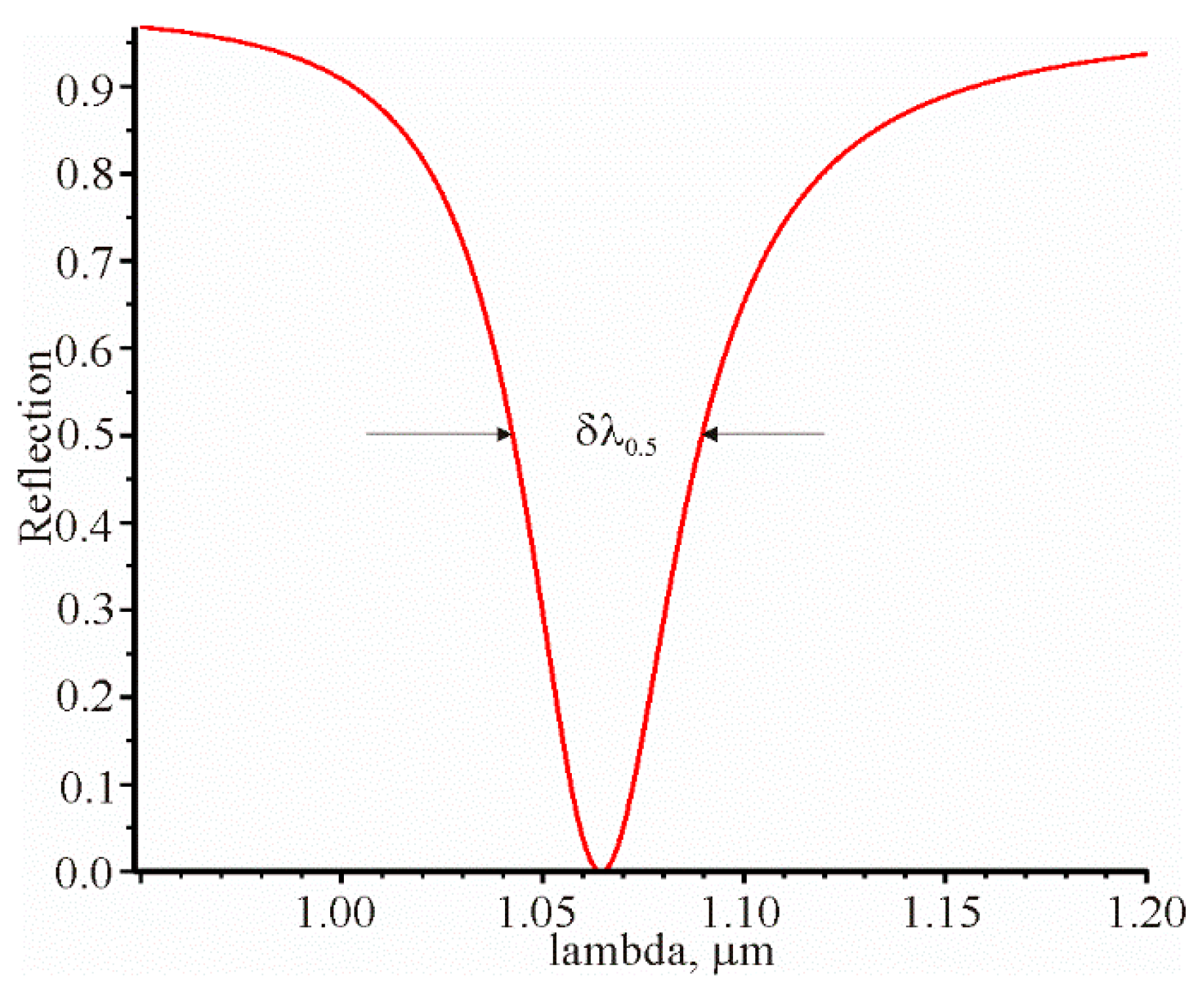

Figure 5. Spectral dependence of the reflection coefficient with the following parameters: λ r e z = 1.0645076   μ m , θ r e z = 1.04018937 , d = 52.7 nm, n = 1.56 , n a = 1.3242 . In this case, δ λ 0.5 = 0.0471   μ m .
Figure 5. Spectral dependence of the reflection coefficient with the following parameters: λ r e z = 1.0645076   μ m , θ r e z = 1.04018937 , d = 52.7 nm, n = 1.56 , n a = 1.3242 . In this case, δ λ 0.5 = 0.0471   μ m .
Materials 13 02989 g005

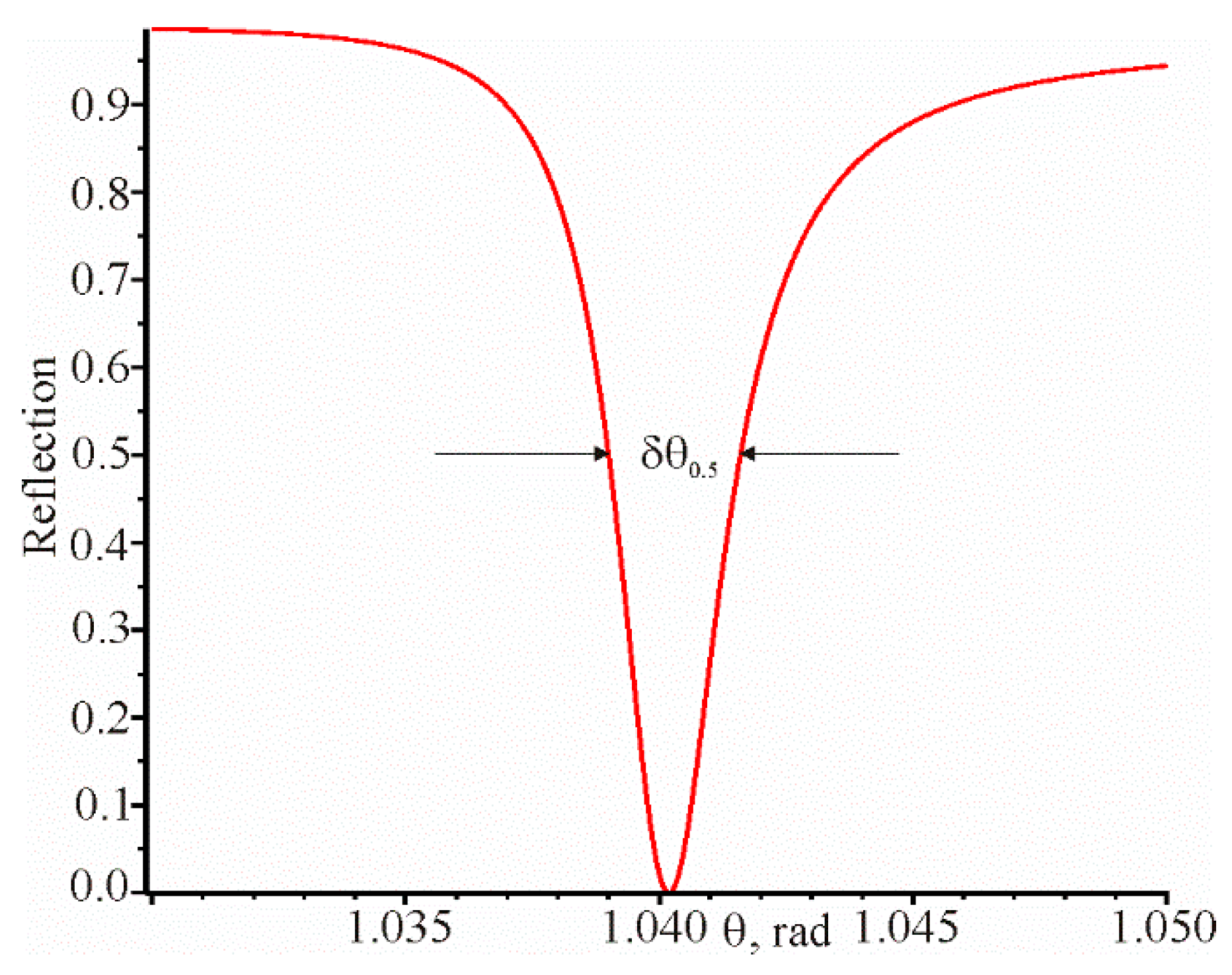

Figure 6. Angular dependence of the reflection coefficient with the following parameters: θ r e z = 1.04018937 , λ r e z = 1.0645076   μ m , d = 52.7 nm, n = 1.56 , n a = 1.3242 . In this case, δ θ 0.5   = 0.002609 rad.
