Improving Prediction of Springback in Sheet Metal Forming Using Multilayer Perceptron-Based Genetic Algorithm
Abstract
:1. Introduction
2. Experimental
2.1. Material

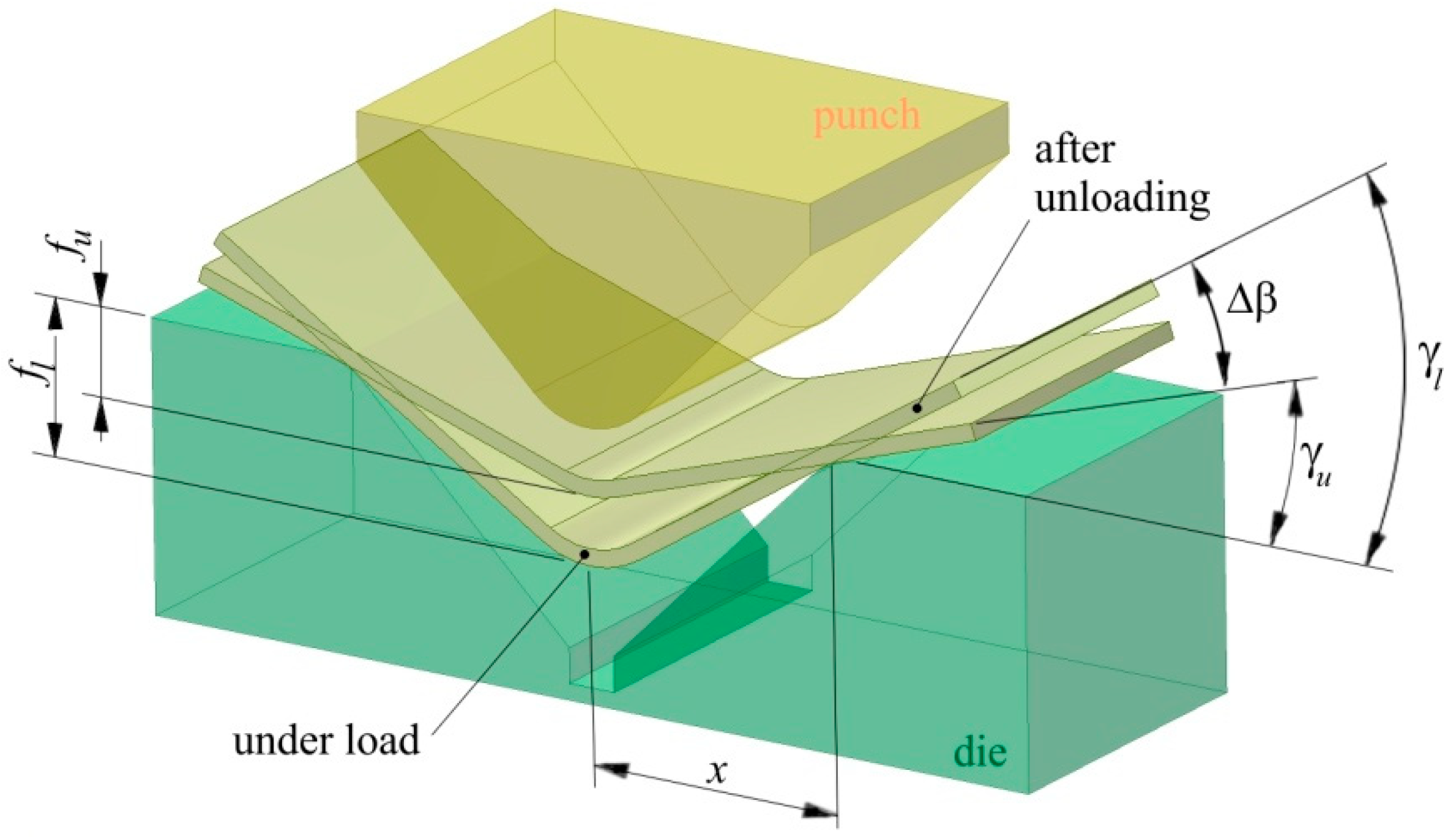

2.2. Method
3. Establishment of an Artificial Neural Network Model
3.1. Background
3.2. ANN Modelling
4. Results and Discussion
4.1. Experimental Springback

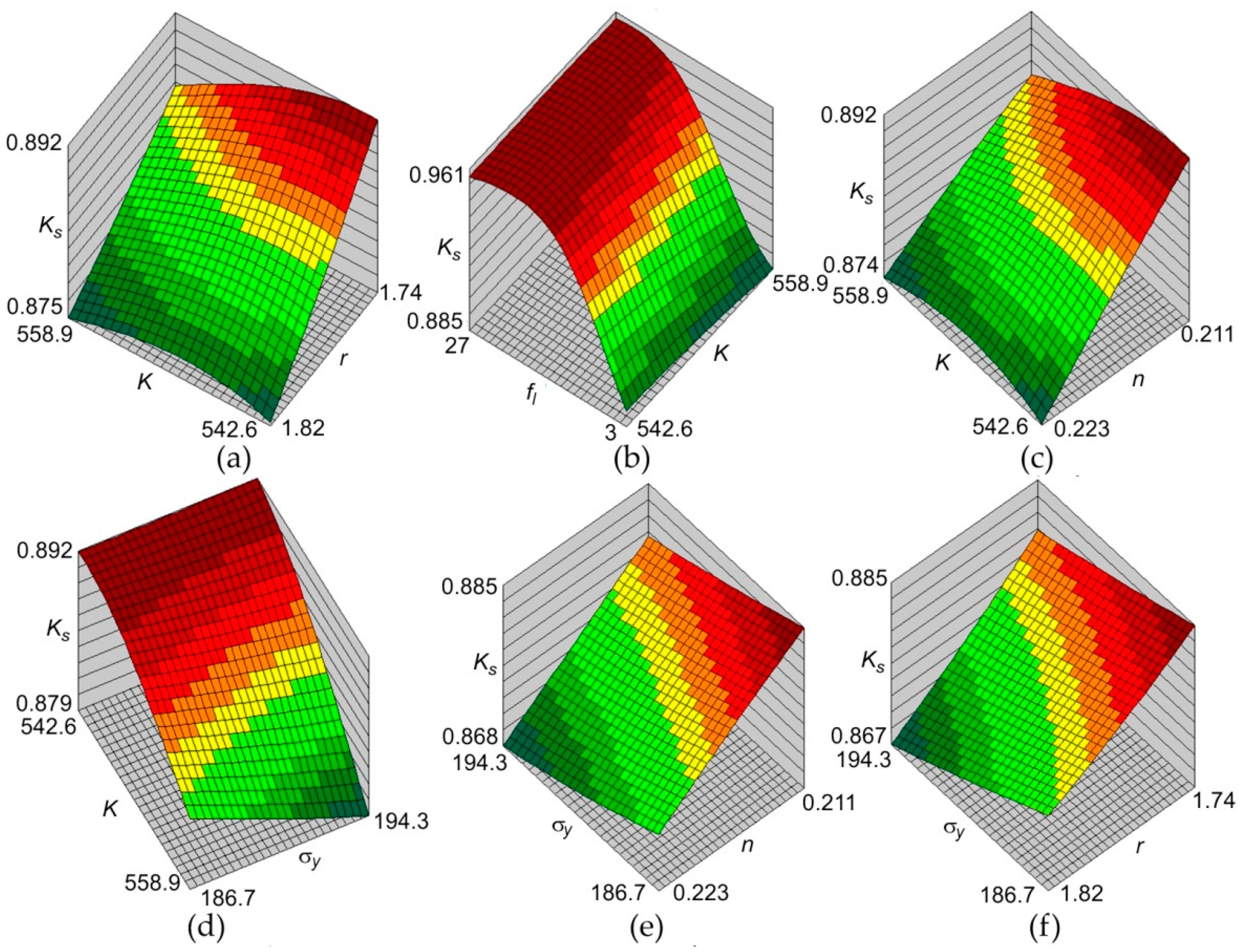

4.2. ANN-Based Springback Prediction
- Adopting a method of coding the real parameters of the adaptation function in the form of a chromosome (interconnected binary numbers representing subsequent parameters which form a chromosome).
- Determining the form of the adaptation function.
- Random selection of starting points—the process of searching for the optimal set of parameters begins with the random selection of starting points.
- Selection of chromosomes for a new population—the selection of individuals for the new population is carried out according to the roulette wheel rule in which each individual corresponds to a segment of a circle of a size proportional to the value of the adaptation function, and then a random point is selected on the wheel and the chromosome to which the randomly drawn part of the circle corresponds is transferred to the new population. This process is repeated until the number of chromosomes in the new population is equal to the number of chromosomes in the old population.
- Genetic operators are used for individuals from the new population, the most common of which are: crossover and mutation.
5. Conclusions
- The specimens cut transverse to the rolling direction exhibit lower values of springback coefficient Ks compared to the specimens cut along the rolling direction. The difference between the springback coefficients measured for both directions does not exceed 2.3%.
- An increase in the bend angle γl leads to a nonlinear increase in the springback coefficient Ks. The higher the bend angle γl, the smaller the difference between the springback coefficients Ks measured for both sample orientations.
- The Young’s modulus E and ultimate tensile stress σm are variables which have no significant effect on the coefficient of springback.
- The smallest RMS error value for a training set is seen in the network trained with the QN and LM algorithms. RMS error values for both networks trained by these algorithms are very similar for all the network architectures tested.
- The network trained with the BP algorithm (MLP 5:5-7-1:1) had the highest value of correlation coefficient in connection with the lowest value of SD ratio.
- For each network, the RMS error for the training set was less than the RMS error determined for the validation set. This is due to the different number of learning sets on the basis of which the network gains the ability to generalise data.
- The MLP trained by the BP, CG and LM algorithms favoured the punch bend depth under load fl as the most important variable affecting the springback coefficient Ks.
- It was found that the anisotropic coefficient r was the least important parameter.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Dai, H.L.; Jiang, H.J.; Dai, T.; Xu, W.L.; Luo, A.H. Investigation on the influence of damage to springback of U-shape HSLA steel plates. J. Alloys Compd. 2017, 708, 575–586. [Google Scholar] [CrossRef]
- Aerens, R.; Vorkov, V.; Duflou, J.R. Springback prediction and elasticity modulus variation. Procedia Manuf. 2019, 29, 185–192. [Google Scholar] [CrossRef]
- Hou, Y.; Min, J.; Lin, J.; Liu, Z.; Stoughton, T.B. Springback prediction of sheet metals using improved material models. Procedia Eng. 2017, 207, 173–178. [Google Scholar] [CrossRef]
- Jianjun, W.; Zengkun, Z.; Qi, S.; Feifan, L.; Yong’an, W.; Yu, H.; He, F. A method for investigating the springback behavior of 3D tubes. Int. J. Mech. Sci. 2017, 131, 191–204. [Google Scholar]
- Paniti, I.; Somlo, J. Novel incremental sheet forming system with tool-path calculation approach. Acta Polytech. Hung. 2014, 11, 43–60. [Google Scholar]
- Osman, M.A.; Shazly, M.; El-Mokaddem, A.; Wifi, A.S. Springback prediction in V-die bending: Modelling and experimentation. J. Achiev. Mater. Manuf. Eng. 2010, 38, 179–186. [Google Scholar]
- Trzepiecinski, T.; Lemu, H.G. Effect of computational parameters on springback prediction by numerical simulation. Metals 2017, 7, 380. [Google Scholar] [CrossRef] [Green Version]
- Dongjuan, Z.; Zhenshan, C.; Xueyu, R.; Yuqiang, L. An analytical model for predicting springback and side wall curl of sheet after U-bending. Comput. Mater. Sci. 2007, 38, 707–715. [Google Scholar]
- Liu, W.; Liu, Q.; Ruan, F.; Liang, Z.; Qiu, H. Springback prediction for sheet metal forming based on GA-ANN technology. J. Mater. Process. Technol. 2007, 187–188, 227–231. [Google Scholar] [CrossRef]
- Livatyali, H.; Kinzel, G.L.; Altan, T. Computer aided die design of straight flanging using approximate numerical analysis. J. Mater. Process. Technol. 2003, 142, 532–543. [Google Scholar] [CrossRef]
- Li, Y.; Liang, Z.; Zhang, Z.; Zou, T.; Shi, L. An analytical model for rapid prediction and compensation of springback for chain-die forming of an AHSS U-channel. Int. J. Mech. Sci. 2019, 15, 195–212. [Google Scholar] [CrossRef]
- Liu, J.G.; Fu, M.W.; Lu, J.; Chan, W.L. Influence of size effect on the springback of sheet metal foils in micro-bending. Comput. Mater. Sci. 2011, 50, 2604–2614. [Google Scholar] [CrossRef]
- Li, L.; Seo, Y.H.; Heo, S.C.; Kang, B.S.; Kim, J. Numerical simulations on reducing the unloading springback with multi-step multi-point forming technology. Int. J. Adv. Manuf. Technol. 2010, 48, 45–61. [Google Scholar] [CrossRef]
- Liu, C.; Yue, T.; Li, D. A springback prediction method for a cylindrical workpiece bent with the multi-point forming method. Int. J. Adv. Manuf. Technol. 2019, 101, 2571–2583. [Google Scholar] [CrossRef]
- Zhang, Q.; Lang, L.; Wang, Y.; Sun, Z. Theoretical investigation on the springback behavior of AA7B04 sheet in hydraulic bulge process. Int. J. Adv. Manuf. Technol. 2016, 87, 2861–2871. [Google Scholar] [CrossRef]
- Zhang, Z.K.; Wu, J.J.; Guo, R.C.; Wang, M.Z.; Li, F.F.; Guo, S.C.; Wang, Y.A.; Liu, W.P. A semi-analytical method for the springback prediction of thick-walled 3D tubes. Mater. Des. 2016, 99, 57–67. [Google Scholar] [CrossRef]
- Miranda, E.; Suñé, J. Memristors for Neuromorphic Circuits and Artificial Intelligence Applications. Materials 2020, 13, 938. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Twardowski, P.; Wiciak-Pikuła, M. Prediction of Tool Wear Using Artificial Neural Networks during Turning of Hardened Steel. Materials 2019, 12, 3091. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- De Filippis, L.A.C.; Serio, L.M.; Facchini, F.; Mummolo, G.; Ludovico, A.D. Prediction of the Vickers Microhardness and Ultimate Tensile Strength of AA5754 H111 Friction Stir Welding Butt Joints Using Artificial Neural Network. Materials 2016, 9, 915. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Salais-Fierro, T.E.; Saucedo-Martinez, J.A.; Rodriguez-Aguilar, R.; Vela-Haro, J.M. Demand Prediction Using a Soft-Computing Approach: A Case Study of Automotive Industry. Appl. Sci. 2020, 10, 829. [Google Scholar] [CrossRef] [Green Version]
- Mucha, W. Application of Artificial Neural Networks in Hybrid Simulation. Appl. Sci. 2019, 9, 4495. [Google Scholar] [CrossRef] [Green Version]
- Kazan, R.; Fırat, M.; Tiryaki, A.E. Prediction of springback in wipe-bending process of sheet metal using neural network. Mater. Des. 2009, 30, 418–423. [Google Scholar] [CrossRef]
- Sharad, G.; Nandedkar, V.M. Springback in sheet metal U bending-Fea and neural network approach. Procedia Mater. Sci. 2014, 6, 835–839. [Google Scholar] [CrossRef] [Green Version]
- Jamli, M.R.; Ariffin, A.K.; Wahab, D.A. Integration of feedforward neural network and finite element in the draw-bend springback prediction. Expert Syst. Appl. 2014, 41, 3662–3670. [Google Scholar] [CrossRef]
- Panthi, S.K.; Hora, M.S.; Ahmed, M.; Materials, C.A. Artificial neural network and experimental study of effect of velocity on springback in straight flanging process. Indian J. Eng. Mater. Sci. 2016, 23, 159–164. [Google Scholar]
- Song, Y.; Yu, Z. Springback prediction in T-section beam bending process using neural networks and finite element method. Arch. Civ. Mech. Eng. 2013, 13, 229–241. [Google Scholar] [CrossRef]
- Han, F.; Mo, J.H.; Qi, H.W.; Long, R.F.; Cui, X.H.; Li, Z.W. Springback prediction for incremental sheet forming based on FEM-PSONN technology. Trans. Nonferrous Met. Soc. China 2013, 23, 1061–1071. [Google Scholar] [CrossRef]
- Şenol, Ö.; Esat, V.; Darendeliler, H. Springback analysis in air bending process through experiment based artificial neural networks. Procedia Eng. 2014, 81, 999–1004. [Google Scholar] [CrossRef] [Green Version]
- Spathopoulos, S.C.; Stavroulakis, G.E. Springback prediction in sheet metal forming based on finite element analysis and artificial neural network approach. Appl. Mech. 2020, 1, 97–110. [Google Scholar] [CrossRef] [Green Version]
- Dib, M.; Ribeiro, B.; Prates, P. Model prediction of defects in sheet metal forming processes. In Engineering Applications of Neural Networks; Pimenidis, E., Jayne, C., Eds.; Springer: Cham, Switzerland, 2018; Volume 893, pp. 169–180. [Google Scholar]
- Online Statistics Handbook. Available online: https://www.statsoft.pl/textbook/stathome.html (accessed on 15 May 2020).
- Types of Neural Network Activation Functions: How to Choose? Available online: https://missinglink.ai/guides/neural-network-concepts/7-types-neural-network-activation-functions-right/ (accessed on 15 May 2020).
- Lin, C.W.; Wang, J.S. A digital circuit design of hyperbolic tangent sigmoid function for neural networks. In Proceedings of the 2008 IEEE International Symposium on Circuits and Systems, Seattle, WA, USA, 18–21 May 2008; pp. 856–859. [Google Scholar]
- Xu, S. Data Mining Using an Adaptive HONN Model with Hyperbolic Tangent Neurons, PKAW 2010: Knowledge Management and Acquisition for Smart Systems and Services. In Lecture Notes in Computer Science; Kang, B.H., Richards, D., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; Volume 6232. [Google Scholar]
- Hajduk, Z. Hardware implementation of hyperbolic tangent and sigmoid activation functions. Bull. Polish Acad. Sci. Techn. Sci. 2018, 66, 563–577. [Google Scholar]
- Graupe, D. Principles of Artificial Neural Networks, 3rd ed.; World Scientific: Singapore, Singapore, 2013. [Google Scholar]
- Bishop, C. Neural Networks for Pattern Recognition; University Press: Oxford, UK, 1995. [Google Scholar]
- Statsoft Electronic Statistics Textbook. Available online: https://www.statsoft.pl (accessed on 1 May 2020).
- Albrut, A.; Brabie, G. The influence of the rolling direction of the joined steel sheets on the springback intensity in the case of Ω-shape parts made from tailor welded strips. Arch. Civ. Mech. Eng. 2006, 6, 5–12. [Google Scholar] [CrossRef]
Orientation of Specimen | E, MPa | σy, MPa | σm, MPa | K, MPa | n | r |
---|---|---|---|---|---|---|
0° | 1.98·105 | 186.7 | 324.1 | 558.9 | 0.211 | 1.74 |
90° | 1.92·105 | 194.3 | 318.6 | 542.6 | 0.223 | 1.82 |
Parameter | fl | E | σy | σm | K | n | r |
---|---|---|---|---|---|---|---|
Useful at δ = 0.0005 | Yes | Yes | Ignore | Ignore | Yes | Yes | Ignore |
Useful at δ = 0.001 | Yes | Ignore | Yes | Ignore | Yes | Yes | Yes |
Useful at δ = 0.002 | Yes | Ignore | Yes | Ignore | Yes | Yes | Yes |
Useful at δ = 0.005 | Yes | Yes | Ignore | Ignore | Yes | Yes | Yes |
Useful at δ = 0.01 | Yes | Ignore | Yes | Ignore | Yes | Yes | Ignore |
BP | CG | QN | LM | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MLPs | RMS(T) | RMS(V) | SD Ratio | Correlation | RMS(T) | RMS(V) | SD Ratio | Correlation | RMS(T) | RMS(V) | SD Ratio | Correlation | RMS(T) | RMS(V) | SD Ration | Correlation |
MLP 5:5-6-1:1 | 0.085 | 0.129 | 0.270 | 0.962 | 0.769 | 0.113 | 0.269 | 0.963 | 0.068 | 0.128 | 0.240 | 0.970 | 0.068 | 0.126 | 0.239 | 0.971 |
MLP 5:5-7-1:1 | 0.084 | 0.107 | 0.254 | 0.967 | 0.077 | 0.118 | 0.265 | 0.964 | 0.068 | 0.129 | 0.237 | 0.971 | 0.067 | 0.129 | 0.235 | 0.972 |
MLP 5:5-9-1:1 | 0.112 | 0.165 | 0.262 | 0.965 | 0.073 | 0.124 | 0.257 | 0.967 | 0.067 | 0.145 | 0.235 | 0.972 | 0.068 | 0.129 | 0.239 | 0.971 |
BP | CG | QN | LM | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Test MLPs | fl | σy | K | n | r | fl | σy | K | n | r | fl | σy | K | n | r | fl | σy | K | n | r |
MLP 5:5-6-1:1 | ••••• | •• | ••• | •••• | • | ••••• | • | ••• | •••• | •• | •••• | ••• | ••••• | •• | • | ••••• | ••• | •••• | • | •• |
MLP 5:5-7-1:1 | ••••• | ••• | •••• | •• | • | •••• | ••••• | ••• | •• | • | • | ••••• | •• | ••• | •••• | •••• | • | ••• | ••••• | •• |
MLP 5:5-9-1:1 | •••• | • | ••••• | •• | ••• | ••••• | •• | •••• | ••• | • | ••• | •••• | • | ••••• | •• | ••••• | • | •••• | ••• | •• |
Case | Input Parameter | Springback Coefficient Ks | |||||
---|---|---|---|---|---|---|---|
fl, mm | σy, MPa | K | n | r | ANN | Experiment | |
1 | 3 | 186.7 | 558.9 | 0.211 | 1.74 | 0.867 | 0.869 |
13 | 12 | 186.7 | 558.9 | 0.211 | 1.74 | 0.914 | 0.907 |
17 | 24 | 186.7 | 558.9 | 0.211 | 1.74 | 0.953 | 0.956 |
18 | 27 | 186.7 | 558.9 | 0.211 | 1.74 | 0.952 | 0.954 |
28 | 3 | 194.3 | 542.6 | 0.223 | 1.82 | 0.834 | 0.832 |
31 | 12 | 194.3 | 542.6 | 0.223 | 1.82 | 0.914 | 0.918 |
37 | 3 | 194.3 | 542.6 | 0.223 | 1.82 | 0.831 | 0.832 |
41 | 15 | 194.3 | 542.6 | 0.223 | 1.82 | 0.862 | 0.876 |
51 | 18 | 194.3 | 542.6 | 0.223 | 1.82 | 0.939 | 0.928 |
