Experimental and Numerical Investigation of Mechanical Properties of Lightweight Concretes (LWCs) with Various Aggregates
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Test Methods
3. Results and Discussion
4. FE Modelling and Comparison with Experiment Results
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Oktay, H.; Yumrutas, R.; Akpolat, A. Mechanical and thermal properties of lightweight aggregate concretes. Constr. Build. Mater. 2015, 96, 217–225. [Google Scholar] [CrossRef]
- Chung, S.Y.; Abd Elrahman, M.; Sikora, P.; Rucinska, T.; Horszczaruk, E.; Stephan, D. Evaluation of the effects of crushed and expanded waste glass aggregates on the material properties of lightweight concrete using image-based approaches. Materials 2017, 10, 1354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sikora, P.; Horszczaruk, E.; Skoczylas, K.; Rucinska, T. Thermal properties of cement mortars containing waste glass aggregate and nanosilica. Procedia Eng. 2017, 196, 159–166. [Google Scholar] [CrossRef]
- Adhikary, S.K.; Rudžionis, Ž. Investigations on lightweight concrete prepared by combinations of rubber particles and expanded glass aggregate. In Proceedings of the 13th International Conference “Modern Building Materials, Structures and Techniques”, Vilnius, Lithuania, 16–17 May 2019; Faculty of Civil Engineering, Vilnius Gediminas Technical University: Vilnius, Lithuania, 2019; pp. 9–14, eISBN 9786094761973, eISSN 2029-9915. [Google Scholar]
- Domagała, L.; Kurzyniec, K. Modern manufactured lightweight aggregates based on industrial wastes for insulating and structural applications. In Sustainable Building Materials and Products; Hager, I., Ed.; Cracow University of Technology: Krakow, Poland, 2017; pp. 303–318. [Google Scholar]
- Lo, T.Y.; Tang, W.C.; Cui, H.Z. The effects of aggregate properties on lightweight concrete. Build. Environ. 2007, 42, 3025–3029. [Google Scholar] [CrossRef]
- Kurpińska, M.; Grzyl, B.; Kristowski, A. Cost Analysis of prefabricated elements of the ordinary and lightweight concrete walls in residential construction. Materials 2019, 12, 3629. [Google Scholar] [CrossRef] [Green Version]
- Abdelgader, H.; Fediuk, R.; Kurpińska, M.; Elkhatib, J.; Murali, G.; Baranov, A.; Timokhin, R. Mechanical properties of two-stage concrete modified by silica fume. Mag. Civ. Eng. 2019, 89, 26–38. [Google Scholar]
- Adhikary, S.K.; Rudzionis, Z.; Zubrus, M. Investigations of the influence of polystyrene foamed granules on the properties of lightweight concrete. J. Appl. Eng. Sci. 2019, 9, 19–24. [Google Scholar] [CrossRef] [Green Version]
- de Buarque, M.P.M. Strong, Lower Density Composite Concrete Building Material with Foam Glass Aggregate. US Patent 7695560, 13 April 2011. [Google Scholar]
- Jasaitiene, J.; Ivanauskas, E.; Dauksys, M. Investigation of Lightweight Concrete with Porous Aggregates. In Proceedings of the 2nd International Conference Advanced Construction, Kaunas, Lithuania, 11–12 November 2010; pp. 122–128. [Google Scholar]
- Wasserman, R.; Bentur, A. Interfacial interaction in lightweight aggregate concretes and their influence on the concrete strength. Cem. Concr. Compos. 1996, 14, 239–248. [Google Scholar] [CrossRef]
- Kurpińska, M.; Grzyl, B.; Pszczola, M.; Kristowski, A. The application of granulated expanded glass aggregate with cement grout as an alternative solution for sub-grade and frost-protection sub-base layer in road construction. Materials 2019, 12, 3528. [Google Scholar] [CrossRef] [Green Version]
- Moayeri, M.-S.; Ashrafi, H.-R.; Beiranvand, P. Investigating the physical characteristics of non-structural lightweight aggregate blocks of built with region materials. Buildings 2017, 7, 2. [Google Scholar] [CrossRef] [Green Version]
- Serelis, E.; Vaitkevicius, V.; Rudzionis, Ž.; Kersevicius, V. Waste of Granite Dust Utilization in Ultra-light Weight Concrete. IOP Conf. Ser. Mater. Sci. Eng. 2018, 422, 1–7. [Google Scholar] [CrossRef]
- Yousefi, A.; Tang, W.; Khavarian, M.; Fang, C.; Wang, S. Thermal and mechanical properties of cement mortar composite containing recycled expanded glass aggregate and nano titanium dioxide. Appl. Sci. 2020, 10, 2246. [Google Scholar] [CrossRef] [Green Version]
- Real, S.; Gomes, M.G.; Moret Rodrigues, A.; Bogas, J.A. Contribution of structural lightweight aggregate concrete to the reduction of thermal bridging effect in buildings. Constr. Build. Mater. 2016, 121, 460–470. [Google Scholar] [CrossRef]
- Krishnamoorthy, R.R.; Zujip, J.A. Thermal conductivity and microstructure of concrete using recycle glass as a fine aggregate replacement. Int. J. Adv. Res. Technol. 2013, 3, 463–471. [Google Scholar]
- Roberz, F.; Loonen, R.C.G.M.; Hoes, P.; Hensen, J.L.M. Ultra-lightweight concrete: Energy and comfort performance evaluation in relation to buildings with low and high thermal mass. Energy Build. 2017, 138, 432–442. [Google Scholar] [CrossRef]
- Chung, S.Y.; Han, T.S.; Kim, S.Y.; Kim, J.H.J.; Youm, K.S.; Lim, J.H. Evaluation of effect of glass beads on thermal conductivity of insulating concrete using micro CT images and probability functions. Cem. Concr. Compos. 2016, 65, 150–162. [Google Scholar] [CrossRef]
- Rumsys, D.; Spudulis, E.; Bacinskas, D.; Kaklauskas, G. Compressive strength and durability properties of structural lightweight concrete with fine expanded glass and/or clay aggregates. Materials 2018, 11, 2434. [Google Scholar] [CrossRef] [Green Version]
- Bogas, J.A.; Gomes, A.; Pereira, M. Self-compacting lightweight concrete produced with expanded clay aggregate. Constr. Build. Mater. 2012, 35, 1013–1022. [Google Scholar] [CrossRef]
- Namsone, E.; Sahmenko, G.; Namsone, E.; Korjakins, A. Thermal Conductivity and Frost Resistance of Foamed Concrete with Porous Aggregate. Environment. Technology. Resources. In Proceedings of the 11th International Scientific and Practical Conference, Rezekne, Latvia, 15–17 June 2017; pp. 222–228. [Google Scholar]
- Limbachiya, M.; Meddah, M.; Fotiadou, S. Performance of granulated foam glass concrete. Constr. Build. Mat. 2012, 28, 759–768. [Google Scholar] [CrossRef]
- Šeputytė-Jucikė’s, J.; Sinica, M. The effect of expanded glass and polystyrene waste on the properties of lightweight aggregate concrete. Eng. Struct. Technol. 2016, 8, 31–40. [Google Scholar] [CrossRef] [Green Version]
- Kurpińska, M.; Ferenc, T. Effect of porosity on physical properties of lightweight cement composite with foamed glass aggregate. In Proceedings of the II International Conference of Computational Methods in Engineering Science (CMES’2017), Lublin, Poland, 23–25 November 2017. [Google Scholar] [CrossRef]
- Abd Elrahman, M.; Chung, S.Y.; Stephan, D. Effect of different expanded aggregates on the properties of lightweight concrete. Mag. Concr. Res. 2018, 71, 95–107. [Google Scholar] [CrossRef]
- Maddalena, C.; Luca, B. Durability of lightweight concrete with expanded glass and silica fume. Mater. J. 2017. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Hu, B.; Soon, J.H. Physical and mechanical properties of a bulk lightweight concrete with expanded poystyrene (EPS) beads and soft marine clay. Materials 2019, 12, 1662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ducman, V.; Mirtic, B. The applicability of different waste materials for the production of lightweight aggregates. Waste Manag. 2009, 29, 2361–2368. [Google Scholar] [CrossRef]
- Kralj, D. Experimental study of recycling lightweight concrete with aggregates containing expanded glass. Process Saf. Environ. Prot. 2006, 87, 267–273. [Google Scholar] [CrossRef]
- Ke, Y.; Beaucor, A.L.; Ortola, S.; Dumontet, H.; Cabrillac, R. Influence of volume fraction and characteristics of lightweight aggregates on the mechanical properties of concrete. Constr. Build. Mat. 2009, 23, 2821–2828. [Google Scholar] [CrossRef]
- Chi, J.M.; Huarg, R.; Yang, C.C.; Chang, J.J. Effects of aggregate properties on the strength and stiffness of lightweight concrete. Cem. Concr. Compos. 2003, 25, 197–205. [Google Scholar] [CrossRef]
- Nemes, R.; Józsa, Z. Strength of lightweight glass aggregate concrete. J. Mater. Civ. Eng. 2006, 18, 710–714. [Google Scholar] [CrossRef]
- Leonavičius, D.; Pundienė, I.; Kligys, M.; Pranckevičienė, J. The Lightweight Porous Fine Aggregate Composite Based on Secondary Raw Materials. Key Eng. Mater. 2019, 799, 153–158. [Google Scholar] [CrossRef]
- Kurpińska, M.; Ferenc, T. Application of lightweight cement composite with foamed glass aggregate in shell structures. Shell Struct. Theory Appl. 2018, 4, 549–552. [Google Scholar]
- Kurpinska, M.; Kułak, L. Predicting performance of lightweight concrete with granulated expanded glass and ash aggregate by means of using artificial neural networks. Materials 2019, 12, 2002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Adhikary, S.K.; Rudžionis, Ž. Influence of expanded glass aggregate sizes, binding materials volume and aerogel on the properties on the sustainable lightweight concrete. Mater. Today Proc. 2020. [Google Scholar] [CrossRef]
- Adhikary, S.K.; Rudžionis, Ž.; Vaičiukynienė, D. Development of flowable ultra-lightweight concrete using expanded glass aggregate, silica aerogel, and prefabricated plastic bubbles. J. Build. Eng. 2020, 31. [Google Scholar] [CrossRef]
- Chróścielewski, J.; Mariak, A.; Sabik, A.; Meronk, B.; Wilde, K. Monitoring of concrete curing in extradosed bridge supported by numerical simulation. Adv. Sci. Techn. Res. J. 2016, 10, 254–262. [Google Scholar]
- Nguyen, T.; Ghazlan, A.; Nguyen, T.; Thai, H.; Ngo, T. Uncertainty quantification of the mechanical properties of lightweight concrete using micromechanical modelling. Int. J. Mech. Sci. 2020. [Google Scholar] [CrossRef]
- Malachanne, E.; Sassine, R.; Garcia-Diaz, E.; Dubois, F. Numerical model for mechanical behavior of lightweight concrete and for the prediction of local stress concentration. Constr. Build. Mat. 2014, 59, 180–187. [Google Scholar] [CrossRef]
- Ke, Y.S.; Ortola, S.; Beaucour, A.L.; Dumontet, H. Identification of microstructural characteristics in lightweight aggregate concretes by micromechanical modelling including the interfacial transition zone (ITZ). Cem. Concr. Res. 2010, 40, 1590–1600. [Google Scholar] [CrossRef]
- Skarżyński, Ł.; Nitka, M.; Tejchman, J. Modelling of concrete fracture at aggregate level using FEM and DEM based on X-ray μCT images of internal structure. Eng. Fract. Mech. 2015, 147, 13–35. [Google Scholar] [CrossRef]
- Pan, T.; Chen, C.; Yu, O. Three-dimensional micromechanical modeling of concrete degradation under multiphysics fields. Compos. Struct. 2017, 175, 7–18. [Google Scholar] [CrossRef]
- Trofimov, A.; Mishurova, T.; Lanzoni, L.; Radi, E.; Bruno, G.; Sevostianov, I. Microstructural analysis and mechanical properties of concrete reinforced with polymer short fibers. Int. J. Eng. Sci. 2018, 133, 210–218. [Google Scholar] [CrossRef]
- BS EN 197-1:2011 Cement—Part 1: Composition, Specifications and Conformity Criteria for Common Cements. Available online: https://www.academia.edu/35776457/BS_EN_197 (accessed on 14 July 2020).
- Bumanis, G.; Bajare, D.; Korjakins, A. Mechanical and thermal properties of lightweight concrete made from expanded glass. J. Sustain. Arch. Civ. Eng. 2013, 2, 26–32. [Google Scholar] [CrossRef]
- Domagała, L. Structural Lightweight Aggregate Concrete; Monografia 462; Politechnika Krakowska: Kraków, Poland, 2014. (In Polish) [Google Scholar]
- Yu, Q.L.; Spiesz, P.; Brouwers, H.J.H. Development of cement-based lightweight composites—Part 1: Mix design methodology and hardened properties. Cem. Concr. Compos. 2013, 44, 17–29. [Google Scholar] [CrossRef] [Green Version]
- BS EN 12350-2:2009 Testing Fresh Concrete—Part 2: Slump-Test. Available online: https://kupdf.net/download/bs-en-12350-2-2009-testing-fresh-concrete-slump-test_589d516f6454a7c43cb1e8d4_pdf (accessed on 14 July 2020).
- BS EN 206:2013+A1:2016 Concrete. Specification, Performance, Production and Conformity. Available online: https://shop.bsigroup.com/ProductDetail?pid=000000000030326195 (accessed on 14 July 2020).
- BS EN 12390-1:2019 Testing Hardened Concrete—Part 1: Shape, Dimensions and Other Requirements for Specimens and Moulds. Available online: https://shop.bsigroup.com/ProductDetail?pid=000000000030397528 (accessed on 14 July 2020).
- BS EN 12350-1:2019 Testing Fresh Concrete. Sampling and Common Apparatus. Available online: https://shop.bsigroup.com/ProductDetail?pid=000000000030360061 (accessed on 6 August 2020).
- BS EN 12390-2:2019 Testing Hardened Concrete. Making and Curing Specimens for Strength Tests. Available online: https://shop.bsigroup.com/ProductDetail/?pid=000000000030360082 (accessed on 6 August 2020).
- BS EN 12390-3:2019 Testing Hardened Concrete—Part 3: Compressive Strength of Test Specimens. Available online: https://civilnode.com/download-standard/10640443541281/bs-en-12390-32019-testing-hardened-concrete-part-3-compressive-strength-of-test-specimens (accessed on 14 July 2020).
- BS EN 12390-13:2013 Testing Hardened Concrete. Determination of Secant Modulus of Elasticity in Compression. Available online: https://shop.bsigroup.com/ProductDetail/?pid=000000000030398745 (accessed on 6 August 2020).
- Domagała, L. Elasticity of lightweight aggregate concrete modified with steel fibres. Cem. Wapno Bet. 2007, 3, 145–150. [Google Scholar]
- Chandra, S.; Berntsson, L. Lightweight Aggregate Concrete; Noyes Publications: New York, NY, USA, 2003. [Google Scholar]
Setting Start Time (min) | Setting End Time (min) | Compressive Strength (MPa) | Blaine Fineness (cm2/g) | Loss on Ignition (%) | Water Demand (%) | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
2d | 28d | |||||||||||
155 | 195 | 30.2 | 57.3 | 3504 | 3.4 | 27.5 | ||||||
Content (%) | ||||||||||||
SiO2 | Al2O3 | Fe2O3 | CaO | MgO | SO3 | Na2O | K2O | TiO2 | Cl | |||
21.7 | 6.2 | 3.1 | 63.4 | 1.0 | 3.9 | 0.16 | 0.64 | 0.25 | 0.06 | |||
Mineralogical composition. content (%) | ||||||||||||
Na2Oeq | C3S | C2S | C3A | C4AF | ||||||||
0.7 | 63.1 | 7.6 | 6.1 | 8.9 |
Aggregate Type | Content (%) | ||||||||
---|---|---|---|---|---|---|---|---|---|
SiO2 | Al2O3 | Fe2O3 | CaO | MgO | SO3 | Na2O | K2O | Loss on Ignition | |
GEGA | 63.33 | 0.74 | - | 14.19 | 2.98 | 0.32 | 13.35 | 0.57 | 4.53 |
GAA | 52.82 | 24.28 | 7.5 | 4.5 | 3.19 | 0.43 | - | 0.2 | 7.1 |
Property | GEGA 2 mm [48] | GEGA 4 mm [48] | GAA 8 mm [49] | |
---|---|---|---|---|
Water absorption WA24 | (%) | 15.2 | 17.8 | 16.5 |
Volume density ρa | (kg/m3) | 380 | 350 | 1350 |
Density of dried grain ρrd | (kg/m3) | 340 | 310 | 1250 |
Density of saturated grain ρssd | (kg/m3) | 360 | 330 | 1290 |
Open porosity Po | (%) | 37 | 42 | 37 |
Crumble indicator Xr | (%) | 22.3 | 25.9 | 17.8 |
pH after 24 h | (-) | 11.9 | 11.9 | 11.1 |
Bulk density in a loose state ρb | (kg/m3) | 200 | 180 | 680 |
Thermal conductivity of 40 cm layer of aggregate | (W/m·K) | 0.71 | 0.69 | 0.85 |

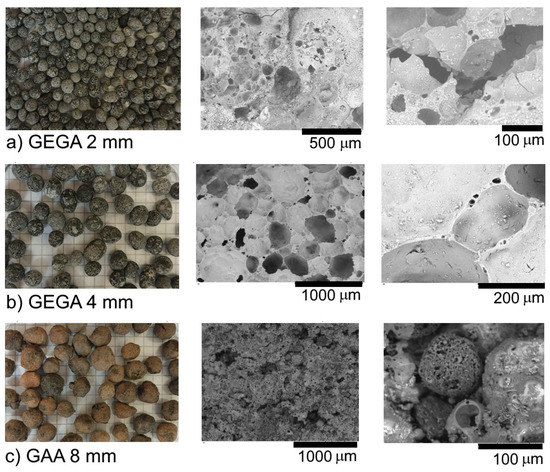

Granule | Pore Radius (nm) | Pore Volume (cm3/g) | Pore Surface Area (m2/g) |
---|---|---|---|
GEGA 2 mm | 1.55–3.71 | 1.02–7.56 × 10–3 | 2.62–12.12 |
GEGA 4 mm | 1.69–3.70 | 1.25–8.54 × 10–3 | 2.99–14.53 |
GAA 8 mm | 1.32–2.83 | 0.99–6.67 × 10–3 | 2.51–10.55 |
Lightweight Concrete Designation | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWC | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
GEGA 2 mm | (%) | 0 | 25 | 50 | 75 | 0 | 0 | 25 | 25 | 25 | 50 | 50 | 0 | 0 | 75 | 100 |
(kg/m3) | 0 | 65 | 130 | 195 | 0 | 0 | 65 | 65 | 65 | 130 | 130 | 0 | 0 | 195 | 260 | |
GEGA 4 mm | (%) | 0 | 0 | 0 | 0 | 100 | 75 | 50 | 25 | 75 | 50 | 25 | 50 | 25 | 25 | 0 |
(kg/m3) | 0 | 0 | 0 | 0 | 240 | 180 | 120 | 60 | 180 | 120 | 60 | 120 | 60 | 60 | 0 | |
GAA 8 mm | (%) | 100 | 75 | 50 | 25 | 0 | 25 | 25 | 50 | 0 | 0 | 25 | 50 | 75 | 0 | 0 |
(kg/m3) | 580 | 435 | 290 | 145 | 0 | 145 | 145 | 290 | 0 | 0 | 145 | 290 | 435 | 0 | 0 | |
CEM I 42,5R | (kg/m3) | 500 | ||||||||||||||
Water | (kg/m3) | 250 | ||||||||||||||
(W/C) | 0.5 |
Test | Specimen Size (m) | Quantity of the Specimens (Pieces) | Total Specimens Quantity (Pieces) |
---|---|---|---|
Volume density in a dry state | 0.10 × 0.10 × 0.10 | 3 | 45 |
Compression strength at 28 days | 0.15 × 0.15 × 0.15 | 6 | 90 |

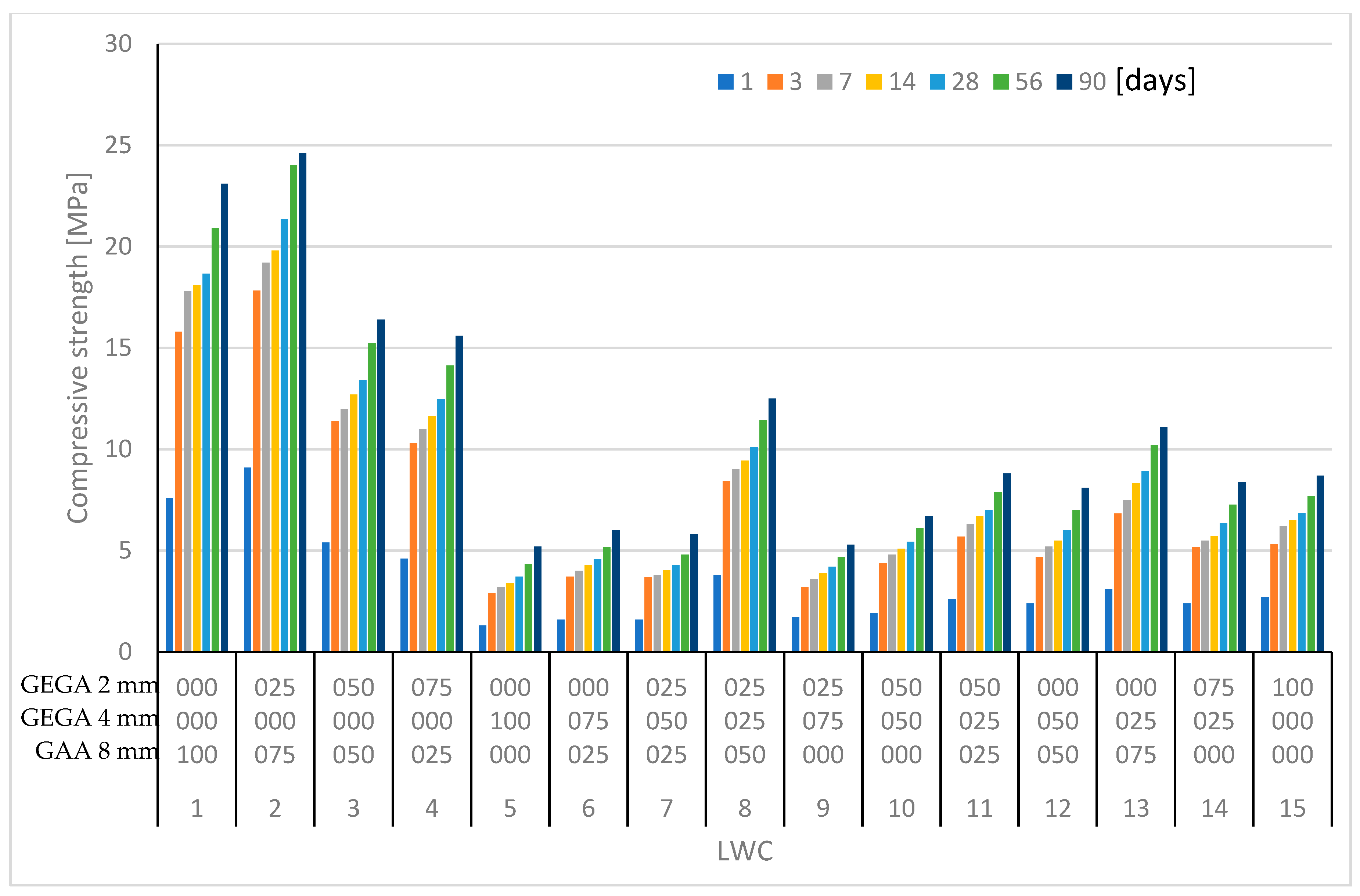

Compression strength increase at other number of days, than 28 (1, 3, 7, 14, 56, and 90) | 0.15 × 0.15 × 0.15 | 3 × 6 = 18 | 270 |

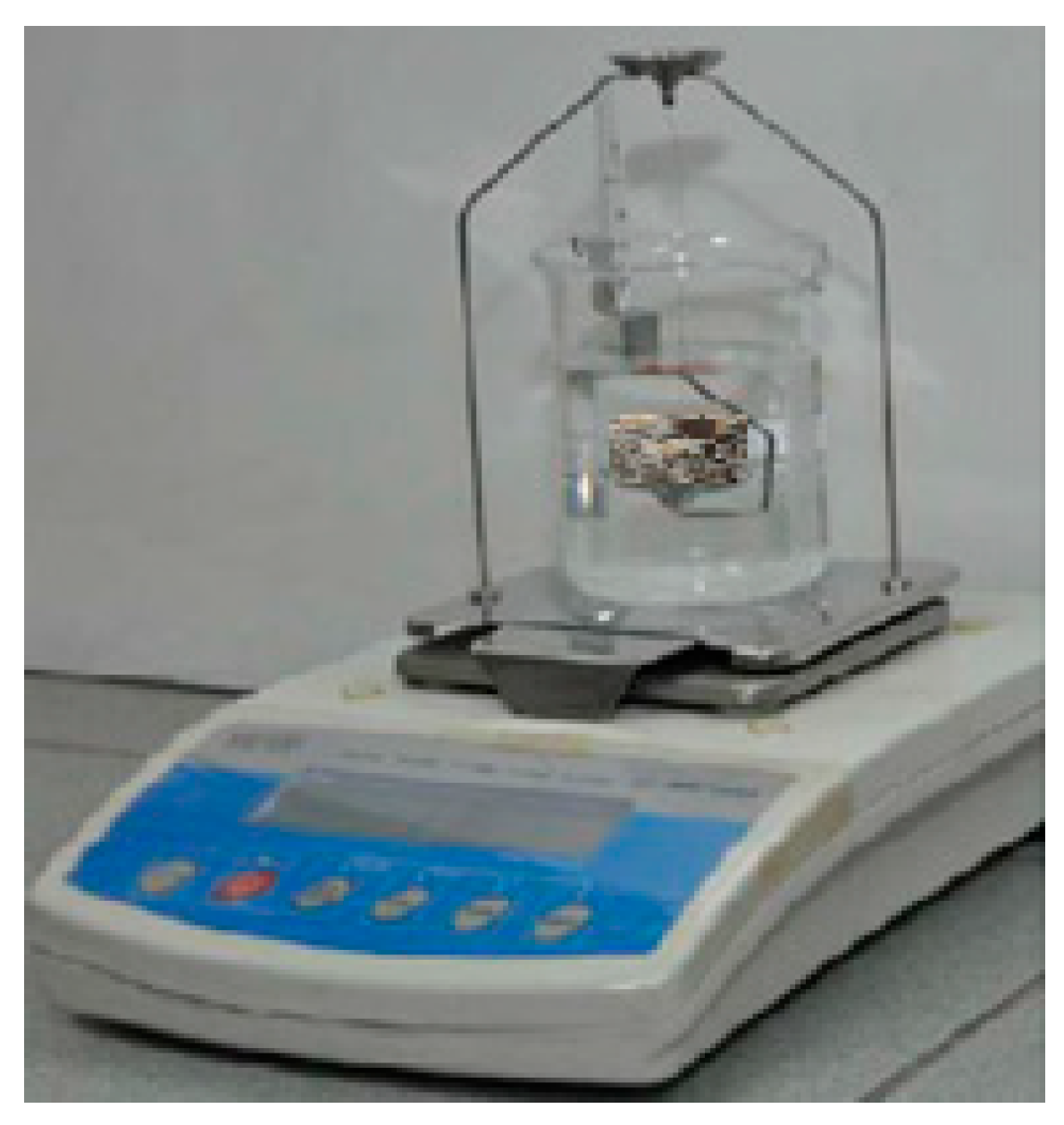

Porosity | 0.10 × 0.10 × 0.10 | 3 | 45 |

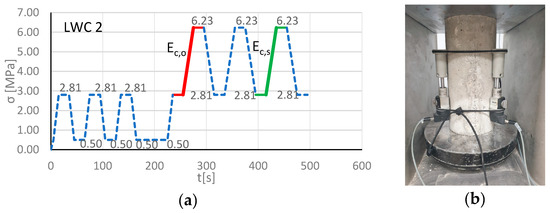

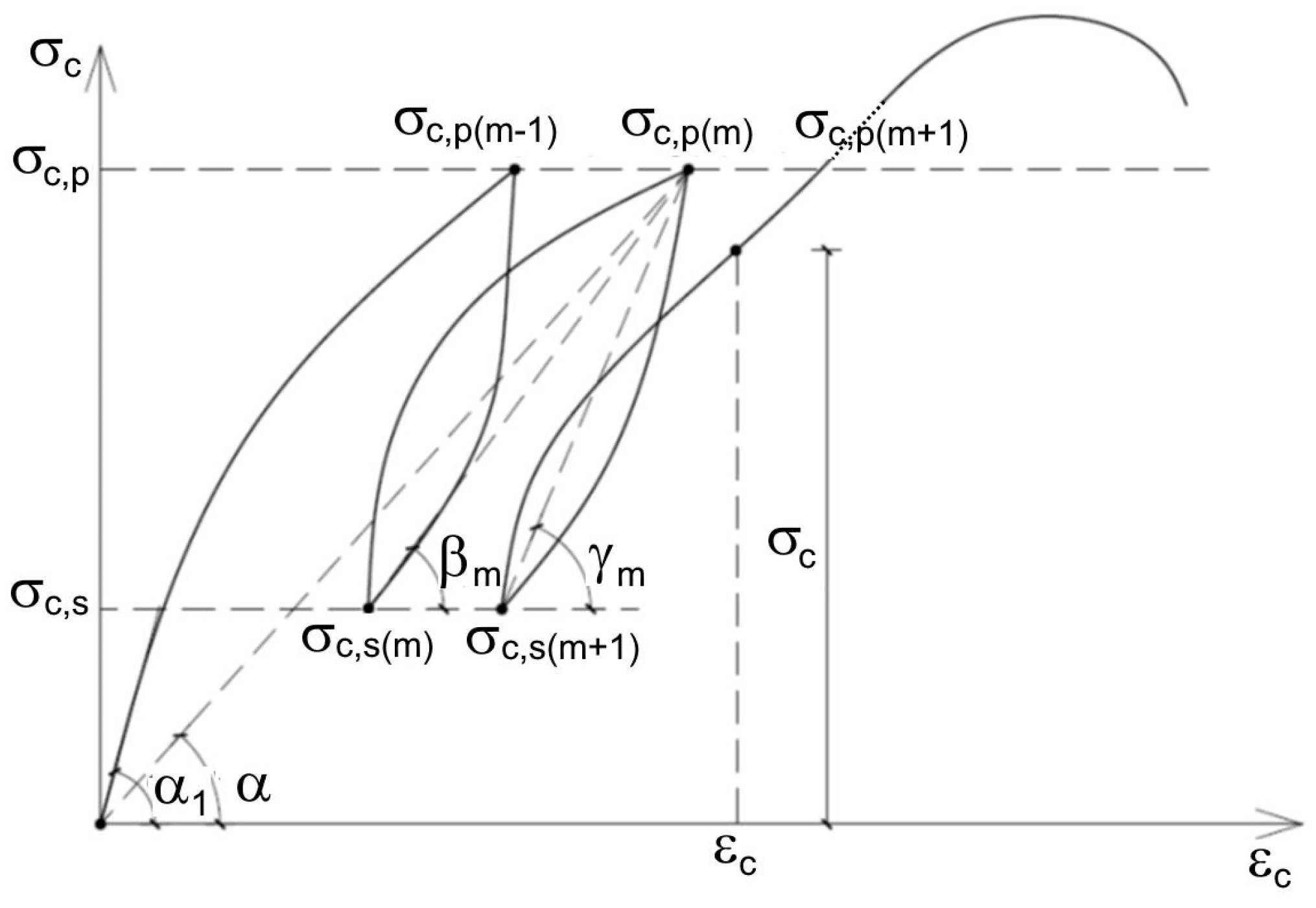

Modulus of elasticity | ϕ = 0.15, h = 0.3 | 3 | 45 |
Specimens Designation | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LWC | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
Consistency (mm) | 120 | 110 | 100 | 140 | 90 | 150 | 130 | 130 | 150 | 130 | 120 | 150 | 140 | 70 | 50 |
Open porosity po (%) | 20.8 | 17.7 | 16.0 | 22.1 | 67.0 | 45.0 | 27.4 | 24.0 | 65.9 | 26.4 | 20.1 | 36.6 | 25.6 | 19.3 | 15.2 |

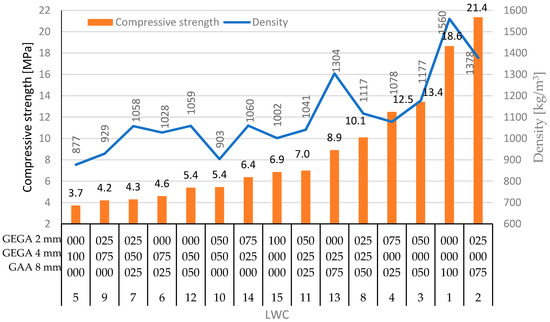

Density ρ (kg/m3) | 1560 | 1378 | 1177 | 877 | 1078 | 1028 | 1058 | 1117 | 929 | 903 | 1041 | 1059 | 1304 | 1060 | 1002 |

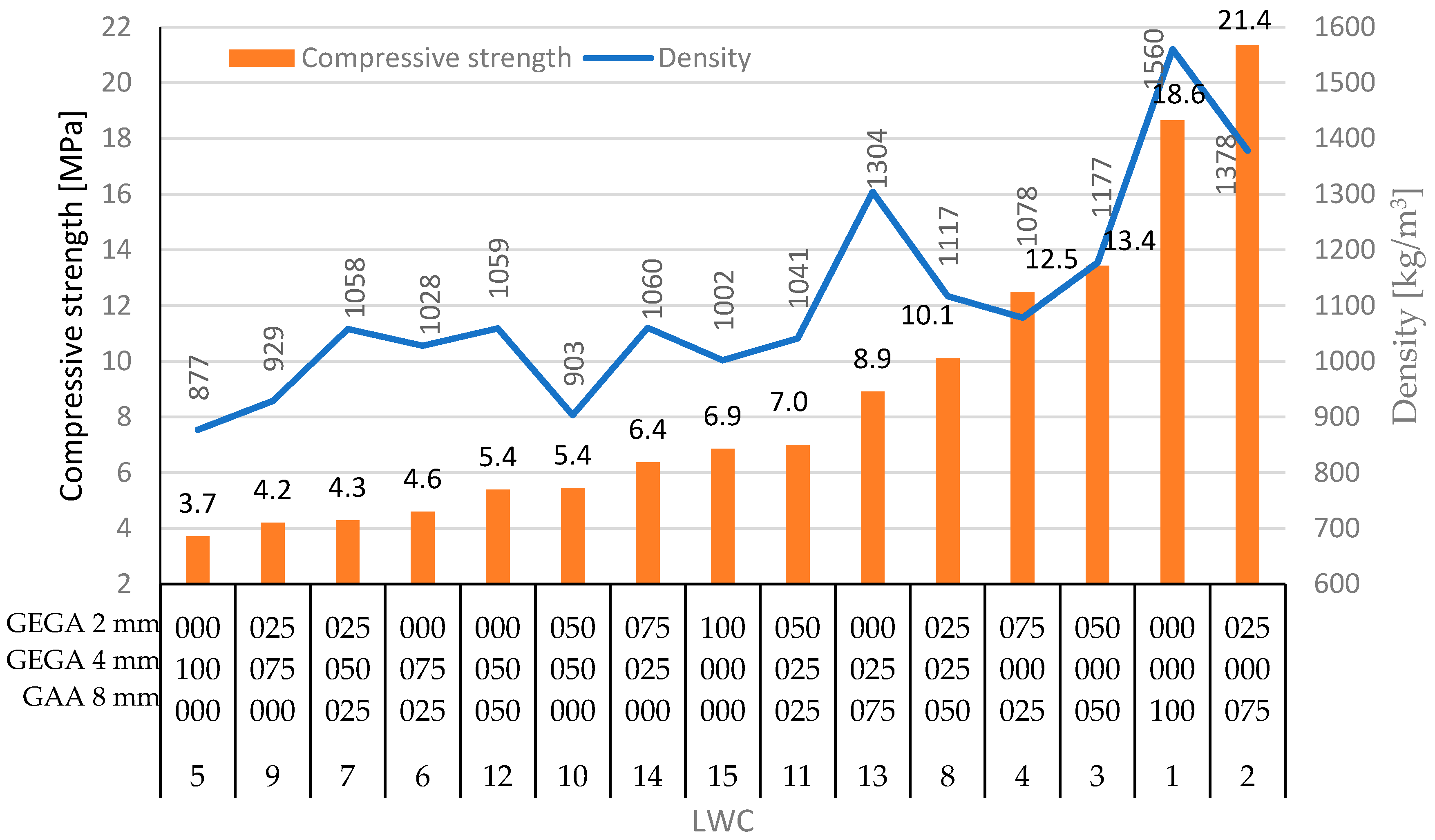

Strength f cubcm 28, (MPa) | 18.6 | 21.4 | 13.4 | 3.7 | 12.5 | 4.6 | 4.3 | 10.1 | 4.2 | 5.4 | 7.0 | 5.4 | 8.9 | 6.4 | 6.9 |
f cylcm 28, (MPa) | 16.3 | 18.7 | 11.8 | 3.3 | 11.5 | 4.3 | 4.1 | 10.0 | 4.1 | 5.3 | 6.5 | 4.9 | 7.8 | 6.3 | 6.0 |

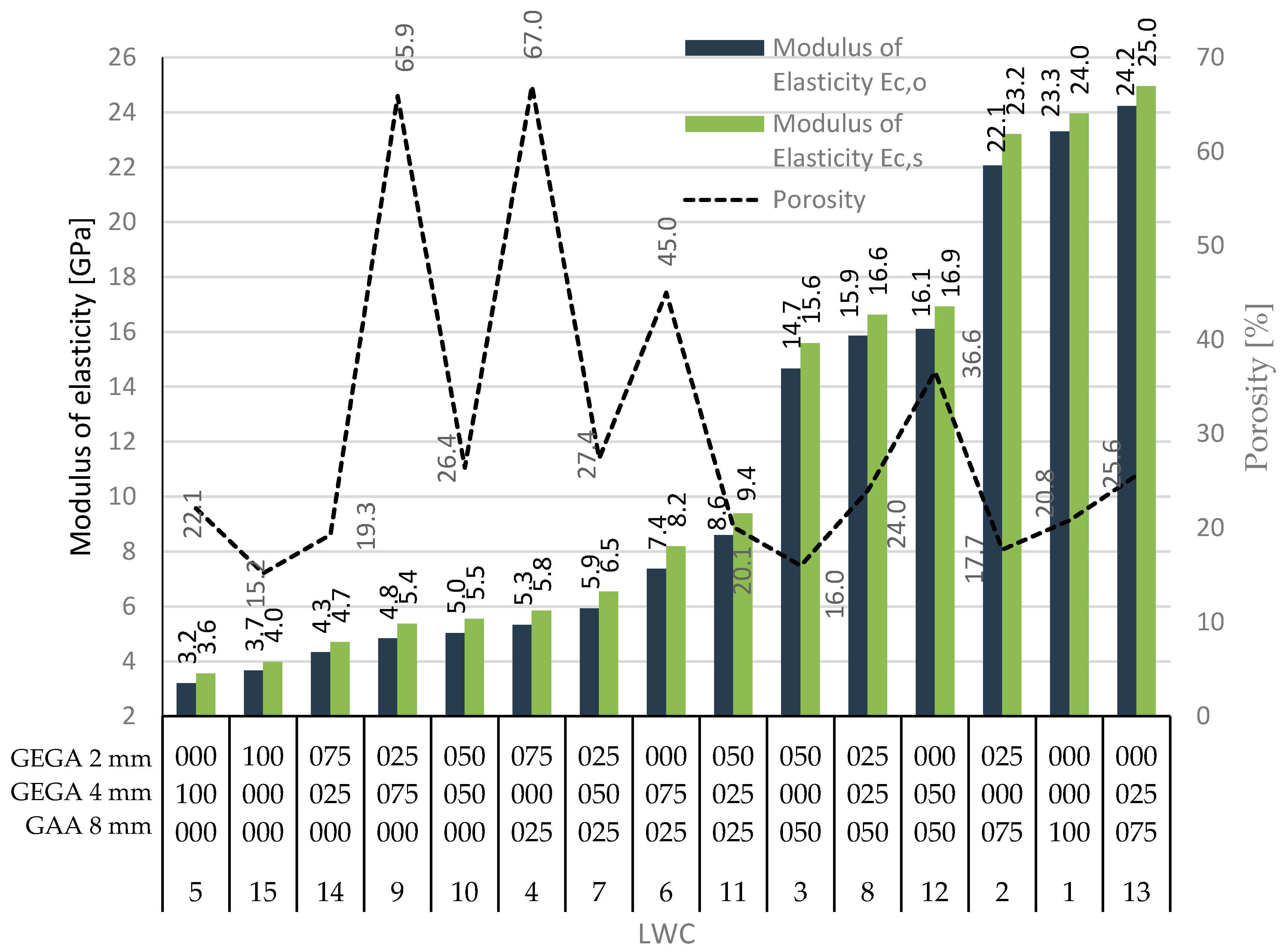

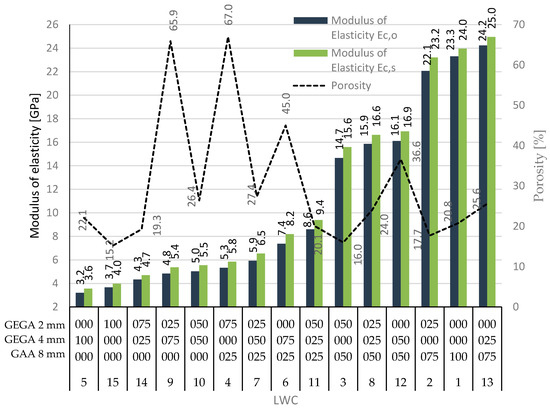

Modulus of elasticity Ec,0 (GPa) | 23.3 | 22.1 | 14.7 | 5.3 | 3.2 | 7.4 | 5.9 | 15.9 | 4.8 | 5.0 | 8.6 | 16.1 | 24.2 | 4.3 | 3.7 |
Ec,s A (GPa) | 24.0 | 23.2 | 15.6 | 5.8 | 3.6 | 8.2 | 6.5 | 16.6 | 5.4 | 5.5 | 9.4 | 16.9 | 25.0 | 4.7 | 4.0 |

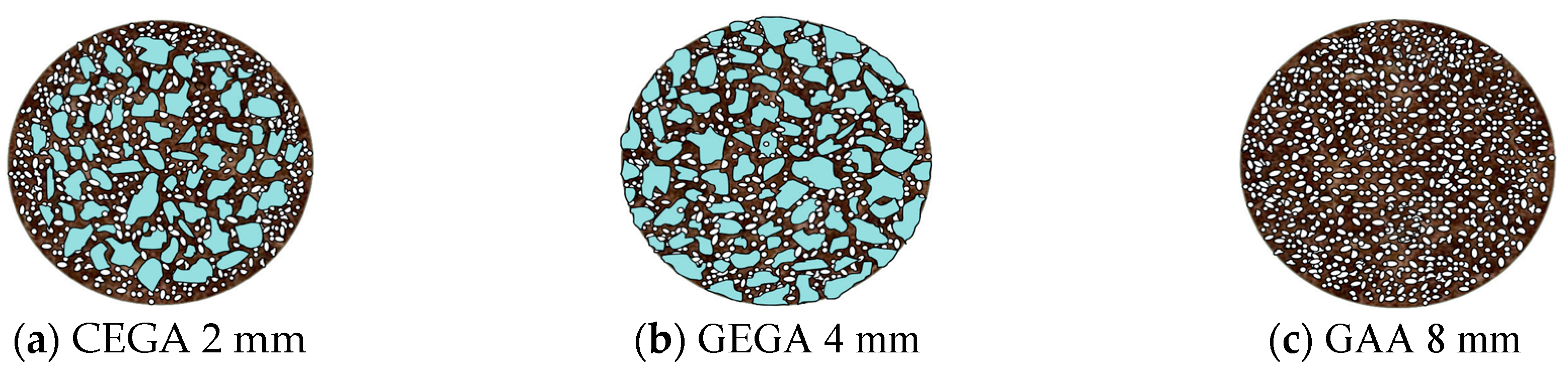

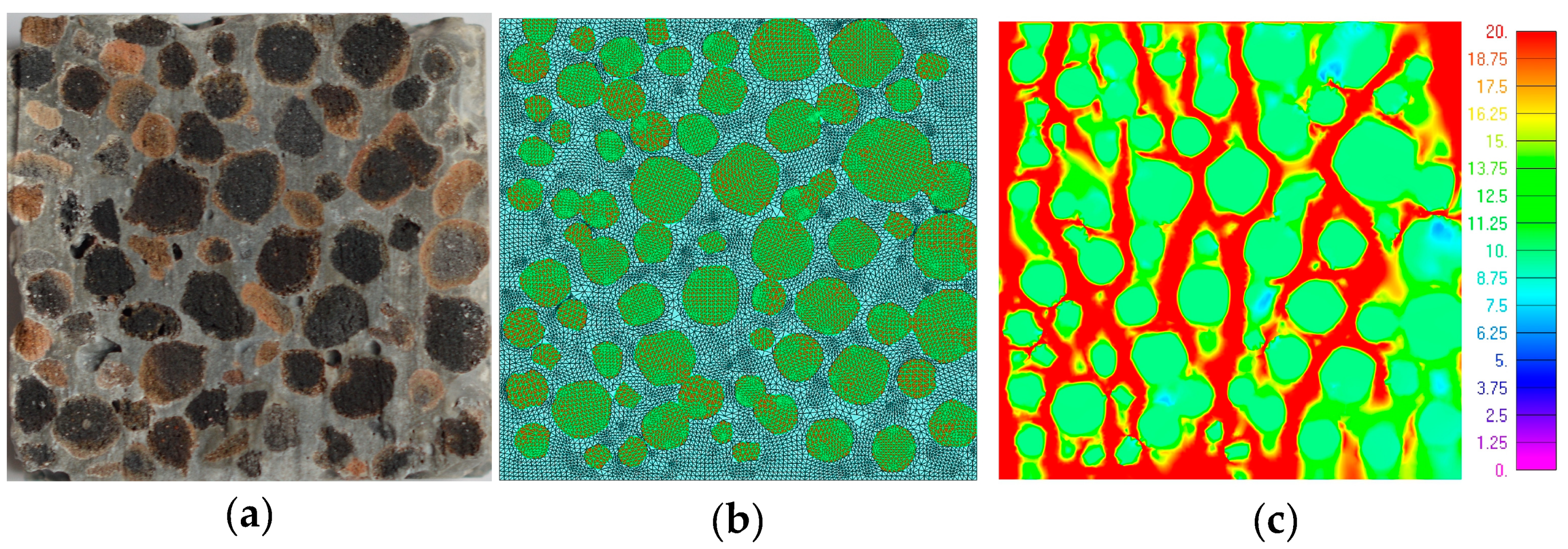

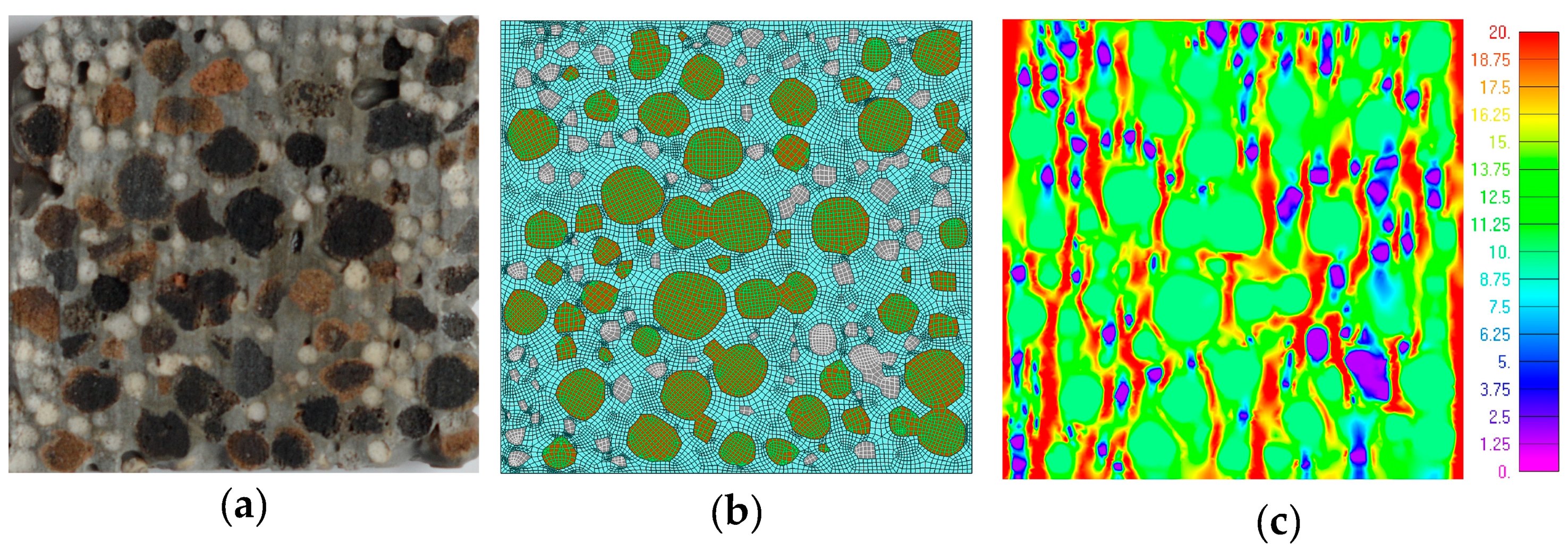

Material Parameters | Material | ||||
---|---|---|---|---|---|
GAA 8 mm | GEGA 4 mm | GEGA 2 mm | Mortar | ||
Stiffness modulus | (GPa) | 18.9 | 4.7 | 3.8 | 23.9 |
Poisson ratio | (-) | 0.1 | 0.1 | 0.1 | 0.167 |
Strength | (MPa) | 9.8 | 1.8 | 1.8 | 52.8 |
