Toward the Growth of Self-Catalyzed ZnO Nanowires Perpendicular to the Surface of Silicon and Glass Substrates, by Pulsed Laser Deposition

by
Basma ElZein
1,2,*,
Yingbang Yao
3,
Ahmad S. Barham
4,
Elhadj Dogheche
5 and
Ghassan E. Jabbour
6
1
Electrical Engineering Department, College of Engineering, University of Business and Technology (UBT), Jeddah 21361, Saudi Arabia
2
Institute of Electronics, Microelectronics and Nanotechnology, CNRS and University Lille Nord de France- Avenue Poincaré, CEDEX, 59652 Villeneuve d’Ascq, France
3
Faculty of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
4
General Subjects Department, College of Engineering, University of Business and Technology (UBT), Jeddah 21361, Saudi Arabia
5
Campus Le Mont Houy, IEMN CNRS, Polytechnic University Hauts de France, CEDEX, 59309 Valenciennes, France
6
Canada Research Chair in Engineered Advanced Materials and Devices, Faculty of Engineering, University of Ottawa, Ottawa, ON K1N 6N5, Canada
*
Author to whom correspondence should be addressed.
Materials 2020, 13(19), 4427; https://doi.org/10.3390/ma13194427
Submission received: 7 September 2020 / Revised: 29 September 2020 / Accepted: 29 September 2020 / Published: 5 October 2020
Browse Figures
Versions Notes

Abstract

:
Vertically-oriented zinc oxide (ZnO) nanowires were synthesized on glass and silicon substrates by Pulsed Laser Deposition and without the use of a catalyst. An intermediate c-axis oriented nanotextured ZnO seed layer in the form of nanowall network with honey comb structure allows the growth of high quality, self-forming, and vertically-oriented nanowires at relatively low temperature (<400 °C) and under argon atmosphere at high pressure (>5 Torr). Many parameters were shown to affect the growth of the ZnO nanowires such as gas pressure, substrate–target distance, and laser energy. Growth of a c-axis-crystalline array of nanowires growing vertically from the energetically favorable sites on the seed layer is observed. Nucleation occurs due to the matching lattice structure and the polar nature of the ZnO seed layer. Morphological, structural, and optical properties were investigated. X-ray diffraction (XRD) revealed highly c-axis aligned nanowires along the (002) crystal plane. Room temperature photoluminescence (PL) measurements showed a strong and narrow bandwidth of Ultraviolet (UV) emission, which shifts to lower wavelength with the increase of pressure.

Graphical Abstract

1. Introduction

One-dimensional nanometer-sized electrically conducting and semiconducting nanowires (NWs), nanotubes, and nanorods have attracted much attention due to many exciting attributes including a direct path for charge transport and a large surface area for light harvesting. Such characteristics make them excellent candidates for many applications including solid-state lighting and photovoltaics. Freestanding NWs array morphology is favorable to light trapping where the incident light scatters within its open interiors. The scattering improves the efficiency of light absorption by increasing the photon path length. Due to the high electron mobility (reaching tens cm2 V−1 S−1) [1], photo-generated charges are transported quickly to the electrode, especially when the NWs are vertically-oriented with respect to it (Figure 1).
Due to the unique properties of ZnO such as a large direct band gap of 3.37 eV and exciton binding energy of 60 meV [2,3,4,5,6,7,8], it has been employed in numerous applications such as solar cells, light emitting diodes (LED), optical switches, and waveguides, to mention a few. For example, ZnO NWs-based solar cell research has become a hot topic in science and engineering [9,10,11,12,13,14,15,16,17,18,19]. Device architecture having radial, axial, or substrate junction has also been explored [20]. These architectures have been employed in solar cells using homogeneous and heterogeneous NWs.
There are many approaches for the growth of ZnO nanostructures such as catalytic growth via vapor liquid solid (VLS) mechanism [21,22], thermal evaporation [23,24,25], pulsed laser deposition (PLD) [26,27], hydrothermal growth [28,29,30,31], rapid hydrothermal growth [32,33,34], and wet chemical processing [35,36,37], etc. The choice of the growth technique is dictated by the requirements of the application.
PLD has been recognized as a powerful technique in thin film growth. It can produce high quality epitaxial materials as well as amorphous layers at low temperature. It is also used to produce various nanostructures like nanorods [38,39,40,41,42], nanoparticles [41,43,44,45], and nanowalls [46]. A survey [26,47,48,49,50,51,52,53,54,55,56,57] of the synthesis parameters of ZnO NWs by PLD is presented in Table 1 presenting the growth parameters such as the type of seed layer, temperature, pressure, and distance between substrate and target. It is noticed that growth temperature varies between 500 and 900 °C, pressure > 1 Torr, and relatively short target–substrate distance <3 cm.
In this paper, we report the growth of vertically-oriented ZnO NWs on nanotextured seed layer (SL) of ZnO at high background pressure. Unlike what has been reported in the literature, this method requires only the nanotextured ZnO template for nucleation, and does not use any metal catalyst layer. We demonstrate the growth of vertically-oriented ZnO nanorods on both silicon and glass-ITO/ZnO substrates.

2. Materials and Methods

An ablation source of KrF excimer laser (248 nm) with a repetition rate of 10 Hz and pulse laser energy of 400 mJ/pulse (energy density of ~8 J/cm2), and a high purity ZnO target were used (CompexPro 205F, Coherent Inc., Santa Clara, CA, USA). The target was prepared by uniaxial pressing of ZnO commercial powder (99.99% purity from Sigma Aldrich, St. Louis, MO, USA) followed by sintering at 1150 °C for two hours. Prior to deposition; p-type Si (100), and Glass-Indium Tin Oxide (ITO) substrates of 1 × 1.5 cm2 were ultrasonically cleaned with a consecutive bath of acetone and isopropanol followed by a drying step using compressed nitrogen. The samples were totally covered by a textured thin layer of ZnO; experimental process is presented elsewhere [58], and then introduced in a high vacuum chamber evacuated to a base pressure of about 10−6 Torr. The target-to-substrate distance was maintained at 6.5 cm due to equipment restrictions. Experimental setup details are presented in Figure 2. The substrate was heated to 380 °C (measured temperature) at a rate of 30 °C/min. The temperature was maintained constant during deposition in the presence of argon (>99.99% purity). Structural properties of the as-grown NWs were characterized using Bruker D8 Discover high resolution X-ray diffractometer (XRD, Tokyo, Japan) with CuKα and λ = 1.5406 Å and transmission electron microscopy—FEI—TEM Tecnai (Hillsboro, OR, USA). Morphological properties were examined with FEI Nova Nano SEM 630 (Hillsboro, OR, USA) and Zeiss Ultra 55 (Hillsboro, OR, USA), and photoluminescence properties were studied using Raman Lab with the samples excited using HeCd laser at 325 nm.

3. Results

Parametric study was performed to optimize the ZnO NWs growth on various types of substrates with different NWs length, diameter, and density. Morphological, structural and optical properties were investigated.

3.1. Morphological Properties—Effect of Seed Layer (SL)

ZnO NWs were grown directly on Si (100) substrates at 5 Torr (argon pressure). Under deposition conditions presented in the experimental section without ZnO SL, the grown ZnO nanostructures showed nail-needle-shape morphology with different dimensions (Figure 3) and random orientation.
A thin layer of ZnO nanowall network with honeycomb structure [58] was deposited as SL on Si (100).
The ZnO textured SL is highly crystalline (c-direction), grown by PLD; growth parameters are presented elsewhere [32]. Under deposition conditions of 5 Torr argon pressure and a deposition time of 30 min, NWs with a perfect vertical orientation were grown on ZnO SL/Si (100) having an average diameter of about 50 ± 4 nm, a length of 1.3 ± 0.12 μm, and spacing of 46 ± 8 nm (Figure 4).
As expected, the geometrical dimensions of the NWs are affected by the deposition conditions. For example, changing the chamber pressure to 10 Torr for 15 min results in 600 ± 30 nm long NWs and having diameter 30 ± 3 nm, with a spacing of 75 ± 5 nm (Figure 5). It is noteworthy that no NWs were obtained at 2.5 Torr background argon gas pressure.
Under the same deposition, ZnO NWs grew in a pencil-like morphology with 2.6 ± 0.4 μm length and 360 ± 20 nm diameter nearly perpendicular to the surface of glass-ITO/ZnO SL (Figure 6).

3.2. Structural Properties

A typical XRD pattern of the ZnO NWs array at 5 and 10 Torr is shown in Figure 7. Only main diffraction lines from (002) and (004) planes can be observed having the highest peak shown at 34.58° and 34.47° for the NWs at 5 and 10 Torr, respectively. It is constructive to note that the NWs array has a c-axis orientation. The other diffraction peaks shown in Figure 7 are due to the silicon substrate and substrate holder. A slight shift can be seen between the two peaks of the (002) plane direction of the ZnO NWs grown at different pressures. This might be caused by the low oxidation of the ZnO NWs due to the background argon environment.
The structure of ZnO NWs on ZnO SL was further investigated by TEM. Figure 8 shows a low-resolution image (Figure 8a), HRTEM image (Figure 8b) and selected area electron diffraction (SAED) pattern of a single ZnO NW (Figure 8a). It is clear that the ZnO NWs are relatively straight with a diameter of about 50 ± 4 nm. SAED pattern and HRTEM suggest that the NWs have a single domain wurtzite structure with high crystal quality. The HRTEM image shows a lattice distance of 0.52 nm consistent with the c-axis of wurtzite ZnO crystal. The SAED pattern reveals the exact growth of NWs along the ZnO [2] direction, consistent with the XRD result of Figure 7. The growth of the ZnO NWs is done on the concave tip near the grain boundaries between two ZnO thin grains.
When ZnO is viewed along < 11 2 ¯ 0 > direction, all the Zn and O atoms are aligned at separate atomic columns, and there is no mixing between Zn and O atoms in the column. This is an ideal case for using STEM (either high-angle annular dark field (HAADF) or annular bright field (ABF)), to study the polarity of ZnO film. However, as Zn and O atoms are only 0.112 nm apart in the < 11 2 ¯ 0 > projection, a probe corrector has to be used to achieve such a resolution. Here HAADF is not applicable, as the oxygen light atom cannot be seen due to a weak signal. In this case, ABF is more suitable to study the polarity of the film (Figure 9). Based on the contrast, the position of Zn and O can be accurately identified. As the nanowire is pointing upward, the polarity was identified based on the common definition of polarity of ZnO (the nanowire is Zn terminated [59]).

3.3. Optical Properties

Figure 10 depicts photoluminescence (PL) measurements of ZnO NWs grown by PLD at 5 Torr and 10 Torr argon pressure. Different peak positions of the band edge emission in the UV region as well as defect-induced emissions in the visible region can be seen. The PL spectra exhibit normal band-gap emission in the UV region at ca. 379.4 nm (3.268 eV), and 379.2 nm (3.27 eV) for samples grown at 5 Torr and 10 Torr, respectively. A slight shift to lower wavelength is noticed which might be caused by quantum confinement of thinner NWs. The emission in the visible region is namely green (541 nm (2.29 eV), and 539 nm (2.3 eV) for 5 Torr and 10 Torr samples, respectively) and yellow (585 nm (2.12 eV) for both cases). Several types of defects in ZnO can induce emission in the visible region. Table 2 presents the intensity ratio of UV/visible emission. It shows that the UV to green emission and UV to yellow emission for ZnO NWs are higher for working pressure of 10 Torr, indicating fewer defects than the 5 Torr case.

4. Discussion

NWs were grown perpendicularly to the surface with a high-density distribution over the entire substrate. The crystal structure of the SL had a considerable effect on the crystallographic orientation of the ZnO NWs.
Many PLD process parameters affect the growth of the ZnO NWs, such as substrate temperature, gas pressure, and the substrate–target distance. The deposition temperature has a critical effect on surface diffusion [26,51,60,61,62]. If it is too low <200 °C, the deposited ZnO will not have enough mobility to reach nucleation sites, and would rather increase the roughness of the surface [63]. An appropriate high temperature would allow the deposited species to migrate to energetically favorable sites where the nucleation energy barrier is lower. This is due to the higher sticking coefficient of ZnO on the nuclei sites. These are likely to be the vicinity of grain boundaries as was demonstrated by TEM analysis. It is worth mentioning that the temperature used in our work (400 °C) is less than in the previously published literature, as well as the target–substrate distance (6.5 cm) being larger [64]. The lower substrate temperature was found to be sufficient for activating surface diffusion. In this research, the pressure used for the growth of ZnO nanowires was 5 Torr–10 Torr, recommended by S. Lemlikchi et al. [65] and R.S.Ajimsha et al. [66]. The average diameter of the NWs grown at 10 Torr is less than that of the 5 Torr. The increase of pressure from 5 Torr to 10 Torr caused the NWs spacing to increase from 46 ± 8 nm to 75 ± 5 nm, respectively, as the argon gas pressure influences both the deposition rate and the energy of ejected species. When the deposition is processed under high pressure, the ablated species undergo a large number of collisions with background gas molecules (argon atoms), which reduces the energy of the particles arriving at the substrate–Seed Layer (SL) and decreases the size of the ablated plume [67]. That is why it is recommended to reduce the distance between the target and substrate while working at higher pressure in order to maintain the optimum energy of the ablated species. The decrease of the kinetic energy is likely to be the reason why thinner NWs with lower density were obtained over the surface of the substrate at 10 Torr. Furthermore, ZnO nanowires were successfully grown on glass-ITO-ZnO SL substrate at 5 Torr. The thickness of the glass substrate also affects the morphology of NWs, due to heat transfer phenomenon.
On the other hand, for the metal oxide such as ZnO, gold (Au) or silver (Ag) catalysts are not needed if Zn can be decomposed of ZnO during the growth of NWs. Having a high melting point, ZnO might have been decomposed and created a self-catalytic Zn nano-dot from the vapor liquid solid process (VLS). ZnO NWs can be grown just above the melting point of Zn. The morphology, density, and uniformity of the NWs depend on the surface and surface migration energies of the substrate.
In order to understand the growth process, the deposition of ZnO NWs on ZnO SL was performed using PLD at different deposition durations. Figure 11 reveals the schematic illustration of growth of ZnO NWs grown by PLD on Si substrates having a ZnO SL. It is suggested that growth rate of ZnO along the normal direction is higher than the rate at the different index planes ( V ( 0001 ) > V ( 10 1 ¯ 0 ) > V ( 10 1 ¯ 1 ¯   ) > V ( 10 1 ¯ 1 ) > V   ( 000 1 ¯ ) ) [68]. The presence of ZnO SL can efficiently lower the nucleation energy barrier leading to nucleation of ZnO NWs. Moreover, the continuous supply of ZnO assists the growth of NWs in a favorable direction [2]. The NW’s length increases with growth time, and the density of the NWs varies with the nucleation sites on the surface of the SL and the argon pressure in the PLD chamber.

5. Conclusions

In summary, we have demonstrated that vertically-oriented ZnO NWs could be grown on Si and glass/ITO substrates with an intermediate nanostructured ZnO SL by pulsed laser deposition at relatively low temperature under high argon pressure. Since no intentional metal catalyst was introduced, the incorporation of a textured ZnO SL was a key for the growth of the desired NWs. The grain boundaries of the used ZnO SL were found to be the most favorable nucleation sites. The as-synthesized NWs, found to present Zn polarity, were c-axis oriented in agreement with the SL crystallinity. This is a promising substrate-independent growth method for fabricating aligned NWs on a large scale to be applied in photovoltaic, light emitting diodes, electronic devices for improved light trapping, and other electronic devices.

6. Patents

The patent number “US 2015/0280017 A1” resulted from the work reported in this manuscript.

Author Contributions

All authors contributed equally to the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors would like to thank Anastasia Khrenova (KAUST) for her assistance on the drawings. Special thanks to Didier Decoster, Zahia Bougrioua (IEMN), Brigitte Sieber, Ahmad Addad (UMET), and P Tuami Lasri (IEMN) for fruitful discussion. Our gratitude goes to Bei Zhang, Lan Zhao, Rachid Sougrat, and Xixiang Zhang (KAUST) for all their support during the acquisition of the images.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Law, M.; Greene, L.E.; Johnson, J.C.; Saykally, R.; Yang, P. Nanowire dye-sensitized solar cells. Nat. Mater. 2005, 4, 455–459. [Google Scholar] [CrossRef] [PubMed]
  2. Unalan, H.E.; Hiralal, P.; Rupesinghe, N.; Dalal, S.; Milne, W.I.; Amaratunga, G.A.J. Rapid synthesis of aligned zinc oxide nanowires. Nanotechnology 2008, 19, 255608. [Google Scholar] [CrossRef] [PubMed]
  3. Park, W.I.; Yi, G.-C. Electroluminescence in n-ZnO Nanorod Arrays Vertically Grown on p-GaN. Adv. Mater. 2004, 16, 87–90. [Google Scholar] [CrossRef]
  4. Lai, E.; Kim, W.; Yang, P. Vertical nanowire array-based light emitting diodes. Nano Res. 2008, 1, 123–128. [Google Scholar] [CrossRef] [Green Version]
  5. Arnold, M.S.; Avouris, P.; Pan, Z.; Wang, Z.L. Field-Effect Transistors Based on Single Semiconducting Oxide Nanobelts. J. Phys. Chem. B 2003, 107, 659–663. [Google Scholar] [CrossRef]
  6. Yan, H.; Johnson, J.C.; Law, M.; He, R.; Knutsen, K.; McKinney, J.; Pham, J.; Saykally, R.J.; Yang, P. ZnO Nanoribbon Microcavity Lasers. Adv. Mater. 2003, 15, 1907–1911. [Google Scholar] [CrossRef]
  7. Lin, S.S.; Hong, J.-I.; Song, J.H.; Zhu, Y.; He, H.; Xu, Z.; Wei, Y.G.; Ding, Y.; Snyder, R.L.; Wang, Z.L. Phosphorus Doped Zn1-xMgxO Nanowire Arrays. Nano Lett. 2009, 9, 3877–3882. [Google Scholar] [CrossRef] [Green Version]
  8. Kumar, N.; Katiyar, A.; Srivastava, A. Tuning NBE emission and optical band gap of nanocrystalline ZnO thin films using Fe dopant. Mater. Today Proc. 2018, 5, 9089–9093. [Google Scholar] [CrossRef]
  9. Ginley, D.; Green, M.A.; Collins, R.T. Solar Energy Conversion Toward 1 Terawatt. MRS Bull. 2008, 33, 355–364. [Google Scholar] [CrossRef] [Green Version]
  10. Hochbaum, A.I.; Yang, P. Semiconductor Nanowires for Energy Conversion. Chem. Rev. 2010, 110, 527–546. [Google Scholar] [CrossRef]
  11. Tian, B.; Kempa, T.J.; Lieber, C.M. Single nanowire photovoltaics. Chem. Soc. Rev. 2009, 38, 16–24. [Google Scholar] [CrossRef] [PubMed]
  12. Fan, Z.; Ruebusch, D.J.; Rathore, A.A.; Kapadia, R.; Ergen, O.; Leu, P.W.; Javey, A. Challenges and prospects of nanopillar-based solar cells. Nano Res. 2009, 2, 829–843. [Google Scholar] [CrossRef] [Green Version]
  13. Yu, K.; Chen, J. Enhancing Solar Cell Efficiencies through 1-D Nanostructures. Nanoscale Res. Lett. 2008, 4, 1–10. [Google Scholar] [CrossRef] [Green Version]
  14. Luo, J.; Wang, Y.-X.; Zhang, Q. Progress in perovskite solar cells based on ZnO nanostructures. Sol. Energy 2018, 163, 289–306. [Google Scholar] [CrossRef]
  15. Paul, S.; Sultana, J.; Karmakar, A.; Chattopadhyay, S. Effect of prolonged growth on the chemical bath deposited ZnO nanowires and consequent photovoltaic performance of n-ZnO NWs/p-CuO heterojunction solar cells. Mater. Today Proc. 2017, 4, 12496–12499. [Google Scholar] [CrossRef]
  16. Nayeri, F.D.; Akbarnejad, E.; Ghoranneviss, M.; Soleimani, E.A.; Hashemizadeh, S.A. Dye decorated ZnO-NWs /CdS-NPs heterostructures for efficiency improvement of quantum dots sensitized solar cell. Superlattices Microstruct 2016, 91, 244–251. [Google Scholar] [CrossRef]
  17. Wang, S.; Zhu, Z.; Zou, Y.; Dong, Y.; Liu, S.; Xue, J.; Xu, L.; Dong, Y.; Song, J. A low-dimension structure strategy for flexible photodetectors based on perovskite nanosheets/ZnO nanowires with broadband photoresponse. Sci. China Mater. 2019, 63, 100–109. [Google Scholar] [CrossRef] [Green Version]
  18. Saleem, M.; Farooq, W.; Khan, M.; Akhtar, M.N.; Rehman, S.U.; Ahmad, N.; Khalid, M.; Atif, M.; Almutairi, M.A.; Irfan, M. Effect of ZnO Nanoparticles Coating Layers on Top of ZnO Nanowires for Morphological, Optical, and Photovoltaic Properties of Dye-Sensitized Solar Cells. Micromachines 2019, 10, 819. [Google Scholar] [CrossRef] [Green Version]
  19. Consonni, V.; Briscoe, J.; Karber, E.; Li, X.; Cossuet, T. ZnO nanowires for solar cells: A comprehensive review. Nanotechnology 2019, 30, 362001. [Google Scholar] [CrossRef]
  20. Liu, W.; Liang, Y.; Xu, H.; Wang, L.; Zhang, X.; Liu, Y.; Hark, S. Heteroepitaxial Growth and Spatially Resolved Cathodoluminescence of ZnO/MgZnO Coaxial Nanorod Arrays. J. Phys. Chem. C 2010, 114, 16148–16152. [Google Scholar] [CrossRef]
  21. Cao, B.Q.; Zúñiga-Pérez, J.; Czekalla, C.; Hilmer, H.; Lenzner, J.; Boukos, N.; Travlos, A.; Lorenz, M.; Grundmann, M. Tuning the lateral density of ZnO nanowire arrays and its application as physical templates for radial nanowire heterostructures. J. Mater. Chem. 2010, 20, 3848–3854. [Google Scholar] [CrossRef]
  22. Alvi, N.H.; Hassan, W.U.; Farooq, B.; Nur, O.; Willander, M. Influence of different growth environments on the luminescence properties of ZnO nanorods grown by the vapor–liquid–solid (VLS) method. Mater. Lett. 2013, 106, 158–163. [Google Scholar] [CrossRef]
  23. Warule, S.S.; Chaudhari, N.S.; Kale, B.B.; More, M.A. Novel sonochemical assisted hydrothermal approach towards the controllable synthesis of ZnO nanorods, nanocups and nanoneedles and their photocatalytic study. CrystEngComm 2009, 11, 2776. [Google Scholar] [CrossRef]
  24. Tu, N.; Trung, D.Q.; Kien, N.; Huy, P.; Nguyen, D. Effect of substrate temperature on structural and optical properties of ZnO nanostructures grown by thermal evaporation method. Phys. E Low Dimens. Syst. Nanostruct. 2017, 85, 174–179. [Google Scholar] [CrossRef]
  25. Butanovs, E.; Piskunov, S.; Zolotarjovs, A.; Polyakov, B. Growth and characterization of PbI2-decorated ZnO nanowires for photodetection applications. J. Alloys Compd. 2020, 825, 154095. [Google Scholar] [CrossRef]
  26. Tien, L.C.; Pearton, S.J.; Norton, D.; Ren, F. Synthesis and microstructure of vertically aligned ZnO nanowires grown by high-pressure-assisted pulsed-laser deposition. J. Mater. Sci. 2008, 43, 6925–6932. [Google Scholar] [CrossRef]
  27. Dikovska, A.; Pallotti, D.; Lettieri, S.; Atanasova, G.; Avdeev, G.; Maddalena, P.; Amoruso, S.; Nedyalkov, N. Growth mechanism of ZnO nanostructures produced by ultraviolet and visible laser ablation. Appl. Surf. Sci. 2017, 423, 977–982. [Google Scholar] [CrossRef]
  28. Djurisic, A.B.; Leung, Y.H. Optical properties of ZnO nanostructures. Small 2006, 2, 944–961. [Google Scholar] [CrossRef]
  29. Bazazi, S.; Arsalani, N.; Khataee, A.; Tabrizi, A.G. Comparison of ball milling-hydrothermal and hydrothermal methods for synthesis of ZnO nanostructures and evaluation of their photocatalytic performance. J. Ind. Eng. Chem. 2018, 62, 265–272. [Google Scholar] [CrossRef]
  30. Shahi, K.; Singh, R.S.; Singh, J.; Aleksandrova, M.; Singh, A.K. Synthesis of Ag Nanoparticle-Decorated ZnO Nanorods Adopting the Low-Temperature Hydrothermal Method. J. Electron. Mater. 2019, 49, 637–642. [Google Scholar] [CrossRef]
  31. Bourfaa, F.; Boutelala, A.; Aida, M.S.; Attaf, N.; Ocak, Y.S. Influence of Seed Layer Surface Position on Morphology and Photocatalysis Efficiency of ZnO Nanorods and Nanoflowers. J. Nanomater. 2020, 2020, 1–9. [Google Scholar] [CrossRef]
  32. Tak, Y.; Park, D.; Yong, K. Characterization of ZnO nanorod arrays fabricated on Si wafers using a low-temperature synthesis method. J. Vac. Sci. Technol. B Microelectron. Nanometer Struct. 2006, 24, 2047. [Google Scholar] [CrossRef] [Green Version]
  33. Witkowski, B.S.; Dluzewski, P.; Kaszewski, J.; Wachnicki, L.; Gieraltowska, S.; Kurowska, B.; Godlewski, M. Ultra-fast epitaxial growth of ZnO nano/microrods on a GaN substrate, using the microwave-assisted hydrothermal method. Mater. Chem. Phys. 2018, 205, 16–22. [Google Scholar] [CrossRef]
  34. Bao, Y.; Gao, L.; Feng, C.; Ma, J.; Liu, C.; Zhang, W. A solvent-dependent fabrication of flower-like and hexagonally ring-like ZnO architectures in one minute. Arab. J. Chem. 2020, 13, 4035–4042. [Google Scholar] [CrossRef]
  35. Lee, J.; Park, K.; Kang, M.-I.; Park, I.-W.; Kim, S.-W.; Cho, W.K.; Han, H.S.; Kim, S. ZnO nanomaterials synthesized from thermal evaporation of ball-milled ZnO powders. J. Cryst. Growth 2003, 254, 423–431. [Google Scholar] [CrossRef]
  36. Bhat, P.; Pradhan, U.U.; Kumar, S.N. Synthesis and Characterization of ZnO Nano Discs Using Wet Chemical Method for Sensing Applications. Mater. Today Proc. 2018, 5, 10763–10770. [Google Scholar] [CrossRef]
  37. Mia, M.N.H.; Habiba, U.; Pervez, M.F.; Kabir, H.; Nur, S.; Hossen, M.F.; Sen, S.K.; Hossain, M.K.; Iftekhar, M.A.; Rahman, M.M. Investigation of aluminum doping on structural and optical characteristics of sol–gel assisted spin-coated nano-structured zinc oxide thin films. Appl. Phys. A 2020, 126, 1–12. [Google Scholar] [CrossRef]
  38. Nakamura, D.; Matsumoto, T.; Kumeda, A.; Toya, K.; Okazaki, K.; Higashihata, M.; Okada, T. Synthesis of ZnO Nanowire Heterostructures by Laser Ablation and Their Photoluminescence. J. Laser Micro Nanoeng. 2011, 6, 23–25. [Google Scholar] [CrossRef]
  39. Sakano, T.; Tanaka, Y.; Nishimura, R.; Nedyalkov, N.N.; Atanasov, P.A.; Saiki, T.; Obara, M. Surface enhanced Raman scattering properties using Au-Coated ZnO nanorods grown by two-step, off-Axis pulsed laser deposition. J. Phys. D Appl. Phys. 2008, 41, 235304. [Google Scholar] [CrossRef]
  40. Inguva, S.; Vijayaraghavan, R.K.; McGlynn, E.; Mosnier, J.-P. High quality interconnected core/shell ZnO nanorod architectures grown by pulsed laser deposition on ZnO-seeded Si substrates. Superlattices Microstruct. 2017, 101, 8–14. [Google Scholar] [CrossRef] [Green Version]
  41. Dilova, T.; Atanasova, G.; Dikovska, A.O.; Nedyalkov, N. The effect of light irradiation on the gas-sensing properties of nanocomposites based on ZnO and Ag nanoparticles. Appl. Surf. Sci. 2020, 505, 144625. [Google Scholar] [CrossRef]
  42. Yang, K.; Li, B.; Zeng, G. Sb2Se3 thin film solar cells prepared by pulsed laser deposition. J. Alloys Compd. 2020, 821, 153505. [Google Scholar] [CrossRef]
  43. Svetlichnyi, V.; Shabalina, A.V.; Lapin, I.N.; Goncharova, D.; Nemoykina, A. ZnO nanoparticles obtained by pulsed laser ablation and their composite with cotton fabric: Preparation and study of antibacterial activity. Appl. Surf. Sci. 2016, 372, 20–29. [Google Scholar] [CrossRef]
  44. Mostafa, A.M.; Lotfy, V.F.; Mwafy, E.A.; Basta, A.H. Influence of coating by Cu and Ag nanoparticles via pulsed laser deposition technique on optical, electrical and mechanical properties of cellulose paper. J. Mol. Struct. 2020, 1203, 127472. [Google Scholar] [CrossRef]
  45. Hajjaji, A.; Rebhi, A.; Ka, I.; Trabelsi, K.; Gaidi, M.; Bessais, B.; El Khakani, M.A. Pulsed-laser-deposited lead sulfide nanoparticles based decoration of porous silicon layer as an effective passivation treatment for multicrystalline silicon. Appl. Surf. Sci. 2020, 505, 144590. [Google Scholar] [CrossRef]
  46. Labis, J.P.; Hezam, M.; Al-Anazi, A.; Al-Brithen, H.; Ansari, A.A.; El-Toni, A.M.; Enriquez, R.; Jacopin, G.; Alhoshan, M. Pulsed laser deposition growth of 3D ZnO nanowall network in nest-like structures by two-step approach. Sol. Energy Mater. Sol. Cells 2015, 143, 539–545. [Google Scholar] [CrossRef]
  47. Kawakami, M.; Hartanto, A.B.; Nakata, Y.; Okada, T. Synthesis of ZnO Nanorods by Nanoparticle Assisted Pulsed-Laser Deposition. Jpn. J. Appl. Phys. 2003, 42, L33–L35. [Google Scholar] [CrossRef]
  48. Gupta, V.; Bhattacharya, P.; Yuzyuk, Y.; Katiyar, R. Growth and Characterization of ZnO Nano-Rods on Si Substrate by Pulsed Laser Ablation. MRS Proc. 2004, 818. [Google Scholar] [CrossRef]
  49. Liu, Z.Q.; Zhang, D.H.; Li, C.; Zhou, C.W. Laser Ablation Synthesis of Oxide Nanowires and their Properties. In Proceedings of the 3rd IEEE Conference on Nanotechnology: IEEE-NANO, San Francisco, CA, USA, 12–14 August 2003; IEEE: Piscataway, NJ, USA, 2003; pp. 592–595. [Google Scholar]
  50. Agung, B.; Kawakami, M.; Nakata, Y.; Ning, X.; Okada, T. Stimulated emission from ZnO nanorods synthesized by pulsed-laser deposition. In Proceedings of the CLEO/Pacific Rim 2003. The 5th Pacific Rim Conference on Lasers and Electro-Optics (IEEE Cat. No.03TH8671), Taipei, Taiwan, 15–19 December 2003; Volume 2, p. 667. [Google Scholar] [CrossRef]
  51. Liu, W.Z.; Xu, H.Y.; Wang, L.; Li, X.H.; Liu, Y. Size-controlled growth of ZnO nanowires by catalyst-free high-pressure pulsed laser deposition and their optical properties. AIP Adv. 2011, 1, 022145. [Google Scholar] [CrossRef]
  52. Guo, R.; Matsumoto, M.; Matsumoto, T.; Higashihata, M.; Nakamura, D.; Okada, T. Aligned growth of ZnO nanowires by NAPLD and their optical characterizations. Appl. Surf. Sci. 2009, 255, 9671–9675. [Google Scholar] [CrossRef]
  53. Guo, R.; Nishimura, J.; Matsumoto, M.; Higashihata, M.; Nakamura, D.; Okada, T. Density-Controlled Growth of ZnO Nanowires Via Nanoparticle-Assisted Pulsed-Laser Deposition and Their Optical Properties. Jpn. J. Appl. Phys. 2008, 47, 741–745. [Google Scholar] [CrossRef]
  54. Mendelsberg, R.; Kerler, M.; Durbin, S.; Reeves, R.J. Photoluminescence behavior of ZnO nanorods produced by eclipse PLD from a Zn metal target. Superlattices Microstruct. 2008, 43, 594–599. [Google Scholar] [CrossRef]
  55. Kumarakuru, H.; Cherns, D.; Fuge, G.M. The growth of Al-doped ZnO nanorods on c-axis sapphire by pulsed laser deposition. Surf. Coatings Technol. 2011, 205, 5083–5087. [Google Scholar] [CrossRef]
  56. Lorenz, M.; Kaidashev, E.M.; Rahm, A.; Nobis, T.; Lenzner, J.; Wagner, G.; Spemann, D.; Hochmuth, H.; Grundmann, M. MgxZn1-xO (0 ≤ x < 0.2) nanowire arrays on sapphire grown by high-pressure pulsed-laser deposition. Appl. Phys. Lett. 2005, 86, 143113. [Google Scholar] [CrossRef]
  57. Karnati, P.; Haque, A.; Taufique, M.F.N.; Ghosh, K. A Systematic Study on the Structural and Optical Properties of Vertically Aligned Zinc Oxide Nanorods Grown by High Pressure Assisted Pulsed Laser Deposition Technique. Nanomaterials 2018, 8, 62. [Google Scholar] [CrossRef] [Green Version]
  58. El Zein, B.; Boulfrad, S.; Jabbour, G.; Dogheche, E. Parametric study of self-forming ZnO Nanowall network with honeycomb structure by Pulsed Laser Deposition. Appl. Surf. Sci. 2014, 292, 598–607. [Google Scholar] [CrossRef]
  59. De La Mata, M.; Magen, C.; Gázquez, J.; Utama, M.I.B.; Heiss, M.; Lopatin, S.; Furtmayr, F.; Fernández-Rojas, C.J.; Peng, B.; Morante, J.R.; et al. Polarity Assignment in ZnTe, GaAs, ZnO, and GaN-AlN Nanowires from Direct Dumbbell Analysis. Nano Lett. 2012, 12, 2579–2586. [Google Scholar] [CrossRef]
  60. Rogers, D.J.; Sandana, V.E.; Teherani, F.H.; Razeghi, M.; Drouhin, H.J. Fabrication of Nanostructured Heterojunction LEDs Using Self-Forming Moth-Eye Type Arrays of n-ZnO Nanocones Grown on p-Si (111) Substrates by Pulsed Laser Deposition. Proc. SPIE 2009, 4, 7217. [Google Scholar]
  61. Liu, Z.; Ong, C.K.; Yu, T.; Shen, Z.X. Catalyst-free pulsed-laser-deposited ZnO nanorods and their room-temperature photoluminescence properties. Appl. Phys. Lett. 2006, 88, 053110. [Google Scholar] [CrossRef]
  62. Liu, Z.; Ong, C. Synthesis and size control of ZnO nanorods by conventional pulsed-laser deposition without catalyst. Mater. Lett. 2007, 61, 3329–3333. [Google Scholar] [CrossRef]
  63. Ramamoorthy, K.; Sanjeeviraja, C.; Jayachandran, M.; Sankaranarayanan, K.; Misra, P.; Kukreja, L. Development of a novel high optical quality ZnO thin films by PLD for III–V opto-electronic devices. Curr. Appl. Phys. 2006, 6, 103–108. [Google Scholar] [CrossRef]
  64. Bruncko, J.; Michalka, M.; Kovac, J.; Vincze, A. A low-temperature limit for growth of ZnO nanowires by using of laser ablation processes. Appl. Phys. A 2020, 126, 305. [Google Scholar] [CrossRef]
  65. Lemlikchi, S.; Abdelli-Messaci, S.; Lafane, S.; Kerdja, T.; Guittoum, A.; Saad, M. Study of structural and optical properties of ZnO films grown by pulsed laser deposition. Appl. Surf. Sci. 2010, 256, 5650–5655. [Google Scholar] [CrossRef]
  66. Ajimsha, R.; Manoj, R.; Aneesh, P.M.; Jayaraj, M.K. Violet luminescence from ZnO nanorods grown by room temperature pulsed laser deposition. Curr. Appl. Phys. 2010, 10, 693–697. [Google Scholar] [CrossRef]
  67. Gupta, V.; Sreenivas, K. Chapter 4-Pulsed Laser Deposition of Zinc Oxide (ZnO). In Zinc Oxide Bulk, Thin Films and Nanostructures; Jagadish, C., Pearton, S., Eds.; Elsevier Science Ltd: Oxford, UK, 2006; pp. 85–174. [Google Scholar]
  68. Tang, Q.; Zhou, W.; Zhang, W.; Ou, S.; Jiang, K.; Yu, W.; Qian, Y. Size-Controllable Growth of Single Crystal In(OH)3and In2O3Nanocubes. Cryst. Growth Des. 2005, 5, 147–150. [Google Scholar] [CrossRef]
Materials 13 04427 g001 550

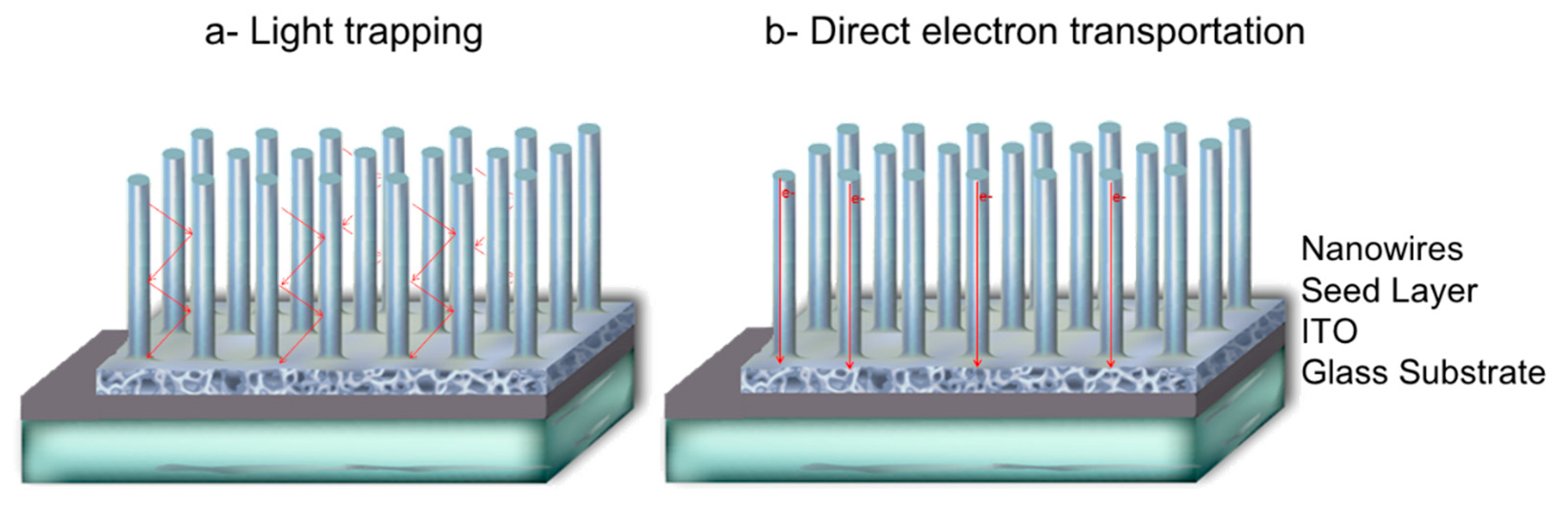

Figure 1. Illustration of (a) light trapping in nanowires arrays and (b) electron transport in vertical nanowires.
Figure 1. Illustration of (a) light trapping in nanowires arrays and (b) electron transport in vertical nanowires.
Materials 13 04427 g001
Materials 13 04427 g002 550

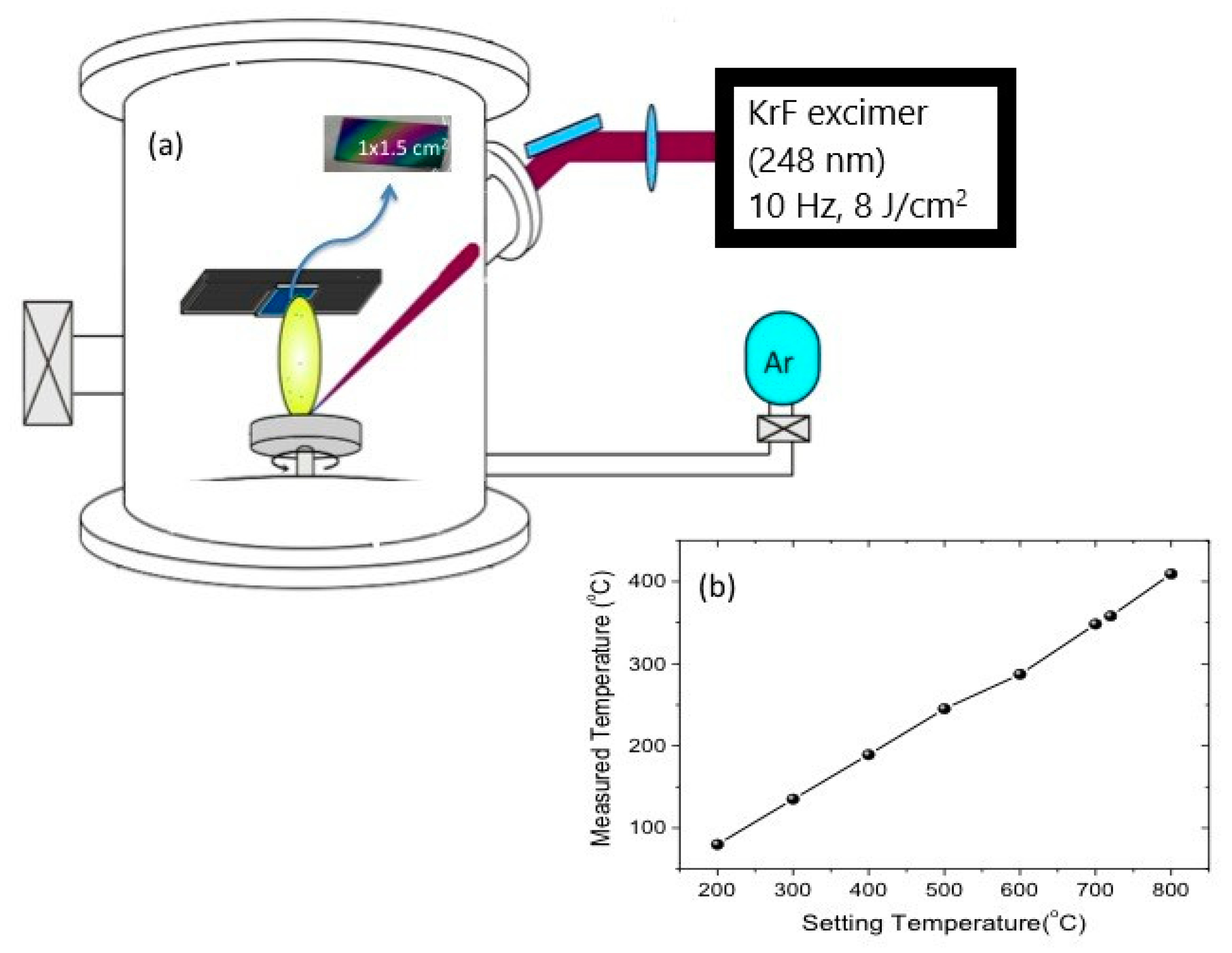

Figure 2. (a) PLD setup illustration, (b) diagram presenting the measured substrate temperatures in function of the setting temperature.
Figure 2. (a) PLD setup illustration, (b) diagram presenting the measured substrate temperatures in function of the setting temperature.
Materials 13 04427 g002
Materials 13 04427 g003 550
Figure 3. SEM image top view of ZnO nanowires (NWs) grown at 5 Torr in argon environment, T = 380 °C on silicon substrate.
Figure 3. SEM image top view of ZnO nanowires (NWs) grown at 5 Torr in argon environment, T = 380 °C on silicon substrate.
Materials 13 04427 g003
Materials 13 04427 g004 550

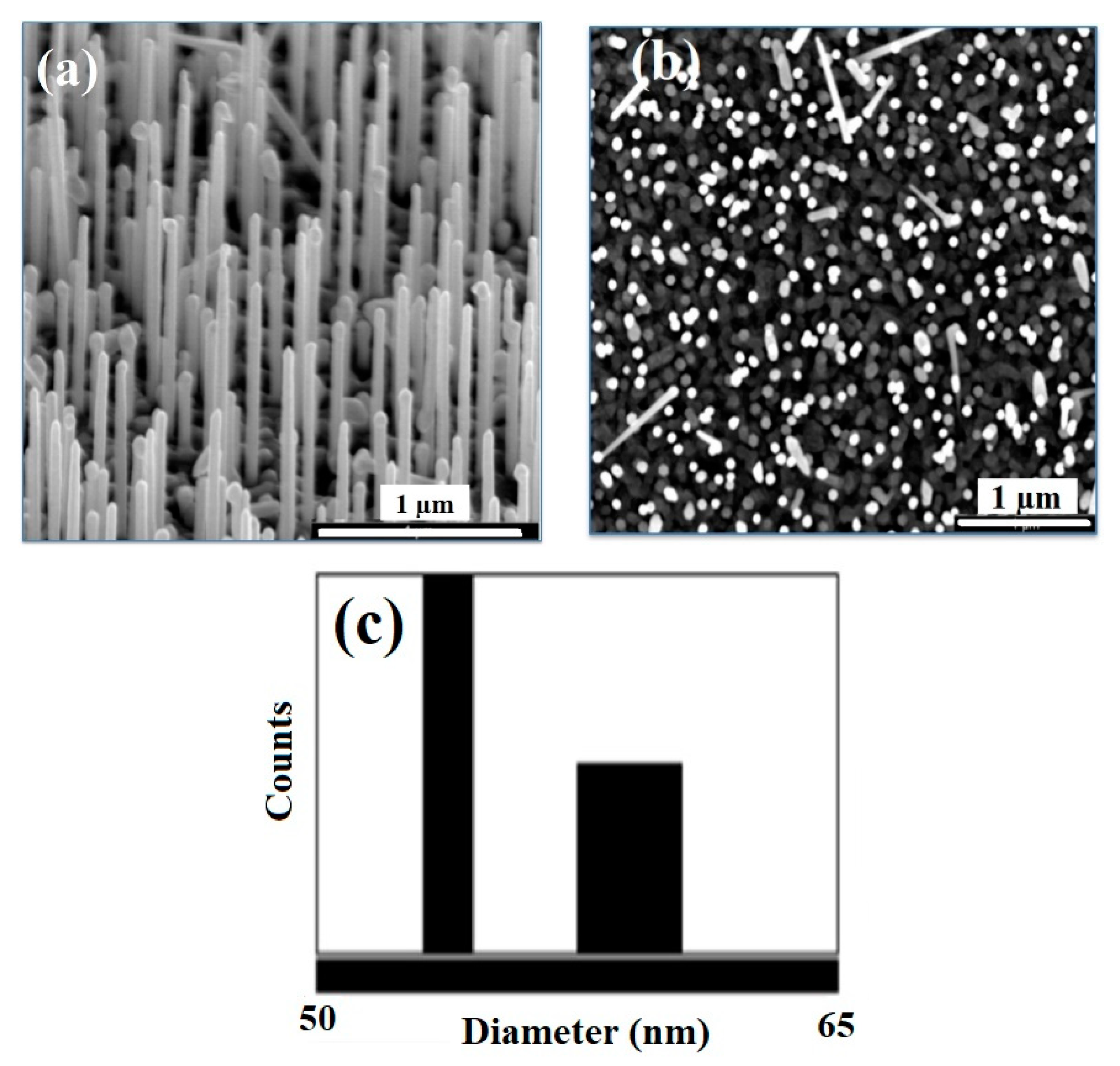

Figure 4. (a) 40° tilted view SEM image of perpendicular ZnO NWs arrays grown on ZnO SL/Si (100) substrates at 5 mTorr, (b) top view SEM image of the as-grown ZnO NWs, (c) corresponding size distribution histogram of the ZnO NWs arrays.
Figure 4. (a) 40° tilted view SEM image of perpendicular ZnO NWs arrays grown on ZnO SL/Si (100) substrates at 5 mTorr, (b) top view SEM image of the as-grown ZnO NWs, (c) corresponding size distribution histogram of the ZnO NWs arrays.
Materials 13 04427 g004
Materials 13 04427 g005a 550Materials 13 04427 g005b 550

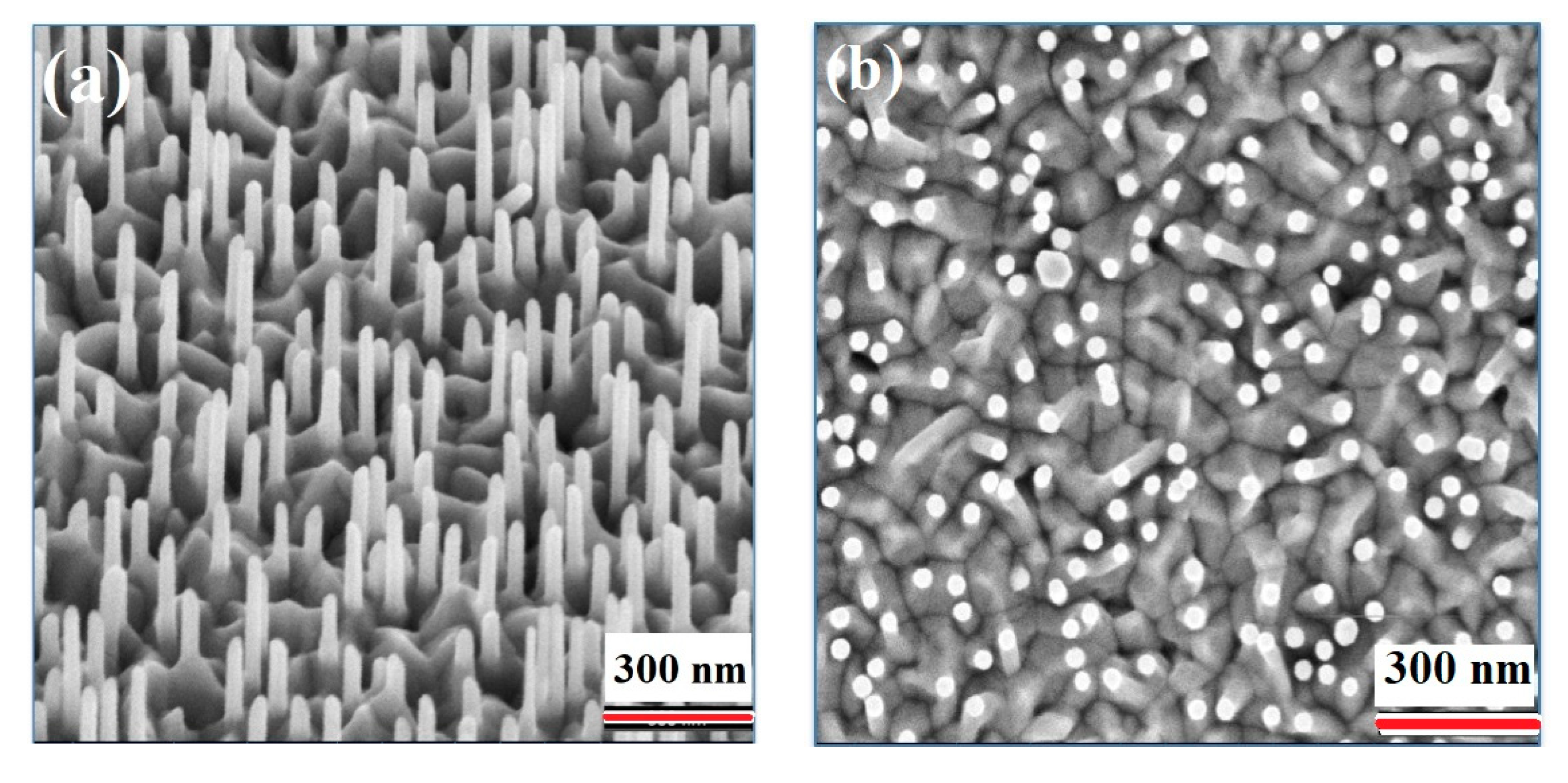

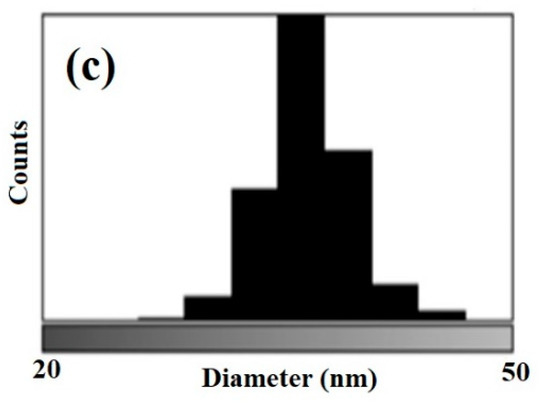

Figure 5. (a) 40° tilted view SEM image of perpendicular ZnO NWs arrays grown on ZnO SL/Si (100) substrates at 10 mTorr, (b) top view SEM image of the as-grown ZnO NWs, (c) corresponding size distribution histogram of the ZnO NWs arrays.
Figure 5. (a) 40° tilted view SEM image of perpendicular ZnO NWs arrays grown on ZnO SL/Si (100) substrates at 10 mTorr, (b) top view SEM image of the as-grown ZnO NWs, (c) corresponding size distribution histogram of the ZnO NWs arrays.
Materials 13 04427 g005aMaterials 13 04427 g005b
Materials 13 04427 g006 550
Figure 6. (a) Cross-section SEM image of nearly perpendicular ZnO NWs arrays grown on ZnO SL/Glass/ITO substrates at 5 mTorr, (b) top view SEM image of the as-grown ZnO NWs.
Figure 6. (a) Cross-section SEM image of nearly perpendicular ZnO NWs arrays grown on ZnO SL/Glass/ITO substrates at 5 mTorr, (b) top view SEM image of the as-grown ZnO NWs.
Materials 13 04427 g006
Materials 13 04427 g007 550

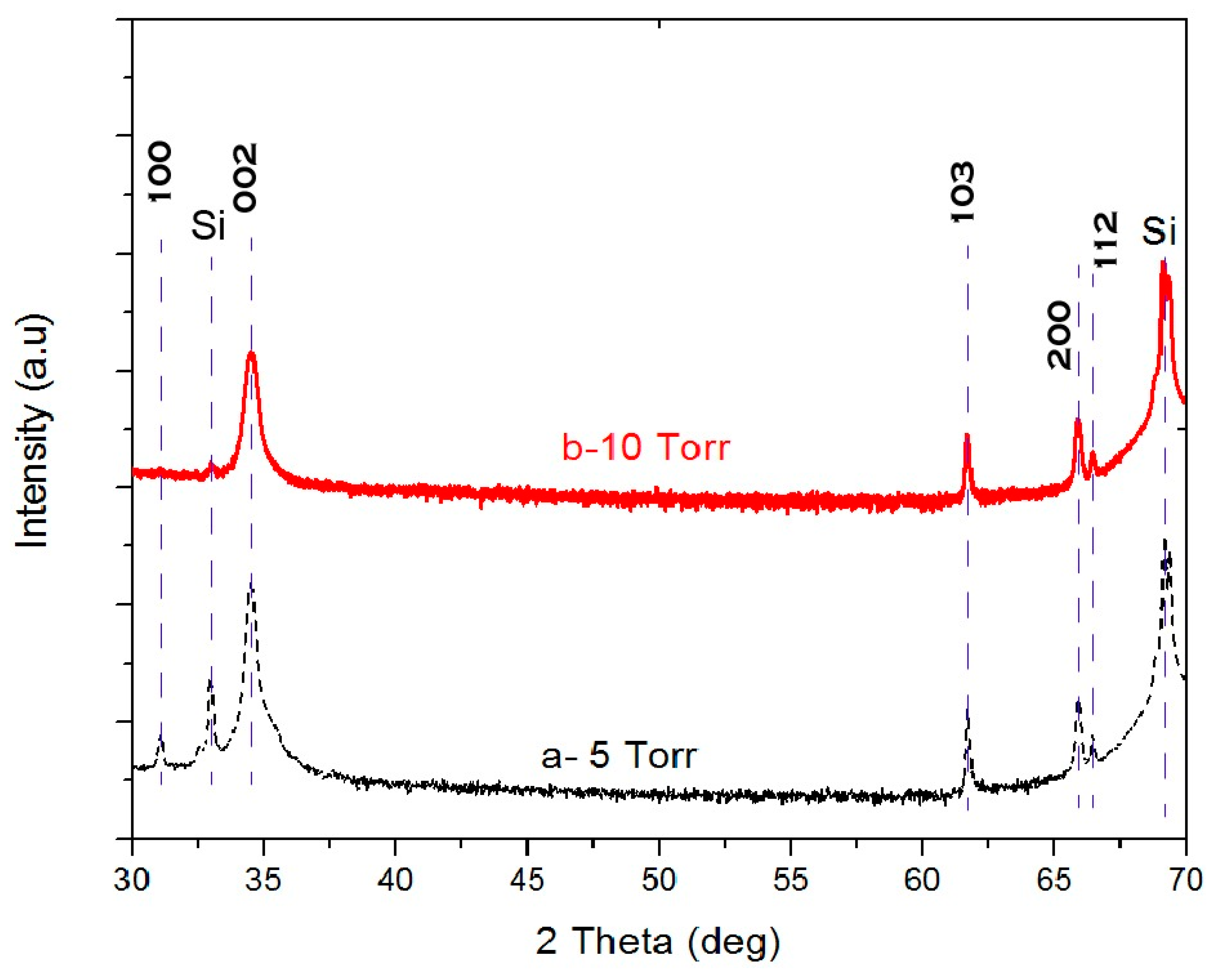

Figure 7. XRD pattern 2θ scan of ZnO NWs grown on ZnO SL at Tsub = 380 °C and argon pressure at (a) 5 Torr and (b) 10 Torr.
Figure 7. XRD pattern 2θ scan of ZnO NWs grown on ZnO SL at Tsub = 380 °C and argon pressure at (a) 5 Torr and (b) 10 Torr.
Materials 13 04427 g007
Materials 13 04427 g008 550
Figure 8. TEM (a) & High-Resolution Transmission Electron Microscopy (HRTEM) (b) of ZnO NWs grown on Si (100)—ZnO SL at 5 Torr.
Figure 8. TEM (a) & High-Resolution Transmission Electron Microscopy (HRTEM) (b) of ZnO NWs grown on Si (100)—ZnO SL at 5 Torr.
Materials 13 04427 g008
Materials 13 04427 g009 550
Figure 9. STEM image of ZnO NW with annular bright field (ABF).
Figure 9. STEM image of ZnO NW with annular bright field (ABF).
Materials 13 04427 g009
Materials 13 04427 g010 550

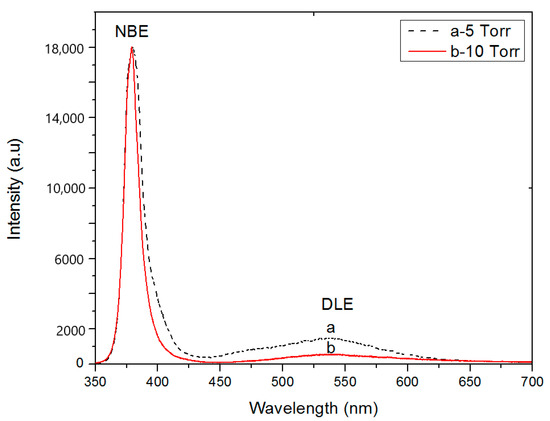

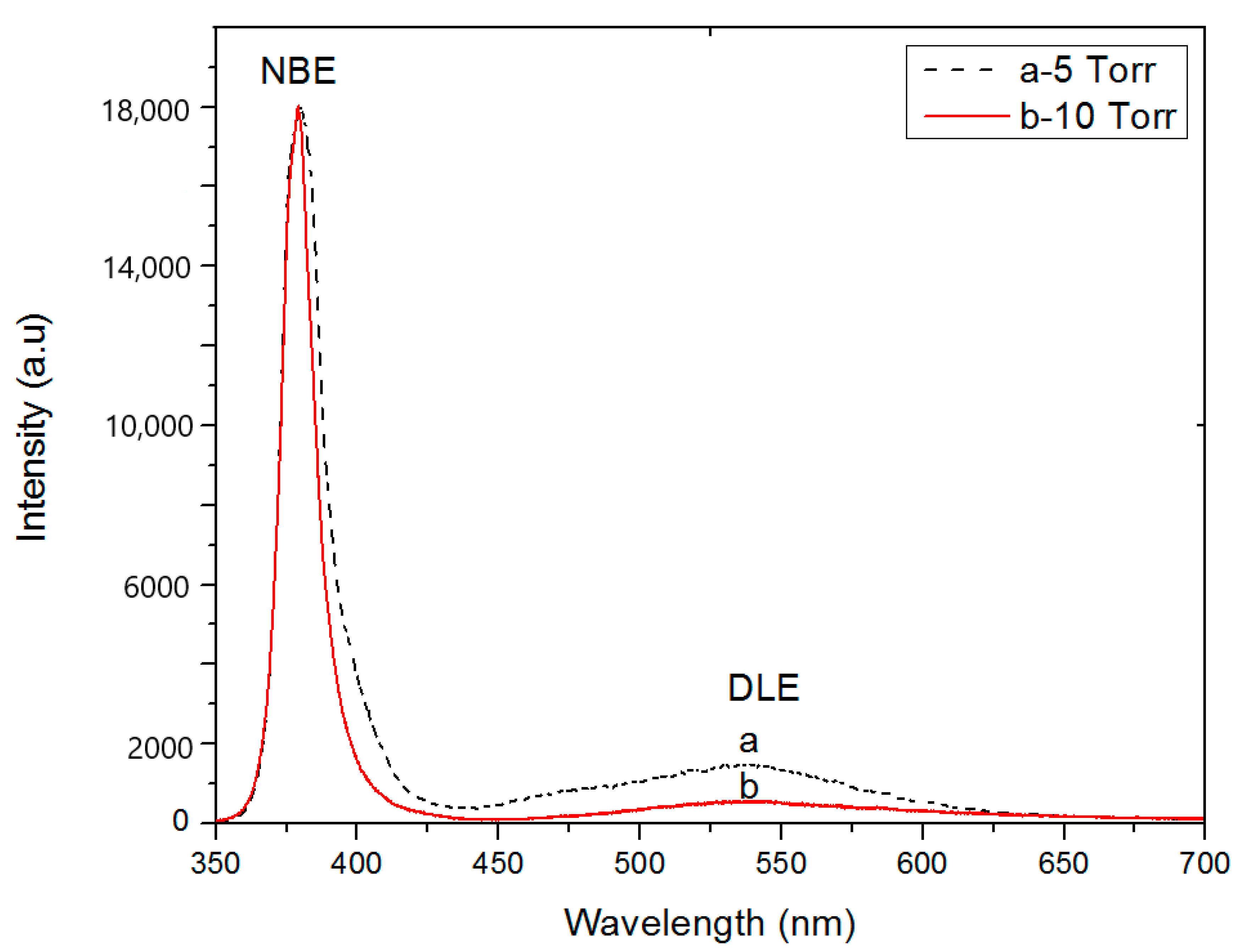

Figure 10. Room-Temperature photoluminescence (RT–PL) spectra of ZnO NWs grown at 5 Torr (dashed line) and 10 Torr (solid line) argon environment. NBE is the near-band edge emission and the defect level emission is DLE.
Figure 10. Room-Temperature photoluminescence (RT–PL) spectra of ZnO NWs grown at 5 Torr (dashed line) and 10 Torr (solid line) argon environment. NBE is the near-band edge emission and the defect level emission is DLE.
Materials 13 04427 g010
Materials 13 04427 g011 550

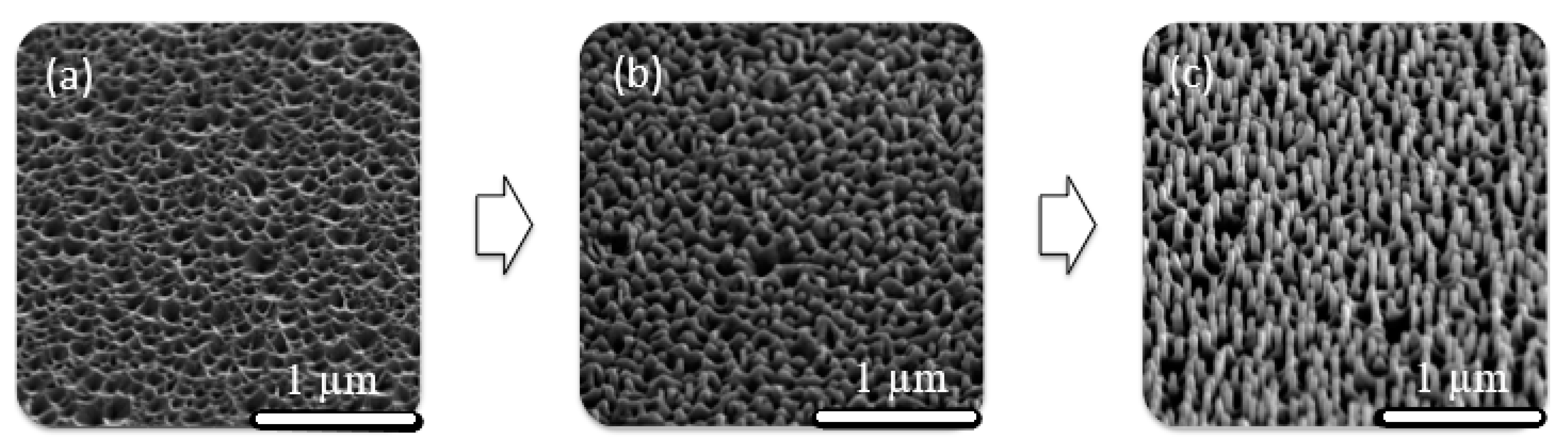

Figure 11. SEM images revealing the growth process of ZnO NWs on ZnO SL by PLD. Ablated ZnO species are adsorbed on the seed layer (SL) nanostructured surface (a). ZnO species migrate to the nucleation points that are energetically favorable sites for growth of ZnO NWs (b), followed by continuous growth (c).
Figure 11. SEM images revealing the growth process of ZnO NWs on ZnO SL by PLD. Ablated ZnO species are adsorbed on the seed layer (SL) nanostructured surface (a). ZnO species migrate to the nucleation points that are energetically favorable sites for growth of ZnO NWs (b), followed by continuous growth (c).
Materials 13 04427 g011
Table
Table 1. Survey of ZnO nanowires and nanorods by pulsed laser deposition (PLD).
Table 1. Survey of ZnO nanowires and nanorods by pulsed laser deposition (PLD).
SubstrateTemp
(°C)		Pressure
(Torr)		Distance Between
Target and Substrate
(cm)		Diameter
(nm)		Length
(µm)		Ref
Sapphire (0001)600–7001–523006[47]
Si (100)450–50052.5120–20012[48]
SiO2/Si/Au900400-2010[49]
Sapphire (0001)600523006[50]
Si (100)600–8504.8–6.32.520–500.5–2[51]
a-Sapphire
c-Sapphire		10002601.52000.5–3[52]
c-Sapphire
ZnO SL		500–8000.15–0.502.550–90Few µm[26]
Sapphire
(0001)		-2601.2–2.5130–2001.5–4[53]
c-Sapphire6000.1–0.25150–2000.9[54]
Sapphire65010−25--[55]
a-Sapphire
c-Sapphire + Au		870–95018–1500.5–3.51501.5–20[56]
n-doped
400 µm Si (111)		500–6000.2253--[57]
Si(100) + ZnO Seed Layer38056.550 ± 41.3 ± 0.12This work
Si (100) + ZnO Seed Layer380106.530 ± 30.6 ± 0.03This work
Glass/ITO + ZnO Seed Layer38056.5360 ± 202.6 ± 0.4This work
Table
Table 2. Intensity ratio UV/visible of ZnO NWs deposited at 5 Torr and 10 Torr, respectively.
Table 2. Intensity ratio UV/visible of ZnO NWs deposited at 5 Torr and 10 Torr, respectively.
SampleUV/GreenUV/Yellow
NWs at 5 Torr11.86822
NWs at 10 Torr 30.645.4

Share and Cite

MDPI and ACS Style

ElZein, B.; Yao, Y.; Barham, A.S.; Dogheche, E.; Jabbour, G.E. Toward the Growth of Self-Catalyzed ZnO Nanowires Perpendicular to the Surface of Silicon and Glass Substrates, by Pulsed Laser Deposition. Materials 2020, 13, 4427. https://doi.org/10.3390/ma13194427

AMA Style

ElZein B, Yao Y, Barham AS, Dogheche E, Jabbour GE. Toward the Growth of Self-Catalyzed ZnO Nanowires Perpendicular to the Surface of Silicon and Glass Substrates, by Pulsed Laser Deposition. Materials. 2020; 13(19):4427. https://doi.org/10.3390/ma13194427

Chicago/Turabian Style

ElZein, Basma, Yingbang Yao, Ahmad S. Barham, Elhadj Dogheche, and Ghassan E. Jabbour. 2020. "Toward the Growth of Self-Catalyzed ZnO Nanowires Perpendicular to the Surface of Silicon and Glass Substrates, by Pulsed Laser Deposition" Materials 13, no. 19: 4427. https://doi.org/10.3390/ma13194427

APA Style

ElZein, B., Yao, Y., Barham, A. S., Dogheche, E., & Jabbour, G. E. (2020). Toward the Growth of Self-Catalyzed ZnO Nanowires Perpendicular to the Surface of Silicon and Glass Substrates, by Pulsed Laser Deposition. Materials, 13(19), 4427. https://doi.org/10.3390/ma13194427

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
