Influence of Dispersing Method on the Quality of Nano-Admixtures Homogenization in Cement Matrix

by
Elżbieta Horszczaruk
1,*,
Paweł Łukowski
2 and
Cyprian Seul
3
1
Department of Reinforced Concrete Structures and Concrete Technology, Faculty of Construction and Environmental Engineering, West Pomeranian University of Technology in Szczecin, 71-310 Szczecin, Poland
2
Department of Building Materials Engineering, Faculty of Civil Engineering, Warsaw University of Technology, 00-637 Warsaw, Poland
3
Department of Geotechnics, Faculty of Construction and Environmental Engineering, West Pomeranian University of Technology in Szczecin, 71-310 Szczecin, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(21), 4865; https://doi.org/10.3390/ma13214865
Submission received: 8 September 2020 / Revised: 23 October 2020 / Accepted: 27 October 2020 / Published: 30 October 2020
(This article belongs to the Section Construction and Building Materials)
Browse Figures
Versions Notes

Abstract

:
In recent years, a nano-modification of the cement composites allowed to develop a number of new materials. The use of even small amount of nano-admixture makes possible not only to improve the physico-mechanical properties of the cement materials, but also to obtain the composite with high usability, optimised for the given application. The basic problem of nano-modification of the cement composites remains the effectiveness of dispersing the nanomaterials inside the cement matrix. This paper deals with the effect of the type and size of the nanoparticles on the tendency to their agglomeration in the cement matrix. The main techniques and methods of dispersing the nanomaterials are presented. It has been demonstrated, on the basis of the results of testing of three nanomodifiers of 0D type (nano-SiO2, nano-Fe3O4 and nano-Pb3O4), how the structure and properties of the nanomaterial affect the behaviour of the particles when dissolving in the mixing water and applying a superplasticiser. The nanoparticles had similar size of about 100 nm but different physico-chemical properties. The methods of dispersing covered the use of high-speed mechanical stirring and ultrasonication. The influence of the method of nano-modifier dispersing on the mechanical performance of the cement composite has been presented on the basis of the results of testing the cement mortars modified with 3% admixture of nano-SiO2.

1. Introduction

The use of various nano-admixtures became, in the recent decade, one of the most popular methods of creating the innovative cement composites. Modification of the cement composites with nanomaterials allows not only to improve the mechanical performance of the composites, but also to obtain new, unparalleled features, like electric conductivity, self-cleaning or even self-repairing ability [1]. The basic problem in the nano-modification is effectiveness of nanomaterials dispersion in the cement matrix. Various modifiers, including nano-admixtures, are added to the dry components of the composite in the form of the water dispersion. The nanoparticles mixed with water demonstrate a tendency to agglomeration due to van der Waals forces. Therefore, one of the main obstacles in preparing the cement nano-composite is difficulty in obtaining the mixture with homogeneously dispersed inclusion [2]. The commercial nanoparticles, in spite that they are produced with the size below 100 nm, after application to the cement composite create usually large agglomerates with size from 1 to 10 mm [3,4,5]. The agglomeration of the nanoparticles in the cement matrix can lead to creation of the weak zones with increased porosity, and, consequently, to the poorer mechanical performance of the composite [4,5]. Therefore, the “ideal” dispersing of the nanoparticles in the cement matrix became the highest aim for the researchers involved. This covers the study of the factors, which can even to a small extent counteracting the agglomeration of the nanoparticles.
In the majority of the research works, the nanoparticles are dispersed in the water environment, often in the presence of the superplasticiser [5]. Less often, the nano-modifier is applied directly to the cement [6]. These environments are significantly different regarding both the methods of nanoparticles application and the final effects. The quality of dispersing is usually evaluated on the basis of performance of the modified composite, e.g., the improvement of its mechanical properties.
There are also researches reported, in which the quality of nanoparticles dispersing in the matrix was evaluated by various methods—for instance, the scanning electron microscopy (SEM) and transmission electron microscopy (TEM). These investigations concern mainly the carbon nanotubes and nano-fibres [7,8,9].
There are sodium, potassium, calcium, sulphate and hydroxylic ions presented in the hardening cement paste together with less concentrated aluminium and silicon ions [10]. The concentrations of these ions are changing during the cement hydration. During the first hours after mixing the concentration of the calcium, sulphate ad hydroxylic ions remains stable. After 6 to 24 h, the concentration of the calcium and sulphate ions begins to diminish, while the concentration of the hydroxylic, silicon and aluminium ions is growing [11]. Moreover, when the superplasticiser is present, it also can increase the content of the sodium and hydroxylic ions, depending on the superplasticiser amount. The knowledge of these processes can be important for the finding the proper way of the nanoparticles dispersing in the cement matrix. The key phenomenon here, besides the action of van der Waals forces, seems to be the effect of Ca2+ ions, the concentration of which is responsible for the nanoparticles agglomeration. For example, the behaviour of the nano-silica dispersion in the cement paste is influenced by the Ca2+ bridging effect. Thus, the ionic composition of the cement systems seems to significantly affect the distribution of nano-silica particles [12]. Both the concentrations of the ions in the pore solution as well as the tendency of the nano-silica particles to adsorb affect the stability of SiO2 nanoparticles and can result in the nano-particles agglomeration [13,14].
The effect of pH value can also be important for the nanoparticles dispersing. In the case of multi-walled carbon nanotubes (MWCNT), functionalised by Ca(OH)2 powder, the increase of pH value led to diminishing the zeta-potential of the nanoparticles [15]. This made the interaction between the functional groups of MWCNT and the superplasticiser more difficult and caused the re-agglomeration of the nanoparticles. The measurement of zeta-potential can be useful then; it is most often performed using the method of the laser Doppler effect during electrophoresis (laser Doppler electrophoresis, LDE).
Obtaining an “ideal” dispersion of nanoparticles requires breaking the agglomerates to the smaller parts, even to the original size of the particles using the necessary amount of energy. After breaking the agglomerates, the next step is stabilisation of the “broken” parts and prevention of their reagglomeration using the suitable mechanism, e.g., the steric or electrostatic repulsion. The typical mixing of the components is not sufficient for obtaining the best dispersion of the nanoparticles in the cement composite, even at the high rate of mixing. For this aim the combination of the mechanical methods and chemical modifications is used. These methods are used separately or simultaneously, depending on the type of nano-modifiers and environment.
The mechanical methods, including mechanical mixing [16,17], ultrasonication [18] and ball grinding [4], are widely used for dispersing the nanoparticles in the water suspensions and dry binders. The most often used mechanical methods are listed and briefly characterised in Table 1. The physical modifications of the nanoparticles surfaces with organic admixtures [19,20] and various types of surfactants (e.g., ethanol) [21,22] are used for making the dispersing of the nanoparticles easier. The chemical treatment of the nanoparticles surfaces—functionalisation—is also employed for this aim [23,24]. In the industrial production of the cement composites, the most often used modifiers are the superplasticisers [25]; they are necessary, for instance, to produce the high-strength concrete. Superplasticisers are also the most common dispersing means for the 0D nanoparticles (i.e., the nanoparticles with all three dimensions below 100 nm), including nano-SiO2 [26]. Using the silica nanoparticles in the cement paste without a superplasticiser leads to increase of the mixture viscosity and introduce additional air bubbles to the matrix [27], which is harmful for the porosity structure. Below, the most often used methods of dispersing the nanomaterials with various structures, most often used for modification of the cement composites, are presented.
Nano-silica (nano-SiO2) is the best known active (reacting with cement components) nano-modifier of 0D type. The size of SiO2 nanoparticles is important for their dispersing and affects the composite properties. The nanoparticles with small initial size (10–20 nm) demonstrate strong tendency to agglomeration and formation of the large aggregates [5]. SiO2 nanoparticles with larger diameters (above 40 nm) are better dispersed and affect the mechanical properties of the cement pastes and mortars in more favourable way [28]. The method of nanoparticles synthesis is important factor affecting the final size of the particles and their tendency to agglomeration. The commercial SiO2 nano-powders, although designed for the primary particle size of nanometers, usually consist of the large aggregates with the size of micrometers [3]. The most often used methods of nano-silica dispersing are ultrasonic bath and high-speed mechanical mixing [29,30] as well as high-pressure homogenisation [31]. Dispersing the nano-SiO2 is conducted in water, often with an admixture of the superplasticiser [5,32].
Graphene oxide GO is a typical example of a 2D nanomaterial used in cement composites. The main problem with the use of graphene in the cement composites is its poor dispersing ability in water [33]. In order to obtain the nano-GO modified cement composite, it is necessary to exfoliate the graphene sheets, and then disperse the flakes, first in the water and next in the cement matrix [34]. The direct exfoliation of the graphene by sonication helps to maintain the basic shape of the GO flakes and prepare them before mixing. The excessive sonication, however, can negatively affect the size and shape of GO flakes, deteriorating their structure [35]. In some studies, the mechanical mixing was employed as the initial stage of GO dispersing. Then, the additional methods, like the use of ultrasounds [36] or mixing after adding the dispersing solution prepared by ultrasonication (ultrasonic bath) [37], were used. Many researchers have used ultrasonication as the main approach to production of the water dispersion of graphene and its derivatives [38]. Recommending the optimum parameters of ultrasonication regarding to time and power is difficult due to the little information available. The use of superplasticisers in combination with ultrasonication appeared to be positive for both the quality of GO dispersing and shortening of the sonication time. The superplasticisers also compensate the common side effect of using the nanomaterials, namely the worsening of the cement composites workability [39]. The well-dispersed graphene suspensions require the resonication of the ready composite mixture for maintaining the long-term homogeneity [40]. The chemical modification of graphene by oxidation allows to its better dispersing in water [41]. This method, however, also has significant disadvantages regarding to the use of this nano-filler in the cement composite. GO loses some of its advantages, including the electric conductivity. The oxidation causes creases in the sheets, increasing the binding potential [41].
The typical example of 1D nano-modifier used for the modification of the cement composites are the carbon nanotubes (CNT). The carbon nanotubes are very good strengthening for the nano-composites thanks to the ultra-high strength—about 60 GPa, Young’s modulus—about 1 TPa, total deformation—12% [42] and shape coefficient. CNT can be single-walled, SWCNT, or multi-walled, MWCNT. SWCNT consist of one sheet of graphene rolled up into long, empty cylinder, while MWCNT are nested graphene tables [43]. SWCNT are more effective due to the better contact between the fibres and the cement matrix because of higher relation of the surface area to the volume [44]. The sufficient dispersing of SWCNT, however, is more difficult to achieve due to their strong tendency to agglomeration. Therefore, the multi-walled nanotubes are more frequently chosen in the case of the cement composites, as manufacturing the composite and dispersing the nanotubes is easier and the production is generally less expensive [45,46].
Various methods are used for CNT dispersing in the cement matrices, including mechanical methods, like ultrasonication or magnetic stirring, as well as chemical methods, e.g., adding the surfactants and functionalisation.
Functionalisation of CNT is an important process allowing to practical use of this nano-modifier in many areas. Chemical modifications of CNT lead to significant changes of their physico-chemical behaviour (e.g., hydrophilic–hydrophobic and acidic–alkaline properties) as well as electrochemical and catalytic features. The carbon nanotubes functionalised with oxygen or nitrogen groups can be apply as intermediate product for creating more developed structures, e.g., with polymers, which are often used for cement composites modification [47]. The superficial nitrogen functional groups change the structure of electrons in the carbon nanotubes; this leads to the localisation of the charge density, important for the reactions running with charge transferring [48]. Because of their specific properties, CNT play an important role in catalysis and sensorics. The most often used admixtures intended for CNT dispersing in the cement matrix are polycarboxylate superplasticisers [49]. Joining the functional groups –COOH to the CNT surface improves the bonding between CNT and the cement matrix with simultaneous weakening the van der Waals forces [19]. The carboxyl groups cause the electrostatic repulsion between CNT, but the main mechanism is here the steric repulsion resulted from the long polyether side chains [50].
The motivation for preparing this paper was investigation of the influence of the structure and properties of the selected nano-admixtures on their dispersing in water in the presence of the superplasticiser. Three commercially available nano-admixtures of 0D type with the diameters of about 100 nm, having different physico-chemical properties, were selected for the studies. The first one was nano-SiO2, which is an active nano-filler in the cement paste environment, as it affects the cement hydration process [12]. The other two were the metallic nano-modifiers, inactive in the presence of cement: nano-magnetite (nano-Fe3O4) with the strong magnetic properties and nano-Pb3O4. Additionally, for analysing the influence of the method of nano-modifier dispersing on the mechanical performance of the cement composite, the tests of the cement mortars modified with 3% admixture of nano-SiO2 were conducted, in which the nano-modifier was applied to the composite by three different methods. It has been demonstrated that the method of the simultaneous mechanical stirring and ultrasonication allows to prevent the agglomeration of the tested nano-admixtures in the effective and durable way. The use of the superplasticiser stabilises the nano-admixture’s dispersion in water, making re-mixing unnecessary.

2. Materials and Methods

2.1. Nanomaterials and Chemical Admixtures

Investigation was conducted with the use of commercially available nanomaterials:
  • nano-SiO2, nano-silica—dispersion of colloidal silica with approximately 50% solids by weight, the particles were spheres with the size 40–140 nm, density 1.4 g/cm3, viscosity 8 cP, pH 9.5 (product of Levasil OF8);
  • nano-Fe3O4, nano-magnetite—the particles have a cubic structure with the size of about 50–100 nm, purity 97% (product of Sigma Aldrich 637106, (Sigma Aldrich, Saint Louis, MO, USA);
  • nano-Pb3O4—the particles were spheres with the size 1–2 µm, purity 99% (product of Sigma Aldrich 241547).
A polycarboxylate superplasticiser (Master Glenium SKY 686, BASF, Myślenice, Poland) was also used.

2.2. Cement and Fine Aggregate

Ordinary Portland Cement (OPC) type 42.5R was used as the binder material, conforming to the requirements of BS- EN 197-1 [51]. The chemical compositions and physical properties of the cement used are shown in Table 2. The quartz sand with the maximum grain size 2 mm and the specific density 2.64 g/cm3 was used for preparing the tested mortars.

2.3. Mixtures Proportioning and Preparation of Mortar Specimens

The SiO2 nanoparticles have been selected to the further tests due to their active participation in the process of cement hydration [12]. For determining the mechanical properties of cement, the following mortars were prepared: R—reference mortar and A, B, C—mortars containing 3 wt% of solid nano-silica particles, prepared using three various methods. The composition of the cement mortars is presented in the Table 3.
In method A, the nano-SiO2 in the form of powder was added to the cement and mixed for 5 min in the mortar mixer, then the sand and water were added and mixed according to the procedure given in BS-EN 197-1 [51]. In method B, the nano-SiO2 in the form of 50% water suspension (commercially available) was initially mixed mechanically with the mixing water (mixing rate 2200 rpm) and simultaneously ultrasonicated for 10 min (frequency 20 kHz). Such obtained water dispersion of nano-SiO2 was added to the dry components of the mortar. In method C, the nano-SiO2 in the form of 50% water suspension was mixed with the water containing 1.5% of polycarboxylate superplasticiser; the mixture was mechanically mixed (mixing rate 2200 rpm) and ultrasonicated for 10 min (frequency 20 kHz). Such obtained water dispersion of nano-SiO2 was added to the dry components of the mortar. Next, the fresh mortar was poured into oiled moulds to form the specimens with a size of 40 mm × 40 mm × 160 mm, according to the requirements of BS-EN 196-1 [52]. The samples were demoulded after 24 h and then cured for 2 and 28 days in the standard water bath at a temperature 20 °C ± 2 °C. The specimens were then dried and mechanical tests were carried out.

2.4. Test Methods

2.4.1. Dispersing the Nanomaterials in Water

Determination of the particle size distribution is an effective tool for improving the nanoparticles dispersing in water. Mastersizer 2000 (Malvern Instruments Ltd., Malvern, UK) was used to measure the particles size by laser light scattering method. The device allows to measure the particle size within the range from 0.0001 mm to 2 mm.
Investigation of nanomaterials dispersing in water has been divided into two stages. The first stage consisted in determination of time necessary for permanent breaking the nano-admixture agglomerates. The second stage covered the testing of the impact of superplasticiser on the distribution of the nanoparticles size in water dispersion.
In the first stage, every sample of nano-admixture was dispersed in 700 mL of the water with the properties compliant with the European Standard EN 1008 [53] and mixed mechanically at the rate 2000 rpm for 60 s. Then the obtained dispersion was ultrasonicated at the frequency 20 kHz for 5 min. The time of initial break of the samples has been accepted on the basis of the numerous investigations, presented by various authors [6,34,46,48]. Then, after measurement, the dispersion was again mixed mechanically for 60 s and ultrasonicated for the next 5 min. After this, the next measurement was performed. The distribution of the size of nanoparticles was determined three times for each sample.
In the second stage, the obtained dispersion of nano-admixture was further treated by adding 5 mL of superplasticizer and mechanical mixing for 60 s. Again, the size distribution was determined and after this the dispersion was ultrasonicated at the frequency 20 kHz for 5 min. The last measurement (also three times for each sample) was conducted after this final breaking.

2.4.2. Mechanical Properties of the Mortars

After 2 and 28 days of curing, the compressive and flexural strength of the specimens were tested in accordance with BS-EN 196-1 [52].

3. Results and discussion

3.1. Dispersing of the Nanomaterials in Water

The results of testing the effect of dispersing time on the nanoparticles size distribution are presented in Figure 1, Figure 2 and Figure 3.
Analysis of the Figure 1, Figure 2 and Figure 3 shows that 5 min of ultrasonication is sufficient for the long-term homogenisation of the nano-modifiers in the mixing water. The commercial nano-silica has been permanently dispersed, which is demonstrated by the stability of the main granulometric peak regardless of the time of ultrasonication (Figure 1). Poor homogenisation of the nano-Fe3O4 (Figure 2) was mainly a consequence of the magnetic properties of the nano-admixture; this issue was discussed in detail in [52]. In the case of nano-Pb3O4, the best dispersing in water was achieved by ultrasonication (Figure 3).
Figure 4, Figure 5 and Figure 6 present the results of testing the effect of dispersing time on the nanoparticles size distribution in the presence of the superplasticiser.
The superplasticiser admixture, added to the nano-SiO2 initially dispersed in the water by ultrasonication, caused further fragmentation of the nano-silica agglomerates (Figure 4). The re-application of the ultrasounds, however, did not resulted in the better breaking of SiO2 nanoparticles. In the case of nano-Fe3O4, adding the superplasticiser and further ultrasonication did not improve the nanomaterial dispersing (Figure 5); the superplasticiser only improves the cement composite workability. The mechanical mixing with the use of the magnetic stirrer can prove to be more effective for the nanoparticles with the magnetic properties [52]. The superplasticiser clearly caused the further breaking of nano-Pb3O4 agglomerates (Figure 6). Further ultrasonication, however, did not improve the nanomaterial dispersing.
Breaking the agglomerates of nano-admixtures in the water dispersion by combination of ultrasonication and high-speed mechanical mixing seems to be the most effective way of dispersing the nano-modifiers in the mixing water. However, there is still little information available about the details of time and frequency used at the ultrasonication as well as the rate of mechanical mixing.

3.2. Mechanical Properties of Mortars

The results of testing of the flexural and compressive strength of the mortars are presented in the Table 4.
The results of tests show that the least effective method of applying the nano-admixtures is the standard method [52] using the conventional mechanical stirring of the dry components of the mortar. In the case of the mortar prepared by method A, even the downfall of the strength was observed. The flexural strength of the specimens prepared by the method A decreased by 6% after 2 days of curing and by 11% after 28 days of curing, as compared to the reference mortar. The compressive strength decreased by 4% and 8%, respectively. According to the literature [6,53], the presence of the places with significant agglomeration of nano-SiO2 causes an increase of the cement matrix porosity. This, in turn, leads to the decrease in the strength of the composites. An improvement of the mechanical performance of the mortars was achieved when the nano-silica was deagglomerated by simultaneous mechanical stirring at the high speed and ultrasonication (method B). The most effective method for the tested mortars appears to be method C, where the superplasticiser allowed for more effective dispersion of the agglomerates. This has been confirmed by the tests results presented in the Figure 4. The flexural strength increased by 21% after 2 days of curing and by 5% after 28 days of curing, as compared to the reference mortar, while the compressive strength increased by 30% after both 2 and 28 days of curing (Figure 7).

4. Sum Up and Conclusions

The investigation presented in the paper, conducted with the use of three nano-admixtures with the similar particle size, but different physico-chemical properties, show the significant influence of these properties on the nano-modifiers dispersing in water. The superplasticiser added after initial mechanical stirring and ultrasonication improved the quality of dispersing. The fluidising admixture covers the dispersed nanoparticles, and thus prevents their re-agglomeration, additionally improving the cement composite workability [6,54]. The tests results confirmed that the time of ultrasonication during the initial mixing of the nano-admixture with water can be shortened to 5 min.
The tests carried out on the cement mortars modified with 3% of nano-SiO2 confirmed the effectiveness of the dispersing method using the simultaneous mechanical stirring at the high speed and ultrasonication in the presence of the superplasticiser. An increase of the compressive strength of the mortar by 30%, as compared to the reference mortar, was achieved when using this method.
The geometrical parameters and the physico-chemical properties of the nanoparticles play the crucial role in their agglomeration and affect the possibility of achieving the proper nano-admixture dispersion in both water and cement matrix. The 0D nanoparticles are easier to disperse in the cement matrix because they are less complex than 1D or 2D nanomaterials. Dispersing the 1D nanomaterials, like carbon nanotubes, is more difficult and requires more energy due to their geometrical complexity, which leads to internal joining and entanglement. Dispersing the 2D nanoparticles is even more complicated due to their higher surface energy and stronger tendency to agglomeration [55]. There is the preferred method of dispersing for each type of nanoparticles, and each of these methods requires specific conditions for achieving the best possible dispersing.
The desirable dispersion can be obtained by two-stage procedure covering several steps. The first stage of dispersing consists in breaking the agglomerates formed during and after nanoparticles synthesis or in dispersion. Various mechanical methods can be applied for this aim; their effectiveness depends mainly on the degree of agglomeration and bond strength. There is lack of consensus concerning the optimum values of the power, time, amplitude and other parameters of the mechanical methods used in the first stage of dispersing. The second stage covers chemical modification of the nanoparticles surface that leads to the stabilisation of dispersion and prevention of re-agglomeration.
The combination of the mechanical methods (e.g., ultrasonication and/or high-speed mixing) with the chemical modification (functionalisation or coating) allows achievement of the effective dispersion of nanomaterials in the cement matrix. It should be noted, however, that there is still no effective method developed for stopping the agglomeration after adding the nano-admixture dispersion to the concrete mix.

Author Contributions

Conceptualisation, E.H., P.Ł.; formal analysis, methodology, investigation, writing—original draft, E.H.; writing—review and editing, P.Ł.; investigation, formal analysis, C.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Faculty of Construction and Environmental Engineering, West Pomeranian University of Technology in Szczecin and Faculty of Civil Engineering, Warsaw University of Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, B.; Ding, S.; Wang, J.; Ou, J. Nano-Engineered Cementitious Composites. Principles and Practices; Springer: Singapore, 2019. [Google Scholar]
  2. Raki, L.; Beaudoin, J.; Alizadeh, R.; Makar, J.; Sato, T. Cement and concrete nanoscience and nanotechnology. Materials 2010, 3, 918–942. [Google Scholar] [CrossRef] [Green Version]
  3. Chung, S.; Leonard, J.; Nettleship, I.; Lee, J.; Soong, Y.; Martello, D.; Chyu, M. Characterization of ZnO nanoparticle suspension in water: Effectiveness of ultrasonic dispersion. Powder Technol. 2009, 194, 75–80. [Google Scholar] [CrossRef]
  4. Kawashima, S.; Seo, J.-W.; Corr, D.; Hersam, M.; Shah, S. Dispersion of CaCO3 nanoparticles by sonication and surfactant treatment for application in fly ash–cement systems. Mater. Struct. 2014, 47, 1011–1023. [Google Scholar] [CrossRef]
  5. Horszczaruk, E.; Mijowska, E.; Cendrowski, K.; Mijowska, S.; Sikora, P. Effect of incorporation route on dispersion of mesoporous silica nanospheres in cement mortar. Constr. Build. Mater. 2014, 66, 418–421. [Google Scholar] [CrossRef]
  6. Horszczaruk, E.; Mijowska, E.; Cendrowski, K.; Sikora, P. Influence of the new method of nanosilica addition on the mechanical properties of cement mortars. Cem. Wapno Beton 2014, 5, 308–316. [Google Scholar]
  7. Parveen, S.; Rana, S.; Fangueiro, R. A review on nanomaterial dispersion, microstructure, and mechanical properties of carbon nanotube and nanofiber reinforced cementitious composites. J. Nanomater. 2013, 2013, 1–9. [Google Scholar] [CrossRef]
  8. Chen, S.; Collins, F.; MacLeod, A.; Pan, Z.; Duan, W.; Wang, C. Carbon nanotube–cement composites: A retrospect. IES J. Part A Civ. Struct. Eng. 2011, 4, 254–265. [Google Scholar] [CrossRef]
  9. Chuah, S.; Pan, Z.; Sanjayan, J.; Wang, C.; Duan, W. Nano reinforced cement and concrete composites and new perspective from graphene oxide. Constr. Build. Mater. 2014, 73, 113–124. [Google Scholar] [CrossRef]
  10. Leemann, A.; Lothenbach, B.; Thalmann, C. Influence of superplasticizers on pore solution composition and on expansion of concrete due to alkali-silica reaction. Constr. Build. Mater. 2011, 25, 344–350. [Google Scholar] [CrossRef]
  11. Le Saoût, G.; Lothenbach, B.; Hori, A.; Higuchi, T.; Winnefeld, F. Hydration of Portland cement with additions of calcium sulfoaluminates. Cem. Concr. Res. 2013, 43, 81–94. [Google Scholar] [CrossRef]
  12. Madani, H.; Bagheri, A.; Parhizkar, T. The pozzolanic reactivity of monodispersed nanosilica hydrosols and their influence on the hydration characteristics of Portland cement. Cem. Concr. Res. 2012, 42, 1563–1570. [Google Scholar] [CrossRef]
  13. Kirby, G.; Lewis, J. Comb polymer architecture effects on the rheological property evolution of concentrated cement suspensions. J. Am. Ceram. Soc. 2004, 87, 1643–1652. [Google Scholar] [CrossRef] [Green Version]
  14. Nazari, A.; Riahi, S. The role of SiO2 nanoparticles and ground granulated blast furnace slag admixtures on physical, thermal and mechanical properties of self- compacting concrete. Mat. Sci. Eng. A Struct. 2011, 528, 2149–2157. [Google Scholar] [CrossRef]
  15. Mendoza, O.; Sierra, G.; Tobón, J. Influence of super plasticizer and Ca(OH)2 on the stability of functionalized multi-walled carbon nanotubes dispersions for cement composites applications. Constr. Build. Mater. 2013, 47, 771–778. [Google Scholar] [CrossRef]
  16. Najigivi, A.; Khaloo, A.; Iraji, A.; Rashid, S. Investigating the effects of using different types of SiO2 nanoparticles on the mechanical properties of binary blended concrete. Compos. Part B Eng. 2013, 54, 52–58. [Google Scholar] [CrossRef]
  17. Yousefi, A.; Allahverdi, A.; Hejazi, P. Effective dispersion of nano-TiO2 powder for enhancement of photocatalytic properties in cement mixes. Constr. Build. Mater. 2013, 41, 224–230. [Google Scholar] [CrossRef]
  18. Nochaiya, T.; Chaipanich, A. Behavior of multi-walled carbon nanotubes on the porosity and microstructure of cement-based materials. Appl. Surf. Sci. 2011, 257, 1941–1945. [Google Scholar] [CrossRef]
  19. Fakhim, B.; Hassani, A.; Rashidi, A.; Ghodousi, P. Preparation and microstructural properties study on cement composites reinforced with multi-walled carbon nanotubes. J. Compos. Mater. 2015, 49, 85–98. [Google Scholar] [CrossRef]
  20. Kim, H.-K.; Nam, I.; Lee, H. Enhanced effect of carbon nanotube on mechanical and electrical properties of cement composites by incorporation of silica fume. Compos. Struct. 2014, 107, 60–69. [Google Scholar] [CrossRef]
  21. Sáez de Ibarra, Y.; Gaitero, J.; Erkizia, E.; Campillo, I. Atomic force microscopy and nanoindentation of cement pastes with nanotube dispersions. Phys. Status Solidi A 2006, 203, 1076–1081. [Google Scholar] [CrossRef]
  22. Liu, Q.; Sun, W.; Jiang, H.; Wang, C. Effects of carbon nanotubes on mechanical and 2D-3D microstructure properties of cement mortar. J. Wuhan Univ. Technol. 2014, 29, 513–517. [Google Scholar] [CrossRef]
  23. Zou, B.; Chen, S.; Korayem, A.; Collins, F.; Wang, C.; Duan, W. Effect of ultrasonication energy on engineering properties of carbon nanotube reinforced cement pastes. Carbon 2015, 85, 212–220. [Google Scholar] [CrossRef]
  24. Mendoza, O.; Sierra, G.; Tobón, J. Effect of the reagglomeration process of multi-walled carbon nanotubes dispersions on the early activity of nanosilica in cement composites. Constr. Build. Mater. 2014, 54, 550–557. [Google Scholar] [CrossRef]
  25. Wiliński, D.; Łukowski, P.; Rokicki, G. Polymeric superplasticizers based on polycarboxylates for ready-mixed concrete: Current state of the art. Polimery 2016, 61, 474–481. [Google Scholar] [CrossRef] [Green Version]
  26. Sobolev, K.; Flores, I.; Torres-Martinez, L.; Valdez, P.; Zarazua, E.; Cuellar, E. Engineering of SiO2 nanoparticles for optimal performance in nano cement-based materials. In Nanotechnology in Construction; Springer: Berlin/Heidelberg, Germany, 2009; pp. 139–148. [Google Scholar]
  27. Jo, B.-W.; Kim, C.-H.; Tae, G.; Park, J.-B. Characteristics of cement mortar with nano-SiO2 particles. Constr. Build. Mater. 2007, 21, 1351–1355. [Google Scholar] [CrossRef]
  28. Haruehansapong, S.; Pulngern, T.; Chucheepsakul, S. Effect of the particle size of nanosilica on the compressive strength and the optimum replacement content of cement mortar containing nano-SiO2. Constr. Build. Mater. 2014, 50, 471–477. [Google Scholar] [CrossRef]
  29. Li, H.; Xiao, H.; Yuan, J.; Ou, J. Microstructure of cement mortar with nanoparticles. Compos. Part B Eng. 2004, 35, 185–189. [Google Scholar] [CrossRef]
  30. Zhang, M.-H.; Islam, J.; Peethamparan, S. Use of nano-silica to increase early strength and reduce setting time of concretes with high volumes of slag. Cem. Concr. Comp. 2012, 34, 650–662. [Google Scholar] [CrossRef]
  31. Aly, M.; Hashmi, M.; Olabi, A.; Messeiry, M.; Abadir, M.; Hussain, A. Effect of colloidal nano-silica on the mechanical and physical behaviour of waste-glass cement mortar. Mater. Design 2012, 33, 127–135. [Google Scholar] [CrossRef]
  32. Qing, Y.; Zenan, Z.; Deyu, K.; Rongshen, C. Influence of nano-SiO2 addition on properties of hardened cement paste as compared with silica fume. Constr. Build. Mater. 2007, 21, 539–545. [Google Scholar] [CrossRef]
  33. Pan, Z.; He, L.; Qiu, L.; Korayem, A.; Li, G.; Zhu, J.; Collins, F.; Li, D.; Duan, W.; Wang, M. Mechanical properties and microstructure of a graphene oxide–cement composite. Cement Concrete Comp. 2015, 58, 140–147. [Google Scholar] [CrossRef]
  34. Horszczaruk, E.; Mijowska, E.; Kalenczuk, R.; Aleksandrzak, M.; Mijowska, S. Nanocomposite of cement/graphene oxide—Impact on hydration kinetics and Young’s modulus. Constr. Build. Mater. 2015, 78, 234–242. [Google Scholar] [CrossRef]
  35. Xia, Z.; Pezzini, S.; Treossi, E.; Giambastiani, G.; Corticelli, F.; Morandi, V.; Zanelli, A.; Bellani, V.; Palermo, V. The exfoliation of graphene in liquids by electrochemical, chemical, and sonication-assisted techniques: A nanoscale study. Adv. Funct. Mater. 2013, 23, 4684–4693. [Google Scholar] [CrossRef]
  36. Peyvandi, A.; Soroushian, P.; Balachandra, A.; Sobolev, K. Enhancement of the durability characteristics of concrete nanocomposite pipes with modified graphite nanoplatelets. Constr. Build. Mater. 2013, 47, 111–117. [Google Scholar] [CrossRef]
  37. Babak, F.; Abolfazl, H.; Alimorad, R.; Parviz, G. Preparation and mechanical properties of graphene oxide: Cement nanocomposites. Sci. World J. 2014, 2014, 1–10. [Google Scholar] [CrossRef]
  38. Yan, S.; He, P.; Jia, D.; Yang, Z.; Duan, X.; Wang, S.; Zhou, Y. Effect of reduced graphene oxide content on the microstructure and mechanical properties of graphene–geopolymer nanocomposites. Ceram. Int. 2016, 42, 752–758. [Google Scholar] [CrossRef]
  39. Du, H.; Pang, S. Enhancement of barrier properties of cement mortar with graphene nanoplatelet. Cem. Concr. Res. 2015, 76, 10–19. [Google Scholar] [CrossRef]
  40. Zhao, J.; Wang, Z.; White, J.; Xing, B. Graphene in the aquatic environment: Adsorption, dispersion, toxicity and transformation. Environ. Sci. Technol. 2014, 48, 9995–10009. [Google Scholar] [CrossRef]
  41. Zhao, L.; Guo, X.; Ge, C.; Li, Q.; Guo, L.; Shu, X.; Liu, J. Investigation of the effectiveness of PC@GO on the reinforcement for cement composites. Constr. Build. Mater. 2016, 113, 470–478. [Google Scholar] [CrossRef]
  42. Yu, M.-F.; Lourie, O.; Dyer, M.; Moloni, K.; Kelly, T.; Ruoffet, R. Strength and breaking mechanism of multiwalled carbon nanotubes under tensile load. Science 2000, 287, 637–640. [Google Scholar] [CrossRef] [Green Version]
  43. Fischer, G.; Li, V. Effect of fiber reinforcement on the response of structural members. Eng. Fract. Mech. 2007, 74, 258–272. [Google Scholar] [CrossRef] [Green Version]
  44. Al-Rub, R.; Ashour, A.; Tyson, B. On the aspect ratio effect of multiwalled carbon nanotube reinforcements on the mechanical properties of cementitious nanocomposites. Constr. Build. Mater. 2012, 35, 647–655. [Google Scholar] [CrossRef]
  45. Siddique, R.; Mehta, A. Effect of carbon nanotubes on properties of cement mortars. Constr. Build. Mater. 2014, 50, 116–129. [Google Scholar] [CrossRef]
  46. Sikora, P.; Elrahman, M.; Chung, S.-Y.; Cendrowski, K.; Mijowska, E.; Stephan, D. Mechanical and microstructural properties of cement pastes containing carbon nanotubes and carbon nanotube-silica core-shell structures, exposed to elevated temperature. Cem. Concr. Comp. 2019, 95, 193–204. [Google Scholar] [CrossRef]
  47. Czarnecki, L.; Łukowski, P. An Usability Approach to Technical Evaluation of the Polymer Coatings for Concrete Substrate. In Proceedings of the 2nd International RILEM Symposium on Adhesion Between Polymers and Concrete, Dresden, Germany, 14–17 September 1999; Volume 9, pp. 173–180. [Google Scholar]
  48. Sobolkina, A.; Mechtcherine, V.; Khavrus, V.; Maier, D.; Mende, M.; Ritschel, M.; Leonhardt, A. Dispersion of carbon nanotubes and its influence on the mechanical properties of the cement matrix. Cem. Concr. Comp. 2012, 34, 1104–1113. [Google Scholar] [CrossRef]
  49. Yazdanbakhsh, A.; Grasley, Z.; Tyson, B.; Al-Rub, R. Carbon nano filaments in cementitious materials: Some issues on dispersion and interfacial bond. Proc. Am. Concr. Inst. 2009, 267, 21–34. [Google Scholar]
  50. Yamada, K.; Takahashi, T.; Hanehara, S.; Matsuhisa, M. Effects of the chemical structure on the properties of polycarboxylate-type superplasticizer. Cem. Concr. Res. 2000, 30, 197–207. [Google Scholar] [CrossRef]
  51. European Committee for Standardization. BS-EN 197-1:2011. Cement—Part 1: Composition, Specifications and Conformity Criteria for Common Cements; European Committee for Standardization: Brussels, Belgium, 2012. [Google Scholar]
  52. European Committee for Standardization. BS-EN 196-1:2016. Methods of Testing Cement. Determination of Strength; European Committee for Standardization: Brussels, Belgium, 2016. [Google Scholar]
  53. European Committee for Standardization. BS-EN 1008:2002. Mixing Water for Concrete. Specification for Sampling, Testing and Assessing the Suitability of Water, Including Water Recovered from Processes in the Concrete Industry, as Mixing Water for Concrete; European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
  54. Senff, L.; Hotza, D.; Repette, W.; Ferreira, V.; Labrincha, J. Mortars with nano-SiO2 and micro-SiO2 investigated by experimental design. Constr. Build. Mater. 2010, 24, 1432–1437. [Google Scholar] [CrossRef]
  55. Korayem, A.; Tourani, N.; Zakertabrizi, M.; Sabziparvar, A.; Duan, W. A review of dispersion of nanoparticles in cementitious matrices: Nanoparticle geometry perspective. Constr. Build. Mater. 2017, 153, 346–357. [Google Scholar] [CrossRef]
Materials 13 04865 g001 550

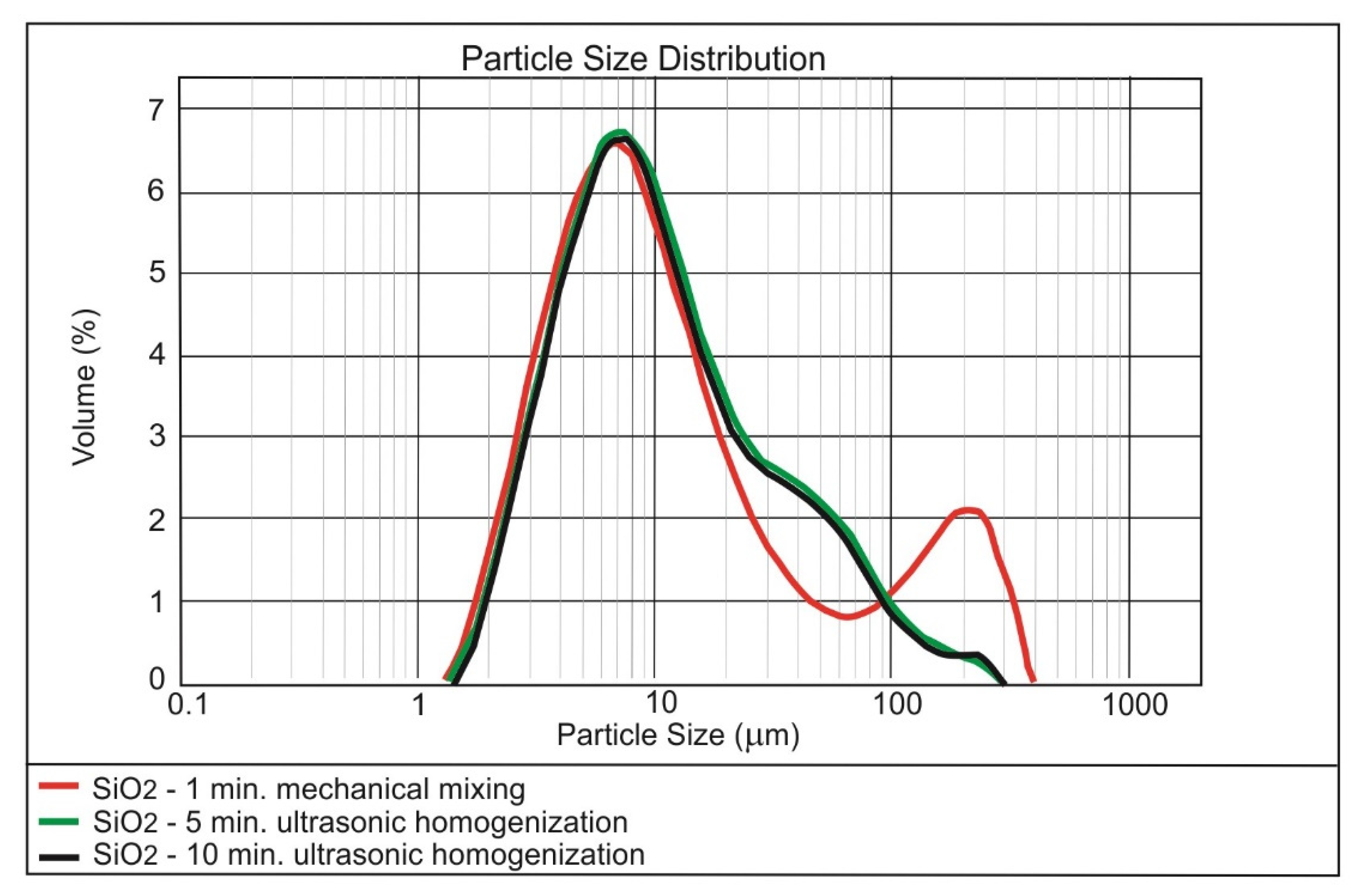

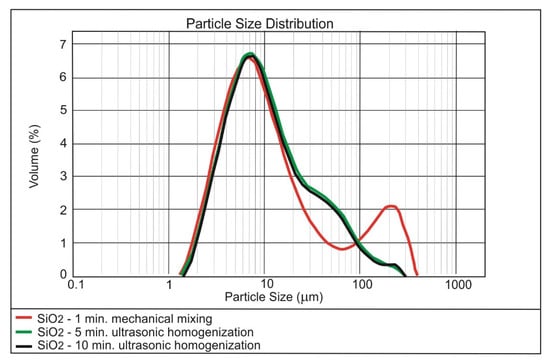

Figure 1. Effect of ultrasonic dispersing on the nanoparticle size distribution of SiO2 in the water dispersion.
Figure 1. Effect of ultrasonic dispersing on the nanoparticle size distribution of SiO2 in the water dispersion.
Materials 13 04865 g001
Materials 13 04865 g002 550

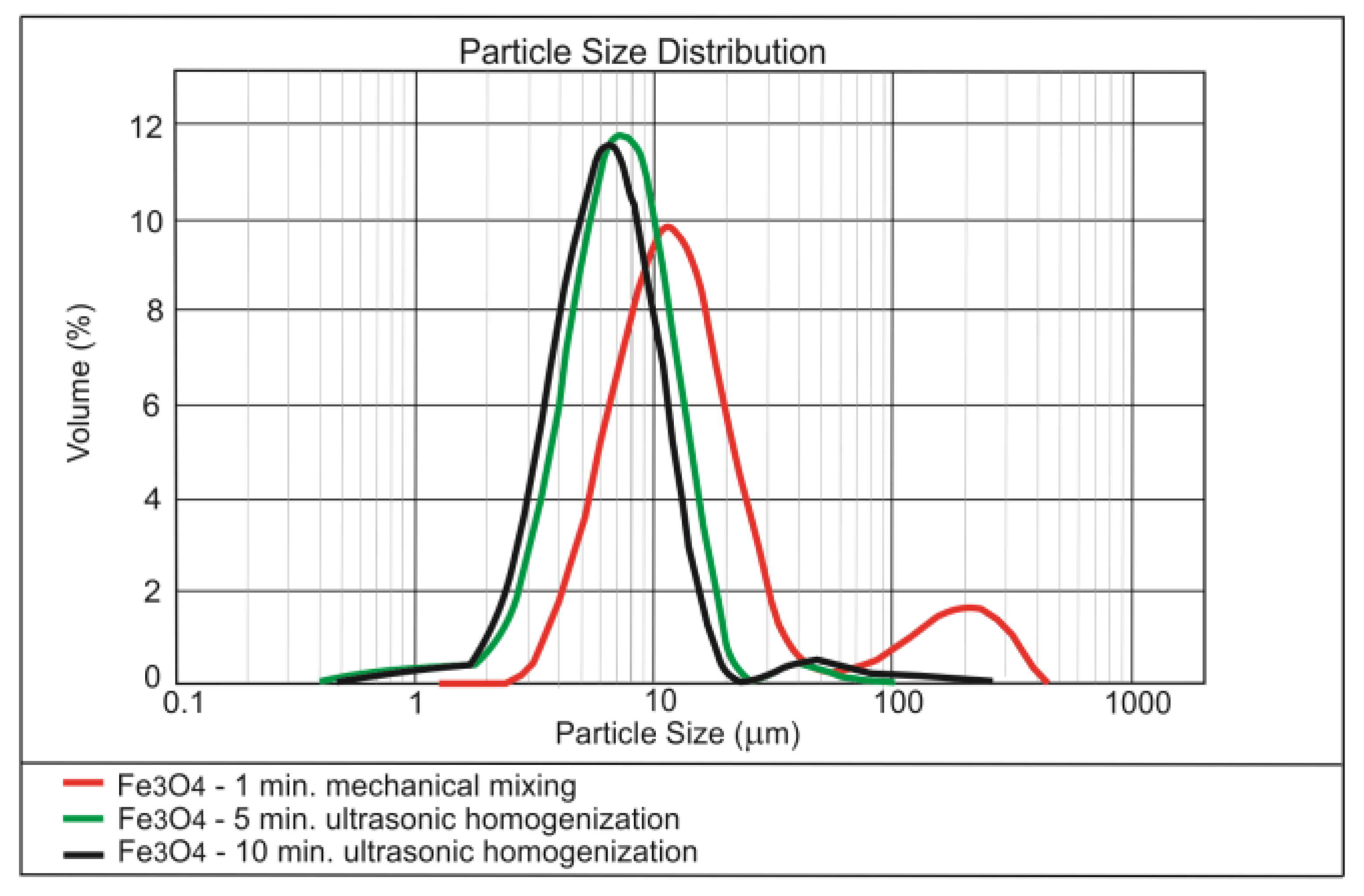

Figure 2. Effect of ultrasonic dispersing on the nanoparticle size distribution of Fe3O4 in the water dispersion.
Figure 2. Effect of ultrasonic dispersing on the nanoparticle size distribution of Fe3O4 in the water dispersion.
Materials 13 04865 g002
Materials 13 04865 g003 550

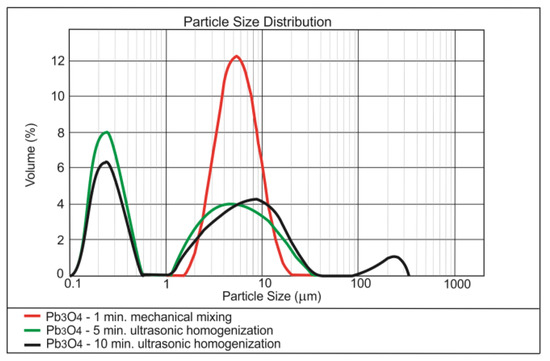

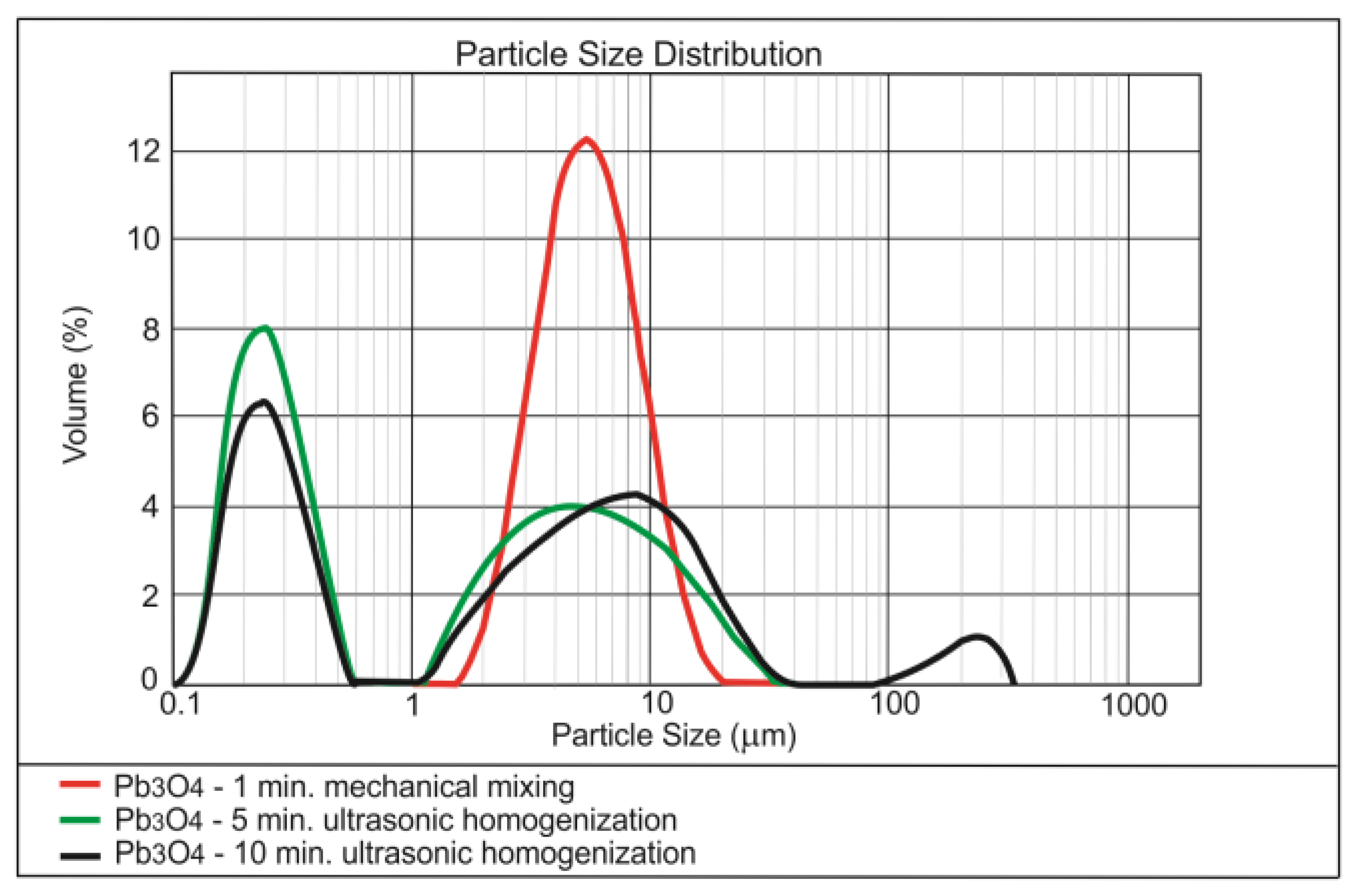

Figure 3. Effect of ultrasonic dispersing on the nanoparticle size distribution of Pb3O4 in the water dispersion.
Figure 3. Effect of ultrasonic dispersing on the nanoparticle size distribution of Pb3O4 in the water dispersion.
Materials 13 04865 g003
Materials 13 04865 g004 550

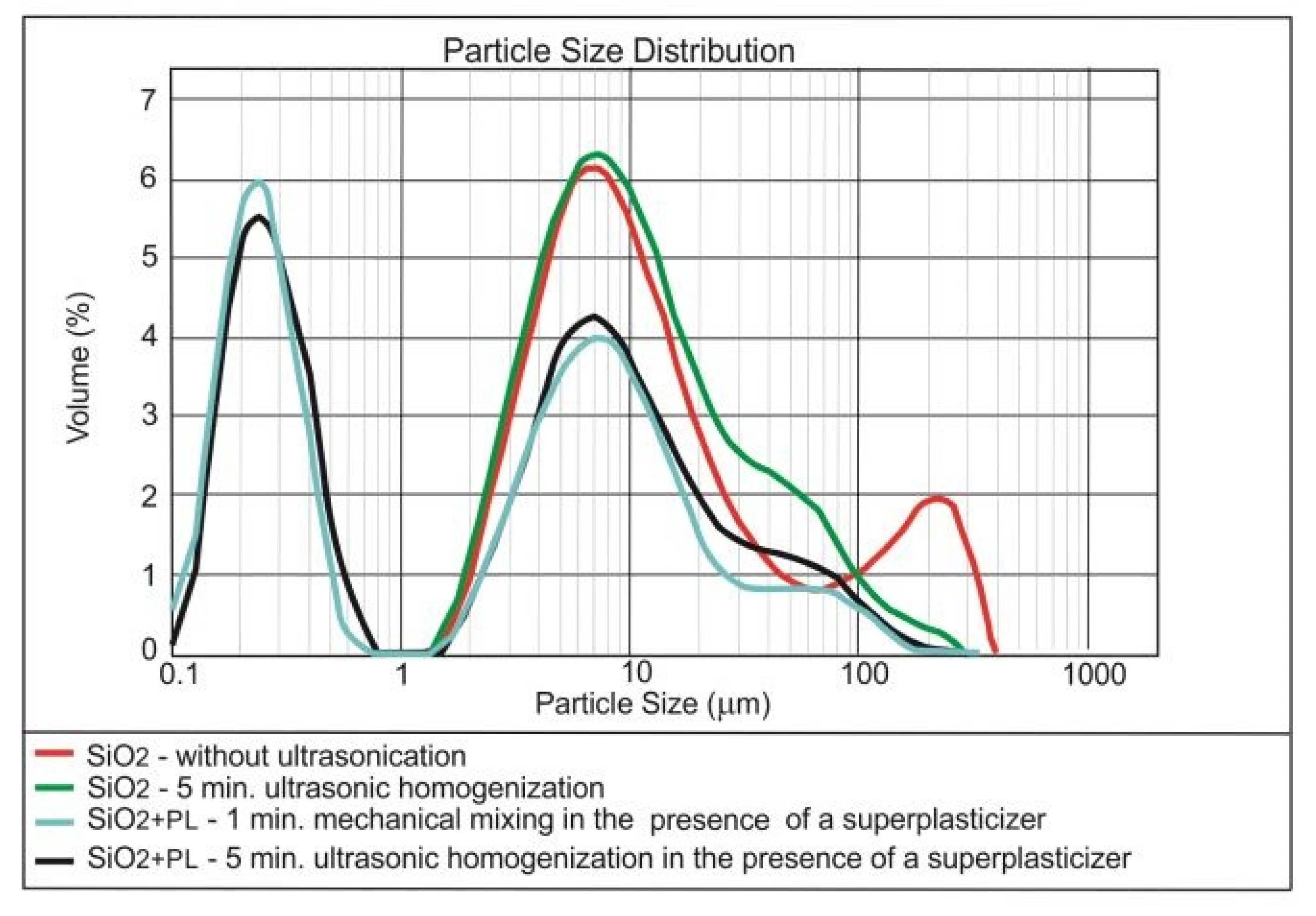

Figure 4. Effect of ultrasonic dispersing on the nanoparticle size distribution of SiO2 in the water dispersion in the presence of the superplasticiser.
Figure 4. Effect of ultrasonic dispersing on the nanoparticle size distribution of SiO2 in the water dispersion in the presence of the superplasticiser.
Materials 13 04865 g004
Materials 13 04865 g005 550

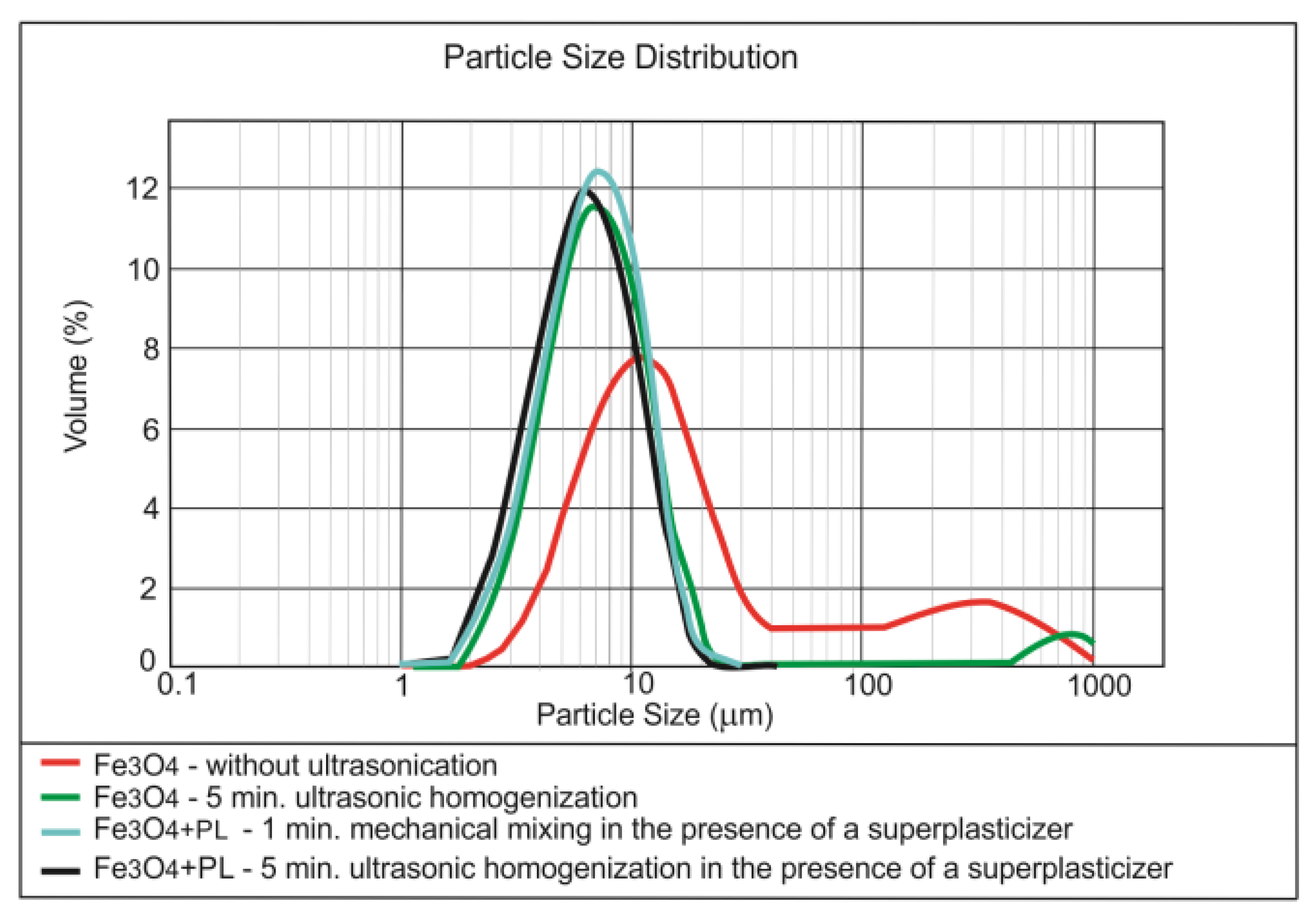

Figure 5. Effect of ultrasonic dispersing on the nanoparticle size distribution of Fe3O4 in the water dispersion in the presence of the superplasticiser.
Figure 5. Effect of ultrasonic dispersing on the nanoparticle size distribution of Fe3O4 in the water dispersion in the presence of the superplasticiser.
Materials 13 04865 g005
Materials 13 04865 g006 550

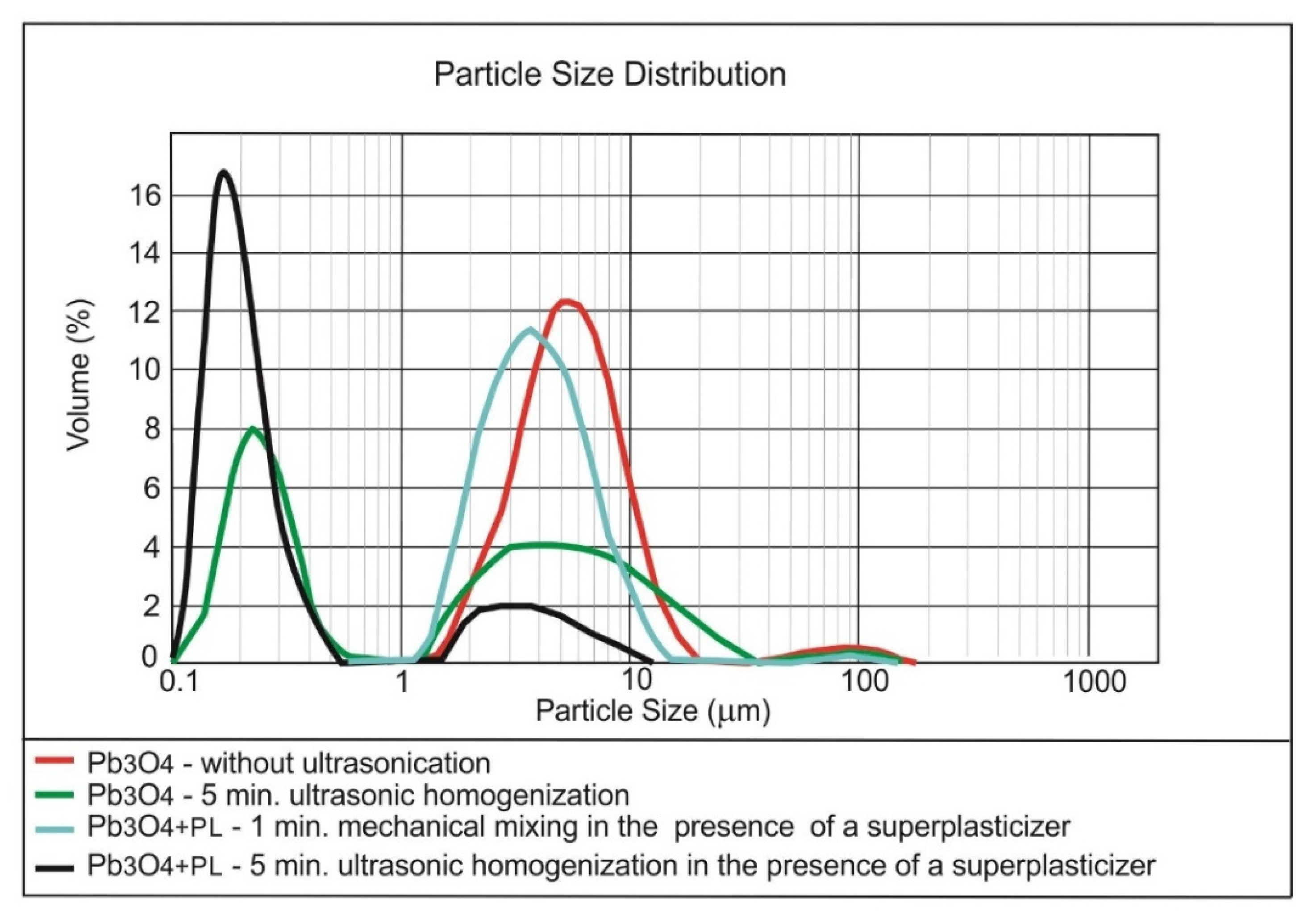

Figure 6. Effect of ultrasonic dispersing on the nanoparticle size distribution of Pb3O4 in the water dispersion in the presence of the superplasticiser.
Figure 6. Effect of ultrasonic dispersing on the nanoparticle size distribution of Pb3O4 in the water dispersion in the presence of the superplasticiser.
Materials 13 04865 g006
Materials 13 04865 g007a 550Materials 13 04865 g007b 550

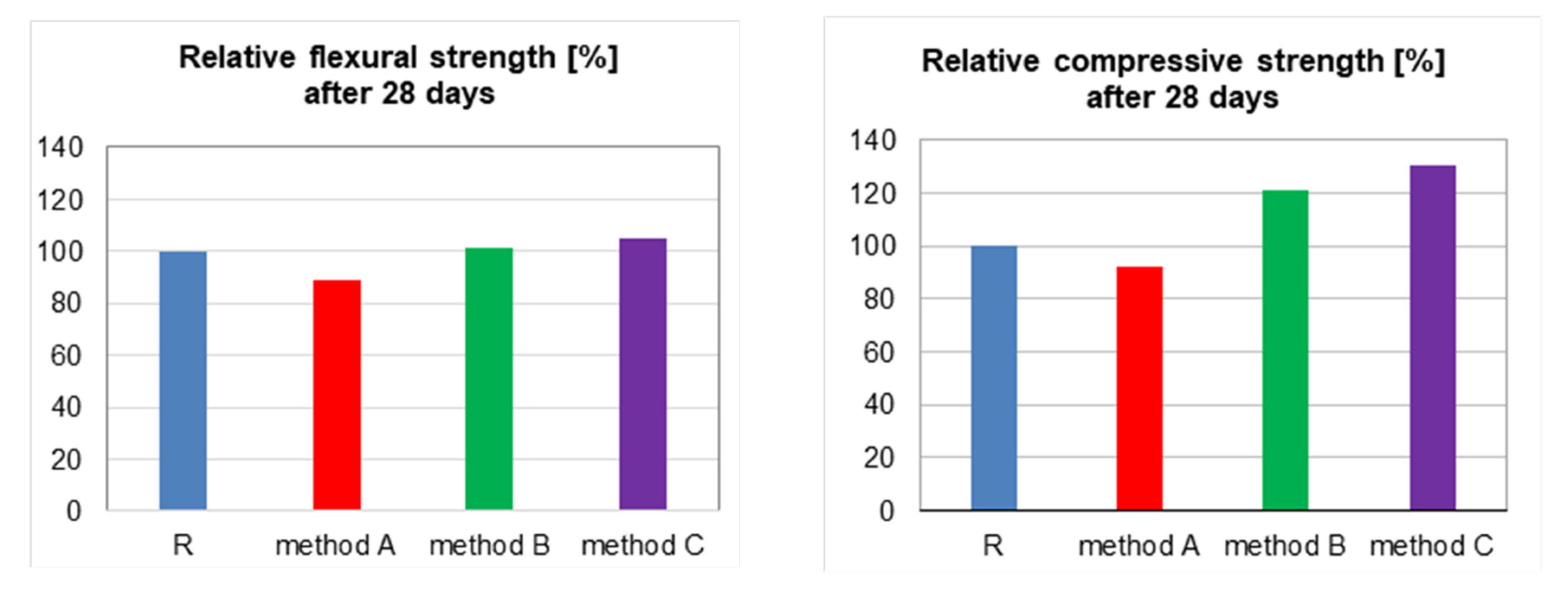

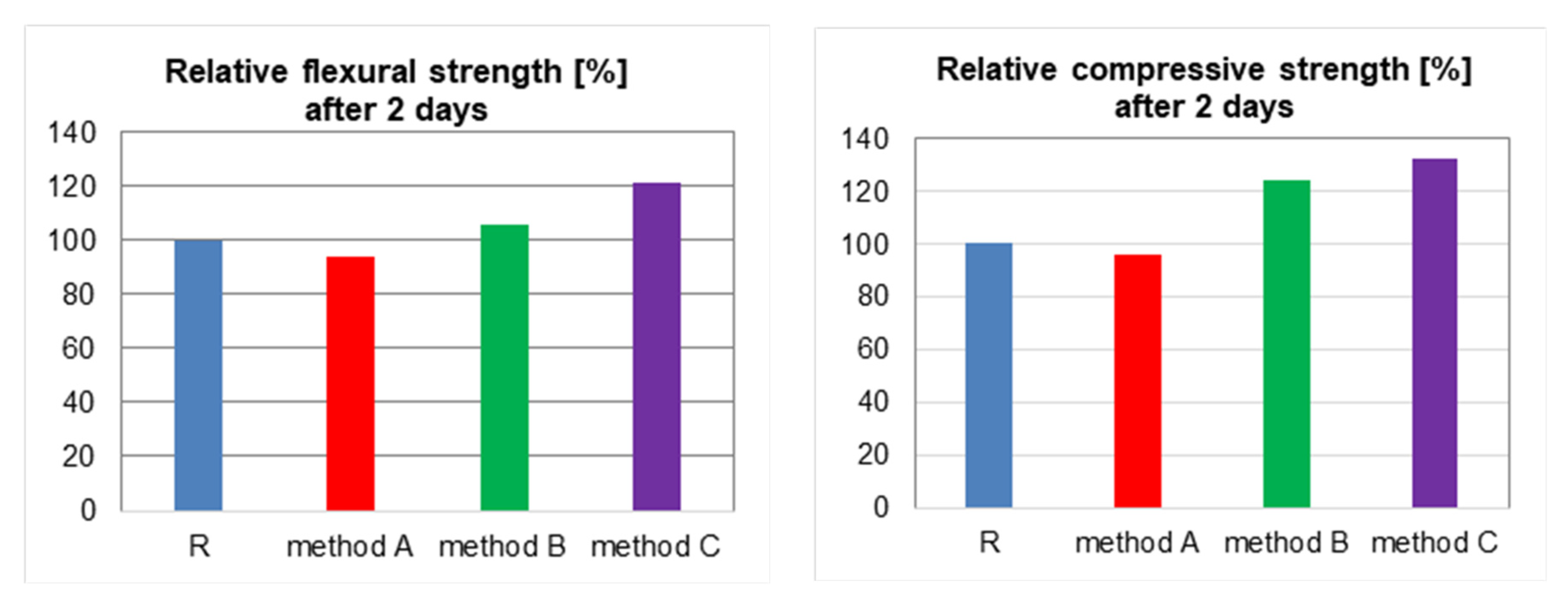

Figure 7. Effect of the nano-SiO2 dispersing method on the mechanical properties of the cement mortars (the methods are described in the text above).
Figure 7. Effect of the nano-SiO2 dispersing method on the mechanical properties of the cement mortars (the methods are described in the text above).
Materials 13 04865 g007aMaterials 13 04865 g007b
Table
Table 1. Comparison of mechanical methods of deagglomeration of nanomaterials.
Table 1. Comparison of mechanical methods of deagglomeration of nanomaterials.
MethodForm of NanoparticlesMechanismAdvantagesDisadvantages
GrindingPowderGrinding as fine as possibleThe method is useful for the large volumes of nanoparticlesThe method is slow and low-efficient
Magnetic and mechanical stirringIn liquid mediaThe stirrer rotating at the high speed, sufficient to create a vortexThe method is relatively inexpensiveThe method is low-effective, re-agglomeration usually occurs when stopping to stir
High-speed homogenisationIn liquid mediaHigh rate of rotation draws the material to the head, where it is mixed intensively The centrifugal force directs the material to the edges of the head, where it is mechanically cut inside the gap between the rotor and the statorThe method is useful for the large volumes of the liquidsThe method is rarely used, mainly for the graphene oxide (GO) and other 2D nanomaterials
High-pressure homogenisationIn liquid mediaIncrease of the velocity of liquids streams under pressure inside the micro-channels causes shear and cavitationThe method is highly effectiveThe method usually causes the rise of temperature and is expensive
UltrasonicationIn liquid mediaUse of the ultrasonic waves energy and cavitation in the waterThe method is relatively inexpensiveThe method can change the nanoparticles structure due to the rise of temperature. Efficiency of the process is unstable
Table
Table 2. Chemical compositions and physical properties of cement [wt.%].
Table 2. Chemical compositions and physical properties of cement [wt.%].
Cement TypeCaOSiO2Al2O3Fe2O3MgONa2OK2OSO3Loss on Ignition
LOI		Specific Density
[g/cm3]		Surface Area
[cm2/g]
CEM I 42.5 R63.2919.524.882.911.310.100.902.793.013.053956
Table
Table 3. Mix proportions of mortars.
Table 3. Mix proportions of mortars.
Mix DesignationSand
[g]		Cement
[g]		Water
[g]		Water/CementSiO2
[g]		SiO2/CementSuperplasticiser/Cement
R15465182570.50.000.0%0.0%
Method A15465182570.515.63.0%0.0%
Method B15465182570.515.63.0%0.0%
Method C15465182570.515.63.0%1.5%
Table
Table 4. Flexural and compressive strength (mean value of three specimens) of mortars after 2 and 28 days of curing.
Table 4. Flexural and compressive strength (mean value of three specimens) of mortars after 2 and 28 days of curing.
Sample DesignationRMethod AMethod BMethod C
Flexural strength after 2 days, MPa5.705.366.046.89
Flexural strength after 28 days, MPa7.626.787.708.01
Compressive strength after 2 days, MPa31.5330.2739.0941.62
Compressive strength after 28 days, MPa52.1848.0163.1467.83
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Horszczaruk, E.; Łukowski, P.; Seul, C. Influence of Dispersing Method on the Quality of Nano-Admixtures Homogenization in Cement Matrix. Materials 2020, 13, 4865. https://doi.org/10.3390/ma13214865

AMA Style

Horszczaruk E, Łukowski P, Seul C. Influence of Dispersing Method on the Quality of Nano-Admixtures Homogenization in Cement Matrix. Materials. 2020; 13(21):4865. https://doi.org/10.3390/ma13214865

Chicago/Turabian Style

Horszczaruk, Elżbieta, Paweł Łukowski, and Cyprian Seul. 2020. "Influence of Dispersing Method on the Quality of Nano-Admixtures Homogenization in Cement Matrix" Materials 13, no. 21: 4865. https://doi.org/10.3390/ma13214865

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
