The Dielectric Constant of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) Ceramics for Microwave Communication by Linear Regression Analysis

Abstract

The electronics related to the fifth generation mobile communication technology (5G) are projected to possess significant market potential. High dielectric constant microwave ceramics used as filters and resonators in 5G have thus attracted great attention. The Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) ceramic system has aroused people’s interest due to its underlying excellent microwave dielectric properties. In this paper, the relationships between the dielectric constant, Nd-doped content, sintering temperature and the density of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) ceramics were studied. The linear regression equation was established by statistical product and service solution (SPSS) data analysis software, and the factors affecting the dielectric constant have been analyzed by using the enter and stepwise methods, respectively. It is found that the model established by the stepwise method is practically significant with Y = −71.168 + 6.946x₁ + 25.799x₃, where Y, x₁ and x₃ represent the dielectric constant, Nd content and the density, respectively. According to this model, the influence of density on the dielectric constant is greater than that of Nd doping concentration. We bring the linear regression analysis method into the research field of microwave dielectric ceramics, hoping to provide an instructive for the optimization of ceramic technology.

1. Introduction

With the development of mobile communication equipment and portable terminals towards miniaturization and multifunctionality, the demand for filters and resonators have been increasing steadily. Microwave dielectric ceramics are the key materials of filters and resonators for telecommunications [1,2,3,4,5]. There are three important parameters to evaluate the ceramics: dielectric constant ε_r, quality factor Qf and temperature coefficient of resonate frequency τ_f. High dielectric constant is beneficial for microwave devices because the size of dielectrics is inversely proportional to $\sqrt{{\epsilon }_r}$. Currently, BaO-Ln₂O₃-TiO₂ (Ln: lanthanide) based systems exhibit superior properties in the high dielectric materials, which have aroused considerable attention [6,7,8,9]. For the solid solution of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄, it has a like-perovskite tungsten bronze structure with TiO₆ octahedra. According to the atomic occupation, the structural formula of the solid solution can be written into [Ln_8+2xBa_2−3xV_x]_A1[Ba₄]_A2Ti₁₈O₅₄ (0 ≤ x ≤ 2/3, V:Vacancy). A1 is the rhombic site and A2 is the pentagonal site [10,11]. Suzuki et al. attributed a significant drop in Qf to the occupation of large Ba by Sr at the A1-site [12]. Amaral et al. demonstrated that there exists evident crystal orientation in thick films, which controls the microwave dielectric properties of the ceramics [13]. Vilarinho et al. obtained different dielectric constants by adjusting the thickness of BaLa₂Ti₄O₁₅ and Ba₄Nd_9.33Ti₁₈O₅₄ films [14]. Wang et al. investigated the process and microwave dielectric properties of the BaTiO₃ and BaTe₄O₉ system, and especially explored systematically the relationship between the microwave dielectric properties and Nd/Sm ratio and x value of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ [15,16,17,18]. According to previous studies [19], Ba_6−3xSm_8+2xTi₁₈O₅₄ ceramic has the best comprehensive properties, for example, high dielectric constant, high quality factor and negative resonant frequency temperature coefficient (τ_f), while Ba_6−3xNd_8+2xTi₁₈O₅₄ ceramic presents a positive τ_f. Therefore, the co-doping of Sm and Nd in the Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) system would lead to near zero τ_f, which is very important to improve the frequency stability of the devices. Although the effect of co-doping of Sm and Nd on the properties of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ has been investigated [20,21], the statistical analysis method was rarely used to study the factors affecting the performance.

Statistical product and service solutions (SPSS) are mathematical analysis software, which include the correlation analysis, regression analysis, cluster analysis, discriminant analysis, etc. The regression analysis can be divided into linear regression analysis, non-linear regression analysis, curve estimation and logistic regression. Among them, linear regression analysis is especially valuable in determining the critical factor [22,23]. Doreswamy proposed the linear regression model and predicated the attribute values from the large engineering materials database [24]. The study of regression analysis suggested that data mining techniques is applicable to the investigation on material informatics, which could facilitate the development of new materials. For microwave dielectric ceramics, there are many factors to influence the dielectric constant, for example, element doping, sintering temperature and density. SPSS is thus employed to determine the critical factor of affecting the dielectric constant.

There are many different methods to establish mathematical models by SPSS, such as the enter method (forced entry method), the forward method, the backward method and the stepwise method. The enter method can generate rich information via taking all the factors into consideration, but its sophisticated nature introduces disputes on the results. The stepwise method combines the merits of the forward and backward methods and can establish the mathematical model with fast speed. Consequently, in this paper, we applied the enter and stepwise methods to create the mathematical models and analyze the factors that affect the dielectric constant of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) microwave dielectric ceramics. The relationships between the dielectric constant, Nd dopant, sintering temperature and the density have been established by using the models, which is valuable for the development of high-performance BaO-Ln₂O₃-TiO₂ dielectric ceramics for microwave communication applications.

2. Experimental Process

2.1. Materials

The starting materials including BaCO₃ (99.0%), Sm₂O₃ (99.9%), Nd₂O₃ (99.9%) and TiO₂ (99.0%) were weighed in stoichiometric ratios according to the chemical formula of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) with y = 0, 0.1, 0.2, 0.3 and 0.4.

2.2. Preparation of Ceramics

The ceramics were made from the starting materials, which were mixed and grounded for 4 h with ethanol using polyurethane jars and zirconia balls by the Planetary Ball Mill (Hunan Future Mechanical & Equipment Manufacturing CO., LTD, Yueyang, China), then dried and calcined at 1050 °C for 2 h. The furnace type is KSL-1750X-S (made in Hefei Kejing Materials Technology CO., LTD, Hefei, China). The calcining powders with 5 wt % PVA (from Aladdin Holdings Group, Beijing, China) binder were passed through a mesh and pressed into pellets with a 2:1 ratio of their diameters to thicknesses. The sizes of samples were 10 mm in diameter and 5 mm in thickness. These pellets were heat treated at 550 °C for 1 h with 5 °C/min of heating rate, and then sintered in air at 1300 °C, 1350 °C and 1400 °C for 2 h respectively with 10 °C/min of heating rate. When the heating schedule was finished, it was cooled with the furnace.

2.3. Ceramics Characterization

The crystal structures of the ceramics were characterized by X-ray diffraction using a Bruker AXS D8-Focus diffractometer (Bruker Corporation, Karlsruhe, Germany) with Cu Kα radiation (λ = 1.540598 Å). The step size was 0.02° and the scan rate was 5°/min. The densities were tested by the DE-200M apparatus made by HONGTUO Instrument (Dongguan, China). The measurement method of ceramic density was based on the Archimedes principle. The immersion liquid was the water. The formula for calculating the bulk density of the sample is according to Equation (1).

ρ = m₀ × ρ_w/(m₁ − m₂)

(1)

ρ is bulk density of the ceramic, g/cm³; ρ_w is the density of the water at the temperature of the test, g/cm³; m₀ is the weight of the ceramic after drying at 105 °C for 3 h, g; m₁ is the weight of the ceramic in air with water saturation after vacuum-pumping, g, and m₂ is the weight of the ceramic in water with water saturation after vacuum-pumping, g.

The morphologies of the ceramics were observed with a scanning electron microscope (SEM, SU8010, Hitachi, Tokyo, Japan). The microwave dielectric properties were measured using the Hakki and Coleman method by the Agilent E8362B network vector analyzer (Agilent, Palo Alto, USA). The spectroscopy frequency range is from 10 MHz to 20 GHz, and the resonant frequencies of all samples made in our study were lower than 10 GHz. The temperature range was from 20 to 80 °C for determining the temperature coefficient of the resonance frequency τ_f.

3. Results and Discussion

3.1. X-ray Characterization of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) Ceramics

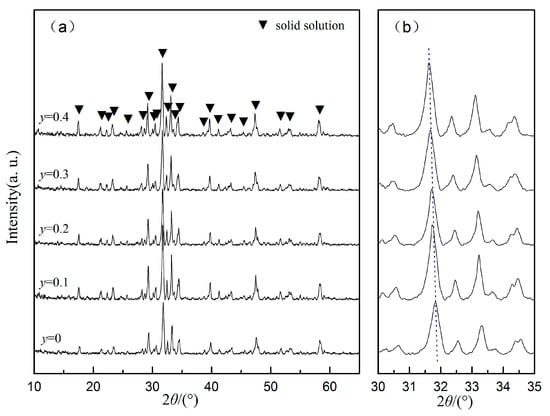

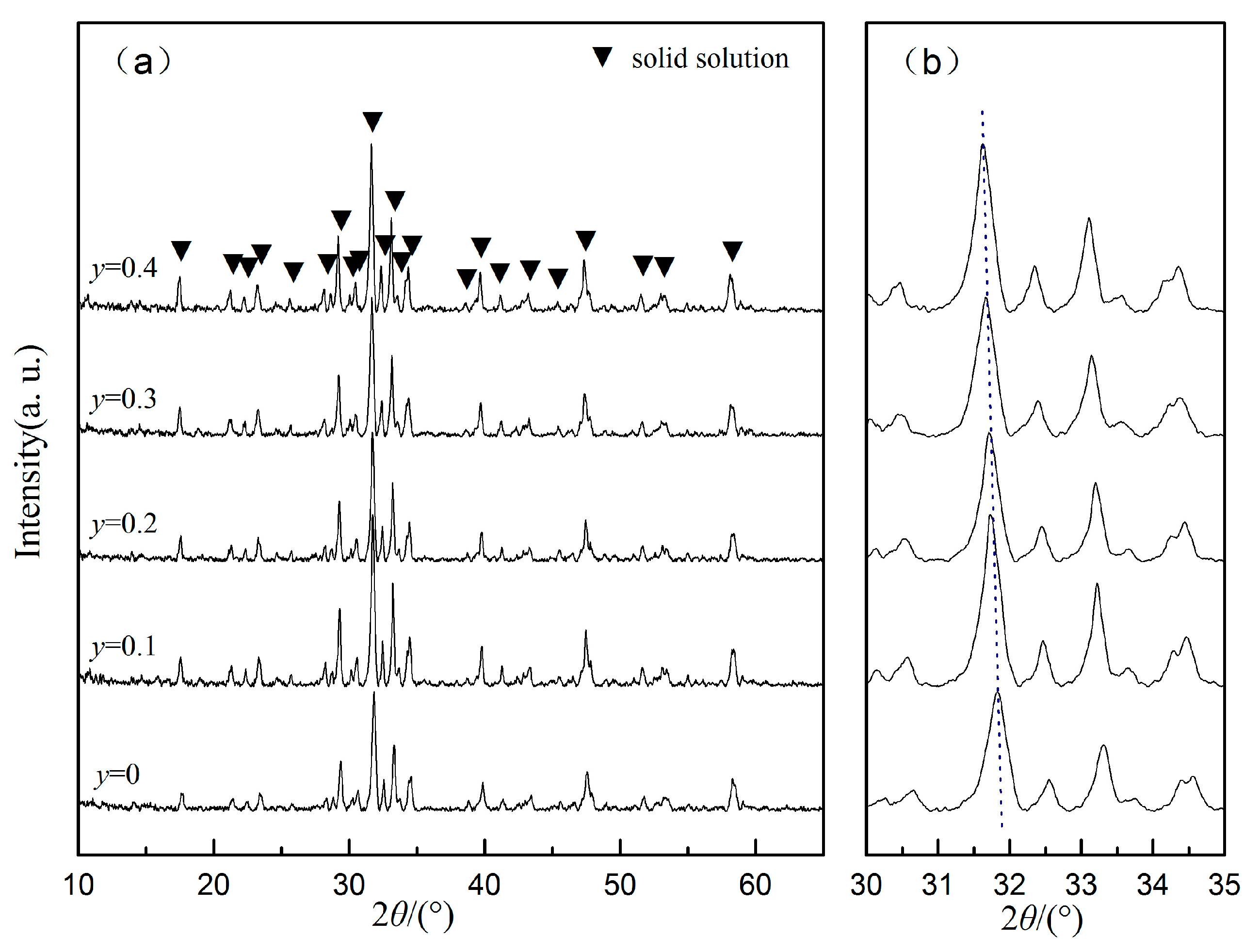

X-ray diffraction patterns of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) ceramics sintered at 1400 °C for 2 h are illustrated in Figure 1. According to the XRD standard card PDF #43-0235, the ceramics were pure phase Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) solid solution with Nd contents ranging from y = 0 to 0.4. Figure 1b shows that the peaks at the vicinity of 2θ = 31.7° shifted towards lower degrees with the increase of Nd content, which suggests that Sm ions (r = 1.098 Å with hexa-coordinate [25]) were replaced by Nd ions with a larger radius (r = 1.123 Å with hexa-coordinate [25]) [15]. The ceramics show the properties of pure Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) solid solution phases without impurities.

3.2. Establishment of the Mathematical Models Based on the SPSS Multiple Linear Regression Analysis

The resonate frequency f, dielectric constant ε_r and quality factor Qf were measured at microwave frequencies by the Hakki and Coleman method. For the specific ceramics, the resonate frequency is constant, so the dielectric constant value is very reliable. The mathematical models of the dielectric constant were established, in which Y, x₁, x₂ and x₃ denote the dielectric constant, Nd content relative to Sm, sintering temperature (°C) and the density (g/cm³), respectively.

Table 1. Densities and dielectric constants with different Nd contents and sintering temperatures.

Y	x1	x2 (°C)	x3 (g/cm3)
61.83	0	1300	5.18
73.03	0	1350	5.62
75.55	0	1400	5.65
63.12	0.1	1300	5.17
74.35	0.1	1350	5.61
75.68	0.1	1400	5.64
71.51	0.2	1300	5.46
73.30	0.2	1350	5.61
75.28	0.2	1400	5.61
72.25	0.3	1300	5.47
74.97	0.3	1350	5.59
75.97	0.3	1400	5.61
72.21	0.4	1300	5.44
74.20	0.4	1350	5.56
76.34	0.4	1400	5.59

Notes: Y—Dielectric constant; x₁—Nd content; x₂—Sintering temperature; x₃—Density.

summarizes the densities and dielectric constants of the ceramics with different Nd contents and sintered at different temperatures. The Nd contents x₁ varied from 0 to 0.4, while the sintering temperatures x₂ from 1300 to 1400 °C at which the samples were fired into ceramics. According to Table 1, the multiple linear regression mathematical models were established by using SPSS software.

3.3. Linear Regression Model Based on the Enter Method

The enter method is also named as the forced enter method, while all of the arguments are introduced into the model simultaneously. Generally, the enter method is suitable to find out the significance of the argument. By fitting the enter method, the arguments that are nonsignificant will be found.

Table 2. Summary of the regression model based on the enter model.

Model	R	R2	Ra2	SEE	F-Value	p-Value	DW
1	0.973	0.947	0.943	1.03618	243.722	0.000	2.112

Notes: R—Correlation coefficient; R²—Coefficient of determination; R_a²—Adjusted multiple coefficient of determination; SEE—Estimated standard error; F-value—Joint hypotheses test (the total significance test for regression equation); p-value—Probability value under the corresponding F-value; DW—Durbin–Watson test value.

is the summary of the regression model based on the enter model. The parameters were obtained with the correlation coefficient R = 0.973 and coefficient of determination R² = 0.947. R² refers to the fitting degree, which indicates the quality of the model. The closer R² is to 1, the more appropriate the model will be. The adjusted multiple correlation coefficient R_a² is 0.943, which confirms that there are strong linear correlations between dielectric constants and Nd content, sintering temperature and the density of the ceramics [26]. The F-value (joint hypotheses test) was 243.722, and p-value (probability value under the corresponding F-value) was 0.000, which further confirmed that our model was suitable. The p-value was smaller than 0.05, which indicates that the linear regression equation had passed the 0.05 alpha-level significance test. From Table 2, the Durbin–Watson test value (DW) was 2.112, which means that the model does not have self-correlation [27].

The regression equation (Equation (2)) can be obtained by the regression coefficient shown in

Table 3. Regression coefficients based on the enter model.

Models	Non Standardized Coefficient		Standardized Coefficient	t	p-Value	VIF
	B	Standard Error	Beta
1 (Constant)	−73.375	5.834	-	−12.576	0.000	-
x1	7.347	1.129	0.242	6.506	0.000	1.069
x2	0.107	0.058	0.102	1.842	0.073	2.356
x3	23.568	1.596	0.827	14.763	0.000	2.425

Notes: B—Non standard regression coefficient; Beta—Standard regression coefficient; t—Hypothesis test of partial regression coefficient; p-value—Probability value under the corresponding F value; VIF—Variance inflation factor (when it is larger than 10, there is serious multicollinearity).

:

Y = −73.375 + 7.347x₁ + 0.107x₂ + 23.568x₃

(2)

According to the regression Equation (2), when the density increases by 1 g/cm³, the dielectric constant will increase by 23.568. When the sintering temperature increases by 100 °C, the dielectric constant will increase by 10.7. When Nd content is increased by 1% relative to that of Sm, the dielectric constant will enhance by 0.07347.

Both the arguments x₁ and x₃ have passed the significance test for the confidence level α = 0.05. However, the p-value for x₂ was 0.073, which is greater than 0.05. This suggests that x₂ should not be an argument in this linear regression model, which will be corroborated by the stepwise regression method as shown in our following discussion. From Equation (2), the most important impact factor on Y is x₃, indicating that the density is the most important parameter affecting the dielectric constant. The relationship between densities and dielectric constants is also verified from Table 1. It is found that density plays a more important role than temperature. In fact, the density is related to sintering temperature. When the temperature was lower than the optimized sintering temperature range, the density gradually increased to the maximum value with increasing temperature. While the temperature was beyond the optimized sintering temperature range, the ceramics were over-fired, and consequently, the densities decreased. However, in this model, there were no significance correlations between temperatures and dielectric constants. We thought that the impact of temperatures might be included in the density factor. If fired at lower temperatures, the ceramics will not be densified and deteriorate the densities. Therefore, temperature and density should not be considered concurrently as influencing factors. From Table 3, the VIFs (variance inflation factor) of three arguments x₁, x₂ and x₃ were less than 10, which suggests that there was no multicollinearity among them [28,29].

In Table 3, Beta is the standardization coefficient and B is the non standardization coefficient. In SPSS, the standardization is to eliminate the error caused by different units among arguments and dependent variable. The data standardization method is that the value of original data subtracts the mean of the corresponding variable and then divides by the standard deviation of the variable. The calculated regression equation is called the standardized regression equation, and the corresponding regression coefficient is the standardized regression coefficient. The relationship between the non standardized coefficient B and standardized coefficient Beta can be expressed by Equation (3):

Beta = B × σ_x/σ_y

(3)

Beta is the standardized coefficient; B is the non standardized coefficient; σ_x is the standard deviation of an argument and σ_y is the standard deviation of the dependent variable.

The standardized coefficient can be used to evaluate which one is more important among all arguments. The non standardized coefficient reflected the absolute effect of the change of an argument on the dependent variable. From Table 3, the maximum Beta was 0.827 for x₃, so among x₁, x₂ and x₃, x₃ was the most important for the dielectric constant.

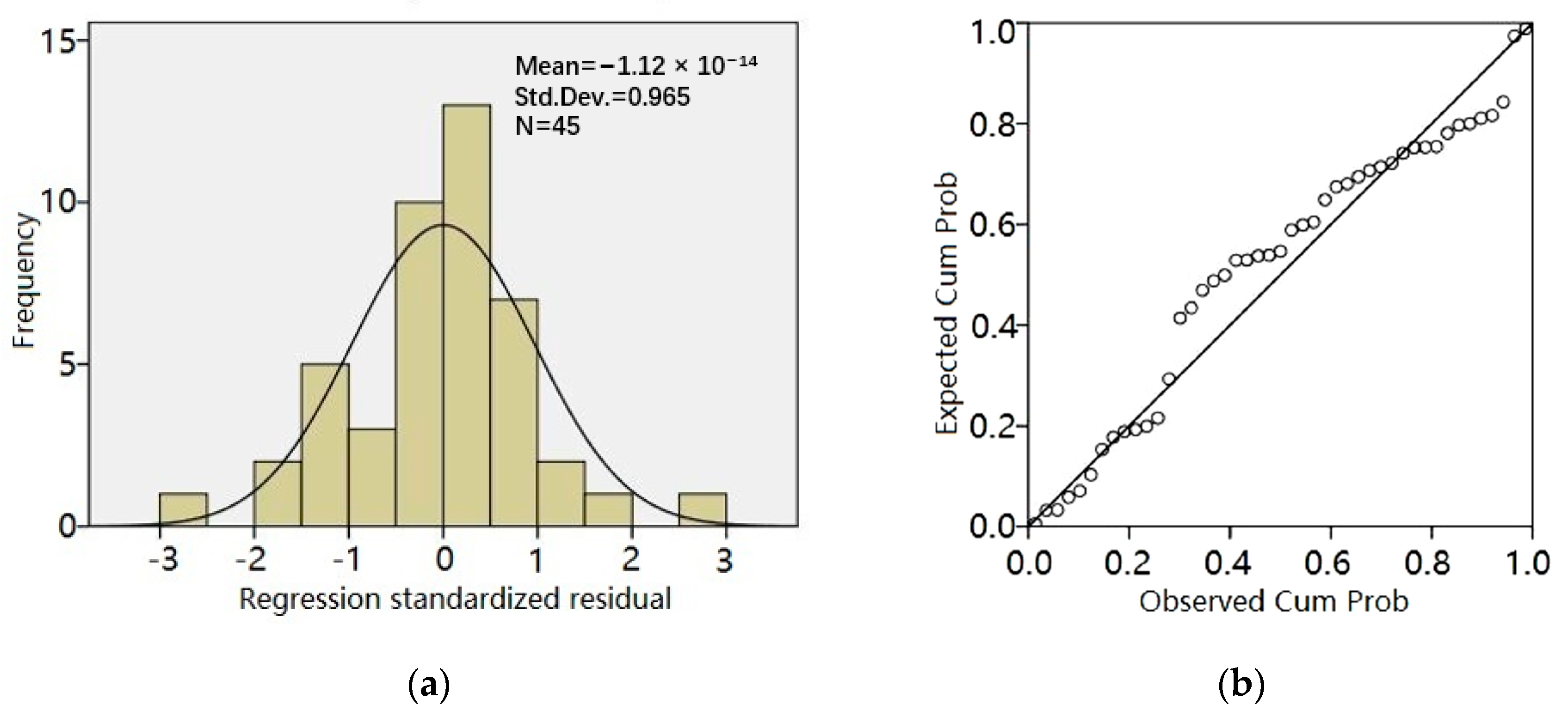

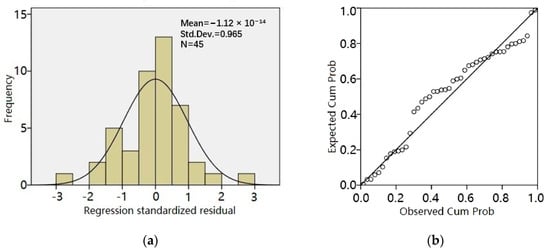

Figure 2 is the residual frequency distribution histogram and residual normal probability plot based on the enter method. Figure 2a is the normal distribution, and the dots were nearly on a straight line in Figure 2b, which shows that the mathematical model established by the enter method had passed the error test of normality. Through the Shapiro–Wilk test, the level of significance was more than 0.05, so this further proved the model was suitable.

3.4. Linear Regression Model Based on the Stepwise Method

The stepwise method is totally different from the enter method. In the stepwise method, the arguments are introduced into the model one by one. The F-value test was performed at each step to ensure that only significant arguments were included in the regression equation before the new argument was introduced.

Table 4. Summary of the regression model based on the stepwise method.

Models	R	R2	Ra2	SEE	F-Value	p-Value	DW
Model 1	0.944	0.892	0.889	1.44551	353.77	0.000	-
Model 2	0.971	0.943	0.940	1.06529	344.272	0.000	2.184

Notes: R—Correlation coefficient; R²—Coefficient of determination; R_a²—Adjusted multiple coefficient of determination; SEE—Estimated standard error; F-value—Joint hypotheses test (the total significance test for regression equation); p-value—Probability value under the corresponding F value; DW—Durbin–Watson test value; Model 1—only one argument x₃; Model 2—two arguments x₃ and x_1.

is the summary of the regression model based on the stepwise method. Model 1 is the transition model and Model 2 is the final model. In the process of simulation, the x₃ argument was firstly chosen by the software, leading to the strongest linear correlation between x₃ and Y. After the x₁ argument was chosen, the linear regression model was established between Y and x₁ and x₃, while x₂ was eliminated. For the mathematical model established by the enter method, the argument x₂ did not pass the test of normality. For the model established by the stepwise method, x₂ was eliminated and not introduced into the model. As mentioned above, as the impact of the temperature on the dielectric constant has already been included in the density, we did not need to consider the influence of both temperature and density simultaneously.

For Model 2, R_a² was 0.940, which made the linear fitting result better than Model 1. The statistical significance for p-value of the model was 0.000, which passed the test of confidence level α = 0.05. Model 2 had no self-correlation for DW = 2.184, and passed the error independence test. For Model 1, it had also no self-correlation. Since there was only one argument, the DW was zero.

From

Table 5. Regression coefficient based on the stepwise model.

Model	Non Standardized Coefficient		Standardized Coefficient	t	p-Value	VIF
	B	Standard Error	Beta
1 (Constant)	−75.847	7.897	-	−9.604	0.000	-
x3	26.899	1.430	0.944	18.809	0.000	1.000
2 (Constant)	−71.168	5.871	-	−12.123	0.000	-
x3	25.799	1.069	0.906	24.128	0.000	1.029
x1	6.946	1.139	0.229	6.097	0.000	1.029

Notes: B—Non standard regression coefficient; Beta—Standard regression coefficient; t—Statistics for test; p-value—Probability value under the corresponding F value; VIF—Variance inflation factor (when it is larger than 10, there is serous multicollinearity); x₃—Density; x₁—Nd content.

, the linear regression model can be obtained by the stepwise regression method as follow (Equation (4)):

Y= −71.168 + 6.946x₁ + 25.799x₃,

(4)

The probability value p-value of both x₁ and x₃ were 0.000, which shows that the model had passed the significance test and the arguments x₁ and x₃ had statistical significance. The VIF values were 1.029 for x₁ and x₃, and there was no multicollinearity between the arguments. Comparing the Beta value, it was found that the Beta value (0.906) of x₃ was much greater than that (0.229) of x₁, which implies that x₃ was more important than x₁.

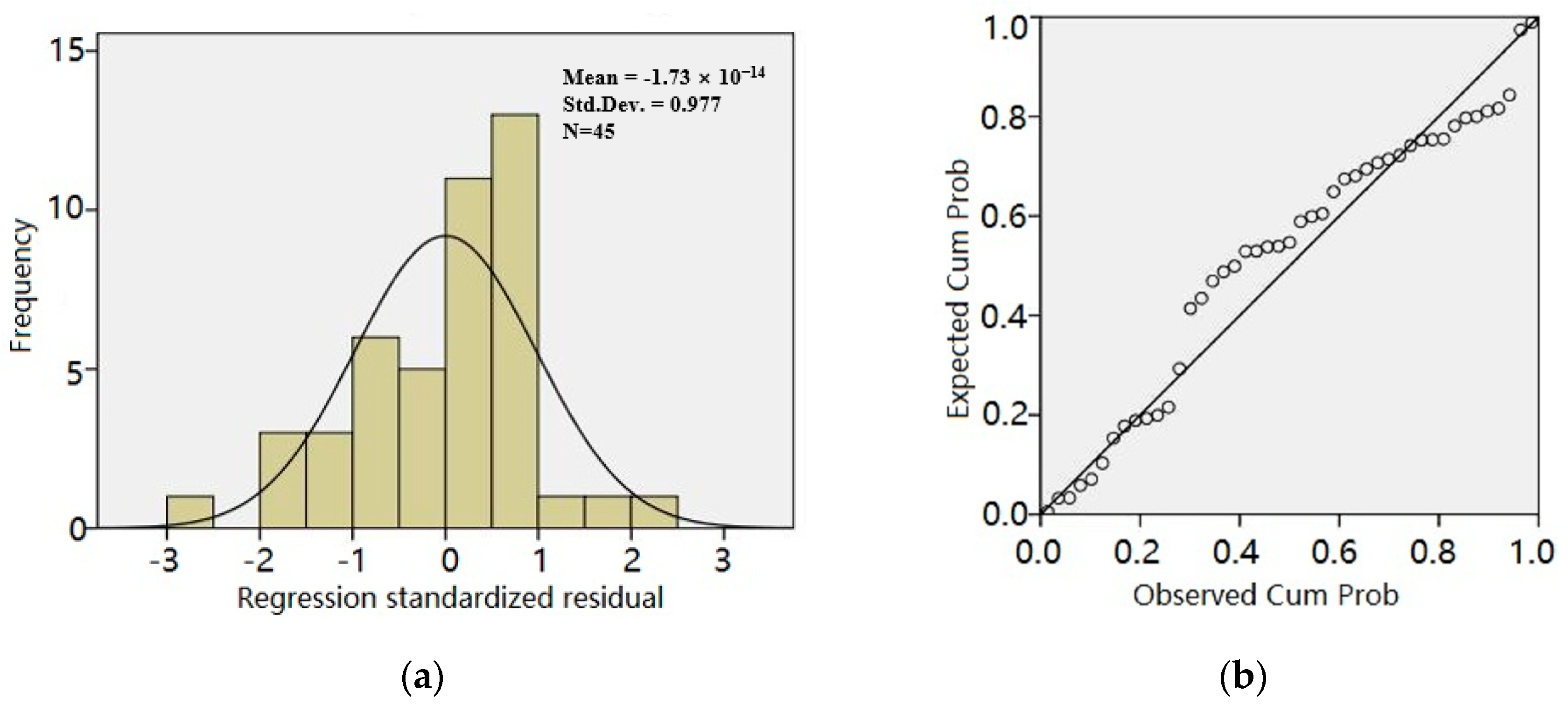

Figure 3 is the residual frequency distribution histogram and residual normal probability plot obtained by the stepwise method. As shown in Figure 3a, the residual frequency distribution histogram met the normal distribution. Figure 3b shows that almost all the points were on a line. By the Shapiro–Wilk test, the level of significance was more than 0.05. We thus concluded that the hypothesis about the error normality was reasonable and the model passed the test of the error normality.

3.5. Comparison of Two Regression Models

For more than one argument, adjusted multiple correlation coefficient R_a² can be used to evaluate the quality of the model. The closer the value is to 1, the better the model is. In this study, R_a² were 0.943 and 0.940 for the enter regression model and the stepwise model, respectively. Therefore, both models were of high quality and could be used to explain the relationship between the dependent variable and the arguments. For the enter method, the argument x₂ did not pass the significance test, which shows that temperature had little effect on the dielectric constant. As mentioned above, because there were close relationships between temperature and the density, it was not appropriate for them to be considered as impact factors at the same time. For Model 2 established by the stepwise method without x₂, although it includes fewer arguments without all the information, it meets the purpose that the reasonable, simply and useful regression models should be established with the most suitable and the least arguments [27].

3.6. Guidance of the Model on Other Properties of Microwave Dielectric Ceramics

For microwave dielectric ceramics there are three important performances (1) dielectric constant ε_r, (2) quality factor Qf and (3) the temperature coefficient of resonant frequency τ_f. For the BaO-Ln₂O₃-TiO₂ system, there was a generally recognized correlation between the three performances, that is the temperature coefficient τ_f was positively correlated and quality factor Qf was negatively correlated with the dielectric constant, which had been confirmed by many researches [19,21,30,31]. In this study, the same correlations among the three performances were also obtained, when referring to Figure 4. While y (i.e., molar content of Nd to Sm) from 0 to 0.4, ε_r and τ_f increased and Qf decreased with y. The suitable model was established for evaluating the effect of process parameters on dielectric constant by linear regression analysis. So, the effect of the same parameters on the quality factor and temperature coefficient could be estimated by the established model. According to the stepwise model, there was a positive correlation between Nd content and the dielectric constant, so there was also a positive correlation between Nd content and τ_f, but a negative correlation for Qf. Due to the small number of samples, there was no linear regression analysis on the quality factor and temperature coefficient of ceramics in this study. Especially for the temperature coefficient test, it would take a lot of time to get enough data. In the future work, we will further study Qf and τ_f by linear regression analysis.

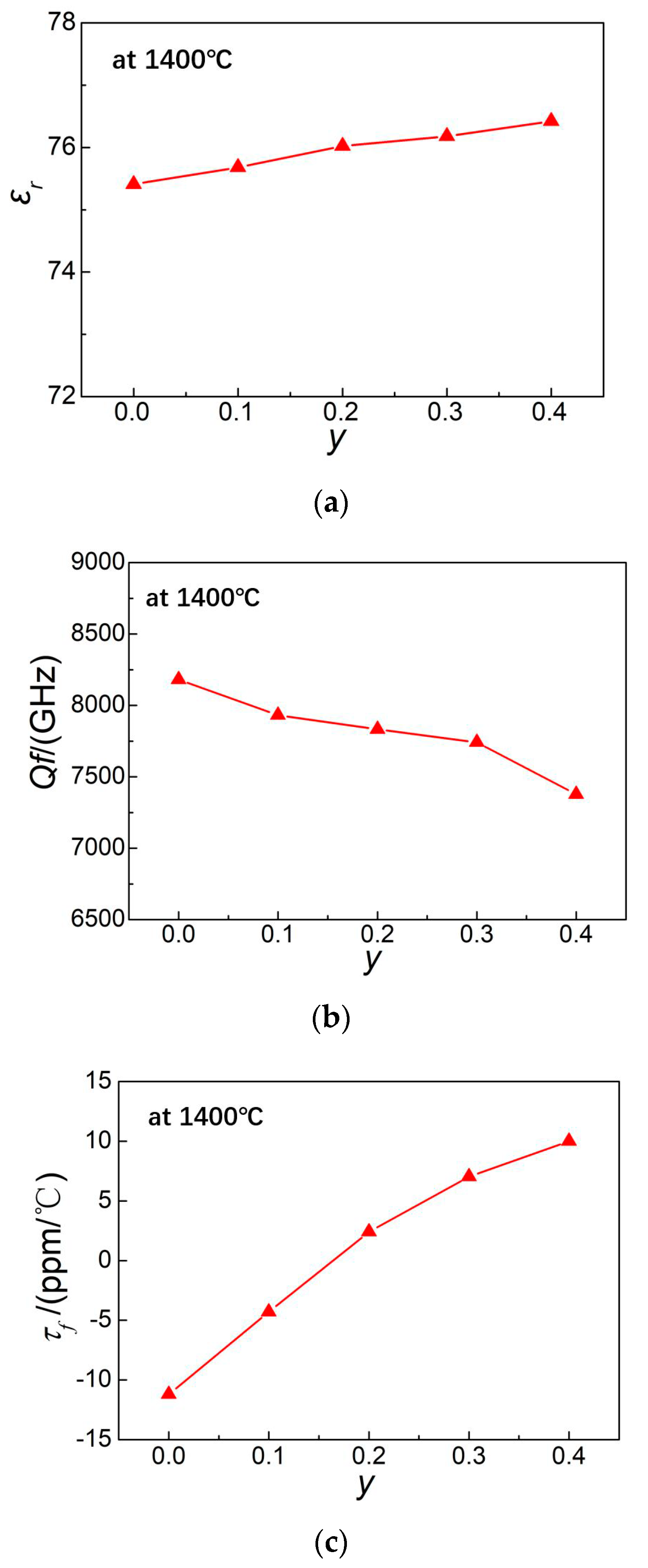

Figure 4 is the microwave dielectric properties of ceramics sintered at 1400 °C with different Nd content. At 1400 °C, the ceramics showed better properties than those sintered at other temperature. The scanning electron microscopes (SEMs) are illustrated in Figure 5. From Figure 5a, the ceramics sintered at 1350 °C appeared as incomplete grain growth, while the ceramics at 1450 °C (see Figure 5c) show overheated and some grains were melted together, which had the tendency of secondary grain growth who led to the enlargement of internal pores. However, the ceramics sintered at 1400 °C present grains with complete growth and uniform size. So, only the properties of ceramics sintered at 1400 °C were chosen to be discussed. As shown in Figure 4a, with the increase of Nd content, the dielectric constants of ceramics increased gradually, which was due to the contributions of cell volume and ionic polarizability of Nd dopant. Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) solid solution is the like-perovskite tungsten bronze structure with the ABO₃ type. The superlattice exists in the direction of c axis, which is due to the tilting of the titanium-oxygen octahedron [32]. The size and filling degree of ions at the A site will affect the tilt degree of Ti—O octahedron, and then change the cell volume. Nd dopant will occupy the A site, so the substitution of Nd for Sm affects the tilt degree of octahedron and cell volume. According to Clausius–Mossotti Equation (5), the dielectric constant of ceramics is determined by the cell volume V_m and the total ionic polarizability α_D, namely [26]:

$${\epsilon }_r=\frac{3V_m+8\pi {\alpha }_D}{3V_m-4\pi {\alpha }_D},$$

(5)

The ionic polarizabilities of Nd³⁺ and Sm³⁺ were 5.01 ų and 4.74 ų respectively. So, the substitution of Nd³⁺ at A site influences not only the cell volume V_m, but also the total ionic polarizability α_D, which resulted in the change of dielectric constant ε_r. The dopant element Nd with a large ionic radius and large ionic polarizability relative to Sm will increase the unit cell volume and then lead to the enlargement of the octahedral B site occupied by Ti⁴⁺ in the TiO₆ octahedron, which accounted for the increases of the ionic electronic polarizability and then the dielectric constant. This was also confirmed by Wang et al. [15] and Valant et al. [33]. The dielectric constant is the synergistic effect of the unit cell volume and polarizability. Similarly, the lanthanum (La) element dopant with a large ionic radius of 1.36 Å and ionic polarizability of 6.03 ų will also increase the dielectric constant of ceramics, but decrease the quality factor. The influence of the La dopant will be reported elsewhere. This study will benefit the prediction of the dielectric constant of ceramics with different dopants and guide the investigation of other ceramic systems.

4. Conclusions

Microwave dielectric ceramics with high dielectric constants were prepared. The two kinds of linear regression models were established and compared. The model built by the stepwise method had more practical significance than that by the enter method. The better model was Y = −71.168 + 6.946x₁ + 25.799x₃, where Y, x₁ and x₃ represent the dielectric constant, Nd content and the density, respectively, which disclosed the relationship between the dielectric constants and Nd content and the density of Ba_6−3x(Sm_1−yNd_y)_8+2xTi₁₈O₅₄ (x = 2/3) microwave dielectric ceramics. Based on the model, it is clear that the density (x₃) was more important to the dielectric constant (Y) than Nd content (x₁), owing to the standardized coefficient Beta value that was 0.906 for x₃ but 0.229 for x₁, while a large Beta value indicates that it was more significant. This model will help to instruct how to optimize the preparation technology in order to obtain high dielectric constant microwave ceramics.
