Zein-layered hydroxide biohybrids: strategies of synthesis and characterization

by
Ana C. S. Alcântara
,
Margarita Darder
*,
Pilar Aranda
* and
Eduardo Ruiz-Hitzky
Materials Science Institute of Madrid (ICMM), CSIC, c/Sor Juana Inés de la Cruz 3, Cantoblanco, 28049 Madrid, Spain
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(4), 825; https://doi.org/10.3390/ma13040825
Submission received: 30 December 2019 / Revised: 27 January 2020 / Accepted: 31 January 2020 / Published: 11 February 2020
(This article belongs to the Special Issue Layered Double Hydroxides (LDH) and LDH-Based Hybrid Composites)
Browse Figures
Versions Notes

Abstract

:
This work constitutes a basic study about the first exploration on the preparation of biohybrids based on the corn protein zein and layered metal hydroxides, such as layered double hydroxides (LDH) and layered single hydroxides (LSHs). For this purpose, MgAl layered double hydroxide and the Co2(OH)3 layered single hydroxide were selected as hosts, and various synthetic approaches were explored to achieve the formation of the zein-layered hydroxide biohybrids, profiting from the presence of negatively charged groups in zein in basic medium. Zein-based layered hydroxide biohybrids were characterized by diverse physicochemical techniques such as X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis/differential thermal analysis (TG/DTA), solid state 13C cross-polarization magical angle spinning nuclear magnetic resonance (CP-MAS NMR), field emission-scanning electron microscopy (FE-SEM), transmission electron microscopy (TEM), etc., which suggest that the different synthesis procedures employed and the anion located in the interlayer region of the inorganic host material seem to have a strong influence on the final features of the biohybrids, resulting in mixed, single intercalated, or highly exfoliated intercalated phases. Thus, the resulting biohybrids based on zein and layered hydroxides could have interest in applications in biomedicine, biosensing, materials for electronic devices, catalysis, and photocatalysis.

Graphical Abstract

1. Introduction

The interest in the development of bionanocomposite materials based on the interaction of inorganic nanoparticulated solids and biopolymers is a topic of great relevance in the development of bioplastics as well as in other areas of application [1]. In this way, layered clays and other related solids, such as layered double hydroxides (LDHs), have been combined with biopolymers, typically polysaccharides and in minor extension proteins, to produce functional materials for a large variety of uses: food-packaging, adsorbents, drug delivery systems, scaffolds for tissue engineering applications, sensors and biosensors, etc. [2,3,4]. It is well known that the combination of proteins with solid surfaces is an important process, not only due to their fundamental aspects of interaction, but also due to the variety of potential applications, from natural biochemistry to biotechnological applications [5]. In this sense, many studies have focused on the interaction of this type of biomacromolecules with layered solids in order to obtain biological–inorganic hybrid compounds that can be used in advanced applications from biocatalysts to synthetic engineering and biosensors, where the investigation of the interaction between both entities at the molecular level is essential to achieve the desired properties [6]. However, the majority of publications reporting biohybrids based on peptides and proteins such as gelatin [7,8], soy protein [9,10], or hemoglobin [11] are assembled to smectite clays, with preference on the montmorillonite aluminosilicate, following cation exchange mechanisms. In this way, it is worth mentioning the pioneering research on protein–clay interactions, which explored the adsorption of the structural protein gelatin, derived from collagen, in the interlayer space of smectites [12]. Nevertheless, the use of other layered solids, such as layered metal hydroxides of the type of LDH and layered single hydroxide (LSH), is attracting more and more interest due to their low cost, high purity, versatility, and numerous applications in diverse areas [4,13,14].
LDHs (Figure 1a), also known as hydrotalcite-like compounds or anionic clays, are widely used as catalysts or catalyst precursors, adsorbents, components in modified electrodes, as inorganic host matrices for drug or herbicide release in medical and environmental applications, or as nanofillers of polymers [13,15,16,17,18,19,20,21,22,23,24,25,26]. LDHs can be prepared easily following several synthetic approaches, such as direct anion-exchange and coprecipitation or “co-organized assembly,” commonly used in the preparation of LDH-based biohybrid materials [27]. In this sense, LDHs such as those based on MnAl, NiAl, and ZnCr have been used as hosts of low molecular weight species such as phenylalanine (Phe) amino acid, which was intercalated by the co-precipitation method [28]. The work reported by Nakayama and co-authors [29], describing the intercalation of amino acids and various peptides into a MgAl-LDH by reconstruction from the layered MgAl oxide precursor, is also noteworthy. In that case, the intercalation process was greatly influenced by the type of side chain, structure, and physicochemical properties of the involved amino acid [5,29]. This same procedure was followed to intercalate biomacromolecules like the casein protein into CaAl-LDH, where it was found that β-casein is more easily intercalated than α-casein [30]. Although the intercalation of polysaccharides, oligonucleotides, and other biopolymers in LDHs [4,25,31,32,33,34] is well known, examples of the incorporation of proteins and related biomolecules is still scarce. On the other hand, LSH (Figure 1b) has an identical structure to LDH, but in this case, the inorganic layers are composed of only one type of metal cation, where the anions are coordinated to the in-plane metal ions and the inorganic layers are essentially neutral [21,35]. In spite of this, LSH can also undergo anion-exchange reactions, as occurs in LDH solids, and the LSH-based hybrids are formed by replacing the exchangeable interlayer anions in the LSH lattice with negatively charged organic molecules [22]. It is worth mentioning that, in this case, the metal–anion bond results in a strong interaction between molecules intercalated between the layers and the metal inorganic network [36]. In addition to the ion-exchange reaction, the co-precipitation method is also a procedure usually employed to prepare hybrids based on LSH, resulting in highly promising matrices for the development of new magnetic and optically active hybrids [22,37,38]. Among them, the development of functional biohybrid compounds based on the intercalation of a series of short length peptides in the intracrystalline space of Cu(II) and Co(II) LSH is a remarkable example [36].
Within this perspective, this work is focused on the development of biohybrids based on a hydrophobic globular protein, zein, and layered metal hydroxides. Zein is a protein from maize, found as a mixture of protein complexes, and α-zein is the most abundant fraction. This protein presents hydrophobic properties around 50 times higher than those of albumin, γ-globulin, and fibrinogen of bovine blood, which are due to its characteristic amino acid sequence [39]. As a result of the large content of hydrophobic residues in zein, this protein is soluble in pure water only if the pH is raised above 11, likely due to the ionization of the phenolic groups from the tyrosine and because of the presence of glutamic acid residues [40]. Recently, we reported the effective intercalation of zein into Na–montmorillonite, where the cooperative role of the protein components and its solubility were carefully studied in the developed new biointerfaces [41]. Based on these premises, the synthesis of new biohybrid materials based on zein and layered hydroxides can be explored, taking advantage from the presence of negatively charged groups in zein in alkaline medium, when the pH of the solution is raised above its isoelectric point. Thus, this work aims to be the first attempt to study the formation of biohybrids resulting from assembling zein to a 2:1 MgAl-LDH and a Co2(OH)3 LSH. The main results of the synthesis and physico-chemical characterization of these new zein-layered hydroxides are described. The resulting zein-based biohybrids could show potential interest, for instance, in biomedical applications or surface chemistry processes, such as catalysis or photocatalysis.

2. Materials and Methods

2.1. Starting Materials and Reagents

Zein (Z) from corn and Co(CH3COO)2·4H2O (≥ 99%) were purchased from Sigma-Aldrich (Tres Cantos, Spain). Absolute ethanol and MgCl2·6H2O (≥ 99%) were purchased from Panreac (Castellar del Vallés, Barcelona, Spain). AlCl3·6H2O (≥ 99%), Mg(NO3)2·6H2O (≥ 99%), NaOH (≥ 98%) were obtained from Fluka (Madrid, Spain) and Al(NO3)3·9H2O (≥ 99%) from Merck (Darmstadt, Germany). Deionized water (resistivity of 18.2 MΩ cm) was obtained with a Maxima Ultrapure Water from Elga (Celle, Germany).

2.2. Synthesis of the Layered Hosts

2.2.1. Synthesis of MgAl-Layered Double Hydroxides with Different Inorganic Anions in the Interlayer Space

A mixture of MgCl2·6H2O (17.5 mmol) and AlCl3·6H2O (8.74 mmol) was dissolved in 250 mL of decarbonated bi-distilled water to prepare the 2:1 MgAl–Cl LDH. This aqueous solution was dripped with a peristaltic pump to 100 mL deionized water, keeping the mixture under a nitrogen flow to remove CO2. Simultaneously, 1 M NaOH solution was also added dropwise to the aqueous mixture through an automatic dispenser (Dosimat 765 with an 806 Exchange Unit, from Metrohm (AG, Herisau, Switzerland) controlled by a 781 pH/Ion Meter (Metrohm) to keep a constant pH of 11.0 ± 0.1 during the synthesis. The resulting dispersion was kept under magnetic stirring and nitrogen flow for 24 h. The solid product was separated by centrifugation, washed three times with bi-distilled and degassed water, and dried at 60 °C overnight. The [Mg0.67Al0.33(OH)2]Cl0.33·nH2O] LDH was denoted as MgAl–Cl LDH.
The 2:1 MgAl–NO3 LDH nitrate was also prepared by an analogous method to that described for the MgAl–Cl LDH, except that Mg(NO3)2·6H2O (17.5 mmol) and Al(NO3)3·9H2O (8.74 mmol) were used as the source of magnesium and aluminum. The [Mg0.69Al0.34(OH)2] NO3 0.34·nH2O] LDH was denoted as MgAl–Nit LDH.
The 2:1 Mg:Al LDH containing CO32− ions (Mg2Al-Carb) was prepared following the method described above for Mg2Al–Cl LDH, including the same salts and their respective concentration, except that in the different stages of synthesis the nitrogen flow was not employed and the precipitation pH was 9.0 ± 0.1, adjusted with 0.2 M Na2CO3 aqueous solution. The [Mg0.67Al0.33(OH)2] CO3 0.33·nH2O] was denoted as MgAl-Carb LDH.

2.2.2. Synthesis of Co-Layered Single Hydroxide

The procedure described by Si et al. [36] was followed to synthesize the Co2(OH)3(CH3COO)·H2O LSH. In this procedure, 0.02 mol of Co(CH3COO)2·4H2O was dissolved in 100 mL of water, maintaining the reaction medium at 70 °C under stirring and nitrogen flow. A volume of 0.1 M NaOH (30 mL) mixed with 60 mL of ethanol–water (50%v/v) was added slowly to the previous solution under vigorous stirring. The resulting dispersion was kept under stirring for other 30 min, then centrifuged and washed with water and ethanol to remove the unreacted reagents, and finally dried at 40 °C. The obtained layered material was denoted as Co-LSH.

2.3. Zein-Layered Double Hydroxides

For the preparation of the zein-layered double hydroxide (Z-LDH) biohybrids, three routes of synthesis were employed (Figure 2).

2.3.1. Ion-Exchange Method

In the ion exchange method used to prepare the zein-LDH biohybrids, 0.5 g of zein was initially dissolved in 0.1 M NaOH (50 mL) through magnetic stirring or by means of an ultrasound tip (VC750 Sonics Vibra-Cell, Newtown, CT, USA, operating at 20KHz). This ultrasound treatment was carried out with a tip of 13 mm diameter and applying intermittent pulses of 10 s followed by a standby step of 10 s, up to a total applied energy of 60 kJ/0.5 g of zein. After zein solubilization, the pH of the solution was adjusted to 11 by addition of 0.1 M HCl and it was slowly added to a dispersion containing 2 g of MgAl–Cl or MgAl–Nit LDH freshly prepared in 50 mL of degassed bi-distilled water. The pH of the system was adjusted back to 11 and then kept under magnetic stirring at 50 °C and N2 flow for 4 days. The solid product was recovered by centrifugation, rinsed with distilled water and dried at 40 °C. The resulting hybrid materials derived from MgAl–Cl and MgAl–Nit LDH were denoted as Z-LDH-Cl_ie and Z-LDH-Nit_ie, respectively, when zein dissolved under magnetic stirring was used. Those materials prepared with sonicated zein were denoted as Z-LDH-Cl_ie-US and Z-LDH-Nit_ie-US.

2.3.2. Co-Precipitation Method

Zein was intercalation into the MgAl–Cl or MgAl–NO3 LDH by the co-precipitation method by adding slowly 250 mL of an aqueous solution containing the Mg and Al salts to 100 mL of a zein solution (0.5 g of protein/100 mL of 0.1 M NaOH), previously prepared by ultrasonication or magnetic stirring, as previously described for the ion-exchange method. The pH was controlled to 11.0 and the system was kept under magnetic stirring and N2 atmosphere for 24 h at room temperature. The solid fraction was separated and dried as previously described for the ion-exchange method. The biohybrid materials prepared by co-precipitation in chloride and nitrate salts and using zein dissolved by magnetic stirring were labeled as Z-LDH-Cl_cppt and Z-LDH-Nit_cppt, respectively, while those obtained from sonicated zein were labeled as Z-LDH-Cl_cppt-US and Z-LDH-Nit_cppt-US, respectively.

2.3.3. Reconstruction Method

The reconstruction method followed to synthesize the Z-LDH biohybrids was performed by means of calcination-rehydration reaction, where 1 g of LDH MgAl containing carbonate ions in the interlamellar space (MgAl–CO3 LDH) was calcined in a muffle furnace at 500 °C for 5 h in order to form the corresponding dehydrated MgAl layered double oxide (MgAl LDO). Zein (0.5 g) was dissolved in 50 mL of 0.1 M NaOH through magnetic stirring or by ultrasonication, as described for the other preparation methods, and the pH of the zein solution was adjusted to 11. The MgAl LDO was added to 50 mL of the zein solution under magnetic stirring and N2 flow. The solid product was separated by centrifugation, washed and dried of analogous manner as described for ion-exchange and coprecipitation methods. The hybrid material obtained from this synthesis was labeled as Z-LDH_rec or Z-LDH_rec-US when zein was dissolved by magnetic stirring or by ultrasounds, respectively.

2.4. Zein-Layered Single Hydroxide

The preparation of zein-layered single hydroxide (Z-LSH) biohybrids was carried out by means of the following two synthetic routes.

2.4.1. Ion-exchange Method

The first step in the preparation of zein-LSH by ion-exchange was the solubilization of zein (0.5 g) in 15 mL of 0.1 M NaOH with an ultrasound tip, applying a total energy of 60 kJ/0.5 g of zein. Then, a water–ethanol mixture (50% v/v) was added to the previously prepared zein solution and the pH was adjusted at 8.2. Subsequently, 0.5 mmol of Co-LSH were added to the zein solution under vigorous stirring. The resulting dispersion was stirred at 70 °C under constant N2 atmosphere for 24 h. Then, the resulting solid was centrifuged, washed thoroughly with water and ethanol, and dried at 40 °C. The zein-LSH hybrid material obtained by the ion exchange method was denoted as Z-LSH_ie-US.

2.4.2. Co-precipitation Method

The procedure followed to prepare the zein-LSH biohybrid is similar to that described for the synthesis of the Co-LSH material, except that, in this case, 30 mL of 0.1 M NaOH were used to dissolve 0.25 g of zein. This alkaline zein solution was ultrasonicated using an ultrasound tip, up to a total applied energy of 60 kJ. After adding 60 mL of ethanol–water (50% v/v) to the alkaline zein solution, the resulting mixture was added slowly to the aqueous cobalt solution, and the reaction was kept under magnetic stirring and N2 flow for 30 min. The resulting solid was isolated and dried as described for the ion-exchange method. The hybrid material obtained by this procedure was labeled as Z-LSH_cppt-US.

2.5. Characterization

FTIR spectra of samples in film form or diluted in KBr as pellets were recorded from 4000 to 250 cm−1 (2 cm−1 resolution) with a FTIR spectrophotometer BRUKER IFS (Billerica, MA, USA) 66v/S. CHNS elemental chemical microanalysis of samples was determined in a Perkin-Elmer 2400 analyzer (Waltham, MA, USA). Solid-state 13C CP-MAS-NMR spectra of samples spun at 10 KHz were obtained in a Bruker Avance 400 spectrometer (Billerica, MAs, USA), using a contact time of 2 ms and a period between successive accumulations of 5 s. The number of scans was 800 and chemical shift values were referenced to tetramethylsilane. Surface morphology was observed by FE-SEM with a FEI-NOVA NanoSEM 230 (Eindhoven, Netherlands) microscope equipped with a Type SDD Apollo 10 EDAX detector (Leicester, UK), which allowed semi-quantitative analysis of elements. The equipment allows the direct observation of samples adhered on a carbon tap without requirement of any conductive coating on the surface. For the TEM images (Philips Tecnai 20, Amsterdam, Netherlands, operating at 200 kV), the biohybrids were previously embedded in epoxy resin and then cut in very thin sections using an ultramicrotome (LEICA EM UC6, Wetzlar, Germany) equipped with a diamond blade.

2.6. SDS-PAGE

The sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) technique was performed according to Cabra and co-workers [42], where aliquots of 7.5 µL containing approximately 30 µg of zein solubilized in 0.1 M NaOH under an ultrasound tip (total applied energy of 10, 30 or 60 kJ with 10 s on/off pulses) were re-suspended in equal volumes of deionized water and buffer (0.125 M Tris–Cl, 4% SDS, 20% glycerol, 10% 2-mercaptoethanol (BME), and bromophenol blue 0.01%, pH 6.4). The polyacrylamide gels at 20% were silver-stained for band visualization.

3. Results and Discussion

Different routes of synthesis (Figure 2) were evaluated for the preparation of zein-layered hydroxide biohybrid materials in order to achieve the intercalation of this protein in the inorganic host substrate. These synthetic procedures, involving a MgAl LDH containing different interlayer anions and zein protein solubilized in alkaline solution under different experimental conditions (magnetic stirring or ultrasonication), were first tested with the aim to achieve fully zein intercalated LDH solids.
Given that alkaline media treatments ensure the presence of negative charges in the zein structure, NaOH solution of pH 11 was selected for the solubilization of zein, as this medium is also favorable for the synthesis of many LDH [40]. However, it is reported in the literature that alkaline treatment in zein provokes a deamidation of the glutamine amino acid, together with the possible formation of alkali salts of the phenolic-hydroxyl groups in tyrosine [43,44,45]. According to the electrophoresis results (Figure 3), the alkaline treatment of zein breaks the protein in smaller fractions of protein size between 14 and 10 kDa, although the presence of the Z19 and Z22 monomers and α-zein dimers was still evidenced (Figure 3a). Aiming at increasing the number of smaller fractions of zein that can penetrate more easily in the interlayer space of the LDH, zein dissolved in 0.1 M NaOH was submitted to ultrasonication (US) treatment, applying a total energy of 10, 30 and 60 kJ/0.5 g of zein with the help of an ultrasound tip. In this case, the SDS-PAGE analysis of the alkaline-treated zein samples disaggregated under energies of 10 and 30 kJ (Figure 3b,c, respectively), shows a very similar distribution of protein fractions, which are also analogous to that of alkaline-treated zein prepared with no US, just under magnetic stirring (Figure 3a). On the contrary, alkaline-treated zein ultrasonicated at higher energies (i.e, 60 kJ) seems to undergo major changes, showing in the SDS-PAGE the presence of the characteristic bands at 22 kDa and 20 kDa corresponding to the α-helix structure, together with a larger number of smaller protein fractions between 15 and 10 kDa (Figure 3d). In addition to the hydrolysis reactions taking place at basic conditions [46], the presence of small protein fractions may also be attributed to the breakdown of protein aggregates by the high US energy applied in the solubilization process. Given that the alkaline-treated zein under applied US energy of 10 and 30 kJ shows a molecular mass distribution very similar to that of zein treated in NaOH without US, this latter approach with no applied US was chosen in the synthesis of zein-LDH biohybrids. In addition, the treatment combining alkaline medium and the applied US energy of 60 kJ was also selected for comparison, as it provided the smaller fractions of zein. As explained below, the FTIR and 13C NMR spectra of the alkaline-treated zein prepared by applying 60 kJ US (see below), indicate that amide I band is preserved, which suggest that the secondary structure of protein (α-helix) remains unaltered after the US treatment, corroborating the SDS-PAGE results (Figure 3).

3.1. Zein-Layered Double Hydroxides Biohybrids

The LDH involving Mg and Al metals in a 2:1 MgAl ratio and containing chloride, nitrate or carbonate as interlayer anions were chosen for this study, as they are probably the most studied LDH materials. Three different methods of synthesis (ion-exchange, co-precipitation and reconstruction) were explored with the aim to prepare the corresponding zein-layered double hydroxide biohybrids (Z-LDH) from zein solubilized in 0.1 M NaOH, under magnetic stirring or US. Mg–Al LDH were synthesized with Cl− (MgAl–Cl) or NO3− interlayer anion (MgAl–Nit) showing as theoretical formula [Mg0.67Al0.33(OH)2]Cl0.33·nH2O and [Mg0.67Al0.33(OH)2]2(NO3)0.33·nH2O, respectively. The content of Mg and Al was analyzed in both samples by EDX in several areas of the solids, finding that the 2:1 Mg:Al ratio corresponds to that expected in both compounds. Figure 4 shows the diffractograms of the starting LDH samples. The basal distances calculated by the Bragg’s equation for MgAl–Cl and MgAl–Nit LDHs from the 2 theta angle of the (003) reflection, are 0.77 nm and 0.82 nm for MgAl–Cl and MgAl–Nit, respectively, and coincide with the values reported in the literature for the MgAl-LDH materials containing chloride and nitrate anions [47].
The X-ray diffractograms of the biohybrids prepared by ion-exchange of Cl− or NO3− by alkaline-treated zein under magnetic stirring or by application of US (Figure 4a) show the characteristic (012), (018), (110) and (113) reflections, indicative of the preservation of the LDH structure. XRD patterns very similar to that of the pristine LDH are observed in both biohybrids, suggesting that the ion-exchange reaction does not take place, regardless of the treatment used to dissolve zein or the type of anion present in the interlayer. However, a careful analysis of the diffractogram of the biohybrid prepared from MgAl–Nit and zein treated under US (60kJ), Z-LDH-Nit_ie-US, reveals a slight shoulder at 2θ of 4.4°, corresponding to a basal spacing of 2.0 nm, (arrow in Figure 4a). This shoulder would point to the presence of a phase with intercalated zein. Considering that the thickness of a brucite-type layer is approximately 0.48 nm [48], the increment of the interlayer distance of the (003) reflection for the Z-LDH based on MgAl–Cl and MgAl–Nit corresponds to 0.29 nm and 0.33 nm, respectively. These values are in agreement with the size of the intercalated Cl− and NO3− ions [49], suggesting that, in both cases, zein is not located in the interlayer space of the LDH structure.
Co-precipitation method was another strategy employed in this study in order to effectively obtain a zein intercalated phase into the LDH solid. In this case, the XRD patterns of the Z-LDH systems prepared by co-precipitation reaction show that there are no significant differences between the diffractogram of the Z-LDH-Cl biohybrid prepared with zein dissolved by magnetic stirring (Z-LDH-Cl_cppt) and that of the pristine MgAl–Cl (Figure 4b). This result suggests that the protein could be adsorbed on the external surface of the MgAl LDH structure. Conversely, a new peak at 4.8 degrees of 2θ can be identified in the diffractogram of the material prepared from zein dissolved under US, corresponding to a basal spacing of 1.85 nm (Z-LDH-Cl_cppt-US, Figure 4b). This new peak at lower 2θ values than the (003) reflection of MgAl LDH can be attributed to a phase of intercalated zein. In the case of materials prepared from the nitrate salts, the presence of two peaks at lower 2θ than the (003) reflection of LDH is observed in the XRD patterns of Z-LDH-Nit_cppt and Z-LDH-Nit_cppt-US (Figure 4b), which were prepared from zein solubilized in alkaline media using magnetic stirring or US, respectively. Considering the first peak in the corresponding XRD patterns of these biohybrids, the determined basal spacing values were 2.15 nm for Z-LDH-Nit_cppt, and about 2.67 nm for Z-LDH-Nit_cppt-US, respectively. Thus, the basal spacing increase values in the Z-LDH-Cl_cppt-US, Z-LDH-Nit_cppt and Z-LDH-Nit_cppt-US biohybrids can be calculated as 1.38 nm, 1.84 nm and 2.19 nm, respectively. Despite the presence of intercalated phases in three of the four Z-LDH biohybrid systems prepared by co-precipitation, the most intense peak still corresponds in all cases to the (003) reflection due to non-intercalated MgAl-LDH, revealing that these biohybrids comprise intercalated and non-intercalated phases, with a higher content in the last one.
The third attempt in the preparation of Z-LDH biohybrids was the reconstruction method, and their respective XRD patterns are shown in Figure 4c. In this method, a MgAl LDH containing carbonate ions in the interlayer region (MgAl-Carb) was firstly synthesized and calcined at 350 °C to produce the corresponding Mg–Al layered double oxide (LDO), from which the LDH structure is reconstructed by hydration of the LDO using a solution containing negatively charged zein. The diffractogram of the pristine MgAl-Carb LDH shows the characteristic reflections of LDH, with the highest intensity peak corresponding to the (003) plane. From this reflection, a basal distance of 0.76 nm was determined, matching the reported values for this LDH containing carbonate anions [47,50]. It is not possible to detect any of the typical peaks of the LDH in the XRD pattern of the MgAl-LDO obtained from calcination of MgAl-Carb LDH, but only those attributed to amorphous MgO (periclase) [50,51]. Reconstruction of the LDH structure using a magnetically stirred zein solution (Z-LDH_rec) is confirmed by the presence of the (110) and (113) reflections, at the same typical angles observed in the starting MgAl LDH structure. In the diffractogram of the reconstructed material, the (003) reflection peak appears at slightly lower 2θ angles than in the pristine MgAl-Carb LDH, indicating that zein was not intercalated between the LDH layers. Considering that the reconstruction is carried out in CO2-free water, the LDH layer charge was probably compensated by OH− anions, giving rise to a phase known as meixnerite [48]. In the case of the Z-LDH_rec-US biohybrid, the diffractogram is poorly defined, showing the presence of scatter between 20–30° in 2θ that could indicate the presence of amorphous zein. In this diffractogram, the (110) and (113) characteristic reflections of the LDH structure can be appreciated together with new peaks related to basal spacing values of 1.54 nm, 0.75 nm, and 0.50 nm, which can be assigned to (003), (006), and (009) reflections, respectively. From those values, it is possible to calculate an average basal spacing of 1.51 nm, which confirms the presence of zein intercalated in the reconstructed LDH. Considering that a brucite layer thickness is 0.48 nm, the increment in the interlayer spacing in the Z-LDH_rec-US biohybrid is 1.03 nm.
The zein content in all the biohybrids was calculated from CHNS chemical analysis (Table 1) and reveals that the amount of zein in the LDH is variable, not only depending on the anion (chloride or nitrate) used in the LDH preparation, but it also seems to depend on the methods used for zein solubilization and for preparation of the biohybrids. According to these results, the samples prepared by co-precipitation showed higher zein content compared to the other two approaches. The Z-LDH-Nit_cppt-US biohybrid showed the highest amount of zein (58 g of Z per 100 g of LDH). The fact that zein ultrasonication favors its disaggregation and increases the small protein fractions, as revealed by SDS-PAGE results (Figure 3), could enable the partial intercalation of zein in Z-LDH-Cl_cppt-US and Z-LDH-Nit_cppt-US, which indicates the treatment provokes the preferential adsorption of some fractions of zein with different C/N ratio. The fact that nitrate ions show lower stability than chloride as interlayer anions may also facilitate the intercalation of zein in the case of Z-LDH-Nit_cppt and Z-LDH-Nit_cppt-US samples. However, the co-precipitation method seems to be only partially efficient to achieve biohybrids where the protein is completely intercalated into the LDH. A similar effect of the disaggregation of the protein under US treatment seems to facilitate the intercalation of zein in the biohybrids prepared by reconstruction, revealing for this case a zein content of 36 g per 100 g of LDH. In contrast, the Z-LDH-Nit_ie-US prepared by ion-exchange reaction showed only 13.0 g of zein/100 g of MgAl-LDH, indicating that intercalation of zein in LDH by this process is very difficult, most likely requiring long reaction times or to carry out the process into several steps. Given that zein was not successfully intercalated by this strategy (ion-exchange), this method was discarded for further studies. However, it is important to highlight that it is difficult to ascertain if the content of the zein present in the intercalation compounds is adsorbed at the external surface of the inorganic solid, especially because it just produced a partial intercalation.
The interaction between sonicated zein and MgAl LDH in the biohybrids prepared by co-precipitation and reconstruction was investigated by FTIR spectroscopy (Figure 5). The FTIR spectra of the biohybrids prepared by co-precipitation (Figure 5a), show the typical absorption bands between 600–400 cm−1 ascribed to the deformation vibration modes of metal-oxygen bonds in the LDH layers [52,53]. The vibrational bands between 2915 and 2848 cm−1 are attributed to the νC–H vibration of CH2 groups from the protein. In the Z-LDH-Cl_cppt-US and Z-LDH-Nit_cppt-US biohybrids (both shown in Figure 5a), the band at 1659 and 1630 cm−1, respectively, which are assigned to the amide I, are shifted toward lower wavenumber compared to that observed in the Z-NaOH-US spectrum (1663 cm−1). Interestingly, the frequency of the amide II characteristic vibration band, which appears as a single band at around 1545 cm−1 in the Z-LDH biohybrids, is also shifted. The spectrum of the Z-LDH-Nit_cppt-US biohybrid shows also a band at 1379 cm−1, which is attributed to nitrate ions of the non-intercalated LDH-phase [54]. The band at 1370 cm−1 observed in the MgAl–Cl spectrum, is most likely due to the ν3 vibrational mode of carbonate anions, which could be incorporated during the LDH synthesis from atmospheric CO2 in spite of carrying out the synthesis under N2 flow [55]. Figure 5b shows the FTIR spectra of the Z-LDH_rec-US biohybrid, Z-NaOH-US, the starting MgAl-CO LDH and the MgAl-LDO material. These spectra reveal that the band at 1663 cm−1 in Z-NaOH-US, assigned to νCO vibrations of C=O of amide I, is slightly shifted toward a lower wavenumber in the Z-LDH_rec-US biohybrid, appearing at 1658 cm−1. All these shifts observed in the biohybrids prepared here, may be related to interactions established between the negatively charged glutamate groups of the alkaline-treated zein and the LDH host, as reported by Charradi and co-authors [5] in studies about the immobilization of hemoglobin in MgAl-LDH. In the spectrum of the Z-LDH_rec-US biohybrid, the band ascribed to the νasym C–O stretching mode of the carbonate anion at 1363 cm−1 can be also distinguished. The vibrational bands between 2915 and 2848 cm−1 are attributed to νC–H vibration of CH2 groups from zein, and the set of small bands below 1000 cm−1 region are ascribed to the host inorganic lattice vibrations (stretching M–O–M) of the LDH structure [31].
The interactions between zein and the layered solid pointed out by FTIR measurements (Figure 5) can be confirmed by solid state 13C NMR spectra of Z-NaOH-US and Z-LDH-Cl_cppt-US biohybrid (Figure 6). Both spectra are very similar and the main differences are related to the signal due to the carbonyl carbons. This signal appears at 172.5 ppm in the spectrum of the starting zein, showing a shoulder at 180 ppm, but both are shifted toward lower magnetic fields in the spectra of the biohybrids, appearing at 170 ppm and 173 ppm, respectively, in the case of Z-LDH-Cl_cppt-US. The small shift of both signals reflects a weaker interaction between the negatively charged groups present in biopolymer and the charged LDH layers acting as the positive counterions, which is in agreement with the results obtained from FTIR discussed above. Another evidence of the intercalation process of zein into LDH is the thermal behavior of these biohybrid materials in comparison to pure Z-NaOH-US (Figure S1). In this case, a clear improvement of the thermal stability of the protein moiety was evidenced, where the decomposition of zein increased up to temperatures around 400 °C in the hybrid materials.
LDH hosts as well as their resulting biohybrids prepared by co-precipitation and reconstruction procedures were observed by FE-SEM (Figure 7). Images of the MgAl–Cl, MgAl–Nit, and MgAl-Carb LDH (Figure 7a–c, respectively) show the typical “sand-rose” morphology of many LDH materials [56]. The Z-LDH biohybrids show a quite different aspect (Figure 7d–f). The presence of zein in the synthesis medium seems to give rise to the aggregation of the lamellar LDH particles, providing compactness to the resulting materials, probably cemented by the presence of zein. Similar morphologies were observed in other hybrid systems prepared also from the combination of LDH with biomolecules, such as alginate and ι-carrageenan polysaccharides [25].

3.2. Zein-Layered Single Hydroxide Biohybrids

The preparation of zein-based biohybrids by intercalation into layered single hydroxide (LSH) with acetate anions in the interlayer region (Co2(OH)3(CH3COO)·H2O) was also explored. Based on the previous results on zein intercalation in LDH (vide supra) showing that zein dissolved in NaOH solution under US (60 kJ) was more easily intercalated due to the presence of smaller protein fractions, the same solution was chosen in the preparation of LSH biohybrids employing the co-precipitation and ion-exchange procedures. Figure 8 displays the XRD patterns of the pristine Co-LSH and the biohybrids prepared by co-precipitation (Z-LSH_cppt) and ion-exchange (Z-LSH_ie) methods. From Figure 8a, it is possible to observe that in the diffractogram of the biohybrid prepared by co-precipitation (Z-LSH_cppt) the peak at 6.0° in 2θ, related to the (003) reflection, appears at the same position than in the diffractogram of the pristine LSH. In both materials, a basal spacing of 1.27 nm was determined. Considering that the thickness of the hydroxide layer constituted by the cobalt triple deck layers is ~0.6 nm [57], it could be deduced a basal increment of 0.67 nm, compatible with the acetate anions size [49]. On the other hand, the diffractogram of the Z-LSH_ie biohybrid does not show any reflection in the 2° to 10° range in 2θ (Figure 8a). Conversely, a new peak is observed at approximately 12.2° in 2θ, which corresponds to a basal spacing of 0.73 nm. According to Laget et al. [58] and Si et al. [36], when the OH/exchanged anion ratio deviates from 3, the exchange reaction is not topotactic, and a dissolution–recrystallization processes may take place. Thus, a possible delamination of the structure could be also taking place in the Z-LSH_ie material. In order to support this finding, a mechanical mixture of the dried Z-NaOH-US and LSH was prepared using the same amounts than in the ion-exchange reaction. The diffractogram of this mechanical mixture (Figure 8b) still shows the peak of the starting LSH. This result discards a possible dilution effect in the XRD pattern of Z-LSH_ie (Figure 8a) and confirms that the observed changes could be attributed to the exfoliation of the LSH sheets due to the incorporation of the protein, as indicated above. This sample has a zein content of 11.4 g of zein/100 g of Co-LSH, determined by elemental chemical analysis. The cobalt-based layered hydroxide seems to be more susceptible to exfoliation according to various studies, as for instance those about hybrids prepared by ion-exchange reactions of Co–Ni LDH with formamide [59] or by assembling Co–Al LDH and carbon nanotubes through electrostatic forces [60].
FTIR spectroscopy was used to examine the possible interactions between the protein and the Co-LSH host in the Z-LSH_ie biohybrid (Figure 9). Together with the bands below 800 cm−1 assigned to the metal-oxygen vibrations of the Co-LSH framework, also observed in the spectrum of the pristine LSH (Figure 9 a), the spectrum of Z-LSH_ie shows other specific bands between 2970–2850 cm−1 associated with νC-H vibration mode of the biopolymer (Figure 9b). In this last spectrum, the shifts in the bands at 1650 cm−1 and 1534 cm−1 ascribed to the C=O and C–N vibration modes can be detected in comparison to those of the Z-NaOH-US spectrum (Figure 9c). These differences could indicate the existence of interactions between the biomacromolecule and the LSH, as explained in the characterization of Z-LDH biohybrids (Figure 5). In the case of LSH, the presence of the functional groups of the intercalated anion (e.g., carboxylate groups from the acetate species) may help to favor the interaction of the protein producing different hybrid structures (e.g., exfoliated). In fact, the antisymmetric and symmetric stretching vibration modes of COO− groups, appearing at 1577 cm−1 and 1404 cm−1, respectively in the pristine LSH (Figure 9a), disappear in the spectrum of the biohybrid material, indicating the removal of the acetate anion from the LSH.
TG and DTA curves of the Co-LSH and the Z-LSH biohybrids obtained under air flow are shown in Figure 10. All the curves show weight losses in the 25–200 °C and 900–1000 °C ranges, which are related to the removal of physically adsorbed water molecules and to the condensation of the structural hydroxyl groups of the LSH layers, respectively. Pristine Co-LSH and Z-LSH_cppt biohybrid show a similar thermal behavior, with a strong exothermic event at the 200–370°C temperature range, which is attributed to the removal of the interlayer acetate anions, confirming that zein was not intercalated in this biohybrid. The Z-LSH_ie biohybrid presents TG and DTA profiles very different to those of the LSH and the Z-LSH_cppt biohybrid. Various mass losses are observed above 200 °C, which are accompanied by exothermic events in the DTA curves. The weight loss in the 200–400 °C range can be attributed to the partial decomposition of the biopolymer and the removal of remaining acetate anions. The total weight loss associated with processes at temperatures between 350 °C and 900 °C may be due to the final decomposition of the zein associated with the layered solid in different arrangements, as observed in studies of biohybrids based on zein and clays [61].
FE-SEM images the pristine Co-LSH material (Figure 11a,b) and the Z-LSH_cppt biohybrid (Figure 11c) show similar morphologies, consisting of thin platelet–shaped microcrystals due to the LSH material. In constrast, the Z-LSH_ie biohybrid shows a more compact morphology (Figure 11d), similar to related peptides-Co-LSH materials reported by Si and co-authors [36]. The Z-LSH_ie sample was analyzed with more detail by TEM, and the obtained images (Figure 11e,f) clearly show the presence of highly exfoliated Co-LSH together with some intercalated phases, corroborating the XRD results.

4. Conclusions

An initial investigation on the preparation of biohybrids based on the corn protein zein and the inorganic host materials MgAl layered double hydroxide and Co2(OH)3 layered single hydroxide was carried out following various synthetic approaches. The results shown here demonstrate the possibility to intercalate zein, at least partially in certain cases, in both LDH and LSH host solids. The nature of the interlayer anions in LDH can have strong influence on the assembly to zein, resulting in different biohybrid structures. The solubilization of zein in alkaline medium (0.1 M NaOH) and applying US irradiation seems to favor its incorporation between the LDH layers, which is attributed to the fragmentation of the protein agglomerates and to the presence of protein fractions of reduced molecular mass. Using sonicated zein, the biohybrids prepared by co-precipitation method are composed of mixed phases with partial intercalation, while the reconstruction method allowed the preparation of a single phase with completely intercalated zein but showing low crystallinity. In the zein–LDH hybrids, the partial accommodation of zein implies electrostatic interactions with the inorganic host as suggested by FTIR and NMR studies. In the case of biohybrids based on Co-LSH prepared by the ion-exchange method, a highly exfoliated intercalated phase was obtained. In this case, the presence of the carboxylate groups from the acetate species located in the interlayer region of the LSH could help to favor the interaction of the protein promoting an exfoliated structure. Thus, this preliminary study has shown the possibility to prepare zein-layered hydroxides biohybrids of interest for applications in biomedicine, biosensing or as components for electronic devices. However, a further deep study of the properties should be carried out in view to clearly identify the possible applications of these biohybrids.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/4/825/s1, Figure S1. TG and DTA curves of Z-NaOH-US, and the Z-LDH-Cl_cppt-US and Z-LDH-Nit_cppt-US bio-hybrids under air flow.

Author Contributions

A.C.S.A., M.D., P.A., and E.R.-H., design of the study; A.C.S.A., preparation and characterization of the materials; P.A. and M.D., supervision of the research; A.C.S.A., M.D., and P.A., writing—original draft preparation, A.C.S.A., M.D., and P.A., writing—review and editing, P.A. and E.R.-H., project administration; E.R.-H. and P.A., funding acquisition. All authors discussed the results and contributed the final manuscript.

Funding

This research was funded by the MAT2012-31759 (CICYT, Spain) and MAT2015-71117-R (MINECO, Spain and FEDER, EU) projects.

Acknowledgments

A.C.S.A. acknowledges CSIC for a JAE-Predoc fellowship. The authors thank C. Sebastián for technical assistance in the FE-SEM study and J. González Casablanca (CAT URJC) for the TEM images.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ruiz-Hitzky, E.; Aranda, P.; Darder, M. Bionanocomposites. In Kirk-Othmer Encyclopedia of Chemical Technology; John Wiley & Sons: Hoboken, NJ, USA, 2008; pp. 1–28. [Google Scholar]
  2. Ruiz-Hitzky, E.; Darder, M.; Aranda, P. Functional biopolymer nanocomposites based on layered solids. J. Mater. Chem. 2005, 15, 3650–3662. [Google Scholar] [CrossRef]
  3. Avérous, L.; Pollet, E. Environmental Silicate Nano-Biocomposites; Springer: London, UK, 2012; p. 447. [Google Scholar]
  4. Chatterjee, A.; Bharadiya, P.; Hansora, D. Layered double hydroxide based bionanocomposites. Appl. Clay Sci. 2019, 177, 19–36. [Google Scholar] [CrossRef]
  5. Charradi, K.; Forano, C.; Prevot, V.; Madern, D.; Amara, A.B.H.; Mousty, C. Characterization of hemoglobin immobilized in MgAl-layered double hydroxides by the coprecipitation method. Langmuir 2010, 26, 9997–10004. [Google Scholar] [CrossRef] [PubMed]
  6. Assifaoui, A.; Huault, L.; Maissiat, C.; Roullier-Gall, C.; Jeandet, P.; Hirschinger, J.; Raya, J.; Jaber, M.; Lambert, J.-F.; Cayot, P.; et al. Structural studies of adsorbed protein (betalactoglobulin) on natural clay (montmorillonite). RSC Adv. 2014, 4, 61096–61103. [Google Scholar] [CrossRef]
  7. Bafkary, R.; Qazvini, N.T.; Mahdavi, H. Gelatin/montmorillonite biohybrid films prepared via a novel photocrosslinking method: Structure–properties investigations. J. Iran. Chem. Soc. 2017, 14, 2599–2606. [Google Scholar] [CrossRef]
  8. Fernandes, F.M.; Ruiz, A.I.; Darder, M.; Aranda, P.; Ruiz-Hitzky, E. Gelatin-clay bio-nanocomposites: Structural and functional properties as advanced materials. J. Nanosci. Nanotechnol. 2009, 9, 221–229. [Google Scholar] [CrossRef]
  9. Kumar, P.; Sandeep, K.P.; Alavi, S.; Truong, V.D.; Gorga, R.E. Preparation and characterization of bio-nanocomposite films based on soy protein isolate and montmorillonite using melt extrusion. J. Food Eng. 2010, 100, 480–489. [Google Scholar] [CrossRef]
  10. Kumar, P.; Sandeep, K.P.; Alavi, S.; Truong, V.D.; Gorga, R.E. Effect of Type and Content of Modified Montmorillonite on the Structure and Properties of Bio-Nanocomposite Films Based on Soy Protein Isolate and Montmorillonite. J. Food Sci. 2010, 75, N46–N56C. [Google Scholar] [CrossRef]
  11. Fan, C.; Zhuang, Y.; Li, G.; Zhu, J.; Zhu, D. Direct Electrochemistry and Enhanced Catalytic Activity for Hemoglobin in a Sodium Montmorillonite Film. Electroanalysis 2000, 12, 1156–1158. [Google Scholar] [CrossRef]
  12. Talibudeen, O. Interlamellar adsorption of protein monolayers on pure montmorillonoid clays. Nature 1950, 166, 236. [Google Scholar] [CrossRef]
  13. Rives, V. Layered Double Hydroxides—Present and Future, 1st ed.; Nova Science Publishers: Hauppauge, NY, USA, 2011. [Google Scholar]
  14. Oh, J.-M.; Biswick, T.T.; Choy, J.-H. Layered nanomaterials for green materials. J. Mater. Chem. 2009, 19, 2553–2563. [Google Scholar] [CrossRef]
  15. O‘Hare, D.; Wang, Q. Recent Advances in the Synthesis and Application of Layered Double Hydroxide (LDH) Nanosheets. Chem. Rev. 2012, 112, 4124–4155. [Google Scholar]
  16. Leroux, F.; Taviot-Gueho, C. Fine tuning between organic and inorganic host structure: New trends in layered double hydroxide hybrid assemblies. J. Mater. Chem. 2005, 15, 3628–3642. [Google Scholar] [CrossRef]
  17. Gondim, D.R.; Cecilia, J.A.; Santos, S.O.; Rodrigues, T.N.B.; Aguiar, J.E.; Villarrasa-Garcia, E.; Rodriguez-Castellón, E.; Azevedo, D.C.S.; Silva, I.J., Jr. Influence of buffer solutions in the adsorption of human serum proteins onto layered double hydroxide. Int. J. Biol. Macromol. 2018, 106, 396–409. [Google Scholar] [CrossRef]
  18. Rebitiski, E.P.; Darder, M.; Aranda, P. Layered double hydroxide/sepiolite hybrid nanoarchitectures for the controlled release of herbicides. Beilstein J. Nanotechnol. 2019, 10, 1679–1690. [Google Scholar] [CrossRef] [Green Version]
  19. Hintze-Bruening, H.; Troutier-Thuilliez, A.-L.; Leroux, F. Layered particle-based polymer composites for coatings: Part II-Stone chip resistant automotive coatings. Prog. Org. Coat. 2009, 64, 193–204. [Google Scholar] [CrossRef]
  20. Cunha, V.R.R.; Ferreira, A.M.D.; Constantino, V.R.L.; Tronto, J.; Valim, J.B. Layered double hydroxides: Inorganic nanoparticles for storage and release of species of biological and therapeutic interest. Químca Nova 2010, 33, 159–171. [Google Scholar] [CrossRef]
  21. Rogez, G.; Massobrio, C.; Rabu, P.; Drillon, M. Layered hydroxide hybrid nanostructures: A route to multifunctionality. Chem. Soc. Rev. 2011, 40, 1031–1058. [Google Scholar] [CrossRef]
  22. Rabu, P.; Delahaye, E.; Rogez, G. Hybrid interfaces in layered hydroxides: Magnetic and multifunctional superstructures by design. Nanotechnol. Rev. 2017, 4, 557–580. [Google Scholar] [CrossRef]
  23. Daud, M.; Kamal, M.S.; Shehzad, F.; Al-Harthi, M.A. Graphene/layered double hydroxides nanocomposites: A review of recent progress in synthesis and applications. Carbon 2016, 104, 241–252. [Google Scholar] [CrossRef]
  24. Forano, C.; Bruna, F.; Mousty, C.; Prevot, V. Interactions between Biological Cells and Layered Double Hydroxides: Towards Functional Materials. Chem. Rec. 2018, 18, 1150–1166. [Google Scholar] [CrossRef] [PubMed]
  25. Choi, G.; Eom, S.; Vinu, A.; Choy, J.-H. 2D Nanostructured Metal Hydroxides with Gene Delivery and Theranostic Functions; a Comprehensive Review. Chem. Rec. 2018, 18, 1033–1053. [Google Scholar] [CrossRef] [PubMed]
  26. Ahmed, S.; Ashiq, N.M.; Li, D.Q.; Tang, P.G.; Leroux, F.; Feng, Y.F. Recent Progress on Adsorption Materials for Phosphate Removal. Recent Pat. Nanotechnol. 2019, 13, 3–16. [Google Scholar] [CrossRef] [PubMed]
  27. Forano, C.; Prevot, V. Enzyme-based Bioinorganic Materials. In Bio-inorganic Hybrid Nanomaterials—Strategies, Syntheses, Characterization and Application, 1st ed.; Ruiz-Hitzky, E., Ariga, K., Lvov, Y.M., Eds.; Wiley-VCH: Weinheim, Germany, 2007; pp. 443–484. [Google Scholar]
  28. Aisawa, S.; Takahashi, S.; Ogasawara, W.; Umetsu, Y.; Narita, E. Direct Intercalation of Amino Acids into Layered Double Hydroxides by Coprecipitation. J. Solid State Chem. 2001, 162, 52–62. [Google Scholar] [CrossRef]
  29. Nakayama, H.; Wada, N.; Tsuhako, M. Intercalation of amino acids and peptides into Mg–Al layered double hydroxide by reconstruction method. Int. J. Pharm. 2004, 269, 469–478. [Google Scholar] [CrossRef]
  30. Yu, B.; Bian, H.; Plank, J. Self-assembly and characterization of Ca-Al-LDH nanohybrids containing casein proteins as guest anions. J. Phys. Chem. Solids 2010, 71, 468–472. [Google Scholar] [CrossRef]
  31. Darder, M.; Lopez-Blanco, M.; Aranda, P.; Leroux, F.; Ruiz-Hitzky, E. Bio-nanocomposites based on layered double hydroxides. Chem. Mater. 2005, 17, 1969–1977. [Google Scholar] [CrossRef]
  32. Choy, J.H.; Kwak, S.Y.; Park, J.S.; Jeong, Y.J.; Portier, J. Intercalative Nanohybrids of Nucleoside Monophosphates and DNA in Layered Metal Hydroxide. J. Am. Chem. Soc. 1999, 121, 1399–1400. [Google Scholar] [CrossRef]
  33. Choy, J.H.; Kwak, S.Y.; Jeong, Y.J.; Park, J.S. Inorganic Layered Double Hydroxides as Nonviral Vectors. Angew. Chem. Int. Ed. 2000, 39, 4042–4045. [Google Scholar] [CrossRef]
  34. Masarudin, M.J.; Yusoff, K.; Rahim, R.A.; Hussein, M.Z. Successful transfer of plasmid DNA into in vitro cells transfected with an inorganic plasmid–Mg/Al-LDH nanobiocomposite material as a vector for gene expression. Nanotechnology 2009, 20, 045602. [Google Scholar] [CrossRef]
  35. Hussein, M.Z.; Rahman, N.S.S.A.; Sarijo, S.H.; Zaina, Z. Herbicide-intercalated zinc layered hydroxide nanohybrid for a dual-guest controlled release formulation. Int. J. Mol. Sci. 2012, 13, 7328–7342. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Si, S.; Taubert, A.; Mantion, A.; Rogeza, G.; Rabu, P. Peptide-intercalated layered metal hydroxides: Effect of peptide chain length and side chain functionality on structural, optical and magnetic properties. Chem. Sci. 2012, 3, 1945–1957. [Google Scholar] [CrossRef]
  37. Forster, P.M.; Tafoya, M.M.; Cheetham, A.K. Synthesis and characterization of Co7(OH)12(C2H4S2O6)(H2O)2—A single crystal structural study of a ferrimagnetic layered cobalt hydroxide. J. Phys. Chem. Solids 2004, 65, 11–16. [Google Scholar] [CrossRef]
  38. Delahaye, E.; Eyele-Mezui, S.; Diop, M.; Leuvrey, C.; Rabu, P.; Rogez, G. Rational synthesis of chiral layered magnets by functionalization of metal simple hydroxides with chiral and non-chiral Ni(II) Schiff base complexes. Dalton Trans. 2010, 39, 10577–10580. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, Q.; Wang, J.-F.; Geil, P.H.; Padua, G.W. Zein Adsorption to Hydrophilic and Hydrophobic Surfaces Investigated by Surface Plasmon Resonance. Biomacromolecules 2004, 5, 1356–1361. [Google Scholar] [CrossRef]
  40. Auerbach, S.M.; Carrado, K.A.; Dutra, P. Handbook of Layered Materials, 1st ed.; Marcel Dekker: New York, NY, USA, 2004. [Google Scholar]
  41. Alcântara, A.C.S.; Darder, M.; Aranda, P.; Ruiz-Hitzky, E. Effective intercalation of zein into Na-montmorillonite: Role of the protein components and use of the developed biointerfaces. Beilstein J. Nanotechnol. 2016, 7, 1772–1782. [Google Scholar] [CrossRef] [Green Version]
  42. Cabra, V.; Arreguin, R.; Galvez, A.; Quirasco, M.; Vazques-Duhalt, R.; Farres, A. Characterization of 19 kDa α-zein of high purity. J. Agric. Food Chem 2005, 53, 725–729. [Google Scholar] [CrossRef]
  43. Ofelt, C.W.; Evans, C.B. Aqueous zein dispersion. Ind. Eng. Chem. 1949, 41, 830–833. [Google Scholar] [CrossRef]
  44. Shukla, R.; Cheryan, M. Zein: The industrial protein from corn. Ind. Crops Prod. 2001, 13, 171–192. [Google Scholar] [CrossRef]
  45. Cabra, V.; Arregin, R.; Vazquez-Duhalt, R.; Farres, A. Effect of alkaline deamidation on the structure, surface hydrophobicity, and emulsifying properties of Z19 alpha-zein. J. Agric. Food Chem. 2007, 55, 439–455. [Google Scholar] [CrossRef]
  46. Zhang, B.; Luo, Y.; Wang, Q. Effect of acid and base treatments on structural, rheological, and antioxidant properties of α-zein. Food Chem. 2001, 124, 210–220. [Google Scholar] [CrossRef]
  47. De Roy, A.; Forano, C.; Besse, J.B. Layered Double Hydroxides: Synthesis and post-synthesis modifications. In Layered Double Hydroxides—Present and Future, 1st ed.; Rives, V., Ed.; Nova Science Publishers: Hauppauge, NY, USA, 2006; pp. 1–39. [Google Scholar]
  48. Miyata, S. Physico-Chemical properties of synthetic hydrotalcites in relation to composition. Clays Clay Miner. 1980, 28, 50–56. [Google Scholar] [CrossRef]
  49. Kielland, J. Individual Activity Coefficients of Ions in Aqueous Solutions. J. Am. Chem. Soc. 1937, 59, 1675–1678. [Google Scholar] [CrossRef]
  50. Rives, V. Characterisation of layered double hydroxides and their decomposition products. Mater. Chem. Phys. 2002, 75, 19–25. [Google Scholar] [CrossRef]
  51. Leroux, F.; Besse, J.P. Polymer Interleaved Layered Double Hydroxide: A New Emerging Class of Nanocomposites. Chem. Mater. 2001, 13, 3507–3515. [Google Scholar] [CrossRef]
  52. Cavani, F.; Trifito, F.; Vaccari, A. Hydrotalcite-type anionic clays: Preparation, properties and applications. Catal. Today 1991, 11, 173–301. [Google Scholar] [CrossRef]
  53. Velu, S.; Suzuki, K.; Okaki, T.; Tomura, S.; Ohashi, F. Synthesis of new Sn-incorporated layered double hydroxides and their thermal evolution to mixed oxides. Chem. Mater. 1999, 11, 2163–2172. [Google Scholar] [CrossRef]
  54. Miller, F.A.; Wilkins, C.H. Infrared spectra and characteristic frequencies of inorganic ions their use in qualitative analysis. Anal. Chem. 1952, 24, 1253–1294. [Google Scholar]
  55. Camacho, D.I.; Morales, R.; Arizaga, G.G.C.; Wypych, F.; Krieger, N. Immobilization of laccase on hybrid layered double hydroxide. Quim. Nova 2009, 32, 1495–1499. [Google Scholar] [CrossRef] [Green Version]
  56. Leroux, F.; Gachon, J.; Besse, J.P. Biopolymer immobilization during the crystalline growth of layered double hydroxide. J. Solid State Chem 2004, 177, 245–250. [Google Scholar] [CrossRef]
  57. Dujardin, E.; Mann, S. Bio-inspired Materials Chemistry. Adv. Mater. 2002, 14, 775–788. [Google Scholar] [CrossRef]
  58. Laget, V.; Hornick, C.; Rabu, P.; Drillon, M. Hybrid organic-inorganic layered compounds prepared by anion exchange reaction: Correlation between structure and magnetic properties. J. Mater. Chem. 1999, 9, 169–174. [Google Scholar] [CrossRef]
  59. Liang, J.; Ma, R.; Iyi, N.; Ebina, Y.; Takada, K.; Sasaki, T. Topochemical Synthesis, Anion Exchange, and Exfoliation of Co-Ni Layered Double Hydroxides: A Route to Positively Charged Co-Ni Hydroxide Nanosheets with Tunable Composition. Chem. Mater. 2010, 22, 371–378. [Google Scholar] [CrossRef]
  60. Liu, Z.; Ma, R.; Osada, M.; Iyi, N.; Ebina, Y.; Takada, K.; Sasaki, T. Synthesis, Anion Exchange, and Delamination of Co-Al Layered Double Hydroxide: Assembly of the ExfoliatedNanosheet/Polyanion Composite Films and Magneto-Optical Studies. J. Am. Chem. Soc. 2006, 128, 4872–4880. [Google Scholar] [CrossRef] [PubMed]
  61. Alcântara, A.C.S.; Darder, M.; Aranda, P.; Ruiz-Hitzky, E. Zein-fibrous-clays biohybrids materials. Eur. J. Inorg. Chem. 2012, 2012, 5216–5224. [Google Scholar] [CrossRef]
Materials 13 00825 g001 550

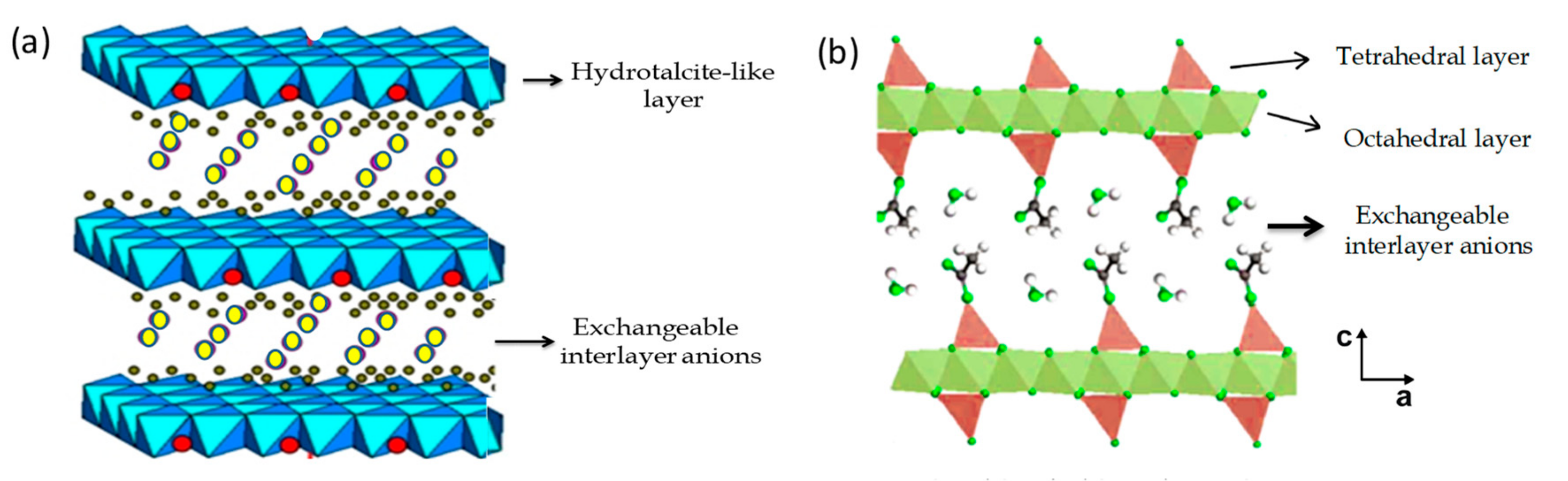

Figure 1. Schematic representation of the crystal structure of (a) typical layered double hydroxide (LDH) and (b) layered single hydroxide (LSH) layered solids.
Figure 1. Schematic representation of the crystal structure of (a) typical layered double hydroxide (LDH) and (b) layered single hydroxide (LSH) layered solids.
Materials 13 00825 g001
Materials 13 00825 g002 550

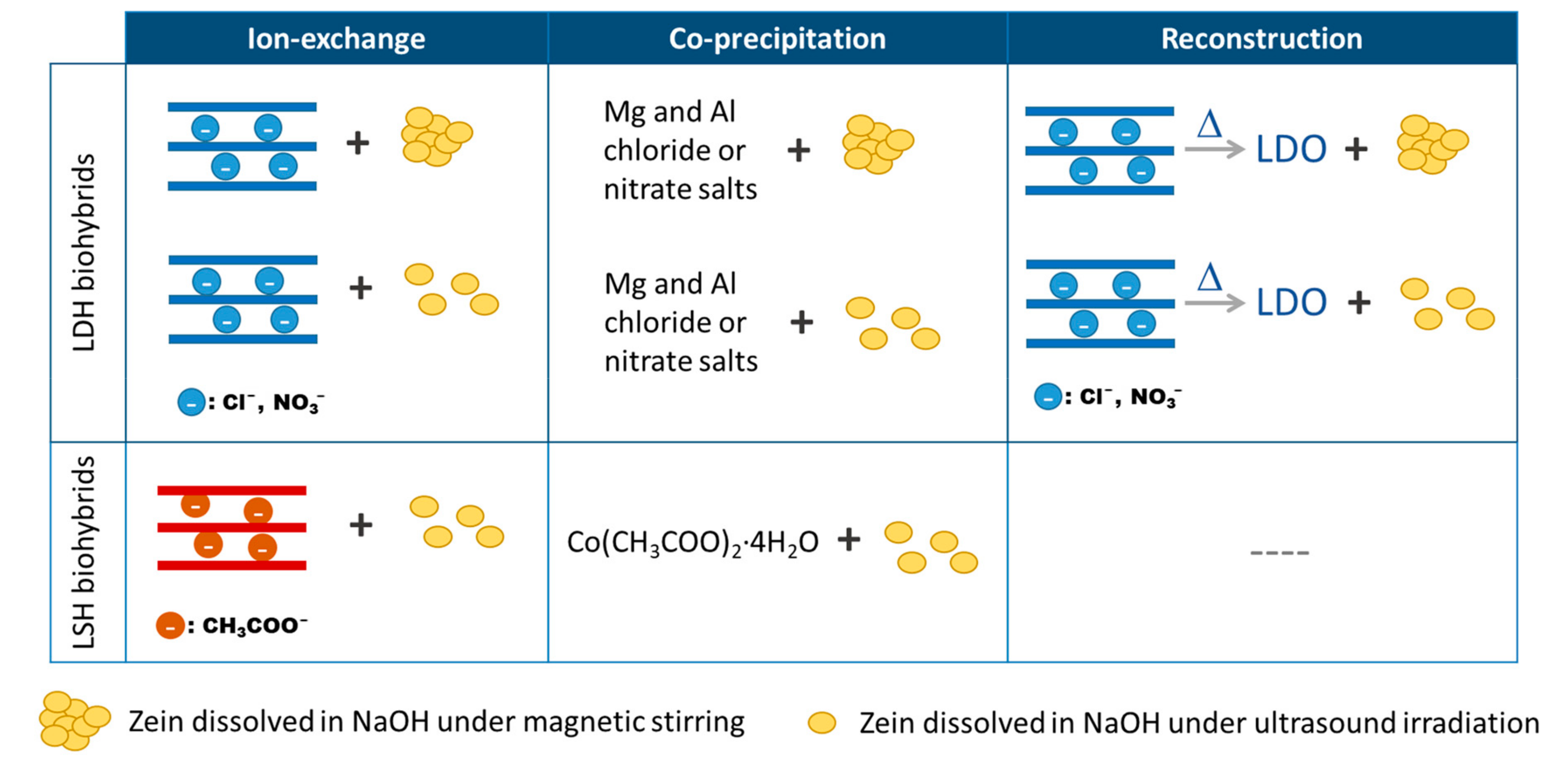

Figure 2. Schematic representation of the routes of synthesis explored in the preparation of the zein-based LDH and LSH biohybrids.
Figure 2. Schematic representation of the routes of synthesis explored in the preparation of the zein-based LDH and LSH biohybrids.
Materials 13 00825 g002
Materials 13 00825 g003 550
Figure 3. SDS-PAGE profiles in 20% acrylamide of zein after being dissolved in 0.1 M NaOH by (a) magnetic stirring, and under ultrasonication (US) applying total energies of (b) 10, (c) 30, and (d) 60 kJ/0.5 g of zein. The gel was silver stained.
Figure 3. SDS-PAGE profiles in 20% acrylamide of zein after being dissolved in 0.1 M NaOH by (a) magnetic stirring, and under ultrasonication (US) applying total energies of (b) 10, (c) 30, and (d) 60 kJ/0.5 g of zein. The gel was silver stained.
Materials 13 00825 g003
Materials 13 00825 g004 550

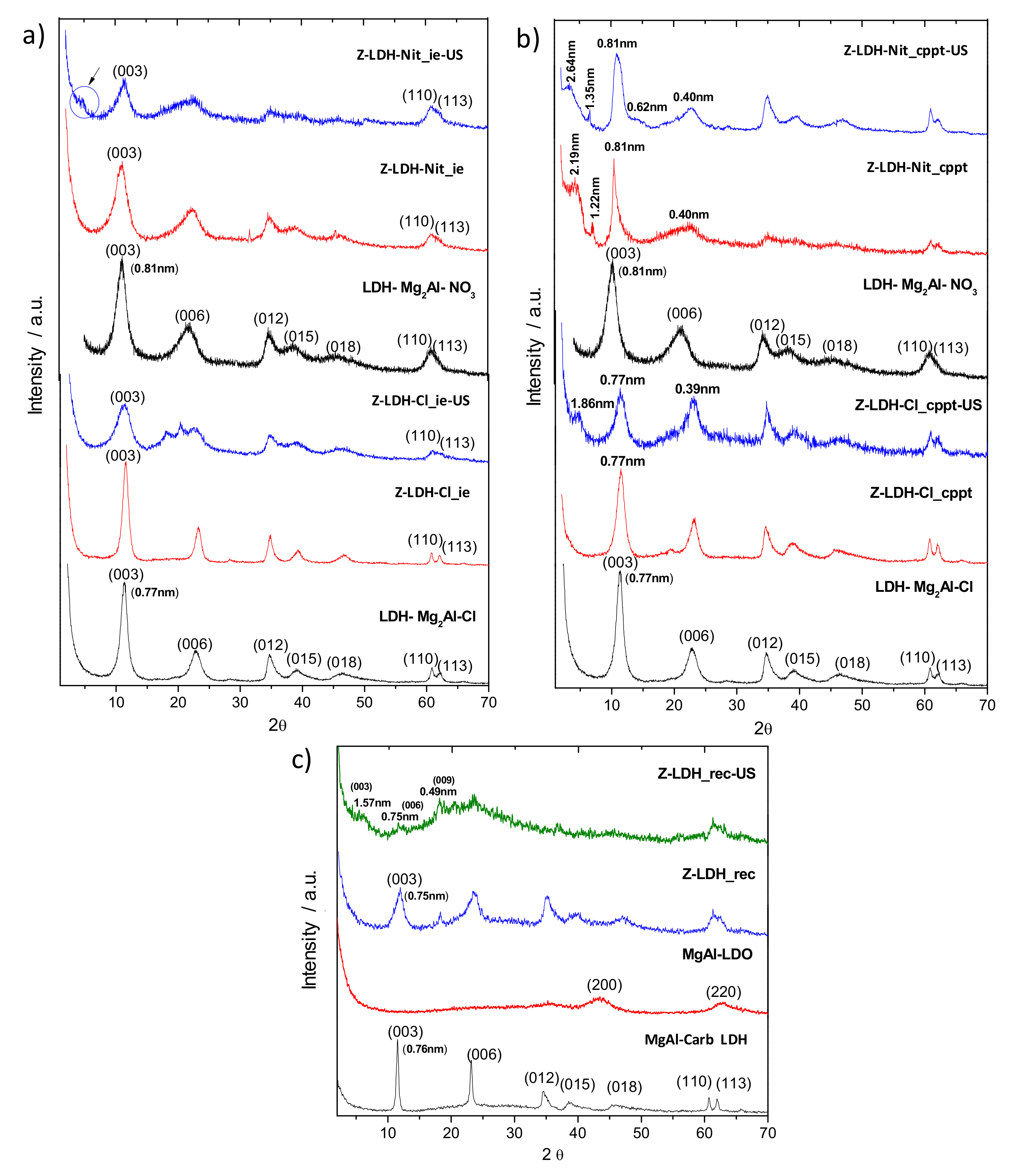

Figure 4. XRD diffractograms of Z-LDH biohybrids prepared by the (a) ion-exchange, (b) co-precipitation, and (c) reconstruction methods from zein dissolved in 0.1 M NaOH with and without US (60 kJ).
Figure 4. XRD diffractograms of Z-LDH biohybrids prepared by the (a) ion-exchange, (b) co-precipitation, and (c) reconstruction methods from zein dissolved in 0.1 M NaOH with and without US (60 kJ).
Materials 13 00825 g004
Materials 13 00825 g005 550
Figure 5. FTIR spectra in the 3200–500 cm−1 region of LDH and Z-LDH biohybrids prepared by (a) co-precipitation and (b) reconstruction from zein dissolved in 0.1 M NaOH under US.
Figure 5. FTIR spectra in the 3200–500 cm−1 region of LDH and Z-LDH biohybrids prepared by (a) co-precipitation and (b) reconstruction from zein dissolved in 0.1 M NaOH under US.
Materials 13 00825 g005
Materials 13 00825 g006 550

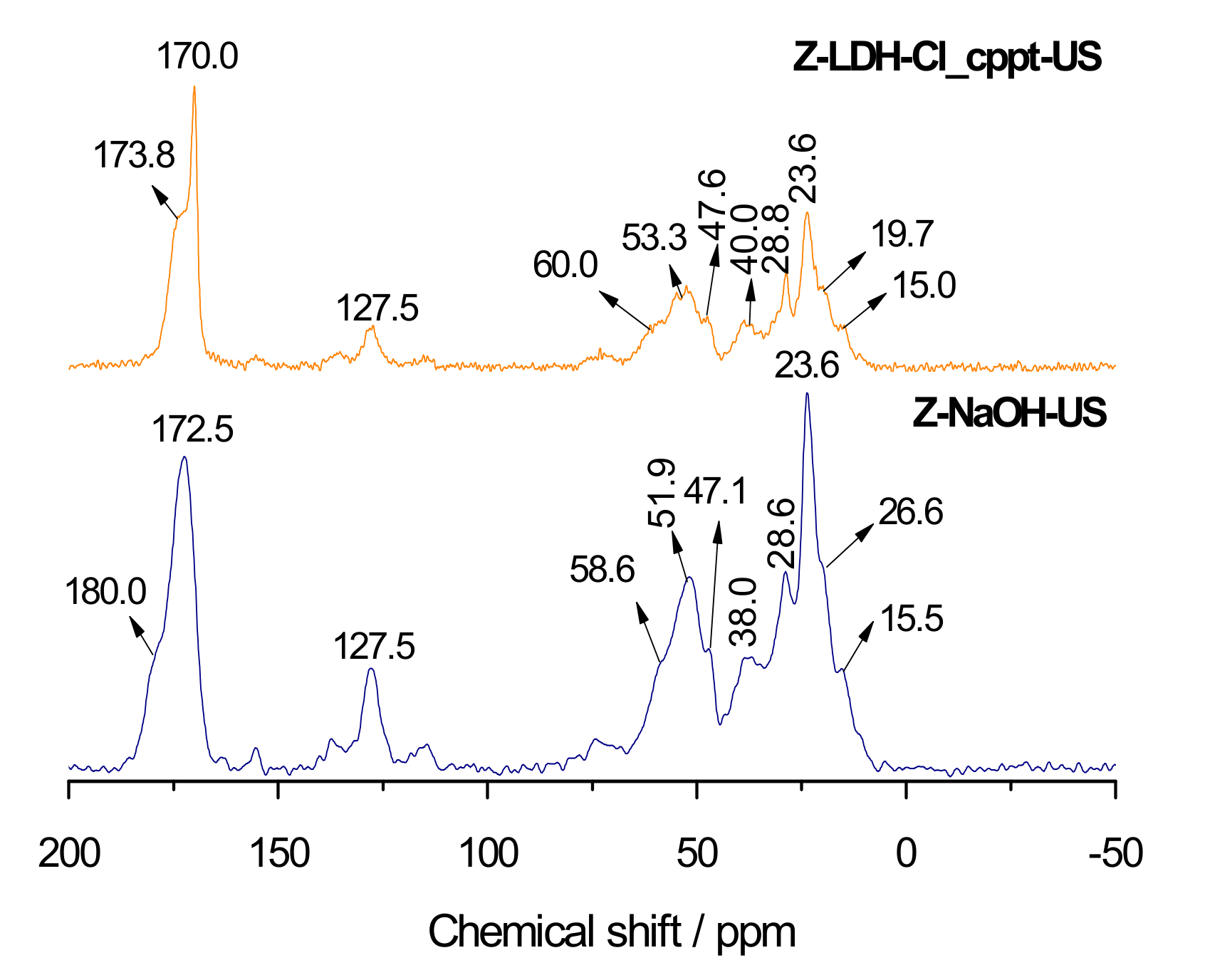

Figure 6. Solid state 13C NMR spectra of Z-NaOH-US and the Z-LDH-Cl_cppt-US biohybrid.
Figure 6. Solid state 13C NMR spectra of Z-NaOH-US and the Z-LDH-Cl_cppt-US biohybrid.
Materials 13 00825 g006
Materials 13 00825 g007 550
Figure 7. FE-SEM images of (a) MgAl–Cl, (b) MgAl–Nit and (c) MgAl-Carb LDH, as well as the (d) Z-LDH-Cl_cppt-US, (e) Z-LDH-Nit_cppt-US, and (f) Z-LDH_rec-US materials.
Figure 7. FE-SEM images of (a) MgAl–Cl, (b) MgAl–Nit and (c) MgAl-Carb LDH, as well as the (d) Z-LDH-Cl_cppt-US, (e) Z-LDH-Nit_cppt-US, and (f) Z-LDH_rec-US materials.
Materials 13 00825 g007
Materials 13 00825 g008 550
Figure 8. (a) XRD patterns of pristine Co-LSH, and Z-LSH_cppt and Z-LSH_ie biohybrids prepared by co-precipitation and ion-exchange methods, respectively; (b) XRD patterns of pristine Co-LSH containing acetate anions and the mechanical mixture based on Co-LSH and Z-NaOH-US.
Figure 8. (a) XRD patterns of pristine Co-LSH, and Z-LSH_cppt and Z-LSH_ie biohybrids prepared by co-precipitation and ion-exchange methods, respectively; (b) XRD patterns of pristine Co-LSH containing acetate anions and the mechanical mixture based on Co-LSH and Z-NaOH-US.
Materials 13 00825 g008
Materials 13 00825 g009 550
Figure 9. FTIR spectra in the 3200–500 cm−1 region of pristine (a) Co2(OH)3(CH3COO)-LSH, the (b) Z-LSH_ie biohybrid. and the (c) Z-NaOH-US.
Figure 9. FTIR spectra in the 3200–500 cm−1 region of pristine (a) Co2(OH)3(CH3COO)-LSH, the (b) Z-LSH_ie biohybrid. and the (c) Z-NaOH-US.
Materials 13 00825 g009
Materials 13 00825 g010 550

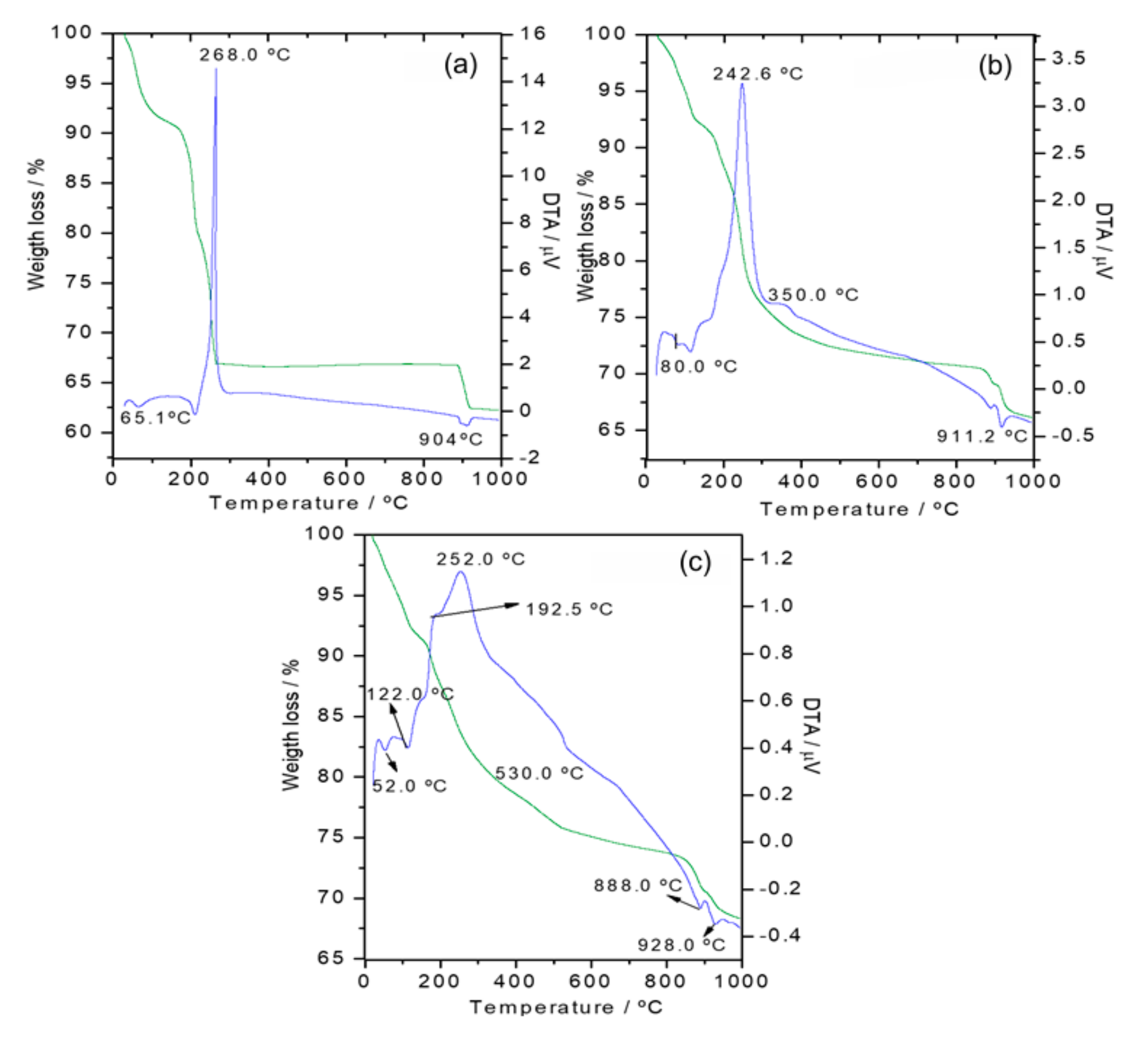

Figure 10. TG and DTA curves of (a) Co-LSH, and (b) Z-LSH_cppt and (c) Z-LSH_ie biohybrids carried out under air flow.
Figure 10. TG and DTA curves of (a) Co-LSH, and (b) Z-LSH_cppt and (c) Z-LSH_ie biohybrids carried out under air flow.
Materials 13 00825 g010
Materials 13 00825 g011 550
Figure 11. FE-SEM images of the pristine Co-LSH (a,b), and the Z-LSH_ cppt (c) and Z-LSH_ie (d) biohybrids. TEM images of Z-LSH_ie biohybrid (e,f).
Figure 11. FE-SEM images of the pristine Co-LSH (a,b), and the Z-LSH_ cppt (c) and Z-LSH_ie (d) biohybrids. TEM images of Z-LSH_ie biohybrid (e,f).
Materials 13 00825 g011
Table
Table 1. Zein content in Z-LDH biohybrids prepared by different methods. The amount of zein was calculated from the content of carbon in the samples.
Table 1. Zein content in Z-LDH biohybrids prepared by different methods. The amount of zein was calculated from the content of carbon in the samples.
Z-LDH Biohybrid SamplesCarbon Content Nitrogen Content C/N RatioZein Content (g Z/100 g of LDH)
Z-LDH-Nit_ie-US5.162.022.5513.0
Z-LDH-Cl_cppt-US15.24.713.2240.0
Z-LDH-Nit_cppt16.15.123.1443.2
Z-LDH-Nit_cppt-US21.35.543.8457.5
Z-LDH_rec-US13.63.823.5636.0

Share and Cite

MDPI and ACS Style

Alcântara, A.C.S.; Darder, M.; Aranda, P.; Ruiz-Hitzky, E. Zein-layered hydroxide biohybrids: strategies of synthesis and characterization. Materials 2020, 13, 825. https://doi.org/10.3390/ma13040825

AMA Style

Alcântara ACS, Darder M, Aranda P, Ruiz-Hitzky E. Zein-layered hydroxide biohybrids: strategies of synthesis and characterization. Materials. 2020; 13(4):825. https://doi.org/10.3390/ma13040825

Chicago/Turabian Style

Alcântara, Ana C. S., Margarita Darder, Pilar Aranda, and Eduardo Ruiz-Hitzky. 2020. "Zein-layered hydroxide biohybrids: strategies of synthesis and characterization" Materials 13, no. 4: 825. https://doi.org/10.3390/ma13040825

APA Style

Alcântara, A. C. S., Darder, M., Aranda, P., & Ruiz-Hitzky, E. (2020). Zein-layered hydroxide biohybrids: strategies of synthesis and characterization. Materials, 13(4), 825. https://doi.org/10.3390/ma13040825

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
