Zeolite NaP1 Functionalization for the Sorption of Metal Complexes with Biodegradable N-(1,2-dicarboxyethyl)-D,L-aspartic Acid
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Instruments
2.3. Methods—Kinetic and Adsorption Experiments
2.4. Calculations
3. Results
3.1. NaP1CS Preparation and Characterization
3.2. Sorption Properties of NaP1CS
3.2.1. Effect of pH and pHZPC

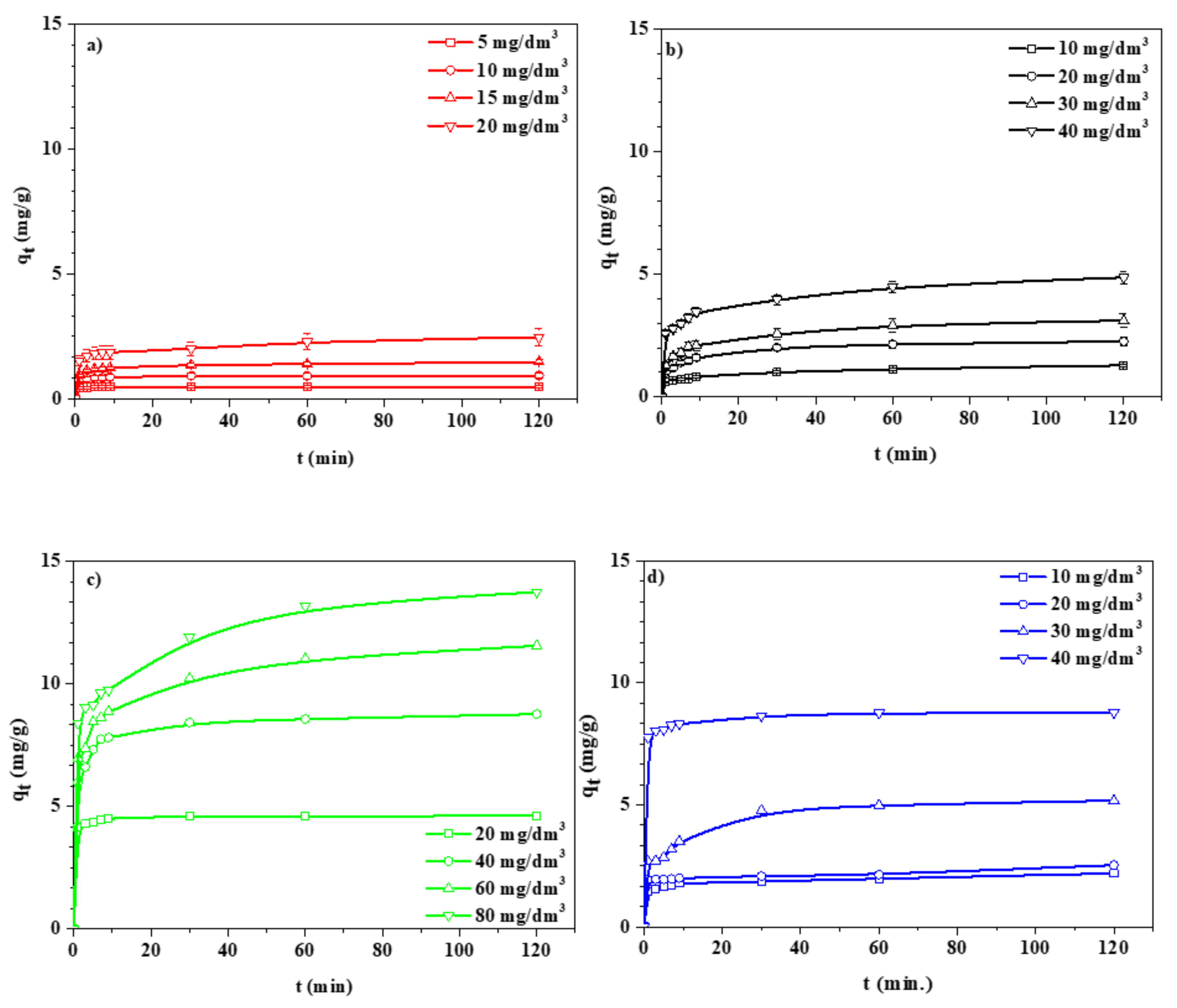

3.2.2. Effect of Time—Kinetic Studies
3.2.3. Effect of Accompanied Ions
3.2.4. Effect of Concentration—Adsorption Isotherms
3.2.5. Comparison of Efficiency of Different Sorbents
3.2.6. Effect of Temperature
3.3. Desorption Process

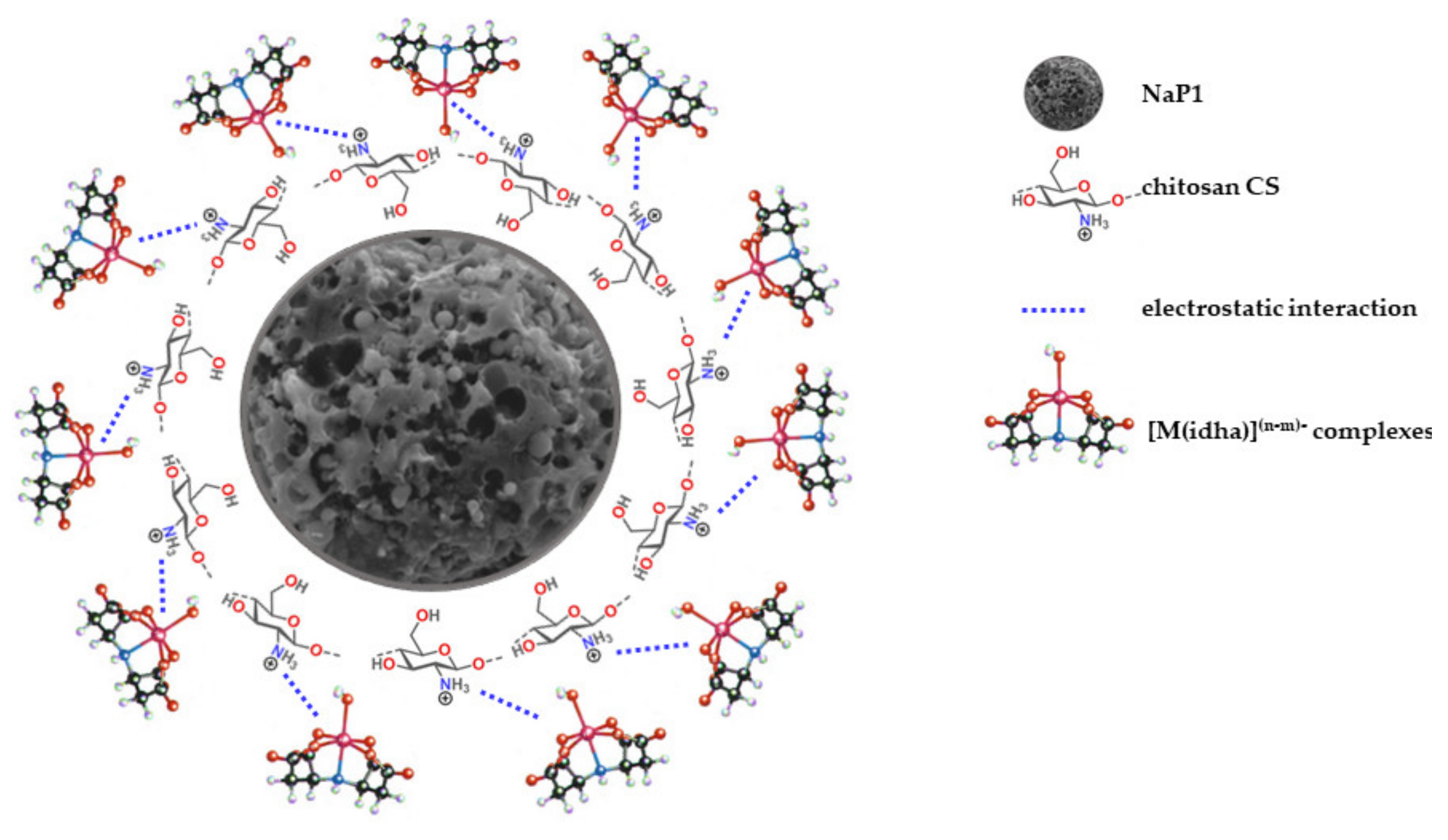

3.4. Mechanizm of Sorption of [M(idha)](n−m)− Complexes
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Eprikashvili, L.; Zautashvili, M.; Kordzakhia, T.; Pirtskhalava, N.; Dzagania, M.; Rubashvili, I.; Tsitsishvili, V. Intensification of bioproductivity of agricultural cultures by adding natural zeolites and brown coals into soils. Ann. Agrar. Sci. 2016, 14, 67–71. [Google Scholar] [CrossRef] [Green Version]
- Gul, S.; Whalen, J.K. Biochemical cycling of nitrogen and phosphorus in biochar-amended soils. Soil Biol. Biochem. 2016, 103, 1–15. [Google Scholar] [CrossRef]
- Lateef, A.; Nazir, R.; Jamil, N.; Alam, S.; Shah, R.; Khan, M.N.; Saleem, M. Synthesis and characterization of zeolite based nano-composite: An environment friendly slow release fertilizer. Microporous Mesoporous Mater. 2016, 232, 174–183. [Google Scholar] [CrossRef]
- Leggo, P.J.; Ledésert, B.; Christie, G. The role of clinoptilolite in organo-zeolitic-soil systems used for phytoremediation. Sci. Total Environ. 2006, 363, 1–10. [Google Scholar] [CrossRef]
- Li, Z. Use of surfactant-modified zeolite as fertilizer carriers to control nitrate release. Microporous Mesoporous Mater. 2003, 61, 181–188. [Google Scholar] [CrossRef]
- Pandey, V.C.; Singh, N. Impact of fly ash incorporation in soil systems. Agric. Ecosyst. Environ. 2010, 136, 16–27. [Google Scholar] [CrossRef]
- Shaheen, S.M.; Hooda, P.S.; Tsadilas, C.D. Opportunities and challenges in the use of coal fly ash for soil improvements—A review. J. Environ. Manag. 2014, 145, 249–267. [Google Scholar] [CrossRef] [Green Version]
- Wang, S.; Wu, H. Environmental-benign utilisation of fly ash as low-cost adsorbents. J. Hazard. Mater. 2006, 136, 482–501. [Google Scholar] [CrossRef]
- Winkless, L. Zeolite nanocomposites: A new breed of fertiliser? Mater. Today 2016, 19, 423–424. [Google Scholar] [CrossRef]
- Kalra, N.; Jain, M.C.; Joshi, H.C.; Choudhary, R.; Harit, R.C.; Vatsa, B.K.; Sharma, S.K.; Kumar, V. Fly ash as a soil conditioner and fertilizer. Bioresour. Technol. 1998, 64, 163–167. [Google Scholar] [CrossRef]
- Rai, V. Implications of Nanobiosensors in Agriculture. J. Biomater. Nanobiotechnol. 2012, 3, 315–324. [Google Scholar] [CrossRef] [Green Version]
- Raymond, J.E.; Fox, T.R.; Strahm, B.D.; Zerpa, J. Differences in the recovery of four different nitrogen containing fertilizers after two application seasons in pine plantations across the southeastern United States. For. Ecol. Manag. 2016, 380, 161–171. [Google Scholar] [CrossRef] [Green Version]
- Geisseler, D.; Scow, K.M. Long-term effects of mineral fertilizers on soil microorganisms—A review. Soil Biol. Biochem. 2014, 75, 54–63. [Google Scholar] [CrossRef]
- Mihok, F.; Macko, J.; Oriňak, A.; Oriňaková, R.; Kovaľ, K.; Sisáková, K.; Petruš, O.; Kostecká, Z. Controlled nitrogen release fertilizer based on zeolite clinoptilolite: Study of preparation process and release properties using molecular dynamics. Curr. Res. Green Sustain. Chem. 2020, 3, 100030. [Google Scholar] [CrossRef]
- Derkowski, A.; Franus, W.; Beran, E.; Czímerová, A. Properties and potential applications of zeolitic materials produced from fly ash using simple method of synthesis. Powder Technol. 2006, 166, 47–54. [Google Scholar] [CrossRef]
- Bandura, L.; Kołodyńska, D.; Franus, W. Adsorption of BTX from aqueous solutions by Na-P1 zeolite obtained from fly ash. Process Saf. Environ. Prot. 2017, 109, 214–223. [Google Scholar] [CrossRef]
- Simonin, J.P. On the comparison of pseudo-first order and pseudo-second order rate laws in the modeling of adsorption kinetics. Chem. Eng. J. 2016, 300, 254–263. [Google Scholar] [CrossRef] [Green Version]
- Al-Jubouri, S.M.; Holmes, S.M. Hierarchically porous zeolite X composites for manganese ion-exchange and solidification: Equilibrium isotherms, kinetic and thermodynamic studies. Chem. Eng. J. 2017, 308, 476–491. [Google Scholar] [CrossRef] [Green Version]
- Can, N.; Ömür, B.C.; Altındal, A. Modeling of heavy metal ion adsorption isotherms onto metallophthalocyanine film. Sens. Actuators B Chem. 2016, 237, 953–961. [Google Scholar] [CrossRef]
- Watanabe, Y.; Yamada, H.; Ikoma, T.; Tanaka, J.; Stevens, G.W.; Komatsu, Y. Preparation of a zeolite NaP1/hydroxyapatite nanocomposite and study of its behavior as inorganic fertilizer. J. Chem. Technol. Biotechnol. 2014, 89, 963–968. [Google Scholar] [CrossRef]
- Li, H.; Shen, X.Z.; Sisk, B.; Orndorff, W.; Li, D.; Pan, W.P.; Riley, J.T. Studies of fly ash using thermal analysis techniques. J. Therm. Anal. 1997, 49, 943–951. [Google Scholar] [CrossRef]
- Kikuchi, R. Application of coal ash to environmental improvement: Transformation into zeolite, potassium fertilizer, and FGD absorbent. Resour. Conserv. Recycl. 1999, 27, 333–346. [Google Scholar] [CrossRef]
- Querol, X.; Umaña, J.C.; Plana, F.; Alastuey, A.; Lopez-Soler, A.; Medinaceli, A.; Valero, A.; Domingo, M.J.; Garcia-Rojo, E. Synthesis of zeolites from fly ash at pilot plant scale. Examples of potential applications. Fuel 2001, 80, 857–865. [Google Scholar] [CrossRef]
- Nuernberg, G.B.; Moreira, M.A.; Ernani, P.R.; Almeida, J.A.; Maciel, T.M. Efficiency of basalt zeolite and Cuban zeolite to adsorb ammonia released from poultry litter. J. Environ. Manag. 2016, 183, 667–672. [Google Scholar] [CrossRef] [PubMed]
- Bardestani, R.; Patience, G.S.; Kaliaguine, S. Experimental methods in chemical engineering: Specific surface area and pore size distribution measurements—BET, BJH, and DFT. Can. J. Chem. Eng. 2019, 97, 2781–2791. [Google Scholar] [CrossRef]
- Sayen, S.; Mallet, J.; Guillon, E. Aging effect on the copper sorption on a vineyard soil: Column studies and SEM-EDS analysis. J. Colloid Interface Sci. 2009, 331, 47–54. [Google Scholar] [CrossRef] [PubMed]
- Nešić, A.R.; Veličković, S.J.; Antonović, D.G. Modification of chitosan by zeolite A and adsorption of Bezactive Orange 16 from aqueous solution. Compos. Part B Eng. 2013, 53, 145–151. [Google Scholar] [CrossRef]
- Ulahannan, R.T.; Panicker, C.Y.; Varghese, H.T.; Musiol, R.; Jampilek, J.; Van Alsenoy, C.; War, J.A.; Srivastava, S.K. Molecular structure, FT-IR, FT-Raman, NBO, HOMO and LUMO, MEP, NLO and molecular docking study of 2-[(E)-2-(2-bromophenyl)ethenyl]quinoline-6-carboxylic acid. Spectrochim. Acta—Part A Mol. Biomol. Spectrosc. 2015, 151, 184–197. [Google Scholar] [CrossRef] [PubMed]
- Boamah, P.O.; Huang, Y.; Hua, M.; Onumah, J.; Sam-Amoah, L.K.; Boamah, P.O.; Qian, Y.; Zhang, Q. Sorption of copper onto low molecular weight chitosan derivative from aqueous solution. Ecotoxicol. Environ. Saf. 2016, 129, 154–163. [Google Scholar] [CrossRef]
- Dinu, M.V.; Dragan, E.S. Evaluation of Cu2+, Co2+ and Ni2+ ions removal from aqueous solution using a novel chitosan/clinoptilolite composite: Kinetics and isotherms. Chem. Eng. J. 2010, 160, 157–163. [Google Scholar] [CrossRef]
- Juang, R.S.; Wu, F.C.; Tseng, R.L. Adsorption removal of copper(II) using chitosan from simulated rinse solutions containing chelating agents. Water Res. 1999, 33, 2403–2409. [Google Scholar] [CrossRef]
- Lin, J.; Zhan, Y.; Zhu, Z. Adsorption characteristics of copper (II) ions from aqueous solution onto humic acid-immobilized surfactant-modified zeolite. Colloids Surfaces A Physicochem. Eng. Asp. 2011, 384, 9–16. [Google Scholar] [CrossRef]
- Albadarin, A.B.; Mangwandi, C.; Al-Muhtaseb, A.H.; Walker, G.M.; Allen, S.J.; Ahmad, M.N.M. Kinetic and thermodynamics of chromium ions adsorption onto low-cost dolomite adsorbent. Chem. Eng. J. 2012, 179, 193–202. [Google Scholar] [CrossRef]
- Kamaraj, R.; Pandiarajan, A.; Jayakiruba, S.; Naushad, M.; Vasudevan, S. Kinetics, thermodynamics and isotherm modeling for removal of nitrate from liquids by facile one-pot electrosynthesized nano zinc hydroxide. J. Mol. Liq. 2016, 215, 204–211. [Google Scholar] [CrossRef]
- Tanhaei, B.; Ayati, A.; Lahtinen, M.; Sillanpää, M. Preparation and characterization of a novel chitosan/Al2O3/magnetite nanoparticles composite adsorbent for kinetic, thermodynamic and isotherm studies of Methyl Orange adsorption. Chem. Eng. J. 2015, 259, 1–10. [Google Scholar] [CrossRef]
- Khan, T.A.; Chaudhry, S.A.; Ali, I. Equilibrium uptake, isotherm and kinetic studies of Cd(II) adsorption onto iron oxide activated red mud from aqueous solution. J. Mol. Liq. 2015, 202, 165–175. [Google Scholar] [CrossRef]
- Fan, S.; Tang, J.; Wang, Y.; Li, H.; Zhang, H.; Tang, J.; Wang, Z.; Li, X. Biochar prepared from co-pyrolysis of municipal sewage sludge and tea waste for the adsorption of methylene blue from aqueous solutions: Kinetics, isotherm, thermodynamic and mechanism. J. Mol. Liq. 2016, 220, 432–441. [Google Scholar] [CrossRef]
- Fan, M.; Hu, Q.; Shen, K. Preparation and structure of chitosan soluble in wide pH range. Carbohydr. Polym. 2009, 78, 66–71. [Google Scholar] [CrossRef]
- Tahir, S.S.; Rauf, N. Removal of a cationic dye from aqueous solutions by adsorption onto bentonite clay. Chemosphere 2006, 63, 1842–1848. [Google Scholar] [CrossRef] [PubMed]
- Günay, A.; Arslankaya, E.; Tosun, I. Lead removal from aqueous solution by natural and pretreated clinoptilolite: Adsorption equilibrium and kinetics. J. Hazard. Mater. 2007, 146, 362–371. [Google Scholar] [CrossRef] [PubMed]
- Kratz, S.; Schick, J.; Schnug, E. Trace elements in rock phosphates and P containing mineral and organo-mineral fertilizers sold in Germany. Sci. Total Environ. 2016, 542, 1013–1019. [Google Scholar] [CrossRef]
- Hollman, G.G.; Steenbruggen, G.; Janssen-Jurkovičová, M. A two-step process for the synthesis of zeolites from coal fly ash. Fuel 1999, 78, 1225–1230. [Google Scholar] [CrossRef]
- Steenbruggen, G.; Hollman, G.G. The synthesis of zeolites from fly ash and the properties of the zeolite products. J. Geochem. Explor. 1998, 62, 305–309. [Google Scholar] [CrossRef]
- Querol, X.; Alastuey, A.; Fernández-Turiel, J.; López-Soler, A. Synthesis of zeolites by alkaline activation of ferro-aluminous fly ash. Fuel 1995, 74, 1226–1231. [Google Scholar] [CrossRef]
- Querol, X.; Moreno, N.; Umaa, J.C.; Alastuey, A.; Hernández, E.; López-Soler, A.; Plana, F. Synthesis of zeolites from coal fly ash: An overview. Int. J. Coal Geol. 2002, 50, 413–423. [Google Scholar] [CrossRef]
- Widiastuti, N.; Wu, H.; Ang, H.M.; Zhang, D. Removal of ammonium from greywater using natural zeolite. Desalination 2011, 277, 15–23. [Google Scholar] [CrossRef]
Adsorbent | Al6Si2O13 (%) | Fe2O3 (%) | CaO (%) | TiO2 (%) | SiO2 (%) |
---|---|---|---|---|---|
FA | 75.80 | 3.50 | 0.00 | 1.80 | 20.00 |
Element | CS | NaP1CS |
---|---|---|
C (%) | 40.72 | 10.59 |
N (%) | 7.25 | 1.19 |
H (%] | 3.91 | 1.46 |

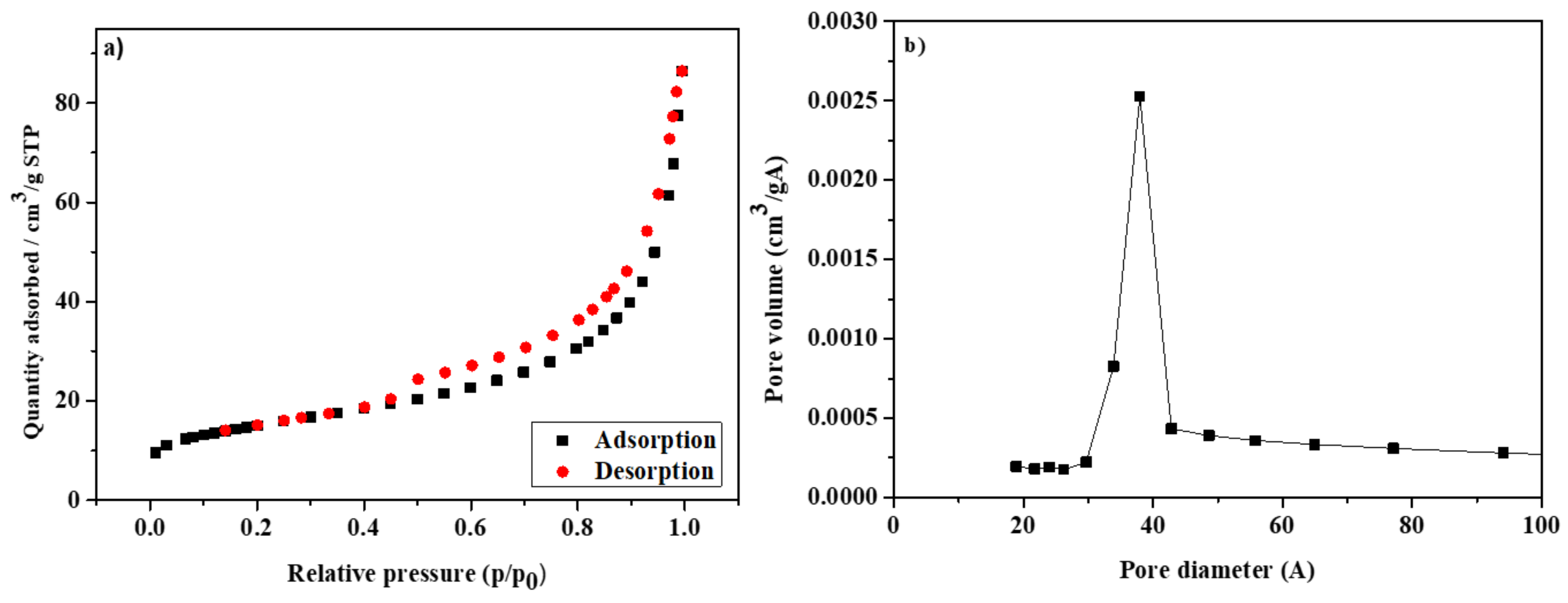

Parameter | Value | |
---|---|---|
NaP1CS before Adsorption | NaP1CS after Adsorption | |
SBET (m2/g) | 53.5 | 53.4 |
Vmic (a) (cm3/g) | 0.004 | 0.004 |
Smic (a) (m2/g) | 10.68 | 10.47 |
Vtot (b) (cm3/g) | 0.13 | 0.11 |
Dav (c) (Å) | 111 | 95 |
Adsorbate | C0 (mg/dm3) | qeq,exp (mg/g) | Kinetic Parameters | ||
---|---|---|---|---|---|
Pseudo-First Order | |||||
qeq (mg/g) | k1 (1/min) | R2 | |||
Cu(II)–IDHA = 1:1 | 5 | 0.49 | 57.07 | 0.046 | 0.54 |
10 | 0.94 | 7.87 | 0.044 | 0.91 | |
15 | 1.48 | 2.81 | 0.026 | 0.84 | |
20 | 2.47 | 1.25 | 0.023 | 0.95 | |
Fe(III)–IDHA = 1:1 | 10 | 1.28 | 1.59 | 0.025 | 0.98 |
20 | 2.06 | 1.01 | 0.081 | 0.98 | |
30 | 3.11 | 1.56 | 0.035 | 0.97 | |
40 | 4.87 | 2.15 | 0.030 | 0.98 | |
Mn(II)–IDHA = 1:1 | 20 | 4.61 | 2.85 | 0.088 | 0.97 |
40 | 8.76 | 1.84 | 0.042 | 0.87 | |
60 | 11.55 | 4.07 | 0.035 | 0.97 | |
80 | 13.74 | 5.05 | 0.026 | 0.96 | |
Zn(II)–IDHA = 1:1 | 10 | 2.20 | 3.68 | 0.027 | 0.99 |
20 | 2.53 | 1.79 | 0.037 | 0.92 | |
30 | 5.17 | 4.10 | 0.056 | 0.93 | |
40 | 8.78 | 1.03 | 0.072 | 0.99 | |
Pseudo-second order | |||||
qeq (mg/g) | k2 (g/mg·min) | R2 | |||
Cu(II)–IDHA = 1:1 | 5 | 0.49 | 0.49 | 13.609 | 1.00 |
10 | 0.94 | 0.94 | 1.683 | 1.00 | |
15 | 1.48 | 1.48 | 0.421 | 0.99 | |
20 | 2.47 | 2.48 | 0.149 | 0.99 | |
Fe(III)–IDHA = 1:1 | 10 | 1.28 | 1.30 | 0.166 | 0.99 |
20 | 2.06 | 2.10 | 0.221 | 0.99 | |
30 | 3.11 | 3.18 | 0.080 | 0.99 | |
40 | 4.87 | 4.94 | 0.056 | 0.99 | |
Mn(II)–IDHA = 1:1 | 20 | 4.61 | 4.62 | 0.999 | 1.00 |
40 | 8.76 | 8.80 | 0.109 | 0.99 | |
60 | 11.55 | 11.67 | 0.037 | 0.99 | |
80 | 13.74 | 13.84 | 0.024 | 0.99 | |
Zn(II)–IDHA = 1:1 | 10 | 2.20 | 2.20 | 0.560 | 0.99 |
20 | 2.53 | 2.55 | 0.316 | 0.99 | |
30 | 5.17 | 5.60 | 0.020 | 0.99 | |
40 | 8.78 | 8.80 | 0.295 | 1.00 | |
Intraparticle diffusion | |||||
ki (mg/g min1/2) | |||||
k1 | k2 | k3 | |||
Cu(II)–IDHA = 1:1 | 5 | 0.49 | 0.038 | 0.029 | 0.001 |
10 | 0.94 | 0.046 | 0.019 | 0.004 | |
15 | 1.48 | 0.203 | 0.062 | 0.028 | |
20 | 2.47 | 0.236 | 0.064 | 0.079 | |
Fe(III)–IDHA = 1:1 | 10 | 1.28 | 0.090 | 0.076 | 0.062 |
20 | 2.06 | 0.312 | 0.158 | 0.009 | |
30 | 3.11 | 0.445 | 0.173 | 0.062 | |
40 | 4.87 | 0.431 | 0.221 | 0.115 | |
Mn(II)–IDHA = 1:1 | 20 | 4.61 | 0.221 | 0.180 | 0.010 |
40 | 8.76 | 0.990 | 0.250 | 0.062 | |
60 | 11.55 | 1.161 | 0.480 | 0.163 | |
80 | 13.74 | 0.877 | 0.800 | 0.338 | |
Zn(II)–IDHA = 1:1 | 10 | 2.20 | 0.005 | 0.070 | 0.025 |
20 | 2.53 | 0.215 | 0.039 | 0.020 | |
30 | 5.17 | 0.128 | 1.058 | 0.071 | |
40 | 8.78 | 0.270 | 0.158 | 0.022 |
Adsorbate | Isotherm | Parameters | |||
---|---|---|---|---|---|
Langmuir | qm (mg/g) | KL (L/mg) | R2 | RL (-) | |
Cu(II)–IDHA | - | 3.93 | 0.074 | 0.94 | 0.725 |
Fe(III)–IDHA | 17.26 | 0.032 | 0.93 | 0.802 | |
Mn(II)–IDHA | 11.59 | 0.314 | 0.99 | 0.135 | |
Zn(II)–IDHA | 6.14 | 0.069 | 0.96 | 0.545 | |
Freundlich | KF (mg/g) | n (-) | R2 | - | |
Cu(II)–IDHA | - | 3.53 | 1.46 | 0.85 | - |
Fe(III)–IDHA | 1.06 | 1.57 | 0.97 | ||
Mn(II)–IDHA | 5.87 | 5.78 | 0.72 | ||
Zn(II)–IDHA | 1.11 | 2.37 | 0.80 | ||
Dubinin-Radushkevich | Xm (mg/g) | β (mol2/kJ2) | R2 | E (kJ/mol) | |
Cu(II)–IDHA | - | 2014.4 | 0.0066 | 0.87 | 8.69 |
Fe(III)–IDHA | 964.2 | 0.0058 | 0.97 | 9.28 | |
Mn(II)–IDHA | 3109.9 | 0.0017 | 0.81 | 17.01 | |
Zn(II)–IDHA | 3476.7 | 0.0043 | 0.82 | 10.77 | |
Temkin | A (L/g) | b (kJ/mol) | R2 | B (J/mol) | |
Cu(II)–IDHA | - | 1.805 | 2.530 | 0.93 | 0.979 |
Fe(III)–IDHA | - | 1.569 | 0.895 | 0.90 | 2.767 |
Mn(II)–IDHA | - | 127.41 | 1.836 | 0.70 | 1.349 |
Zn(II)–IDHA | - | 1.268 | 1.923 | 0.86 | 1.288 |
Adsorbent | Adsorbate | (ΔH°) (kJ/mol) | (ΔS°) (J/mol K) | (ΔG°) (kJ/mol) | ||
---|---|---|---|---|---|---|
293 K | 313 K | 333 K | ||||
NaP1CS | Cu(II)–IDHA | 5.94 | 16.6 | −10.33 | −11.74 | −12.53 |
Fe(III)–IDHA | 16.80 | 49.1 | −14.41 | −16.55 | −18.67 | |
Mn(II)–IDHA | 19.70 | 44.4 | −10.02 | −12.42 | −14.05 | |
Zn(II)–IDHA | 3.91 | 3.8 | −11.82 | −12.87 | −13.97 |
Solution | Percentage Desorption (%) | |||
---|---|---|---|---|
Cu(II)–IDHA | Fe(III)–IDHA | Mn(II)–IDHA | Zn(II)–IDHA | |
0.5 M NaCl | 25.1 | 0 | 37.5 | 35.2 |
0.5 M NaOH | 1.3 | 0 | 0.3 | 25.7 |
0.5 M KCl | 24.6 | 0 | 26.9 | 0.6 |
0.5 M CH3OH | 4.4 | 0 | 2.7 | 14.2 |
0.5 M HCl | 74.1 | 91.4 | 65.4 | 79.7 |
