Article

Computing the Fatigue Life of Cold Spray Repairs to Simulated Corrosion Damage

by
Daren Peng
1,
Caixian Tang
2,
Neil Matthews
2,
Rhys Jones
1,3,*,
Sudip Kundu
1,4,
R. K. Singh Raman
1 and
Alankar Alankar
4
1
Centre of Expertise in Structural Mechanics, Department of Mechanical and Aeronautical Engineering, Monash University, Wellington Rd, Clayton, VIC 3800, Australia
2
RUAG Australia, 836 Mountain Highway, Bayswater, VIC 3153, Australia
3
ARC Industrial Transformation Training Centre on Surface Engineering for Advanced Materials, Faculty of Science, Engineering and Technology, Swinburne University of Technology, John Street, Hawthorn, VIC 3122, Australia
4
Department of Mechanical Engineering, Indian Institute of Technology Bombay, Powai, Mumbai 400076, Maharashtra, India
*
Author to whom correspondence should be addressed.
Materials 2021, 14(16), 4451; https://doi.org/10.3390/ma14164451
Submission received: 3 July 2021 / Revised: 29 July 2021 / Accepted: 4 August 2021 / Published: 9 August 2021
(This article belongs to the Special Issue From Surface Modification to Additive Manufacturing of Components by Solid-State Cold Spray Technology)
Browse Figures
Versions Notes

Abstract

:
This paper summarises the findings of an investigation into the durability of cold spray repairs, also known as supersonic particle deposition or SPD repairs, to simulated corrosion damage in AA7075-T7351 aluminium alloy specimens. A feature of this paper is that it is the first to show how to perform the mandatory durability analysis of repaired corroded structures, where the corroded material is first removed by machining and then repaired using cold spray, in a fashion consistent with the requirements delineated in USAF Structures Bulletin EZ-19-01, MIL-STD-1530D, and the US Joint Services Structural Guidelines JSSG2006.

1. Introduction

Cold spray, which is also termed supersonic particle deposition (SPD), is being increasingly used to repair military aircraft [1,2,3,4,5,6,7,8,9]. However, as explained in [1,2,3,5], to date the majority of applications are limited to non-structural applications. Exceptions to this are the eleven cold spray doublers applied to an F/A-18 full scale fatigue test [1], and the studies into the ability of cold spray to restore the (compressive) load bearing capacity of corroded P3C Orion upper wing skin structures [1,8]. In the case of the doublers applied to the F/A-18 [1] it was found that despite the high stresses, in one case a cold spray doubler was found to experience peak stresses in excess of 250 MPa, and despite the fact that the spectra were measured on an operational combat aircraft, which is a very aggressive spectrum, there was no failure or debonding of the doubler. Indeed, the doublers lasted (intact) for in excess of three design lifetimes, and failure in the fatigue test article occurred well away from any of the cold spray doublers. This coupled with the results associated with the extensive coupon test programs reported in [1,6], whereby cold spray repairs were subjected to fatigue loads representative of those seen by operational aircraft, suggests that cold spray can be used to ensure the structural integrity of load bearing aircraft structures. However, as outlined in USAF Structures Bulletin EZ-19-01 [10], MIL-STD-1530D [11], and the United States Joint Services Structural Guidelines JSSG2006 [12], the airworthiness certification of a cold spray repair to load bearing structure requires a durability life analysis (the term durability is defined in JSSG2006 to be: “Durability is the attribute of an airframe that permits it to resist cracking for a prescribed period of time.”) To this end, the present paper illustrates how to perform this analysis using a “building block” approach that is consistent with JSSG2006.
Whereas [13,14,15,16,17,18,19,20] revealed that, provided the deposition process is reasonably well optimised, cold spray coatings are exceptionally damage tolerant and that failure generally results from the nucleation, and subsequent growth, of cracking at the intersection between the cold spray coating and the substrate being repaired, there are currently no papers that explain how to perform the durability analysis needed to certify a cold spray repair to a load bearing (structural) member. In this context it should be noted that [13] extended the findings presented in [1], whereby the F/A-18 full scale test highlighted that the cold spray repairs were particularly durable and damage tolerant, to reveal that the damage tolerance of a 7075 powder cold spray coating on a 7075-T7351 substrate is such that even when the coating is as a notched failure, this was due to the nucleation and subsequent growth of cracks in the 7075-T7351 substrate, and that delamination and cracking of the coating did not occur until close to final failure of the specimens. However, despite the experimental evidence on the excellent durability and damage tolerance of cold spray doublers, there are no papers that explain how to perform the durability analysis needed for this failure mechanism.
The need for such durability analyses is highlighted in MIL-STD-1530D, which states that analysis is the key to certification, and that the role of testing is merely to validate or correct the analysis. However, other than [6] there very few papers which present a durability analysis of a cold spray repair in which the initial crack length is of the order of the equivalent initial damage size (EIDS) mandated [10,11,12], and where the predicted crack growth histories are compared with experimental measurements. Even then, in the study reported in [6] the nucleating crack was associated with corrosion pitting down a fastener hole that contained intergranular corrosion, and as such did not initiate either in the cold spray repair or at the intersection between the cold spray and the substrate being repaired. Consequently, the purpose of this paper is to illustrate how to perform the necessary damage tolerance and durability analysis in a fashion that is consistent with USAF Structures Bulletin EZ-19-01, MIL-STD-1530D, and Joint Services Structural Guidelines JSSG2006.
To this end this paper presents the results of preliminary testing and crack growth analysis of cold spray repairs to simulated corrosion where the damage has nucleated and subsequently grown from material discontinuities at the intersection between the cold spray coating and the substrate, and where the computed crack growth histories are compared with experimental measurements.

2. Materials and Methods

The durability analysis performed in this paper uses the Hartman–Schijve crack growth equation [21]. This equation takes the form:
da/dN = D (∆κ)n
where ∆κ is the Schwalbe crack tip similitude parameter [22].
∆κ = (∆K − ∆Kthr)/√(1 − Kmax/A)
Here, D and n are material constants; K = Kmax − Kmin, where Kmax and Kmin are the maximum and minimum values of K in a cycle; Kthr is the fatigue threshold; and A is the apparent cyclic fracture toughness. This particular crack growth equation was used as it has been shown [6,21,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42] to be able to compute the growth of small and long cracks in a range of both conventionally and additively manufactured materials, and hence is considered to be a valid crack similitude parameter. In this context it should be noted that [23] highlighted that ∆κ is a valid similitude parameter for cracking in structural adhesive. It should also be noted that, as also discussed in [23], a valid similitude parameter is essential both for analysis and for relating laboratory tests to operational aircraft.
An attractive feature of the formulation is that it is now known that, for a given material, the effect of different microstructures on crack growth reduces as the crack length reduces [36,40,41]. This effect is captured by allowing for changes in the terms Kthr as the crack length increases, with the values of D, A and n being unchanged [21,36]. In this context, it has recently been shown [42] that conventionally manufactured, additively manufactured, and cold spray additively manufactured (CSAM) 316L stainless steels can all be represented by Equation (1) with the same values of D and n. Reference [42] also reported that for both conventionally manufactured and CSAM built 316L steel the term ∆κ was directly related to the change in the potential energy per cycle.
A detailed discussion of the computational fracture mechanics analysis methodology used to determine the stress intensity factor (K) from a knowledge of the stress field in the uncracked specimens is given in reference [23].
The data analysed in the present paper were taken from the experimental test program outlined in Section 3. These tests were performed using a 100 kN Instron (Norward, MA, USA) servo-hydraulic test machine using a sinusoidal wave form with a test frequency of 5 hz.
The references are either from publicly available peer reviewed journals, publicly available refereed conferences or texts. For references associated with conferences, books or book chapters the ISBN numbers are given. For those references found via Google searches, the web addresses are given. Thirty-six of the references are in journals that are listed in SCOPUS, and four can be found on US Department of Defense DTIC/US government websites. The book chapters and books referenced are all SCOPUS listed. Two references are available on the Det Norske Veritas (DNV) website. One reference is on the NLR (Amsterdam, The Netherlands) website. The keywords used to identify the references were: cold spray, supersonic particle deposition, durability, damage tolerance, and Hartman–Schijve.

3. Geometric Dimensions and Applied Marker Block Load Spectrum

Repairs to corrosion damage in operational aircraft frequently involve the damaged material being mechanically removed (machining/blending), leaving no remaining corrosion damage. Subsequent to the damage removal, repair normally entails one of the following: surface protection of the machined/blended area, filling of the machined/blended area (e.g., metal filled epoxies) or external patching. To simulate an embedded cold spray repair to corrosion damage, the test specimens were first machined and then repaired using “cold spray”.
The dimensions and geometry of the specimens used in this study are shown in Figure 1. The specimens were manufactured from AA7075-T351 aluminium alloy. A full width groove representing corrosion damage removal was machined into the specimens on both upper and lower faces. The depth of the groove was 0.675 mm, which represents a removal (loss) of approximately 20% of substrate material. These specimens were then “repaired” using cold spray 7075 power (Valimet AA7075, 53/±15 µm). The cold sprayed coating had compact structure with no visible pores.
The specimens tested were labelled 1, 2 and 3. The simulated corrosion cut (rework) was “repaired” using cold spray, and the repaired specimens were subjected repeatedly to the block load spectra outlined in Table 1 and Table 2. The thicknesses of the cold spray coatings associated with each specimen are given in Table 2. The cold spray repair (coating/deposition) was performed using a Plasma Giken (Saitama, Japan) Kinetik-8000 system using nitrogen, heated to between 500 to 800 °C, as the processing gas, with the 7075 powders accelerated at velocities from 500 to 800 m/s. Details about this technology are given in [2,3]. The precise details of the application process are proprietary to RUAG.
In this analysis the Young’s modulus and Poisson’s ratio of AA7075-T7351 were taken to be 73,000 MPa and 0.3, respectively. The Young’s modulus and Poisson’s ratio of cold spray coatings were taken to be 69,000 MPa and 0.3, respectively. These values were provided by RUAG and are from RUAG propriety data.
As per the requirement, delineated in JSSG206, to follow a “building block approach” the values of D, A, and n in Equation (1) were taken from prior studies [25]; namely, D = 1.86 × 10−9, A = 111 MPa √m, and n = 2. As shown in [6,21,25,26,39,40,41,42] the variability in the crack growth histories associated with durability analyses can be captured by allowing for variability in the local fatigue threshold (ΔKthr). The initial crack sizes (mm) and values of ΔKthr (MPa √m) used in the crack growth analyses are given in Table 3, where we see that these sizes, which were taken from fractographic measurements, were significantly smaller than that the mandated minimum EIDS given in [10,11,12].
The failure surfaces associated with specimens 1–3 are shown in Figure 2, Figure 3 and Figure 4. These figures reveal that failure resulted for the nucleation of cracks in the AA7075-T7351 substrate and their subsequent growth into the AA7075-T7351. In all cases it was found that the cold spray coatings did not crack until late in the life of the specimen. SEM pictures of the fastest growing, i.e., lead, cracks are shown in Figure 5, Figure 6 and Figure 7, where a key feature is the relatively small size of the nucleating features. The crack identifiers associated with each of the cracks are shown in Figure 5, Figure 6 and Figure 7 and in Table 3. Figure 5, Figure 6 and Figure 7 also reveal that the sizes of the nucleating cracks are significantly smaller than the mandated minimum equivalent initial damage size (EIDS) given in [10,11,12] of 0.254 mm (0.01 inch).
The measured and computed crack growth histories are shown in Figure 8, Figure 9 and Figure 10, where we see excellent agreement between the computed and measured crack growth histories. Table 3 reveals that the value of ΔKthr associated with these nine cracks falls within the range 0.0 to 0.3 that is commonly seen for small cracks in conventionally manufactured aluminium alloys [1,21,25,26,27,33,34,36,38,39]. In contrast, the ΔKthr range seen in [37] for the growth of long cracks in AA7075-T7351 aluminium alloy specimens tested under a FALSTAFF flight load spectrum was between (approximately) 1.1 and 1.79 MPa √m. This difference is typical of that seen by long and small cracks [21,25].
Figure 8, Figure 9 and Figure 10 also reveal that the growth of the fastest cracks (“lead cracks”) in this study is approximately exponential, and as such is consistent with that seen in both RAAF and USAF aircraft [43,44]. As a result, it follows from [45] that Miner’s rule may be applicable for estimating the life of cold spray repairs under variable amplitude loads.

4. Comparison of the Value of ΔKthr with Values Associated with Surface Breaking Cracks

It has recently been shown [6] that for the twenty cracks that nucleated and subsequently grew from the small sub-mm surface pits studied in [6] that had depths similar to the mandated [10,11,12] minimum equivalent initial damage size (EIDS) of 0.254 mm, the fatigue threshold ΔKthr lay in the range 0.35 to 1.2 MPa √m. However, as subsequently discussed in [39] a group of twenty cracks represents a limited data set, and as such may not necessarily capture the extent of the true variability in ΔKthr. To account for such limited data sets, [46,47,48,49] suggest the use of a statistical approach whereby the ‘A basis’ and ‘B basis’ properties are determined. An ‘A basis’ value equals the mean value minus three standard deviations and is the value above which at least 99% of the population of values is expected to fall with a confidence of 95% [46]. The ‘B basis’ value equals the mean value minus two standard deviations and is the value above which at least 95% of the population of values is expected to fall with a confidence of 95% [47]. The US Joint Services Structural Guidelines [12] recommend using A basis allowables. Det Norske Veritas (DNV) [48,49] recommends using the B basis allowables for fatigue design.
Jones et al. [39] subsequently reported that the mean value of ΔKthr associated with the twenty cracks studied in [6] was approximately 0.80 MPa √m, and that the standard deviation (σ) was approximately 0.24 MPa √m. This gives a mean minus two standard deviations (B basis) value of ΔKthr for cracks that nucleate and grow from surface breaking pits of 0.08 MPa √m. This value of ΔKthr is similar to the values given in Table 3 for the nine sub-surface interface cracks analysed in the present study.

5. Conclusions

MIL-STD-1530D notes that analysis is the key to certification, and that the role of testing is merely to validate or correct the analysis. USAF Structures Bulletins EZ-19-01 and MIL-STD-1530D mandate that a durability analysis must assume an EIDS of no greater than 0.254 mm; this value is taken from JSSG2006. This paper is unique in that it is the first to illustrate how to accurately compute the crack growth histories associated with naturally occurring cracks that nucleate and subsequently grow from material discontinuities associated with cold spray repairs to simulated corrosion damage, where the size of the nucleating cracks is significantly smaller than the equivalent initial damage size (EIDS) mandated in the JSSG2006, MIL-STD-1530D, and USAF Structures Bulletin EZ-19-01. As such, it is the first paper to illustrate how to perform the durability analysis mandated in EZ-19-01, MIL-STD-1530D and JSSG2006.
It is also shown that the growth of the fastest cracks (“lead cracks”) in this study is approximately exponential, and as such is consistent with that seen in both RAAF and USAF aircraft. As a result, Miner’s rule may be applicable for estimating the life of cold spray repairs under variable amplitude loads.

Author Contributions

Conceptualization and project direction—R.J.; Testing—D.P. and S.K.; SEM analysis—S.K.; Fractography—D.P. and C.T.; Computational analysis—D.P. and R.J.; Funding obtained by N.M.; Cold spray repairs of specimens—C.T.; Overview and evaluation of the final report and its relationship to aircraft certification—N.M., R.K.S.R. and A.A. Supervision of S.K. at Monash—R.K.S.R., Supervision of S.K. at IIT Bombay—A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was performed under funding given to RUAG from H. F. Webster, Rapid City, SD, USA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This is an ongoing study and the data will be made available on the completion of the project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jones, R.; Matthews, N.; Baker, A.; Champagne, V. Aircraft Sustainment and Repair; Butterworth-Heinemann Press: Oxford, UK, 2018; ISBN 978008100548. [Google Scholar]
  2. Champagne, V., Jr.; Matthews, N.; Champagne, V., III. Chapter 14: Introduction to supersonic particle deposition. In Aircraft Sustainment and Repair; Jones, R., Matthews, N., Baker, A., Champagne, V., Eds.; Butterworth-Heinemann Press: Oxford, UK, 2018; pp. 799–844. ISBN 9780081005408. [Google Scholar]
  3. Matthews, N. Chapter 15: Additive metal technologies for aerospace sustainment. In Aircraft Sustainment and Repair; Jones, R., Matthews, N., Baker, A., Champagne, V., Eds.; Butterworth-Heinemann Press: Oxford, UK, 2018; pp. 845–862. ISBN 9780081005408. [Google Scholar]
  4. Leyman, P.F.; Champagne, V.K. Cold Spray Process Development for the Reclamation of the Apache Helicopter Mast Support, Army Research Laboratory. ARL-TR-4922. August 2009. Available online: https://apps.dtic.mil/sti/pdfs/ADA505530.pdf (accessed on 9 July 2021).
  5. Champagne, V.; Helfritch, D. Critical assessment 11: Structural repairs by cold spray. Mater. Sci. Technol. 2015, 31, 627–634. [Google Scholar] [CrossRef]
  6. Kundu, S.; Jones, R.; Peng, D.; Matthews, N.; Alankar, A.; Singh, R.K.R.; Huang, P. Review of requirements for the durability and damage tolerance certification of additively manufactured aircraft structural parts and AM repairs. Materials 2020, 13, 1341. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Jones, R.; Molent, L.; Barter, S.; Matthews, N.; Tamboli, D. Supersonic particle deposition as a means for enhancing the structural integrity of aircraft structures. Int. J. Fatigue 2014, 68, 260–268. [Google Scholar] [CrossRef]
  8. Matthews, N.; Jones, R.; Peng, D.; Phan, N.; Nguyen, T. Additive metal solutions to aircraft skin corrosion. Aeronaut. J. 2019. [Google Scholar] [CrossRef]
  9. White, B.; Story, W.; Brewer, L.; Jordon, J.B. Fatigue behaviour of fastener holes in high-strength aluminum plates repaired by cold spray deposition. Fatigue Fract. Eng. Mater. Struct. 2020, 43, 317–329. [Google Scholar] [CrossRef]
  10. Structures Bulletin EZ-SB-19-01, Durability and Damage Tolerance Certification for Additive Manufacturing of Aircraft Structural Metallic Parts; Wright Patterson Air Force Base: Montgomery, OH, USA, 2019; Available online: https://daytonaero.com/usaf-structures-bulletins-library/ (accessed on 2 July 2021).
  11. MIL-STD-1530D, Department of Defense Standard Practice Aircraft Structural Integrity Program (ASIP). 13 October 2016. Available online: http://everyspec.com/MIL-STD/MIL-STD.../download.php?spec=MIL-STD-1530D (accessed on 2 July 2021).
  12. Department of Defense Joint Service Specification Guide, Aircraft Structures. JSSG-2006. October 1998. Available online: http://everyspec.com/USAF/USAF-General/JSSG-2006_10206/ (accessed on 10 July 2020).
  13. Jones, R.; Matthews, N.; Peng, D.; Raman, S.R.K.; Phan, N. Experimental studies into the analysis required for the durability assessment of 7075 and 6061 cold spray repairs to military aircraft. Aerospace 2020, 7, 119. [Google Scholar] [CrossRef]
  14. Peng, D.; Jones, R.; Matthews, N.; Tang, C. On the role of the interface on the damage tolerance and durability of cold spray repairs to AA7075-T7351 aluminium alloy wing skins. Appl. Surf. Sci. Adv. 2020, 3, 100052. [Google Scholar] [CrossRef]
  15. Moridi, A.; Hassani-Gangaraj, S.M.; Vezzú, S.; Trško, L.; Guagliano, M. Fatigue behavior of cold spray coatings: The effect of conventional and severe shot peening as pre-/post-treatment. Surf. Coat. Technol. 2015, 283, 247–254. [Google Scholar] [CrossRef]
  16. Price, T.S.; Shipway, P.H.; McCartney, D.G. Effect of cold spray deposition of a titanium coating on fatigue behavior of a titanium alloy. J. Therm. Spray Technol. 2006, 15, 507–512. [Google Scholar] [CrossRef]
  17. Cizek, J.; Matejkova, M.; Dlouhy, I.; Siska, F.; Kay, C.M.; Karthikeyan, S.J.; Kuroda, S.; Kovarik, O.; Siegl, J.; Loke, K.; et al. Influence of cold-sprayed, warm-sprayed and plasma-sprayed layers deposition on fatigue properties of steel specimens. J. Therm. Spray Technol. 2015, 25, 758–768. [Google Scholar] [CrossRef] [Green Version]
  18. Jones, R. Synchrotron radiation microcomputed tomography for assessing internal cracks in cold spray repairs. Fatigue Fract. Eng. Mater. Struct. 2020, 43, 431–432. [Google Scholar] [CrossRef]
  19. Yandouzi, M.; Gaydos, S.; Guo, D.; Ghelichi, R.; Jodoin, B. Aircraft skin restoration and evaluation. J. Therm. Spray Technol. 2006, 23, 1281–1290. [Google Scholar] [CrossRef]
  20. Bagherifard, S.; Guagliano, M. Fatigue performance of cold spray deposits: Coating, repair and additive manufacturing cases. Int. J. Fatigue 2020, 139, 105744. [Google Scholar] [CrossRef]
  21. Jones, R. Fatigue crack growth and damage tolerance. Fatigue Fract. Eng. Mater. Struct. 2014, 37, 463–483. [Google Scholar] [CrossRef]
  22. Schwalbe, K.H. On the beauty of analytical models for fatigue crack propagation and fracture-A personal historical review. J. ASTM Intl. 2010, 7, 3–73. [Google Scholar] [CrossRef]
  23. Jones, R.; Kinloch, A.J.; Michopoulos, J.; Iliopoulos, A.P. Crack growth in adhesives: Similitude and the Hartman-Schijve equation. Compos. Struct. 2021, 273, 114260. [Google Scholar] [CrossRef]
  24. Peng, D.; Huang, P.; Jones, R. Practical Computational Fracture Mechanics for Aircraft Structural Integrity, Aircraft Sustainment and Repair; Jones, R., Baker, A., Matthews, N., Champagne, V., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; ISBN 9780081005408. [Google Scholar]
  25. Jones, R.; Peng, D.; McMillan, A. Crack growth from naturally occurring material discontinuities, Chapter 5. In Aircraft Sustainment and Repair; Jones, R., Matthews, N., Baker, A.A., Champagne, V., Jr., Eds.; Butterworth-Heinemann Press: Oxford, UK, 2018; pp. 129–190. ISBN 9780081005408. [Google Scholar]
  26. Tamboli, D.; Barter, S.; Jones, R. On the growth of cracks from etch pits and the scatter associated with them under a miniTWIST spectrum. Int. J. Fatigue 2018, 109, 10–16. [Google Scholar] [CrossRef]
  27. Tan, J.L.; Chen, B.K. Prediction of fatigue life in aluminum alloy (AA7050-T7451) structures in the presence of multiple artificial short cracks. Theor. Appl. Fract. Mech. 2015, 78, 1–7. [Google Scholar] [CrossRef]
  28. Sanaei, N.; Fatemi, A. Defect-based fatigue life prediction of L-PBF additive manufactured metals. Eng. Fract. Mech. 2021, 244. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Zheng, K.; Heng, J.; Zhu, J. Corrosion-fatigue evaluation of uncoated weathering steel bridges. Appl. Sci. 2019, 9, 3461. [Google Scholar] [CrossRef] [Green Version]
  30. Godefroid, L.B.; Moreira, L.P.; Vilela, T.C.G.; Faria, G.L.; Candido, L.C.; Pinto, E.S. Effect of chemical composition and microstructure on the fatigue crack growth resistance of pearlitic steels for railroad application. Int. J. Fatigue 2019, 120, 241–253. [Google Scholar] [CrossRef]
  31. Cano, A.J.; Salazar, A.; Rodríguez, J. Evaluation of different crack driving forces for describing the fatigue crack growth behaviour of PET-G. Int. J. Fatigue 2018, 107, 27–32. [Google Scholar] [CrossRef]
  32. Rocha, A.V.M.; Akhavan-Safar, A.; Carbas, R.; Marques, E.A.S.; Goyal, R.; El-Zein, M.; da Silva, L.F.M. Paris law relations for an epoxy-based adhesive. Proc. Inst. Mech. Eng. Part L J. Mater. Des. Appl. 2019. [Google Scholar] [CrossRef]
  33. Main, B.; Evans, R.; Walker, K.; Yu, X.; Molent, L. Lessons from a fatigue prediction challenge for an aircraft wing shear tie post. Int. J. Fatigue 2019, 123, 53–65. [Google Scholar] [CrossRef]
  34. Lo, M.; Jones, R.; Bowler, A.; Dorman, M.; Edwards, D. Crack growth at fastener holes containing intergranular cracking. Fatigue Fract. Eng. Mater. Struct. 2017, 40, 1664–1675. [Google Scholar] [CrossRef]
  35. Molent, L.; Jones, R. The influence of cyclic stress intensity threshold on fatigue life scatter. Int. J. Fatigue 2016, 82, 748–756. [Google Scholar] [CrossRef]
  36. Jones, R.; Raman, S.R.K.; McMillan, A.J. Crack growth: Does microstructure play a role? Eng. Fract. Mech. 2018, 187, 190–210. [Google Scholar] [CrossRef]
  37. Jones, R.; Peng, D.; Raman, S.R.K.; Huang, P. Computing the growth of small cracks in the assist round robin helicopter challenge. Metals 2020, 10, 944. [Google Scholar] [CrossRef]
  38. Jones, R.; Molaei, R.; Fatemi, A.; Peng, D.; Phan, N. A note on computing the growth of small cracks in AM Ti-6Al-4V, 1st Virtual European conference on fracture. Procedia Struct. Integr. 2020, 28, 364–369. [Google Scholar] [CrossRef]
  39. Jones, R.; Rans, C.; Iliopoulos, A.P.; Michopoulos, J.G.; Phan, N.; Peng, D. Modelling the variability and the anisotropic behaviour of crack growth in SLM Ti-6Al-4V. Materials 2021, 14, 1400. [Google Scholar] [CrossRef]
  40. Sanaei, N.; Fatemi, A. Defects in additive manufactured metals and their effect on fatigue performance: A state-of-the-art review. Prog. Mater. Sci. 2021, 117, 100724. [Google Scholar] [CrossRef]
  41. Shamir, M.; Zhang, X.; Syed, K.A. Characterising and representing small crack growth in an additive manufactured titanium alloy. Eng. Fract. Mech. 2021. [Google Scholar] [CrossRef]
  42. Jones, R.; Kovarik, O.; Bagherifard, S.; Cizek, J.; Lang, J.; Papyan, V. Damage tolerance assessment of am 304l and cold spray fabricated 316l steels and its implications for attritable aircraft. Eng. Fract. Mech. 2021, 254, 107916. [Google Scholar] [CrossRef]
  43. Berens, A.P.; Hovey, P.W.; Skinn, D.A. Risk Analysis for Aging Aircraft Fleets-Volume 1: Analysis, WL-TR-91–3066, Flight Dynamics Directorate, Wright Laboratory, Air Force Systems Command, Wright-Patterson Air Force Base. October 1991. Available online: https://apps.dtic.mil/sti/citations/ADA252000 (accessed on 2 July 2021).
  44. Main, B.; Molent, L.; Singh, R.; Barter, S. Fatigue crack growth lessons from thirty-five years of the Royal Australian Air Force F/A-18 A/B hornet aircraft structural integrity program. Int. J. Fatigue 2020, 1330. [Google Scholar] [CrossRef]
  45. Miller, K.J.; Zachariah, K.P. Cumulative damage laws for fatigue crack initiation and stage I propagation. J. Strain Anal. 1977, 11, 262–270. [Google Scholar] [CrossRef]
  46. Niu, M.C.Y. Composite Airframe Structures: Practical Design Information and Data; Conmilit Press: Hong Kong, China, 1992; ISBN 9627128090. [Google Scholar]
  47. Rouchon, J. Fatigue and Damage Tolerance Evaluation of Structures: The Composite Materials Response; NLR-TP-2009-221; National Aerospace Laboratory NLR: Rotterdam, The Netherlands, 2009; Available online: https://reports.nlr.nl/handle/10921/224 (accessed on 2 July 2021).
  48. Det Norske Veritas, Recommended Practice, RP-C203: Fatigue Design of Offshore Steel Structures. DNVGL-RP-0005. June 2014. Available online: https://rules.dnv.com/docs/pdf/dnvpm/codes/docs/2010-04/RP-C203.pdf (accessed on 2 July 2021).
  49. Det Norske Veritas, Offshore Standard, Composite Components. DNV-OS-C50. November 2013. Available online: https://www.dnv.com/oilgas/download/dnvgl-st-c501-composite-components.html (accessed on 2 July 2021).
Materials 14 04451 g001 550

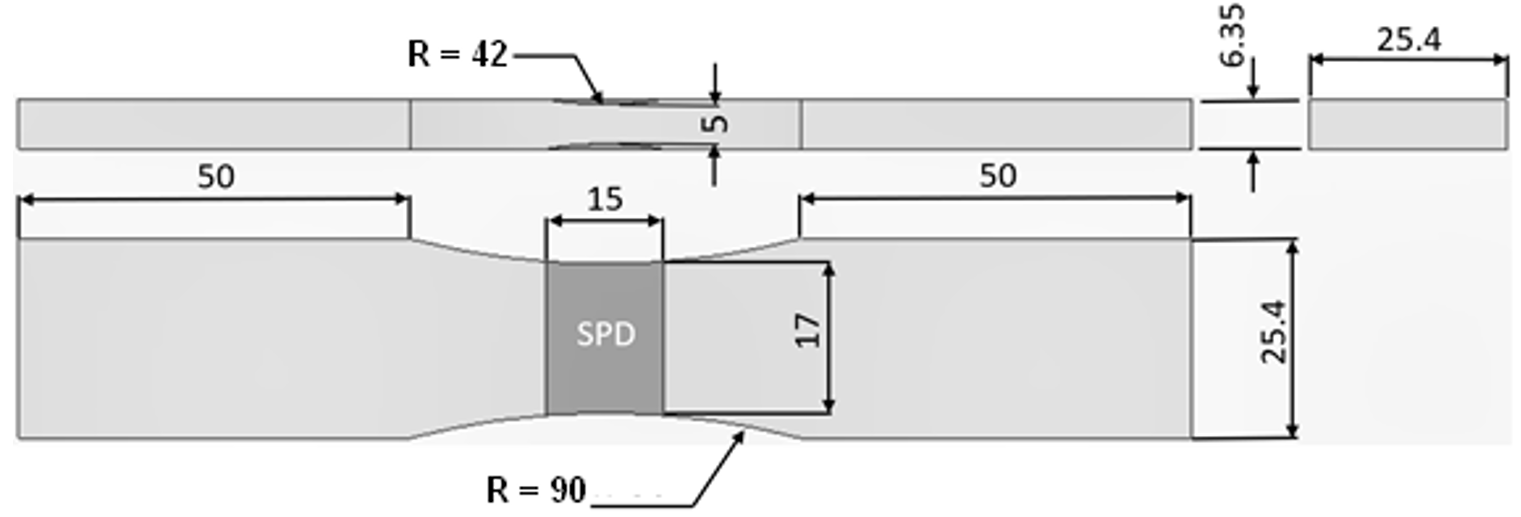

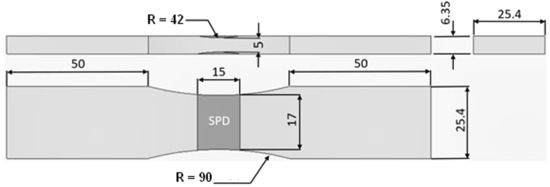

Figure 1. Dimensions of the “dog bone” specimen geometry.
Figure 1. Dimensions of the “dog bone” specimen geometry.
Materials 14 04451 g001
Materials 14 04451 g002 550

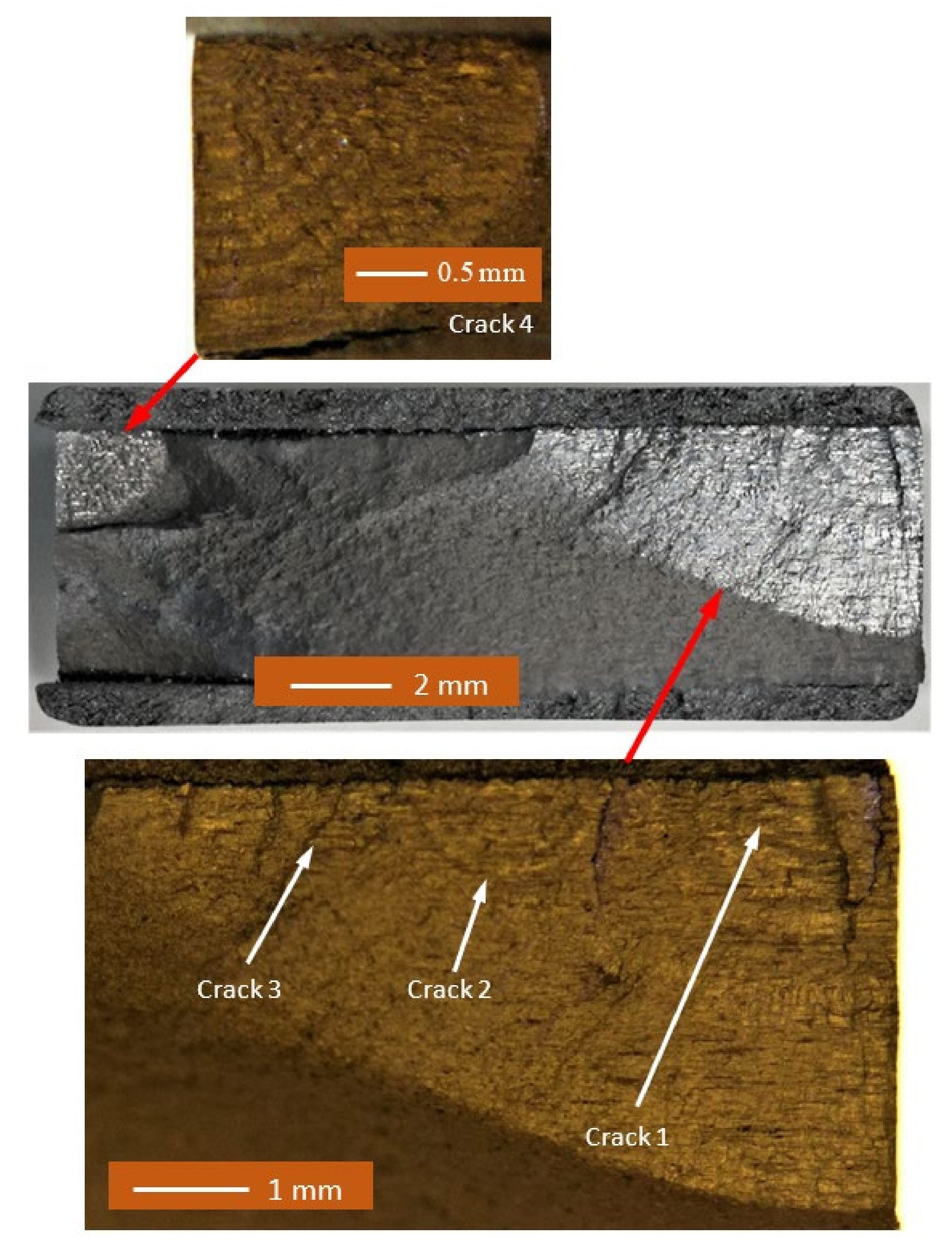

Figure 2. Failure surface associated with test specimen 1.
Figure 2. Failure surface associated with test specimen 1.
Materials 14 04451 g002
Materials 14 04451 g003 550

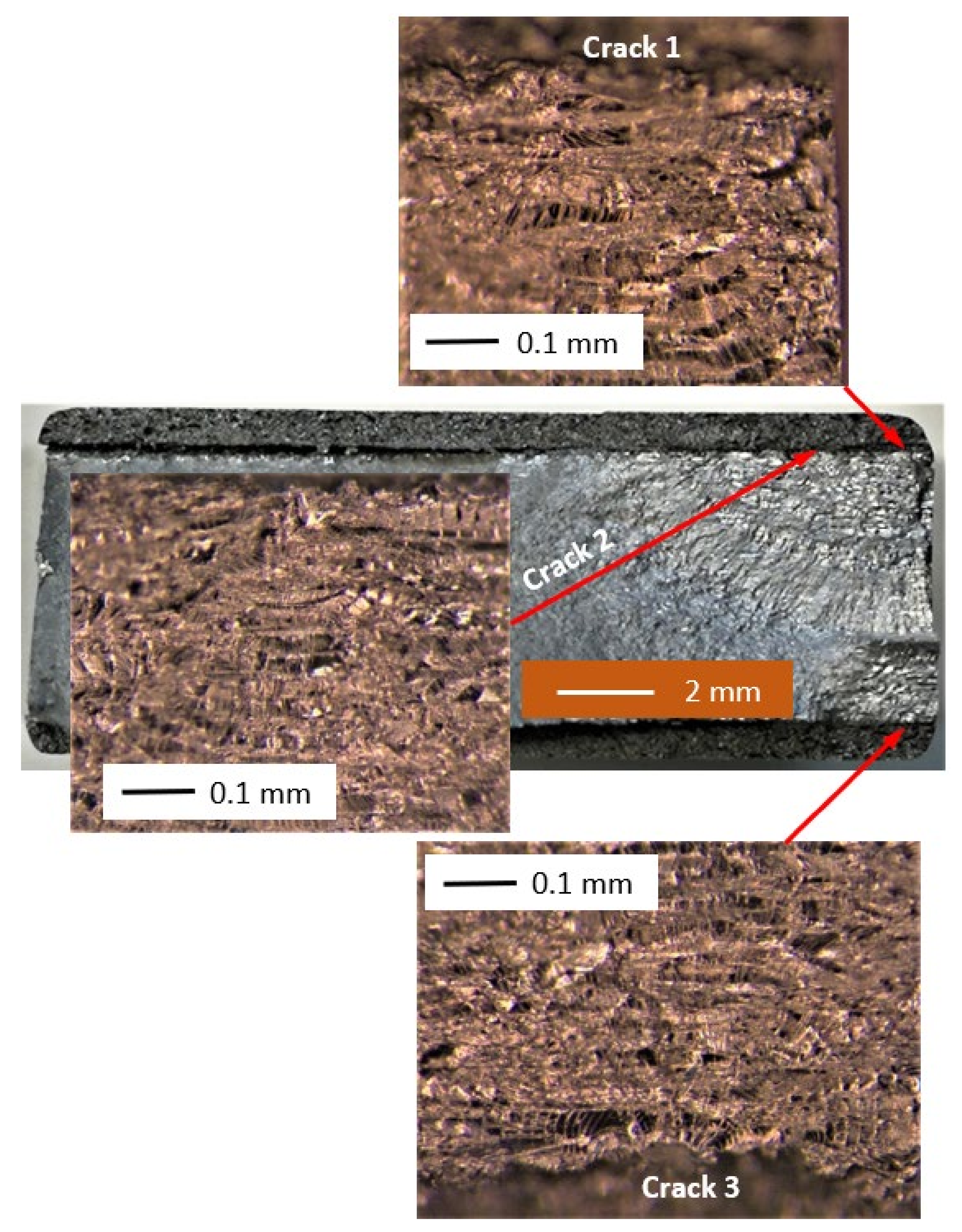

Figure 3. Failure surface associated with test specimen 2.
Figure 3. Failure surface associated with test specimen 2.
Materials 14 04451 g003
Materials 14 04451 g004 550

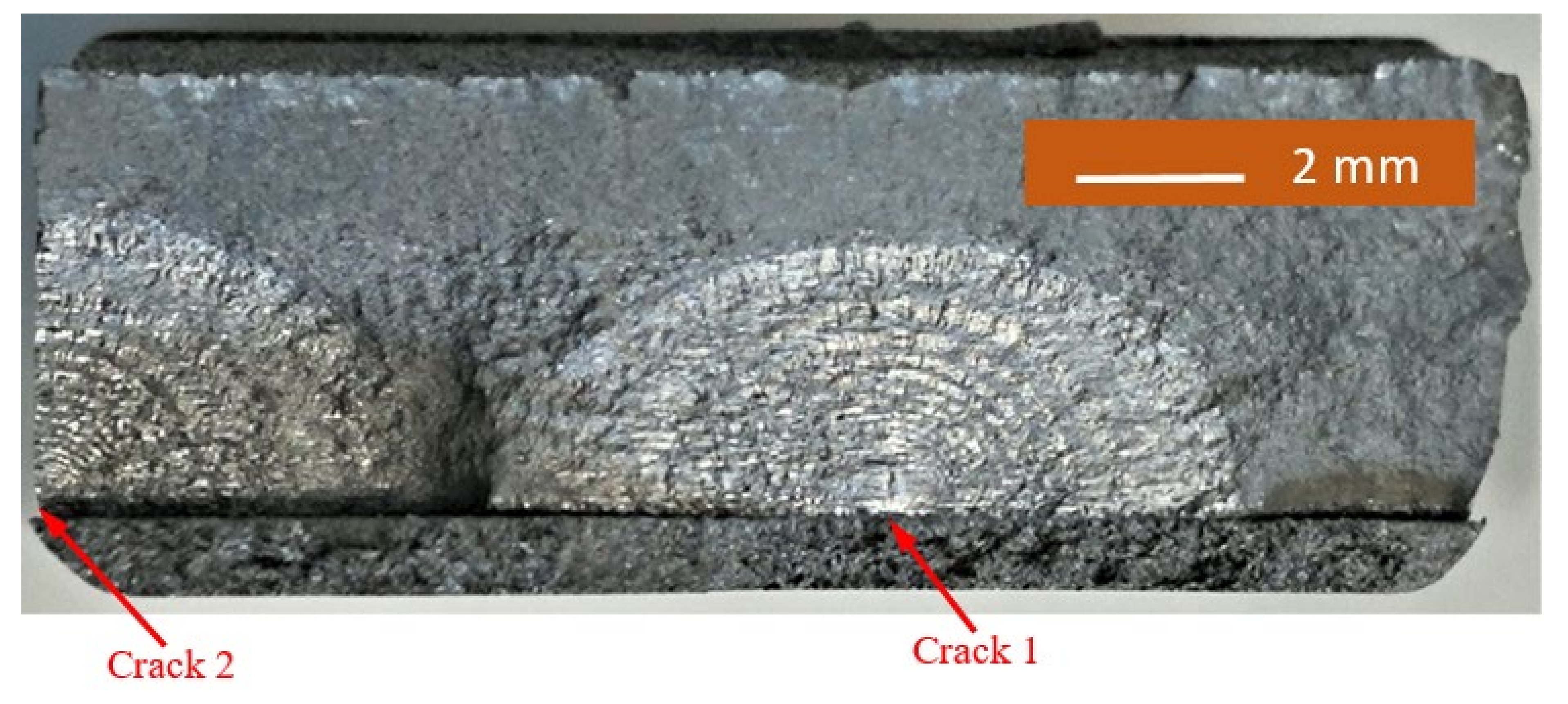

Figure 4. Failure surface associated with test specimen 3.
Figure 4. Failure surface associated with test specimen 3.
Materials 14 04451 g004
Materials 14 04451 g005 550

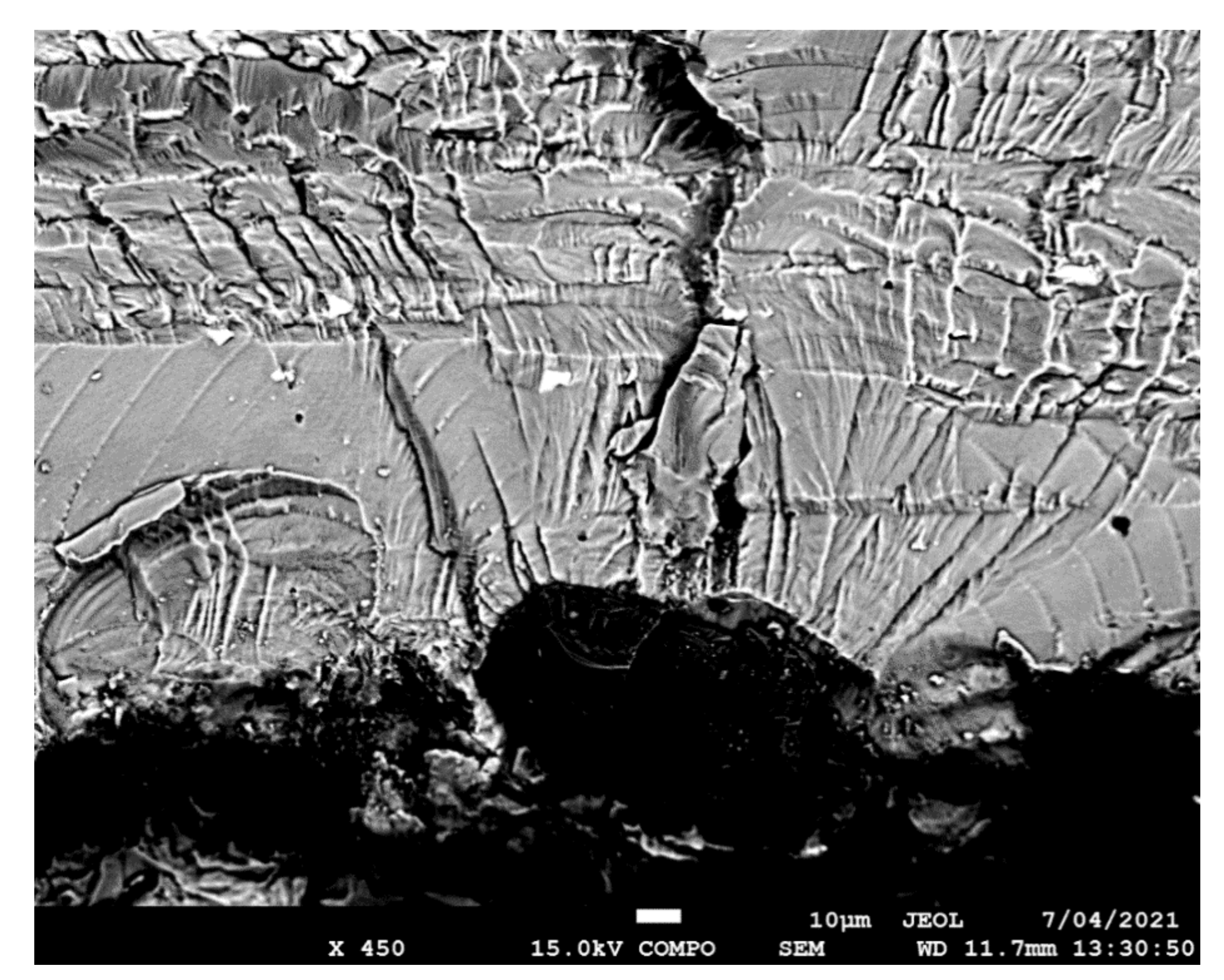

Figure 5. SEM of the lead crack (Crack 1) in specimen 1.
Figure 5. SEM of the lead crack (Crack 1) in specimen 1.
Materials 14 04451 g005
Materials 14 04451 g006 550

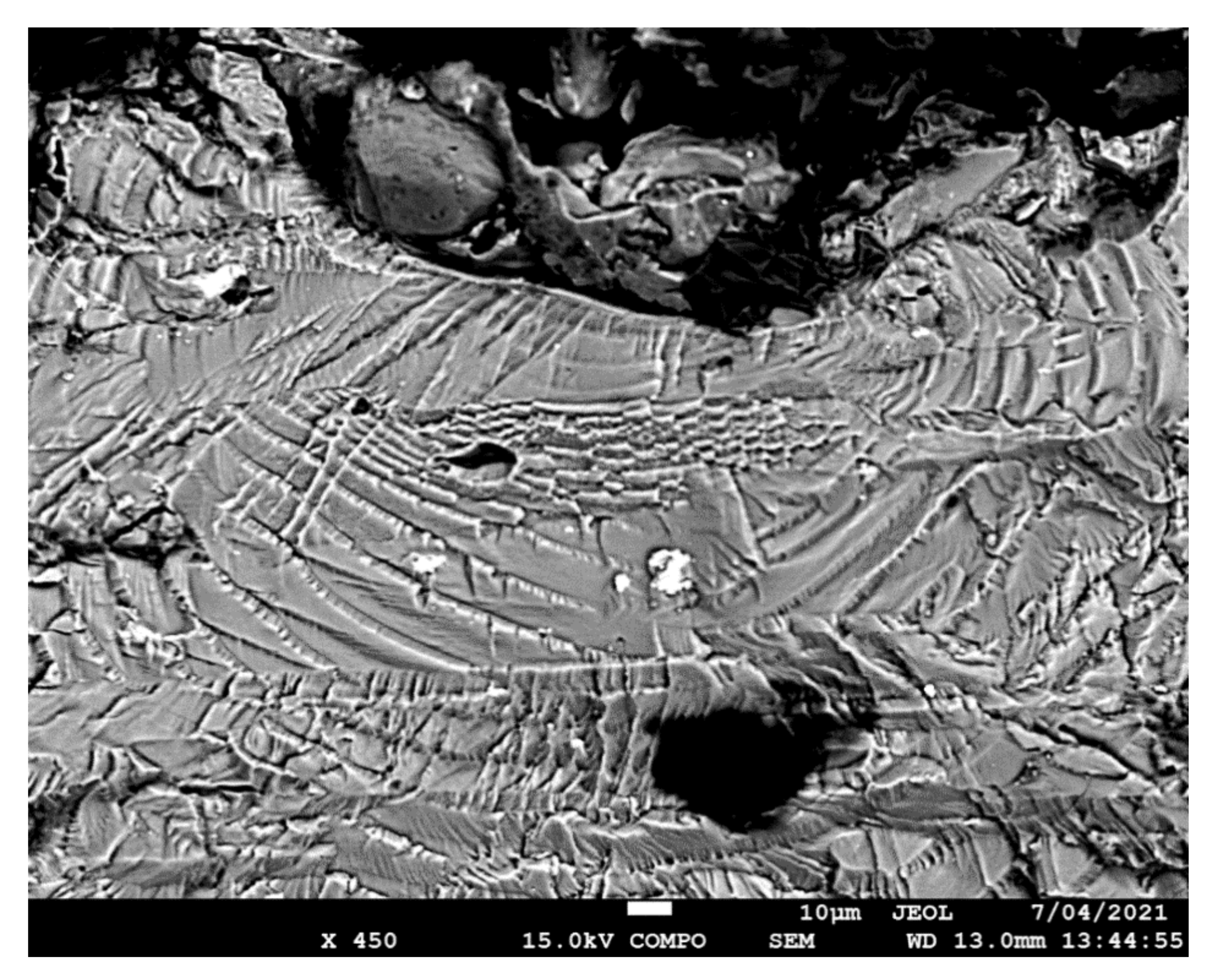

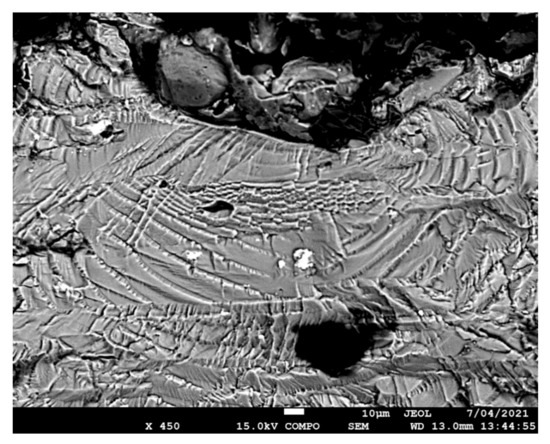

Figure 6. SEM of the lead crack (Crack 1) in specimen 2.
Figure 6. SEM of the lead crack (Crack 1) in specimen 2.
Materials 14 04451 g006
Materials 14 04451 g007 550

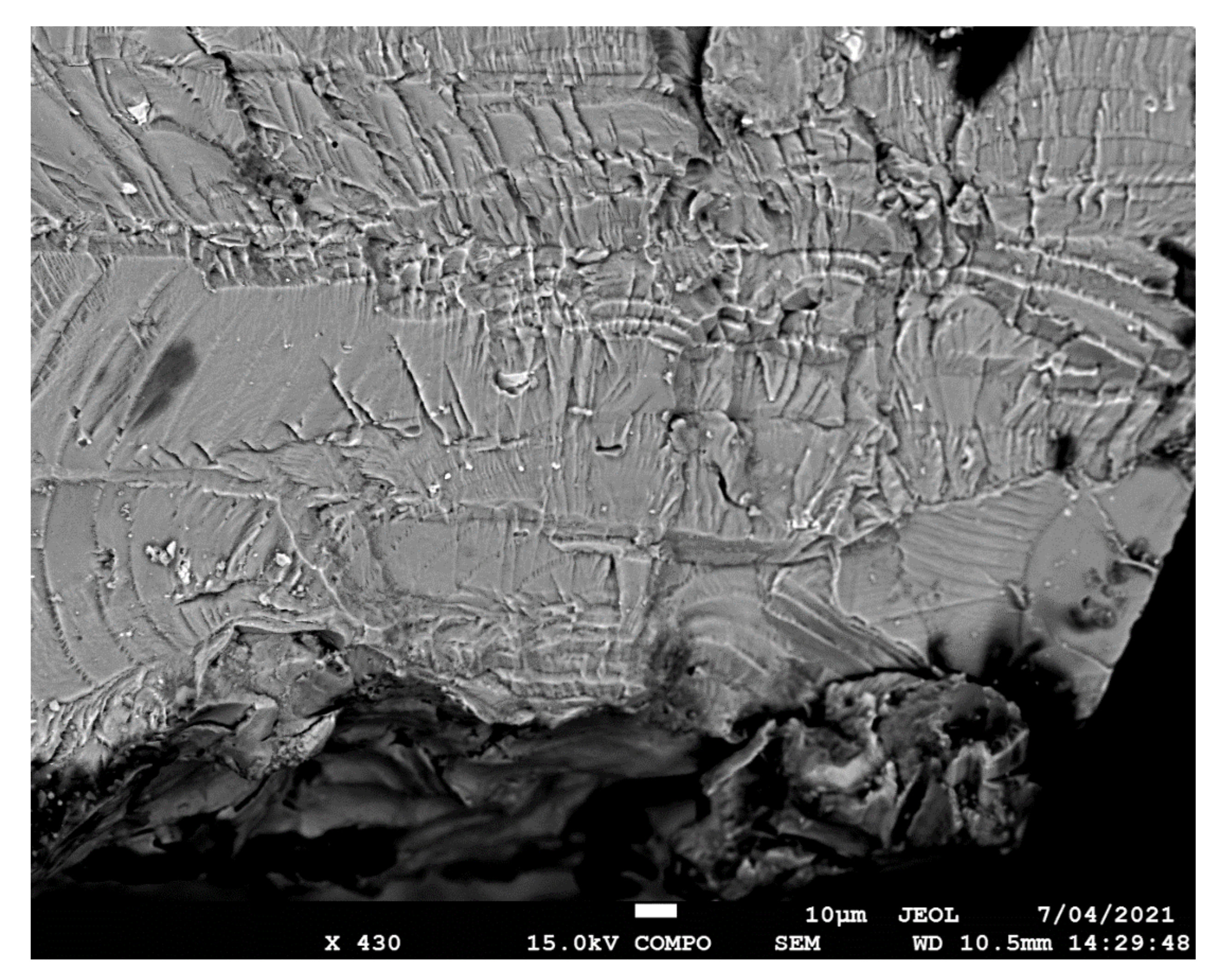

Figure 7. SEM of the lead crack (Crack 2) in specimen 3.
Figure 7. SEM of the lead crack (Crack 2) in specimen 3.
Materials 14 04451 g007
Materials 14 04451 g008 550

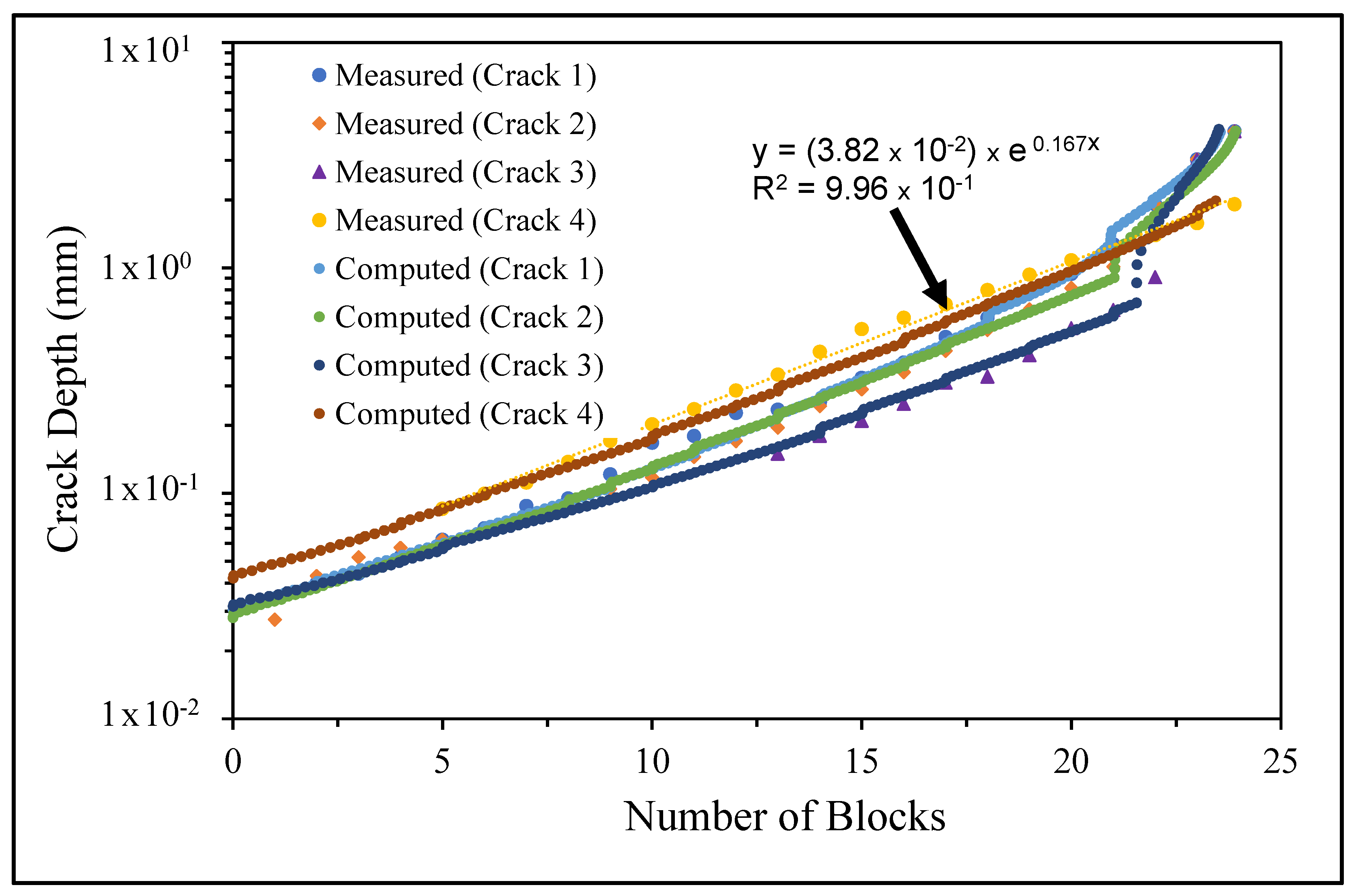

Figure 8. Measured and computed crack growth histories for specimen 1.
Figure 8. Measured and computed crack growth histories for specimen 1.
Materials 14 04451 g008
Materials 14 04451 g009 550

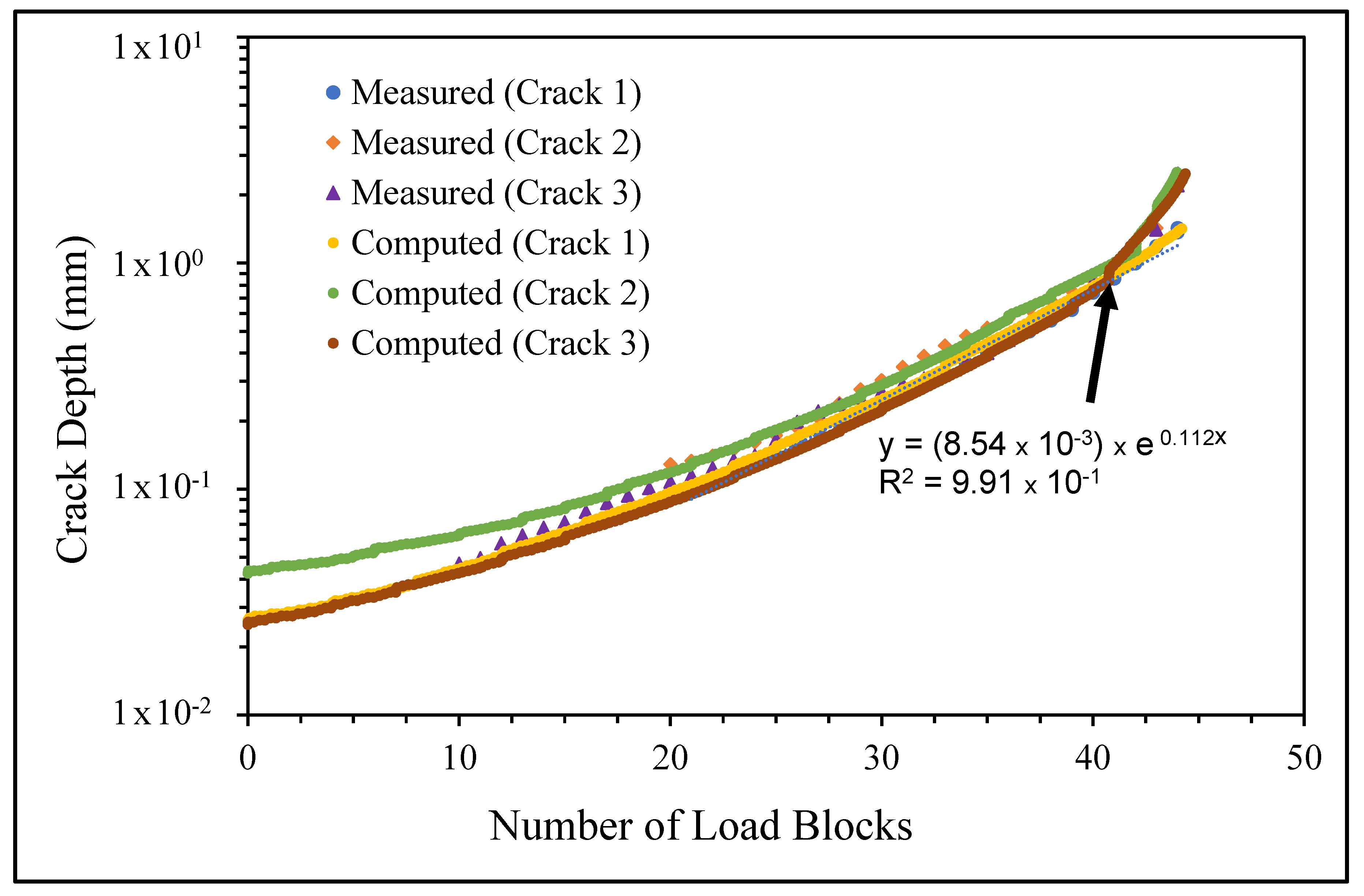

Figure 9. Measured and computed crack growth histories for specimen 2.
Figure 9. Measured and computed crack growth histories for specimen 2.
Materials 14 04451 g009
Materials 14 04451 g010 550

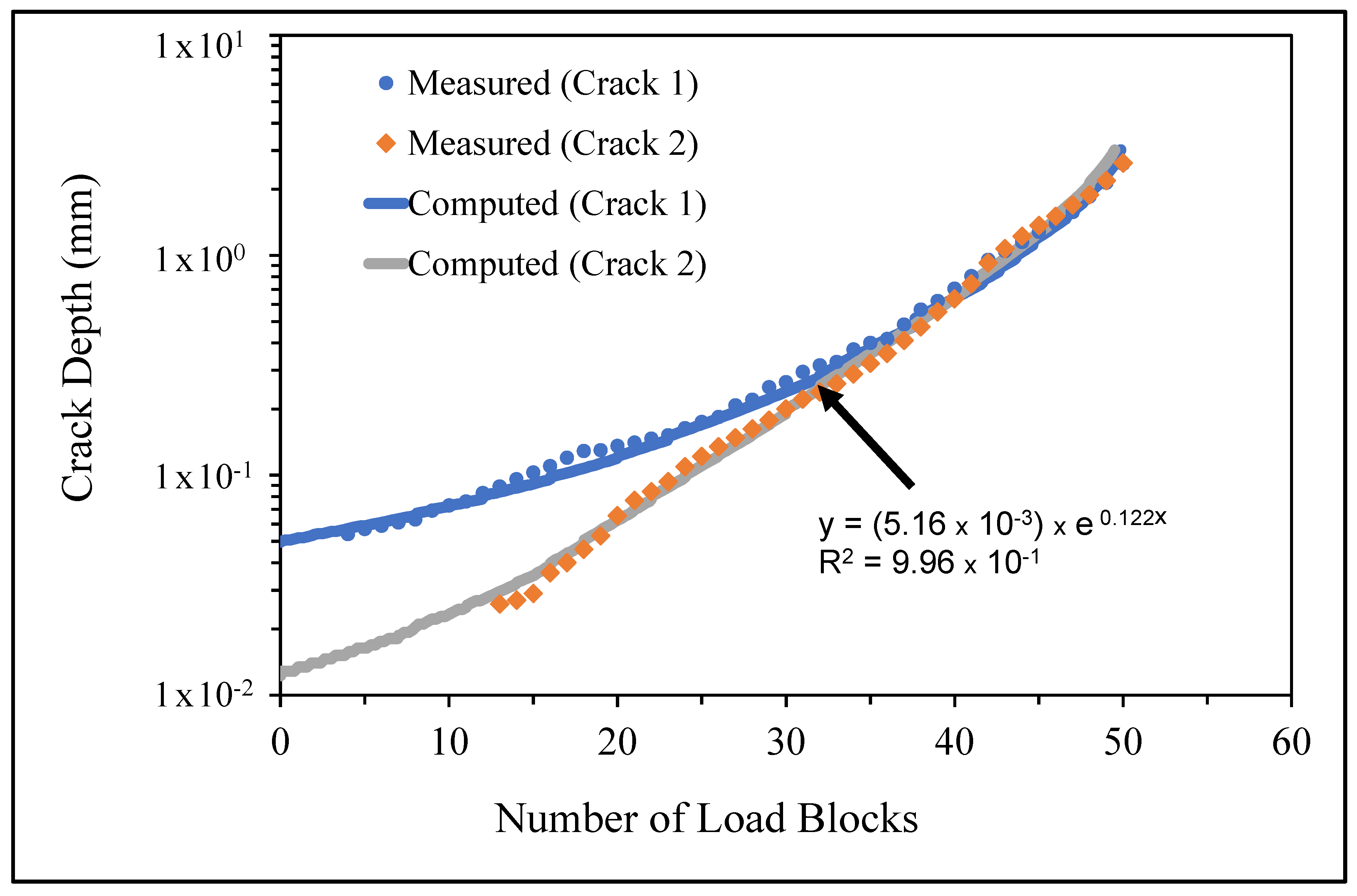

Figure 10. Measured and computed crack growth histories for specimen 3.
Figure 10. Measured and computed crack growth histories for specimen 3.
Materials 14 04451 g010
Table
Table 1. Block loading spectrum.
Table 1. Block loading spectrum.
SpectrumPmaxCycles
kNR = 0.1R = 0.8
33030015,000
526.7730015,000
Table
Table 2. The block loading spectrum used in the fatigue tests and the cold spray thicknesses.
Table 2. The block loading spectrum used in the fatigue tests and the cold spray thicknesses.
Specimen IDBlock Load SpectrumThickness * of Cold Spray (mm)
130.735
250.730
350.840
* This does not include the thickness of the cold spray used to fill the simulated corrosion cut.
Table
Table 3. The initial crack lengths (EIDS) and values of ΔKthr (MPa √m) used in the crack growth analyses.
Table 3. The initial crack lengths (EIDS) and values of ΔKthr (MPa √m) used in the crack growth analyses.
Specimen IDCrack IDInitial Crack Sizes Used in the Analysis (mm)ΔKthr (MPa √m)
110.03000.06
20.02750.07
30.03100.05
40.04100.07
210.02630.150
20.03420.252
30.02550.143
310.04800.2
20.0060.12
