Article

Biodistribution of Quantum Dots-Labelled Halloysite Nanotubes: A Caenorhabditis elegans In Vivo Study

by
Anna Stavitskaya
1,*,
Gölnur Fakhrullina
2,
Läysän Nigamatzyanova
2,
Eliza Sitmukhanova
1,
Elnara Khusnetdenova
1,
Rawil Fakhrullin
1,2,* and
Vladimir Vinokurov
1
1
Department of Physical and Colloid Chemistry, Russian State University of Oil and Gas (National Research University), Leninsky Prospect, 65, 119991 Moscow, Russia
2
Institute of Fundamental Medicine and Biology, Kazan Federal University, Kreml urami 18, 420008 Kazan, Republic of Tatarstan, Russia
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(19), 5469; https://doi.org/10.3390/ma14195469
Submission received: 9 August 2021 / Revised: 17 September 2021 / Accepted: 18 September 2021 / Published: 22 September 2021
(This article belongs to the Special Issue Nanoarchitectonics: A New Paradigm for Materials Science with Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Halloysite is a promising building block in nanoarchitectonics of functional materials, especially in the development of novel biomaterials and smart coatings. Understanding the behavior of materials produced using halloysite nanotubes within living organisms is essential for their safe applications. In this study, quantum dots of different compositions were synthesized on the surface of modified clay nanotubes, and the biodistribution of this hybrid material was monitored within Caenorhabditis elegans nematodes. The influence of the modification agent as well as the particles’ composition on physicochemical properties of hybrid nanomaterials was investigated. Several microscopy techniques, such as fluorescence and dark-field microscopy, were compared in monitoring the distribution of nanomaterials in nematodes’ organisms. The effects of QDs-halloysite composites on the nematodes’ life cycle were investigated in vivo. Our fluorescent hybrid probes induced no acute toxic effects in model organisms. The stable fluorescence and low toxicity towards the organisms suggest that the proposed synthesis procedure yields safe nanoarchitectonic materials that will be helpful in monitoring the behavior of nanomaterials inside living cells and organisms.

1. Introduction

A nanoarchitectonics approach for targeted production of biomaterials, catalysts, membranes, sensors and smart coatings based on halloysite is a fast-developing area of research [1,2,3,4,5]. In biomedical studies, halloysite clay nanotubes have been extensively studied as a component of food packaging materials, tissue engineering scaffolds, drug delivery systems, bone implants, as antibacterial materials and in cosmetics [6,7,8,9,10,11]. Together with organoclay composites, the synthesis of nanoparticles of various shapes, compositions, and functional properties using halloysite clay tubes as a template is exceptionally promising due to a large number of prospective applications.
Scientific and industrial applications motivate the collection of more data on halloysite-based nanomaterials toxicity and behavior within living organisms [12,13,14]. Pristine halloysite nanotubes are known to be biocompatible, which has been demonstrated in various cell cultures and organisms. When other nanoparticles are synthesized or adsorbed on the surface of clay tubes, their toxicity and behavior might be different from that of pristine nanotubes, which was previously reported based on in vitro and in vivo studies [15,16,17,18].
Currently, just a handful of papers report on the cytotoxicity of semiconductor nanoparticles stabilized on halloysite and even less are based on the studies using the clay-derived nanomaterials in vivo [14,19,20]. One of the reasons to investigate these issues is that the monitoring of pristine halloysite or nonfluorescent probes in vivo is difficult due to the low contrast of materials to living tissues. The anchoring of fluorescent quantum dots (QDs) to nanoclay will be helpful to obtain novel insights about cellular uptake and halloysite transportation within the organisms [21]. We have recently demonstrated that quantum dots synthesized in situ on halloysite were more stable fluorescent probes if compared to traditional fluorescence dyes [22,23].
Quantum dots have a great advantage due to composition-dependent optical properties, such as fluorescence emission spectra, quantum yield and stability. Free QDs have been extensively investigated recently. The CdS, ZnS, and CdSe free QDs, showed to be toxic to Caenorhabditis elegans [24]. Nanoarchitectonics approach to the design of fluorescent QDs based on clay tubes and their in vivo studies will help to design less toxic fluorescent probes for bioimaging and on-line monitoring of nanomaterials in living organisms.
C. elegans is a free-living soil nematode with a body length of 1 mm and a width of 70–90 µm, which is frequently used as a model organism for studying various processes in biology, including energy metabolism, immunity and aging. Reproduction rate, optical transparency of the body, the short life cycle (3 days), the short life span (2–3 weeks), being not expensive, and relatively easy cultivation in a laboratory make this nematode species an ideal model organism [25]. Importantly, the bioinformatic analysis demonstrated that 60–80% of C. elegans genes are homologous to human genes [26]. For this reason, these nematodes are widely used to model complex human diseases, including Alzheimer’s disease [27], Parkinson’s disease [28], diabetes mellitus [29], Duchenne muscular dystrophy [30] and cancer [31]. In addition, the free-living C. elegans nematodes are considered as an important alternative in vivo model system for laboratory studies of toxic effects and elucidation of the fundamental mechanisms of the formation of toxicity in engineering nanomaterials [32,33,34].
Microscopy imaging can reveal the uptake efficiency, dispersion state and potential cytotoxicity of nanomaterials. Fluorescence imaging using wide-field fluorescence or confocal laser scanning microscopy is among the most commonly used methods for visualization and tracking of nanomaterials, providing dynamic and real-time information of the interactions between nanomaterials and organisms. In this work, quantum dots with different compositions synthesized on the surface of modified halloysite nanotubes were used for monitoring of the distribution of clay inside C. elegans nematodes. Their physicochemical properties were investigated in relation to composition and synthesis procedure. The toxicity of this material was studied in vivo. Fluorescent imaging was compared to the enhanced dark-field hyperspectral imaging (EDF-HSI), which combines dark-field microscopy (DEM) and hyperspectral imaging (HSI), to monitor the nanomaterials inside living organisms.

2. Materials and Methods

2.1. Materials

Halloysite (HNT), f Furan-2-carbaldehyde (C5H4O2), (3-aminopropyl)triethoxysilane (APTES), cadmium nitrate tetrahydrate (Cd(NO3)2·4H2O) and zinc nitrate hexahydrate (Zn(NO3)2·6H2O) were purchased from Sigma-Aldrich (St. Louis, MO, United States), while thioacetamide (TAA), ammonium hydroxide solution (NH4OH) and 96% ethanol and hydrazine hydrate (N2H4) were all purchased from Acros.

2.2. Synthesis of Quantum Dots on HNT

2.2.1. HNT Surface Modification with (3-Aminopropyl)triethoxysilane

A total of 0.2 g of APTES was added to a dispersion of 1 g of HNT in ethanol, and the mixture was kept in an ultrasonic bath for 30 min and then transferred to a closed flask and stirred at 60 °C for 24 h. Afterward, the dispersion was washed several times with ethanol to eliminate an excess of the reagents. The precipitate was dried at 60 °C for 12 h.

2.2.2. Halloysite Surface Modification with 1,2-Bis(2-furylmethyl-ene)hydrazine

A total of 1 g of halloysite was dispersed in 20 mL of hydrazine hydrate and stirred for 30 min. The excess hydrazine was removed by centrifugation. To the precipitate, 30 mL of furfural solution in ethanol was added, and the dispersion was ultrasonicated for 30 min to result in 1,2-Bis(2-furylmethyl-ene)hydrazine (azine) on the surface of clay nanotubes.

2.2.3. QDs Synthesis on the Surface of Modified Clay Nanotubes

For the synthesis of CdS or Cd0.7Zn0.3S QDs on the surface of clay tubes, the obtained HNT-NH2 or HNT-Azine was dispersed in a Cd(NO3)2 or Cd(NO3)2/Zn(NO3)2 ethanolic solution of calculated concentration and kept in an ultrasonic bath for 30 min. Then the TAA ethanolic solution with concentration calculated, taking into account a S/Me molar ratio of 1, was added, and the pH was adjusted to 10 with NH4OH. The reaction time was 5 min. After the reaction, the precipitate was centrifuged, washed several times with ethanol and dried at 60 °C for 24 h. The resulting samples were named HNT-NH2-CdS, HNT-Azine-CdS or HNT-Azine-Cd0.7Zn0.3S. The scheme of synthesis is shown in Figure 1.

2.3. Nanomaterials Characterization

The morphology of the nanomaterials was studied using transmission electron microscopy (TEM) (JEM-2100, JEOL, Tokyo, Japan). To analyze the elemental compositions of the samples, inductively coupled plasma mass spectrometry (ICP-MS) was used (Agilent, Santa Clara, California, USA). The crystalline structure was analyzed with X-ray phase analysis (Bruker D8, Bruker, Billerica, Massachusetts, USA). The analysis was carried out using Cu Kα radiation (wavelength 0.154 nm, voltage 40 kV, current 40 mA). Spectral characterization was carried out with UV-Vis diffuse reflectance spectra analysis in the range of 350–800 nm with 1 nm of resolution (Jasco V-770, Shimadzu, Tokyo, Japan). The fluorescence spectra of nanomaterials were measured from a solid sample using a fluorometer (Agilent Cary Eclipse, Santa Clara, California, USA) at room temperature in a region from 200 to 600 nm. Zeta-potential measurements were conducted using nanoparticles size analyzer SZ-100 (Horiba, Tokyo, Japan).

2.4. In Vivo Studies

Nematode cultures [15] were grown at 20 °C in Petri dishes filled with Nematode Growth Media supplemented with Escherichia coli OP50 bacteria as a food source. The sterile eggs were inoculated to the nutrient agar media, and the animals were cultivated to reach the adult hermaphrodite developmental stage. To consider the efficiency of the delivery of nanoparticles and their toxicity, we evaluated certain physiological parameters, such as body length and reproductive potential (egg number per animal). Both body length and fertility were determined using optical microscopy images of adult nematodes at certain times, as indicated. An Olympus BX51optical microscope equipped with CytoViva dark-field condenser was used to study the distribution of nanoparticles in nematodes. Optical bright-field and epifluorescence microscopy experiments were conducted using a Carl Zeiss Imager Z2 upright optical microscope equipped with apochromatic objectives (40×, 63× and 100×). Fluorescence imaging was performed using Carl Zeiss HXP 120 C excitation light source and Carl Zeiss fluorescence FITC narrow band cube (excitation: 475/40 nm, emission: 530/50 nm). Images were captured using an HRC CCD camera (Carl Zeiss). Nematodes were cultivated for 3 days on 6 lunar planets in a solid medium with the addition of the various studied samples of nanotubes (CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, CdS/HNT-NH2) at a concentration of 1 mg/mL (0.5 mg/mL). The pristine halloysite nanotubes were used as the reference sample.

3. Results and Discussion

The spectral characteristics of quantum dots are outlined by their composition and structure; therefore, nanoarchitectonics of semiconductors and semiconductors-based hybrid materials is important for research and industrial applications. Currently, the synthesis of QDs of different compositions in situ on the surface of inorganic nanomaterials and investigation of their properties, including in vivo studies, is poorly studied. Herein, based on the QDs-halloysite composites, we show a novel approach for the synthesis of nanostructured hybrid photonic materials and potential applications of such probes in monitoring nanomaterials in vivo.
The synthesis of CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine and CdS/HNT-NH2 was performed according to a procedure described in [22] (Figure 1). The stabilization of QDs on the surface of clay tubes was achieved by prior surface modification with (3-aminopropyl)triethoxysilane (APTES) or 1,2-Bis(2-furylmethyl-ene)hydrazine (azine). CdS and Cd0.7Zn0.3S were synthesized in situ on the surface of modified clay following a simple precipitation method. We demonstrate that this kind of synthesis procedure led to the self-organization of sulfide particles with less than 10 nm size selectively on the surface of the clay and not in the bulk. Such materials are quite stable and have good water dispersibility.
TEM investigation revealed that all samples exhibited a homogeneous distribution of QDs on the surface of modified clay tubes (Figure 2a). Due to the close packing of nanoparticles and their transparency under the electron beam, it was difficult to determine particles size distribution using TEM. The crystal structure of materials was confirmed by XRD (Figure 2b). Pristine halloysite displayed characteristic Bragg peaks at 2θ = 11.52, 19.95, 24.63, 34.91 and 54.51 ° [1]. The XRD patterns of functional materials proved the formation of sulfide particles with less than 10 nm (QDs). In the case of halloysite with CdS nanoparticles synthesized on the surface of azine modified halloysite CdS/HNT-Azine, new peaks were revealed at 2θ = 43.01 and 52.54°, corresponding to cubic CdS [35]. For the Cd0.7Zn0.3S/HNT-Azine, the reflectance peak correspondent to (110) lattice plane shifted to the higher diffraction angles (44.8°), indicating the formation of Cd0.7Zn0.3S solid solution [36]. CdS/HNT-NH2 refractogram had Bragg peaks at 2θ = 43.21 and 52.34°, corresponding to cubic CdS lattice.
Elemental composition analysis was performed using ICP-MS. Cd content was found to be 3.5, 3.2, and 3.9 wt.% in CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2, respectively. Zn content was 0.9 wt.% in Cd0.7Zn0.3S/HNT-Azine. This is in good correlation with the calculated amounts of metals used during the synthesis procedure.
Zeta-potential measurements were performed at each reaction stage. We found that successful surface modification with APTES changed zeta-potential for pristine halloysite from −45 to +12 mV. Modification with azine resulted in a slight change in this value to −25 mV. HNTs-QDs composites were characterized by zeta-potential values of −30, −32, and −20 mV in CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2.
Spectral characteristics of QDs-halloysite composite were analyzed to investigate the influence of the composition to the properties of QDs stabilized on clay tubes. A broad absorption region below 500 nm in all samples was attributed to the charge transfer from the valence to the conduction band of QDs (Figure 3a). UV-Vis diffuse reflectance spectra mathematical processing revealed that the band gap of the materials was dependent on the composition of quantum dots (Figure 3b). It equaled 2.52, 2.50, and 2.61 eV for CdS/HNT-NH2, CdS/HNT-Azine, and Cd0.7Zn0.3S/HNT-Azine, respectively. The band gap of a bulk CdS is 2.4 eV [37]. A slight increase in band gap values in the case of CdS stabilized on modified clay could be due to the very small particles size of sulfide crystals. Further increase in the band gap in the case of Cd0.7Zn0.3S/HNT-Azine was due to the formation of solid Cd0.7Zn0.3S solution. The addition of Zn in various concentrations increases a band gap of mixed sulfide [38].
In vivo studies of QDs-halloysite composites were performed using C. elegans as a model organism. First, we investigated the biodistribution of the clay nanotubes in the nematodes, as shown in Figure 4; in all experiments, halloysite nanotube composites in the form of yellow spots were exclusively seen in the worm’s digestive system, from the bulbus to the anus, with significant congestion in the pharynx, mainly in the extensions, and tail. Nanotubes were also clearly visible in the middle part of the gut, but fewer aggregations were observed. Single isolated halloysite nanotubes were not static or intestine-attached; instead, Brownian motion patterns of halloysite in the intestines of nematodes were detected. It is important to note that halloysite nanotubes were not found outside the nematode intestine. Previous studies indicate that silicon oxide nanoparticles enter the organism of C. elegans not only through the oral apparatus but also through the vulva, from where they diffuse into other organs [24].
The distribution of quantum dots stabilized on the surface of halloysite nanotubes inside the intestine of nematodes is shown in fluorescence photographs as bright blue clusters in the pharynx and tail (Figure 4b). In the control experiments, the nanotubes do not show fluoresce; however, the autofluorescence of the lipofuscin droplets is observed in the intestinal cells (Figure 4a(B1)). During the ingestion of bacterial food, nanotubes were pushed down the digestive tract and taken out within an hour. Consequently, nematodes have normal feeding behavior, just like the worms that were fed normal bacterial food (with no nanotubes added). This indicates that the exposure and the need for nanotubes with stabilized quantum dots do not cause a gross behavioral defect in the organism.
The dark-field images (Figure 5a) confirm the effectiveness of uptake of halloysite nanotube decorated with stabilized quantum dots on their surface. Apart from dark-field images, the light scattering intensity of nanomaterials were studied in the hyperspectral microscopy mode. The corresponding spectra (absorption peak ranges) differ from those of the initial halloysite nanotubes and from each other due to QDs composition and surrounding differences (Figure 5b,c). The most intensive signal was obtained in the case of QDs supported on halloysite modified in APTES. This is more likely to be attributed to surface modification. Earlier it has been shown that the optical scattering intensity of the peptide nanoparticles was enhanced by the amidation [39]. Figure 3a also confirms the higher light reflection intensity of this material. As for azine modified halloysite with Cd0.7Zn0.3S, it has a higher light adsorption. Halloysite UV-Vis diffuse reflectance analysis showed that it reflects more than 80% of light in UV and visible regions [40]. Despite this, hyperspectral microscopy showed that its modification leads to better image qualities.
We then investigated some physiological parameters in nematodes exposed to CdS/HNT. We found that long-term exposure (from stage L1 to an adult) with the nanotubes does not cause abnormalities in the reproductive organs of nematodes associated with the appearance of the BOW phenotype, in which fertilized embryos hatch inside the mother’s body and begin to feed on its tissues (Figure 6). In the case of free QDs, the short (12 h to 3 days) and especially long-term (16 days) exposure leads to the accumulation of QDs in the uterus and vulva, the eggs were full of QDs even after short term exposure [26]. Difficulty in laying the eggs, damaged eggs left in the vulva, and damaged eggs without an intact eggshell were observed in this study after 1 day of exposure. As can be seen from Figure 6a, the synthesized samples of HNT-NH2-CdS, HNT-Azine-CdS, and HNT-Azine-Cd0.7Zn0.3S did not affect the reproductive ability of nematodes. By comparing the growth in body length of C. elegans nematodes exposed to CT, we can determine the sensitivity to toxins and toxicity at an early stage of exposure. As can be seen from Figure 6b, the body length of nematodes developing under the influence of nanomaterials did not change significantly. These facts indicate the absence of any acute toxic effects on model organisms in vivo.

4. Conclusions

A new approach that may help in monitoring the behavior of nanomaterials inside living organisms by the anchoring of QDs on their surface was proposed in this study. Fluorescent quantum dots synthesized on the surface of modified clay nanotubes were used to study the distribution of halloysite clay tubes within the body of model nematodes C. elegans. It has been shown that using fluorescent probes with stable fluorescence, it is possible to study the distribution of clay tubes that are extensively studied as drug delivery polymer-composite systems, in food polymeric packages, and other polymer materials. This approach may help to obtain new data on such important issues as nanomaterials toxicity, cells uptake, and the traveling of nanoparticles within a body. It has been stated that these fluorescent QDs stabilized on halloysite nanotubes showed no acute toxic effects on reproduction ability, life cycle, and behavior of model nematodes. It is especially worth noting that the nanomaterials were not found in the uterus, spermatheca, and nematode embryos.

Author Contributions

Conceptualization, V.V., A.S. and R.F.; methodology, A.S. and R.F; investigation, G.F., L.N., E.S. and E.K.; data curation, A.S., R.F. and V.V.; writing—original draft preparation, A.S., L.N., E.S. and G.F.; writing—review and editing, R.F.; visualization, G.F., L.N. and A.S.; supervision, R.F. and V.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Russian Science Foundation (grant 19-79-30091).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Massaro, M.; Colletti, C.G.; Lazzara, G.; Milioto, S.; Noto, R.; Riela, S. Halloysite nanotubes as support for metal-based catalysts. J. Mater. Chem. A 2017, 5, 13278–13293. [Google Scholar] [CrossRef]
  2. Zahidah, K.A.; Kakooei, S.; Ismail, M.C.; Bothi Raja, P. Halloysite nanotubes as nanocontainer for smart coating application: A review. Prog. Org. Coat. 2017, 111, 175–185. [Google Scholar] [CrossRef]
  3. Goda, E.S.; Gab-Allah, M.A.; Singu, B.S.; Yoon, K.R. Halloysite nanotubes based electrochemical sensors: A review. Microchem. J. 2019, 147, 1083–1096. [Google Scholar] [CrossRef]
  4. Saleem, H.; Zaidi, S.J. Nanoparticles in reverse osmosis membranes for desalination: A state of the art review. Desalination 2020, 475, 114171. [Google Scholar] [CrossRef]
  5. Ariga, K.; Leong, D.T.; Mori, T. Nanoarchitectonics for Hybrid and Related Materials for Bio-Oriented Applications. Adv. Funct. Mater. 2017, 28, 1702905. [Google Scholar] [CrossRef]
  6. Du, M.; Guo, B.; Jia, D. Newly emerging applications of halloysite nanotubes: A review. Polym. Inter. 2010, 59, 574–582. [Google Scholar] [CrossRef]
  7. Li, Q.; Ren, T.; Perkins, P.; Hu, X.; Wang, X. Applications of halloysite nanotubes in food packaging for improving film performance and food preservation. Food Control 2021, 124, 107876. [Google Scholar] [CrossRef]
  8. Liu, M.; Jia, Z.; Jia, D.; Zhou, C. Recent advance in research on halloysite nanotubes-polymer nanocomposite. Prog. Polym. Sci. 2014, 39, 1498–1525. [Google Scholar] [CrossRef]
  9. Abdullayev, E.; Sakakibara, K.; Okamoto, K.; Wei, W.; Ariga, K.; Lvov, Y. Natural Tubule Clay Template Synthesis of Silver Nanorods for Antibacterial Composite Coating. ACS Appl. Mater. Interfaces 2011, 3, 4040–4046. [Google Scholar] [CrossRef]
  10. Hanif, M.; Jabbar, F.; Sharif, S.; Abbas, G.; Farooq, A.; Aziz, M. Halloysite nanotubes as a new drug-delivery system: A review. Clay Min. 2016, 51, 469–477. [Google Scholar] [CrossRef]
  11. Stavitskaya, A.; Batasheva, S.; Vinokurov, V.; Fakhrullina, G.; Sangarov, V.; Lvov, Y.; Fakhrullin, R. Antimicrobial applications of clay nanotube-based composites. Nanomaterials 2019, 9, 708. [Google Scholar] [CrossRef] [Green Version]
  12. Leporatti, S.; Cascione, M.; Matteis, V.D.; Rinaldi, R. Design of nano-clays for drug delivery and bio-imaging: Can toxicity be an issue? Nanomedicine 2020, 15, 2429–2432. [Google Scholar] [CrossRef]
  13. Rong, R.; Zhang, Y.; Zhang, Y.; Hu, Y.; Yang, W.; Hu, X.; Zhang, Q. Inhibition of inhaled halloysite nanotube toxicity by trehalose through enhanced autophagic clearance of p62. Nanotoxicology 2019, 13, 354–368. [Google Scholar] [CrossRef]
  14. Santos, A.C.; Pereira, I.; Reis, S.; Veiga, F.; Saleh, M.; Lvov, Y. Biomedical potential of clay nanotube formulations and their toxicity assessment. Expert Opin. Drug Deliv. 2019, 16, 1169–1182. [Google Scholar] [CrossRef]
  15. Kovaleva, N.Y.; Raevskaya, E.G.; Roshchin, A.V. Problems of safety of nanomaterials: Nanosecurity, nanotoxicology, nanoinformatics. Chem. Saf. 2017, 1, 44–87. [Google Scholar]
  16. Stavitskaya, A.; Shakhbazova, C.; Cherednichenko, Y.; Nigamatzyanova, L.; Fakhrullina, G.; Khaertdinov, N.; Kuralbayeva, G.; Filimonova, A.; Vinokurov, V.; Fakhrullin, R. Antibacterial properties and in vivo studies of tannic acid-stabilized silver-halloysite nanomaterials. Clay Min. 2020, 55, 112–119. [Google Scholar] [CrossRef]
  17. Gorbachevskii, M.V.; Stavitskaya, A.V.; Novikov, A.A.; Fakhrullin, R.F.; Rozhina, E.V.; Naumenko, E.A.; Vinokurov, V.A. Fluorescent gold nanoclusters stabilized on halloysite nanotubes: In vitro study on cytotoxicity. Appl. Clay Sci. 2021, 207, 106106. [Google Scholar] [CrossRef]
  18. Abhinayaa, R.; Jeevitha, G.; Mangalaraj, D.; Ponpandian, N.; Vidhya, K.; Angayarkanni, J. Cytotoxic consequences of Halloysite nanotube/iron oxide nanocomposite and iron oxide nanoparticles upon interaction with bacterial, non-cancerous and cancerous cells. Colloids Surf. B Biointerfaces 2018, 169, 395–403. [Google Scholar] [CrossRef] [PubMed]
  19. Stavitskaya, A.V.; Kozlova, E.A.; Kurenkova, A.Y.; Glotov, A.P.; Selischev, D.S.; Ivanov, E.V.; Kozlov, D.V.; Vinokurov, V.A.; Fakhrullin, R.F.; Lvov, Y.M. Ru/CdS Quantum Dots Templated on Clay Nanotubes as Visible-Light-Active Photocatalysts: Optimization of S/Cd Ratio and Ru Content. Chem. Eur. J. 2020, 26, 13085. [Google Scholar] [CrossRef]
  20. Kargozar, S.; Hoseini, S.J.; Milan, P.B.; Hooshmand, S.; Kim, H.-W.; Mozafari, M. Quantum Dots: A Review from Concept to Clinic. Biotechnol. J. 2020, 15, 2000117. [Google Scholar] [CrossRef] [PubMed]
  21. Chen, J.; Cui, Y.; Liu, M.; Huang, H.; Deng, F.; Mao, L.; Wei, Y. Surface grafting of fluorescent polymers on halloysite nanotubes through metal-free light-induced controlled polymerization: Preparation, characterization and biological imaging. Mater. Sci. Eng. C 2020, 111, 110804. [Google Scholar] [CrossRef]
  22. Stavitskaya, A.; Novikov, A.; Kotelev, M.; Kopitsyn, D.; Rozhina, E.; Ishmukhametov, I.; Fakhrullin, R.; Ivanov, E.; Lvov, Y.; Vinokurov, V. Fluorescence and Cytotoxicity of Cadmium Sulfide Quantum Dots Stabilized on Clay Nanotubes. Nanomaterials 2018, 8, 391. [Google Scholar] [CrossRef] [Green Version]
  23. Micó-Vicent, B.; Martínez-Verdú, F.M.; Novikov, A.; Stavitskaya, A.; Vinokurov, V.; Rozhina, E.; Lvov, Y. Stabilized Dye-Pigment Formulations with Platy and Tubular Nanoclays. Adv. Funct. Mater. 2017, 18, 1808567. [Google Scholar] [CrossRef] [Green Version]
  24. Cabreiro, F.; Gems, D. Worms need microbes too: Microbiota, health and aging in Caenorhabditis elegans. EMBO Mol. Med. 2013, 5, 1300–1310. [Google Scholar] [CrossRef] [PubMed]
  25. Hsu-Kim, H.; Kucharzyk, K.H.; Zhang, T.; Deshusses, M.A. Mechanisms regulating mercury bioavailability for methylating microorganisms in the aquatic environment: A critical review. Environ. Sci. Technol. 2013, 47, 2441–2456. [Google Scholar] [CrossRef]
  26. Qu, Y.; Li, W.; Zhou, Y.; Liu, X.; Zhang, L.; Wang, L.; Li, Y.; Lida, A.; Tang, Z.; Zhao, Y.; et al. Full assessment of fate and physiological behavior of quantum dots utilizing Caenorhabditis elegans as a model organism. Nano Lett. 2011, 11, 3174–3183. [Google Scholar] [CrossRef]
  27. Solvas, X.C.; Geier, F.M.; Leroi, A.M.; Bundy, J.G.; Edel, J.B.; de Mello, A.J. High-throughput age synchronisation of Caenorhabditis elegans. Chem. Commun. 2011, 47, 9801–9803. [Google Scholar] [CrossRef]
  28. Lee, S.; Horn, V.; Julien, E.; Liu, Y.; Wysocka, J.; Bowerman, B.; Hengartner, M.O.; Herr, W. Epigenetic regulation of histone H3 serine 10 phosphorylation status by HCF-1 proteins in C. elegans and mammalian cells. PLoS ONE 2007, 2, e1213. [Google Scholar] [CrossRef] [PubMed]
  29. Vistbakka, J.; VanDuyn, N.; Wong, G.; Nass, R. C. elegans as a genetic model system to identify Parkinson’s disease-associated therapeutic targets. CNS Neurol. Disord.-Drug Targets 2012, 11, 957–964. [Google Scholar] [CrossRef] [PubMed]
  30. Grisoni, K.; Gieseler, K.; Mariol, M.-C.; Martin, E.; Carre-Pierrat, M.; Moulder, G.; Barstead, R.; Sgalat, L. The stn-1 syntrophin gene of C. elegans is functionally related to dystrophin and dystrobrevin. J. Mol. Biol. 2003, 332, 1037–1046. [Google Scholar] [CrossRef]
  31. Sternberg, P.W.; Han, M. Genetics of RAS signaling in C. elegans. Trends Genet. 1998, 14, 466–472. [Google Scholar] [CrossRef]
  32. Wang, D. Biological effects, translocation, and metabolism of quantum dots in the nematode Caenorhabditis elegans. Toxicol. Res. 2016, 5, 1003–1011. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Fakhrullina, G.; Khakimova, E.; Akhatova, E.; Lazzara, G.; Parisi, F.; Fakhrullin, R. Selective antimicrobial effects of curcumin@ halloysite nanoformulation: A Caenorhabditis elegans study. ACS Appl. Mater. Interfaces 2019, 11, 23050–23064. [Google Scholar] [CrossRef] [PubMed]
  34. Fakhrullina, G.I.; Akhatova, F.S.; Lvov, Y.M.; Fakhrullin, R.F. Toxicity of halloysite clay nanotubes in vivo: A Caenorhabditis elegans study. Environ. Sci. Nano. 2015, 2, 54–59. [Google Scholar] [CrossRef]
  35. Zhou, C.; Zhou, L.; Xu, J.; Gan, Y. Controllable synthesis of CdS quantum dots and their photovoltaic application on quantum-dot-sensitized ZnO nanorods. J. Solid State Electrochem. 2016, 20, 533–540. [Google Scholar] [CrossRef]
  36. Zhong, X.; Feng, Y.; Knoll, W.; Han, M. Alloyed ZnxCd1-xS nanocrystals with highly narrow luminescence spectral width. J. ACS 2003, 125, 13559–13563. [Google Scholar] [CrossRef]
  37. Mohammed, I.M.S.; Gubari, G.M.M.; Huse, N.P. Effect of Cd/S ratio on growth and physical properties of CdS thin films for photosensor application. J. Mater. Sci: Mater. Electron. 2020, 11, 9989–9996. [Google Scholar] [CrossRef]
  38. Patidar, D.; Saxena, N.S.; Sharma, T.P. Structural, optical and electrical properties of CdZnS thin films. J. Modern Optics. 2008, 55, 79–88. [Google Scholar] [CrossRef]
  39. Liu, Y.; Naumenko, E.; Akhatova, F.; Zou, Q.; Fakhrullin, R.; Yan, X. Self-Assembled Peptide Nanoparticles for Enhanced Dark-Field Hyperspectral Imaging at the Cellular and Invertebrate Level. Chem. Eng. J. 2021, 424, 130348. [Google Scholar] [CrossRef]
  40. Vinokurov, V.; Stavitskaya, A.; Ivanov, E.; Gushchin, P.; Kozlov, D.; Kurenkova, A.; Kolinko, P.; Kozlova, E.; Lvov, Y. Halloysite Nanoclay Based CdS Formulations with High Catalytic Activity in Hydrogen Evolution Reaction under Visible Light Irradiation. ACS Sustain. Chem. Eng. 2017, 5, 11316–11323. [Google Scholar] [CrossRef]
Materials 14 05469 g001 550

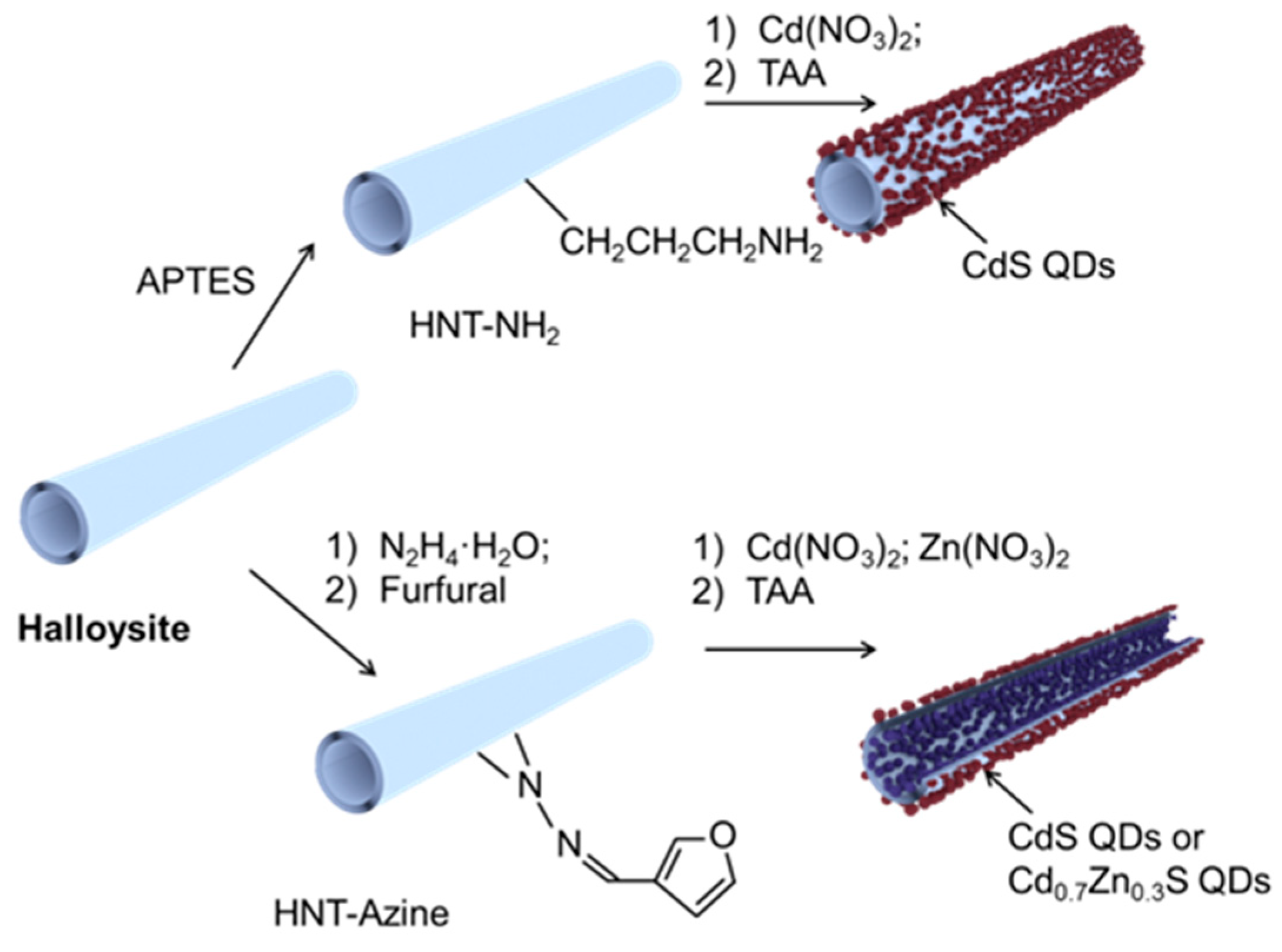

Figure 1. Scheme synthesis of CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine and CdS/HNT-NH2.
Figure 1. Scheme synthesis of CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine and CdS/HNT-NH2.
Materials 14 05469 g001
Materials 14 05469 g002 550
Figure 2. (a) TEM image of: A, pristine halloysite; B, CdS/HNT-Azine; C, Cd0.7Zn0.3S/HNT-Azine; D, CdS/HNT-NH2; (b) XRD patterns of: A, pristine halloysite; B, CdS/HNT-Azine; C, Cd0.7Zn0.3S/HNT-Azine; D, CdS/HNT-NH2.
Figure 2. (a) TEM image of: A, pristine halloysite; B, CdS/HNT-Azine; C, Cd0.7Zn0.3S/HNT-Azine; D, CdS/HNT-NH2; (b) XRD patterns of: A, pristine halloysite; B, CdS/HNT-Azine; C, Cd0.7Zn0.3S/HNT-Azine; D, CdS/HNT-NH2.
Materials 14 05469 g002
Materials 14 05469 g003 550

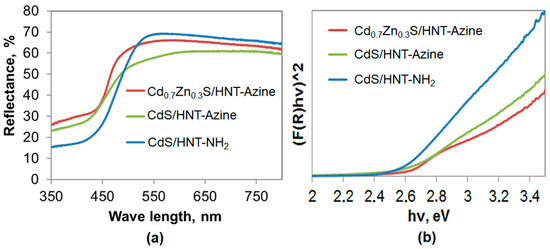

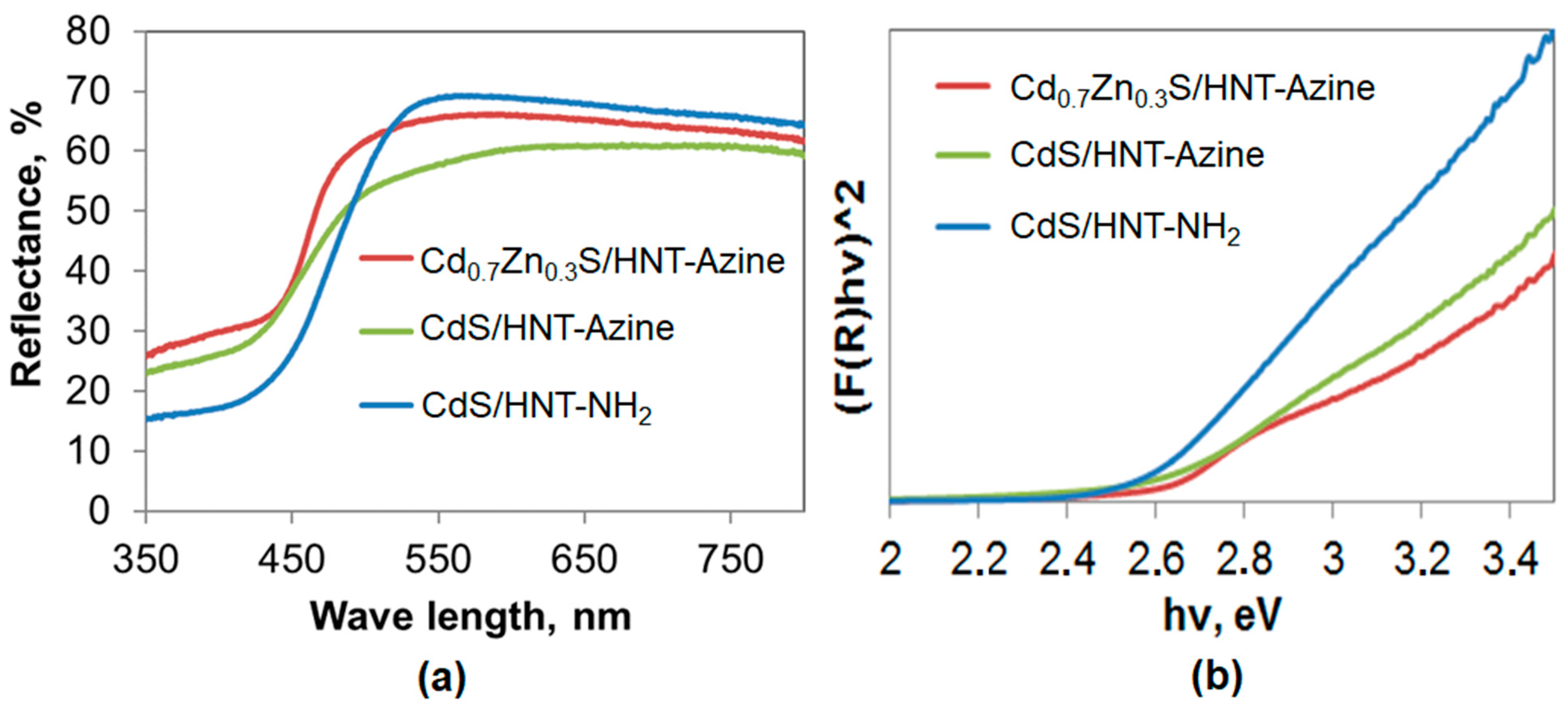

Figure 3. (a) UV-Vis diffuse reflectance spectra of CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2; (b) The Tauc plot for CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2.
Figure 3. (a) UV-Vis diffuse reflectance spectra of CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2; (b) The Tauc plot for CdS/HNT-Azine, Cd0.7Zn0.3S/HNT-Azine, and CdS/HNT-NH2.
Materials 14 05469 g003
Materials 14 05469 g004 550
Figure 4. (a) Images of the throat of the nematodes fed with fluorescent halloysite nanotubes; (b) Tails of the nematodes fed with fluorescent halloysite nanotube. A—optical images, B—fluorescence image, C—alignment of optical and fluorescence images, 1—pristine halloysite, 2—CdS/HNT-Azine, 1—Cd0.7Zn0.3S/HNT-Azine, 3—CdS/HNT-NH2.
Figure 4. (a) Images of the throat of the nematodes fed with fluorescent halloysite nanotubes; (b) Tails of the nematodes fed with fluorescent halloysite nanotube. A—optical images, B—fluorescence image, C—alignment of optical and fluorescence images, 1—pristine halloysite, 2—CdS/HNT-Azine, 1—Cd0.7Zn0.3S/HNT-Azine, 3—CdS/HNT-NH2.
Materials 14 05469 g004
Materials 14 05469 g005 550
Figure 5. (a) Dark-field images and (b) the corresponding spectral curves of nematodes feed with: A—pristine halloysite, B—CdS/HNT-Azine, C—Cd0.7Zn0.3S/HNT-Azine, D—CdS/HNT-NH2, (c) Hyperspectral mapping of nematodes feed with: A—pristine halloysite, B—CdS/HNT-Azine, C—Cd0.7Zn0.3S/HNT-Azine, D—CdS/HNT-NH2.
Figure 5. (a) Dark-field images and (b) the corresponding spectral curves of nematodes feed with: A—pristine halloysite, B—CdS/HNT-Azine, C—Cd0.7Zn0.3S/HNT-Azine, D—CdS/HNT-NH2, (c) Hyperspectral mapping of nematodes feed with: A—pristine halloysite, B—CdS/HNT-Azine, C—Cd0.7Zn0.3S/HNT-Azine, D—CdS/HNT-NH2.
Materials 14 05469 g005
Materials 14 05469 g006 550

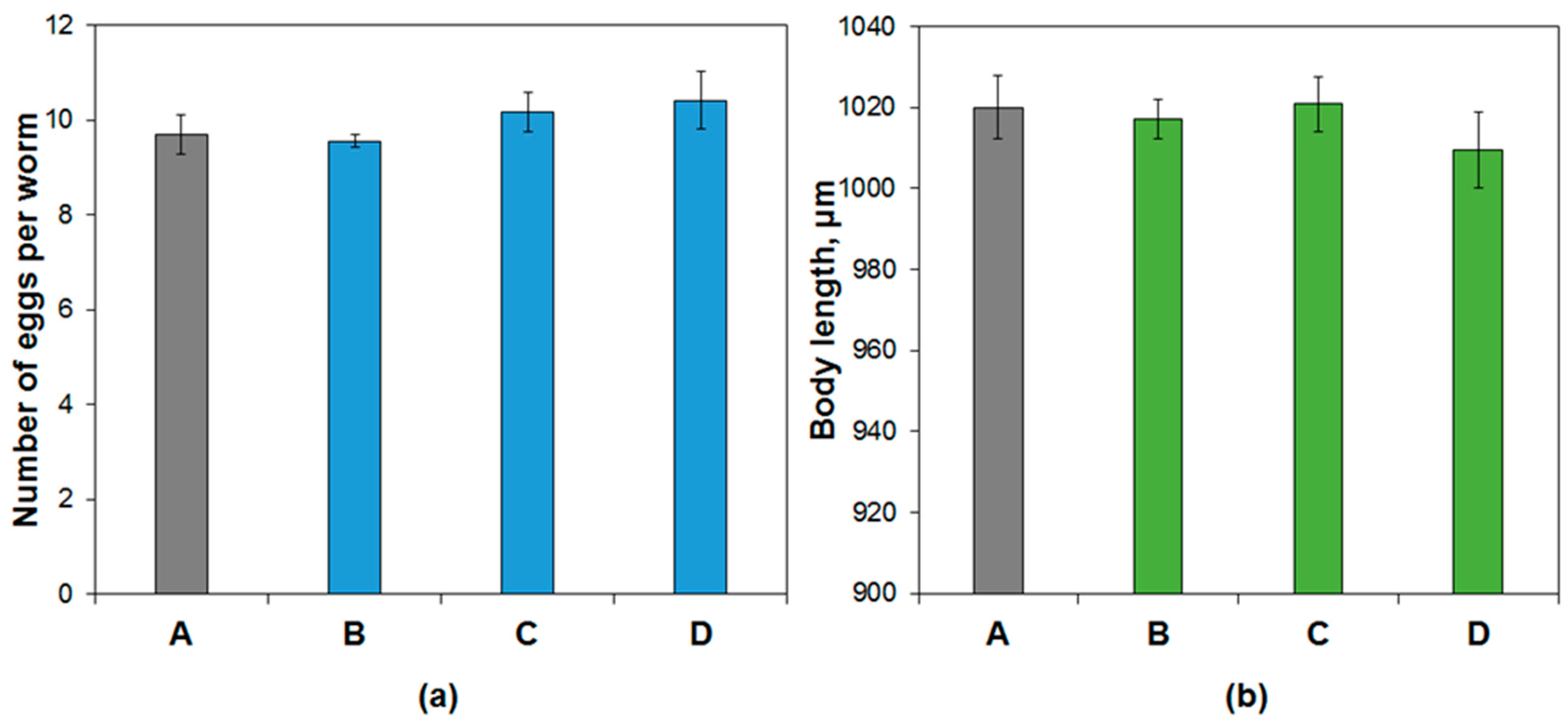

Figure 6. (a) The reproductive ability and (b) the body length of Caenorhabditis elegans after incubation with: A—pristine halloysite, B—CdS/HNT-Azine, C—Cd0.7Zn0.3S/HNT-Azine, D—CdS/HNT-NH2.
