Article

The Influence of Dry Hydrated Limes on the Fresh and Hardened Properties of Architectural Injection Grout

by
Andreja Padovnik
* and
Violeta Bokan-Bosiljkov
Faculty of Civil and Geodetic Engineering, University of Ljubljana, Jamova 2, SI-1000 Ljubljana, Slovenia
*
Author to whom correspondence should be addressed.
Materials 2021, 14(19), 5585; https://doi.org/10.3390/ma14195585
Submission received: 18 August 2021 / Revised: 16 September 2021 / Accepted: 23 September 2021 / Published: 26 September 2021
(This article belongs to the Special Issue Sustainable Construction Materials: From Paste to Concrete)
Browse Figures
Versions Notes

Abstract

:
Dry hydrated lime is an air binder often used in architectural injection grouts. This study compared the influences of three commercially available dry hydrated limes on the injection grouts’ workability and mechanical properties. The main differences between the limes were in their chemical and mineralogical composition and Blaine specific surface area. The grouts were composed of dry hydrated lime, finely ground limestone filler, water, and super plasticiser. Subsequent results obtained revealed that the Blaine specific surface area is not directly related to the fresh grout properties. Grain size distribution and shape of lime particles and their aggregates in the water suspension are key parameters influencing the following fresh grout properties: fluidity, injectability, the mixture’s stability, and water retention capacity. However, the lime injection grouts’ mechanical strengths were higher in relation to an increase in the content of portlandite and the Blaine specific surface area of the dry hydrate.

Graphical Abstract

1. Introduction

Hydrated lime was one of the prevailing binders for renders (external wall mortar layers), plasters (internal wall mortar layers) and masonry mortars up to the 20th century, when cement-based materials took the dominant role in the building sector. Unfortunately, cement-based materials were also applied to repair historic buildings where hydrated lime composites were used to bond the masonry units and protect masonry walls. Due to incompatibility with the historic masonry fabrics and additional unfavourable characteristics of the Portland cement binder—such as salt formation—the historic masonry buildings suffered new extensive damage. Over the last decades, the hydrated lime binder that provides similar composition and properties as the original historical architectural fabrics has become widely used to repair and restore historic lime plasters and renders. Where consolidation or re-attachment of such architectural surfaces is needed, architectural injection grouts prepared using the hydrated lime binder are often used to ensure compatibility between the new and historical materials and components [1]. A comprehensive state of the art regarding the composition of architectural injection grouts used in restoration practise between 1950 and 2015 is given in [2].
The reproducibility of the injection grouts’ properties is better when dry hydrated lime is applied as the binder. Moreover, the dry hydrate enables an easy application of different chemical admixtures in the grout mixtures—such as superplasticisers that reduce the water content of the grout considerably and thus increase its mechanical properties [3,4]. Additionally, a range of the lime-based grouts’ proportions are easily prescribed [5].
Historically, hydrated lime was produced by burning limestone in a lime kiln to obtain calcium oxide or quicklime, which was subsequently slaked with an excess of water in an exothermic reaction to form calcium hydroxide. Slaked lime or lime putty obtained in the process was stored in pits for at least three months before use. In the 20th century, industrial production fulfilled the need for ready-to-use hydrated lime in larger quantities, promoting hydrated lime as a dry powder [6]. In today’s industrial process, the production of dry hydrate is based on quicklime hydration with a controlled excess of water. Technically, the terms hydration and slaking are synonymous. That said, slaking involves a higher water amount and produces a wet hydrate in the form of lime putty, while hydration yields the dry powdered hydrate [7]. The dry hydrate is produced by mixing one part by weight of quicklime with about 0.5 to 0.75 parts of water. This value is significantly above the theoretical amount of water (0.245) required for complete hydration. A higher amount of water is necessary due to water evaporating during the hydration process [8].
The shape and particle size distribution of calcium hydroxide depend on the slaking process parameters. Several studies highlight the importance of the water/lime ratio, temperature and agitation rate on the final quality of lime putty and dry hydrate [7,9,10,11,12,13,14,15]. Whitman and Davis [11] studied the influence of different hydration processes on the properties of dry hydrated lime. Their study showed that a high-grade hydrate that contains many fine particles is produced when the rate of hydration is rapid compared to the particles’ growth rate. Excess water, reasonably high temperatures, and agitation all favour rapid hydration and a fine product. Another study [12] showed that a more reactive hydrate with a higher resistance to segregation in suspension is produced when the quicklime with finer particle size distribution is used. Dry hydration of quicklime should occur at around 100 °C to obtain a finer product [7,11,12].
The purity of quicklime is another parameter that influences calcium hydroxide quality. It depends on the quality of limestone and the manufacturing process. The main impurities consist of silica, alumina, iron and magnesium (in high calcium lime) [16]. Magnesium oxide (MgO) is disadvantageous in high calcium lime as it affects the reactivity of the quicklime [17]. Additionally, the four impurities listed influence limestone hydraulicity calculated using the cementation index (CI), developed by Eckel [18]. According to the CI value, the lime-based binders could be classified into five categories: pure (<0.15), subhydraulic (0.15–0.30), feebly hydraulic (0.3–0.5), moderately hydraulic (0.5–0.7), and eminently hydraulic (0.7–1.1) [19]. Impurities can also influence the optical properties of hydrated lime [9,16].
Many studies have compared the physical, chemical, and mechanical properties of lime powder and lime putty based mortars. Recent studies [6,20] show that mortars with dry hydrated lime have a higher carbonation rate and higher compressive and flexural strength values compared to the lime putty mortars subjected to ageing for more than 90 days. On the contrary, older studies promote the use of lime putty based mortars. Rodriguez-Navarro et al. [10] reported that the lime putty prepared with dry hydrate did not achieve traditional slaked lime putty’s properties, such as high workability, sand-carrying capacity, and good setting, strength development, and durability. The dry hydrated lime putty exhibited oriented aggregation of nanoparticles, which is irreversible and resulted in a significant decrease in specific surface area and, consequently, lower workability and slower reactivity. Elert et al. [7] also recommended using mortars prepared with the aged lime putty, which exhibit higher porosity and water-retention capacity. The porosity and water absorption of the dry hydrated lime mortars are greater than those of the lime putty mortars [6,21]. The plasticity of lime putties prepared using seven dry hydrated calcium limes was studied by Klein et al. [22]. The higher plasticity value is related to the higher specific surface area of dry hydrates due to the interaction between the liquid phase and the calcium hydroxide particles. A higher specific surface area is the result of the finer particle size distribution in hydrated lime. On the other hand, Paiva et al. [23] found that lime mortars prepared using dry hydrated lime and left to mature for a week, isolated from atmospheric CO2, present a thickening behaviour due to the agglomerates’ gradual breakdown and the increase in the surface area of particles exposed to the binding of water. The amount of free water was reduced, and the mortars became denser in their fresh state; they showed higher strengths at the age of 90 days and achieved a lower capillary absorption coefficient than the mortars that were not subjected to a maturation process. However, the authors concluded that increasing the rotation time and speed during the mixing process could achieve the same effect.
The use of dry hydrated lime and lime putty as a binder in architectural injection grouts is addressed mainly in combination with pozzolanic additives and/or chemical admixtures [2,24,25,26]. Relevant experimental studies [2,24,25,26,27,28,29] show that various key parameters can influence the properties of injection grout in its fresh and hardened state. These include grout composition, water-to-binder ratio, the reactivity of pozzolanic material used, chemical admixture type and content, incorporation of additives such as fibres and hollow glass bubbles, and the mixing and curing process. However, at the age of 90 days, the compressive strength of injection grouts based on dry hydrated lime [2,25] or lime putty [26], with or without pozzolanic constituent and/or superplasticiser, is in the range of 2.10 to 3.13 MPa.
The present study compares and evaluates the fresh and hardened properties of architectural injection grouts with the same composition. The grouts were prepared using three commercially available dry hydrated limes (powders) produced in Slovenia and Switzerland.

2. Materials and Methods

2.1. Materials and Composition

Three commercially available dry hydrated lime types were used to prepare the injection grouts. The limes are classified according to the EN 459-1:2015 standard [30]. The limes of classes CL 70-S (IAK, Kresnice, Slovenia) and CL 90-S (IGM, Zagorje, Slovenia) were produced in Slovenia (denotations SI-CL70 and SI-CL90) and the third, of class CL 90-S (KFN, Netstal, Switzerland), was produced in Switzerland (denotation CH-CL90). A finely ground limestone supplied from Slovenia (CALCIT, Stahovica, Slovenia) was used as a filler. The chemical compositions of the limes and limestone filler, determined by the X-ray fluorescence analysis (Bruker S8 TIGER, Anhovo, Slovenia) according to the EN 196-2:2013 standard [31], are shown in Table 1. Table 2 gives contents of crystalline phases in the three limes and filler, determined by the X-ray powder diffraction (XPert Pro X-ray diffractometer; measurement parameters: Cu-Kα radiation λ = 1.54 Å, exploration range from 20° and 70° 2θ, (University of Ljubljana, Ljubljana, Slovenia). The quantitative phase analysis of the samples was completed using the Rietveld method.
The results in Table 1 and Table 2 show that the CH-CL90 lime contains the highest portlandite content and a higher purity compared to the two limes from Slovenia. The highest content of impurities can be found in the SI-CL90 lime from Slovenia, which also contains the highest MgO content that can negatively influence the slaking process of the quicklime and thus the quality of the hydrated lime [17]. All these hydrated lime products can be characterised as high-calcium lime (Ca(OH)2 ≥ 90%) with traces of CaCO3 (≤6% by mass) [32].
The limestone filler is a very pure calcite powder, composed of 95.3% calcite and 4.7% dolomite (Table 2).
The specific surface area determined by the Blaine method [33] may be one of the hydrated limes’ most important physical properties [8]. The pycnometer method was applied to determine particle density [33]. Table 3 shows the Blaine specific surface area and density values for the studied dry hydrated limes and limestone filler. The SI-CL70, SI-CL90, and CH-CL90 limes have different fineness values; they are equal to 9623 cm2/g, 8767 cm2/g, and 16198 cm2/g, respectively. It is evident that the Slovenian limes SI-CL70 and SI-CL90 are much coarser than the CH-CL90 lime from Switzerland, which indicates that Slovenian limes possess lower reactivity. The particle density of a particular lime is well correlated (R2 = 0.997) to its specific surface area. The North America National Lime Association uses hydrated lime particle density to classify it as a high-calcium lime (densities between 2.3 and 2.4 g/cm3) [34]. According to this criterium, the CH-CL90 lime is the only one that can be classified as a high-calcium hydrate (particle density of 2.34 g/cm3). The particle densities of hydrated limes used in studies on lime-based mortars and grouts range from approximately 2.2 g/cm3 [35,36] to 2.47 g/cm3 [37]. The hydrated lime particles are characterised by their irregular block-like shape, with each particle being a porous cluster of small grains [38]. It can be concluded that a lower density of hydrated lime results from higher porosity of the cluster, where smaller particles present a reduced internal porosity.
The limestone filler particles had a density of 2.76 g/cm3 and water absorption of 0.4%; their maximum size was 100 µm, with 10%, 20%, 50%, and 90% of particles smaller or equal to 3 µm, 9 µm, 15 µm, and 40 µm, respectively.
The composition of grout mixtures in this study is based on the 1:3 (lime: filler) volume ratio composition from the previous study [2]. The volume ratios of the components in [2] were converted to mass ratios to provide identical compositions of the grouts tested. Each grout mixture was composed of 290 g lime, 1030 g filler, and 540 g water (water/binder ratio of 1.86). The grout’s adequate consistency and workability were assured using a polycarboxylate ether-based (PCE) super plasticiser. The super plasticiser content was equal to 0.5% of the total mass of solids (lime + filler).
The grout mixtures were prepared with a simple kitchen mixer to simulate the preparation of grout mixtures on a construction site. The mixer was a small hand-held electric whisk with a power of 300 W. The lime and filler were mixed first. This was followed by 70% of the water being added and mixed for 2 min at a low speed (540 rpm). In the last 15 s of the low-speed mixing, the PCE-SP and 30% of the water were added. Finally, each grout was mixed for 3 min at high speed (1200 rpm).

2.2. Methods

Test methods used to evaluate the properties of the grouts in the fresh and hardened state are predominantly the same as described in [28]. Thus, in continuation, a short list of the tests with essential information is given for procedures already described in [28], and a more detailed description is available for the rest of the tests. At least three repetitions of each test were carried out per grout mixture.
The fresh properties of the injection grouts were evaluated as follows:
The mini slump-flow test [39] was used to determine the flow behaviour of the grout mixtures.
According to the modified ASTM C940 standard procedure [40], the bleeding test was carried out. The modification applied reduced the grout volume from 800 ± 10 mL to 80 ± 1 mL.
The wet density of the grout was measured according to the modified EN 1015–6:1998 standard procedure [41]. The volume of the sample was reduced from 1000 mL to 10 mL [42].
The water-retaining ability of the grout was evaluated by the prEN 1015–8:1999 standard procedure [43].
The drying shrinkage test with mortar cups was used to determine the reduction in grout volume after hardening [42].
An injectability test with a syringe was used to determine the ability of the grout to fill a capillary network of dry granular materials under pressure [42]. First, 20 mL of the grout was poured into a vertically held syringe that was partially filled with 20 mL of granular material. Subsequently, the pressure was applied to the grout with a plunger. The crushed lime mortar was used as a granular material, with a grain size between 2 and 4 mm, which simulates an approximately 0.3–0.6 mm large crack or void width. After 10 min, the water absorption coefficient of the mortar was 11 kg/(m2√min). The injectability of the grout is classified as the following: easy (E)—if the grout flows through the granular material and out of the syringe tip when pressure is applied; feasible (F)—if the grout flows through the granular material and reaches the tip but does not flow through it; and difficult (DL)—if the grout stops in the granular material before reaching the tip [42]. The penetration distance, measured from the top of the granular material to the level of the grout, is recorded as L in millimetres.
The hardened properties of the gout samples were evaluated at the age of 90 days. The grouts were cast in cylindrical moulds, with a diameter and height equal to 50 mm, and demoulded after 48 h. Curing was executed under controlled ambient conditions (RH 60 ± 10% and 19 ± 1 °C) until the test day.
The grouts’ dry density and water absorption by capillarity were determined using the EN 1015-10:1999 [44] and EN 1015-18:2004 [45] standard procedures, respectively. The total and capillary porosities were measured in accordance with the Appendix A of Swiss standard SIA 262/ 1:2008 [46]. The compressive test was carried out in accordance with the EN 1015–11:1999/A1:2006 standard [47]. The splitting tensile test followed the ASTM C496/C496 M-1 standard [48]. The compressive and splitting tensile strengths were determined on four specimens per composition. Tests were performed by a Roel Amsler HA 100 servo-hydraulic testing machine (Zwick GmbH & Co. KG, Ulm, Germany), complemented by a load cell with the capacity adjusted to the compressive (25 kN) and splitting tensile (5 kN) strength of the tested specimens.

3. Results and Discussion

3.1. Fresh State Properties

The average values and the corresponding standard deviations of wet density, mini-slump flow, and bleeding after 3 h, and water retention capacity of the SI-70, SI-90, and CH-90 grouts are listed in Table 4. The fresh state properties of the SI-70 and CH-90 grouts are approximately the same. The SI-90 grout, on the other hand, has a higher mini-slump-flow value and increased bleeding compared to the SI-70 and CH-90 grouts. As all constituents in the studied mixtures were of the same mass, the hydrated lime particle density (Table 3) and entrapped air content—as a result of mixing and casting procedures—determined the actual volumes of the lime particles, water, and limestone filler in the grout’s unit volume. This is reflected in the fresh grouts’ densities. The mini-slump-flow value, which is a measure of flowability and consistency of the fresh grout, is often related to the paste’s yield stress τ0. “Paste” is a generic term for the mixture of binder, water and filler particles that are smaller than 0.1 mm; it can also contain a chemical admixture. The highest mini slump-flow value of 300 mm was measured for the SI-90 mixture, prepared with the coarsest lime. The two finer limes had a 15% lower slump-flow value compared to that of the SI-90 mixture.
Ince et al. [49] observed a loss of mortars’ fluidity due to the finer particle size distribution of the hydrated lime. By maintaining the standard Vicat consistency of lime putties, Klein et al. [22] showed that the particle size distribution of dry hydrated lime affected the plasticity of the lime putty, which increased with decreasing lime particles’ size. Plasticity is a rheological property that relates to lime putty workability. Both approaches confirmed the vital influence of dry hydrated lime fineness on the fluidity and workability of the fresh lime mortars and grouts. It can be concluded that dry hydrated limes with higher total specific surface areas of particles and aggregates require higher mixing water content to produce a water suspension (hydrated lime putty) with the same consistency. This is related to the water physically adsorbed onto the surface of solids in suspension. When using the mini-slump-flow test method to evaluate the flowability and consistency of lime grout, the relation between water content and relative flow area (R = (slump–flow value/100)2 − 1) is often considered as a parameter that measures the sensitivity of the grout flowability to increasing water content [39]. The retained water, which provides sufficient particle dispersal for flow to commence, is comprised of the water adsorbed onto solid particles and that which is required to fill the voids in the powder system. A water content higher than the retained water content is needed for a slump–flow value of more than 100 mm. At the constant water content in the grout mixtures, lime particles with a higher surface area physically bind more water, and thus less water is available for the grout to flow. The oriented aggregation of dry hydrated lime particles in the fresh grout could be the reason for the surface area reduction and the change in a grout’s workability [10]. These observations explain the similar flowability of the SI-70 and CH-90 grouts, which could result from the finest CH-CL90 lime particles’ oriented aggregation in the grout suspension.
Figure 1 shows the highest volume of bleed water accumulating on a particular fresh grout surface at prescribed intervals. After 3 h of testing, the grout mixture SI-90 exhibited a higher average bleeding (1.5%) than mixtures SI-70 and CH-90, where the average bleeding was 1.0 and 0.9%, respectively (Table 4). However, the final average bleeding—measured after 5 h, when the two successive measurements showed no further bleeding—was increased to 1.6% for the SI-90 grout and 1.3% for the CH-90 grout. On the other hand, the mixture SI-70 showed no further changes in bleed water up to the 5th hour of testing (Figure 1). The results of the bleeding test indicate a faster segregation and a subsequently reduced stability of the coarser dry hydrate and a much slower bleeding of the finest dry hydrate (Figure 1). However, the final bleeding appears not to be directly related to the measured Blaine specific surface area of the dry hydrated lime. Again, a possible oriented aggregation of lime particles in the water suspension [10] can explain the observed bleeding behaviour of the CH-90 grout. The smaller Ca(OH)2 particles and their aggregates provide a larger surface area for wetting and bonding with the filler particles, which improves the stability of the mixture and, consequently, its resistance to bleeding [50]. Moreover, additional influencing parameters—such as the packing of particles, oriented Ca(OH)2 aggregates, impurities, etc.—can impact the stability of the grout [7,10]. Oriented aggregates reduce the packing density of solid particles in the suspension and thus increase the retained water content. Increased volume of the retained water filling voids between the particles can be responsible for the time-dependent bleeding observed in the CH-90 grout.
Although there is no significant difference in the water retention capacity of the studied grouts (Table 4), due to the test method’s poor repeatability, the test results indicated a lower water retention capacity for the coarser SI-CL90 lime. The highest average water retention capacity of 85% was measured for the CH-90 grout and the lowest (82%) for the SI-90 grout. These results are in line with the results of previous studies [49,51], where it was shown that the water retention capacity increases with a decrease in the particle size of the lime. Ince et al. [50] attributed the observed behaviour to the small radii of curvature of the menisci between finer particles, which could contribute to the increased water-retaining ability of the grout. Biçer-Simsir et al. [42] pointed out that the high water retention capacity of the grout is an essential property for reducing the grout’s shrinkage and achieving satisfactory values for other properties.
Table 5 presents the results of the injectability test for the dry and pre-wetted crushed lime mortar used as granular material inside the syringe. The SI-70 and SI-90 grouts’ injectability was classified as easy (E) through dry and pre-wetted granular material. The situation was significantly different for the CH-90 mixture, which only penetrated 25 mm of the dry granulate and was thus classified as difficult (D25). When the granulate was pre-wetted, the injectability of the CH-90 improved considerably and was classified as feasible.
The injectability of the grout is closely related to its fluidity, viscosity, and water retention ability. The mixture SI-90, with the highest fluidity and water release, achieved a level of injectability comparable to that of the SI-70 mixture, which exhibited a lower fluidity and similar water retention. The poorest injectability was observed in the CH-90 grout. Oriented Ca(OH)2 aggregates that could form in the CH-CL90 grout result in higher resistance of the grout to the applied pressure and, consequently, in a loss of injectability of the CH-90 grout. This grout would thus require an addition of water to its composition to reach adequate fresh state properties.
The results of the drying shrinkage test inside mortar cups are presented in Table 6. Figure 2 shows the volume change for the mixtures SI-70, SI-90 and CH-90 after drying in the dry or pre-wetted mortar cups. The SI-70 and SI-90 grouts formed an approximately 0.2 mm thick separation ring (a continuous circular gap between the cup and the grout in Figure 2) between the grout and mortar cup in the dry and prewetted cups. A much thicker separation ring of 0.4 mm formed in the CH-90 grout, again in dry and pre-wetted mortar cups. The SI-90 mixture also formed cracks in the grout—small cracks with a maximum width of 0.1 mm close to the cup’s wall (dry mortar cups) and extensive cracks of 0.2 mm width (pre-wetted mortar cups). The mixtures SI-70 and CH-90 did not form cracks in the grout when dry mortar cups were used. On the other hand, extensive cracks of 0.3 mm were formed in the CH-90 grout’s pre-wetted cups.
The mortar cup shrinkage test simulates the absorption effect of porous mortar and demonstrates the grout’s ability to retain moisture inside its structure when exposed to dry for an extended period (24 h or more). The obtained test results indicate that the SI-70 grout possesses the best resistance to the suction of porous mortar and air drying and thus the best volume stability. The lowest volume stability was obtained for the CH-90 grout with relatively high final bleeding and the lowest injectability/penetrability, resulting in a lower bond strength between the grout and the mortar cup. The SI-90 grout’s volume stability was only slightly better than that of the CH-90 grout.
Carbonation shrinkage is another mechanism that influences the hydrated lime grout shrinkage. As the mechanism is basically the same as in the case of drying shrinkage, it is often considered part of the drying shrinkage. Swenson and Sereda [52] suggested that carbonation shrinkage occurs due to a gradient of moisture content within the CaCO3 passivation layer around noncarbonated portlandite; it is the highest when the relative humidity of the air is approximately 50%. They also indicated that the lime binder’s rate and degree of portlandite carbonation and carbonation shrinkage increase with the lime fineness [52]. These findings explain the highest shrinkage deformations and cracking observed for the CH-90 lime grout.
From the fresh properties’ point of view, the SI-70 grout showed the best overall performance appropriate for the practical application.

3.2. Properties in Hardened State

Table 7 reports the results of dry density, total and capillary porosity, and water absorption coefficient after 24 h and 10 min for the SI-70, SI-90, and CH-90 hardened grouts at the age of 90 days. The average dry density of the grouts ranged from 1.45 to 1.51 g/cm3. Higher values measured for the SI-70 and CH-90 grouts (1.50 g/cm3 and 1.51 g/cm3) can be predominantly related to the carbonation effect due to a higher portlandite (Ca(OH)2) content (Table 2). They can also be linked to the faster reactivity of smaller lime particles that form more calcite (CaCO3) in 90 days compared to the coarser SI-CL90 lime with the lowest portlandite content, as explained in [6,52].
The total porosity results show that the denser SI-70 and CH-90 mixtures have a higher total porosity (43–44%) compared to the SI-90 mixture which exhibits the lowest dry density—predominantly due to a higher entrapped air content (6%) inside the specimens. However, all three mixtures showed approximately the same capillary porosity (37–38%), much smaller than the initial volume of water in the grouts (about 52%). The water absorption of the limestone filler (0.4%) resulted in only 4 g of water absorbed by the filler for all three compositions. Therefore, it did not have an important influence on the capillary porosity formed due to evaporation of the excess of kneading water from residual spaces previously occupied [53]. Due to capillary forces, the evaporation of water results in the shrinkage of lime grout and thus in about 3 to 5% lower initial porosity of the dry noncarbonated grout compared to the volume percentage of kneading water [54]. Moreover, the mercury intrusion porosimetry of fully carbonated lime showed an open porosity that is about 10 to 12% lower than that of the noncarbonated grout [36]. These findings are in line with results in Table 7, where capillary porosity of about 38% is 14% lower than the volume percentage of kneading water in the lime grouts (52%).
From Table 7 and Figure 3, it can be seen that all three grouts absorbed about the same water content after 24 h, which is consistent with their capillary porosities. However, there is an important difference in the initial capillary sorptivity of the grouts, determined after 10 min; the mixture CH-90 absorbed water much faster (10.6 kg/m2) than the SI-90 mixture (8.2 kg/m2). Considerably slower initial sorptivity of 3.2 kg/m2 was obtained for the SI-70 grout. As the capillary sorptivity force (as a pressure difference) increases when the pore diameter drops [55], we can conclude that the most refined capillary pore system was formed in the CH-90 grout and the coarsest in the SI-70 grout.
Figure 4 shows the compressive and splitting tensile strengths of the lime grouts at 90 days. The failure modes for compressive and splitting tensile strengths are shown in Figure 5. The average compressive and tensile strengths for the SI-70 and SI-90 grouts are in the range expected for materials with a pure hydrated lime binder—approximately 2.8 MPa and 0.16–0.34 MPa, respectively. The compressive strengths of hydrated lime-based mortars and injection grouts range from 0.2 to 4.5 MPa, with tensile strengths of between 0.07 and 1.5 MPa [2,6,21,51,56,57]. On the other hand, the CH-90 grout reached unexpectedly high compressive and tensile strengths equal to 8.1 and 0.76 MPa, respectively. These values are about 3 times higher than those seen in grouts prepared with Slovenian limes. The CH-90 grout compressive strength lies within the interval of 1.0 to 14.0 MPa, which represents the compressive strengths reported for natural hydraulic lime or lime-based mortars with pozzolanic additives [2,25,26,51,56,58,59]. Moreover, the combination of hydrated lime CH-CL90 and PCE superplasticiser leads to compressive and tensile strengths close to the upper limits of the intervals 3–8 MPa and 0.3–1.2 MPa, respectively. These intervals were reported by Ferragni et al. [60] for hydraulic lime architectural injection grouts.
Dry hydrated lime properties that govern the grout strengths include impurities (Table 1), portlandite content (Table 2), and specific surface area of the lime particles. The smaller particles are more reactive compared to coarser particles (Table 3). The CH-CL90 lime is very pure, with the highest portlandite content and the highest specific surface area. Therefore, its carbonation rate and final volume of CaCO3 in the grout should be the highest among studied limes [52]. This conclusion is also in line with nanoscience findings; application of so-called “nano-lime” showed that reducing the size of calcium hydroxide particles leads to higher suspension stability. Moreover, smaller particles have a higher reactivity to form a calcite crystal structure, which improves the cohesion and mechanical strength of the wall paintings’ substrate layers [61]. Incorporating the PCE super plasticiser into the grout composition, combined with high-speed mixing (1200 rpm), disintegrates the lime and limestone filler particles agglomerates in the suspension, thus increasing the surface available for carbonation in the hardened grout. Simultaneously, a more homogeneous and compact hardened grout with much finer capillary pores is formed in the case of the CH-90 grout (Table 7). Fernandez et al. [62] and Silva et al. [63] showed that PCE superplasticiser in the lime mortar results in a strong reduction in macropores (in the diameter range of 1–10 µm) and a more compact, homogeneous and continuous mortar matrix. Compared to the lime mortar with the same water-to-binder ratio and without the PCE super plasticiser, compressive and flexural strengths increase considerably, especially at the mortar’s age of 6 months and one year. However, the porosity reduction can obstruct an adequate CO2 flow through lime-based mortars and grouts. Therefore, an open homogeneous microstructure supports a better and efficient carbonation rate and promotes a well-developed carbonate morphology [64,65]. Padovnik et al. [2] showed that the PCE superplasticiser was very effective at lowering the amount of water in hydrated lime based grout, which increased its mechanical strengths. According to Van Balen [66], one of the mechanisms that control the carbonation rate can be the dissolution of portlandite at the water-adsorbed surface; therefore, the carbonation rate depends on the hydrated lime specific surface area. Paiva et al. [23] stated that intense, rapid mixing might break up the hydrated lime particle aggregates, causing a reduction in the capillary water absorption and a mechanical strength increase.
In addition to the beneficial properties of the CH-CL90 lime in relation to strength properties of the architectural grout (as discussed earlier), there must be other influencing parameters responsible for such high compressive and tensile strengths of the CH-90 grout. The load-bearing capacity of the crystal lattice, which makes up the solid mass of the hardened grout, must be significantly higher for the CH-90 grout than the SI-70 and SI-90 grouts. It appears that the CH-CL90 lime (Table 3) can bind limestone filler particles more efficiently compared to the Slovenian limes and can form a composite solid mass with highly increased strength. The absence or reduced content of pre-existing cracks due to shrinkage, combined with the refined capillary porosity, could present another parameter responsible for the high strengths observed. In [67], authors showed that pre-existing cracks and their inclination angles to nearby entrapped air pores influence the loadbearing behaviour of the mortar.

4. Conclusions

This study addresses the influence of three dry hydrated limes on architectural injection grouts’ fresh and hardened properties. The main differences between the hydrated limes could be found in their chemical and mineralogical compositions, particle density, and specific surface area values, which indicate that the industrial production and limestone composition were not the same for the studied limes. The grouts’ composition was identical regarding mass ratios between lime, water, limestone filler and PCE super plasticiser. The PCE super plasticiser, combined with high-speed grout mixing (1200 rpm), disintegrates the lime and limestone filler particle agglomerates in the suspension and thus influences the fresh grout properties and the increased surface available for carbonation in the hardened grout. Additionally, oriented Ca(OH)2 aggregates can gradually form in the fresh grout and change the fresh grout properties. The main conclusions of this study can be summarised as follows.
The mixtures’ consistency, stability, water-retaining ability, and injectability were influenced by the specific surface area of the lime binder in the grout, governed by its particle and agglomerate size, distribution, and shape. Although the highest Bleine specific surface area was measured for the dry hydrated CH-CL90 lime, the CH-90 grout’s fresh properties were approximately the same compared to the SI-70 grout prepared with lower Blaine specific surface area dry hydrate. The only exception was injectability, which was the poorest for the CH-90 grout. Possible oriented aggregation of the CH-90 lime particles in water suspension can explain the observed behaviour. The SI-70 grout showed the most balanced fresh properties among the three grouts, most probably due to the appropriate combination of lime particles specific surface area and solid particles (lime and limestone filler particles) packing property.
The shrinkage test in mortar cups revealed an important influence of carbonation shrinkage on the CH-90 grout. The rate and degree of portlandite carbonation were the highest among the studied grouts, which resulted in extensive carbonation shrinkage. As a consequence, poor volume stability of the CH-90 grout was observed in the study.
The three grouts showed the same capillary porosity, which is consistent with the same water content of the fresh mixtures and the same water content absorbed in the hardened state. On the other hand, faster carbonation and a higher volume of CaCO3 in the CH-CL90 lime did not reflect in the CH-90 grout open porosity. There was an important difference in the initial capillary sorptivity of the grouts (determined after 10 min) that indicated the formation of the most refined capillary pore system in the CH-90 grout, while the coarsest capillary pore system appeared in the SI-70 grout.
The CH-CL90 lime resulted in an unexpectedly high compressive and tensile strength of the CH-90 grout at 90 days, 8.1 and 0.76 MPa, respectively. These strengths are about 3-times the strengths measured for the SI-70 and SI-90 grouts. They are close to the upper limit of the intervals reported by Ferragni et al. [37] for hydraulic lime architectural injection grouts. The main parameters that increase the lime grout strengths are the highest portlandite content and specific surface area of the lime particles and more homogeneous and compact hardened grout with the finer capillary network that still provides efficient carbonation. Additionally, the much higher particle density of the CH-CL90 lime and its ability to bind limestone filler particles efficiently can form a composite solid mass with highly increased load-bearing ability. Further work is required to evaluate the microstructure of limes and grout mixtures and provide answers to the remaining questions.
The use of dry hydrated limes is increasingly recommended, as they have a lower mass volume and facilitate a range of mix proportions and reproducibility of the properties in a fresh and hardened state. The application of the PCE super plasticiser can significantly reduce the kneading water in the dry hydrated lime-based mixtures, which, in turn, compensates for the deficiencies compared to the hydrated lime putty mixtures. Moreover, in the case of architectural injection grouts, the quantities of dry hydrated lime are low enough to use the best possible product available on the international market. In Slovenia, for example, products available in other European countries should be reviewed. The Swiss product used in this study showed that commercially available dry hydrated limes could possess highly diverse properties and provide high enough strengths for different applications, especially in historical structures’ repair and strengthening.

Author Contributions

Conceptualisation, A.P. and V.B.-B.; methodology, A.P. and V.B.-B.; validation, V.B.-B.; formal analysis, A.P. and V.B.-B.; investigation, A.P.; resources, V.B.-B.; writing—original draft preparation, A.P.; writing—review and editing, V.B.-B.; visualisation, A.P.; supervision, V.B.-B.; project administration, A.P.; and funding acquisition, A.P. and V.B.-B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the project C3330-17-529030 “Raziskovalci-2.0-UL-FGG-529030”. Ministry of Education, Science and Sport of the Republic of Slovenia has approved the project. The investment is co-financed by the Republic of Slovenia and the European Union under the European Regional Development Fund. The authors acknowledge also the financial support from the Slovenian Research Agency through the research core funding No. P2-0185.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Venice Charter. International Charter for the Conservation and Restoration of Monuments and Sites; Committee for Drafting the International Charter for the Conservation and Restoration of Monuments: Venice, Italy, 1964.
  2. Padovnik, A.; Piqué, F.; Jornet, A.; Bokan-Bosiljkov, V. Injection grouts for the re-attachment of architectural surfaces with historic value—Measures to improve the properties of hydrated lime grouts in Slovenia. Int. J. Archit. Herit. Conserv. Anal. Restor. 2016, 10, 993–1007. [Google Scholar] [CrossRef]
  3. Padovnik, A. Consolidation of Detached Plaster Layers of Mural Paintings with Non-Structural Grouting. Ph.D. Thesis, Faculty of Civil and Geodetic Engineering, University of Ljubljana, Ljubljana, Slovenia, 26 May 2016. [Google Scholar]
  4. González-Sánchez, J.F.; Taşcı, B.; Fernández, J.M.; Navarro-Blasco, Í.; Alvarez, J.I. Combination of polymeric superplasticizers, water repellents and pozzolanic agents to improve air lime-based grouts for historic masonry repair. Polymers 2020, 12, 887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Zacharopoulou, G. Interpreting chemistry and technology of lime binders and implementing it in the conservation field. Conserv. Património 2009, 10, 41–53. [Google Scholar] [CrossRef] [Green Version]
  6. Aggelakopoulou, E.; Bakolas, A.; Moropoulou, A. Lime putty versus hydrated lime powder: Physicochemical and mechanical characteristics of lime based mortars. Constr. Build. Mater. 2019, 225, 633–641. [Google Scholar] [CrossRef]
  7. Elert, K.; Rodriguez-Navarro, C.; Pardo, E.S.; Hansen, E.; Cazalla, O. Lime mortars for the conservation of historic buildings. Stud. Conserv. 2002, 47, 62–75. [Google Scholar] [CrossRef]
  8. Boynton, R.S. Chemistry and Technology of Lime and Limestone; John Wiley & Sons: Hoboken, NJ, USA, 1966. [Google Scholar]
  9. Kemperl, J.; Maček, J. Precipitation of calcium carbonate from hydrated lime of variable reactivity, granulation and optical properties. Int. J. Miner. Process. 2009, 93, 84–88. [Google Scholar] [CrossRef]
  10. Rodriguez-Navarro, C.; Ruiz-Agudo, E.; Ortega-Huertas, M.; Hansen, E. Nanostructure and irreversible colloidal behavior of Ca(OH)2: Implications in cultural heritage conservation. Langmuir 2005, 21, 10948–10957. [Google Scholar] [CrossRef]
  11. Whitman, W.G.; Davis, G.H.B. The hydration of lime. Ind. Eng. Chem. 1926, 18, 118–120. [Google Scholar] [CrossRef]
  12. Adams, F.W. Effect of particle size on the hydration of lime. Ind. Eng. Chem. 1927, 19, 589–591. [Google Scholar] [CrossRef]
  13. Navrátilová, E.; Tihlaříková, E.; Neděla, V.; Rovnaníková, P.; Pavlík, J. Effect of the preparation of lime putties on their properties. Sci. Rep. 2017, 7, 17260. [Google Scholar] [CrossRef]
  14. Ruiz-Agudo, E.; Rodriguez-Navarro, C. Microstructure and rheology of lime putty. Langmuir 2010, 26, 3868–3877. [Google Scholar] [CrossRef] [PubMed]
  15. Ghiasi, M.; Abdollahy, M.; Khalesi, M. Removal of iron from milk of lime to produce pure precipitated calcium carbonate. Sep. Sci. Technol. 2020, 55, 1425–1435. [Google Scholar] [CrossRef]
  16. Schweigert, K. The Effects of Impurities on Lime Quality. Available online: http://www.penta.net/wp-content/uploads/2018/10/Effects-of-Impurities-on-Lime-Quality.pdf (accessed on 10 September 2021).
  17. Kang, S.-H.; Lee, S.-O.; Hong, S.-G.; Kwon, Y.-H. Historical and scientific investigations into the use of hydraulic lime in korea and preventive conservation of historic masonry structures. Sustainability 2019, 11, 5169. [Google Scholar] [CrossRef] [Green Version]
  18. Eckel, E.C. Cements, Limes and Plasters: Their Materials, Manufacture, and Properties, 1st ed.; John Wiley & Sons: New York, NY, USA, 1905. [Google Scholar]
  19. Holmes, S.; Wingate, M. Building with Lime: A Practical Introduction, 2nd ed.; Practical Action Publishing: Rugby, UK, 2002. [Google Scholar]
  20. Mendoza, E.; Alonso-Guzman, E.; Ruvalcaba-Sil, J.; Sánchez Calvillo, A.; Martinez Molina, W.; García, H.; Bedolla-Arroyo, J.; Becerra-Santacruz, H.; Borrego, J. Compressive strength and ultrasonic pulse velocity of mortars and pastes, elaborated with slaked lime and high purity hydrated lime, for restoration works in México. Key Eng. Mater. 2020, 862, 51–55. [Google Scholar] [CrossRef]
  21. Faria, P.; Henriques, F.; Rato, V. Comparative evaluation of lime mortars for architectural conservation. J. Cult. Herit. 2008, 9, 338–346. [Google Scholar] [CrossRef]
  22. Klein, D.; Haas, S.; Schmidt, S.-O.; Middendorf, B. Morphological and chemical influence of calcium hydroxide on the plasticity of lime based mortars. In Historic Mortars; Válek, J., Hughes, J.J., Groot, C.J.W.P., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 319–328. [Google Scholar]
  23. Paiva, H.; Velosa, A.; Veiga, R.; Ferreira, V.M. Effect of maturation time on the fresh and hardened properties of an air lime mortar. Cem. Concr. Res. 2010, 40, 447–451. [Google Scholar] [CrossRef]
  24. Azeiteiro, L.C.; Velosa, A.; Paiva, H.; Mantas, P.Q.; Ferreira, V.M.; Veiga, R. Development of grouts for consolidation of old renders. Constr. Build. Mater. 2014, 50, 352–360. [Google Scholar] [CrossRef]
  25. Pachta, V.; Papayianni, I.; Spyriliotis, T. Assessment of laboratory and field testing methods in lime-based grouts for the consolidation of architectural surfaces. Int. J. Archit. Herit. 2020, 14, 1098–1105. [Google Scholar] [CrossRef]
  26. Pasian, C.; Piqué, F.; Jornet, A.; Cather, S. A ‘Sandwich’ specimen preparation and testing procedure for the evaluation of non-structural injection grouts for the re-adhesion of historic plasters. Int. J. Archit. Herit. 2021, 15, 455–466. [Google Scholar] [CrossRef]
  27. Luso, E.; Lourenço, P.B. Experimental laboratory design of lime based grouts for masonry consolidation. Int. J. Archit. Herit. 2017, 11, 1143–1152. [Google Scholar] [CrossRef] [Green Version]
  28. Padovnik, A.; Bokan-Bosiljkov, V. Effect of ultralight filler on the properties of hydrated lime injection grout for the consolidation of detached historic decorative plasters. Materials 2020, 13, 3360. [Google Scholar] [CrossRef]
  29. Pachta, V. The role of glass additives in the properties of lime-based grouts. Heritage 2021, 4, 906–916. [Google Scholar] [CrossRef]
  30. UNI EN 459-1. Building Lime—Part 1: Definitions, Specifications and Conformity Criteria; CEN: Brussels, Belgium, 2010. [Google Scholar]
  31. EN 196-2. Method of Testing Cement—Part 2: Chemical Analysis of Cement; CEN: Brussels, Belgium, 2013. [Google Scholar]
  32. Cizer, Ö.; Van Balen, K.; Elsen, J.; Van Gemert, D. Real-time investigation of reaction rate and mineral phase modifications of lime carbonation. Constr. Build. Mater. 2012, 35, 741–751. [Google Scholar] [CrossRef] [Green Version]
  33. EN 196-6. Methods of Testing Cement—Part 6: Determination of Fineness; CEN: Brussels, Belgium, 2018. [Google Scholar]
  34. Fact Sheet, Properties of Typical Commercial Lime Products. Available online: https://www.lime.org/documents/lime_basics/lime-physical-chemical.pdf (accessed on 25 June 2021).
  35. Papayianni, I.; Stefanidou, M. Strength-porosity relationships in lime-pozzolan mortars. Constr. Build. Mater. 2006, 20, 700–705. [Google Scholar] [CrossRef]
  36. Arandigoyen, M.; Bicer-Simsir, B.; Alvarez, J.I.; Lange, D.A. Variation of microstructure with carbonation in lime and blended pastes. Appl. Surf. Sci. 2006, 252, 7562–7571. [Google Scholar] [CrossRef] [Green Version]
  37. Pachta, V.; Goulas, D. Fresh and hardened state properties of fiber reinforced lime-based grouts. Constr. Build. Mater. 2020, 261, 119818. [Google Scholar] [CrossRef]
  38. Beruto, D.T.; Botter, R. Liquid-like H2O adsorption layers to catalyse the Ca(OH)2/CO2 solid–gas reaction and to form a non-protective solid product layer at 20 °C. J. Eur. Ceram. Soc. 2000, 20, 497–503. [Google Scholar] [CrossRef]
  39. Domone, P.; Hsi-Wen, C. Testing of binders for high performance concrete. Cem. Concr. Res. 1997, 27, 1141–1147. [Google Scholar] [CrossRef]
  40. ASTM C940-16. Standard Test Method for Expansion and Bleeding of Freshly Mixed Grouts for Preplaced-Aggregate Concrete in the Laboratory; ASTM International: Harrisburg, PA, USA, 2016. [Google Scholar]
  41. EN 1015-6. Methods of Test for Mortar for Masonry—Part 6: Determination of Bulk Density of Fresh Mortar; CEN: Brussels, Belgium, 1999. [Google Scholar]
  42. Biçer-Şimşir, B.; Rainer, H.L. Evaluation of Lime-Based Hydraulic Injection Grouts for the Conservation of Architectural Surfaces: A Manual of Laboratory and Field Test Methods; Getty Conservation Institute: Los Angeles, CA, USA, 2013; ISBN 978-1-937433-15-4. [Google Scholar]
  43. PrEN 1015-8. Methods of Test for Mortar for Masonry—Part 8: Determination of Water Retentivity of Fresh Mortar; CEN: Brussels, Belgium, 1999. [Google Scholar]
  44. EN 1015-10. Methods of Test for Mortar for Masonry—Part 10: Determination of Dry Bulk Density of Hardened Mortar; CEN: Brussels, Belgium, 1999. [Google Scholar]
  45. SIST EN 1015-18. Methods of Test for Mortar for Masonry—Part 18: Determination of Water Absorption Coefficient Due to Capillary Action of Hardened Mortar; CEN: Brussels, Belgium, 2004. [Google Scholar]
  46. SIA 262/1. Construction En Béton-Spécifications Complémentaires, Appendix A; SIA: Zurich, Switzerland, 2003. [Google Scholar]
  47. EN 1015-11. Methods of Test for Mortar for Masonry—Part 11: Determination of Flexural and Compressive Strength of Hardened Mortar; CEN: Brussels, Belgium, 1999. [Google Scholar]
  48. ASTM C496/C496M-1. Standard Test Method for Splitting Tensile Strength of Cylindrical Concrete Specimens; ASTM International: Harrisburg, PA, USA, 2004. [Google Scholar]
  49. Ince, C.; Ozturk, Y.; Carter, M.A.; Wilson, M.A. The influence of supplementary cementing materials on water retaining characteristics of hydrated lime and cement mortars in masonry construction. Mater. Struct. 2014, 47, 493–501. [Google Scholar] [CrossRef]
  50. Ince, C.; Carter, M.A.; Wilson, M.A.; Collier, N.C.; El-Turki, A.; Ball, R.J.; Allen, G.C. Factors affecting the water retaining characteristics of lime and cement mortars in the freshly-mixed state. Mater. Struct. 2011, 44, 509–516. [Google Scholar] [CrossRef] [Green Version]
  51. Jornet, A.; Mosca, C.; Cavallo, G.; Corredig, G. Comparison between traditional, lime based, and industrial, dry mortars. In Historic Mortars; Válek, J., Hughes, J.J., Groot, C.J.W.P., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 227–237. [Google Scholar]
  52. Swenson, E.G.; Sereda, P.J. Mechanism of the carbonatation shrinkage of lime and hydrated cement. J. Appl. Chem. 1968, 18, 111–117. [Google Scholar] [CrossRef] [Green Version]
  53. Sahu, S.; Badger, S.; Thaulow, N.; Lee, R.J. Determination of water–cement ratio of hardened concrete by scanning electron microscopy. Scanning Electron Microsc. Cem. Concr. 2004, 26, 987–992. [Google Scholar] [CrossRef]
  54. Arandigoyen, M.; Bernal, J.L.P.; López, M.A.B.; Alvarez, J.I. Lime-pastes with different kneading water: Pore structure and capillary porosity. Appl. Surf. Sci. 2005, 252, 1449–1459. [Google Scholar] [CrossRef] [Green Version]
  55. Martys, N.S.; Ferraris, C.F. Capillary transport in mortars and concrete. Cem. Concr. Res. 1997, 27, 747–760. [Google Scholar] [CrossRef]
  56. Pavía, S.; Aly, M. Influence of aggregate and supplementary cementitious materials on the properties of hydrated lime (CL90s) mortars. Mater. Constr. 2016, 66, e104. [Google Scholar] [CrossRef] [Green Version]
  57. Veiga, R. Air lime mortars: What else do we need to know to apply them in conservation and rehabilitation interventions? A review. Constr. Buld. Mater. 2017, 157, 132–140. [Google Scholar] [CrossRef]
  58. Papayianni, I.; Pachta, V. Experimental study on the performance of lime-based grouts used in consolidating historic masonries. Mater. Struct. 2015, 48, 2111–2121. [Google Scholar] [CrossRef]
  59. Vavričuk, A.; Bokan-Bosiljkov, V.; Kramar, S. The influence of metakaolin on the properties of natural hydraulic lime-based grouts for historic masonry repair. Constr. Build. Mater. 2018, 172, 706–716. [Google Scholar] [CrossRef]
  60. Ferragni, D.; Forti, M.; Malliet, J.; Mora, P.; Teutonico, J.M.; Torraca, G. Injection Grouting of mural paintings and mosaics. Stud. Conserv. 1984, 29, 110–116. [Google Scholar] [CrossRef]
  61. Baglioni, P.; Chelazzi, D.; Giorgi, R. Nanotechnologies in the Conservation of Cultural Heritage, A Compendium of Materials and Techniques; Springer Science and Business Media: New York, NY, USA, 2015; pp. 1–144. ISBN 978-94-017-9302-5. [Google Scholar]
  62. Fernández, J.M.; Duran, A.; Navarro-Blasco, I.; Lanas, J.; Sirera, R.; Alvarez, J.I. Influence of nanosilica and a polycarboxylate ether superplasticizer on the performance of lime mortars. Cem. Concr. Res. 2013, 43, 12–24. [Google Scholar] [CrossRef] [Green Version]
  63. Silva, B.; Ferreira Pinto, A.P.; Gomes, A.; Candeias, A. Fresh and hardened state behaviour of aerial lime mortars with superplasticizer. Constr. Build. Mater. 2019, 225, 1127–1139. [Google Scholar] [CrossRef]
  64. Lanas, J.; Alvarez, J.I. Masonry repair lime-based mortars: Factors affecting the mechanical behavior. Cem. Concr. Res. 2003, 33, 1867–1876. [Google Scholar] [CrossRef] [Green Version]
  65. Zacharopoulou, G. The Effect of wet slaked lime putty and putty prepared from dry hydrate on the strength of lime mortars. In 2nd Conference on Historic Mortars–HMC 2010 and RILEM TC 203-RHM Final Workshop; Válek, J., Groot, C., Hughes, J.J., Eds.; RILEM Publications SARL Publication: Prague, Czech Republic, 2010; pp. 1283–1291. [Google Scholar]
  66. Van Balen, K. Carbonation reaction of lime, kinetics at ambient temperature. Cem. Concr. Res. 2005, 35, 647–657. [Google Scholar] [CrossRef]
  67. Zhou, S.; Zhu, H.; Yan, Z.; Ju, J.W.; Zhang, L. A Micromechanical study of the breakage mechanism of microcapsules in concrete using PFC2D. Constr. Build. Mater. 2016, 115, 452–463. [Google Scholar] [CrossRef]
Materials 14 05585 g001 550

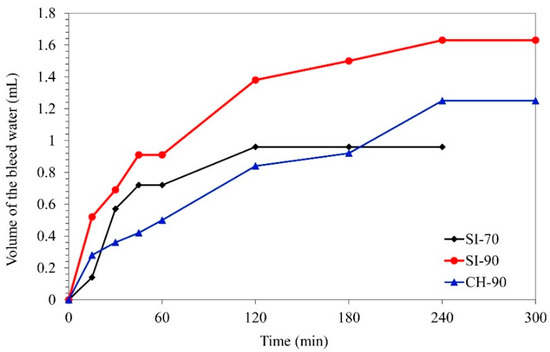

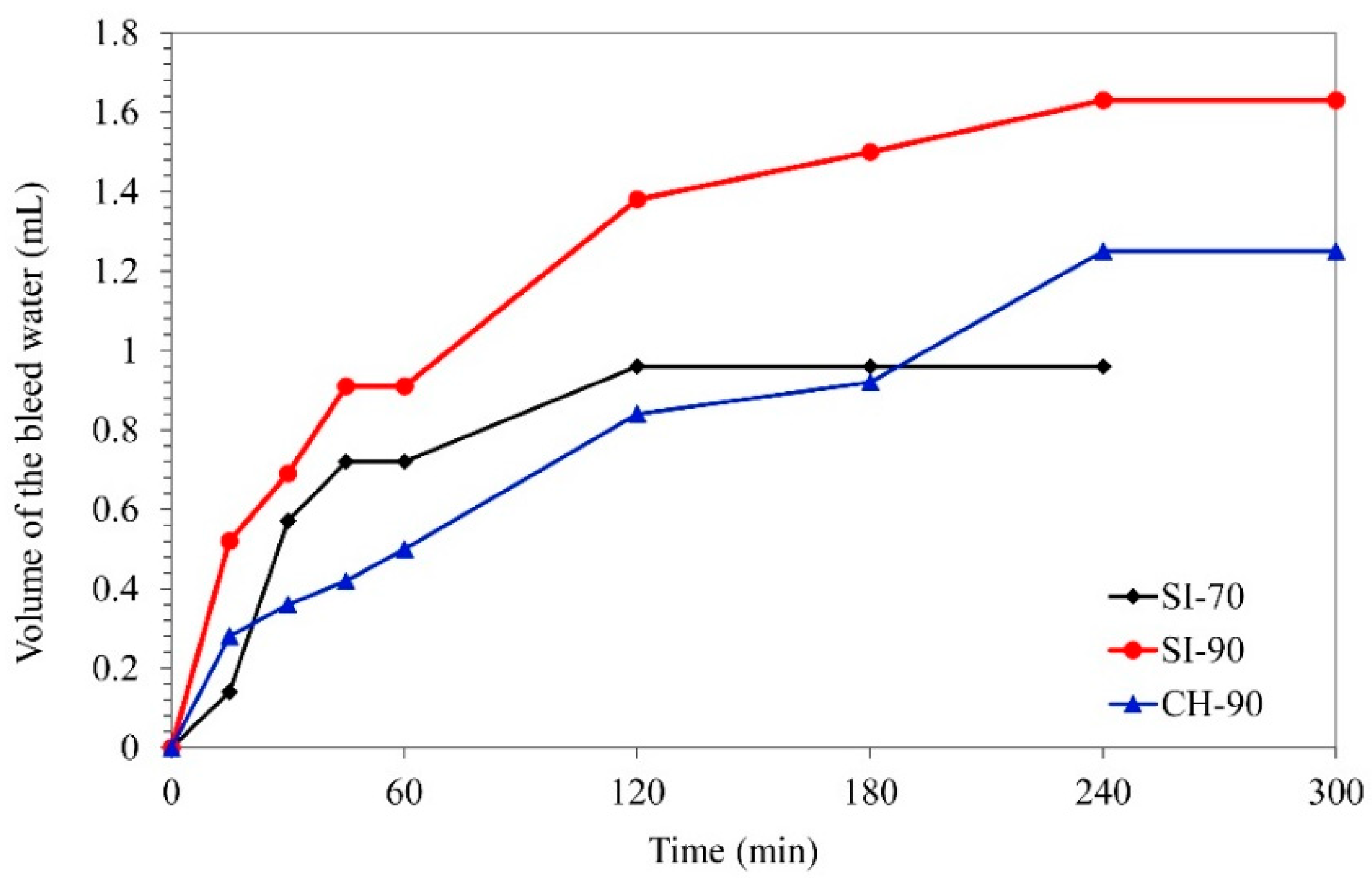

Figure 1. The bleed water volume, measured over five hours for the three grout compositions.
Figure 1. The bleed water volume, measured over five hours for the three grout compositions.
Materials 14 05585 g001
Materials 14 05585 g002 550

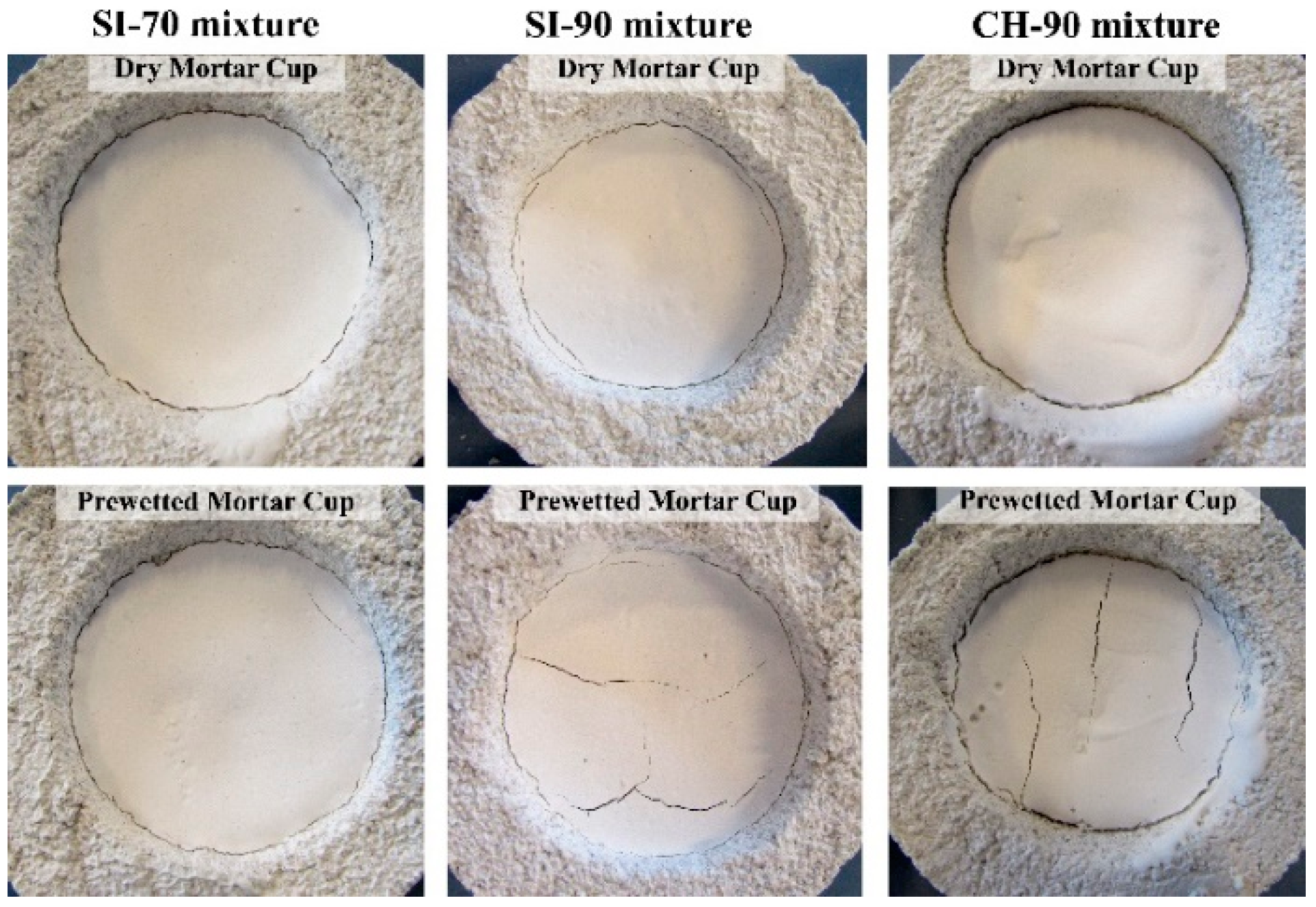

Figure 2. Grout mixtures SI and CH after drying in mortar cups.
Figure 2. Grout mixtures SI and CH after drying in mortar cups.
Materials 14 05585 g002
Materials 14 05585 g003 550

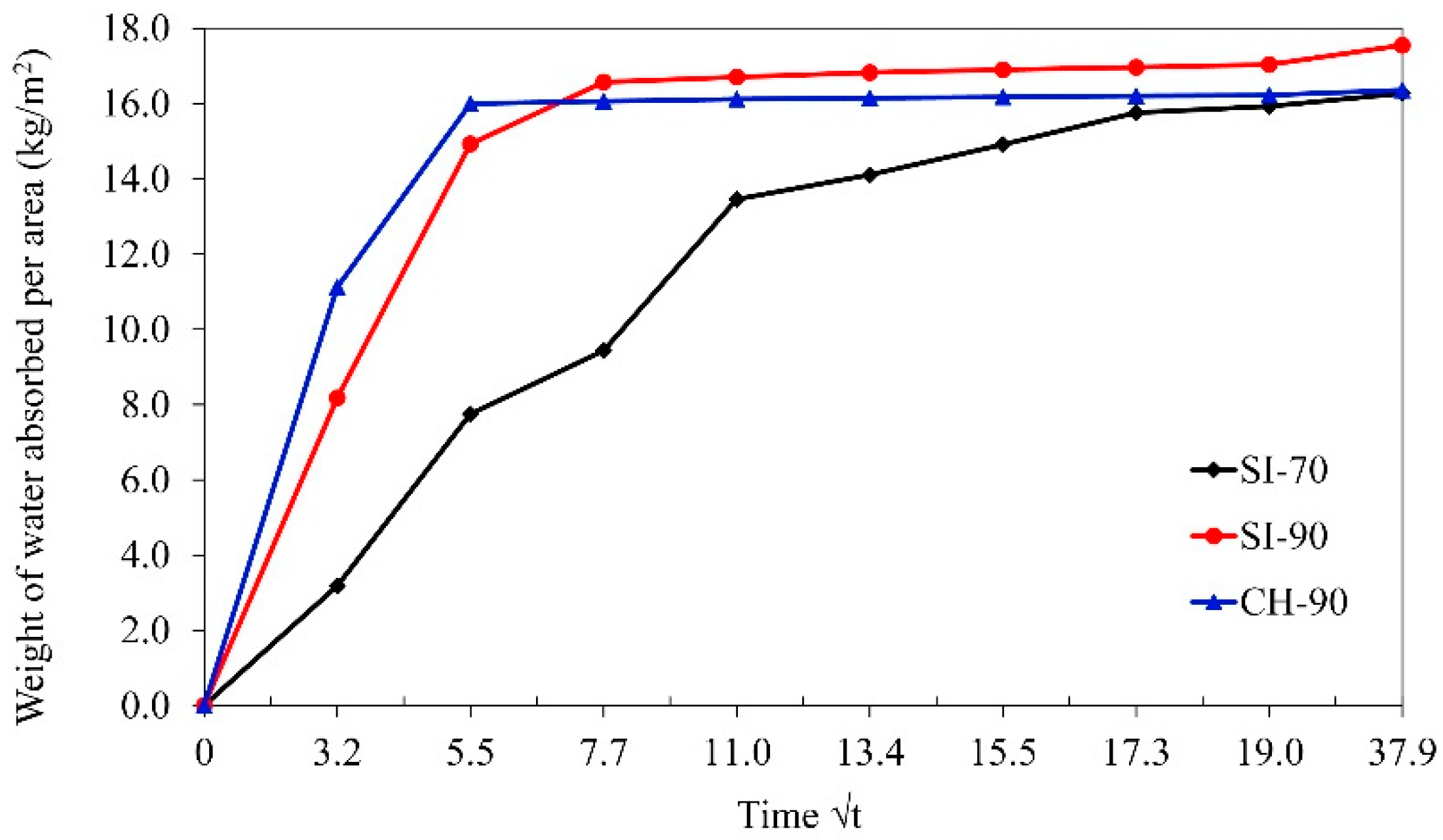

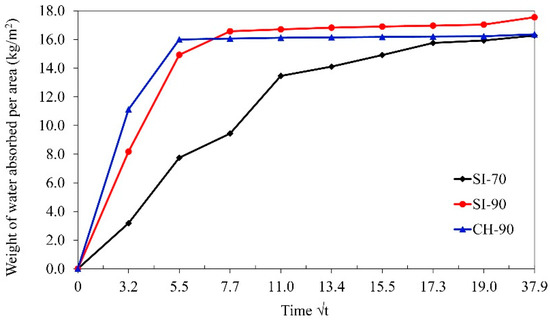

Figure 3. Capillary water absorption curves of the three injection grouts.
Figure 3. Capillary water absorption curves of the three injection grouts.
Materials 14 05585 g003
Materials 14 05585 g004 550

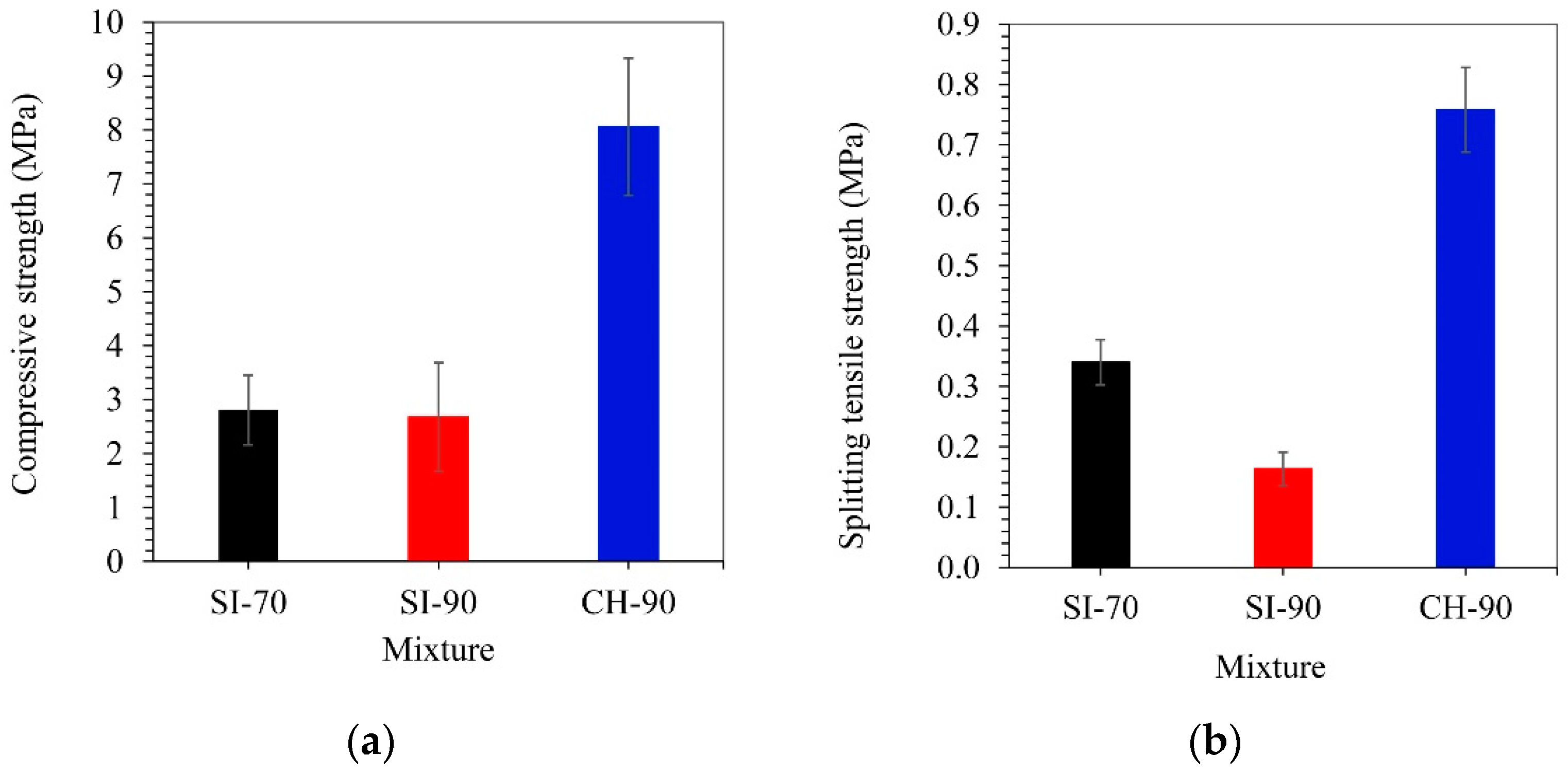

Figure 4. (a) Compressive and (b) splitting tensile strength for SI and CH mixtures.
Figure 4. (a) Compressive and (b) splitting tensile strength for SI and CH mixtures.
Materials 14 05585 g004
Materials 14 05585 g005 550
Figure 5. Examples of failure modes: (a) Compressive strength and (b) splitting tensile strength for SI and CH mixtures.
Figure 5. Examples of failure modes: (a) Compressive strength and (b) splitting tensile strength for SI and CH mixtures.
Materials 14 05585 g005
Table
Table 1. Chemical composition of the dry hydrated limes and limestone filler.
Table 1. Chemical composition of the dry hydrated limes and limestone filler.
SampleCaO
(%)		MgO
(%)		Al2O3
(%)		Fe2O3
(%)		SO3
(%)		SiO2
(%)		I.L.
(%)
SI-CL70 lime71.252.090.600.190.060.7925.69
SI-CL90 lime71.013.050.580.200.142.1423.38
CH-CL90 lime74.900.400.020.010.020.0525.00
Limestone filler55.380.760.150.010.01<0.0144.02
Table
Table 2. Contents of crystalline phases in the powders, obtained by the Rietveld method.
Table 2. Contents of crystalline phases in the powders, obtained by the Rietveld method.
SamplePortlandite (Ca(OH)2)Calcite
(CaCO3)		Periclase
(MgO)		Quartz
(SiO2)		Lime
(CaO)		Magnesite
MgCO4		Larnite
(Ca2SiO4)		Dolomite
(CaMg(CO3)2)
SI-CL70 lime95.82.90.2 0.30.8
SI-CL90 lime92.51.22.30.20.10.43.5
CH-CL90 lime97.03.0
Limestone filler 95.3 4.7
Table
Table 3. Particle density and specific surface area of hydrated limes and limestone filler.
Table 3. Particle density and specific surface area of hydrated limes and limestone filler.
SampleParticle Density
(g/cm3)		Blaine Fineness (cm2/g)
SI-CL70 lime2.2379623
SI-CL90 lime2.2178767
CH-CL90 lime2.34316,198
Limestone filler2.7643194
Table
Table 4. Wet density (g/cm3); mini-slump flow (mm); bleeding after 3 h (%); and water retention capacity (%) of the fresh SI and CH mixtures.
Table 4. Wet density (g/cm3); mini-slump flow (mm); bleeding after 3 h (%); and water retention capacity (%) of the fresh SI and CH mixtures.
MixtureWet Density (g/cm3)Mini Slump Flow (mm)Bleeding after 3 h (%)Water Retention Capacity (%)
SI-701.74 ± 0.02259 ± 161.0 ± 0.383 ± 1
SI-901.74 ± 0.00300 ± 151.5 ± 0.382 ± 2
CH-901.76 ± 0.02254 ± 100.9 ± 0.485 ± 2
Table
Table 5. Results of injectability with a syringe.
Table 5. Results of injectability with a syringe.
MixtureCrushed Lime Mortar
DryWet
SI-70EE
SI-90EE
CH-90D25F
Table
Table 6. Drying shrinkage in dry and pre-wetted mortar cups.
Table 6. Drying shrinkage in dry and pre-wetted mortar cups.
MixtureDry Mortar CupPre-Wetted Mortar Cup
Separation Size (mm)Crack Size
(mm)		Separation Size (mm)Crack Size
(mm)
SI-700.200.20.1
SI-900.20.10.20.2
CH-900.400.40.3
Table
Table 7. Density of hardened state (g/cm3); total and capillary porosity (%); and water absorption coefficient after 24 h (W24) and 10 min (W10) of the SI and CH mixtures.
Table 7. Density of hardened state (g/cm3); total and capillary porosity (%); and water absorption coefficient after 24 h (W24) and 10 min (W10) of the SI and CH mixtures.
MixtureDry Density (g/cm3)Total Porosity (%)Capillary Porosity (%)Content of Air Pores
(%)		W24 (kg/(m2√min))W10 (kg/(m2√min))
SI-701.51 ± 0.0143 ± 037 ± 060.43 ± 0.021.01
SI-901.45 ± 0.0140 ± 138 ± 120.46 ± 0.012.59
CH-901.50 ± 0.0244 ± 038 ± 060.43 ± 0.033.34
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Padovnik, A.; Bokan-Bosiljkov, V. The Influence of Dry Hydrated Limes on the Fresh and Hardened Properties of Architectural Injection Grout. Materials 2021, 14, 5585. https://doi.org/10.3390/ma14195585

AMA Style

Padovnik A, Bokan-Bosiljkov V. The Influence of Dry Hydrated Limes on the Fresh and Hardened Properties of Architectural Injection Grout. Materials. 2021; 14(19):5585. https://doi.org/10.3390/ma14195585

Chicago/Turabian Style

Padovnik, Andreja, and Violeta Bokan-Bosiljkov. 2021. "The Influence of Dry Hydrated Limes on the Fresh and Hardened Properties of Architectural Injection Grout" Materials 14, no. 19: 5585. https://doi.org/10.3390/ma14195585

APA Style

Padovnik, A., & Bokan-Bosiljkov, V. (2021). The Influence of Dry Hydrated Limes on the Fresh and Hardened Properties of Architectural Injection Grout. Materials, 14(19), 5585. https://doi.org/10.3390/ma14195585

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
