Review on Development and Dental Applications of Polyetheretherketone-Based Biomaterials and Restorations

Abstract

Polyetheretherketone (PEEK) is an important high-performance thermoplastic. Its excellent strength, stiffness, toughness, fatigue resistance, biocompatibility, chemical stability and radiolucency have made PEEK attractive in dental and orthopedic applications. However, PEEK has an inherently hydrophobic and chemically inert surface, which has restricted its widespread use in clinical applications, especially in bonding with dental resin composites. Cutting edge research on novel methods to improve PEEK applications in dentistry, including oral implant, prosthodontics and orthodontics, is reviewed in this article. In addition, this article also discusses innovative surface modifications of PEEK, which are a focus area of active investigations. Furthermore, this article also discusses the necessary future studies and clinical trials for the use of PEEK in the human oral environment to investigate its feasibility and long-term performance.

1. Introduction

Polyetheretherketone (PEEK) is an aromatic, semi-crystalline linear thermoplastic polymer [1] (chemical formula shown in Figure 1). As a member of the polyaryletherketone (PAEK) family, PEEK was developed from bisphenol salts and aromatic dihalides via nucleophilic substitution. With the participation of Williamson ether, the bisphenol salt was produced in situ from bisphenol with either added sodium or added alkali metal carbonate or hydroxide [2]. This chemical structure provides the material with stability at high temperatures (exceeding 300 °C), resistance to chemical and radical damage, greater strength (on a per mass basis) and compatibility with reinforcing agents such as glass and carbon fibers [2,3,4,5].

PEEK has a wide range of applications, including automotive, electronics, aircraft and turbine blades. In the medical field, PEEK has been used in orthopedic treatments, cardiac operations, maxillo-facial surgeries, spinal operations and cranioplasty [6]. PEEK is an essential high-performance dental material, with applications in oral implant [7,8,9], prosthodontics [10,11,12,13,14] and orthodontics [15,16,17]. Vitro and vivo studies demonstrated a satisfactory biocompatibility of PEEK [18,19,20,21]. Moreover, compared with current metal alloys, the compatibility of the elastic modulus between the PEEK biomaterials and human bone may lessen the stress shielding effects on the surrounding bone [4,22,23,24,25].

PEEK has an opaque or greyish color [26] and is not suitable for aesthetic restorations on anterior teeth [27,28]. Therefore, approaches of bonding with resin composites or veneering have been used to obtain aesthetic results [29,30,31,32]. However, these methods also face additional challenges. Achieving satisfactory bond strength of PEEK to resin composites remains difficult because of the low surface energy and inertness of PEEK [30,32,33]. Studies have been conducted to overcome these shortcomings of PEEK [13,34,35,36]. This article reviews the most recent developments of PEEK-based biomaterials in dental applications, novel improvements in properties and innovative engineering methods for surface modifications.

2. Materials and Methods

For this review, only studies published in English were included, and the search was performed in December 2020. PubMed/MEDLINE and Web of Science databases were used. The following keywords were used in various combinations: “PEEK, Polyetheretherketone, PEEK composites, properties, applications, dentistry, oral application, polymeric material, implantology, orthodontics, prosthodontics, adhesive properties, adhesion, bonding strength, surface modification, laser treatment, plasma treatment, abrasion treatment, acid etching”. We divided the papers into several groups for: properties, applications including orthodontics, implantology, prosthodontics and adhesion of PEEK to dental composites.

3. Properties of PEEK-Related Biomaterials

Due to its excellent mechanical properties, PEEK has been used as an implant material, computer-aided design and computer-aided manufacture (CAD/CAM) material, coating material and abutment material [37]. PEEK has a similar Young’s modulus (3–4 GPa) to human bone [23,26,38,39]. Its capability to be combined with other materials was a favorable advantage of this material [40]. For example, PEEK composites reinforced with carbon fibers (CFR-PEEK) had a higher elastic modulus (18 GPa) [41], which is equivalent to human cortical bone and dentin [42]. CFR-PEEK exhibited less stress-shielding when compared to titanium implant [38], as shown in

Table 1. Tensile strength and elastic modulus of PEEK, CFR-PEEK and mineralized human tissues. (Reproduced from [38], with permission from © 2016 Elsevier). CFR-PEEK: carbon fiber-reinforced-polyetheretherketone.

Material	Tensile Strength (MPa)	Young’s Modulus (GPa)
PEEK	80	3–4
CFR-PEEK	120	18
Cortical bone	104–121	14
Dentin	104	15
Enamel	47.5	40–83
Titanium	954–976	102–110

. Despite its low elastic modulus, the wear resistance of PEEK was comparable to that of metal alloys [43]. Furthermore, since it had good fatigue resistance and exhibited a low creep rate, PEEK was a popular bearing material [17,44]. It was reported that among three types of tested orthodontic wires, the highest flexural strength and creep resistance were observed with PEEK [17]. The tensile properties of PEEK matched those of enamel and dentin, which made it a potential alternative for the framework of prosthodontic restorations [38,43].

The chemical resistance of PEEK helped minimize its biocorrosion, thus avoiding the release of toxic by-products [45]. PEEK was not damaged by exposure to conventional solvents. In addition, due to its distinctive aromatic chemical structure, PEEK also exhibited excellent resistance to gamma and electron beams [46] which were used to sterilize medical devices. Furthermore, due to its radiolucency, PEEK created no artifacts on the magnetic resonance imaging and X-ray radiographs [47]. PEEK had a low water-solubility of 0.5%, with long-term water exposure causing no chemical damage, even at temperatures of up to 260 °C [18]. However, PEEK was bioinert and hydrophobic, thus limiting its direct bone contact ability [48,49]. The improvement of the bioactivity of PEEK implants is much needed and requires further research [50].

PEEK is metal-free and aesthetic and has found use in prosthodontic applications including fixed or removable prostheses [12,15,51]. To acquire a more aesthetic effect, resin composites have been used to cover the opaque and gray PEEK [32]. In addition, surface modifications of PEEK have been investigated to achieve a strong adhesion between PEEK and resin composites.

Furthermore, the satisfactory and excellent biocompatibility of PEEK has been reported [52]. In vitro study showed no evidence of mutagenic or cytotoxic activity of PEEK on human organisms [21,53]. Excellent performance was also observed in investigations on the in vitro cellular biocompatibility for CFR-PEEK [54]. In addition, according to the bone and soft biocompatibility of in vivo studies, there was no toxic damage on fibroblasts or osteoblasts caused by PEEK [19,55].

4. Applications of PEEK in Orthodontics

Due to the increasing aesthetic demand of patients, non-metallic orthodontic wires are becoming increasingly popular [56]. PEEK is highly promising as an excellent alternative to metal alloys. For dental applications, PEEK overcomes some of the main shortcomings of metal alloys, such as poor aesthetics, metal allergies, releasing metal ions and corrosion in the oral environment [15,16,57]. PEEK also avoids the interference of metals with magnetic resonance imaging [17].

Tada et al. [15] evaluated the load-deflection features and frictional properties of PEEK wires, concluding that PEEK wires were suitable as orthodontic appliances. The load-deflection curves displayed similarities among the tested wires, while the differences in the permanent deformation and static friction of all the materials were insignificant. Maekawa et al. [17] studied the three super engineering plastics (SEPs): PEEK, polyetheretherketone (PES) and polyvinylidene fluoride (PVDF), as the base material of orthodontic wires. Compared with other materials, PEEK has good creep resistance, the highest bending strength and lower water absorption, which make it a suitable substitute for metal-free orthodontic wire.

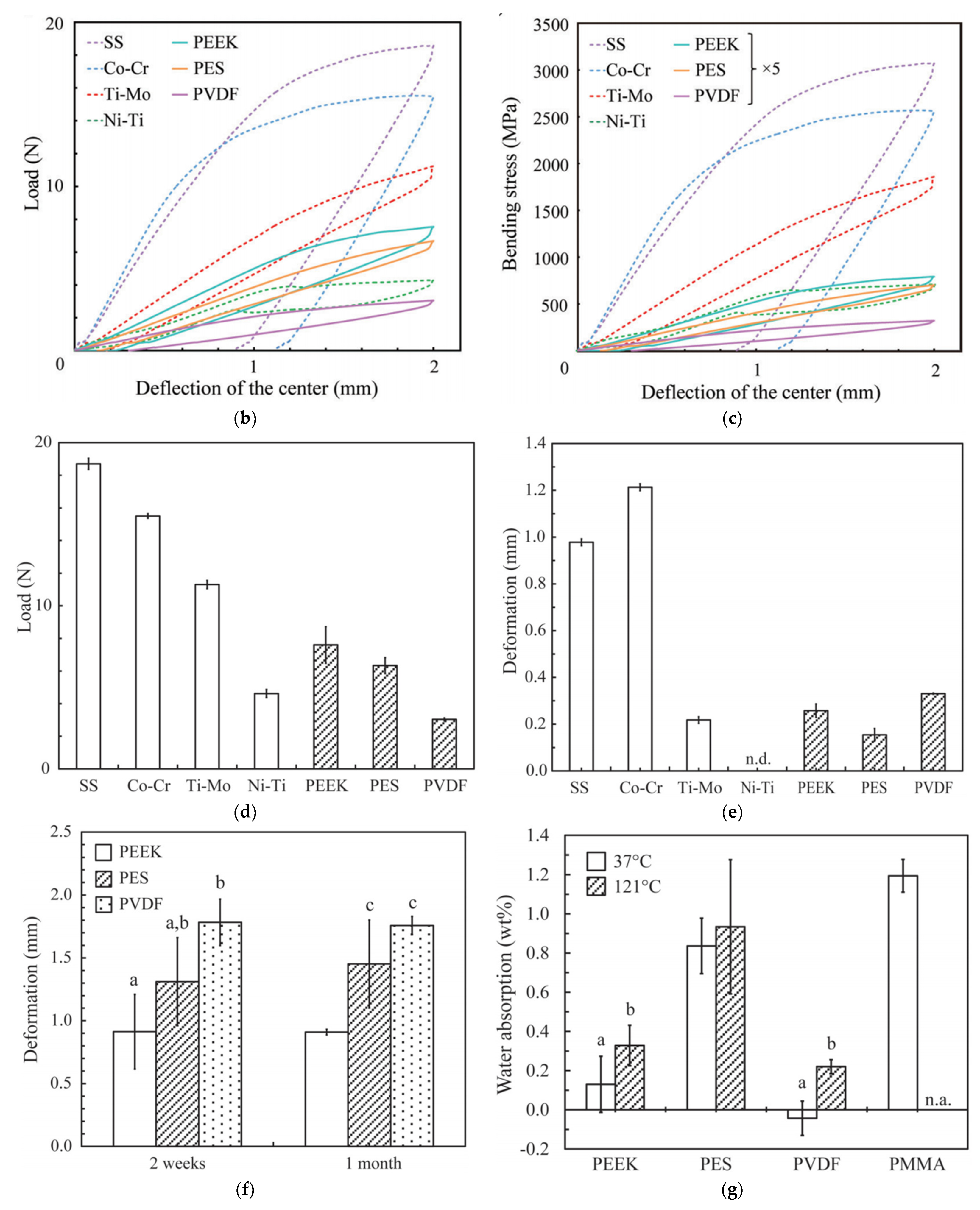

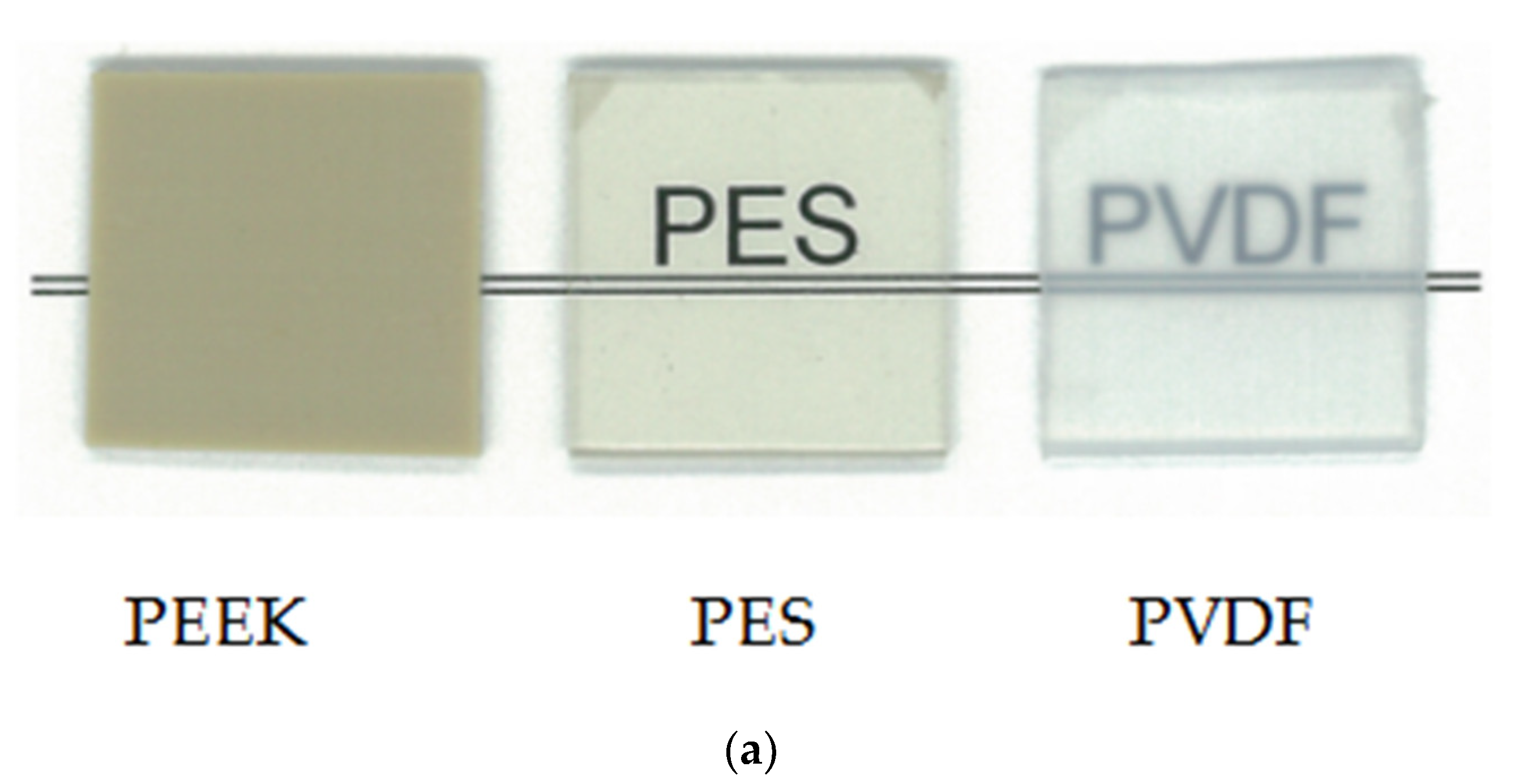

Figure 2a shows the color outward appearance of three SEPs (1.0 mm thick). Better aesthetic appearance was observed in PES and PVDF, rather than the grey and opaque PEEK specimens. As proven in Figure 2b, the typical load–deflection curves of the examined wires indicated that stainless steel (SS) and cobalt-chromium (Co-Cr) wires exhibited greater flexural loads and larger everlasting deformations than the rest of material. In term of deformation, the Nickel-titanium (Ni-Ti) wire had a typical load-deflection curve with no permanent deformation, while SEP wires had the opposite results. Figure 2c displays the bending stress-deflection curves of the specimens. Bending load at 2.0 mm deflection in the three-point test is shown in Figure 2d. PEEK had the greatest flexural load in all of the SEPs. Figure 2e indicates the permanent deformation after the 2.0 mm bending load. Perpetual deformation has not been found in Ni-Ti specimens. On the contrary, less deformation has been observed in SEP samples (PEEK, 0.2 mm; PES, 0.1 mm; PVDF, 0.3 mm). Figure 2f indicates creep deformation of SEP wires after the bending creep test. Among the SEPs, PEEK wires had less creep deformation (less than 1.0 mm deformation after 1 month of bending at 37 °C).

Water absorption at 37 and 121 °C (autoclaving) for 10 days is displayed in Figure 2g. PEEK exhibited a much smaller water absorption (no more than 0.2 wt.% at 37 °C and 0.4 wt.% at 121 °C). Minimal water absorption at 37 °C was found in PVDF due to its hydrophobic nature. In addition, a recent study reported that orthodontic archwires with the PEEK tube had the right combination of aesthetics and functional properties in orthodontic appliances. Passing the archwire through the PEEK tube also reduced the frictional force between the bracket and wires [16]. In addition, PEEK could be used as coatings on Ni-Ti alloy wires to enhance the corrosion resistance and improve the mechanical properties [58]. However, the long-term oral exposure might cause severe deterioration to the stability of PEEK coating [59]. Therefore, further studies are required to evaluate the long-term stability of PEEK-coated orthodontic wires.

Therefore, PEEK makes the treatment more acceptable for patients with aesthetic availability and thus could be regarded as feasible orthodontic wires [17,38]. However, PEEK wire has not been widely used clinically, and there are insufficient data on its long-term mechanical and aesthetic properties in the human oral environment. Moreover, the load-deflection characteristics and static friction of PEEK orthodontic wires might be influenced by oral activities, such as eating, brushing or removing food colorants and stains. As a result, further investigations are required to take the simulated clinical conditions including wet conditions into account [15]. For PEEK orthodontic wires, long-term investigations of the mechanical properties under clinical loading conditions are needed as well.

5. PEEK Materials in Oral Implantology

PEEK implant has emerged as a substitute for patients with bruxism or allergic reactions to metals [60]. In addition, the outstanding mechanical properties, superior biocompatibility and stiff semi-crystalline nature with bone-like hardness have made PEEK a promising biomaterial for orthopedic implant applications [23,61].

5.1. PEEK as Dental Implants

PEEK could be recommended for applications in oral implantology. However, dental implants fabricated by PEEK have not been extensively used clinically [38], compared with orthopedic implants [62,63,64]. Stress-shielding is a mechanical phenomenon that could be interpreted as the adjustment in mechanical stimulus in the bone surrounding to the implant [65]. Stress shielding considerations indicated that the compliance of dental implant material is required to match the host bone [66]. Otherwise, in case of stresses exceeding the level of the bone strain, the bone around an implant would suffer possible complications such as per-implant bone resorption or reduction [67]. Stresses below the level would exert favorable outcomes for the implant and stimulate bone remodeling phenomena [9,66]. The stiffness of the dental implants would be decreased and then the bone apposition of surrounding bone could be observed based on finite element analysis (FEA) [8]. A study also demonstrated the same result that the low stress shielding effects of PEEK material was beneficial to prolong the implant lifespan [68]. As a result, a more well-proportioned stress distribution of PEEK and its composites to the adjacent bone requires further research.

Furthermore, by adding carbon fibers, the elastic modulus of PEEK could be reinforced to up to 18 GPa [41]. Adjusting the fiber length and orientation would make it better suited to the cortical bone or titanium alloy [47]. A study demonstrated that stress distribution in CFR-PEEK dental implant had higher stress peaks due to a reduced stiffness compared to titanium. This type of implant presented inhomogeneous stress distribution in the cervical area and cortical bone than the titanium implant [41]. Furthermore, similar results were observed in another study. Compared with the CFR-PEEK implant, titanium exhibited a more homogenous stress distribution due to its smaller deformation, as reported by Sarot et al. [69].

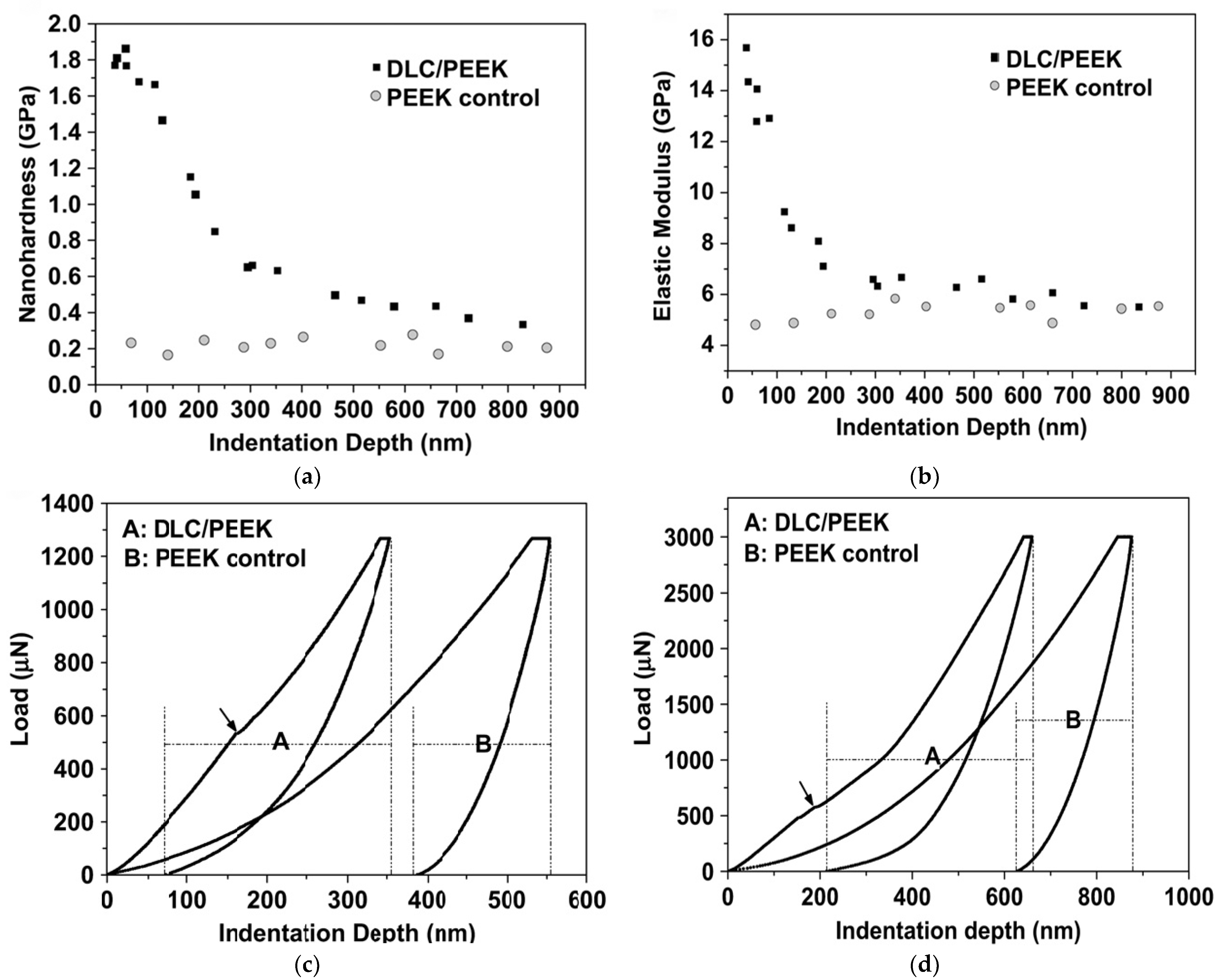

The diamond-like carbon (DLC) exhibited a more identical elastic modulus to the cortical bone than PEEK as suggested by Wang et al. [22]. They synthesized DLC/PEEK to enhance the stability and surface properties of PEEK in bone implant. PEEK was coated with DLC by plasma immersion ion implantation and deposition (PIII&D). The system had comparable elasticity to cortical bone which could prevent the resorption of adjacent bones due to the reduced stress shielding. Figure 3a,b, respectively, indicate the nanohardness and elastic modulus values of the DLC/PEEK and PEEK control along with a function of the indentation depths from 50 to 900 nm. After coating with DLC, the surface hardness enhanced from 0.2 to 1.9 Gpa, and the surface elastic modulus increased from 5 to 16 GPa.

Figure 3c,d exhibit the load-displacement curves acquired at loadings of 1300 and 3000 mN. Under the same load, a smaller indentation depth and larger elastic recovery were observed in the DLC/PEEK specimens.

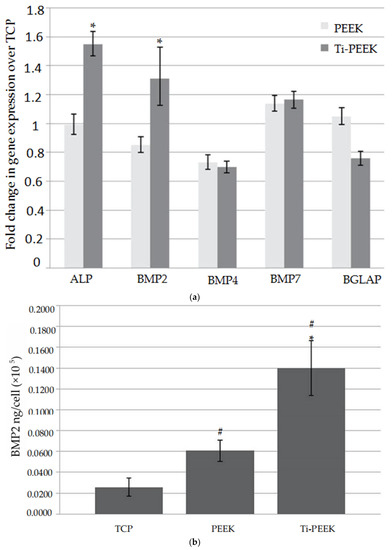

Additionally, when compared to titanium, PEEK implants had minimal osteoblast differentiation [70], and they did not display any osteoconductive properties [49,71]. However, favorable bony deposit could be found in the titanium-coated PEEK (Ti-PEEK), as shown by Cheng et al. [72]. Gene expression of bone formation markers, protein levels and histological images of the Ti-PEEK and PEEK groups are shown in Figure 4 and Figure 5. In Figure 4a,b, the markers were expressed on the surfaces of samples at different degrees when compared to the tissue culture plastic (TCP) control. The expression of alkaline phosphatase (ALP) and bone morphogenetic protein-2 (BMP-2) genes, activity and BMP-2 protein levels was higher on Ti-PEEK. In Figure 5, the histology results show that bony apposition adjacent to the Ti-PEEK surface was observed at the 12 and 24 week time points, while the PEEK group exhibited less bony apposition.

Sulfonation treatment [45,73,74,75], plasma immersion ion implantation [39,76] and bioactive coatings [72,77,78] are commonly used in surface modification of PEEK implants. In addition, by blending with fine filler particles to synthesize PEEK composites [25,79,80,81,82], bioactive implants with good osseointegration could be produced.

PEEK dental implants tend to have oral biofilm formation in vivo [5,48], which increases the risk of bacterial infection around the implants [46]. Several strategies could be adopted to solve this problem. These include PEEK sulfonation treatment, coatings, incorporation of bioactive composites in PEEK substrate or on the surface and introduction of reinforcement agents to produce nanosized composites [83]. Furthermore, Garcia et al. [84] reported that, compared with metallic implants, PEEK implants could boost early intraoperative bacterial colonization and subsequent infection. C. acnes was found to form biofilms on PEEK as observed by Scanning Electron Microscopy (SEM) (Figure 6). In Figure 6a, biofilm formation on PEEK was exhibited at 8 h following inoculation to PEEK. As displayed in Figure 6b–d, an increasing adherent bacterial concentration from 12 to 20 h of adhesion occurred. Furthermore, instead of anchoring to the surrounding bone, PEEK and CFR-PEEK implants tend to become encapsulated by fibrous tissue and/or colonized by bacteria because of foreign body reaction [46]. To enhance the antibacterial activity, a polyetheretherketone/nano-fluorohydroxyapatite (PEEK/nano-FHA) biocomposite with the ability to prevent bacterial proliferation and biofilm formation was developed by Wang et al. [48].

5.2. PEEK as Dental Implant Abutments

Metals such as titanium and ceramics such as zirconium oxide can be used for dental implant abutments. Recently, PEEK was introduced as a restorative material in implant dentistry and increasingly employed as implant abutment material [85,86]. Hahnel et al. [85] analyzed the biofilm formation in implant abutment materials of titanium, zirconia and PEEK. PEEK featured favorable properties as an abutment material, having lower biofilm formation on its surface than the traditional abutment materials of titanium and zirconia. The biomechanical behaviors of resin-matrix ceramics and PEEK customized abutments in terms of stress distribution in implants and peripheral bone were evaluated by Kaleli et al. [37]. Using the PEEK-customized abutment increased the stress concentration when restored with crowns. In addition, the material of the healing abutment (PEEK or titanium) did not significantly influence the soft and hard tissue during the healing period of 3 months, as shown by Koutouzis et al. [87].

PEEK reinforced with titanium abutments serves as an effective alternative to traditional abutments, given its excellent biocompatibility, and could preserve the bone height and stabilize the soft tissue [88]. According to the fracture strength of implant-supported resin crowns, no significant difference was observed between PEEK abutments and titanium temporary abutments, except for central incisors, as reported by Santing et al. [86].

Currently, due to the accessibility and high accuracy, intraoral digital impression systems have been introduced into the fabrication of dental implant restorations [89,90]. Implant scanbody (ISB) manufactured with PEEK material is conducive to enhancing the accuracy of digital impression [91]. The highest accuracy of the impression on both linear and angular measurements was observed in PEEK material, followed by titanium and PEEK-titanium. As a result, the ISB materials would potentially display various effects on the accuracy of impression. The optical properties of PEEK could enhance the intraoral digital optical scanning to acquire more points from the ISB surface, leading to a more accurate scanning result. The fit and wear-resistant properties of PEEK material may influence the process of screwing onto the implant [91].

In summary, there are only a few studies on the clinical evaluation of PEEK abutments, and the longest research only lasted for several months [47,87]. More clinical trials are vital to evaluate the hard and soft tissue responses to PEEK materials and their lower biofilm formation.

5.3. PEEK as Abutment Crown and Abutment Screw

To date, PEEK has been used for the manufacturing of provisional implant crowns. The screw-retained implant crown fabricated by PEEK has potential in implant-supported restorations [26]. In addition, as an important factor, fracture strength deserves to be considered to evaluate the clinical service and failure rates of prosthetic materials. Implant-supported three-unit fixed partial denture (FPD) from PEEK could bear high occlusal forces such as excessive crown height space (CHS) [92]. Furthermore, due to the high elastic modulus of the metal framework and the mobility of the abutment teeth, resin-bonded restorations are prone to unfavorable stress concentrations at the bonded interface; therefore, the risk of debonding could be increased. Hence, Zoidis et al. [12] fabricated an interim 3-pontic resin-bonded FPD using a PEEK framework veneered with resin composites after implant placement. It shows superiority over metal ceramics or ceramics in dampening the occlusal forces and reducing debonding rates. New PEEK-based materials reinforced with ceramics emerged with stronger mechanical properties as permanent restorations. Ceramic-reinforced PEEK crowns over titanium and zirconia abutments demonstrated high fracture resistance, which was equivalent to the commonly employed ceramic material, as shown by Elsayed et al. [93].

Abutment screw fractures are related to many factors, including the types of implant abutment screw materials. Using an assembly of an external hexagonal implant/UCLA-type abutment, Neumann et al. [94] compared the fracture resistance of implant abutment retention screws manufactured of titanium, PEEK and 30% carbon fiber-reinforced PEEK in vitro. All abutment screws manufactured from the above materials had fractures at the neck. Nonetheless, PEEK and 30% CFR-PEEK abutment screws exhibited lower fracture resistance than titanium. Stimmelmayr et al. [95] measured the abutment rotation and fracture load of two-piece zirconia implants screwed with gold, titanium and PEEK, respectively. The results showed no significant differences in the three tested materials. However, the group with PEEK screws showed lower fracture values when compared with the gold and titanium groups. The feasibility for PEEK as an abutment screw remains questionable and requires further testing.

Although PEEK attracts increasing clinical attention and interest, its poor integration into surrounding bone tissues caused by its biological inertness remains a challenge. This is especially true for the implant applications of PEEK in bacteria-infected operative regions. Further studies are required to enhance the infection resistance and osseointegration of PEEK [48]. Evidence of satisfactory osseointegration in preclinical practice and standard outcome measures is also required to ensure the use of PEEK implants as an alternative implant for clinical cases [38].

6. Effects of PEEK for Prosthodontics Applications

PEEK is increasingly used in the manufacture of removable and fixed prostheses [96], such as dental crowns, bridges and denture clamps in removable dental prostheses [38,97,98,99,100]. This is due to its advantages, including low potential to deduce an allergy, low water solubility, superior biocompatibility, high thermal and chemical resistance, moderate biofilm formation and excellent mechanical properties [97,98].

6.1. PEEK as a Removable Prosthesis Material

Currently, patients with missing teeth tend to choose implant restorations [101]. The success of implant dentistry has prompted the scope of aesthetic fixed prosthesis. However, there are still many patients who, for healthy, anatomic, psychological or financial reasons, are not suitable candidates for implants [14,102]. Those patients prefer to choose the removable partial denture (RPD), which could provide a conservative and cheap approach for replacing the lost teeth [101].

CAD/CAM technology has been used in prosthodontics [102,103]. Harb et al. [104] gave a clinical report on the fabrication of the PEEK framework of Kennedy Class I RPD by CAD/CAM milling technology. They suggested that milled PEEK might be a useful alternative framework material for RPD when restoring Kennedy Class I edentulous patients. Additionally, using CAD/CAM or traditional lost wax technique, the RPD framework manufactured by PEEK could be a substitute for the cobalt-chromium framework for patients who were allergic to traditional materials or more sensible in taste [11]. These cases indicated that this elastic material was beneficial to the periodontal health of abutment teeth, since it might decrease the distal torque and strain for the abutment teeth [105,106]. Similar results were found in another study [107]. However, a clinical study demonstrated that there were similar effects on oral health-related quality of life, patient satisfaction and periodontal outcomes for the PEEK denture frameworks, compared with cobalt-chromium denture frameworks [108].

In addition, Tannous et al. [14] suggested that the clasps of RPD fabricated by PEEK exhibited lower retention than the cobalt-chromium clasps. There was a need to evaluate the retention effects of PEEK clasps in clinical use. PEEK was unfit for the dental clasps since the maximum stress occurring during removal with higher undercuts was higher than the material strength [109].

The stress peaks and undercut for selected clasp materials were summarized in

Table 2. Group distribution, reaction force and maximum principal stress peaks and failure risk for the clasp and the enamel according to the clasp material (elastic modulus - E) and undercut. (Reproduced from [109]. with permission from © 2020 Elsevier).

Clasp Material	Retention (mm)	Reaction Force (N)	Stress Peak (MPa)		Failure Risk
			Clasp	Enamel	Clasp	Enamel
Polyamide (E = 1.44 GPa)	0.25	3.13	17.1	1.4	0.22	0.03
	0.5	6.31	34.2	3.0	0.45	0.07
	0.75	9.47	51.1	4.5	0.68	0.11
Polyoxymethylene (E = 3.15 GPa)	0.25	4.53	45.7	17.2	0.26	0.41
	0.5	8.65	67.8	21.5	0.32	0.51
	0.75	12.31	96.6	35.8	0.54	0.85
Polyetheretherketone-PEEK (E = 3.74 GPa)	0.25	6.45	108.2	26.0	0.33	0.62
	0.5	12.95	134.6	31.1	0.39	0.74
	0.75	18.36	189.9	38.2	0.48	0.91
Gold (E = 91 GPa)	0.25	14.50	160.5	30.2	0.07	0.72
	0.5	28.98	198.2	38.1	0.08	0.90
	0.75	43.41	202.1	44.1	0.10	1.05
Titanium (E = 110 GPa)	0.25	17.81	230.9	32.2	0.07	0.76
	0.5	35.63	241.1	39.8	0.08	0.95
	0.75	53.44	252.2	45.2	0.09	1.07
CoCr (E = 220 GPa)	0.25	21.78	255.8	34.7	0.05	0.82
	0.5	43.57	267.0	41.1	0.06	0.98
	0.75	65.37	297.9	46.4	0.07	1.10

. It could be observed that the polyamide clasp with the lowest stress (17.1 MPa) caused less stress in the enamel surface (1.4 MPa) and the lowest reactional force (3.13 N) with an undercut of 0.25. The cobalt-chromium clasp with the highest stress (297.9 MPa) exhibited the highest stress in the enamel surface (46.4 MPa) and the highest reactional force (65.37 N) with a 0.75 undercut.

In contrast, Peng et al. [110] claimed that the superior flexibility and lower elastic modulus of PEEK had a deeper undercut than the cobalt-chromium alloy and could exert lower stresses on the abutments. Furthermore, according to the aesthetic field, clasps and occlusal rests fabricated by PEEK provided metal-free, satisfactory and aesthetic effects for patients with high aesthetic requirements [11,104].

6.2. PEEK Crowns

Crown restorations made from PEEK exhibit poor aesthetics when restoring anterior teeth. The greyish and opaque color has limited PEEK for crown restorations [29,31,96,111]. The PEEK framework combined with veneering could provide a satisfactory aesthetic outcome [12]. Double crown systems, including telescopic crowns with a 0° taper and conus crowns, are capable of providing retention for RPD due to their guidance, support and protection from dislodging movements [98]. In the double crown system, CAD/CAM manufactured PEEK secondary crowns exhibited sufficient and stable retentive force values even after artificial aging, which were equivalent to 10 years of clinical usage [97]. Another study by Merk et al. [99] similarly claimed that PEEK might be suitable for telescopic crown technique when being used on zirconia crowns. Stock et al. [98] also suggested that in combination with cobalt-chromium or zirconia secondary crowns, PEEK could be regarded as a suitable material of primary crown for RPD.

PEEK has similar wear resistance to metal alloys. However, the abrasion on natural teeth caused by PEEK crowns has not been investigated, especially when compared with conventional crown materials. As a result, evidence is required to prove the functional harmony between PEEK crowns and dentin and enamel [38].

6.3. PEEK as a Fixed Partial Denture Material

Both conventional fabrication process and CAD/CAM methods could be used to manufacture the fixed partial denture (FPD). The restorations could be more rapidly chair-side-fabricated via the CAD/CAM technique than the conventional process [38,112]. In addition, the prosthesis fabricated by the traditional procedure had a lower load-bearing capacity than that manufactured by CAD/CAM [113,114]. Stawarczyk et al. [100] showed that three-unit-reinforced PEEK FDP via CAD/CAM had a higher fracture resistance, stability and reliability than the pressed granular or pellet shaped restorations. In addition, load-bearing test results of PEEK (995.52 ± 78.1 N) indicated that it could be used as a substitute to the resin-based FPD material, as shown by Cekic-Nagas et al. [113]. Unfilled PEEK was used as a fixed partial denture framework and was reported in a clinical case. The framework was found to have satisfactory esthetic appearance, marginal fit, stability and light weight in the patient’s mouth [115].

7. Adhesion of PEEK to Dental Composites

PEEK has difficulty in bonding with resin composites due to its inert performance, low surface energy and surface modification-resistance [116]. Attention has been paid to enhance the adhesive properties of PEEK. Furthermore, the additional adhesive system was another issue that influenced the bonding strength of PEEK to the composites [31,34,117].

7.1. Airborne-Particle Abrasion

Airborne-particle abrasion could improve the micro-roughness and bonding surface area, and simultaneously clean the surface [116], thus enhancing the bond strength between veneering resin to PEEK [30]. Stawarczyk et al. [29] evaluated the influence of varying the pressure and particle grain sizes on the tensile bond strength (TBS) between PEEK and the veneering material. The pressure of air-abrasion had a corresponding influence on the bonding characteristics instead of particle grain sizes. The shear bond strength of this material was 10.81 ± 3.06 MPa via airborne-particle abrasion, and it still could be regarded as a feasible surface treatment. This was because materials with above 10 MPa shear bond strength were acceptable [118]. Other studies also suggested that airborne-particle abrasion had the ability to improve the bond strength of veneering resin to PEEK [30,119].

In addition to single treatment of airborne-particle abrasion, when combined with chemical acid etching, the adhesion between PEEK and dental resin composites could be achieved [1]. For example, Keul et al. [31] investigated the effects of air abrasion and air abrasion + etching with piranha solution on the enhancement of adhesion between PEEK and resin composites, and they found that the bonding strength was improved. The same method was also conducted by Hallmann et al. [1]. They abraded the surface of PEEK and used piranha solution to etch its surface in combination with Heliobond-like adhesive. This resulted in the highest bond strength of 21.4 MPa.

Further studies focusing on the combination of air abrasion and chemical treatment, such as acid etching, are required. After chemical treatment, more functional groups would appear if there is enough contact surface, which has a positive effect on the cross linking of polymeric materials. Moreover, the mechanical anchoring effects of the adhesive could be improved in the condition of a special surface structure derived from the air abrasion [1].

7.2. Plasma Treatment

Plasma treatment is an approach to improve the bonding performance of PEEK. After using low-temperature plasma, a pretreated material transforms its non-polar surface into a polar surface and then a dense cross-linked layer or a rough surface is generated. These features all enhance the bonding properties [120]. Several studies focused on the plasma treatment for PEEK. For example, Stawarczyk et al. [34] revealed that a low pressure plasma of helium gas did not improve the adhesive performance of ceramic-filled PEEK to two self-adhesive resin cements. Similar results were found in another study [121]. However, an effective adhesion was obtained by Zhou et al. [116]. They possessed PEEK composites with argon plasma treatment, and the surface of specimens showed some cracks, grooves and deposits, contributing to the enhancement of surface roughness and improvement of the bond strength. The surfaces via different treatments were investigated by scanning electron microscopy (SEM), as shown in Figure 7. The untreated specimens had slight surface scratches (Figure 7a). As shown in Figure 7b, a porous appearance of the tested material was produced after 98% sulfuric acid etching. As shown in Figure 7c, hydrofluoric acid etching presented a limited influence on the surface. As shown in Figure 7d, grooves, cracks and deposits could be observed on its surface via argon plasma treatment.

Bötel et al. [122] evaluated the impact of oxygen and argon/oxygen low-pressure plasma on the shear bond strength (SBS) between different PEEK compounds and three types of veneering cements. Employing the oxygen process gas for a duration of 35 min was shown to be optimal. The effects of the low-pressure plasma compound of argon/oxygen gases between shear bond strength of three types of PEEK (unfilled, ceramic-filled and pigment powder-filled PEEK) and veneering composites were studied by Schwitalla et al. [123]. Meanwhile, through this method in combination with sandblasting, a favorable enhancement in shear bond strength was achieved, especially on unfilled PEEK.

In addition to helium, oxygen and argon, the influence of other types of gases, such as air and nitrogen, on the improvement of PEEK bonding properties has also been studied. For example, Younis et al. [120] showed that plasma treatment of nitrogen gas exerted a positive influence on the SBS of unfilled PEEK and veneering composites. Similar results after nitrogen gas plasma treatment were obtained by Fedel et al. [124]. Therefore, plasma treatment was a suitable surface treatment to improve the bond strength of PEEK materials to dental composites.

7.3. Acid Etching

To improve the bond strength of PEEK, attention has been given to acid etching treatments. Studies demonstrated that favorable bonding performance could be acquired after acid etching with 98% sulfuric acid [35,111,116]. PEEK could be etched by a concentrated sulfuric acid, and then highly porous and permeable surfaces to adhesion were formed, thus enhancing the bonding strength [2,111]. Hydrofluoric acid etching had a limited effect on the enhancement of adhesive properties of PEEK [116]. The same unsatisfactory influence on the improvement of bond strength was found in piranha acid etching treatment, which had a less positive effect on the long-term bonding strength between the resin composites and PEEK [31,117].

In addition, the use of sulfuric acid with a high concentration (98%) was risky due to its corrosive nature causing serious damage to mucosa [36,111,116]. Therefore, this shortcoming of 98% sulfuric acid has limited its application in the improvement of PEEK. Although pretreating PEEK with 98% sulfuric acid might be a feasible method, the surface contamination in the dental laboratory and dental office before bonding is a concern and needs to be avoided [111].

7.4. Laser Treatment

In order to enhance the poor bond strength of PEEK to luting agents, several approaches of surface treatments, including silica coating, acid etching, air abrasion and plasma treatment, were investigated [30,125]. Recently, as a promising method to improve the bond strength of PEEK, laser irradiation treatment has attracted much attention [52]. However, controversial results were produced. For example, CO₂ laser treatment did not significantly enhance the SBS of tested PEEK (unfilled PEEK, carbon reinforced PEEK and glass reinforced PEEK) to the resin cement, as shown by Henriques et al. [125]. Similar results that CO₂ laser treatment had little effect on the inertness and bond strength of the PEEK surface were indicated in another study [126]. Additionally, in that study, the use of Erbium-doped yttrium aluminum garnet (Er: YAG) laser irradiation provided the highest SBS; thus, it could be a feasible approach for improving the adhesive properties of PEEK to the veneers. However, a single pretreatment of Er:YAG laser had no positive and effective influence on improving the adhesion of PEEK to the veneers, as shown by Ates et al. [30]. They also explored the impact of silica coating, airborne-particle abrasion or joint application of Er:YAG laser, revealing that these approaches improved the bonding performance of PEEK to veneers.

In addition to CO₂ and Er:YAG laser treatments, a neodymium-doped yttrium orthovanadate (Nd:YVO₄) laser was selected to treat PEEK surface. Uniform laser grooves could be fabricated in the PEEK surface through this type of laser to significantly improve the mechanical interlocking and the bond strength of PEEK to resin-based luting agents [36]. Therefore, laser treatments could serve as a promising method to improve the adhesive properties of PEEK.

7.5. PEEK Composites Containing SiO₂ or TiO₂

TiO₂ filler particles had an effect on the bond strength of PEEK, as reported by Lümkemann et al. [127] and Schwitalla et al. [123]. In addition, Rikitoku et al. [128] evaluated the effect of SiO₂ in PEEK on the bonding strength between PEEK and resin cement. They found that the tensile bonding strength was enhanced with increasing SiO₂ content in PEEK. PEEK with 40 wt.% SiO₂ exhibited the highest flexural strength as shown in their results. Therefore, future studies and clinical investigations in the oral environment are needed to evaluate the influence of the type, morphology, particle size, amount and coating of filler particles in PEEK on the long-term durable bonding of PEEK to dental restorations.

Further studies are required to investigate different pretreatment approaches such as etching solutions, various parameters of the air-abrasion treatment, different types of lasers with various laser parameters and different gases in plasma treatments [30]. Importantly, a single pretreatment method of PEEK surface may not be adequate for bonding to resin composites. Instead, a combination of several pretreatments may be a feasible idea.

8. Conclusions

PEEK has excellent mechanical properties, wear resistance, stability at high temperatures and good biocompatibility [129]. However, PEEK is bioinert and has a low surface energy which causes difficulties for its potential applications in dentistry [22,42,77,130]. Moreover, PEEK has an opaque and greyish appearance, and thus aesthetic materials such as veneering or resin composites are used to cover it [32,35]. The most recent approaches to modify PEEK were provided in this review, including acid etching, laser treatment, air particle abrasion, plasma treatment and fabricating PEEK composites with special filler particles. The use of 98% sulfuric acid to improve bonding strength is the most effective approach, without inducing any new functional groups. Other strategies also improved the bonding of veneering with PEEK. Further studies in the oral environment and clinical practices are needed in the application of PEEK in dentistry to determine its feasibility and long-term performance.
