Shear Strength of Hybrid Fibre-Reinforced Ternary Blend Geopolymer Concrete Beams under Flexure
Abstract
:1. Introduction
2. Experimental Programme

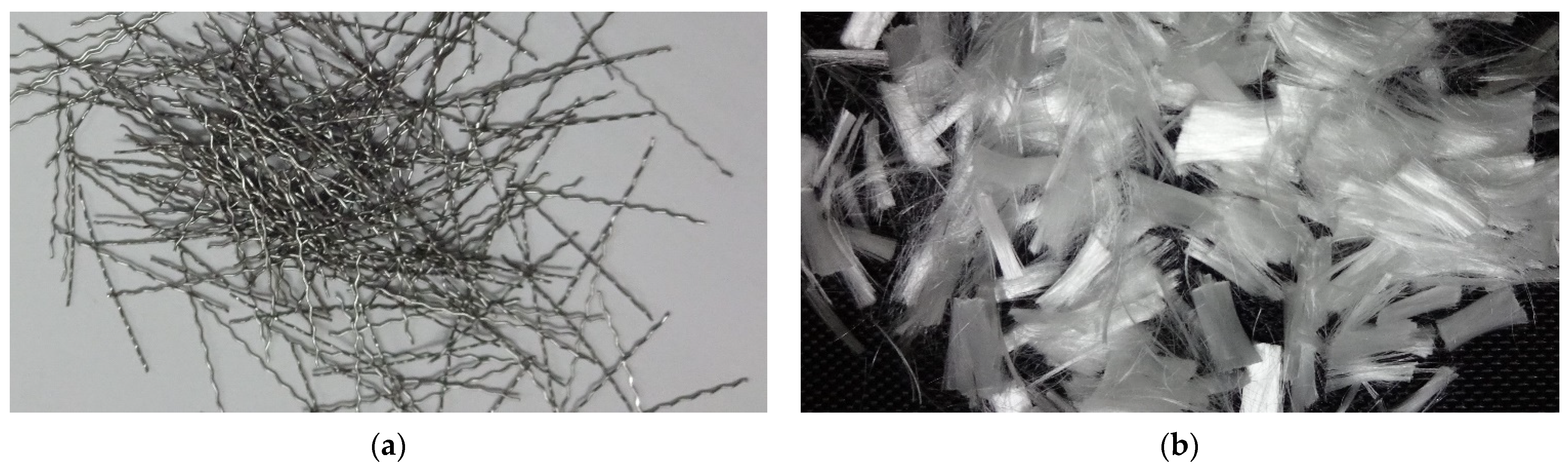

2.1. Materials
2.2. Mix Proportions for TGPC

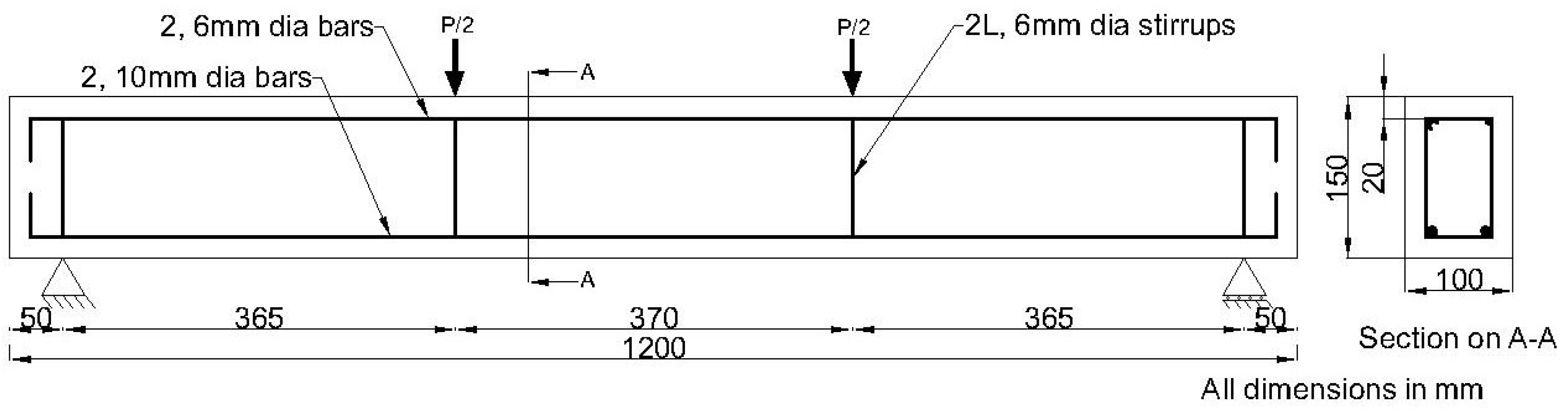

2.3. Specimen Details
2.4. Mixing, Casting and Curing Procedure

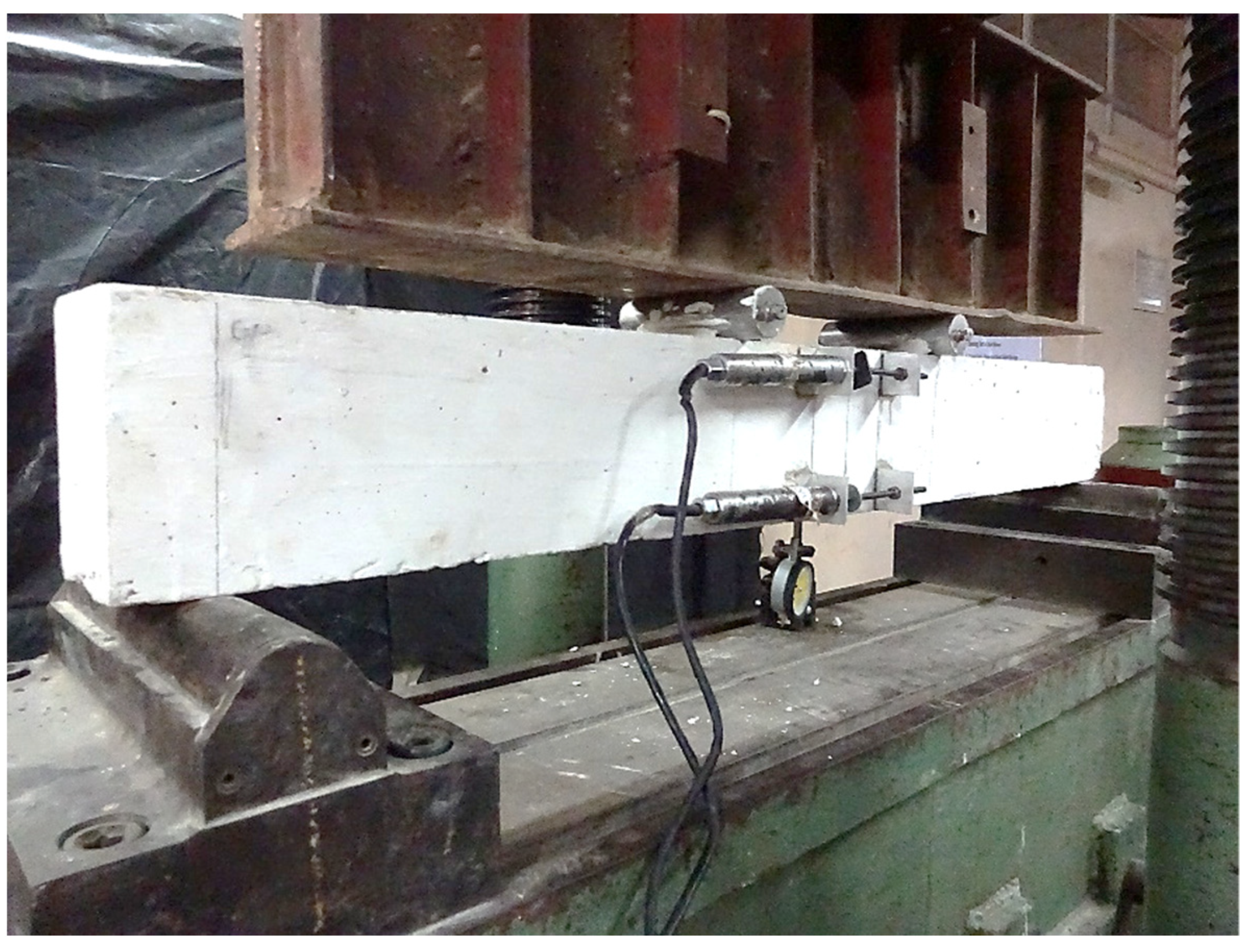

2.5. Testing
3. Results and Discussions

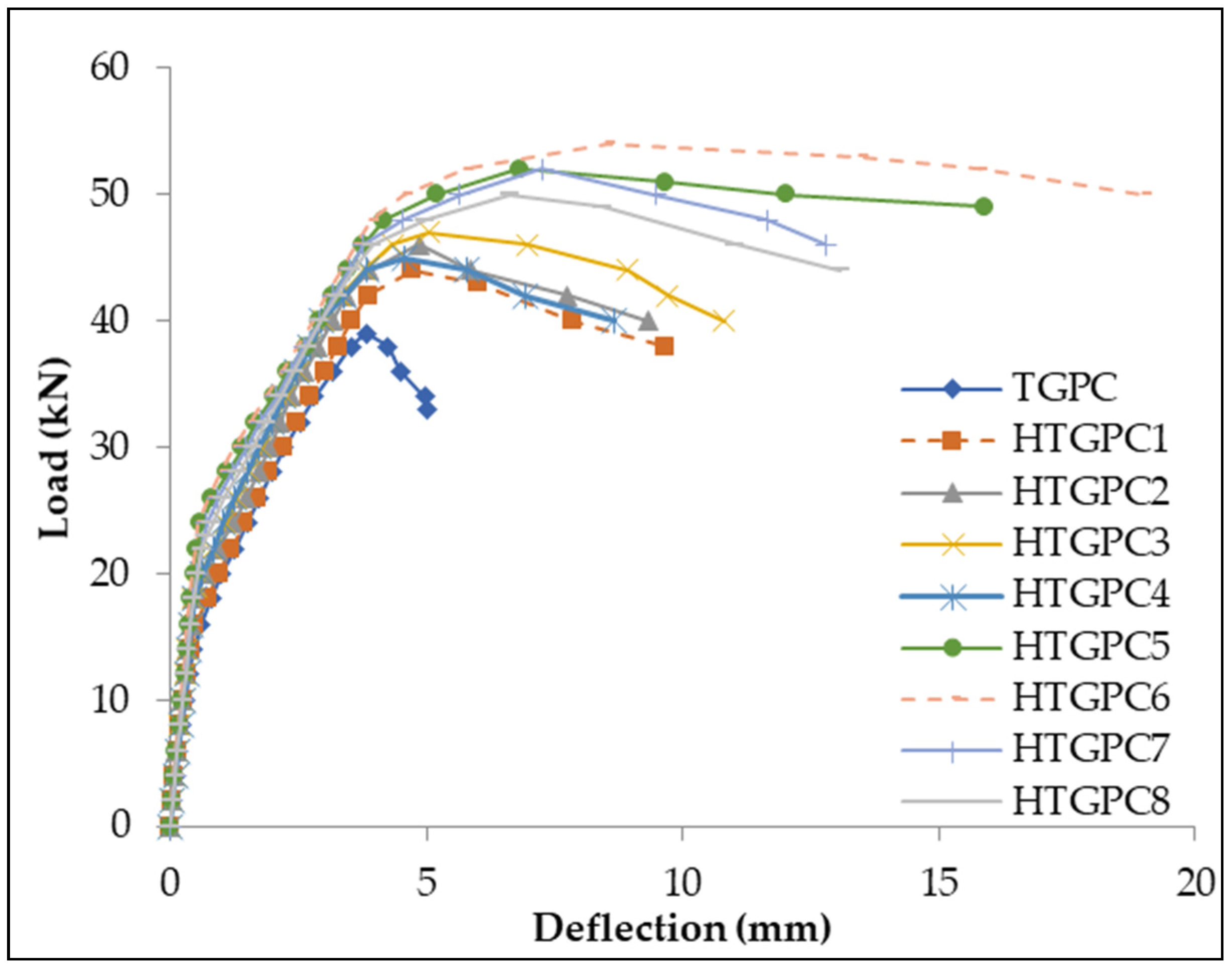

3.1. Load–Deformation Characteristics

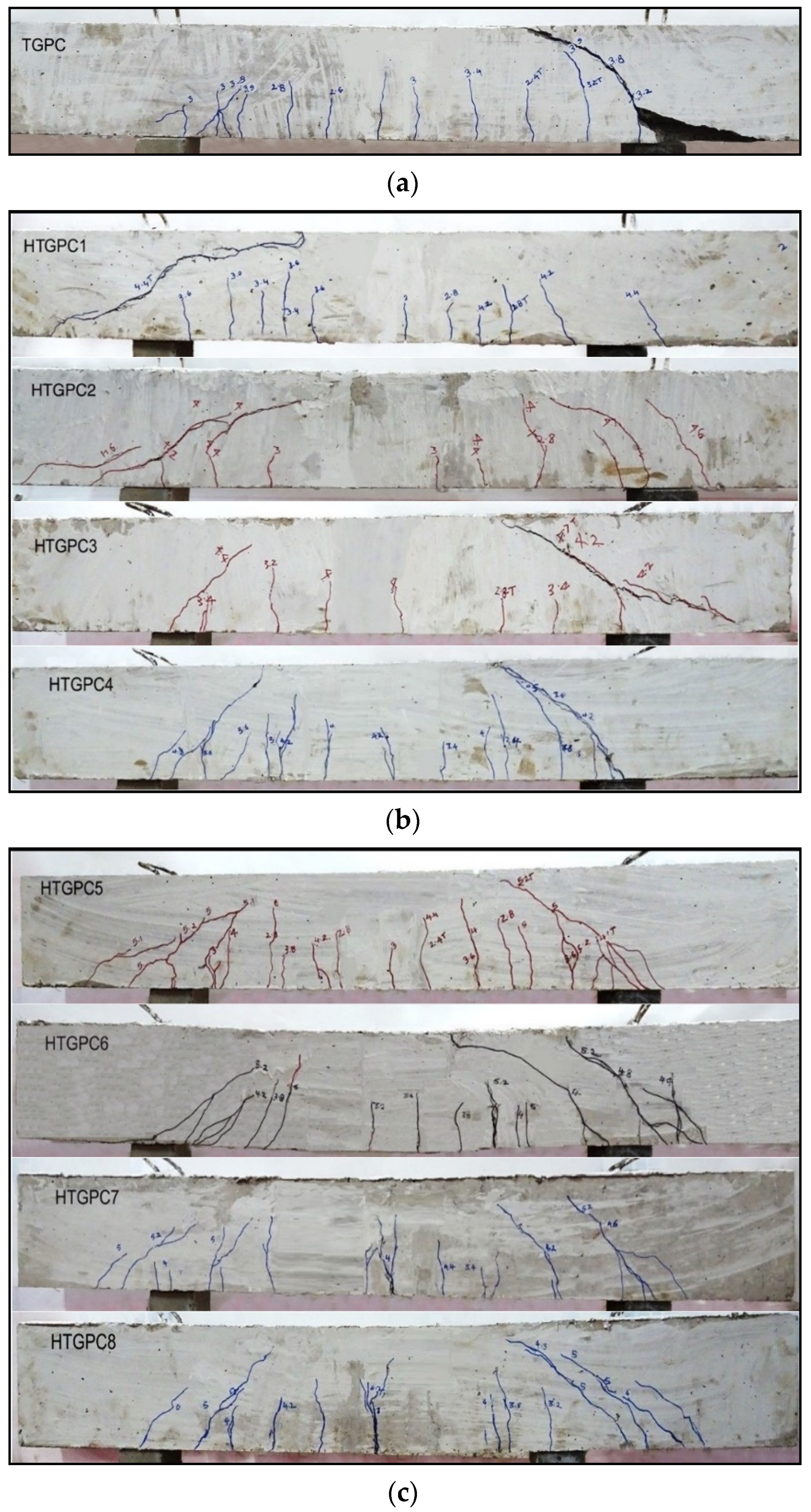

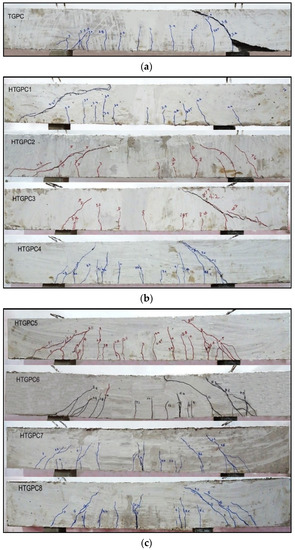

3.2. Cracking Behaviour and Failure Modes
3.3. Ultimate Shear Strength
4. Design Equations Available in the Literature for Shear Strength of Reinforced Concrete Flexural Members
4.1. Ashour et al.
- Modification of ACI building code equation:
- Modification of Zutty’s equation:
4.2. Kwak et al.
4.3. Li et al.
4.4. Narayanan and Darwish
4.5. Sharma
5. Conclusions
- The addition of hybrid fibres in TGPC beams modified the cracking pattern and failure from shear to flexure.
- Due to hybrid fibres, the first crack load and ultimate shear strength of HTGPC beams were improved by up to 85% and 38.5%, respectively, compared to the TGPC beams.
- HTGPC specimens with a combination of 1% steel fibres and 0.15% polypropylene fibres showed better results and suffered higher deflections, indicating a relative increase in ductility compared with other specimens.

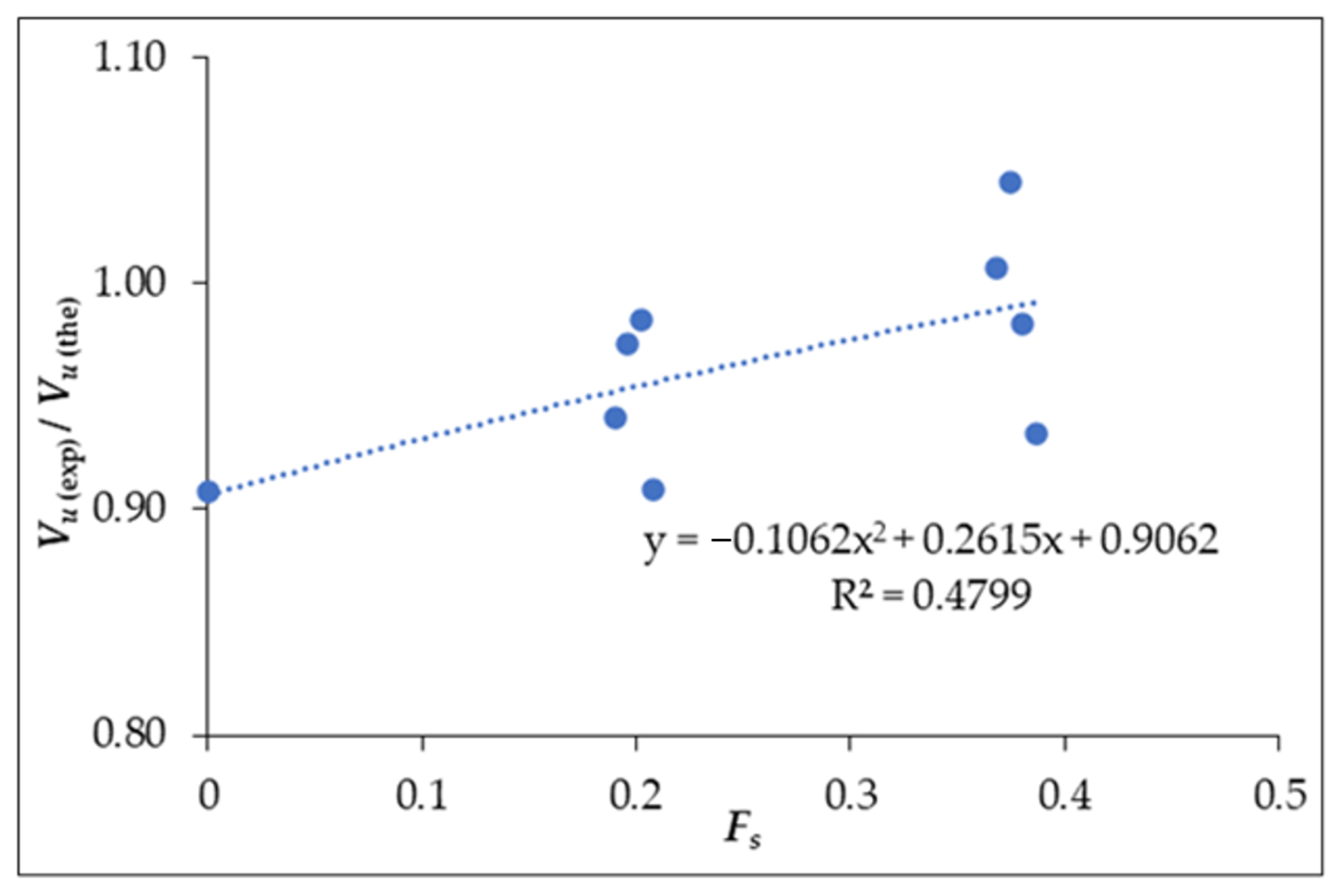

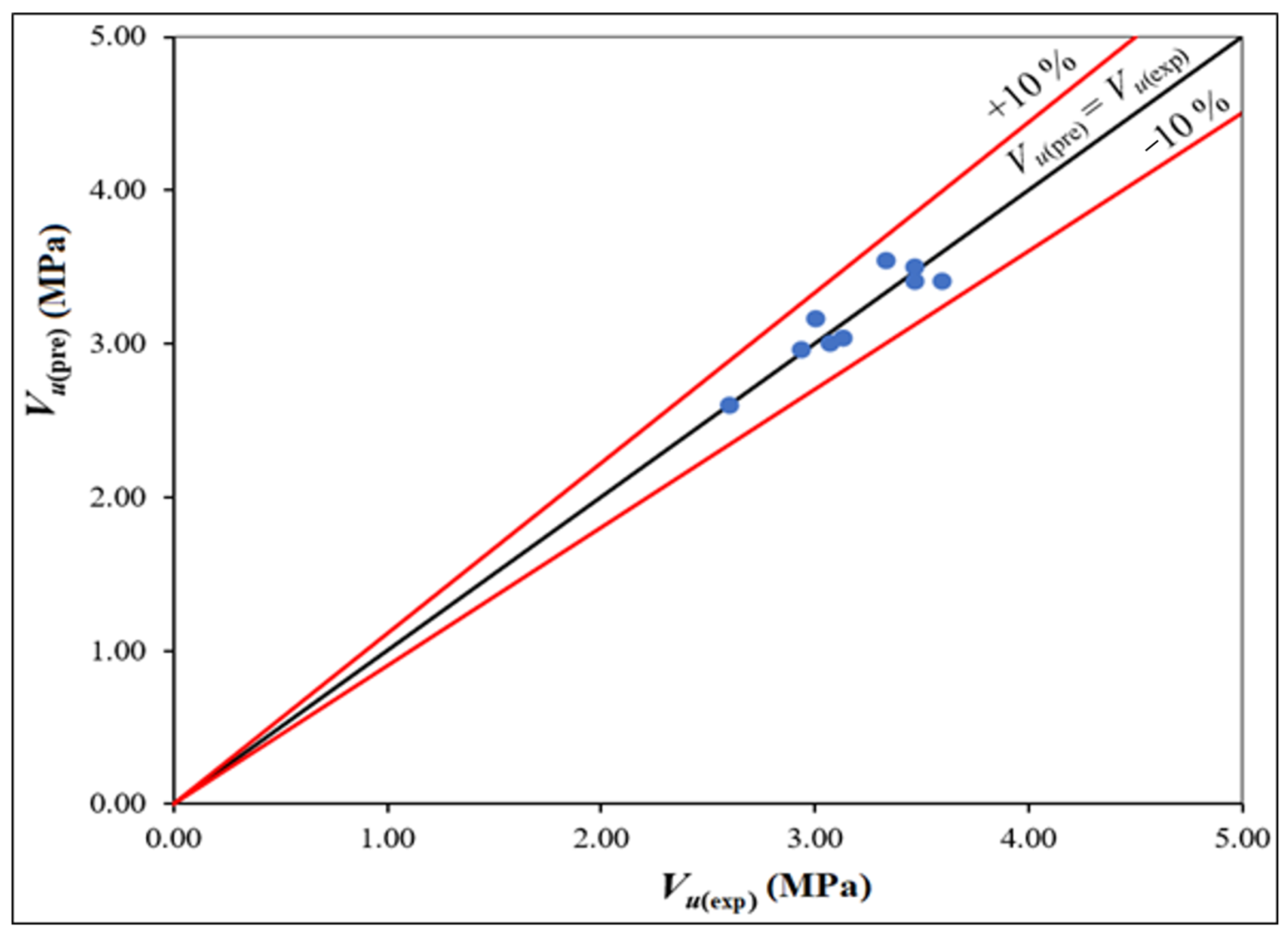

- A method for predicting the ultimate shear strength for HTGPC was proposed to account for the effect of hybrid fibres in TGPC. The predicted values of the ultimate shear strength were found to compare convincingly with the experimental test results.
- The modified equation for predicting the shear strength of HTGPC beams limits up to 1% steel and 0.25% polypropylene fibres. The obtained test results will be helpful in the rational design of HTGPC beams.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
ρ | percentage of reinforcement in tension |
ηbs | bond factor for steel fibre |
ηbp | bond factor for polypropylene fibre |
a | shear span |
d | effective depth of beam |
dp | diameter of polypropylene fibre |
ds | diameter of steel fibre |
e | arch action factor |
fct | tensile strength of concrete |
f’c | cylinder compressive strength |
ff | flexural strength of concrete |
Afs | aspect ratio of steel fibre |
Afp | aspect ratio of polypropylene fibre |
Fs | fibre factor |
Vs | volume fraction of steel fibres |
Vp | volume fraction of polypropylene fibres |
Vu | ultimate shear strength |
References
- Mustafa Al Bakri, A.M.; Kamarudin, H.; Bnhussain, M.; Rafiza, A.R.; Zarina, Y. Effect of Na2SiO3/NaOH ratios and NaOH molarities on compressive strength of fly-ash-based geopolymer. ACI Mater. J. 2012, 109, 503–508. [Google Scholar]
- Bondar, D.; Lynsdale, C.J.; Milestone, N.B.; Hassani, N.; Ramezanianpour, A.A. Engineering Properties of Alkali-Activated Natural Pozzolan Concrete. ACI Mater. J. 2011, 108, 64–72. [Google Scholar]
- Singh, N.B.; Kumar, M.; Rai, S. Geopolymer cement and concrete: Properties. Mater. Today Proc. 2020, 29, 743–748. [Google Scholar] [CrossRef]
- Davidovits, J. High-Alkali Cements for 21st Century Concretes. ACI J. 1994, 144, 383–398. [Google Scholar]
- Luhar, S.; Nicolaides, D.; Luhar, I. Fire Resistance Behaviour of Geopolymer Concrete: An overview. Buildings 2021, 11, 82. [Google Scholar] [CrossRef]
- Lingyu, T.; Dongpo, H.; Jianing, Z.; Hongguang, W. Durability of geopolymers and geopolymer concretes: A review. Rev. Adv. Mater. Sci. 2021, 60, 1–14. [Google Scholar] [CrossRef]
- Sathish Kumar, V.; Ganesan, N.; Indira, P.V. Engineering Properties of Hybrid Fibre Reinforced Ternary Blend Geopolymer Concrete. J. Compos. Sci. 2021, 5, 203. [Google Scholar] [CrossRef]
- Sathish Kumar, V.; Indira, P.V.; Ganesan, N. Tension stiffening and cracking behaviour of hybrid fibre reinforced ternary blend geopolymer concrete. J. Struct. Eng. 2019, 46, 257–266. [Google Scholar]
- Sofi, M.; Van Deventer, J.S.J.; Mendis, P.A.; Lukey, G.C. Bond performance of reinforcing bars in inorganic polymer concrete (IPC). J. Mater. Sci. 2007, 42, 3107–3116. [Google Scholar] [CrossRef]
- Sumajouw, M.D.J.; Rangan, B.V. Low-Calcium Fly Ash-Based Geopolymer Concrete: Reinforced Beams and Columns; Curtin University of Technology: Perth, Australia, 2006. [Google Scholar]
- Kumaravel, S.; Thirugnanasambandam, S.; Jeyasehar, C.A. Flexural behaviour of geopolymer concrete beams with GGBS. IUP J. Struct. Eng. 2014, 7, 45–54. [Google Scholar]
- Yodsudjai, W. Application of fly ash-based geopolymer for structural member and repair materials. Adv. Sci. Technol. 2014, 92, 74–83. [Google Scholar] [CrossRef]
- Mathew, G.; Joseph, B. Flexural behaviour of geopolymer concrete beams exposed to elevated temperatures. J. Build. Eng. 2018, 15, 311–317. [Google Scholar] [CrossRef]
- Ahmed, H.Q.; Jaf, D.K.; Yaseen, S.A. Comparison of the Flexural Performance and Behaviour of Fly-Ash-Based Geopolymer Concrete Beams Reinforced with CFRP and GFRP Bars. Adv. Mater. Sci. Eng. 2020, 2020, 3495276. [Google Scholar] [CrossRef] [Green Version]
- Aldikheeli, M.R.; Shubber, M.S. The effects of fibre on the mechanical properties of aerated concrete. IOP Conf. Ser. Mater. Sci. Eng. 2020, 671, 012076. [Google Scholar] [CrossRef]
- Ali, B.; Raza, S.S.; Hussain, I.; Iqbal, M. Influence of different fibers on mechanical and durabilityperformance of concrete with silica fume. Struct. Concr. 2021, 22, 318–333. [Google Scholar] [CrossRef]
- Paul, S.C.; Van Zijl, G.P.A.G.; Savija, B. Effect of Fibers on Durability of Concrete: A Practical Review. Materials 2020, 13, 4562. [Google Scholar] [CrossRef]
- Naaman, A.E.; Reinhardt, H.W. Proposed classification of HPFRC composites based on their tensile response. Mater. Struct. 2006, 39, 547–555. [Google Scholar] [CrossRef]
- Yu, R.; Spiesz, P.; Brouwers, H.J.H. Static properties and impact resistance of a green Ultra-High Performance Hybrid Fibre Reinforced Concrete (UHPHFRC): Experiments and modeling. Constr. Build. Mater. 2014, 68, 158–171. [Google Scholar] [CrossRef] [Green Version]
- Qian, C.; Stroeven, P. Fracture properties of concrete reinforced with steel-polypropylene hybrid fibers. Cem. Concr. Compos. 2000, 22, 343–351. [Google Scholar] [CrossRef]
- Raza, A.; Khan, Z. Experimental and numerical behavior of hybrid-fiber-reinforced concrete compression members under concentric loading. SN Appl. Sci. 2020, 2, 701. [Google Scholar] [CrossRef] [Green Version]
- Das, S.; Rahman, H.; Tam, V.W.Y.; Sayed, A.; Akid, M.; Mohamed, N.; Rahman, F.M.M. Effects of incorporating hybrid fibres on rheological and mechanical properties of fibre reinforced concrete. Constr. Build. Mater. 2020, 262, 120561. [Google Scholar] [CrossRef]
- Sivakumar, A.; Santhanam, M. Mechanical properties of high strength concrete reinforced with metallic and non-metallic fibres. Cem. Concr. Compos. 2007, 29, 603–608. [Google Scholar] [CrossRef]
- Sebastin, S.; Kumar, S.M.R.; David, M.F. Effect of Metallic and Non-Metallic Fibre and Recycled Aggregate on High Strength Concrete. IOP Conf. Ser. Mater. Sci. Eng. 2020, 1006, 012036. [Google Scholar] [CrossRef]
- Najm, H.M.; Ahmad, S. The effect of metallic and non-metallic fiber on the mechanical properties of waste ceramic concrete. Innov. Infrastruct. Solut. 2021, 6, 204. [Google Scholar] [CrossRef]
- Ranjbar, N.; Talebian, S.; Mehrali, M.; Kuenzel, C.; Simon, H.; Metselaar, C.; Zamin, M. Mechanisms of interfacial bond in steel and polypropylene fiber reinforced geopolymer composites. Compos. Sci. Technol. 2016, 122, 73–81. [Google Scholar] [CrossRef]
- Yoo, D.; Kang, S.; Yoon, Y. Effect of fiber length and placement method on flexural behavior, tension-softening curve, and fiber distribution characteristics of UHPFRC. Constr. Build. Mater. 2014, 64, 67–81. [Google Scholar] [CrossRef]
- Yoo, D.; Shin, H.; Yang, J.; Yoon, Y. Material and bond properties of ultra high performance fiber reinforced concrete with micro steel fibers. Compos. Part B 2014, 58, 122–133. [Google Scholar] [CrossRef]
- De Maio, U.; Fantuzzi, N.; Greco, F.; Leonetti, L.; Pranno, A. Failure Analysis of Ultra High-Performance Fiber-Reinforced Concrete Structures Enhanced with Nanomaterials by Using a Di ff use Cohesive Interface Approach. Nanomaterials 2020, 10, 1792. [Google Scholar] [CrossRef] [PubMed]
- Narayanan, R.; Darwish, I.Y.S. Use of steel fibers as shear reinforcement. ACI Struct. J. 1987, 84, 216–227. [Google Scholar]
- Cucchiara, C.; Mendola, L.L.; Papia, M. effectiveness of stirrups and steel fibres as shear reinforcement. Cem. Concr. Compos. 2004, 26, 777–786. [Google Scholar] [CrossRef]
- Li, V.C.; Ward, R.; Hmaza, A.M. Steel and synthetic fibers as shear reinforcement. ACI Mater. J. 1992, 89, 499–508. [Google Scholar]
- Ashour, S.A.; Hasanain, G.S.; Wafa, F.F. shear behavior of high-strength fiber reinforced concrete beams. ACI Struct. J. 1992, 89, 176–184. [Google Scholar]
- Kwak, Y.K.; Eberhard, M.O.; Kim, W.S.; Kim, J. shear strength of steel fiber-reinforced concrete beams without stirrups. ACI Struct. J. 2002, 99, 530–538. [Google Scholar]
- Sharma, A.K. shear strength of steel fiber reinforced concrete beams. ACI J. 1986, 83, 624–628. [Google Scholar]
- Ambily, P.S.; Madheswaran, C.K.; Sharmila, S.; Muthiah, S. Experimental and analytical investigations on shear behaviour of reinforced geopolymer concrete beams. Int. J. Civ. Struct. Eng. 2011, 2, 682–697. [Google Scholar]
- Ganesan, N.; Indira, P.V.; Santhakumar, A. Effect of steel fibres on shear strength of geopolymer concrete beams. J. Struct. Eng. 2015, 41, 441–448. [Google Scholar]
- Pulvarized Fuel Ash-Specification; IS 3812:2003; Bureau of Indian Standards: New Delhi, India, 2003.
- Ground Granulated Blast Furnace Slag for Use with Portland Cement-Specification; BS 6699:1992; British Standards Institution London: London, UK, 1992.
- Ganesan, N.; Indira, P.V.; Sathish Kumar, V. Effect of Alkaline Activator to Binder Ratio on the Compressive Strength of Ternary Blend Geopolymer Concrete. ICI J. 2017, 17, 22–27. [Google Scholar]
- Specification for Coarse and Fine Aggregates from Natural Sources for Concrete; IS 383:1970 (Reaffirmed 2002); Bureau of Indian Standards: New Delhi, India, 2002.
- Rangan, B.V. Fly ash Based Geopolymer Concrete. In Proceedings of the International Workshop on Geopolymer Cement and Concrete, Mumbai, India, 7 December 2010; pp. 68–106. [Google Scholar]
- Sathish Kumar, V.; Ganesan, N.; Indira, P.V. Effect of Molarity of Sodium Hydroxide and Curing Method on the Compressive Strength of Ternary Blend Geopolymer Concrete. IOP Conf. Ser. Earth Environ. Sci. 2017, 80, 012011. [Google Scholar] [CrossRef] [Green Version]
- Tran, T.T.; Pham, T.M.; Hao, H. Effect of hybrid fibers on shear behaviour of geopolymer concrete beams reinforced by basalt fiber reinforced polymer (BFRP) bars without stirrups. Compos. Struct. 2020, 243, 112236. [Google Scholar] [CrossRef]
- Słowik, M. The analysis of failure in concrete and reinforced concrete beams with different reinforcement ratio. Arch. Appl. Mech. 2019, 89, 885–895. [Google Scholar] [CrossRef] [Green Version]
- Jhatial, A.A.; Sohu, S.; Bhatti, N.; Lakhiar, M.T.; Oad, R. Effect of steel fibres on the compressive and flexural strength of concrete. Int. J. Adv. Appl. Sci. 2018, 5, 16–21. [Google Scholar] [CrossRef]
- Yao, W.; Li, J.; Wu, K. Mechanical properties of hybrid fiber-reinforced concrete at low fiber volume fraction. Cem. Concr. Res. 2003, 33, 27–30. [Google Scholar] [CrossRef]
- Sivakumar, A. Influence of hybrid fibres on the post crack performance of high strength concrete: Part I experimental investigations. J. Civ. Eng. Constr. Technol. 2011, 2, 147–159. [Google Scholar]
- Lehmann, M.; Głodkowska, W. Shear Capacity and Behaviour of Bending Reinforced Concrete Beams Made of Steel Fibre-Reinforced Waste Sand Concrete. Materials 2021, 14, 2996. [Google Scholar] [CrossRef]
- Smarzewski, P. Hybrid Fibres as Shear Reinforcement in High-Performance Concrete Beams with and without Openings. Appl. Sci. 2018, 8, 2070. [Google Scholar] [CrossRef] [Green Version]
- Hameed, A.A.; Al-sherrawi, M.H. Influence of Steel Fiber on the Shear Strength of a Concrete Beam. Civ. Eng. J. 2018, 4, 1501–1509. [Google Scholar] [CrossRef] [Green Version]
- Dev, A.; Chellapandian, M.; Prakash, S.S. Effect of Macrosynthetic and Hybrid Fibers on Shear Behavior of Concrete Beams Reinforced with GFRP Bars. J. Bridg. Eng. 2020, 25, 04020031. [Google Scholar] [CrossRef]
- Majdzadeh, F.; Soleimani, S.M.; Banthia, N. Shear strength of reinforced concrete beams with a fiber concrete matrix. Can. J. Civ. Eng. 2006, 33, 726–734. [Google Scholar] [CrossRef]
- Swamy, R.N.; Al-Taan, S.A. Deformation and ultimate strength in flexure of reinforced concrete beams made with steel fibre concrete. ACI J. 1981, 78, 395–405. [Google Scholar]
Materials | Quantity, kg/m3 |
---|---|
Fly ash | 237.47 |
GGBS | 122.61 |
Metakaolin | 64.53 |
Coarse aggregate | 1293.60 |
Fine aggregate | 554.40 |
NaOH solution | 36.40 |
Na2SiO3 | 90.99 |
Superplasticizer | 6.37 |
Water | 84.92 |
Nominal Diameter of Bar, mm | Actual Diameter of Bar, Mm | Yield Strength, MPa | Ultimate Strength, MPa | Modulus of Elasticity, GPa |
---|---|---|---|---|
10 | 9.97 | 534 | 584 | 244 |
6 | 6.09 | 526 | 578 | 232 |
Specimen | Volume Fraction, % | Compressive Strength, MPa | Split Tensile Strength, MPa | Flexural Strength, MPa | First Crack Load, kN | Ultimate Load, kN | Deflection at Ultimate Load, mm | Ultimate Shear Strength, MPa | |
---|---|---|---|---|---|---|---|---|---|
Vs | Vp | ||||||||
TGPC | 0 | 0 | 57.23 | 4.72 | 5.62 | 14 | 39 | 3.82 | 2.60 |
HTGPC1 | 0.5 | 0.1 | 61.47 | 6.00 | 6.48 | 16 | 44 | 4.74 | 2.93 |
HTGPC2 | 0.15 | 61.77 | 6.12 | 6.52 | 18 | 46 | 4.86 | 3.07 | |
HTGPC3 | 0.2 | 61.21 | 6.25 | 6.54 | 19 | 47 | 5.04 | 3.13 | |
HTGPC4 | 0.25 | 62.23 | 6.37 | 6.58 | 18 | 45 | 4.56 | 3.00 | |
HTGPC5 | 1 | 0.1 | 66.93 | 6.27 | 7.76 | 25 | 52 | 6.82 | 3.47 |
HTGPC6 | 0.15 | 65.77 | 6.32 | 7.85 | 26 | 54 | 8.52 | 3.60 | |
HTGPC7 | 0.2 | 64.09 | 6.48 | 7.80 | 24 | 53 | 7.26 | 3.47 | |
HTGPC8 | 0.25 | 64.80 | 6.56 | 7.71 | 23 | 50 | 6.63 | 3.33 |
Specimen | Vu(exp), MPa | Vu(the), MPa | Vu(exp)/Vu(the) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ashour et al.-I | Ashour et al.-II | Kwak et al. | Li et al. | Narayanan and Darwish | Sharma | Ratio | Ratio | Ratio | Ratio | Ratio | Ratio | ||
i | ii | iii | iv | v | vi | vii | i/ii | i/iii | i/iv | i/v | i/vi | i/vii | |
TGPC | 2.60 | 1.62 | 1.23 | 1.76 | 2.86 | 1.38 | 2.17 | 1.60 | 2.12 | 1.47 | 0.91 | 1.89 | 1.20 |
HTGPC1 | 2.93 | 2.58 | 1.71 | 2.55 | 3.12 | 2.29 | 2.54 | 1.14 | 1.72 | 1.15 | 0.94 | 1.28 | 1.15 |
HTGPC2 | 3.07 | 2.76 | 1.80 | 2.69 | 3.15 | 2.45 | 2.59 | 1.11 | 1.71 | 1.14 | 0.97 | 1.25 | 1.18 |
HTGPC3 | 3.13 | 2.92 | 1.88 | 2.83 | 3.18 | 2.63 | 2.67 | 1.07 | 1.67 | 1.11 | 0.98 | 1.19 | 1.17 |
HTGPC4 | 3.00 | 3.10 | 1.97 | 3.04 | 3.30 | 2.86 | 2.86 | 0.97 | 1.52 | 0.99 | 0.91 | 1.05 | 1.05 |
HTGPC5 | 3.47 | 3.22 | 2.03 | 3.15 | 3.44 | 2.97 | 3.02 | 1.08 | 1.71 | 1.10 | 1.01 | 1.17 | 1.15 |
HTGPC6 | 3.60 | 3.37 | 2.11 | 3.28 | 3.45 | 3.12 | 3.05 | 1.07 | 1.71 | 1.10 | 1.04 | 1.15 | 1.18 |
HTGPC7 | 3.47 | 3.52 | 2.18 | 3.48 | 3.53 | 3.36 | 3.25 | 0.98 | 1.59 | 1.00 | 0.98 | 1.03 | 1.07 |
HTGPC8 | 3.33 | 3.70 | 2.27 | 3.62 | 3.57 | 3.52 | 3.30 | 0.90 | 1.47 | 0.92 | 0.93 | 0.95 | 1.01 |
Average | 1.10 | 1.69 | 1.11 | 0.96 | 1.22 | 1.13 | |||||||
Coefficient of variation (%) | 18.4 | 10.9 | 14.2 | 4.76 | 22.4 | 6.14 |
