Factors Influencing the Hydration, Dimensional Stability, and Strength Development of the OPC-CSA-Anhydrite Ternary System
Abstract
:1. Introduction
2. Materials and Methods

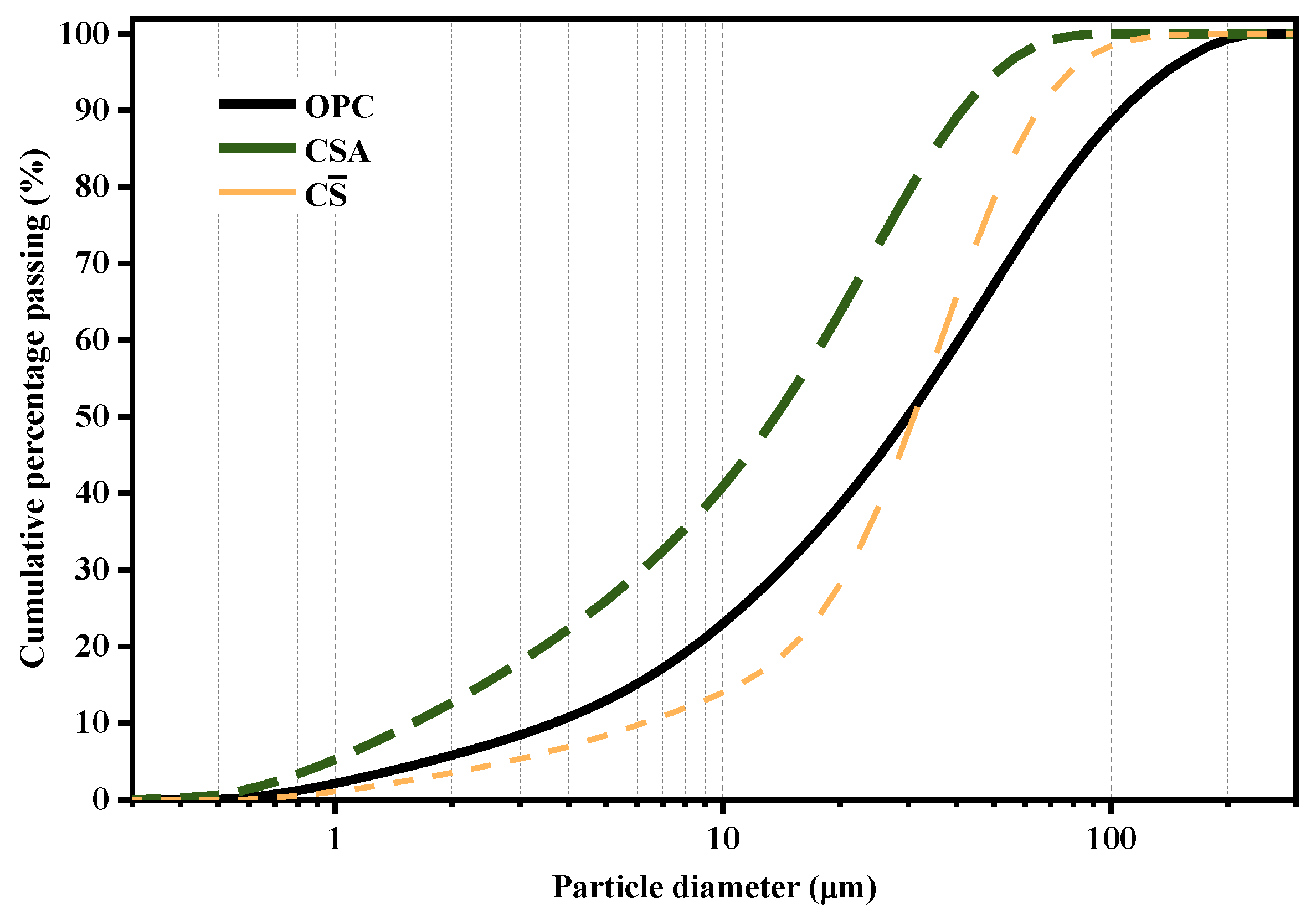

2.1. Materials
2.2. Specimen Preparation
2.3. Compressive Strength Test
2.4. Drying Shrinkage Test

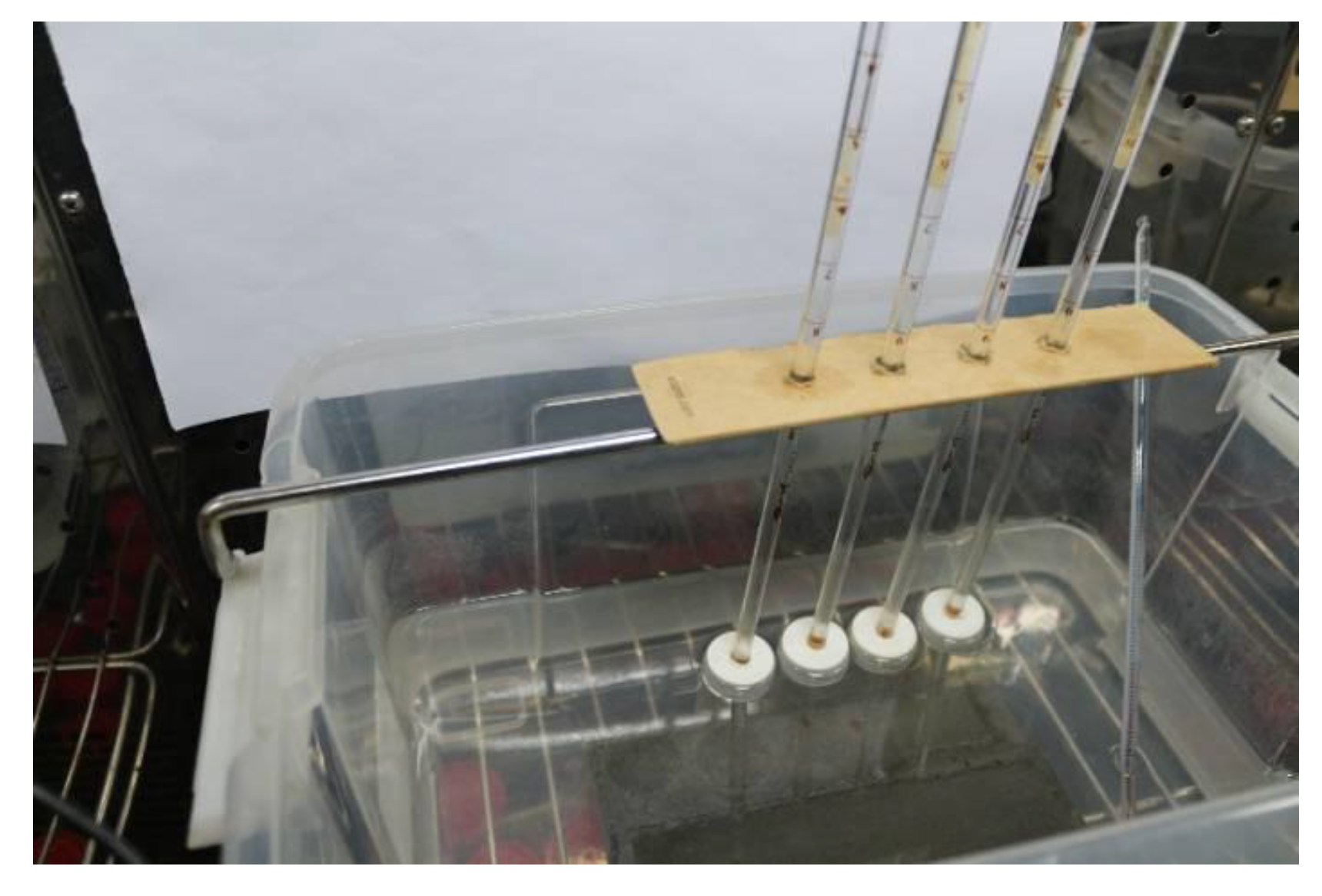

2.5. Chemical Shrinkage Test
2.6. Calorimetric Test
3. Results and Discussion

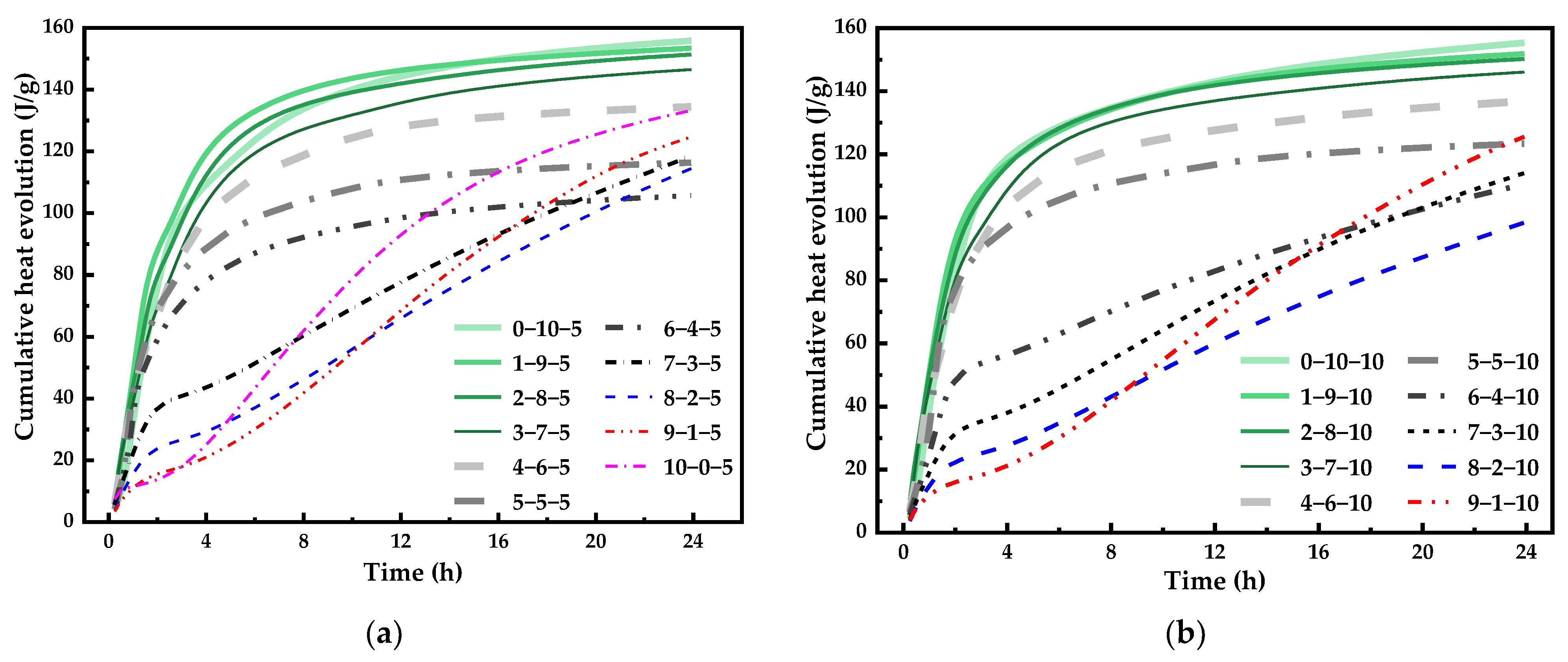

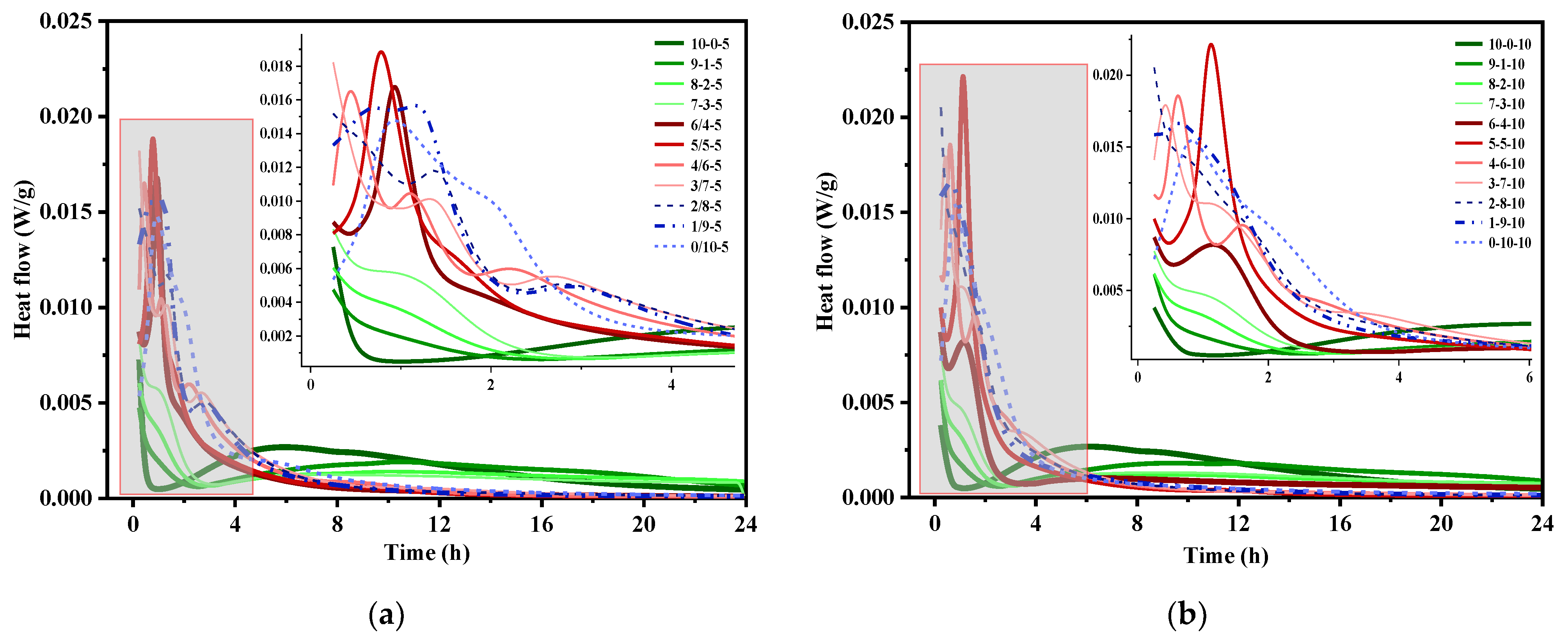

3.1. Hydration

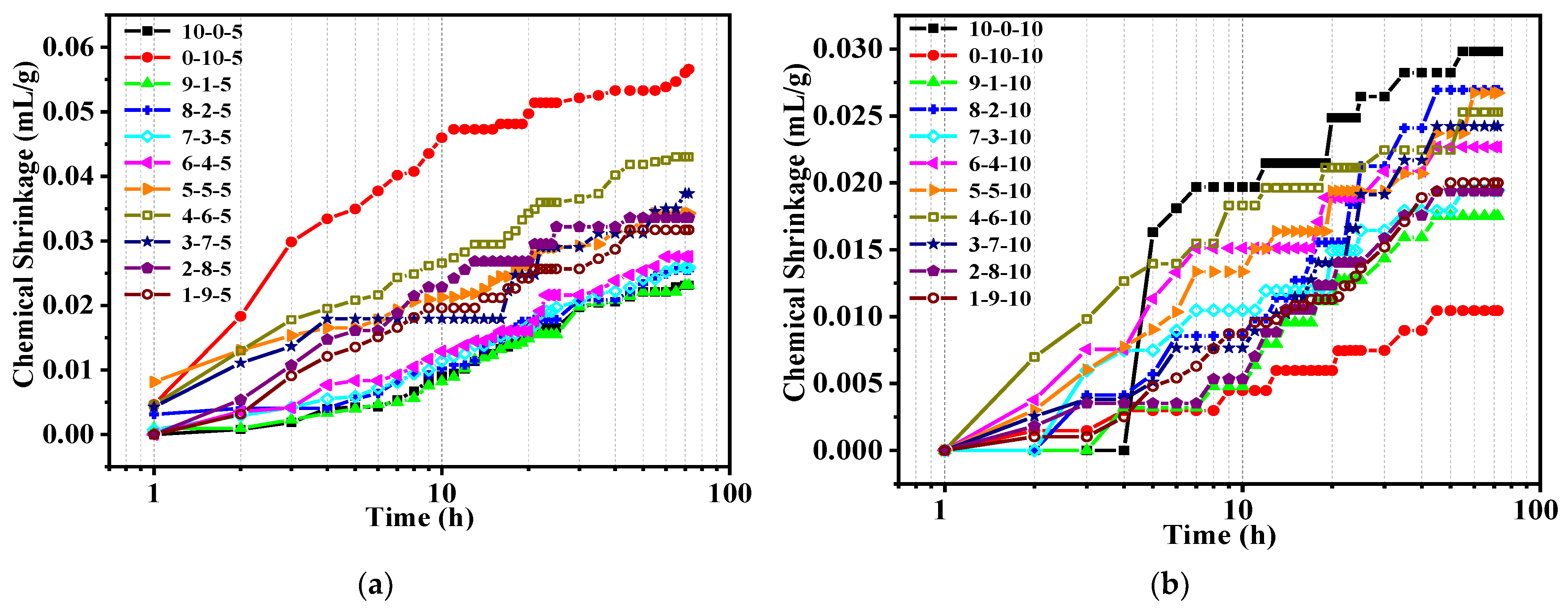

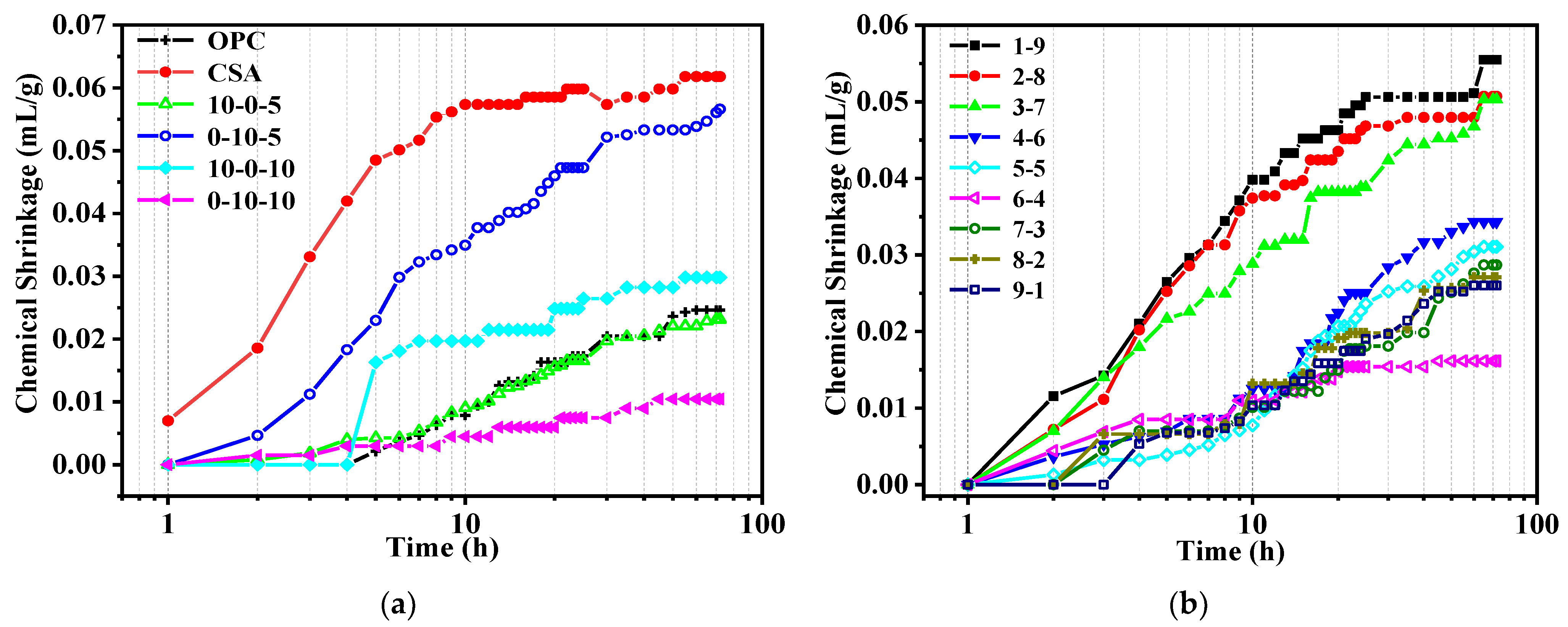

3.2. Chemical Shrinkage
3.2.1. OPC-CSA Binary Systems
3.2.2. OPC-CSA-CS Ternary Systems

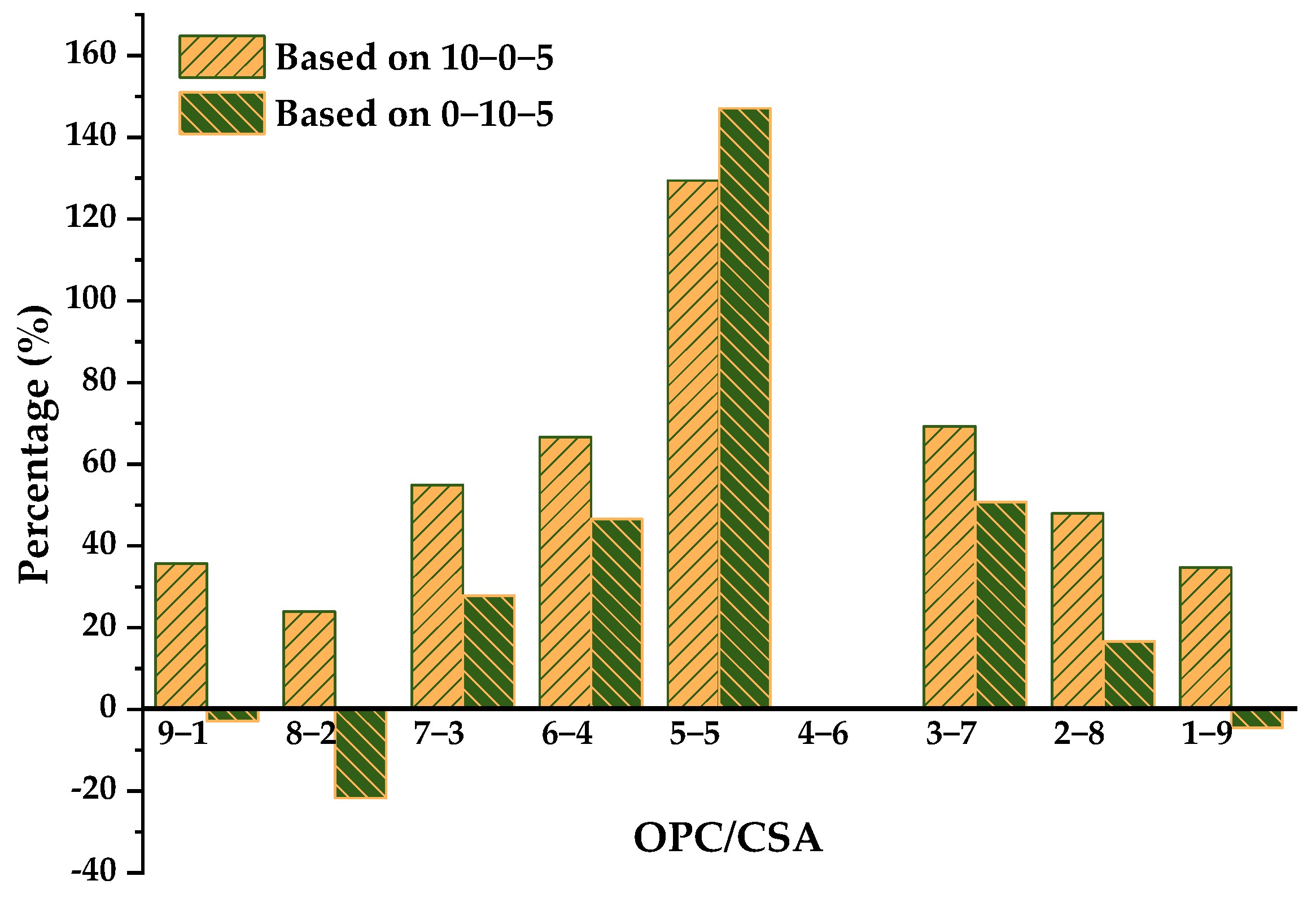

3.3. Drying Shrinkage

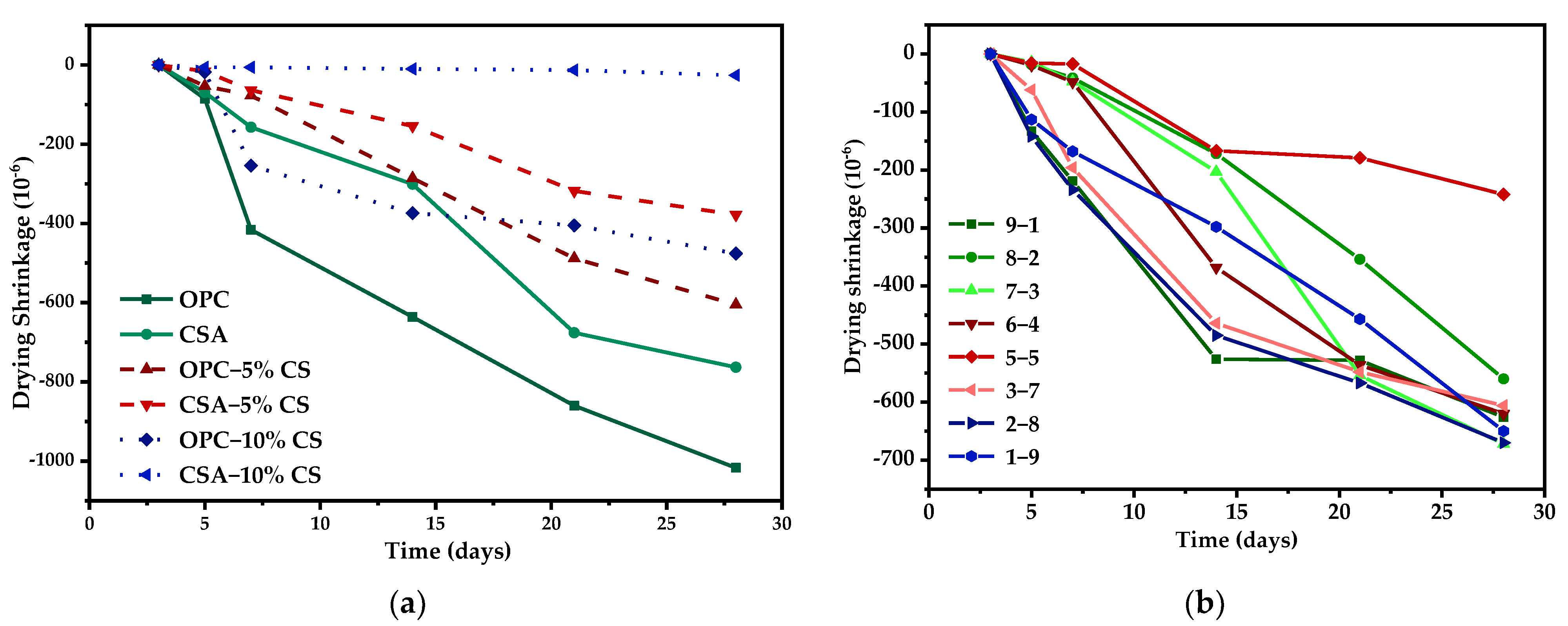

3.3.1. OPC-CSA Binary Systems

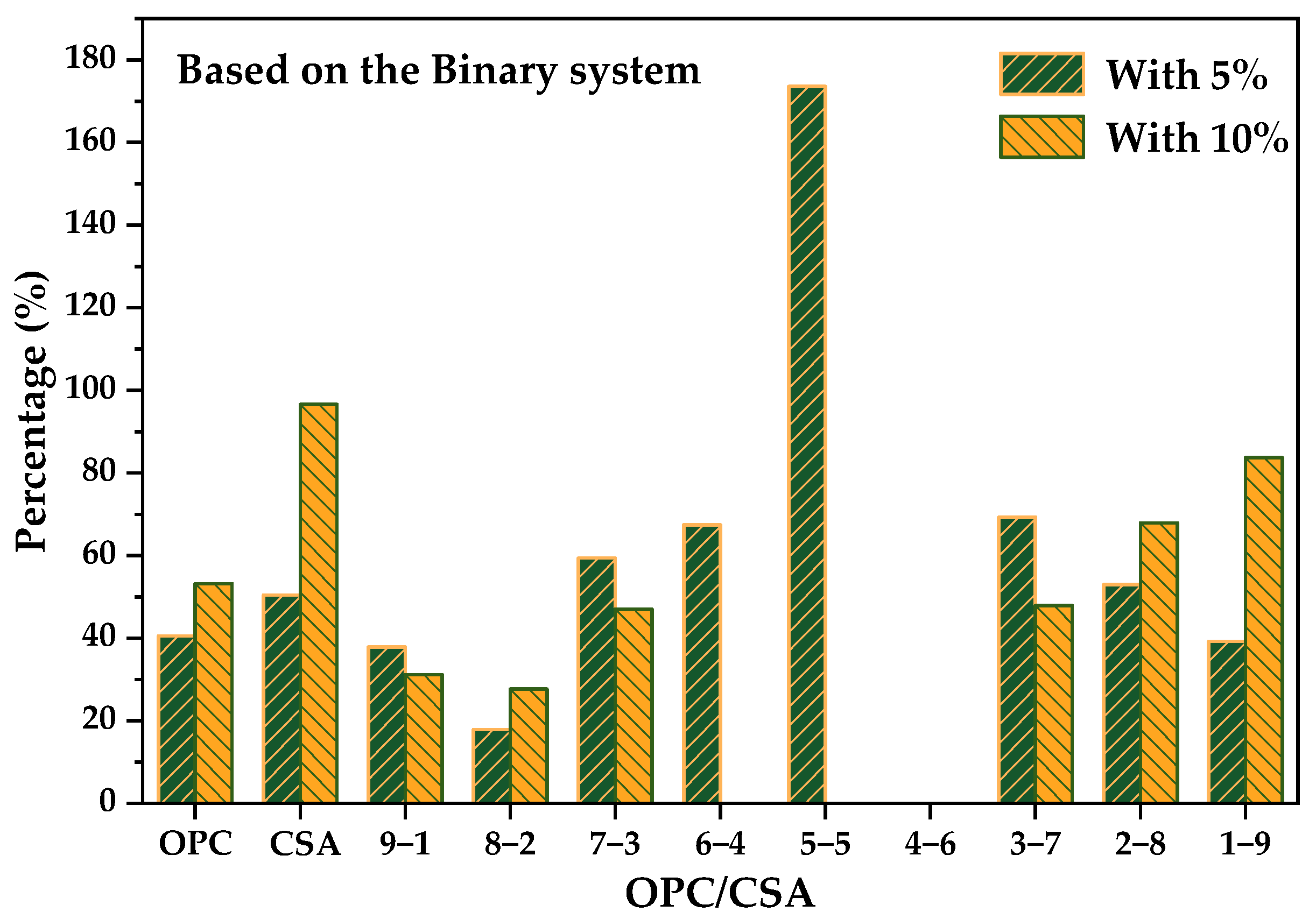

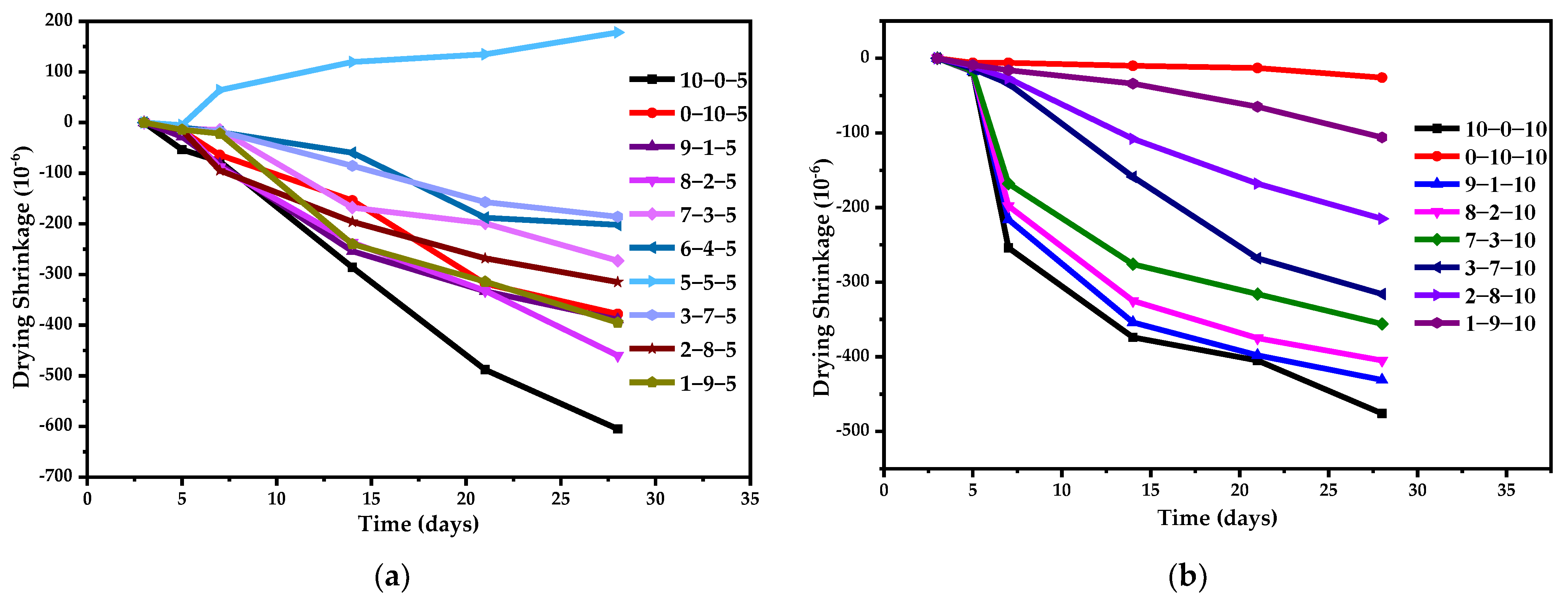

3.3.2. OPC-CSA-CS Ternary Systems

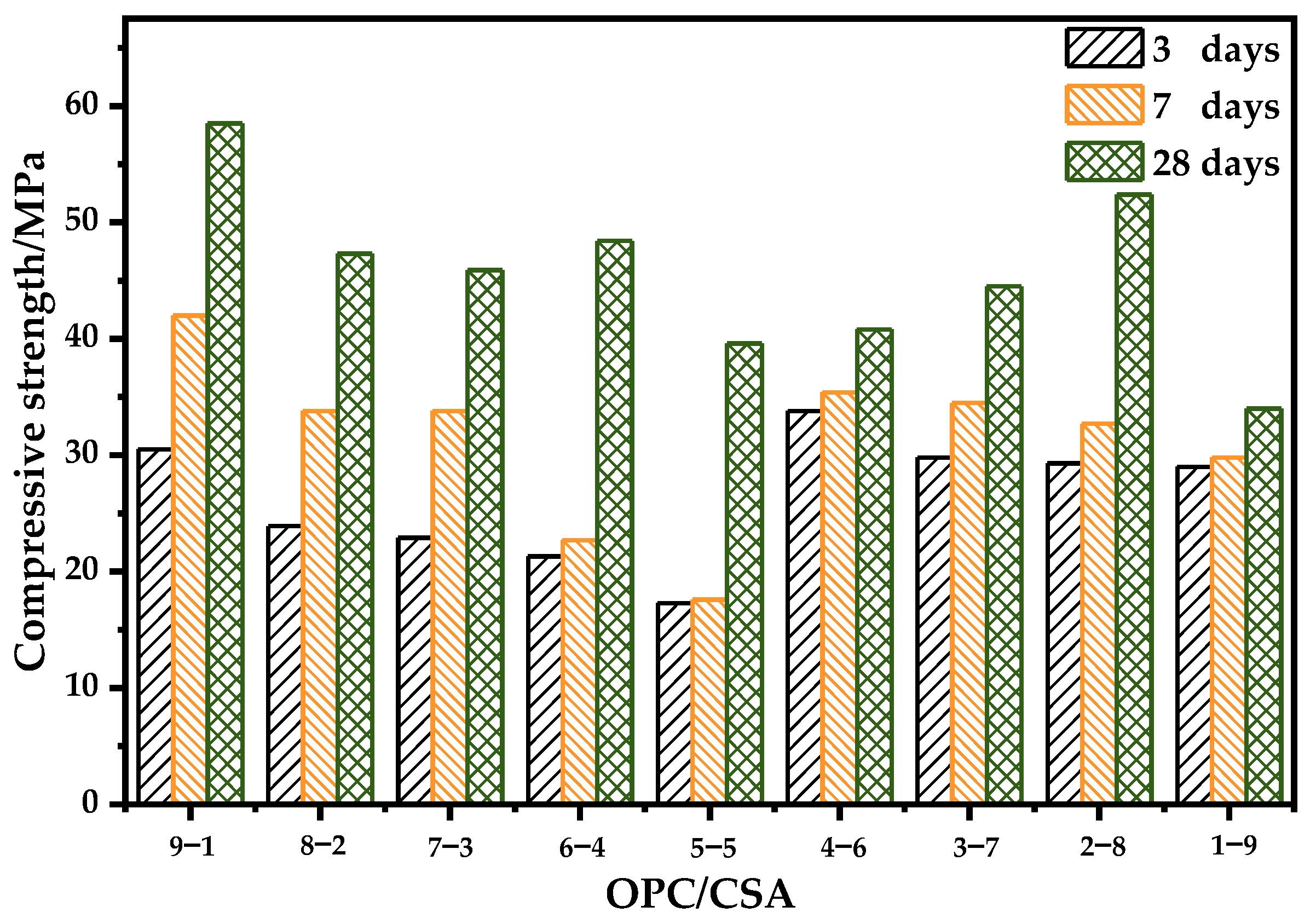

3.4. Compressive Strength
3.4.1. OPC-CSA Binary Systems

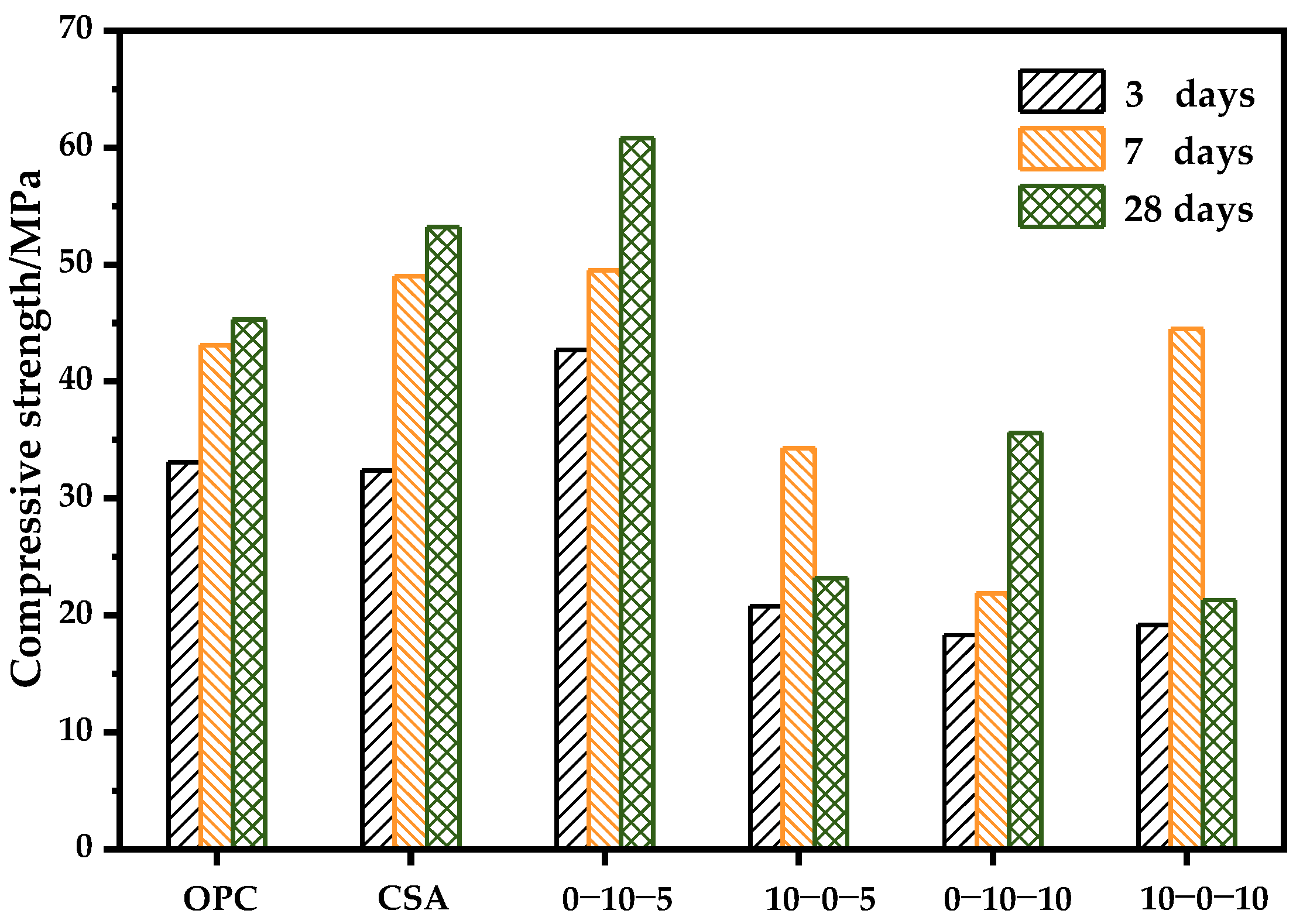

3.4.2. OPC-CSA-CS Ternary Systems
3.5. Reasonable Value Range for the Ternary System Obtained Good Performance
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Jiang, W.J. Discussion on technology of ground self-leveling mortar. China Bulk Cement Association of Popularization and Development Dry Mix Mortar Committee ed. In Dissertation Collection, Proceedings of the 2nd China International Dry Mortar Production and Application Techniques Seminar, Beijing, China, 1 March 2006; pp. 224–227.
- Huang, T.J.; Li, B.Y.; Yuan, Q.; Shi, Z.G.; Xie, Y.J.; Shi, C.J. Rheological behavior of Portland clinker-calcium sulphoaluminate clinker anhydrite ternary blend. Cem. Concr. Compos. 2019, 104, 103403. [Google Scholar] [CrossRef]
- Hou, Y.F.; Chang, Y.; Huang, T.Y. Effect of proportion of ternary cementitious materials on properties of self-leveling mortar. Bull. Chin. Ceram. Soc. 2020, 39, 1408–1414. [Google Scholar]
- Yang, G.; Zhu, S.H.; Wu, T.; Xu, W.X. Experimental study on physical properties of ternary cementitious repair materials. Sichuan Build. Mater. 2018, 44, 42–43. [Google Scholar]
- Huang, T.Y.; Zhang, Y.X.; Chen, X.F. Review of the mechanism research of cement-based self-leveling flooring compounds. Bull. Chin. Ceram. Soc. 2015, 34, 2864–2869. [Google Scholar]
- Mei, K.J.; Li, D.X. Preparation and properties of self-leveling floor mortar. J. Mater. Sci. Eng. 2010, 28, 890–895, 945. [Google Scholar]
- Khalil, N.; Aouad, G.; Cheikh, K.; Rémond, S. Use of calcium sulfoaluminate cements for setting control of 3D-printing mortars. Constr. Build. Mater. 2017, 157, 382–391. [Google Scholar] [CrossRef]
- Chen, L.; Huang, X.Q.; Wang, X.P. Production of road Portland cement using anhydrite instead of gypsum. J. Liaoning Tech. Univ. 2009, 28, 809–812. [Google Scholar]
- Minard, H.; Garrault, S.; Regnaud, L.; Nonat, A. Mechanisms and parameters controlling the tricalcium aluminate reactivity in the presence of gypsum. Cem. Concr. Res. 2007, 37, 1418–1426. [Google Scholar] [CrossRef]
- He, T.S.; Gao, Z.; Li, S.H.; Zhao, S.H.; Bao, X.C. Influence of gypsum dosage on performances of silicate mixed by slag. Bull. Chin. Ceram. Soc. 2012, 31, 521–525. [Google Scholar]
- Zajac, M.; Rossberg, A.; Saout, G.L.; Lothenbach, B. Influence of limestone and anhydrite on the hydration of Portland cements. Cem. Concr. Compos. 2014, 46, 99–108. [Google Scholar] [CrossRef]
- Zhang, C.Z.; Li, H.N.; Wang, A.Q.; Zhang, Y.M. Research on drying shrinkage of OPC-CAC-gypsum system. China Concr. Cem. Prod. 2011, 10, 13–17. [Google Scholar]
- Yu, F.; Huang, Y.B.; Cao, J.L.; Zhou, J.J.; Ren, W.W. Research progress of delayed ettringite formation. Bull. Chin. Ceram. Soc. 2014, 33, 1682–1688. [Google Scholar]
- Zhang, H.; Lin, Z.S.; Tong, D. Influence of the type of calcium sulfate on the strength and hydration of Portland cement under an initial steam-curing condition. Cem. Concr. Res. 1996, 26, 1505–1511. [Google Scholar] [CrossRef]
- Bullerjahn, F.; Skocek, J.; Haha, M.; Scrivener, K. Chemical shrinkage of ye’elimite with and without gypsum addition. Constr. Build. Mater. 2019, 200, 770–780. [Google Scholar] [CrossRef]
- Winnefeld, F.; Lothenbach, B. Phase equilibria in the system Ca4Al6O12SO4–Ca2SiO4–CaSO4–H2O referring to the hydration of calcium sulfoaluminate cements. RILEM Tech. Lett. 2016, 1, 10–16. [Google Scholar] [CrossRef]
- Péra, J.; Ambroise, J. New applications of calcium sulfoaluminate cement. Cem. Concr. Res. 2004, 34, 671–676. [Google Scholar] [CrossRef]
- Jia, H.X.; Lv, S.Z.; Hu, J.L.; Gao, Y.; Duan, X.Y. Influence of gypsum on performance of high belite-sulphoaluminate cement. J. Wuhan Univ. Technol. 2014, 36, 24–28. [Google Scholar]
- Song, F.; Yu, Z.; Yang, F.; Lu, Y.N.; Liu, Y.F. Microstructure of amorphous aluminum hydroxide in belite-calcium sulfoaluminate cement. Cem. Concr. Res. 2015, 71, 1–6. [Google Scholar] [CrossRef]
- Winnefeld, F.; Barlag, S. Influence of calcium sulfate and calcium hydroxide on the hydration of calcium sulfoaluminate clinker. ZKG Int. 2009, 62, 42–53. [Google Scholar] [CrossRef]
- Bertola, F.; Gastaldi, D.; Irico, S.; Paul, G.; Canonico, F. Influence of the amount of calcium sulfate on physical/mineralogical properties and carbonation resistance of CSA-based cements. Cem. Concr. Res. 2022, 151, 106634. [Google Scholar] [CrossRef]
- Majling, J.; Znášik, R.; Gabrišová, A.; Svetik, S. The influence of anhydrite reactivity upon hydration of calcium sulphoaluminate cement clinker. Thermochim. Acta 1985, 92, 349–352. [Google Scholar] [CrossRef]
- Péra, J.; Ambroise, J.; Holard, E.; Beauvent, G. Influence of the type of calcium sulfate on the properties of calcium sulfoaluminate cement. In Proceedings of the 11th International Congress on the Chemistry of Cements, Durban, South Africa, 11–16 May 2003; Volume 3, pp. 1129–1135. [Google Scholar]
- Xu, L.L.; Zhou, X.Y.; Li, N.; Wang, P.M. Impact of calcium sulfate on hydration features of calcium sulfoaluminate cement. J. Tongji Univ. 2017, 45, 887–890. [Google Scholar] [CrossRef]
- Telesca, A.; Marroccoli, M.; Pace, M.L.; Tomasulo, M.; Valenti, G.L.; Monteiro, P.J.M. A hydration study of various calcium sulfoaluminate cements. Cem. Concr. Compos. 2014, 53, 224–232. [Google Scholar] [CrossRef]
- Glasser, F.P.; Zhang, L. High-performance cement matrices based on calcium sulfoaluminate–belite compositions. Cem. Concr. Res. 2001, 31, 1881–1886. [Google Scholar] [CrossRef]
- Han, J.G.; Yan, P.Y.; Hou, W.H. Expansion Mechanism of C4A3$-CaSO4-CaO in Portland Cement Paste. J. Chin. Ceram. Soc. 2016, 44, 1543–1551. [Google Scholar]
- Li, B.L. The influence of amount of gypsum on performance of Portland-sulphoalminate composite cement system. China Build. Mater. Sci. Technol. 2009, 6, 9–73. [Google Scholar]
- Liu, Z.L. Study on the Cementitious Materials with Low Alkalinity for Environmentally Friendly Concrete. Ph.D. Thesis, Nanjing Hydraulic Research Institute, Nanjing, China, 2004. [Google Scholar]
- Xue, J.G.; Xu, W.X.; Ye, M.X. A study of the liquid phase separated from the pores of hardened cement paste. J. Chin. Ceram. Soc. 1983, 11, 276–289. [Google Scholar]
- Wolf, J.J.; Jansen, D.; Goetz-Neunhoeffer, F.; Neubauer, J. Application of thermodynamic modeling to predict the stable hydrate phase assemblages in ternary CSA-OPC-anhydrite systems and quantitative verification by QXRD. Cem. Concr. Res. 2020, 128, 105956. [Google Scholar] [CrossRef]
- Wolf, J.J.; Jansen, D.; Goetz-Neunhoeffer, F.; Neubauer, J. Impact of varying Li2CO3 additions on the hydration of ternary CSA-OPC-anhydrite mixes. Cem. Concr. Res. 2020, 131, 106015. [Google Scholar] [CrossRef]
- Winnefeld, F.; Lothenbach, B. Hydration of calcium sulfoaluminate cements-experimental findings and thermodynamic modelling. Cem. Concr. Res. 2010, 40, 1239–1247. [Google Scholar] [CrossRef]
- Jansen, D.; Spies, A.; Neubauer, J.; Ectors, D.; Goetz-Neunhoeffer, F. Studies on the early hydration of two modifications of ye’elimite with gypsum. Cem. Concr. Res. 2017, 91, 106–116. [Google Scholar] [CrossRef]
- Pelletier, L.; Winnefeld, F.; Lothenbach, B. The ternary system Portland cement-calcium sulphoaluminate clinker-anhydrite: Hydration mechanism and mortar properties. Cem. Concr. Compos. 2010, 32, 497–507. [Google Scholar] [CrossRef]
- Cui, S.P. Investigation on the silicate-sulphoaluminate compound system cement. Ph.D. Thesis, Beijing University of Technology, Beijing, China, 2005. [Google Scholar]
- Yu, H.; Wu, L.P.; Liu, W.V.; Pourrahimian, Y. Developing expansive shotcrete mixtures from calcium sulfoaluminate, Portland cement, and calcium sulfate. In Proceedings of the CIM 2017 Convention, Montreal, QC, Canada, 30 April–3 May 2017; pp. 1–13. [Google Scholar]
- Colonna, D.; Leone, M.; Aiello, M.A.; Tortellib, S.; Marchi, M. Short and long-term behaviour of R.C. beams made with CSA binder. Eng. Struct. 2019, 197, 109370. [Google Scholar] [CrossRef]
- Saoût, G.L.; Lothenbach, B.; Hori, A.; Higuchi, T.; Winnefeld, F. Hydration of Portland cement with additions of calcium sulfoaluminates. Cem. Concr. Res. 2013, 43, 81–94. [Google Scholar] [CrossRef]
- Trauchessec, R.; Mechling, J.M.; Lecomte, A.; Roux, A.; Rolland, B. Impact of anhydrite proportion in a calcium sulfoaluminate cement and Portland cement blend. Adv. Cem. Res. 2014, 26, 325–333. [Google Scholar] [CrossRef]
- Nehring, J.; Neubauer, J.; Berger, S.; Goetz-Neunhoeffer, F. Acceleration of OPC by CAC in binary and ternary systems: The role of pore solution chemistry. Cem. Concr. Res. 2018, 107, 264–274. [Google Scholar] [CrossRef]
- Gastaldi, D.; Canonico, F.; Capelli, L.; Bianchi, M. Hydraulic Behaviour of Calcium Sulfoaluminate Cement Alone and in Mixture with Portland Cement; Paper 412. In Proceedings of the 13th International Congress on the Chemistry of Cement, Madrid, Spain, 3–8 July 2011. [Google Scholar]
- Wei, D.B.; Ding, M.; Ren, G.B.; Wu, L.D.; Li, X.M.; Wang, Q.C. Study on hydration properties of composite cementitious material based on sulphoaluminate. Mater. Rep. 2018, 32, 492–497. [Google Scholar]
- Wan, Y.H.; Zhu, J.Y.; Zhang, C.; Qiao, Y.H.; Chen, L.Y.; Wang, S. Hydration synergy effect of silicate-sulphoaluminate compound cement. Sci. Technol. Eng. 2017, 17, 291–295. [Google Scholar]
- Damidot, D.; Rettel, A. Study of the intereaction between the hydration of CA and of C3S at room temperature. In Proceedings of the 11th International Congress on Calcium Aluminate Cements, Durban, South Africa, 11–16 May 2003. [Google Scholar]
- Nicoleau, L.; Schreiner, E.; Nonat, A. Ion-specific effects influencing the dissolution of tricalcium silicate. Cem. Concr. Res. 2014, 59, 118–138. [Google Scholar] [CrossRef]
- Park, S.; Jeong, Y.; Moon, J. Hydration characteristics of calcium sulfoaluminate (CSA) cement/portland cement blended pastes. J. Build. Eng. 2020, 34, 101880. [Google Scholar] [CrossRef]
- Li, P.R.; Gao, X.J.; Wang, K.J.; Tam, V.W.Y.; Li, W.G. Hydration mechanism and early frost resistance of calcium sulfoaluminate cement concrete. Constr. Build. Mater. 2020, 239, 117862. [Google Scholar] [CrossRef]
- Wang, H.Z.; Shao, F.J.; Cao, W.Z.; Qiao, H.X. Study on ordinary portland cement and low alkalinity sulphoaluminate cement composite system performance. Concrete 2018, 9, 89–92. [Google Scholar]
- Cui, S.P.; Zheng, Y.; Wang, Z.M.; Wang, Y.L. Shrinkage characteristics and microstructure of portland and calcium sulfoaluminate composite cement. J. B. Univ. Technol. 2018, 44, 602–610. [Google Scholar]
- Yang, L.; Yan, Y.; Hu, Z.H.; Zhou, K.; Li, Z.Y. Study on composite performance of Portland cement and sulfoaluminate cement. Cement 2012, 7, 7–10. [Google Scholar]
- Chen, J.; Li, B.X.; Lu, Y.Y. Experimental study on the properties of OPC- SAC mixed cement. J. Civ. Environ. Eng. 2007, 29, 121–124. [Google Scholar]
- Li, W.; Wang, G.M.; Jiang, Y.; Li, D.X. Research of physical properties and hydration mechanism of silicate-sulphoaluminate cement compound system. Mater. Rep. 2014, 28, 407–409, 442. [Google Scholar] [CrossRef] [Green Version]
- Yang, Q.; Zhang, X.Z.; Liu, D.; Zhang, X.; You, Z.Y. Hydration properties and mechanism of Portland cement-sulphoaluminate cement compound system. Mater. Rep. 2018, 32, 517–521, 534. [Google Scholar]
- Morin, V.; Termkhajornkit, P.; Huet, B.; Pham, G. Impact of quantity of anhydrite, water to binder ratio, fineness on kinetics and phase assemblage of belite-ye’elimite-ferrite cement. Cem. Concr. Res. 2017, 99, 8–17. [Google Scholar] [CrossRef]
- Sheng, G.H.; Chen, M.; Chen, L.; Fang, H.L. Effect of anhydrous gypsum on performance of Portland cement. Cem. Eng. 2004, 5, 8–11. [Google Scholar]
- Wolf, J.J.; Jansen, D.; Goetz-Neunhoeffer, F.; Neubauer, J. Relating phase transitions to pore size distributions and mechanical mortar properties in CSA-OPC-C$ based systems—The potential impact of delayed straetlingite formation. Cem. Concr. Res. 2021, 147, 106496. [Google Scholar] [CrossRef]
- Gu, P.; Beaudoin, J.J.; Quinn, E.G.; Myers, R.E. Early strength development and hydration of ordinary Portland cement/calcium aluminate cement pastes. Adv. Cem. Based Mater. 1997, 6, 53–58. [Google Scholar] [CrossRef]
- Gao, W.M. Study on Preparation and Properties of Sulphoaluminate Cement Mortar. Ph.D. Thesis, University of Jinan, Jinan, China, 2018. [Google Scholar]
- Banfill, P.F.G.; Xu, Y.M.; Domone, P.L.J. Relationship between the rheology of unvibrated fresh concrete and its flow under vibration in a vertical pipe apparatus. Mag. Concr. Res. 1999, 51, 181–190. [Google Scholar] [CrossRef]
- Assaad, J. Effect of viscosity-enhancing admixtures on formwork pressure and thixotropy of self-consolidating concrete. Aci Mater. J. 2006, 130, 280–287. [Google Scholar] [CrossRef]
Cement | SiO2 (%) | Al2O3 (%) | Fe2O3 (%) | CaO (%) | MgO (%) | SO3 (%) | Other Oxides | Loss (%) | Density (g/cm3) | Blaine (cm2/g) |
---|---|---|---|---|---|---|---|---|---|---|
OPC | 20.76 | 4.58 | 3.27 | 62.13 | 3.13 | 2.8 | 1.21 | 2.12 | 3.14 | 2845 |
CSA | 11.72 | 22.83 | 1.50 | 46.79 | 1.72 | 12.09 | 2.02 | 1.33 | 2.81 | 3770 |
CS | 3.03 | 0.59 | 0.29 | 39.53 | 0.68 | 54.62 | 0.69 | 0.57 | 2.97 | 3840 |
Specimens | CS (%) | OPC: CSA | w/b Ratio | Remarks |
---|---|---|---|---|
1-9-5 | 5 | 1:9 | 0.5 | The ratio of OPC:CSA and dosage of CS in other ternary composite systems follow similar rules to those of the examples. |
9-1-5 | 5 | 9:1 | 0.5 | |
2-8-10 | 10 | 2:8 | 0.5 | |
8-2-10 | 10 | 8:2 | 0.5 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Yang, Z.; Ye, H.; Yuan, Q.; Li, B.; Li, Y.; Zhou, D. Factors Influencing the Hydration, Dimensional Stability, and Strength Development of the OPC-CSA-Anhydrite Ternary System. Materials 2021, 14, 7001. https://doi.org/10.3390/ma14227001
Yang Z, Ye H, Yuan Q, Li B, Li Y, Zhou D. Factors Influencing the Hydration, Dimensional Stability, and Strength Development of the OPC-CSA-Anhydrite Ternary System. Materials. 2021; 14(22):7001. https://doi.org/10.3390/ma14227001
Chicago/Turabian StyleYang, Zhenzhen, Hansong Ye, Qiang Yuan, Baiyun Li, Yuelin Li, and Dajun Zhou. 2021. "Factors Influencing the Hydration, Dimensional Stability, and Strength Development of the OPC-CSA-Anhydrite Ternary System" Materials 14, no. 22: 7001. https://doi.org/10.3390/ma14227001
